USER MANUAL PAA 700TMB Glemm
• OTROS IDOMAS •
• OUTRAS LINGUAS •
Icon of an open book with a gear symbol, no text or symbols presentMANUALE Manual
When you open the package check that product is in good condition and that all the parts are present. Immediately notify the seller if any part is damaged or missing.
CE
Hereby, KARMA ITALIANA SRL declares that the radio equipment type amplifier with bluetooth PAA 700TMB is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.karmaitaliana.it
SPECIFICHE TECNICHE - TECHNICAL SPECIFICATIONS
| Potenza max / Max Power | 700W |
| Potenza RMS / RMS Power | 350W |
| Alimentazione / Power supply | 220 - 240V ~ 50/60Hz |
| Funzioni / Functions | USB, Bluetooth, FM |
| Controllo toni / Tone control | Bassi / Bass 100 Hz (± 10 dB);Alti / Treble 12 KHz (± 10 dB) |
| Impedenza in uscita / Low impedance | 4 - 16 Ohm |
| Tensione costante in uscita / Output voltage | 70V - 100V |
| Ingressi Line / Line inputs | 2 (tramite RCA/ via RCA) |
| Ingressi Mic / Mic inputs | 3 (6,3 jack mono) - sbilanciato/ unbalanced |
| Uscita Line / Line outputs | 1 (tramite RCA/ via RCA) |
| THD / THD | < 0,5% a 1 kHz, 1/3 potenza RMS |
| Rapporto segnale/rumore - S/N ratio | Line: 85dB, >72dB |
| Compatibilità files / Files compatibility | MP3, WAV |
| Bluetooth (versione) / Bluetooth (version) | 5.0 (2.4 GHz) |
| Risposta in frequenza / Frequency response | 60 Hz - 15 KHz (+/- 3dB) |
| Fusibile / Fuse | 5A |
| Batteria telecomando/ remote control battery | 2 x AAA 1,5V |
| Dimensioni / Dimensions | 89 x 483 x 366 mm |
| Peso / Weight | 6,9 Kg |
IT
EN
The manufacturer, in order to improve its products, reserves the right to modify their characteristics whether technical or aesthetic, at any time and without notice.
GRAZIE PER IL VOSTRO ACQUISTO
The product you have purchased is the result of careful planning by specialized engineers. High quality materials were used for its construction, to ensure its functioning over time.
The product is manufactured in compliance with the strict regulations imposed by the European Union, a guarantee of reliability and safety.
Please read this manual carefully before starting using the device in order to take advantage of its full potential.
Hoping that you will be satisfied of your purchase, we thank you again for your trust in our brand and we invite you to visit our website www.glemm.eu where you will find the whole range of our products, along with useful information and updates.
This amplifier has been designed for "P.A. system" applications. It can be used for example in offices, schools, churches, shops, shopping centers, restaurants, convention centers, auditoriums, etc.
It is endowed with protection systems preventing damages caused by short circuits, overheating and overloads and making it safe and reliable.
It can manage both low impedance and constant voltage connections. If used for 100V operation the power can be conveyed on a single channel or split into 6 zones.
The manual is referred to 3 models differing from each other only for their power.
CAUTIONS AND WARNINGS
- Read and follow strictly the instructions contained in this manual.
- Keep this manual for future reference and include it if you give the product to another user.
- This device works with dangerous 220 - 240V mains power. Do not open, do not disassemble and don't try to operate inside it. In case of wrong use an electric shock may occur.
- The product is conceived for professional use. Its installation must be carried out exclusively by specialized technicians, skilled in electric and audio systems. In case of wrong installation or connections, the manufacturer doesn't take any responsibility for damages to people or objects.
- Make sure that your power outlet voltage matches with the product's voltage. A wrong voltage would seriously damage the fixture.
- Class I fixture. To avoid the risk of dangerous electric shocks, before turning on the product always check that the system is connected to ground. Never cut internal or external ground wires. Never remove ground wiring from the protective ground terminal.
- Before making any connection with other devices, check that all the fixtures are disconnected from the power source and that all the volumes are set on minimum.
- The product is not suitable for outdoor use. To avoid the risk of shortcircuits don't expose it to high temperatures (above 40°), rain or humidity.
- Do not allow flammable liquid, water or metal objects to enter the product.
- Don't touch the product with wet hands..
- Do not place any recipients filled with liquids, such as vases, on top of or directly next to the appliance.
- Install the product in a stable and ventilated position, far from heat sources and don't obstruct the air vents.
- Use the fixture and its controls with due accuracy, avoiding falls, vibrations or impacts.
- If the product doesn't turn on, check the fuse and if necessary replace it with one of the same type and rating, after disconnecting the fixture from power.
- In the event of a serious operating problem, stop using the product immediately. Never try to repair it by yourself, but contact the authorized technical service center. Repairs carried out by unskilled persons could lead to serious damages both to the fixture and to people.
- Do not turn the product on and off at short intervals, it may reduce the life of the device.
- Disconnect the unit from power when it is not used.
- Never disconnect the product from the power source by pulling on the cord. Do not cut, kink, otherwise damage nor modify the power supply cord and periodically check that it is in good condition.
- Wait for the product to cool before cleaning or maintenance.
- To clean the product, use only a dry or slightly damp cloth, avoiding solvents or detergents of any kind.
- Keep away from children's reach.
• To prevent possible hearing damage, do not listen at high volume levels for long periods.
This symbol alerts you of the presence of important operating and maintenance instructions, in the manual or in the documentation accompanying the product
This symbol alerts you to the presence of uninsulated dangerous voltage within the product's enclosure that might be of sufficient magnitude to constitute a risk of electric shock. Do not open the product's case.
The CE mark indicates that this product complies with the applicable European directives and their related standards. Compliance documentation in complete form is available at the company Karma Italiana Srl
Directive 2012/19/UE regarding electric and electronic equipment waste (WEEE).
The symbol of the crossed-out dustbin indicates that the product at the end of its life must be collected separately from other waste. The user must, therefore, confer the fixture complete with all the essential components to an authorized disposal center for collection of electronic and electrical waste, or return it to the dealer when buying new equipment of equivalent type, at a rate of one to one, or one to zero if external dimension is less than 25cm. Appropriate separate collection to send the decommissioned equipment to recycling, treatment and environmentally compatible disposal helps to prevent negative impact on the environment and human health and promotes recycling of the materials making up the product. In Italy illegal dumping of the product by the user entails the application of administrative sanctions pursuant to Legislative Decree n. 49 (14/03/2014).
The remote control is powered by batteries subject to European Directive 2013/56/EU, which cannot be disposed of with normal domestic waste. Find out about the local regulations regarding the separate collection of batteries: a correct disposal allows to avoid negative consequences for environment and health.
WARRANTY CONDITIONS
The product is covered by warranty according to current national and European regulations.
For detailed warranty conditions and RMA requests please refer to our website:
www.karmaitaliana.it or www.glemm.eu.
- The warranty covers manufacturing defects and faults occurred in the first 2 years from the date of purchase. In case of purchase with invoice, the warranty is limited to 1 year.
- Damages caused by negligence or wrong use of the device are not covered by warranty.
- The warranty is no longer effective if the item is modified or disassembled by not authorized people.
- This warranty doesn't necessarily envisage the product's replacement.
- External components, batteries, knobs, switches and any removable or subject to wear and tear parts are excluded from warranty.
- Shipment for the return of faulty items is at expense and risk of the owner.
- For all intents and porpuses the warranty is effective only upon exhibition of the invoice or of the purchase receipt.
- If you send the product for repair, it must be shipped with complete original packaging: we therefore recommend to save it.
We also suggest to register your product on our website www.karmaitaliana.it, after signing in to access the reserved area. In this way you will have the possibility to keep track of the warranty validity and to receive updates on our items.
LOW IMPEDANCE SPEAKER CONNECTION
This type of connection does not allow to limit individually the power of each single speaker, but it gives the possibility to obtain higher performances. The main rule to be respected is that the total impedance of the speakers must be compatible with the impedances managed from the amplifier to which the speakers will be connected (generally 4, 8, 16Ω). If you use more than one speaker, the value of impedance will be added up or divided depending on the type of connection (in series or in parallel).
Below are three examples of connection.
If you are using just a few speakers it is easy to reach the impedance of 4,8,16 Ω requested by common amplifiers, but if you need to use more speakers it will be necessary to choose a mixed series/ parallel connection allowing to obtain the desired impedance.
CONSTANT VOLTAGE SPEAKER CONNECTION
It is the type of monophonic system realized in shops, conference rooms, churches and in any environment where a uniform sound diffusion in necessary, with maximum ease of installation and use. Only 2 wires are used, starting from the amplifier and getting up to the last speaker. On the amplifier you have to connect a wire to the "com"(common) terminal and the other wire to the terminal indicating 100V.
The two wires will go all around the installation, and they will be connected to the speakers or rather the transformers included in the speakers.
The speakers of this type, have usually a selector to
set the output power, from the minimum to the maximum value supported by the transformer.
As a matter of fact, it is possible to connect to the same 2 main wires, a number of speakers, also different from each other or with different power. The amplifier signal will reach the transformer present in each speaker and the transformer will provide the desired power.
When you operate on the amplifier volume, you will increase or lower proportionally the volume of all speakers. Important: the sum of the maximum power of the speakers must be equal to or less than the amplifier's maximum power.
CONNECTIONS

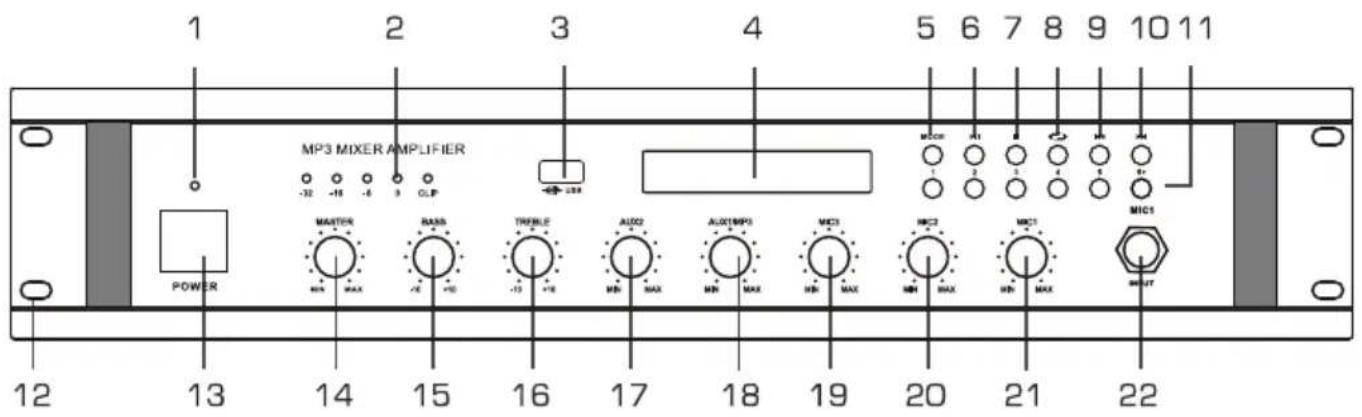

- Insert the FM antenna into the back socket (24)
- Connect to the sockets AUX1 (28) and AUX2 (29) external sources with line signals.
• Use the 6,3mm jack sockets (22-26-27) for the connection of unbalanced microphones. - If your speakers operate with low impedance, connect the negative pole (black wire) to the COM socket and the positive pole (red wire) to the socket 4-16Ω(23). Make sure that the speakers' total impedance is compatible with the impedance supported by the amplifier (4-16Ω). Refer to page 12.
- Se I vostri diffusori sono a tensione costante, collegate il polo negativo (filo nero) alla presa COM e il polo positivo (filo rosso) alla presa 70V oppure 100V (23). La somma delle potenze dei diffusori non deve superare la potenza dell'amplificatore. Refer to page 13.
- Connect the power cable to the socket (31) and then to an electrical outlet.
- Turn on the amplifier by means of the button (13): the led (1) will light up. If the amplifier doesn't turn on, check if the fuse in the compartment (31) is ok.
- The RCA sockets (30) are intended for the connection of further amplifiers or external recorders.
OPERATION
- The rotary knob (21) adjusts the volume of the microphone connected to the related socket (22). The front microphone socket features the priority function, to reduce automatically all the volumes when speaking. The sensitivity can be adjusted by means of the screw (25) on the back panel.
• The rotary knob (20) adjusts the volume of the microphone connected to the related socket (26).
• The rotary knob (19) adjusts the volume of the microphone connected to the related socket (27). - The control (18) adjusts the volume of the signal connected to AUX1 socket (28) or the volume of the MP3 module.
• The rotary knob (17) adjusts the volume of the signal connected to AUX2 socket (29). - The low frequencies on the overall output can be adjusted from the control BASS (15).
- The low frequencies on the overall output can be adjusted from the control TREBLE (16).
• The MASTER control (14) adjusts the volume of the overall output. - The level of the signal can be monitored thanks to the leds (2). Take care that the leds don't remain constantly on at the maximum level. If necessary reduce the volumes.
MULTIMEDIA MODULE
The amplifier includes a sophisticated multimedia module which can play Mp3 tracks from USB memory sticks and from other devices via bluetooth and also play FM radio stations.
- Insert a USB stick containing MP3 tracks into the socket (3).
• The display (4) shows main information on the current function and track. - Thanks to the MODE (5) button it is possible to select the desired function (USB, BT, RADIO)
• Use the PLAY (6) button to pause or start a track playback.
• The STOP (7) button stops playback. Press PLAY (6) to restart.
• Use the REPEAT (8) button to repeat the playback of a track or of all the tracks. - The PREV and NEXT (9-10) buttons allow to select a track or a radio station.
• The buttons (11) allow to select one of the saved radio stations.
BLUETOOTH
The multimedia module includes a bluetooth receiver to play audio from a smartphone, a tablet or a Bluetooth transmitter. Once the function is correctly selected by means of the MODE (5) button, open the bluetooth menu of your smartphone and search for the amplifier among the available devices. The amplifier is named "GLEMM". Once paired, all the smartphone's audio will be processed by the amplifier.
Note: No password is required for pairing.
REMOTE CONTROL
The included remote control allows to manage from a distance the main functions that can be adjusted also from the amplifier's panel. Some other functions can be activated only from the remote control, such as:
EQ: button used to set 6 types of equalization for audio played from USB sticks.
MUTE: It disables the audio of Mp3 module until it is pressed again.
GLEMM
Brand : Glemm
Model : PAA 700TMB
Category : Receiver
