CRCA100 - Battery charger Alogic - Free user manual and instructions

Product Type	Battery Charger
Brand	Alogic
Model	CRCA100
Dimensions (approx)	12 x 8 x 4 cm
Weight (approx)	200 g
Input Voltage	100-240V AC, 50/60Hz
Output Voltage	1.2V - 12V DC
Charging Current	500 mA - 2000 mA (depending on battery type)
Supported Battery Types	NiMH, NiCd, Li-ion, Li-Po
Number of Charging Slots	4 independent slots
Display	LED indicators per slot
Protection Features	Overcharge, short circuit, reverse polarity protection
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
Charging Modes	CC/CV (constant current/constant voltage)
Auto Detection	Yes, auto detects battery type
Maintenance	Clean with dry cloth; keep away from moisture
Safety Certification	CE, RoHS
Included Accessories	Power adapter, user manual
Spare Parts Availability	Power adapter available from manufacturer

Frequently Asked Questions - CRCA100 Alogic

What types of batteries can I charge with the Alogic CRCA100?

The CRCA100 supports NiMH, NiCd, Li-ion, and Li-Po batteries of various sizes, including AA, AAA, and 18650 cells.

How many batteries can I charge at once?

The charger has four independent slots, allowing you to charge up to four batteries simultaneously.

How long does it take to charge a battery?

Charging time depends on battery capacity and charging current. For a typical 2000mAh AA NiMH battery, it takes about 2-4 hours.

Does the charger have overcharge protection?

Yes, it features automatic shutoff when batteries are fully charged, preventing overcharging.

Can I charge different battery types at the same time?

The charger auto-detects battery type per slot, so you can mix NiMH and Li-ion batteries in different slots.

What should I do if the LED indicator is flashing red?

A flashing red LED typically indicates a faulty battery or reverse polarity. Remove the battery and check polarity.

Is the charger safe to leave unattended?

Yes, the charger includes multiple safety features like overcharge, short circuit, and reverse polarity protection. However, it's recommended to use it in a ventilated area.

Can I charge non-rechargeable batteries?

No, only rechargeable battery types are supported. Attempting to charge non-rechargeable batteries may cause damage or fire.

How do I clean the charger?

Unplug the charger and wipe the exterior with a dry cloth. Do not use liquids or abrasive cleaners.

Where can I find the user manual?

The user manual is available for free download on the Alogic support website or at notice-facile.com.

USER MANUAL CRCA100 Alogic

100W Rapid Power Car Charger

USB-C + USB-A Output

Power Delivery

FastCharging

Compact & Portable

Charges Laptop/Tablets / Phones

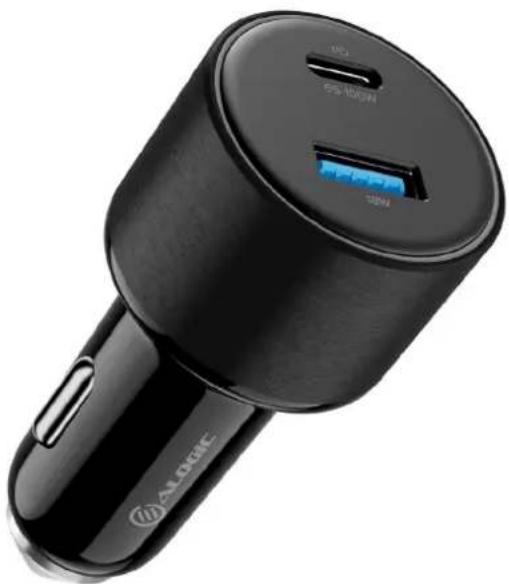

Black automotive car charger with a blue LED display and 'ALOGEC' branding (no text or symbols on the device body)

Part no Colour

CRCA100 Black

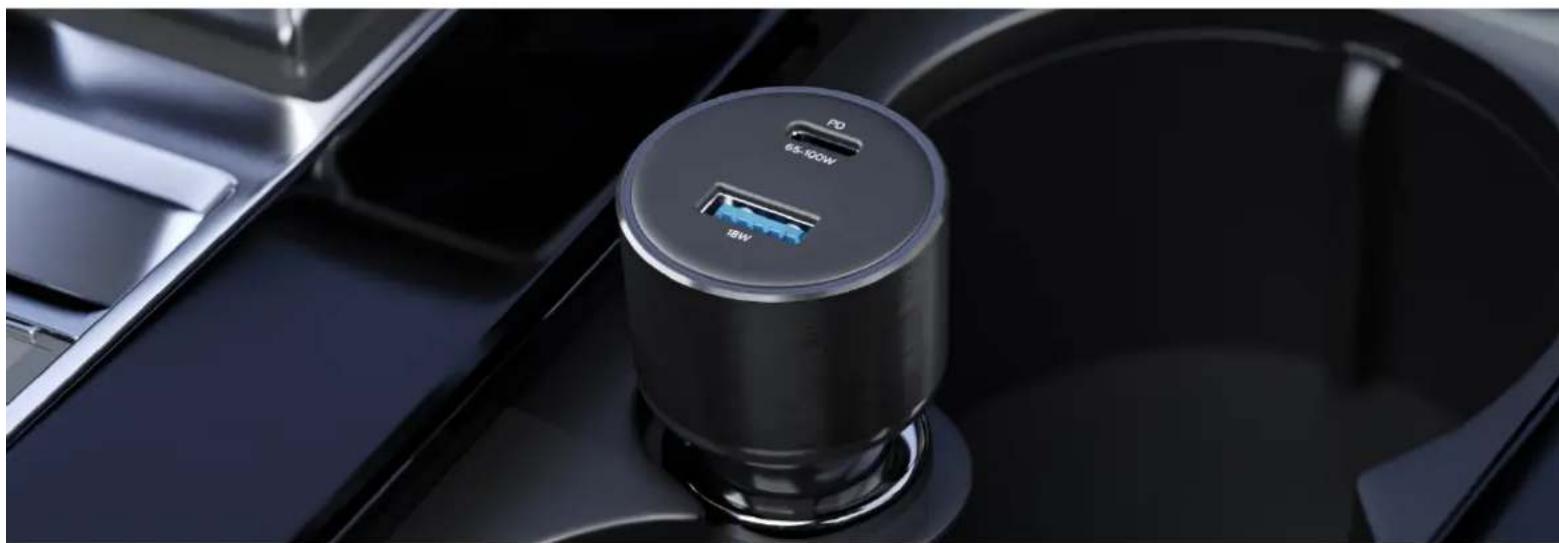

Close-up of a black cylindrical device with '18W' label and '65-100W' indicator, placed on a dark stovetop (no readable text beyond branding)

100W Fast Charging

The ALOGIC Rapid Power Car Charger transforms your car into a fast-charging hub, with plenty of juice to keep your laptop, iPhone, iPad, smartwatch and wireless earbuds fully charged.

The charger takes advantage of USB-C PD's robust safety features, automatically selecting the ideal safe voltage to keep your device safe, while maximising charging speeds.

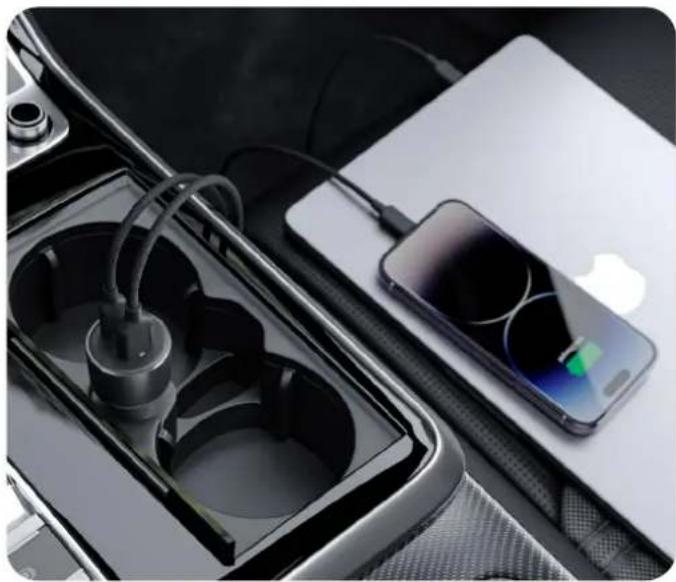

Close-up of a car charging case with two charging units and a smartphone displaying a colorful battery (no visible text or symbols)

Close-up of a car seatbelt with a black USB flash unit and a white strap, no visible text or symbols.

Perfect for travelCharge Two Devices Simultar

With USB-C and USB-A ports capable of delivering more than 80W fast charging simultaneously, the Rapid Power Car Charger makes it easy to keep your laptop, phone, tablet, earbuds and other devices charged on the road.

Less than 4cm long, this minimalist Space Grey car-charger isn't just a great accent piece for your dashboard, it's so small and light you'll forget it's in your pocket, making it the perfect companion for a road trip, holiday or business trip where you can't rely on your rental car.

Connectors

Input DC12-24V

Output Single Output:

USB-C: PD3.0 - 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A, PPS:3.3-21V 5A (MAX:100W)

USB-A: QC3.0 - 3.6V-6.5V/3A, 6.5V-9V/2A, 9V-12V/1.5A (MAX:18W)

USB-C + USB-A Dual Output :65W+18W

Device Compatibility

Suitable for use with devices that support USB-C charging requiring up to 100W (USB-C Port) of power, including:

- Apple iPhone

- Apple iPad and iPad Pro

- Most mobile phones and tablets

* Requires suitable charging cable to connect the charger to the device –available separately

Package Includes Warranty

Rapid Power 100W Car Charger

User Manual

- Apple MacBook & MacBook Pro

- Ultraportable notebooks and Chromebooks that can operate from 100W power supplies*

2 Year
