UL2QC10CA - Battery charger Alogic - Free user manual and instructions

Type de produit	Battery Charger (Wall Charger)
Modèle	UL2QC10CA
Marque	Alogic
Alimentation	Input 100-240V AC, 50/60Hz, 0.5A
Sortie (par port)	5V/3A, 9V/2A, 12V/1.5A (Quick Charge 3.0)
Nombre de ports USB	2 ports USB-A
Technologie de charge rapide	Qualcomm Quick Charge 3.0
Dimensions (approx.)	60 x 40 x 30 mm (2.36 x 1.57 x 1.18 in)
Poids (approx.)	60 g (2.12 oz)
Matériau	PC/ABS flame retardant
Protection	Overcurrent, overvoltage, short circuit, overheat
Compatibilité	Smartphones, tablets, and USB devices with QC or standard
Entretien	Clean with dry cloth, avoid liquids
Nettoyage	Unplug before cleaning
Sécurité	Use certified cables, do not expose to moisture
Pièces détachées	Not available separately
Réparabilité	Non-user serviceable; replace unit if faulty
Certifications	CE, FCC, RoHS
Garantie	Standard manufacturer warranty
Contenu de l'emballage	Charger only (no cable)

Frequently Asked Questions - UL2QC10CA Alogic

What is the maximum charging speed of the Alogic UL2QC10CA?

Supports Qualcomm Quick Charge 3.0, providing up to 18W per port (9V/2A or 12V/1.5A).

Can I use this charger with non-Quick Charge devices?

Yes, it is backwards compatible with standard USB devices, delivering up to 5V/3A.

Is the Alogic UL2QC10CA safe to use with my smartphone?

Yes, it has multiple protections including overcurrent, overvoltage, short circuit, and overheat protection.

What are the dimensions and weight of this charger?

Approximately 60 x 40 x 30 mm and weighs about 60g.

Does it support simultaneous charging of two devices?

Yes, it has two USB-A ports, each capable of Quick Charge 3.0 independently.

What is the input voltage range?

Input 100-240V AC, 50/60Hz, suitable for worldwide use.

How should I clean the charger?

Unplug it and wipe with a dry cloth; do not use liquids.

Is this charger compatible with the latest iPhone or Samsung?

It can charge iPhones and Samsung devices either at standard speed or faster if they support Quick Charge (for compatible Android models).

Does the charger come with a cable?

No, it does not include a cable; you need to use your own USB cable.

What certifications does this charger have?

It is CE, FCC, and RoHS certified.

USER MANUAL UL2QC10CA Alogic

Operation Instructions

To commence charging, plug the included power adapter to a power wall socket and proceed to connect the other end to the Power Hub, located on the back. Two white LED lights will appear to indicate that the device is on.

For Wireless Charging:

1. LED lights will turn solid white to indicate that the device is in standby mode and is ready to be used
2. To activate wireless charging, simply place your Qi-enabled devices on the top of the Power Hub. Make sure that the centre of your device is aligned with one of the Qi logos on top of the charger.
3. The LED lights will appear to breath slowly to indicate that a successful connection has been established and wireless charging has commenced.
4. In the event that a foreign object is detected (FOD) or if your device is emitting high temperatures the LED indicator will flash red.

For Wired Charging:

1. To charge a device via the USB-A port, connect the USB-A end of your existing compatible cable to the Power Hub's USB-A port and the other end to your device, charging should commence immediately.
2. To charge a device via the USB-C port, connect the USB-C end of your existing compatible cable to the Power Hub's USB-C port and the other end to your device, charging should commence immediately.

Welcome to ALOGIC

The Wireless Power Hub Multi-Device Wireless & USB Charging Station acts as a central charging solution for any shared or personal environment. The Wireless Power Hub features wireless charging for two Qi-enabled devices such as your smartphone or wireless earphones, along with two more devices via the USB-C and USB-A ports. The Wireless Power Hub's sleek design compliments and integrates into any work or home environment.

Specifications

Model UL2QC10CA-SGR

Input DC Input 100-240V \~ 5/60Hz, 1.5A

Output 1 x USB-A (7.5W), 1 x USB-C (18W PD), 2 x 10W Wireless charging

USB-C Port Up to 18W Power Delivery

USB-A Port Up to 7.5W

Wireless Charging Pad 10W/7.5W/5W

Features

• Declutter your space by charging up to four devices with a single cable input
• Wireless charging supports up to 10W and is also optimised with 7.5W for iPhones for the most optimum charging speeds
• USB-C port with up to 18W (Power Delivery) output to fast charge your latest USB-C enabled devices
  • USB-A port with up to 7.5W output to charge any mobile device
• Qi-enabled accessories such as wireless earphones can also be charged wirelessly via the charging pad.
  • Crafted from aluminium and fabric to create an elegant look while maintaining durability
  • LED charging Indicators for an at glance status
  • Foreign object detection (FOD) indicators

Package Contents

1 x Wireless Power Hub Multi-Device Wireless & USB Charging Station

1 x Power Adapter

1x AU/EU/UK/US Plug Set

1 x User Manual

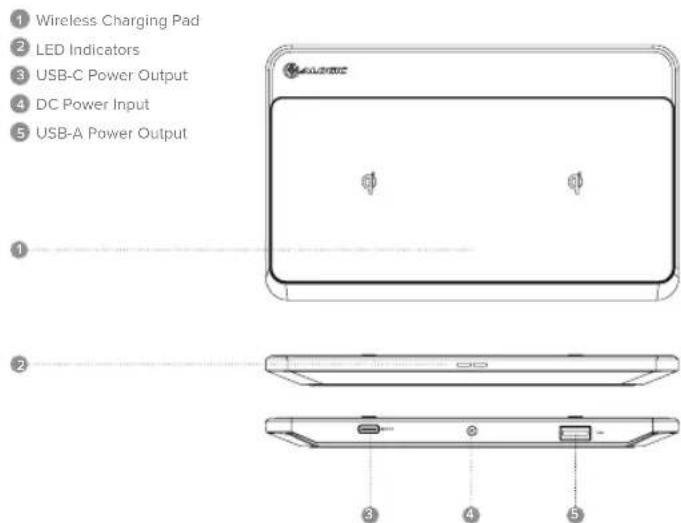

1 Wireless Charging Pad 2 LED Indicators 3 USB-C Power Output 4 DC Power Input 5 USB-A Power Output 1 2 3 4 5

FCC Warning

This device complies with part 18 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Note

Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment
