Product Type	Entry Door Lock
Series	9630
Finish	Oil-Rubbed Bronze (ORB)
Backset	2-3/8" or 2-3/4" adjustable
Door Thickness	1-3/8" to 1-3/4"
Bore Hole Diameter	2-1/8"
Cross Bore Diameter	1"
Handing	Non-handed (reversible)
Key Type	Schlage C keyway
Keys Included	2
Security Grade	ANSI Grade 2
Material	Solid brass and steel
Weight	2.5 lbs
Exterior Dimensions	4.25" x 2.75" x 2.5"
Interior Dimensions	4.25" x 2.75" x 2.5"
Installation	Easy DIY with standard tools
Compliance	ADA compliant lever

Frequently Asked Questions - 9630ORB Weslock

How do I determine the correct handing for my door?

This lock is non-handed and can be reversed for left or right swing doors without additional parts.

What is the backset measurement and how do I adjust it?

The backset is adjustable between 2-3/8" and 2-3/4". Loosen the set screw on the latch and slide it to the desired position.

Can I rekey this lock myself?

Yes, the lock uses a Schlage C keyway. You can rekey it using a standard rekeying kit or call a locksmith.

What door thickness does this lock fit?

It fits standard doors with thickness 1-3/8" to 1-3/4". For non-standard thickness, spacers may be required.

Is the lock weather-resistant for exterior use?

Yes, the oil-rubbed bronze finish provides corrosion resistance, but it is recommended for covered exterior applications.

How do I install the lock?

Follow the included manual: bore a 2-1/8" hole and 1" cross bore, insert latch, attach exterior and interior assemblies, and secure with screws.

Does the lock come with a deadbolt?

No, the 9630ORB is a keyed entry knob and does not include a deadbolt. For multi-point security, pair with a deadbolt.

What tools are needed for installation?

You will need a Phillips screwdriver, a drill with a 2-1/8" hole saw, and a 1" spade bit for the cross bore.

Can I use this lock on a metal door?

Yes, it works on wood, metal, and fiberglass doors with standard preparation.

How do I clean and maintain the finish?

Clean with a soft damp cloth and mild soap. Avoid abrasive cleaners that may damage the oil-rubbed bronze coating.

USER MANUAL 9630ORB Weslock

Center to center 17 9/16" or 23 5/8"

Instructions:

① Identify and mark center to center measurement for mounting plates and posts. Install both mounting plates and posts to wall with two wall anchors and screws.
② Slide decorative plates over mounting posts.
③ Slide one decorative post over mounting post.
④ Secure decorative post by tightening with Allen wrench.
⑤ Place plastic insert into decorative post
⑥ Slide towel bar into installed decorative post.
⑦ Place plastic insert into decorative post,
⑧ Slide uninstalled decorative post onto other end of towel bar.
⑨ Slide uninstalled decorative post over mounting post.
⑩ Secure decorative post by tightening with Allen wrench.

WESLOCK.

© 2011

Tulsa. Oklahoma

Double 24" Towel Bar

Center to center 23 3/4"

Instructions:

① Identify and mark center to center measurement for mounting plates and posts. Install both mounting plates and posts to wall with two wall anchors and screws.
② Slide decorative plates over mounting posts.
③ Slide one decorative post over mounting post.
④ Secure decorative post by tightening with Allen wrench.
⑤ Place plastic insert into decorative post
⑥ Slide towel bars into installed decorative posts.
⑦ Place plastic insert into decorative posts,
⑧ Slide uninstalled decorative posts onto other end of towel bars.
⑨ Slide uninstalled decorative post over mounting post.
⑩ Secure decorative post by tightening with Allen wrench.

WESLOCK.

© 2011

Tulsa. Oklahoma

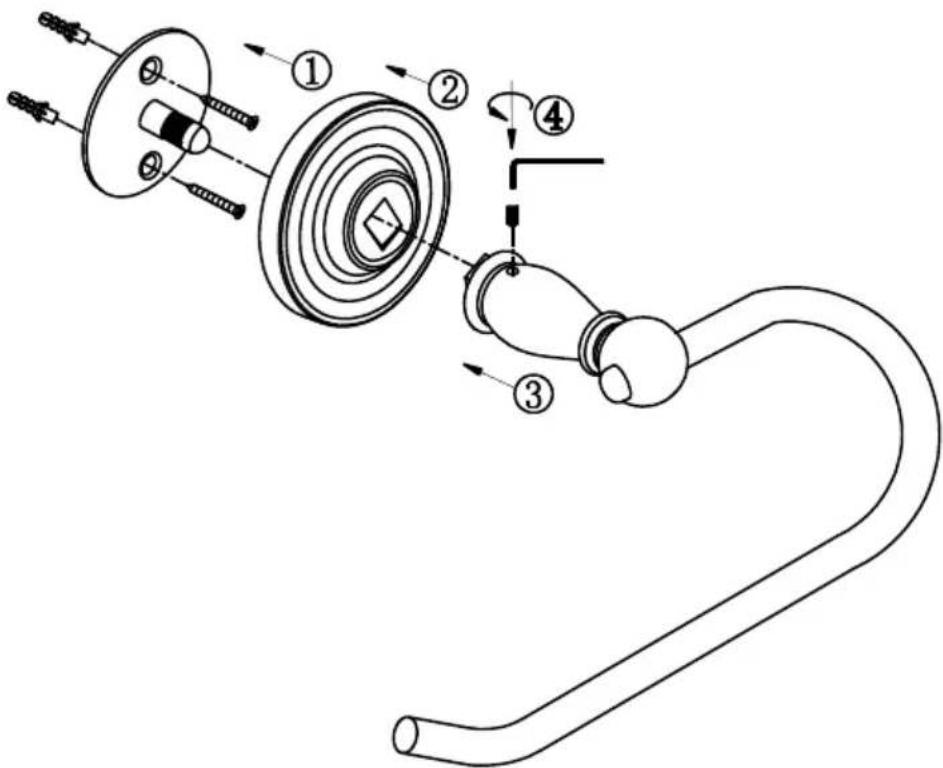

Euro Tissue Holder

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly.

Instructions:

① Install mounting plate and post to wall with two wall anchors and screws.
② Slide decorative plate over mounting post.
③ Slide euro tissue post onto mounting post.
④ Secure euro tissue post by tightening with Allen wrench.

WESLOCK.

© 2011

Tulsa. Oklahoma

Towel Ring

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly steps.

Instructions:

① Install mounting plate and post to wall with two wall anchors and screws.
② Slide decorative plate over mounting post.
③ Slide towel ring post onto mounting post.
④ Secure towel ring post by tightening with Allen wrench.

WESLOCK.

© 2011

Tulsa. Oklahoma

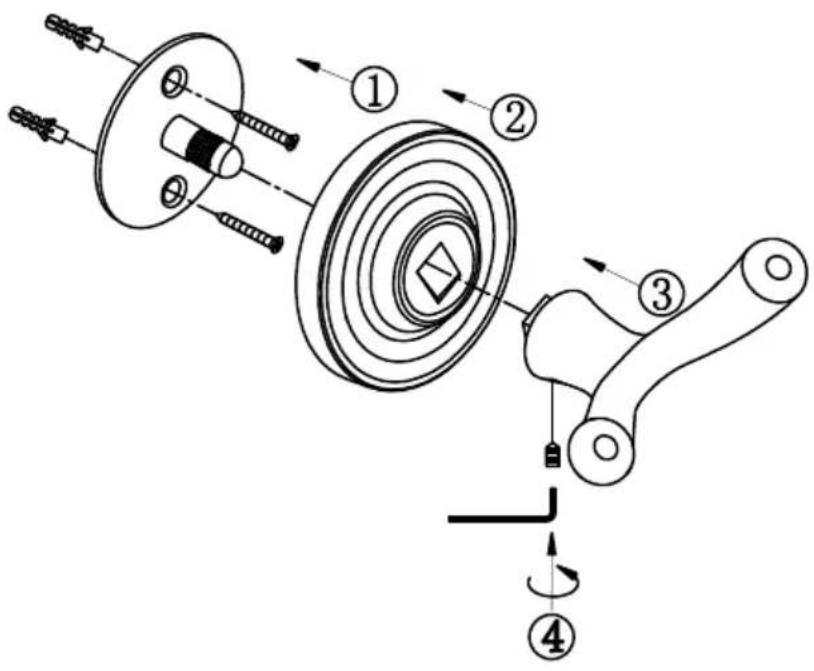

Robe Hook

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly steps.

Instructions:

① Install mounting plate and post to wall with two wall anchors and screws.
② Slide decorative plate over mounting post.
③ Slide robe hook post onto mounting post.
④ Secure robe hook post by tightening with Allen wrench.

WESLOCK.

© 2011

Tulsa. Oklahoma

Standard Tissue Holder

Instructions:

① Identify and mark center to center measurement for mounting plates and posts. Install both mounting plates and posts to wall with two wall anchors and screws.
② Slide decorative plates over mounting posts.
③ Slide decorative post with fixed end onto mounting post.
④ Secure decorative post by tightening with Allen wrench.
⑤ Slide decorative post with pivoting end onto mounting post.
⑥ Secure decorative post by tightening with Allen wrench. However, ensure the tissue holder pivots in the upward direction, so toilet paper roll slides down when installed.
