Product Type	Inductive Proximity Sensor
Model	SMT-10M-NS-24V-E-2.5-L-OE
Brand	Festo
Supply Voltage	24 V DC
Switching Output	NPN, normally open
Switching Distance	2.5 mm
Connection Type	Cable with connector
Housing Material	Stainless steel / Plastic
Dimensions	M10 x 1 threaded barrel, length 30 mm
Weight	Approx. 20 g
Protection Class	IP67
Operating Temperature	-25 °C to +70 °C
LED Indication	Yes, switching status
Mounting	Flush or non-flush
Certifications	CE, RoHS
Maintenance	Clean with dry cloth; no lubrication needed
Safety	Protect from mechanical shock and moisture
Spare Parts	Replacement cables available

Frequently Asked Questions - SMT-10M-NS-24V-E-2 5-L-OE Festo

What is the switching distance of the Festo SMT-10M-NS-24V-E-2.5-L-OE?

The switching distance is 2.5 mm for a standard target (steel).

What is the supply voltage requirement?

It requires 24 V DC (typically 10-30 V DC).

What type of output does this sensor have?

It has an NPN output, normally open (NO).

Can this sensor be used in wet environments?

Yes, it has IP67 protection, meaning it is dust-tight and protected against temporary immersion.

How do I connect the sensor?

The sensor has a cable with connector (typically M8). Connect brown to +24V, blue to 0V, and black to the load.

What is the maximum load current?

The maximum switching current is typically 200 mA.

Can the sensor be mounted flush?

Yes, it can be mounted flush in metal, but note that the switching distance may reduce slightly.

What does the LED indicate?

The green LED lights up when the sensor is powered and switches on when the target is detected.

How should I clean the sensor?

Use a dry, soft cloth to clean the sensor. Avoid solvents or abrasive materials.

What is the operating temperature range?

The sensor operates in temperatures from -25 °C to +70 °C.

USER MANUAL SMT-10M-NS-24V-E-2 5-L-OE Festo

Technical line drawing of two mechanical components with mounting holes (no text or symbols)

FESTO

Festo SE & Co. KG

Ruiter Straße 82

73734 Esslingen

Deutschland

[phone]

www.festo.com

Operating instructions

8172652

2022-05e

[8172654]

8172652

Translation of the original instructions

© 2022 all rights reserved to Festo SE & Co. KG

1 Applicable Documents

口

All available documents for the product → www.festo.com/sp.

2 Safety

2.1 Safety instructions

WARNING

Risk of injury due to electric shock.

• For the electric power supply, use only PELV circuits that ensure a reliable electric disconnection from the mains network.
• Observe IEC 60204-1/EN 60204-1.

- Before working on the product: Switch off the power supply, ensure that it is off and secure it against being switched on again.

2.2 Intended use

The proximity switch is intended for use in Festo products for sensing the position of magnets, e.g. the position of the piston.

The product is intended for use in industrial environments.

3 Mounting

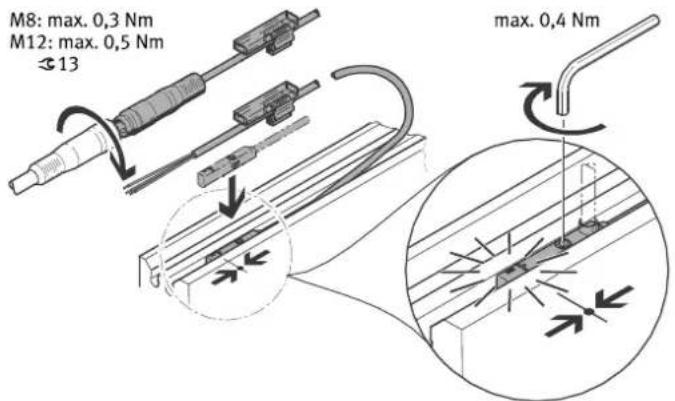

Fig. 1: Mounting

4 Electrical installation

SMT-10M-PS-24V-...

-M8/-M8D -M12 -OE
41 + + 3	3 + + 14

Tab. 1: Electrical connection SMT-10M-PS-24V-...

SMT-10M-NS-24V-...

-M8/-M8D -M12 -OE
41 + + 3	3 + + 14

Tab. 2: Electrical connection SMT-10M-NS-24V-...

SMT-10M-ZS-24V-...

-M8/-M8D -M12 -OE
41+ +	+ + 14

Tab. 3: Electrical connection SMT-10M-ZS-24V-...

5 Technical data

SMT-10M -PS -NS -ZS
Operating voltage range [V AC] 5 ... 30 7 ... 30
Max. output current [mA] 100
Max. output current in mounting kit	[mA] 50
Max. switching capacity	[W]	2.8		2.4
Max. switching capacity in mounting kit	[W]	1.5		1.2
Ambient temperature	[°C]	-40 ... +70
Ambient temperature with flexible cable installation	[°C]	-20 ... +70
Degree of protection		IP65, IP68

Tab. 4: Technical data
