USER MANUAL SMT-10M-NS-24V-E-2 5-Q-OE Festo
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Deutschland
+49 711 347-0
www.festo.com
Operating instructions
8172652
2022-05e
[8172654]
8172652
Translation of the original instructions
© 2022 all rights reserved to Festo SE & Co. KG
1 Applicable Documents
口
All available documents for the product → www.festo.com/sp.
2 Safety
2.1 Safety instructions
WARNING
Risk of injury due to electric shock.
- For the electric power supply, use only PELV circuits that ensure a reliable electric disconnection from the mains network.
- Observe IEC 60204-1/EN 60204-1.
- Before working on the product: Switch off the power supply, ensure that it is off and secure it against being switched on again.
2.2 Intended use
The proximity switch is intended for use in Festo products for sensing the position of magnets, e.g. the position of the piston.
The product is intended for use in industrial environments.
3 Mounting

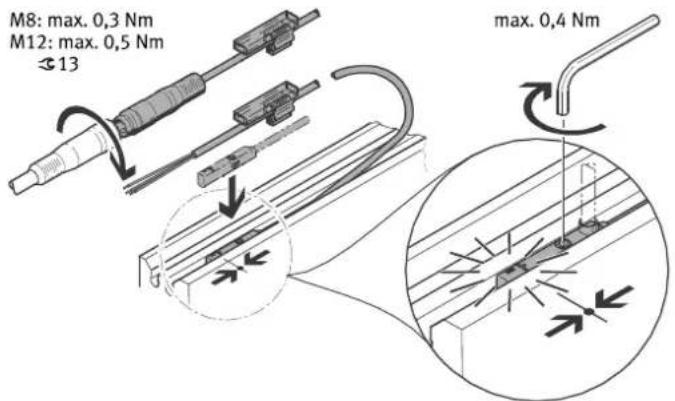

Fig. 1: Mounting
4 Electrical installation
SMT-10M-PS-24V-...
| -M8/-M8D -M12 -OE | ||
| 41 + + 3 | 3 + + 14 | |
Tab. 1: Electrical connection SMT-10M-PS-24V-...
SMT-10M-NS-24V-...
| -M8/-M8D -M12 -OE | ||
| 41 + + 3 | 3 + + 14 | |
Tab. 2: Electrical connection SMT-10M-NS-24V-...
SMT-10M-ZS-24V-...
| -M8/-M8D -M12 -OE | ||
| 41+ + | + + 14 | |
Tab. 3: Electrical connection SMT-10M-ZS-24V-...
5 Technical data
| SMT-10M -PS -NS -ZS | ||||
| Operating voltage range [V AC] 5 ... 30 7 ... 30 | ||||
| Max. output current [mA] 100 | ||||
| Max. output current in mounting kit | [mA] 50 | |||
| Max. switching capacity | [W] | 2.8 | 2.4 | |
| Max. switching capacity in mounting kit | [W] | 1.5 | 1.2 | |
| Ambient temperature | [°C] | -40 ... +70 | ||
| Ambient temperature with flexible cable installation | [°C] | -20 ... +70 | ||
| Degree of protection | IP65, IP68 | |||
Tab. 4: Technical data
