Product Type	Ribbon Microphone
Polar Pattern	Dipole (Figure 8)
Frequency Response	20–20000 Hz
Sensitivity	-34 dB ±2 dB (0 dB = 1 V/Pa @ 1 kHz)
Impedance	Output: 200 Ω ±30% (@ 1 kHz), Load: ≥1000 Ω
Self-Noise	15 dBA
Maximum SPL	135 dB (THD α 1%, 1 kHz)
Signal-to-Noise Ratio	79 dB
Power Requirement	48V DC phantom power, 3 mA
Dimensions (Body)	8.07 x 1.97 x 2.09 in (205 x 50 x 58 mm)
Weight	1.08 lb (0.49 kg)
Box Contents	Microphone, foam windscreen, carrying case, user manual
Connector Type	XLR (3-pin)
Housing Material	Metal
Application	Studio recording, broadcast, voice-over
Usage Orientation	Side-address
Maintenance	Keep dry, avoid dust, store in case; clean with soft cloth
Safety Precautions	Avoid drops, handle gently, do not expose to moisture
Spare Parts Availability	Contact Marantz support for replacement ribbon or parts
Warranty	Manufacturer warranty (standard 1-2 years)

Frequently Asked Questions - MPM-3500R MARANTZ

What is the polar pattern of the Marantz MPM-3500R?

The MPM-3500R features a dipole (Figure 8) polar pattern, which picks up sound from the front and rear while rejecting sides.

Does the MPM-3500R require phantom power?

Yes, it requires 48V DC phantom power with a current consumption of 3 mA. Use a mixer or audio interface with phantom power.

What is the frequency response of this microphone?

The frequency response is 20 Hz to 20 kHz, covering the full audible spectrum.

What is the maximum SPL the microphone can handle?

Maximum SPL is 135 dB at 1% THD, making it suitable for loud sources, but care is needed to avoid ribbon damage.

Can I use the MPM-3500R for vocal recording?

Absolutely, the MPM-3500R is excellent for vocals, especially in studio and broadcast settings, offering a warm sound. However, avoid plosives and high SPL.

How do I connect the microphone?

Use a standard XLR cable to connect to a mixer or audio interface that supplies 48V phantom power.

What is the weight and size of the MPM-3500R?

The microphone body weighs 1.08 lb (0.49 kg) and measures 8.07 x 1.97 x 2.09 inches (205 x 50 x 58 mm).

What comes in the box?

The box includes the microphone, foam windscreen, carrying case, and user manual.

How should I clean and maintain the microphone?

Clean with a soft, dry cloth and avoid liquids. Store in the case when not in use. Keep away from dust and humidity.

Is the ribbon replaceable if damaged?

Ribbon replacement should be done by authorized service centers. Contact Marantz support for repair options.

USER MANUAL MPM-3500R MARANTZ

Ribbon Microphone with Ultra Low-Mass Diaphragm

User Guide Guida per l'uso Guía del usuario Benutzerhandbuch Guide d'utilisation

Box Contents

Collection of audio equipment including a microphone, foam receiver, case case, microphone, and paper sheets (no visible text or symbols)

Technical Specifications

Type	Ribbon microphone
Polar Pattern	Dipole (Figure 8)
Frequency Response	20–20000 Hz
Sensitivity	-34 dB ±2 dB (0 dB = 1 V/Pa @ 1 kHz)
Impedance	Output: 200 Ω ±30% (@ 1 kHz)Load: ≥1000 Ω
Self-Noise	15 dBA
Maximum SPL	135 dB (THD α 1%, 1 kHz)
Signal-to-Noise Ratio	79 dB
Power Requirement	Requirement: 48V DC phantom powerCurrent: 3 mA
Dimensions(microphone body)	8.07" x 1.97" x 2.09"205 x 50 x 58 mm
Weight	1.08 lbs.0.49 kg

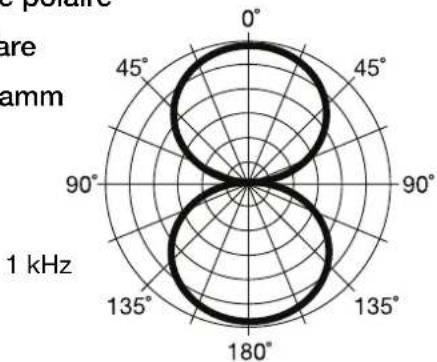

Polar Pattern

Patrón polar

Diagramme polaire

Figura polare

Polardiagramm

Frequency Response
