USER MANUAL FV-0511VKS3 PANASONIC

Technical line drawing of a mechanical device with a side view of a cylindrical container (no text or symbols present)

FV-0511VKS3

WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product. Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

IMPORTANT SAFETY NOTICE

There are special components used in this equipment which are important for safety. These parts are marked by ⚠ in the Schematic Diagrams, Exploded Views and Replacement Parts List. It is essential that these critical parts should be replaced with manufacturer's specified parts to prevent shock, fire or other hazards. Do not modify the original design without the manufacturer's approval.

.Please have a static

. Please use gloves when handling PCB part

CONTENTS

PAGE

1. Specification 1
2. Parts Identification 2 \~ 5
   3.Wiring Diagram 6
   4.Parts List 7,8

1. Specification

Model No.	Air direction	Voltage (V)	Frequency (Hz)	Duct diameter (inches)	Air volume at 0.1"WG (CFM)	Noise (sones)	Speed (rpm)	Power (W)	Weight lb.(kg)
								Fan
FV-0511VKS3	Exhaust	120	60	4	110	<0.3	782	9.7	7.75 (3.5)
					80	<0.3	684	5.6
					50	<0.3	630	3.8
				6	110	<0.3	595	6.7
					80	<0.3	569	4.4
					50	<0.3	575	3.4

HVI Certified performance based on HVI Procedures 915, 916, and 920.

Main Body Section

1 2 3 4 5 6 A A C (3pcs) 7 C (5pcs) 8 9 10 Power PCB Assy 11 12 Main PCB Assy C E (2pcs) 13

2. Parts Identification

FV-0511VKS3

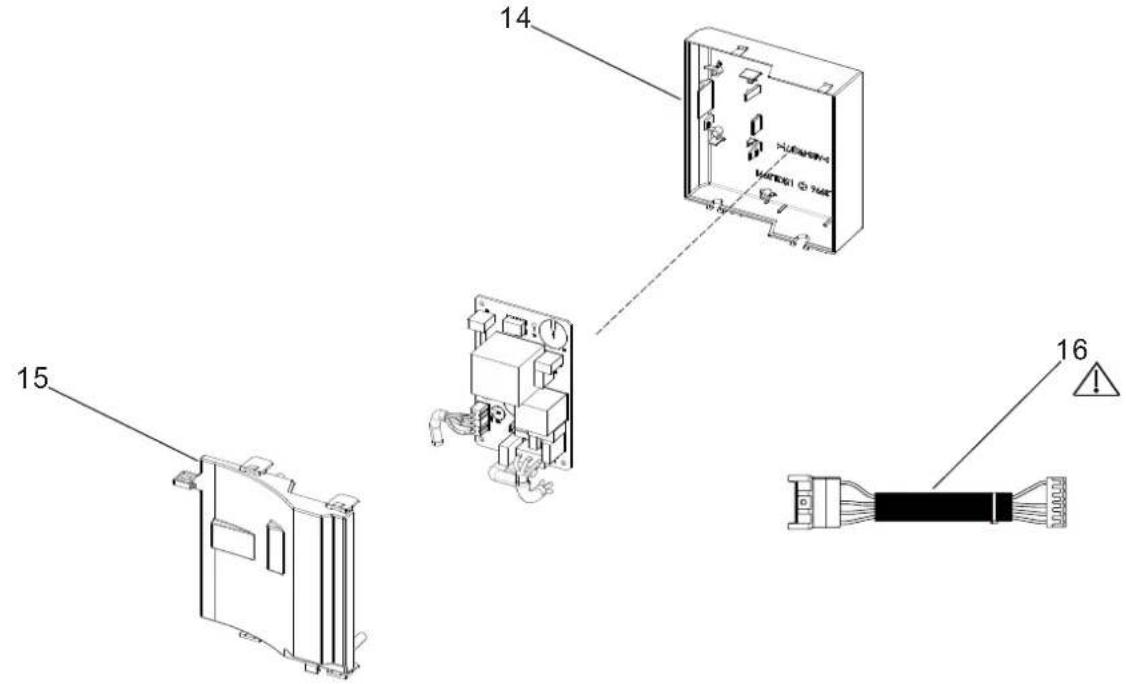

Power PCB Assy

Technical diagram showing exploded view of electronic components with numbered labels and warning indicators

Main PCB Assy

17 E (2pcs) 18 19 20 (2pcs) 21 22 23 24 Sold separately, not included with base model fan. 25 23 Condensation Sensor module Motion Sensor + Condensation Sensor module Motion Sensor module

2. Parts Identification

FV-0511VKS3

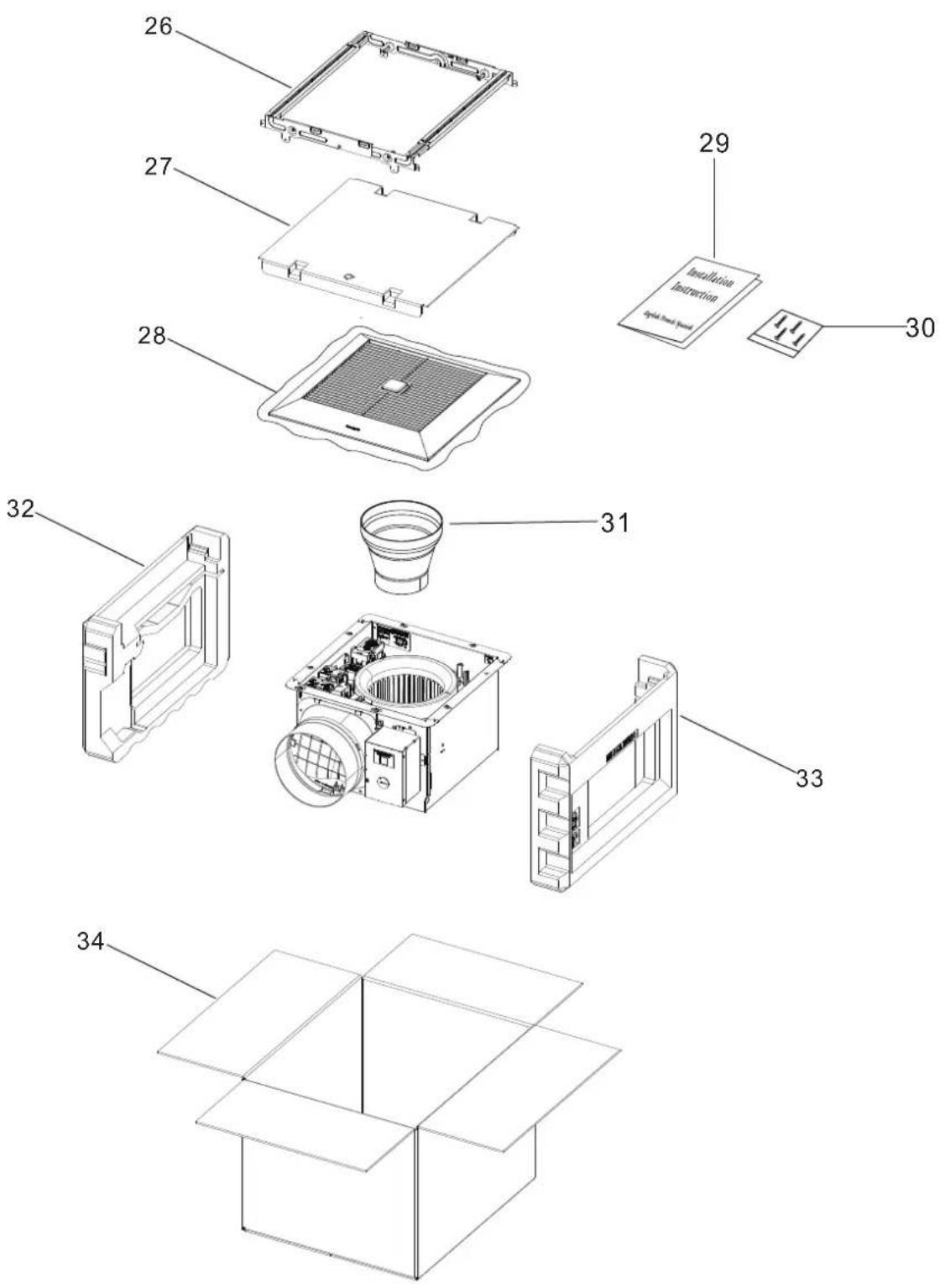

Packing Section

Main Label

35

SCAN CODE FOR WIRING INSTRUCTIONS

36

WARNING:

1. Before service or cleaning unit, switch power off at service panel and lock service panel to prevent power from being switched on accidentally.

2. Acceptable for use over a bathtub or shower when installed in a GFCI protected branch circuit.

CAUTION:

To reduce the risk of injury to persons, install fan at least 2.1m(7 feet) above the floor.

ATTENTION:
