| Product Type | Indoor Access Point |
| Wi-Fi Standard | 802.11ac Wave 2 |
| MIMO Configuration | 2x2:2 |
| Frequency Bands | Dual-band (2.4 GHz & 5 GHz) |
| Maximum Data Rate | 1.167 Gbps (2.4 GHz: 300 Mbps, 5 GHz: 867 Mbps) |
| Ethernet Ports | 1 x Gigabit (10/100/1000) with PoE In |
| Power Method | 802.3af Power over Ethernet (PoE) |
| Power Consumption | < 10 W |
| Dimensions | 150 x 150 x 30 mm (w/o mounting bracket) |
| Weight | 0.3 kg |
| Mounting | Wall or ceiling (bracket included) |
| Security | WPA2, WPA3, 802.1X, MAC ACL |
| Management | Cloud via cnMaestro, local Web UI, CLI |
| Operating Temperature | 0°C to 40°C |
| LED Indicators | Power, LAN, WLAN activity |
| Certifications | FCC, CE, IC |
| Antenna Type | Internal, dual-band (2.4 & 5 GHz) |
| Max Transmit Power | 20 dBm |
Frequently Asked Questions - cnPilot r201 Cambium Networks
How do I set up the cnPilot r201 for the first time?

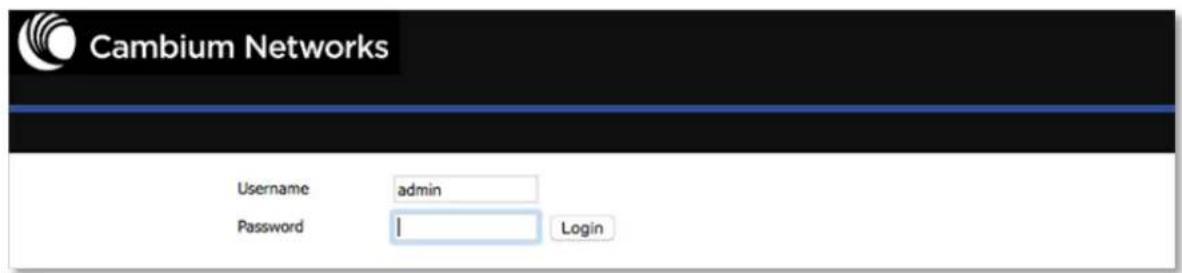

Connect the access point to a PoE switch or injector using an Ethernet cable. Then, use the cnMaestro cloud management platform or access the local web UI via the default IP (192.168.1.1) to complete configuration.
Does the r201 support PoE? What type?
Yes, it supports 802.3af Power over Ethernet (PoE). A PoE injector or PoE switch is required.
What is the coverage range of the cnPilot r201?
Indoor range is typically up to 30 meters (100 feet) depending on obstacles. For optimal performance, place it centrally with minimal interference.
Can the r201 be managed locally without cloud?
Yes, it can be managed via the built-in web interface or CLI (using SSH or serial console). Cloud management via cnMaestro is optional but recommended for scalability.

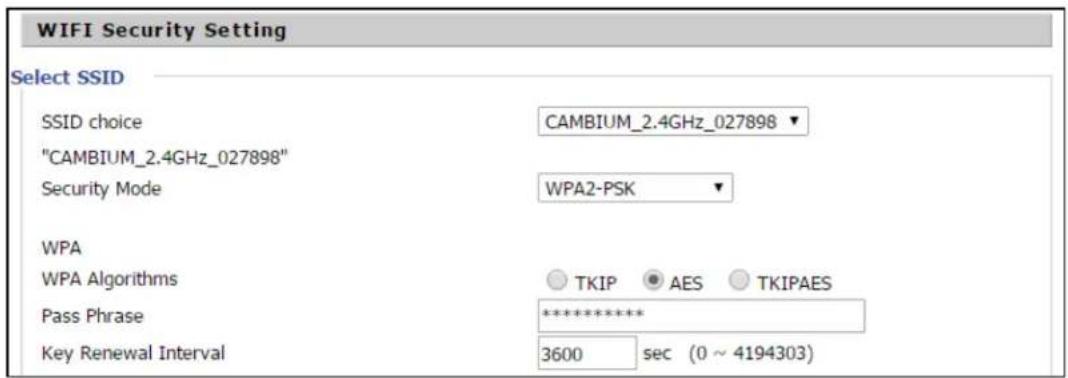

What security protocols does the r201 support?

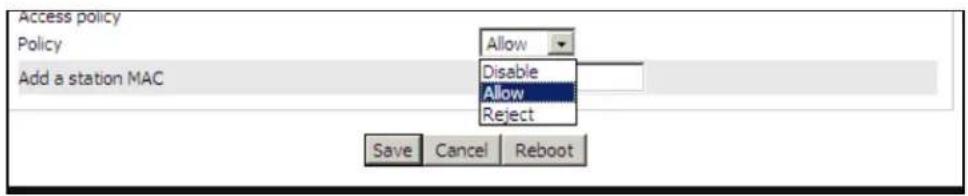

It supports WPA2 (Personal and Enterprise), WPA3 (Personal and Enterprise), 802.1X with RADIUS, and MAC address filtering.
How many concurrent users can the r201 handle?
The r201 is designed for up to 50 concurrent clients in typical office environments, but performance may vary based on traffic and interference.

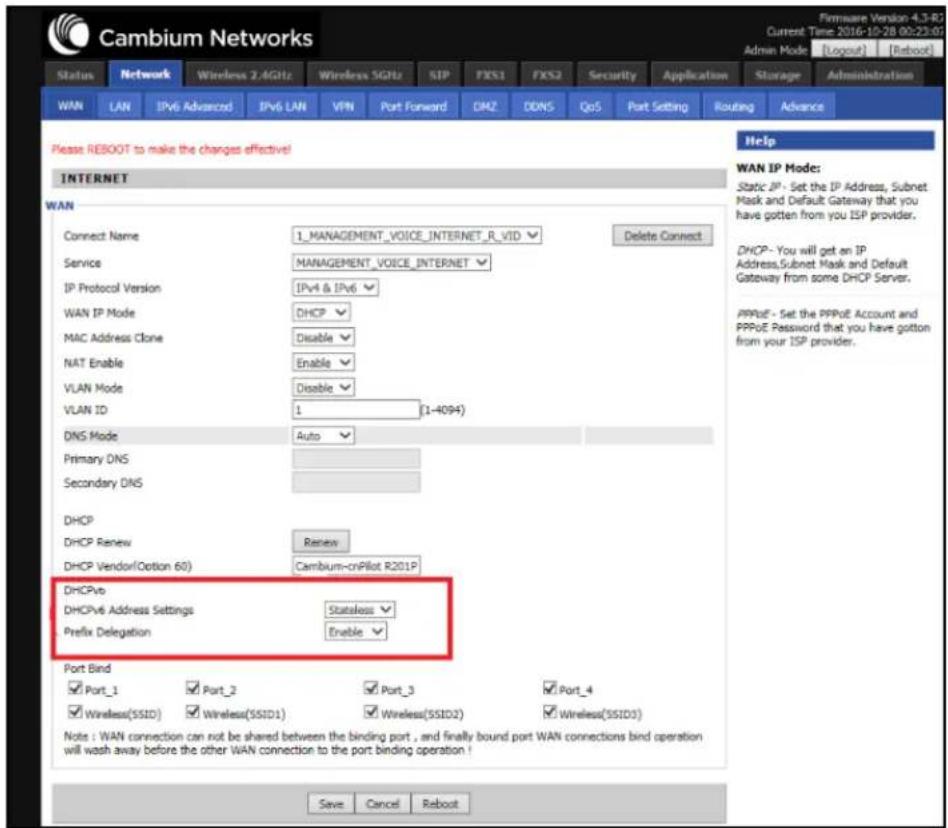

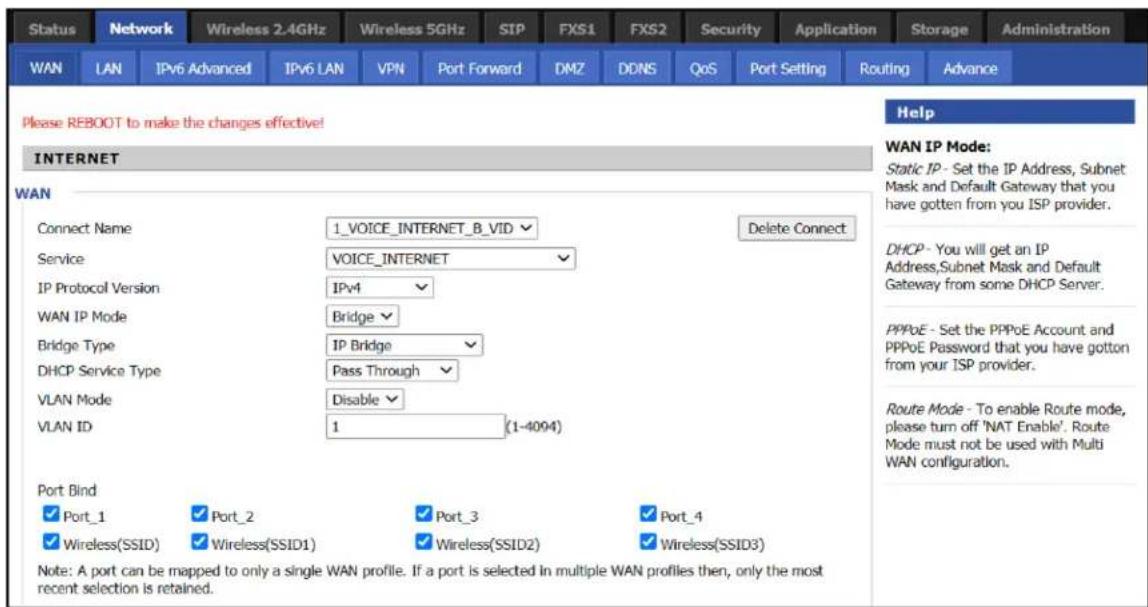

Does the r201 support VLANs?

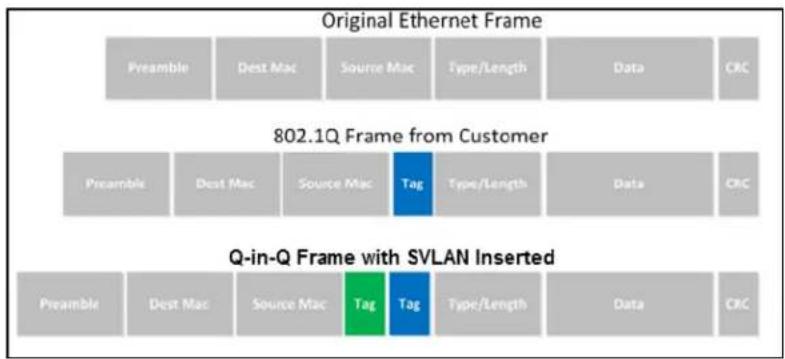

Yes, it supports 802.1Q VLAN tagging for separating traffic per SSID or port. Configuration is done via the web UI or cloud.
How do I reset the r201 to factory defaults?

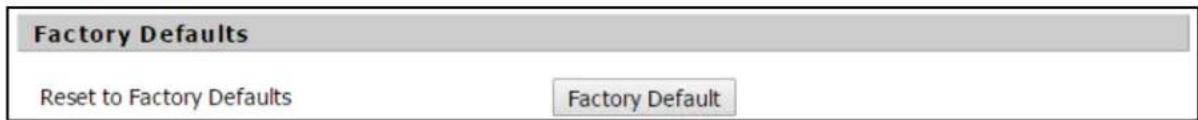

Press and hold the reset button on the unit for 10 seconds using a paperclip. The LEDs will flash to confirm. Alternatively, use the web interface factory reset option.

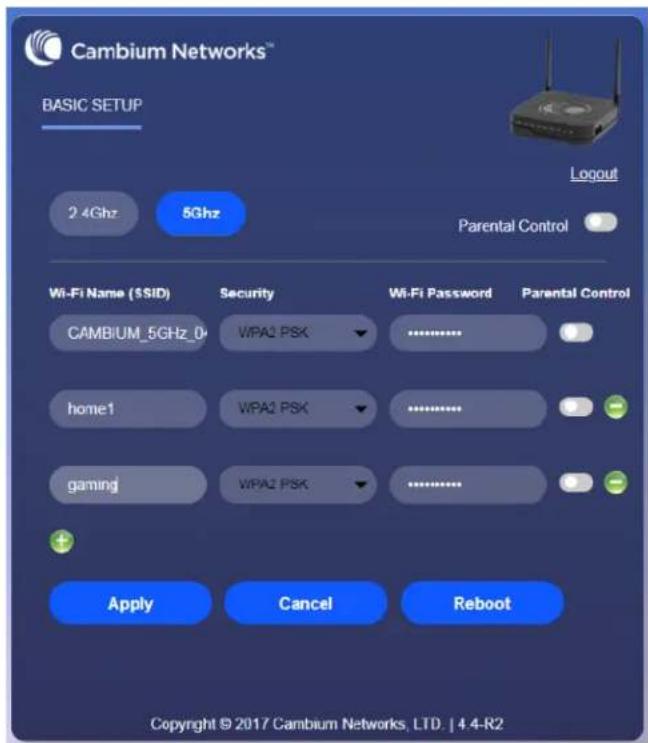

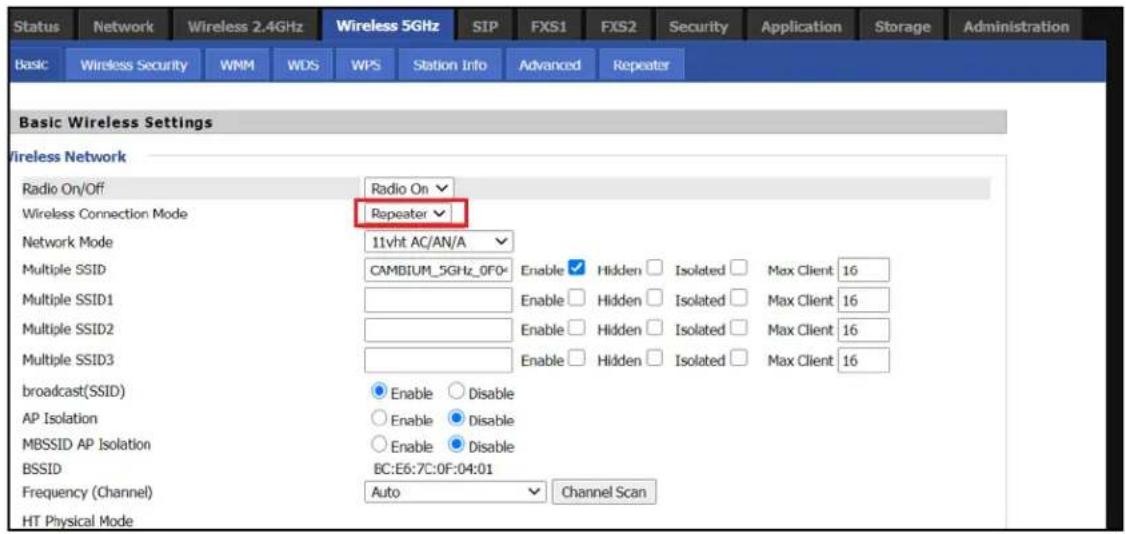

What is the maximum number of SSIDs supported?
The cnPilot r201 supports up to 16 SSIDs (8 per radio). Each SSID can be configured with different security and VLAN settings.

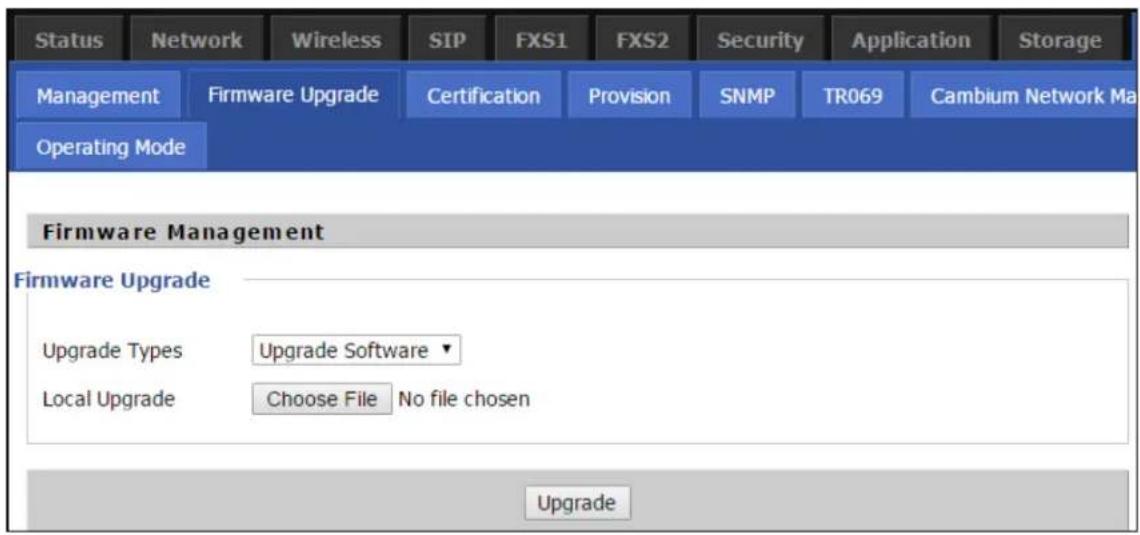

Where can I download the latest firmware for the r201?
Firmware updates are available through the cnMaestro cloud platform or from the Cambium Networks support website under the cnPilot series downloads.
