Product Type	Customer Display
Brand	Posiflex
Model	PD-6607U
Display Type	7" TFT LCD
Resolution	800 x 480 pixels
Character Support	40 chars x 12 rows (alphanumeric), 20 chars x 12 rows (Chinese characters for PD-6X07U)
Font Colors	Red, Green, Blue, Yellow, Orange, White, Black
Background Colors	Black, White, Blue
Graphics Support	JPEG
Interface	USB (Type-B connector)
Power Supply	Powered by standard USB port from POS terminal
Compatible Terminals	Posiflex XT series with Gen 7E/8E base
Mounting	Direct mounting onto XT series terminal rear bracket
Dimensions (PD-6607)	Height: 124 mm, Width: 188 mm, Depth: 80 mm
Language Support	English, Traditional Chinese, Simplified Chinese, Japanese
Command Emulations	ADM, Aedex, ESC/POS, Futaba, Noritake, UTC
Driver Requirement	Virtual COM driver (USB_VCOM) for USB models
Regulatory Compliance	FCC Class A, CE Class A
Safety Warning	Not suitable for locations where children are likely to be present
Package Contents	PD-6X07U customer display, USB cable, mounting kits, information CD

Frequently Asked Questions - PD-6607U Posiflex

How do I install the PD-6607U customer display onto a Posiflex XT terminal?

First, ensure the terminal is powered off. Position the terminal with its rear facing you. Align the four screw holes on the display's mounting bracket with the hole pattern at the rear of the terminal. Insert and tighten four #6-32-10L screws. Then, connect the USB cable: attach the USB Type-B connector to the display and the USB Type-A connector to a USB port on the terminal. Finally, power on the terminal; the display will initialize automatically.

What cables are included with the PD-6607U?

The PD-6607U includes a USB cable (Type-A to Type-B) for data and power. No external power adapter is needed as the display is powered via USB from the POS terminal.

How do I adjust the tilt angle of the display?

Gently tilt the display up or down in the direction indicated by the arrows on the mounting bracket. Do not press on the LCD panel while adjusting the tilt angle to avoid damage.

Does the PD-6607U require a driver to work?

Yes, for USB models like the PD-6607U, you need to install the Virtual COM driver. The driver is located in the 'Drivers' folder on the POS terminal's local disk (C:) under the path: SA_PD_LM\USB_VCOM\USB_VCOM_v519bx. Follow the instructions in the PDF guide within that folder to complete installation.

How is the PD-6607U powered on and off?

The display is powered automatically when the POS terminal is turned on. It will shut down when the terminal is powered off. No separate power button exists on the display.

Can I use the PD-6607U with non-Posiflex terminals?

The manual primarily covers use with Posiflex terminals. For non-Posiflex terminals, compatibility is not guaranteed. Additionally, if using the RS-232 model (PD-6607R), BIOS settings must be adjusted to enable power on the serial port; this is not recommended for non-Posiflex displays.

How do I clean the PD-6607U display?

Turn off the display and disconnect the USB cable. Use a soft, dry cloth to gently wipe the screen and casing. Do not use any liquid cleaners or abrasive materials, as they may damage the LCD or housing.

What should I do if the display does not show any image?

First, check that the USB cable is securely connected to both the display and the POS terminal. Ensure the terminal is powered on. If using a USB model, verify that the Virtual COM driver is installed. For RS-232 models, check BIOS settings to confirm the serial port is enabled and powered. If the issue persists, consult your dealer.

Can I customize the display colors?

Yes, the display supports multiple font and background colors. Use the 'POS Graphics Display Tool' (GraphicsDisplay_Setup Tool.exe) located in the SA_PD_LM folder on the POS terminal to adjust settings. Ensure Microsoft .NET Framework 3.5 or above is installed. Configuration should be performed by a professional technician to avoid damage.

What is the warranty policy for the PD-6607U?

The warranty automatically terminates if the device is opened by anyone other than authorized technicians. For any issues, consult your dealer. The manufacturer is not responsible for damage caused by improper use or failure to follow instructions.

USER MANUAL PD-6607U Posiflex

Customer Display User Manual

Two black electronic display units: a standard rectangular stand with a top screen and a flat-screen tablet (no text or symbols visible)

Package Contents

7" PD-6X07R/ PD-6X07R-AR/ PD-6X07U / PD-6X07U-AR customer display (x 1)
√ Stand base for PD-6207 series only (x 1)
√ RS-232 cable for PD-6X07R/ PD-6X07R-AR only (x 1)
√ USB cable for PD-6X07U/ PD-6X07U-AR only (x 1)
√ Mounting kits (x 1)
√ Information CD (x 1)

Product Features

Among PD-6X07 series, PD-6X07R/ PD-6X07U are models which support multiple languages, including English, Traditional Chinese, Simplified Chinese and Japanese; PD-6X07R-AR/ PD-6X07U-AR are models with Arabic language support.
7" Graphical customer line display
▶ TFT LCD panel
20 x2, 20 x4, 30 x4 characters support
Adjustable font and background color
JPEG graphics display support
Command emulations support : ADM, Aedex, ESC/POS, Futaba, Noritake, UTC
- Compatibility with Posiflex terminals

Display Model	Posiflex POS model
PD-6207R/ PD-6207R-AR/PD-6207U/ PD-6207U-AR	Any Posiflex terminal
PD-6307R/ PD-6307R-AR/PD-6307U/ PD-6307U-AR	15”/17” KS series terminals
PD-6507R/ PD-6507R-AR/PD-6507U/ PD-6507U-AR	HS series terminals
PD-6607R/ PD-6607R-AR/PD-6607U/ PD-6607U-AR	XT series terminals

PD-6X07 Series Ver. A0

FCC NOTES

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CE CLASS A WARNING

This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference.

AVERTISSEMENT CE CLASSE A

Warranty will terminate automatically when the machine is opened by any person other than the authorized technicians. The user should consult his/her dealer for the problem happening. Warranty voids if the user does not follow the instructions in application of this merchandise. The manufacturer is by no means responsible for any damage or hazard caused by improper application.

LIMITES DE GARANTIE

This equipment is not suitable for use in locations where children are likely to be present.

CONSIGNES DE SÉCURITÉ

Views of the PD-6X07 Series

PD-6207 Series

PD-6307 Series

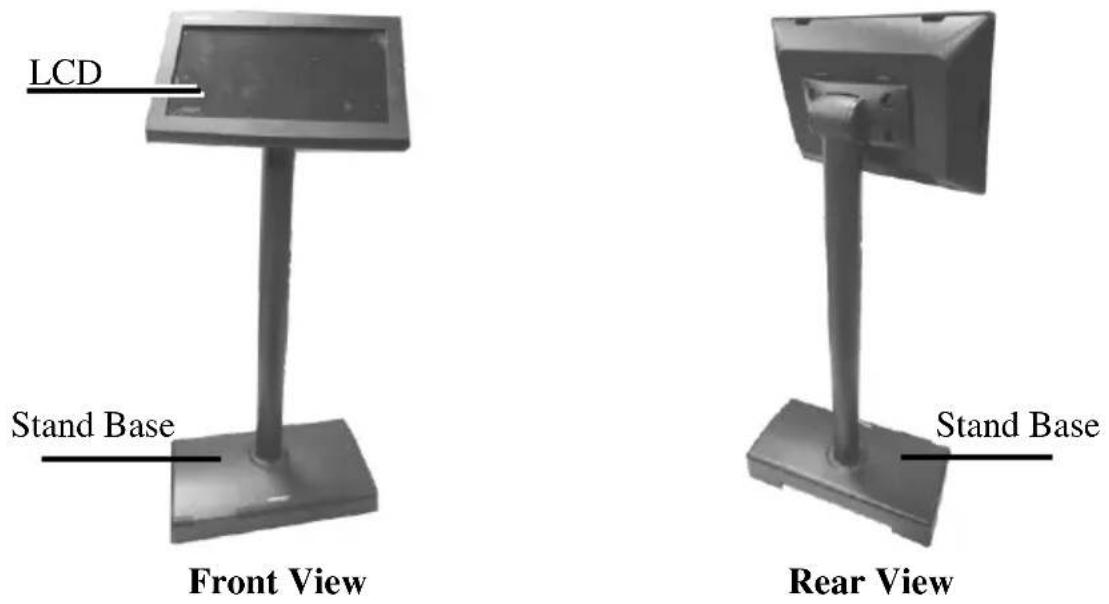

Front View

Rear View

PD-6507 Series

Front View

Rear View

PD-6607 Series

Front View

Rear View

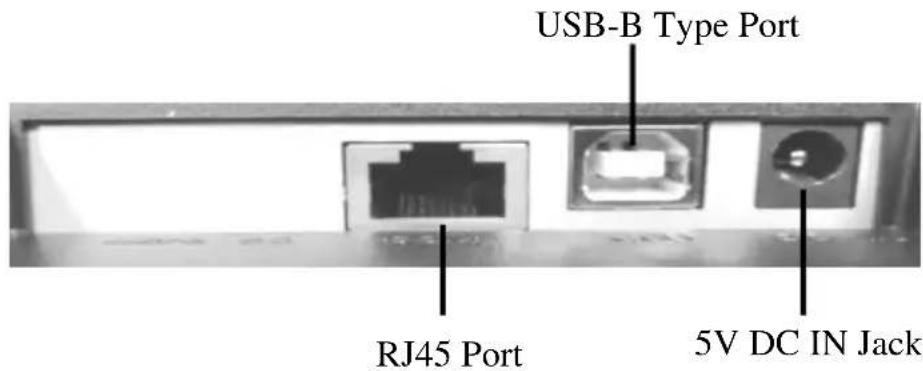

View of I/O Interface of PD-6X07R/ PD-6X07R-AR

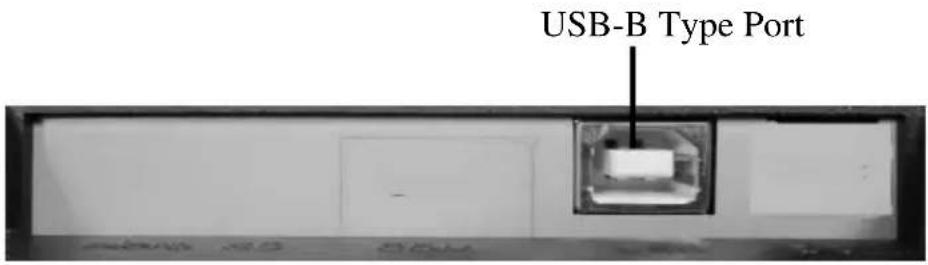

View of I/O Interface of PD-6X07U/ PD-6X07U-AR

Mounting PD-6207 Series onto POS Terminal

Please follow the below instructions to install PD-6207 series customer display onto your POS terminal. During installation, do NOT power ON the terminal. In the example, XT-3000 POS terminal will be used to demonstrate how to complete the installation.

1. Take the customer display and stand base out of the package. While lifting the customer display with one hand holding onto the tube, neatly pull the extra cable through cable exit at the bottom of the stand base.

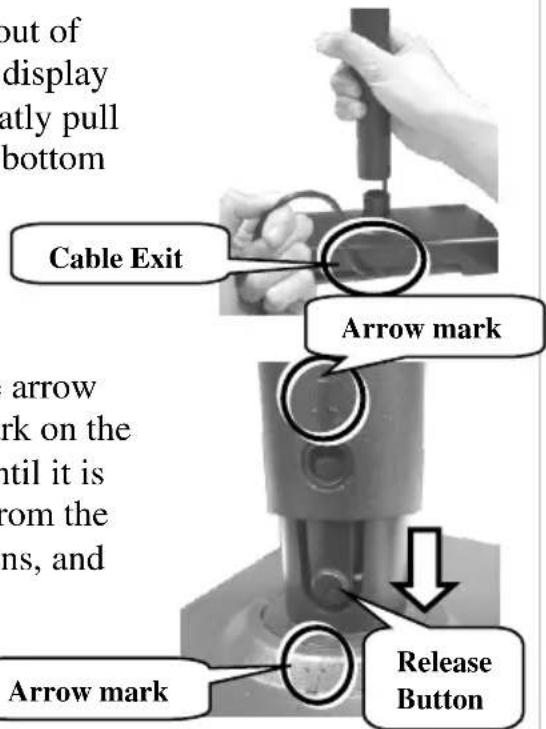

1. To join the tube to the stand base, have the arrow of the tube point towards the similar mark on the stand base. Then, push down the tube until it is locked into place. (To release the tube from the stand base, hold down two release buttons, and then twist and pull up the tube.)

2. Make sure the tube is well inserted to the stand base.

Close-up of a mechanical component with a cylindrical shaft and flange (no visible text or symbols)

1. Connect USB or RS-232 cable to the POS terminal. If you are the PD-6207R/ PD-6207R-AR user, take RS-232 converter cable and then attach DB9 connector to the DB9 COM port of your terminal. For PD-6207U/ PD-6207U-AR models, please insert USB Type-A connector of USB cable into USB port of your terminal.

Close-up of a hand inserting a cable into a device panel, with an arrow pointing to the cable (no text or symbols visible)

PD-6207R/ PD-6207R-AR

PD-6207U/PD-6207U-AR

1. Make sure the other end of USB or RS-232 cable is well connected to the customer display.

Close-up of a mechanical component with visible wiring and housing (no text or symbols)

PD-6207R/ PD-6207R-AR

Close-up of a black electronic device with a cable inserted, showing no visible text or symbols.

PD-6207U/ PD-6207U-AR

1. The installation of PD-6207R/ PD-6207R-AR/PD-6207U/ PD-6207U-AR is completed.

Exterior view of a desktop computer stand with two monitors (no visible text or symbols)

1. Tilt up and down the customer display in the direction shown by the arrow. Please do not press on the LCD panel while adjusting the titling angle.

Close-up of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Mounting PD-6307 Series onto 15"/17" KS series Terminal The following section will give instructions on how to mount PD-6307 series customer display onto 15"/17" KS series POS terminal. During installation, do NOT power ON the terminal. In the example, KS-7515 POS terminal will be used to demonstrate how to complete the installation.

1. Position your terminal with its rear facing towards you.

Exterior view of a computer monitor with a blank cover (no visible text or symbols)

1. Locate the "Posiflex" sticker at the rear of the terminal. Use a pin tool to tear off the sticker which is used to cover the screw holes.

1. Take L type mounting bracket out of the package. Align the four screw holes of the mounting bracket with the hole pattern at the back of the terminal.

2. Insert four #6-32-12L fixing screws into the screw holes and then tighten the screws to secure the mounting bracket.

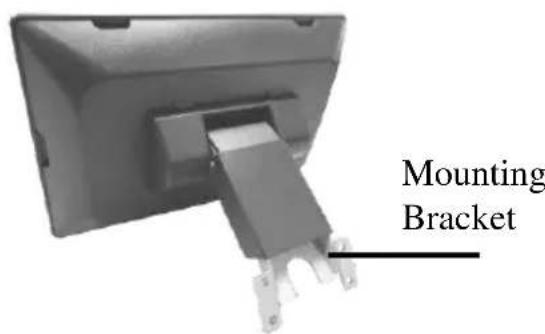

3. Lay the customer display on a flat surface with its screen facing downwards.

4. While holding the customer display steady with one hand, pull the monitor bracket upright.

5. Lift the customer display to align three screw holes of its own bracket to those on the bracket attached to the terminal using the alignment dots.

6. Insert three #6-32-6L fixing screws into the screw holes, and then tighten them to well attach two brackets.

Close-up of a gloved hand holding a small electronic component with a highlighted rectangular area (no visible text or symbols)

Close-up of a mechanical component with bolts and a tool, no visible text or symbols

Black plastic object with a triangular handle and rectangular base (no visible text or symbols)

Close-up of hands using a handheld device to press or adjust a component, with an arrow indicating rotation (no text or symbols visible)

Close-up of a mechanical assembly with metal components and bolts (no visible text or symbols)

1. Make sure the customer display is well mounted onto your terminal. .

Close-up of a mechanical component with textured surfaces and a central bracket (no visible text or symbols)

1. Connect USB or RS-232 cable to the POS terminal.

If you are the PD-6307R/ PD-6307R-AR user, take the RS-232 cable to attach DB9 connector to the DB9 COM port in the bottom I/O compartment of your terminal.

For the PD-6307U/ PD-6307U-AR models, insert the USB Type-A connector to the USB port of the terminal.

Close-up of a hand holding a USB drive with an arrow pointing to the next component (no visible text or symbols)

PD-6307R/ PD-6307R-AR

Close-up of a USB port connector with an arrow pointing to a port (no visible text or symbols)

PD-6307U/ PD-6307U-AR

1. Position the terminal with its rear facing towards you.

Exterior view of a desktop computer with monitor and keyboard (no visible text or symbols)

1. Connect USB or RS-232 cable to the customer display.

If you are the PD-6307R/ PD-6307R-AR user, plug the RJ-45 connector of RS-232 cable into the RJ-45 port of the customer display.

For PD-6307U/ PD-6307U-AR models, have the USB Type-B connector of USB cable attached to the USB port of your customer display.

Close-up of a hand holding a small electronic device with an arrow pointing to it (no visible text or symbols)

PD-6307R/ PD-6307R-AR

Close-up of a hand holding a computer monitor with a cable connector (no visible text or symbols)

PD-6307U/ PD-6307U-AR

1. The installation of PD-6307R/ PD-6307R-AR/PD-6307U/ PD-6307U-AR is completed.

Exterior view of a desktop computer with monitor and keyboard (no visible text or symbols)

1. Tilt the customer display in the direction shown by the arrow in the figure. Please do not press on the LCD panel while adjusting the tilt angle.

Mechanical assembly showing a lever mechanism with arrows indicating motion (no text or symbols visible)

Mounting PD-6507 Series onto HS series Terminal

Please go through below instructions to install PD-6507 series customer display onto Posiflex HS series terminals. During installation, do NOT power ON the terminal. In the example, HS-2208E POS terminal will be used to demonstrate how to complete the installation.

1. Lay your POS terminal on a flat surface with its rear facing towards you.

Exterior view of a modern office building (no signage)

1. Press down the release tab of top I/O interface cover.

Close-up of a hand holding a pen, with a magnified inset showing a finger pointing to a square (no text or symbols visible)

1. Pull the top I/O cover in the direction shown by the arrow in the figure to remove the cover.

2. Position the customer display on a flat surface. While keeping it steady with one hands, pull the rear mounting bracket upright as shown in the figure.

3. Lift the customer display up to align the four screw holes of the mounting bracket with the holes in the top I/O interface compartment of your POS as shown in the figure.

4. Insert four #6-32-8L fixing screws into the screw holes and tighten them to secure the mounting bracket.

5. Make sure the customer display is well secured to the terminal.

Close-up of a hand holding a pen, with an arrow pointing to a small object (no visible text or symbols)

Close-up of hands performing a finger press operation on a device (no text or symbols visible)

Close-up of a mechanical bracket with mounting holes and a curved cutout (no visible text or symbols)

Close-up of a mechanical component with a tool inserted, showing no visible text or symbols.

Close-up of a mechanical device with internal components and ports (no visible text or symbols)

1. Connect the USB or RS-232 cable to the customer display.

If you are the PD-6507R/ PD-6507R-AR user, plug the RJ-45 connector of RS-232 cable with the label describing “To PD” into the RJ-45 port of your customer display.

For PD-6507U/ PD-6507U-AR models, plug USB Type-B connector of USB cable into the USB port of the customer display.

PD-6507R/ PD-6507R-AR

Close-up of a hand holding a device with an arrow pointing to a button (no visible text or symbols)

PD-6507U/ PD-6507U-AR

1. Connect the USB or RS-232 cable to the POS terminal.

If you are the PD-6507R/ PD-6507R-AR user, attach the RJ-50 connector of RS-232 cable with the label describing “To Host” to the RJ-50 COM port in the top I/O compartment of your terminal.

For PD-6507U/ PD-6507U-AR models, plug USB Type-A connector of USB cable into the USB port of your terminal.

PD-6507R/PD-6507R-AR

Close-up of a hand using a tool to press or install electronic components (no visible text or symbols)

PD-6507U/ PD-6507U-AR

1. Break the release tab of the top I/O interface cover.

Close-up of hands holding a mechanical component, showing a close-up view of the part (no text or symbols visible)

1. Align the two wedge tabs of the top I/O cover with two wedged portion of the top I/O compartment of the terminal.

Close-up of a hand holding a small electronic component with a black arrow pointing to it, no visible text or symbols.

1. To keep the cable organized, tuck the extra cable into the I/O compartment and thread the cable through the cable exit as shown in the figure.

1. Push the back cover into place.

2. The installation of PD-6507R/ PD-6507R-AR/PD-6507U/ PD-6507U-AR is completed.

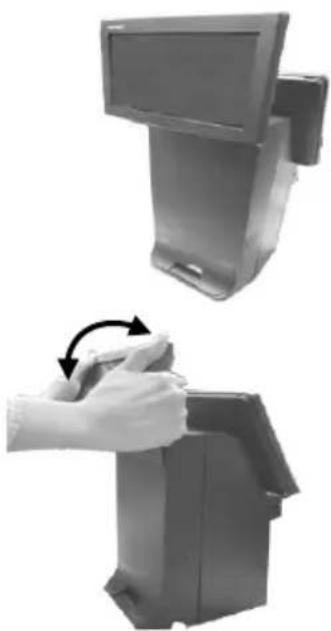

3. Tilt the display up or down in the direction shown by the arrow. Please do not press on the LCD panel while setting up the tilting angle.

Close-up of hands holding a small electronic component with a black arrow pointing to it (no visible text or symbols)

Two-step diagram showing a hand holding a small object inside a metal enclosure, with an arrow indicating rotation (no text or symbols present)

Mounting PD-6607 Series onto XT Series Terminal

The following steps are provided to guide you through the process of installing PD-6607 series customer display to XT series terminals with Gen 7E/8E base. During installation, do NOT power ON the terminal. In the following demonstration, XT-5415 POS terminal with Gen 7E base stand will be used to show how to complete the installation. You are able to apply similar cable-routing rules while dealing with XT series terminals with Gen 8E base.

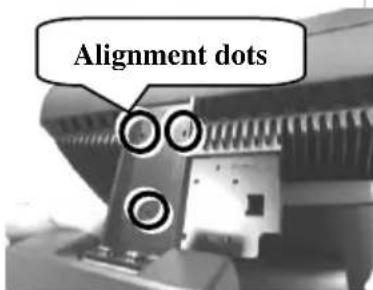

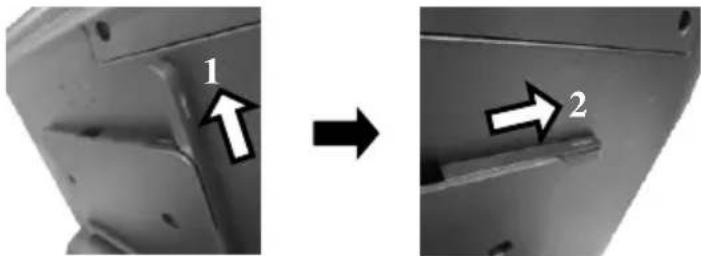

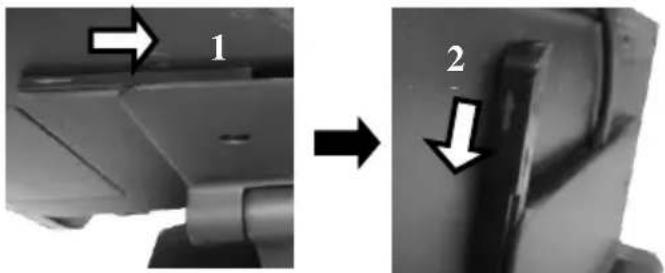

1. Positon your terminal with its rear facing toward you. At the edges of the base stand bracket are located two shorter horizontal rails (2) (3) and two longer vertical rails (1) (4), which are used to hold your cable into place.

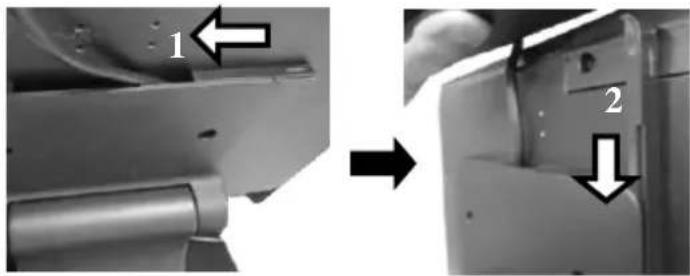

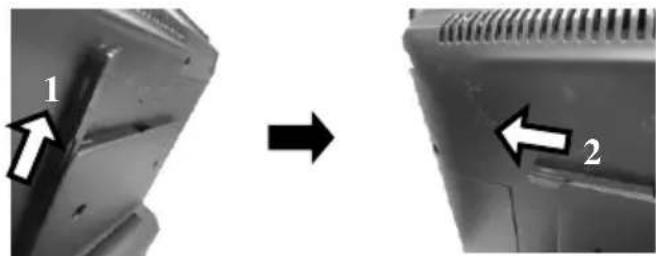

1. Release the rail from the base.

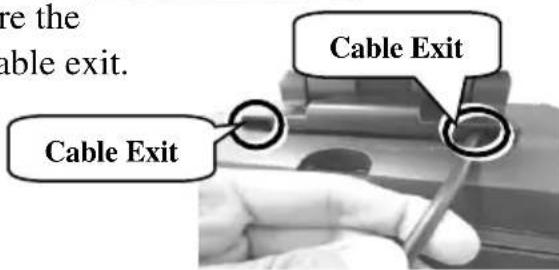

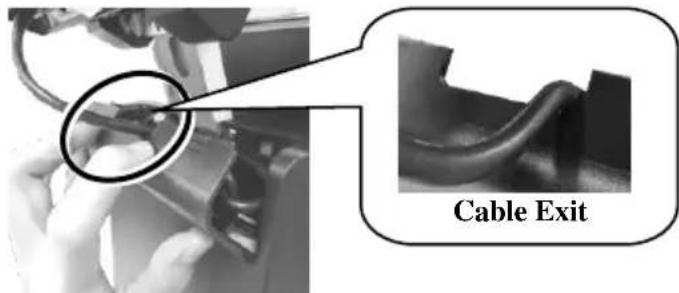

To run the cable through the cable passage on the left, according to the sequence number, first remove the longer rail and then the shorter one from the base stand by sliding them in the direction shown by the arrow

Close-up of a mechanical component before and after assembly, showing two directional arrows (1 and 2) indicating movement or transformation.

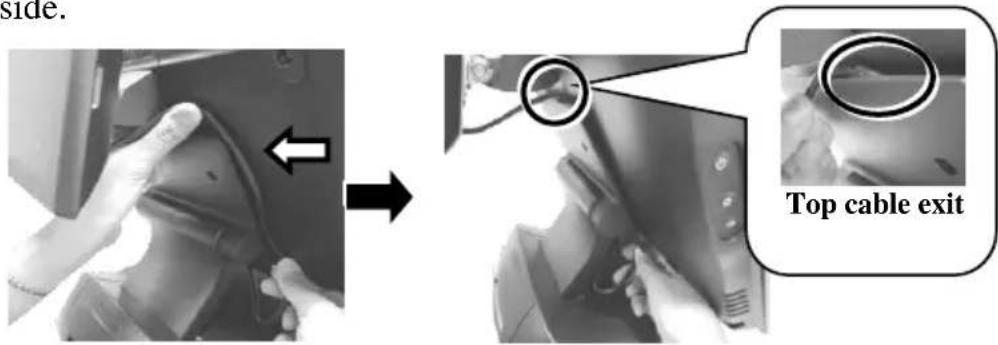

Or, if you prefer to thread the cable through the cable passage on the right side, first remove the longer rail and then shorter one from the base stand according to the sequence number.

1. Position your terminal with its screen facing downwards.

Person sitting on a flat surface, possibly a laptop or tablet device (no visible text or symbols)

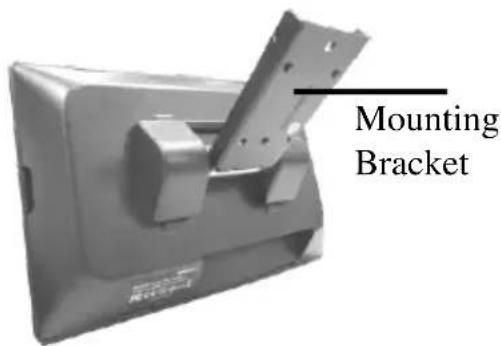

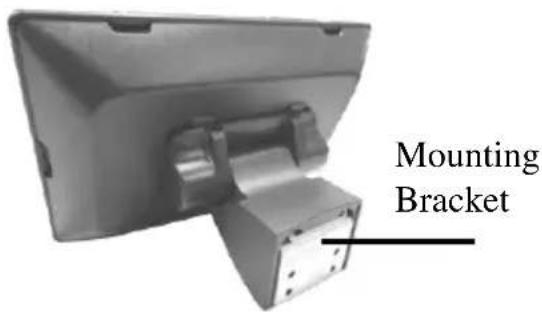

1. Take the customer display out of the package box. Align the four fixing screw holes on its mounting bracket with the hole pattern at the rear of the terminal as shown in the figure.

Close-up of a mechanical device with a highlighted component (no visible text or symbols)

1. Insert four #6-32-10L screws into the screws holes and then tighten them to secure the mounting bracket.

2. Have your system sit upright with its rear facing toward you.

Close-up of a mechanical component with a metal tool inserted, showing four small cylindrical parts (no visible text or symbols)

Front view of a desktop computer monitor with a stand and control panel (no visible text or symbols)

1. Connect USB or RS-232 cable to the customer display. If you are the PD-6607R/ PD-6607R-AR user, take RS-232 cable to plug the RJ-45 connector into the RJ-45 port of the customer display. For PD-6607U/ PD-6607U-AR models, please attach the USB Type-B connector of USB cable to the USB port of the customer display.

Close-up of a USB cable inserted into an electronic device, showing port and wiring (no text or symbols visible)

PD-6607R/PD-6607R-AR

Close-up of a hand pressing a black arrow on a device component (no visible text or symbols)

PD-6607U/ PD-6607U-AR

1. Tuck the extra cable into cable passages. Please also reserve the enough cable needed for tilting the customer display. In the example, the cable is routed through the cable passage on the right side.

1. Push the rails back to the base.

If the cable is threaded through the cable passage on the right, by following the sequence number, first slide the shorter rail horizontally and then longer one vertically into place in the direction shown by the arrow to fix your cable into place.

Alternatively, if you intend to lock the cable into the cable passage on the left, according to to the sequence number, first slide the shorter rail and then longer one into place in the direction shown by the arrow.

Two grayscale images showing a device before and after transformation, with arrows indicating the process (no text or symbols present)

1. After the rails are sild back, make sure the cable can be pull out of the bottom cable exit.

1. Remove the cover for the bottom I/O compartment.

Close-up of a hand pressing down on a mechanical component with an arrow indicating a downward motion (no text or symbols visible)

1. Connect USB or RS-232 cable to the POS terminal.

If you are the PD-6607R/ PD-6607R-AR user, have DB9 connector of RS-232 cable attached to the DB9 COM port at the bottom I/O plate of your terminal.

For PD-6607U/ PD-6607U-AR models, connect the USB Type-A connector of USB cable to the USB port of your terminal.

Close-up of a mechanical component with hoses and connectors, no visible text or symbols

PD-6607R/ PD-6607R-AR

Close-up of a mechanical or electronic component with connectors and cables, no visible text or symbols

PD-6607U/ PD-6607U-AR

1. After tucking the extra cable into the bottom I/O compartment, push back the cover to close the compartment.

2. The installation of PD-6607R/ PD-6607R-AR/PD-6607U/ PD-6607U-AR is completed.

3. Tilt the customer display up and down in the direction shown by the arrow in the figure. While setting up the tilting angle, please be careful not to press on the LCD panel.

Close-up of a hand pressing down on a laptop keyboard (no visible text or symbols)

Black-and-white photo of a desktop computer monitor with a rear panel and control stand (no visible text or symbols)

Close-up of hands holding a tablet device with a curved arrow indicating rotation (no text or symbols visible)

Activating Power to Serial Ports for PD-6X07R/PD-6X07R-AR via BIOS

To ensure PD-6X07R/ PD-6X07R-AR is able to extract power out of the RS-232 ports of the Posiflex terminals, it is significant to utilize BIOS to manually enable the power output to the serial port which the customer display is connected to before the PD-6X07R/ PD-6X07R-AR could start up. However, if the customer display you are using is not manufactured by Posiflex, it is strongly suggested to deactivate the power to RS-232 port of your terminal in preventing the customer display from being damaged.

Please go through the below instructions to activate the power output via BIOS settings for PD-6X07R/ PD-6X07R-AR. Also, the POS terminal has to be completely shut down before you intend to connect the cable into the serial port of the terminal.

1. Make sure that PD-6X07R/ PD-6X07R-AR is well connected to the Posiflex terminals using the RS-232 cable.
2. Press the power button of the POS to power on the POS. During the boot process, hit F2 key to access BOIS setting.
3. Use arrow keys to check the setting of the particular serial port used by PD-6X07R/ PD-6X07R-AR. If it is set to be disabled, hit Enter key to enable the serial port.
4. Switch to Exit tab and select Exit Saving Changes option. Choose Yes in Setup Confirmation message box to save your configurations.
5. After rebooting your POS, make sure PD-6X07R/ PD-6X07R-AR is successfully initiated.

Powering ON/OFF PD-6X07 Series

Instead of using an external power supply, PD-6X07 series customer display primarily depend on Posiflex POS terminals as primary power sources. In such a case, the customer display will be automatically initiated when the terminal is powered up, and shut down immediately after you power the POS off.

For PD-6X07R/ PD-6X07R-AR models, please do first follow what is specified in the previous section, Activating Power to Serial Port for PD-6X07R/ PD-6X07R-AR via BIOS, to ensure that the power output to the customer display is actually activated.

Power ON the PD-6X07 Series

Press the power button of the POS terminal to power on your terminal. Few seconds later the customer display will be initiated.

Power OFF the PD-6X07 Series

After following the standard shutdown procedure to power off the POS terminal, the customer display will be turned off accordingly.

Installing the Virtual COM Driver for PD-6X07U/PD-6X07U-AR only

Refer to the following steps to install the driver for PD-6X07U/PD-6X07U-AR models.

1. Connect the USB cable of PD-6X07U/ PD-6X07U-AR to your POS terminal.

2. Locate the SA_PD_LM folder from the "Drivers" folder in the Local Disk (C:) of your POS terminal

3. Double click the USB_VCOM folder.

4. Double click the USB_VCOM_v519bx folder.

5. In the folder, double click the PDF file with the filename of USB VCOM Drivers Installing Guide to open it.

1. Then, refer to the following instructions to complete the installation.

Setting up the PD-6X07 Series Customer Display

POS Graphics Display Tool is a helpful tool designed to assist PD-6X07 series users in managing the customer display settings according to your personal preference. To start with the tool, you will need to access the executable file, GraphicsDisplay_Setup Tool.exe, under the directory C:\Drivers\ SA_PD_LM\ GraphicsDisplay_Setup Tool. As for the more detailed instructions on the operation of the tool, please refer to the file named by PD6X07 Setup Tool Guide.pdf in the same directory.

Before using the tool to configure the display, ensure that you have installed the Microsoft .NET Framework 3.5 or above. Also, to avoid users from damaging the main board of the display, it is highly recommended that the configuration is implemented by professional technicians.

Specifications

	PD-6X07R/ PD-6X07R-AR	PD-6X07U/ PD-6X07U-AR
Display
Display Type	7" TFT LCD
Number of Characters	40 characters x 12 rows max. for Alphanumerical characters (PD-6X07R/ PD-6X07R-AR/PD-6X07U/ PD-6X07U-AR)20 characters x 12 rows max. for Chinese characters (PD-6X07R/ PD-6X07U)
Dot Matrix /Resolution	800 x 480 display resolution
Display Color	Font : Red / Green / Blue / Yellow / Orange / White / Black Background : Black / White / Blue
Multimedia Support	JPEG graphics support
Interface	RS232	USB
Power Supply	Powered by standard COM ports	Powered by standard USB ports
Mechanical
Total Height	471 mm ( PD-6207 series)124 mm ( PD-6307 series/ PD-6507 series/ PD-6607 series)
Total Width	221.5 mm ( PD-6207 series)188 mm ( PD-6307 series/ PD-6507 series/ PD-6607 series)
Total Depth	188 mm ( PD-6207 series)52 mm ( PD-6307 series)55 mm ( PD-6507 series)80 mm ( PD-6607 series)

※ The product information and specifications are subject to change without prior notice. To get the detailed information on PD-6X07R/ PD-6X07R-AR/ PD-6X07U/ PD-6X07U-AR, please check this model from Posiflex Global Website.
