AGITUM700 - Range hood Tisira - Free user manual and instructions

Product Type	Under-cabinet range hood
Brand	Tisira
Model	AGITUM700
Width	70 cm
Depth	50 cm
Height (min-max)	60-110 cm adjustable
Net Weight	12 kg
Power Supply	220-240 V ~ 50 Hz
Motor Power	200 W
Lighting	2 x 3 W LED
Number of Speeds	3
Max Extraction Rate	650 m³/h
Noise Level (max speed)	62 dB(A)
Grease Filter	Aluminum, dishwasher-safe
Charcoal Filter (optional)	Yes, for recirculation mode
Venting Type	Ducted (150 mm outlet) or recirculation
Controls	Mechanical push buttons
Energy Class	B
Material	Stainless steel

Frequently Asked Questions - AGITUM700 Tisira

What is the recommended installation height above the cooktop?

For optimal performance, install the range hood between 65-75 cm above an electric cooktop and 75-85 cm above a gas cooktop.

How often should the grease filter be cleaned?

Clean the aluminum grease filter every 2 months or more frequently if used heavily. It is dishwasher-safe.

Can the hood be used in recirculation mode?

Yes, the AGITUM700 supports recirculation mode with an optional charcoal filter (not included). The filter needs replacement every 4-6 months.

What is the duct diameter for external venting?

The outlet diameter is 150 mm. Use rigid or flexible ducting of the same diameter for best performance.

How do I replace the LED lights?

The LED lights are integrated and should be replaced by a qualified technician. Contact Tisira support for assistance.

Is the hood noisy?

Noise levels range from 45 dB(A) at low speed to 62 dB(A) at maximum speed, which is average for this category.

What should I do if the hood stops working?

Check the power supply and circuit breaker. Ensure the plug is securely connected. If the problem persists, contact Tisira customer service.

Can I install the hood myself?

Installation must be performed by a qualified professional according to local electrical and building codes. Improper installation may void the warranty.

How do I clean the exterior stainless steel?

Use a soft cloth with mild detergent and water. Avoid abrasive cleaners that could scratch the stainless steel surface.

What is the warranty period?

Tisira offers a 2-year warranty for manufacturing defects. Register your product on the official website to activate warranty.

USER MANUAL AGITUM700 Tisira

520,700,850 //UNDERMOUNTHOOD

HELLO

CONGRATULATIONS ON THE SELECTION OF THIS RANGEHOOD. OUR APPLIANCES HAVE BEEN SPECIFICALLY DESIGNED FOR AUSTRALIAN AND NEW ZEALAND KITCHENS.

Please read through this user manual carefully as it contains information that will ensure that your appliance is installed correctly, important operating & care instructions and also some advice of what you need to do if this appliance is not performing as intended.

CONTENTS

HELLO 2

CONTENTS 3

WARNING & SAFETY INFORMATION 4

INSTALLATION & DUCTING 5

OPERATING INSTRUCTIONS 9

MAINTAINING YOUR RANGEHOOD 10

ELECTRICAL WIRING 12

PROOF OF PURCHASE 13

NOTES 14

IMAGES 16

CONTACT DETAILS 18

WARNING & SAFETY INFORMATION

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Young children should be supervised to ensure that they do not play with the appliance.
There shall be adequate ventilation of the room when the rangehood is used at the same time as appliances burning gas or other fuels.
- You must read the details concerning the method and frequency of cleaning.
There is a fire risk if cleaning is not carried out in accordance with the instructions.
Do not flambé under the rangehood.
Exhaust air must not be discharged into an existing flue which is used for exhausting fumes from appliances burning gas or other fuels.

The minimum distance between the hob surface and the lowest part of the rangehood is 600mm. This distance shall be at least 650mm, if the rangehood is installed over a gas hob. If the instructions for the gas hob specify a greater distance, this has to be taken into account.
Attention should be given to ensure that any applicable regulations concerning the discharge of exhaust air is fulfilled.
If the supply cord of this equipment is damaged, it must only be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
This appliance has been designed for indoor domestic use only.
Do not remove or inspect the filters whilst the hood is in operation.

INSTALLATION & DUCTING

AGITUM

INSTALLATION & DUCTING

IMPORTANT Before handling the rangehood during installation, it is recommended that you remove the filter to prevent damage.

Fig 1.2 illustrates the minimum height from the hob surface to the underside of the rangehood.

FIG 1.2

Electric hob - 600mm

Gas hob - 650mm

NOTICE: IF THE INSTRUCTIONS FOR THE GAS HOB SPECIFY A GREATER DISTANCE, THIS HAS TO BE OBSERVED. ANY INSTALLATION ABOVE 750MM WILL COMPROMISE PERFORMANCE.

INSTALLATION & DUCTING

Pure mechanical diagram showing a lever and shaft assembly without any text, numbers, or symbols

TOP DUCTING SIDE DUCTING

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Pure architectural line drawing of a roof structure without any text, numbers, or symbols

RE-CIRCULATING
(Carbon filter required)

DUCTED OPTION

NOTICE // ALL DUCTING MATERIAL MUST BE COMPLIANT WITH THE LOCAL LAWS IN FORCE.

INSTALLATION

Before installing the appliance, make sure that none of the parts is damaged in any way. In case of damaged parts, contact your retailer and do not proceed with installation. Read all of the following instructions with care before installing the appliance.

Before installing the appliance, remove the metal grase filter. It can be removed by pushing its special handle toward the back-side of the cooker hood and turning the filter downwards so to unfasten it from its slot (Fig.1).

To install the appliance please respect the follow instructions.

The appliance must be install by competent authorities. In order to do not damage the electronic parts of the appliance please do not use added screws.

WARNING // Do not penetrate any screws into the rangehood as this may result in electrical hazards. Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

INSTALLATION & DUCTING

Essential precautions to respect before in- stalling the appliance are the following:

1) Prepare the power supply.
2) Prepare a hole for the exhaust of the air both in the filtering and in the exhau sting version.
Use an exhausting pipe whose maximum length does not exceed 5 meters.
3) Do not use screws to fix the outlet pipe to the cooker hoods.
4) Limit the no. of elbows in the piping, since each elbow reduces the aspiration efficiency of 1 linear meter. (Ex.: if you use no. 2 x90° elbows, the length of pi ping I must not exceed 3 meters)
5) Avoid abrupt direction changes.
6) Use a 150 mm or 200 mm constant dia meter pipe for the whole length.
7) Use piping approved by standards in force.
8) To have made a cut-out on the bottom of the cabinet which is suitable to hold the appliance in position (Fig. 2).

AGITUM 520 505mmX270mm

AGITUM 700 685mmX270mm

AGITUM 850 835mmX270mm

9) Right now, after drilling the kitchen cabinet please follow carefully the instructions also above, calibrate the fixing spring depending on the depth of cabinet. (Fig. 3).

10) At this point, insert the range hood inside the kitchen cabinet until the fixed springs will be hooked into.

11) Fix the range hood to the cabinet, in the left and right sides, using by the screws equipped (Fig. 4).

12) At the end, place the grease filters that were removed before.

Warning!

Before connecting the flexible exhausting pipe to the motor, make sure the stop valve, which is on the air outlet of the motor, can swing.

Exausting version

Connect the flange to the exhausting hole with an appropriate pipe. Connect the appliance with the electrical mains through the supply cord.

Filtering version

Connect the flange with a pipe suitable to convey the air to the top of the cabinet. Connect the appliance with the electrical mains through the supply cord.

OPERATING INSTRUCTIONS

A

B

C

D

E

Model: Agitum

A: Motor switch on/off (1st rate level)
B: 2nd rate level switch
C: 3rd rate level switch
D: 4th rate level switch
E: Light switch on/off

The products are endowed with an electronic device which allows the automatic switching off after 4 hours working from the last operation.

MAINTAINING YOUR RANGEHOOD

GENERAL MAINTENANCE

Ensure that the power to the unit is switched off prior to cleaning the unit. Surface should only be cleaned with warm soapy water and a soft non-abrasive cloth. In coastal environments and humid areas more frequent cleaning is required to maintain the finish.

Particular care is due to the grease filter. It can be removed by pushing its special handle toward the back-side of the cooker hood and turning the filter downwards so to unfasten it from its slot (Fig.1).

To insert the filter just perform the opposite operation. After 30 hours working (model), the push button control panel will signal the saturation of the grease filter by lighting all the buttons. Press the 0/1 button for 2 seconds to reset when the motor is off. The grease filter needs cleaning by regular handwashing or in dishwashers every two months at least or depending on its use.

To clean the appliance itself tepid water and neutral detergent are recommended, while abrasive products should be avoided. For steel appliances specialized detergents are recommended (please follow the instructions indicated o the product itself to obtain the desired results).

Warning! To take down the appliance from the cabinet, remove the definitive fixing screws (Fig. 4) using a screw-driver, get off the grease filters (Pic. 1).

Act on the small handle of the springs, which are inside the built-in unit, with the necessary strength to unhook the appliance from the cabinet.

If the supply cord is damaged, it must be replaced by the manufacturer or its sevice agent or a similarly qualified person in order to avoid a hazard.

MAINTAINING

YOUR

RANGEHOOD

LAMPS

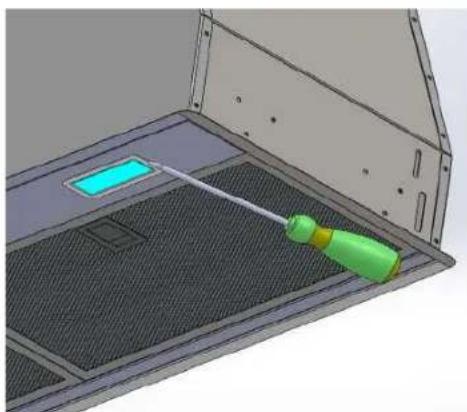

Before to replace the led lamp switch off the appliance then by using appropriate tools remove the led lamp from its slot (Fig. 5).

Take out the led lamp from its connector and replace with similar characteristics.

To find the correct led lamp please check on the replacement part list.

If the supply cord is damaged, it must be replaced the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

MODEL

AGITUM 520

AGITUM 700

AGITUM 850

LAMP TYPE

2X SPOT LED REVO 2.5W

2X SPOT LED REVO 2.5W

2X SPOT LED REVO 2.5W

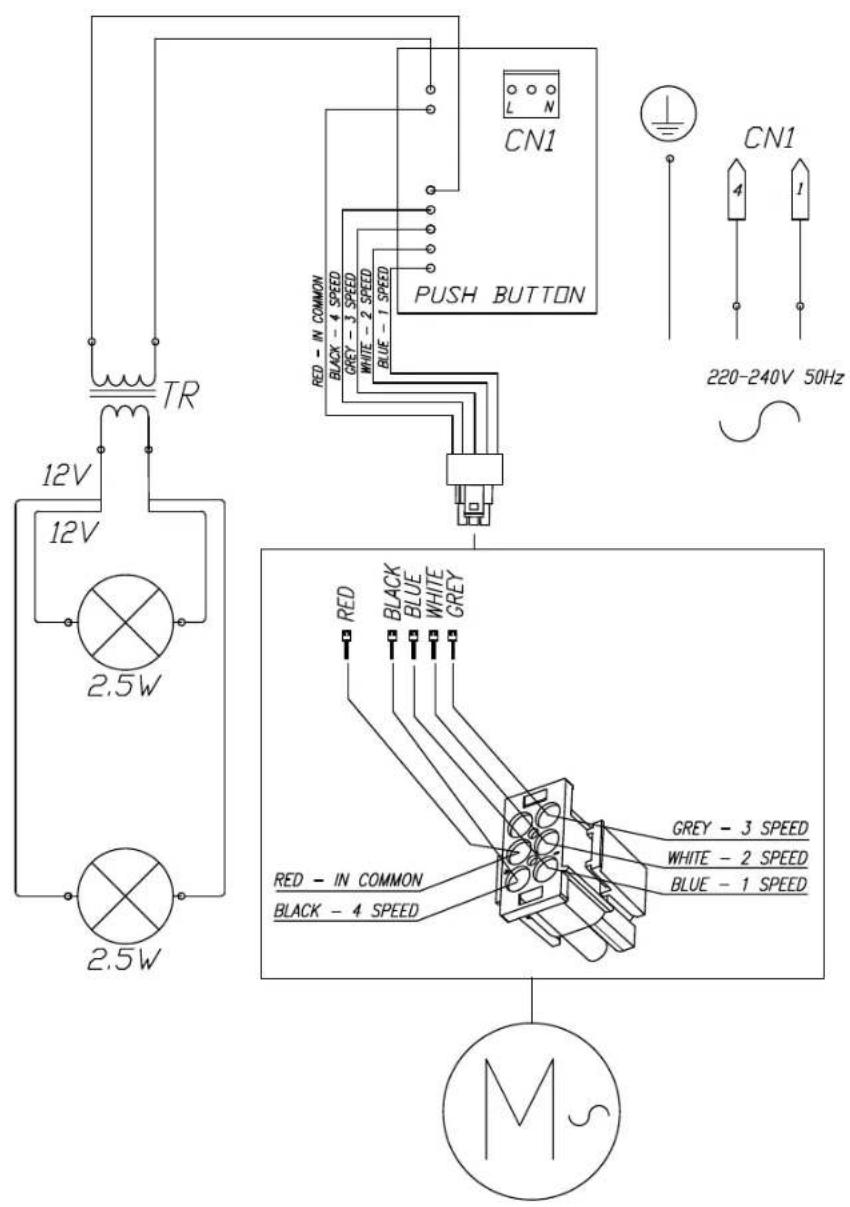

ELECTRICAL WIRING

PROOF OF PURCHASE

ATTACH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE

NOTES

NOTES

IMAGES

3D architectural rendering of a modern building interior with ventilation grilles and a central skylight (no text or symbols visible)

Fig. 1

Diagram of a computer monitor with an open lid and a base cover, showing no text or symbols.

Fig.2

AGITUM 520: 505mm x 270mm

AGITUM 700: 685mm x 270mm

AGITUM 850: 835mm x 270mm

Diagram of a mechanical assembly with two parts, one marked with a red arrow and the other with a black arrow, enclosed in a circle (no text or symbols)

Fig.3

3D technical diagram of a mechanical device with blue directional arrows indicating flow or movement (no text or symbols present)

Fig.4

IMAGES

3D CAD rendering of a mechanical component with a green tool inserted into a mesh chamber (no text or symbols visible)

Fig.5

CONTACT DETAILS

AUSTRALIA

ARISIT PTY LIMITED

40-44 Mark Anthony Drive

Dandenong South, VIC 3175

Australia

Ph 1300 815 589

FX [phone]

[e-mail]

NEW ZEALAND

ARISIT PTY LIMITED

PO Box 68-140

Newton, Auckland

1145

New Zealand

Ph [phone]

FX [phone]

[e-mail]
