WPRU52ASL - Range hood Tisira - Free user manual and instructions

Product Type	Range Hood
Brand	Tisira
Model	WPRU52ASL
Width	52 cm
Installation Type	Under-cabinet / Wall-mounted
Finish	Stainless Steel
Extraction Rate (Max)	600 m³/h
Noise Level (Max)	65 dB
Lighting	LED (2 x 1.5W)
Number of Speeds	3
Control Type	Push Buttons
Grease Filter	Aluminum, reusable
Charcoal Filter	Optional (for recirculation)
Ducted / Recirculation	Both possible
Motor Type	Single motor
Voltage / Frequency	220-240 V / 50-60 Hz
Power Consumption	200 W
Dimensions (W x D x H)	52 x 30 x 10 cm
Net Weight	8 kg
Energy Class	B
Maintenance Indicator	Yes (filter cleaning reminder)

Frequently Asked Questions - WPRU52ASL Tisira

How often should I clean the grease filter?

The grease filter should be cleaned every 4 to 6 weeks, or more frequently if you cook heavily. Remove the filter and wash it with warm soapy water or in the dishwasher. Ensure it is completely dry before reinstalling.

Can this range hood be used in recirculation mode?

Yes, the WPRU52ASL can be used in recirculation mode. You will need to purchase and install a charcoal filter (not included) to absorb odors. Follow the instructions in the manual for proper placement.

What are the dimensions for the cutout if installing under a cabinet?

For under-cabinet installation, the cutout should match the hood's dimensions: approximately 52 cm wide and 30 cm deep. Refer to the installation template in the manual for exact measurements.

How do I replace the LED lights?

The LED lights are integrated and should be replaced by a qualified technician. If a light fails, contact Tisira customer service or an authorized service center. Do not attempt to replace them yourself.

Why is my range hood noisy?

Noise can be caused by loose ductwork, dirty filters, or improper installation. Check that all screws are tight, clean the grease filter, and ensure the duct is securely connected. If noise persists, contact support.

What should I do if the suction power seems weak?

Weak suction often indicates a clogged filter or blocked duct. Clean the grease filter first. If using recirculation, replace the charcoal filter. Also check that the duct is not kinked or obstructed.

How do I reset the filter cleaning indicator?

After cleaning or replacing the filters, press and hold the light button for 3 seconds until the indicator light turns off. Refer to the manual for exact steps for your model.

Can I install the hood without ducting?

Yes, you can use the hood in recirculation mode. You must install charcoal filters and ensure the recirculation kit is properly fitted. The air will be filtered and returned to the kitchen.

What is the warranty period for this range hood?

Tisira typically offers a 2-year warranty for manufacturing defects. Register your product online to activate the warranty. Keep your purchase receipt as proof.

How do I clean the stainless steel surface?

Use a soft cloth with mild detergent and water. Avoid abrasive cleaners or scouring pads that can scratch the finish. Wipe in the direction of the grain and dry thoroughly to prevent water spots.

USER MANUAL WPRU52ASL Tisira

IMPORTANT: Please ensure that you read through this user manual prior to installation and use. This manual contains important information to ensure optimal performance and keep you safe. Please retain your proof of purchase, as this will be required in the event that you require warranty service. Remember to retain this manual for future reference.

CONTENTS

WARNING & SAFETY INFORMATION 3

OPERATING INSTRUCTIONS 4

MAINTENANCE & TROUBLESHOOTING 5

INSTALLATION & DUCTING 6

CONTACT DETAILS Cover

WARNING & SAFETY INFORMATION

TECHNICAL GUIDANCE

• There shall be adequate ventilation of the room when the rangehood is used at the same time as appliances burning gas or other fuels.
• There is a fire risk if cleaning is not carried out in accordance with the instructions.
• Exhaust air must not be discharged into an existing flue which is used for exhausting fumes from appliances burning gas or other fuels.
• The minimum distance between the hob surface and the lowest part of the rangehood is 600mm. This distance shall be at least 650mm, if the rangehood is installed over a gas hob. If the instructions for the gas hob specify a greater distance, this has to be taken into account.
• Attention should be given to ensure that any applicable regulations concerning the discharge of exhaust air is fulfilled.
• If the supply cord of this equipment is damaged, it must only be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• This appliance has been designed for indoor domestic use only.
• CAUTION: Accessible parts may become hot when used with cooking appliances.

DO'S & DONT'S

• Do not flambe under the rangehood.
• Do not remove or inspect the filters whilst the hood is in operation.
• You must read the details concerning the method and frequency of cleaning.

SAFETY WITH CHILDREN

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been govern supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Young children should be supervised to ensure that they do not play with the appliance.

OPERATING INSTRUCTIONS

520,750 & 900 UNDERMOUNT RANGEHOODS

Simple diagram of a rectangular room with diagonal hatching and two circular controls, no text or symbols present.

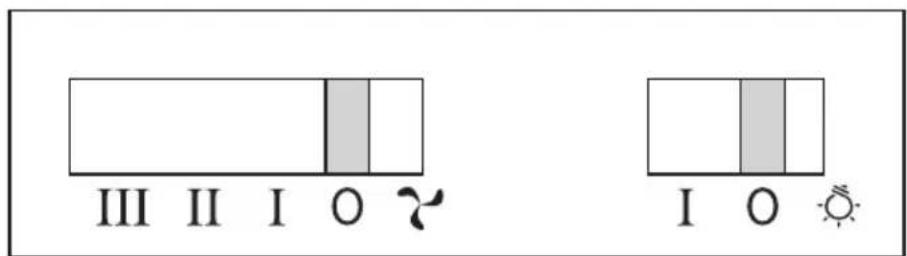

CONTROL PANEL

FAN SPEED

LOW/OFF/HIGH switch - Located on the letf hand side of the control panel.

This unit features 3 speed settings; single line indicates low speed, double lines indicate the medium speed & triple lines indicate high speed.

To turn the unit off, set the speed switch to the 0 position (off).

LIGHT

On/Off switch - Located on the left hand side of the control panel as indicated in the diagram above.

MAINTENANCE & TROUBLESHOOTING

GENERAL MAINTENANCE

Ensure that the power to the unit is switched off prior to cleaning the unit. The surface should only be cleaned with warm soapy water and a soft non-abrasive cloth. In coastal environments and humid areas more frequent cleaning is required to maintain the finish.

FILTER

This unit is supplied with a Aluminium filter designed for ducted installations. The Aluminium filter is dishwasher safe or can be cleaned with hot soapy water. Ensure that filter is thoroughly dry before re-installing.

You may want to order Carbon filters designed to eliminate odours from the exhaust fumes when installing the appliance for recirculating mode. This type of filter cannot be cleaned and should be replaced every 3-6 months depending on use.

LAMPS

Before replacing, ensure that the lamps are completely cool and the power to the unit has been switched off. Replacement Lamps can be purchased from customer care. Contact details on front page.

To remove the lamp, twist the lamp in an anti-clockwise direction. Be careful when installing the new lamp not to make contact with the skin as this may damage the lamp and shorten its life.

LAMP TYPE: GU10 - 3W LED (x2)

INSTALLATION & DUCTING

IMPORTANT: Before handling the rangehood during the installation, it is recommended that you remove the filter to prevent damage.

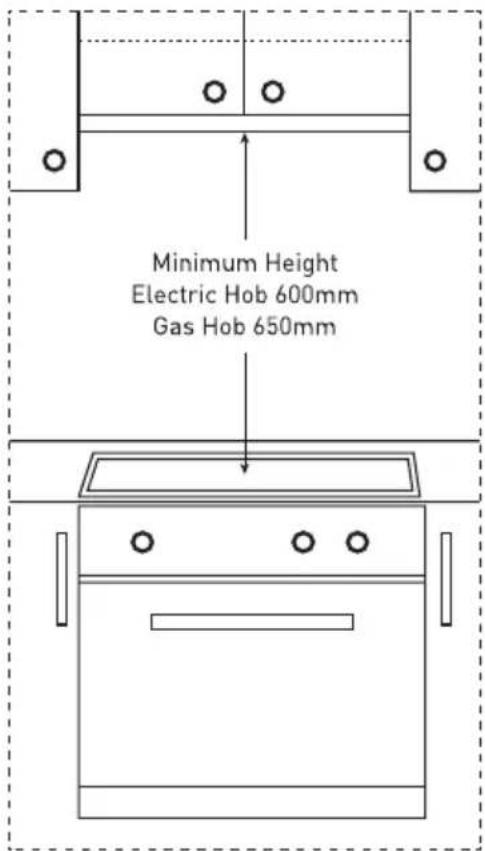

The image to the left, illustrates the minimum height from the hob surface to the underside of the rangehood.

Electric hob - 600mm

Gas hob - 650mm.

NOTICE: IF THE INSTRUCTIONS FOR THE GAS HOB SPECIFY THE GREATER DISTANCE, THIS HAS TO BE OBSERVED. ANY INSTALLATION ABOVE 750MM WILL COMPROMISE PERFORMANCE.

INSTALLATION & DUCTING

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

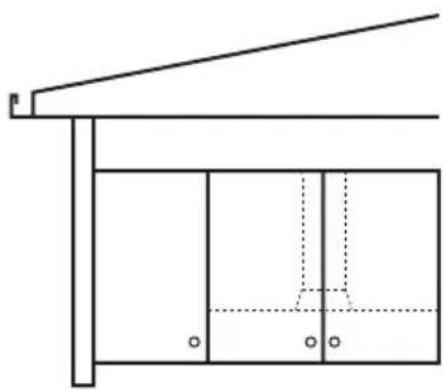

TOP DUCTING

Pure technical line drawing of a structural frame with no text, numbers, or symbols

SIDE DUCTING

Pure technical line drawing of a structural frame with no text, numbers, or symbols

RE-CIRCULATING
(Carbon filter required)

DUCTED OPTION

NOTICE: ALL DUCTING MATERIAL MUST BE COMPLIANT WITH THE LOCAL LAWS IN FORCE.

INSTALLATION

1. Remove the filter and light globes. (If installed)
2. Remove the stainless steel fascia (2 screws) - take care not to damage the fascia.
3. Determine the most efficient path for the ductwork, minimise bends and keep the length of the ductwork to a minimum.
4. It is important to run and finish (install roof / wall caps) prior to installation on the hood.
5. Cut out the cabinetry as per the installation diagram. Ensure that access has been allowed for the power cable.
6. Hold the hood up to the underside of the cabinet (2 people required); Screw the hood to the cabinetry.
7. Attach the ducting adaptor to the ducting.
8. Re-install the stainless steel fascia.
9. Re-install filter.
10. Plug in the power to the unit, turn on and test.

WARNING: Do not penetrate any screws into the rangehood as this may result in electrical hazards. Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

Version 1.2

We are committed to ongoing research and development. Every effort has been made to ensure all information in the user manual is correct at time of going to print. Dimensions should be used as a reference only and actual dimensions should be taken from the physical product.
