KAMN32F7SA - Monitor Kogan - Free user manual and instructions

Product Type	LED Monitor
Model	KAMN32F7SA
Screen Size	32 inches
Resolution	1920 x 1080 (Full HD)
Aspect Ratio	16:9
Refresh Rate	60 Hz
Response Time	5 ms
Panel Type	VA
Brightness	250 cd/m²
Contrast Ratio	3000:1
Viewing Angle	178° / 178°
Connectivity	HDMI, VGA, Audio Out
Power Consumption	45 W (Typical)
Standby Power	<0.5 W
Voltage	100-240 V AC, 50/60 Hz
Dimensions (with stand)	730 x 460 x 200 mm
Weight (with stand)	6.5 kg
VESA Mount	100 x 100 mm
Features	Flicker-Free, Low Blue Light, Wall Mountable
Cleaning	Use a soft, dry cloth. Do not use harsh chemicals.
Safety	Place on stable surface, avoid moisture, unplug during cleaning.
Spare Parts	Power adapter, stand, screws (available through Kogan support).
Repairability	Product is not user-serviceable. Contact Kogan for repairs.
Warranty	Standard Kogan warranty applies. See manual for details.

Frequently Asked Questions - KAMN32F7SA Kogan

What is the screen resolution of the Kogan KAMN32F7SA?

The Kogan KAMN32F7SA has a Full HD resolution of 1920 x 1080 pixels, providing clear and sharp images.

Does this monitor have built-in speakers?

No, the KAMN32F7SA does not include built-in speakers. You can connect external speakers via the audio out port.

What are the dimensions of the monitor with the stand?

The dimensions with the stand are approximately 730 x 460 x 200 mm.

Can I mount this monitor on a wall?

Yes, the monitor supports VESA 100 x 100 mm wall mounts. Ensure you use a compatible mount and follow safety instructions.

What type of panel does the KAMN32F7SA use?

It uses a VA (Vertical Alignment) panel, which offers high contrast ratios and wide viewing angles.

How do I clean the monitor screen?

Use a soft, dry cloth to gently wipe the screen. Do not apply liquids directly; if needed, slightly dampen the cloth with water. Avoid using abrasive cleaners.

What is the refresh rate of this monitor?

The standard refresh rate is 60 Hz, suitable for everyday computing and casual gaming.

Does the monitor have a blue light filter?

Yes, it includes a Low Blue Light feature that can be adjusted through the on-screen menu to reduce eye strain.

What should I do if the monitor does not power on?

First, check that the power cable is securely connected and the outlet is working. Try a different outlet. If the issue persists, contact Kogan support for assistance.

Is this monitor compatible with gaming consoles?

Yes, you can connect gaming consoles via the HDMI port. Note that the 60 Hz refresh rate and 5 ms response time are adequate for casual gaming.

USER MANUAL KAMN32F7SA Kogan

32" FULL HD IPS 75HZ FREESYNC MONITOR

1920 x 1080

KAMN32F7SA

SAFETY & WARNINGS

Ensure to read all instructions and warnings in this user guide prior to assembly and use. Retain this user guide for future reference.

• Ensure the monitor is unplugged before cleaning.
• This monitor is designed with ventilation holes on the back of the casing. Do not cover or block them.
• Do not insert any object or spray anything into the vents.
• Do not place the monitor near heaters, stoves, fireplaces, or other heat sources.
• Do not place the monitor in rooms lacking adequate ventilation.
• Do not position the monitor on unstable surfaces or unsafe locations. If the monitor falls, it may be damaged and injure people around its vicinity.
• Unplug the monitor if it will not be used for an extended period.
• Do not place heavy objects on the monitor, its power cord, or any connected cable.
• Do not open the back panel of the monitor as it contains a high-voltage current even when not plugged in.

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

COMPONENTS

Empty white rectangle with a thin gray border (no text or symbols)

A Monitor (x1)

B Stand connector (x1)

C Stand base (x1)

D 10mm M4 stand base screw (x5)

E 10mm M4 VESA screw (x4)

F Cover (x1)

Coiled cable with connectors, no text or symbols visible

G HDMI cable (x1)

Line drawing of a two-wire electrical plug and its secondary power outlet (no text or symbols)

H Power cable (x1)

I User guide (x1)

OVERVIEW

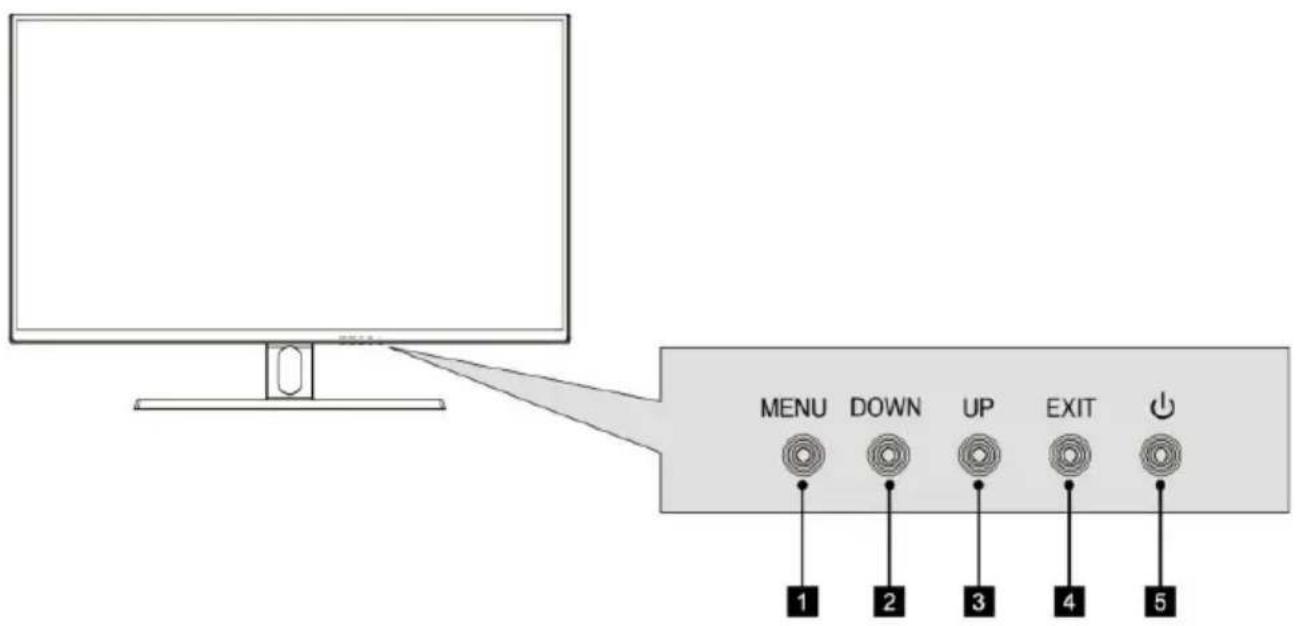

Front view

1 Menu button Press to display the OSD menu or enter sub-menus.
2 Down button Press to move down in the menu.
3 Up button Press to move up in the menu.
4 Exit button Press to exit.
5 Power button Press to turn the monitor ON/OFF.

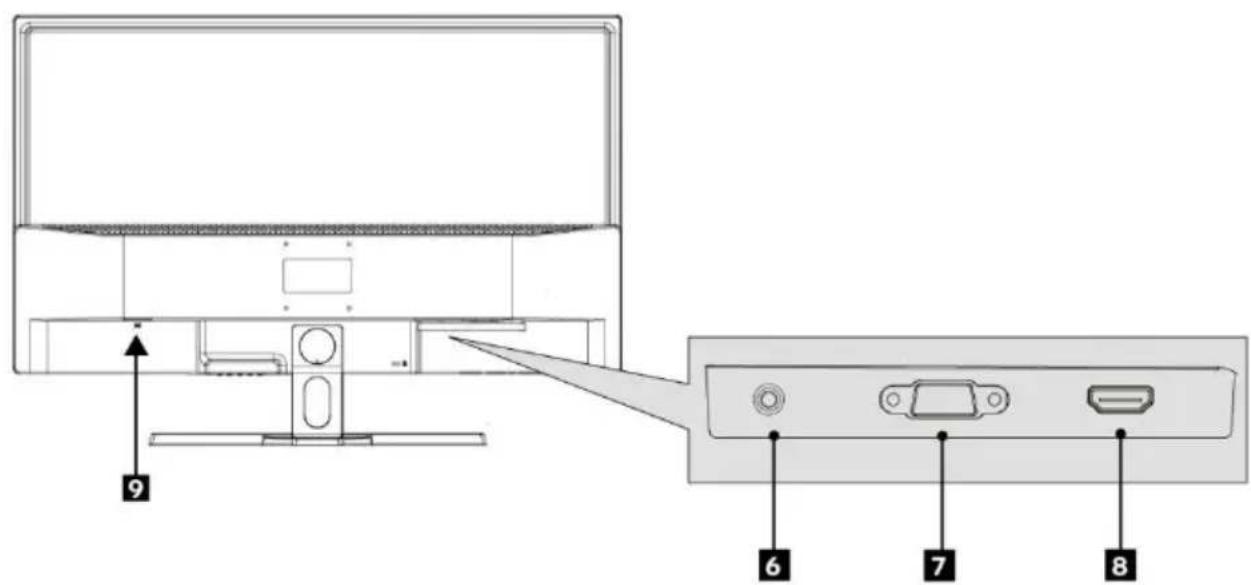

6 Audio output port
7 VGA port
8 HDMI port
9 Power port

STAND ASSEMBLY

Attention:

The monitor is fragile. Keep the foam underneath the monitor while assembling the stand.

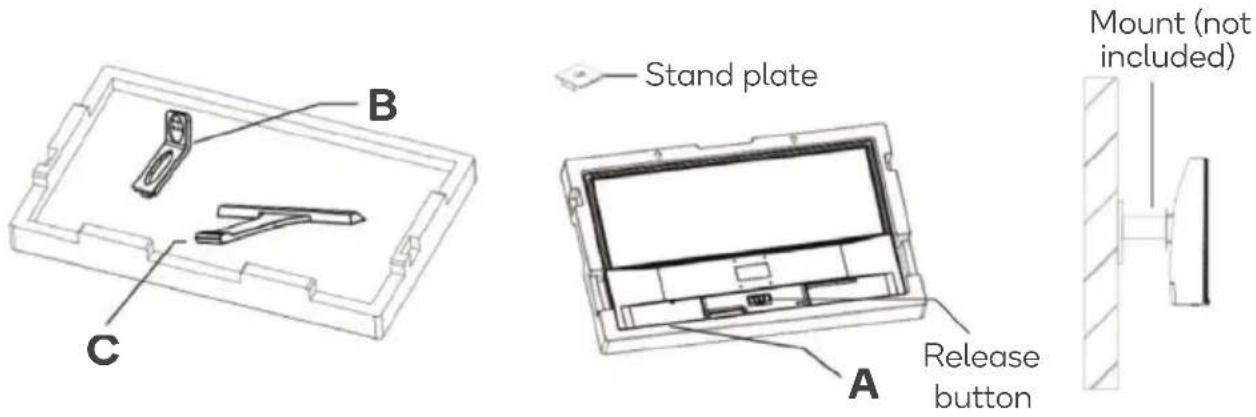

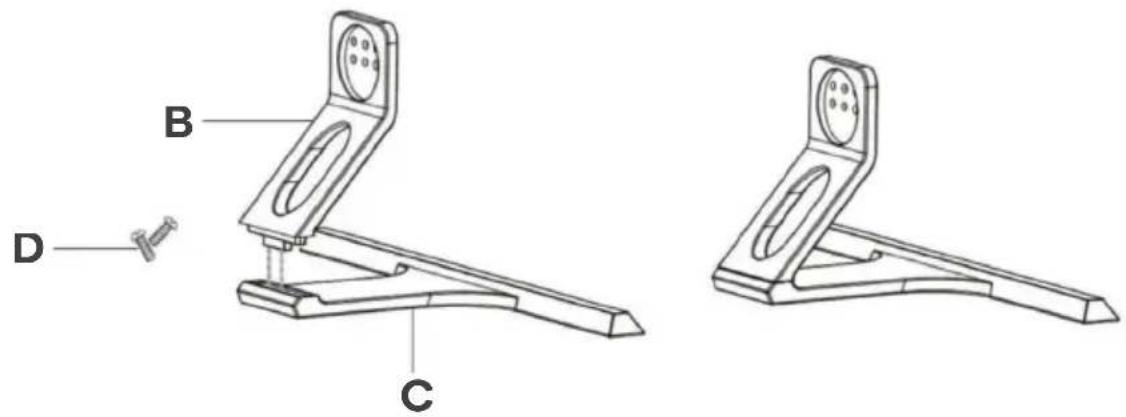

1. Open the packaging and remove the stand connector (B) and stand base (C). Using a Phillips head screwdriver (not supplied), secure the stand connector (B) to the stand base (C) with two 10mm M4 stand base screws (D).

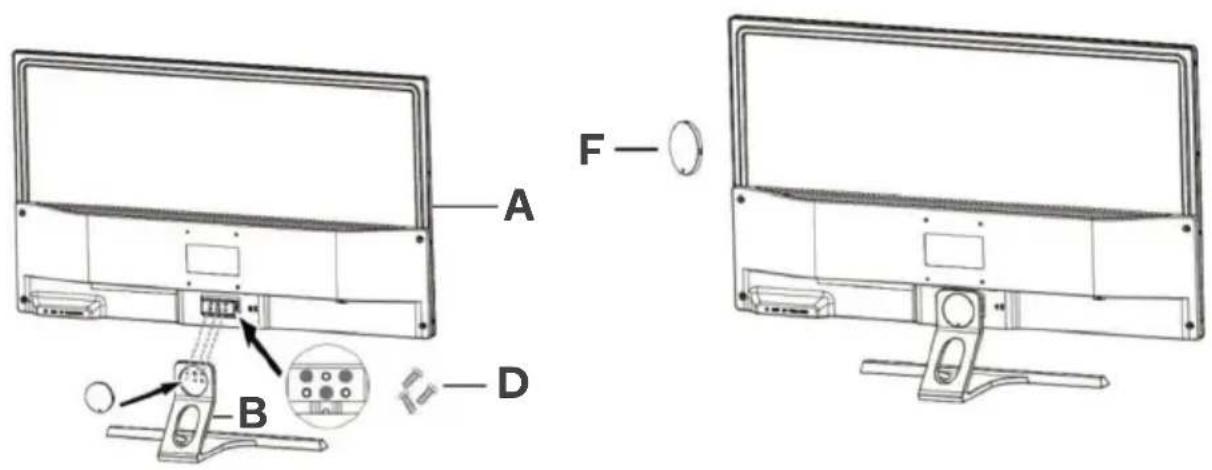

1. Remove the upper foam and reveal the lower part of the monitor (A). Fix the monitor (A) to the stand connector (B) with three 10mm M4 stand base screws (D) in the marked grey holes as illustrated.

2. Place the cover (F) over the stand connector (B).

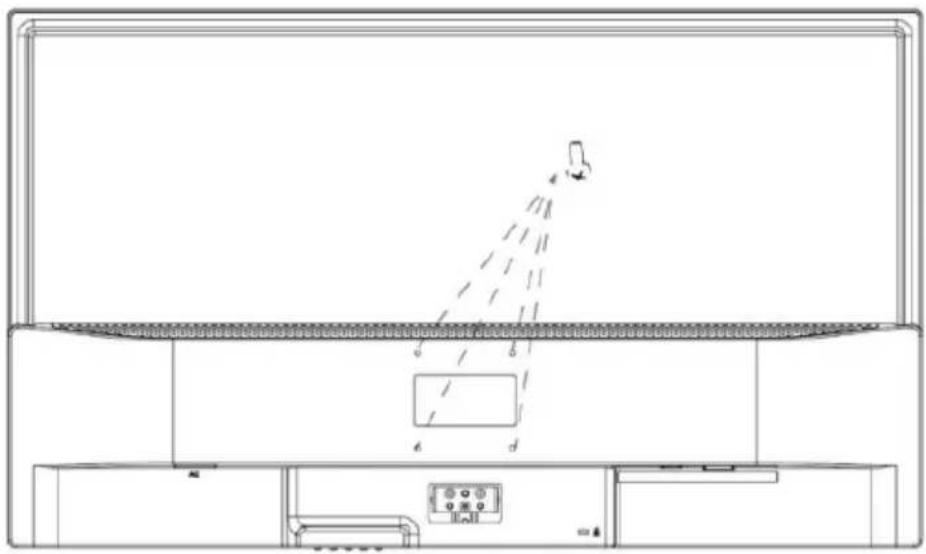

VESA MOUNT

1. Open the packaging and take out the monitor (A) with the foam attached. Gently place it on a desktop or table.

2. Remove the stand connector (B), stand base (C), and foam covering the back of the monitor (A). Press the release button to remove the stand plate.

If the monitor was already attached to the stand, remove the stand.

1. Mount the monitor (A) as desired with the steps provided with your VESA mount.

Line drawing of a TV setup with a screen, TV stand, and equipment (no text or symbols)

Notes:

• The mounting hole distance for this monitor is 75 x 75mm.
• VESA mount and mounting accessories are not included.

CONNECTIVITY

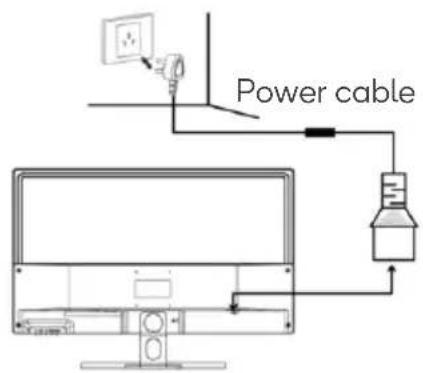

Power cable

Connect one end of the power cable into the power port on the monitor. Connect the other end into a power socket.

Earphones (audio out)

Earphones and other audio devices (not included) can be connected to the audio output port on the monitor. The monitor may need to be set as the PC's default sound output device.

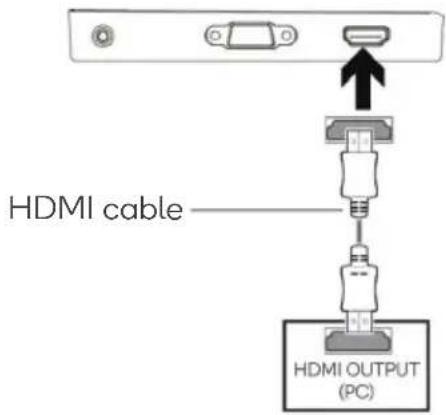

HDMI

Connect the HDMI cable into your input device's display output and the monitor's HDMI port.

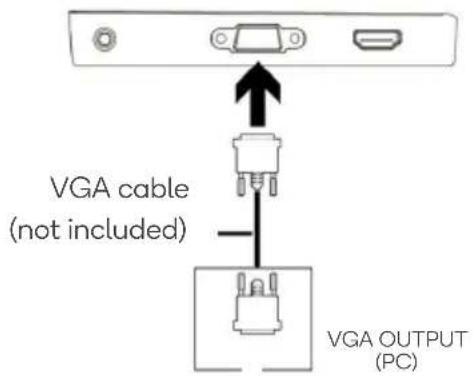

VGA

Connect a VGA cable (not included) into your input device's display output and the monitor's VGA port.

OPERATION

1. Connect the monitor to the input device via HDMI or VGA.
2. Connect one end of the power cable to the monitor, then connect the other end directly to a power socket. Turn on the power socket.
3. Press the power button to turn the monitor on.
4. When finished use, press the power button again to turn it off.

FreeSync

• To use this feature, ensure your hardware has FreeSync capabilities and the graphics drivers are fully up to date.
• After connecting, you may receive a prompt to enable the feature on your computer. If you do not receive the prompt, you may need to enable the function in your graphics card menu.
• See your graphics card manufacturer's documentation for instructions on how to turn on and/or enable FreeSync.

On-screen display (OSD) menu

The OSD menu may be used to adjust the monitor's settings.

Note:

When using the monitor for the first time, the monitor will configure to optimal settings automatically.

1. Press the menu button to enter the OSD menu.
2. Press up and down buttons to browse the settings categories. With the desired category highlighted, press the menu button to enter the sub-menu.
3. Press the up and down buttons to browse the sub-menu. With the desired sub-menu setting highlighted, press the menu button to select the sub-menu setting.
4. Press the up and down buttons to adjust the setting. Once adjusted, press the menu button to confirm.
5. Press the exit button to return to the display.

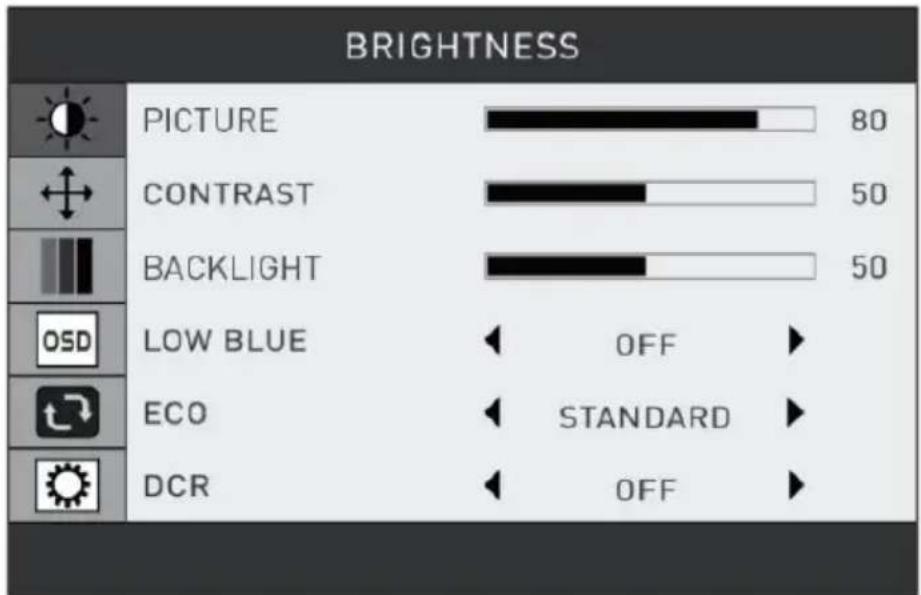

OSD menu options

Below is a list of settings that can be adjusted in the OSD menu.

Category	Sub-menu	Setting	Description
Brightness	Brightness	0-100	Adjusts the display brightness
	Contrast	0-100	Adjusts the display contrast
	Backlight	0-100	Adjusts the display backlight
	Low blue ON/OFF		Enables/disables the blue light reduction function
	ECO	STANDARD/ TEXT/GAME/ MOVIE/FPS/RTS	Sets the display's colour balance to pre-set levels calibrated for different uses.
	DCR ON/OFF		Enables/disables the dynamic contrast ratio function
Image	Horizontal position	0-100	Adjusts the horizontal position of the video display area (VGA only)
	Vertical position	0-100	Adjusts the vertical position of the video display area (VGA only)
	Clock	0-100	Adjusts the display clock setting
	Phase	0-100	Adjusts the display phase setting
	Aspect	Wide (16:9), 4:3	Adjusts the aspect ratio
	FreeSync	ON/OFF	Turns the FreeSync function on/off
Colour	Warm mode	Red/green/blue	Adjusts the red/green/blue levels
	Cool mode	Red/green/blue	Adjusts the red/green/blue levels
	User mode	Red/green/blue	Adjusts the red/green/blue levels
	HDR mode On/Off Turns the HDR mode on/off.
OSD Setting	Language	English, 简体中文, 한국어, Русский, Español, Deutsch, Italiano, Français, Portugues, Turkce, Polski, Nederlands	Sets the OSD language
	OSD H-position	0-100	Adjusts the horizontal position of the OSD menu
	OSD V-position	0-100	Adjusts the vertical position of the OSD menu
	OSD transparency	0-100	Adjusts the transparency of the OSD menu
	OSD time out	5-60	Sets how long the OSD menu will remain on-screen after no input (seconds)
Reset	Image N/A		Restores the display to VGA image defaults
	Colour N/A		Automatically configures the VGA colour settings
	Reset N/A		Restores the monitor to factory default settings
	Timecount 10-90 mins		Adjusts how long the time count function should be set for
Misc	Signal source	VGA/HDMI	Adjusts the input source

ECO modes

There are various pre-set colour modes suited for various use cases available on this monitor. These can be accessed using the ECO modes menu. The modes include the following:

• Standard (suitable for most activities)
• Text (best suited when reading text)
• Game (best suited for general gaming)
• Movie (best suited when watching movies)
• FPS (best suited when playing first-person shooter games)
• RTS (best suited when playing real-time strategy games)

GamePlus menu

To access the GamePlus menu, press the exit button, followed by the menu button.

The GamePlus menu allows users to access two settings:

- Crosshair – Allows users to change the appearance of the crosshair used when gaming)

Pure geometric crosshair symbol with no text or labels

Simple crosshair target symbol with no text or labels

- Timecount – Allows users to turn on a timer to record how long the monitor has been used (10–90mins).

CLEANING & CARE

• To clean the screen, turn it off, unplug it, and wait for it to cool completely. Wipe it with a dry micro-fibre cloth.
• To clean the body, wipe with a clean, slightly dampened cloth.

Note:

Do not use cleaning alcohol, ammonia-based liquids, or other harsh cleaners.

SPECIFICATIONS

Screen size 32"

Aspect ratio 16:9

Brightness 300cd/m ^4 (typical)

Panel IPS

Resolution 1920 x 1080

Refresh rate 75Hz

Response time 8ms

Viewing angle ≥178^(H)/178^(V)

Contrast ratio 1000:1

VESA mounting 75 x 75mm

Colours 16.7M

Signal input HDMI 1.4 x1, VGA x1

Power supported

100-240V, 50/60Hz, 1.1A

Audio

Speakers No

Accessories

Power cable Yes

HDMI cable Yes

Additional functions

Low blue light Yes

Flicker-free Yes

Physical dimensions

Dimensions (w. stand) 720.5 x 84.6 x 507.0mm

Dimensions (without stand) 720.5 x 42.9 x 423.1mm

Net weight 6.3kg

Gross weight 8.2kg

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com
