Product Type	Blender
Brand	Imarflex
Model	IB-350FG
Power Supply	220-240V, 50/60Hz
Power Consumption	500 W
Jar Capacity	1.5 L
Jar Material	Glass
Blade Material	Stainless steel
Speed Settings	2 speeds + pulse
Functions	Blending, mixing, pureeing, ice crushing
Safety Lock	Yes, lid lock system
Overheat Protection	Automatic shut-off
Non-slip Feet	Yes
Dishwasher Safe Parts	Jar and lid (top rack)
Cord Length	1.2 m
Dimensions (WxDxH)	20 x 18 x 38 cm
Weight	2.5 kg
Spare Parts Available	Jar, lid, blade assembly
Repairability	Serviceable by authorized center
Warranty	2 years

Frequently Asked Questions - IB-350FG Imarflex

Can I blend hot liquids?

No, do not blend hot liquids as pressure may build up and cause the lid to blow off. Allow liquids to cool to room temperature before blending.

How do I clean the blender?

Disassemble the jar from the base. Wash the jar, lid, and blade assembly in warm soapy water or place them on the top rack of the dishwasher. Wipe the motor base with a damp cloth. Never immerse the base in water.

What is the capacity of the jar?

The jar has a capacity of 1.5 liters, suitable for making smoothies, soups, and sauces.

Can I crush ice with the IB-350FG?

Yes, the blender is designed for ice crushing. Use the pulse function to avoid overloading the motor.

Why is my blender not starting?

Ensure the jar is properly locked onto the base and the lid is securely closed. If the safety lock is not engaged, the blender will not operate. Also check the power connection.

What is the power rating?

The blender has a 500 W motor, sufficient for everyday blending tasks.

Is the jar dishwasher safe?

Yes, the glass jar and the lid are dishwasher safe (top rack only). Handwashing is recommended for the blade assembly to maintain sharpness.

How long is the warranty?

The Imarflex IB-350FG comes with a 2-year warranty against manufacturing defects. Keep your purchase receipt as proof.

Can I replace the blades if they become dull?

Yes, replacement blade assemblies are available. Contact Imarflex customer service or authorized dealers for spare parts.

What should I do if the blender leaks?

Check the sealing ring under the blade assembly or the lid gasket. If it is damaged or misaligned, replace it. Ensure the jar is not overfilled.

USER MANUAL IB-350FG Imarflex

White imarflex blender with visible internal food mixture and control panel (no text or symbols on the main body)

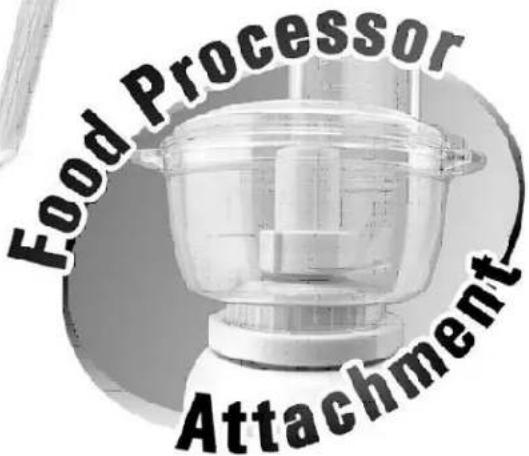

Food Processor Attachment

imarflex®

In Every Home.

www.imarflex.com

IB-350FG

SPECIFICATION

MODEL NO. : IB-350FG

RATED VOLTAGE : 230Va.c. 60Hz

POWER CONSUMPTION : 350 Watts

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions thoroughly.
2. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).
3. Do not use two-way socket with other appliance.
4. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest lmarflex Authorized Service Center.
5. Do not place the unit near gas stove, electric stove or in a heated oven.
6. Put the unit on stable surface; keep it away from the edge of counter to avoid accident.
7. Children should be supervised to ensure that they do not play with the appliance.
8. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.
9. To protect against electric shock, do not immerse the base in water.
10. Blade is sharp, handle it carefully.
11. Do not put the blade assembly on the base without the glass jar.
12. Do not use the blender if the glass jar has a crack.
13. This appliance is not intended for outdoor use.
14. Do not use this unit other than its intended use.
15. For household use only; not intended for any business purposes
16. Save this instruction manual for future reference.

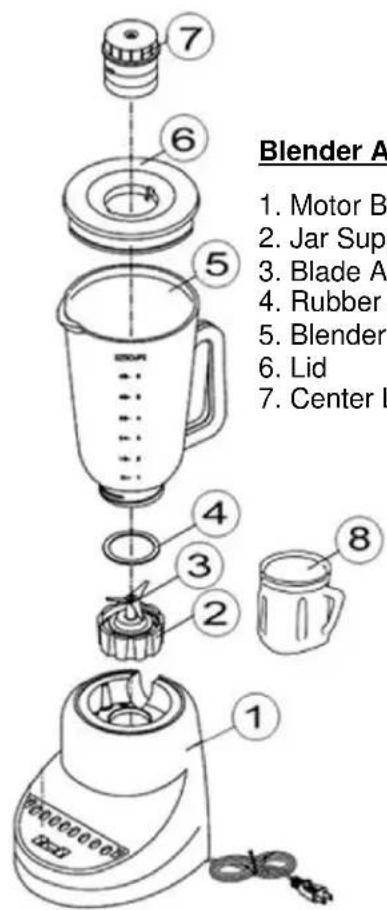

DESCRIPTION OF PARTS

Blender A 1. Motor B 2. Jar Sup 3. Blade A 4. Rubber 5. Blender 6. Lid 7. Center L

Blender Assembly

1. Motor Base
2. Jar Support
3. Blade Assembly
4. Rubber Packing
5. Blender Jar
6. Lid
7. Center Lid

Food Asse 1. Mo 2. Ce As 3. Co 4. Ru W 5. Co 6. Ad 7. Gr 8. Ch 9. Lic 10. F 1 2 3 4 5 6 7 8 9 10

Food Processor Assembly

1. Motor Base
2. Centrifugal Assembly
3. Cover Washer
4. Rubber Washer
5. Container
6. Adapter
7. Grater/Slicer
8. Chopper
9. Lid
10. Food Pusher

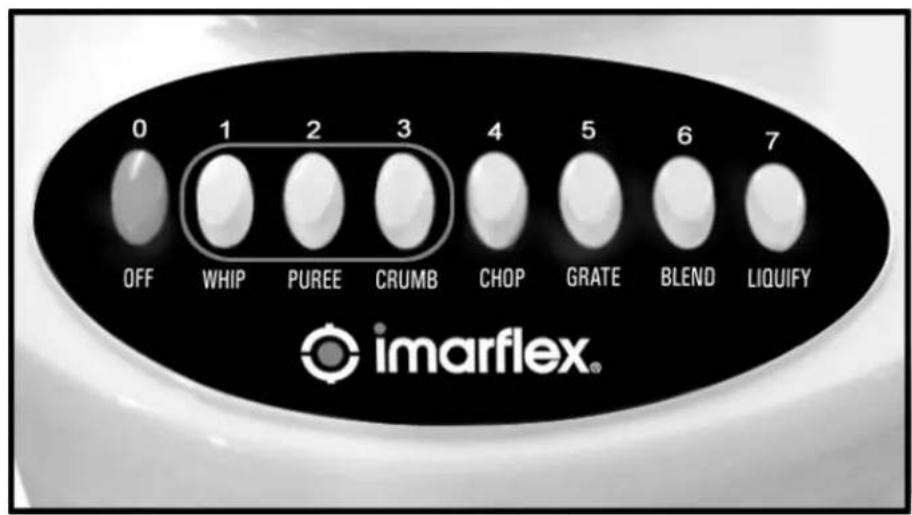

Control Panel

0 1 2 3 4 5 6 7 OFF WHIP PUREE CRUMB CHOP GRATE BLEND LIQUIFY imarflex®

HOW TO ASSEMBLE

BLENDER

IMPORTANT: The blender jar and blades are subject to wear during regular use. Always inspect the jar for nicks, chips or cracks. Always inspect blades for broken, bent or loose blades. Avoid using the jar or blades if damaged.

Contact the Imarflex Authorized Service Center to obtain evaluation and repair.

Make sure that the blender is unplugged. Place blender base on clean, dry surface to keep foreign particles from being pulled up into motor during operation.

1. Place the Rubber Packing into the Blade Assembly. Put the assembly into the Jar Support. (see pic.1 & 2)
2. Assemble the Jar Support Assembly with the Glass Jar. (see pic.3)
3. Put the Glass Jar Assembly on the Motor Base and press down until securely engaged. (see pic. 4)
4. Put the Center Lid on the Lid.
5. Secure the Lid into the Glass Jar and press down. (see pic.5)

FOOD PROCESSOR

1. Fit the Centrifugal Assembly on the Motor Base. (see pic. 1)
2. Put the Cover Washer (3) and the Rubber Washer on the Centrifugal Assembly
3. Put the Container on top of Centrifugal Assembly, align the slots and slightly turn it clockwise until it locks. (see pic.2)
4. Insert the Adaptor on the Container's hole. (see pic.3)
5. Put the Grater/Slicer (see pic.4)
   NOTE: If Chopper has to be used, do not use the Adaptor.
6. Put the Cover, align the slots and slightly turn it clockwise to lock. (see pic.5)
7. Put the Food Pusher into the food chute. (see pic.6)

HOW TO USE

BLENDER

1. For initial use, wash glass jar with blade assembly thoroughly. "Please refer to cleaning and maintenance method #2". Wipe it dry.
2. Put the glass jar with blade assembly on the motor base.
3. Plug the unit into the convenience outlet.
4. Be sure to remove the seeds of the fruits/vegetables if needed.
5. Put the desired mixture.
6. Put the lid on the glass jar and close securely. Place the center lid into the hole of the lid and push down to lock.
7. Plug the unit into the convenience outlet.
8. Press the pulse button first to crack the ice.
9. Select the desired speed and function.
10. Additional ingredients can be added through opening in the lid.
11. Turn OFF and unplug the unit after every use.

FOOD PROCESSOR

1. Place the centrifugal assembly with the container into the base. (please refer to How to Assemble)
2. Put the desired attachment;

a. Chopper- for chopping vegetables and fruits. In processing meat remove the bone and skin

b. Grater/ Slicer- for grating and slicing different types of food.

i.e. vegetables, cheese

NOTE: The side that facing the top will function.

1. Put the Cover, align the slots and slightly turn it clockwise to lock. Make it sure that it is properly fitted.
2. Plug the unit into the convenience outlet.
3. Press the desired speed.
4. Insert the food on the chute one by one.
5. Press down the food with the Food Pusher. Do not press the food pusher forcibly.
6. Turn OFF and unplug the unit after every use.

NOTE:

• Some electric smell may be observed on first use.
  • Maximum continuous operation time is 1 minute.

CAUTION: When using ice, always put water or liquid and use the pulse speed first before setting to desired speed.

USEFUL TIPS

• To achieve the best results when pureeing solid ingredients, place small portions through the opening in the lid one by one.
• When mixing solid ingredients, start with a small amount of liquid. Gradually add more liquid through the opening in the lid.
• For stirring solid or very thick liquid ingredients, we recommend that you use the blender in pulse mode to prevent the blades from being stuck.

CLEANING AND MAINTENANCE

BLENDER

Motor Base

1. Unplug the unit from the convenience outlet.
2. Wipe or clean the outside surface with a damp or soft cloth.
3. Thoroughly clean Speed Selector Switch so that it works freely. It will become sticky when in use. Use a damp cloth or sponge to flush and clean the groove around the water shielded switch. You may also lightly spray the surface around the switch with an all-purpose cleaner and work the switch back and forth a few times to loosen any dried residue under switch. (see pic.4)
4. Polish with a soft cloth.
5. Always be sure to wring excess water out of cloth or sponge when cleaning around the controls or any electrical part.

NEVER IMMERSE MOTOR BASE IN WATER OR OTHER LIQUID.

Lid/Center Lid

1. Wash in warm soapy water. Rinse under clean running water and dry. Reassemble before use.

Container and Blade Assembly

Method #1

1. After use, add warm water and a splash of vinegar to blender jar. Turn ON and let the blender work the liquid for about a minute. Pour out, rinse the blender jar well.

Method #2

1. Fill the blender jar half way with warm water, add a small amount of liquid dish detergent and turn the unit ON for about 30 seconds. Repeat if needed. Rinse well.

Method #3

1. If blender was left sitting until there is dried, crusty food bits inside: fill with warm, soapy water (or vinegar water) and let sit for about 30 to 60 seconds. Empty water to about half and then blend for 30 second intervals until clean.

2. Turn OFF the unit and wait for the blade and motor to stop.

3. Always unplug the unit after every use.

4. Remove the blade assembly by turning it counter-clockwise. (see pic.2)

5. Wash the rubber packing and jar support with soap and water.

6. Turn the plastic jar upside down to remove excess water. (see pic.3)

7. Wipe the plastic jar and blade with soft cloth to dry. Make sure to reassemble the unit properly before storing it.

8. Never leave food inside the blender jar for a long period of time.

9. Store the blender on a dry cool place.

NEVER ALLOW THE BOTTOM OF THE BLADE TO GET WET. (see pic.5)

Line drawing of a blender with a control scale and handle (no text or symbols)

Illustration of a hand holding a glass jar with a lid, no text or symbols present

Simple line drawing of a thermospan with handle and lid, no text or symbols present

Illustration of hands holding a small object over a device (no text or symbols visible)

Person pouring liquid into a sink with a water bottle (no text or symbols visible)

FOOD PROCESSOR

1. Turn OFF and unplug the unit.

2. Remove the food pusher from the food chute.

3. Turn the cover counter clockwise to unlock.

4. Carefully remove the grater/slicer (adapter) or the chopper.

5. Turn the container counter clockwise to remove.

6. Detach the centrifugal assembly from the base.

7. Wash the container, cover, food pusher, adapter, grater/slicer and chopper soap and water.

CAUTION: Blade and grater/slicer are sharp, pay attention must observe. Be sure not to lose the rubber and cover washer.

1. Dry all parts before the next use and before storing the unit.

TROUBLE SHOOTING

PROBLEM	CAUSE	SOLUTION
Motor not working	1. Convenience outlet is not working.2. Damage on the unit	1. Check the outlet where the unit is plug in if it is working.2. Check for any damage.3. Bring the unit to the nearest Authorized Imarflex Service Center
Motor stop during operation	1. Overload protection activated	1. Unplug and let the unit rest for at least 1 minute
Smoke and burnt smell occurred	1. Unit is use for the first time	1. Its normal for the first use
Leak on the bottom of the jar	1. Rubber packing is not properly install2. Rubber was damaged	1. Turn OFF the unit. Remove the jar and check the rubber. Reassemble the unit.2. Replace the rubber with the new one.3. Bring the unit to the nearest Authorized Imarflex Service Center.
Attachment not functioning	1. Not properly install	1. Turn off the unit and check the assembly

REMINDER: Please do not forget to fill up and send the warranty card
