FDW 60-1485 CS - Dishwasher LERAN - Free user manual and instructions

Product Type	Freestanding Dishwasher
Brand	LERAN
Model	FDW 60-1485 CS
Dimensions (W x D x H)	60 cm x 60 cm x 85 cm
Weight	Approx. 50 kg
Power Supply	220-240 V ~ 50 Hz
Power Consumption	1900 W max
Water Consumption	12 L per cycle (Eco)
Noise Level	44 dB(A)
Number of Place Settings	14
Energy Efficiency Class	A+
Programs	Eco, Intensive, Quick, Glass, Auto
Control Type	Electronic with LED display
Delay Start	1-24 hours
Child Lock	Yes
Racks	Adjustable upper basket, lower basket with cutlery tray
Salt and Rinse Aid Indicators	Yes
Self-Cleaning Filter	Yes, manual cleaning required
Safety Features	Leak protection, overflow protection
Materials	Stainless steel interior, white door
Spare Parts Availability	Spare parts available for 5 years after purchase
Repairability	User-replaceable filters, door gasket
Maintenance	Clean filter monthly, descale every 3 months

Frequently Asked Questions - FDW 60-1485 CS LERAN

How do I start a wash cycle on the LERAN FDW 60-1485 CS dishwasher?

Load the dishwasher, add detergent, close the door firmly, select a program using the control panel, and press the start button. The LED display will show the remaining time.

Why is my dishwasher not draining water?

Check if the drain hose is kinked or clogged. Also, clean the filter at the bottom of the dishwasher. If the problem persists, the drain pump may be faulty.

How do I clean the filter in the LERAN dishwasher?

Turn off the dishwasher, remove the lower basket, and unscrew the cylindrical filter. Rinse it under running water and remove any debris. Reinstall it securely.

What detergent should I use for the FDW 60-1485 CS?

Use a dishwasher detergent in tablet, powder, or gel form. Make sure to add rinse aid for better drying results. Avoid using regular dish soap as it causes excess suds.

How do I adjust the upper rack height?

The upper rack can be adjusted to two levels. Pull the rack out, lift the side levers, and reposition the rack to the desired height. This allows for larger items in the lower basket.

What does the salt indicator light mean?

The salt indicator light turns on when the water softener needs regeneration. Open the salt cap on the bottom of the dishwasher and fill with dishwasher salt until full. Run a cycle to flush.

Can I use the dishwasher with a delay start?

Yes, press the delay start button and set the desired delay (1-24 hours) using the +/- buttons. The cycle will begin automatically after the set delay.

My dishes are not drying properly. What can I do?

Ensure rinse aid is filled. Select a drying cycle or use the extra dry option if available. Also, leave the door slightly ajar after the cycle to release steam.

How do I install the dishwasher?

The dishwasher is freestanding. Place it on a level floor, connect the water inlet hose to a cold water supply, attach the drain hose to a sink drain, and plug into a grounded outlet. Level the feet.

What should I do if the dishwasher won't start?

Check if the door is closed properly, the power cord is plugged in, and the circuit breaker is not tripped. Also, ensure the water supply is turned on. If still not working, contact support.

USER MANUAL FDW 60-1485 CS LERAN

Diagram showing a hand holding a tool with an arrow indicating motion, alongside a dashed line and circular arrow (no text or symbols)

Line drawing of a kitchen sink with a grid-patterned wall and side table (no text or symbols)

Technical line drawing of a mechanical tray or rack system with internal grid structure (no text or symbols)

Technical line drawing of a mechanical assembly or structural component (no visible text or symbols)

Line drawing of a multi-tiered shopping basket structure (no text or symbols)

Нижняя корзина
Верхняя корзина

Line drawing of a shopping cart with wheels and a black arrow indicating direction (no text or symbols)

Line drawing of a car chassis with wheels and a directional arrow (no text or symbols)

Line drawing of a mechanical assembly with gears and components (no text or symbols)

Cross-sectional diagram of a mechanical assembly (no text or labels)

Pure diagram of vertical slats arranged in a grid pattern without any text, numbers, or symbols

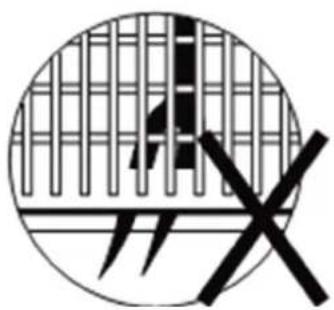

Circular diagram with grid pattern and crossed X marks, no readable text or symbols

Извлечение посуды

Diagram showing a structural assembly before and after rotation, with no visible text or symbols

Нижняя корзина:

Simple line drawing of a device with a screen and starburst symbol, no text or labels present

Line drawing of a hand pressing a button on a device with a circular arrow indicating rotation (no text or symbols)

1. Закройте крышку.

Line drawing of a hand inserting a plug into a device with a triangular load symbol (no text or labels)

Diagram of a device with a tool and starburst symbol, no readable text or labels present

Simple line drawing of a door with a vent and airflow indicator (no text or symbols)

1. Закройте крышку.

ПРИМЕЧАНИЕ:

Simple line drawing of a bin with a circular arrow indicating rotation (no text or symbols)

Line drawing of a kitchen sink with faucet spraying water (no text or symbols)

Diagram of a device interior with a fan base and directional arrows indicating movement or operation (no text or symbols present)

Technical diagram of a mechanical assembly with an inset showing a gear mechanism (no text or labels)

Illustration of a hand using a tool to press or install a small component into a tray (no text or symbols visible)

Line drawing of a kitchen sink with a hand washing the rim and a faucet (no text or symbols)
