FDW 45-1063 CS - Dishwasher LERAN - Free user manual and instructions

Product Type	Dishwasher
Brand	LERAN
Model	FDW 45-1063 CS
Dimensions (W x H x D)	45 x 85 x 60 cm
Weight	42 kg
Power Supply	220-240 V, 50 Hz, 10 A
Rated Power	1900 W
Energy Class	D
Water Consumption per Cycle	11 L
Energy Consumption per Cycle	0.9 kWh
Capacity	9 place settings
Noise Level	49 dB(A)
Programs	Eco, Intensive, Rapid, Glass, Pre-rinse, Daily (6 programs)
Additional Functions	Delay start (1-24h), Half load
Installation Type	Freestanding
Color	White
Tub Material	Stainless steel
Control Type	Electronic with LED display
Safety Features	Water leak protection, Child lock
Maintenance	Regular filter cleaning, spray arm cleaning
Spare Parts Availability	Filters, spray arms, baskets, seals
Repairability Index	6.5 / 10

Frequently Asked Questions - FDW 45-1063 CS LERAN

How do I install the dishwasher?

Ensure the dishwasher is placed on a level surface. Connect the water inlet hose to a cold water supply with a 3/4 inch threaded tap. Plug the power cord into a grounded socket. Adjust the feet to level the appliance. For detailed steps, refer to the installation manual.

What detergent should I use?

Use a specific dishwasher detergent (powder, gel, or tablets). For best results, choose a high-quality detergent with rinse aid and salt functions. Do not use hand dishwashing liquid as it may cause excessive suds.

How do I clean the filter?

Turn off the dishwasher and remove the lower rack. Unscrew the filter assembly by turning it counterclockwise. Rinse the filter under running water to remove food particles. Use a soft brush if needed. Reassemble the filter. Clean the filter every month to maintain performance.

What does error code E1 mean?

Error code E1 indicates a water inlet problem. Check that the water tap is fully open and the inlet hose is not kinked. Also, ensure the water supply pressure is adequate. If the error persists, the water inlet valve may need cleaning or replacement.

How do I adjust the water softener?

Locate the water softener setting on the control panel (usually behind the door). Refer to the manual for the correct setting based on your local water hardness. Use the supplied test strip to measure hardness. Set the softener level from 1 (soft) to 5 (hard). Add dishwasher salt to the reservoir.

Why is the dishwasher not draining?

Check if the drain hose is bent or clogged. Clean the filter and remove any blockages in the drain pump area. Ensure the drain hose is properly connected to the sink drain. If the problem continues, the drain pump may be defective.

How to load dishes for best cleaning?

Place larger items like plates and pots on the bottom rack, facing down. Put glasses and cups on the top rack. Ensure small items are secured. Avoid overlapping items. For optimal cleaning, use the correct program for the soil level.

How to use rinse aid?

Open the rinse aid dispenser lid (usually near the detergent compartment). Pour rinse aid until the indicator turns dark. Adjust the dosage setting if needed (1 to 6). Close the lid. The rinse aid helps prevent water spots and improves drying.

How to start a delayed wash?

Load the dishes and add detergent. Press the Delay Start button (or program select button) to set the delay time (1-24 hours). Select the desired program. Close the door. The dishwasher will start automatically after the set delay.

Where can I find spare parts?

Spare parts such as filters, spray arms, baskets, and seals can be ordered from LERAN's official website or authorized dealers. You can also check online marketplaces. Use your model number FDW 45-1063 CS to ensure compatibility.

USER MANUAL FDW 45-1063 CS LERAN

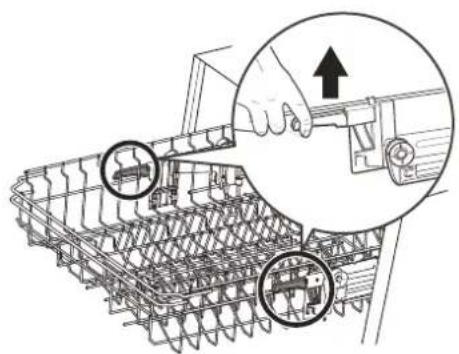

Diagram showing a hand holding a tool with an arrow indicating motion, alongside a dashed line and circular arrow (no text or symbols)

Line drawing of a kitchen sink with a grid-patterned wall and side table (no text or symbols)

Technical line drawing of a refrigerator with an inset showing mechanical components (no text or symbols)

Technical line drawing of a mechanical assembly with grid-like components (no text or symbols)

Technical line drawing of a mechanical assembly or structural component (no visible text or symbols)

Line drawing of a multi-tiered plastic basket structure (no text or symbols)

Нижняя корзина
Верхняя корзина

Line drawing of a shopping cart with wheels and a black arrow indicating direction (no text or symbols)

Line drawing of a car chassis with wheels and a directional arrow (no text or symbols)

Line drawing of a mechanical assembly with gears and components (no text or symbols)

Cross-sectional diagram of a mechanical assembly (no text or labels)

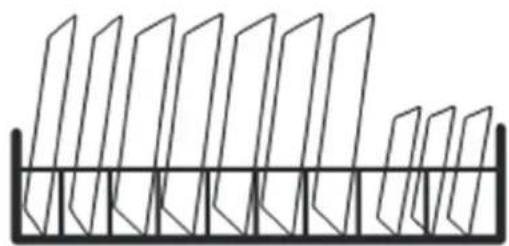

Pure diagram of vertical slats arranged in a grid pattern without any text, numbers, or symbols

Circular diagram with grid pattern and crossed X marks, no readable text or symbols

Извлечение посуды

Black silhouette of eight different kitchen utensils arranged in a row (no text or symbols)

Simple line drawing of a device with a screen and starburst symbol, no text or labels present

Line drawing of a hand inserting a device into a device with a fan icon (no text or symbols)

Line drawing of a hand pressing down on a device with a screen showing a tip and a curved arrow indicating rotation (no text or symbols)

Diagram of a device with a screen and indicator lights, no text or symbols present

1

Сдвиньте влево

2

Нажмите

Diagram of a mechanical setup with a lever and labeled component B, no readable text or symbols present

Diagram of a kitchen appliance with a chimney and fan, showing airflow direction (no text or symbols)

Technical diagram of an aircraft fuselage assembly with a magnified inset showing internal components (no text or labels)

Illustration of a hand using a tool to adjust or install a component into a tray (no text or symbols visible)

Illustration of a hand using a tool to clean or spray water on a kitchen sink (no text or symbols)
