USER MANUAL PRA-9X NuPrime

NUPRiME INPUT VARIABLE FIXED VOLUME -

The NuPrime PRA-9X is a fully balanced preamplifier that includes a MM phono input and a 6.3mm headphone output.

PRA-9X U S ER'S MANUAL

NUPRiME

Table of Contents

FCC Notice - Declaration of Conformity Information....2

EU Declaration of Conformity 3

Safety Instructions....4

Introduction....7

Specifications 10

Quick Start Guide 12

Display 13

Rear Panel 14

Remote Control 17

NuPrime's Limited Warranty and Limitation of Liabilities 18

NUPRiME

FCC Notice - Declaration of Conformity Information

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

WARNING: Only peripherals complying with the FCC class B limits may be attached to this equipment.

Changes or modifications made to this equipment, not expressly approved by us or parties authorized by us could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NUPRiME

EU Declaration of Conformity

CE Hereby, NuPrime Audio, Inc. declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2004/108/EC.

The manufacturer of this product is NuPrime Audio, Inc., 1712 Pioneer Ave. Ste 1817, Cheyenne, Wyoming 82001, USA.

The Authorized Representative for EMC and product safety is NuPrime Audio, Inc., 1712 Pioneer Ave. Ste 1817, Cheyenne, Wyoming 82001, USA.

For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.

For Customers in Europe

Symbol of a trash bin crossed with no visible text or labels

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems) This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The

recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

NUPRiME

Safety Instructions

There are two categories of Safety Instructions included in this manual:

• Product Warnings, (i.e., what must never be done to assure avoiding those hazards that
• could cause bodily injury or property damage); and
- User Directions (i.e., what must always be done to assure the safe use of your device).

The Safety Instructions contained in this manual have been categorized in accordance with the seriousness of the potential hazards through the use of Signal Words. Those Signal Words, and their intended meanings, are as follows:

DANGER: Indicates that a failure to observe the Safety Instructions could result in death or catastrophic bodily injury.

WARNING: Indicates that a failure to observe the Safety Instructions could result in serious bodily injury.

CAUTION: Indicates that a failure to observe the Safety Instructions could result in minor bodily injury or property damage.

NOTE: Designates important information that relates to activities and/or conditions that might result in loss of data and/or damage to your device.

Safe Use and Operation of Your Device

This equipment emits stray RF energy and will interfere with the reception of signals by airborne electronic navigational devices or medical devices. Do not operate this equipment near any sensitive medical devices.

WARNING: Use only grounded AC power cords.

Always immediately disconnect the power to the equipment in the event the device emits an unusual odor or sound or generates smoke.

NUPRiME

WARNING: Never attempt to disassemble, repair or make any modification to your device. Disassembly, modification or any attempt at repair could cause bodily injury or property damage, as well as damage to the device itself.

WARNING: Your device is not a toy. Never allow children to play with your device. Misuse, rough or improper handling of your device by children could result in serious bodily injury for any of the enumerated safety warnings in this manual. In addition, always keep all accessories and components out of the reach of small children as small parts might present a choking hazard. Seek immediate medical attention if choking occurs or if any small part has been swallowed.

CAUTION: Never raise the sound volume level too high when using your device with earphones. An excessive sound volume level could cause damage to your hearing.

WARNING: To reduce the risk of re or electric shock, do not expose the unit to moisture or water.

Do not allow foreign objects to get into the enclosure. If the unit is exposed to moisture, or a foreign object gets into the enclosure, immediately disconnect the power cord from the wall.

Take the unit to a qualified service person for inspection and necessary repairs.

Read all the instructions before connecting or operating the component.

Keep this manual so you can refer to these safety instructions.

Heed all warnings and safety information in these instructions and on the product itself. Follow all operating instructions.

Do not use this unit near water.

You must allow a minimum 10 cm or 4 inches of unobstructed clearance around the unit.

Do not place the unit on a bed, sofa, rug, or similar surface that could block the ventilation openings. If the unit is placed in a bookcase or cabinet, there must be ventilation of the cabinet to allow proper cooling.

NUPRiME

Keep the component away from radiators, heat registers, stoves, or any other appliance that produces heat.

The unit must be connected to a power supply only of the type and voltage speci ed on the rear panel. Connect the component to the power outlet only with the supplied power supply cable or an exact equivalent. Do not modify the supplied cable.

Do not route the power cord where it will be crushed, pinched, bent, exposed to heat, or damaged in any way. Pay particular attention to the power cord at the plug and where the cord exits the back of the unit.

The power cord should be unplugged from the wall outlet during a lightning storm or if the unit is to be left unused for a long period of time.

Immediately stop using the component and have it inspected and/or serviced by a qualified service agency if:

• The power supply cord or plug has been damaged.
- Objects have fallen or liquid has been spilled into the unit.
• The unit has been exposed to rain.
- The unit shows signs of improper operation.
- The unit has been dropped or damaged in any way

NUPRiME

Introduction

NuPrime PRA-9X is a pre-amplifier with a fully balanced design and includes a MM phono input. The input and output use a special audio Relay Switch, which has the lowest interference and highly accurate transmission, to switch the source.

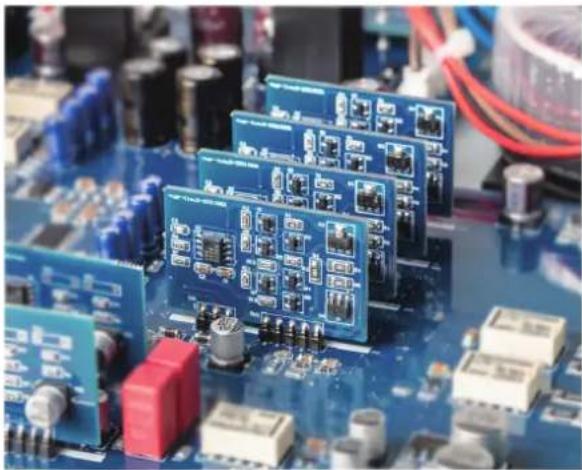

Close-up of a blue printed circuit board with multiple integrated circuits and capacitors (no visible text or symbols)

The phono input has a variety of settings for input resistors and capacitors to match different MM cartridges. PRA-9X phono amplifier is a 2-stage RIAA amplifier that utilises NJR MUSES8820 audio quality op-amp to provide an accurate RIAA curve and low distortion at high amplification and performance.

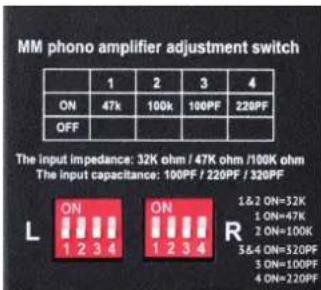

MM phono amplifier adjustment switch 1 2 3 4 ON 47k 100k 100PF 220PF OFF The input impedance: 32K ohm / 47K ohm /100K ohm The input capacitance: 100PF / 220PF / 320PF L ON ON 1&2 ON=32K 1 2 3 4 1 2 3 4 R 5&4 ON=320PF 3 ON=100PF 4 ON=220PF

7

www.nuprimeaudio.com

beyond

ordinary

NUPRiME

Line Outputs include four NuPrime's new ultra-low distortion amplifier modules (THD=0.0004%) composed of MUSES8820 op-amp in a new amplifying circuit. It has excellent ultra-low distortion and high driving force characteristics.

Close-up of a blue printed circuit board with multiple electronic components and connectors (no visible text or symbols)

NUPRiME

Features

1. LP vinyl RIAA phono amplifier circuit, with adjustable input capacitance and impedance.
2. Input and output fully balanced preamp.
3. Utilizing the MUSES 8820 bipolar-input dual op-amp module, PRA-9X can reproduce the presence of an orchestra as experienced in a symphony concert and the breathing sound of a player in a live music house.
4. Nuprime's next-generation current booster circuit, providing top 0.0004% (7.5Vrms) THD performance and 114db signal-to-noise ratio (S/N).
5. High-performance headphone amp output.
6. Input and output Trigger for power on/off control of multiple devices.

NUPRiME

Specifications

Inputs:

• 1 x Phono Stage
  • 2x Analog Stereo RCA
  • 1 x Analog Stereo XLR

Outputs:

• 1 x 6.3mm headphones out
  • 1 x pair of stereo RCA out
  • 1 x pair of stereo XLR out

Phono Stage:

• Input resistance: 32K ohm / 47K ohm / 100K ohm
• Input capacitance: 100 pF / 220 pF / 320 pF
  • MM Input Sensitivity: 4.0 mV @ 1KHz
• GAIN: MM input to LINE output (Vol./Max.) => 50dB @ 1K Hz

NUPRiME

PRE Stage:

• Input resistance: 20K ohm
  • Output resistance: 10 ohm
  • THD+N: 0.0004% @ 7.5V Vrms
  • S/N ratio >115dB @ 7.5V Vrms
  • Frequency Response: 0 Hz to 50KHz (0.2dB), 200KHz (-3dB)
• GAIN: LINE input to LINE output (Vol./Max.) => 17dB @ 1K Hz
  • Dynamic range > 115dB

Headphone Stage:

• 560mW @ 32 ohm / 110mW @ 600 ohm
- THD+N: 0.004% @ 32 ohm / 480mW, 0.0015% @ 600 ohm / 100mW
• S/N ratio > 110 dB @ 32 ohm / 450mW
• Frequency Response: 0 Hz to 50KHz (0.2dB), 200KHz (-3dB)
- GAIN: LINE input to LINE output (Vol./Max.) => 17dB @ 1K Hz
• Dynamic range > 115dB

Dimensions and Weight:

• Dimensions: (W x H x D): 235 mm x 55 mm x 281 mm
• Weight: 5.5 pounds (2.5 kg)
- Worldwide AC voltage: (90VAC\~130VAC // 210VAC\~ 250VAC) With Voltage Select Switch
• AC Fuse: Slow-blow, T1A, 250VAC

Quick Start Guide

Front Panel

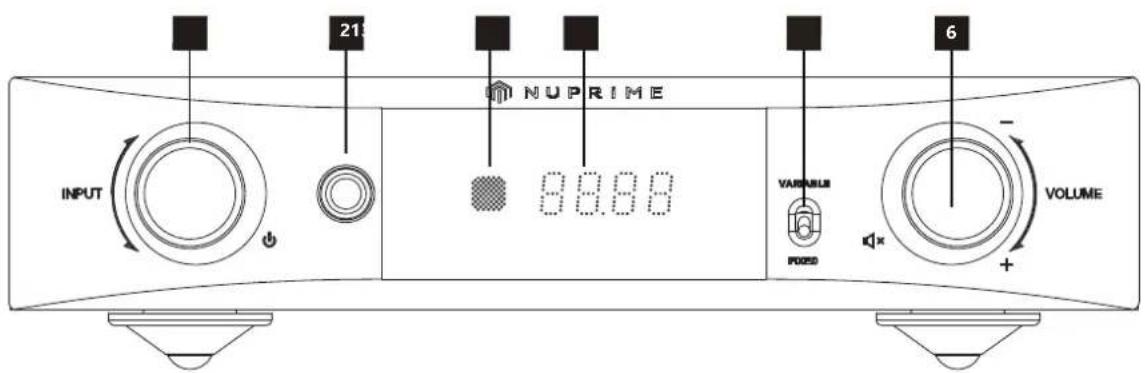

21 NUPRIME 6 INPUT 88.88 VARIABLE FIXED VOLUME + -

1 Power / Input Selector: Briefly press for 3 sec to On/Off standby mode Turn the knob to switch between inputs
2 Standard 6.3mm (1/4") stereo headphone jack
3 Remote IR receiver
4 Display
5 VARIABLE: volume can be adjusted FIXED: The output is at half volume and can't be adjusted.
6 Volume control: Turn the knob clockwise to increase volume Turn the knbo counterwise to decrease volume Briefly press the knob to Mute / un-Mute

NUPRiME

Display

Volume display: 00 \~ 99

Inputs Display:

C1: MM Phono Stage input
C2 : Analog Stereo XLR input
C3 : L1 Analog Stereo RCA input
C4: L2 Analog Stereo RCA input

Rear Panel

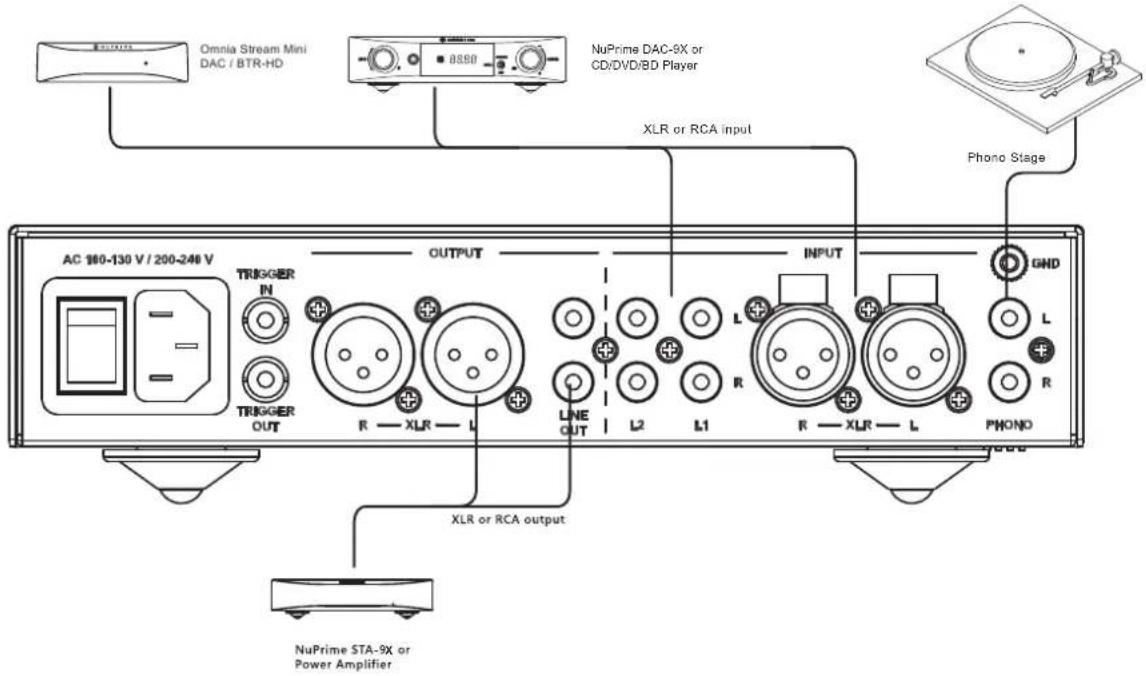

Omnia Stream Mini DAC / BTR-HD NuPrime DAC-9X or CD/DVD/8D Player XLR or RCA input Phono Stage AC 160-130 V / 200-240 V OUTPUT INPUT TRIGGER IN R XLR L LINE OUT L2 L1 R XLR L PRONO XLR or RCA output NuPrime STA-9X or Power Amplifier

Inputs:

Phono (RIAA): MM Phono input.

MM phono amplifier adjustment switch

	1	2	3	4
ON	47k	100k	100PF	220PF
OFF

The input impedance: 32K ohm / 47K ohm /100K ohm The Input capacitance: 100PF / 220PF / 320PF

ON L 1 2 3 4 ON R 1 2 3 4

Input Impedance :

Switch 1 ON = 47K

Switch 2 ON = 100K

Switch 1&2 ON = 32K

Input Capacitance :

Switch 1 ON = 100PF

Switch 2 ON = 220PF

Switch 1&2 ON = 320PF

NUPRiME

Others :

AC Inlet : Connect the supplied mains lead to the AC IN (115V or 230 V) terminal on the rear of the PRA-9X. AC Voltage Selector : Make sure that the AC voltage selector switch at the bottom of the unit is switched to the appropriate voltage for your country. All NuPrime products are shipped with the switch set to 230V AC in order to prevent accidental damage.

Headphone Pin define:

Standard 6.3mm stereo plugs

LEFT RIGHT GND

Remote Control

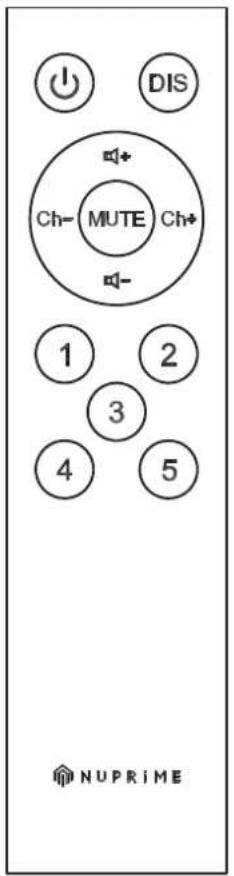

DIS Ch- MUTE Ch+ 1 2 3 4 5 NUPRiME

• Toggle power STANDBY and ON
  • DIS: Display On/Off
• Vol +: Volume up
• Vol -: Volume down
• Mute: Volume Mute
• Ch+: Input selection next channel
  • CH-: Input selection previous channel
  • 1: Rhpobselection
  • 2: Input selection
  • 3: Input selection
  • 4: Lahepotion
• 5: No Function

Battery Replacement:

To change the battery, please remove the bottom cover to reveal the battery casing.
