Product Type	Audio/Video Converter
Model	SW-130-TX
Brand	WyreStorm
Dimensions (W x D x H)	100 x 70 x 25 mm
Weight	200 g
Power Supply	5V DC 1A
Input Interfaces	1x HDMI (type A), 1x 3.5mm audio
Output Interfaces	1x HDMI (type A), 1x optical audio
Video Resolution Support	1080p @ 60Hz, 4K @ 30Hz
Audio Formats	LPCM 2.0, Dolby Digital 5.1
Maximum Cable Length (HDMI)	15 meters (48AWG)
HDCP Compliance	HDCP 1.4
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
Housing Material	Aluminum
Mounting Option	Desktop or wall mount (bracket included)
LED Indicators	Power, Link, Activity
Static Protection	8kV contact / 15kV air
Cleaning Instructions	Wipe with dry soft cloth; do not use liquids
Safety Certifications	CE, FCC, RoHS
Spare Parts Availability	Power adapter, Remote control (contact support)
Repair Service	Authorized service centers; warranty period: 1 year

Frequently Asked Questions - SW-130-TX WyreStorm

How do I connect the SW-130-TX to my TV?

Connect an HDMI cable from your source device to the HDMI IN port of the SW-130-TX. Then connect another HDMI cable from the HDMI OUT port to your TV. If using audio, connect the 3.5mm or optical output to your audio system.

What is the maximum resolution supported?

The SW-130-TX supports video resolutions up to 1080p @ 60Hz and 4K @ 30Hz. For 4K, ensure your HDMI cables are rated for the bandwidth.

Does this converter support HDCP?

Yes, it is HDCP 1.4 compliant. It will work with most protected content from sources like Blu-ray players or streaming devices.

Can I use this device to convert analog audio to digital?

Yes, the SW-130-TX can convert analog audio (via the 3.5mm input) to digital optical output, enabling connection to modern audio receivers or soundbars.

Why is there no image on my TV?

Check that all HDMI cables are firmly connected. Verify the source device is powered on and set to the correct output. Also ensure the TV input is set to the corresponding HDMI port. Try a different HDMI cable if needed.

How do I power the SW-130-TX?

Use the included 5V DC power adapter. Plug it into a wall outlet and connect the DC barrel jack to the converter's power port. The power LED should illuminate.

What audio formats does it support?

It supports LPCM 2.0 stereo and Dolby Digital 5.1 passthrough. For immersive audio, ensure your source is set to output Bitstream over HDMI.

Is the device compatible with Mac or PC?

Yes, it is platform independent. It works with any HDMI source, including Windows PCs, Macs, game consoles, and set-top boxes.

Can I extend the HDMI signal beyond 15 meters?

For longer distances, consider using an HDMI over Ethernet extender or a powered HDMI repeater. The SW-130-TX itself supports up to 15 meters with standard cables.

How do I clean and maintain the device?

Always unplug the device before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use any liquids, sprays, or abrasive cleaners. Ensure proper ventilation to avoid overheating.

USER MANUAL SW-130-TX WyreStorm

WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the callation process.

CHDBT

HDMI

HDCP 2.2

PoH

IMPORTANT! Installation Requirements

• Visit the product page to download the latest firmware, document version, additional documentation, and configuration tools.
• Read through the Wiring and Connections section for important wiring guidelines before creating or choosing premade cables.
• The height of installation should not exceed 2 meters from the ground.
• While this product supports CEC, WyreStorm cannot guarantee compatibility with all forms of CEC communication.

In the Box

1x 4-pin Phoenix Male Connector
1x USB host cable (Type A-B)
1x Decora face plate (SW-130-TX-US)
4x Retaining screws (SW-130-TX-US)
1x Quickstart guide (This Document)

Basic Wiring Diagram
    subgraph_Personal_Computer["Personal Computer"]
        A["Tablet"] --> B["SW-130-TX-US"]
        C["Tablet"] --> D["SW-130-TX-UK"]
    end

    subgraph_RX-700["RX-700"]
        E["Short Throw Projector"] --> F["Interactive Whiteboard"]
        G["USB Camera"] --> H["Amplifier"]
        I["HDMI/DisplayPort/USB-C"] --> J["RS-232"]
        K["HDBaseT"] --> L["RS-232"]
        M["Analog Audio"] --> N["USB 2.0"]
    end

    subgraph_SW-515_RX["SW-515-RX"]
        O["Window Blinds"] --> P["USB Flash Drive"]
        Q["Signage Player"] --> R["Short Throw Projector"]
        S["Interactive Whiteboard"] --> T["Amplifier"]
        U["Hybrid System"] --> V["USB Camera"]
        W["Digital Interface"] --> X["USB Flash Drive"]
        Y["Smart Speaker"] --> Z["USB Flash Drive"]
    end

    subgraph_SW-130_TX-US["SW-130-TX-US"]
        AA["Tablet"] --> AB["SW-130-TX-UK"]
    end

    subgraph_Personal_Computer["Personal Computer"]
        AC["Tablet"] --> AD["SW-130-TX-UK"]
    end

    subgraph_RX-700["RX-700"]
        AE["Short Throw Projector"] --> AF["Interactive Whiteboard"]
        AG["USB Camera"] --> AH["Amplifier"]
        AI["HDMI/DisplayPort/USB-C"] --> AJ["RS-232"]
        AK["HDBaseT"] --> AL["RS-232"]
        AM["Analog Audio"] --> AN["USB 2.0"]
    end

    subgraph_SW-515_RX["SW-515-RX"]
        AO["Tablet"] --> AP["SW-130-TX-UK"]
        AQ["Tablet"] --> AR["SW-130-TX-UK"]
    end

    subgraph_Personal_Computer["Personal Computer"]
        AS["Tablet"] --> AT["SW-130-TX-UK"]
    end

    subgraph_RX-700["RX-700"]
        AU["Short Throw Projector"] --> AV["Interactive Whiteboard"]
        AW["USB Camera"] --> AX["Amplifier"]
        AY["HDMI/DisplayPort/USB-C"] --> AZ["RS-232"]
        BA["HDBaseT"] --> BB["RS-232"]
        BC["Analog Audio"] --> BD["USB 2.0"]
    end

    subgraph_SW-515_RX["SW-515-RX"]
        BE["Tablet"] --> BF["SW-130-TX-UK"]
        BG["Tablet"] --> BH["SW-130-TX-UK"]
    end

    subgraph_Personal_Computer["Personal Computer"]
        BI["Tablet"] --> BJ["SW-130-TX-UK"]
    end

    subgraph_RX-700["RX-700"]
        BK["HDMI/DisplayPort/USB-C"] --> BL["RS-232"]
        BM["HDBaseT"] --> BN["RS-232"]
        BO["Analog Audio"] --> BP["USB 2.0"]
    end

    subgraph_SW-515_RX["SW-515-RX"]
        BO["HDMI/DisplayPort/USB-C"] --> BP["HDMI Display Port/USB-C"]
        BO["HDBaseT"] --> BP["HDMI Display Port/USB-C"]
        BO["HDBaseT"] --> BP["HDMI Display Port/USB-C"]
    end

    subgraph_Personal_Computer["Personal Computer"]
        BK["HDMI/DisplayPort/USB-C"] --> BL["HDMI Display Port/USB-C"]
        BK["HDBaseT"] --> BL["HDMI Display Port/USB-C"]
        BK["HDBaseT"] --> BL["HDMI Display Port/USB-C"]
    end

    subgraph_RX-700["RX-700"]
        BL["HDMI Display Port/USB-C"] --> BN["HDMI Display Port/USB-C"]
        BL["HDBaseT"] --> BN["HDMI Display Port/USB-C"]
        BL["HDBaseT"] --> BN["HDMI Display Port/USB-C"]
    end

    subgraph_SW-515_RX["SW-515-RX"]
        BL["HDMI Display Port/USB-C"] --> BN["HDMI Display Port/USB-C"]
        BL["HDBaseT"] --> BN["HDMI Display Port/USB-C"]
        BL["HDBaseT"] --> BN["HDMI Display Port/USB-C"]
    end

    subgraph_Personal_Computer["Personal Computer"]
        AR["HDMI/DisplayPort/USB-C"] --> BL["HDMI Display Port/USB-C"]
        AR["HDBaseT"] --> BL["HDMI Display Port/USB-C"]
        AR["HDBaseT"] --> BL["HDMI Display Port/USB-C"]
    end

    subgraph_RX-700["RX-700"]
        AS["HDMI Display Port/USB-C"] --> BL["HDMI Display Port/USB-C"]
        AS["HDBaseT"] --> BL["HDMI Display Port/USB-C"]
        AS["HDBaseT"] --> BL["HDMI Display Port/USB-C"]
    end

    subgraph_SW-515_RX["SW-515-RX"]
        AT["HDMI Display Port/USB-C"] --> BS["USB Flash Drive"]
        AT["HDBaseT"] --> BS
        AT["HDBaseT"] --> BS
        AT["HDBaseT"] --> BS
        AT["HDBaseT"] --> BS
    end

    subgraph_Personal_Computer["Personal Computer"]
        AU["HDMI/DisplayPort/USB-C"] --> AV["USB Flash Drive"]
        AU["HDBaseT"] --> AV
        AU["HDBaseT"] --> AV
        AU["HDBaseT"] --> AV
        AU["HDBaseT"] --> AV
    end

    subgraph_RX-700["RX-700"]
        AW["Short Throw Projector"] --> AX["Interactive Whiteboard"]
        AY["Interactive Whiteboard"] --> AZ["Interactive Whiteboard"]

    end

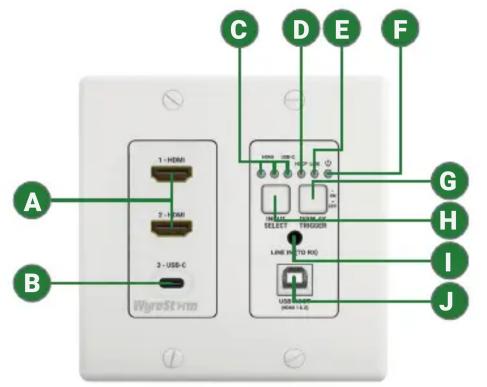

SW-130-TX-US (Front/Rear)

SW-130-TX-UK (Front/Rear)

A	HDMI Inputs	19-pin type A HDMI femaleSupports HDMI and DVI/D with adapter
B	USB-C Input	USB3.1C portSupports alt-mode and device charging
C	Source LED On: Indicates the selected source
D	HDCP LED	On: Indicates encrypted source contentOff: Indicates non-encrypted source content
E	Link LED	On: Indicates link established with receiving deviceOff: No link with receiver or receiver powered off
F	Power LED	Solid: The unit is powered OnOff: The unit is powered Off
G	Display Trigger	Short Press: Send power on triggerLong Press: Send power off trigger
H	Input Select Press to manually change input
I	Audio Line In 3.5mm jack: 2ch analog audio input
J	USB Host	USB Type A femaleConnection of USB Host device

A	HDBT Out	8-pin RJ-45 femaleConnect the transmitter's HDBT OUT to receiver's HDBT IN.
B	RS-232	4-pin phoenix: Serial input for API control and 12v DC input

Wiring and Connections

WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in its entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.

IMPORTANT! Wiring Guidelines

• The use of patch panels, wall plates, cable extenders, kinks in cables, and electrical or environmental interference will have an adverse effect on signal transmission which may limit performance. Steps should be taken to minimize or remove these factors completely during installation for best results.
• WyreStorm recommends using pre-terminated HDMI and USB cables due to the complexity of these connector types. Using pre-terminated cables will ensure that these connections are accurate and will not interfere with the performance of the product.

- This product contains a USB-C connection that can be used as an audio/video input. When using this connection verify that the USB-C cable used supports audio/video functionality as not all USB-C cables support this requirement.

Cat6 Cable Performance Guide

0m	10m	20m	30m	40m	50m	60m	70m	80m	90m	100m
0ft	32ft	65ft	98ft	131ft	164ft	197ft	230ft	262ft	295ft	328ft

4K/HD Transmission
WyreStorm recommends the use of shielded cable to minimize signal noise and interference

Audio Connections

Audio In

The audio connections use a 3.5mm (1/8in) TRS Stereo Jack.

Left Channel Right Channel Ground (GND)

RS-232 Wiring

The SW-130-TX-Ux uses a 4-pin RS-232 with no hardware flow control. Most control systems and computers are DTE where pin 2 is RX, this can vary from device to device. Refer to the documentation for the connected device for pin functionally to ensure that the correct connections can be made.

Refer to RS-232 Mode Settings for details on setting RS-232 modes.

WyreStorm Connector			3rd Party Device
Pin 1	12V DC Out No Connection Reserved
Pin 2	TX (Transmit) ---> To ---> RX (Receive)
Pin 3	RX (Receive) ---> To ---> TX (Transmit)
Pin 4	G (Ground) ---> To ---> G (Ground)

Troubleshooting

No or Poor Quality Picture (snow or noisy image)

• Verify that power is being supplied to the transmitter and receiving device.
• Verify that all HDMI, USB and HDBaseT connections are not loose and are functioning properly.
• Verify that the HDBaseT cable is properly terminated following EIA568B standard.
• Verify that the output resolution of the source and display is supported by this extender.
• If transmitting 3D or 4K, verify that the HDMI cables used are 3D or 4K rated.

No or Intermittent 3rd party Device Control

- Verify that the RS-232 cables are properly terminated following the Wiring and Connections section.

Troubleshooting Tips:

- WyreStorm recommends using a cable tester or connecting the cable to other devices to verify functionality.

Note: WyreStorm reserves the right to change product specification, appearance or dimensions of this product at any time without prior notice.

Warranty Information

WyreStorm Technologies LLC warrants that its products to be free from defects in material and workmanship under normal use for a period of five (5) years from the date of purchase. Refer to the Product Warranty page on wyrestorm.com for more details on our limited product warranty.

Specifications

Transmission
Transmission Encoding HDBaseT Class C | PAM16 Encoding
End to End Latency 10μs
Maximum Transmission Bit Rate 10.2Gbps
Video
HDMI v2.0b TMDS | 340MHz Maximum
Inputs 2x HDMI In: 19-pin type A | 1x USB-C In: USB 3.1c Audio/Video (4.5Gbps)
Outputs 1x HDBT out: 8-pin RJ45
Maximum Pixel Clock HDMI & HDBaseT: 340MHz
Video Resolutions (Max)	Video Resolution HDMI Cat6 Cat6a/7
	1920x1200p @60Hz 70m/230ft 70m/230ft 100m/328ft
	2560x1440p @60Hz 15m/49ft 100m/328ft 100m/328ft
	3840x2160p @30Hz 8bit 4:4:4	7m/23ft	70m/230ft	100m/328ft
	3840x2160p @30Hz 10bit 4:2:0 HDR	5m/16ft	70m/230ft	100m/328ft
	3840x2160p @30Hz 12bit 4:2:2 HDR	5m/16ft	70m/230ft	100m/328ft
	Note: WyreStorm recommends the use of shielded category cable to minimize signal noise and interference.
Supported Standards	DCI | RGB | HDR | HDR10 | Dolby Vision up to 30Hz | HLG | BT:2020 | BT:2100
Audio
Inputs	1 x Audio In: 3.5mm (1/8in) TRS Stereo2ch audio over HDBaseT | 1-way to RX
Audio Formats	2ch PCM | Multichannel up to DTS-X and Dolby Atmos
Maximum Sampling Rate	192KHz
Maximum Audio Channels	32
Audio Return Channel (ARC)	Not Supported
Communication and Control
USB Host (HDMI Inputs)	1x Type B host | Maximum data throughput: 190Mbps
USB 3.1c	Alt-mode Supported | A/V and USB data from RX
RS-232	1x RS-232: 4-pin Phoenix | Shared with 12v DC inputCompatible with WyreStorm TS-280 touchscreen via 4-pin phoenix port (only when using PoH)
HDCP	Pass-through, 2.3 Supported
EDID	Pass-through, from RX
Consumer Electronics Control (CEC)	One-way display trigger to RX
Auto Low Latency Mode (ALLM)	Supported
Variable Refresh Rate (VRR)	Supported
Power
Power Supply	12V DC 1A (not included)
Max Power Consumption	7.8W
Power-over-HDBaseT (PoH)	Supported, 1-way from RX
Local Power Supply Input	4-pin phoenix
Environmental
Operating Temperature	0 to +45°C (32 to +113 °F), 10% to 90%, non-condensing
Storage Temperature	-20 to +70°C (-4 to +158 °F), 10% to 90%, non-condensing
Maximum BTU	2.29 BTU/hr
Dimensions and Weight
	SW-130-TX-UK		SW-130-TX-US
Installation	In-wall, 2-gang		In-wall, 2-gang
Height	86mm/3.38in		105mm/4.13in
Width	146mm/5.74in		89mm/3.5in
Depth	38mm/1.55in		38mm/1.55in
Weight	0.27Kg/0.60lbs		0.3Kg/0.66lbs
Regulatory
Safety and Emission	CE | FCC | RoHS | RCM | EAC
