| Product Type | Dante 2-Channel Analog Audio Decoder |
| Model Number | 500552 |
| Brand | MuxLab |
| Audio Input | 1 x Dante RJ45 (PoE) |
| Audio Output | 1 x 6-pin Phoenix (3.81mm) for balanced/unbalanced 2-channel analog audio |
| Power Input | 12VDC via 2-pin Phoenix or PoE (IEEE802.3af Class 0) |
| Power Consumption | 1.32W |
| Audio Sampling Rate | 44.1kHz, 48kHz, 96kHz (24-bit) |
| Gain Adjustment | 3-level: +18dBu, 0dBu (default), -10dBV |
| Network Bandwidth | 100M |
| Transmission Distance | 100m (CAT6/6A) |
| Control Method | Dante Controller software |
| Dimensions (W x D x H) | 120mm x 47mm x 26mm |
| Weight | 186g |
| Housing Material | Metal Enclosure |
| Color | Black |
| Operating Temperature | 32 - 104°F / 0 - 40°C |
| Storage Temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
| Warranty | 2 years |
| Package Contents | 1x Decoder, 1x 6-pin Phoenix male, 1x 2-pin Phoenix male, user manual (download) |
Frequently Asked Questions - 500552 MuxLab
User questions about 500552 MuxLab
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Processor in PDF format for free! Find your manual 500552 - MuxLab and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 500552 by MuxLab.
USER MANUAL 500552 MuxLab
- Safety Precautions....3
- Introduction......4
- Features......4
- Package Contents......4
- Specifications....5
- Operation Controls and Functions....6
- Application Diagram....7
1. Safety Precautions
To ensure the best performance from the product, please read all instructions carefully before using the device. Save this manual for future reference.
- Follow basic safety precautions to reduce the risk of fire, electrical shock, and injury.
- Do not dismantle the housing or modify the module. It may result in electrical shock or burns.
- Do not open or remove the housing of the device as you may be exposed to dangerous voltage or other hazards.
- To prevent fire or shock hazard, do not expose the unit to rain, moisture and do not install this product near water. Keep the product away from liquids.
- Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object or liquid falls or spills on the housing, unplug the module immediately.
- Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before cleaning.
- Using supplies or parts not meeting the product specifications may cause damage, deterioration or malfunction.
• Refer all servicing to qualified service personnel.
• Install the device in a place with adequate ventilation to avoid damage caused by overheat. - Unplug the power when left unused for a long period of time.
- Information on disposal of devices: do not burn or mix with general household waste, please treat them as normal electrical waste.
Copyright Notice
All contents in this manual are copyrighted, and cannot be cloned, copied, or translated without the express permission of MuxLab Inc. Product specifications and information in this document are for reference only, and the content may be updated from time to time without prior notice.
2. Introduction
The Dante 2-Channel Analog Audio Decoder (Model: 500552) is designed to receive digital audio signals from Dante-compliant equipment, then decode and output them as analog audio signals. The unit supports balanced or unbalanced audio output and 3 level gain adjustment. It can be powered using either PoE from any PoE network switch or via local with a 12VDC power supply.
3. Features
• Interface Dante audio equipment to analog audio equipment
• Supports balanced/unbalanced 2ch analogue audio output
• Audio sampling rate supports 44.1kHz, 48kHz and 96kHz (24bit)
- Audio output supports 3-level gain adjustment: +18dBu, 0dBu (default) and -10dBV
• Supports 12VDC power supply and PoE function (IEEE802.3af Class 0)
• Supports AES67 RTP audio transport
4. Package Contents
• One (1) Dante 2-Channel Analog Audio Decoder
• One (1) 6pin-3.81mm Phoenix Connector (male)
• One (1) 2pin-3.81mm Phoenix Connector (male)
• One (1) User manual (available via download)
Notes: Confirm that the product and accessories are all included. If not, please contact the supplier from which you purchased the unit.
5. Specifications
| Technical | |
| Video Network Bandwidth | 100M |
| Audio Formats | PCM 2.0 44.1kHz/48kHz/96kHz up to 24bit |
| Transmission Distance | 100m (CAT6/6A) |
| Control Method | Dante Controller |
| Connection | |
| Inputs | 1 x DANTE [RJ45 connector, PoE]1 x PWR [2-pin phoenix, 3.81mm] |
| Output | 1x AUD [6-pin phoenix, 3.81mm] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions (WxDxH) | 120mm[W] x 47mm[D] x 26mm[H] |
| Weight | 186g |
| Power Supply | DC input: 12V PoE input: IEEE802.3af Class 0 |
| Power Consumption | 1.32W |
| Operation Temperature | 32 - 104°F / 0 - 40°C |
| Storage temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
| Warranty | 2 years |
| Order Information | 500552 Dante 2 Channel Analog Audio Decoder (UPC: 627699005521) |
6. Operation Controls and Functions
| No | Name Function | Description |
| 1 | DC 12V power input port.DC IN | |
| 2 | Audio Output (CH1/CH2) | 2 channel analog audio output ports, supporting balanced and unbalanced audio. |
| 3 | Dante PoE | Dante digital audio output port. Connect to the Network Switch through RJ45 line, supporting PD power supply.The green LINK LED is flashing when there is data transmission.The yellow DATA LED is always on after normal connection |
| 4 | Gain Switch | Used for audio output gain adjustment, respectively +18dBu, 0dBu (default), -10dBV. |

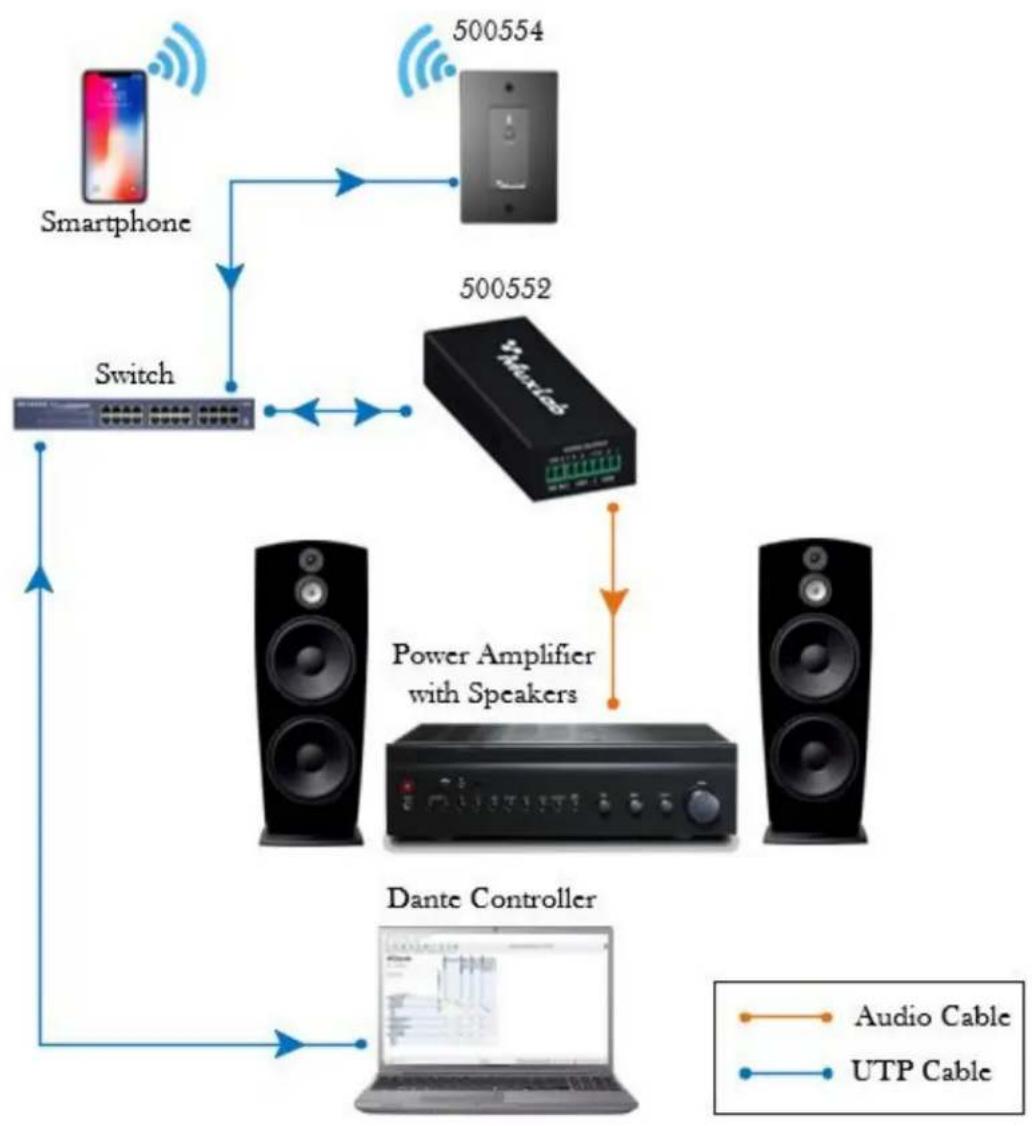

7. Application Diagram

