USER MANUAL UMV1170LW AMANA

THANK YOU for purchasing this high-quality product. Register your microwave oven at www.whirlpool.com.

For future reference, please make a note of your product model and serial numbers. These can be found on the label located on the microwave oven frame behind the top right side of the microwave oven door.

Model Number

Serial Number

Electrical Requirements 4

PARTS AND FEATURES ....5

Feature Guide....5

Standby Mode....8

Auto Vent Fan....8

Control Lock....8

MICROWAVE OVEN USE....8

Cooking Guidelines....8

Food Characteristics....8

Cookware and Dinnerware....8

Aluminum Foil and Metal 9

Microwave Cooking Power....9

Popcorn....9

Reheat 10

Defrost....10

Auto Cook....10

MICROWAVE OVEN CARE....11

General Cleaning....11

TROUBLESHOOTING....12

ACCESSORIES....12

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances basic safety precautions should be followed, including the following:

WARNING: To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy:

• Read all instructions before using the microwave oven.
• Read and follow the specific "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY" found in this section.
  ■ The microwave oven must be grounded. Connect only to properly grounded outlet. See "GROUNDING INSTRUCTIONS" found in this section and in the provided Installation Instructions.

■ Install or locate the microwave oven only in accordance with the provided Installation Instructions.
■ Some products such as whole eggs in the shell and sealed containers - for example, closed glass jars - are able to explode and should not be heated in the microwave oven.

SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

■ Use the microwave oven only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in the microwave oven. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use.
■ As with any appliance, close supervision is necessary when used by children.
■ Do not operate the microwave oven if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped.
■ The microwave oven should be serviced only by qualified service personnel. Call an authorized service company for examination, repair, or adjustment.
■ Do not cover or block any openings on the microwave oven.
■ Do not store this microwave oven outdoors. Do not use the microwave oven near water - for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar locations.
■ Do not immerse cord or plug in water.
- Keep cord away from heated surfaces.
■ Do not let cord hang over edge of table or counter.
■ See door surface cleaning instructions in the "Microwave Oven Care" section.
■ To reduce the risk of fire in the oven cavity:

• Do not overcook food. Carefully attend the microwave oven when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.
• Remove wire twist-ties from paper or plastic bags before placing bags in oven.
• If materials inside the oven ignite, keep oven door closed, turn oven off, and disconnect the power cord, or shut off power at the fuse or circuit breaker panel.
• Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use.

■ Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID.

To reduce the risk of injury to persons:

• Do not overheat the liquid.
• Stir the liquid both before and halfway through heating it.
• Do not use straight-sided containers with narrow necks.
• After heating, allow the container to stand in the microwave oven for a short time before removing the container.
• Use extreme care when inserting a spoon or other utensil into the container.

■ Do not mount over a sink.
■ Do not store anything directly on top of the microwave oven when the microwave oven is in operation.
■ Clean Ventilating Hoods Frequently - Grease should not be allowed to accumulate on hood or filter.
■ When flaming foods under the hood, turn the fan on.
■ Suitable for use above both gas and electric cooking equipment.
■ Intended to be used above ranges with maximum width of 36" (91.44 cm).
■ Use care when cleaning the vent-hood filter. Corrosive cleaning agents, such as lye-based oven cleaners, may damage the filter.

SAVE THESE INSTRUCTIONS

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.

(c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the:

(1) Door (bent),
(2) Hinges and latches (broken or loosened),
(3) Door seals and sealing surfaces.

(d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

Electrical Requirements

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Observe all governing codes and ordinances.

Required:

■ A 120 V, 60 Hz, AC only, 15 or 20 A electrical supply with a fuse or circuit breaker

Recommended:

■A time-delay fuse or time-delay circuit breaker
■A separate circuit serving only this microwave oven

GROUNDING INSTRUCTIONS

■ For all cord connected appliances:

The microwave oven must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. The microwave oven is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

WARNING: Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the microwave oven is properly grounded.

Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or serviceman install an outlet near the microwave oven.

SAVE THESE INSTRUCTIONS

This device complies with Part 18 of the FCC Rules.

PARTS AND FEATURES

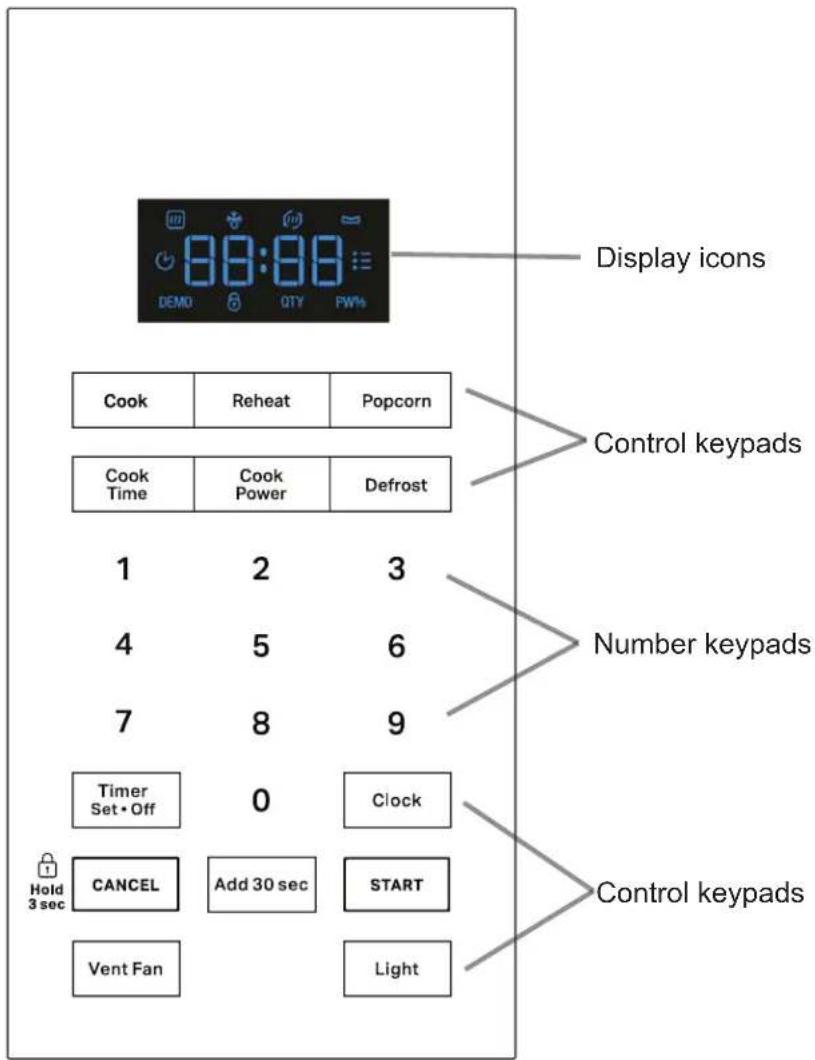

Feature Guide

This manual covers several models. Your model may have some or all of the items listed. Refer to this manual or the Product Help section of our website at www.whirlpool.com for more detailed instructions.

WARNING

Food Poisoning Hazard

Do not let food sit in oven more than one hour before or after cooking.

Doing so can result in food poisoning or sickness.

Keypad Feature Instructions
Clock	Set the Clock	This microwave uses a 12 hour clock (1:00 - 12:59). To set the clock, follow the instructions below:1. Press Clock keypad.2. Use the number keypads to set the clock.3. Press the START or the Clock keypad to save the time.NOTE: After power loss, need to reset the clock.
Light Turn On Hood	Light	Press the Light keypad to turn on the cooktop light. Press Light repeatedly to adjust the light setting among FULL-> HALF->OFF.NOTE: The cooktop light can be operated independently from any cooking functions or the control lock status.
Vent Fan	Turn On Fan	Press the Vent Fan keypad to turn the fan on or off. Press Vent Fan repeatedly to change the fan setting among HIGH-> LOW->OFF. The display will show “SPd2”, “SPd1” and “OFF”. NOTE: The hood fan can be operated independently from any cooking functions or the control lock status.
Timer Set • Off	Kitchen Timer	The kitchen timer functions independently of the microwave cooking functions, similar to a stop watch. To set the kitchen timer, follow the instructions below:1. Press Timer keypad.2. Press the number keypad to enter time up to 99 minutes and 99 seconds.3. Press START keypad.NOTE: When Kitchen Timer is running:To reset the timer: Press Timer keypad, repeat the above steps to reset the timer.To run manual cooking mode: Press Cook Power keypad to set the power level, and press Cook Time keypad to set the cooking time.When Timer is activated, can not run auto cooking mode.
START	Start Function	Press the START keypad to start any cooking function. If cooking is interrupted by opening the door, touch the START keypad after the door is closed again to resume the cycle.
Hold 3 sec	Microwave Oven Cancel	The CANCEL keypad stops any microwave oven function except for the clock, vent fan, light and control lock.The microwave oven will also turn off when the door is opened. When the door is opened, the element(s) will turn off, but the microwave oven light will remain on. Close the door and touch the START keypad to resume the preset cycle.
Hold 3 sec	Activate Control Lock	Activate Control Lock to avoid an unintended start.To activate, press and hold the CANCEL keypad for 3 seconds until tone sounds and the icon appears on the display.Repeat to unlock control.
Add 30 sec	Add 30 Sec.	Touching the START/Add 30 Sec keypad when the microwave oven is off will start 30 seconds of cook time at 100% power. If cooking is interrupted by opening the door, touching START keypad after the door is closed again will resume the preset cycle.NOTE: Repeatedly pressing the Add 30 sec keypad will add up to 10 minutes to the current time countdown. When 10 minutes has been added, invalid tones will sound and the display will show the final time setting.
Number Keypad “1”	Set the Keypad Sound (Tones) On/Off	To enable or disable. press and hold number keypad “1” for about 3 seconds to disable keypad tones,until a confirmation tone sounds. Repeat to turn keypad tones back on.NOTES:■ Only keypad entry tones are turned off. Other tones such as end of cycle tones are not affected.■ Tones can only be activated or deactivated when the microwave is idle.
Number Keypad “2”	Set the All Sound (Tones) On/Off	To enable or disable. press and hold number keypad “2” for about 3 seconds to disable all tones (including end-of-function signals), until a confirmation tone sounds. Repeat to turn keypad tones back on.
Number Keypad “3”	Activate Demo Mode	Demo mode shows the display and controls, including lights and fans, without using the magnetron, thus disabling microwave functions.To activate or deactivate Demo Mode in idle state.To Activate/Deactivate:Press and hold number keypad “3” for about 3 seconds, until a confirmation tone sounds and “DEMO” icon lights up in the display.
Number Keypad “4”	Activated Vent Timer	Vent Timer to turn the vent fan on for a preset time of 30 minutes.To enable or disable. Press and hold number keypad “4” for about 3 seconds, until a confirmation tone sounds. Repeat to turn vent fan off.The vent fan may be turned off at any time using the Vent Fan control.
Cook TimeCook Power	Set ManualCooking Power and Time / Stage Cooking	Press Cook Time or Cook Power to set manual cooking time or power.Set cooking time length:1. Press the Cook Time, press number keypad to set the length of cook time, for example 2:30.2. Press Cook Power, press number keypad to set the power level, for example 9 to set the power level at 90%.3. Press START keypad.The default cook power is 100%, to cook at 100% power level, skip the step 2. When the stop time is reached, the “END” icon will be displayed and the end tone will sound.If programming additional stages, repeat step 1 and 2 before touching the START keypad.
Defrost Automatic	Defrost	The defrost function helps thaw frozen food. To defrost, follow the instructions below:1. Touch Defrost.2. Touch Defrost repeatedly to scroll through foods, or use the number keypads to select food from the Defrost Chart. For example, to select the Meat setting, Defrost must be touched twice.3. Touch number keypads to enter the weight. For example, to enter 1.5 lbs, use the number keypads to enter 1.5.4. Touch the START keypad.The display will count down the defrost time. For better results, a preset standing time is included in the defrosting time. This may make the defrosting time seem longer than expected.When the stop time is reached, the microwave oven will shut off automatically, and end tones will sound.5. Touch the CANCEL keypad or open the door to clear the display and/or stop reminder tones.
Reheat Automatic	Reheat	To reheat using preset functions, follow the instructions below:1. Touch Reheat.2. Touch Reheat repeatedly to scroll through foods, or use the arrow keypads to select food type from the Reheat Chart. For example, to select the Beverage setting, Reheat must be touched twice.3. Touch number keypads to enter quantity.4. Touch START.When the stop time is reached, the microwave oven will shut off automatically, and end tones will sound.5. Touch the CANCEL keypad or open the door to clear the display and/or stop reminder tones.
Popcorn Popcorn To use the popcorn preset, follow the instructions below:
		1. Press Popcorn repeatedly to select the bag size. 3.0 oz is the default bag size.2. Press the START keypad.When the stop time is reached, the microwave oven will shut off automatically, and the end tone will sound.
Cook	Auto Cook	To cook food using preset functions, follow the instructions below:1. Touch Cook.2. Touch Cook repeatedly to scroll through foods, or use the number keypads to select food type from the Cook Chart. For example, to select the Frozen Entrée setting, Cook must be touched twice.3. Touch number keypads to enter quantity.4. Touch START.When the stop time is reached, the microwave oven will shut off automatically, and end tones will sound.5. Touch the CANCEL keypad or open the door to clear the display and/or stop reminder tones.

Standby Mode

When no functions are being used, the microwave oven will switch to Standby Power mode and slightly dim the display brightness after about 2 minutes. Touch any keypad or open/close the door, and the display will return to the normal brightness.

Auto Vent Fan

To keep the microwave oven from overheating, the auto vent fan will automatically turn on if the temperature from the range or cooktop below exceeds a certain temperature. When this occurs, the vent fan cannot be turned off and the fan speed cannot be changed, "SPd2" will be displayed when press Vent Fan keypad. The Vent Fan will automatically turn off if the microwave oven is cooled.

Control Lock

The Control Lock shuts down the control panel keypad to avoid unintended use of the microwave oven.

When the control is locked, only the vent fan and hood light will function.

To Lock Control: Touch CANCEL for approximately 3 seconds, until a tone sounds and a icon appears on the display.

To Unlock Control: Repeat to unlock. A tone will sound and the icon will be removed.

MICROWAVE OVEN USE

A magnetron in the microwave oven produces microwaves which reflect off the metal floor, walls, and ceiling and pass through the turntable and appropriate cookware to the food. Microwaves are attracted to and absorbed by fat, sugar, and water molecules in the food, causing them to move, producing friction and heat which cooks the food.

■To avoid damage to the microwave oven, do not lean on or allow children to swing on the microwave oven door.
■To avoid damage to the microwave oven, do not operate microwave oven when it is empty.
■The turntable must be in place and correct side up when microwave oven is in use. Do not use if turntable is chipped or broken. See the “Accessories” section to reorder.
■Baby bottles and baby food jars should not be heated in microwave oven.
■Clothes, flowers, fruit, herbs, wood, gourds, and paper, including brown paper bags and newspaper, should not be dried in the microwave oven.
■Paraffin wax will not melt in the microwave oven because it does not absorb microwaves.
■ Use oven mitts or pot holders when removing containers from microwave oven.
■Do not overcook potatoes. At the end of the recommended cook time, potatoes should be slightly firm. Let potatoes stand for 5 minutes. They will finish cooking while standing.
■Do not cook or reheat whole eggs inside the shell. Steam buildup in whole eggs may cause them to burst. Cover poached eggs and allow a standing time.

Cooking Guidelines

Covering

Covering food helps retain moisture, shorten cook time, and reduce spattering. Use the lid supplied with cookware. If a lid is not available, wax paper, paper towels, or plastic wrap approved for microwave ovens may be used. Plastic wrap should be turned back at one corner to provide an opening to vent steam. Condensation on the door and cavity surfaces is normal during heavy cooking.

Stirring and Turning

Stirring and turning redistributes heat evenly to avoid overcooking the outer edges of food. Stir from outside to center. If possible, turn food over from bottom to top.

Arranging

If heating irregularly shaped or different-sized foods, arrange the thinner parts and smaller-sized items toward the center. If cooking several items of the same size and shape, place them in a ring pattern, leaving the center of the ring empty.

Piercing

Before heating, use a fork or small knife to pierce or prick foods that have a skin or membrane, such as potatoes, egg yolks, chicken livers, hot dogs, and sausage. Prick in several places to allow steam to vent.

Shielding

Use small, flat pieces of aluminum foil to shield the thin pieces of irregularly shaped foods, bones, and foods such as chicken wings, leg tips, and fish tails. See the “Aluminum Foil and Metal” section first.

Standing Time

Food will continue to cook by the natural conduction of heat, even after the microwave cooking cycle ends. The length of standing time depends on the volume and density of the food.

Food Characteristics

When microwave cooking, the amount, size and shape, starting temperature, composition, and density of the food affect cooking results.

Amount of Food

The more food heated at once, the longer the cook time needed. Check for doneness and add small increments of time if necessary.

Size and Shape

Smaller pieces of food will cook more quickly than larger pieces, and uniformly shaped foods cook more evenly than irregularly shaped food.

Starting Temperature

Room temperature foods will heat faster than refrigerated foods, and refrigerated foods will heat faster than frozen foods.

Composition and Density

Foods high in fat and sugar will reach a higher temperature and will heat faster than other foods. Heavy, dense foods, such as meat and potatoes, require a longer cook time than the same size of a light, porous food, such as cake.

Cookware and Dinnerware

Cookware and dinnerware must fit on the turntable. Always use oven mitts or pot holders when handling because any dish may become hot from heat transferred from the food. Do not use cookware and dinnerware with gold or silver trim. Use the following chart as a guide, then test before using.

Material Recommendations

Aluminum Foil, Metal	See the “Aluminum Foil and Metal” section.
Browning Dish Bottom must be at least 3/16" (5 mm) above the turntable. Follow manufacturer's recommendations.
Ceramic Glass, Glass	Acceptable for use.
China, Earthenware	Follow manufacturer's recommendations.
Melamine Follow manufacturer's recommendations.
Paper: Towels, Dinnerware, Napkins	Use non-recycled and those approved by the manufacturer for microwave oven use.
Plastic: Wraps, Bags, Covers, Dinnerware, Containers	Use those approved by the manufacturer for microwave oven use.
Pottery and Clay Follow manufacturer's recommendations.
Silicone Bakeware Follow manufacturer's recommendations.
Straw, Wicker, Wooden Containers	Do not use in microwave oven.
Styrofoam ^®†	Do not use in microwave oven.
Wax Paper Acceptable for use.

To Test Cookware or Dinnerware for Microwave Use:

1. Place cookware or dinnerware in microwave oven with 1 cup (250 mL) of water beside it.

2. Cook at 100% cooking power for 1 minute.

Do not use cookware or dinnerware if it becomes hot and the water stays cool.

Aluminum Foil and Metal

Always use oven mitts or pot holders when removing dishes from the microwave oven.

Aluminum foil and some metal can be used in the microwave oven. If not used properly, arcing (a blue flash of light) can occur and cause damage to the microwave oven.

OK for Use

Racks and bakeware supplied with the microwave oven (on some models), aluminum foil for shielding, and approved meat thermometers may be used with the following guidelines:

■To avoid damage to the microwave oven, do not allow aluminum foil or metal to touch the inside cavity walls, ceiling, or floor.

■Always use the turntable.

■ To avoid damage to the microwave oven, do not allow contact with another metal object during microwave cooking.

Do Not Use

Metal cookware and bakeware, gold, silver, pewter, non-approved meat thermometers, skewers, twist ties, foil liners, such as sandwich wrappers, staples, and objects with gold or silver trim or a metallic glaze, should not be used in the microwave oven.

Microwave Cooking Power

Many recipes for microwave cooking specify which cooking power to use by percent, name, or number. For example, 70%=Medium-High=7.

Use the following chart as a general guide for the suggested cooking power of specific foods.

Percent/Name	Number Use
100%, High (default setting)	10 Quick heating convenience foods and foods with high water content, such as soups, beverages, and most vegetables.
90% 9 Cooking small, tender pieces of meat, ground meat, poultry pieces, and fish fillets.Heating cream soups.
80% 8 Heating rice, pasta, or casseroles.Cooking and heating foods that need a cook power lower than high, for example, whole fish and meat loaf.
70%, Medium-High	7 Reheating a single serving of food.
60% 6 Cooking sensitive foods such as cheese and egg dishes, pudding, and custards.Cooking non-stirrable casseroles, such as lasagna.
50%, Medium 5 Cooking ham, whole poultry, and pot roasts.Simmering stews.
40% 4 Melting chocolate.Heating bread, rolls, and pastries.
30%, Medium-Low, Defrost	3 Defrosting bread, fish, meats, poultry, and precooked foods.
20% 2 Softening butter, cheese, and ice cream.
10%, Low	1 Taking chill out of fruit.

Popcorn

Senses 3.0- 3.5 oz bags.

■Do not use regular paper bags or glassware.
■Pop only one package of popcorn at a time.
■Follow manufacturer's instructions when using a microwave popcorn popper.

■ Listen for popping to slow to one pop every 1 or 2 seconds, and then stop the cycle. Do not repop unpopped kernels.

■For best results, use fresh bags of popcorn.
■Cooking results may vary by brand and fat content.

NOTE: Follow the instructions provided by the microwave popcorn manufacturer.

Reheat

Times and cooking powers have been preset for reheating a number of food types.

Use the following chart as a guide.

REHEAT CHART

Food Quantity
BeverageDo not cover.	1-2 cups (250 mL-500 mL)
CasserolePlace in microwave-safe container. Cover with plastic wrap and vent. Stir and let stand 2-3 minutes after reheating.	1-4 cups (250 mL-1 L)
Dinner PlatePlace food on plate. Cover with plastic wrap and vent. Let stand 2-3 minutes after reheating.	1 plate, about 8-16 oz (227-454 g)
Soup/SaucePlace in microwave-safe container. Cover with plastic wrap and vent. Stir and let stand 2-3 minutes after reheating.	1-4 cups (250 mL-1 L)
Baked GoodsPlace on paper towel.	1-6 pieces, 2 oz (57 g) eachTwo small rolls may be counted as 1 piece.

Defrost

■ For optimal results, food should be 0^ F ( -18^ C) or colder when defrosting.
■Unwrap foods and remove lids (from fruit juice) before defrosting.
■ Shallow packages will defrost more quickly than deep blocks.
- Separate food pieces as soon as possible during or at the end of the cycle for more even defrosting.
■Foods left outside the freezer for more than 20 minutes or frozen ready-made food should not be defrosted using the Defrost feature but should be defrosted manually.
■ Use small pieces of aluminum foil to shield parts of food such as chicken wings, leg tips, and fish tails. See the “Aluminum Foil and Metal” section first.
■Times and cooking powers have been preset for defrosting a number of food types.

Use the following chart as a guide.

DEFROST CHART

Food Weight

Meats* 0.2 to 6.6 lbs (90 g to 3 kg)

Poultry* 0.2 to 6.6 lbs (90 g to 3 kg)

Fish* 0.2 to 4.4 lbs (90 g to 2 kg)

* See the Defrost Preparation Chart at end of the "Defrost" section for cuts, sizes, and instructions.

Use the following chart as a guide when defrosting meat, poultry, or fish.

DEFROST PREPARATION CHART

MEAT
Beef: ground, steaks, roast, stew	The narrow or fatty areas of irregular-shaped cuts should be shielded with foil before defrosting.
Lamb: stew and chops
Pork: chops, ribs, roasts, sausage	Do not defrost less than 1/4 lb (113 g) or two 4 oz (113 g) patties.Place all meats in a microwave-safe baking dish.
POULTRY
Chicken: whole and cut up Place in a microwave-safe baking dish, chicken breast-side up.
Cornish hens
Turkey: breast	Remove giblets from whole chicken.
FISH
Fillets, Steaks, Whole, Shellfish	Place in a microwave-safe baking dish.

Auto Cook

Food Quantity
Frozen EntréeRemove from package. Loosen cover on 3 sides. If entrée is not in microwave-safe container, place on plate, cover with plastic wrap, and vent.	10 or 20 or 40 or 60 oz (283 or 567 g or 1134 or 1701 g)
BaconAverage thickness: Follow directions on package. For best results, place bacon on microwave-safe bacon rack.	1-6 slices
Canned VegetablesPlace in microwave-safe container. Cover with plastic wrap, and vent. Stir and let stand 2-3 minutes after cooking.	1, 2, 3 or 4 cups(250, 500, 750 mL or 1 L)
Fresh VegetablePlace in microwave-safe container and add 2-4 tbs water. Cover with plastic wrap and vent. Stir and let stand 2-3 minutes after cooking.	1-4 cups (250 mL-1 L)
Frozen VegetableRemove from package. Place in microwave-safe container.Add 2-4 tbs (30-60 mL) water Cover with plastic wrap, and vent. Stir and let stand 2-3 minutes after cooking.	1-4 cups (250 mL-1 L)
RiceFollow measurements on package for ingredient amounts. Place rice and liquid in microwave-safe dish. Cover with loose fitting lid. Let stand 5 minutes after cooking, or until liquid is absorbed. Stir.	0.5-2.0 cups (125-500 mL)(Dry, white long grain)

MICROWAVE OVEN CARE

General Cleaning

IMPORTANT: Before cleaning, make sure all controls are off and the microwave oven is cool. Always follow label instructions on cleaning products.

Soap, water, and a soft cloth or sponge are suggested first, unless otherwise noted.

STAINLESS STEEL (on some models)

NOTE: To avoid damage to stainless steel surfaces, do not use soap-filled scouring pads, abrasive cleaners, cooktop polishing creme, steel-wool pads, gritty washcloths, or abrasive paper towels. Damage may occur to stainless steel surfaces, even with one-time or limited use.

Rub in direction of grain to avoid damaging.

Cleaning Method:

■Affresh ^® † Stainless Steel Cleaners (not included):

See the "Accessories" section.

■Vinegar for hard water spots.

MICROWAVE OVEN DOOR EXTERIOR

Cleaning Method:

Glass cleaner and a soft cloth or sponge: Apply glass cleaner to soft cloth or sponge, not directly on panel.

To avoid damage to microwave oven cavity, do not use soap-filled scouring pads, abrasive cleaners, steel-wool pads, gritty washcloths, or some paper towels.

On stainless steel models, rub in direction of grain to avoid damaging.

The area where the microwave oven door and frame touch when closed should be kept clean.

Cleaning Method:

Average soil

■Mild, nonabrasive soaps and detergents: Rinse with clean water and dry with soft, lint-free cloth.

Heavy soil

■ Mild, nonabrasive soaps and detergents: Heat 1 cup (250 mL) of water for 2 to 5 minutes in microwave oven. Steam will soften soil. Rinse with clean water and dry with soft, lint-free cloth.

Odors

■Lemon juice or vinegar: Heat 1 cup (250 mL) of water with 1 tbs (15 mL) of either lemon juice or vinegar for 2 to 5 minutes in microwave oven.

TURNTABLE

Replace turntable immediately after cleaning. Do not operate the microwave oven without the turntable in place.

Cleaning Method:

■Mild soap and water

■Dishwasher

GREASE FILTERS

■Mild soap, water, and washcloth or dishwasher.

TURNTABLE SUPPORT AND ROLLERS, HUB

■Mild soap and water or dishwasher

† ^® Affresh is a registered trademark of Whirlpool, U.S.A.

NONSTICK CAVITY COATING (on some models)

To avoid damage to the microwave oven cavity, do not use metal or sharp utensils or scrapers or any type of abrasive cleanser or scrubbers.

INSTALLING/REPLACING FILTERS AND LIGHT BULBS

Grease filter: Grease filter is on the underside of microwave oven. Clean monthly. Slide the grease filter, remove it from the slot on the bottom plate of the microwave oven. Repeat to reinstall.

Charcoal filter: The charcoal filter is behind the vent grille at the top front of the microwave oven. The charcoal filter cannot be cleaned and should be replaced about every 6 months. Open door, remove two screws on the vent grille, tilt the grille forward, lift it out. Press the hook (on the left side) to the left and remove charcoal filter. To reinstall, put the new charcoal filter to the slot (on the right side), then press the left side of the charcoal filter into the hook-slotted area, wire mesh facing forward, replace vent grille, and secure with screws.

NOTE: Unplug the unit and let the light bulbs cool before replacing the light bulbs.

Cooktop light: The cooktop light is located on the underside of the microwave oven and is replaceable. Remove bulb cover screw, and open the bulb cover. Replace bulb, close bulb cover, and secure with screw.

Cavity light: The cavity light bulb is located behind the vent grille at the top front of the microwave oven, under the bulb cover, and is replaceable. Open door, remove two screws on the vent grille, tilt the grille forward, and lift it out. Open bulb cover and replace bulb. Close bulb cover, replace vent grille, and secure with screws.

TROUBLESHOOTING

First try the solutions suggested here. If you need further assistance or more recommendations that may help you avoid a service call, please visit the "Troubleshooting" section at https://www.whirlpool.com/owners for Troubleshooting help. You can also reach us by phone or mail using the information below:

USA: 1-866-698-2538

Whirlpool Customer Service

553 Benson Road

Benton Harbor, MI 49022

If you experience Recommended Solutions

Microwave oven will not operate	Check the following:■ Household fuse or circuit breaker: If a household fuse has blown or a circuit breaker has tripped, replace the fuse or reset the circuit breaker. If the problem continues, call an electrician.■ Magnetron: Try to heat 1 cup (250 mL) of cold water for 2 minutes at 100% cooking power. If water does not heat, try the steps in the bullets below. If microwave oven still does not operate, call for service.■ Door: Firmly close door. On some models, if a packaging spacer is attached to inside of the door, remove it, then firmly close door.If a message about the door appears in the display, the door has been closed for 5 minutes or more without the microwave oven being started. This occurs to avoid unintended starting of the microwave oven. Open and close the door, then start the cycle.■ Control: Make sure control is set properly. Make sure Control Lock is off. Make sure Demo mode (on some models) is off.
Arcing in the microwave oven	Check the following:■ Soil buildup: Soil buildup on cavity walls, microwave inlet cover, and area where the door touches the frame can cause arcing. See “General Cleaning” in the “Microwave Oven Care” section.
Turntable alternates rotation directions	■ This is normal and depends on motor rotation at the beginning of the cycle.
Display shows messages	■ “:” with flashing digits means there has been a power failure. Reset the clock.■ A letter followed by a number is an error indicator. Call for assistance.
Fan running during cooktop usage	■ This is normal. The microwave oven’s cooling fan, which is separate from the vent fan, automatically comes on during microwave oven operation to cool the microwave oven. It may also automatically come on and cycle on and off to cool the microwave oven’s controls while the cooktop below is being used.
Radio, TV, or cordless phone interference	Check the following:■ Proximity: Move the receiver away from the microwave oven, or adjust the radio or TV antenna.■ Soil: Make sure the microwave oven door and sealing surfaces are clean.■ Frequency: Some 2.4 GHz-based cordless phones and home wireless networks may experience static or noise while microwave oven is on. Use a corded phone, a different frequency cordless phone, or avoid using these items during microwave oven operation.
Moisture in the microwave cavity and/or on the exterior glass	Check the following:■ During microwave cycles that release significant moisture from the item being cooked (i.e. potatoes), it is normal to see and feel moisture in the microwave cavity and/or on the exterior glass as this moisture is vented from the unit. This moisture should not impact any surrounding surface. Wipe away with towel.

ACCESSORIES

For accessories in the U.S.A., you can visit our website at www.whirlpool.com or call us at 1-866-698-2538.

Cleaning Supplies

■Affresh ^® Stainless Steel Cleaning Mousse

■Affresh ^® Stainless Steel Cleaning Wipes

■Affresh ^® Stainless Steel Cleaning Brightener

■Affresh ^® Stainless Steel Cleaning Spray

Replacement Parts

■Turntable glass tray (Order Part No: W11335034)

■Charcoal Filter (Order Part No: 8206230)

■Replacement Cavity Light (Order Part No: 8206232A)

■Turntable hub (Order Part No: W11193599)

■Grease Filter (Order Part No: W10208631)

■Replacement Cooktop Light (Order Part No: 8206232A)

■Turntable support (Order Part No: W11193600)

Reheat (Recalentar)....22

Defrost (Descongelar)....22

Whirlpool Customer Service

553 Benson Road

©2021 All rights reserved.
