| Product Type | Industrial Cellular Router |
| Brand | Planet |
| Model | IVR-300FP |
| Wireless Standard | 4G LTE Cat 4 |
| Frequency Bands | B1/B3/B5/B7/B8/B20 (varies by region) |
| Data Speed | 150 Mbps (downlink) / 50 Mbps (uplink) |
| WAN Ports | 1 x Gigabit Ethernet RJ45 |
| LAN Ports | 4 x Gigabit Ethernet RJ45 |
| SIM Slot | 1 x Nano SIM (3FF) |
| Antenna Connectors | 2 x SMA female for LTE Main/Diversity |

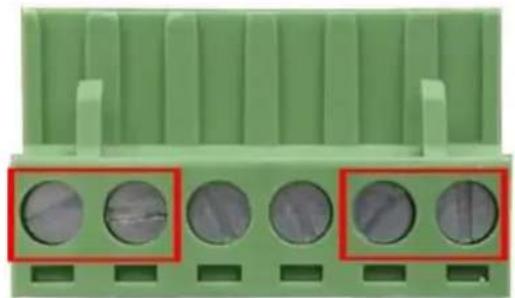

| Power Input | 12 V DC, 1.5 A (terminal block and barrel jack) |
| Power Consumption | 10 W (typical) |

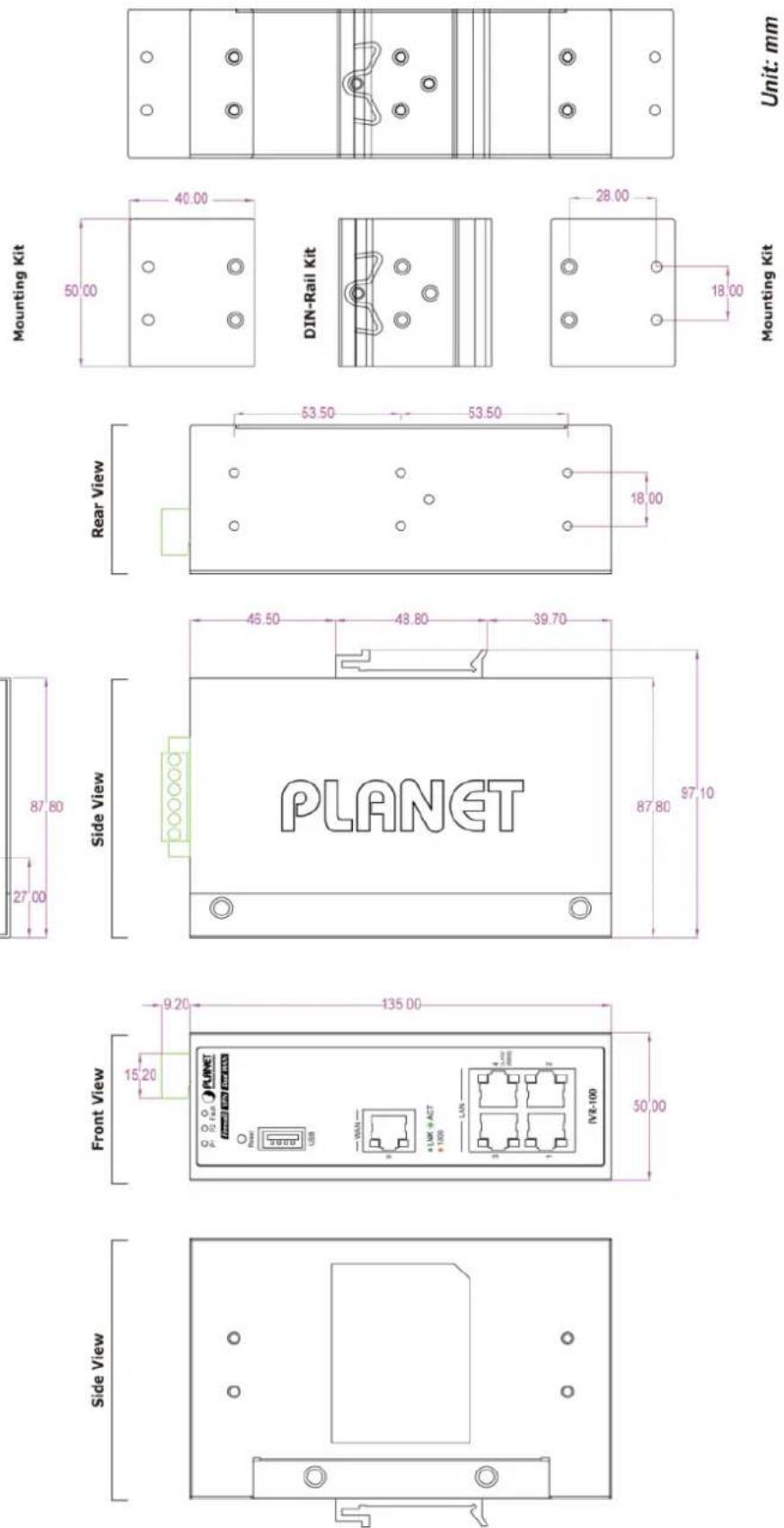

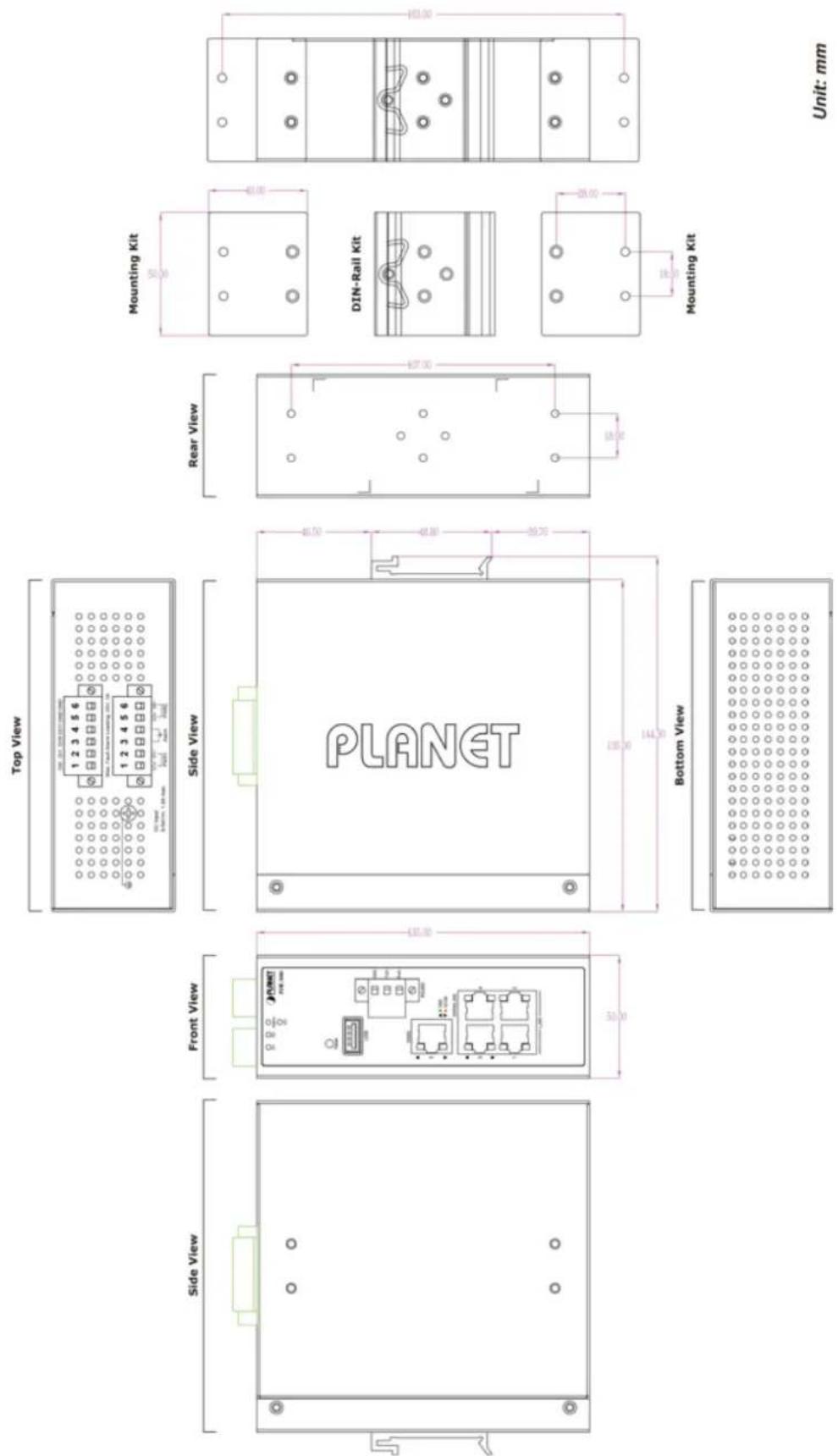

| Dimensions (W x D x H) | 150 x 100 x 30 mm |
| Weight | 500 g |
| Operating Temperature | -20 to 60 °C |
| Storage Temperature | -40 to 85 °C |
| Humidity | 5% to 95% (non-condensing) |
| LED Indicators | PWR, SYS, LTE, WAN, LAN (1-4) |

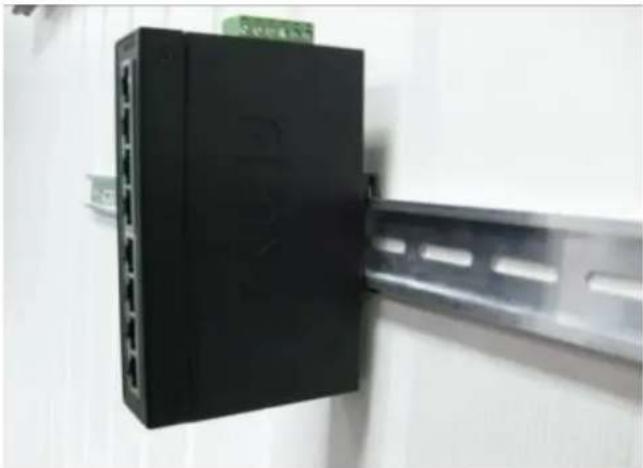

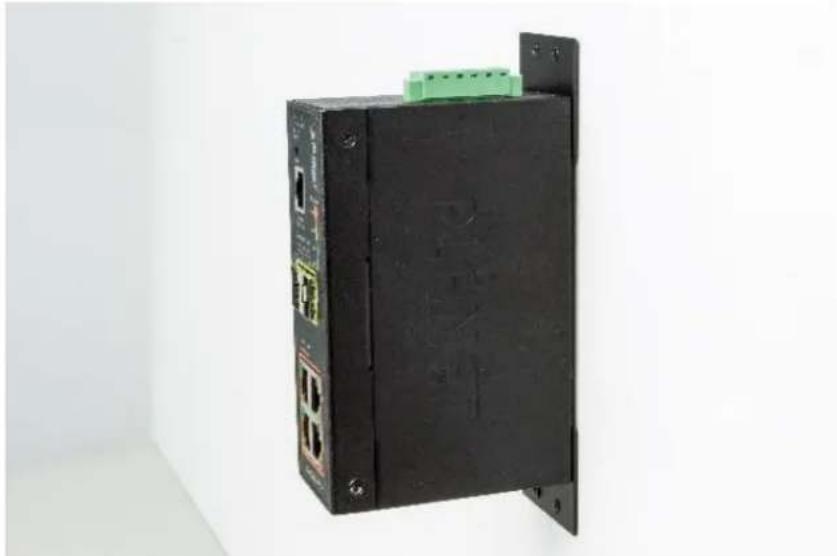

| Mounting | DIN-rail and wall mount |
| Warranty | 3 years |
Frequently Asked Questions - IVR-300FP Planet
How do I perform the initial setup of the Planet IVR-300FP?

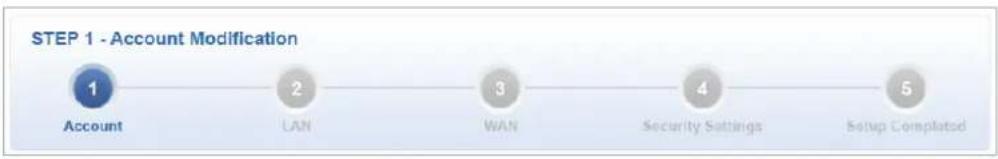

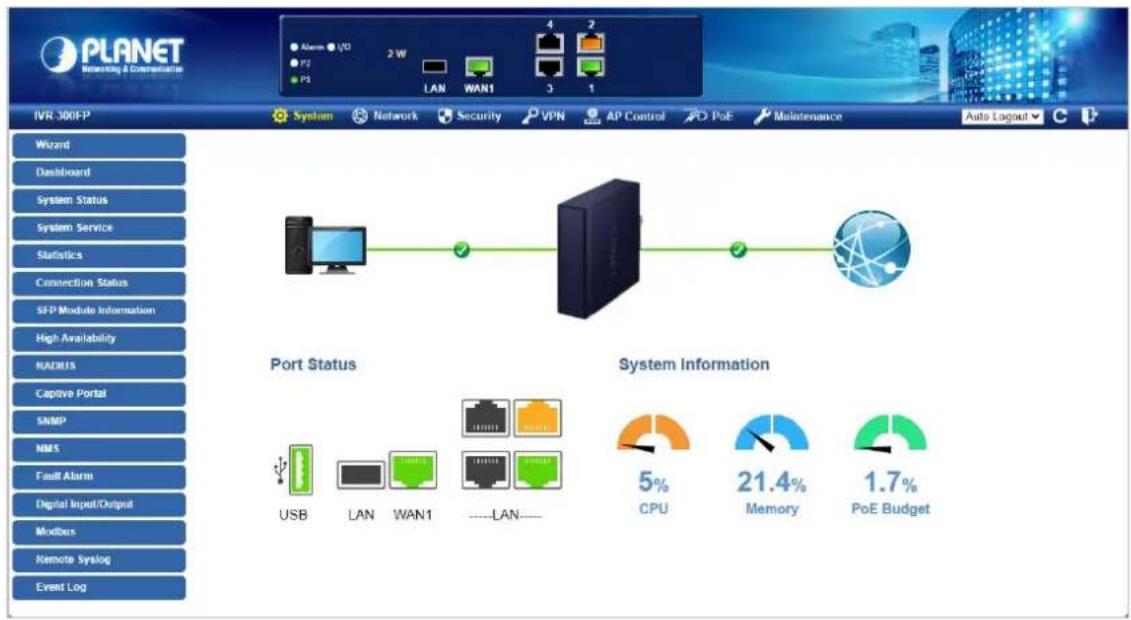

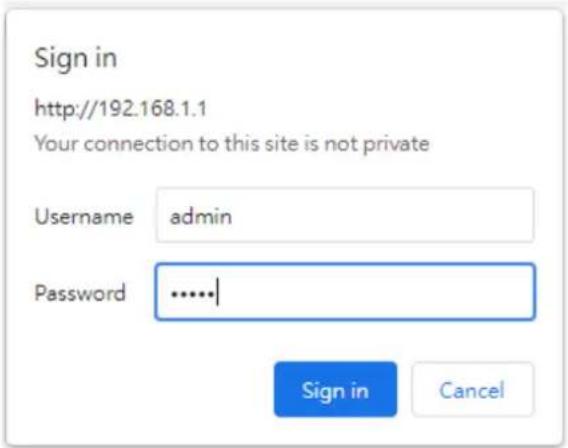

First, insert a valid SIM card, connect antennas, and power up. Connect a computer to one of the LAN ports. Access the web interface at 192.168.1.1 (default). Login with admin/admin. Follow the setup wizard to configure APN, network mode, and other settings.
What type of SIM card does the IVR-300FP use?
The device uses a standard Nano SIM card (3FF). Ensure the SIM is unlocked and has an active data plan.
How can I reset the router to factory defaults?
Locate the reset button on the device. Press and hold it for about 10 seconds until the SYS LED blinks rapidly. Release the button. The router will reboot with factory settings.
What do the LED indicators mean?
PWR: solid green when powered. SYS: blinking green indicates normal operation. LTE: solid green when connected to cellular network. WAN: solid/active. LAN ports: solid green indicates link, blinking indicates activity.

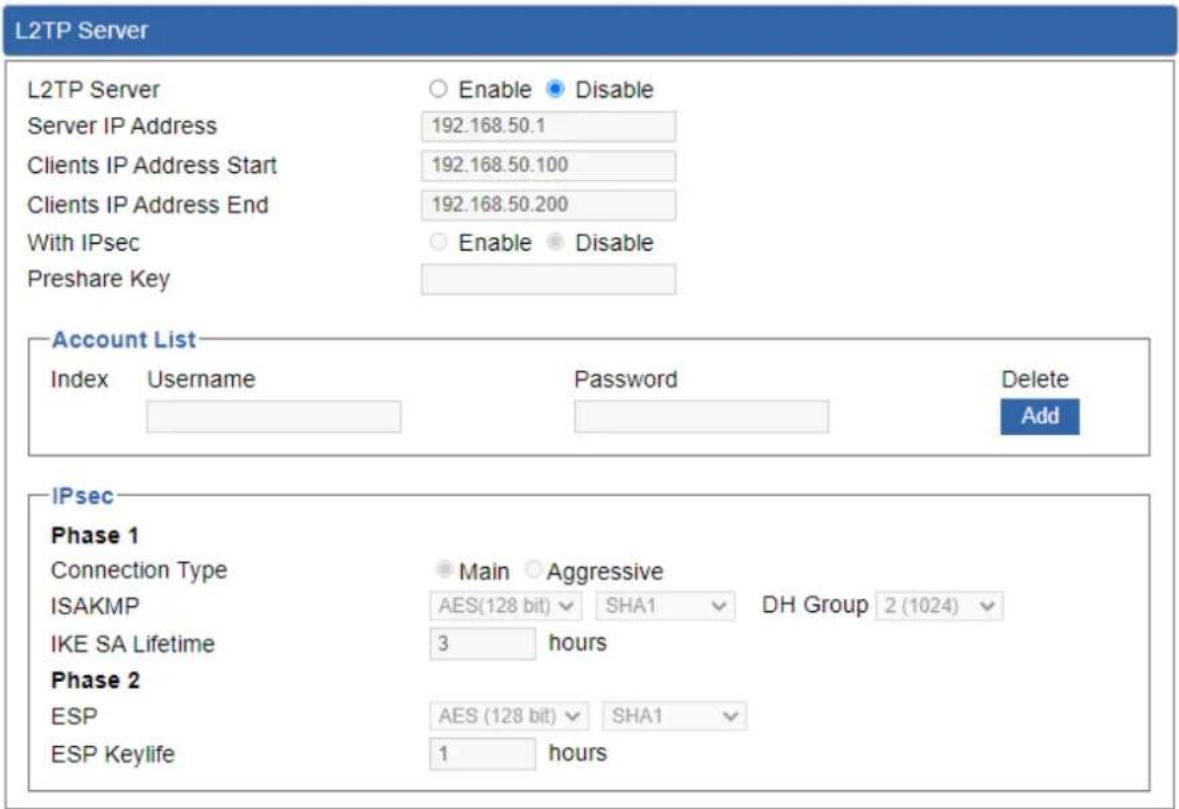

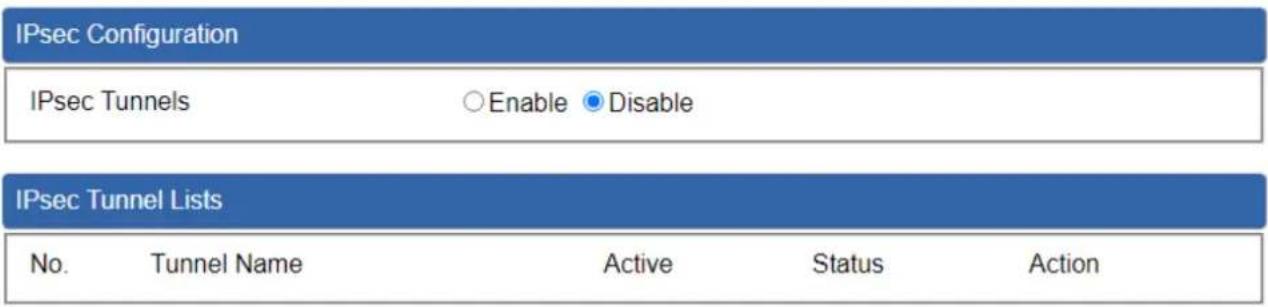

Can I use the IVR-300FP with a VPN?
Yes, the router supports various VPN protocols including IPsec, OpenVPN, PPTP, and L2TP. Configure VPN profiles in the web interface under VPN settings.
How do I update the firmware?
Download the latest firmware from Planet's official website. Log into the web interface, go to System > Firmware Update, select the downloaded file, and click Upgrade. Do not power off during the process.
What should I do if the router cannot get a cellular connection?
Check SIM card insertion and antenna connections. Verify that the SIM has an active data plan and is not PIN-locked. In the web interface, confirm the APN settings match your carrier. Try manual network selection.

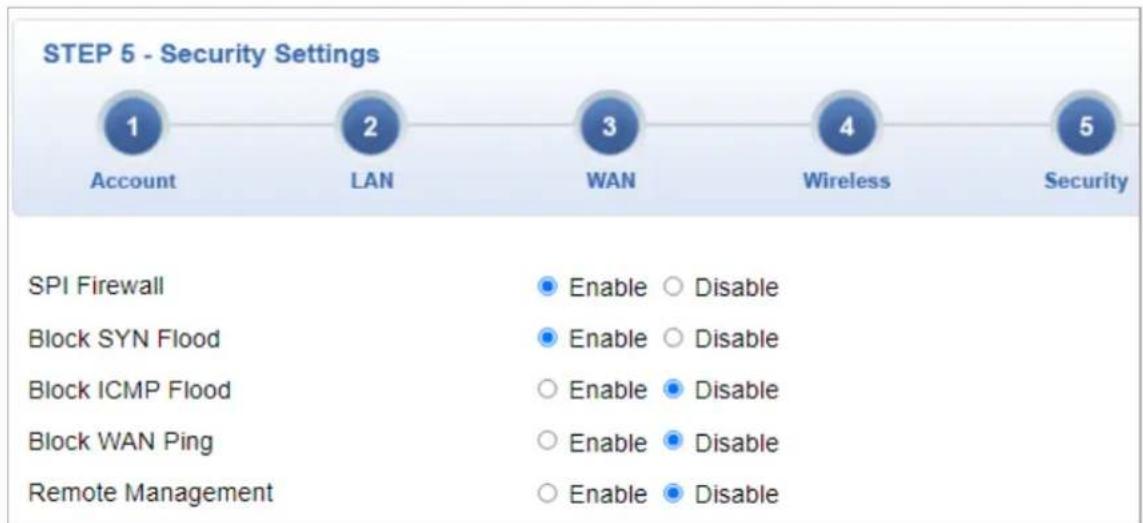

How can I secure my wireless network?
Change the default admin password. Enable WPA2-PSK or WPA3 for Wi-Fi (if the model includes Wi-Fi, otherwise for LAN security). Disable remote access if not needed. Use firewall rules and MAC filtering as required.
Is the IVR-300FP suitable for outdoor installation?
The device itself is designed for indoor use with protection rating IP30. For outdoor deployment, place it in a weatherproof enclosure with proper ventilation.
What is the maximum number of LAN clients supported?
The router supports up to 253 simultaneous clients via the built-in DHCP server. Actual performance depends on network traffic and bandwidth.
