ELNEXTTABELBLEND386G - Blender Electroline - Free user manual and instructions

Product Type	Blender
Brand	Electroline
Model	ELNEXTTABELBLEND386G
Voltage	220-240V
Frequency	50/60Hz
Power	800W
Jar Capacity	1.5L
Housing Material	Stainless Steel
Jar Material	Glass
Speed Settings	2 speeds (1, 2) + Pulse (P)
Pulse Function	Yes – momentary operation when pressing P
Safety Interlock	Prevents operation if jar is not properly seated
Blade Type	Sharp stainless steel, removable clockwise
Dishwasher Safe Parts	Blade assembly only (max 70°C)
Maximum Continuous Run Time	2 minutes per cycle
Rest Period Between Cycles	Minimum 1 minute
Ice Crushing Capability	Yes
Warranty	2 years

Frequently Asked Questions - ELNEXTTABELBLEND386G Electroline

How should I clean the blender?

Pour warm soapy water into the jar and run the Pulse function. Rinse the jar and lid with running water. Wipe the motor unit with a damp cloth. The blade assembly is dishwasher safe (max 70°C). Never immerse the motor unit in water.

Can I blend hot or boiling liquids?

No. Never use boiling liquids in this blender. The jar may break and cause injury. Always let liquids cool to room temperature before blending.

Why won't the blender start?

First check that the plug is connected and the outlet has power. Also ensure the glass jar is correctly installed on the motor unit; the interlock switch prevents operation if not properly seated.

What is the maximum capacity of the jar?

The jar has a capacity of 1.5 litres. Do not fill above the maximum level indicated on the jar to avoid spillage.

Can I crush ice with this blender?

Yes, this blender is suitable for crushing ice. Use the Pulse (P) setting for short bursts. Do not blend hard, dry substances as they may dull the blades.

How long can I run the blender continuously?

Do not run the blender for more than 2 minutes per cycle. Allow the motor to rest for at least 1 minute before starting another cycle.

Is the glass jar dishwasher safe?

The glass jar and lid can be rinsed with running water or washed by hand. Only the blade assembly (removed from the jar) is dishwasher safe, with a max temperature of 70°C.

What does the 'P' button do?

The 'P' button activates the Pulse function. The motor runs only while the button is held down, allowing short controlled bursts for precise blending or chopping.

Can I immerse the motor unit in water for cleaning?

No. Never immerse the motor unit in water or any liquid to avoid electric shock. Clean only with a damp cloth.

What should I do if the blade does not rotate?

Check that the glass jar is properly seated on the motor unit. The safety interlock prevents operation if the jar is not correctly installed. If still not working, contact an authorized service center.

USER MANUAL ELNEXTTABELBLEND386G Electroline

Symbol of a trash bin crossed with two diagonal lines, no text or numbers present

Thank you very much for purchasing our product. We kindly ask you to read and save this instruction manual carefully as it provides important information on safe use and maintenance.

INDEX

1. Safety warning
2. Product Description
3. Before first use
4. Operation
5. Cleaning and maintenance
6. Troubleshooting
7. Technical specifications
8. Dispose
9. Warranty and Compliance

1 Safety warning

Warning

Before using electrical appliances, you must observe the following basic precautions, including:

1. Read all instructions and save them for future reference.

2. Before connecting the product to the power supply, please check whether the voltage marked on the product matches the local power supply voltage; do not use this product if the plug, power cord or product itself is damaged.

3. Do not hang cords over the edge of a table or counter.

4. Do not operate the equipment when the power cord or plug is damaged, or when the equipment malfunctions or is damaged in any way. To avoid danger, it must be handled by professionals.

5. This equipment is not intended to be operated by persons without experience or knowledge (including children) unless they

have been given supervision or someone is responsible for their safety when using the equipment.

1. Avoid contact with moving parts, the blade of this product is sharp, please operate with caution.

2. Do not use accessories (including jars, lids) not recommended or sold by the manufacturer as they may cause fire, electric shock, or injury.

3. This machine cannot be used to mix hard and dry substances, otherwise the blades may become dull.

4. If you need to move a working product, turn off the device first.

5. Be sure to turn the switch to the O position after each use. Make sure the motor comes to a complete stop before disassembly. And unplug the power cord from the socket.

6. To protect children from the dangers posed by electrical appliances, keep this equipment away from children.

7. Do not immerse the motor unit in water or other liquids.

8. Do not use outdoors.

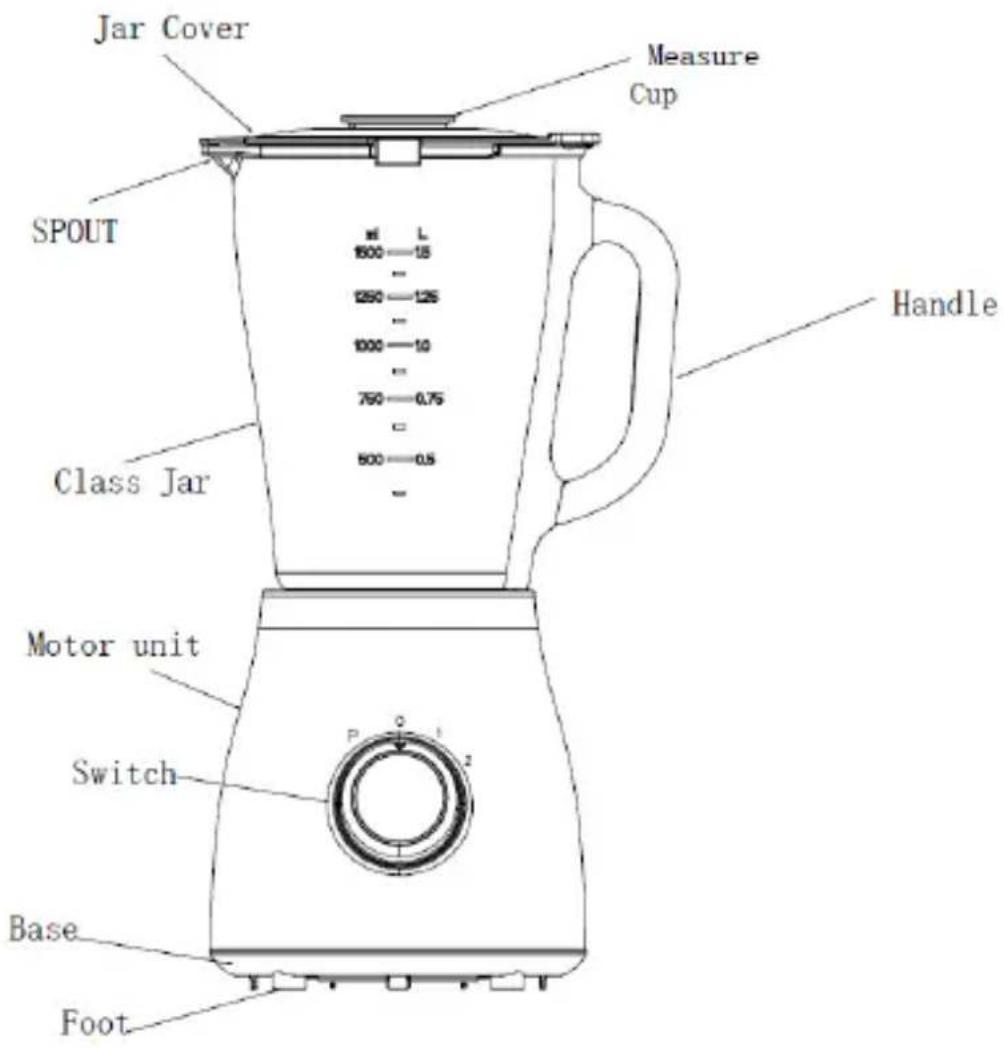

2 Product description

3 Before first use

1. Unpack the device and place all parts on a level surface.
2. Rinse and dry the glass container and lid. Never immerse the motor unit in water for cleaning to prevent risk of electric shock.

NOTE: The blade is very sharp, handle with care.

1. The correct assembly method will be described in detail in the following chapters.

Before assembling the product, make sure the power cord is unplugged from the power socket and the switch button is in the 0 position.

This product is suitable for making juice and pulp mixtures.

When attaching the glass, place the glass directly into the motor unit.

NOTE: Make sure the glass is correctly assembled into the motor unit and there is an interlock switch in place if the glass is not assembled correctly the product will not operate.

4 Operation

1. Before use, please make sure the "switch" button is in the 0 position.
2. Peel or core the fruits or vegetables, then cut into small cubes and put the food pieces into the jar. Typically, a certain amount of purified water must be added to promote the smooth operation of the appliance. The ratio of food to water is 2:3. The amount of mixture should not exceed the maximum level shown on the jar.

NOTE: Never use boiling liquids or run without load. This product can be used to break ice.

1. Place the glass lid back on the jar. And install the glass lid into the jar.

2. Turn the switch button to the desired setting, there are four settings: P, 0, 1,2. Turn the switch to the P position and hold it down to let the drive motor stir the food. Return to O position after releasing.

3. The stirring time for each cycle should be less than 2 minutes. A minimum rest period of 1 minute is required between consecutive cycles.

4. When the desired mixing consistency is achieved, turn the switch button to the 0 position.
5. Remove the bottle from the main unit (take it out directly upwards) and be careful to remove the glass cover.

5 Cleaning and Maintenance

• You can pour a small amount of warm soapy water into the bottle and jar, and then turn the switch button to the P position for cleaning.
• The removed glass lids and jars can be rinsed directly with running water.
• Wipe the outer surface of the main unit with a damp cloth. Do not use abrasives to clean the main unit. Never immerse the main unit in water for cleaning.
  • After drying all parts, leave to dry.

If you need to clean the blade assembly inside the bottle, please carefully turn the blade assembly clockwise and take it out from the bottom of the bottle. Then put the blade assembly into the dishwasher for cleaning. Note that the dishwasher temperature setting should not exceed 70 °C.

If you encounter any problems during use, do not disassemble the motor base yourself as there are no user-serviceable parts inside. Only contact an authorized service facility for inspection and repair.

6 Troubleshooting

Question Answer
The device cannot be powered on.	Check that the plug is connected to the socket and check that the outlet has power.
Blade does not rotate	Please confirm whether the glass jar is installed safely.
Device motor is not working	The device must be sent to a qualified service center.

7 Technical specifications

Model ELNEXTTABLEBLEND386G

Voltage 220-240V

Frequency 50/60Hz

Power 800W

Jar Capacity 1.5L

Housing

Material

Stainless Steel

Jar Material Glass

Speed 2 Speeds, Pulse

8 Disposal

Processing of electric and electronic equipment at the end of their service life (applicable in member countries of the European Union and other European countries operating a selective waste collection system).

This symbol, affixed to the product or its packaging, indicates that the product must not be processed with household waste. It must be brought to an electric and electronic waste collection point for recycling and disposal. By ensuring the appropriate disposal of this product you also help in preventing potentially negative consequences for the environment and human health. The recycling of materials helps preserve our natural resources. For further information

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

regarding the recycling of this product, please contact your municipality, local waste disposal centre or the store where the product was purchased.

In accordance with Legislative Decree of March 14, 2014, No. 49, “Implementation of Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE)” the crossed-out wheeled bin symbol on the appliance or its packaging indicates that the product must be collected separately from other waste at the end of its life. Therefore, the user should dispose of the end-of-life appliance at the appropriate collection points for electronic and electrical waste or return it to the retailer when purchasing a new equivalent appliance, on a one-to-one basis. Proper separate collection for the subsequent disposal, treatment, and environmentally friendly disposal of the discarded appliance helps to prevent potential negative effects on the environment and health and promotes the recycling of the materials the appliance is composed of. Unauthorized disposal of

the product by the user may result in the application of administrative sanctions provided by current regulations.

9 Warranty and Compliance

This Electroline Warranty applies only to Electroline products purchased for personal use and not those intended for resale.

Your Electroline product is warranted in accordance with the terms and conditions of this warranty against defects in workmanship and conformity for a period of a 2 years, and that period begins upon delivery of the item, if purchased from an official dealer.

The warranty will not be valid if the product has been opened, in the presence of physical damage, damage resulting from incorrect use, modifications, repairs by unauthorized persons, negligence and in the event that the product has been used for purposes other than those for which it was intended; furthermore, the legal guarantee will not apply if the purchase methods or other

circumstances demonstrate, with reasonable certainty, that the purchase itself is not exclusively aimed at private consumption.

In the event that the product is defective, it can be returned to the retailer along with a description of the type of malfunction, proof of purchase, and any accessories.

If the product is still under warranty, you will receive a replacement product (if available) from the dealer.

These are not covered by the warranty:

• Accidental damage or damage resulting from incorrect or improper use, contact with liquids; damage caused by accidents or force majeure events such as fire, earthquake, flood, vandalism, theft or other external cause.
• Cosmetic damage such as scratches, dents, or other breakage of plastic parts, caused by handling errors.

• Defects resulting from normal product wear and tear (product aging).

• Incompatibility with other hardware/software products not listed in the minimum system requirements.

• Consumable accessories such as batteries, protective covers, and fuses, which normally wear out over time. Problems due to noncompliance related to labour or materials are excluded.

In no event shall the manufacturer be liable for incidental or consequential damages, including any loss of business profits or other commercial damages resulting from the use of the product.

Due to the rapidly evolving nature of our products, the content of this manual may be subject to change without prior notice.

Made in China

Abstract white curved line on black background, resembling a stylized 'e' or logo (no text or symbols)

electroline

Manufactured and imported by Exertis Supply Chain Services Limited. Unit 21 Fonthill Business Park, Clondalkin. Dublin 22, D22 FR82, Dublin, Ireland

"Electroline" used under license from Unieuro
