USER MANUAL ESX-ACC-BKT Middle Atlantic

ESSEX ACCESSORY MOUNTING BRACKET

THANK YOU

Thank you for purchasing the Essex ESX-ACC-BKT Accessory Mounting Bracket. Please read these instructions thoroughly before installing this product.

TOOLS REQUIRED

- 1/4" Hex driver and extension for torx bit

HARDWARE/ITEMS SUPPLIED

Two identical line drawings of a double door with four corner clips (no text or symbols)

Accessory Brackets (Qty 2)

Torx Head Accessory Bracket Screws
6-32 × 5/16"
(Qty 4)

INSTALLATION

1) Select location for accessory mounting brackets.

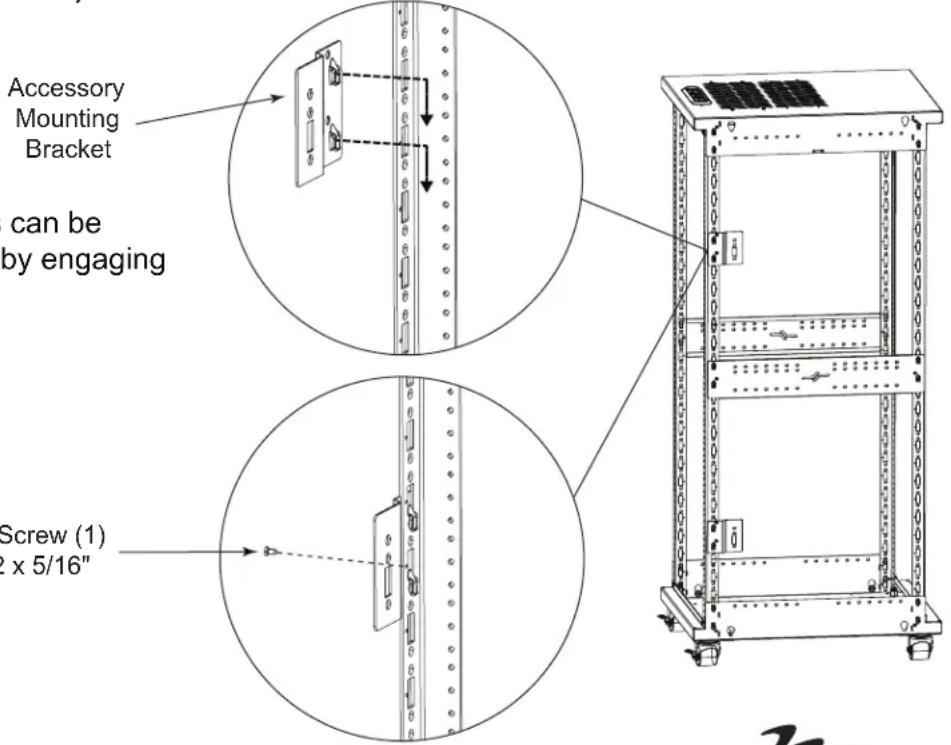

2) Insert accessory mounting brackets as shown and secure to rack with (1) Torx head 6-32 x 5/16" screw per bracket. (FIGURE A)

FIGURE A

Middle Atlantic Products
I-00704
Rev -

ESSEX

by Middle Atlantic

middleatlantic.com/essex■ 800.266.7225
