LATCH - Accessory Middle Atlantic - Free user manual and instructions

Product Type	Rack Latch
Brand	Middle Atlantic
Model	LATCH
Category	Accessory
Dimensions (W x H x D)	1.7 x 1.7 x 0.5 inches (43 x 43 x 13 mm)
Weight	0.1 lbs (45 g)
Material	Steel with black powder coat
Color	Black
Mounting Type	Screw-mount (hardware included)
Compatible Rack	Standard 19-inch racks
Weight Capacity	50 lbs (22.7 kg) per latch
Operating Temperature	-40°F to 160°F (-40°C to 71°C)
Certifications	UL listed, CE compliant
Included Accessories	Mounting screws, rubber gasket
Compliance	RoHS
Warranty	5 years limited
Country of Origin	USA

Frequently Asked Questions - LATCH Middle Atlantic

What is the LATCH accessory used for?

The Middle Atlantic LATCH is a rack latch designed to secure equipment in standard 19-inch racks, preventing accidental dislodging.

Is the LATCH compatible with all server racks?

It is compatible with any standard 19-inch rack with pre-drilled holes. For non-standard racks, please check dimensions.

What tools are required for installation?

Only a screwdriver is needed. The latch comes with mounting screws and a rubber gasket for vibration damping.

Can I install the LATCH on a rack without removing equipment?

Yes, the latch can be installed on empty rack spaces without moving existing equipment.

What is the weight capacity of the LATCH?

Each latch supports up to 50 lbs (22.7 kg) when properly mounted.

How do I clean the LATCH?

Wipe with a damp cloth. Do not use abrasive cleaners or solvents.

Is the LATCH lockable?

No, the LATCH is a simple mechanical latch without a locking mechanism. For security, consider a locking version.

Does the LATCH come with a warranty?

Yes, it includes a 5-year limited warranty against defects in materials and workmanship.

Can I use the LATCH for cable management?

No, it is designed solely for securing equipment, not for cable routing. Use dedicated cable management accessories.

Are replacement screws available?

Yes, replacement hardware kits can be ordered from Middle Atlantic or authorized dealers.

USER MANUAL LATCH Middle Atlantic

1) Remove the knock-out from the door.
2) Remove the screw from the back of the KYLK/LATCH.
3) Install the KYLK/LATCH on the door as shown. (FIGURE A)

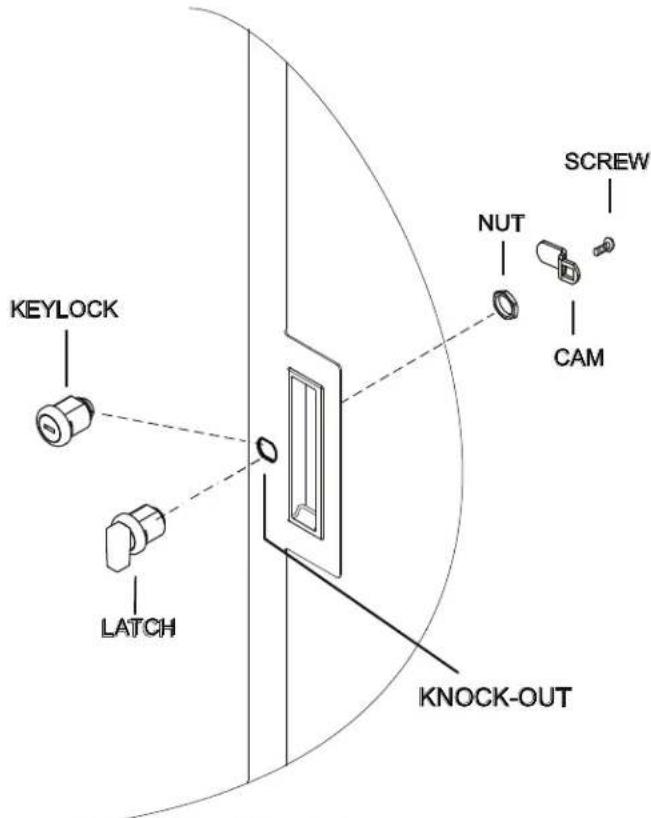

FIGURE A

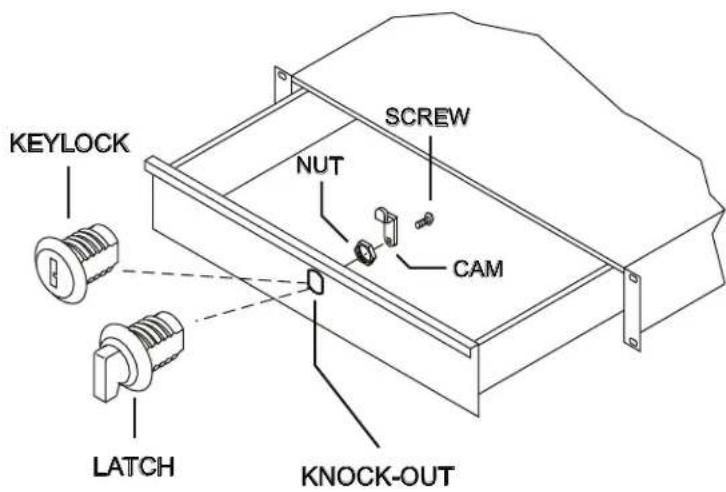

FIGURE B

1) Remove the knock-out from the drawer.
2) Remove the screw from the back of the KYLK/LATCH.
3) Install the KYLK/LATCH on the drawer as shown. (FIGURE B)

Middle Atlantic Products

1-1702

Rev F

WARRANTY

Middle Atlantic Products, Inc. (the "Company") warrants the LYLK/Latch Door/Drawer Assembly to be free from defects in material or workmanship under normal use and conditions for the lifetime of the product.

The Company's entire liability to the purchaser, and the purchaser's (or any other parties) sole and exclusive remedy, under this warranty shall be limited, at the Company's option, to either (a) return of and refund of the price paid for, or (b) repair or replacement at the Company's factory of the products purchased, or any part or parts thereof, which the Company has determined to be defective after inspection thereof at the Company's factory.

This warranty does not cover damage due to acts of God, accident, misuse, abuse or negligence by parties other than the Company, or any modification or alteration of the products. In addition, this warranty does not cover damage due to improper handling, assembly, installation or maintenance.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL THE COMPANY BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF THE USE OF THE PRODUCTS PURCHASED, EVEN IF THE COMPANY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE COMPANY'S LIABILITY TO THE PURCHASER (OR ANY OTHER PARTY) HEREUNDER, IF ANY, SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF THE PRODUCTS PAID TO THE COMPANY.
