X695 - Mobile Phone Infinix - Free user manual and instructions

Product Type	Smartphone
Brand	Infinix
Model	X695
Dimensions	Approx. 165 x 76.5 x 8.9 mm
Weight	Approx. 195 g
Display	6.6-inch IPS LCD, 720 x 1600 pixels
Processor	Octa-core MediaTek Helio G70
RAM	3 GB / 4 GB
Storage	64 GB / 128 GB (expandable via microSD)
Battery	5000 mAh, non-removable
Operating System	Android 10 with XOS 7.0
Rear Camera	Quad: 13 MP + 8 MP + 2 MP + QVGA
Front Camera	8 MP
Connectivity	Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 5.0, GPS
SIM	Dual Nano-SIM
Charging	Micro USB 2.0, 10W charger
Headphone Jack	Yes, 3.5mm
Fingerprint Sensor	Rear-mounted
Colors	Various

Frequently Asked Questions - X695 Infinix

How to insert SIM card on Infinix X695?

Use the SIM ejector tool to open the tray on the left side. Insert Nano-SIM cards into the slots correctly. Ensure the tray is fully inserted.

Can the battery be removed?

No, the battery is non-removable. To replace it, contact an authorized service center.

Does Infinix X695 support fast charging?

The device supports standard 10W charging. Fast charging is not officially supported.

What is the screen resolution?

The display is a 6.6-inch IPS LCD with HD+ resolution of 720 x 1600 pixels.

How to expand storage?

Insert a microSD card into the SIM tray's dedicated slot. Supports up to 256 GB.

Does it have a fingerprint sensor?

Yes, a rear-mounted fingerprint sensor is available for unlocking and security.

Is the Infinix X695 water resistant?

No official IP rating. Avoid exposure to water and dust.

How to update software?

Go to Settings > System > System Update. Check for updates and install if available.

What Android version runs on it?

It comes with Android 10 and Infinix's XOS 7.0 interface.

How to take a screenshot?

Press and hold the Power button and Volume Down button simultaneously until the screen flashes.

USER MANUAL X695 Infinix

Explosion diagram specification

Exploded view diagram of a refrigerator with various compartments and fixtures (no text or labels visible)

1	FL(CTP+LCM	2	fornt housing Assembly
3 PCBA Main 4 Front Camera
5 Back Camera 6 Back Camera
7 REC Deco part 8 F CAM Cop foil
9	LT sensor diffuse film	10	M1.4xL3.5 SCREW
11	REC con fb	12	LT sensor Seal rubber
13	Fornt CAM rubber	14	M1.4xL2.5 SCREW
15	SPK	16	UP frame asm
17	Bat cover asm	18	MAIN seal mylar
19	Rear CAM Lens	20	Fingerchip spacer
21	Shield Imp foam	22	Bat con rubber
23	LCM FPC con rubber	24	FP con imp steel asm
25	trope fill foam	26	R trope foam B
27	FPC Side key	28	PCBA SUB
29 Moto	30 Battery
31	USB Seal rubber	32	Audio Jack Seal rubber
33	SUB PCB BTB Rubber	34	coaxial cable
35	SPK frame asm	36	3in1 card holder
37	R CAM Con foams	38	Audio cavity seal mylar
39	Shield Seal Cop foil	40	FP Con Foams
41	FP support foam	42

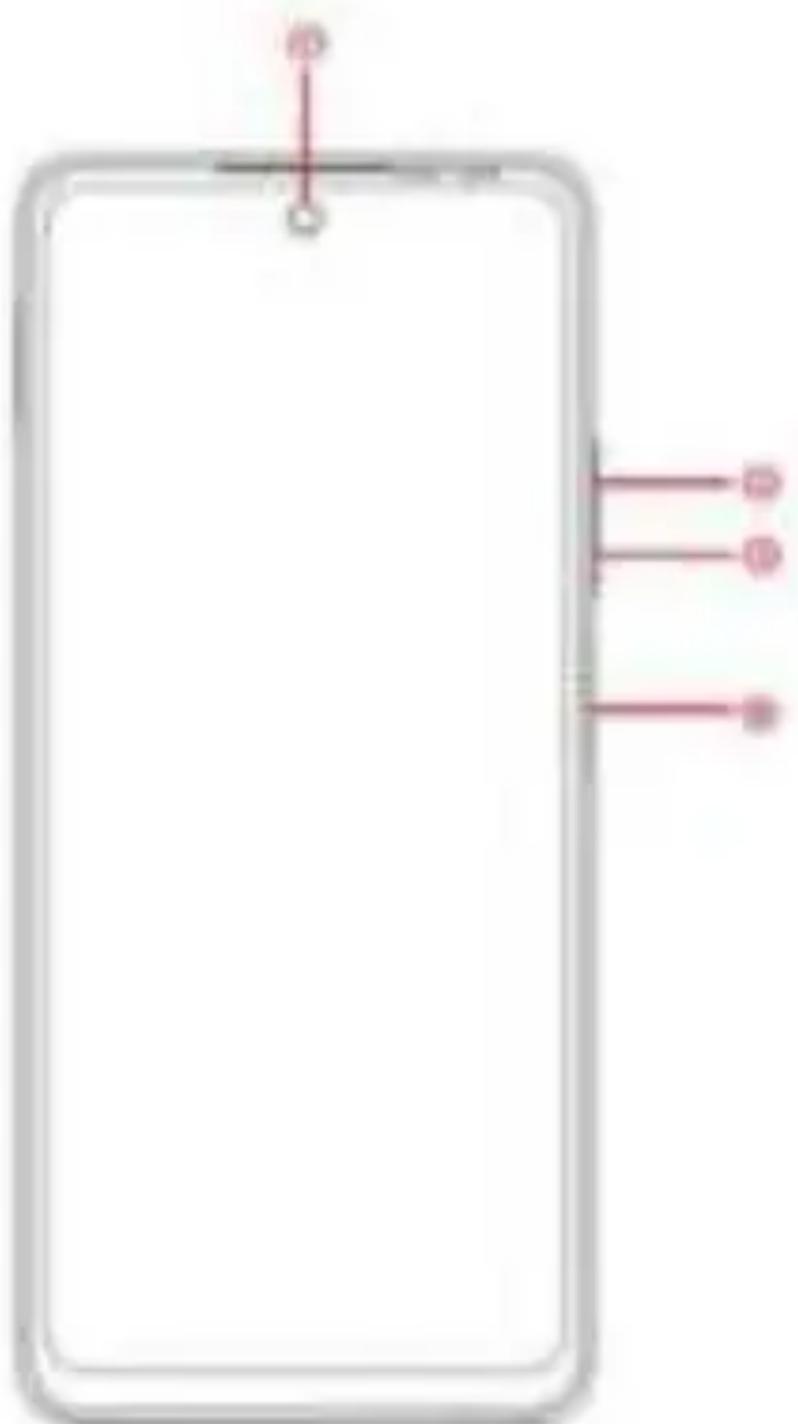

Know your phone

Simple diagram of a smartphone screen with three pink lines pointing to it (no text or symbols)

1. Front camera
2. Volume + key
3. Volume - key
4. Power key & side fingerprint sensor

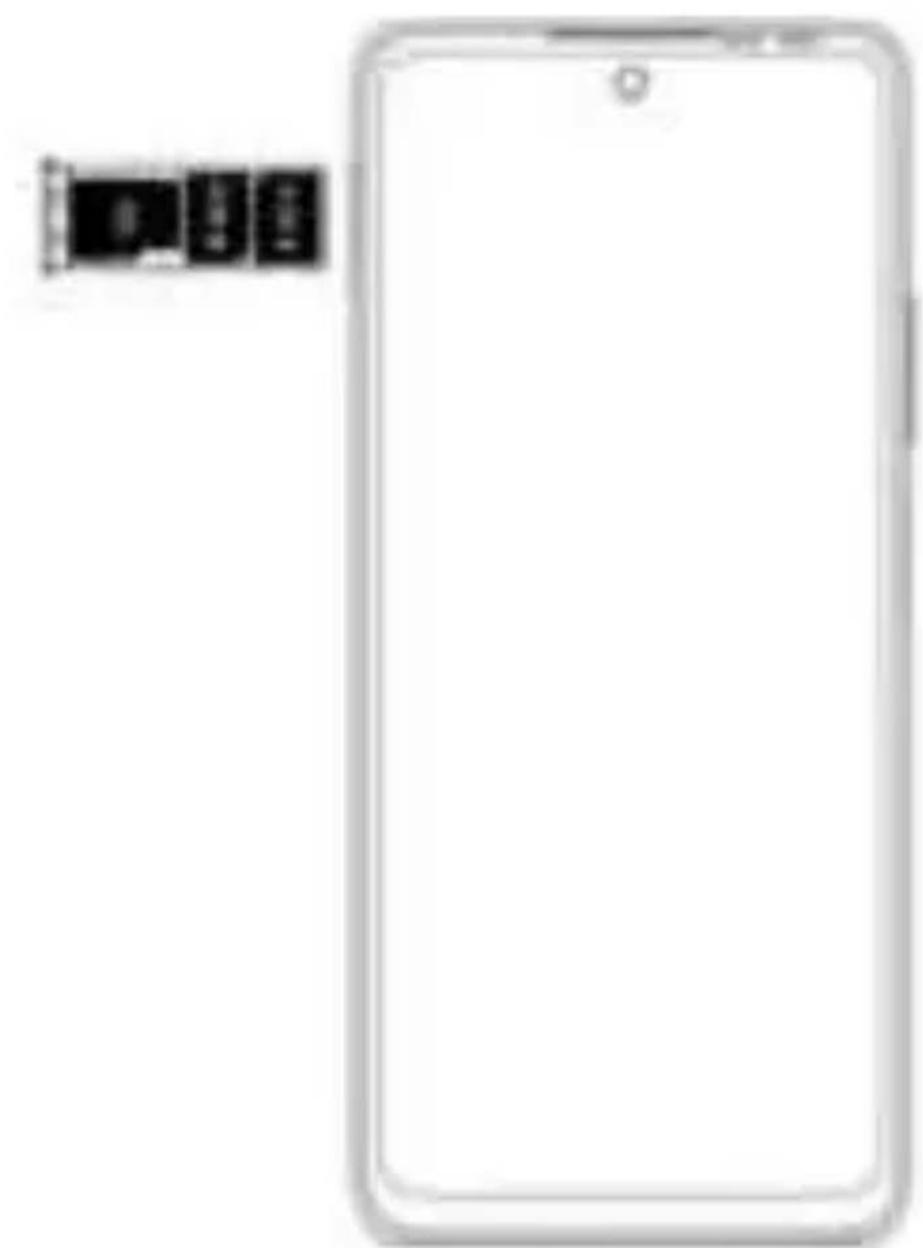

SIM/SD card installation

1. Power off mobile.

2. Refer to the following picture for SIM / SD card installation.

Front view of a smartphone with a small display screen on the left (no visible text or symbols)

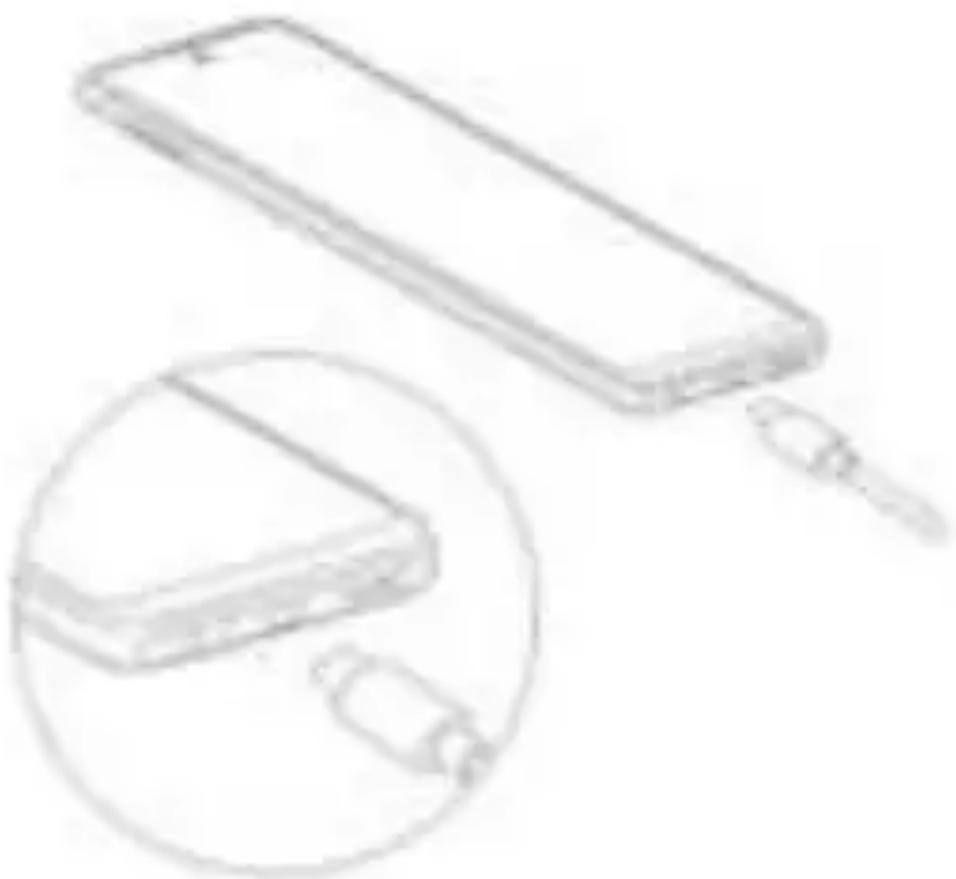

Charging the phone

You can charge your device using a charger or by connecting it to the computer using a USB cable (comes with the phone).

1. Please remind the front and back of the plug.
2. Use only INFINIX charger and cables. Other chargers or cables may damage the device. This will invalidate your phone warranty.

Line drawing of a smartphone and a battery with a magnified view of its internal components (no text or symbols)

FCC Caution

Labelling requirements.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Information to user.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Information to the user.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

Specific Absorption Rate (SAR) information:

This mobile phone meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through

periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health.

FCC RF Exposure Information and Statement The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types: X695 (FCC ID: 2AIZN-X695) has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification for use at the ear is 1.14W/kg and when properly worn on the body is 1.19W/kg. This device was tested for typical body-worn operations with the back of the handset kept 10mm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain a 10mm separation distance between the user's body and the back of the handset. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that does not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided.

Body-worn Operation

This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 1.0 cm must be maintained between the user's body and the handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Use only the supplied or an approved antenna.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

Operating System: Android ^TM Android is a trademark of Google LLC.
