Product Type	Bike helmet
Brand	MS Energy
Model	MSH-05
Weight	Approx. 280 g
Dimensions (LxWxH)	25 x 20 x 15 cm
Shell Material	Polycarbonate
Inner Liner	Expanded Polystyrene (EPS)
Adjustment System	Dial fit system
Ventilation	12 vents
Strap Type	Nylon webbing with buckle
Safety Certification	CPSC, EN 1078
Head Circumference	54-61 cm (adjustable)
Visor	Detachable visor
Padding	Removable and washable
Cleaning	Wipe with damp cloth, mild soap
Storage	Keep away from heat and solvents
Replacement Interval	Every 3-5 years or after impact
Accessories Included	None
Color Options	Black, White, Blue, Red
Warranty	1 year against defects

Frequently Asked Questions - MSH-05 MS Energy

How do I adjust the helmet size?

Turn the dial at the back of the helmet to tighten or loosen the fit. Ensure the helmet sits level on your head and does not move when you shake your head.

How should I clean my MSH-05 helmet?

Use a soft cloth dampened with mild soap and water. Do not use solvents, abrasives, or submerge the helmet. Allow to air dry.

When should I replace my bike helmet?

Replace after a significant impact, even if no visible damage. Also replace every 3-5 years due to material degradation from UV and sweat.

Does the helmet meet safety standards?

Yes, the MSH-05 complies with CPSC (US) and EN 1078 (EU) safety standards for bicycle helmets.

Can I remove the visor?

Yes, the visor is detachable. Pull it gently from the clips to remove or attach.

How do I know the helmet fits properly?

The helmet should sit level on your head, about two finger widths above your eyebrows. The straps should form a V under your ears, and the chin strap should be snug.

What is the weight of the helmet?

The MSH-05 weighs approximately 280 grams, depending on size and adjustments.

Is the padding washable?

Yes, the padding is removable and hand-washable in cold water with mild detergent. Air dry completely before reinserting.

Can I use this helmet for other sports?

This helmet is designed for cycling. It may not provide adequate protection for skateboarding, skiing, or other high-impact sports.

How do I store the helmet properly?

Store in a cool, dry place away from direct sunlight and heat sources. Do not store near solvents, as they may damage the helmet.

USER MANUAL MSH-05 MS Energy

UPUTE ZA KORIŠTENJE

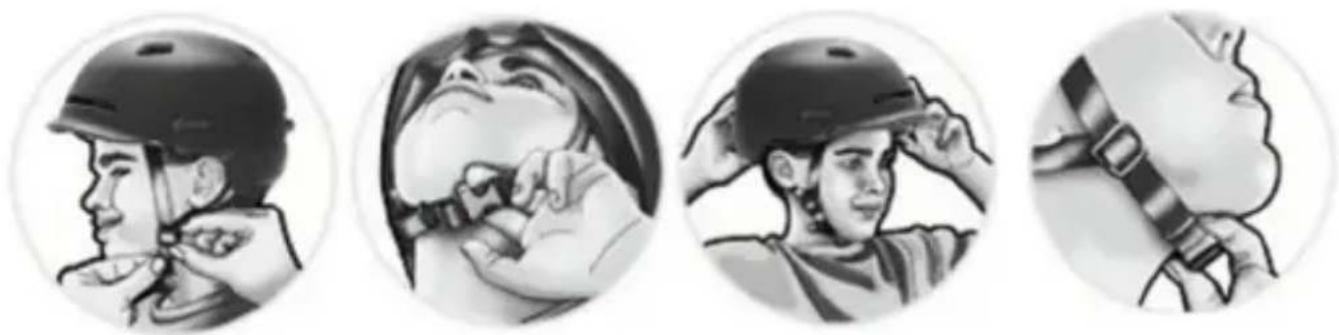

Side profile illustration of a person wearing a helmet and adjusting the neck (no text or symbols)

Prilagodite duljinu remena.

Illustration of a person holding a small object, possibly a tool or device, in a circular frame (no text or symbols visible)

Ostavite otprilike jedan prst razmaka.

Black-and-white illustration of a person wearing a helmet, no text or symbols visible

Close-up of a person's face wearing a car seatbelt (no text or symbols visible)

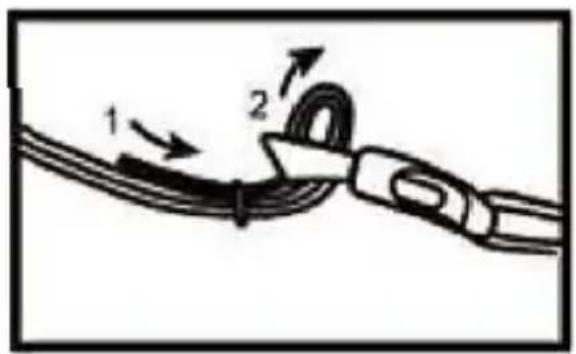

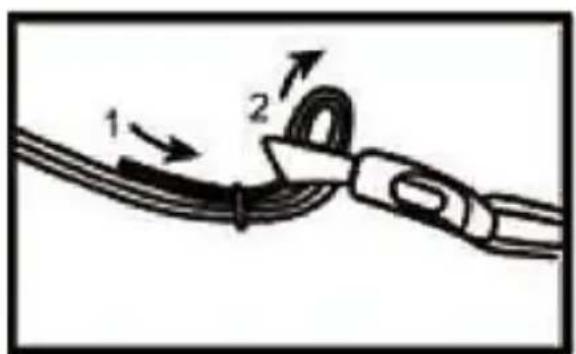

Prilagodba: Oslobodite bočni remenčić: Korak 1->2 Stegnite bočni remenčić: Korak 2->1

Pure diagram of a symmetrical mechanical or electrical component with bidirectional arrows indicating rotation (no text or symbols)

Regulatorom prilagodite kacigu vašoj glavi

Pure mechanical component diagram without any text, numbers, or symbols

Stegnite kopču

Pure electrical circuit lines without any symbols

Pritisnite da otkopčate

EU Izjava o sukladnosti

Ovaj uređaj proizveden je u skladu sa važećim Europskim normama I u skladu je sa svim važećim Direktivama I Regulativama.

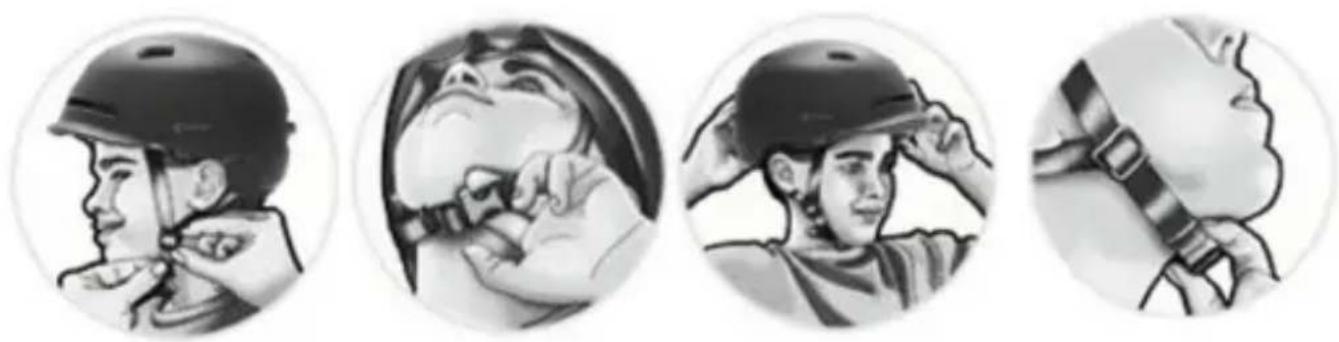

UPUTSTVA ZA KORIŠĆENJE

Prilagodite dužinu kaiša
Ostavite otprilike jedan prst razmaka.

Namestite kacigu u ispravan položaj.
Proverite da li je kopča ispravno nameštena.

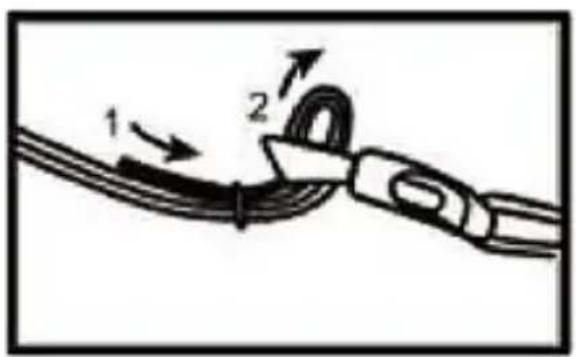

Prilagodba:

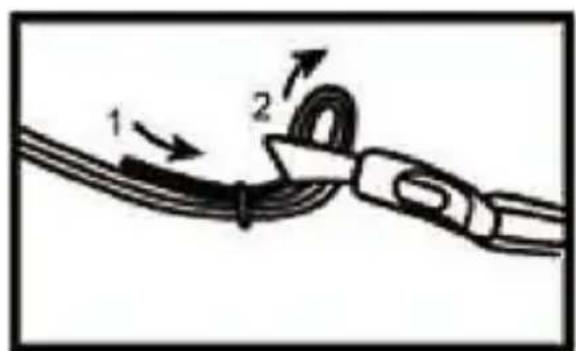

Oslobodite bočni remenčić: Korak 1->2
Stegnite bočni remenčić: Korak 2->1

Pure diagram of a symmetrical mechanical or electrical component with bidirectional arrows indicating rotation (no text or symbols)

Regulatorom prilagodite kacigu vašoj glavi

Pure mechanical component diagram without any text, numbers, or symbols

Stegnite kopču

Pure mechanical component diagram without any text, numbers, or symbols

Pritisnite da otkopčate

Side profile illustration of a person wearing a helmet and adjusting the seat (no text or symbols)

Illustration of a person applying a toothbrush to their mouth (no text or symbols)

Black-and-white illustration of a person adjusting a helmet (no text or symbols visible)

Close-up of a person's face wearing a medical-style sash (no visible text or symbols)

Pure diagram of a symmetrical mechanical or electrical component with bidirectional arrows indicating rotation (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Затегнете

Pure electrical circuit lines without any symbols

NAVODILA ZA UPORABO

Prilagodite dolžino pasu.

Pustite približno en prst prostora.

Čelado nastavite v pravilen položaj.

Pripričajte se, da je pravilno nastavljena.

$$ \checkmark \times $$

Nastavitev:

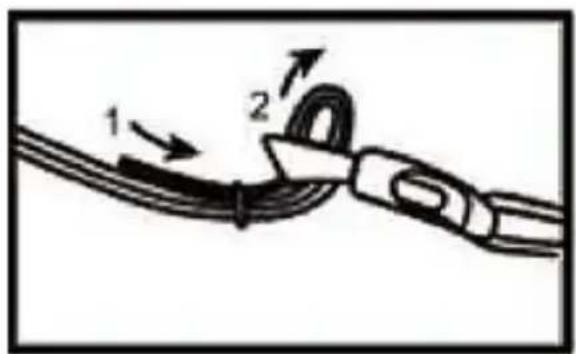

Sprostite stranski traks: Korak 1->2

Odvijte stranski traks: Korak 2->1

Prilagodite napetost tako, da se čelada tesno prilega vaši glavi

Pritisnite zaponko

POKYNY NA NOŠENÍ

Úprava:

Pure diagram of a symmetrical mechanical or electrical component with bidirectional arrows indicating rotation (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Stiskněte přezku

Pure electrical circuit lines without any symbols

Stisknutím uvolněte

POKYNY NA NOSENIE

Pure diagram of a symmetrical mechanical or electrical component with bidirectional arrows indicating rotation (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Stlačte pracku

Pure electrical circuit lines without any symbols

Stlačením uvoľnite

INSTRUKCJA NOSZENIA

Illustration of a person wearing a helmet and adjusting the seat (no text or symbols)

Illustration of a person applying a medical or cosmetic tool to another person's face (no text or symbols visible)

Black-and-white illustration of a person wearing a helmet, hands adjusting the helmet (no text or symbols visible)

Close-up of a person's face wearing a necktie (no text or symbols visible)

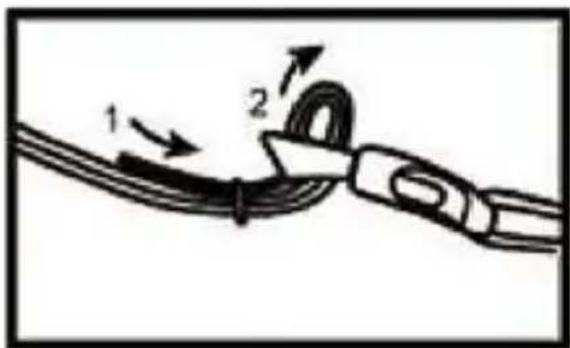

Diagram showing two cable fasteners with directional arrows indicating motion (no text or symbols)

Pure diagram of a symmetrical mechanical or electrical component with bidirectional arrows indicating rotation (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Zaciśnij klamrę

Pure electrical circuit lines without any symbols

Naciśnij, aby zdjąć

VISELÉSI UTASÍTÁSOK

Side profile illustration of a person wearing a helmet and adjusting the neck (no text or symbols)

Illustration of a person wearing a helmet and holding a belt, depicted in grayscale (no text or symbols)

Black-and-white illustration of a person wearing a helmet, no text or symbols visible

Close-up of a person's face wearing a carbelt (no visible text or symbols)

Pure diagram of a symmetrical mechanical or electrical component with bidirectional arrows indicating rotation (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Pure electrical circuit lines without any symbols

INSTRUCTII DE PURTAR

Side profile illustration of a person wearing a helmet and adjusting the tie (no text or symbols)

Illustration of a person holding a small object, possibly a tool or device, in a circular frame (no text or symbols visible)

Black-and-white illustration of a person adjusting a helmet (no text or symbols visible)

Close-up of a person's face wearing a black-and-white striped bandage, no visible text or symbols

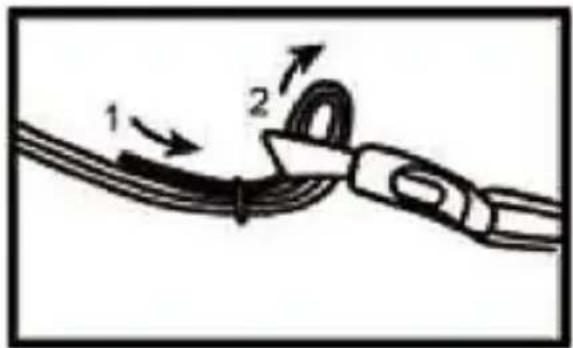

Diagram of a cable being twisted with two directional arrows indicating motion (no text or symbols)

Pure diagram of a symmetrical mechanical or electrical component with bidirectional arrows indicating rotation (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Apasă catarama

Pure electrical circuit lines without any symbols

Thank you for choosing the MSH-05 Cycling Helmet.

This Guide will instruct you on how to use this product. Read these safety instructions before using your device and store them for possible future reference.

Always follow these basic safety precautions.

IMPORTANT NOTICE:

This helmet should not be used by children while climbing or doing other activities when there is a risk of strangulation/ hanging if the child get trapped with this helmet.

This helmet can only protect if it fits well. The buyer should try different sizes and choose the size which feels secure and comfortable on the head.

Helmet should be adjusted to fit the user e.g. the straps positioned so that they do not cover the ears; the buckle positioned away from the jawbone and the straps and buckle adjusted to be both comfortable and firm.

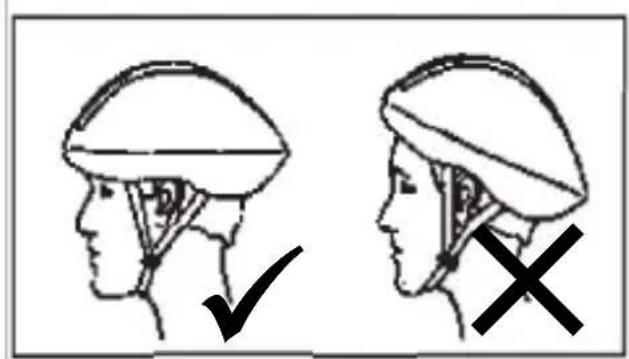

Helmet should have position on the head to ensure the intended protection is provided (e.g. that it should be placed so as to protect the forehead and not to be pushed too far away over the back of the head).

Helmet can't always protect you from the injuries. Helmet subjected to a severe impact should be discarded and destroyed.

Be aware of a danger of modifying or removing any of the original component parts of the helmet other than as recommended by the manufacturer.

Helmet should not be adapted for the purpose of fitting accessories in a way not recommended by the manufacturer.

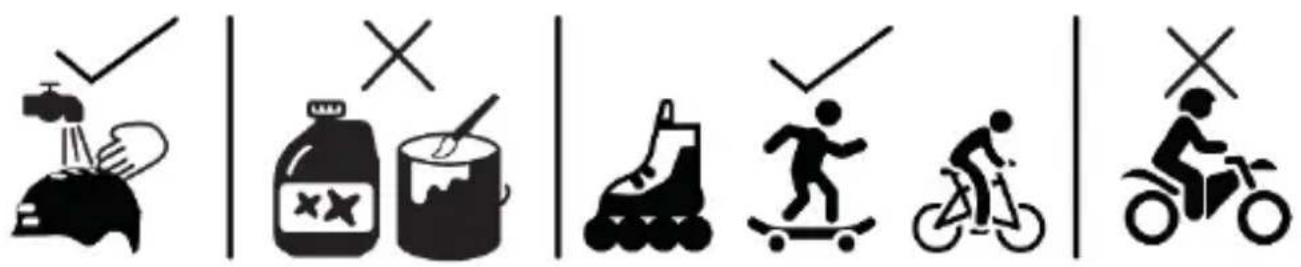

Do not clean with solvents, bleaches and strong detergents. They can damage helmet, sometimes invisibly. Use mild soap and water only. Read manual. The helmet shall be used for pedal cyclists, skateboarders or roller skates.

Helmet is made according to EN 1078:2012+A1:2012 Standard Specification for Helmets Worn by Users of Pedal Cycles, Skateboards and Roller Skates

WEARING INSTRUCTION

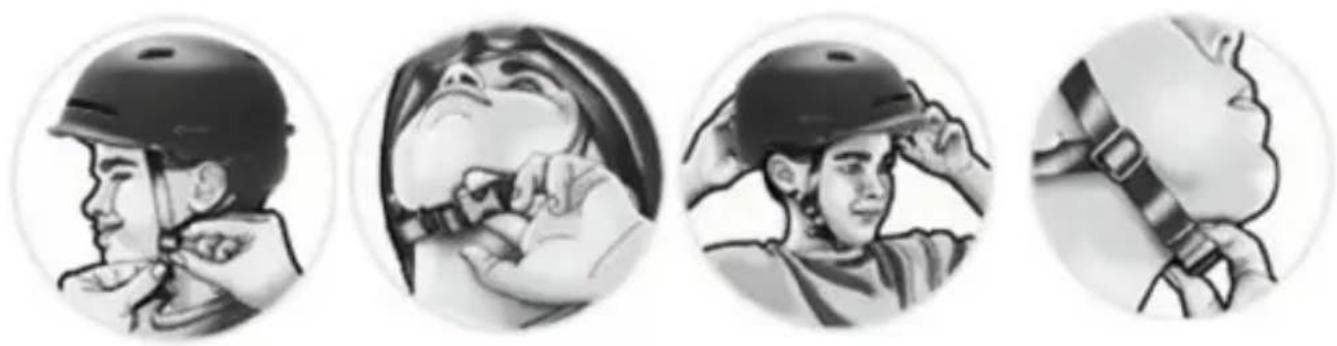

Adjust the length of the chinstrap.
Leave a gap as thick as one finger.

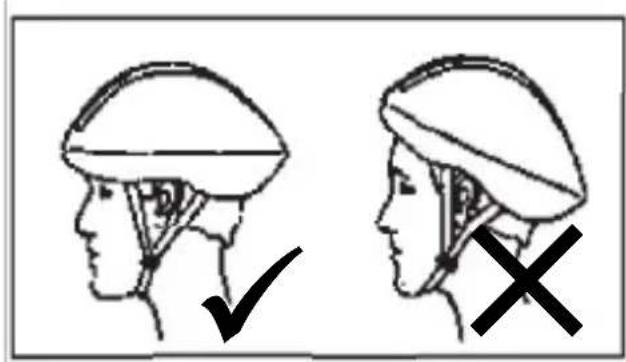

Correctly position the helmet.
Check whether the buckle is properly fastened.

Pure mechanical diagram showing rotational motion with no text or symbols

Adjust tension to fit Helmet to your haad

Pure mechanical component diagram without any text, numbers, or symbols

Press buckle

Pure electrical circuit lines without any symbols

Press to release

EU DECLARATION OF CONFORMITY

This device is manufactured in accordance with the applicable European standards and in accordance with all applicable Directives and Regulations. EU declaration of conformity can be downloaded from the following link: www.msan.hr/dokumentacijaartikala

CE
