Product Type	Car Audio Installation Dash Kit
Model Number	99-9700
Brand	Metra
Compatible Vehicle Make	Select GM, Ford, Chrysler, and other vehicles
Radio Size	Double DIN (ISO/DIN standard)
Material	ABS Plastic, Injection Molded
Color	Textured Black (OEM match)
Overall Dimensions (approx)	7.0 x 4.0 x 0.75 inches (178 x 102 x 19 mm)
Weight	0.35 lbs (160 g)
Installation Type	Flush Mount, No Modifications Required
Included Components	Dash Kit, Mounting Brackets, Screws, Trim Rings
Power Handling	N/A (Passive Component)
Operating Temperature Range	-40°F to 185°F (-40°C to 85°C)
Functions	Mounts aftermarket stereo securely, fills gaps around radio
Maintenance & Cleaning	Wipe with a soft, dry cloth; avoid harsh chemicals
Safety	Use only with compatible vehicles; do not block air vents
Spare Parts & Repairability	Contact Metra or purchase replacement screws/brackets separately
Special Features	No drilling required; matches factory finish
Warranty	Limited 1-year warranty against defects
Certifications	Meets OEM standards for fit and finish
Manufacturer Support	MetraOnline.com, phone: [phone]

Frequently Asked Questions - 99-9700 Metra

What vehicles is the Metra 99-9700 compatible with?

The 99-9700 is designed to fit select GM, Ford, and Chrysler vehicles. Check Metra's website for a specific fitment list using your vehicle's year, make, and model.

Is the dash kit easy to install?

Yes, installation typically requires basic hand tools and takes 30-60 minutes. The kit includes brackets and screws for a direct fit without cutting or drilling.

Will this kit work with single-DIN radios?

No, the 99-9700 is specifically for double-DIN radios. For single-DIN installations, you would need a different Metra kit with a pocket or trim ring.

Does the kit include wiring harness or antenna adapter?

No, it only includes the dash kit and mounting hardware. Wiring harness and antenna adapter must be purchased separately if required.

What color is the plastic?

The kit is textured black to match most factory interior trims. It blends with the dashboard for a seamless appearance.

Can I use this kit if I have a factory navigation system?

If the factory system is double-DIN, the kit may still work, but you may need additional adapters for steering wheel controls or data retention. Consult Metra's compatibility guide.

How do I remove the old radio and install this kit?

You need to remove the existing radio using standard dash removal tools. The 99-9700 kit then installs over the opening and secures the new radio. Follow the included installation manual.

Is the kit made of high-quality material?

Yes, it is injection-molded ABS plastic, which is durable and resistant to fading and cracking. It is OEM quality.

What tools are needed for installation?

Typical tools include a panel removal tool, screwdrivers (Phillips and flathead), socket set, and wire cutters/strippers. Some vehicles may require specialty tools.

Does Metra offer a warranty?

Yes, the 99-9700 comes with a limited 1-year warranty against defects in materials and workmanship. Contact Metra customer support for warranty claims.

USER MANUAL 99-9700 Metra

INSTALLATION INSTRUCTIONS FOR PART 99-9700

APPLICATIONS

Harley-Davidson Street Glide, Electra Glide, Ultra and Limited models 2014-up / Road Glide 2015-up 99-9700

Close-up of a car dashboard with multiple gauges and a digital display (no visible text or symbols)

KIT FEATURES

• ISO DIN radio provision
• Included interface and LCD info screen

KIT COMPONENTS

• A) Radio housing • B) Radio brackets • C) LCD screen • D) LCD back plate
• E) (10) #8 x 3/8" Phillips screws • Axxess interface (not shown)

A

B

Technical line drawing of two metal bracket components with mounting holes (no text or symbols)

C

D

E

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: • Included interface

Antenna Adapter: • 40-EU10 Handle bar controls: • ASWC-1

Table of Contents

Fairing Disassembly

• Harley Davidson Street Glide, Electra Glide, Ultra, and Limited models 2014-up ....2-3
  — Harley Davidson Road Glide 2015-up .... 4

Kit Assembly 5

Axxess interface installation 6-7

Troubleshooting/Updating 99-9700 8

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver
• Torx screwdrivers • Allen wrenches

CAUTION: Metra recommends disconnecting the negative battery terminal before beginning any installation. All accessories, switches, and especially air bag indicator lights must be plugged in before reconnecting the battery or cycling the ignition.

NOTE: Refer to the instructions included with the aftermarket radio.

99-9700

Harley Davidson Street Glide, Electra Glide, Ultra, and Limited models 2014-up Disassembly

1. Remove (4) T-27 from inner fairing. (Figure A)

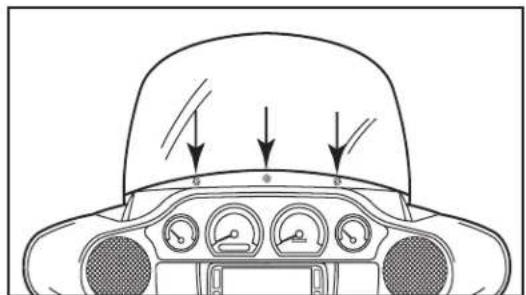

2. Remove (3) T-27 from windshield (caution not to drop the outer fairing or windshield). (Figure B)

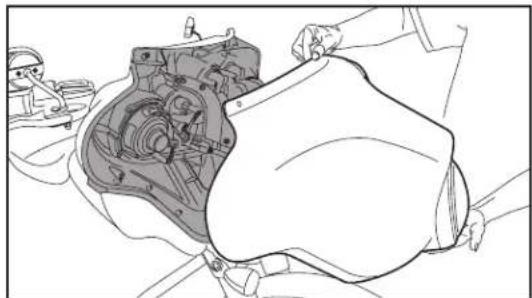

3. Remove outer fairing, unplugging the headlight. (Figure C)

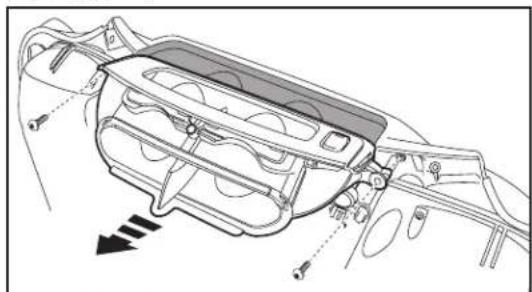

4. Remove (2) T-27 to remove the fairing vent and remove the vent. (Figure D)

Continued on next page

Top-down technical diagram of a vehicle's dashboard and steering wheel (no text or labels)

Line drawing of a mechanical assembly with gears and components (no text or symbols)

(Figure C)(Figure A)

Top-down diagram of a car dashboard with three directional arrows indicating airflow or movement (no text or symbols)

Technical line drawing of a vehicle head panel assembly (no text or symbols)

(Figure D)(Figure B)

Harley Davidson Street Glide, Electra Glide, Ultra, and Limited models 2014-up Disassembly

1. Remove (11) screws securing the radio bracket: (Figure E)

5.1 (2) T-27 Torx screws shared with the gauge cluster and a third T-27 Torx screw to remove the gauge cluster in step 7.
5.2 (4) 5/32" Allen screws facing outward.
5.3 (4) T-25 Torx screws secured to the radio.
5.4 (1) T-25 Torx screw shared with the storage pocket.

1. Remove the radio bracket. (Figure E)
   Note: This bracket will be reused with the 99-9700 kit.
2. Remove the gauge cluster. (Figure E)

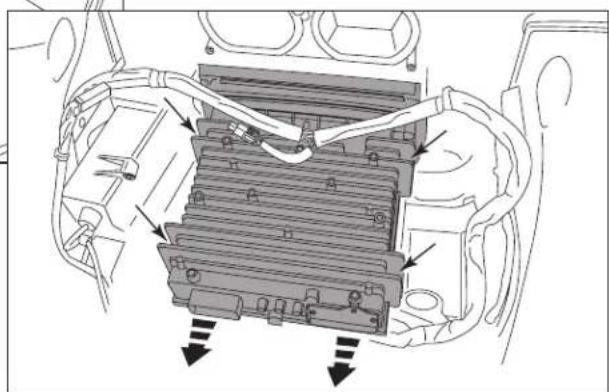

3. Remove (4) 3/16 Allen screws from the sides of radio. (Figure F) Note: These screws will be reused with the 9700 kit.
4. Slide the radio out toward the rear of the bike, and unplug the radio. (Figure F)

Technical diagram of a vehicle engine compartment with directional arrows indicating flow or movement (no text or labels)

(Figure E)

Diagram of an internal air conditioning unit with cooling fans and wiring (no text or labels)

(Figure F)

Harley Road Glide 2015-up Disassembly

1. Remove the lower torx screws on either side holding the wind deflector wings (only the lower two need to be removed). (Figure A)
2. Remove (1) 3/16 Allen screw securing each turn signal. (Figure B)
3. Remove (4) Phillips screws from the windshield and set the windshield aside. (Figure C)
4. Remove the top fairing trim clipped to the top of the radio. (Figure D)
5. Unplug the turn signals.
6. Remove the speaker grills with a panel removal tool and remove (1) torx screw from each side. (Figure E)

CAUTION: The fairing will be loose at this point. Have a helper hold it to keep from damaging it when removing the screws.

Technical line drawing of a mechanical component with two circular features and directional arrows indicating motion (no text or symbols)

(Figure A) (Figure D)

Diagram of a mechanical joint or connector with an arrow indicating direction (no text or symbols present)

(Figure B)

Simple line drawing of a bowl-like object with arrows indicating direction (no text or symbols)

(Figure C)

1. Remove the fairing and set aside.
2. Remove (4) 3/16 Allen screws from the sides of the radio.

Note: These screws will be reused with the 9700 kit.

CAUTION: Be sure to hold the radio when removing the last screw so it will not drop.

1. Unplug and remove the radio.
2. Remove (2) Torx screws securing the fairing bracket attached to the radio.

Note: This bracket will be reused with the 99-9700 kit. Please note the orientation of the bracket. The curved portion faces the rear of the bike.

Line drawing of an electronic device with ventilation slots and connectors (no text or symbols)

Technical line drawing of a mechanical component with concentric circles and a small inset view (no text or symbols)

(Figure E)

Kit Assembly

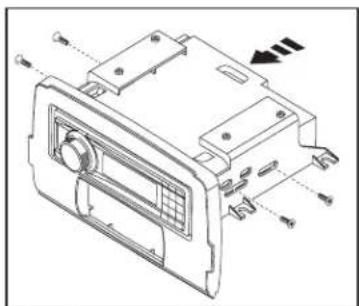

1. Secure the radio brackets to the radio housing with (4) #8 x 3/8" Phillips screws supplied. (Figure A)
2. Remove the metal "DIN" sleeve and trim ring from the aftermarket radio.
3. Slide the radio into the radio housing assembly and secure with screws supplied with the radio. (Figure B)
4. Insert the LCD screen into the radio housing, route the cable through the LCD back plate, and then secure to the radio housing assembly using (2) #8 x 3/8" screws supplied with the kit. (Figure C)
5. Secure the radio housing assembly to the bike using (4) 3/16 Allen screws previously removed in step 8 of disassembly. (Figure D)
6. (a) For the Street Glide, Electra Glide, Ultra, and Limited models 2014-up; Attach the radio bracket removed in step 6 of disassembly to the top of the radio housing assembly, and secure with (4) Phillips screws supplied.

Technical line drawing of a mechanical housing assembly with mounting brackets and internal components (no text or symbols)

(Figure A)

Technical line drawing of a car air conditioner unit with mounting holes and a control panel (no text or labels)

(Figure B)

(b) For the Road Glide 2015-up; Attach the fairing bracket removed in step 10 of disassembly to the top of the radio housing assembly, and secure with (2) Phillips screws supplied. Ensure the bracket is far forward, and the curved portion is facing the rear of the bike as mentioned in disassembly.

1. Locate the factory wiring harness and antenna plug in the dash. Refer to the interface wiring instructions on pages 6-8.

2. Reassemble the fairing in reverse order of disassembly, and then pull the screen protector off from the LCD screen.

Technical line drawing of a device housing with internal components and mounting points (no text or symbols)

(Figure C)

Technical line drawing of a device casing with mounting holes and internal components (no text or symbols)

(Figure D)

Connections to be madeAxxess Int

FEATURES

• Provides accessory power (12-volt 10-amp)
  • High level speaker input
  • Retains balance and fade
  • Retains oil pressure and EITMS status
• Prewired ASWC-1 harness included (ASWC-1 sold separately)
• Micro "B" USB updatable

INTERFACE COMPONENTS

• 99-9700 interface
• 99-9700 harness

TOOLS REQUIRED

• Cutting tool • Crimping tool • Tape
- Connectors (example: butt-connectors, bell caps, etc.)

From the 99-9700 harness to the aftermarket radio:

• Connect the Black wire to the ground wire.
• Connect the Yellow wire to the battery wire.
• Connect the Red wire to the accessory wire.
• Connect the Orange wire to the illumination wire. (If the aftermarket radio has no illumination wire, tape off the Orange wire).
• Connect the White wire to the left front positive speaker output.
• Connect the White/Black wire to the left front negative speaker output.
• Connect the Gray wire to the right front positive speaker output.
• Connect the Gray/Black wire to the right front negative speaker output.
• Connect the Green wire to the left rear positive speaker output.
• Connect the Green/Black wire to the left rear negative speaker output.
• Connect the Purple wire to the right rear positive speaker output.
• Connect the Purple/Black wire to the right rear negative output

From the 12-pin pre-wired ASWC-1 harness to the aftermarket radio:

- This harness is to be used along with the optional ASWC-1 (not included) to retain handlebar controls. If the ASWC-1 is not being used, disregard this harness. If it will be used, please refer to the ASWC-1 instructions for radio connections and programming.

Note: Disregard the harness that comes with the ASWC-1

99-9700

Installing the Interface

With the key in the off position:

• Connect the 99-9700 harness into the interface.
• Connect the LCD screen into the interface.
• Connect the 99-9700 harness into the vehicles wiring harness.
• With all connections completed, reconnect the negative battery terminal.

Note: To prevent error codes, all electronic devices including the headlight and turn signals must be connected before proceeding to the next step.

Initializing the Interface

ATTENTION: If the interface loses power for any reason, the following step will need to be performed again.

- Initialize the interface by turning the ignition on for 30-seconds, then turn the ignition back off, then back on again.

Note: If using the ASWC-1, connect it after you initialize the interface, with the key in the off position.

LCD Operation

* The included LCD screen provides oil pressure and EITMS status. For more information, please see the owner's manual that came with the bike.

Main menu options:

• Red adjusts the red backlighting of the LCD (ranges from 1 to 32).
  • Blue adjusts the blue backlighting of the LCD (ranges from 1 to 32).
• Green adjusts the green backlighting of the LCD (ranges from 1 to 32).
• Contrast adjusts the contrast of the LCD (ranges from 1 to 100).
• Reset puts the color back to the default settings.

Arrow Up - Toggles "up" through menu options

Arrow Down - Toggles "down" through menu options

Return/ESC - Return to the previous menu
√ Enter - Enter current menu option

INSTALLATION INSTRUCTIONS FOR PART 99-9700

Troubleshooting

If the Oil/EITMS information do not show up on the kit, perform this step;

• Press and hold the "Return/ESC" button on the LCD screen for 5 seconds until "Select Interface" comes up.
• Select "Connection Type", and then press "Enter"
• Scroll up or down to "Direct Connect", and then press "Enter"
• Once done, press "Return/ESC" to back out of that mode.

Updating the 99-9700

• Download and install the WebXXpress software update from axxessinterfaces.com. Please follow the instructions on the website exactly as stated.
• Connect the USB-MINI-CAB update cable (sold separately) between the 99-9700 and the computer.
• From the Start Menu of the computer, click on on "All Programs", and then "USBBootloader".
• Press "Update Board", the software will begin to download at this point.

Note: Please note which firmware downloaded to the interface. This will help in troubleshooting, if need be.

Note: Both the interface AND display screen must be updated.

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by parrolling in the most recognized and suggested

enrolling in the most recognized and respected mobile electronics school in our industry.

Log onto www.installerinstitute.com or ca

800-354-6782 for more information and take steps toward a better tomorrow.

Metra recommends MECP

certified technicians

Technical line drawing of two mechanical bracket components (no text or symbols)

C

D

Top-down technical diagram of a vehicle's dashboard and steering wheel (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

(Figura C)(Figura A)

Top-down diagram of a car dashboard with three directional arrows indicating airflow or movement (no text or symbols)

Technical line drawing of a car interior component with no visible text or symbols

(Figura D)(Figura B)

Harley Davidson Street Glide, Electra Glide, Ultra, modelos limited 2014 y mas recientes desensamble

Technical diagram of a vehicle engine compartment with directional arrows indicating flow or movement (no text or labels present)

(Figura E)

Diagram of an internal electronic device with labeled components and directional arrows indicating flow or movement (no text or symbols present)

(Figura F)

Harley Road Glide 2015 y mas desensamble

Technical line drawing of a mechanical component with two circular features and directional arrows indicating motion (no text or symbols)

(Figura A) (Figura D)

Diagram of a mechanical joint or connector with an arrow indicating direction (no text or symbols present)

(Figura B)

Simple line drawing of a bowl-like object with arrows indicating direction (no text or symbols)

(Figura C)

Line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical component with concentric circles and a small inset view (no text or symbols)

Technical line drawing of a mechanical component with concentric circles and a small inset view (no text or symbols)

(Figura E)

Kit Assembly

Technical line drawing of a mechanical housing assembly with mounting brackets and internal components (no text or symbols)

(Figura A)

Technical line drawing of a car air conditioner unit with mounting holes and a control panel (no text or symbols)

(Figura B)

Technical line drawing of a device housing with internal components and mounting points (no text or symbols)

(Figura C)

Technical line drawing of a device casing with mounting holes and internal components (no text or symbols)

(Figura D)

CARACTERÍSTICAS
