Product Type	Suspended Speaker for Voice Alarm Systems
Brand	RCF
Model	BS 5EN
Standards Compliance	EN 54-24:2008 (Type B)
IP Protection Grade	IP 65 (Indoor/Outdoor)
Rated Power	20 W (selectable: 20, 10, 5, 2.5 W at 100 V; half power at 70 V)
Input Voltage	100 V / 70 V constant voltage line
Impedance (at 20 W)	500 Ω
Frequency Response (-10 dB)	100 Hz – 20 kHz
Sensitivity (1 W, 1 m)	88 dB (±3 dB, 1 kHz)
Maximum SPL (20 W, 1 m)	101 dB
Cabinet Material	ABS with steel mesh grille
Colour	White
Connection Type	Ceramic screw terminal block
Dimensions (without bracket)	Diameter: 180 mm, Depth: 260 mm
Weight (estimated)	2.5 kg
Protection Features	Internal thermal fuse, overvoltage protection
Installation	Suspended via ceiling mounting plate (included)
Safety Precautions	Disconnect amplifier before connection; use insulated wires for unused taps; earth grounding required
Maintenance	Clean with dry cloth; no solvents; check connections periodically
Accessories	Mounting plate, screws, ceramic terminal block

Frequently Asked Questions - BS 5EN RCF

What is the RCF BS 5EN speaker used for?

The BS 5EN is a weatherproof suspended speaker designed for voice alarm systems in fire detection and evacuation, compliant with EN 54-24 standard.

Can the BS 5EN be installed outdoors?

Yes, it has an IP 65 protection rating, making it suitable for both indoor and outdoor use.

How do I select the power tap for the speaker?

Connect only one of the four colored wires (red=20W, blue=10W, yellow=5W, white=2.5W at 100V) to the central screw of the ceramic terminal. The black wire is common. Insulate unused wires. For 70V lines, power is halved.

What is the impedance of the BS 5EN at different power settings?

At 100V: 20W = 500 Ω, 10W = 1 kΩ, 5W = 2 kΩ, 2.5W = 4 kΩ.

How do I install the BS 5EN on a ceiling?

Fix the mounting plate to the ceiling with suitable wall plugs. Connect the green wire to the earth screw. Insert the support into the plate, keep the terminal strip outside, tighten the nut. Then connect the line and secure the cover.

What type of cable should I use for the speaker line?

Use twisted pair cables with adequate cross-section to minimize inductive hum. Keep speaker lines separate from mains and signal cables.

Is the BS 5EN compliant with fire safety standards?

Yes, it is certified according to EN 54-24:2008 for voice alarm systems in fire detection and fire alarm systems.

What is the maximum sound pressure level of this speaker?

At 20W and 1m distance, the max SPL is 101 dB. At 4m, it is 89 dB.

Can I use the BS 5EN with a 70V line?

Yes, the transformer supports 70V lines. When using 70V, each power tap delivers half the power (e.g., red wire gives 10W instead of 20W).

How do I clean and maintain the speaker?

Use a dry cloth to clean the exterior. Do not use solvents, alcohol, or benzene. Periodically check connections and the condition of the mounting hardware.

USER MANUAL BS 5EN RCF

USER MANUAL MANUALE D'USO

BS 5EN

SUSPENDED SPEAKER

IN COMPLIANCE WITH

EN 54-24 STANDARD

DIFFUSORE ACUSTICO

PER INSTALLAZIONE

SOSPESA E CONFORME

ALLA NORMA EN 54-24

INDEX INDICE

ENGLISH

SAFETY AND OPERATING PRECAUTIONS | 4

DESCRIPTION 6

CONNECTION 6

INSTALLATION 8

NOTES ABOUT CONSTANT VOLTAGE SYSTEMS | 10

SPECIFICATIONS 11

ITALIANO

AVVERTENZE PER LA SICUREZZA E PRECAUZIONI D'USO 14

DESCRIZIONE 16

COLLEGAMENTO 16

INSTALLAZIONE 18

NOTE SUI SISTEMI A TENSIONE COSTANTE | 20

DATI TECNICI 21

IMPORTANT NOTES

Before connecting and using this product, please read this instruction manual carefully and keep it on hand for future reference. This manual is to be considered an integral part of this product and must accompany it when it changes ownership as a reference for correct installation and use as well as for the safety precautions.

RCF S.p.A. will not assume any responsibility for the incorrect installation and / or use of this product.

SAFETY AND OPERATING PRECAUTIONS

1. All the precautions, in particular the safety ones, must be read with special attention, as they provide important information.
2. Loudspeaker lines (amplifier outputs) can have a sufficiently high voltage (i.e. 100-70 V) to involve a risk of electrocution: never install or connect this loudspeaker when the line is alive.
3. Make sure all connections have been made correctly and the loudspeaker input voltage is suitable for the amplifier output.
4. Protect loudspeaker lines from damage. Make sure they are positioned in a way that they cannot be stepped on or crushed by objects.
5. Make sure that no objects or liquids can get into this product, as this may cause a short circuit.
6. Never attempt to carry out any operations, modifications or repairs that are not expressly described in this manual.

Contact your authorized service centre or qualified personnel should any of the following occur:

• The loudspeaker does not function (or works in an anomalous way).
• The cable has been damaged.
• Objects or liquids have got into the unit.

• The loudspeaker has been damaged due to heavy impacts or fire.

• Should the loudspeaker emit any strange odours or smoke, remove it from the line after having immediately switched the amplifier off.

• Do not connect this product to any equipment or accessories not foreseen.

For suspended installation, only use the dedicated anchoring points and do not try to hang this loudspeaker by using elements that are unsuitable or not specific for this purpose.

Also check the suitability of the support surface to which the product is anchored (wall, ceiling, structure, etc.) and the components used for attachment (i.e. wall plugs, screws, brackets not supplied by RCF, etc.), which must guarantee the security of the system / installation over time, also considering, for example, the mechanical vibrations normally generated by transducers.

IMPORTANT NOTES

1. RCF S.P.A. strongly recommends this product is only installed by professional qualified installers (or specialised firms) who can ensure a correct installation and certify it according to the regulations in force.

The entire audio system must comply with the current standards and regulations regarding electrical systems.

1. Mechanical and electrical factors need to be considered when installing a professional audio system (in addition to those which are strictly acoustic, such as sound pressure, angles of coverage, frequency response, etc.).

11. Hearing loss

Exposure to high sound levels can cause permanent hearing loss. The acoustic pressure level that leads to hearing loss is different from person to person and depends on the duration of exposure.

To prevent potentially dangerous exposure to high levels of acoustic pressure, anyone who is exposed to these levels should use adequate protection devices.

When a transducer capable of producing high sound levels is being used, it is necessary to wear ear plugs or protective earphones.

See the technical specifications in the instruction manual for the maximum sound pressure the loudspeaker is capable of producing.

1. To ensure a correct sound reproduction, loudspeaker phase is to be respected (loudspeakers are connected respecting the amplifier polarity). This is important when loudspeakers are installed adjacent one another, for instance, in the same room.

Make sure loudspeaker lines are not shorted before turning the amplifier on.

1. To prevent inductive effects from causing hum, noise and a bad system working, loudspeaker lines should not be laid together with other electric cables (mains), microphone or line level signal cables connected to amplifier inputs.

2. The loudspeaker cable shall have wires with a suitable section (twisted, if possible, to reduce inductive effects due to surrounding electro-magnetic fields) and a sufficient electrical insulation. Refer to local regulations, as there may be additional requirements about cable characteristics.

3. Install this loudspeaker far from any heat source.

4. Do not use solvents, alcohol, benzene or other volatile substances for cleaning the external parts of this product. Use a dry cloth.

RCF S.P.A. THANKS YOU FOR PURCHASING THIS PRODUCT, WHICH HAS BEEN DESIGNED TO GUARANTEE RELIABILITY AND HIGH PERFORMANCE.

DESCRIPTION

BS 5EN is a 20 W weatherproof suspended speaker in compliance with EN 54-24 standard.

Main features:

• ABS cabinet with steel mesh grille.
• It can be installed both indoors and outdoors (IP 65 protection grade).
• Equipped with transformer for 100 V (/ 70 V) constant voltage lines.
• Internal power setting.
• Ceramic screw terminal for connection.
• Internal thermal fuse.
• Colour: white.

CONNECTION

WARNING: loudspeaker connections should be only made by qualified and experienced personnel having the technical know-how or sufficient specific instructions to ensure that connections are made correctly and to prevent any electrical danger.

To prevent any risk of electric shock, do not connect loudspeakers when the amplifier is switched on. Before turning the system on, check all connections and make sure there are no accidental short circuits. The entire sound system shall be designed and installed in compliance with the current local laws and regulations regarding electrical systems.

Connect the 100 (/70) V line through the ceramic terminal block.

1. Select the power rate by connecting only one of the four wires (coming out from the transformer primary winding) to the central screw of the ceramic terminal strip:

2. 20 W, red wire

3. 10 W, blue wire
4. 5 W, yellow wire
5. 2.5 W, white wire

The 3 unused wires must be insulated (e.g. with tape).

The black wire is common and is always linked to the transformer primary winding.

If connecting to a 70 V line, the power will be halved (red: 10 W, blue: 5 W, yellow: 2.5 W, white: 1.25 W).

1. Insert the connecting cable either behind (if installed into the ceiling) and through the mounting plate or through a hole on its cover (if external).
2. After placing the ceramic terminal strip outside the mounting plate (see the next manual section 'Installation'), connect the positive wire of the 100 (/70 V) line to the loudspeaker + input.

3. Connect the negative wire of the 100 (/70 V) line to the loudspeaker 0 input.

4. Connect the earth wire to the screw of the mounting plate and the loudspeaker green wire.

Technical line drawing of a circular mechanical component with internal features and mounting holes (no text or symbols)

WARNING: MAKE SURE THAT THE LOUDSPEAKER IS INSTALLED IN A STABLE AND SECURE WAY IN ORDER TO AVOID ANY CONDITIONS THAT MAY BE DANGEROUS FOR PERSONS OR STRUCTURES.

ENSURE THE SUPPORT SURFACE (THE WALL) HAS THE NECESSARY MECHANICAL CHARACTERISTICS TO SUPPORT THE LOUDSPEAKER WEIGHT.

BEFORE INSTALLING THE LOUDSPEAKER, CAREFULLY CHECK ALL COMPONENTS TO BE USED AND MAKE SURE THERE IS NO DAMAGE, DEFORMATION, CORROSION AND/OR MISSING OR DAMAGED PARTS THAT COULD REDUCE THE SAFETY OF THE INSTALLATION.

BS 5EN suspended speakers can be installed both indoors and outdoors.

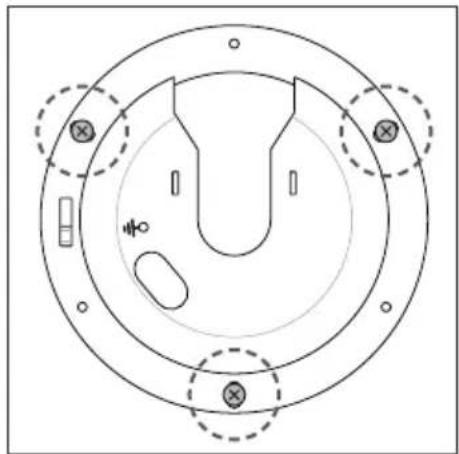

1. Fix the mounting plate to the ceiling with suitable wall plugs (with 4.5 mm screw).

2. Connect the loudspeaker green wire to the mounting plate earth screw.

Technical diagram of a circular mechanical component with internal features and mounting holes (no text or symbols)

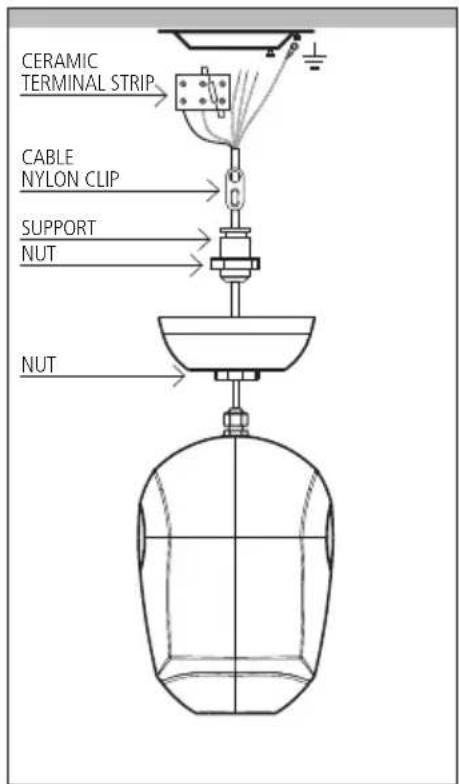

1. Insert the support into the mounting plate, so that it is positioned at its centre. Keep the ceramic terminal strip outside of the mounting plate and tighten the support nut to fix the loudspeaker to the ceiling.

2. Connect the loudspeaker as described in the previous manual section 'Connection'.

Move the cover to the ceiling (to hide the mounting plate) and fix it by tightening its nut.

Technical line drawing of a mechanical device with a transparent housing and control panel (no text or symbols)

Line drawing of a hanging cylindrical object with a conical top and vertical rod (no text or symbols)

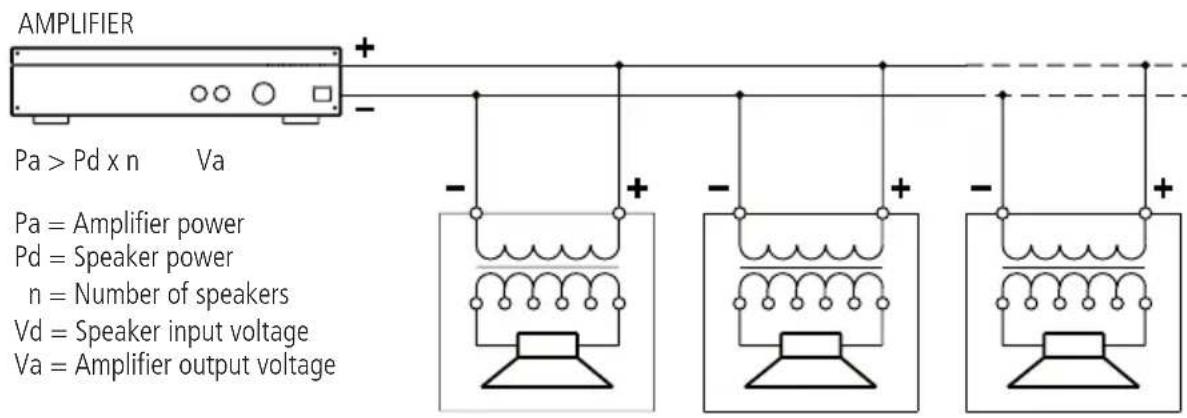

NOTES ABOUT CONSTANT VOLTAGE SYSTEMS

• The loudspeaker input voltage (Vd) shall correspond to the amplifier output voltage (Va).
• The sum of nominal power values (Pd x n) of all loudspeakers connected to the line shall not exceed the amplifier power (Pa).
• Make sure all loudspeakers are connected in phase to ensure a correct sound reproduction.

• Always use cables having wires with an adequate cross-section, considering the cable length and the total loudspeaker power.
• Loudspeaker lines must be kept separated from mains cable, microphone cables or others, in order to avoid inductive phenomena may cause hum or noises.
• Use loudspeaker cables having twisted wires to reduce hum caused by inductive effects due to coupling with electromagnetic fields.

Input voltage:

Power (selectable):

Input impedance:

100 V

20 W - 10 W - 5 W - 2.5 W (100 V)

500 Ω (20 W)

1 kΩ (10 W)

2 kΩ (5 W)

4 kΩ (2.5 W)

Frequency response (-10 dB):

Sensitivity (±3 dB, 1 kHz):

Max. sound pressure level:

100 Hz ÷ 20 kHz

88 dB (1 W, 1 m), 76 dB (1 W, 4m)

101 dB (20 W, 1 m), 89 dB (20 W, 4 m)

Cabinet material:

Grille:

Colour:

Connection:

IP protection grade:

Dimensions (without bracket):

ABS

steel

white

ceramic screw terminals

IP 65

ø 180 mm, depth: 260 mm

0068

RCF S.p.A. - Via Raffaello Sanzio 13, 42124 Reggio Emilia, ITALY

14

0068-CPR-058/2014

EN 54-24:2008

Loudspeaker for voice alarm systems for fire detection and fire alarm systems for buildings

BS 5EN

Type B

DoP: 008_14

Other technical data: see operational manual.

All EN54-24:2008 standard requirements are verified in the RCF S.p.A. manufacturing plant site in Via Raffaello Sanzio 13, 42124 Reggio Emilia, ITALY.

The Declaration of Performance is available on the RCF website (www.rcf.it), in the DOWNLOADS section of the product page.

IMPORTANTE

Technical diagram of a circular mechanical component with internal features and mounting holes (no text or symbols)

NOTA: INSTALLARE IL DIFFUSORE IN MODO STABILE E SICURO, COSI DA EVITARE QUALSIASI CONDIZIONE DI PERICOLO PER L'INCOLUMITÀ DI PERSONE O STRUTTURE.

CONTROLLARE CHE LA STRUTTURA DI SUPPORTO (LA PARETE) ABBIA LE NECESSARIE

CARATTERISTICHE MECCANICHE, TALI DA CONSENTIRGLI DI SOPPORTARE IL PESO DEL DIFFUSORE SENZA IL PERICOLO DI CADUTE.

PRIMA DI INSTALLARE IL DIFFUSORE ACUSTICO, CONTROLLARE TUTTI I COMPONENTI UTILIZZATI PER IL FISSAGGIO, I QUALI NON DEVONO PRESENTARE DANNI, DEFORMAZIONI, CORROSIONI E/O PARTI MANCANTI O DANNEGGIATE CHE POSSONO RIDURRE LA SICUREZZA DELL'INSTALLAZIONE.

Technical diagram of a circular mechanical component with internal features and mounting holes (no text or symbols)

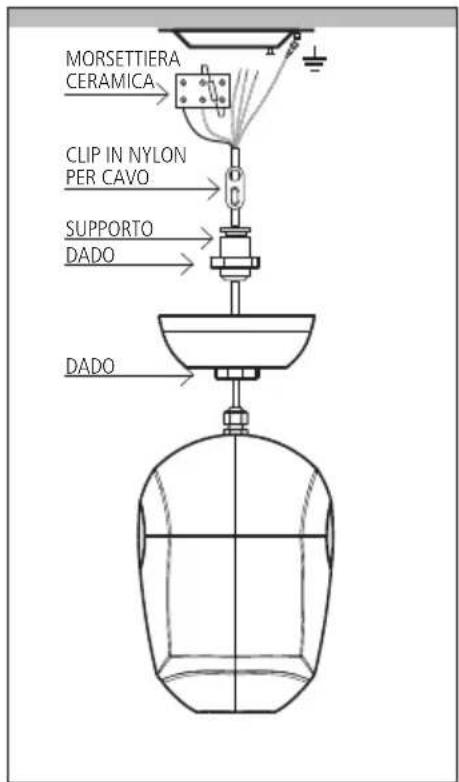

Line drawing of a mechanical device with a transparent container and handle (no text or symbols)

Line drawing of a hanging cylindrical object with a conical top and vertical rod (no text or symbols)

NOTE SUI SISTEMI A TENSIONE COSTANTE

20 W - 10 W - 5 W - 2.5 W (100 V)

500 Ω (20 W)

1 kΩ (10 W)

2 kΩ (5 W)

4 kΩ (2,5 W)

Loudspeaker for voice alarm systems for fire detection and fire alarm systems for buildings

BS 5EN

Type B

DoP: 008_14

Other technical data: see operational manual.

Except possible errors and omissions.
