Product Type	Motion Detector
Brand	Leviton
Model	OSD10-I0I
Power Supply	120V AC, 60Hz
Sensor Type	Passive Infrared (PIR)
Detection Coverage	Up to 30 feet (adjustable)
Detection Angle	180 degrees
Time Delay	Adjustable from 30 seconds to 30 minutes
Mounting	Wall or ceiling
Dimensions (Approx.)	4.5 x 2.8 x 1.5 inches
Weight	4 oz (113 g)
Color	White
Certifications	UL Listed
Operating Temperature	32°F to 122°F (0°C to 50°C)
Load Rating	500W Incandescent, 150W LED/CFL
Installation	Hardwired with line and neutral connections
Cleaning	Wipe with dry cloth; do not use liquids
Safety	Turn off power at circuit breaker before installation
Repairability	No user-serviceable parts; consult qualified electrician

Frequently Asked Questions - OSD10-I0I Leviton

How do I install the Leviton OSD10-I0I motion detector?

Turn off power at the circuit breaker. Connect the black (line), white (neutral), and green/copper (ground) wires to corresponding house wires. Mount the sensor to a junction box using provided screws. Restore power and adjust settings.

What is the detection range of this motion sensor?

The detection range is up to 30 feet with a 180-degree field of view. Range can be adjusted using the sensitivity control.

How do I adjust the time delay?

Locate the time delay dial on the sensor. Rotate it to set the duration from 30 seconds to 30 minutes. The light will stay on for the selected time after motion stops.

Can this detector be used outdoors?

The OSD10-I0I is designed for indoor use only. It is not weatherproof and should be installed in covered or indoor locations.

What types of lights can this sensor control?

It can control incandescent (up to 500W), LED/CFL (up to 150W), and other resistive loads. Do not exceed the rated wattage.

Why does my light stay on all the time?

This may be due to a continuous heat source or improper placement near vents or radiators. Adjust the sensitivity or relocate the sensor to avoid false triggers.

How do I clean the motion sensor?

Use a soft dry cloth to wipe the lens and housing. Avoid water, solvents, or abrasive cleaners as they may damage the sensor.

Does this sensor work with a three-way switch?

No, the OSD10-I0I is designed for single-pole applications only. It cannot be used with three-way switches unless used in conjunction with a compatible master/slave setup.

What should I do if the sensor does not detect motion?

Check that the power is on and connections are secure. Ensure the lens is clean and not blocked. Verify that the sensitivity dial is not set too low. If issues persist, consult a qualified electrician.

Can I replace the sensor myself if it fails?

The unit contains no user-serviceable parts. If defective, replace the entire unit. Always hire a licensed electrician for installation or replacement.

USER MANUAL OSD10-I0I Leviton

0-10V PIR Dimming Wall Switch Sensor

Close-up of a silver remote control with three buttons and a small black button (no text or symbols visible)

DESCRIPTION

The Leviton 0-10V Passive Infrared (PIR) Dimming Wall Switch Sensor (OSD10) combines passive infrared technology for 0-10V ON/OFF dimming control and daylight harvesting.

The OSD10 sensor uses a self-adjusting timer and PIR technology to scan for movement and turn lights off after a set amount of time, preventing false triggers. The OSD10 offers selectable operating modes for auto-ON/OFF and manual-ON/auto-OFF operation.

APPLICATIONS

• Small office
• Lobbies
• Small meeting rooms
• Restrooms

FEATURES

• Self-adaptive technology: no manual adjustment required
• Can be used to comply with ASHRAE 90.1, 2016 Title 24, Part 6 occupancy sensing requirements, IECC, UL and cUL listed
  • One relay module for single-level switching
  • Field of view: 1,000 square feet and 180° of detection
• Adjustable time delay:
• Auto mode: 4-30 minutes; self-adjusts based on occupancy
• Fixed mode: 4, 8, 15 and 30 minutes
• Test mode: 5 seconds for simplified commissioning
• The OSD10 provides a maintenance free, install-and-forget operation with selectable operating modes:
• Auto-ON/OFF
• Manual-ON/OFF
• No minimum load requirement
  • Zero arc point switching
• Five-year limited warranty

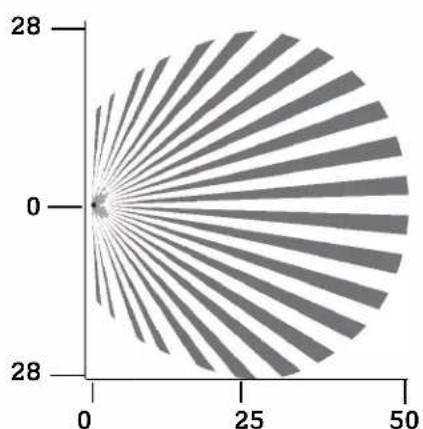

FIELD-OF-VIEW (IN FEET)

Leviton Manufacturing Co., Inc. Global Headquarters
201 North Service Road, Meville, NY 11747-3138 tech line 800-824-3005 fax [phone] ©2019 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.

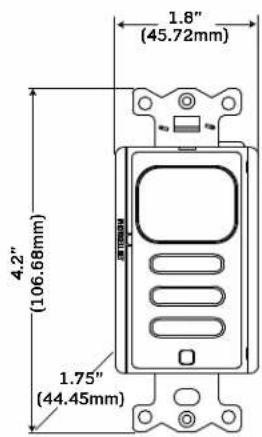

DIMENSIONS

1.8" (45.72mm) 4.2" (106.68mm) 1.75" (44.45mm)

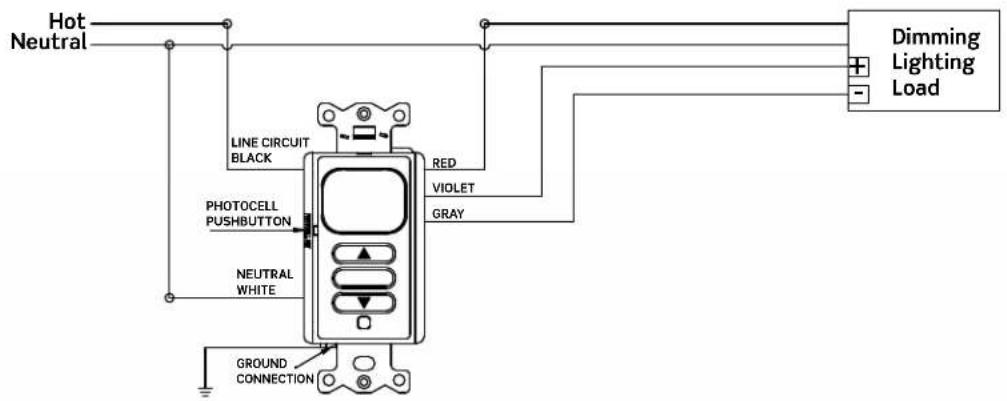

WIRING DIAGRAM

Hot Neutral LINE CIRCUIT BLACK PHOTOCELL PUSHBUTTON NEUTRAL WHITE GROUND CONNECTION RED VIOLET GRAY Dimming Lighting Load

SPECIFICATIONS

ELECTRICAL
Power Requirements	120/277VAC, 50/60Hz
Electrical Ratings	120VAC800W Electronic Ballast/LED Driver1,000W Magnetic Ballast1/6 HP Motor	277VAC1,800W Electronic Ballast/LED Driver/Magnetic Ballast1/6 HP Motor
Coverage 1,000sqft.	180°
Photocell Range 10 -	500FC (107.63 - 5381.96 LUX)
ENVIRONMENTAL
Operating Temperature	32 to 104°F (0 to 40°C)
Operating Environment	Indoor only
Relative Humidity 0-95% (non-condensing )
PHYSICAL
Dimensions 4.2" (106.68mm) H x 1.8" (45.42mm) W x 1.75" (1.75mm) D
Construction High-impact, injection-molded plastic, impact resistant lens
Colors White, Ivory
OTHER
Listings	Can be used to comply with ASHRAE 90.1, 2016 Title 24, Part 6 occupancy sensing requirements, IECC, UL and cUL listed
Warranty Limited five-year warranty

ORDERING INFORMATION

CAT NO. DESCRIPTION
OSD10-I0W 0-10V PIR	Dimming Wall Switch Sensor, White
OSD10-I0I 0-10V PIR	Dimming Wall Switch Sensor, Ivory

Note: Single-gang NEMA-style standard switch box wall plate sold separately
