USER MANUAL CSPM-1 JBL

CS Commercial Solution Series

CSPM

SERIES

• CSPM-1
• CSPM-2
• CSPM-4

Paging Microphone Quick Start Guide

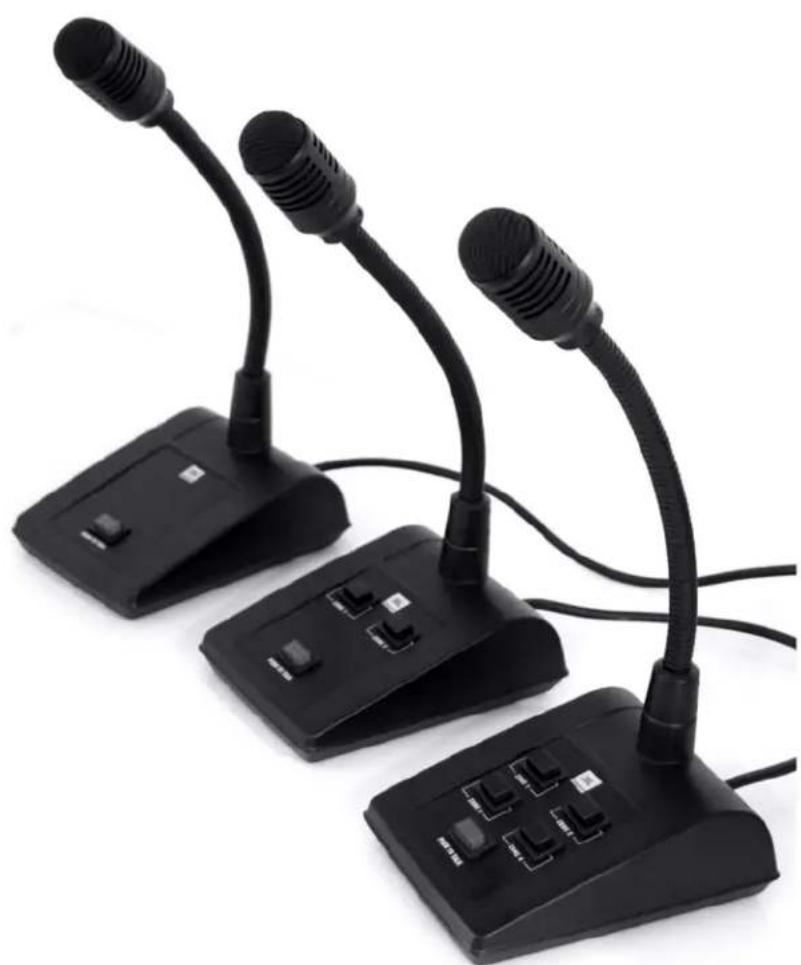

Three black desktop computer devices with microphones and connectors, no visible text or symbols

Compliance Information

EC-DECLARATION OF CONFORMITY

Document No. 829 / 05 - 2011 (replaces No. / - )

Type of Product: Dynamic Paging Microphone

Model No.: CSPM 1 (2 or 4)

Drawing No.: 3360 H 00..0

Manufacturer: AKG Acoustics GmbH A-1230 Wien, Lemböckgasse 21 - 25 AUSTRIA

We declare under our sole responsibility that the above mentioned product is in conformity with the European Directive(s):

No. 2004/108/EC: Electromagnetic compatibility

The conformity is achieved by fulfilling the following (harmonised) European Standard(s):

EN 61000-6-1:2007; EN 61000-6-3:2007;

City, Date: Vienna, 23.5.2011

Manufacturer's Signature:

Jürgen Bopst

Managing Director

EC-DoC documentation:

This declaration certifies the accordance with the above mentioned EC-Directive but does not assure certain attributes of the product.

EC-Declaration of conformity 3360.CE1

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Private household in the 25 member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new one).

For Countries not mentioned above, please contact your local authorities for a correct method of disposal.

By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

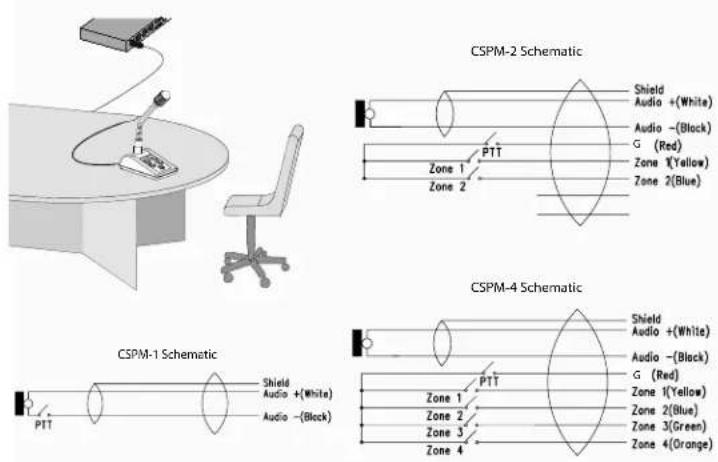

Setting Up

The JBL Commercial® CSPM series microphones (CSPM-1, CSPM-2, and CSPM-4) are dynamic close-talking microphones for paging systems and loudspeaker systems in airports, underground stations, department stores, etc..

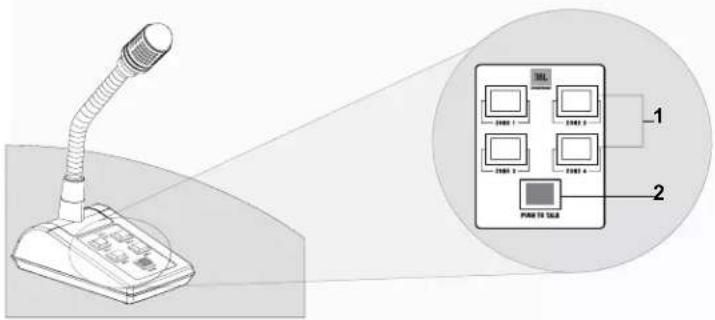

Button Functions

PUSH TO TALK (PTT) Button

CSPM-1: The microphone is on when the PTT button is pressed. The microphone is switched off when the PTT button is released.

CSPM-2, CSPM-4: When the PTT button is on (pressed), zone buttons are connected to the "G" pin and sound will be routed according to the state of the zone buttons. When the PTT button is off, the zone buttons are opened and no sound will be sent to any zones.

ZONE Button

Press the zone buttons to select which zones will receive the paging announcement once the PTT button is pressed.

An example of using the buttons in a public address application is:

1. Press the Zone 1 button.
2. Press the PUSH TO TALK button and speak. Your page will be delivered to Zone 1.

Operation and Application

Illustration of a desktop desk lamp with a curved arm and a blank screen (no text or symbols)

Maintain a gap between the speaker's mouth and the microphone, and do not exceed the maximum bend angle. Only bend the flexible part of the microphone.

In the case of microphones with cardioid polar pattern, most sound attenuation occurs at 180°. These microphones should preferably be used where there is an interference noise source or a loudspeaker directly opposite the speaker.

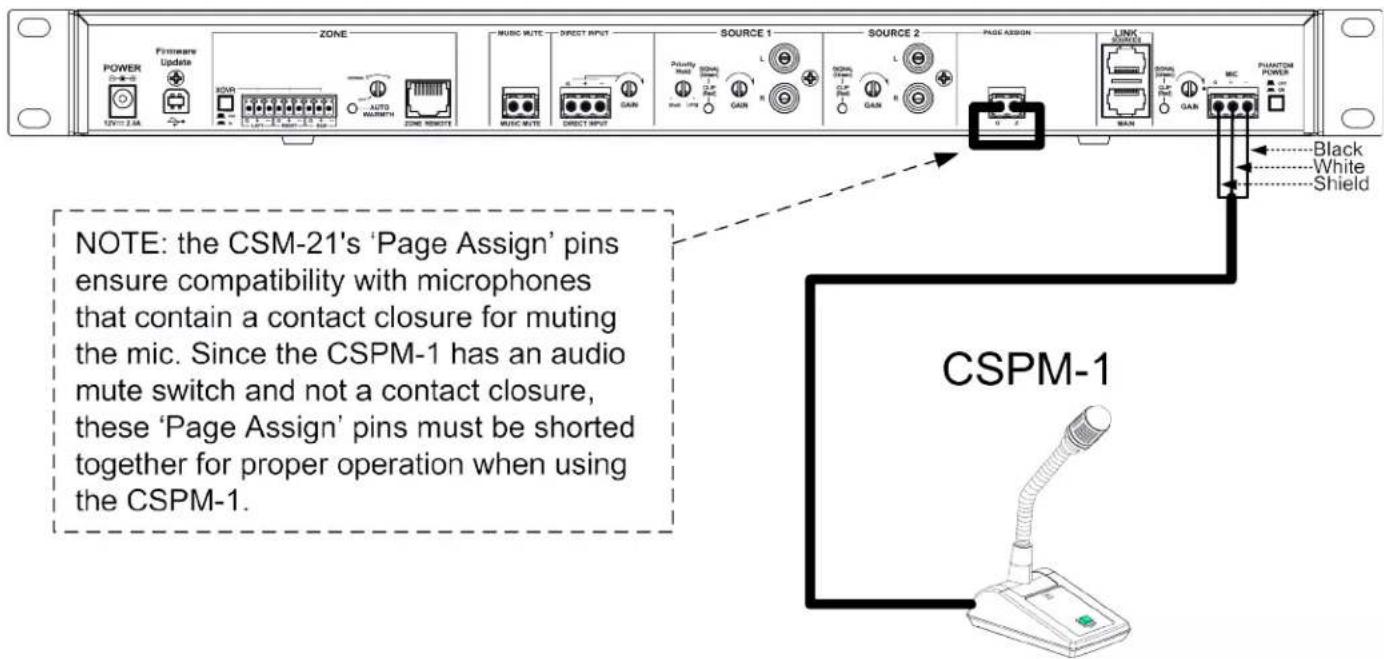

CSPM-1 with CSM-21

CSM-21

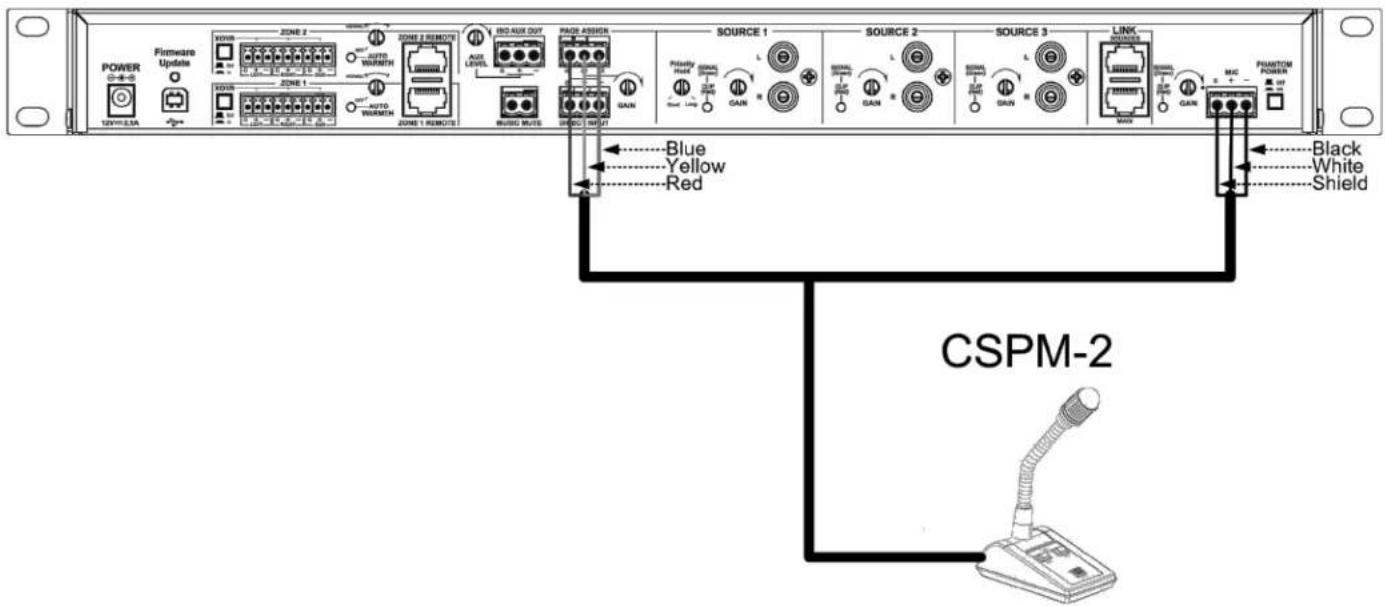

CSPM-2 with CSM-32

CSM-32

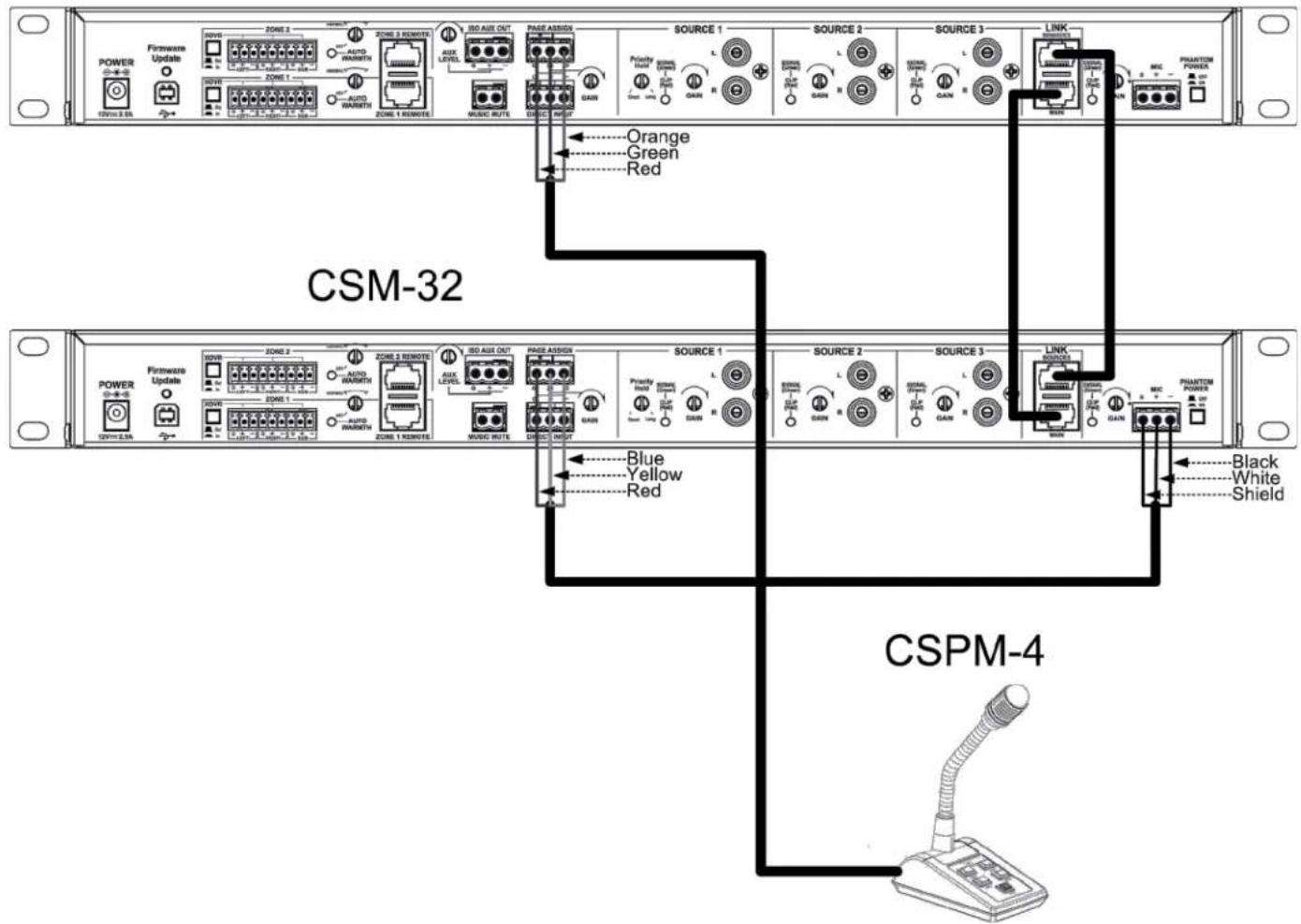

CSPM-4 with two CSM-32s

CSM-32
