Product Type	Electric Drill
Brand	Baumr-AG
Model	BPX-1100
Power Supply	120V AC, 60Hz, Corded
Motor Power	600 Watts
No-Load Speed	0 - 3000 RPM (Variable)
Chuck Size	1/2-inch (13mm) Keyless
Maximum Torque	350 in-lbs
Drilling Capacity (Steel)	1/2-inch (13mm)
Drilling Capacity (Wood)	1-1/2-inch (38mm)
Forward/Reverse	Yes, with lock-on button
LED Work Light	Yes, integrated
Ergonomic Grip	Soft rubber, anti-slip
Weight	4.5 lbs (2.0 kg)
Dimensions (L x W x H)	12 x 8 x 5 inches (30 x 20 x 13 cm)
Power Cord Length	6 feet (1.8 m)
Safety Features	Double insulation, lock-off switch, thermal overload protection
Maintenance	Clean with dry cloth; regularly check carbon brushes; store in dry area
Replaceable Parts	Carbon brushes, chuck, power cord
Included Accessories	User manual, auxiliary handle, carry case

Frequently Asked Questions - BPX-1100 Baumr-AG

How do I change the drill bit on the BPX-1100?

Ensure the drill is unplugged. Rotate the chuck sleeve counterclockwise to open the jaws, insert the bit, and rotate clockwise to tighten securely. Use the keyless design for quick changes.

Can the BPX-1100 be used for screwdriving?

Yes, with the variable speed trigger and forward/reverse function, you can drive screws. Use a screwdriver bit and set the speed low for better control.

What is the maximum drilling depth in wood?

The maximum drilling capacity in wood is 1-1/2 inches (38mm) with a spade bit. For deeper holes, use an extension or drill from both sides.

How do I maintain the drill?

Regularly clean the exterior with a dry cloth. Inspect carbon brushes every 50 hours of use and replace if worn. Keep vents clear of dust. Store in a dry place.

Why does the drill stop suddenly?

The drill has thermal overload protection. If it stops, let it cool for 15 minutes. Also check if the power cord is damaged or the trigger is faulty.

Is the BPX-1100 suitable for masonry drilling?

Yes, but you must use a carbide-tipped masonry bit. Apply moderate pressure and use a lower speed. The drill's torque is sufficient for small masonry holes.

How do I activate the LED light?

The LED light turns on automatically when the trigger is pressed. It provides illumination in dark work areas.

Can I use the drill with a power extension cord?

Yes, use a heavy-duty extension cord (14 AWG or thicker) rated for the drill's 600W power. Keep the cord fully unrolled to avoid overheating.

What safety precautions should I take?

Always wear safety glasses and avoid loose clothing. Secure the workpiece. Disconnect power when changing bits. Do not force the drill.

Where can I find replacement parts?

Contact Baumr-AG customer service or visit authorized dealers. Common parts like carbon brushes and chucks are available online. Use only genuine parts.

USER MANUAL BPX-1100 Baumr-AG

Black and red Blumr-AG power tool with propeller and two side blades (no visible text or symbols)

BPX-1100 Post Hole Digger

User Manual

[Revision 1.0 October 2023]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description, and packaging.

The product is NOT supplied with engine oil, although traces of oil from the manufacturing process may be present. It is essential to add adequate engine oil of the correct type to the engine before use. Failure to add engine oil will void the product warranty.

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or SERIOUSLY INJURED if you do not follow instructions.

It is vital that you read and understand this user manual before using the product, including safety warnings, and any assembly and operating instructions. Keep the manual for future reference.

Safety precautions and recommendations detailed here must be fully understood and followed to reduce the risk of injury, fire, explosion, electrical hazard, and/or property damage.

Safety information presented here is generic in nature – some advice may not be applicable to every product. The term "equipment" refers to the product, be it electrical mains powered, battery powered or combustion engine powered.

• Before Use - If you are not familiar with the safe operation/handling of the equipment or are in any way unsure of any aspect of suitability or correct use for your application, you should complete training conducted by a person or organization qualified in safe use and operation of this equipment, including fuel/electrical handling and safety.
• Do NOT operate the equipment in flammable or explosive environments, such as in the presence of flammable liquids, gases, or dust. The equipment may create sparks or heat that may ignite flammable substances.
• Keep clear of moving parts.
• Equipment may be a potential source of electric shock or injury if misused.
• Do NOT operate the equipment if it is damaged, malfunctioning or is in an excessively worn state.
• Do NOT allow others to use the equipment unless they have read this manual and are adequately trained.
• Keep packaging away from children - risk of suffocation! Operators must use the equipment correctly. When using the equipment, consider conditions and pay due care to persons and property.

General Work Area Safety

• Work areas should be clean and well it.
- Do not operate the equipment if bystanders, animals etc are within operating range of the equipment or the general work area.
- If devices are provided for connecting dust extraction / collection facilities, ensure these are connected and used properly. Dust collection can reduce dust-related hazards.

You CAN be KILLED or SERIOUSLY INJURED if you do not follow instructions.

General Personal Safety

• Wear appropriate protective equipment when operating, servicing, or when in the operating area of the equipment to help protect from eye and ear injury, poisoning, burns, cutting and crush injuries. Protective equipment such as safety goggles, respirators, non-slip safety footwear, hard hat, hearing protection etc should be used for appropriate equipment / conditions. Other people nearby should also wear appropriate personal protective equipment. Do not wear loose clothing or jewellery, which can be caught in moving parts. Keep hair and clothing away from the equipment.
• Stay alert and use common sense when operating the equipment. Do not overreach. Always maintain secure footing and balance.
• Do not use the equipment if tired or under the influence of drugs, alcohol, or medication.
• This equipment is not intended for use by persons with reduced physical, sensory, or mental capabilities.

General Fuel Safety

• Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames or other ignition sources.
• Do not spill fuel. If you spill fuel, wipe it off the equipment immediately – if fuel gets on your clothing, change clothing.
• Do NOT smoke near fuel or when refuelling.
  • Always shut off the engine before refuelling.
• Do NOT refuel a hot engine.
• Open the fuel cap carefully to allow any pressure build-up in the tank to release slowly.
  • Always refuel in well ventilated areas.
• Always check for fuel leakage. If fuel leakage is found, do not start, or run the engine until all leaks are fixed.

General Carbon-Monoxide Safety

• Using a combustion engine indoors CAN KILL IN MINUTES. Engine exhaust contains carbon-monoxide – a poison you cannot smell or see.
• Use combustion engines OUTSIDE only, and far away from windows, doors, and vents.

You CAN be INJURED if you do not follow instructions or equipment damage may occur.

General Equipment Use and Care

• The equipment is designed for domestic use only.
• Handle the equipment safely and carefully.
• Before use, inspect the equipment for misalignment or binding of moving parts, loose components, damage, or any other condition that may affect its operation. If damaged, have the equipment repaired by an authorised service centre or technician before use.
• Prevent unintentional starting of the equipment - ensure equipment and power switches are in the OFF position before connecting or moving equipment. Do not carry equipment with hands or fingers touching any controls. Remove any tools or other items that are not a part of the equipment from it before starting or switching on.
• Do not force the equipment. Use the correct equipment for your application. Equipment will perform better and be safer when used within its design and usage parameters.
• Use the equipment and accessories etc. in accordance with these instructions, considering working conditions and the work to be performed. Using the equipment for operations different from those intended could result in hazardous situations.
• Always keep equipment components (engines, hoses, handles, controls, frames, housings, guards etc) and accessories (cutting tools, nozzles, bits etc) properly maintained. Keep the equipment clean and, where applicable, properly lubricated.
• Store the equipment out of reach of children or untrained persons. To avoid burns or fire hazards, let the equipment cool completely before transporting or storing. Never place or store the equipment near flammable materials, combustible gases, or liquids etc.
• The equipment is not weather-proof, and should not be stored in direct sunlight, at high ambient temperatures or locations that are damp or humid.
• Do not clean equipment with solvents, flammable liquids, or harsh abrasives.
• For specific equipment safety use and care, see Equipment Safety.

General Electrical Safety

• Inspect electrical equipment, extension cords, power bars, and electrical fittings for damage or wear before each use. Repair or replace damaged equipment immediately.
• Ensure all power sources conform to equipment voltage requirements and are disconnected before connecting or disconnecting equipment.
• When wiring electrically powered equipment, follow all electrical and safety codes.
• Wherever possible, use a residual current device (RCD).
• High voltage / high current power lines may be present. Use extreme caution to avoid contact or interference with power lines. Electrical shock can be fatal.

General Electrical Safety

• Electrically grounded equipment must have an approved cord and plug and be connected to a grounded electrical outlet.
• Do NOT bypass the ON/OFF switch and operate equipment by connecting and disconnecting the electrical cord.
• Do NOT use equipment that has exposed wiring, damaged switches, covers or guards.
• Do NOT use electrical equipment in wet conditions or in damp locations.
• Do NOT use electrical cords to lift, move or carry equipment.
• Do NOT coil or knot electrical cords, and ensure electrical cords are not trip hazards.

General Service Information

• The equipment must be serviced or repaired at authorised service centres by qualified personnel only.
• Replacement parts must be original equipment manufacturer (OEM) to ensure equipment safety is maintained.
• Do NOT attempt any maintenance or repair work not described in this manual.
• After use, the equipment and components may still be hot – allow the equipment to cool and disconnect spark plugs and/or electrical power sources and/or batteries from it before adjusting, changing accessories, or performing repair or maintenance.
• Do NOT adjust while the equipment is running.
• Perform service-related activities in suitable conditions, such as a workshop.
• Replace worn, damaged or missing warning/safety labels immediately.

Child Choking Hazard!

- WARNING: CHOKING HAZARD - CHILDREN UNDER 8 YRS. CAN CHOKE OR SUFFOCATE ON SMALL PARTS. ADULT SUPERVISION REQUIRED.

- Carefully inspect anything a baby or child could gain access to, including this product & packaging.

- Dangers include anything of a size that could become stuck or lodged in a baby or child's airway.

• Dangers include things like raw, hard fruit and vegetable pieces, large pieces of meat, bones or sausage skins, popcorn, nuts,

hard lollies and corn chips, small magnets and batteries, coins, beads, marbles and small uninflated balloons, broken toys and smaller toys, buttons, keys, and coins. But there are also many more.

• Pay particular attention to accessories, nuts, bolts, screws, washers, caps, covers, loose parts, parts that could be removed or break off, pieces of packaging, staples, tape etc.
• In the case of any doubt, secure the item of concern in an appropriate manner, or completely remove the possibility of access by a baby or child.

Product Safety

FOR YOUR SAFETY, PLEASE FOLLOW THE INSTRUCTIONS ON THE SAFE OPERATION OF THE RULES OF OPERATION AND TECHNICAL MAINTENANCE, OR WILL CAUSE HARM TO YOUR PERSONAL SAFETY OR DAMAGE THE MACHINE. WARNING! FAILURE TO FOLLOW INSTRUCTIONS CAN INSTANTLY RESULT IN INJURY OR DEATH.

Personal Safety

• The post hole digger must only be used by adults in good physical condition with knowledge of the operating instructions.
• Do not operate the post hole digger when you are tired or fatigued or under the effect of alcohol and drugs.
• Never wear scarves, bracelets, or anything else which could be taken up by the machine or bit. Wear close-fitting safety clothing.
• Wear protective non-slip safety shoes, gloves, glasses, ear protection and safety helmet.
• Do not allow other people to remain in the operating range of the post hole digger while starting, carburation and utilise.
• Do not start working until you have a clear work area. Do not work near electric cables.
• Only use the post hole digger in well-ventilated places, do not operate the post hole diggers in explosive or flammable atmospheres or in closed environments.
• Carry the post hole digger with the engine stopped, with its bit removed.
• Replace the bit immediately if any cracks or other damage are present.

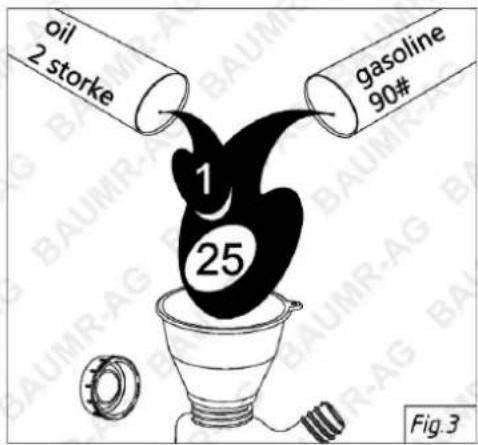

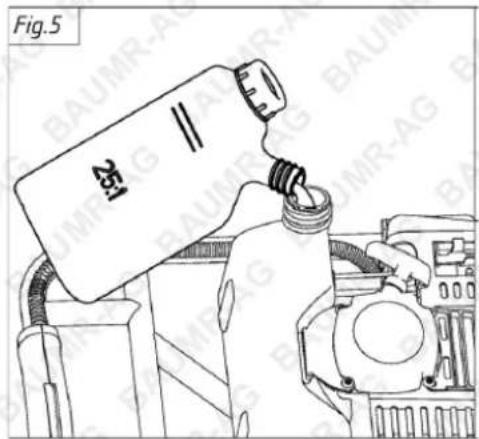

• Use the mixture of 90# gasoline and 2stroke engine oil (50:1\~25:1)
• Fill the tank away from sources of heat and with the engine stopped. Never smoke while filling.

NO BURNING

NO SMOKING

• Never take the cap off the tank when the engine is running. If fuel spills over while filling, move the post hole diggers at least 3 metres away before starting.
  • Always keep the handles dry and clean.

• Before starting make sure the bit is not obstructed.
  • Always work in firm-footed and safe position.

• Never touch the bit or carry out maintenance while the engine is running.
• Make sure that the bit does not turn when the engine is idling.
• Grip the post hole digger firmly with both hands; keep all parts of the body away from the bit and muffler.
• Never attempt to carry out servicing or repairs that are not part of the routine maintenance. Call specialised and authorised workshops only.
• Store the post hole digger off the ground in a vertical position in a dry place and with fuel tank empty.
• Check the post hole digger each day to ensure that each device, whether for safety or otherwise, is functional.
• Transport the post hole digger during working from one place to another with the engine idling.
• Never use a damaged, modified, or improperly repaired or assembled post hole digger. Do not remove, damage or disactivate any of the safety devices. Only use bit of the type indicated in the table.

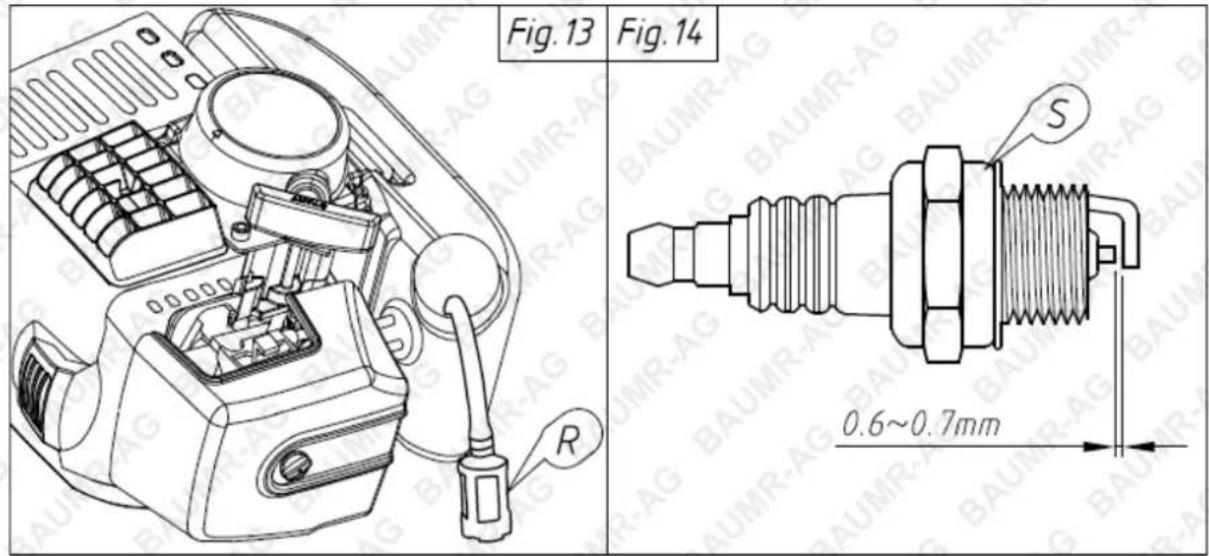

• Never touch the spark plug cover or wire while the engine is in operation. Doing so could result in electrical shock.
• Do not use the post hole digger until you have completely understood the specific operating methods. Always follow the manufacturer's instruction for the maintenance operations.
• After the engine starts or before it stops, allow it run 2\~3 minutes at a low speed without any load. Avoid running at a full throttle without any load. Never stop the engine suddenly at high speed.
• After engine starts, never touch the muffler and the cylinder. Doing so could result in serious burns.
• If your post hole digger is no longer usable, disposed of it properly without damaging the environment by handing it in to your local Dealer who will arrange for its correct disposal.
• Only loan your post hole digger to expert user who are completely familiar with post hole diggers operation and correct use. Give other users the manual with operating instruction, which they should read before using the post hole diggers.
• All saw service, other than the operations shown in the present manual, should be performed by competent personnel.
• Keep this manual on hand and consult it before each use of tool.
• Check, adjust, repair, and clean the machine regularly. When replacing parts, please use the tools specified by our company.
• It is forbidden to hitch tools or applications to the P.T.O. that are not specified by the manufacturer.

DANGER

Running combustion engines in confined areas CAN KILL IN MINUTES. Engine exhaust fumes contain carbon-monoxide – a deadly gas that you cannot smell or see.

NEVER run a combustion engine in confined areas EVEN IF windows and doors are open. ONLY run petrol engines OUTDOORS and away from doors, windows, and vents.

Do not operate the equipment in hazardous locations, such as where there may be a risk of fire or explosions from flammable liquids, gases or dust.

Do not operate the equipment in confined areas where exhaust gases, smoke or fumes could reach dangerous concentrations.

Do not refuel a combustion engine while it is running on or hot.

Never smoke while refueling combustion engines or handling flammable substances.

For generators, the electrical output is potentially lethal and must only be connected to a fixed electrical installation by an appropriately licensed person.

Be aware that the equipment may include hazardous components, such as blades, hot surfaces and moving parts.

Handle any flammable substance with extreme caution.

• Be aware that the equipment may include hazardous components, such as blades, hot surfaces and moving parts.
• Moving blades can cause serious injury and even death if used improperly or without sufficient PPE.
• Do not use this equipment on uneven surfaces and always maintain good balance when using this equipment. Failure to do so may cause serious injury.
• Maintain a secure grip of the trigger assembly at all times.

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your product and their meanings. If any stickers become unreadable, unattached etc., replace them.

Flammable Material HazardFlammable liquids, gases, or substances etc may present.Avoid ignition sources and open flames. Danger of fire.	Read User ManualRead and fully understand product safety warnings, operation, procedures etc before using the product.	Use Hand ProtectionWear appropriate hand protection and take due care as the product or use of the product may present hand hazards.	EXHAUST FUMESCarbon-Monoxide HazardDo not use the product in confined areas or without adequate ventilation. Carbon-monoxide poisoning can be fatal.
Electrocution / Electrical Shock HazardHigh voltage or high current electricity may be present or required by the product. Take due care when handling electrical products, cables, plugs and leads. Electrical shock can be fatal.	Toxic Fumes / Dust HazardUsing the product or by-products from use may produce fumes, smoke or particles that could be harmful if inhaled. Wear appropriate breathing protection and have adequate ventilation.	Explosive Material HazardCombustible liquids, gases, or substances etc may be present.Avoid ignition sources and open flames. Danger of explosion.	Cutting / Amputation HazardThe product may have blades, edges or mechanical devices that can cause severe cut injury to fingers, limbs etc. Take due care when handling and using the product.
Crush HazardThe product may have blades, edges or mechanical devices that can cause severe crush injury to fingers, limbs etc. Take due care when handling and using the product.	Single Operator OnlyThe product must be operated by a single person only. More than one person operating the product may introduce additional hazards.	Use Face ProtectionWear appropriate full-face protection and take due care as the product or use of the product may present face and eye hazards.	Use Foot ProtectionWear appropriate foot protection and take due care as the product or use of the product may present foot hazards.
Use Eye / Ear / Head ProtectionWear appropriate eye and / or ear and / or head protection and take due care as the product or use of the product may present eye, hearing, and head hazards.	Running HazardDo not run on or near the product as doing so may present a fall hazard.	Diving HazardDo not dive into the product as doing so may present a neck / head injury hazard.	Adult Supervision RequiredAlways supervise children and other users of a product to prevent drowning or injury.
Skin Penetration / Puncture HazardThe product may produce pressure, emit liquids or objects that can cause severe injury to fingers, limbs, blood etc. Take due care when handling and using the product.	Hot Surface HazardBe aware that the product may produce high temperatures and hot surfaces that can cause burn injuries.	Flying Debris HazardBe aware that the product or use of the product may present hazards produced by flying debris. Wear appropriate clothing and protective devices.	Moving Parts HazardBe aware that the product contains or uses mechanical devices that move or rotate. Always wait for moving parts to stop fully before handling the product, adjusting, maintenance etc.
Carbon-Monoxide HazardDo not use the product in confined areas or without adequate ventilation. Carbon-monoxide poisoning can be fatal.	Pull HazardBe aware that the product contains or uses mechanical devices that can pull in objects and can cause severe injury to fingers, limbs etc. Take due care when handling and using the product.	Slope / Fall Injury HazardBe aware that using the product on sloping surfaces or in slippery conditions may present additional dangers from falls and contact with blades, moving parts, hot surfaces etc.	"Slam Dunk" WarningDo NOT attempt "slam dunk" manoeuvres as this may result in severe injury due to falling, product breakage or collapse etc.
Electrocution / Electrical Shock Hazard - OutdoorHigh voltage or high current electricity may be present or required by the product. Do NOT use in rain, damp, or wet conditions. Electrical shock can be fatal.	Electrocution / Electrical Shock Hazard - DisconnectHigh voltage or high current electricity may be present or required by the product. Always disconnect the product from the electrical supply before handling the product, adjusting, maintenance etc.	Power Line Electrocution HazardHigh voltage / high current power lines may be present. Use extreme caution to avoid contact or interference with power lines.Electrical shock can be fatal.	"Kick-Back" HazardHigh level of "kick-back" hazard that can cause the machine to suddenly rotate towards operator.Kick-back injury can be fatal.
Winch Operator Position HazardDo NOT stand between winch and load. Do NOT use winch to move people.	Winch Lift HazardDo NOT LIFT load vertically. Use machine to PULL only.	Cable HazardEnsure that load bearing cable is not kinked or knotted.	Winch Cable HazardEnsure that there is a minimum number of cable coils on winching mechanism.
Winch Hook HazardCarry hook to load – do NOT throw or run.	Flash / Blinding HazardWear appropriate eye protection for welding. Direct exposure to weld arcs may cause permanent eye injury.	Laser HazardLaser may be in use – do NOT look directly at laser or allow others to.	Choking HazardChildren under 8 yrs. Can choke or suffocate on small parts. Adult supervision required.

Table of Contents

Safety 2

Safety Symbols....5

Equipment Safety 8

Before Use....10

Assembly....10

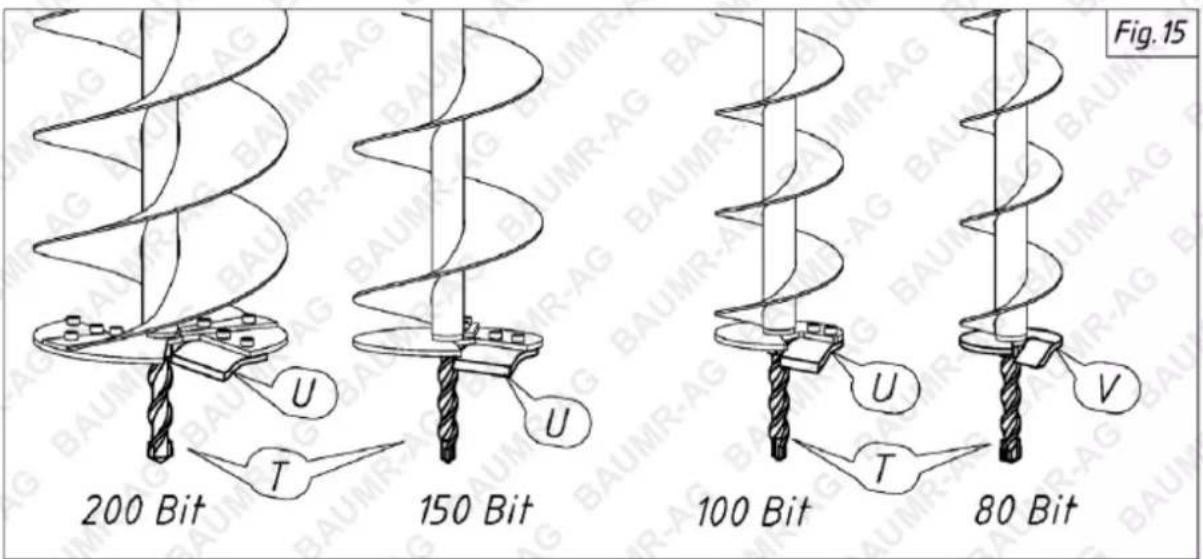

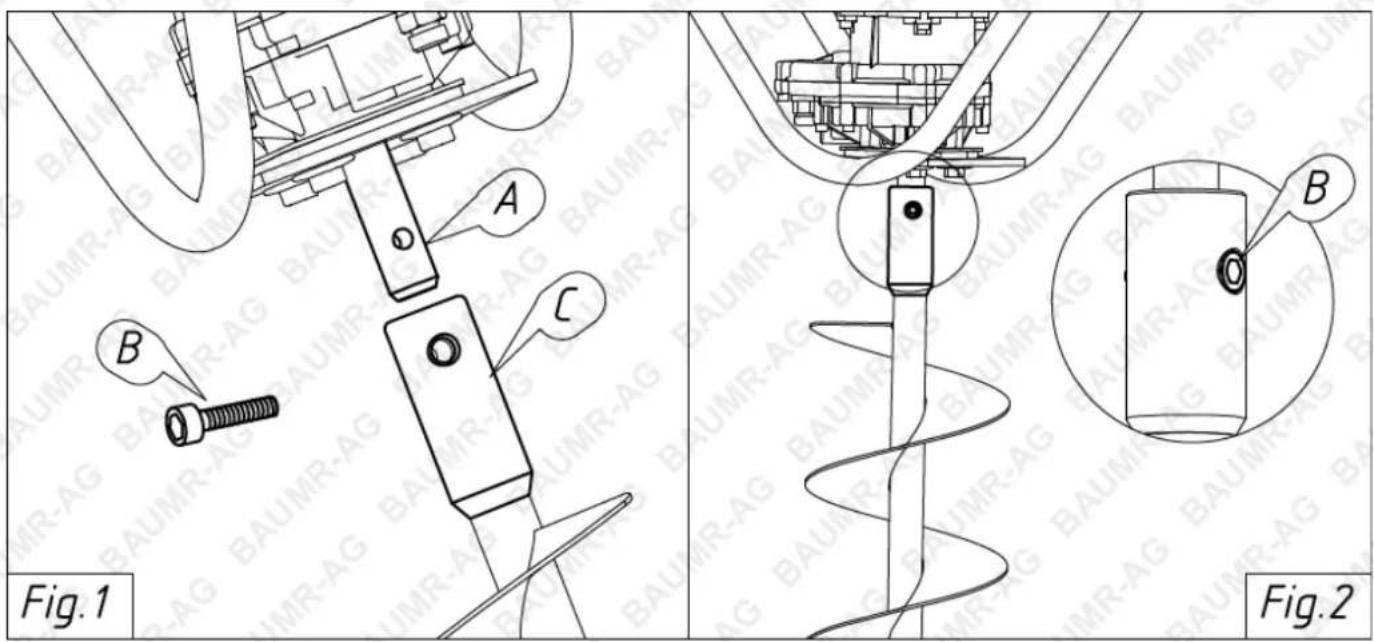

Fitting the Auger Bits ....10

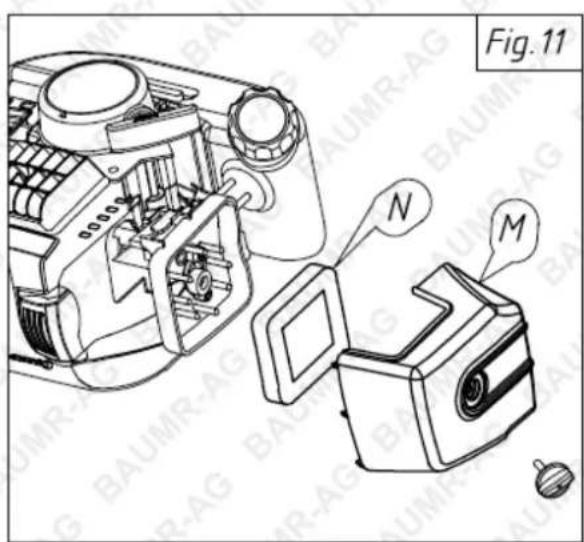

Air Filter 11

Fuel....11

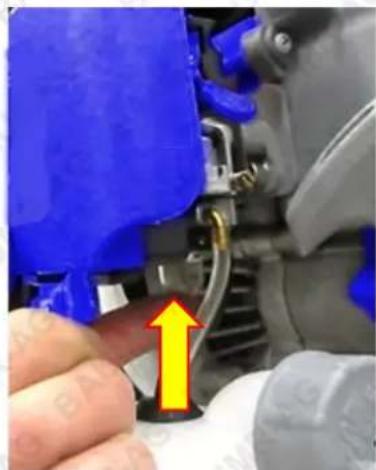

Working Rules 11

Operation....12

Fuel Mixture....12

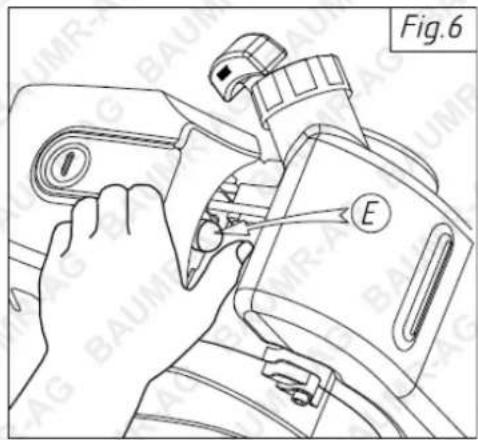

Starting the Engine....13

Stopping the Engine ....14

Environmental Considerations....14

Post Hole Digger Operation....14

Maintenance 16

Maintenance Schedule – 2-Stroke Engine / Machine ....17

Maintenance /Check / Overhaul 18

Daily check 18

Weekly Maintenance ....18

Monthly Maintenance....18

Air Filter 18

Carburettor....19

Fuel Filter....19

Engine....19

Spark Plug....19

Bit....20

Gearbox....21

Storage 21

Troubleshooting 22

Specifications 24

Equipment Safety

Post hole diggers are high-speed, fast-cutting equipment with exposed blades that can cause serious injury if not used correctly or without taking proper safety precautions. It is extremely important that you read and fully understand the information in this section and all other safety warnings / recommendations and usage instructions before using the equipment.

Operator

• If you are untrained in the use of a hole digger, it is highly recommended that you be trained/instructed by a suitably qualified or experienced post hole digger user before using the machine.
• Fully understand how to safely operate the machine and the digging process. See Post Hole Digger Operation.
• You must be in good physical condition to use a digger. NEVER operate the machine when tired, or under the influence of any substance (medication, alcohol, drugs etc) that may impair your judgement, alertness, physical strength, vision, or dexterity.
• Maintain sure-footing and balance always when using or handling the digger and have full awareness of your surroundings and any possible hazards.
• Prolonged digger use may lead to health complications, such as carpal tunnel syndrome, due to vibration. To help reduce the possibility of such conditions, wear gloves, take breaks frequently, keep fingers and hands warm, and maintain the equipment for optimal operation and minimal vibration. It is recommended to seek medical advice if you feel numbness or burning sensations in fingers/hands.

Clothing and Protective Equipment – All Operators and Assistants

• Wear approved safety goggles, or safety glasses with adequate top and side protection.
• Wear suitable hearing protection.
• Wear heavy-duty, non-slip leather or protective gloves.
• Wear approved heavy-duty safety boots, with steel toecaps and non-slip soles.
• Wear suitable overalls or work clothing that fits snugly but does not restrict movement. Avoid loose fitting clothing, scarves, jewellery etc and keep long hair contained to avoid getting caught or pulled by the chainsaw or by tree branches etc.

Work Area Safety

- Use EXTREME CAUTION to avoid power cables – contact can be fatal. Also be aware of plumbing, water and gas pipes etc. If in any doubt, do NOT dig – contact the appropriate organisation or authority for information before digging.

- Be aware of fire risks resulting from machine use. Ensure that the machine exhaust and spark arrestor (if equipped) is well maintained, and that engine is tuned correctly.

• Refuel outdoors only. Avoid fuel spillage. Start the machine at least 3m (10') away from the fuelling location

Operational Safety

• Do NOT use the machine if the throttle or any safety guard or mechanism is not installed or is not operating correctly – have the machine inspected and repaired at an authorised service centre before using it again.
  • Always hold the machine firmly with both hands during operation. Always use the machine handles.

• Do NOT use any auger attachment that is cracked or damaged in any way – replace it.

• Ensure the auger is not obstructed before digging.

• Ensure that all auger attachments are fully secured before digging.
  • If the auger jams, release the throttle trigger and stop the engine immediately.
• Do NOT use the equipment for purposes it is not designed for, such as cutting concrete.
• Do not attach the machine to fixed supports.

Transportation Safety

• Always STOP the engine before putting the machine down, transporting or working on it (refuelling, adjusting etc).
• When transporting the machine in a vehicle, ensure the engine is OFF, the auger is disconnected, and the machine is secured in an upright position to prevent tip-over, machine damage or fuel spills.

Before Use

Ensure that you carry out all procedures below before starting the engine or operating the equipment. All procedures described are generic in nature and slight variations between different models may exist. Failure to follow the checklist and carry out the procedures correctly may result in making the product warranty void.

IMPORTANT! BEFORE EVERY USE:

1. Before attaching the auger drill bit, start & test the engine to ensure the throttle is embled correctly, working properly and that no parts are loose/missing. Also ensure the engine t-off is working correctly.

2. Shut off the engine.

3. DO NOT USE the item if there is any physical or functional problem. Arrange service or replacement.
4. Once you have confirmed there are no physical or functional problems you may attach the auger drill bit and start the job.

If you lose control of the engine while in use, simply remove all humans and animals from the area and wait for it to stop.

Assembly

Fitting the Auger Bits

Fit the output shaft A (Fig.1) into the seat on the bit (C) and secure it using the Hexagon socket head cap screws (B).

WARNING - Do not change the ratio of the reduction gearbox. The characteristics of the machine could change, and unforeseen reactions could occur.

Air Filter

The air filter is used to prevent dirt and other particles from possibly entering the engine and causing internal damage to it. The air filter requires regular maintenance. Always check the air filter before starting the engine.

Fuel

Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames or other ignition sources. • The engine must be cool before refuelling. • Always pre-mix the fuel before

placing it in the fuel tank. • The fuel to 2-stroke engine oil mixture ratio is 25:1.

Adequately fill the fuel tank with the correct fuel type.

- Use non-ethanol unleaded petrol mixed at a 25:1 ratio with 2-stroke engine oil (higher RON values and good quality 2-stroke oil will provide best engine performance). Do not use old or contaminated fuel/oil. Fuel/oil mix ratio examples are shown below.

Petrol (Litre)	1	2	5	10		Gas (US Gal)	0.5	1	2	3
Oil (Millilitre)	40	80	200	400		Oil (Fl. Oz)	2.56	5.12	10.24	15.36

1. Place the machine in a vertical position on a flat and level surface with the fuel filler cap facing up.
2. Clean the machine around the fuel filler so that no dirt or other material enters the engine when the cap is removed.
3. Remove (rotate left) the fuel filler cap.
4. Using a funnel, carefully fill the tank with fuel. Do not fill above the top of the strainer (if equipped) or otherwise overfill the tank.
5. When finished, reinstall (rotate right) the fuel filler cap until firm. Wipe away any residual fuel from the machine. If fuel has been spilt, move the machine away from the spillage before starting the engine.

Priming the Fuel System

When an engine is new or has been completely run out of fuel it may be necessary to "prime" the fuel system before attempting to start the engine. This means removing any air from the fuel line. To prime:

1. Ensure the fuel tank is filled with fuel.
2. Press the fuel primer bulb repeatedly until you feel resistance or pressure in the bulb – this indicates that it is full of fuel. Fuel may also be visible in the fuel intake tube.

Working Rules

Close-up of a hand adjusting a mechanical component with a yellow arrow pointing to a black knob (no visible text or symbols)

WARNING – Always follow the safety rules. Do not lock the post hole digger onto fixed supports. It is forbidden to apply tools or applications other than the ones indicated by the manufacturer onto the PTO of the post hole digger.

Operation

Before use, ensure that there are no electrical cables, gas, or water pipes etc or other buried or unseen hazards in the work area. Contact the applicable utility providers for assistance. • The machine should be operated on ground that is suitable for digging. Do not attempt to dig into set concrete, rock, tree roots, or other extremely hard surfaces. • Do not use the machine without an auger and bit attached. • Augers and auger tips are consumable parts and are not covered under warranty.

Before starting the engine, ensure that you have followed all procedures described in the Before Use Checklist. Failure to follow the checklist and carry out the procedures correctly may result in making the product warranty void. • Once the engine is running at sufficient speed, the clutch will engage and begin rotating the cutting attachment. • Do NOT start the engine with the machine cutting attachment touching any object. • If the engine is new or is being re-started after completely running out of fuel, it may be necessary to pull the starter cord several times for fuel to reach the carburettor.

Fuel Mixture

1. Use a 4% (25:1) oil/gasoline mixture. Please use fuel of 25:1 (gasoline: oil) in the 20 hours before the machine runs.

WARNING! 2-stroke engines have high specific horsepower, and we therefore recommend the use of well-known, regular or super gasoline, with or without lead and an octane rating of no less than 90.

1. When preparing the mixture, only use oil for two stroke engines. Shake the fuel container before filling (Fig.5).
2. Refill when the engine is switched off and far away from naked flames.
3. Before unscrewing the fuel tank cap, position the post hole digger on a flat, solid surface to prevent fuel spills.

WARNING! Gasoline is very flammable. Select outdoor bare ground for fuelling. Never add or replace fuel when the engine is in operation or before the engine stops. Do not leave the mixture in the fuel tank or in a fuel canister for a long period of time. Do not start the engine if fuel leakage is found. Run the engine until the leak is fixed.

Starting the Engine

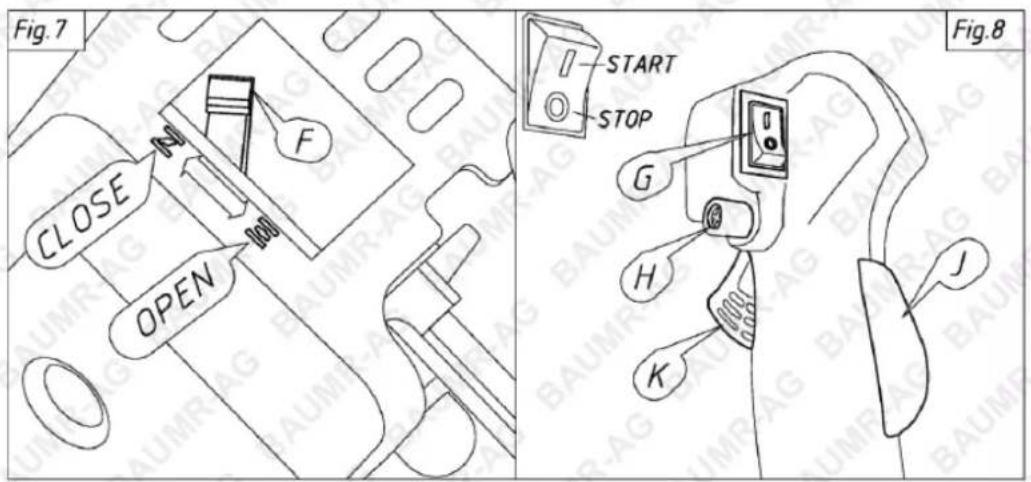

1. Put switch G (Fig. 8) in the "START" position.
2. Press safety lever J and throttle lever K, lock it by pressing button H.
3. Release lever J and K.
4. Put the choke lever (F, Fig. 7) in position "CLOSE".
5. Push the primer bulb (E, Fig. 6) a few times until the fuel comes out of the fuel tube.

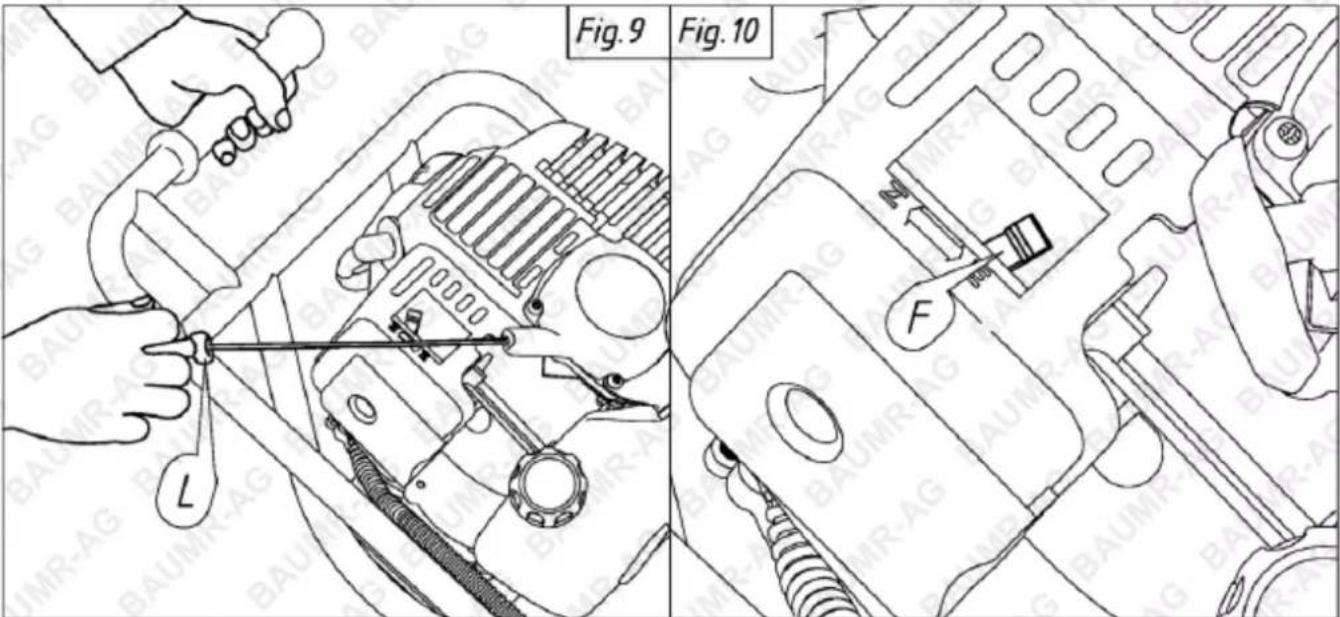

1. Pull the starter rope a few times until the engine starts.
2. Put the choke lever (F, Fig.10) back to the original position "OPEN".

Once the engine is running, press the throttle lever (K, Fig. 8) to release button H (Fig. 8), and let the engine idle.

NOTE: Do not use the choke (F, Fig.7) when starting a hot engine. When the engine is idling, the bit should not turn.

WARNING! If the bit jams, stop the engine immediately.

NOTE: When pulling the starting rope:

a) Do not let the starter grip snap back
b) Do not pull the starter rope out all the way as it might break (Fig. 9).
c) Guide it slowly back into the housing so that the starter rope can rewind properly.

Stopping the Engine

1. Bring the throttle to the idle position (K, Fig. 8) and run it for 2\~3minutes at a low speed until the engine cools.
2. Switch off the engine by putting the stop switch (G, Fig. 8) in the "STOP" position.
3. Remove the bit, clean the machine.

IMPORTANT! Avoid stopping the engine suddenly when it runs in high speed. Doing so could cause damage to the machine.

Environmental Considerations

Altitude – If the engine is being used in altitudes at or above 1500m (approximately 5000'), adjustments to the carburettor may be required. This is because there is less oxygen in the air as altitude increases, which effectively "enriches" the ratio of fuel to air going into the engine and the higher the altitude, the richer the fuel mixture becomes. If the engine is being permanently operated at high altitude, it is recommended to have an authorized service centre make the necessary carburettor adjustments. If the engine is used occasionally at altitude (not extreme altitudes), no adjustments should be required, however, a slight decrease in engine performance can be expected.

Post Hole Digger Operation

Before use, ensure that there are no electrical cables, gas, or water pipes etc. or other buried or unseen hazards in the work area. Contact the applicable utility providers for assistance. • The machine should be operated on ground that is suitable for digging. Do not attempt to dig into set concrete, rock, tree roots, or other extremely hard surfaces. • Do not use the machine without an auger and bit attached. • Augers and auger tips are consumable parts and are not covered under warranty.

The machine is used for "drilling" holes in the ground. For example, to erect fencing etc. The machine is designed for manual operation, where the operator both holds and controls it. Note the following:

- Adjust the throttle, which controls the drilling action, only when ready to begin digging the hole.

- Hold the machine as straight as possible when in use to ensure that holes are dug vertically.

- Always check the auger flutes, cutters, and bit before digging each hole. Sharpen or replace any worn or damaged components. Do not use if damaged in any way. Below is an example of the type of condition in which an auger is not to be used:

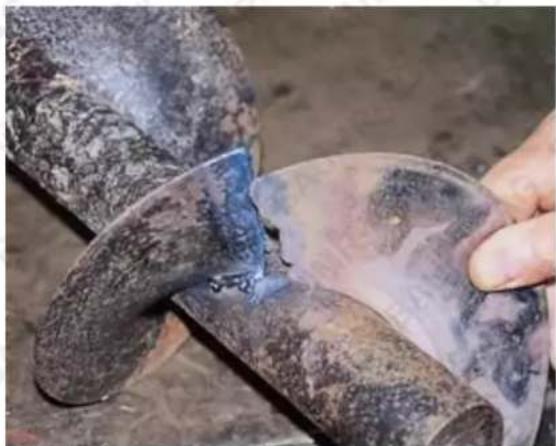

Close-up of a hand using a tool to cut a damaged metal component, no visible text or symbols

To dig a hole:

1. Start the machine and allow it to warm up.
2. Position the machine in the required location, with the auger bit against the ground.
3. Holding the machine firmly with both hands (or having an assistant help), use the throttle to activate the drilling action and dig the hole – once the auger starts to cut there is no need to push down on the machine. Adjust the throttle for the desired drilling rate.
4. Release the throttle – this disengages the drilling action.
5. Lift the machine and auger carefully from the hole.

Maintenance

Running combustion engines in confined areas CAN KILL IN MINUTES. Engine exhaust fumes contain carbon-monoxide – a deadly gas that you cannot smell or see. NEVER run a combustion engine in confined areas EVEN IF windows and doors are open. ONLY run combustion engines OUTDOORS and away from doors, windows, and vents. • Petrol / fuel / gasoline is extremely flammable – keep clear of naked flames or other ignition sources. •

Do not have the engine running during inspection and maintenance unless specifically required. • The engine should be cool enough to touch before performing maintenance activities. • Some maintenance activities may be beyond the scope of some users. Do NOT attempt procedures that you are not comfortable with, or do not have the necessary tools, experience, or knowledge for – take the unit to an authorised service centre or qualified technician for servicing. • Harsh operating environments such as extreme temperatures, dust etc may necessitate more frequent maintenance. • Failure to follow the maintenance schedule, using incorrect or non-compatible accessories or replacements parts, or general negligence may result in making the product warranty void.

ATTENTION: Surface corrosion will occur on metal surfaces over time and the rate of oxidation depends on factors such as proximity to the ocean and humidity or condensation of water vapour on metal surfaces. To mitigate this, WD40 can be used to remove surface corrosion then, when applied periodically, it will prevent rust from forming.

To keep the machine performing at optimal efficiency, regular checks and maintenance is required. The maintenance schedule below specifies preventative maintenance checks and necessary maintenance tasks and how often they should be performed. The schedule applies to multiple engines; some engines may not include some components, so maintenance on those components is not applicable.

Maintenance Schedule

Use the following maintenance schedule for a list of regular maintenance tasks and how often they need to be performed. Maintenance frequency is based on average usage. Be aware of how much the machine is used and be sure to follow the schedule according to time or usage, whichever comes first.

Towards the end of this document is a form you can use for maintenance record keeping. It is recommended that you keep a reference of all maintenance.

Major Servicing and "Heavy-Duty" Usage - For engines that are subject to "heavy-duty" use, which can be defined as being used under loads of 85% or more and / or in use more than approximately 300 hours per year (for example, generators and water pumps), more frequent "Major Service" maintenance is required. In addition to normal service requirements, and as with many smaller machine and off-road bike engines, the following parts (as applicable for petrol, diesel, or 2-stroke engines) may require replacement during a major service:

• Piston rings.
  • Big-end bearings.
• Small-end bearings.
  • Gudgeon pin.
• Oil rings.
  • Gaskets and seals.
• Valve seats.

Inspection of the following items is required:

• Piston for cracks and stress fractures.
  • Bore for wear requiring reconditioning.
  • Full machine for broken, worn, or loose parts.

Failure to follow the maintenance schedule, using incorrect or non-compatible accessories or replacements parts, or general negligence may result in making the product warranty void.

Maintenance Schedule – 2-Stroke Engine / Machine

Component / Task	Every Use	After First 5 Hours Use	3 Months / 25 Hours Use	6 Months / 50 Hours Use	12 Months / 100 Hours Use	Major Service – Normal Use24 Months / 200 Hours Use	Major Service – Heavy-Duty UseEvery 200 Hours Use
Loose Engine / Machine Fasteners	Check. Tighten as necessary
Air Filter	Check	Clean. Replace as necessary				Replace
Spark Plug			Check	Replace
Spark Arrestor *
Fuel Filter *			Clean. Replace as necessary			Replace
Fuel Strainer *	Check
Float Bowl *				Clean
Fuel Lines / Hoses	Check	Replace as necessary
Fuel Tank					Flush and clean
Idle Speed					Check. Adjust as necessary
Engine Tune			Check. Adjust as necessary
Cylinder Head Fasteners						Check. Tighten as necessary
Combustion Chamber					Check. Clean / de-coke as necessary
Major Service						Perform
Cutting Blade / Chain *	Check	Sharpen. Replace as necessary
Chain Lubricant *	Check. Add as necessary.
Chain Lubricant Strainer *				Clean. Replace as necessary

* Where applicable.

Maintenance /Check / Overhaul

It is recommended to regular check and maintenance based on frequency of use, keeping the tool in a better condition, and extending its useful life, ultimately reducing overall operating costs.

This specification will also protect you from serious harm.

Daily check

• Check whether all nuts and screws are tight or not.
• Check the fuel level. When filling new fuel, please wipe off the spill and clean the fuel tank.
• Check whether the belt of the transmission wheel is loose or aged and cracked or not.

Weekly Maintenance

• Check the starter, especially the wires and the springs.
• Check the outside of the sparking plug.
• Remove the sparking plug and check the electrode spacing. Adjust to 0.6MM or replace the sparking plug.
• Check the heat sink on the cylinder and check whether the air inlet of the starter is blocked or not.
• Check the air filter.

Monthly Maintenance

• Flush the fuel tank with gasoline.
• Clean the outside of the carburettor and its surroundings.
  • Clean the fan and its surroundings.

Air Filter

Every 25 hours, remove the cover (M, Fig. 11) and the filter (N, Fig. 11). The filter should be washed with petrol and dried before refitting it.

Carburettor

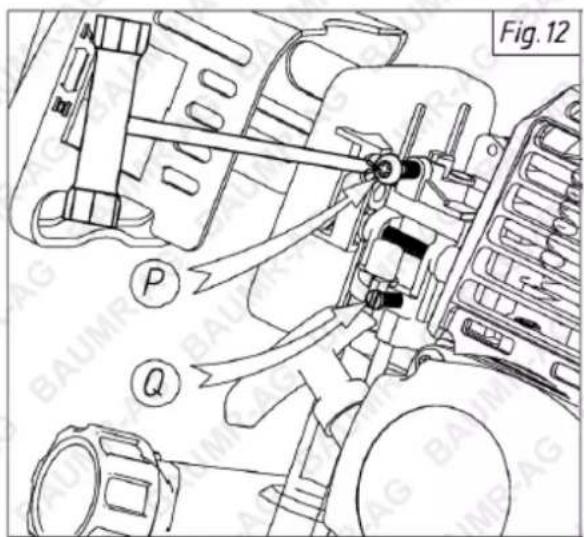

• Screw Q (Fig. 12) must be adjusted so that the engine promptly responds to sharp accelerations and gives good idle operation and gives maximum power during the cutting phase.
• Idle screw P (Fig. 12) is adjusted to ensure a good safety margin between idle turning and clutch engagement.

IMPORTANT! Weather conditions and altitude may affect carburation.

Fuel Filter

Check the fuel filter (R, Fig. 13) periodically. Replace it if too dirty. A dirty filter can cause difficult starting and lower engine performance.

Engine

Clean the cylinder fins with compressed air or a brush periodically. Dangerous overheating of engine may occur due to impurities on the cylinder.

Spark Plug

1. Remove the spark plug cover, unscrew the spark plug.
2. Clean the spark plug if carbon deposit is found.
3. Polish the electrode with abrasive paper and adjust the electrode gap to 0.6-0.7mm (Fig.14).

Bit

1. Always check the drill bit. Sharpen or replace it if necessary. Removable impact bit (T, Fig. 15) and non-removable blade (U, Fig. 15). Contact the manufacturer for replacements.

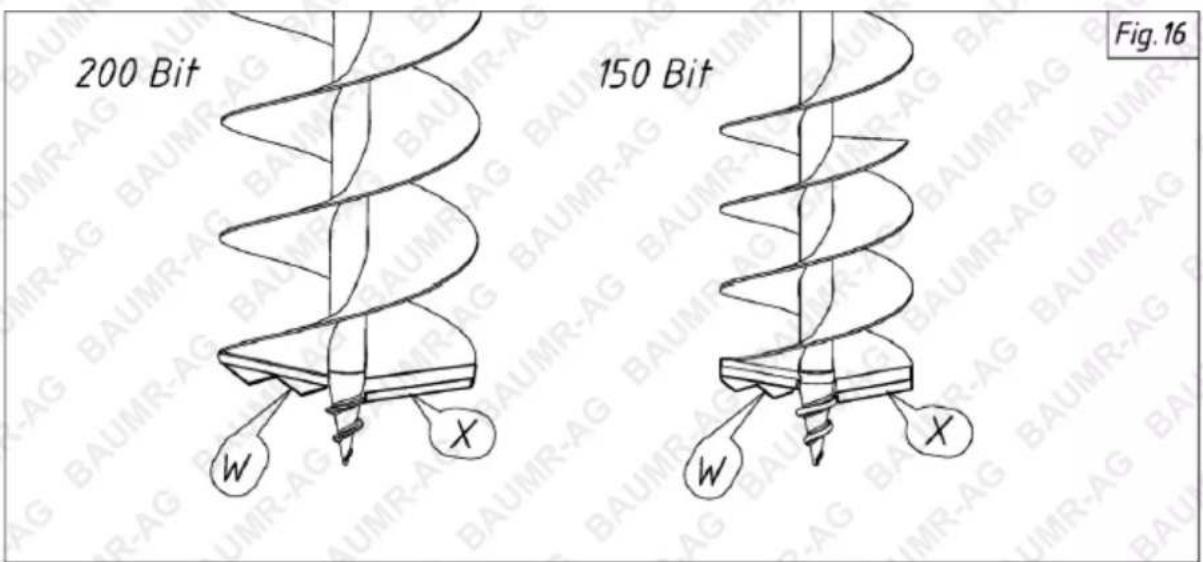

1. Check and repair the blade (W, X, Fig. 16) regularly. Contact the manufacturer for replacements.

Gearbox

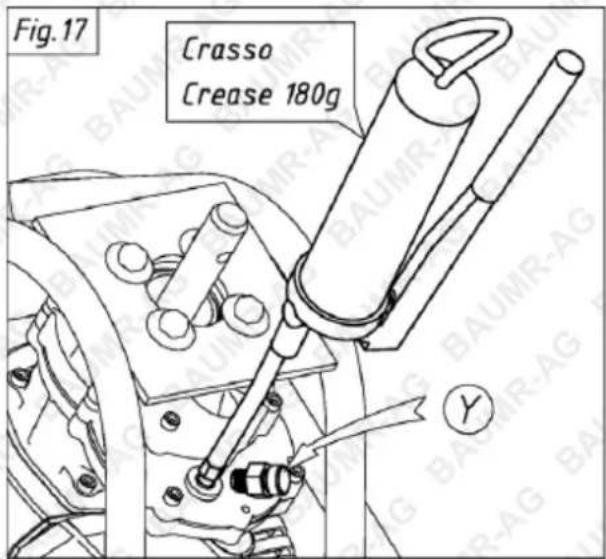

Every 100 working hours, change the grease in the gearbox (Fig.17).

Storage

1. Follow all the maintenance procedures described previously.
2. If storing for a long period of time, clean the post hole digger completely and grease the metallic part.
3. Remove, clean and oil the bit to prevent rusting.
4. Empty the fuel tank and put the cap back on.

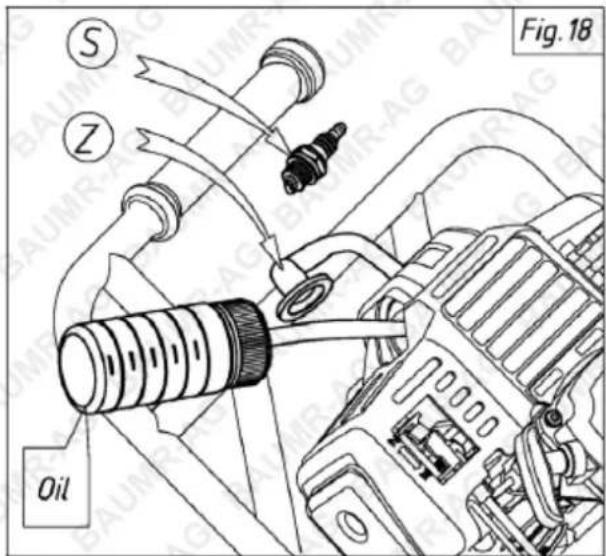

5. Remove the spark plug and pour a small amount of oil into the cylinder (Fig.18).
6. Pull the starting rope several times, rotate the crankshaft to distribute the oil. Put the spark plug back in.
7. Wrap the engine in a plastic sheet.
8. Stroke the post hole digger in a dry place, preferably off the ground and away from heat sources.

Troubleshooting

Running combustion engines in confined areas CAN KILL IN MINUTES. Engine exhaust fumes contain carbon-monoxide – a deadly gas that you cannot smell or see. NEVER run a combustion engine in confined areas EVEN IF windows and doors are open. ONLY run combustion engines OUTDOORS and away from doors, windows, and vents. Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames or other ignition

sources. • Do not have the engine running during inspection and maintenance unless specifically required. • The engine should be cool enough to touch before performing maintenance activities. • Some maintenance activities may be beyond the scope of some users. Do NOT attempt procedures that you are not comfortable with, or do not have the necessary tools, experience, or knowledge for – take the unit to an authorised service centre or qualified technician for servicing.

IMPORTANT! Maintenance procedures that are not reported in this manual must only be carried out by a qualified technician or service centre. Only use ORIGINAL SPARE PARTS.

Starting Failure

Trouble Causes Remedies
Sparking (no spark)	Spark plug	Spark plug is fouled/wet Clean and dry
		Carbon deposit in the spark plug	Clean
		The plug gap is too big or too small	Adjust gap at 0.6~0.7mm
		The electrode burned Replace
		The insulation damaged Replace
	Magneto	wire damaged or broken Tighten or replace
		The insulation of coil is bad Replace
		The gap between stator and rotor is too big	Adjust gap at 0.4mm
The sparking plug works normally	Compression is fine and fuelling normally	The fuel suck in excess Reduce the fuel
		Fuel is bad /dirty or mixed with water	Replace
	Fuelling well but compression bad	Cylinder and piston ring worn Replace
	Carburettor not fuelled	No fuel in the tank Fill the tank
		Fuel cock is not open Open it
		The valve of the fuel tank cap clogged	Clean

Lack of Power

Trouble Causes Remedies
The compression is fine and has spark	Fuel tube has sucked in air	Tighten it
	Connection of carburettor has sucked in air	Change the gasket or tighten it
	Fuel mixed with water Change the fuel
	Filter plate clogged Clean
	Carbon is clogging the muffler, cylinder	Clean
Engine overheats	Fuel is too thin	Adjust the carburettor
	Cylinder covered with carbon Clean
Engine noisy or knocking	Bad Fuel Replace
	Combustion chamber covered with carbon	Clean
	Running parts are worn	Check and replace

Engine stops while running

Trouble	Cause	Remedies
Engine stops suddenly	Piston jammed	Repair or replace
	Carbon deposit in the spark plug and short circuited	Clean
	Magneto damaged	Replace or repair
The engine stops slowly	Lack of fuel	Fill the tank
	Carburettor clogged	Clean
	Water in fuel	Refill with fresh fuel

Engine hard to stop

Trouble	Cause	Remedies
Engine	Cylinder and piston overheat conducing to self-ignition	Clean carbon
Correlative circuit	Plug pole overheats	Clean the plug and check the gap
	Stop button is faulty	Check and remedy

Others

Trouble	Cause	Remedies
Engine works but bit does not turn	Clutch damaged	Replace
	Interference fit failure between gear shaft and output shaft	Replace the relative part
Knocking sound in gearbox	Gear worn	Replace the relative part
	Bad lubrication	Clean and grease
	Impurity in the gearbox	Clean and grease

Specifications

Engine Displacement 52cc

Power 2.5hp

Torque 80Nm

Fuel Tank Capacity: 1L

Mixed fuel ratio 25:1

Fuel Type

Petrol Regular Unleaded 95+ RON

Max Power 2.5hp

Reduction Ratio 40:1

Auger Bit 200mm x 800mm

Extension Shaft 600mm

Auger mount shaft

3/4"

Some experts believe that the incorrect or prolonged use of almost any product may cause serious injury or death. To help reduce your risk of serious injury or death, refer to the information below. For more information, see www.datastreamserver.com/safety

• Consult all documentation, packaging, and product labelling before use. Note that some products feature documentation available online. It is recommended to print and retain the documentation.
  ■ Before each use, check the product for loose/broken/damaged/missing parts, wear, or leaks (if applicable). Never use a product with loose/broken/damaged/missing parts, wear, or leaks.
  ■ Products must be inspected and serviced (if applicable) by a qualified technician every 6 months. This is based on average residential use by persons of average size and strength, and on a property of average metropolitan size. Use beyond these recommendations may require more frequent inspections/servicing.
  ■ Ensure that all users of the product have completed a suitable industry recognised training course before being allowed access to the product.

The product has been supplied by a general merchandise retailer that may not be familiar with your specific application or description of application. Be sure to attain third-party approval from a qualified specialist for your application before use, regardless of any assurances from the retailer or its representatives.
This product is not intended for use where fail-safe operation is required. As with any product (for example, automobile, computer, toaster), there is the possibility of technical issues that may require the repair or replacement of parts, or the product itself. If the possibility of such failure and the associated time it may take to rectify could in any way inconvenience the user, business, or employee, or financially affect the user, business, or employee, then the product is not suitable for your requirements. This product is not intended for use where incorrect operation or a failure of any kind, including but not limited to, a condition requiring product return, replacement, parts replacement, or service by a technician may cause financial loss, loss of employee time or an inconvenience requiring compensation.
If this product has been purchased in error when considering the information presented here, contact the retailer directly for details of their returns policy, if required.

edisons

.com.au

©2023 Baumr-AG. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams, or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning, or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
