Product Type	Post Driver (Gasoline Powered)
Brand	Baumr-AG
Model	HP420
Engine Type	OHC 4-Stroke Petrol
Displacement	40 cc
Max Torque / Speed	1.67 Nm @ 5500 RPM
Impact Frequency	2300 BPM
Impact Force	35 J
Clutch Type	Centrifugal
Fuel Capacity	0.65 L
Fuel Type	Unleaded Petrol 95+ RON
Starting System	Hand Pull Start
Sleeve Heads Included	20-45 mm, 55 mm, 80 mm
Engine Oil Type	SAE 10W-30 (API SE/SF/SG)
Engine Oil Capacity	Approx. 60 mL (residual) – fill to bottom edge of filler
Spark Plug Gap	0.5 – 0.7 mm
Operation Temperature Range	-15°C to 40°C
Intended Use	Driving star pickets and hollow metal posts into soil (domestic use)
Maintenance	Regular oil changes, air filter cleaning, spark plug check, fuel system cleaning
Safety Features	Throttle lock, kill switch, safety labels, engine shutdown if oil low
Storage	Store upright, in a dry well-ventilated area; drain fuel for long-term

Frequently Asked Questions - HP420 Baumr-AG

What type of fuel does the HP420 post driver use?

The HP420 uses regular unleaded petrol with a minimum octane rating of 95 RON. Do not use ethanol blends or old/contaminated fuel.

Does the HP420 come with engine oil?

No, the engine is shipped without oil. You must add SAE 10W-30 engine oil (API SE/SF/SG) before first use. Failure to do so will void the warranty.

How do I start the HP420 post driver?

First, press the fuel primer bulb until resistance is felt. Then, set the choke to closed if the engine is cold. Pull the starter handle quickly (over 50 cm). Once started, open the choke and let it idle for 5 minutes before use.

What maintenance is required after the first 5 hours?

After the first 5 hours, you should replace the engine oil. Then, continue with regular oil changes every 50 hours or 6 months.

Can I use the post driver indoors?

Absolutely not. The engine produces carbon monoxide, a deadly gas. Only use outdoors, far from windows, doors, and vents. Never use in enclosed spaces.

What should I do if the engine won't start?

Check the spark plug for moisture or carbon deposits. Ensure the fuel filter and carburetor are clean. Also verify that the fuel tank has fresh petrol and that the primer bulb is filled.

How do I store the post driver for long periods?

Drain the fuel tank and run the engine until it stops. Remove the spark plug, add 5 ml of clean oil into the cylinder, and pull the starter slowly to distribute. Reinstall the plug and store the unit upright in a dry place.

What safety gear should I wear while operating?

Always wear approved safety goggles, hearing protection, a hard hat, heavy-duty gloves, and non-slip footwear. Avoid loose clothing and tie back long hair.

How often should I replace the air filter?

Check the air filter before each use. Clean it with warm water and mild detergent if dirty. Replace it if damaged or every 25 hours of use, more frequently in dusty conditions.

What is the break-in period for a new post driver?

For the first 20 hours, use only low to medium throttle. Avoid maximum speed to extend the service life of the engine.

USER MANUAL HP420 Baumr-AG

[Revision 4.0 December 2023]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description, and packaging.

The product is NOT supplied with engine oil, although traces of oil from the manufacturing process may be present. It is essential to add adequate engine oil of the correct type to the engine before use. Failure to add engine oil will void the product warranty.

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or SERIOUSLY INJURED if you do not follow instructions.

It is vital that you read and understand this user manual before using the product, including safety warnings, and any assembly and operating instructions. Keep the manual for future reference.

Safety precautions and recommendations detailed here must be fully understood and followed to reduce the risk of injury, fire, explosion, electrical hazard, and/or property damage.

Safety information presented here is generic in nature – some advice may not be applicable to every product. The term "equipment" refers to the product, be it electrical mains powered, battery powered or combustion engine powered.

• Before Use - If you are not familiar with the safe operation/handling of the equipment or are in any way unsure of any aspect of suitability or correct use for your application, you should complete training conducted by a person or organization qualified in safe use and operation of this equipment, including fuel/electrical handling and safety.
• Do NOT operate the equipment in flammable or explosive environments, such as in the presence of flammable liquids, gases, or dust. The equipment may create sparks or heat that may ignite flammable substances.
• Keep clear of moving parts.
• Equipment may be a potential source of electric shock or injury if misused.
• Do NOT operate the equipment if it is damaged, malfunctioning or is in an excessively worn state.
• Do NOT allow others to use the equipment unless they have read this manual and are adequately trained.
• Keep packaging away from children - risk of suffocation! Operators must use the equipment correctly. When using the equipment, consider conditions and pay due care to persons and property.

General Work Area Safety

• Work areas should be clean and well it.
- Do not operate the equipment if bystanders, animals etc are within operating range of the equipment or the general work area.
- If devices are provided for connecting dust extraction / collection facilities, ensure these are connected and used properly. Dust collection can reduce dust-related hazards.

You CAN be KILLED or SERIOUSLY INJURED if you do not follow instructions.

General Personal Safety

• Wear appropriate protective equipment when operating, servicing, or when in the operating area of the equipment to help protect from eye and ear injury, poisoning, burns, cutting and crush injuries. Protective equipment such as safety goggles, respirators, non-slip safety footwear, hard hat, hearing protection etc should be used for appropriate equipment / conditions. Other people nearby should also wear appropriate personal protective equipment. Do not wear loose clothing or jewellery, which can be caught in moving parts. Keep hair and clothing away from the equipment.
• Stay alert and use common sense when operating the equipment. Do not overreach. Always maintain secure footing and balance.
• Do not use the equipment if tired or under the influence of drugs, alcohol, or medication.
• This equipment is not intended for use by persons with reduced physical, sensory, or mental capabilities.

General Fuel Safety

• Petrol/fuel/petrol is extremely flammable – keep clear of naked flames or other ignition sources.
• Do not spill fuel. If you spill fuel, wipe it off the equipment immediately – if fuel gets on your clothing, change clothing.
• Do NOT smoke near fuel or when refuelling.
  • Always shut off the engine before refuelling.
• Do NOT refuel a hot engine.
• Open the fuel cap carefully to allow any pressure build-up in the tank to release slowly.
  • Always refuel in well ventilated areas.
• Always check for fuel leakage. If fuel leakage is found, do not start, or run the engine until all leaks are fixed.

General Carbon-Monoxide Safety

• Using a combustion engine indoors CAN KILL IN MINUTES. Engine exhaust contains carbon-monoxide – a poison you cannot smell or see.
• Use combustion engines OUTSIDE only, and far away from windows, doors, and vents.

You CAN be INJURED if you do not follow instructions or equipment damage may occur.

General Equipment Use and Care

• The equipment is designed for domestic use only.
• Handle the equipment safely and carefully.
• Before use, inspect the equipment for misalignment or binding of moving parts, loose components, damage, or any other condition that may affect its operation. If damaged, have the equipment repaired by an authorised service centre or technician before use.
• Prevent unintentional starting of the equipment - ensure equipment and power switches are in the OFF position before connecting or moving equipment. Do not carry equipment with hands or fingers touching any controls. Remove any tools or other items that are not a part of the equipment from it before starting or switching on.
• Do not force the equipment. Use the correct equipment for your application. Equipment will perform better and be safer when used within its design and usage parameters.
• Use the equipment and accessories etc. in accordance with these instructions, considering working conditions and the work to be performed. Using the equipment for operations different from those intended could result in hazardous situations.
• Always keep equipment components (engines, hoses, handles, controls, frames, housings, guards etc) and accessories (cutting tools, nozzles, bits etc) properly maintained. Keep the equipment clean and, where applicable, properly lubricated.
• Store the equipment out of reach of children or untrained persons. To avoid burns or fire hazards, let the equipment cool completely before transporting or storing. Never place or store the equipment near flammable materials, combustible gases, or liquids etc.
• The equipment is not weather-proof, and should not be stored in direct sunlight, at high ambient temperatures or locations that are damp or humid.
• Do not clean equipment with solvents, flammable liquids, or harsh abrasives.
• For specific equipment safety use and care, see Equipment Safety.

General Electrical Safety

• Inspect electrical equipment, extension cords, power bars, and electrical fittings for damage or wear before each use. Repair or replace damaged equipment immediately.
• Ensure all power sources conform to equipment voltage requirements and are disconnected before connecting or disconnecting equipment.
• When wiring electrically powered equipment, follow all electrical and safety codes.
• Wherever possible, use a residual current device (RCD).
• High voltage / high current power lines may be present. Use extreme caution to avoid contact or interference with power lines. Electrical shock can be fatal.

General Electrical Safety

• Electrically grounded equipment must have an approved cord and plug and be connected to a grounded electrical outlet.
• Do NOT bypass the ON/OFF switch and operate equipment by connecting and disconnecting the electrical cord.
• Do NOT use equipment that has exposed wiring, damaged switches, covers or guards.
• Do NOT use electrical equipment in wet conditions or in damp locations.
• Do NOT use electrical cords to lift, move or carry equipment.
• Do NOT coil or knot electrical cords, and ensure electrical cords are not trip hazards.

General Service Information

• The equipment must be serviced or repaired at authorised service centres by qualified personnel only.
• Replacement parts must be original equipment manufacturer (OEM) to ensure equipment safety is maintained.
• Do NOT attempt any maintenance or repair work not described in this manual.
• After use, the equipment and components may still be hot – allow the equipment to cool and disconnect spark plugs and/or electrical power sources and/or batteries from it before adjusting, changing accessories, or performing repair or maintenance.
• Do NOT adjust while the equipment is running.
• Perform service-related activities in suitable conditions, such as a workshop.
• Replace worn, damaged or missing warning/safety labels immediately.

Child Choking Hazard!

- WARNING: CHOKING HAZARD - CHILDREN UNDER 8 YRS. CAN CHOKE OR SUFFOCATE ON SMALL PARTS. ADULT SUPERVISION REQUIRED.

- Carefully inspect anything a baby or child could gain access to, including this product & packaging.

- Dangers include anything of a size that could become stuck or lodged in a baby or child's airway.

• Dangers include things like raw, hard fruit and vegetable pieces, large pieces of meat, bones or sausage skins, popcorn, nuts,

hard lollies and corn chips, small magnets and batteries, coins, beads, marbles and small uninflated balloons, broken toys and smaller toys, buttons, keys and coins. But there are also many more.

• Pay particular attention to accessories, nuts, bolts, screws, washers, caps, covers, loose parts, parts that could be removed or break off, pieces of packaging, staples, tape etc.
• In the case of any doubt, secure the item of concern in an appropriate manner, or completely remove the possibility of access by a baby or child.

Post Driver Safety

POST DRIVERS ARE HIGH-SPEED, IMPACT EQUIPMENT THAT CAN CAUSE SERIOUS OR FATAL INJURY IF NOT USED CORRECTLY OR WITHOUT TAKING PROPER SAFETY PRECAUTIONS. IT IS EXTREMELY IMPORTANT THAT YOU READ AND FULLY UNDERSTAND THE INFORMATION IN THIS SECTION AND ALL OTHER SAFETY WARNINGS / RECOMMENDATIONS AND USAGE INSTRUCTIONS BEFORE USING THE EQUIPMENT.

Operator

• If you are untrained in the use of a post driver or a particular accessory, it is highly recommended that you be trained/instructed by a suitably qualified or experienced user before using the machine.
• You must be in good physical condition to use a post driver. NEVER operate the machine when tired, or under the influence of any substance (medication, alcohol, drugs etc) that may impair your judgement, alertness, physical strength, vision or dexterity.
• Maintain sure-footing and balance always when using or handling the machine and have full awareness of your surroundings and any possible hazards.
• Prolonged use may lead to health complications, such as carpal tunnel syndrome, due to vibration. To help reduce the possibility of such conditions, wear gloves, take breaks frequently, keep fingers and hands warm, and maintain the equipment for optimal operation and minimal vibration. It is recommended to seek medical advice if you feel numbness or burning sensations in fingers/hands.

Clothing and Protective Equipment – All Operators and Assistants

• Wear approved safety goggles, or safety glasses with adequate top and side protection. In addition to eye protection, wearing a full-face shield is highly recommended.
• Wear suitable hearing protection.
• Wear an approved safety hard-hat.
• Wear heavy-duty, non-slip leather or protective gloves.
• Wear suitable overalls or work clothing that fits snugly but does not restrict movement. Avoid loose fitting clothing, scarves, jewellery etc and keep long hair contained to avoid getting caught or pulled by the chainsaw or by tree branches etc.

Work Area Safety

• Use EXTREME CAUTION to avoid power cables – contact can be fatal. Also be aware of plumbing, water and gas pipes etc. If in any doubt, do NOT dig – contact the appropriate organisation or authority for information before digging.
• Inspect the work area and remove any objects that may obstruct posts.
• Be aware of fire risks resulting from machine use. Ensure that the machine exhaust and spark arrestor (if equipped) is well maintained, and that engine is tuned correctly.
• Refuel outdoors only. Avoid fuel spillage. Start the machine at least 3m (10') away from the fuelling location.

Operational Safety

• Do NOT use the machine if the throttle or any safety guard or mechanism is not installed or is not operating correctly – have the machine inspected and repaired at an authorised service centre before using it again.
  • Always hold the machine firmly with both hands during operation. Always use the machine handles.
• Use CAUTION when using the machine on sloping surfaces.
• Do NOT use any attachment that is cracked or damaged in any way – replace it.
• Ensure the piling socket is not obstructed before post driving.
• Do NOT use the equipment for purposes it is not designed for, such as breaking concrete.
• Do not attach the machine to fixed supports.

Transportation Safety

• Always STOP the engine before transporting or working on it (refuelling, adjusting etc).
- When transporting the machine in a vehicle, ensure the engine is OFF, the tillers and digging attachments are disconnected, and the machine is secured in an upright position to prevent tip-over, machine damage or fuel spills.

DANGER

Using an engine or wood/charcoal/gas fuelled appliance indoors CAN KILL YOU IN MINUTES. Engine exhaust and wood/charcoal/gas fumes contain carbon monoxide. This is a poison you cannot see or smell.

NEVER use inside a building, home, garage, boat, caravan or tent EVEN IF doors and windows are open.

Only use OUTSIDE and far away from windows, doors, and vents.

Avoid other hazards - READ MANUAL BEFORE USE.

GENERAL:

- Do not operate in a hazardous location. Such areas include where there is a risk of explosion of petrol fumes, leaking gas or explosive dusts.

- Do not operate in a confined area where exhaust gases or wood/charcoal/gas fumes could reach dangerous concentrations.

PRODUCTS FEATURING AN ENGINE

• Follow all warnings in the section titled "GENERAL".
• Explosion hazard - never smoke while refuelling.
  • Take care not to spill fuel. When refuelling the engine, ensure that the engine has been allowed to cool. Prevent spilling of fuel as this may also ignite with a hot engine.
• Never refuel while engine is running.

GENERATORS

• Follow all warnings in the sections titled "GENERAL" and "PRODUCTS FEATURING AN ENGINE".
• The output of this generator is potentially lethal. The generator should not be connected to a fixed electrical installation except by an appropriately licensed person.
• Not weatherproof – protect your machine. This machine is not weatherproof and should not be exposed to direct sunlight, high ambient temperature, damp conditions, wet conditions or high humidity conditions.

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your product and their meanings. If any stickers become unreadable, unattached etc., replace them.

Flammable Material HazardFlammable liquids, gases, or substances etc may present.Avoid ignition sources and open flames. Danger of fire.	Read User ManualRead and fully understand product safety warnings, operation, procedures etc before using the product.	Use Hand ProtectionWear appropriate hand protection and take due care as the product or use of the product may present hand hazards.	Exhaust TumesCarbon-Monoxide HazardDo not use the product in confined areas or without adequate ventilation. Carbon-monoxide poisoning can be fatal.
Electrocution / Electrical Shock HazardHigh voltage or high current electricity may be present or required by the product. Take due care when handling electrical products, cables, plugs and leads. Electrical shock can be fatal.	Toxic Fumes / Dust HazardUsing the product or by-products from use may produce fumes, smoke or particles that could be harmful if inhaled. Wear appropriate breathing protection and have adequate ventilation.	Explosive Material HazardCombustible liquids, gases, or substances etc may be present.Avoid ignition sources and open flames. Danger of explosion.	Cutting / Amputation HazardThe product may have blades, edges or mechanical devices that can cause severe cut injury to fingers, limbs etc. Take due care when handling and using the product.
Crush HazardThe product may have blades, edges or mechanical devices that can cause severe crush injury to fingers, limbs etc. Take due care when handling and using the product.	Single Operator OnlyThe product must be operated by a single person only. More than one person operating the product may introduce additional hazards.	Use Face ProtectionWear appropriate full-face protection and take due care as the product or use of the product may present face and eye hazards.	Use Foot ProtectionWear appropriate foot protection and take due care as the product or use of the product may present foot hazards.
Use Eye / Ear / Head ProtectionWear appropriate eye and / or ear and / or head protection and take due care as the product or use of the product may present eye, hearing, and head hazards.	Running HazardDo not run on or near the product as doing so may present a fall hazard.	Diving HazardDo not dive into the product as doing so may present a neck / head injury hazard.	Adult Supervision RequiredAlways supervise children and other users of a product to prevent drowning or injury.
Skin Penetration / Puncture HazardThe product may produce pressure, emit liquids or objects that can cause severe injury to fingers, limbs, blood etc. Take due care when handling and using the product.	Hot Surface HazardBe aware that the product may produce high temperatures and hot surfaces that can cause burn injuries.	Flying Debris HazardBe aware that the product or use of the product may present hazards produced by flying debris. Wear appropriate clothing and protective devices.	Moving Parts HazardBe aware that the product contains or uses mechanical devices that move or rotate. Always wait for moving parts to stop fully before handling the product, adjusting, maintenance etc.
Carbon-Monoxide HazardDo not use the product in confined areas or without adequate ventilation. Carbon-monoxide poisoning can be fatal.	Pull HazardBe aware that the product contains or uses mechanical devices that can pull in objects and can cause severe injury to fingers, limbs etc. Take due care when handling and using the product.	Slope / Fall Injury HazardBe aware that using the product on sloping surfaces or in slippery conditions may present additional dangers from falls and contact with blades, moving parts, hot surfaces etc.	"Slam Dunk" WarningDo NOT attempt "slam dunk" manoeuvres as this may result in severe injury due to falling, product breakage or collapse etc.
Electrocution / Electrical Shock Hazard - OutdoorHigh voltage or high current electricity may be present or required by the product. Do NOT use in rain, damp, or wet conditions. Electrical shock can be fatal.	Electrocution / Electrical Shock Hazard - DisconnectHigh voltage or high current electricity may be present or required by the product. Always disconnect the product from the electrical supply before handling the product, adjusting, maintenance etc.	Power Line Electrocution HazardHigh voltage / high current power lines may be present. Use extreme caution to avoid contact or interference with power lines. Electrical shock can be fatal.	"Kick-Back" HazardHigh level of "kick-back" hazard that can cause the machine to suddenly rotate towards operator. Kick-back injury can be fatal.
Winch Operator Position HazardDo NOT stand between winch and load. Do NOT use winch to move people.	Winch Lift HazardDo NOT LIFT load vertically. Use machine to PULL only.	Cable HazardEnsure that load bearing cable is not kinked or knotted.	Winch Cable HazardEnsure that there is a minimum number of cable coils on winching mechanism.
Winch Hook HazardCarry hook to load – do NOT throw or run.	Flash / Blinding HazardWear appropriate eye protection for welding. Direct exposure to weld arcs may cause permanent eye injury.	Laser HazardLaser may be in use – do NOT look directly at laser or allow others to.	Choking HazardChildren under 8 yrs. Can choke or suffocate on small parts. Adult supervision required.

Table of Contents

Safety 2

Safety Symbols....5

Parts Identification ....8

Before Use Checklist....9

Air Filter 9

Fuel....9

Priming the Fuel System 9

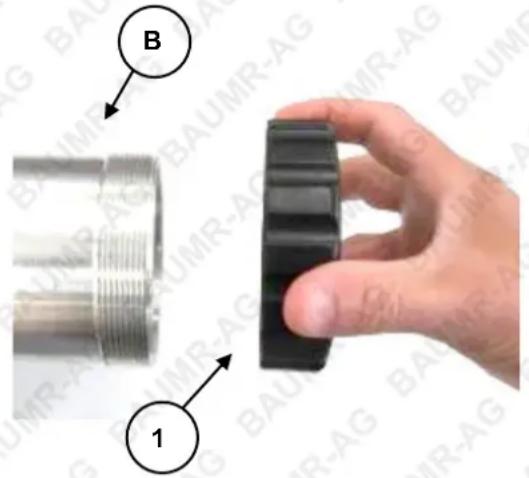

Attaching the Piling Socket Adaptor....10

Assembly....11

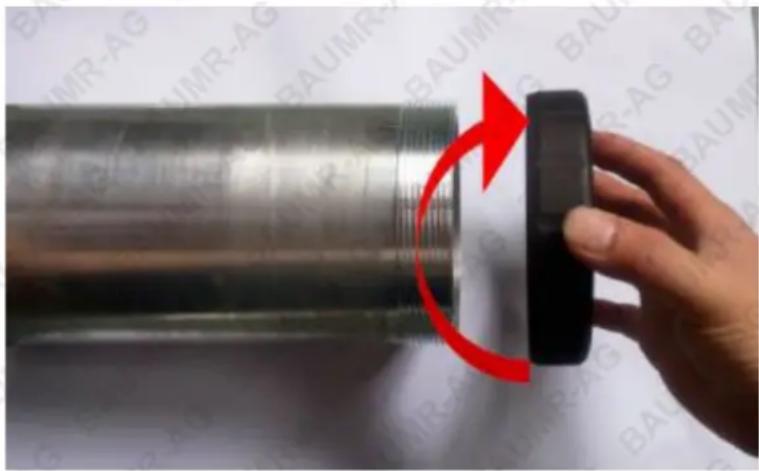

Piling socket....11

Adding Fuel....11

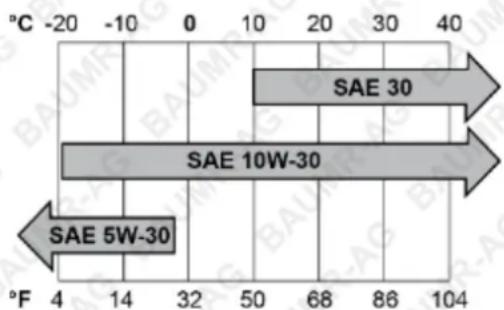

Environmental Considerations....11

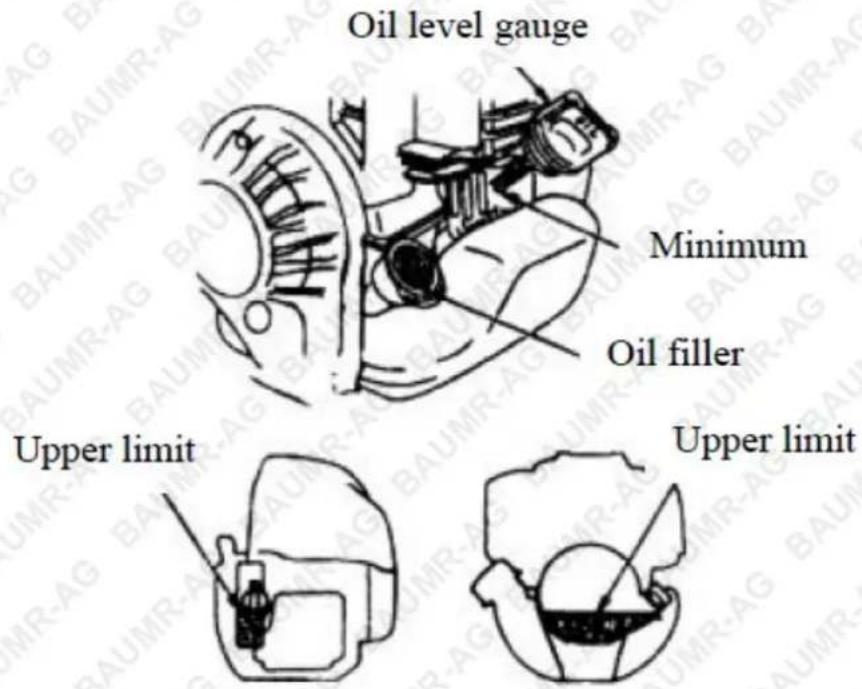

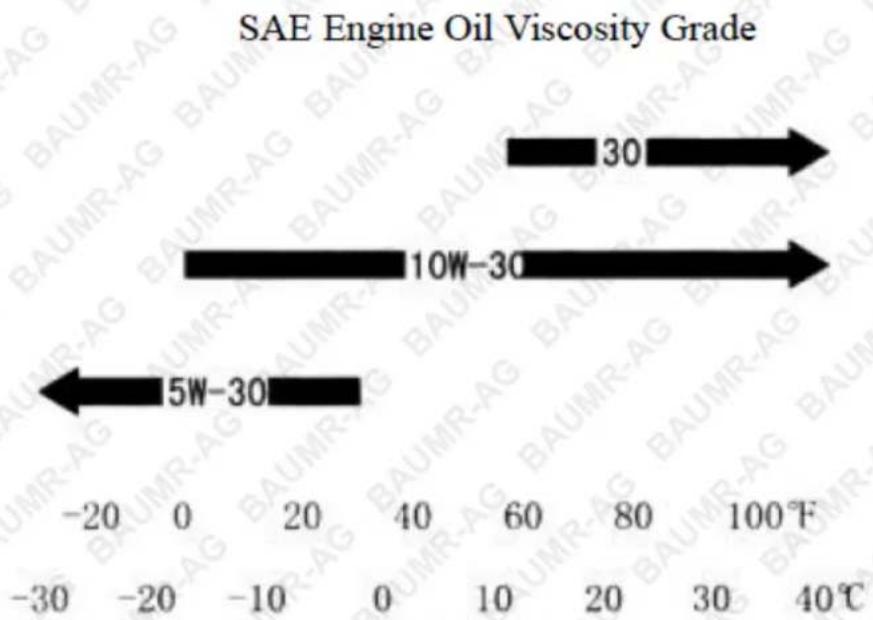

Check the Supply of Engine Oil....12

Checking the Air Filter 13

Operation....14

Starting the Engine....14

Operating the Post Driver....14

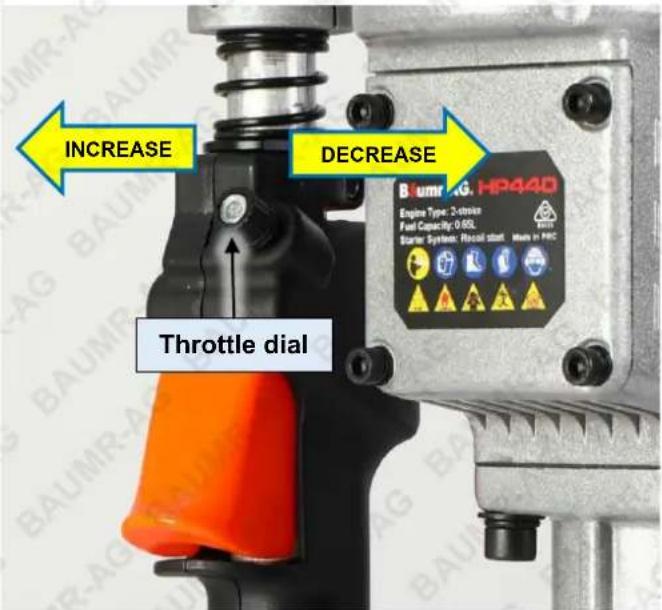

Throttle Control/Dial....15

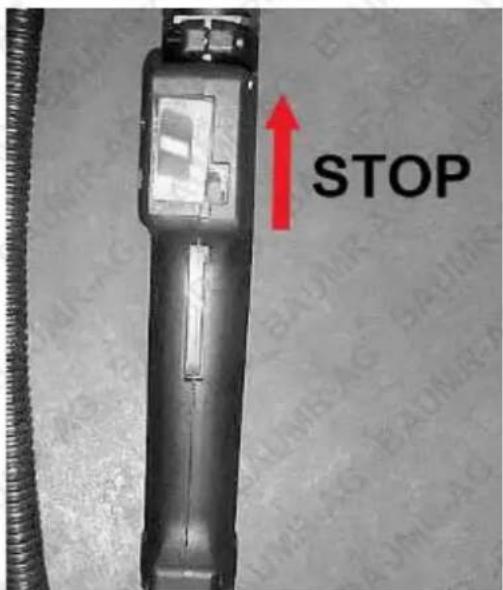

Turning OFF the Post Driver 16

Maintenance....17

Maintenance Schedule – 4-Stroke Engine / Machine ....18

Air Filter 19

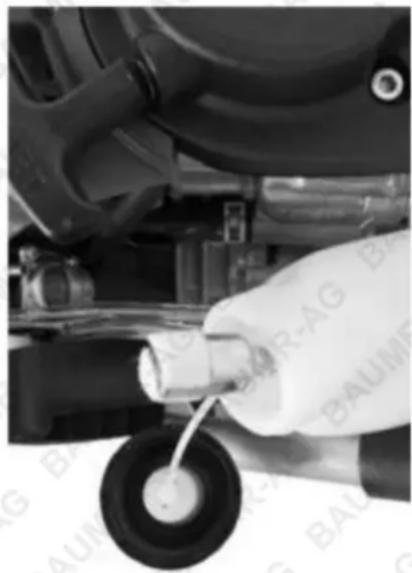

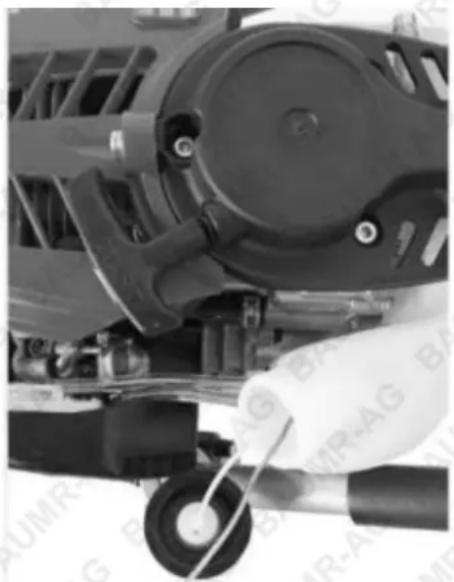

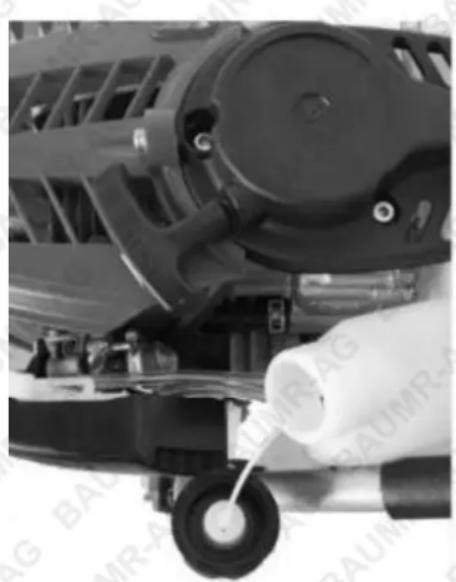

Fuel Filter....19

Carburettor....19

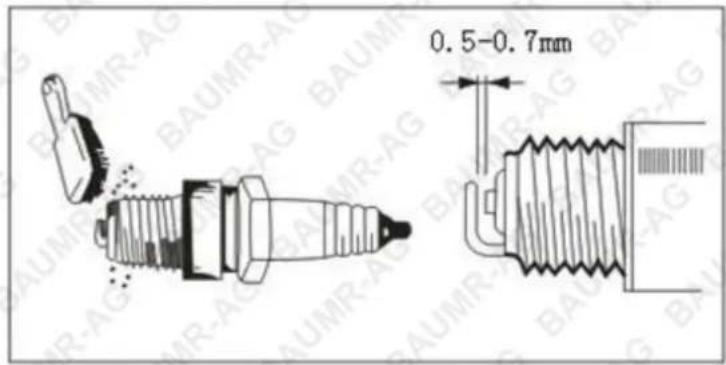

Spark Plug 19

Muffler....20

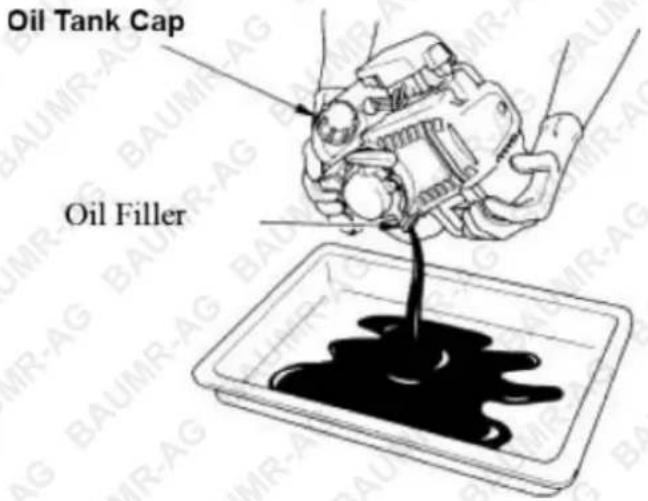

Engine Oil Replacement....20

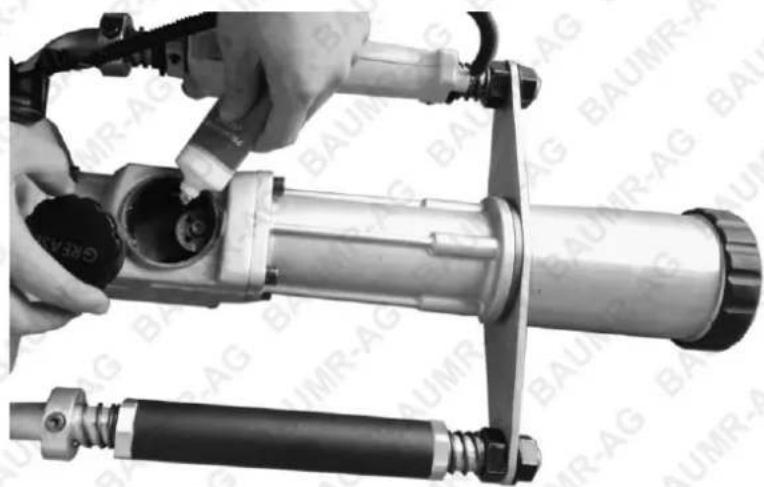

Filling of Impact Cylinder Lubrication....21

Cleaning Guidelines....21

Maintenance Schedule 22

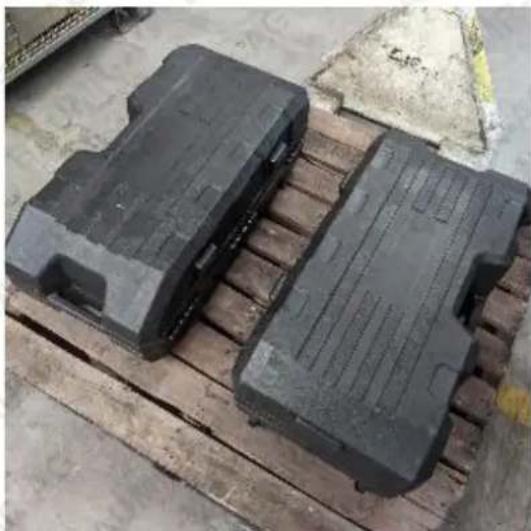

Transportation and Storage....24

Troubleshooting 25

Specifications 27

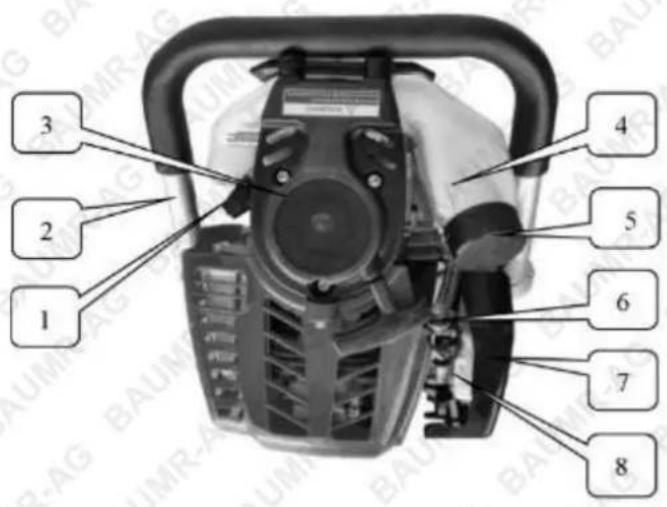

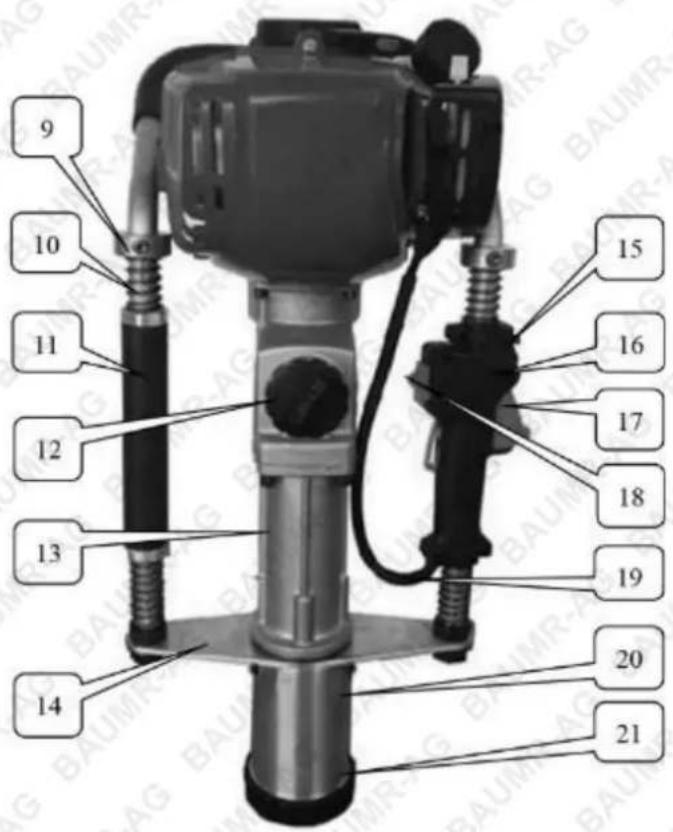

Parts Identification

No.	Name	No.	Name
1	Oil Level Gauge	12	Grease cap
2	Handle Rack	13	Front placket
3	Starter	14	Support plate
4	Fuel tank	15	Throttle lock
5	Fuel tank cap	16	Combination switch
6	Fuel primer bulb	17	Throttle trigger
7	Air filter	18	Kill switch
8	Choke valve rocker arm	19	Throttle cable
9	Positioning sleeve	20	Piling socket
10	Damping spring	21	Piling socket retainer
11	Handle sleeve

Before Use Checklist

Ensure that you carry out all procedures below before starting the engine or operating the equipment. All procedures described are generic in nature and slight variations between different models may exist. Failure to follow the checklist and carry out the procedures correctly may result in making the product warranty void.

Air Filter

The air filter is used to prevent dirt and other particles from possibly entering the engine and causing internal damage to it. The air filter requires regular maintenance.

Always check the air filter before starting the engine.

Fuel

Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames or other ignition sources. • The engine must be cool before refuelling. • Always pre-mix the fuel before

placing it in the fuel tank.

Adequately fill the fuel tank with the correct fuel type.

- Use non-ethanol unleaded petrol (higher RON values will provide best engine performance). Do not use old or contaminated fuel/oil. Fuel/oil mix ratio examples are shown below.

1. Place the machine in a horizontal position on a flat and level surface with the fuel filler cap facing up.
2. Clean the machine around the fuel filler so that no dirt or other material enters the engine when the cap is removed.
3. Remove (rotate left) the fuel filler cap.
4. Using a funnel, carefully fill the tank with fuel. Do not fill above the top of the strainer (if equipped) or otherwise overfill the tank.
5. When finished, reinstall (rotate right) the fuel filler cap until firm. Wipe away any residual fuel from the machine. If fuel has been spilt, move the machine away from the spillage before starting the engine.

Priming the Fuel System

When an engine is new or has been completely run out of fuel it may be necessary to "prime" the fuel system before attempting to start the engine. This means removing any air from the fuel line. To prime:

1. Ensure the fuel tank is filled with fuel.
2. Press the fuel primer bulb repeatedly until you feel resistance or pressure in the bulb – this indicates that it is full of fuel. Fuel will also be visible in the fuel intake tube.

Attaching the Piling Socket Adaptor

Do not use the machine without a piling socket adaptor attached.

Screw the required piling socket adaptor (1) to the thread on the end of the hammer case (B) (rotate right) and firmly tighten by hand.

Assembly

Piling socket

Install or change the piling socket retainer. Select a corresponding retainer according to the sizes of the piling socket (45, 55, 88mm, as shown).

Hand holding a black cylindrical object with red arrow indicating rotation (no visible text or symbols)

Adding Fuel

1. Use unleaded 90# petrol or above.
2. When the petrol engine is stopped, add fuel in well-ventilated areas away from open fires.
3. If the engine has just operated, cool down to room temperature before adding oil.
4. Do not add too much oil. The oil should not exceed the neck of the oil can. If fuel spills, wait until the fuel evaporates completely, or clean it up completely, and then start the machine.
5. Tighten the lid of the fuel tank after refueling.
6. The post driver uses pure petrol as fuel.

Environmental Considerations

Altitude – If the engine is being used in altitudes at or above 1500m (approximately 5000'), adjustments to the carburettor may be required. This is because there is less oxygen in the air as altitude increases, which effectively "enriches" the ratio of fuel to air going into the engine and the higher the altitude, the richer the fuel mixture becomes. If the engine is being permanently operated at high altitude, it is recommended to have an authorized service centre make the necessary carburettor adjustments. If the engine is used occasionally at altitude (not extreme altitudes), no adjustments should be required, however, a slight decrease in engine performance can be expected.

Temperature (4-Stroke Engines) – If the engine is being used in extremely cold or hot environments; for example, desert or snow conditions, the type of engine oil may need to be changed to suit environmental temperatures. Oil thickens as the temperature decreases and thins as temperature increases, which means that if the engine oil is not suited to the temperature its ability to properly lubricate the engine may be affected. Use the chart to determine the correct engine oil.

Check the Supply of Engine Oil

1. To avoid damaging the engine, before starting, it's necessary to check whether the engine oil is adequate and needs replacement; for use of every 10 hours or that the petrol engine has worked continuously for 10 hours, it's necessary to check liquid level of the engine oil and supplement engine oil to the upper limit of the oil tank.
2. The engine should be placed horizontally. Unscrew the oil level gauge and check the oil liquid level as shown. For inadequate oil, add to the upper limit. If oil is too dirty, replace it.

The recommended room temperature of the post driver is -15 to 40°C. Recommend oil type is SAE 10W-30 engine oil which equals to API classification SE, SF, and SG.

Environmental temperature

Checking the Air Filter

1. Take apart the cover of the air filter, and check whether the filter element is clean. If not, clean it first.
2. After checking, re-install the cover of the air filter to its normal position.

Operation

Starting the Engine

1. Before starting the post driver, press the fuel primer bulb repeatedly until the carburettor is filled with fuel. (If the engine is cool, close the choke. Open choke after starting, as shown).
2. Control and operate the handle tightly with one hand while the other one pulls the recoil handle of starter for over 50cm quickly. Do not let the pulling handle go back freely in repeated pulling but hold it tightly to avoid injury.

Close-up of a black automotive seatbelt with a red arrow pointing to the side panel (no text or symbols visible)

Choke ON

Close-up of a black automotive component with a red arrow pointing to a detail (no visible text or symbols)

Choke OFF

1. Start the engine and then open the choke completely. After idle operation of 5 minutes, start your normal work.

2. Do not pull the handle of the starter during operation, since parts rotating with high speed may damage the starter.

Operating the Post Driver

Post drivers are high-speed, impact equipment that can cause serious or fatal injury if not used correctly or without taking proper safety precautions. It is extremely important that you read and fully understand the information in this section and all other safety warnings / recommendations and usage instructions before using the equipment. • Before use, ensure that there are no electrical cables, gas, or water pipes etc. or other buried or unseen hazards in the work area. Contact the applicable utility providers for assistance. • The machine should be operated on ground that is suitable for driving posts. Do not attempt to drive posts into set concrete, rock, tree roots, or other extremely hard surfaces. • Do not use the machine without a piling socket attached.

The machine is used for driving "star pickets" and hollow metal posts etc. into the ground. For example, to erect simple fencing etc. The machine operates by driving a "hammer" against the top of the post many times per second, effectively forcing it into the ground. The machine is designed for manual operation, where the operator both holds and controls it. Note the following:

• Place the post/star picket into the required position before driving it.
• Adjust the throttle, which controls the hammer action, only when ready to begin driving the post.
• Hold the machine as straight as possible when in use to ensure that posts are driven in vertically.

To drive a post:

1. Start the machine and allow it to warm up.
2. Position the post in the required location.
3. Place the machine over the post so that it rests on it.
4. Adjust the throttle for the desired hammering speed.
5. Drive the post into the ground as required – there is no need to push down on the machine.
6. Release the throttle – this disengages the hammer action.
7. Lift the machine from the post.

NOTE: The new post driver should mainly use only low or medium speed for the first 20 hours of operation and the maximum throttle should not be used to extend the service life. Operating speed of the engine should be at medium speed. High-speed operation of post driver during non-piling is not allowed.

Throttle Control/Dial

• Turn the dial to the LEFT to increase the throttle.
- Turn the dial to the RIGHT to decrease the throttle.

Turning OFF the Post Driver

1. Release throttle trigger and carry out idle running for 3-5 minutes.
2. Pull the Stop Switch to the OFF position.

Maintenance

Running combustion engines in confined areas CAN KILL IN MINUTES. Engine exhaust fumes contain carbon-monoxide – a deadly gas that you cannot smell or see. NEVER run a combustion engine in confined areas EVEN IF windows and doors are open. ONLY run combustion engines OUTDOORS and away from doors, windows, and vents. • Petrol / fuel / gasoline is extremely flammable – keep clear of naked flames or other ignition sources. • Do not have the engine running during inspection and maintenance unless specifically required. • The engine should be cool enough to touch before performing maintenance activities. • Some maintenance activities may be beyond the scope of some users. Do NOT attempt procedures that you are not comfortable with, or do not have the necessary tools, experience, or knowledge for – take the unit to an authorised service centre or qualified technician for servicing. • Harsh operating environments such as extreme temperatures, dust etc may necessitate more frequent maintenance. • Failure to follow the maintenance schedule, using incorrect or non-compatible accessories or replacements parts, or general negligence may result in making the product warranty void.

To keep the machine performing at optimal efficiency, regular checks and maintenance is required. The maintenance schedule below specifies preventative maintenance checks and necessary maintenance tasks and how often they should be performed. The schedule applies to multiple engines; some engines may not include some components, so maintenance on those components is not applicable.

Maintenance Schedule – 4-Stroke Engine / Machine

Component / Task	Every Use	After First 5 Hours Use	3 Months / 25 Hours Use	6 Months / 50 Hours Use	12 Months / 100 Hours Use	Major Service – Normal Use24 Months / 200 Hours Use	Major Service – Heavy-Duty UseEvery 200 Hours Use
Engine Oil ****	Check level. Adjust as necessary	Replace
Engine Oil Filter *				Replace
Engine / Machine Fasteners	Check. Tighten as necessary
Air Filter	Check	Clean. Replace as necessary				Replace
Spark Plug			Check	Replace
Spark Arrestor *
Fuel Filter *			Clean. Replace as necessary			Replace
Fuel Strainer *	Check
Float Bowl *				Clean
Fuel Lines / Hoses	Check	Replace as necessary
Fuel Injector *					Check. Clean
Fuel Pump *
Fuel Tank					Flush and clean
Idle Speed					Check. Adjust as necessary
Valve Clearance					Check. Adjust as necessary
Cylinder Head Fasteners						Check. Tighten as necessary
Combustion Chamber					Check. Clean / de-coke as necessary
Battery Electrolyte *		Check level. Adjust as necessary
Major Service						Perform
Cutting Blade / Chain *	Check	Sharpen. Replace as necessary
Water Pump Oil **	Check level. Adjust as necessary					Replace
Hydraulic Fluid ***	Check level. Adjust as necessary				Replace
Drive Belt *	Check tension. Adjust as necessary					Check. Replace as necessary
Gearbox / Joints *				Grease

* Where applicable. ** Pressure washers with non-sealed water pumps. *** Log splitters only.

**** Briggs & Stratton "EXi" engines do NOT require engine oil changes; just ensure that oil level is correct.

Air Filter

Check air filter regularly. Dust and debris blocking the filter element of the air filter will reduce the power of the engine and its service life. If the filter has too much dust and debris deposit, clean it with warm water and a mild detergent, and then wipe dry with a clean dry cloth, and then re-install the air filter. Filter should be replaced if damaged. Particularly if it's in the environment of high dust content, maintenance schedule should be shortened properly.

Fuel Filter

If the fuel filter is blocked, the post driver will have reduced speeds and weaker impact energy.

1. Open the fuel tank cap. Remove the fuel filter from the fuel tank with a metal hook and clean it.
2. When cleaning the fuel filter, clean the fuel tank at the same time.

Close-up of a gloved hand pouring liquid into a mechanical component (no visible text or symbols)

Close-up of a mechanical assembly with visible gears and springs (no text or symbols)

Close-up of a gloved hand holding a small mechanical component, no visible text or symbols

Carburettor

Fuel tank and carburettor generally have residual oil. After some time, the residual oil will become greasy oil, which blocks up the oil line, causing the engine to unable to start. Therefore, when the post driver is not used for more than one week, be sure to completely drain the fuel out.

Pull out the oil inlet pipe, press the fuel primer bulb of the carburettor repeatedly to discharge oil, and press the oil inlet pipe back to its position when fuel in primer bulb and oil return pipe is emptied.

Spark Plug

To ensure normal operation of the engine, spark plug gap must be adequate. Remove any carbon sediments with a wire brush. Proper gap of spark plug is between 0.5 to 0.7mm.

Muffler

1. Regularly remove dirt on the inlet and outlet of the muffler, or clean dirt in it with a mild detergent.
2. Regularly remove dust to ensure the cylinder is cooled properly. The post driver is an air-cooling type. If dust accumulates on the cylinder cooling fin, the cooling effect will be influenced directly, which will lead to failure of the cylinder.

Engine Oil Replacement

Engines are NOT supplied with engine oil, although traces of oil from the manufacturing process may be present. It is essential to add adequate engine oil of the correct type to the engine before use. Failure to add engine oil will void the product warranty. • Always check engine oil level when the machine is in an upright position on a flat and level surface. • Do not use used or contaminated engine oils. • Use only engine oils of the correct type. • Perform the first oil change within the first 10 hours of use. Subsequently, change the oil every 20 hours of use. • It is recommended that the engine be warm, but not hot, when performing oil changes. When the oil is warm it drains faster. • Using dirty or incorrect engine oil may cause engine damage and void any warranty • Always use suitable tools. • Always dispose of used oil in an environmentally responsible manner and according to regulations. • Some engines feature oil level detection, which will prevent the engine being started or automatically stop a running engine if there is insufficient oil. • Always check the oil level and ensure is at or near the "MAX" indicator before using the machine.

1. Inadequate cleanliness of the engine oil will lower the service life of the moving parts of the post driver. Replace the engine oil regularly and keep adequate amount of engine oil in the post driver.
2. Engine oil replacement cycle: replace engine oil after 10 hours in case of first use, and then replace engine oil every 6 months or after operating for 50 hours.
3. Dispose the oil when heating the post driver to ensure quick and thorough oil drainage.
4. Engine oil replacement steps:

a. Make sure the oil tank cap is tightened.
b. Put a proper container beside the post driver to hold the waste engine oil.
c. Dismount the oil level gauge, lean the engine towards the oil filler and dump the engine oil into the container, as shown.

d. Place the post driver horizontally and add the recommended engine oil to the bottom edge of the oil filler.
e. There is still some residual engine oil after oil drainage. Add new engine oil after the residual oil is below 60mL. Add oil slowly to the bottom edge of the oil filler.

1. The recommended environmental temperature of the machine is -15 to 40°C. Recommend oil type is SAE 10W-30 engine oil which equals to API classification SE, SF, and SG.

Filling of Impact Cylinder Lubrication

After working for an accumulated 50 hours, fill special lubrication of 50g for the impact cylinder.

Close-up of hands operating a cylindrical mechanical device with hoses and fittings (no visible text or symbols)

Cleaning Guidelines

Do not use solvents, chemicals or abrasives when cleaning the machine, as some surfaces may be damaged. • Wear gloves or use suitable tools to assist in cleaning – do not use bare hands. • Clean the machine after every use to ensure best performance and longest service life.

• Use a slightly damp cloth and mild detergent for cleaning.
• Use a brush for parts that are difficult to reach.
- Ensure air vents and surfaces designed for heat dissipation are clean and free of obstructions or debris.
- Ensure all guards and safety devices are clean and functioning correctly.

• Ensure that spring-loaded parts, such as the throttle, return to the normal position when released.
• Ensure that all control cables, levers, switches etc are clean and operate normally and smoothly.

Maintenance Schedule

The following data are given common use of the product. Suppose it is in worse working condition, such as thick dust in the air or much longer work hours for product, the maintenance schedule should be shortened correspondingly.		Before work	After work or everyday	After filling with oil	Every week	Every month	Temporary Failure	If necessary
The whole post driver	Check (overall condition, stabilities of screws)	√		√
	Cleaning		√
Control handle/stop button	Function check	√		√
Air Filter	Clean				√			√
	Replace						√
Fuel Filter	Check					√
	Replace						√
Petrol Tank / Petrol Tank cover	Clean		√	√
	Check	√		√
	Tighten							√
Reduction gearbox / Impact cylinder	Clean					√
	Add grease							√
Muffler	Check					√
	Remove carbon deposit							√
Cylinder Cooling Fin	Check					√
	Clean							√
Spark Plug	Check/Adjust Customize the distance between electrodes					√
	Replace							√
Screw and Nut	Check	√		√
	Tighten							√

Transportation and Storage

Always ensure that the machine is cool enough to touch before transporting or storing. • Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames

or other ignition sources. • Always transport the machine with the engine ON / OFF switch (if equipped) in the "OFF" position. • Drain the fuel tank before transportation or storage.

Preparing for Transport and Storage

• Drain the fuel system by allowing the engine to run until it stops.
• Ensure the engine ON/OFF switch (if equipped) is in the "OFF" position.
• Avoid exposing the equipment to direct sunlight, particularly during transportation.
• Ensure the equipment is secure and upright during transport.
• Store the unit in a dry, well-ventilated area and out of the reach of children.

Long Term Storage

Follow the normal procedures for storage, then:

• Drain the fuel system. It is advised to have the fuel tank as empty as possible before draining.
  a. Unscrew (rotate left) the carburettor drain plug. Use a suitable container to catch the draining fuel and allow the fuel to drain. Store the drained fuel in a properly sealed container.
  b. Re-install (rotate right) the carburettor drain plug and tighten.
• Remove the spark plug and put 5ml of clean engine oil into the cylinder. Pull the starter cord slowly to distribute the oil. Re-install the spark plug.
  • Cover the equipment to protect it.

Two black industrial concrete blocks placed on wooden pallets, no visible text or markings

IMPORTANT! Post hole digger needs to be stored in its box, on its side as shown in the image above, if you store it in a different position or angle, oil may leak from the unit.

Troubleshooting

Running combustion engines in confined areas CAN KILL IN MINUTES. Engine exhaust fumes contain carbon-monoxide – a deadly gas that you cannot smell or see. NEVER run a combustion engine in confined areas EVEN IF windows and doors are open. ONLY run combustion engines OUTDOORS and away from doors, windows, and vents. • Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames or other ignition sources. • Products with 4-stroke

engines are NOT supplied with engine oil, although traces of oil from the manufacturing process may be present. It is essential to add adequate engine oil of the correct type to the engine before use. Failure to add engine oil will void the product warranty. • Do not have the engine running during inspection and maintenance unless specifically required. • The engine should be cool enough to touch before performing maintenance activities. • Some maintenance activities may be beyond the scope of some users. Do NOT attempt procedures that you are not comfortable with, or do not have the necessary tools, experience, or knowledge for – take the unit to an authorised service centre or qualified technician for servicing.

The following information may assist in identifying a problem and rectifying it.

Difficulties in starting engine in cooled state

Check if the spark plug is moist or wet	Carefully dry out the spark plug
↓
Check if the spark plug produces any electric sparks	Replace the igniter plug
↓
Too much fuel absorbed	Reduced fuel supply

Difficulties in restarting engine after stopping suddenly

Check if fuel is used up or the carburettor is blocked	Refill the fuel tank or clean the carburettor
↓
Check if the fuel filter is blocked	Clean the fuel filter
↓
Too much carbon deposit in the spark plug	Remove carbon deposit from the spark plug and clean the filter element

Slow speed and weakness in power

Carbon deposit blocking the entrance of the cylinder or silencer	Remove carbon deposit
↓
Check if the oil tube and the air vent on the fuel tank cover is blocked	Clean and remove the blockage
↓
Blockage in air filter	Clean the filter

Abnormal sounds

Carbon deposit found in combustion chamber	Remove carbon deposit
↓
Serious abrasion in active components	Replace components

Post driver is working normally, but performance efficiency is very low

Rubber ring of the impact piston is aged and worn

Replace

Specifications

Engine Type OHC 4 Stroke petrol

Displacement 40cc

Max Torque/Speed 1.67Nm / 5500RPM

Clutch Type Centrifugal

Impact Frequency 2300BPM

Fuel Capacity 0.65L

Fuel Type Petrol Regular Unleaded 95+ RON

Impact Force 35J

Starting System Hand pull start

Sleeve Heads 20-45mm, 55mm & 80mm

Note: Assembly Required

Some experts believe that the incorrect or prolonged use of almost any product may cause serious injury or death. To help reduce your risk of serious injury or death, refer to the information below. For more information, see www.datastreamserver.com/safety

• Consult all documentation, packaging, and product labelling before use. Note that some products feature documentation available online. It is recommended to print and retain the documentation.
  ■ Before each use, check the product for loose/broken/damaged/missing parts, wear, or leaks (if applicable). Never use a product with loose/broken/damaged/missing parts, wear, or leaks.
  ■ Products must be inspected and serviced (if applicable) by a qualified technician every 6 months. This is based on average residential use by persons of average size and strength, and on a property of average metropolitan size. Use beyond these recommendations may require more frequent inspections/servicing.
  ■ Ensure that all users of the product have completed a suitable industry recognised training course before being allowed access to the product.

The product has been supplied by a general merchandise retailer that may not be familiar with your specific application or description of application. Be sure to attain third-party approval from a qualified specialist for your application before use, regardless of any assurances from the retailer or its representatives.
This product is not intended for use where fail-safe operation is required. As with any product (for example, automobile, computer, toaster), there is the possibility of technical issues that may require the repair or replacement of parts, or the product itself. If the possibility of such failure and the associated time it may take to rectify could in any way inconvenience the user, business, or employee, or financially affect the user, business, or employee, then the product is not suitable for your requirements. This product is not intended for use where incorrect operation or a failure of any kind, including but not limited to, a condition requiring product return, replacement, parts replacement, or service by a technician may cause financial loss, loss of employee time or an inconvenience requiring compensation.
If this product has been purchased in error when considering the information presented here, contact the retailer directly for details of their returns policy, if required.

edisons

.com.au

©2023 Baumr-AG. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams, or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning, or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
