HZ-T715R - Vacuum Cleaner HAIER - Free user manual and instructions

Product Type	Canister Vacuum Cleaner
Brand	Haier
Model	HZ-T715R
Cord Length	5 m
Motor Power	1600 W
Suction Power	Adjustable via slider on handle
Dust Capacity	2.5 L
Filtration System	Washable exhaust filter
Noise Level	78 dB
Weight	5.5 kg
Dimensions (LxWxH)	400 x 300 x 250 mm
Tube Material	Metal telescopic tube
Floor Nozzle	Combined carpet/hard floor with foot switch
Accessories Included	2-in-1 flat brush, upholstery nozzle
Wheels	Universal wheels for easy maneuverability
Handle	Built-in carry handle
Power Cord Rewind	Automatic rewind (presumed)
Safety Features	Thermal overload protection
Maintenance	Empty dust bucket, clean filter regularly
Warranty	1 year (standard)

Frequently Asked Questions - HZ-T715R HAIER

How do I assemble the vacuum cleaner?

Connect the hose to the vacuum inlet (J), then attach the metal telescopic tube (D) to the hose handle. Finally, click the floor brush (F) onto the tube. Ensure all parts lock securely.

Can I use this vacuum on both carpets and hard floors?

Yes, the floor brush has a carpet/hard floor conversion button (E). Press the button to switch the bristles position for optimal cleaning on different surfaces.

How do I adjust the suction power?

There is an air volume control slider (B) on the handle. Slide it to increase or decrease suction power as needed.

How do I empty the dust bucket?

Press the buckle (I) to release the dust bucket (K). Empty contents into a trash bin, then rinse the bucket with water if necessary. Let it dry completely before reattaching.

How often should I clean the filters?

Clean the exhaust filter every 3 months or when suction decreases. Tap it gently or wash with water, then air dry thoroughly before reinstalling.

What accessories are included?

The package includes a 2-in-1 flat brush (for dusting) and an upholstery nozzle (for furniture). These attach to the hose or tube.

The vacuum loses suction, what should I do?

Check if the dust bucket is full or the filter is clogged. Also inspect the hose and tube for blockages. Ensure the air volume control is open.

Is the vacuum cord automatically rewound?

Yes, the model features automatic cord rewind. Simply press the button on the body to retract the cord safely.

Where can I purchase replacement parts?

Replacement parts such as filters, brushes, and hoses are available through authorized Haier service centers or online retailers.

Is it safe to use the vacuum on wet surfaces?

No, this vacuum is designed for dry use only. Never vacuum liquids, as it may damage the motor and create electrical hazards.

USER MANUAL HZ-T715R HAIER

Line drawing of a vacuum cleaner with coiled hose and wheels (no text or symbols)

型号

HZ-T712

HZ-T712A

HZ-T712R

HZ-T715

HZ-T715A

HZ-T715R

HZ-T720

HZ-T720A

HZ-T720R

A. 弯管把手

B. 风量调节滑钮

C. 软管组件

D. 延长管 *

E. 地毯、硬地板转换按钮

F. 地刷

G. 提手

H. 电源开关

1. 搭扣

J. 吸尘口

K. 集尘桶

L. 万向轮

M. 主吸管

* HZ-T712 / HZ-T712A / HZ-T712R为2节塑料连接管

HZ-T715 / HZ-T715A / HZ-T715R / HZ-T720 / HZ-T720A /

HZ-T720R为金属伸缩管

产品零件与设备

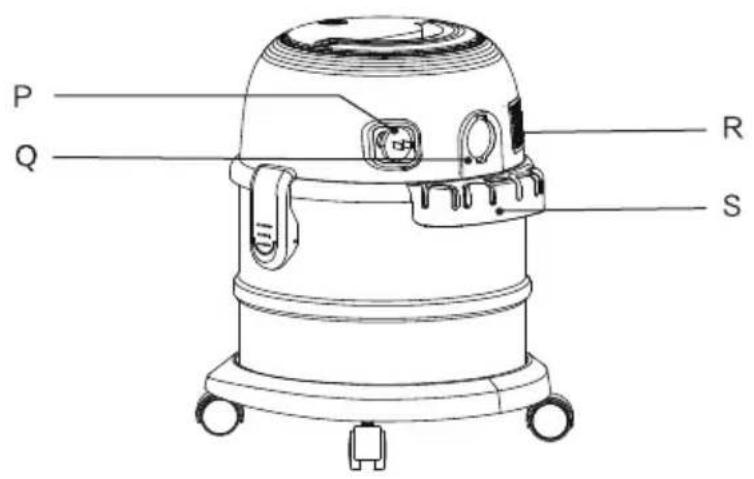

P. 电源线插头

Q. 出风口

R.进风口

S. 附件座

沙发吸

二合一扁吸

操作说明

产品装配

Line drawing of a vacuum cleaner with attached hose and base, showing mechanical components (no text or symbols)

开始使用

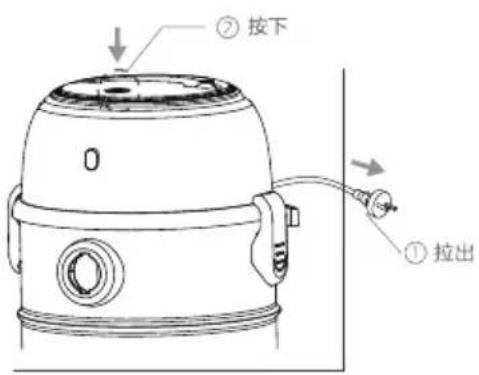

接通电源

Illustration of a mop, woven mat, and grid pattern (no text or symbols)

Technical diagram of a mechanical component with two labeled parts (a and b), showing cross-sectional views of the base and top features.

调节地刷按钮

Simple line drawing of a tool applying material to a flat surface (no text or symbols)

Simple line drawing of a tool applying material to a corner wall (no text or symbols)

Line drawing of a device with a connector and directional arrow (no text or symbols)

Illustration of a vacuum cleaner with tools nearby (no text or symbols)

Illustration of a vacuum cleaner next to a surface with tools and debris (no text or symbols)

Illustration of a robot with a hammer and cross symbol, surrounded by children and adults (no text or symbols)

Simple line drawing of a bucket pouring liquid into a container (no text or symbols)

Simple line drawing of a mop and scattered objects on the floor (no text or symbols)

Illustration of a vacuum cleaner emitting exhaust smoke, with no text or symbols present.

Cert ifcate of Quality

检验员：
