USER MANUAL WH-SXC09H3E5 PANASONIC

Air-to-Water Heatpump

Model No.

Indoor Unit

WH-SXC09H3E5

WH-SXC12H6E5

Outdoor Unit

WH-UX09HE5

WH-UX12HE5

Panasonic

Quick Menu Guide

Air-to-Water Heatpump

2-7

English

Please read the Operating Instructions thoroughly before using the Quick Menu.

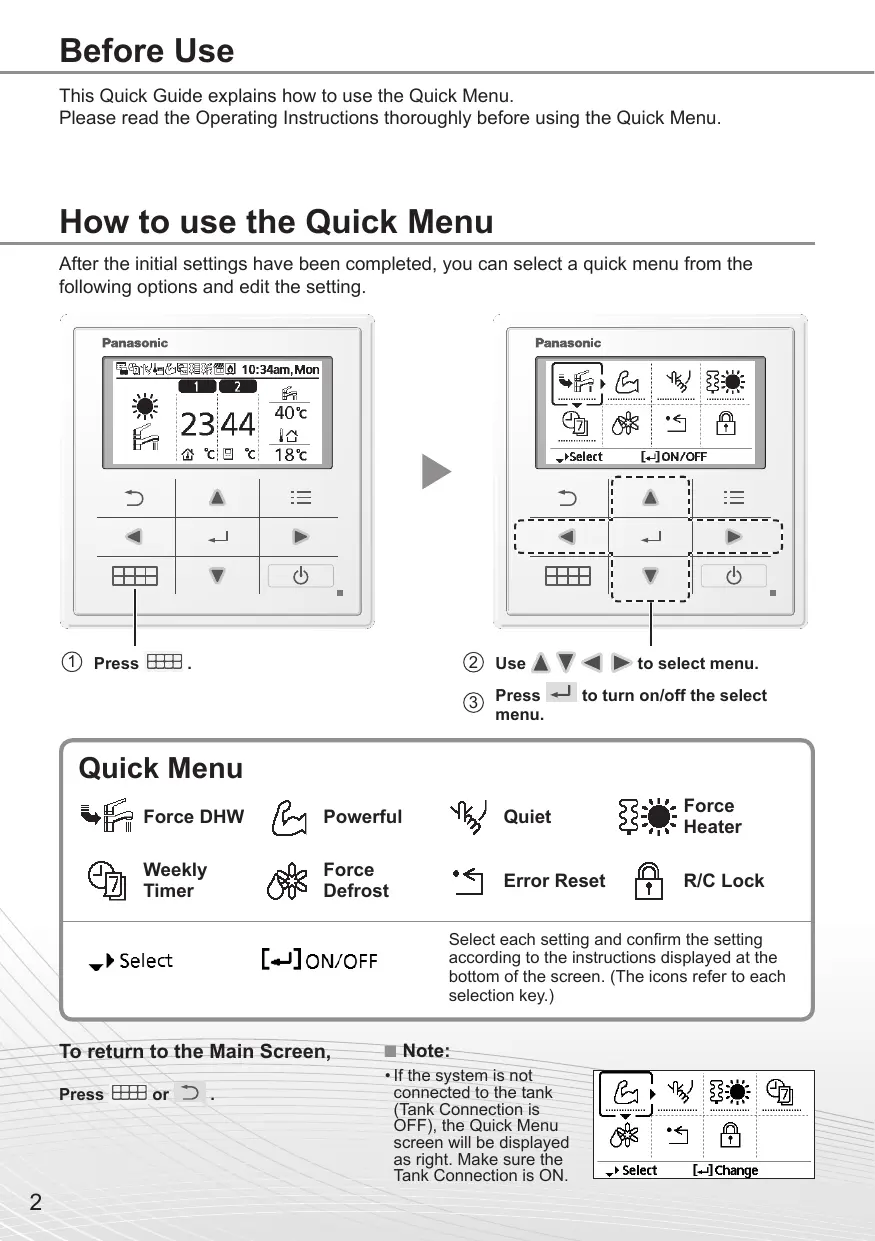

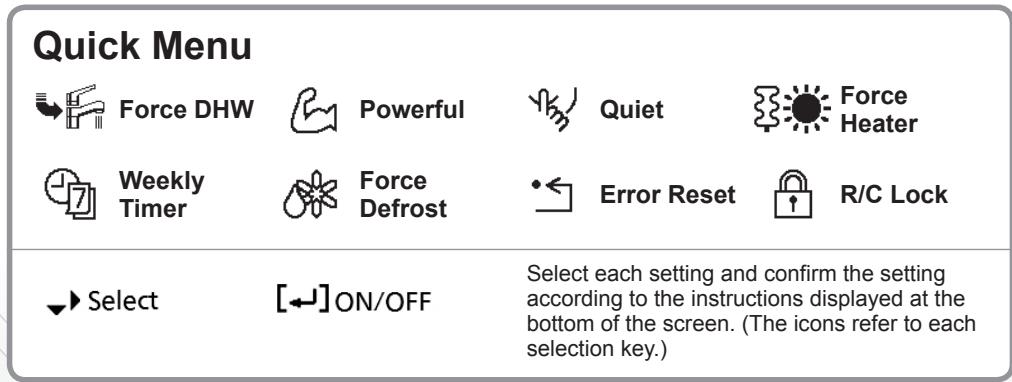

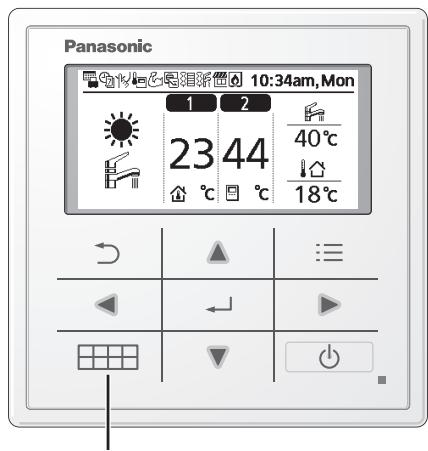

How to use the Quick Menu

After the initial settings have been completed, you can select a quick menu from the following options and edit the setting.

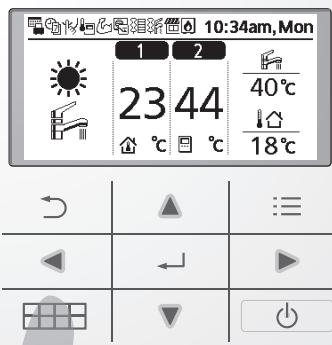

① Press .

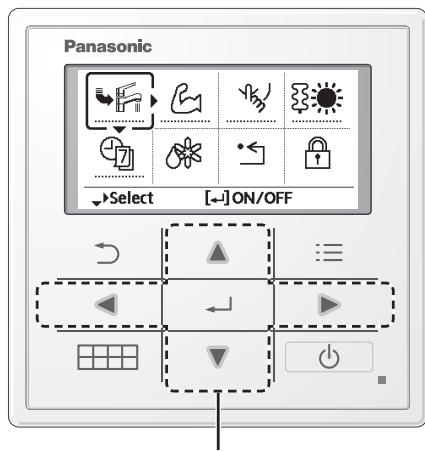

② Use ▲ ▼ ▶ ▷ to select menu. ③ Press ← to turn on/off the select menu.

To return to the Main Screen,

Press or

Note:

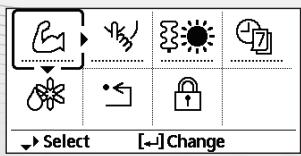

• If the system is not connected to the tank (Tank Connection is OFF), the Quick Menu screen will be displayed as right. Make sure the Tank Connection is ON.

Notes on operation icon

Example:

Operation icon indicate with "..........." = OFF

Operation icon indicate with "——" = ON

Force DHW

Select this icon to turn the Tank DHW on or off.

Press ↓ to confirm your selection.

• Force DHW is turned off.
• Force DHW is turned on.

Note:

• Force DHW is disabled when Force Heater is turned on.
• When Force DHW is turned off, operation & mode should change back to the previous memorized status.

Powerful

Select this icon to operate the heating/cooling system powerfully.

Press to confirm your selection.

(The powerful operation starts approximately 1 minute after ← is pressed.)

Note:

• Powerful is disabled when operation is turned OFF.

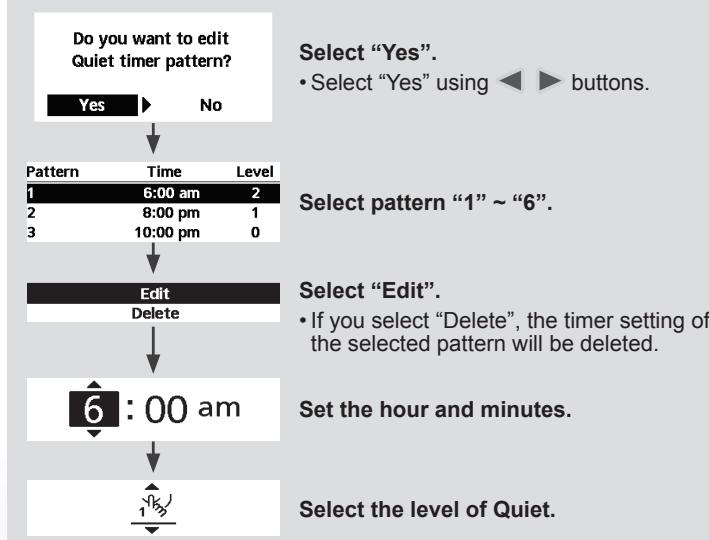

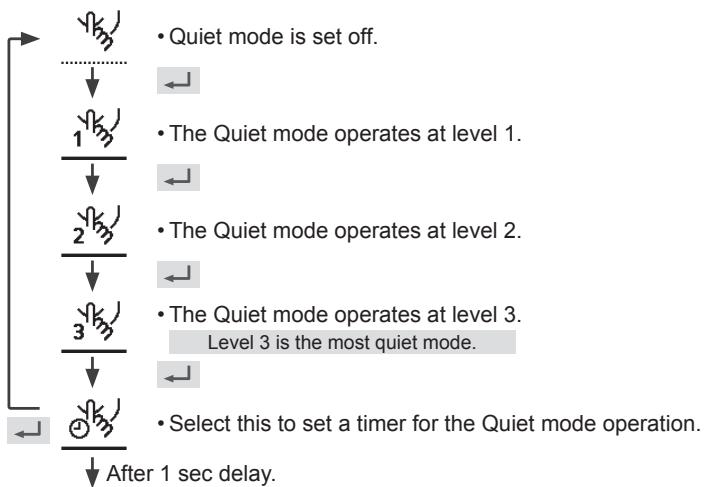

Quiet

Select this icon to operate quietly.

Press to confirm your selection.

(The quiet operation starts approximately 1 minute after ← is pressed.)

Force Heater

Select to force the Heater on.

Press ← to confirm your selection.

(The Force Heater mode starts approximately 1 minute after ← is pressed.)

• Force Heater is turned off.
• Force Heater is turned on.

Note:

• Force Heater is disabled whenever operation is already on and 'Disabled due to operation ON!' will be displayed.

Disabled due to operation ON!

[Close

Weekly Timer

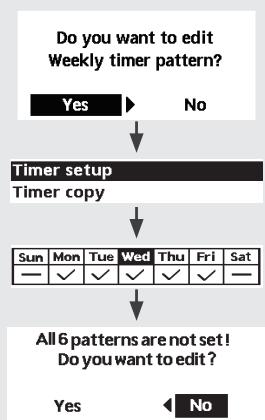

Select this icon to delete (cancel) or change the pre-set Weekly Timer.

Press ↓ to confirm your selection.

Select "Yes".

• If you select "No", the screen will return to the Main Screen.

• Timer setup: Select Timer setup to edit the Weekly Timer.
• Timer copy: Select to copy a timer setting.

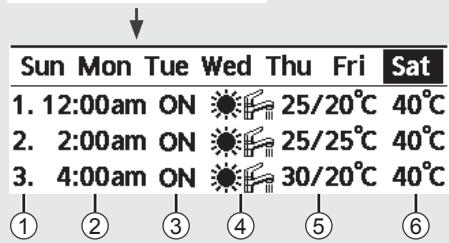

[Example of a Timer setup]

Select the day(s) which you wish to edit using the ▲▼ buttons.

If all 6 patterns are not preset, this screen will be displayed.

① Select pattern “1” ~ “6”. ② Set the hour and minutes of the Timer. ③ Select ON/OFF of the Timer. ④ Select the operation mode.

A/A/ // // //

• Select mode using the ▲▼ buttons.

⑤ Set the temperature for both Zone 1 and 2 (if your system has the 2-Zone setting).

Saturday: Pattern 1: Set Temp
Zone1		Zone2
ON	25°C	ON	25°C

⑥ Set the Tank temperature.

Note:

• Timer is disabled when Force Heater is turned on or Heat-Cool SW is enabled. If you have preset the Weekly Timer on 2 zones, you must repeat the same procedure with Zone 2.

Force Defrost

Select to defrost the frozen pipes.

Press ↓ to confirm your selection.

(When the mode is accepted, the following screen will be displayed.)

Request accepted!

[ ] Close

Error Reset

Select to restore the previous settings when an error has occurred.

Press ↓ to confirm your selection.

(When the mode has been accepted, the following screen will be displayed.)

Request accepted!

[3] Close

• Make sure all units are turned off before selecting this mode, which restores the whole system to the previous settings.

R/C Lock

Select to lock the Remote Controller.

Press ↓ to confirm your selection.

(When the mode has been accepted, the following screen will be displayed.)

Do you want to lock remote control?

Yes No

Select "Yes".

(The Main Screen will be locked.)

• If "No" is selected, the screen will return to the Main Screen.

To unlock the Remote Controller

Press any key.

(When the mode has been accepted, below screen will be displayed.)

Enter any 4 digits of number (if the number is correct, the screen will be unlocked).

To reset forgotten password (under operation OFF screen)

Press , and continuously for 5 seconds.

(When the mode has been accepted, below screen will be displayed.)

Select "Reset".

1 Password is reset to 0000

2.Remote control is unlocked

(The screen will be off after 3 seconds.)

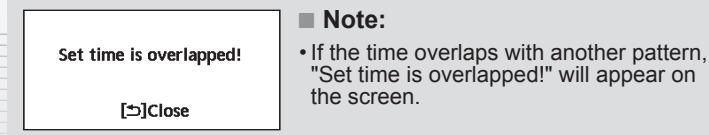

Set time is overlapped!

[Close

Select "Yes".

Disabled due to operation ON!

[Close

Week-timer

Sun Mon Tue Wed Thu Fri Sat

1. 12:00am ON 25/20°C 40°C
2. 2:00am ON 25/25°C 40°C
3. 4:00am ON 30/20°C 40°C

① Select schedule "1" ~ "6". ② Set the hours and minutes of the timer. ③ Select ON/OFF of the timer. ④ Select the desired mode.

Do you want to lock remote control?

Yes

No

-EvOeIgN eikovoiou λειούργiας με"……" = OFF

Eevoiigniikovidiou aeitoupyiaε" = ON

Disabled due to operation ON!

[Close

Saturday: Pattern 1: Set Temp
Zone1		Zone2
ON	25°C	ON	25°C	45°C

Do you want to lock remote control?

Yes No

ETIIAEETE "Yes".

1 Password is reset to 0000

2.Remote control is unlocked

Disabled due to operation ON!

[Close

Saturday: Pattern 1: Set Temp
Zone1		Zone2
ON	25°C	ON	25°C

⑥ Tank sicutligini ayarlayin.

Not:

Kraftfull inaktiveras nar driften stangs AV.

Tystläge

Select this icon to set operation.

Disabled due to operation ON!

[Close

Weekly timer

Saturday: Pattern 1: Set Temp
Zone1		Zone2
ON	25°C	ON	25°C

⑥ Set the desired temperature.

Note:

Do you want to lock remote control?

Yes No

Select this icon to set operation.
