Product Type	Rice Cooker
Brand	Beko
Model	RCM67023R
Dimensions (L x W x H)	290 x 410 x 246 mm
Weight	4.2 kg
Power Supply	220-240 V ~ 50/60 Hz
Rated Power	780-925 W
Capacity	1.8 L
Material	Plastic housing, aluminum inner pot with non-stick coating
Controls	Digital display with touch buttons
Cooking Functions	Steam Rice, Brown Rice, Quick Cook, Sticky Rice, Porridge, Soup, Cake, Yoghurt, Reheat
Steam Menu Functions	Sweet Potato, Corn, Frozen Food, Spareribs, Manual
Timer	Yes, up to 12 hours delay start
Keep Warm	Automatic keep warm up to 24 hours, recommended max 5 hours
Accessories Included	Inner pot, measuring cup, rice scoop, soup ladle, food steamer, power cord
Removable Parts	Steam valve, inner lid cover plate
Safety Features	Overheat protection, auto shut-off, cool-touch handles, anti-scald steam vent
Cleaning	Wipe body with damp cloth; steam valve, lid, and inner pot washable with water
Color	Beige and brown
Repairability	Authorized service center for repairs; error codes E1, E2, E5, E6, EU

Frequently Asked Questions - RCM67023R BEKO

How do I cook rice using the Beko RCM67023R?

Measure rice with the provided cup, rinse, and add to the inner pot. Add water to the corresponding water line. Select the desired function (e.g., Steam Rice) using the Cook Menu button, then press Start.

How do I set the timer for delayed cooking?

Select a cooking function (e.g., Porridge). Press the Timer button, then use Hour and Minute buttons to set the delay time (max 12 hours). Press Start to confirm. Cooking will begin after the set time.

What should I do if the rice is too hard or too soft?

Check the water level: too little water makes rice hard, too much makes it soft. Adjust water according to the water lines. Also ensure you selected the correct cooking function and that the inner pot is not deformed.

How do I use the steam function?

Add water to the inner pot up to the 'Steam' water line. Place food in the steamer basket and put it on top. Select a steam menu function (e.g., Corn) using the Steam Menu button, adjust time if needed, then press Start.

How do I make yogurt in this rice cooker?

Clean and dry the inner pot. Mix 1 L cow milk with 100 ml plain yogurt. Pour into the pot. Select the Yoghurt function and press Start. After completion, refrigerate. Ensure the pot and heating plate are at room temperature before starting.

How do I clean the steam valve?

Hold the steam valve and lift it up. Press the buckle to open it, then wash with water. If the seal ring falls off, push it back in. Ensure it is dry before reassembling.

What do error codes like E1 or E2 mean?

E1 indicates a bottom sensor open circuit; E2 indicates a bottom sensor short circuit. E5 is an open lid sensor, E6 a short circuit in the lid sensor, and EU a wrong warning. If the error persists after powering off and on, contact an authorized service center.

Can I cook cake in this rice cooker?

Yes, use the Cake function. Mix sugar, eggs, flour, baking powder, and margarine as per the recipe. Pour batter into the lightly greased inner pot. Select Cake and press Start. Do not exceed the recommended quantities.

How does the keep warm function work?

After cooking finishes, the rice cooker automatically switches to keep warm mode. The indicator light turns on. Keep warm lasts up to 24 hours, but it is recommended not to exceed 5 hours to avoid rice discoloration or odor.

What is the maximum rice quantity for this model?

The maximum rice amount is 4 cups (800 ml) for standard cooking and 1.5 cups for porridge. Refer to the water lines inside the inner pot for proper measurements.

USER MANUAL RCM67023R BEKO

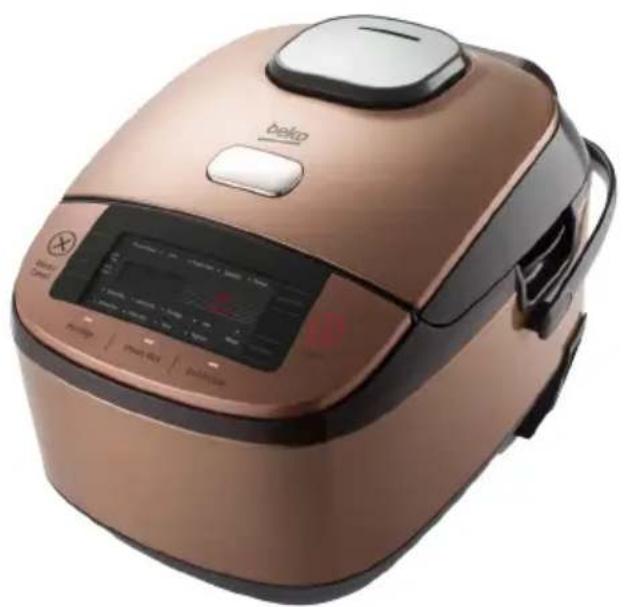

Smart Electronic Rice Cooker

User Manual

RCM 67023 R

ENTHZH VN

01M-8836553200-4217-01

beko

Please read this manual first!

Dear Customer,

Thank you for preferring a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Remember that this user manual is also applicable for several other models. Differences between the models are explicitly described in the manual.

Meanings of the symbols

Following symbols are used in the various section of this user manual:

Important information and useful hints about usage.

Warnings for dangerous situations concerning the safety of life and property.

Warning for hot surfaces.

Suitable for contact with food.

Do not immerse the appliance, power cable, or power plug in water or any other liquids.

This product has been manufactured in environmental friendly modern plants without giving any harm to the nature.

CONTENTS

ENGLISH	4-21
THAI	22-43
CHINESE	44-62
VIETNAMESE	63-83

1

Important safety and environmental instructions

In order to ensure the safety in use and avoid causing injury and property damage to you or others, please observe the following safety precautions.

Failure to follow the safety warnings and incorrect use may lead to accidents.

• Never use this appliance to cook any food that may jam the steam vent Foliaceous food (e.g. vegetable, cabbage) or strip food (e.g. kelp) to avoid jam or causing accidents or damage to the rice cooker.
• During operation, please do not have your face or hands close to the steam port In order to avoid scald.
• During operation, please do not open the steam port Warning: do not cover steam port with foreign objects, stay away from the lid during operation. To avoid burns or damage the rice cooker.
• No reconstruction Any person other than a repair technician is not allowed to dismantle or repair the appliance to avoid fire, electric shock or injury.
• Please use the 220-240V mains supply to avoid fire and electric shock. Please do not use if the power cord is damaged.

This product is not recommended under the following circumstances:

• Used by unattended children and disabled

• Do not let children play with this product

• Never touch the plug with wet hand to avoid electric shock or injury.

• Lease do not let a children operate this product, put it out of reach of children. To avoid dangerous accidents such as electric shock, burns.
• Do not place the rice cooker on a location which is % unstable, uneven or % approaches to fire or heat sources within the distance of 30cm. Otherwise, this may cause damage or problems.
• Never insert a battery, wire or other object into the intake hole and steam vent on the bottom of the appliance to avoid electric shock.
• Do not soak or dip the product into water.
• Please use an individual earthed socket with > 10A current Joint use of the same socket with other appliance may cause abnormal danger, fire.

1

Important safety and environmental instructions

• Any dust or water in the power cord plug, plug and socket of the product must be cleaned in a timely manner to avoid fire, electric shock If the power cord is too short, please use the socket to extend the cord, do not damage.
• If repairing the product or replacing parts is needed, please contact authorized agency assigned on warranty card of Beko To avoid dangers caused by incorrect repair or incorrect part.
• Plug inserted into the socket. To avoid fire and electric shock, broken cord. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacture or its service agent.
• This product is for household use only.
• Users with cardiovascular disease, cardiac pacemaker or with hearing impair should consult doctor before using the product.

• Some important parts, such as fuse, if improper repair or unauthorized short circuit may make the product protection failure, resulting in overheating or fire.

• The rice cooker must match the supplied inner pot to avoid overheat or abnormal circumstances.

• Do not have the inner pot fall off to avoid deformation.
• Do not hit the inner pot with a hard object to avoid deformation.
• During use or immediately after use, do not touch the inner pot with hands To avoid scald due to high-temperature.
• Before cooking rice, wipe away any water outside the inner pot.
• Before using, please wipe away the water and rice grains on the bottom of the inner pot and the heating plate, other foreign objects To avoid overheat or short circuit.
• The product is subject to the physical if there's difference between the picture and real product.
• Before the rice cooker works, check the inner pot and steam valve whether they are in place to avoid any malfunction.
• During use, the product may generate smell or steam sound, which is a normal sound of operation, and do not open.

1

Important safety and environmental instructions

• Immediately after cooking, do not operate the product again Wait at least 15 minutes so as to have the heating plate cool down.
• Please do not cook rice with hot water As this may affect the temperature judgment by the thermostat thus degrade cooking effect.
• To ensure the efficiency of measuring cup, when cooking more than 3 cups of rice, please do not use the food steamer.
• Please clean the steam port, lid and steam valve and the product surface on a regular basis.
• When appliance in the room is not earthed, hypersensitive people will feel the electric shock It is recommended to check whether the earthed socket is in good condition, or after inserting the plug, do not touch the metal cover or inner pot of the product.
• The height above sea level for normal operation of the product is within 0-2000m.
• Please repair the product and replace parts in a professional maintenance agency authorized by Beko To ensure efficient use of the product, please keep this user's manual, do not dispose it.

1.1 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

1.2 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.3 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Your Rice Cooker

2.1 Overview

1. Lid
2. Removable cover plate
3. Handle
4. Main unit
5. Base
6. Power cord
7. Food steamer
8. Measuring cup
9. Soup ladle
10. Rice scoop
11. Cooker pot

2.2 Technical data

	RCM 67023 R
Power supply	220-240~50-60Hz
Rated power(w)	780-925 W
Capacity(L)	1,8 L
Dimensions(mm)	Length*Width*Height290x410x246
Weight(Kg)	4.2

Technical and design modifications reserved.

The values which are declared in the markings affixed on your product or the other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

2 Your Rice Cooker

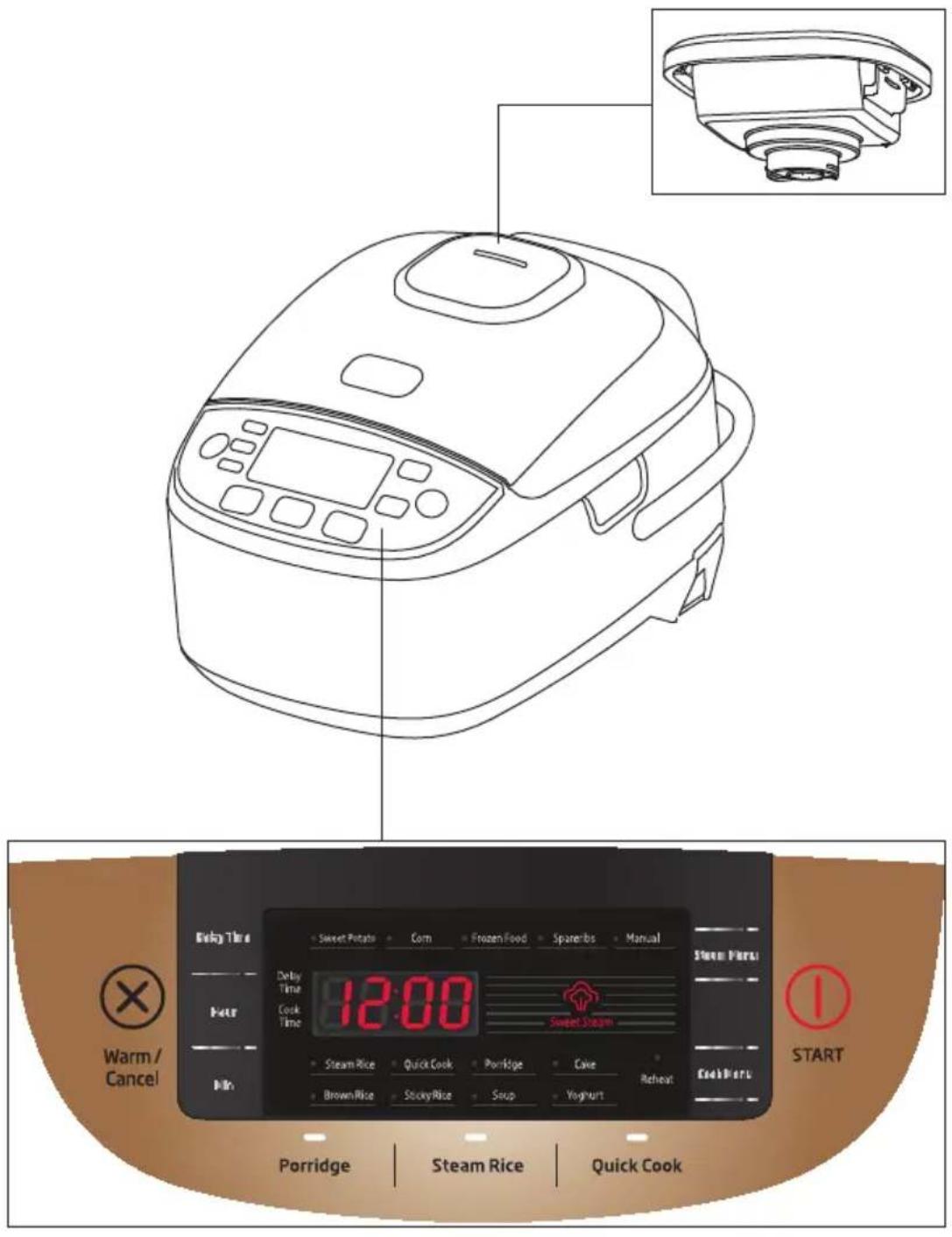

2.3 Control Panel Display

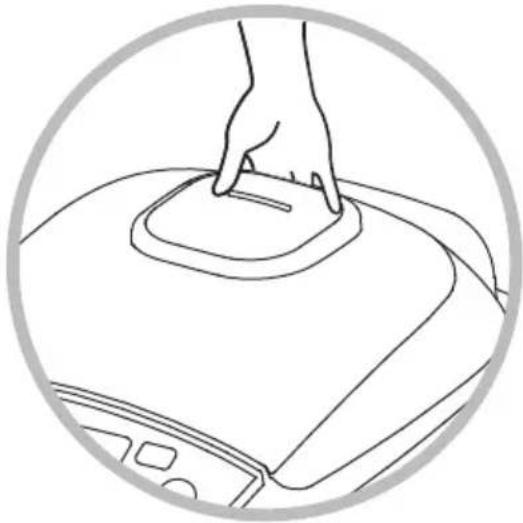

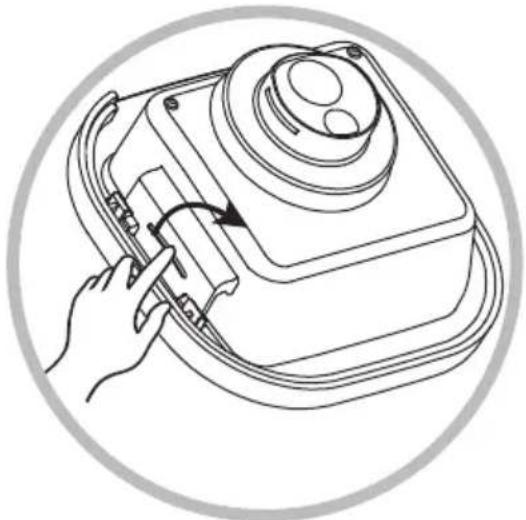

Steam valve is removable

(Including steam port and valve)

Immediately remove any foreign objects in the steam port to avoid degrading cooking quality.

3 Operation

Operation steps of control panel: this rice cooker is for household use only, for specific uses, please refer to the user's manual.

3.1 Starting

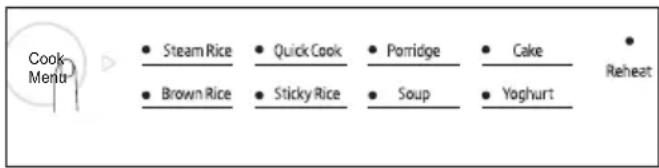

3.1.1 Choose function menu

1. Press the "Cook Menu" button to select functions
2. Select any function once the light is on.
3. Press "start" button to start cooking

3.1.2 Select functions

1. Press the "Steam Menu" button to select the function
2. Select the function once the display light is on
3. Press "start" button to start cooking

3.1.3 Humidity display

The default time for steaming is calculated from the time water boiling to the set ending time, and not the total steaming time.

3 Operation

3.2 Product using using instruction

3.2.1 Function buttons during use

Start button

1. The light flickering
2. Press the "start" button, light changes from flickering to normally on and it starts working

Function buttons

1. Press "Cook Menu" button
2. Select the function once the display light is on
3. Press the start button to select the cooking function

Steaming button

1. Press the "steaming" button to select the function
2. Select the function once the display light is on
3. Press "start" button to start cooking

3 Operation

Timer button

1. Press the "hour", "minute" buttons to adjust the time
2. "Hour", "minute" will be displayed

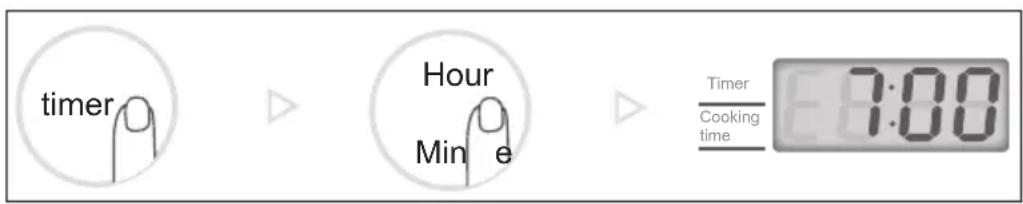

Timer button

1. Press "timer" button, the timer will be on
2. Press "hour", "minute" button to set cooking time
3. After set time ends, the cooking time will stop

Rice cooking (sweet cook, fast cook, and brown rice): When adding the water, please look at the scale mark for water line, as shown in the left figure: cooking 3 measuring cups of rice.

i	4 cups of rice can be cooked at most for the soup rice
!	Keep warm time should be no more than 5 hours, to avoid rice discolora- tion and smell.
!	When all functions finish, it will switch to keep warm mode.

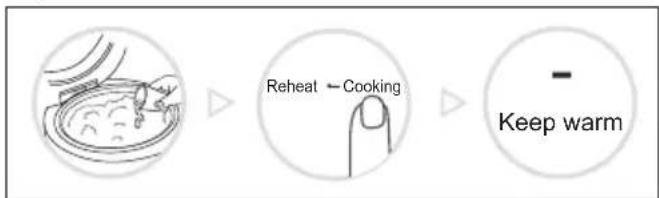

Keep warm / Off

1. After cooking finishes, it would automatically turn into the keep warm status with indicatorlight on
2. If in the working state, press the "keep warm / off" button to enter the standby state, press one more to enter the keep warm state.

3 Operation

3.3 Product operation instruction

3.3.1 Prepare for cooking

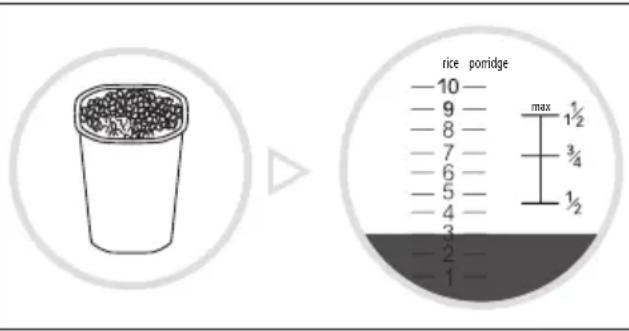

1. Use the measuring cup to add rice

It is not recommended to use the inner pot to rinse rice directly, to avoid scratching the inner pot.

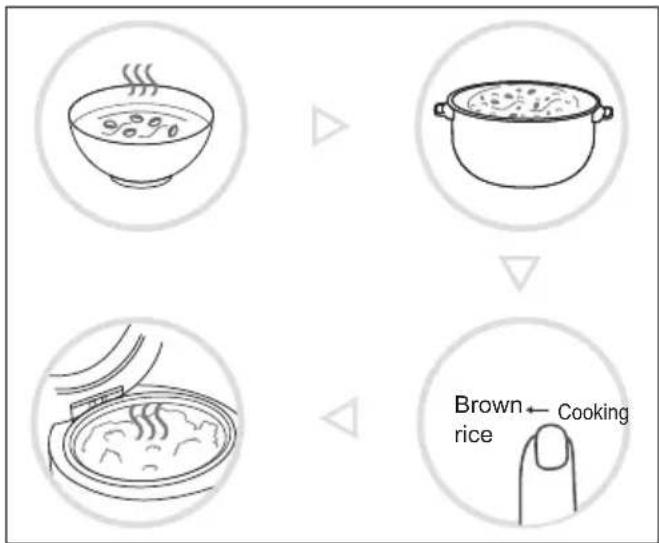

If hard grain is to be cooked, please soak it in hot water for 2-3 hours.

1. Clean rice bran on the pot, select suitable water line based on the amount of rice, add water to the corresponding lines, increase or decrease the amount of water according to personal taste

Do not add water above the maximum mark, otherwise, it may cause overflow or short circuit.

3 Operation

3.3.2 How to use water line

Rice cooking (sweet cook, fast cook, grain cook):

when adding water, add to the corresponding line, e.g. in the illustration: cook 3 cups of rice.

Cautions: maximum 4 cups of rice can be cooked.

(Sweet cook, fast cook, grain cook)

Product specification	Maximum amount of rice	Minimum amount of rice
Type 40	18 cups	1 cups
Type 50	10 cups	1 cups

Congee cooking (congee, porridge), water should reach the congee water line, for example: congee, porridge cooking.

(Congee, porridge)

Product specification	Maximum amount of rice	Minimum amount of rice
Type 40	1 cups	1/2 cups
Type 50	1 1/2 cups	1/2 cups

Glutitious rice The amount of rice and water required as follows:

Based on:1:1.15 to add rice and water.

(Congee, porridge)

Product specification	Maximum amount of rice	Minimum amount of rice
Type 40	3 cups	8 cups
Type 50	3 cups	10 cups

Steaming: add water to the water line 3 when steaming, too much water may lead to overflowing to the steam tray, too little water may lead to uncooked food.

3 Operation

3.3.3 Cooking use

1. Use soft clot to clean the outside of the inner pot
2. Place the inner pot into the body
3. Press down the cooker lid until you hear a sound
4. Make sure the power plug is firmly connected
5. Make sure that the plug is firmly connected to the outlet
6. Press "function" button
7. Press the "start" button to start operation

Do not heat the inner pot in other stoves, otherwise, it may be deformed due to overheating.

Do not use other container to replace the inner pot specified.

3.3.4 Using timer

Cooking timer setting

Timer setting is available in: Sweet cook, fast cook, glutinous rice, general cooking, soup, sweet potato, corn, rip steaming, steaming.

1. Press the "Cook Menu" or "Steam Menu" button and select the required timer function

1. Press "timer" button once, and the time set will be on, press the "hour", "minute" button to adjust the set time. Press "start" to complete setting timer

E.g.: set timer to cook congee in 10 and a half hour o

1. Press "function" button and choose the congee function

1. Press "timer" once, and the timer indicator light will be on, press "hour", "minute" button to adjust the set time to 10:30. Press "start" to complete setting timer, after 10:30, the congee will be ready

The recommended time set should not exceed 12 hours; otherwise, strange smell may occur.

3.3.5 Set cooking time

Cooking time can be set for cooking functions: congee, soup, yogurt, sweet potato, corn, rips, steaming; 2 hour, can be adjusted in the range of 1-4 hours. Yogurt making time can be adjusted: 8 hour, can be adjusted within 6-10 hours.

1. Press "function" button to select "congee" button, the "adjust" button will be on
2. Press "function" button to select "congee" button, the "adjust" button will be on
3. Press "start" to confirm the operation state

3 Operation

3.3.6 Rips

1. Based on the cooking time, the water level in the inner pot should not exceed level 3
2. To keep the taste of the rips, rips should be put into steaming tray, then steaming tray is put on the inner pot
3. Press the "Steaming" button to select the "rips" function
4. Press the "hour", "minute" buttons to adjust the time
5. Press "start" to confirm the operation state

3.3.7 Reheated rice

1. Whisk the rice, and sprinkle 50-80g water
2. Press the Function button to select "reheat" function, then press start
3. It enters the keep warm status automatically, please whisk the rice in 30 minutes

3.3.8 Mixed rice

1. Soak mixed grains in hot water for 2-3 hours
2. Then rinse mixed grains and white rice thoroughly
3. Press "function" button, select "grains" and press "start"
4. After cooking completes, open the lid and whisk the rice

3 Operation

3.3.9 Cook-off

1. Use the measuring cup to measure rice, after rinsing thoroughly, put it into the inner pot and add water to the corresponding mark, then add peanut oil to the inner pot
2. Press "function" button, select "glutinous rice" and press "start"
3. Press "start" to switch the cooking state

3.3.10 Use keep warm function

1. Press "keep warm" button or select "keep warm and nutrition", press "start" button
2. It is recommended to whisk the rice after 30 minutes

When all functions finish, it will switch to keep warm mode.

In the Keep warm status, it will re-heat to maintain the temperature of 650C and above.

This product can operate Keep warm function within 24 hours.

The recommended Keep warm time should be no more than 5 hours, to avoid rice discoloration and smell.

3.3.11 Yogurt making function

1. When making yogurt, it is recommended to decontaminate the appliance and accessories (inner pot, lid, scoop) to avoid the fermentation. Boiling water is recommended for decontamination.
2. To get good results, it is recommended that you use cow milk and plain yogurt.

Ingredient reference chart
Cow milk Plain yogurt
1L 100ml

1. Clean and dry the inner pot, refer to the ingredient chart.

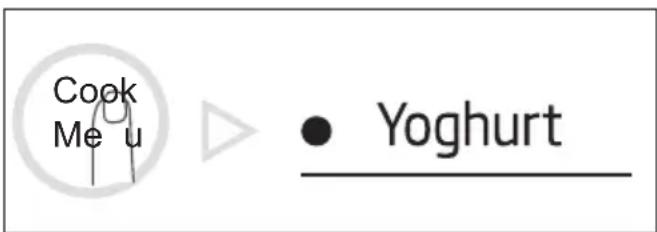

2. Select "yogurt" function, press "start" button to start operation.

1. After completed, you can use the yogurt directly, cover it or put it into pot and store in the fridge.

Before making yogurt, make sure that the inner pot, heating plate are at normal temperature; otherwise, high temperature will affect the fermented yogurt.

3 Operation

3.3.12 Cake function

Ingredients

	Sugar Flou Eggs Vegeta-ble oil
Small amount	100 g 120 g	3 30 g
Large amount	180 g 200 g	5 50 g

Ingredients could not be too much as this can affect the cooking quality

• Mix sugar and egg together
- Put sugar in a bowl and add egg, mix thoroughly until sugar and egg blend in.
- If temperature of egg is too low, add 400c of hot water In this case, the cake would be soft and spongy. However, the temperature should not be too high to avoid the egg cooked.
- Continue to shop the egg until bubbles appear and the egg is melted and even.
- Add flour to sugar and egg, then continue whipping.
- Add baking powder to sugar and egg, then continue whipping.
- Add all the ingredients into the mixture and whip until they are all blended.
- Add margarine, stir well and mix them together.
- Melt the margarine before adding to the mixture. If not stirred well, big bubbles may appear inside the cake and the taste is also not up to standard.
- If stirring too much, the cake will be dried and have no bubbles.
- Cook the cake in the rice cooker right before bubbles disappear.
- You can also add some condense milk depending on your taste.

4 Care and maintenance

4.1 Cleaning the cooker body

1. Use a cloth to clean the lid and heating plate, do not rinse them under the water
2. Water or rice grain on the heating plate should be wiped by clean cloth
3. Please use cloth to clean the water storage tank
4. Before putting in the inner pot, be sure to wipe away water around it and put it in the right position
5. Use soft cloth to clean the cooker

4.2 Clean the lid

1. Open the outer lid, remove the inner lid

1. Wash the steam valve and the lid

1. Install the lid

4.3 Remove and clean the steam valve

1. Hold the steam valve and lift it up

4 Care and maintenance

1. Hold the steam valve and press the buckle to open it

1. Wash it using water afterward, if the seal ring falls off from the steam valve, push it in

5 Repair and maintenance

5.1 Self checking of unusual problems

5.1.1 Problem checking

If you found the cooking is in unusual condition, please check the following list to confirm whether there is any failure.

Abnormal conditions\Item for checking

Standard cooking/Fast cooking/Refined cooking/Porridge/Soup/Refined cooking

warm

Too hard

Too soft

Rice not cooked

Strange taste

Rice crust

Color

Overflow

Porridge/soup/rice too soft

Not enough boiling

Not keep warm

Strange taste

Discoloration

Rice too dry in the surface

Water drips

Rice and water amount is not correct

●

●

●

●

●

●

●

Do not exceed the maximum amount

●

●

●

●

●

●

Choose function incorrectly

●

●

●

●

●

●

●

Whether the inner pot is deformed or uneven in the bot-tom

●

●

●

●

●

Cooking with hot water or cooking continuously without cooling down

●

●

●

●

●

Grains of rice, foreign objects left in the pot, heating plate and control panel

●

●

●

●

●

●

●

●

●

Power cut off

●

●

●

●

●

●

●

●

●

●

●

The rice has not been fluffed up after cooking

●

●

●

●

●

The rice has not been fluffed up after cooking

●

●

●

Whether the steam valve is installed properly

●

●

●

●

Excessive hours for timer

●

●

●

●

●

●

Whether the top lid has been closed properly

●

●

●

●

●

●

●

Do not wash the rice

●

●

●

5 Repair and maintenance

Abnormal conditions\Item for checking

Standard cooking/Fast cooking/Refined cooking/Porridge/ Soup/Refined cooking

warm

Too hard

Too soft

Rice not cooked

Strange taste

Rice crust

Color

Overflow

Porridge/soup/ rice too soft

Not enough boiling

Not keep warm

Strange taste

Discoloration

Rice too dry in the surface

Water drips

Grains of rice or foreign objects kept in the inner pot and steam

●

●

●

●

Long keep-warm time

●

●

●

●

●

No keep-warm preset

●

●

Placing the rice spoon into the inner pot

●

●

●

●

Water and rice are not mixed well

●

After checking all the above conditions, if failure is confirmed, please send it to the warranty agency.

5.1.2 Reasons of unusual short circuit

Please send the product to the authorized agency or service for repair or installation.

Normally on		Constantly on E1:Bottom sensor. It remains after powering off and on.Please send it to the service center for repairing	Normally on		Constantly on E2:Short circuit at the bottom sensor. If the error remains after powering on and off, please send it to the service center for repairing.
Normally on		Constantly on E5:Open lid sensor. It remains after powering off and on.Please send it to the service center	Normally on		Constantly on E6:Short circuit in the open lid sensor. If the error remains after powering on and off, please send it to the service center for repairing
Normally on		Constantly on EU:Wrong warning. If the error remains after powering on and off, please send it to the service center	Gleamed on		FlickeringWrong warning. If the error remains after powering on and off, please send it to the service center

78910

Product specification	Maximum amount of rice	Minimum amount of rice
Type 40	18 cups	1 cups
Type 50	10 cups	1 cups

Product specification	Maximum amount of rice		Minimum amount of rice
Type 40	1 cups	1/2 cups
Type 50	1 1/2 cups		1/2 cups

Product specification	Maximum amount of rice		Minimum amount of rice
Type 40	3 cups	8 cups
Type 50	3 cups		10 cups

蒸汽阀可拆卸

(包括蒸汽端口和阀门)

3.1.2 选择功能

3.1.3 湿度显示

功能按钮

3 操作

3.3 产品操作说明

3.3.1 准备烹饪

1. 使用量杯添加大米

Product specification	Maximum amount of rice	Minimum amount of rice
Type 40	18 cups	1 cups
Type 50	10 cups	1 cups

Product specification	Maximum amount of rice	Minimum amount of rice
Type 40	1 cups	1/2 cups
Type 50	1 1/2 cups	1/2 cups

糯米 糯米和要求的水量如下：

根据：1:1.15 添加糯米和水。

(粥，麦片粥)

Product specification	Maximum amount of rice	Minimum amount of rice
Type 40	3 cups	8 cups
Type 50	3 cups	10 cups

3 操作

3.3.9 烹饪完成

3.3.10 使用保温功能

1. 清洁蒸汽阀和盖子

1. 安装盖子

4.3 拆卸和清洁蒸汽阀

1. 握住蒸汽阀，并将其提高

4 保养和维护

1. 握住蒸汽阀，并按下扣锁，打开之

5 维修和维护

5.1 自检异常问题

5.1.1 检查问题

Các nút chế độ

Nút Hấp

3 Vận hành

Nút Hện giờ

Product specification	Maximum amount of rice	Minimum amount of rice
Type 40	18 cups	1 cups
Type 50	10 cups	1 cups

Product specification	Maximum amount of rice	Minimum amount of rice
Type 40	1 cups	1/2 cups
Type 50	1 1/2 cups	1/2 cups

Product specification	Maximum amount of rice	Minimum amount of rice
Type 40	3 cups	8 cups
Type 50	3 cups	10 cups

3.3.9 Xôi

3.3.10 Giữ âm
