USER MANUAL S36MU2E5A PANASONIC

Operating Instructions Air Conditioner

4-Way Cassette (Type U2) Model No.

INDOOR UNIT FRANÇAIS

4-Way Cassette (Type U2)

S-22MU2E5A S-28MU2E5A S-36MU2E5A S-45MU2E5A S-56MU2E5A S-60MU2E5A

Before operating the unit, read these operating instructions thoroughly and keep them for future reference.

S-73MU2E5A S-90MU2E5A S-106MU2E5A S-140MU2E5A S-160MU2E5A

● Connectable outdoor unit lineup

This booklet is the operating instructions for indoor unit. Regarding the outdoor unit, see the operating instructions supplied with the outdoor unit.

OUTDOOR UNIT Panasonic Corporation

1006 Kadoma, Kadoma City, Osaka, Japan

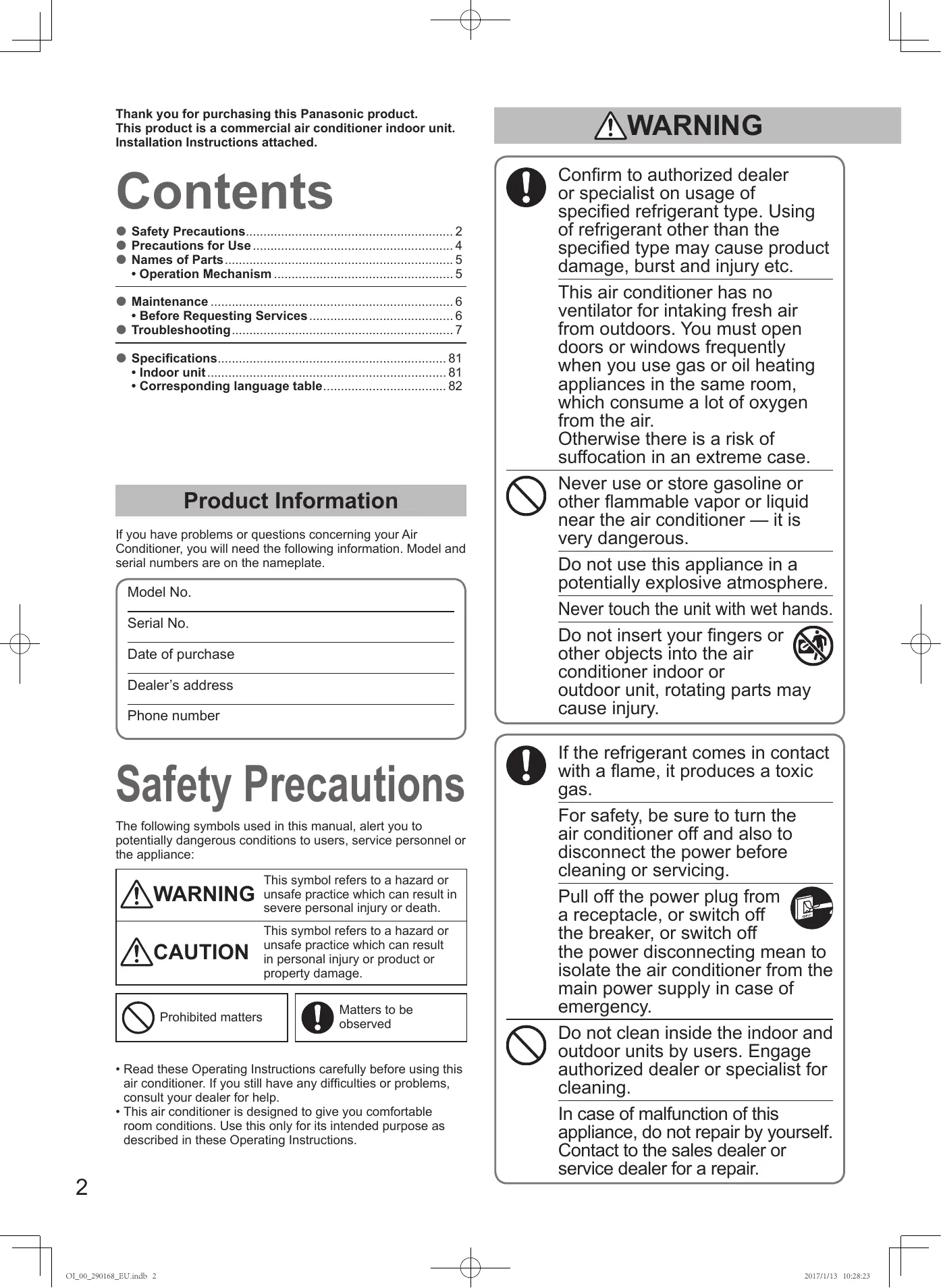

NGLISH RANÇAIS Thank you for purchasing this Panasonic product.

This product is a commercial air conditioner indoor unit. Installation Instructions attached.

If you have problems or questions concerning your Air Conditioner, you will need the following information. Model and serial numbers are on the nameplate.

Serial No. Date of purchase Dealer’s address Phone number

The following symbols used in this manual, alert you to potentially dangerous conditions to users, service personnel or the appliance:

WARNING This symbol refers to a hazard or unsafe practice which can result in severe personal injury or death.

CAUTION This symbol refers to a hazard or unsafe practice which can result in personal injury or product or property damage.

Matters to be observed

• Read these Operating Instructions carefully before using this air conditioner. If you still have any difficulties or problems, consult your dealer for help.

• This air conditioner is designed to give you comfortable room conditions. Use this only for its intended purpose as described in these Operating Instructions.

OI_00_290168_EU.indb 2

WARNING Confirm to authorized dealer or specialist on usage of specified refrigerant type. Using of refrigerant other than the specified type may cause product damage, burst and injury etc.

This air conditioner has no ventilator for intaking fresh air from outdoors. You must open doors or windows frequently when you use gas or oil heating appliances in the same room, which consume a lot of oxygen from the air. Otherwise there is a risk of suffocation in an extreme case. Never use or store gasoline or other flammable vapor or liquid near the air conditioner — it is very dangerous. Do not use this appliance in a potentially explosive atmosphere. Never touch the unit with wet hands. Do not insert your fingers or other objects into the air conditioner indoor or outdoor unit, rotating parts may cause injury. If the refrigerant comes in contact with a flame, it produces a toxic gas. For safety, be sure to turn the air conditioner off and also to disconnect the power before cleaning or servicing. Pull off the power plug from a receptacle, or switch off the breaker, or switch off the power disconnecting mean to isolate the air conditioner from the main power supply in case of emergency. Do not clean inside the indoor and outdoor units by users. Engage authorized dealer or specialist for cleaning. In case of malfunction of this appliance, do not repair by yourself. Contact to the sales dealer or service dealer for a repair.

CAUTION Provide a power outlet to be used exclusively for each unit, and a power supply disconnect, Earth

Leakage Circuit Breaker (ELCB) or Residual Current Device (RCD) for overcurrent protection should be provided in the exclusive line. Provide a power outlet exclusively for each unit, and full disconnection means having a contact separation in all poles must be incorporated in the fixed wiring in accordance with the wiring rules. To prevent possible hazards from insulation failure, the unit must be grounded. Do not use modified cord, joint cord, extension cord or unspecified cord to prevent overheating and fire. Stop using the product when any abnormality/failure occurs and disconnect the power plug or turn off the power switch and breaker. (Risk of smoke/fire/electric shock) Examples of abnormality/failure: • The ELCB trips frequently. • The product sometimes does not start when turned on. • The power is sometimes disconnected when the cord is moved. • Burnt odor or abnormal noise is detected during operation. • The body is deformed or abnormally hot. • Water leaks from the indoor unit. • Power cord or plug becomes abnormally hot. • Fan speed cannot be controlled. • The unit stops running immediately even if it is switched on for operation. • The fan does not stop even if the operation is stopped. Contact immediately your local dealer for maintenance/repair.

This appliance is intended to be used by expert or trained users in shops, in light industry and on farms, or for commercial use by lay persons.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction E concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. <for European market only> This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Keep the fire alarm and the air outlet at least 1.5m away from the unit. Do not cool or heat the room too much if babies or invalids are present. Do not turn the air conditioner on and off from the power mains switch. Use the ON/OFF operation button. Do not stick anything into the air outlet of the outdoor unit. This is dangerous because the fan is rotating at high speed. Do not touch the air inlet or the sharp aluminum fins of the outdoor unit. You may get injured.

NGLISH Do not sit or step on the unit.

You may fall down accidentally. Do not stick any object into the FAN CASE. You may be injured and the unit may be damaged.

• The compressor may occasionally stop during thunderstorms. The unit automatically recovers after a few minutes. • The English text is the original instructions. Other languages are translation of the original instructions.

OI_00_290168_EU.indb 3

This air conditioner must be installed properly by qualified zz installation technicians in accordance with the Installation

Instructions provided with the unit. Before installation, check that the voltage of the electric supzz ply in your home or office is the same as the voltage shown on the nameplate.

All wiring must conform to the local electrical codes. zz

(Consult your dealer or a qualified electrician for details.) Each unit must be properly grounded with a ground (or earth) zz wire or through the supply wiring. Wiring must be done by a qualified electrician. zz

WARNING Avoid the following locations for installation.

Locations where smoke or combustible gas exists. zz Also locations of extremely high temperature such as a greenhouse. Locations where excessively high heat-generating obzz jects are placed.

Avoid installing the outdoor unit where salty sea water can zz splash directly onto it or in sulphurous air near a spa. (To protect the air conditioner from heavy corrosion)

Information for Users on Collection and Disposal of

Old Equipment and Used Batteries These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC. By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Operation Preparation

Turn the power mains on 5 hours before the start of operation.

Leave the power mains ON for continuous use. zz

NOTE Pull off the power plug from a receptacle, or switch off the breaker, or switch off the power disconnecting mean to isolate the air conditioner from the main power supply when not in use for a long time.

Use this air conditioner under the following temperature range.

Indoor temperature range

Outdoor temperature range

*DBT: Dry bulb temperature

*WBT: Wet bulb temperature *1: The maximum allowable temperature of this air conditioning system is reduced to 43°C when using the existing R22 pipe.

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal. Pb

Note for the battery symbol (bottom two symbol examples):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

OI_00_290168_EU.indb 4

If the optional nanoe™ X for 4-Way Cassette (CZ-CNEXU1) is installed, room environment can be made clean by the effects of nanoe™ X.

(attached to the lid of electrical component box) This air conditioner incorporates a biocidal product. Ionized air generated by a device incorporated in the air conditioner deactivates bacteria and viruses in the air, and on surfaces, and inhibits mould growth on surfaces. Active substances: free radicals generated in situ from ambient air or water

(optional) Air intake grille (air intake)

Wireless Remote Controller

Timer Remote Controller

CZ-RWSU3 (Type U2) CZ-RWSC3 (For all indoor units)

A High-spec Wired Remote Controller

CZ-RTC5A For all indoor units

For all indoor units

Read the Operating Instructions included with the Remote Controller.

„„Adjusting Airflow Direction

Refer to the Operating Instructions attached to the Remote Controller.

„„Heating performance

Since this air conditioner utilizes outside air for heating, zz its heating performance deteriorates as outside temperature decreases.

(Due to heat pump system) →In that case, use another heating appliance.

This appliance may start defrosting operation to melt zz frost formed in the outdoor unit.

Defrosting starts: The indoor unit fan stops (or the speed becomes extremely slow). →“ ” (STANDBY) appears.

Heating operation resumes after several minutes: The indoor unit fan remains stopped (or

it will run at a very slow speed) until the indoor heat exchanger coil warms up sufficiently.

→ “ ” (STANDBY) is shown. Defrosting is complete: The indoor unit fan starts operation. → “ ” (STANDBY) disappears.

Once the room temperature reaches the level that was zz set, the outdoor unit repeats the cycle of turning on and off automatically.

When the outdoor unit is turned off, the indoor unit fan zz will stop, too. (To prevent the humidity in the room from rising again) When the room temperature is more likely to reach the zz level that was set, the fan speed is set to ‘‘breeze’’ (light wind) automatically.

„„Should the power failure occurs while the unit is running

When the unit automatically resumes operation after temporary power failure, it uses the same settings before the power was cut off.

Important Information Regarding The Refrigerant Used

This product contains fluorinated greenhouse gases. Do not vent gases into the atmosphere. Refrigerant type: R410A GWP(1) value: 2088 (1) GWP = global warming potential Periodical inspections for refrigerant leaks may be required depending on European or local legislation. Please contact your local dealer for more information.

OI_00_290168_EU.indb 5

Indoor unit (e.g. Type U2)

For safety, be sure to turn the air conditioner off and disconnect zz the power before cleaning. (Otherwise, electric shock or injury may result because the fan is rotating at high speed.)

Do not pour water on the indoor unit. (This may damage the internal zz components and cause an electric shock hazard.)

CAUTION Never use solvents or harsh chemicals. Also, do not wipe plastic parts zz using very hot water. (This may cause deformation or change in colour.)

Some metal edges and fins are sharp. Be careful when you clean zz those parts. (Injury may result.) Use a firm stool or ladder when cleaning an indoor unit installed in zz high locations.

Wipe with a soft cloth.

(If it is very dirty, use a cloth moistened with water.) The internal coil and other components of the zz outdoor unit must be cleaned periodically. • Consult your dealer or service center.

Tips for Energy Saving

� Do not block the air intake and outlet of the unit. (If either is obstructed, the unit will not function well, causing malfunction.)

� During cooling operation, use sunshades, blinds or curtains to prevent direct sunlight from entering the room.

Always keep the air filter clean. (A clogged filter will impair the performance of the unit.) → “Maintenance” (P.6) zz

To prevent conditioned air from escaping, keep windows, doors and any other openings closed. zz

Before Requesting Services

Symptom The air conditioner does not operate although the power is turned on.

Power failure or after power failure

Press the power ON/OFF button on the remote controller.

The operation (power) button is turned off.

• If the breaker is turned off, turn the power on.

• If the breaker has been tripped, consult your dealer without turning it on.

Contact your dealer.

The air intake or air outlet of indoor and outdoor units is clogged with dust.

The fan speed switch is set to “Low”.*

Change to “Medium” or “High”.*

Improper temperature settings

Poor cooling or heating performance

The room is exposed to direct sunlight in cooling mode.

See “Tips for Energy Saving”. (P.6)

Doors or windows are open.

The air filter is clogged.

See “Maintenance”. (P.6)

Too many heat sources in the room in cooling mode.

Use minimum heat sources and in a short time.

Too many people in the room in cooling mode.

Lower the temperature setting or change to “Medium” or

* Regarding the remote control display, see the page 81.

If your air conditioner does not work properly even after checking each item of

“Before Requesting Services” and “Troubleshooting” Stop the operation immediately and turn the power off. Then contact your dealer and report the serial number and symptom. zz You also report if the inspection mark and the letters E, F, H, L, P in combination with numbers appear on the LCD of the remote controller. Never repair the air conditioner by yourself since it is very dangerous for you to do so. zz

OI_00_290168_EU.indb 6

Check before consulting or requesting services. Symptom

Sound like streaming water is heard during operation or after operation.

• Sound of refrigerant liquid flowing inside unit

• Sound of drainage water through drain pipe

Cracking noise is heard during operation or when operation stops.

Sound due to temperature changes of parts

E NGLISH Discharged air smells during operation.

• Indoor odor components, cigarette odor and cosmetic odor accumulated in the air conditioner and its air is discharged.

• The unit inside is dirty. (Contact your dealer.)

Dewdrops accumulate near the air outlet during cooling operation.

• Internal moisture is cooled by cool wind and accumulates as dewdrops.

Fog occurs during cooling operation.

• If the air conditioner has been installed at places such as restaurants where large amounts of oil mist exist, cleaning is necessary because the unit inside (heat exchanger) is dirty.

(Contact your dealer.)

Fog occurs during heating operation.

• Defrost operation is in process.

The fan is rotating for a while even though operation stops.

• Fan rotation makes operation smooth.

• The fan may rotate to dry the heat exchanger depending on the setting.

Airflow direction changes while operating.

Airflow direction cannot be set.

Airflow direction cannot be changed. direction The flap moves several times after the direction is changed.

• When air discharge temperature is low during heating operation, or during defrost operation, horizontal wind flow is made automatically.

• The flap position may be set individually. • The flap moves to the standard position once, and then turns to the set airflow direction.

• Dust accumulated inside the indoor unit is discharged.

At the initial high-speed operation, the fan sometimes rotates faster than the setting speed.

• This is for operation check in order to confirm whether the fan motor rotation is within the range of use.

(When the power is turned on immediately / When operation is stopped and resumed immediately)

• Operation is not activated for the first approx. 3 minutes because the compressor protection circuit is activated.

Noise occurs during heating operation.

• Defrost operation is in process.

Steam comes out during heating operation.

The fan continues to rotate even after the operation is stopped using the remote controller.

OI_00_290168_EU.indb 7

• This is for smooth operation.

Type U2 (Cassette 4 voies)

„„“DRY” (NEM ALMA) modu

Lihat “Tips Hemat Energi”. (Hal. 78)

Lihat “Perawatan”. (Hal. 78)

Declaration of Conformity with the requirements of Technical Regulation on the Restriction of the use of certain Hazardous Substances in Electrical and Electronic Equipment

(adopted by Order №1057 of Cabinet of Ministers of Ukraine) The Product is in conformity with the requirements of Technical Regulation on the Restriction of the use of certain Hazardous Substances in electrical and electronic equipment (TR on RoHS). The content of hazardous substance with the exemption of the applications listed in the Annex №2 of TR on RoHS: 1. 2. 3. 4. 5. 6.

Indoor unit 4-Way Cassette (Type U2) Model Name

S-22MU2E5A S-28MU2E5A Power source

S-56MU2E5A S-60MU2E5A

S-73MU2E5A S-90MU2E5A Unit dimensions

(H×W×D) * Net weight * Model Name Power source Cooling capacity

S-106MU2E5A S-140MU2E5A S-160MU2E5A Sound pressure Medium dB(A) level

(H×W×D) * Net weight *

* Values include the dimension and weight of an optional ceiling panel.

** Fan speed display on the remote controller :

OI_00_290168_EU.indb 81

Corresponding language table English

4-Way Cassette (Type U2)

4-Way Cassette (Type U2)

A cassetta a 4 vie (Tipo U2)

4-Way Cassette (Type U2)

4-Way Cassette (Type U2)

Kaset 4 Arah (Tipe U2)

Sound Pressure Level

(H×W×D: ceiling dimension)

Sound Pressure Level

(H×W×D: ceiling dimension)

Sound Pressure Level

(H×W×D: ceiling dimension)

Corresponding language table English

Потужність охолодження

Kapasitas Pendinginan

Sound Pressure Level

(H×W×D: ceiling dimension)

Values include the dimension and weight of an optional ceiling panel.

Fan speed display on the remote controller

Declaration of Conformity with the requirements of the E-Waste (Management) Rules The Product is in conformity with the requirements of the reduction of hazardous substances of the E-Waste Rules. The content of hazardous substance with the exemption of the applications listed in SCHEDULE II of the E-waste Rules: 1. Lead (Pb) - not over 0.1% by weight; 2. Cadmium (Cd) - not over 0.01% by weight; 3. Mercury (Hg) - not over 0.1% by weight; 4. Hexavalent chromium (Cr6+) - not over 0.1% by weight; 5. Polybrominated biphenyls (PBBs) - not over 0.1% by weight; 6. Polybrominated diphenyl ethers (PBDEs) - not over 0.1% by weight.

For the purpose of recycling to facilitate effective utilization of resources, please return this product to a nearby authorized collection center, registered dismantler or recycler, or Panasonic service center when disposing of this product.

Please see the Panasonic website for further information on collection centers, etc. , or call the toll-free number below. Website: http://www.panasonic.com/in/corporate/sustainability/panasonic-india-i-recycle-program.html Service helpline: 1800 103 1333 or 1800 108 1333
