USER MANUAL KX-TE82461X PANASONIC

Advanced Hybrid System

KX-TES824BX

KX-TEM824BX

KX-TE82461X

KX-TE82474X

KX-TE82480X

KX-TE82483X

KX-TE82491X

KX-TE82492X

KX-TE82493X

KX-A227X

(for Asia, Middle Near East, Latin America and Africa)

Line drawing of a Panasonic air conditioner unit (no text or symbols on body)

WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product. Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

When you note the serial number, write down all of the 11 digits. The serial number may be found on the unit.

IMPORTANT INFORMATION ABOUT LEAD FREE, (PbF), SOLDERING

If lead free solder was used in the manufacture of this product the printed circuit boards will be marked PbF. Standard leaded, (Pb), solder can be used as usual on boards without the PbF mark.

When this mark does appear, please read and follow the special instructions described in this manual on the use of PbF and how it might be permissible to use Pb solder during service and repair work.

CONTENTS

Page

1 ABOUT LEAD FREE SOLDER (PbF: Pb-free)----5----

1.1. SUGGESTED PbF SOLDER 5

1.2. HOW TO RECOGNIZE THAT Pb FREE SOLDER USED 6

2 FOR SERVICE TECHNICIANS 7

3 CAUTION 8

3.1. SAFETY PRECAUTIONS 8

6 NAMES AND LOCATIONS 12

7 CONNECTION 12

7.1. SERIAL INTERFACE CONNECTION 12

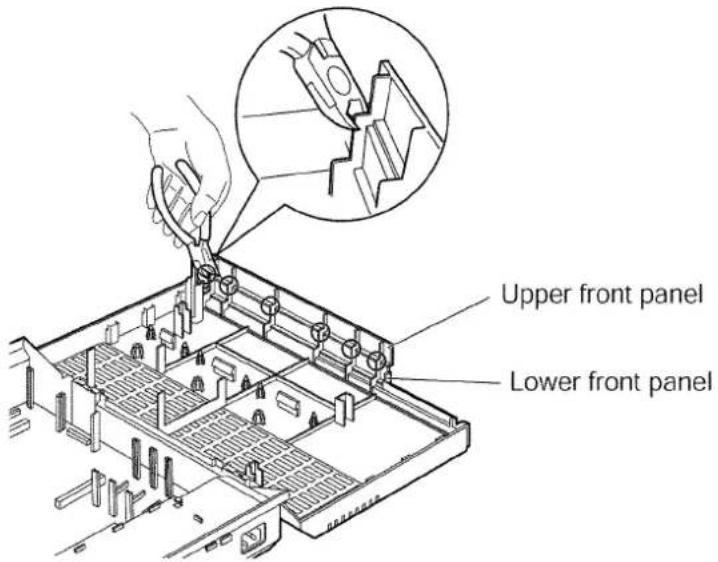

8 DISASSEMBLY INSTRUCTIONS----13

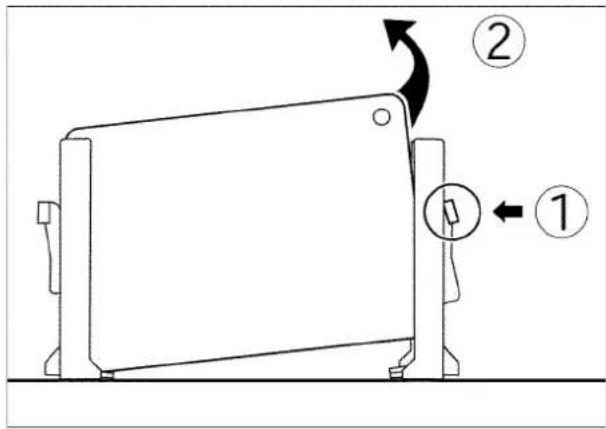

8.1. DISASSEMBLY INSTRUCTION 13

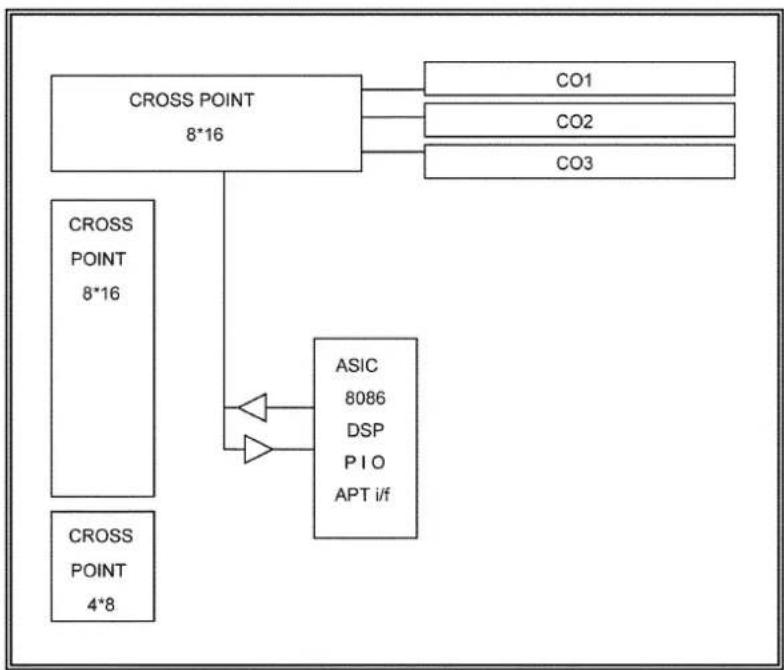

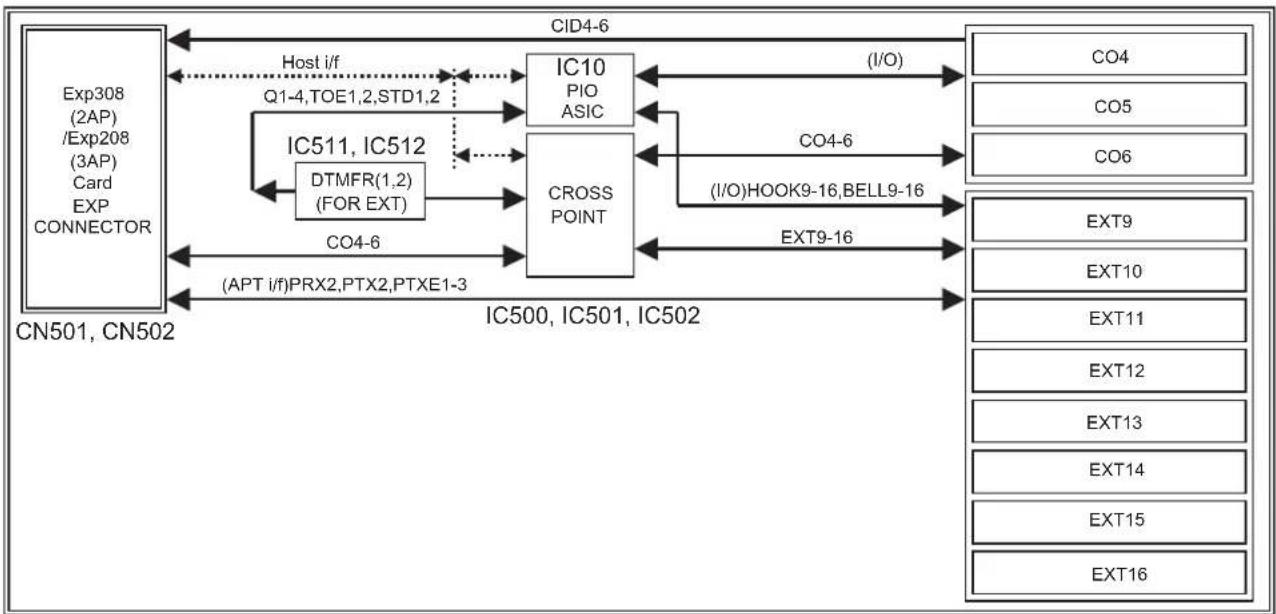

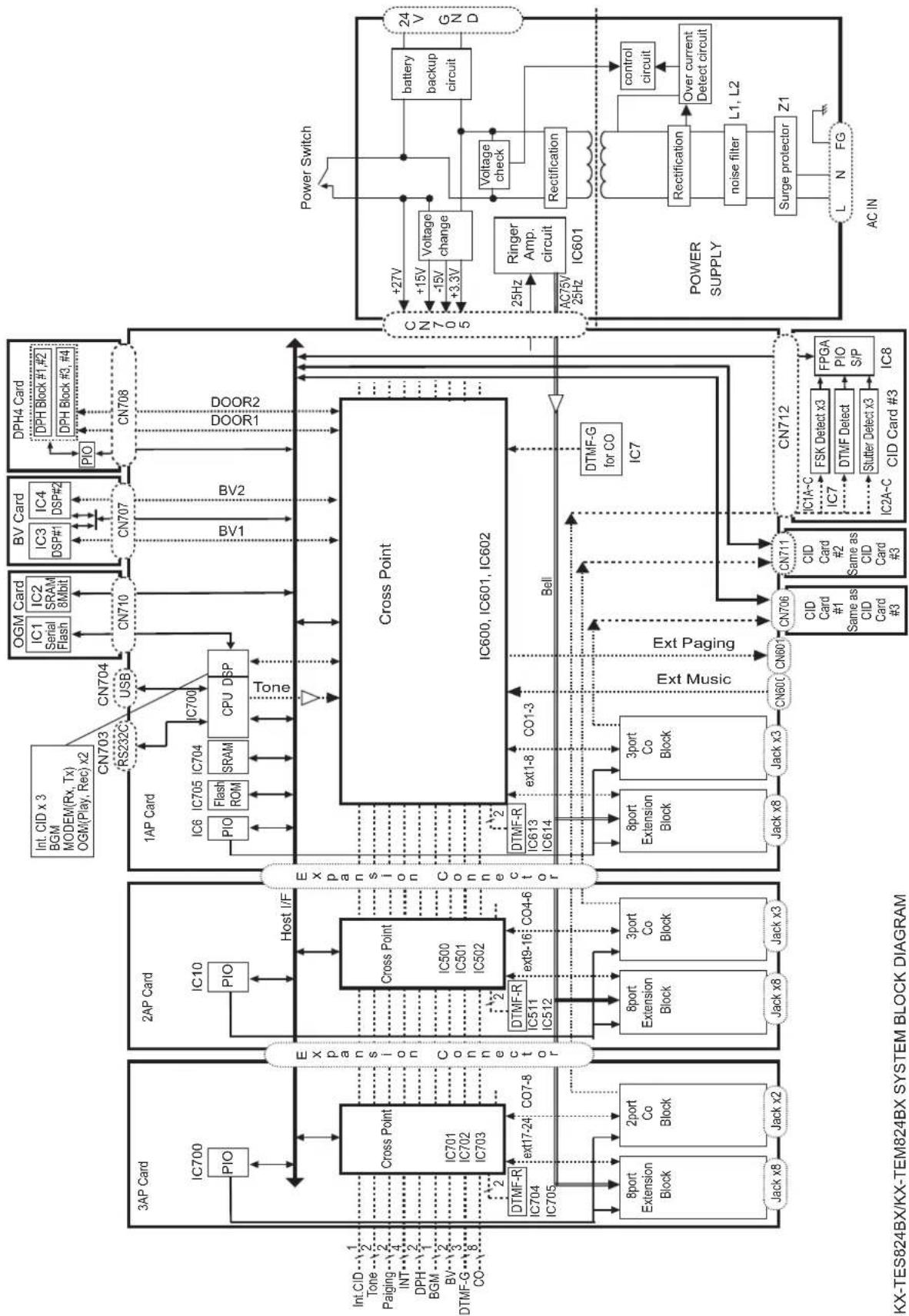

9 BLOCK DIAGRAM 16

9.1. SYSTEM BLOCK DIAGRAM 16

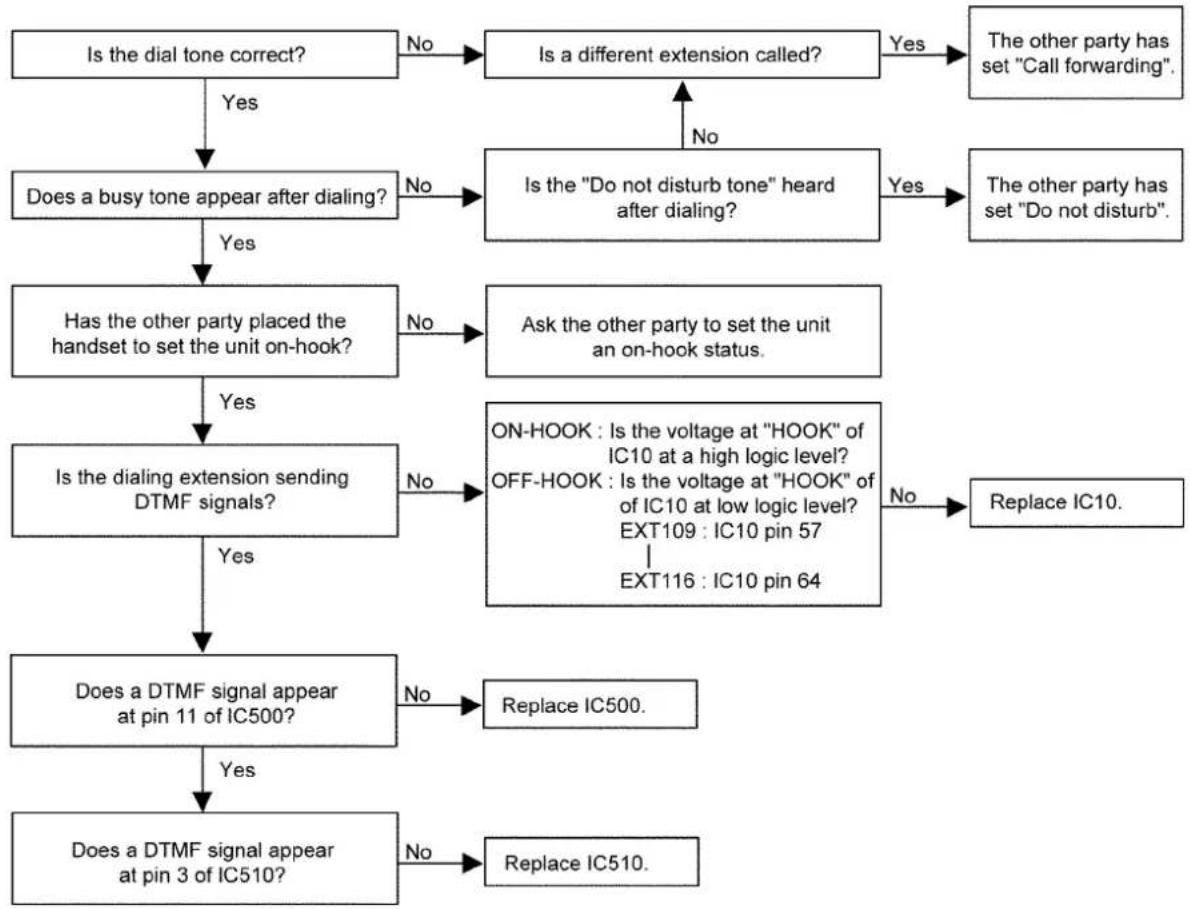

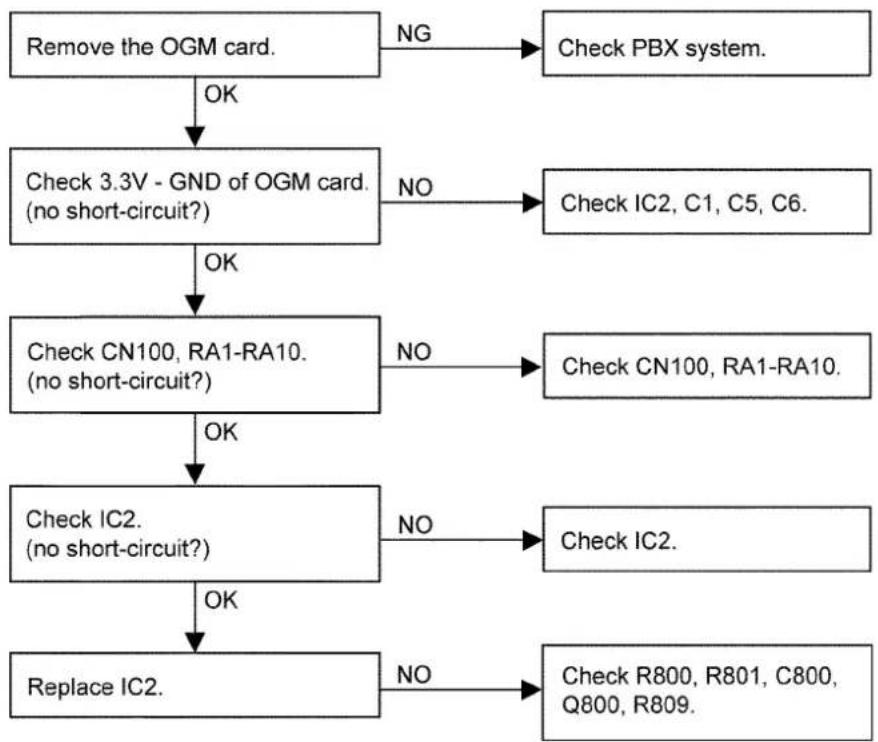

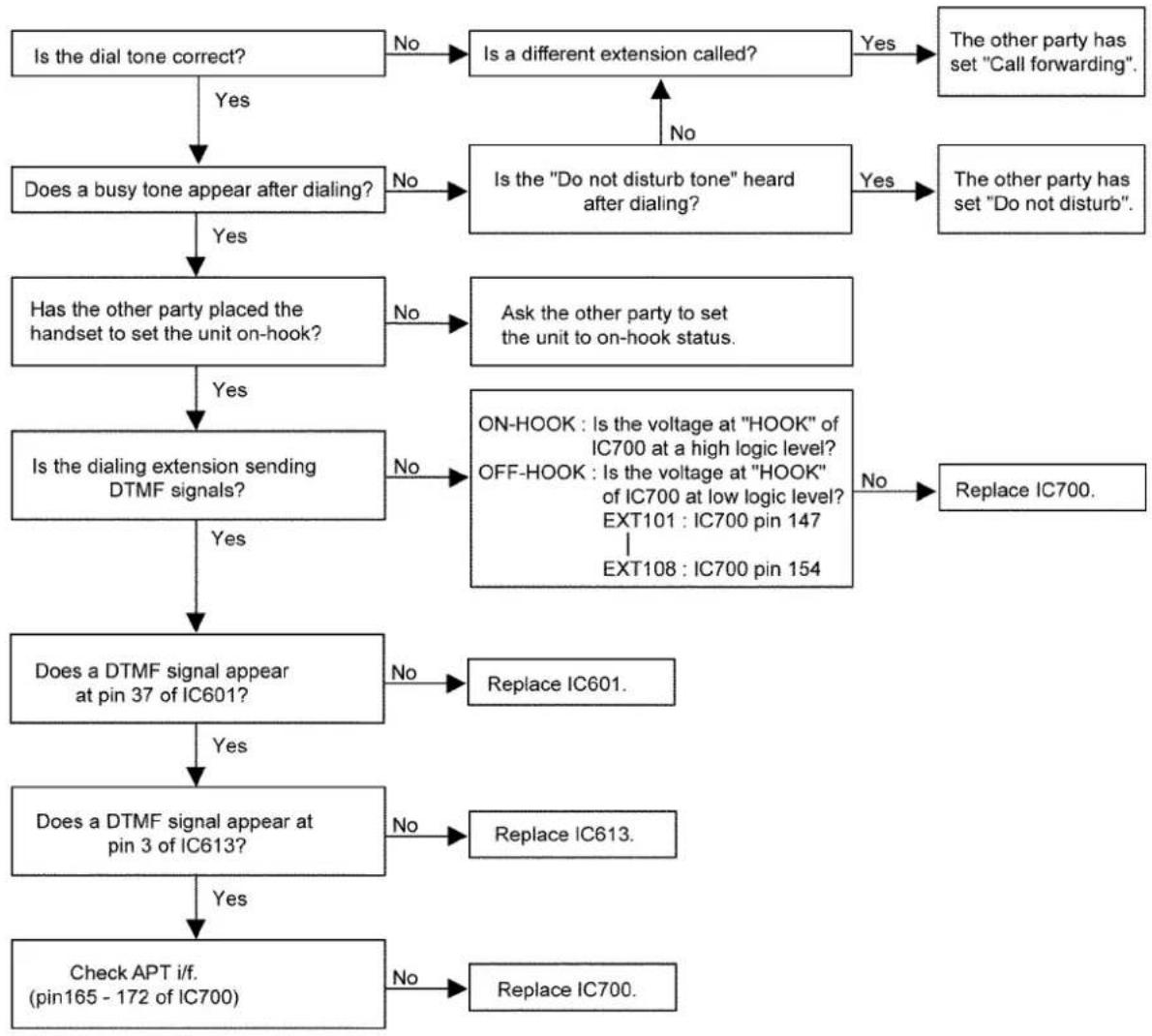

12 TROUBLESHOOTING GUIDE 42

12.1. NO OPERATION (Check POWER SUPPLY BOARD, MAIN BOARD) 42

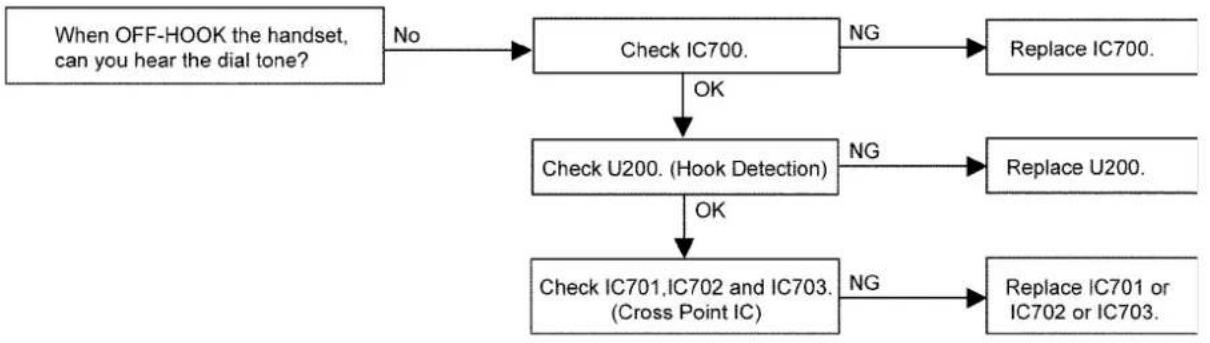

12.2. NO DIAL TONE (KX-TES824BX, MAIN BOARD OF KX-TEM824BX) 43

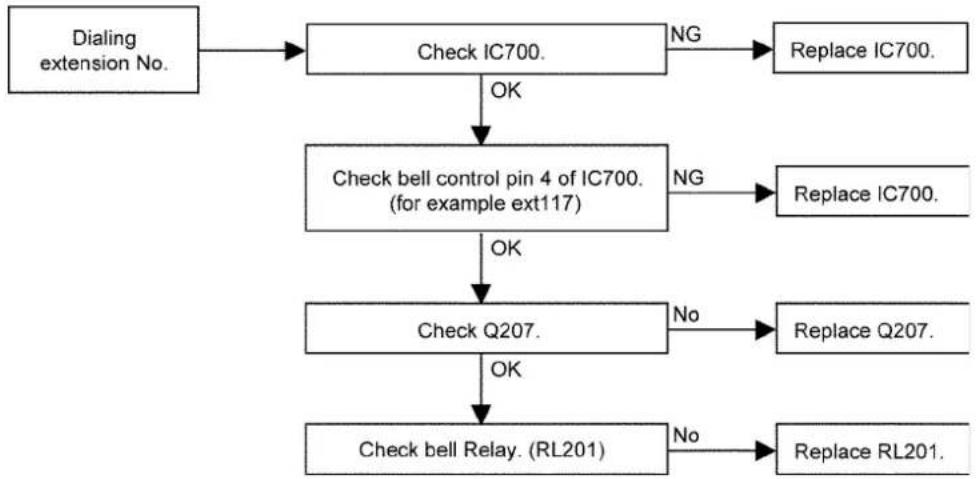

12.3. CANNOT DIAL (KX-TES824BX, MAIN BOARD OF KX-TEM824BX) 44

12.4. CANNOT CALL EXTENSION (KX-TES824BX, MAIN BOARD OF KX-TEM824BX) 45

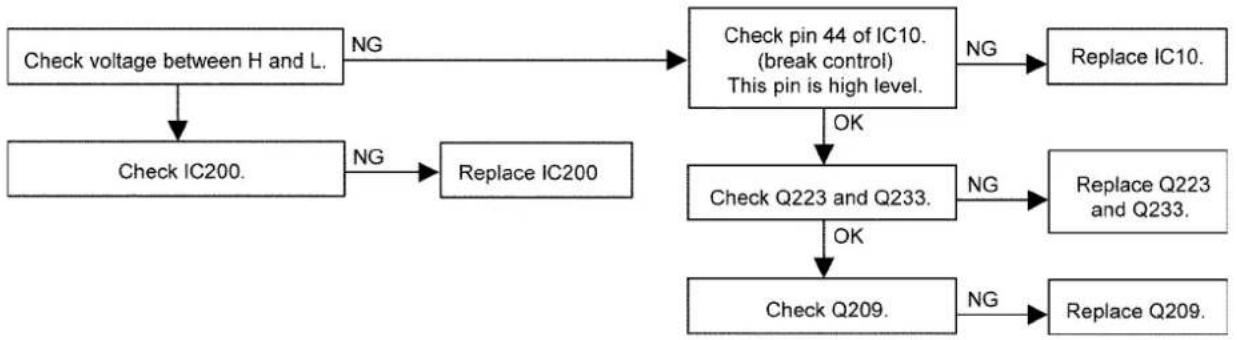

12.5. CANNOT USE PROPRIETARY TELEPHONE (KX-TES824BX, MAIN BOARD OF KX-TEM824BX) 45

12.6. CANNOT RECEIVE INCOMING CALL (KX-TES824BX, MAIN BOARD OF KX-TEM824BX) 45

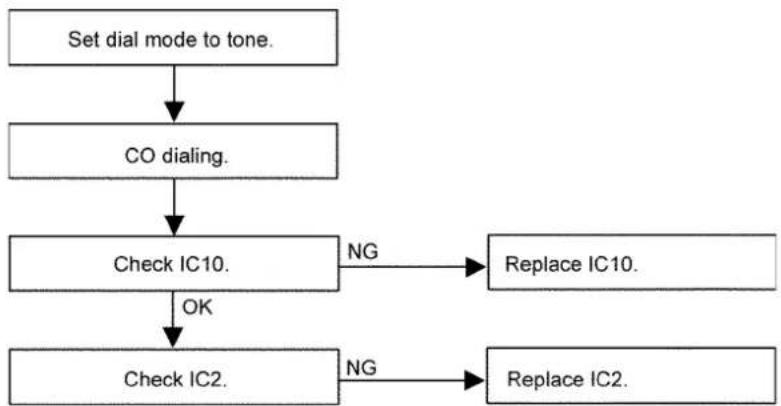

12.7. CANNOT SEND DTMF DIALING (KX-TES824BX, MAIN BOARD OF KX-TEM824BX) 46

12.8. CANNOT RECEIVE CALL DIAL TONE (KX-TES824BX, MAIN BOARD OF KX-TEM824BX) 46

12.9. CANNOT SEND A HOLD ON MUSIC (KX-TES824BX, MAIN BOARD OF KX-TEM824BX) 47

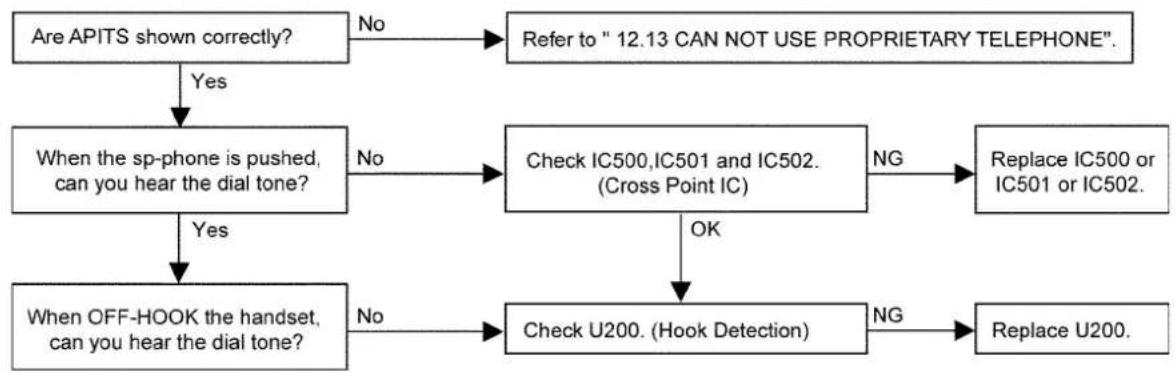

12.10.NODIALTONE(SUBBOARDOFKX-TEM824BX) 47

12.11.CANNOTDIAL(SUBBOARDOFKX-TEM824BX) 48

12.12.CANNOTCALLEXTENSION(SUBBOARDOFKX-TEM824BX) 48

12.13.CANNOTUSEPROPRIETARYTELEPHONE(SUB BOARD OF KX-TEM824BX) 49

12.14.CANNOTRECEIVEINCOMINGCALL(SUBBOARDOF KX-TEM824BX) 49

12.15.CANNOTSENDDTMFDIALING(SUBBOARDOFKX-TEM824BX) 49

12.16.CANNOTRECEIVECALLDIALTONE(SUBBOARDOF KX-TEM824BX) 50

12.17.CANNOTSENDAHOLDONMUSIC(SUBBOARDOF KX-TEM824BX) 50

13 IC DATA 51

13.1.IC700 51

13.2. IC6 53

14 TERMINAL GUIDE OF ICS, TRANSISTORS AND DIODES ---- 55

15 HOW TO REPLACE A FLAT PACKAGE IC 56

15.1. PREPARATION 56

15.2.REMOVALPROCEDURE 56

15.3. INSTALLATION PROCEDURE 56

15.4. REMOVING SOLDER FROM BETWEEN PINS----56

16 FIXTURES AND TOOLS 57

17 CABINET AND ELECTRICAL PARTS LOCATION 58

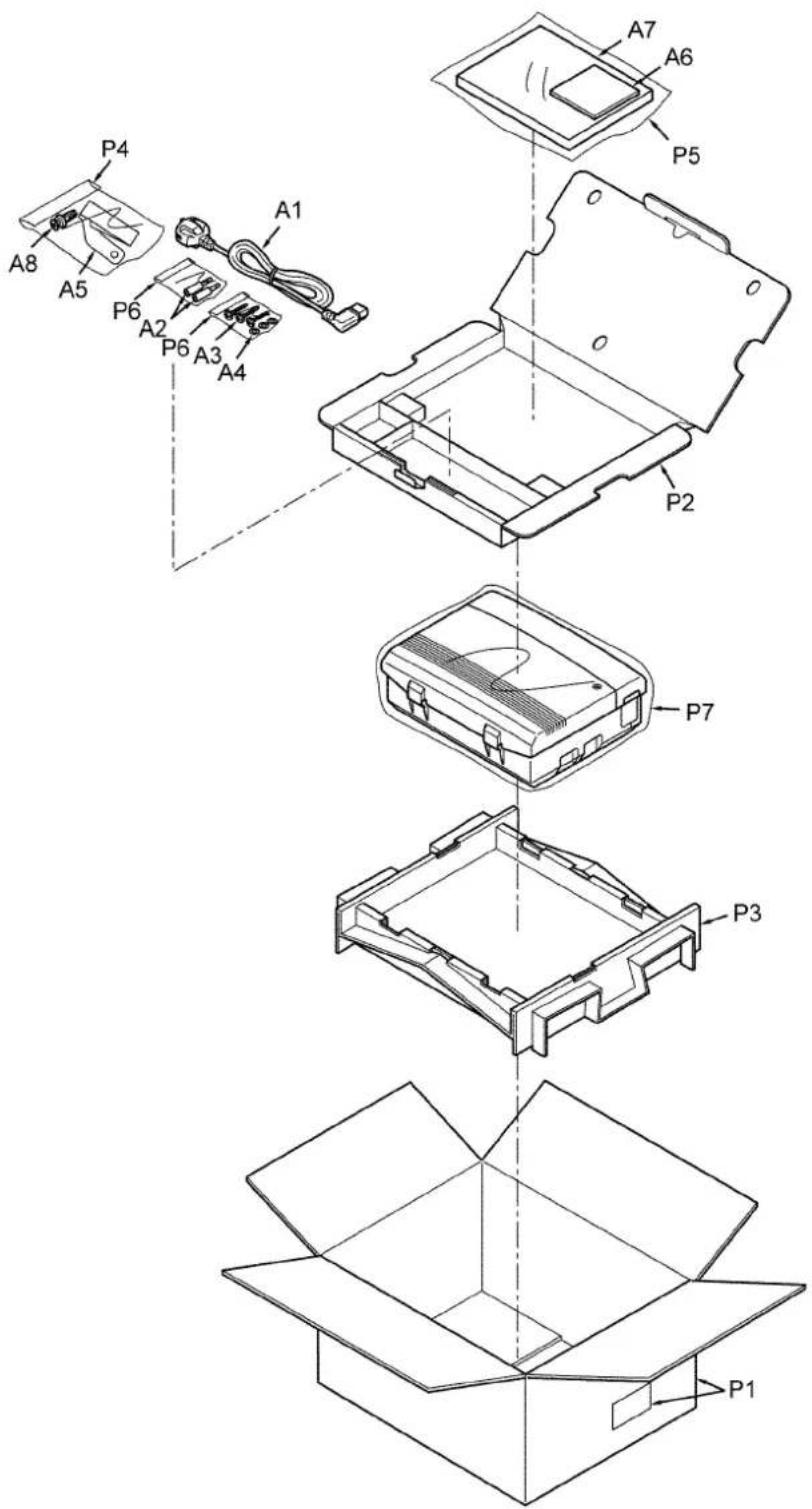

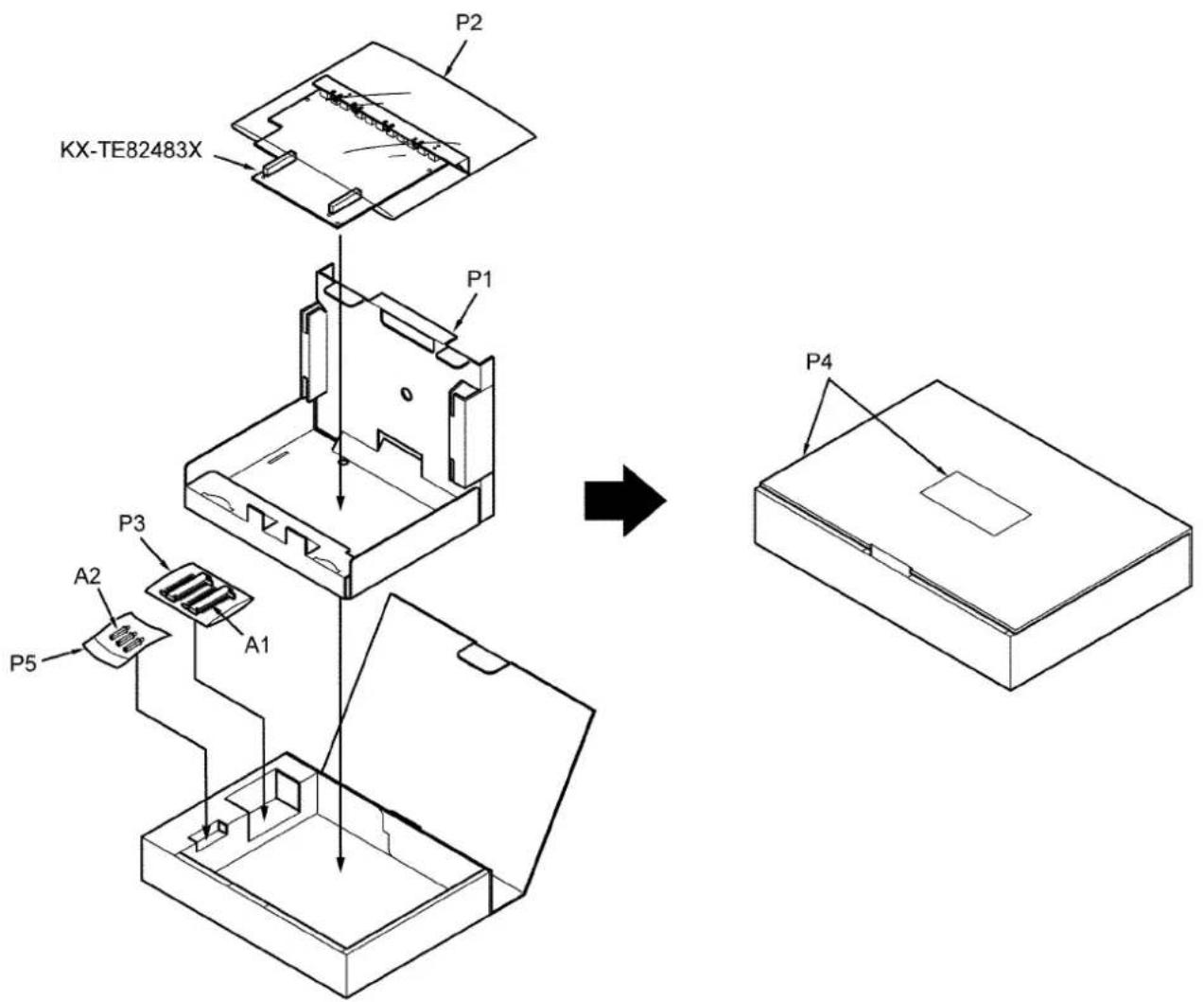

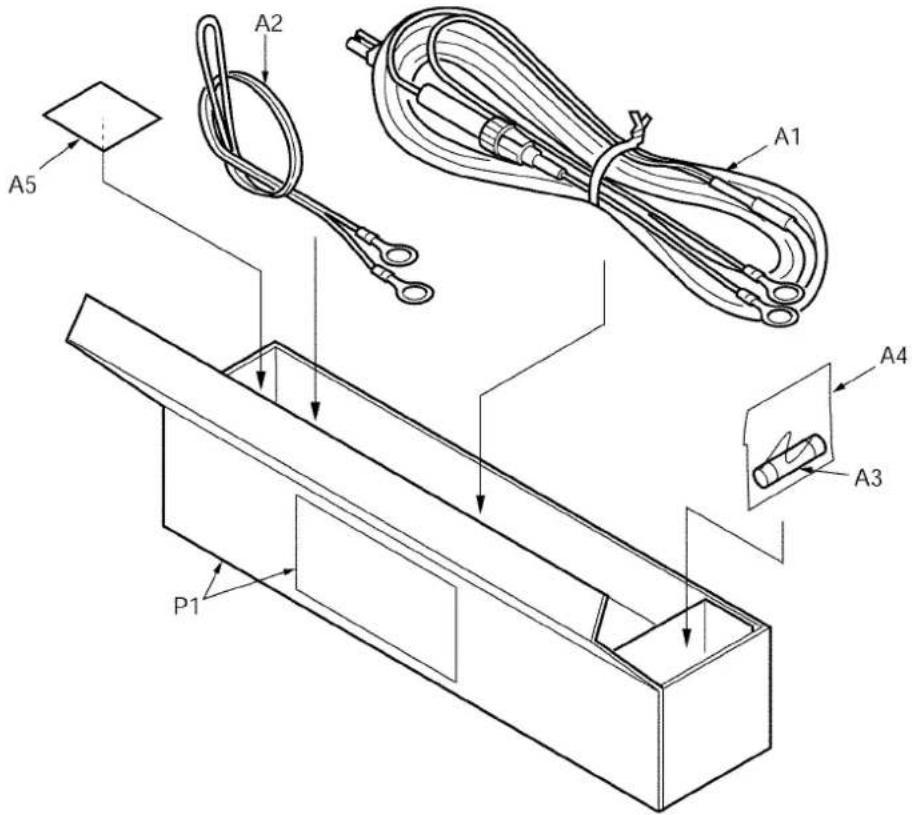

18 ACCESSORIES AND PACKING MATERIALS 59

19 REPLACEMENT PARTS LIST (KX-TES824BX/KX-TEM824BX) 60

19.1. CABINET AND ELECTRICAL PARTS 60

19.2. ACCESSORIES AND PACKING MATERIALS----60----
19.3. MAIN BOARD PARTS 60
19.4. POWER SUPPLY BOARD PARTS 70
19.5. SUB BOARD PARTS 71
19.6. FIXTURES AND TOOLS 77

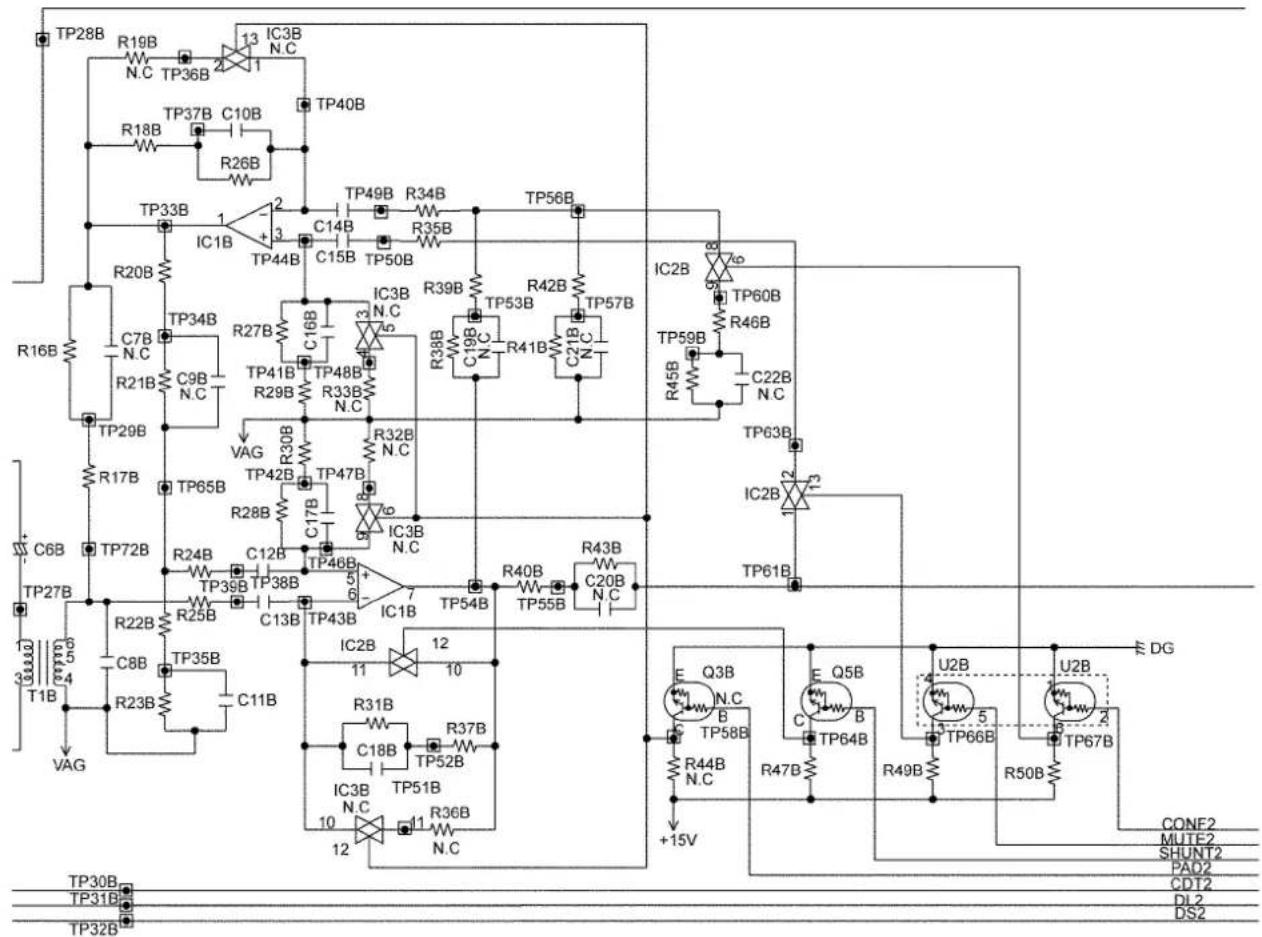

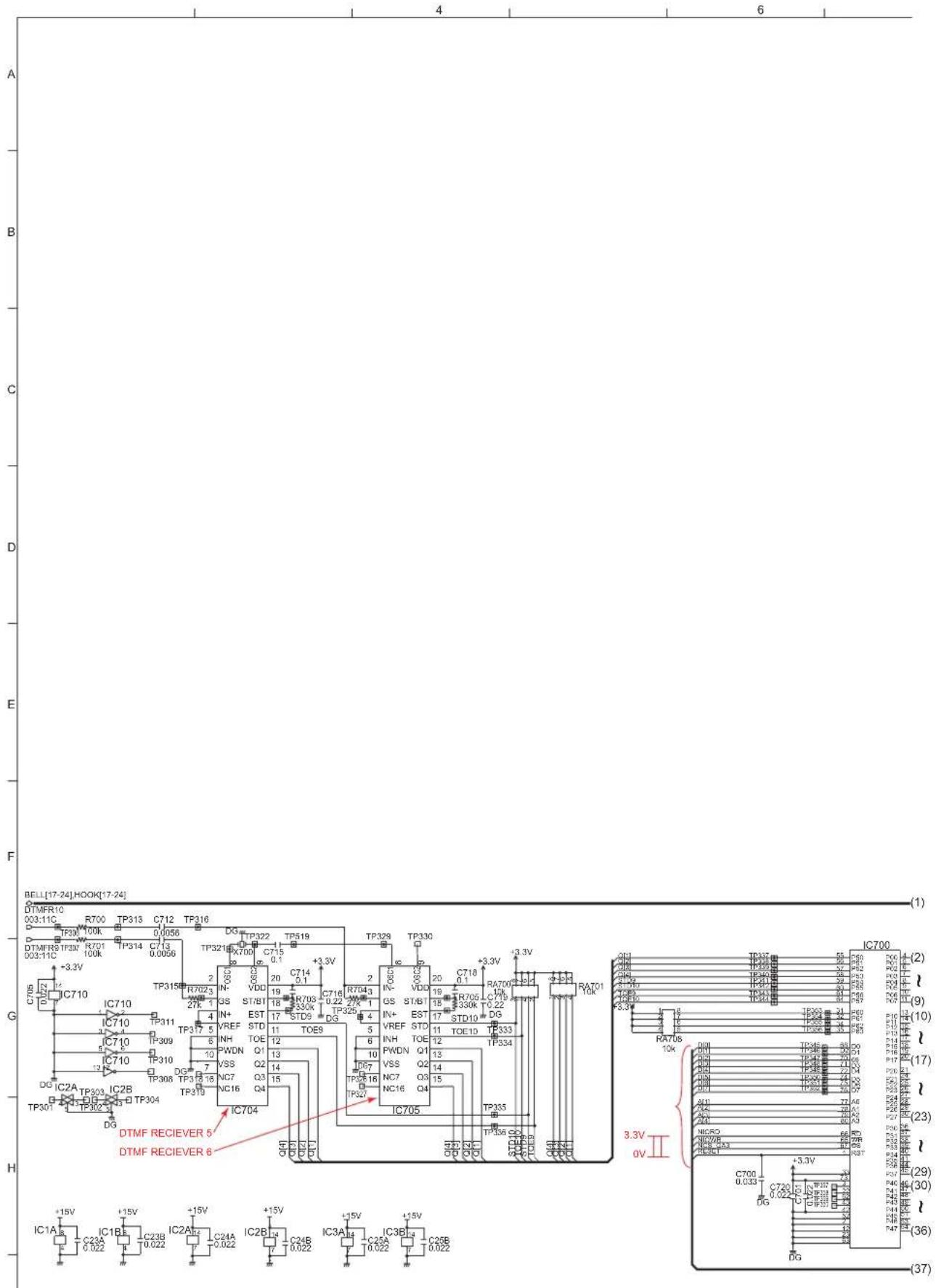

20 FOR THE SCHEMATIC DIAGRAM 78

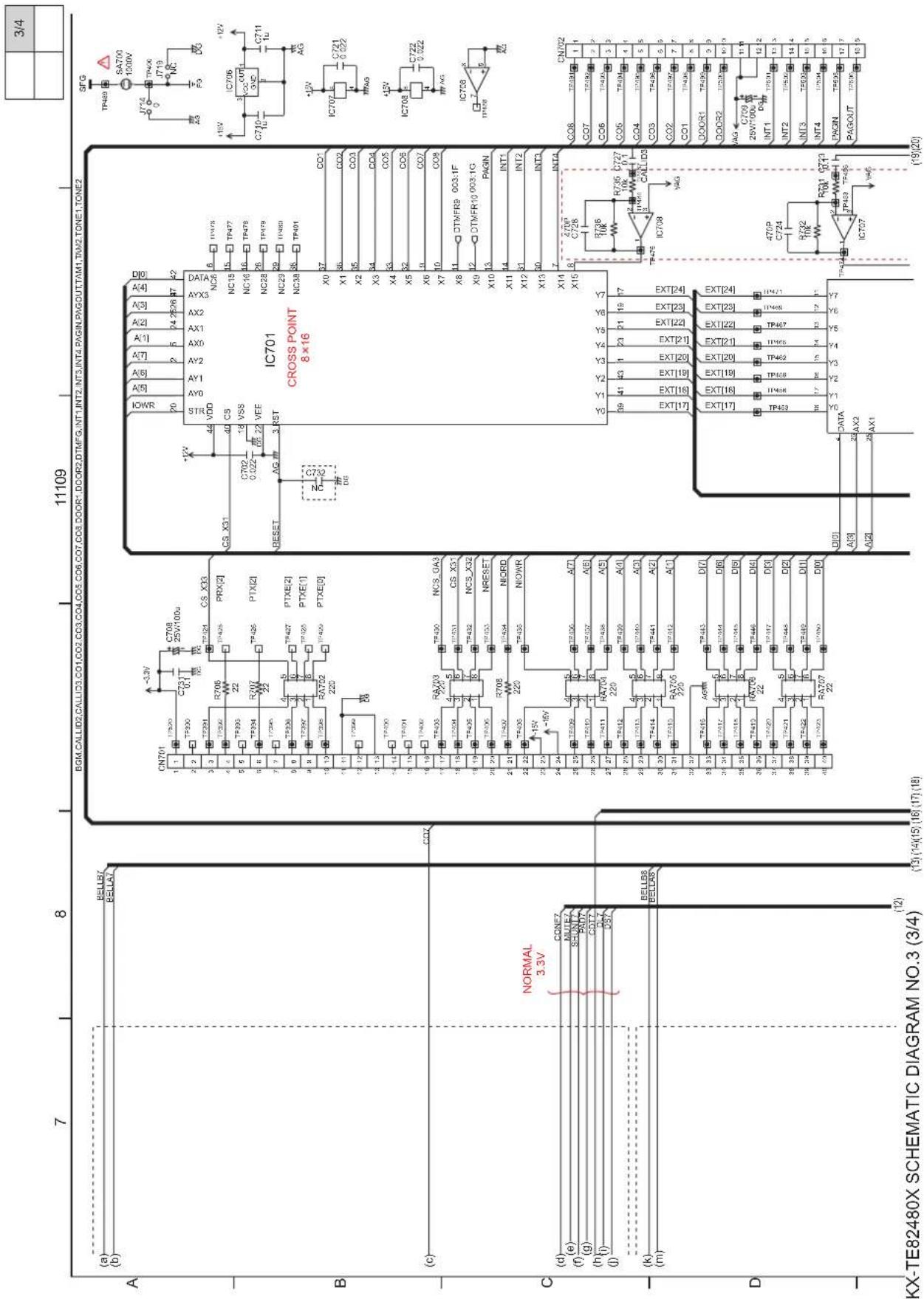

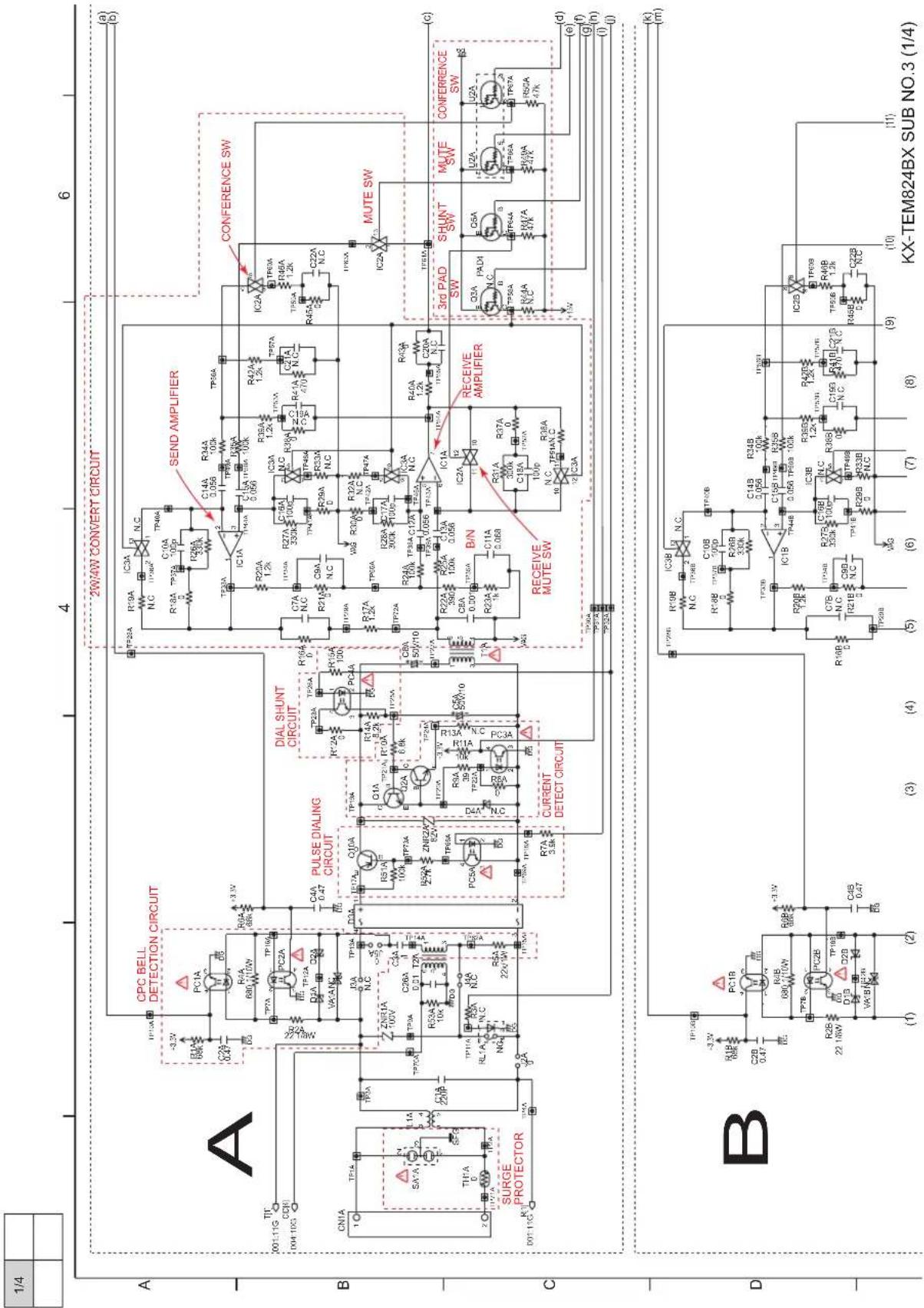

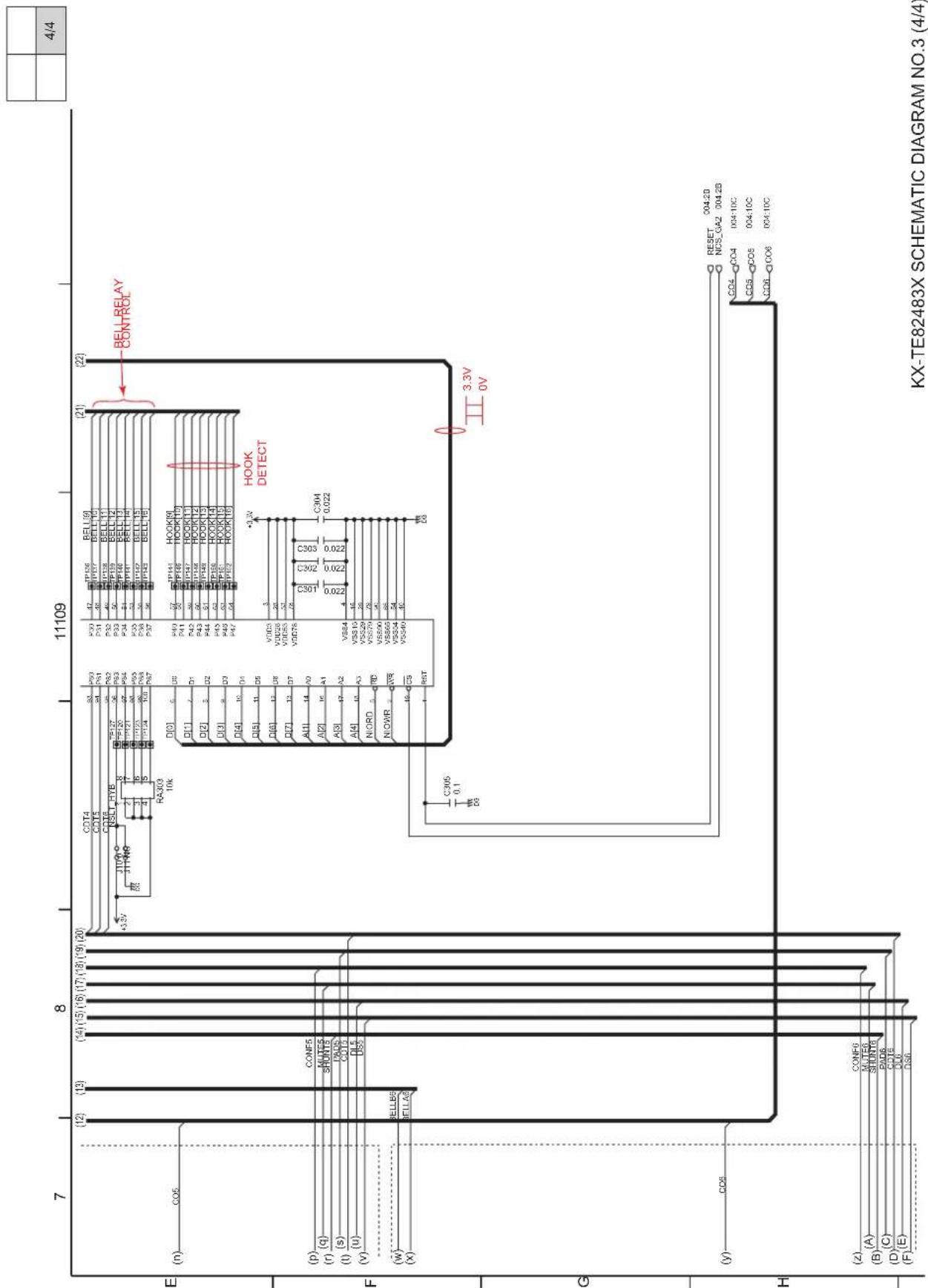

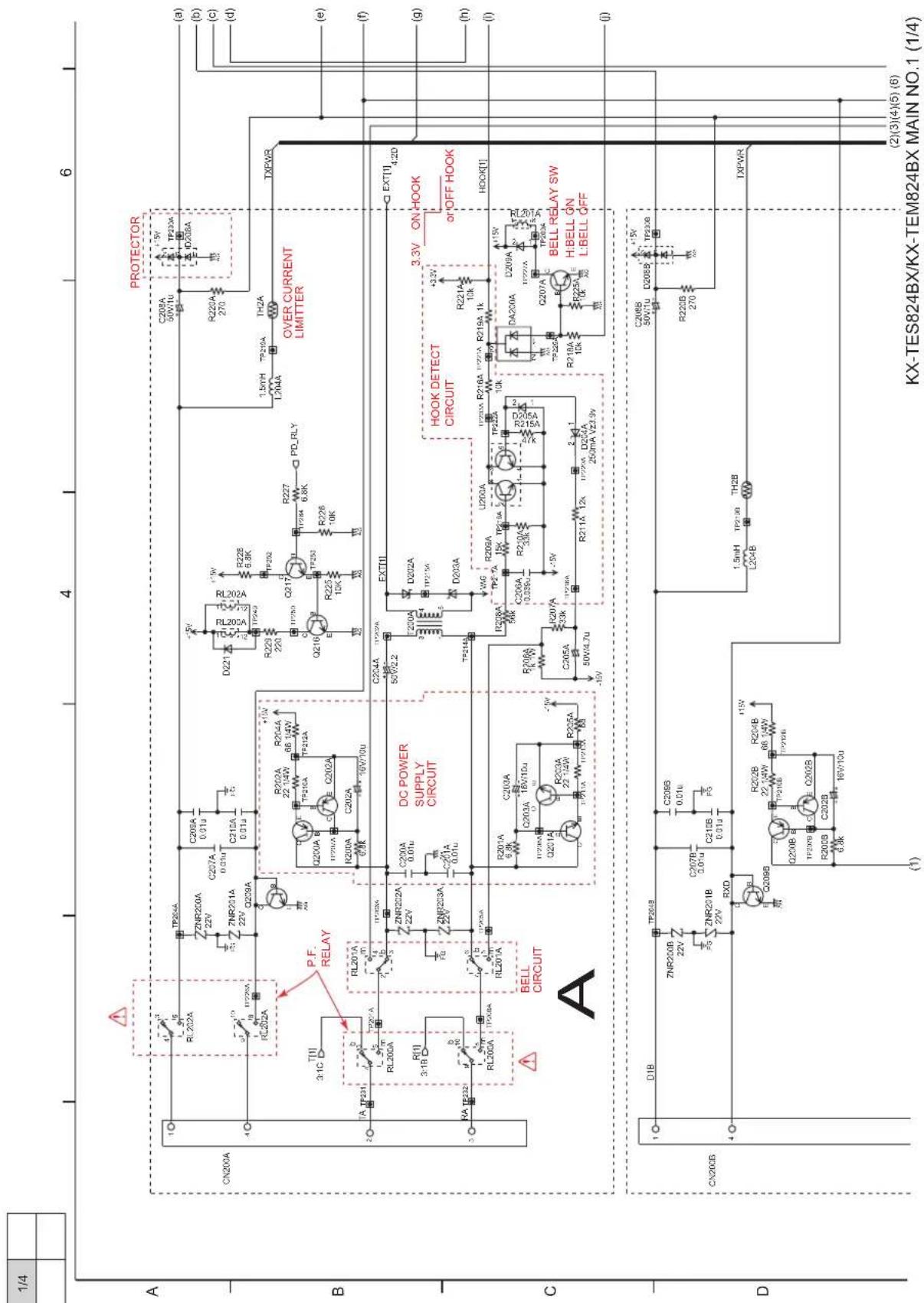

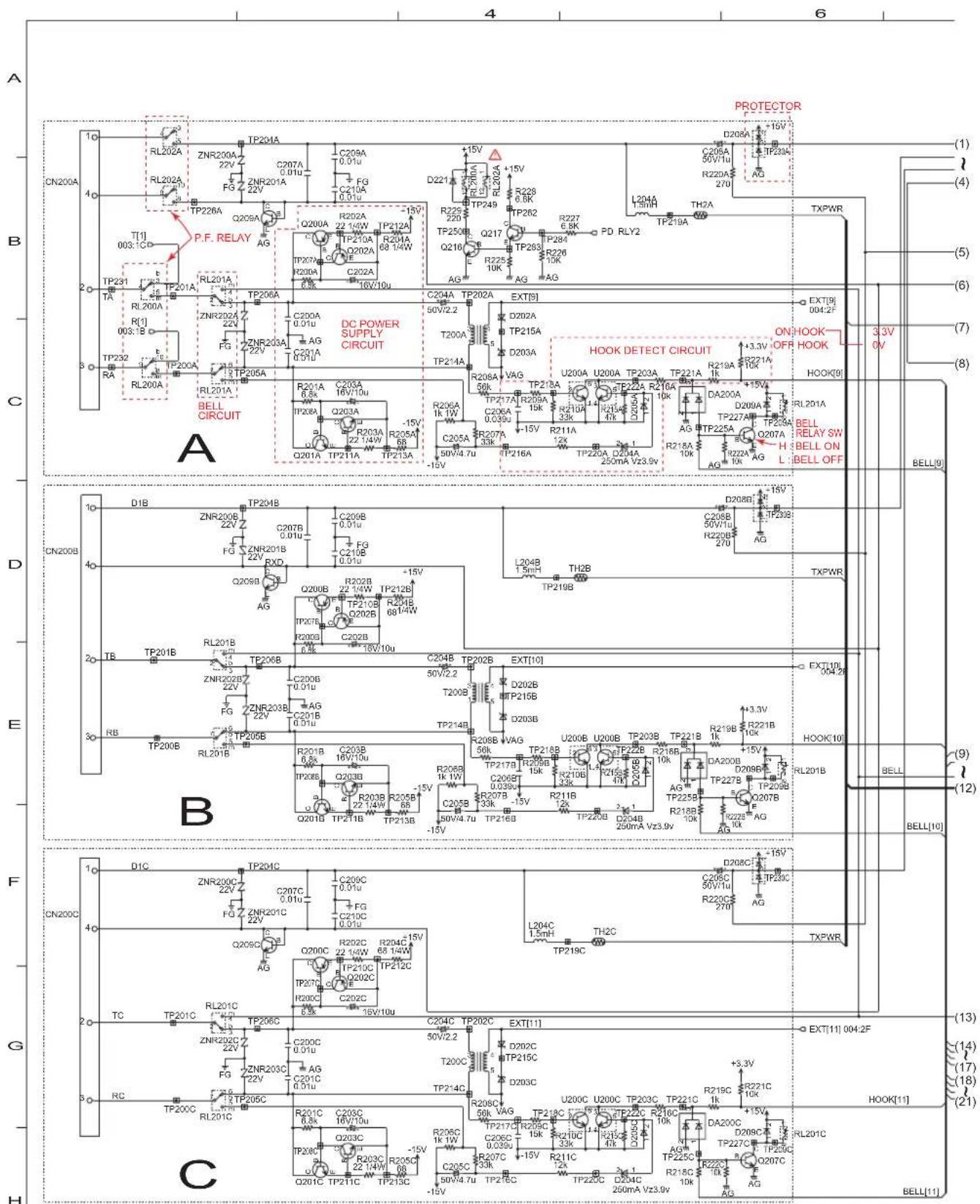

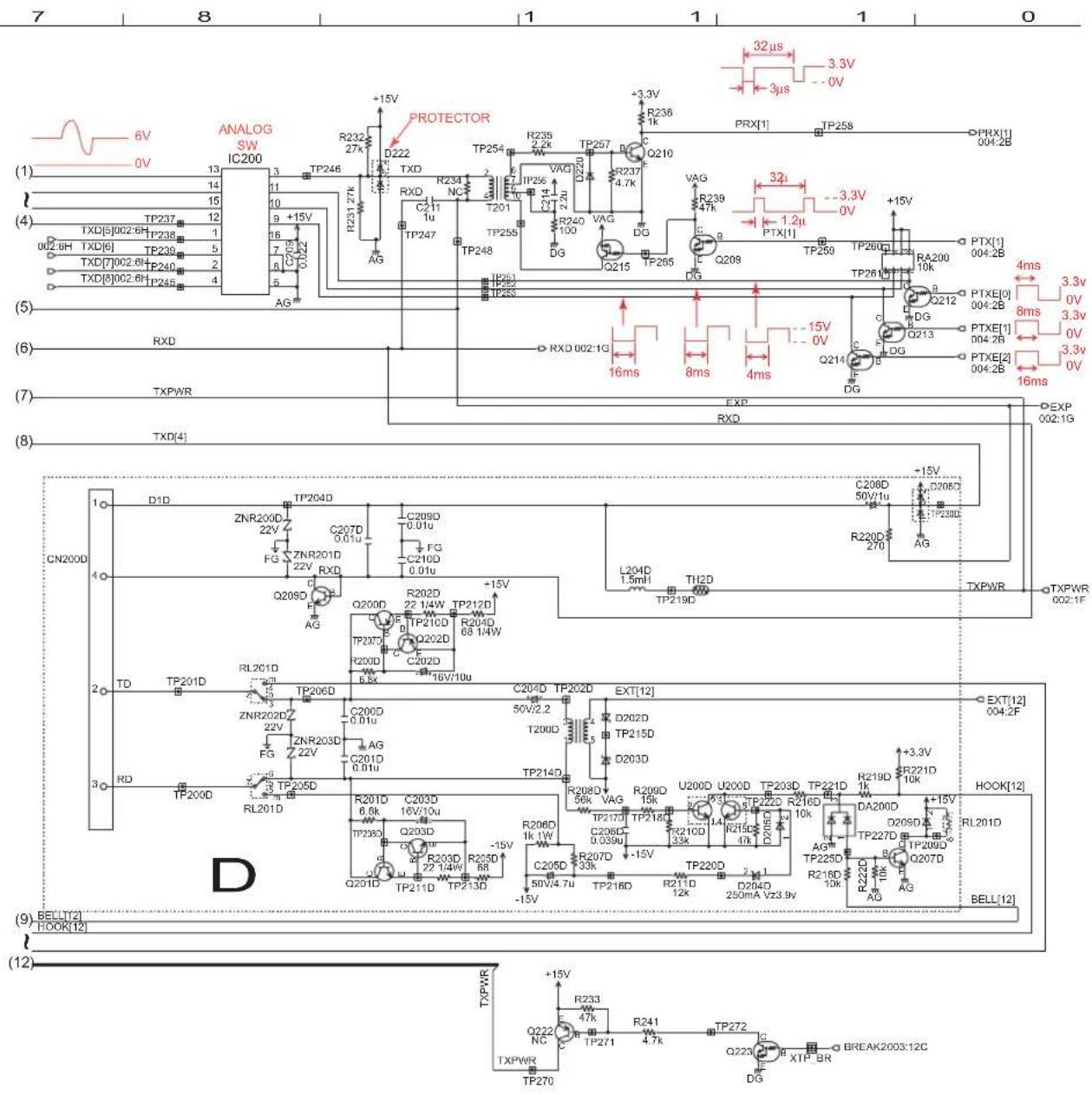

21 SCHEMATIC DIAGRAM (KX-TES824BX/KX-TEM824BX) 80

21.1. MAIN No.1 (Extension A-D Block) 80

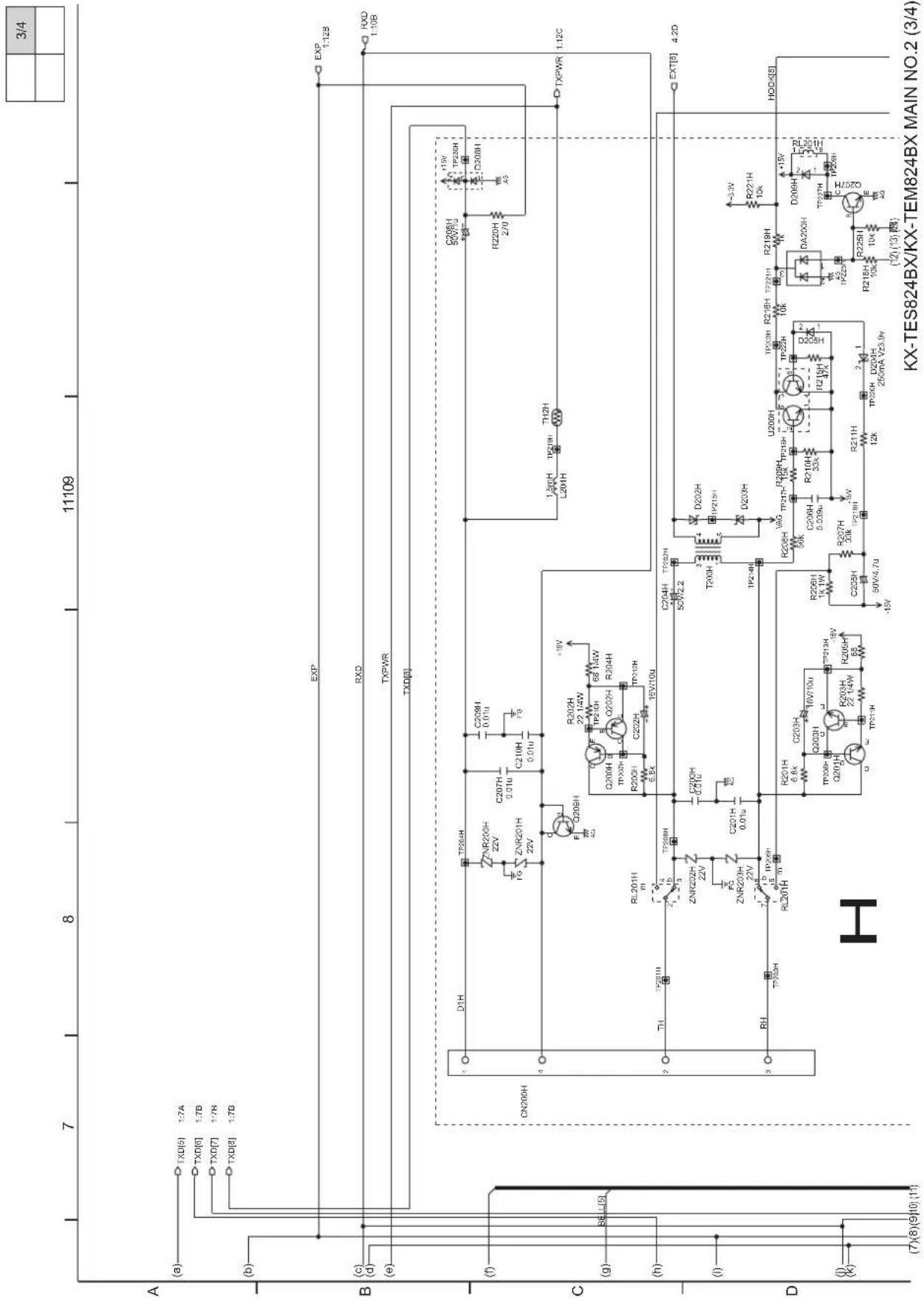

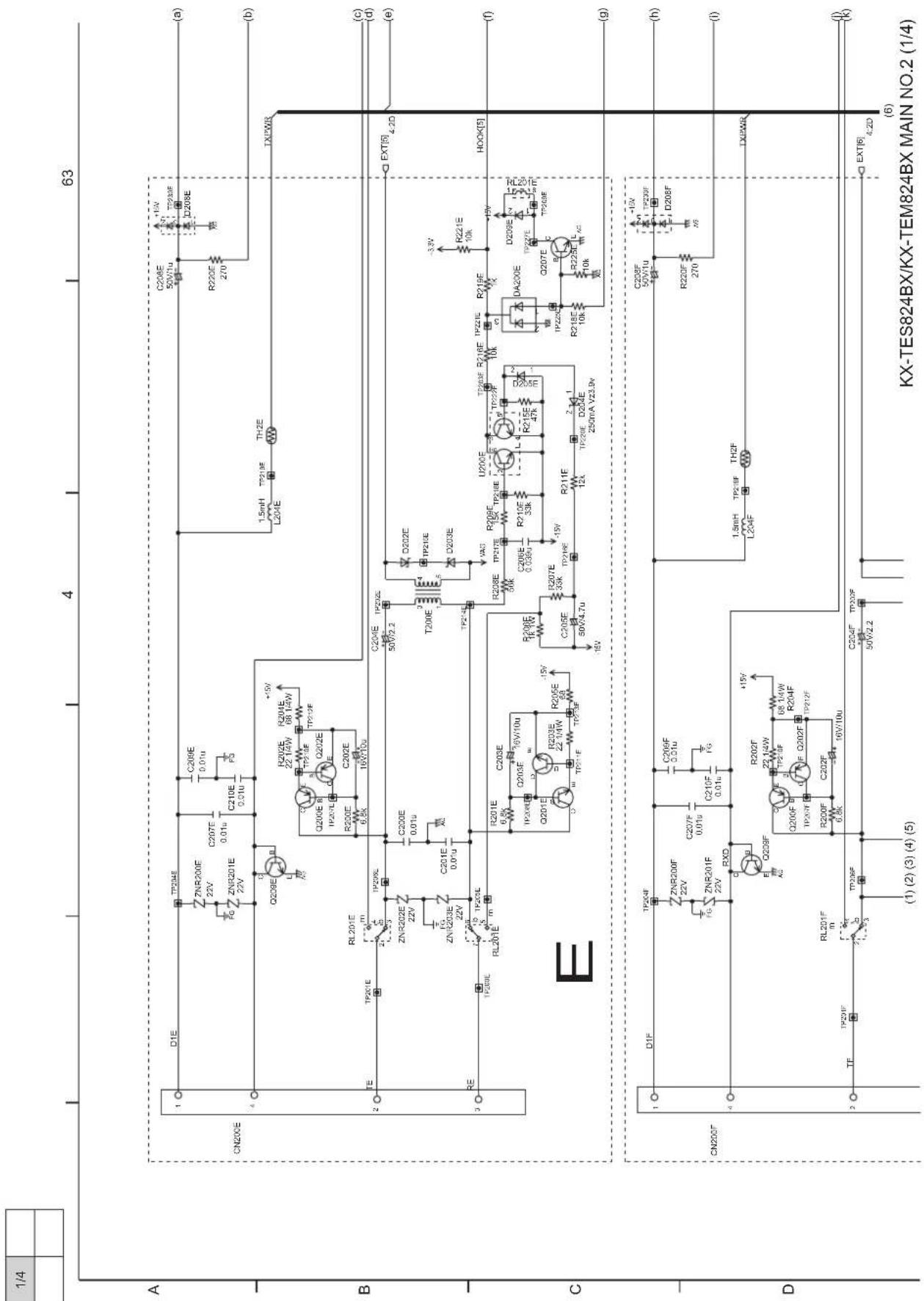

21.2. MAIN No.2 (Extension E-H Block) 84

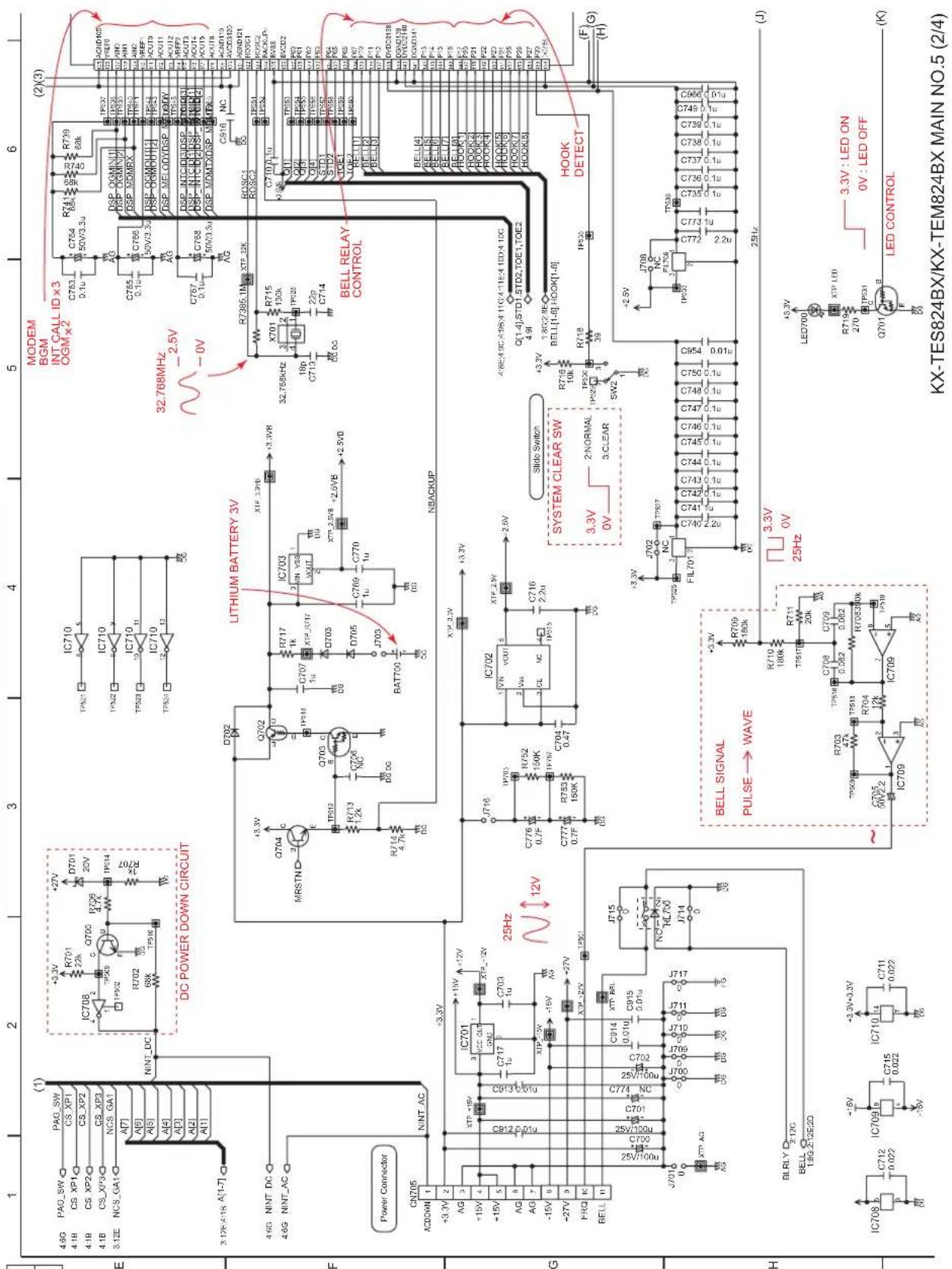

21.3. MAIN No.3 (CO Block) 88

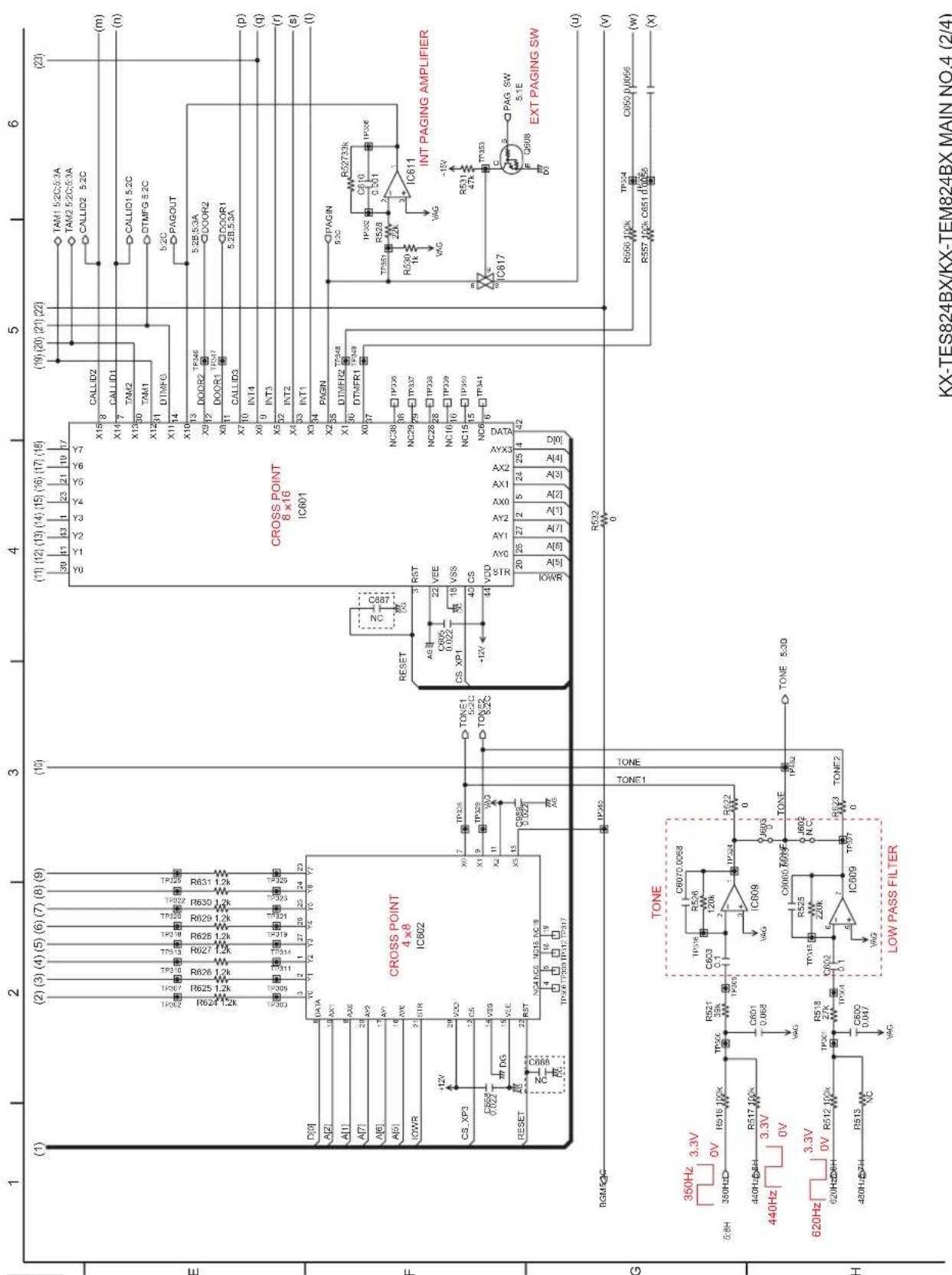

21.4. MAIN No.4 (Cross-Point Block) 92

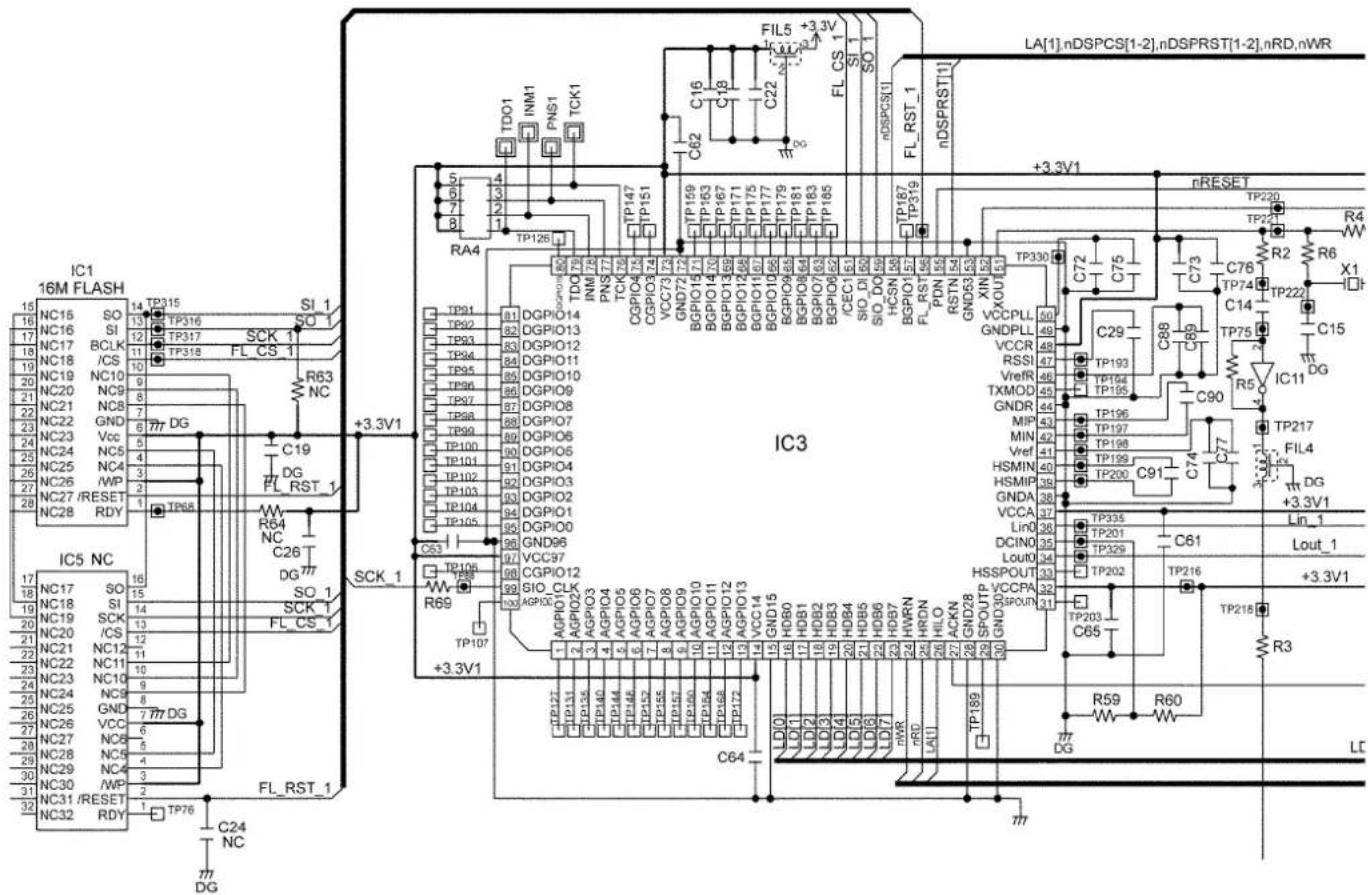

21.5. MAIN No.5 (ASIC, Memory Block) 96

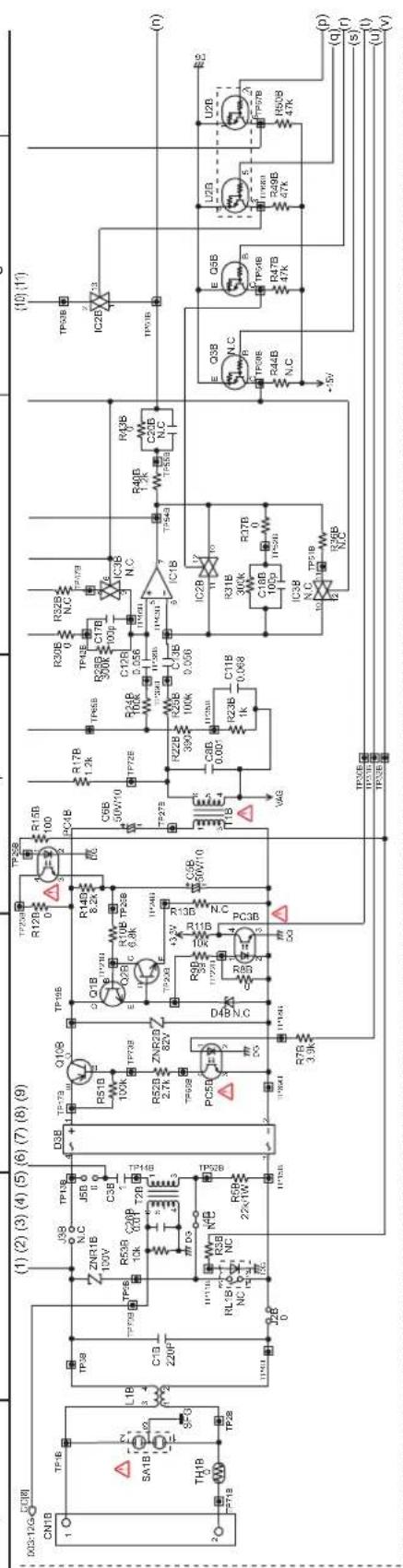

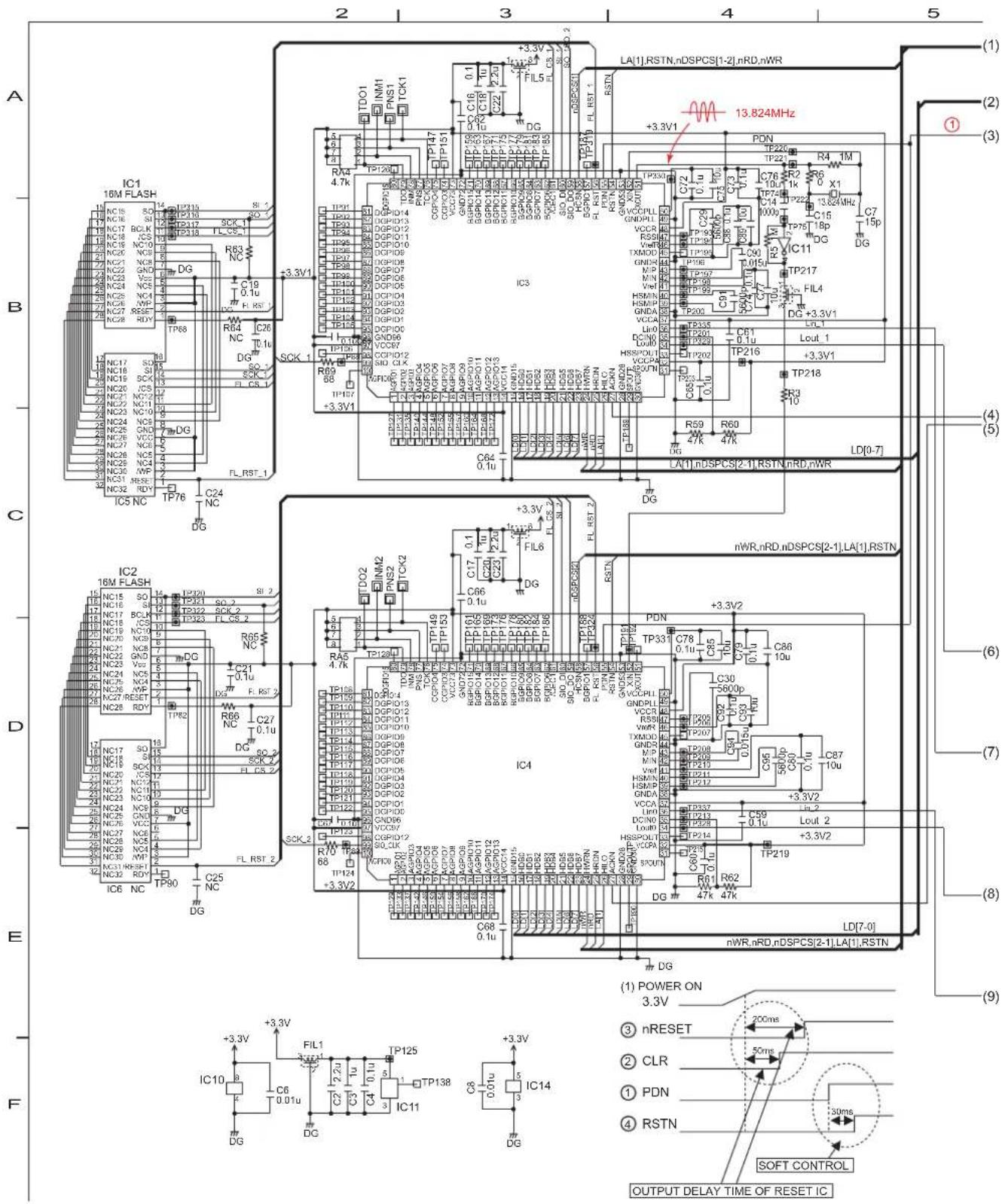

21.6. SUB 100
21.7. POWER SUPPLY 110

22 PRINTED CIRCUIT BOARD (KX-TES824BX/KX-TEM824BX) -114

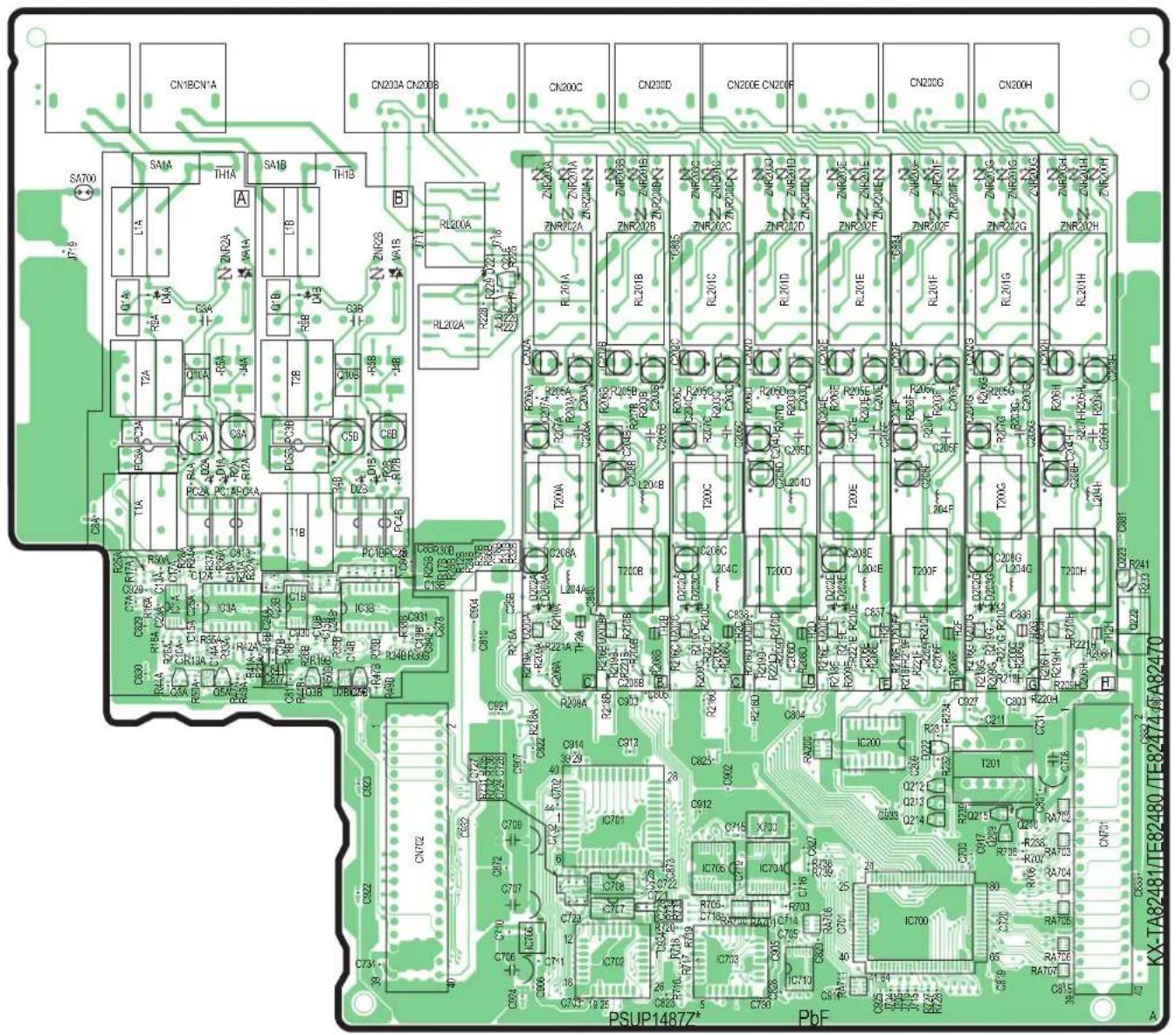

22.1.MAIN BOARD 114
22.2. SUB BOARD 116
22.3. POWER SUPPLY 118

23 KX-TE82461X (4-PORT DOORPHONE CARD) 119

23.1. HOW TO RECOGNIZE THAT Pb FREE SOLDER IS USED 120

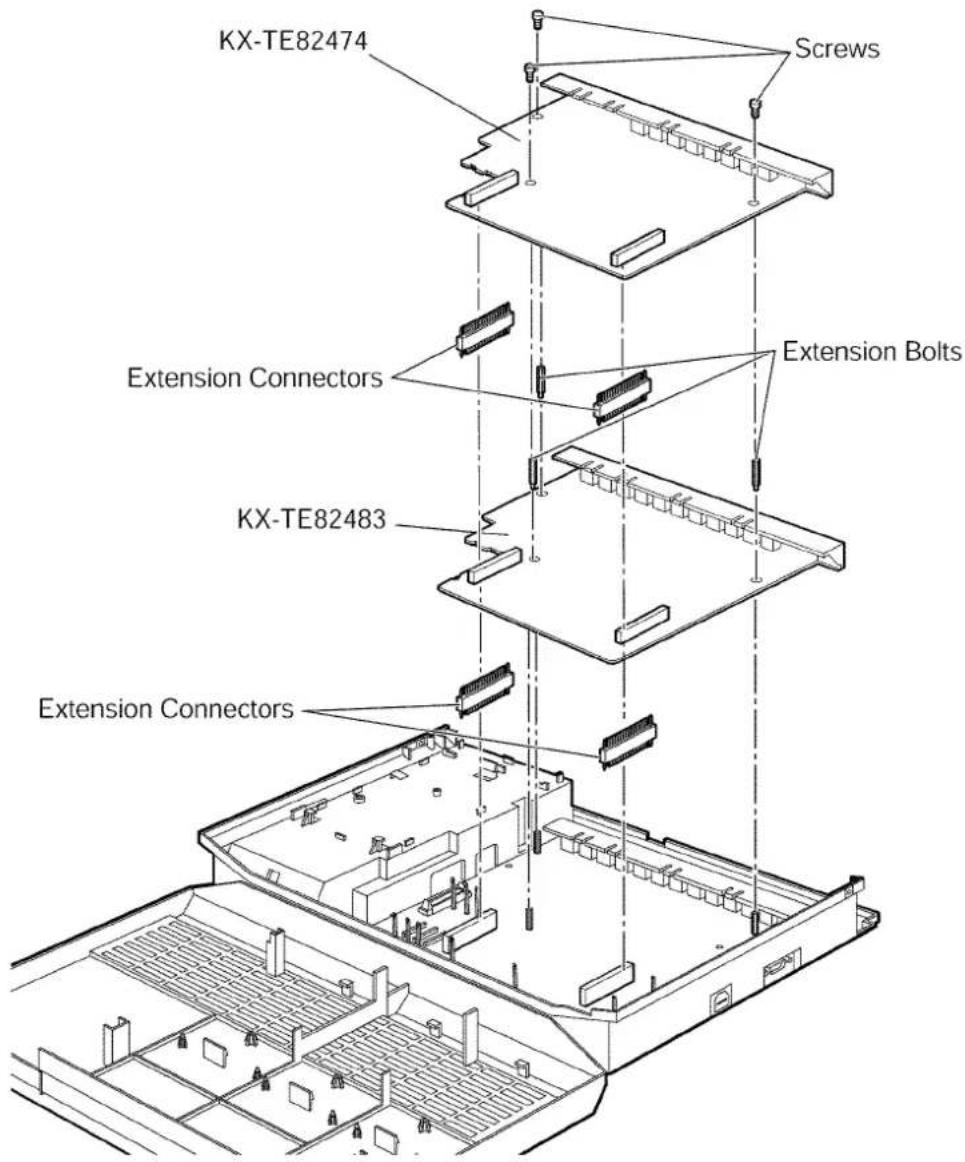

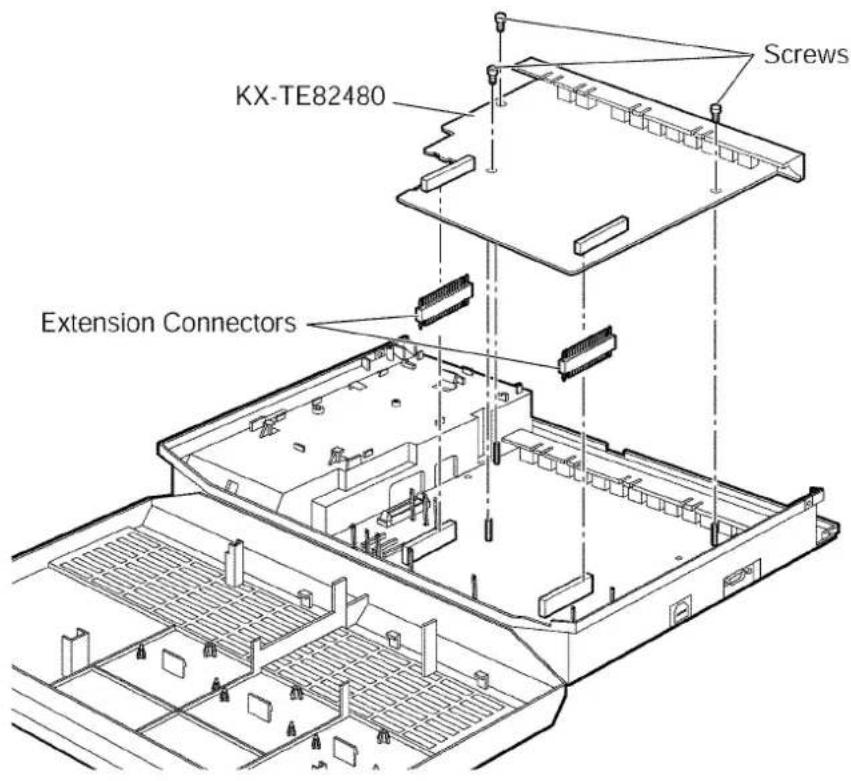

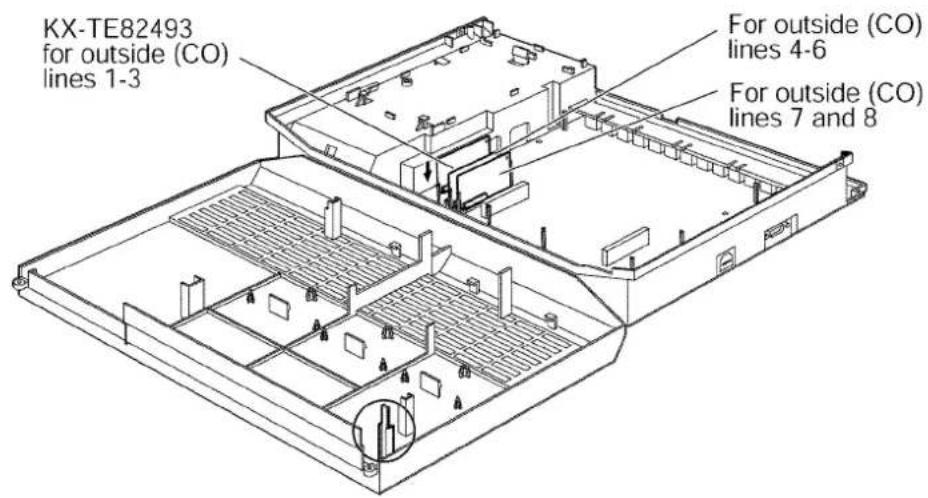

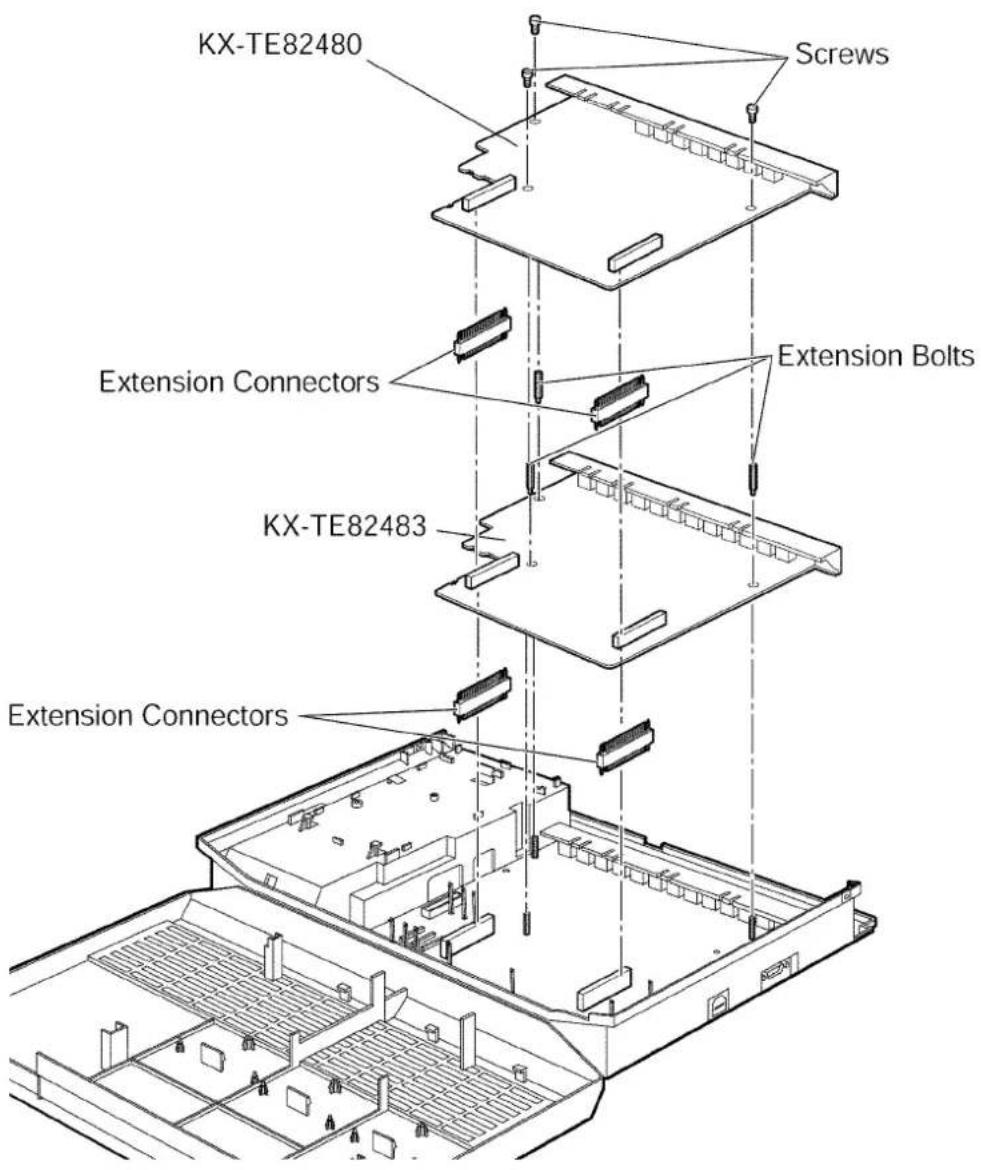

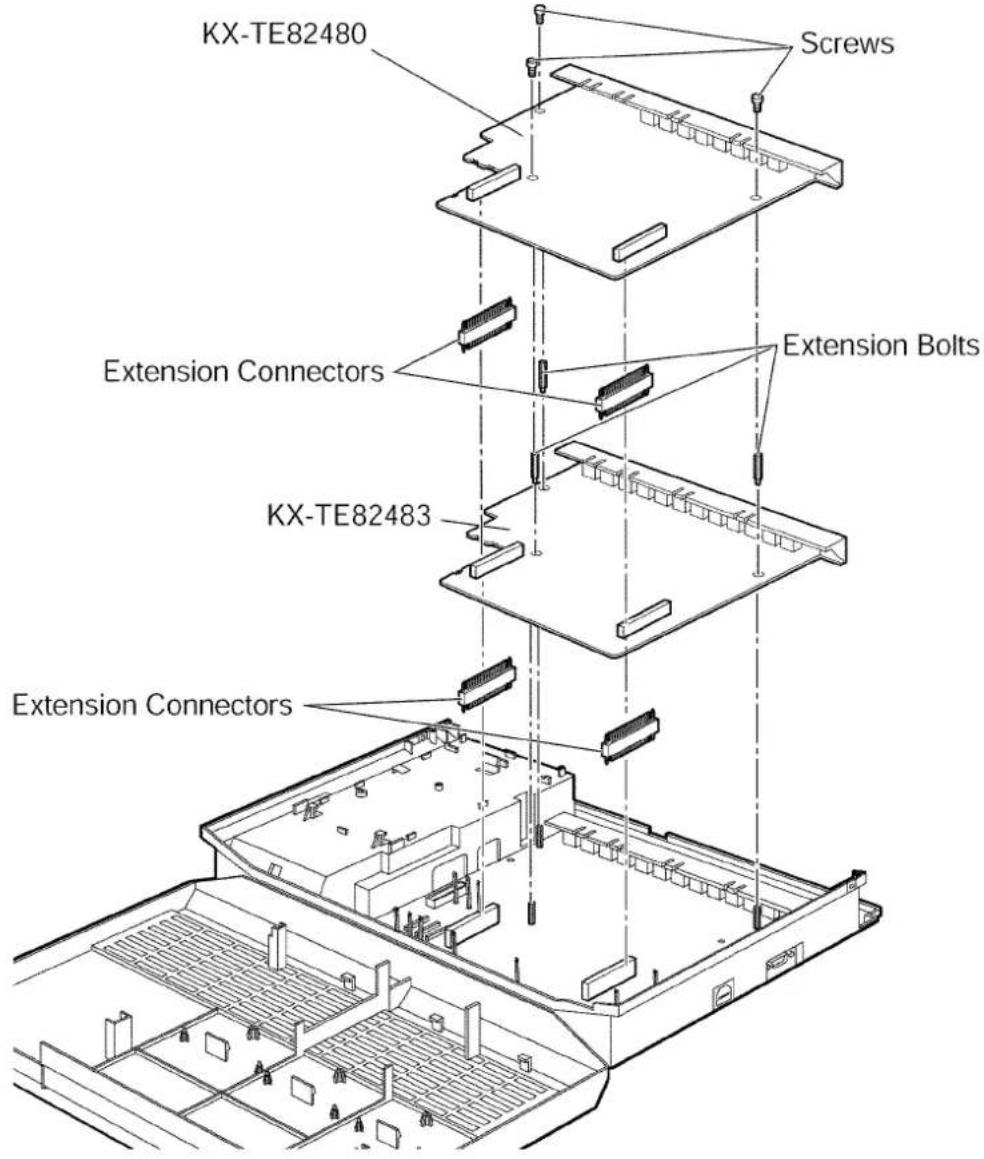

23.2. LOCATION OF OPTIONAL CARDS 121

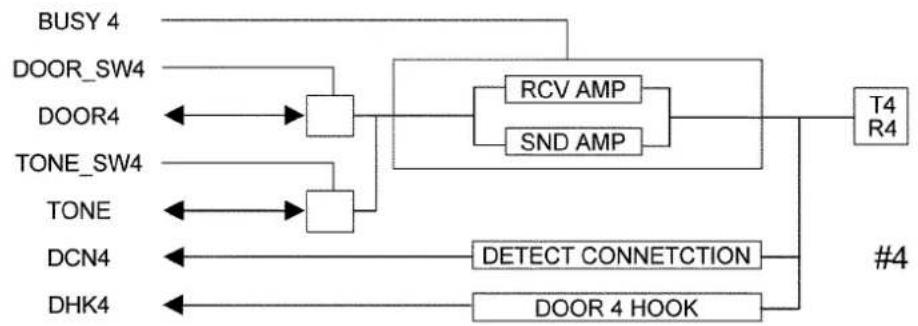

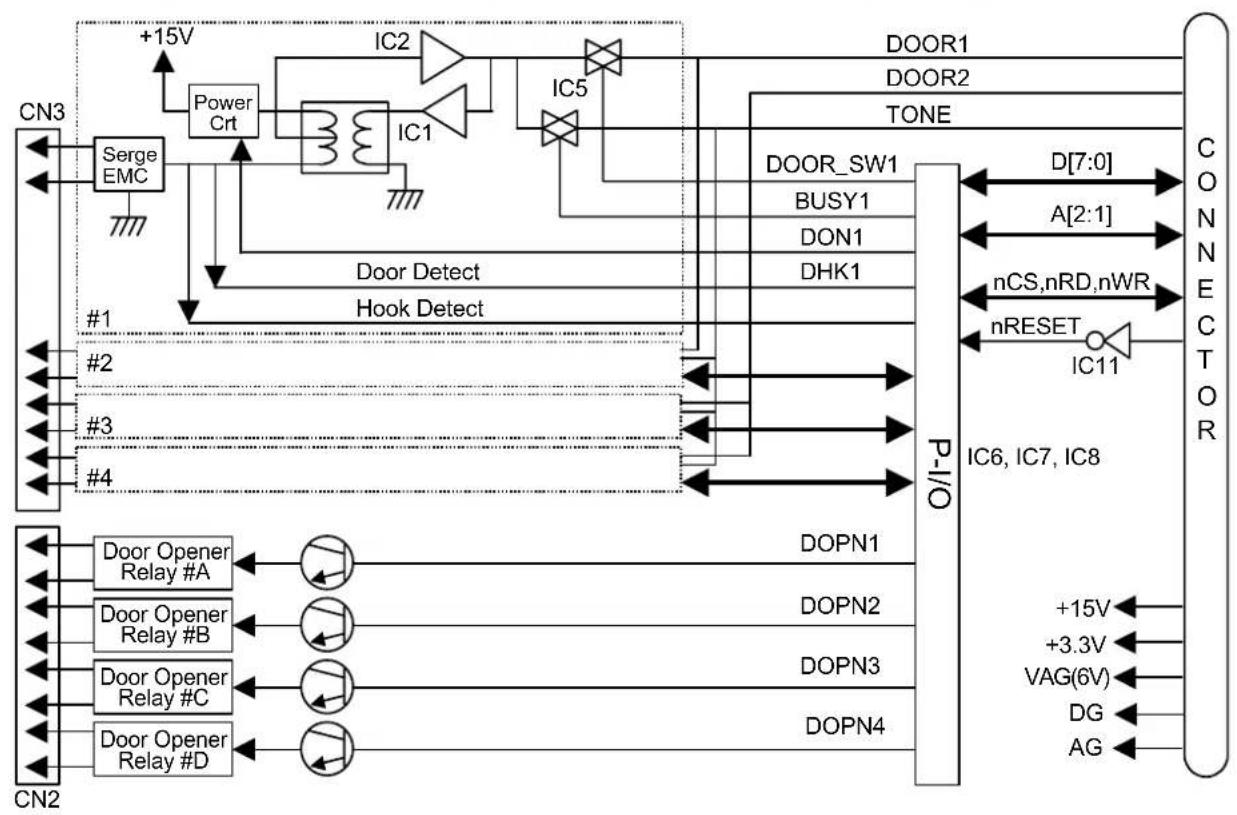

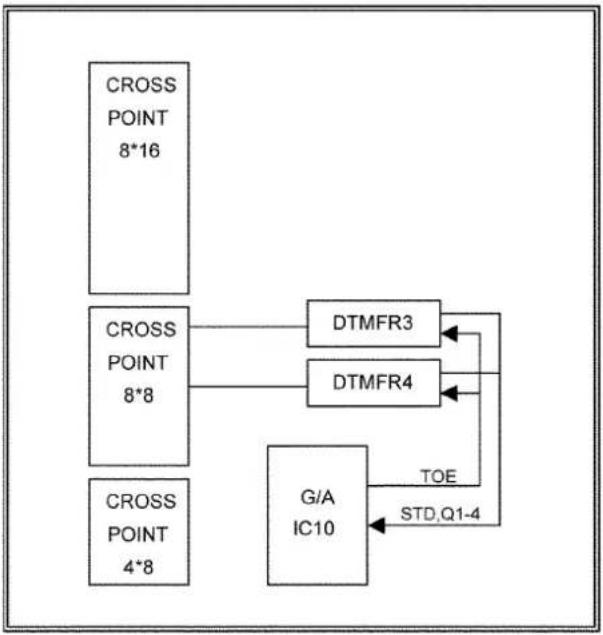

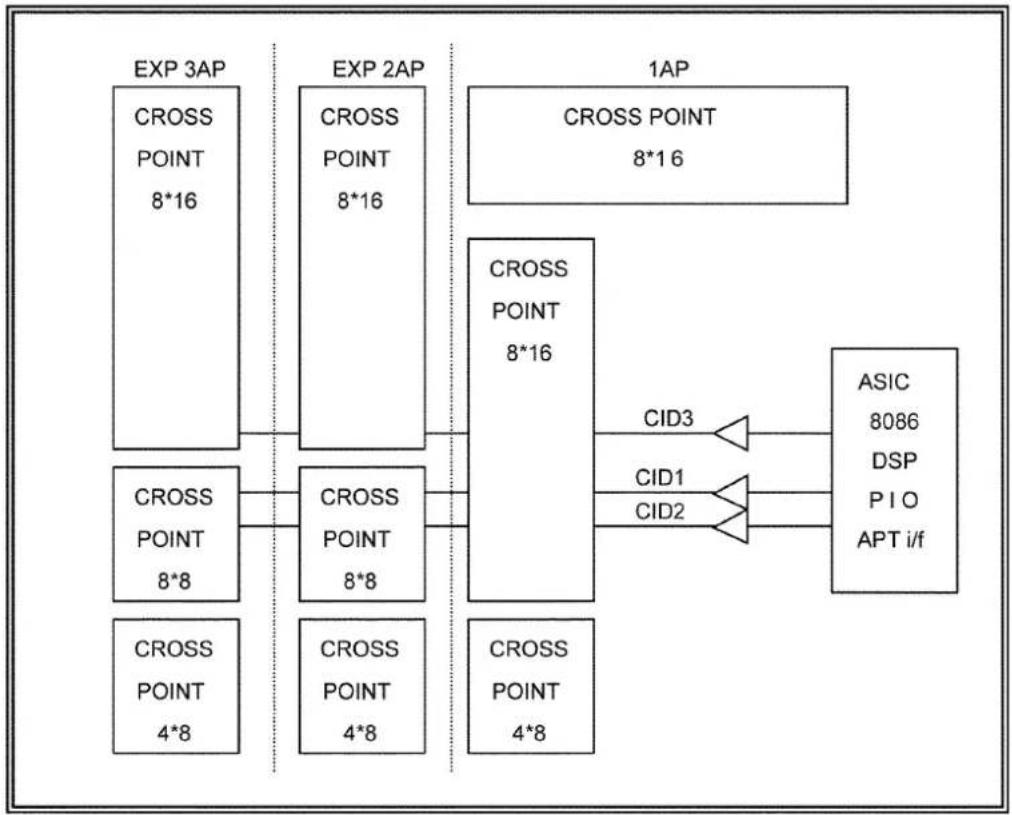

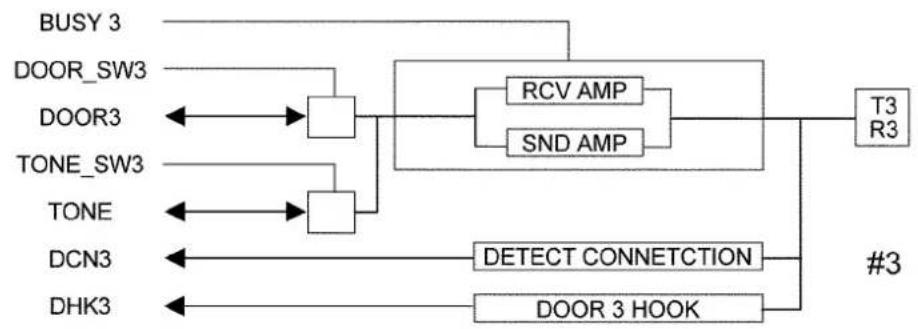

23.3.DOORPHONE/DOOROPENER CARD BLOCK DIAGRAM 122

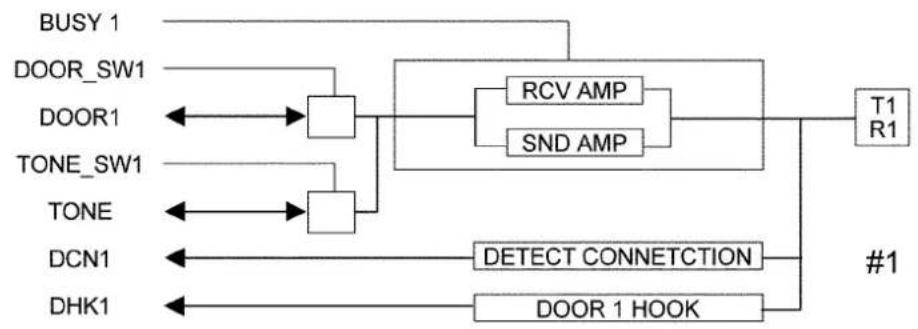

23.4. EXPLANATION OF BLOCK DIAGRAM/CIRCUIT OPERATIONS 124
23.5. TROUBLESHOOTING GUIDE 125
23.6.IC DATA 126
23.7. TERMINAL GUIDE OF ICS, TRANSISTORS AND DIODES 127
23.8. ACCESSORIES AND PACKING MATERIALS----128
23.9. REPLACEMENT PARTS LIST (KX-TE82461X)----129
23.10.FORTHESCHEMATICDIAGRAM 131

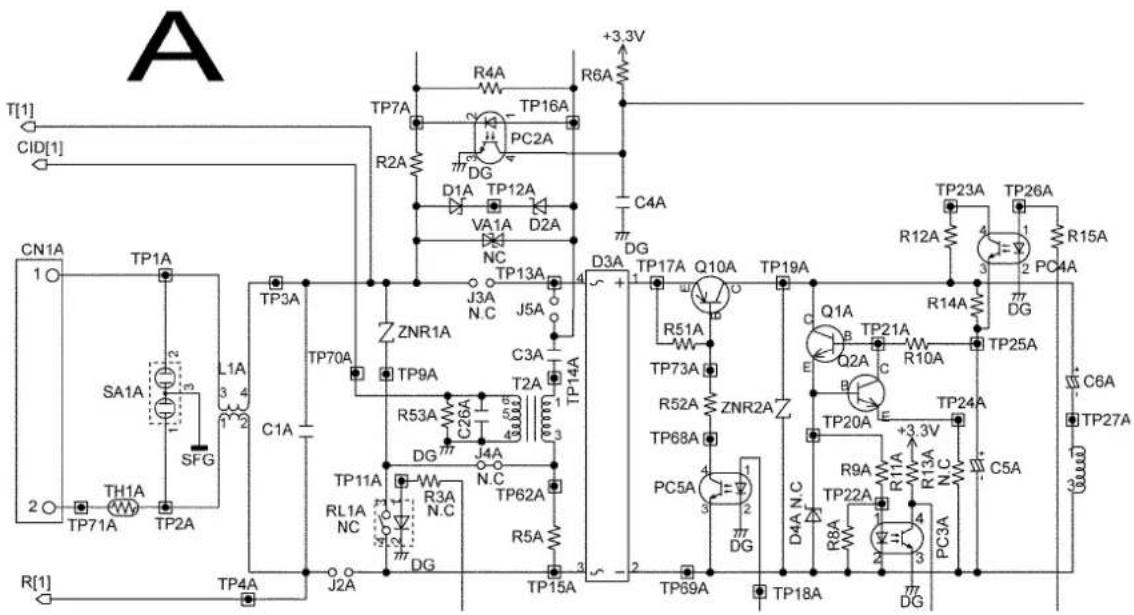

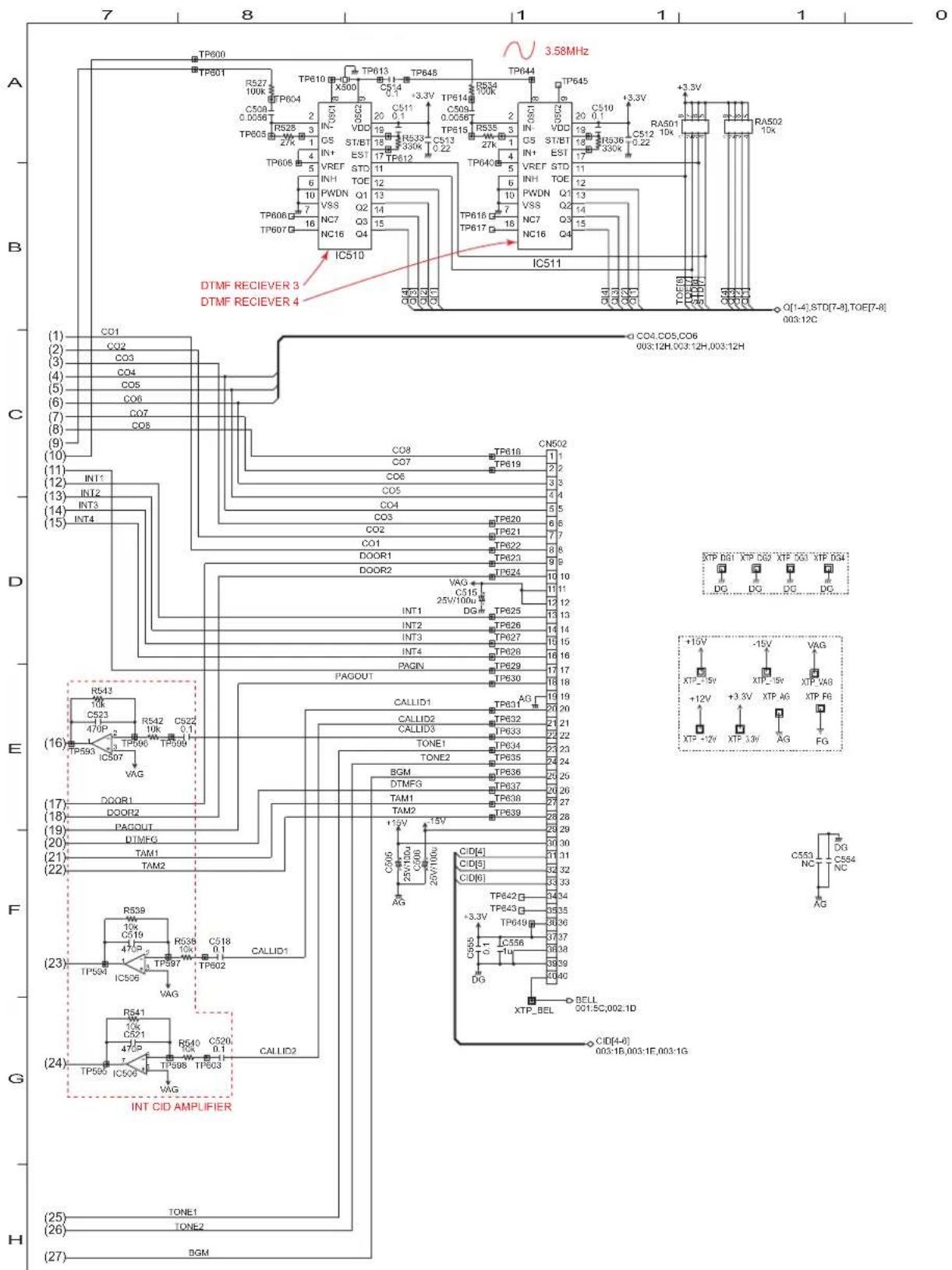

23.11.SCHEMATICDIAGRAM(KX-TE82461X) 132

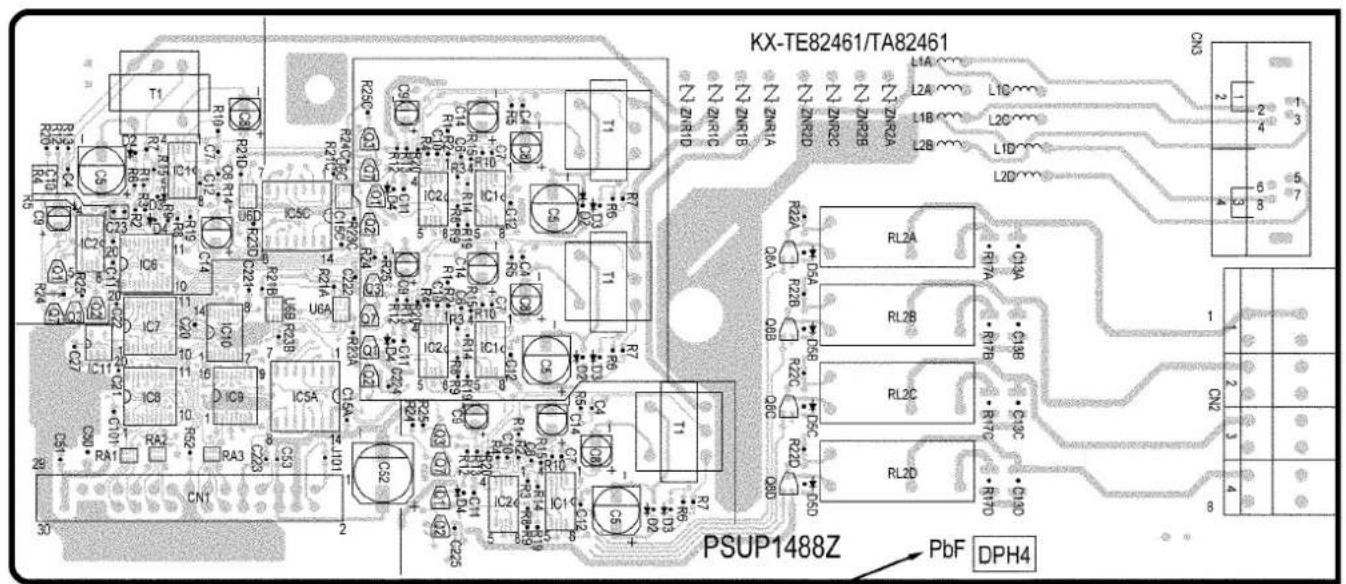

3.12.PRINTEDCIRCUITBOARD(KX-TE82461X) 134

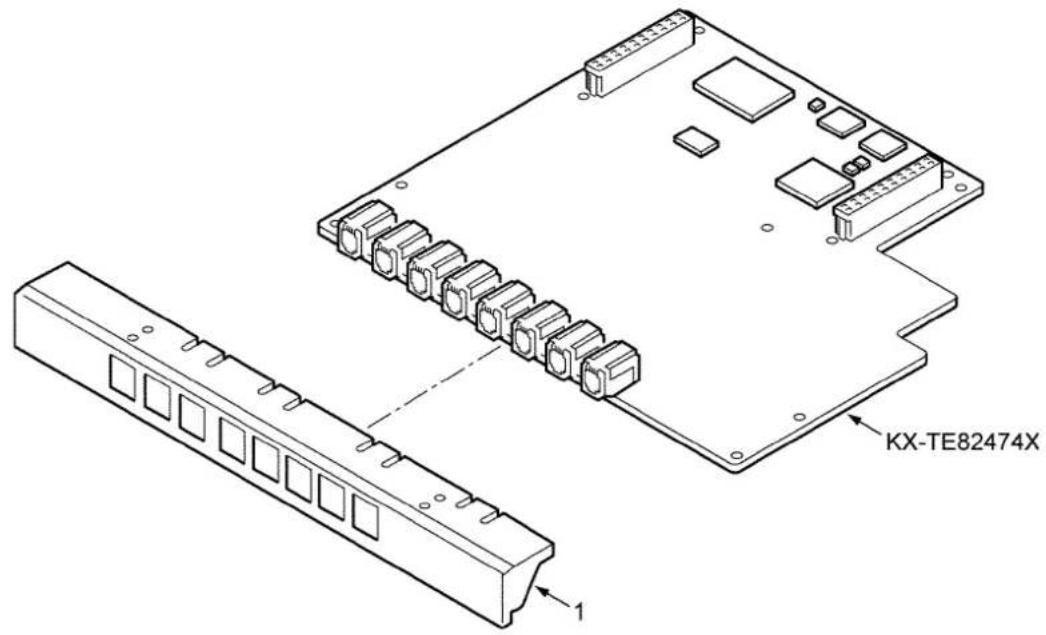

24 KX-TE82474X (8-PORT SLT EXTENSION CARD) 135

24.1. HOW TO RECOGNIZE THAT Pb FREE SOLDER IS USED 136

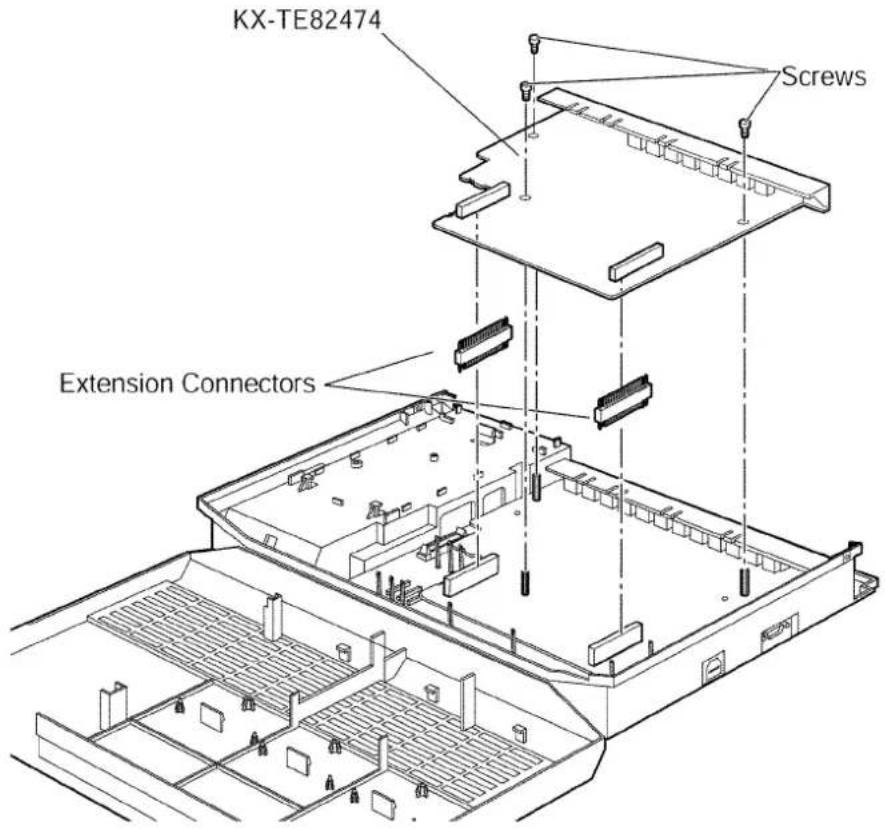

24.2. LOCATION OF OPTIONAL CARDS 137
24.3.BLOCK DIAGRAM 140
24.4. EXPLANATION OF BLOCK DIAGRAM 140
24.5. TROUBLESHOOTING GUIDE----147
24.6.IC DATA 149
24.7. TERMINAL GUIDE OF ICS, TRANSISTORS AND DIODES 150
24.8. CABINET AND ELECTRICAL PARTS 151
24.9. ACCESSORIES AND PACKING MATERIALS----151
24.10.REPLACEMENTPARTSLIST(KX-TE82474X) 152
24.11.FORTHESCHEMATICDIAGRAM 156
24.12.MEMO 157
24.13.SCHEMATICDIAGRAM(KX-TE82474X) 158
24.14.PRINTEDCIRCUITBOARD(KX-TE82474X) 164

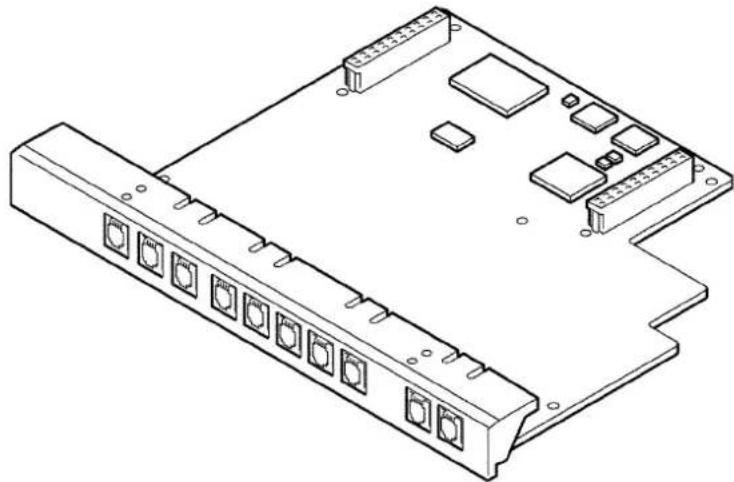

25 KX-TE82480X (2-PORT ANALOGUE CO LINE AND 8-PORT

30.2. REPLACEMENT PARTS LIST (KX-A227X) 289

1 ABOUT LEAD FREE SOLDER (PbF: Pb free)

Note:

In the information below, Pb, the symbol for lead in the periodic table of elements, will refer to standard solder or solder that contains lead.

We will use PbF solder when discussing the lead free solder used in our manufacturing process which is made from Tin, (Sn), Silver, (Ag), and Copper, (Cu).

This model, and others like it, manufactured using lead free solder will have PbF stamped on the PCB. For service and repair work we suggest using the same type of solder although, with some precautions, standard Pb solder can also be used.

Caution

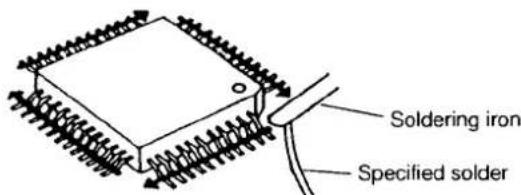

• PbF solder has a melting point that is 50^ 70^ F, ( 30^ 40^ C) higher than Pb solder. Please use a soldering iron with temperature control and adjust it to 700^ ± 20^ F, ( 370^ ± 10^ C). In case of using high temperature soldering iron, please be careful not to heat too long.
• PbF solder will tend to splash if it is heated much higher than its melting point, approximately 1100^ , (600^) .
• If you must use Pb solder on a PCB manufactured using PbF solder, remove as much of the original PbF solder as possible and be sure that any remaining is melted prior to applying the Pb solder.
• When applying PbF solder to double layered boards, please check the component side for excess which may flow onto the opposite side (See figure, below).

1.1. SUGGESTED PbF SOLDER

There are several types of PbF solder available commercially. While this product is manufactured using Tin, Silver, and Copper, (Sn+Ag+Cu), you can also use Tin and Copper, (Sn+Cu), or Tin, Zinc, and Bismuth, (Sn+Zn+Bi). Please check the manufacturer's specific instructions for the melting points of their products and any precautions for using their product with other materials.

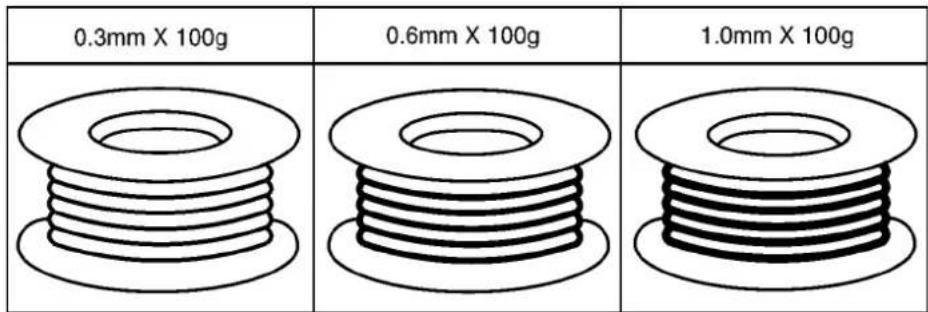

The following lead free (PbF) solder wire sizes are recommended for service of this product: 0.3mm, 0.6mm and 1.0mm.

1.2. HOW TO RECOGNIZE THAT Pb FREE SOLDER IS USED

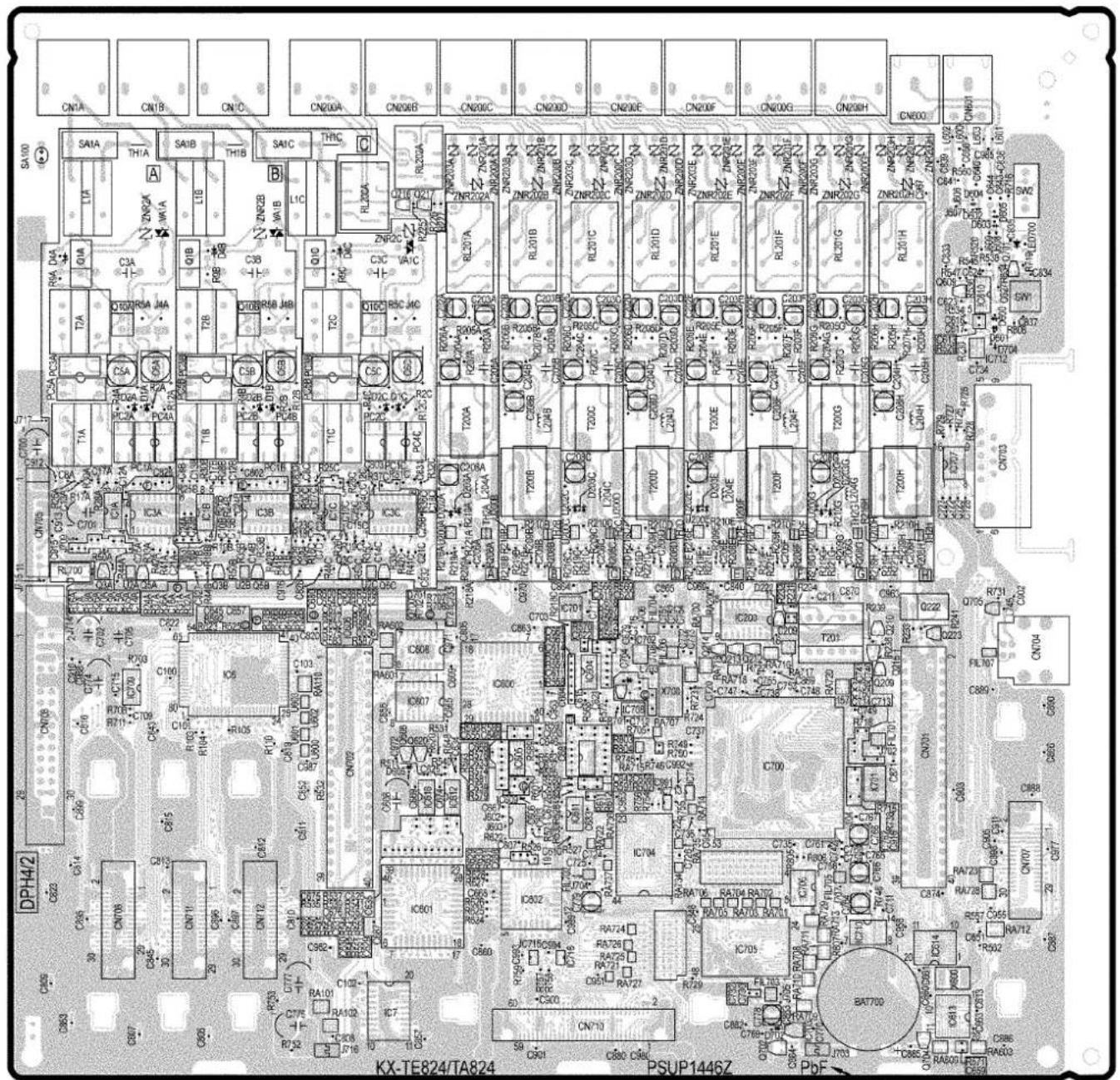

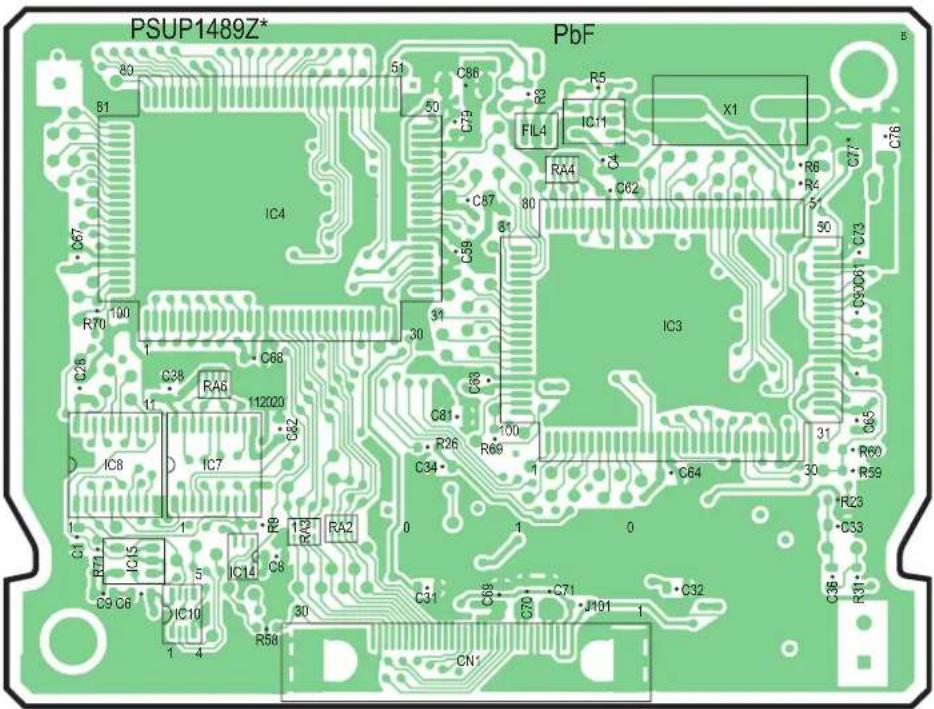

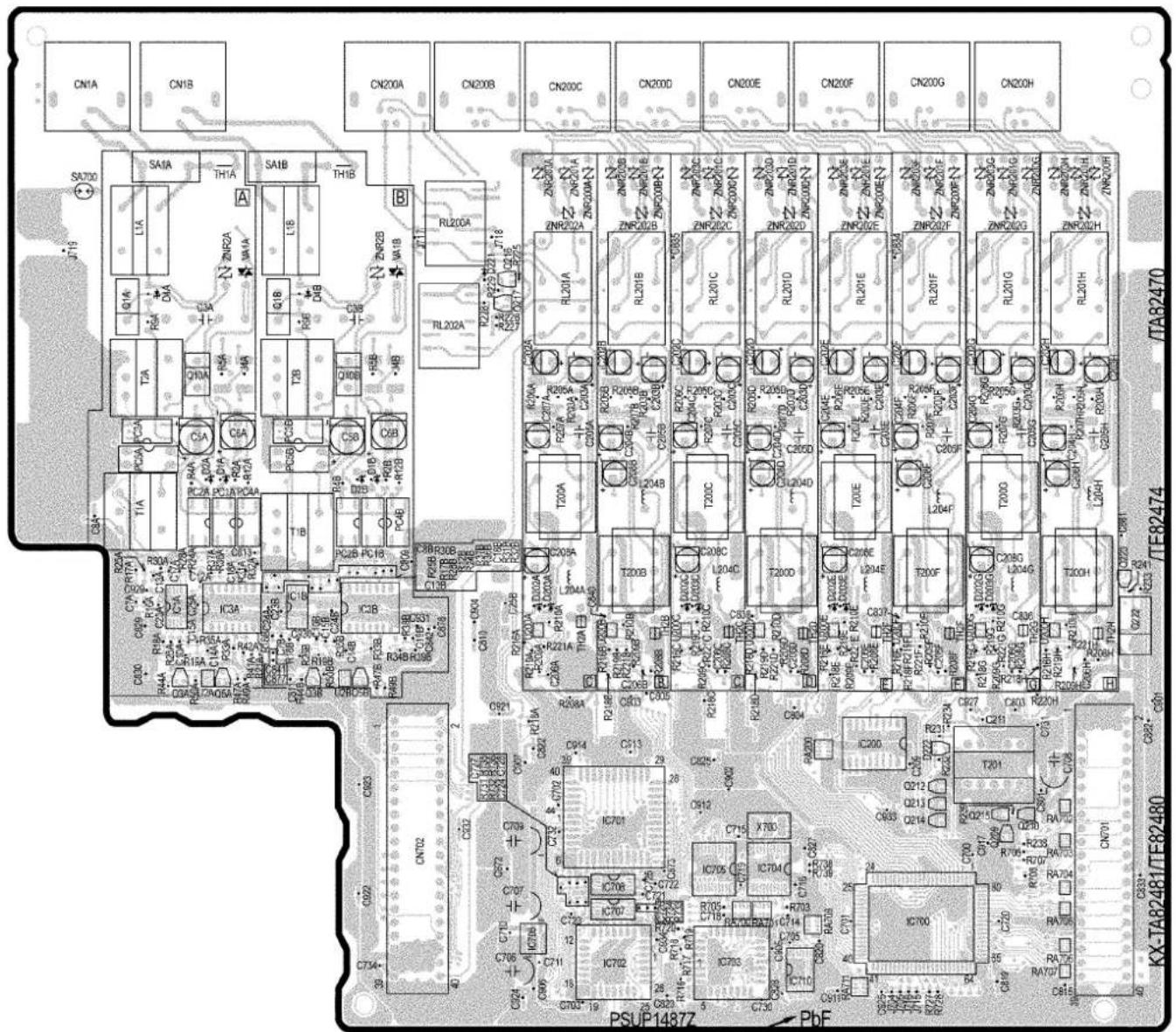

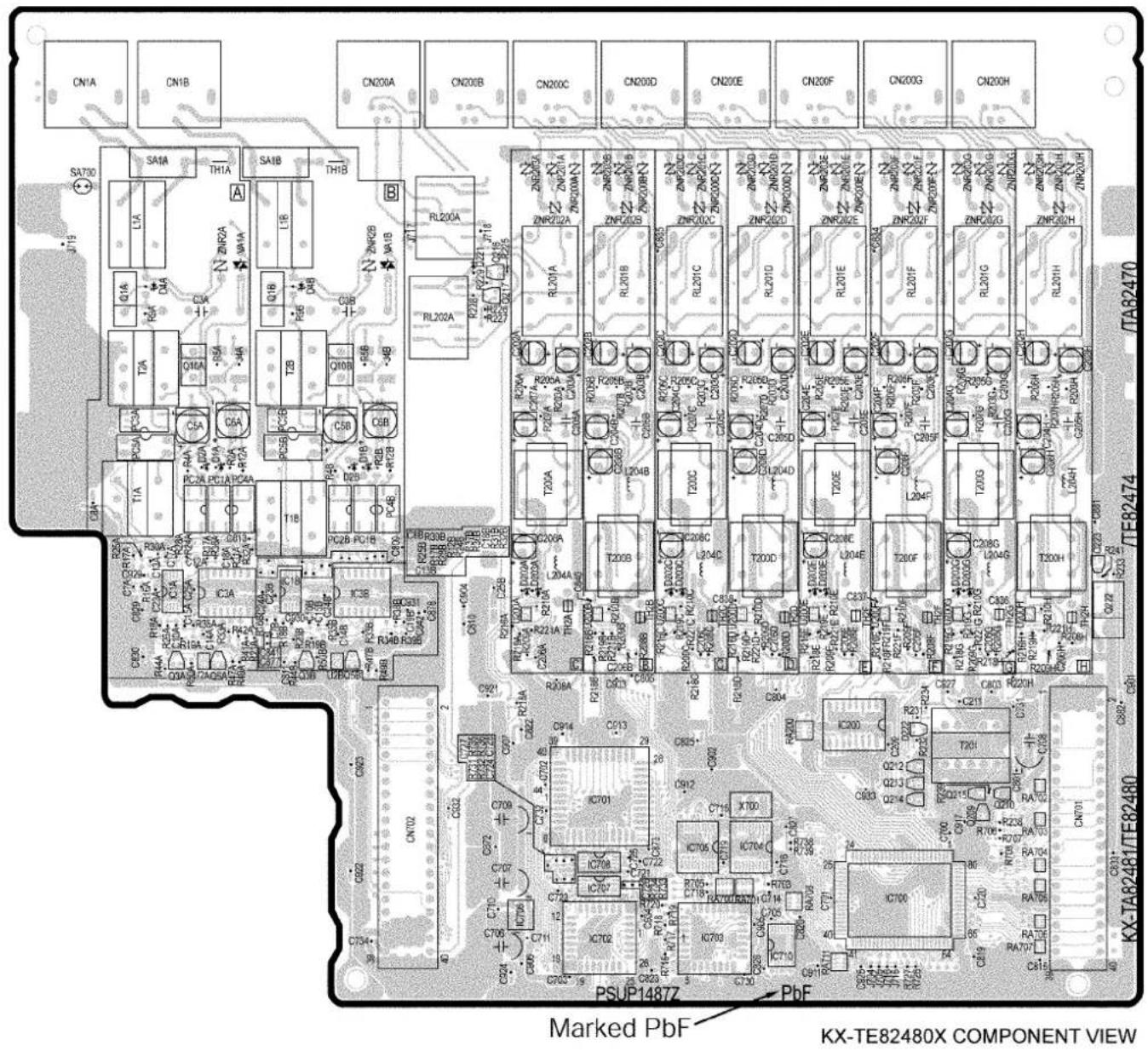

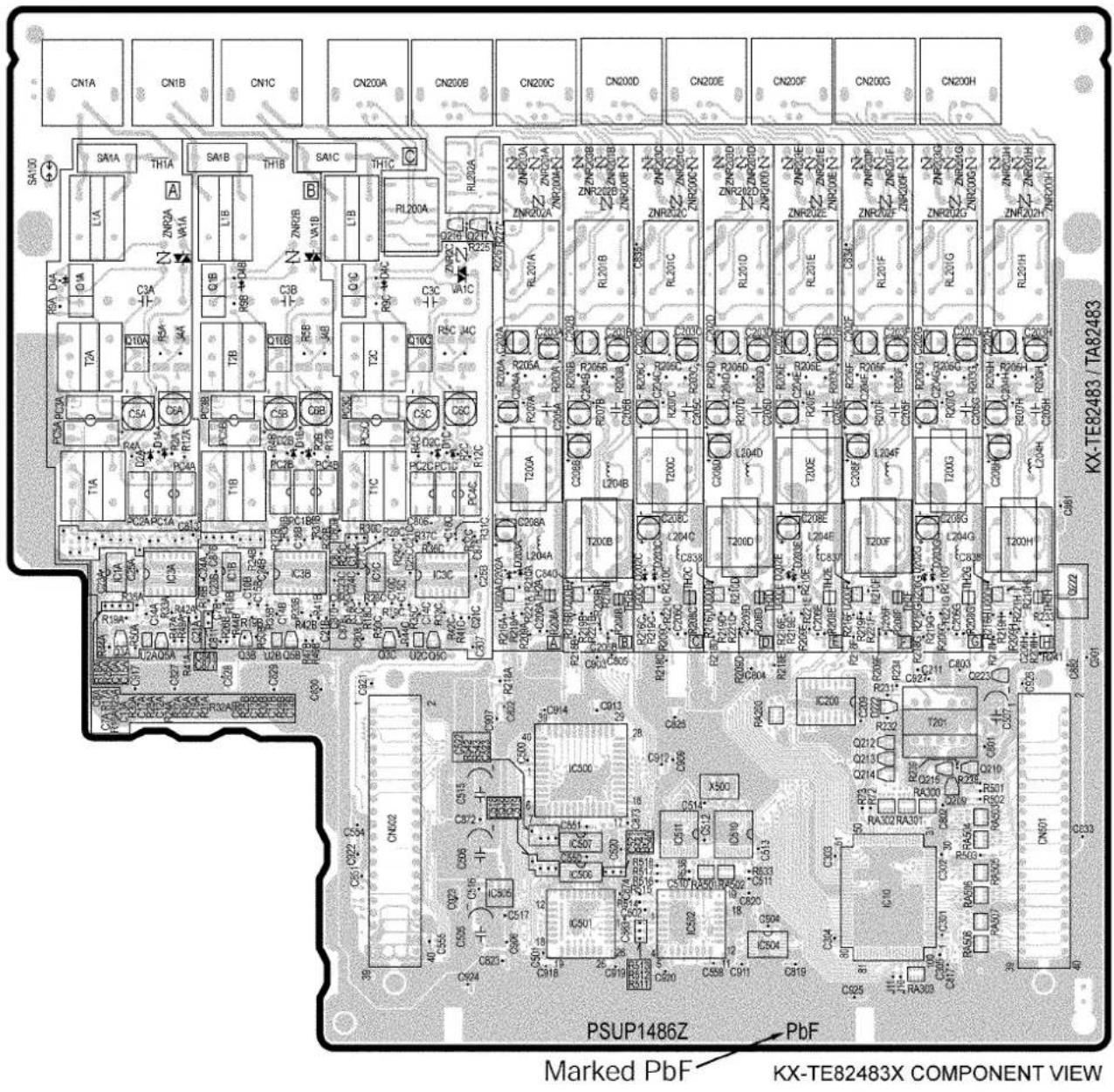

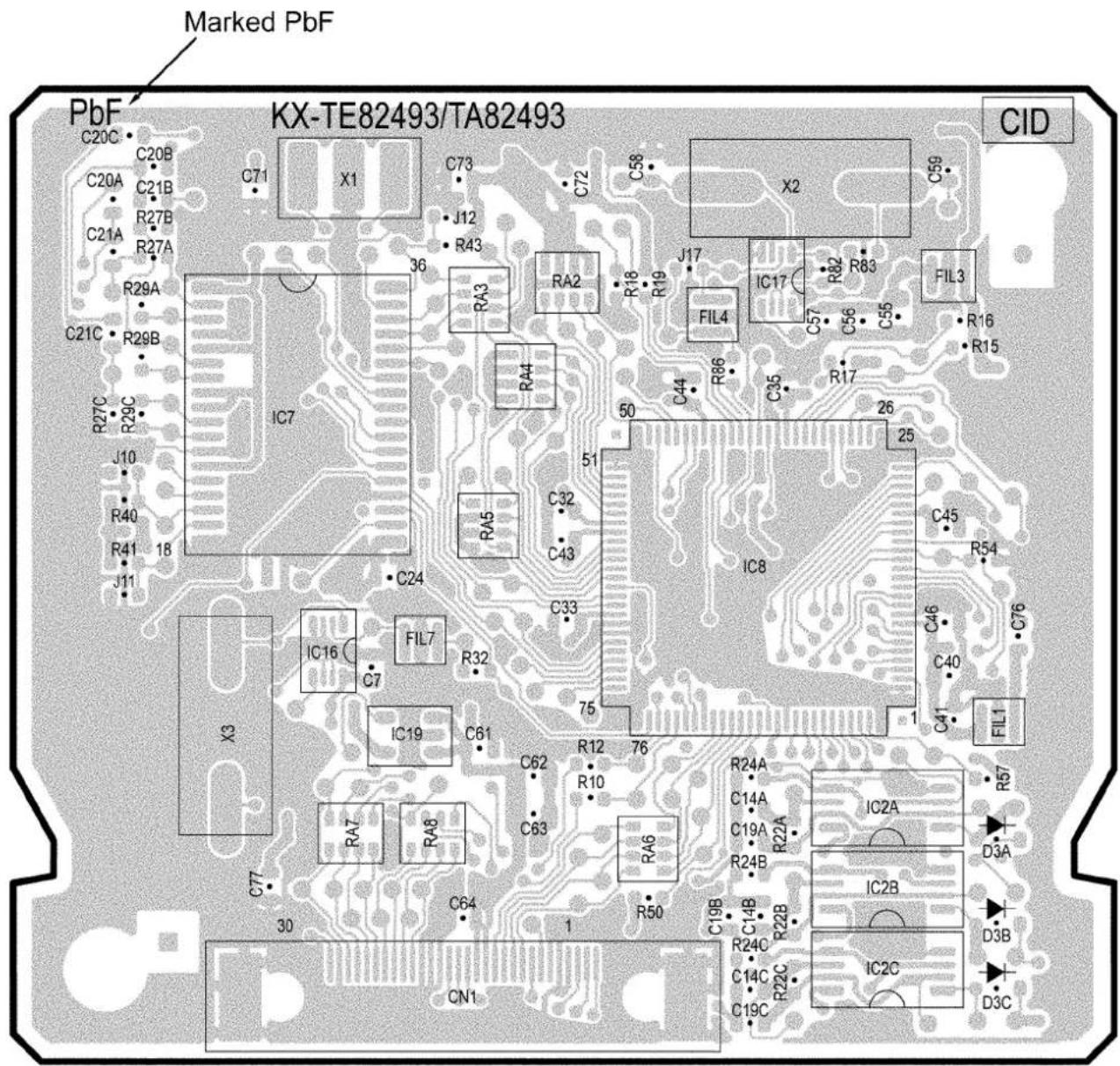

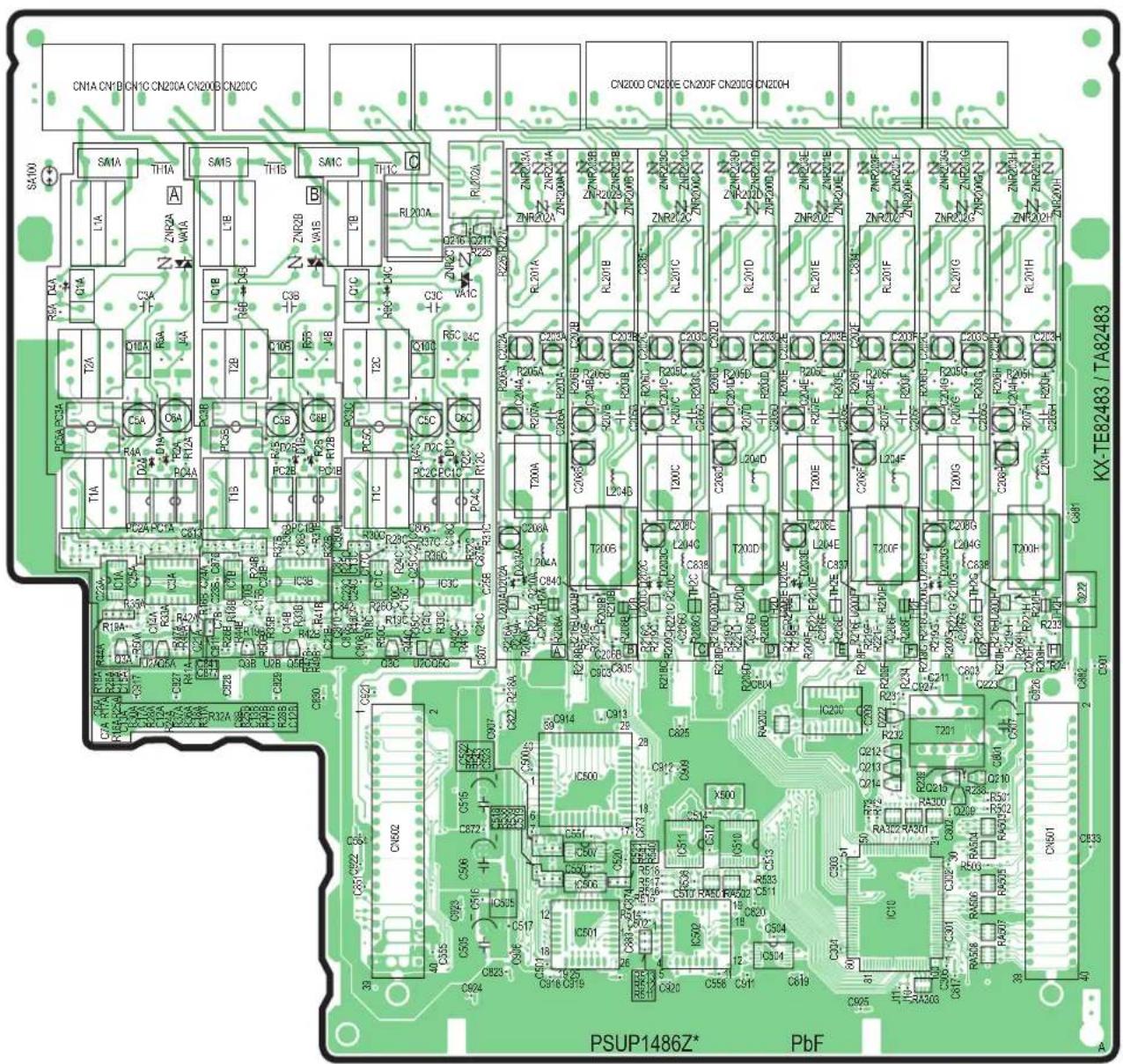

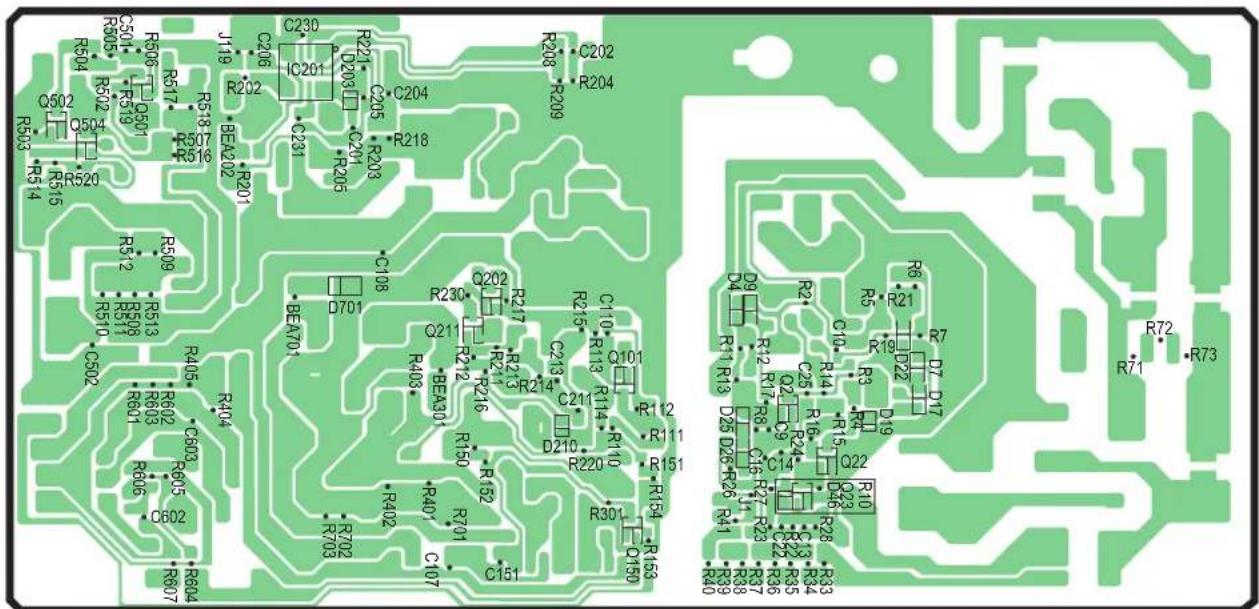

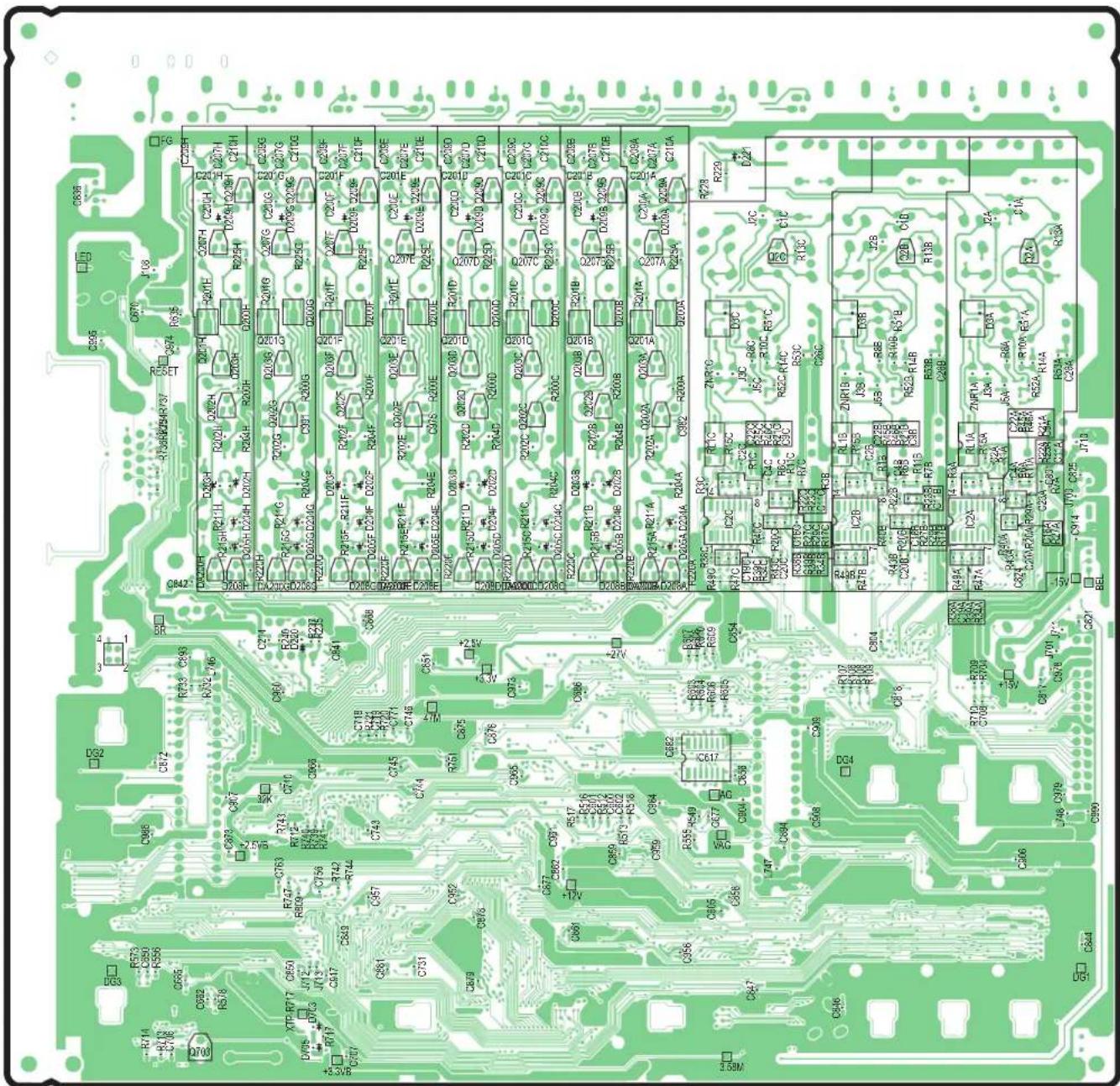

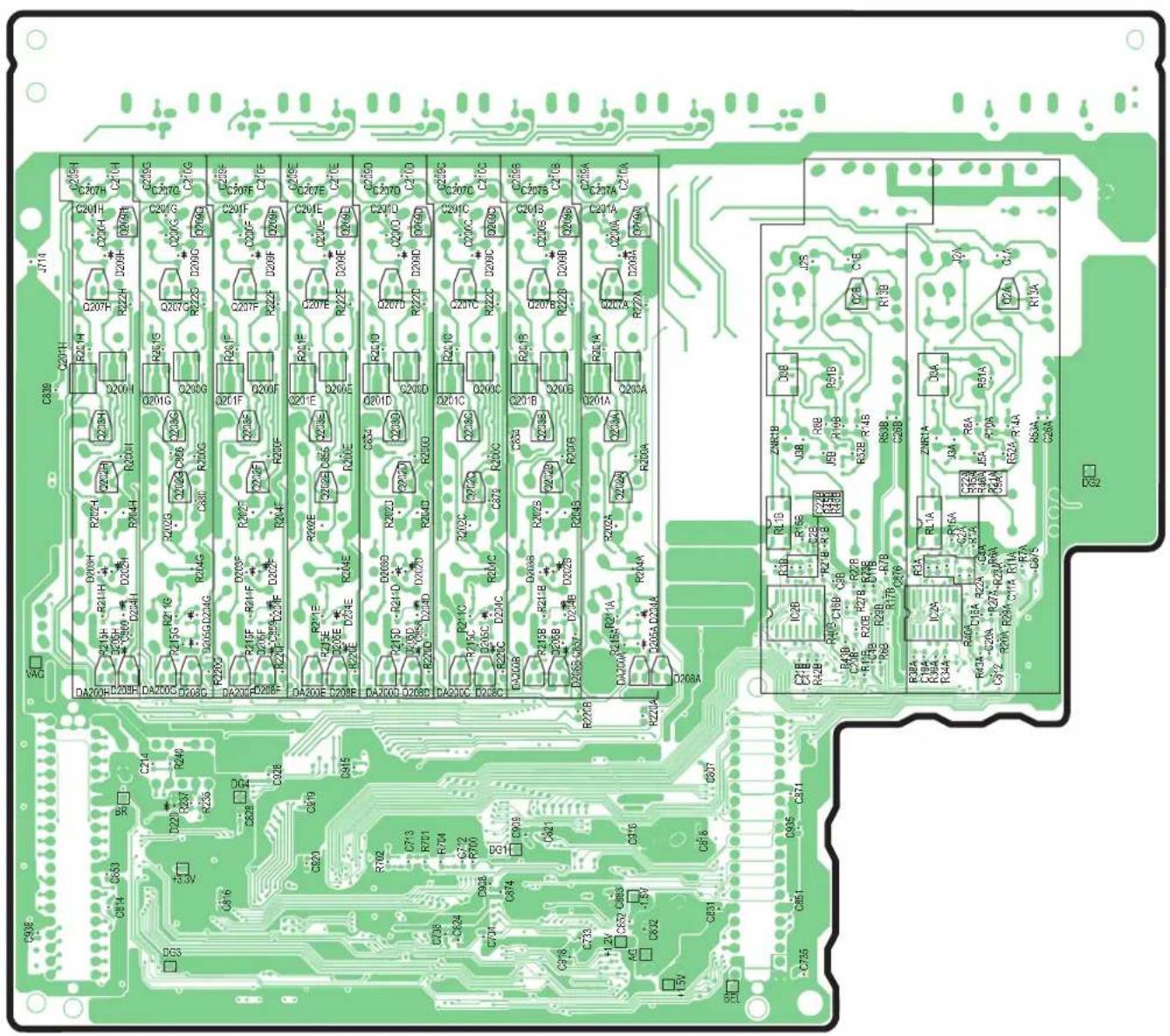

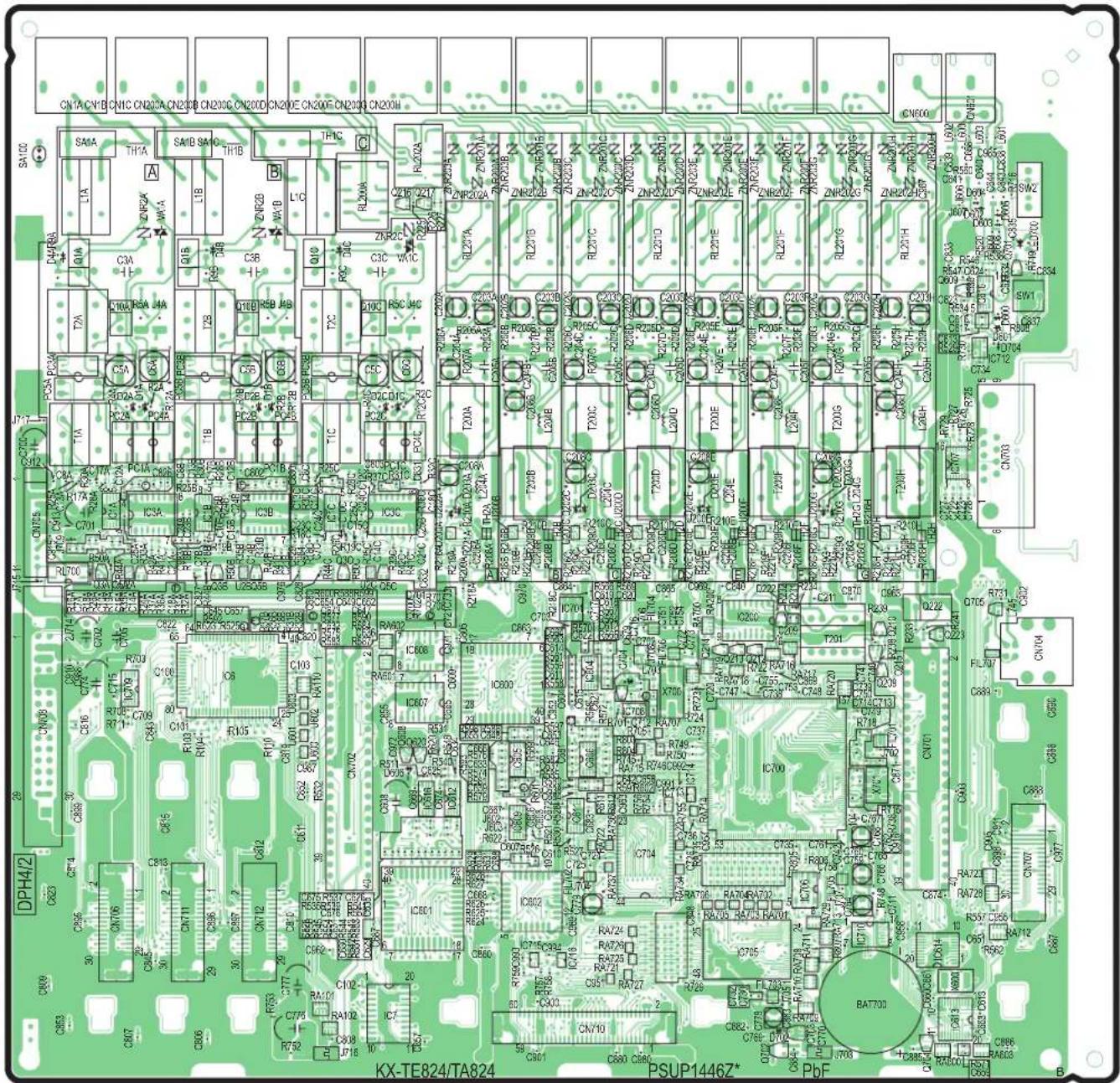

KX-TES824BX/KX-TEM824BX MAIN COMPONENT VIEW

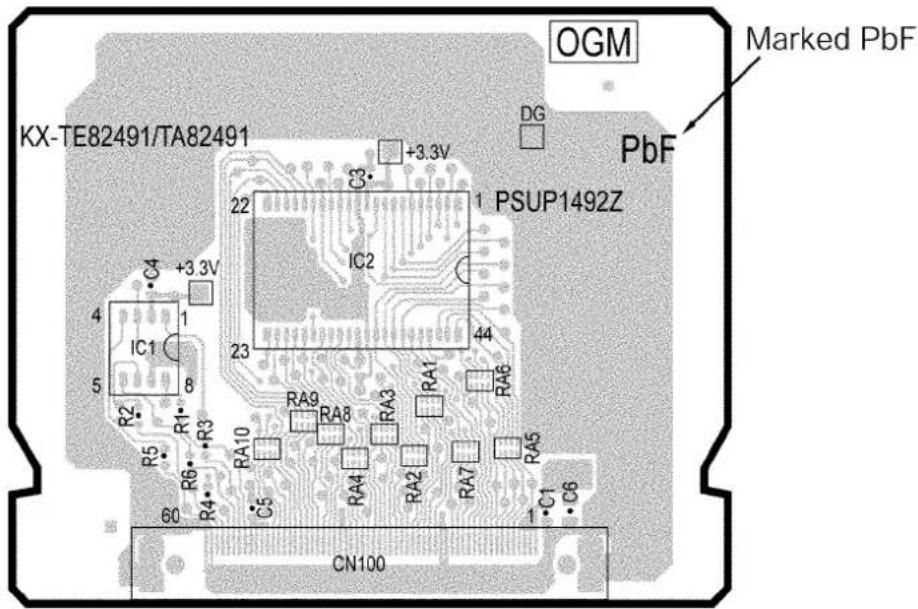

Marked PbF

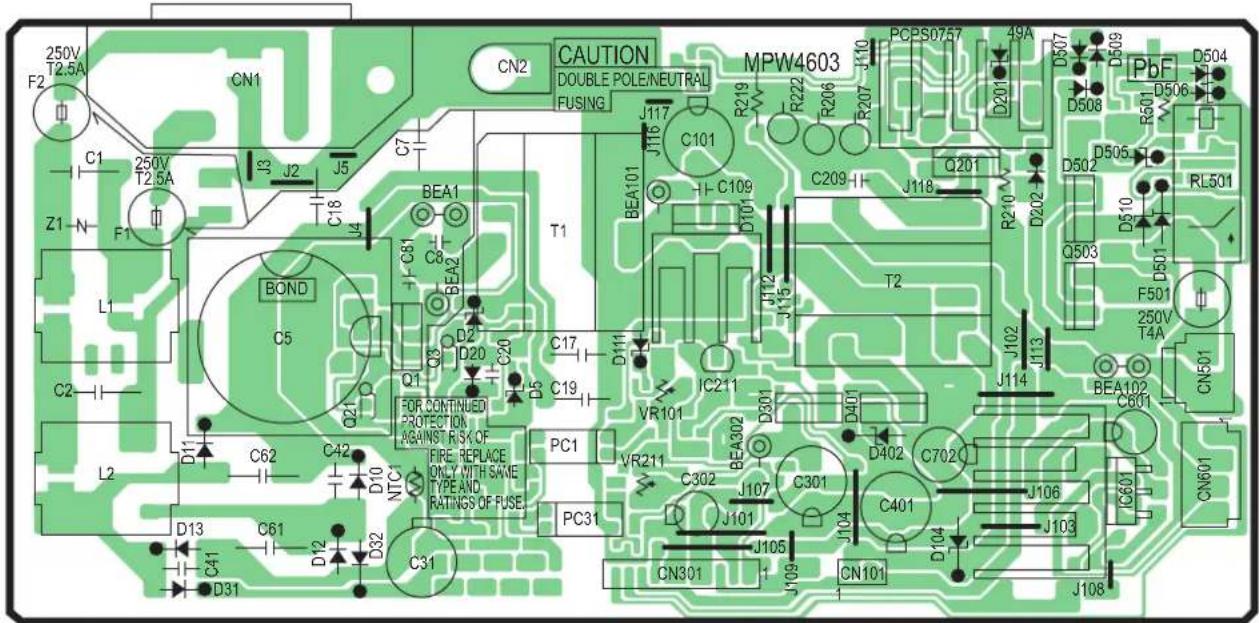

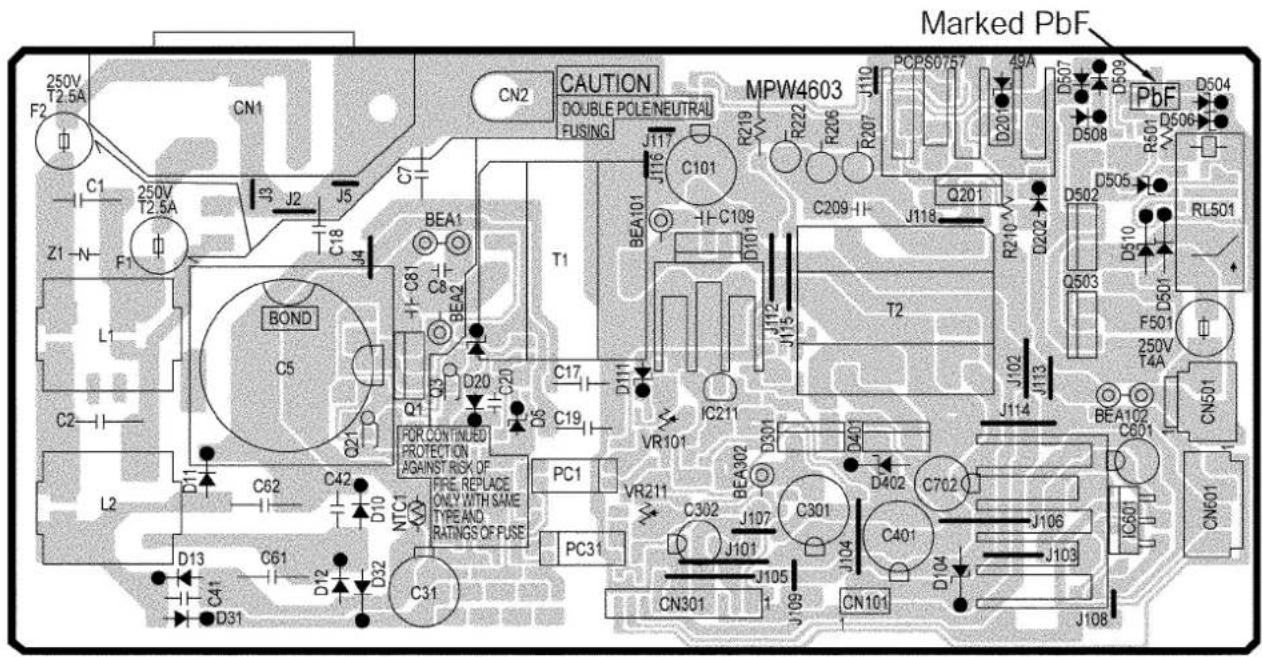

KX-TES824BX/KX-TEM824BX POWER SUPPLY BOARD (COMPONENT VIEW)

2 FOR SERVICE TECHNICIANS

ICs and LSIs are vulnerable to static electricity.

When repairing, the following precautions will help prevent recurring malfunctions.

1. Cover the plastic parts boxes with aluminum foil.
2. Ground the soldering irons.
3. Use a conductive mat on the worktable.
4. Do not touch IC or LSI pins with bare fingers.

3 CAUTION

3.1. SAFETY PRECAUTIONS

1. Before servicing, unplug the power cord to prevent an electric shock.
2. When replacing parts, use only the manufacturer's recommended components for safety.
3. Check the condition of the power cord. Replace if wear or damage is evident.

4. After servicing, be sure to restore the lead dress, insulation barriers, insulation papers, shields, etc.

5. Before returning the serviced equipment to the customer, be sure to perform the following insulation resistance test to prevent the customer from being exposed to shock hazards.

1. Unplug the power cord and short the two prongs of the plug with a jumper wire.
2. Turn on the power switch.
3. Measure the resistance value with ohmmeter between the jumpers AC plug and each exposed metal cabinet part, such as screw threads, control shafts, handle brackets, etc.

Note:

Some exposed parts may be isolated from the chassis by design. These will read infinity.

1. If the measurement is outside the specified limits, there is a possibility of shock hazard. The equipment should be repaired and rechecked before it is returned to the customer.

Resistance = more than 1MΩ (at DC 500 V)

3.3. BATTERY CAUTION

1. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's Instructions.
2. The lithium battery is a critical component (type No.CR23541). Please observe for the proper polarity and the exact location when replacing it and soldering the replacement lithium battery in.

3.4. CAUTION

The power socket wall outlet should be located near this equipment and be easily accessible.

4 SPECIFICATIONS

4.1. GENERAL DESCRIPTION

Control Bus Original bus (16-bit, 24 MHz)
Switching Space Division CMOS Crosspoint Switch
Power Input 100 V AC to 240 V AC, 1.5A to 0.75A, 50 Hz/60Hz
External Battery +24 V DC (+12 V DC x 2)
Maximum Power Failure Tolerance 300 ms (without using backup batteries)
Memory Backup Duration 7 years
Dialling Outside (CO) Line Pulse (10 pps, 20 pps) or Tone (DTMF)
Intercom Path 4
Mode Conversion Pulse-DTMF
Ring Frequency 20 Hz/25 Hz (selectable)
Operating Environment	Temperature	0 °C to 40 °C
	Humidity	10 % to 90 % (non-condensing)
Conference Call Outside (CO) Line		2
Music on Hold (MOH)		1 port Selectable MOH: Internal/External/Tone
Paging	Internal	1
	Extension 1 port
Serial Interface Port	RS-232C	1
	USB 1.1	1
Extension Connection Cable	SLT 1 pair wire (T, R)
	PT	2-pair wire (T, R, H, L)
	DSS Console	1-pair wire (H, L)
Dimension		368 mm (W) x 284 mm (H) x 102 mm (D)
Weight (when fully expanded)		Approx. 3.5 kg

4.2. CHARACTERISTICS

Terminal Equipment Loop Limit	PT	40 Ω
	SLT	600 Ωincluding set
	Doorphone	20 Ω
Minimum Leakage Resistance	15000 Ωminimum
Maximum Number of Extension Instruments per Line	1 PT or SLT in standard connection1 PT and 1 SLT in parallel connection
Ring Voltage	75 Vrms at 20 Hz/25 Hz depending on the ringing load
Outside (CO) Line Loop Limit	1600 Ωmaximum
Hookswitch Flash/Recall Timing Range	24 ms-2032 ms
Door Opener Current Limit	30 V DC/125 V AC, 3 A maximum
Paging Terminal Impedance	600 Ω
MOH Terminal Impedance	10000 Ω

4.3. SYSTEM CAPACITY

4.3.1. System Capacity

		KX-TES824	KX-TEM824
Basic System	Outside (CO) lines	3	6
	Extensions	8	16
Fully Expanded System	Outside (CO) lines	8	8
	Extensions	24	24

4.3.2. Maximum Cards Terminal Equipment

Item KX-TES824 KX-TEM824
Extension Terminal 48 48
3-Port Analogue CO Line and 8-Port Hybrid Extension Card 1 -
2-Port Analogue CO Line and 8-Port Single Line Telephone Extension Card 1 1
8-Port Single Line Telephone Extension Card 1 1
Message Expansion Card for DISA/UCD OGMs 1 1
4-Port Doorphone Card	1 1
3-Port Caller ID Card	3 3
2-Channel Voice Message Card	1 1
Doorphone	4 4
Door Opener	4 4
Pager	1 1
Music on Hold (MOH)	1 1
DSS Console	2 2

4.3.3. System Data

Item	Max. Quantity
Operator	1
System Speed Dialling	100
One-touch Dialling 24 per extension (PT)
Personal Speed Dialling	10 per extension
Call Park Area	10
Absent Message	6
Toll Restriction (TRS) COS	5
Extension Group	8
Message Waiting	8 per extension
Message for Built-in Voice Message	128 messages (total 60 minutes)

5 SYSTEM OVERVIEW

5.1. SYSTEM COMPONENTS

	Model	Description
Main Unit	KX-TES824BXKX-TEM824BX	Advances Hybrid System: 3 to 8 Outside (CO) Lines, 8 to 24 ExtensionsAdvances Hybrid System: 6 to 8 Outside (CO) Lines, 16 to 24 Extensions
Optional Service Cards	KX-TE82461XKX-TE82474XKX-TE82480XKX-TE82483XKX-TE82491XKX-TE82492XKX-TE82493X	4-Port Doorphone Card8-Port Single Line Telephone Extension Card2-Port Analogue CO Line and 8-Port Single Line Telephone Extension Card3-Port Analogue CO Line and 8-Port Hybrid Extension CardMessage Expansion Card for DISA/UCD OGMs2-Channel Voice Message Card3-Port Caller ID Card

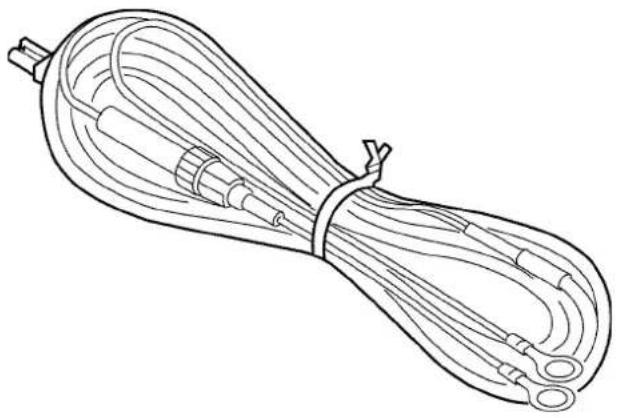

Proprietary Equipment	KX-T30865KX-A227X	DoorphoneBackup Battery Cable

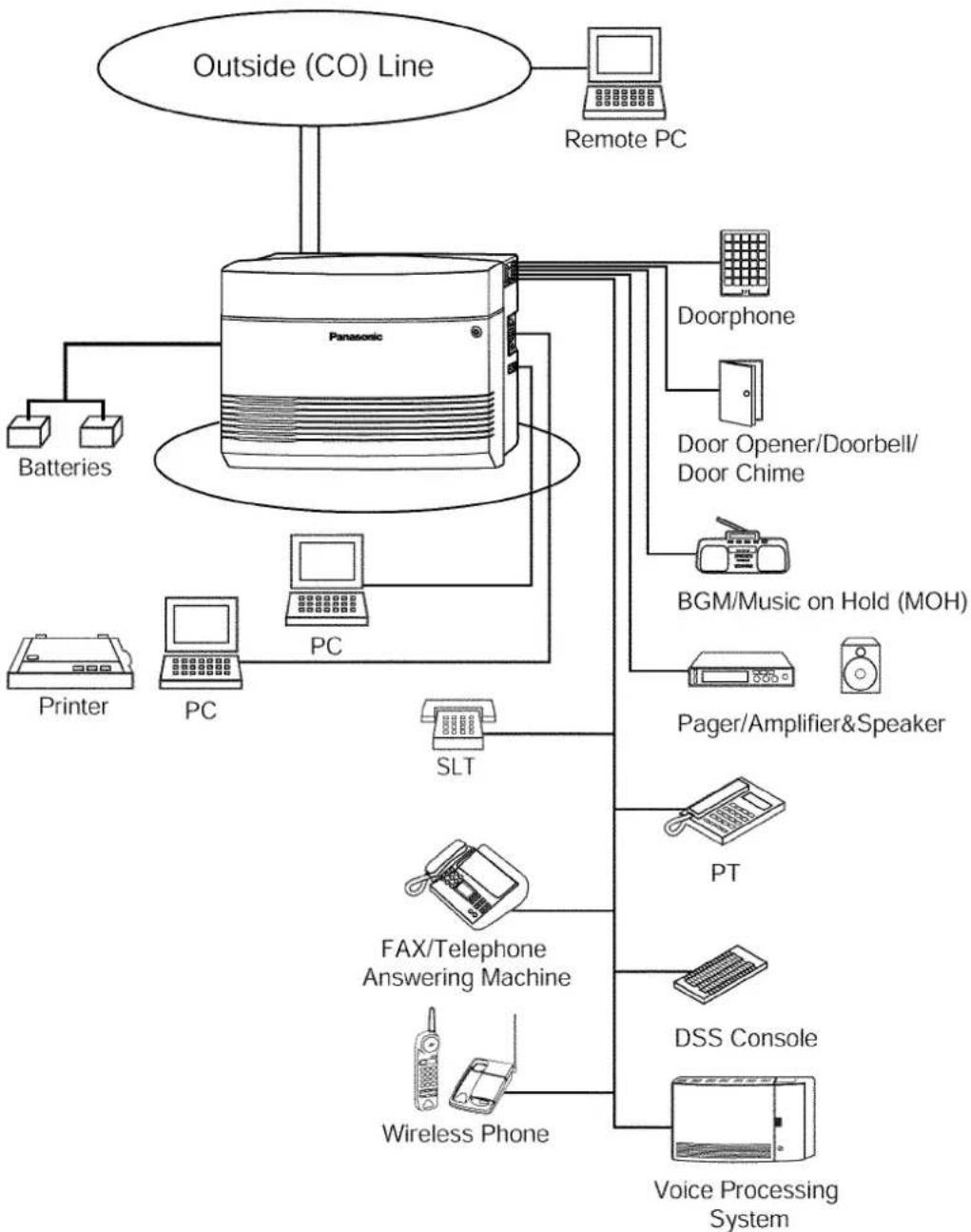

5.2. SYSTEM CONNECTION DIAGRAM

- Connect a display-equipped proprietary telephone (PT) to extension jack 01, as this extension is automatically designated as the manager extension.

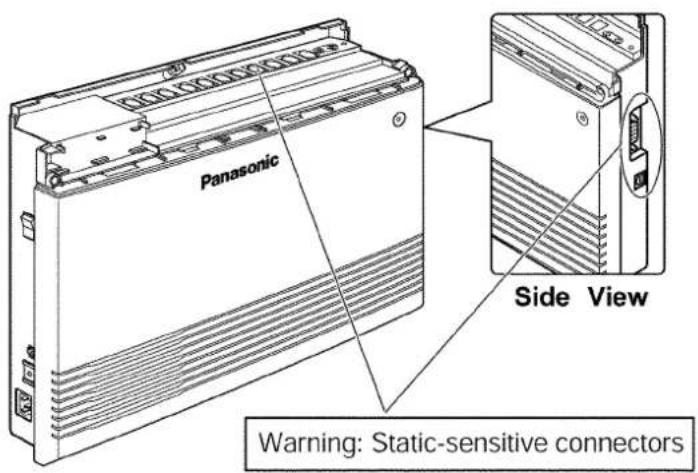

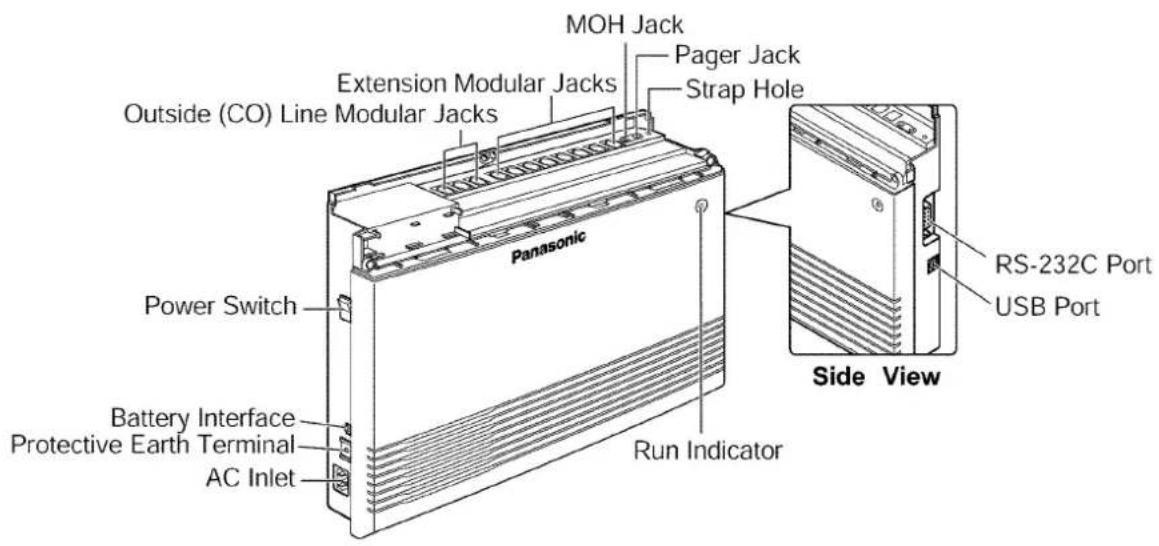

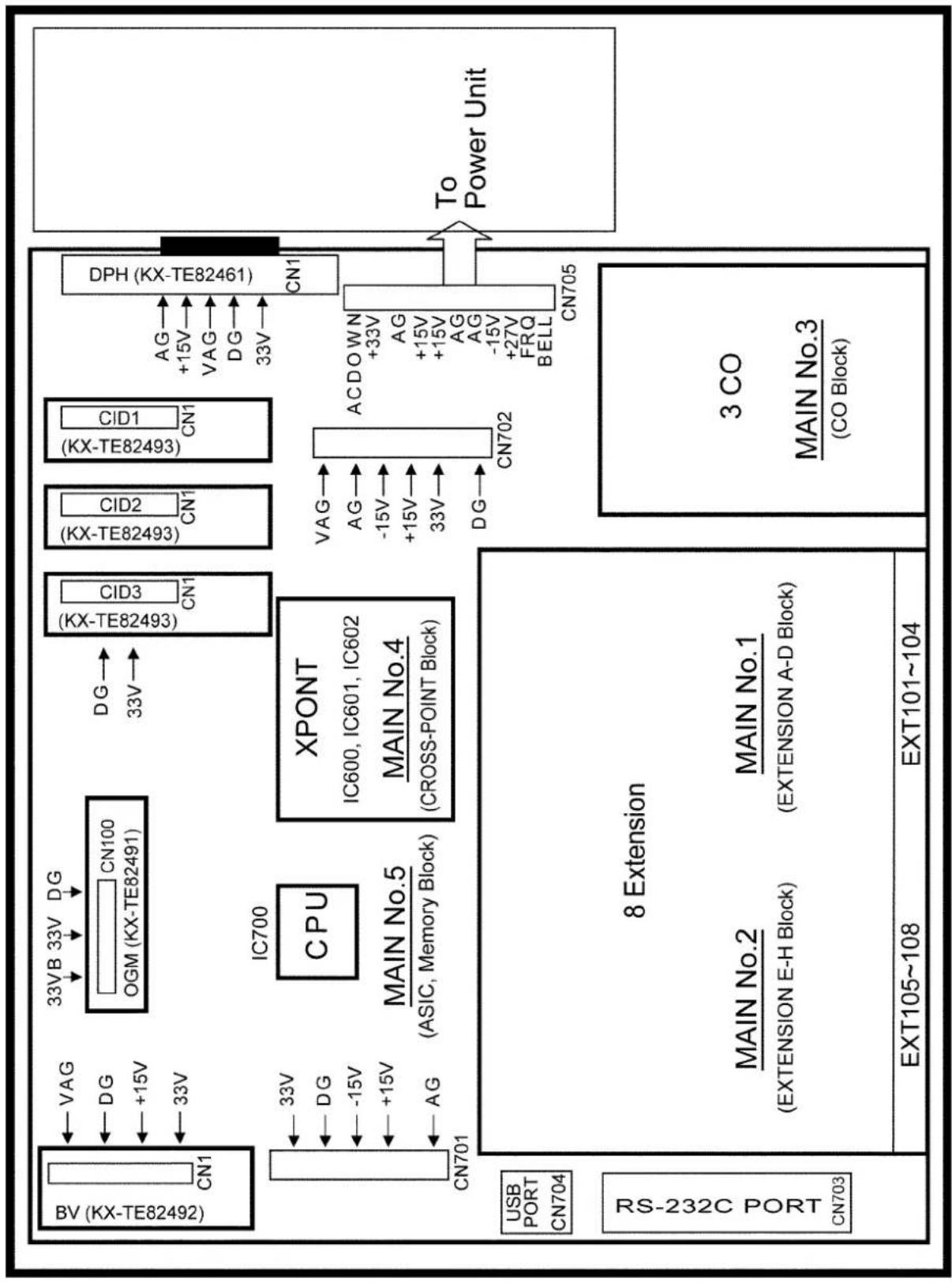

6 NAMES AND LOCATIONS

7 CONNECTION

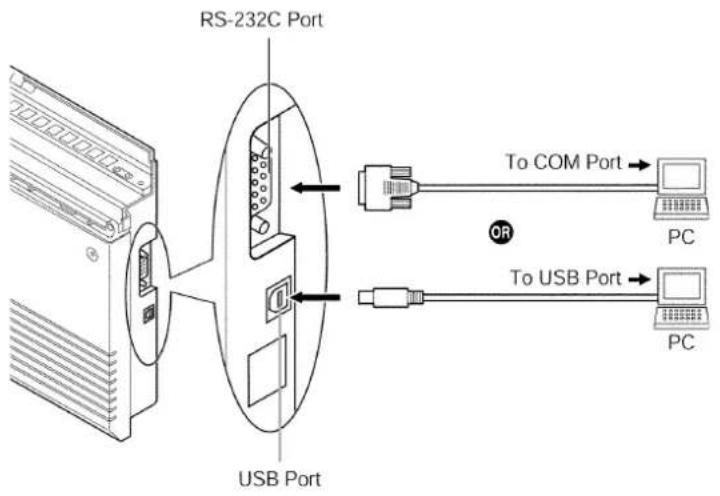

7.1. SERIAL INTERFACE CONNECTION

8 DISASSEMBLY INSTRUCTIONS

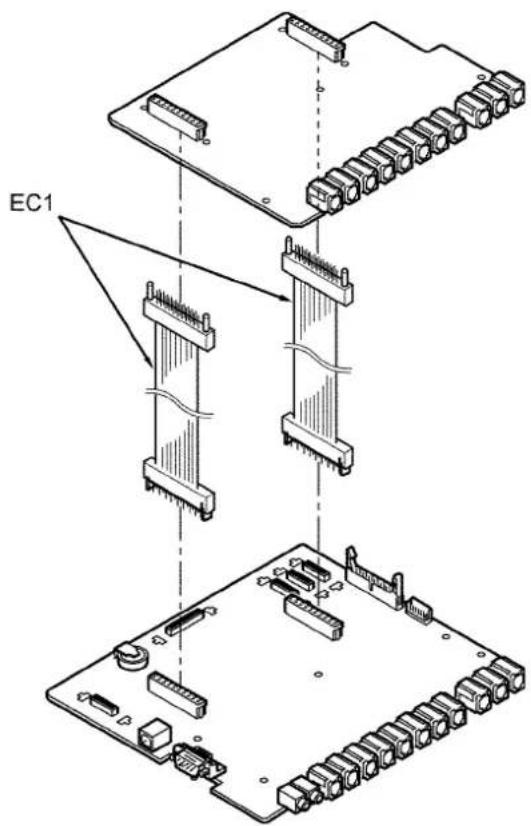

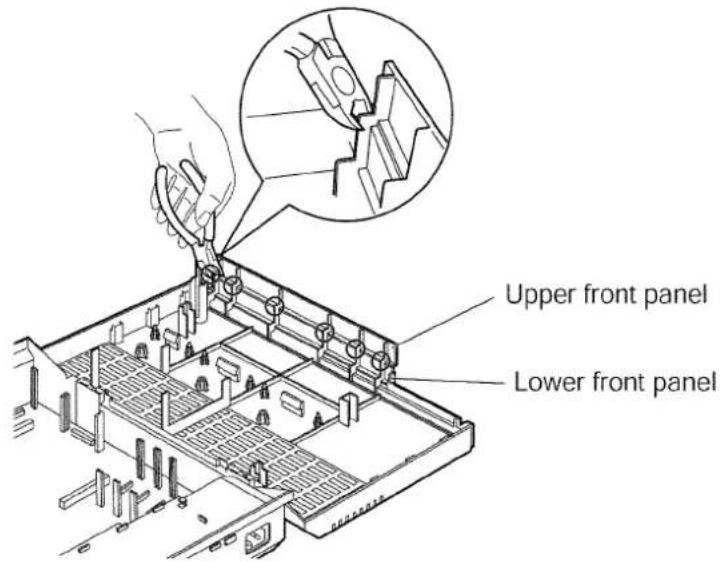

8.1. DISASSEMBLY INSTRUCTION

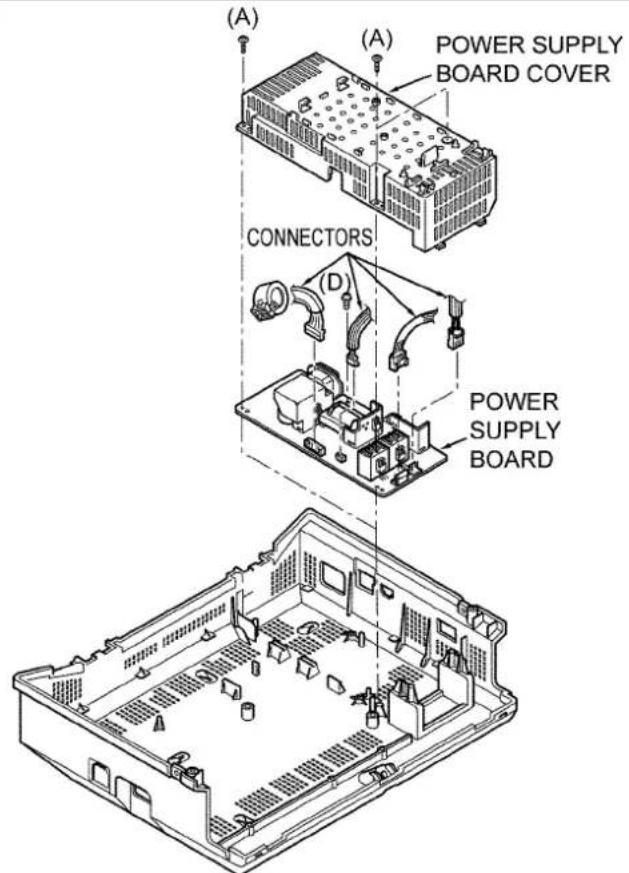

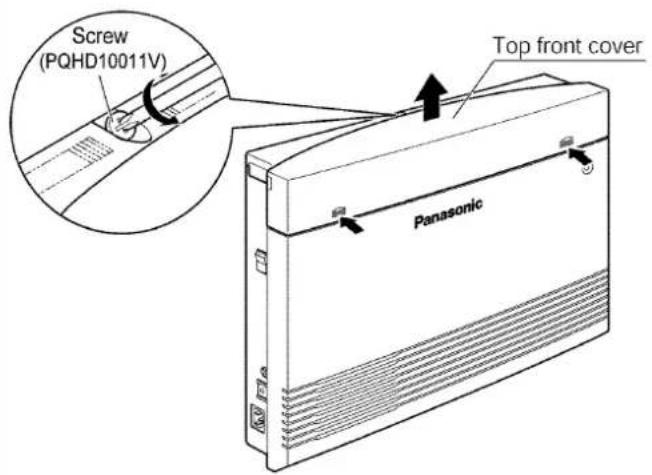

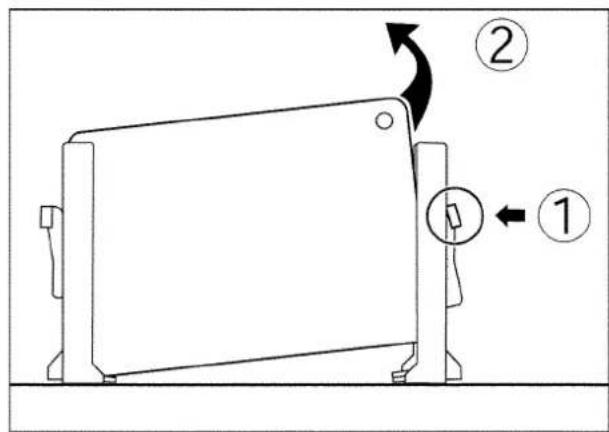

1. Loosen the top cover screw (PQHD10011V).2. Remove the top front cover.NoteThe screw cannot be removed front the cover.

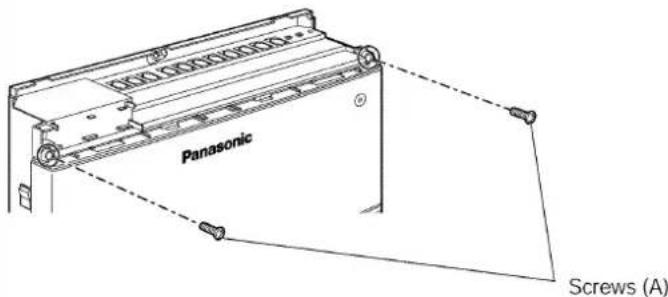

3. Remove the 2 bottom-cover screws (A).

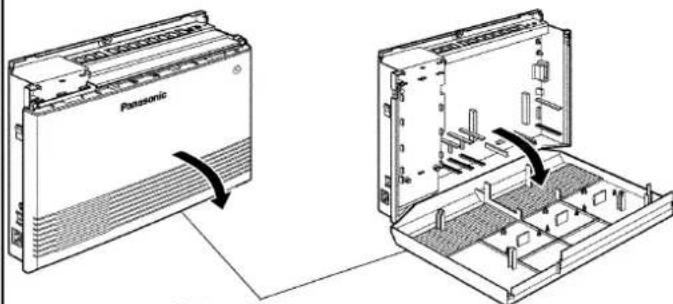

4. Open the bottom front cover.	Bottom front cover
5. Remove the 2 screws (A).6. Remove the power supply board cover.7. Pull out the 4 connectors.8. Remove the 1 screw (D).9. Remove the power supply board.

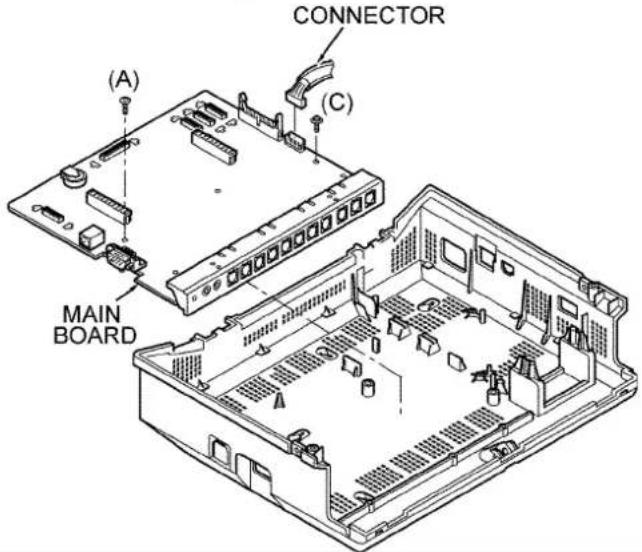

10. Pull out the 1 connector.11. Remove the 2 screws (A) and (C).12. Remove the main board.

Procedure:

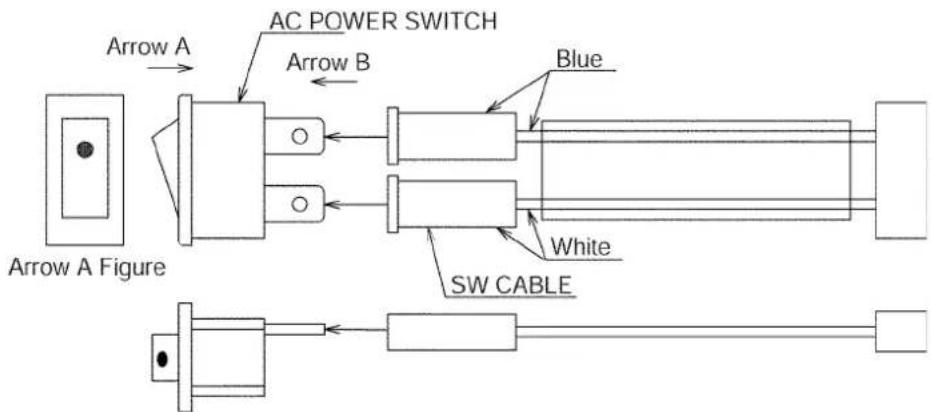

- Insert the SW CABLE into AC POWER SWITCH.

Caution:

- Be sure each colored wire is inserted to the correct lug (very important).

9 BLOCK DIAGRAM

9.1. SYSTEM BLOCK DIAGRAM
    V
    V1["Ringer Amp. circuit"] --> V2["Voltage check"]
    V2 --> V3["Rectification"]
    V3 --> V4["Power Switch"]

    subgraph Power Supply
    W
    W1["Ringer Amp. circuit"] --> W2["Voltage check"]
    W2 --> W3["Rectification"]
    W3 --> W4["Power Switch"]

    subgraph Power Supply
    X
    X1["Ringer Amp. circuit"] --> X2["Voltage check"]
    X2 --> X3["Rectification"]
    X3 --> X4["Power Switch"]

    subgraph Power Supply
    Y
    Y1["Ringer Amp. circuit"] --> Y2["Voltage check"]
    Y2 --> Y3["Rectification"]
    Y3 --> Y4["Power Switch"]

    subgraph Power Supply
    Z
    Z1["Ringer Amp. circuit"] --> Z2["Voltage check"]
    Z2 --> Z3["Rectification"]
    Z3 --> Z4["Power Switch"]

    subgraph Power Supply
    AA
    AA1["Ringer Amp. circuit"] --> AA2["Voltage check"]
    AA2 --> AA3["Rectification"]
    AA3 --> AA4["Power Switch"]

    subgraph Power Supply
    AB
    AB1["Ringer Amp. circuit"] --> AB2["Voltage check"]
    AB2 --> AB3["Rectification"]
    AB3 --> AB4["Power Switch"]

    subgraph Power Supply
    AC
    AC1["Ringer Amp. circuit"] --> AC2["Voltage check"]
    AC2 --> AC3["Rectification"]
    AC3 --> AC4["Power Switch"]

    subgraph Power Supply
    AD
    AD1["Ringer Amp. circuit"] --> AD2["Voltage check"]
    AD2 --> AD3["Rectification"]
    AD3 --> AD4["Power Switch"]

    subgraph Power Supply
    AE
    AE1["Ringer Amp. circuit"] --> AE2["Voltage check"]
    AE2 --> AE3["Rectification"]
    AE3 --> AE4["Power Switch"]

    subgraph Power Supply
    AF
    AF1["Ringer Amp. circuit"] --> AF2["Voltage check"]
    AF2 --> AF3["Rectification"]
    AF3 --> AF4["Power Switch"]

    subgraph Power Supply
    AG
    AG1["Ringer Amp. circuit"] --> AG2["Voltage check"]
    AG2 --> AG3["Rectification"]
    AG3 --> AG4["Power Switch"]

    subgraph Power Supply
    AH
    AH1["Ringer Amp. circuit"] --> AH2["Voltage check"]
    AH2 --> AH3["Rectification"]
    AH3 --> AH4["Power Switch"]

    subgraph Power Supply
    AI
    AI1["Ringer Amp. circuit"] --> AI2["Voltage check"]
    AI2 --> AI3["Rectification"]
    AI3 --> AI4["Power Switch"]

    subgraph Power Supply
    AJ
    AJ1["Ringer Amp. circuit"] --> AJ2["Voltage check"]
    AJ2 --> AJ3["Rectification"]
    AJ3 --> AJ4["Power Switch"]

    subgraph Power Supply
    AK
    AK1["Ringer Amp. circuit"] --> AK2["Voltage check"]
    AK2 --> AK3["Rectification"]
    AK3 --> AK4["Power Switch"]

    subgraph Power Supply
    AL
    AL1["Ringer Amp. circuit"] --> AL2["Voltage check"]
    AL2 --> AL3["Rectification"]
    AL3 --> AL4["Power Switch"]

    subgraph Power Supply
    AM
    AM1["Ringer Amp. circuit"] --> AM2["Voltage check"]
    AM2 --> AM3["Rectification"]
    AM3 --> AM4["Power Switch"]

    subgraph Power Supply
    AN
    AN1["Ringer Amp. circuit"] --> AN2["Voltage check"]
    AN2 --> AN3["Rectification"]
    AN3 --> AN4["Power Switch"]

    subgraph Power Supply
    AO
    AO1["Ringer Amp. circuit"] --> AO2["Voltage check"]
    AO2 --> AO3["Rectification"]
    AO3 --> AO4["Power Switch"]

    subgraph Power Supply
    AP
    AP1["Ringer Amp. circuit"] --> AP2["Voltage check"]
    AP2 --> AP3["Rectification"]
    AP3 --> AP4["Power Switch"]

    subgraph Power Supply
    AQ
    AQ1["Ringer Amp. circuit"] --> AQ2["Voltage check"]
    AQ2 --> AQ3["Rectification"]
    AQ3 --> AQ4["Power Switch"]

    subgraph Power Supply
    AR
    AR1["Ringer Amp. circuit"] --> AR2["Voltage check"]
    AR2 --> AR3["Rectification"]
    AR3 --> AR4["Power Switch"]

    subgraph Power Supply
    AS
    AS1["Ringer Amp. circuit"] --> AS2["Voltage check"]
    AS2 --> AS3["Rectification"]
    AS3 --> AS4["Power Switch"]

    subgraph Power Supply
    AT
    AT1["Ringer Amp. circuit"] --> AT2["Voltage check"]
    AT2 --> AT3["Rectification"]

KX-TES824BX/KX-TEM824BX SYSTEM BLOCK DIAGRAM

This power supply unit is a switching power supply. Power supply unit supplies DC voltage (+27V,+15V,-15V,3.3V) to main board and other optional cards. And this unit has an adaptor circuit to back up battery. And this unit amplified the BELL signal (20/25Hz sign wave outputted from the ASIC) and supply bell signal to the telephone.

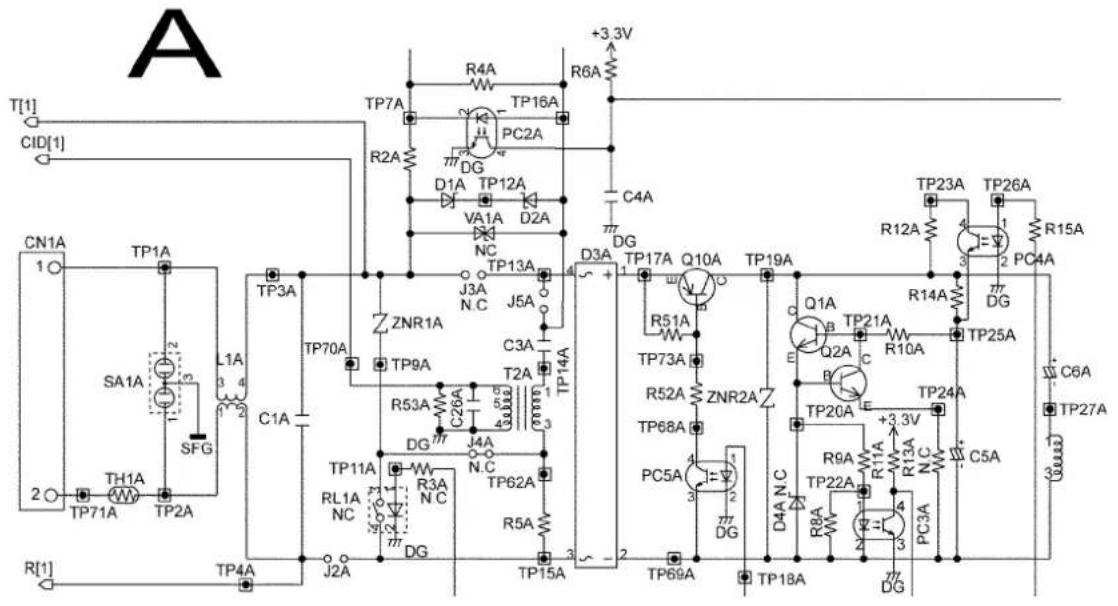

10.1.2. COL Interface Circuit

There are the interface circuits linking the CO line (CO1 -CO3) and the cross point circuit section. In case of KX-TEM824, the system has 6CO line (CO1 - CO6).

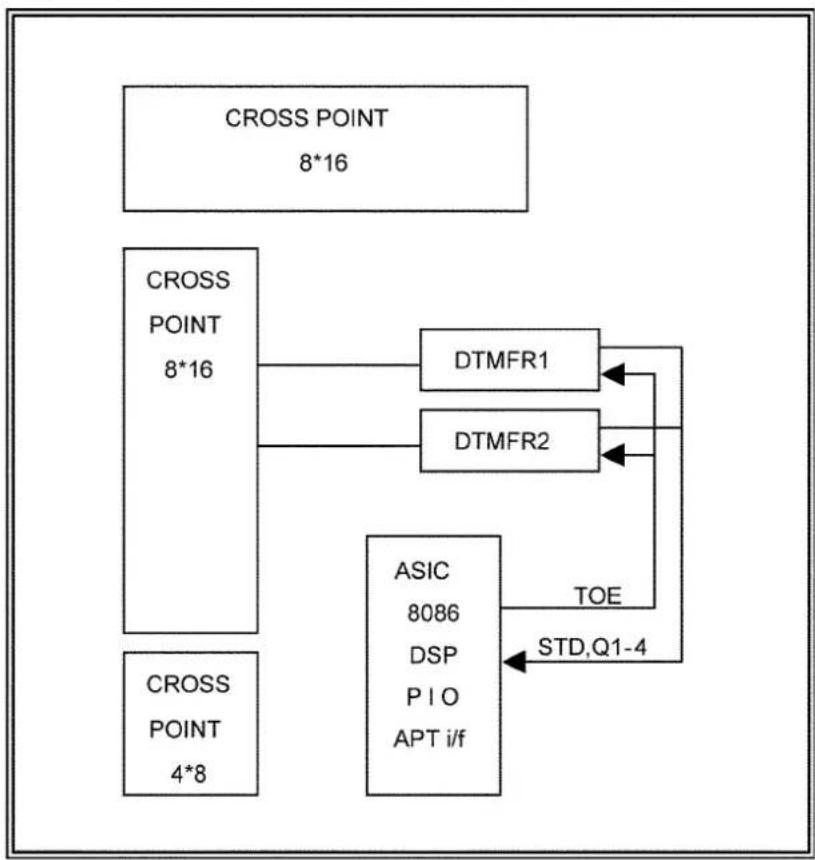

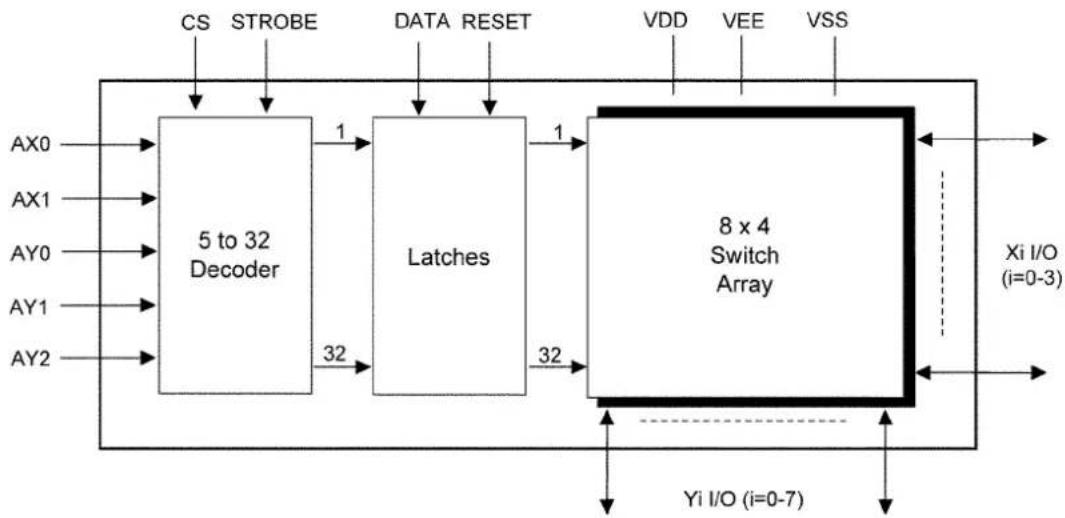

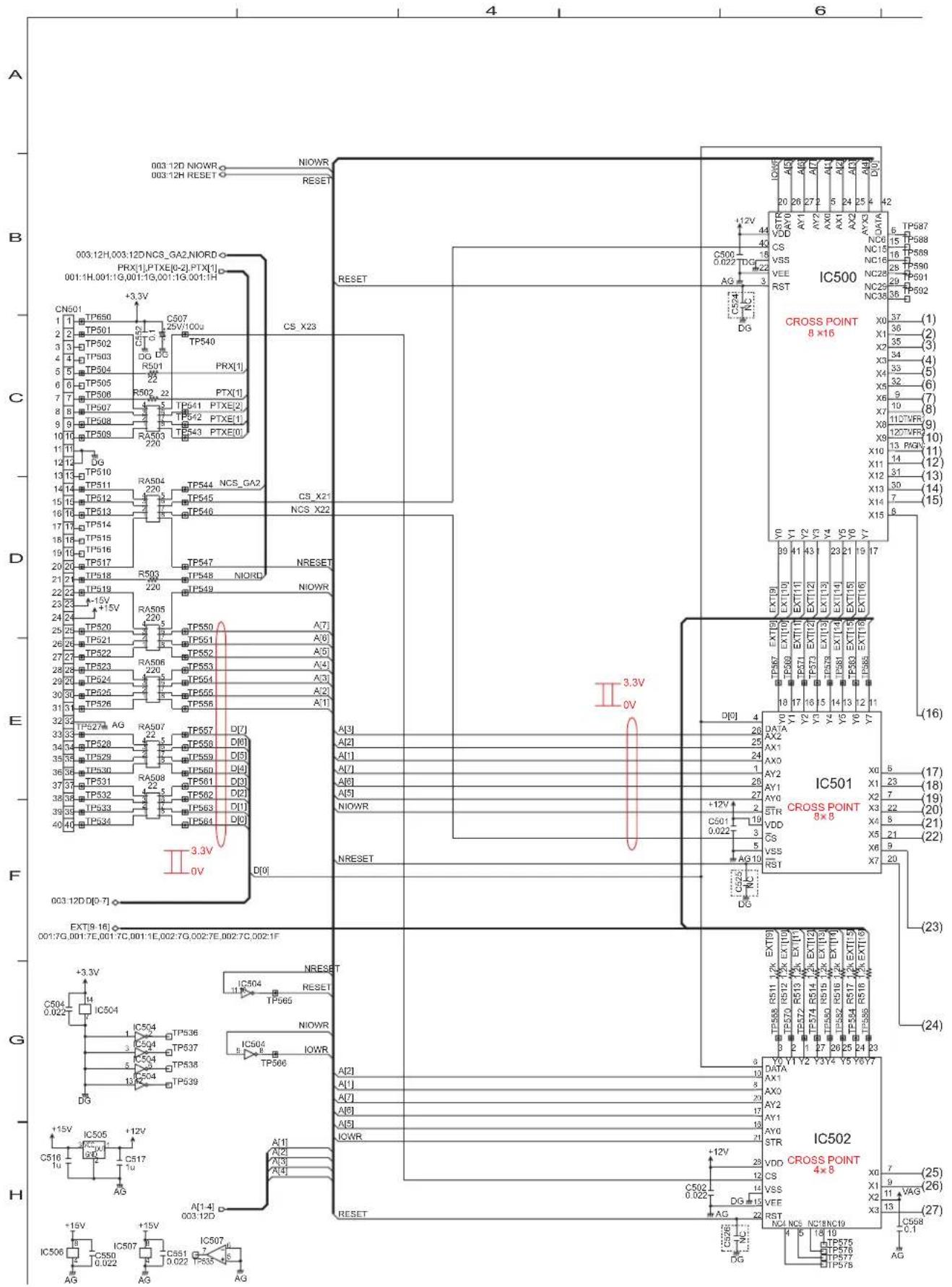

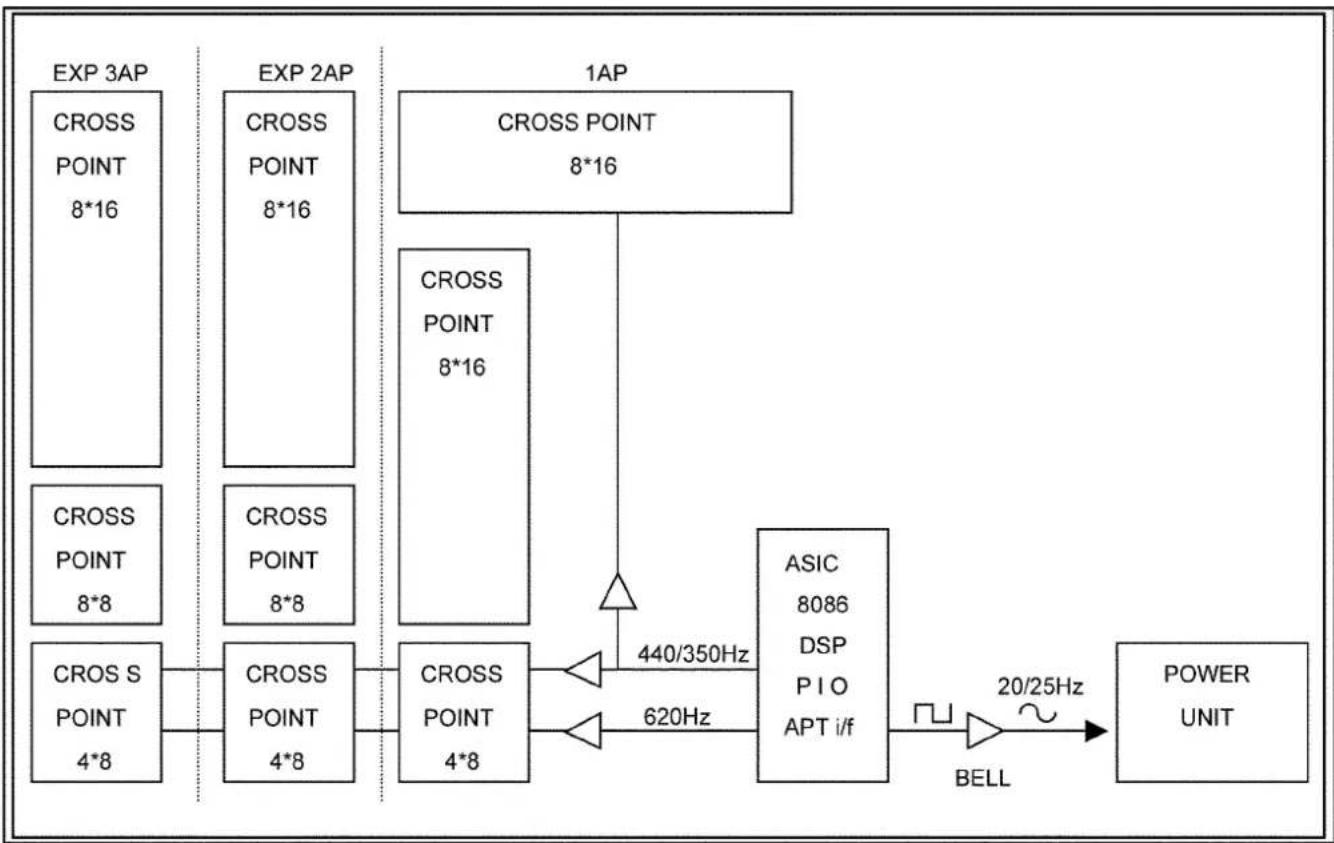

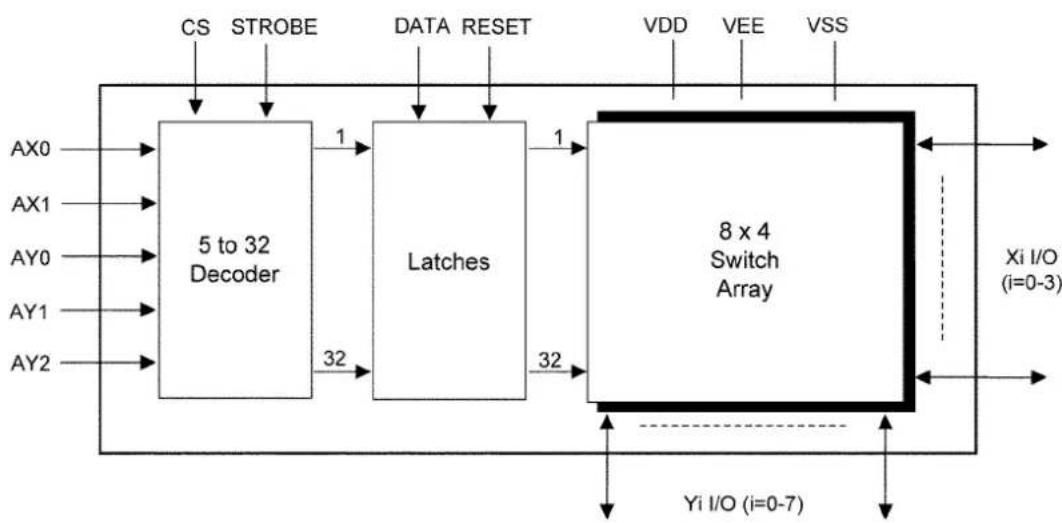

10.1.3. Cross Point Circuit

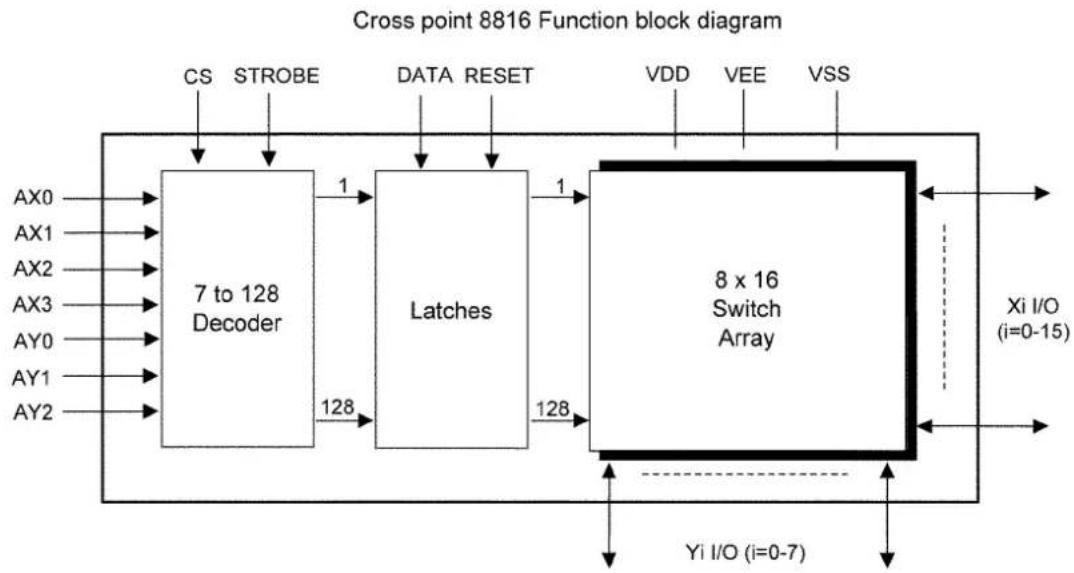

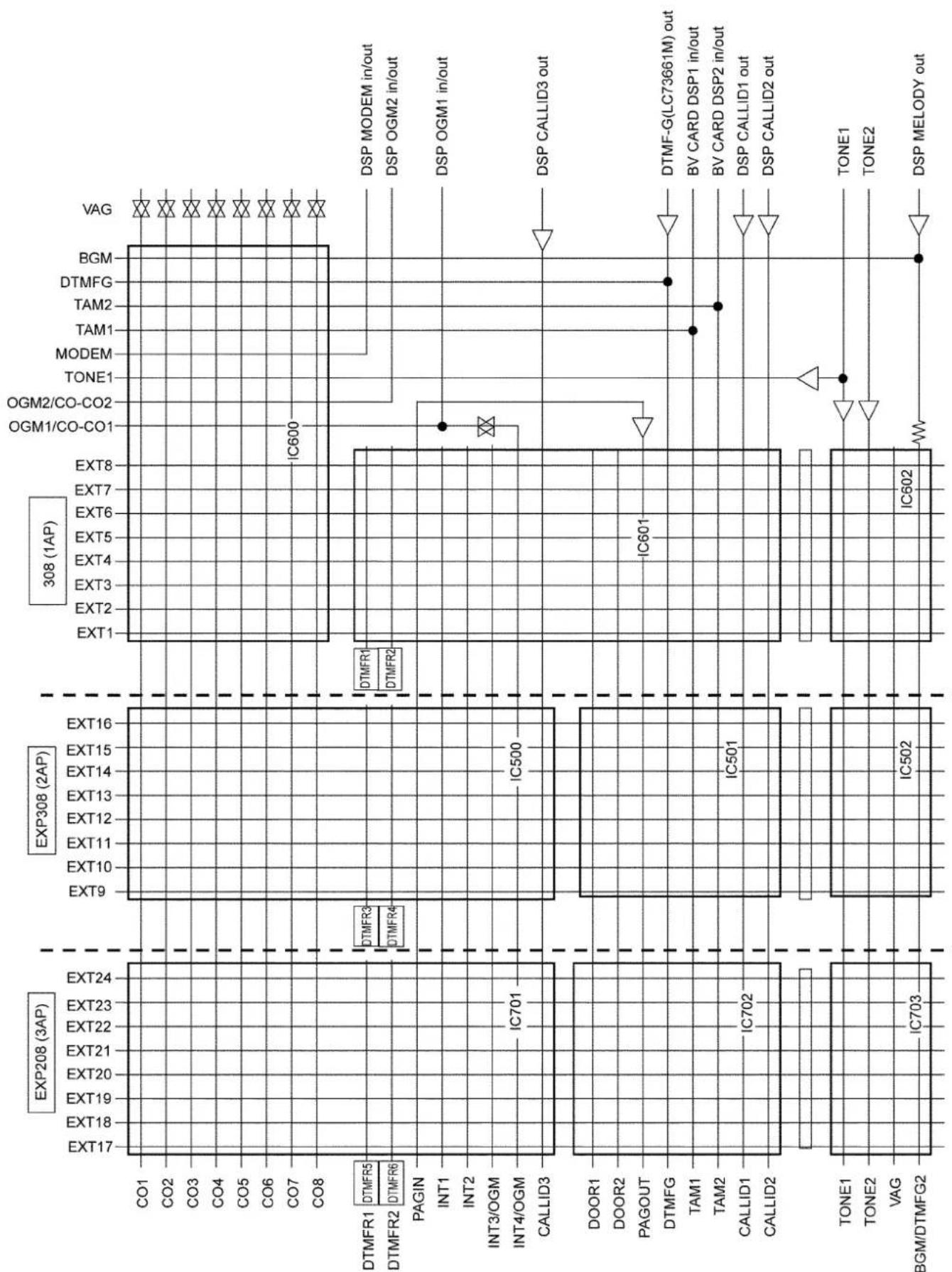

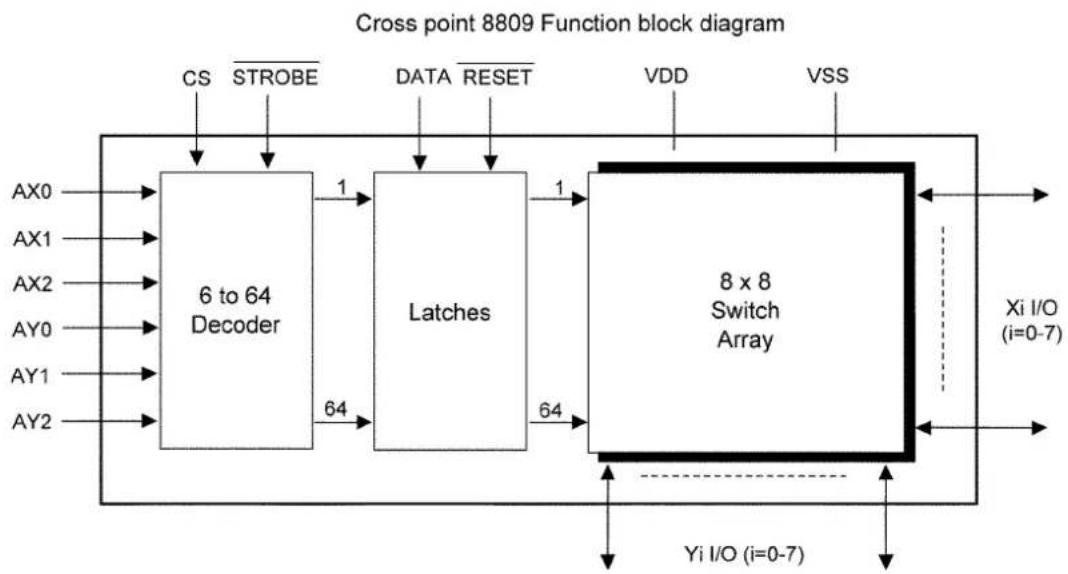

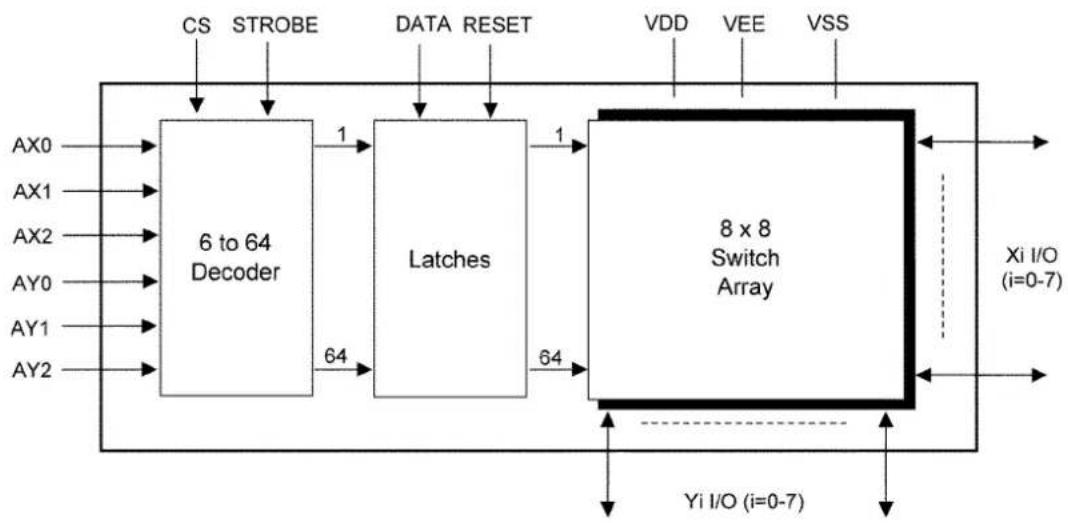

This is a space division switching system for connecting the following:

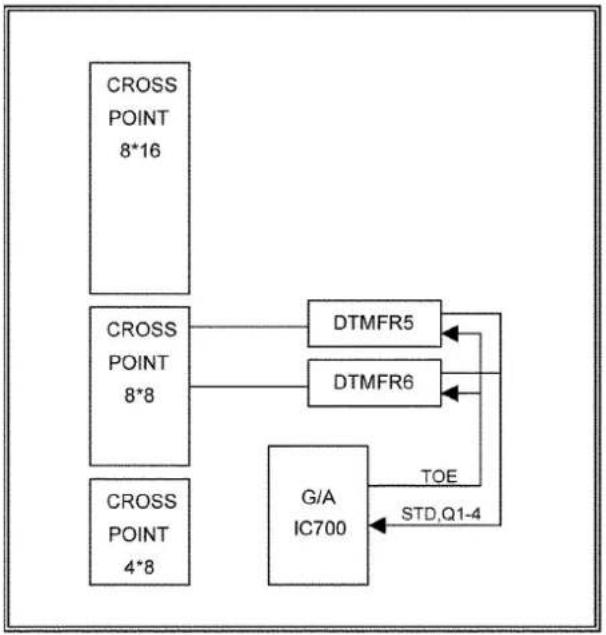

The eight extension circuits with the eight CO, DTMF generator, DTMF receiver, INT-CALL ID, MODEM, OGM, VB, paging, music on hold, tone etc.

It is composed of 3 C-MOS IC's. (8 X 16 matrix: 2pcs and 4 X 8 matrix: 1pce).

*In case of KXTEM824, the system has 6 C-MOS IC's (8 X 16 matrix: 3pcs and 4 X 8 matrix: 2pce, 8 X 8 matrix: 2pce).

10.1.4. Intercom Circuit

This is the interface circuit of the single line telephone, and it is composed of 8 intercom circuit (ICM1-8) In case of KX-TEM824, the system has 16 intercom circuits(ICM1-16).

10.1.5. Power Failure Through Call Switching Circuit

KXTES824 have one power failure transfer circuit (CO1-EXT101).

In case of KXTEM824, the system has 2 power failure circuit (CO1-EXT101 CO4 -EXT109).

10.1.6. Data Communication Circuit

The APT i/f module which performs communication with a private telephone machine is built in ASIC.

8ch are controlled per block. Control of 3 blocks (24ch) is possible for ASIC at the maximum.

10.1.7. Control Circuit

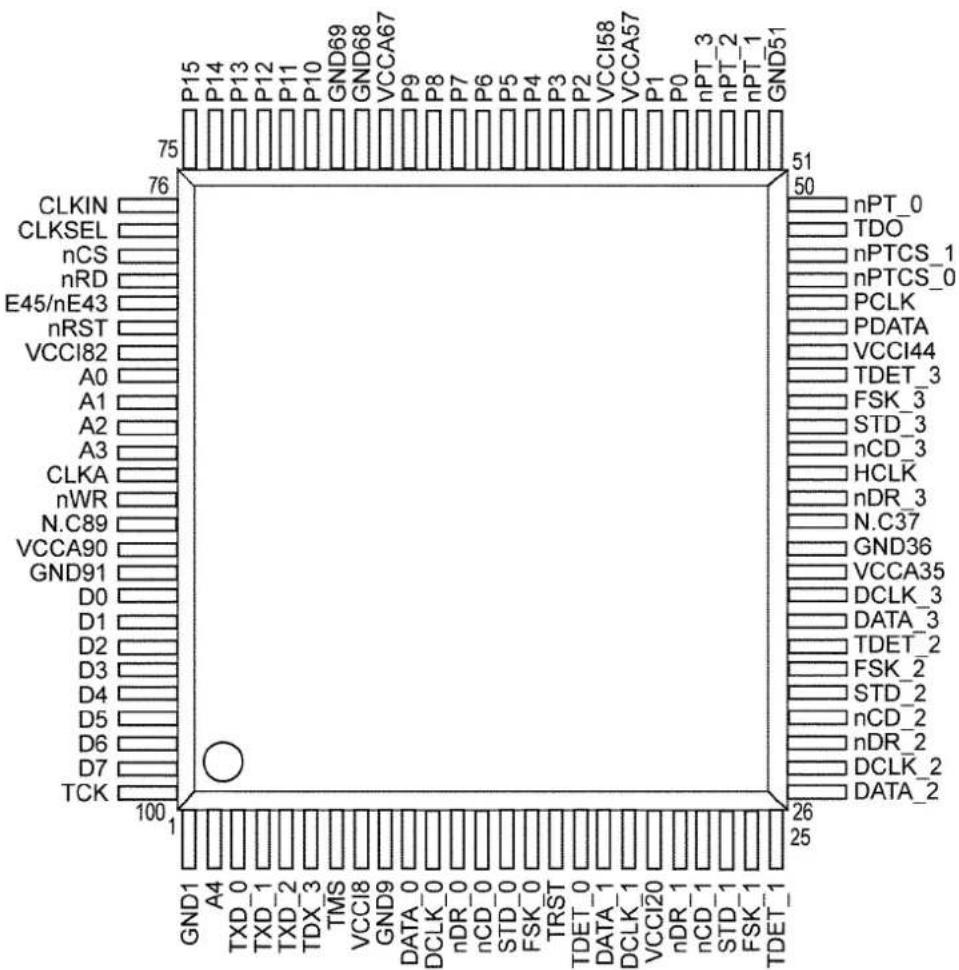

A control block consists of only the [ASIC] CPU (compatibility with Intel 8086) (IC700), Flash ROM (8Mbit) (IC705), SRAM (4Mbit) (IC704), and PIO ASIC (IC6). PIO ASIC mainly performs extension control and PIO built in ASIC CPU mainly performs extension control. RTC (Real Time Clock) and SRAM inside CPU are backed up by the lithium battery in order to hold time, system data, etc.

10.1.8. Tone Generator Circuit

The rectangle wave generated by the timer of ASIC is changed into sine wave with a low path filter, and various tones are generated.

10.1.9. DTMF Generator Circuit

A DTMF generator is used for dispatch to outside line, and communication with the voice mail connected to the extension.

10.1.10. DTMF Receiver Circuit

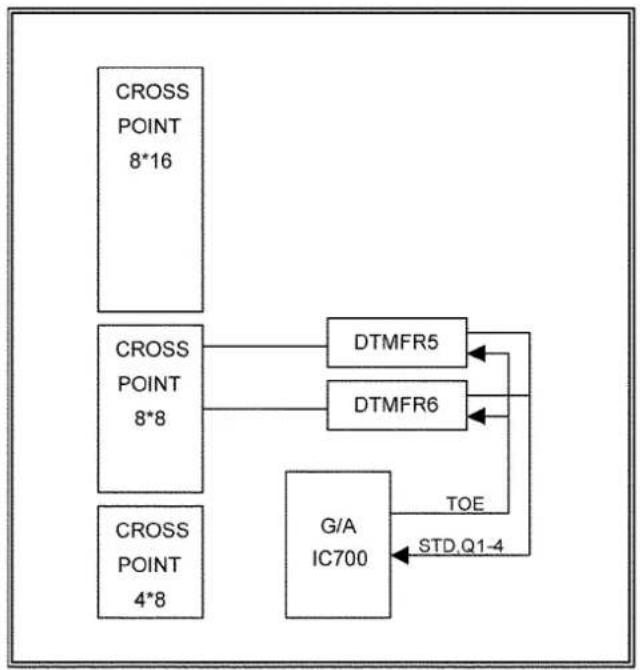

The circuit which receives the Dial Tone Multi Frequency by which extension dispatch is carried out with the DTMF receiver connected to the crossing point.

10.1.11. Int Call ID Circuit

FSK/Dial Tone Multi Frequency generated by DSP in ASIC are connected even to a crossing point through AMP. The circuit which sends out a CALLID signal to the telephone connected to an extension by connecting the line of INT-CALL-ID with arbitrary extensions.

10.1.12. Modem Circuit

The MODEM signal generated by DSP in ASIC is connected even to a crossing point through AMP.

The circuit which connects the line of MODEM with arbitrary outside line, and enables MODEM communication with outside line.

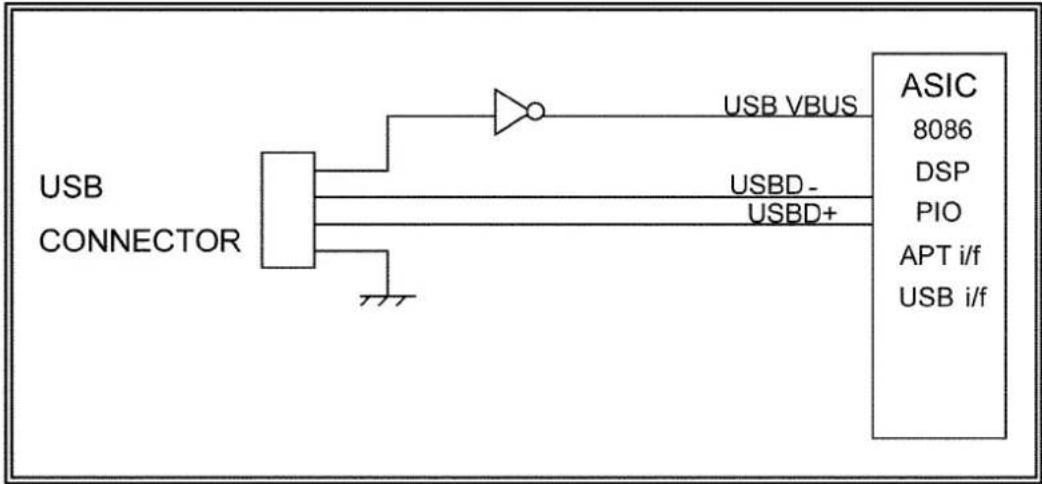

10.1.13. USB Circuit

The circuit which makes communication possible by PC and 1.1 standards by the USB controller in ASIC.

10.1.14. OGM Circuit

4M connected to ASIC by the memory controller in ASIC A maximum of 3-minute storing of OGM is possible to a serial flash Circuit.

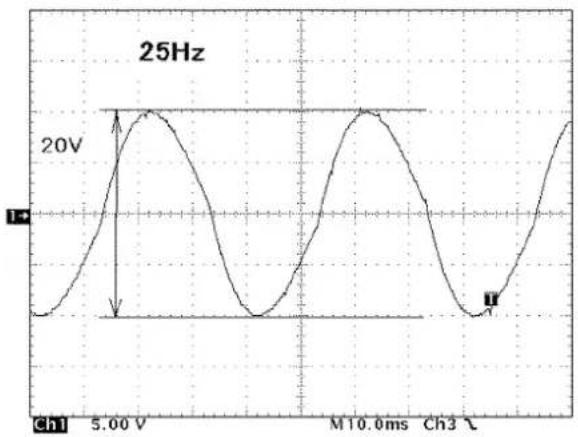

10.1.15. Ring Signal Generator Circuit

This section generates the ring signal for the single line telephone. A 20/25Hz square wave is generated by the ASIC timer and sent to low pass filter and the ringing signal amplifier circuit and stepped by BELL transformer, and then passed it through the ringing signal switching relay to the single line telephone.

10.1.16. SMDR Interface Circuit

This is the RS232C interface port. When the port is connected to a printer. The port can be used to output the SMDR feature recording messages and the contents of the system program.

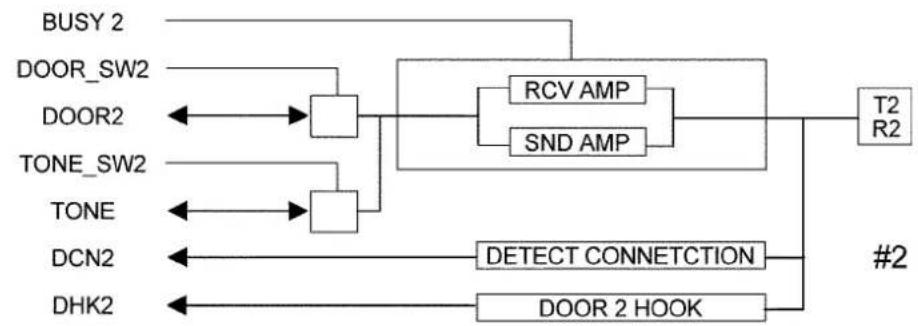

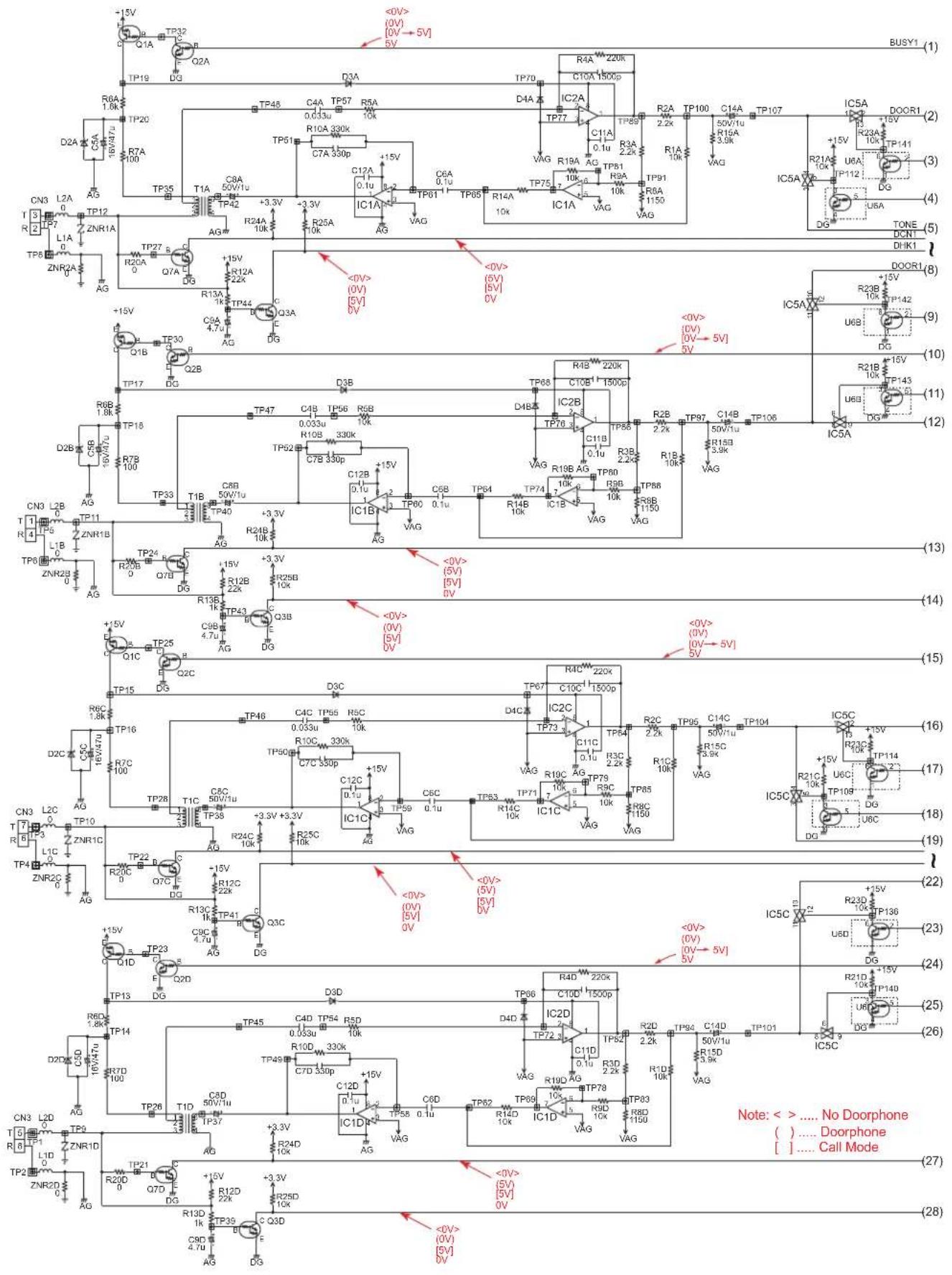

10.1.17. Door Phone Interface

An intercom card interface consists of two intercom paths connected to a crossing point, and address data and CS signals.

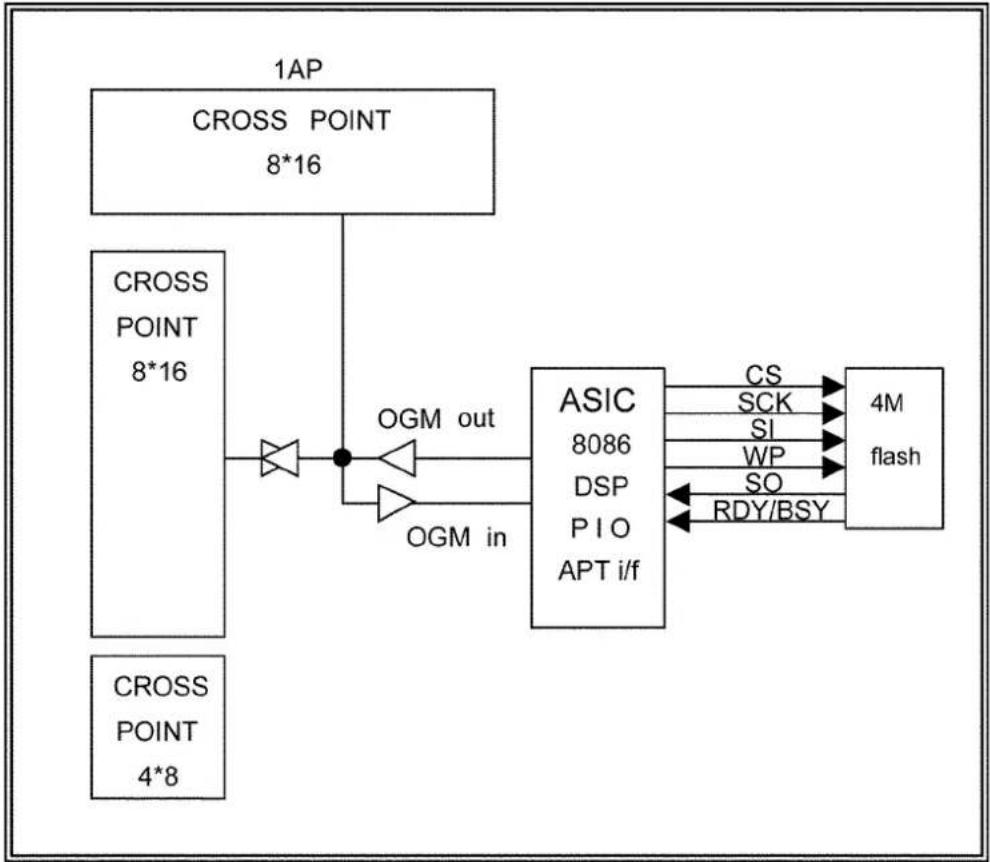

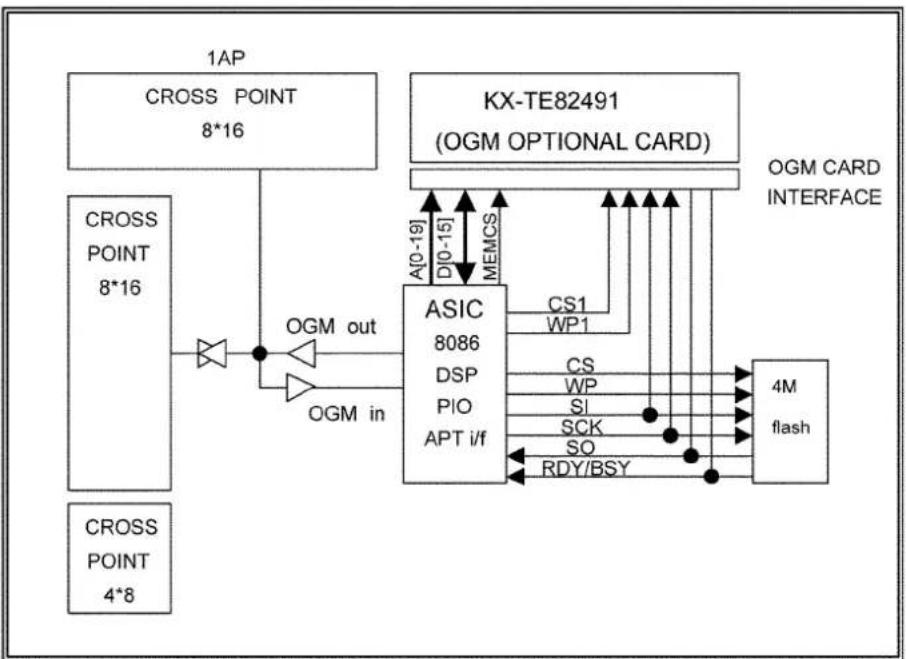

10.1.18. OGM Interface

An OGM card interface consists of the memory control signal, and the address data and CS signal which are connected to ASIC.

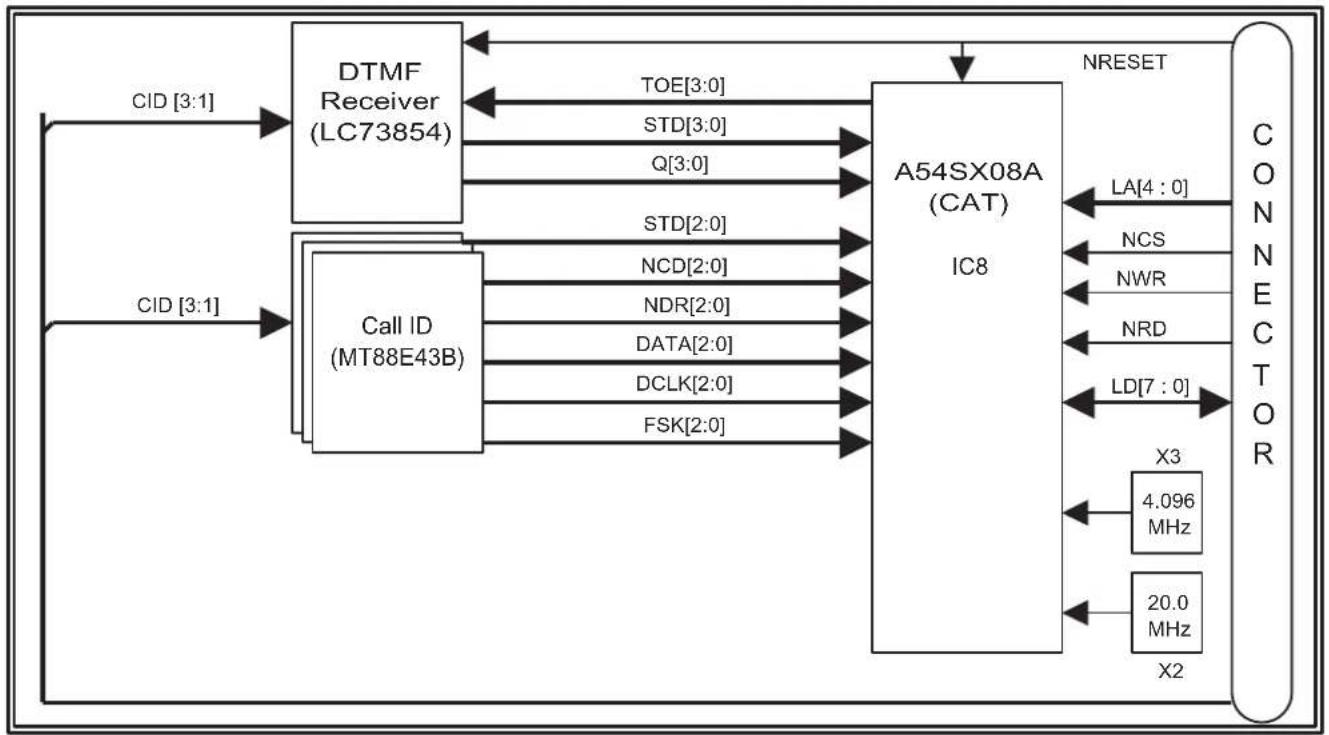

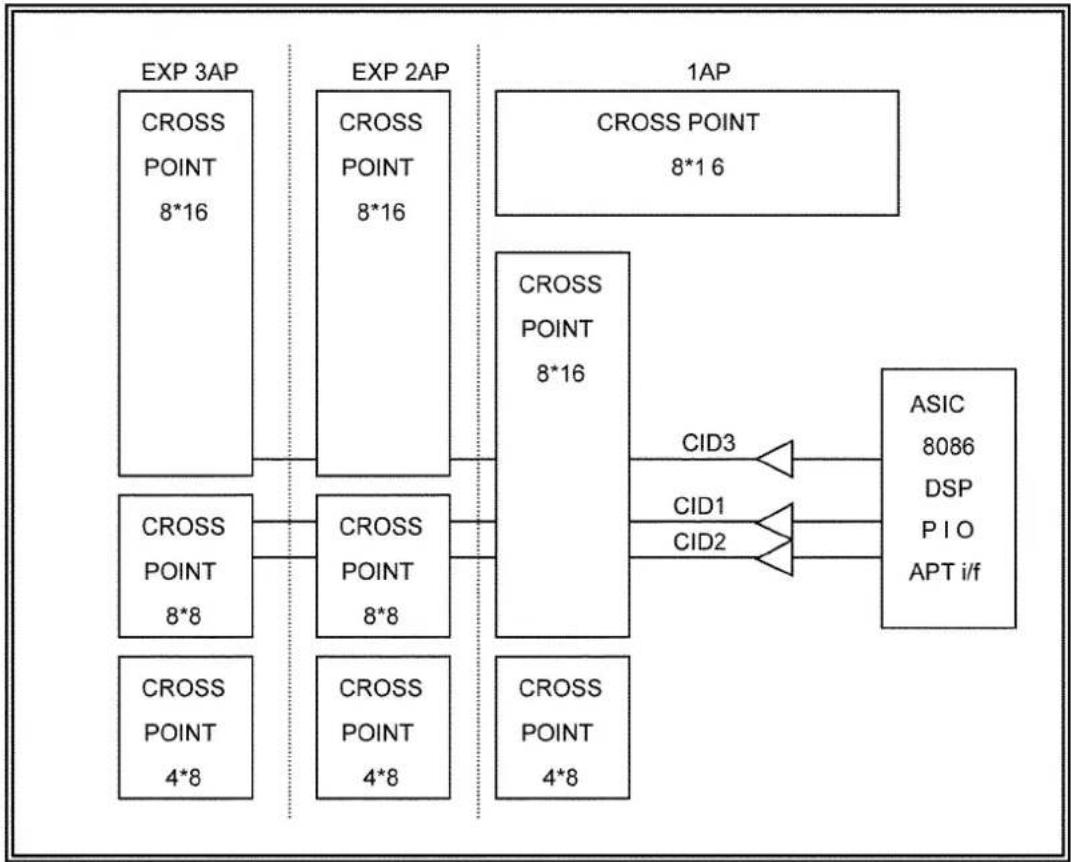

10.1.19. Call ID Interface

A CALLID card interface consists of three CALLID signal lines from outside line, and address data and CS signal.

10.1.20. BV Interface

BV card interface consists of two BV telephone call paths connected to a crossing point, and address data and CS signals.

11.1.1. The function of the power unit are listed below

AC-DC Inverter Function This function isolates and transduces the AC input voltage to DC input and output of DC27V.
DC-DC Converter Function This function outputs DC+15V, -15V	and 3.3V from the inputted DC27V.
Ringing Signal Output Function Based on the 20/25Hz sine wave	signal output from KX-TES824/KX-TEM824,this function generates ringing and supplies to the system.
AC Power Failure Detection This function detects any cut off of the AC power supply and outputs an AC alarm signal to the CPU.
Battery Back Up Adaptor Function This function connects battery	and service unit without battery adaptor, only needs a cable connected to the battery and service unit.

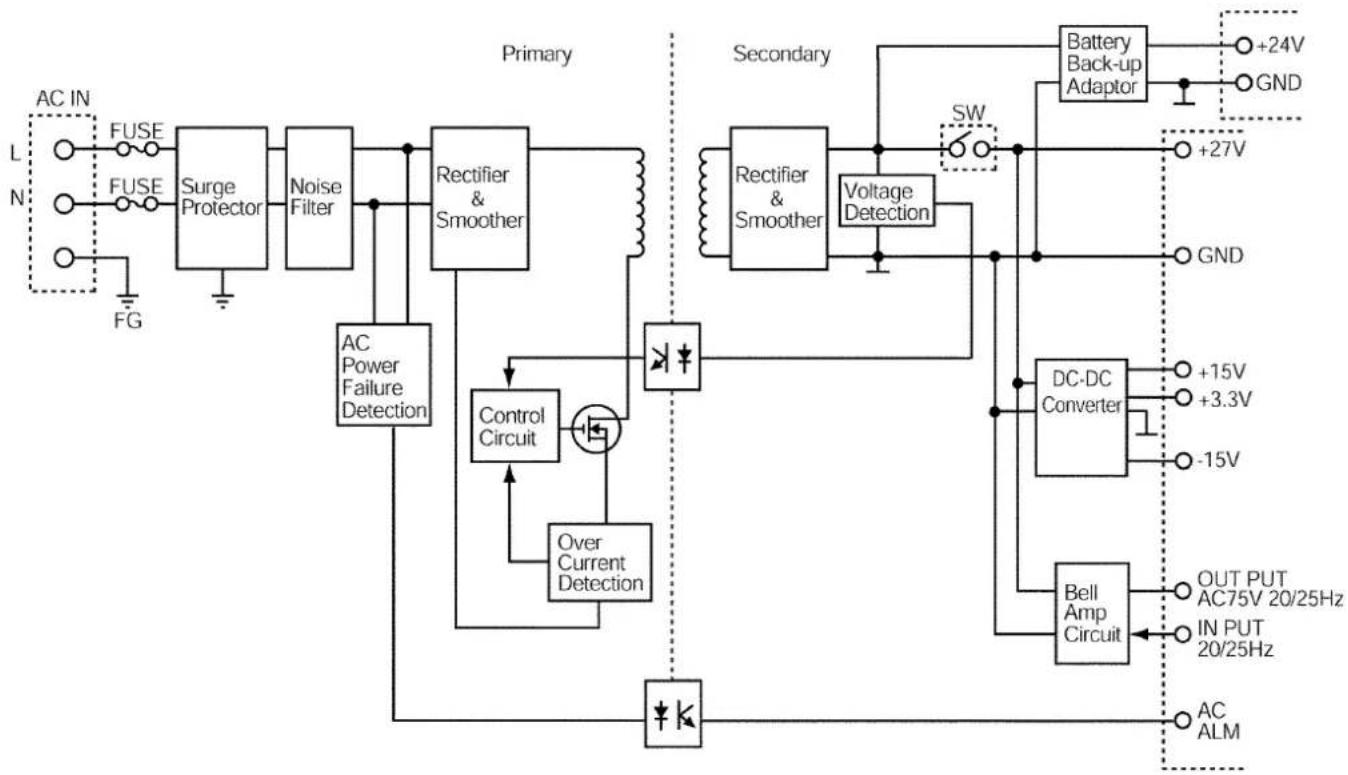

Block Diagram

11.1.2. Control Section

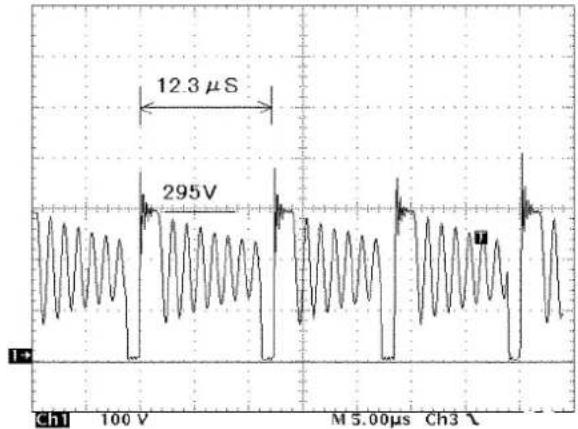

1) AC-DC Inverter Function

The AC input voltage is rectified and smoothed by D10-13 and C5. The obtained DC voltage is converted into a rectangular wave by the switching transistor Q1, then isolated and transduced by T1. This converted rectangular wave is rectified and smoothed by D101 and C101 to output DC27V. The DC27V is transmitted to the primary side by PC1 and then PWM-controlled to keep constant. The switching frequency of Q1 is approximately 100KHz (70KHz\~160KHz).

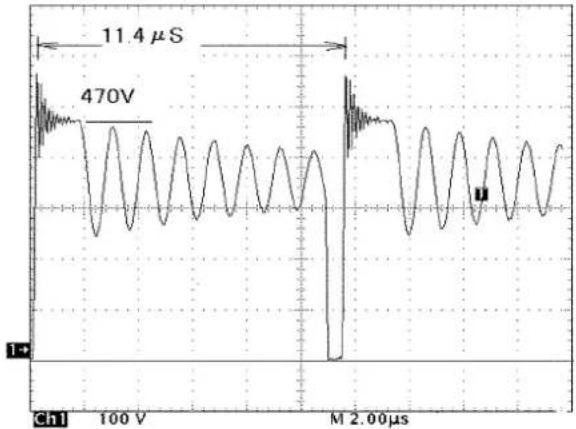

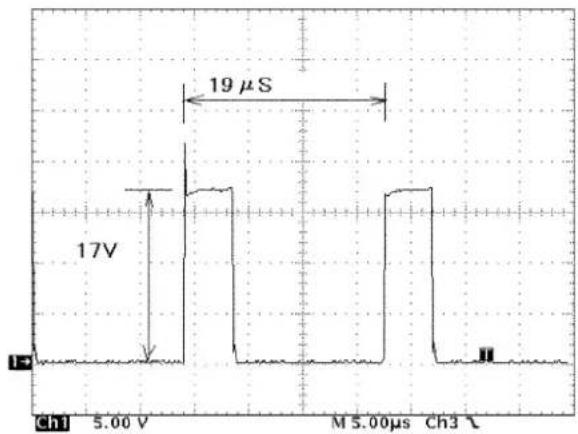

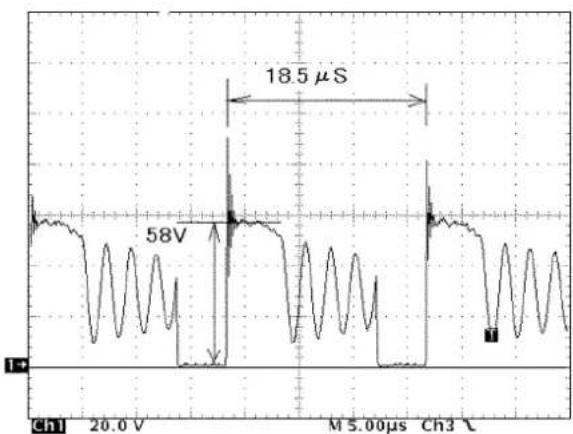

2) DC-DC Inverter Function

The DC27V as input is converted into a rectangular wave by the switching transistor Q201, then isolated and transduced by T2. DC+15V, -15V and 3.3V are outputted by a rectification smoothing circuit composed of D401, D301, D701, C401, C301 and C702. The +3.3V of the three outputs is PWM-controlled by IC201 to keep constant. The switching frequency of the Q2 is approx. 55 KHz.

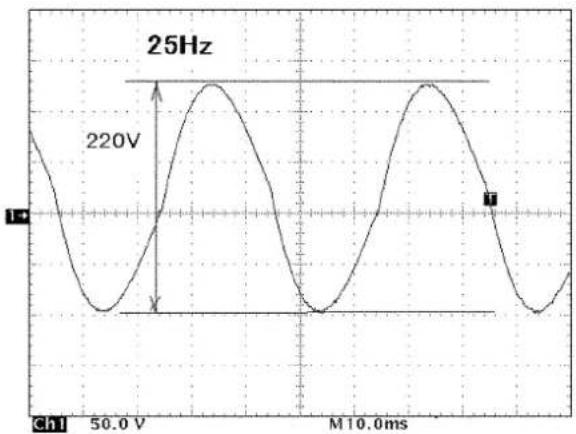

3) Ringing signal output function

Ringing signal (20/25Hz, 75Vac from main board) is amplified in power by power amplifier circuits (including of IC501, R601\~R608, C601\~C603).

Ringing signal amplified in power is transmitted to the ringing transformer through pin 4 of CN601.

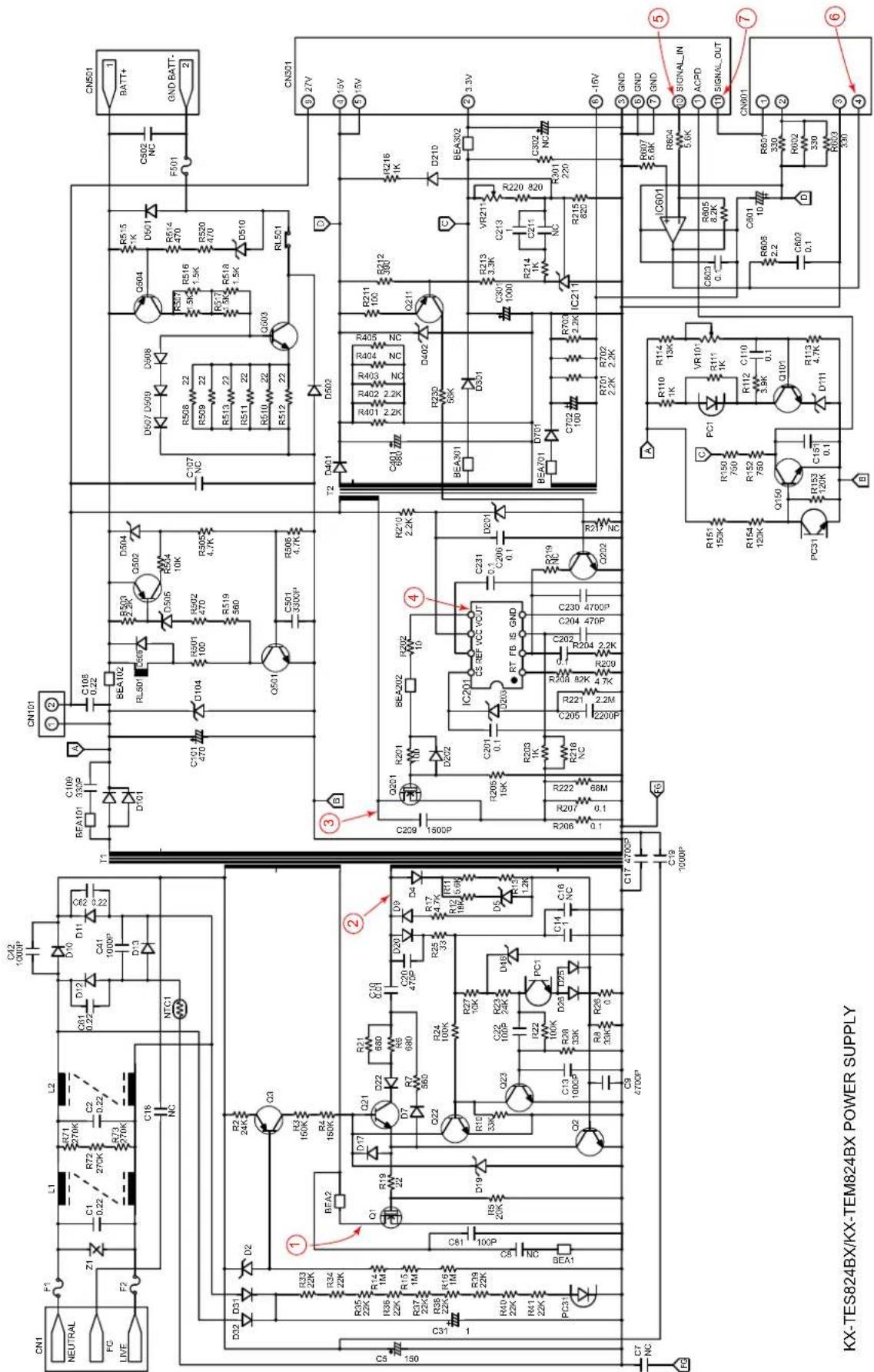

4) AC Power Failure Detection

AC power failure is detected by D31\~D32, R33\~R41, C31, PC31.

When AC power is on, PC31 is on.

When AC power is turned off, PC31 is off.

5) Battery back up function

This back up battery adaptor circuit has DC supply function, from battery (+24V) to service unit and DC charge from service unit to battery (+24V). Charge current is typ. 0.4A.

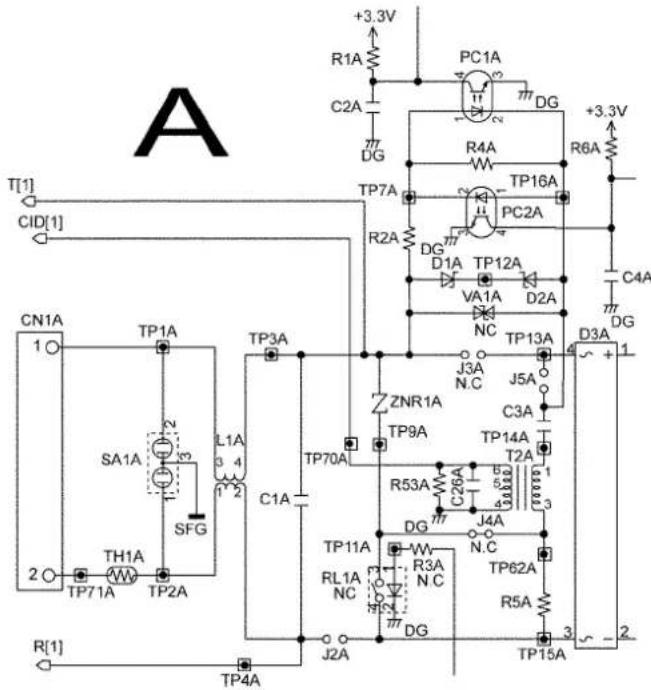

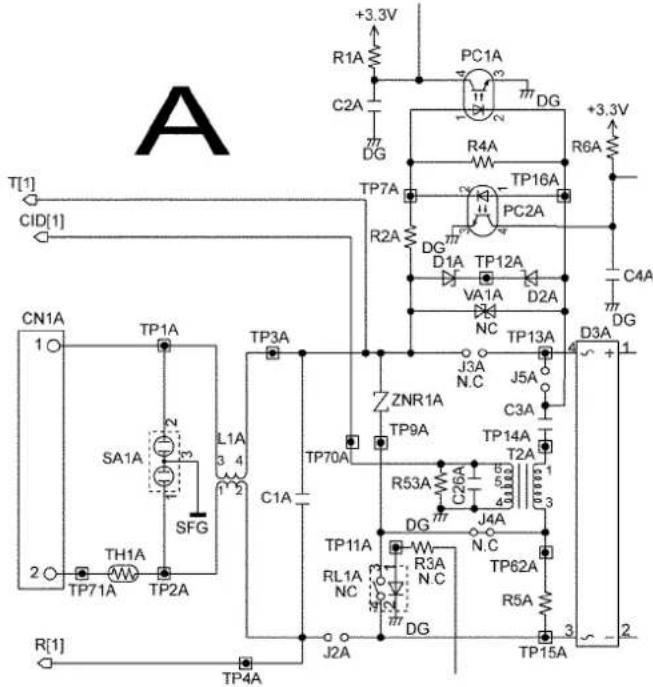

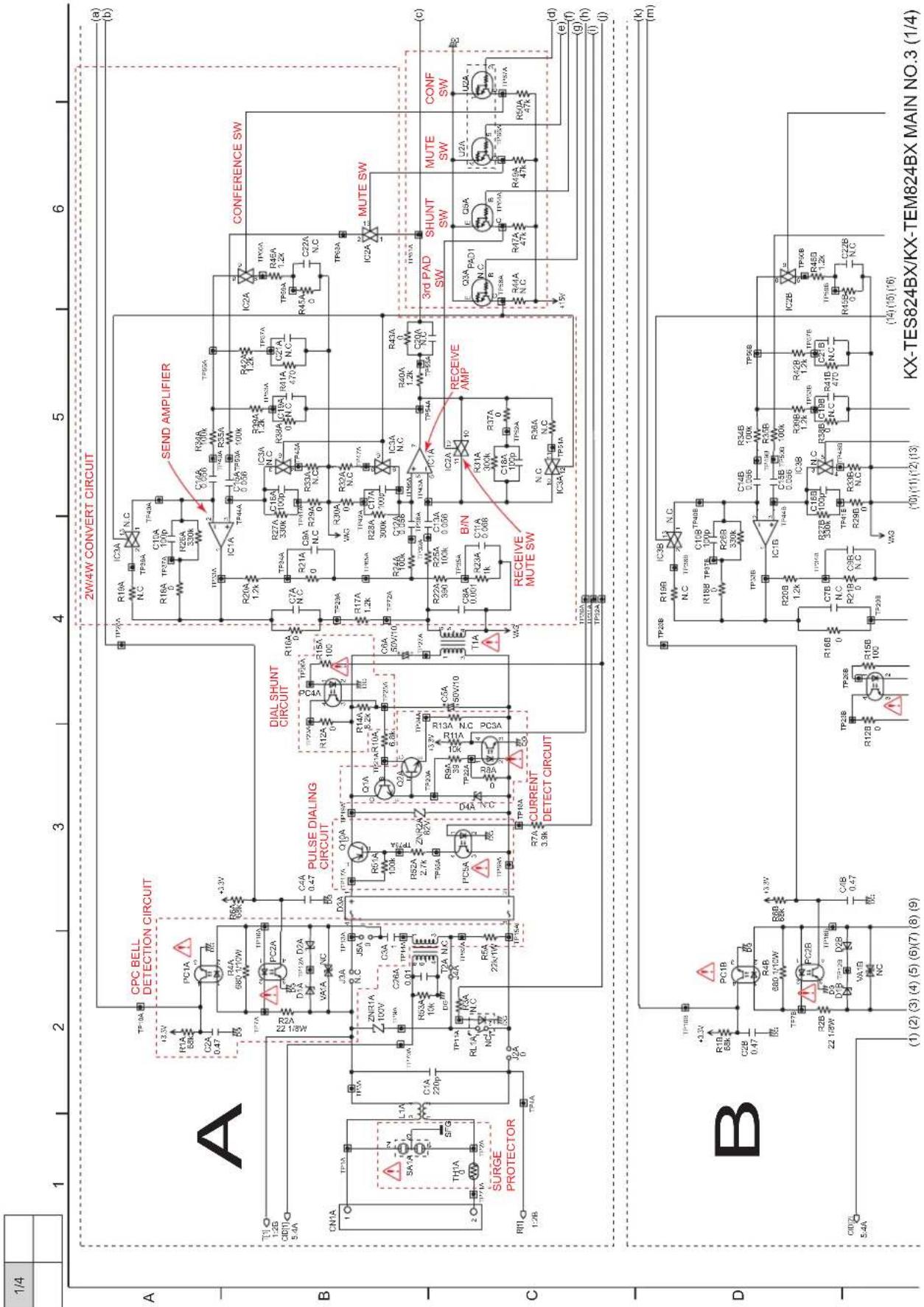

11.2. CO INTERFACE CIRCUIT

11.2.1. Composition

This is composed of the following circuit:

1) Bell signal detection
2) DC loop formation circuit
3) Pulse dial transmission circuit
4) CALL ID interface circuit
5) COL bidirectional amplifier circuit

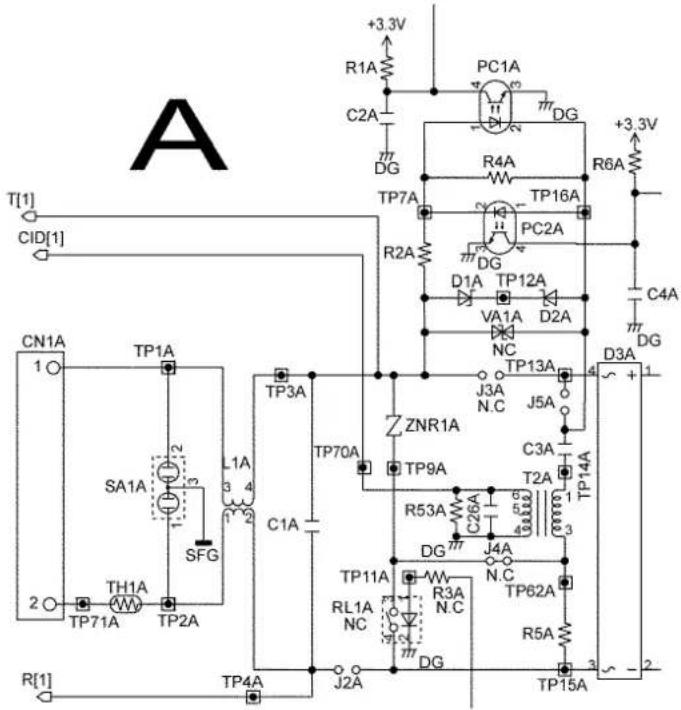

1) Bell signal detection

When CO line is idle, photo coupler PC1, PC2 are OFF.

When there is an incoming signal from CO line, the current flows PC1 as in the following way.

Tip → L1 → R2 → PC1(1-2) → C3 → T2 → R5 → L1 → Ring: This cause pin4 of PC1 to change the level from High to low. Ring → L1 → R5 → T2 → C3 → PC2(1-2) → R2 → L1 → Tip: This cause pin4 of PC2 to change the level from High to low.

2) DC loop formation circuit

In the off hook status, PC5 is ON.

DC loop path:

Tip→L1→D1→D2→D3→Q10(E-C)→Q1(C-E)→R9→R8→D3→L1→Ring

At this time, the output of the photo coupler PC1 changes level from High to low.

Ring→L1→D3→R8→R9→Q1(E-C)→Q10(C-E)→D3→D2→D1→L1→Tip

At this time, the output of the photo coupler PC2 changes level from High to low.

Afterwards, G/A monitor this change (low level to high level). If the high level continues for a specified time set by system data programming. G/A assumes that CO line has become On hook status. And the CO line circuits is restored to the idle status.

3) Pulse dial transmission circuit

When the Off hook status, pulse dial transmission is executed by alternating On hook and Off hook. The status of On hook or Off hook is controlled by the switching transistor Q10.

4) CALL ID interface circuit

It is insulated by the transformer in a COL circuit, and the call ID signal inputted from outside line is transmitted to a CALLID option card.

The flow of a CALLID signal

$$ \text { Tip } \rightarrow \text { L1 } \rightarrow \text { R2 } \rightarrow \text { PC1(1 - 2) } \rightarrow \text { C3 } \rightarrow \text { T2 } \rightarrow \text { R5 } \rightarrow \text { L1 } \rightarrow \text { Ring } $$

$$ \text { Ring } \rightarrow \text { L1 } \rightarrow \text { R5 } \rightarrow \text { T2 } \rightarrow \text { C3 } \rightarrow \text { PC2(1 - 2) } \rightarrow \text { R2 } \rightarrow \text { L1 } \rightarrow \text { Tip } $$

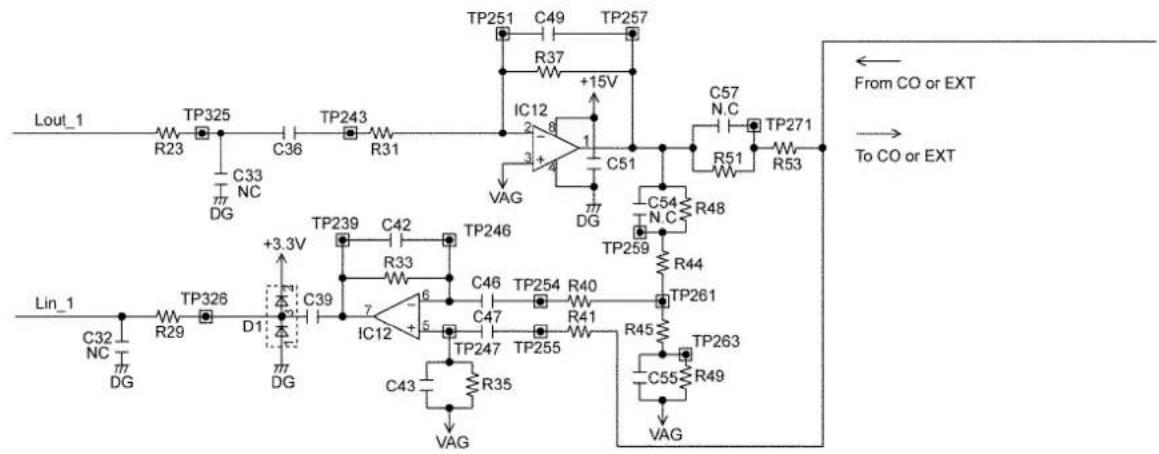

5) COL Bidirectional Amplifier circuit

This circuit consists of bidirectional amplifier function for communication between the extensions and COL, returns loss compensation for conference, shunt function and mute function.

(Composition)

For transmitting signals from the extensions to COL, this circuit consists of R34, R35, R26, R27, R18, R29, C14, C15, C10, C16 and the operational amplifier (IC1).

For transmitting signals from the COL to extensions, this circuit consists of R24, R25, R31, R28, R37, R30, C12, C13, C17, C18, and the operational amplifier (IC1).

COL side-tone suppression circuit which includes a balanced network BN1 consists of R22 R23, C11 and R16, R17, R20, R21.

EXT side-tone suppression circuit which includes a balanced network BN2 consists of R41, R42 and R40, R43, R38, R39.

Also extension side-tone suppression circuit which includes a balanced network BN3 consists of R45, R46 for supplementing side-tone suppression during the conference communication.

The analog switch (IC2) is used for the following:

(1) Conference (Pin 6, 8 and 9)

(2) Shunt (Pin 12, 10 and 11)

(3) Mute (Pin 13, 1 and 2)

1) Conference switch

Normally, pin 6 of the analog switch IC2 is low level, but during conferences, this pin becomes high level. Because, during conferences, it should compensate the return loss by connecting the balance network BN2 and the balance network BN3 in parallel.

2) Mute switch

The mute switch consists of pin 13, 1 and 2 of the analog switch(IC2). This switch has the following functions.

a) When a dial signal (DP) is sent to the COL, signals from the extensions are blocked.
b) When the hold on music is sent to the COL, signals from the extensions are blocked.
c) When the COL interface circuit is in the idle state, oscillation of COL bidirectional amplifier is inhibited. When pin 13 of IC2 changes to low level, the interval between pins 1 and 2 of the analog switch turns off, and signals are blocked.

3) Shunt switch

The shunt switch consists of pin 12, 10 and 11 of analog switch IC2. It is used to prevent the pulse dialing signal which is transmitted to the extensions. When pin 12 of IC2 changes to high from low, the analog switch becomes ON (the interval between pin 10 and 11), and GAIN of the COL cross point operational amplifier becomes zero.

	Shunt SW Mute SW Conference SW
pin no. of analog switch 12 13 6
No connection (idle) H (on) L (off)	L (off)
Two party call	L (off) H (on) L (off)
Conference	L (off) H (on)	H (on)
Hold on music transmission	L (off) H (on) L (off)

Condition of COL interface amplifier circuit and analog switches.

11.3. CROSS POINT SWITCH CIRCUIT

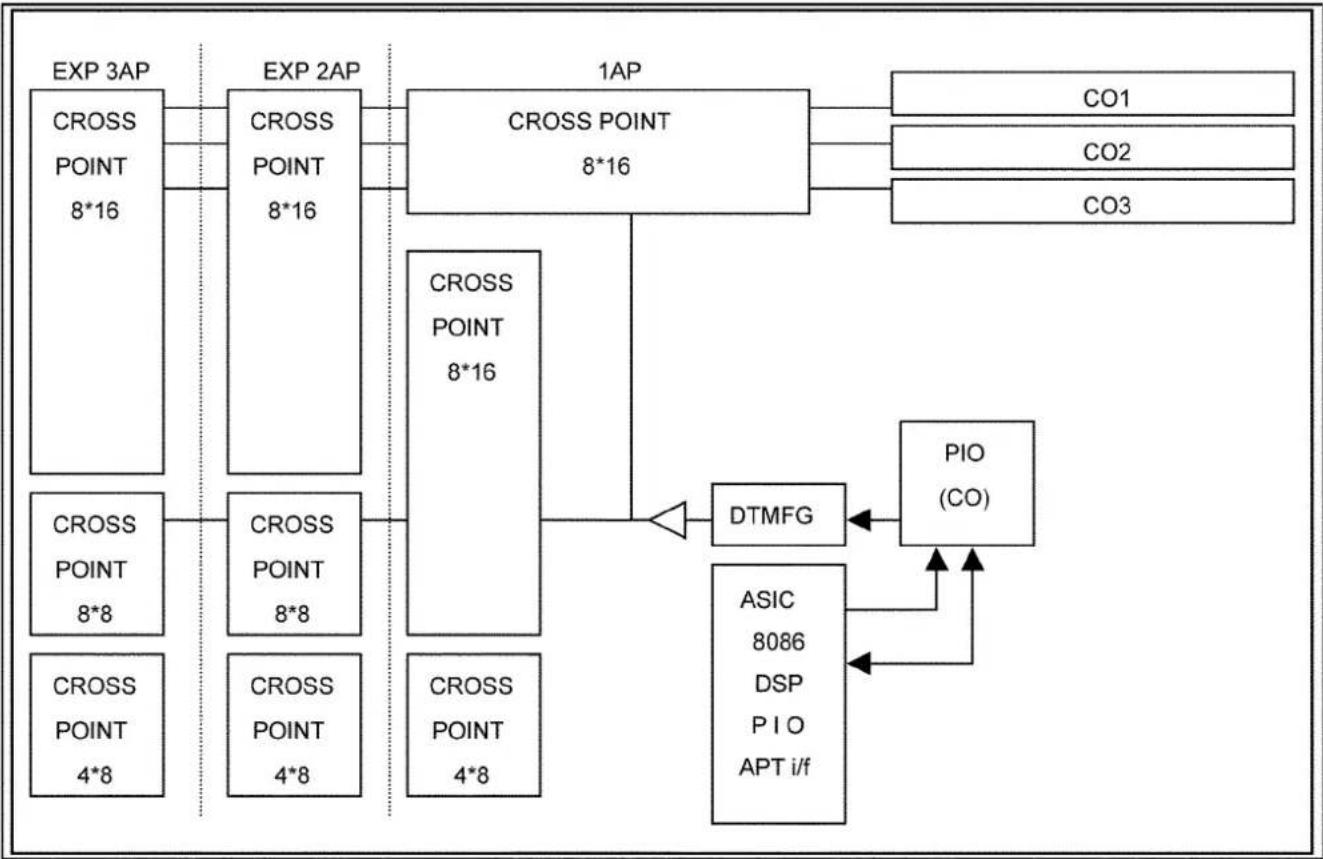

11.3.1. Composition

The cross point circuit composed of three cross point switch IC's (IC600 and 601:8X16, IC602:4X8).

*In case of KX-TEM824, the system add more cross point switch IC's (IC500:8X16, IC501:8X8, IC502:4X8) which are in KX-TE82483.

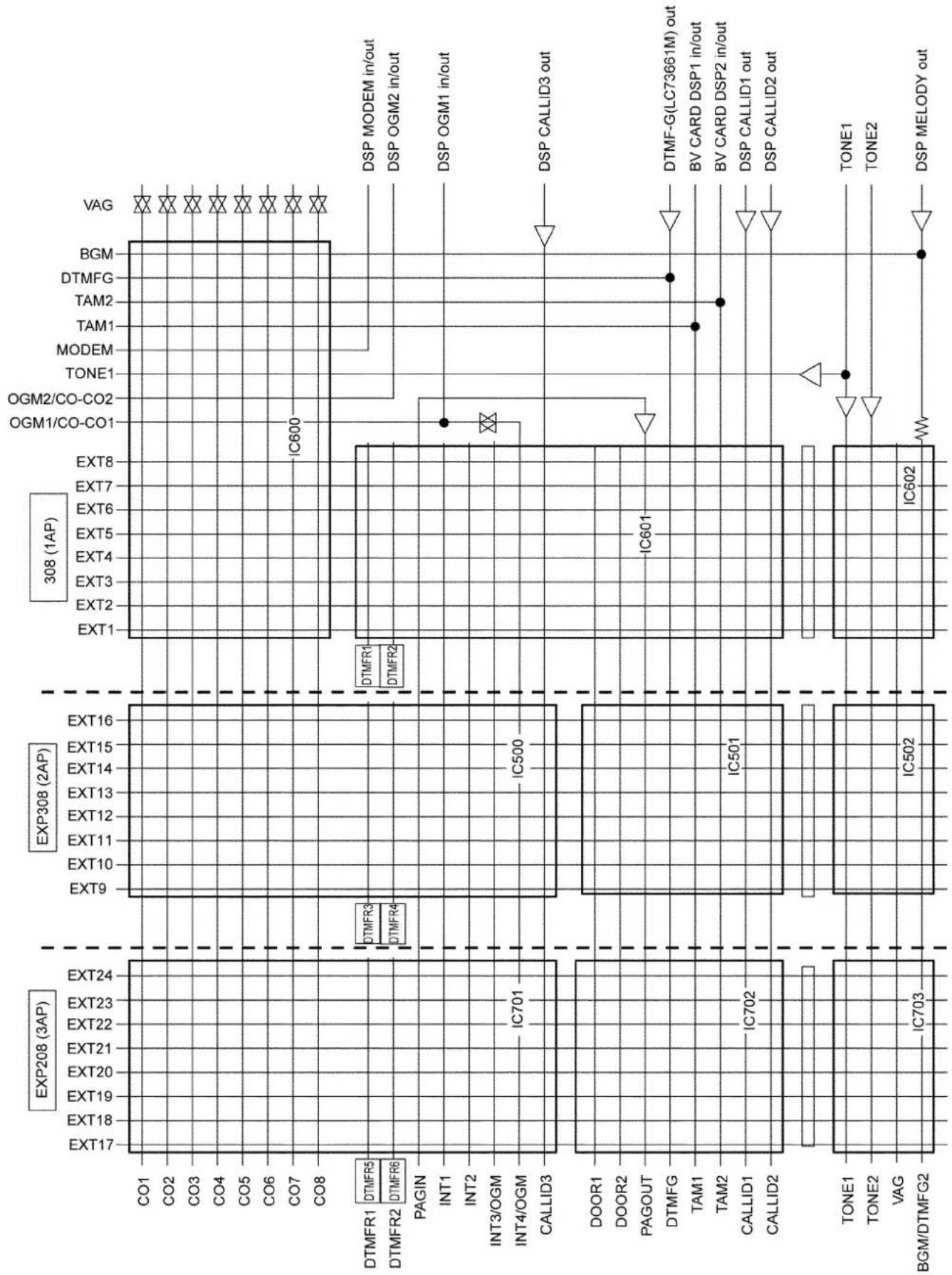

1) Cross Point Switch IC Operation

The cross point SW (IC600, IC601) contains a 8X16 array of cross point switches along with a 7 to 128 line decoder and latch circuits. Any one of the 128 switches can be addressed by selecting appropriate seven address bits. The selected switch can be turned on or off by applying either logical one or zero to the DATA input. Chip select allows the cross point array to be cascaded for matrix expansion. Start a new line at this point SW's (IC602) contain 4X8 array of cross point switches along with a 5 to 32 line decoder and latch circuits.

Any one of the 32 switches can be addressed by selecting appropriate five address bits. The selected switch can be turned on or off by applying either logical one or zero to the DATE input. Chip select allows the cross point array to be cascaded for matrix expansion.

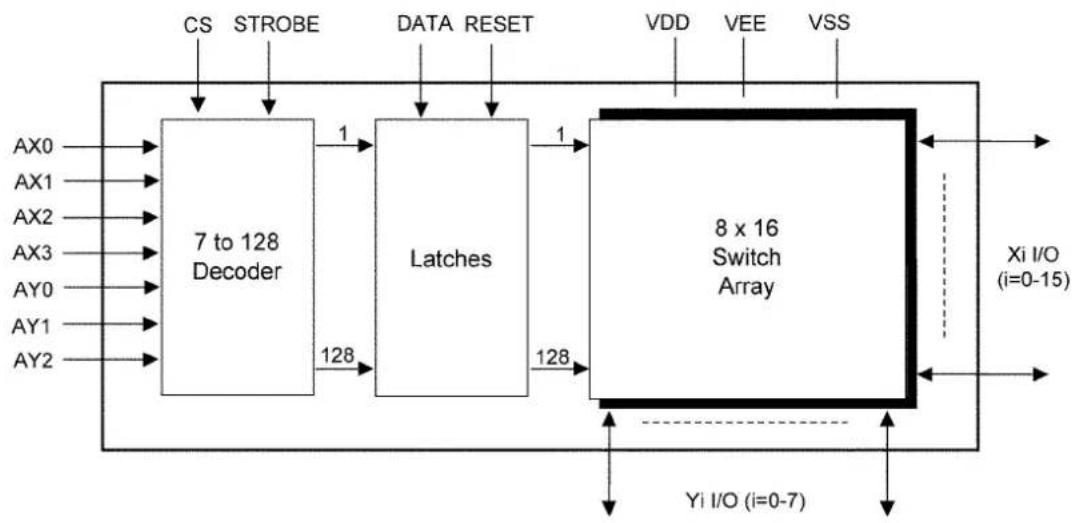

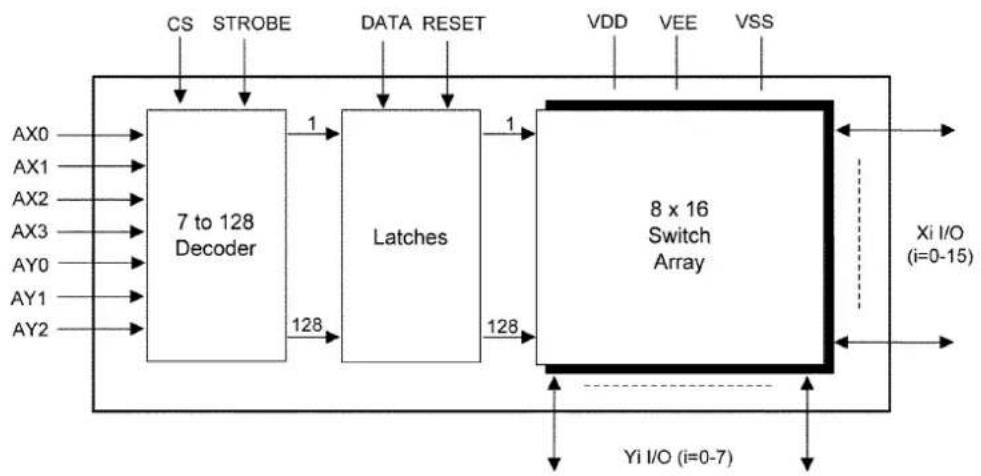

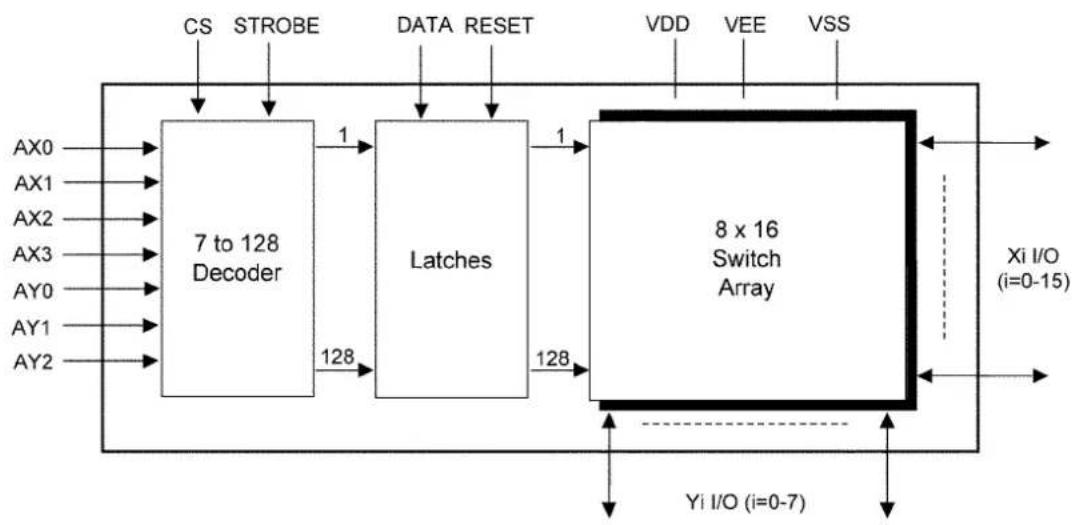

Cross point 8816 Function block diagram

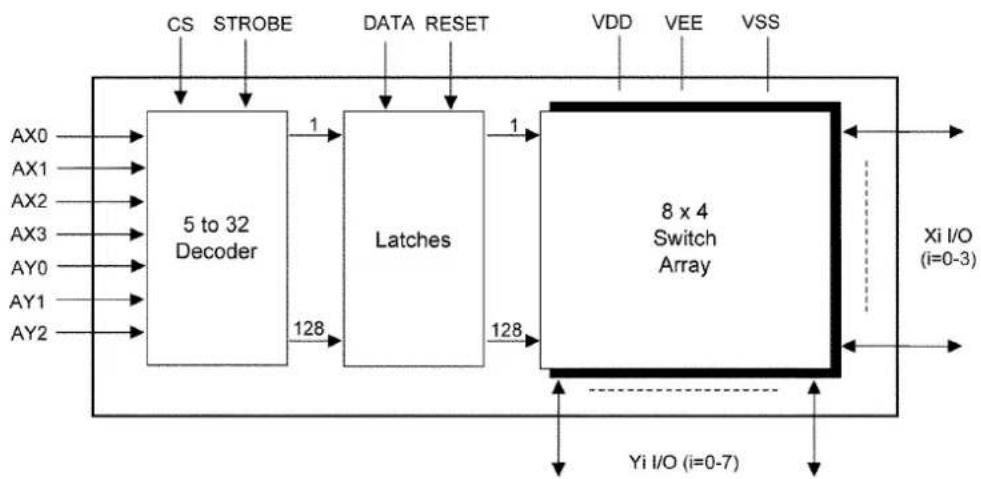

Cross point 8806 Function block diagram
        AA["DSP MODEM in/out"]
        AB["DSP OGM2 in/out"]
        AC["DSP OGM1 in/out"]
        AD["DSP CALLID3 out"]
    end

    subgraph DSP MELODY (out)
        AE["TONE1"]
        AF["TONE2"]
        AG["DSP CALLID1 out"]
        AH["DSP CALLID2 out"]
        AI["TONE1"]
        AJ["TONE2"]
        AK["DSP MODEM in/out"]
        AL["DSP OGM2 in/out"]
        AM["DSP OGM1 in/out"]
    end

    A --> P
    C --> Q
    E --> R
    G --> S
    G --> T
    G --> U
    G --> V
    G --> W
    G --> X
    G --> Y
    G --> Z
    G --> Z
    G --> AA
    G --> AB
    G --> AC
    G --> AD
    G --> AE
    G --> AF
    G --> AG
    G --> AH
    G --> AI
    G --> AJ
    G --> AK
    G --> AL
    G --> AM
    G --> AN
    G --> AO
    G --> AP
    G --> AQ
    G --> AR
    G --> AS
    G --> AT
    G --> AU
    G --> AV
    G --> AW
    G --> AX
    G --> AY
    G --> AZ
    G --> BA
    G --> BB
    G --> BC
    G --> BD
    G --> BE
    G --> BF
    G --> BG
    G --> BH
    G --> BI
    G --> BJ
    G --> BK
    G --> BL
    G --> BM
    G --> BN
    G --> BO
    G --> BP
    G --> BQ
    G --> BR
    G --> BS
    G --> BT
    G --> BU
    G --> BV
    G --> BW
    G --> BX
    G --> BY
    G --> BZ
    G --> CA
    G --> CB
    G --> CC
    G --> CD
    G --> CE
    G --> CF
    G --> CG
    G --> CH
    G --> CI
    G --> CJ
    G --> CK
    G --> CL
    G --> CM
    G --> CN
    G --> CO
    G --> CP
    G --> CJB

    subgraph EXP308 (2AP)
        D["DTMFR1"] & D["DTMFR2"] & D["DTMFR3"] & D["DTMFR4"] & D["DTMFR5"] & D["DTMFR6"]
        P["DTMFR1"] & D["DTMFR2"] & D["DTMFR3"] & D["DTMFR4"] & D["DTMFR5"] & D["DTMFR6"]
        Q["DTMFR1"] & D["DTMFR2"] & D["DTMFR3"] & D["DTMFR4"] & D["DTMFR5"] & D["DTMFR6"]
        R["DTMFR1"] & D["DTMFR2"] & D["DTMFR3"] & D["DTMFR4"] & D["DTMFR5"] & D["DTMFR6"]
        S["DTMFR1"] & D["DTMFR2"] & D["DTMFR3"] & D["DTMFR4"] & D["DTMFR5"] & D["DTMFR6"]
        T["DTMFR1"] & D["DTMFR2"] & D["DTMFR3"] & D["DTMFR4"] & D["DTMFR5"] & D["DTMFR6"]
        U["DTMFR1"] & D["DTMFR2"] & D["DTMFR3"] & D["DTMFR4"] & D["DTMFR5"] & D["DTMFR6"]
        V["DTMFR1"] & D["DTMFR2"] & D["DTMFR3"] & D["DTMFR4"] & D["DTMFR5"] & D["DTMFR6"]
        W["DTMFR1"] & D["DTMFR2"] & D["DTMFR3"] & D["DTMFR4"] & D["DTMFR5"] & D["DTMFR6"]
        X["DTMFR1"] & D["DTMFR2"] & D["DTMFR3"] & D["DTMFR4"] & D["DTMFR5"] & D["DTMFR6"]
        Y["DTMFR1"] & D["DTMFR2"] & D["DTMFR3"] & D["DTMFR4"] & D["DTMFR5"] & D["DTMFR6"]
        Z["DTMFR1"] & D["DTMFR2"] & D["DTMFR3"] & D["DTMFR4"] & D["DTMFR5"] & D["DTMFR6"]
        AA["DTPG"]
        AB["TAM1"]
        AC["TAM2"]
        AD["CALLID1"]
        AE["CALLID2"]
        AF["TONE1"]
        AG["VAG"]
        AH["BGM/DTMFG2"]
        AI["TONE2"]
        AJ["BGM/DTMFG2"]
        AK["TONE1"]
        AL["TONE2"]
        AM["TONE2"]
        AN["BGM/DTMFG2"]
        AO["TONE1"]
        AP["TONE2"]
        AQ["BGM/DTMFG2"]
        AR["TONE1"]
        AS["TONE2"]
        AT["BGM/DTMFG2"]
        AU["TONE1"]
        AV["TONE2"]
        AW["BGM/DTMFG2"]
        AX["TONE1"]
        AY["TONE2"]
        AZ["BGM/DTMFG2"]
        BA["TONE1"]
        BB["TONE2"]
        BC["BGM/DTMFG2"]
        BD["TONE1"]
        BE["TONE2"]
        BF["BGM/DTMFG2"]
        BG["TONE1"]
        BH["TONE2"]
        BI["BGM/DTMFG2"]
        BJ["TONE1"]
        BK["TONE2"]
        BL["BGM/DTMFG2"]
        BM["TONE1"]
        BN["TONE2"]
        BO["BGM/DTMFG2"]
        BP["TONE1"]
        BQ["TONE2"]
        BR["BGM/DTMFG2"]
        BS["TONE1"]
        BT["TONE2"]
        BU["BGM/DTMFG2"]
        BV["TONE1"]
        BW["TONE2"]
        BX["BGM/DTMFG2"]
        BY["TONE1"]
        BZ["TONE2"]
        CA["BGM/DTMFG2"]
        CB["TONE1"]
        CC["TONE2"]
        DA["BGM/DTMFG2"]
        DB["TONE1"]
        BE["TONE2"]
        BF["BGM/DTMFG2"]
        BG["TONE1"]
        BH["TONE2"]
        BI["BGM/DTMFG2"]

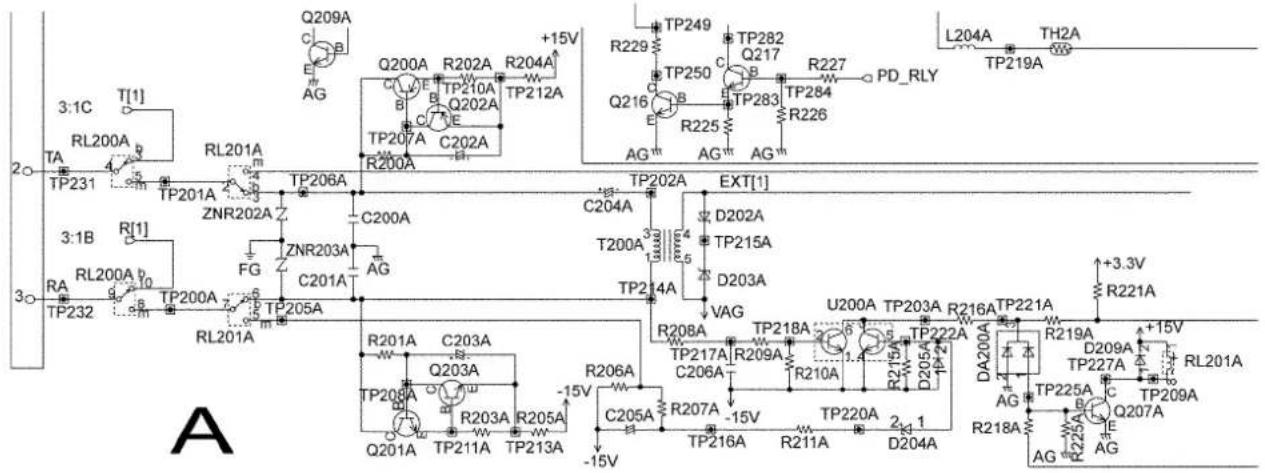

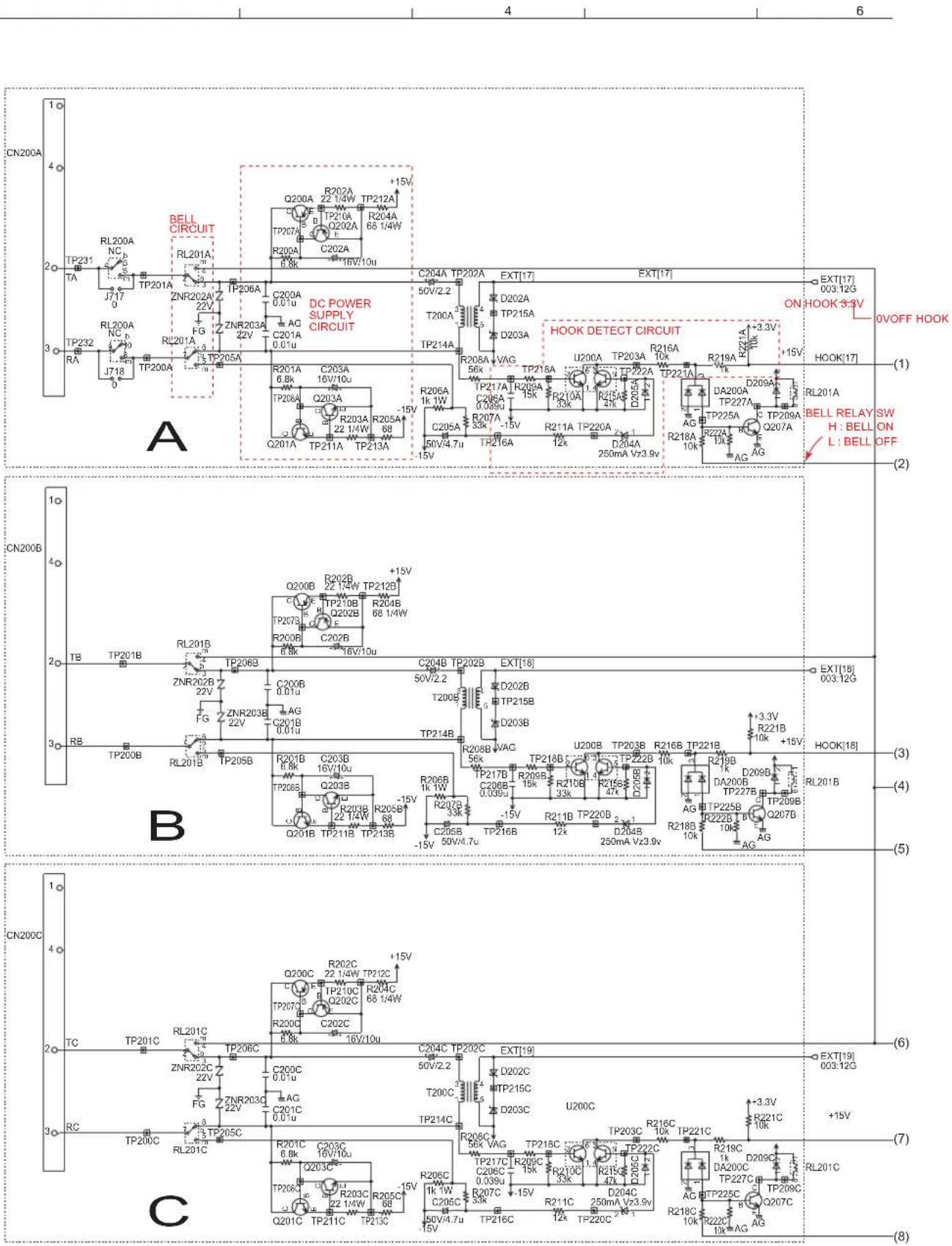

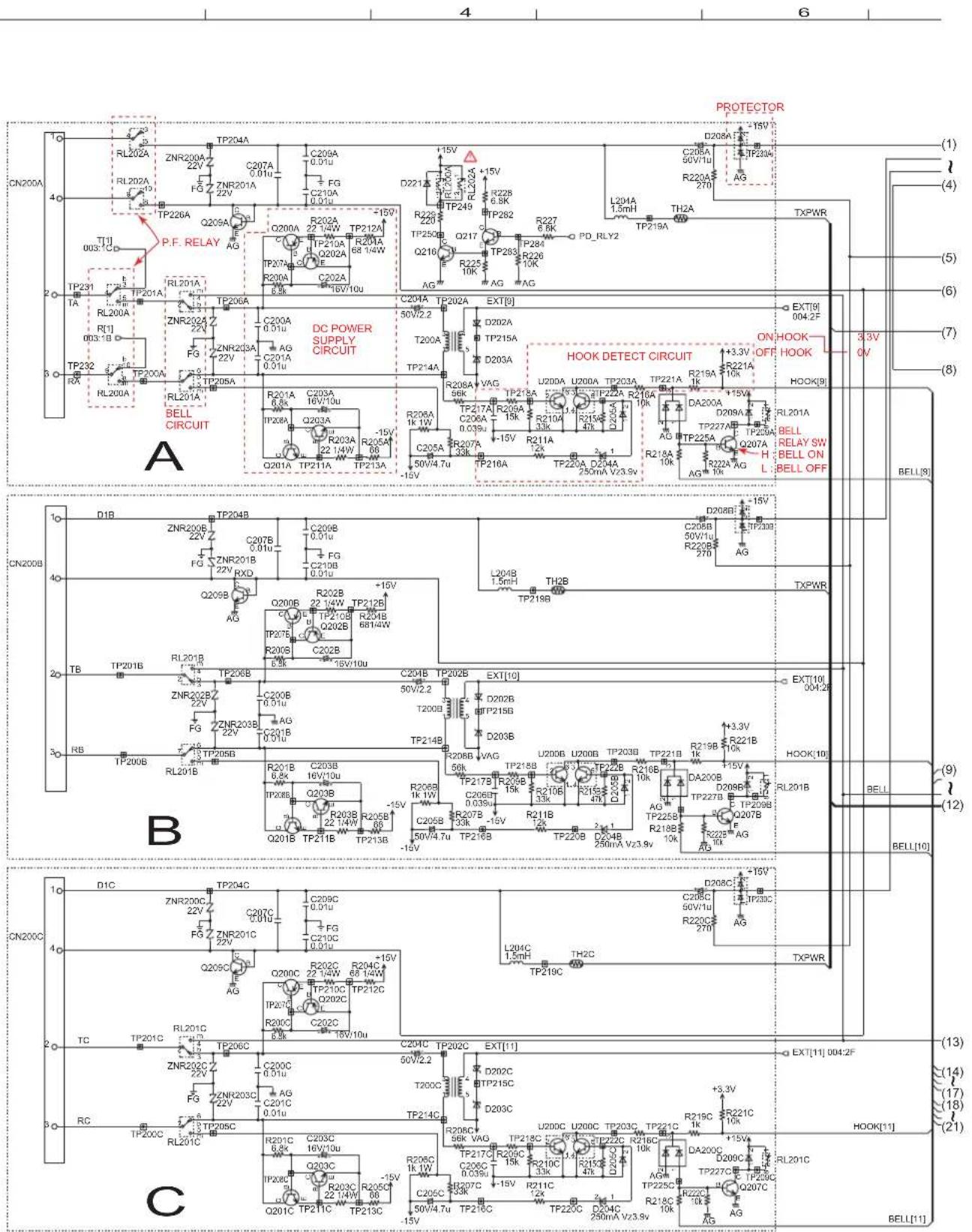

11.4. INTERCOM CIRCUIT

11.4.1. INTERCOM CIRCUIT

1) Composition

This is composed of the following circuits:

a) +15V power source for the extension telephones
b) Hook detect for SLT and pulse dialing detect
c) Bell ring trip section

2) Circuit operation

a) Power supply to the telephone

With the telephone off hook, a DC loop is formed, and current is supplied to the telephone. This circuit is limited to about 30mA by Q200, Q202, R202, R204 and Q201, Q203, R203, R205.

b) Hook detect for SLT and pulse dialing detect

When the telephone handset is taken off, DC loop is formed and the collector of U200 3,6 pin change to L from H.

The ASIC detects the off hook condition.

When the handset is replaced back on hook, the DC loop is interrupted and collector of U200 3,6 pin change to H from L and EXT Pulse dialing is input either in the on hook or off hook condition, and the break number (on hook condition) is counted and read as the dial number.

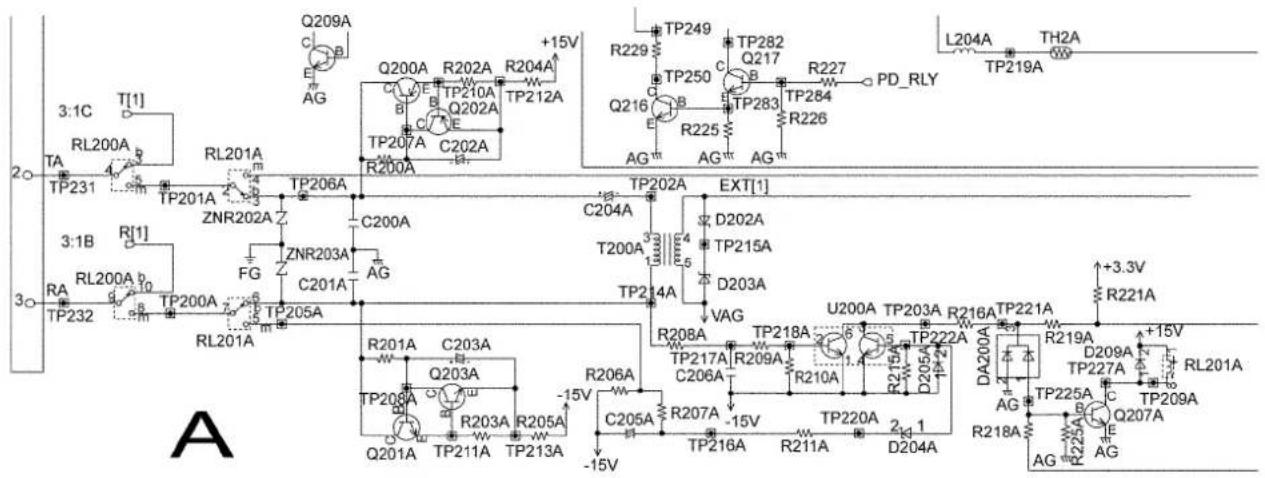

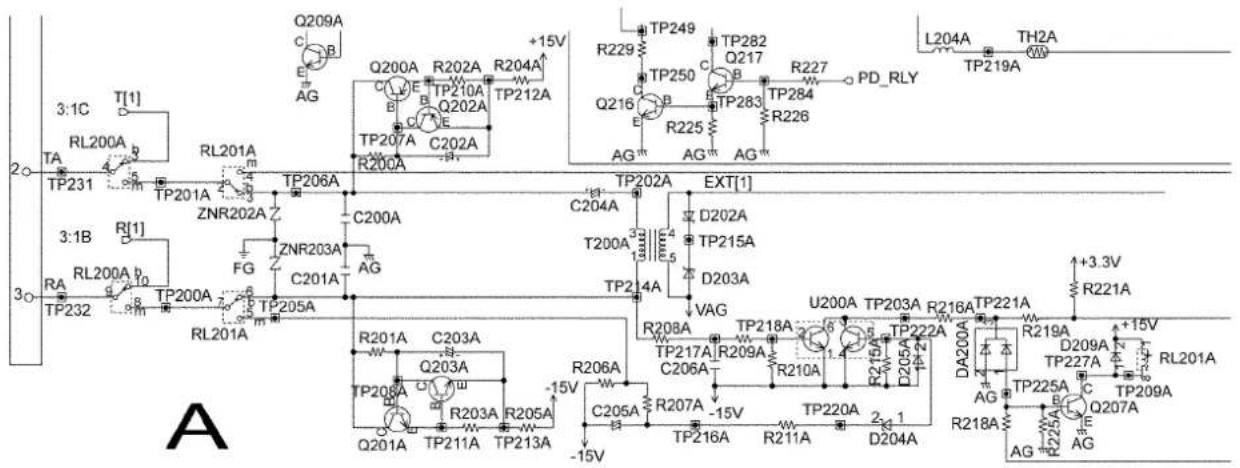

c) Bell ringing trip section

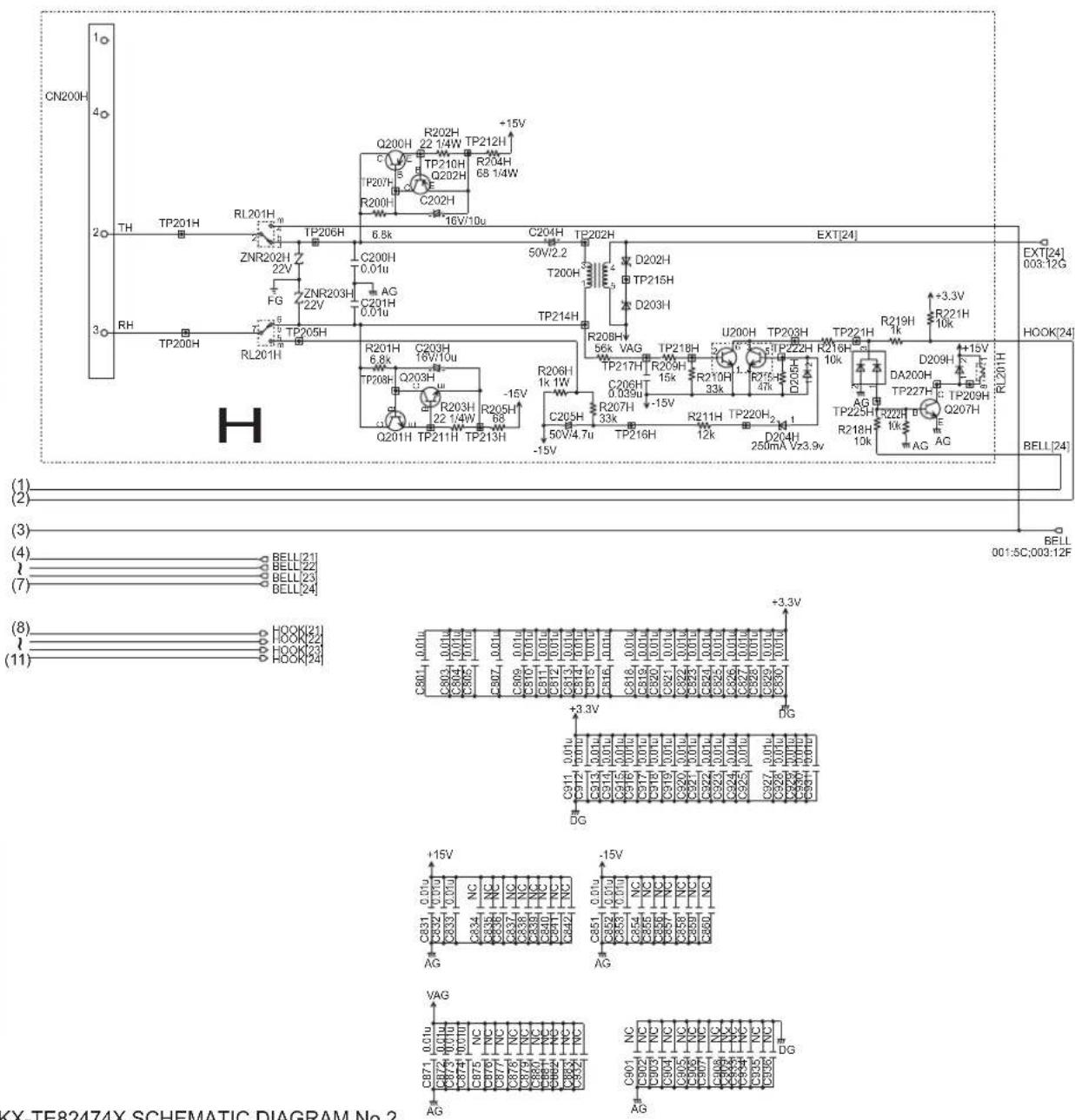

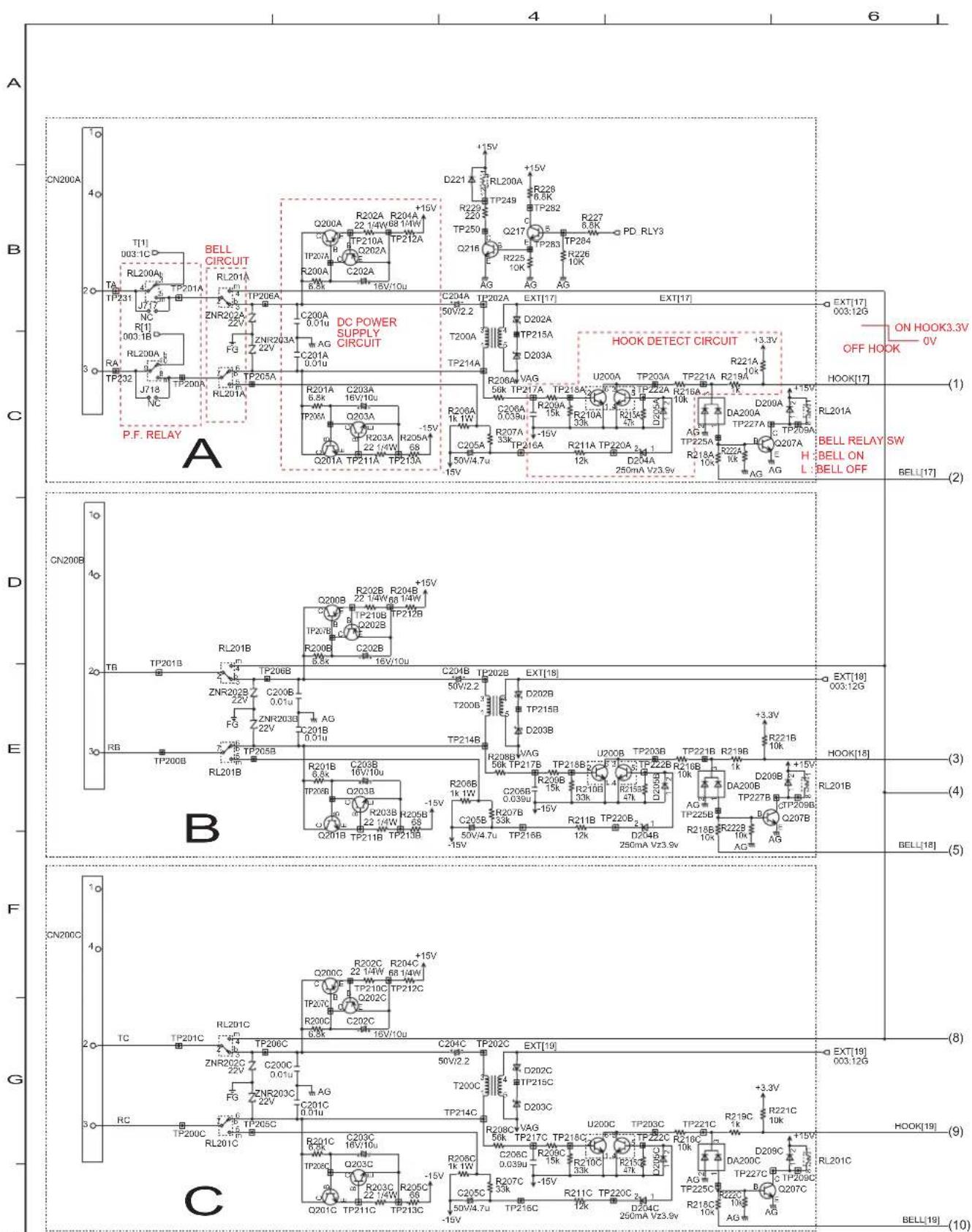

When the telephone is a signal line telephone, extension calling is executed by means of a ringing signal. When the ringing signal is supplied, RL201 turns ON and the current flows are as follows:

Bell transformer → ringing signal line → RL201 → telephone → R206 → -15V → Bell transformer

11.5. POWER FAILURE THROUGH CALL SWITCHING CIRCUIT

11.5.1. Circuit operation

If an AC power failure lasts longer than one second (momentary power failure), the COL is directly connected to the extension.

The COL1 will be connected with EXT101.

When power failure, RL200 switches from EXT-line to CO [T/R].

*In case of KX-TEM824, and the COL4 will be connected with EXT109.

*In case of KX-TE82480, and the CO7 will be connected with EXT117.

11.6. DATA COMMUNICATION CIRCUIT

11.6.1. Composition

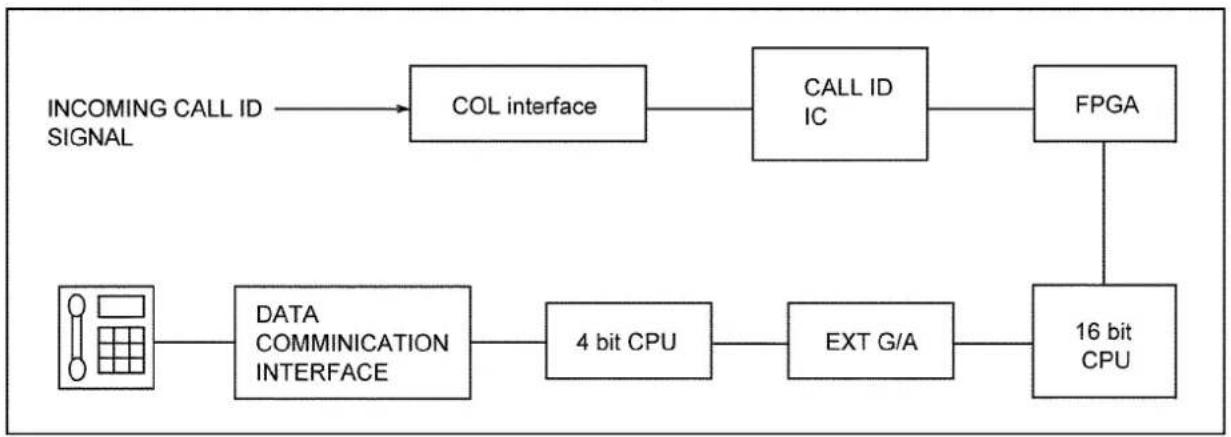

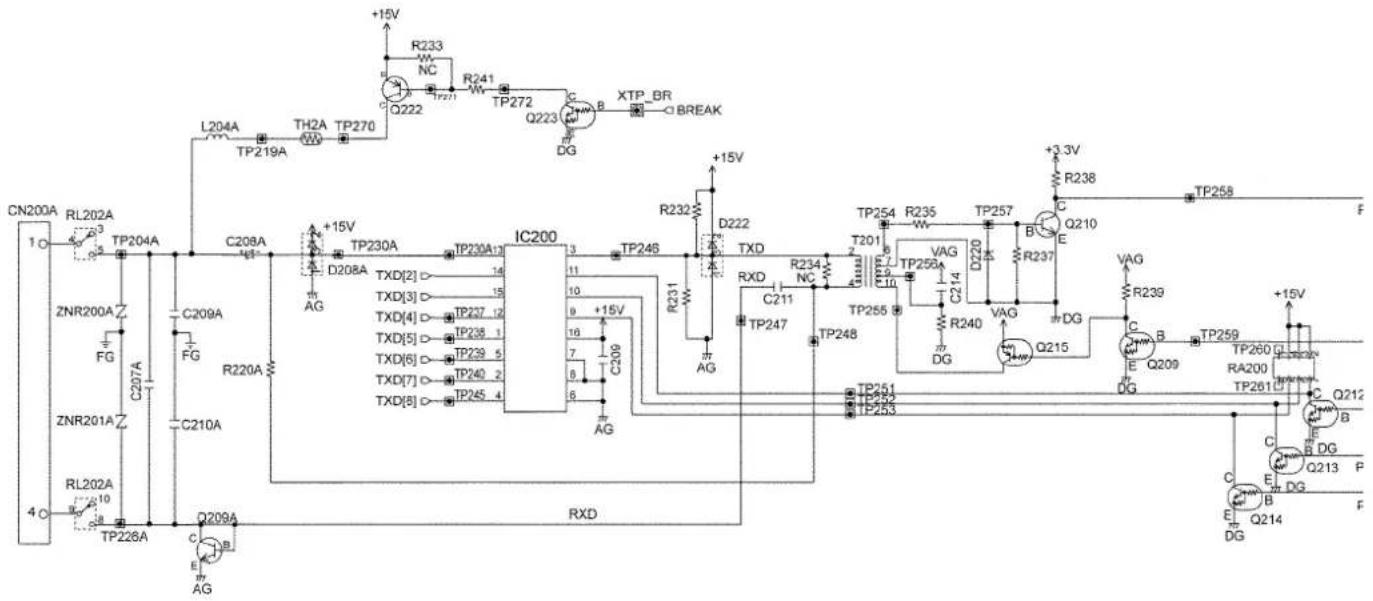

This circuit is composed of the ASIC and the data communication interface circuits for the ICM circuit.

11.6.2. Circuit Operation

1) Data Communication of ASIC

The APT I/f module is built into the CPU. It is for the APT communication of one block (8ch) and has the module of three blocks (24ch) at maximum.

Selection signal of 3 bits to select 1ch out of 8chs is common to each block.

The APT I/f module switches the communication point every 4ms in the ports 1-8/9-16/17-24 of the extension as follows:

101→#102→#103→#104.....→#108→#101.....,

109→#110→#111→#112.....→#116→#109.....,

117→#118→#119→#120.....→#124→#117.....,

In the case where the extension is not connected with the APT, it is recognized as an SLT connection and a dummy communication is performed.

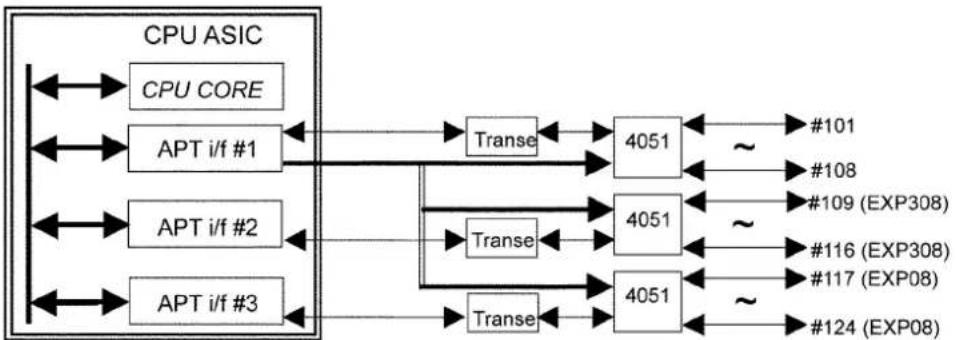

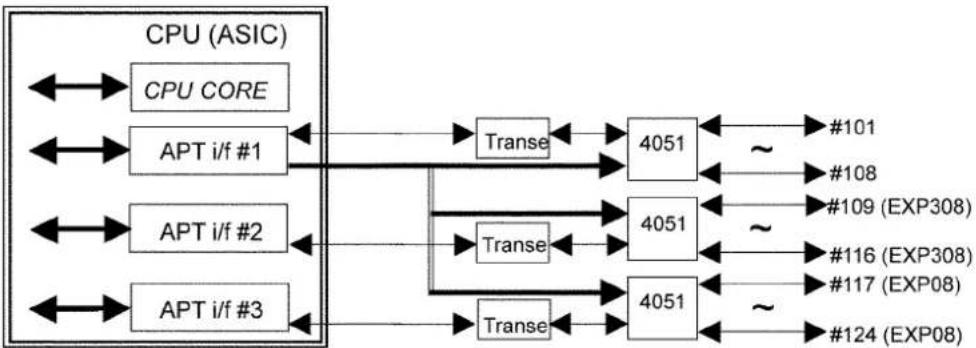

Interface block diagram of ASIC and ICM

2) Data Communication of ASIC and PITS

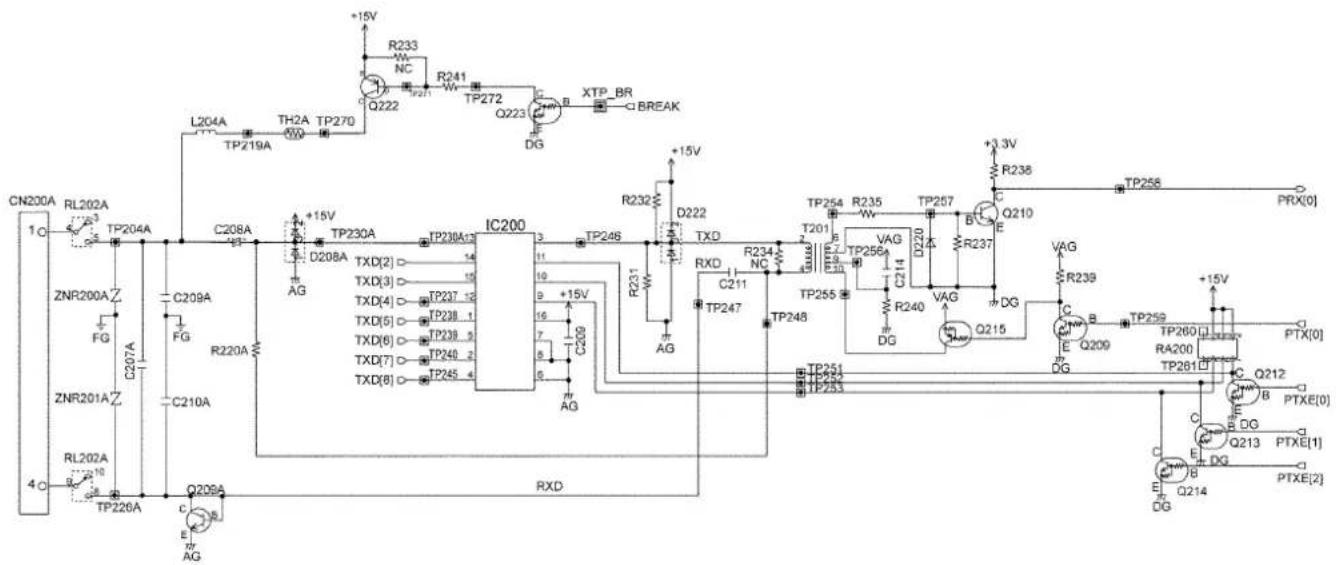

When ASIC send the request signal to the proprietary telephone and after receiving the key input information (19 pulses) from the proprietary telephone and sending data (47 pulses) for LED control. 4bit CPU will receive acknowledge signal from the proprietary telephone.

a) Reception

The data from the proprietary telephone is received via H and L lines along the path shown below.

$$ \text { H.L line } \rightarrow \text { C208 } \rightarrow \text { IC200 } \rightarrow \text { T201 } \rightarrow \text { R235 } \rightarrow \text { Q210 } \rightarrow \text { ASIC } $$

b) Transmission

The data to the proprietary telephone is transmitted along the following Path.

$$ \mathrm{ASIC} \rightarrow \mathrm{Q209} \rightarrow \mathrm{Q215} \rightarrow \mathrm{T201} \rightarrow \mathrm{IC200} \rightarrow \mathrm{C208} \rightarrow \mathrm{H.L} \text { line } $$

11.7. CONTROL CIRCUIT

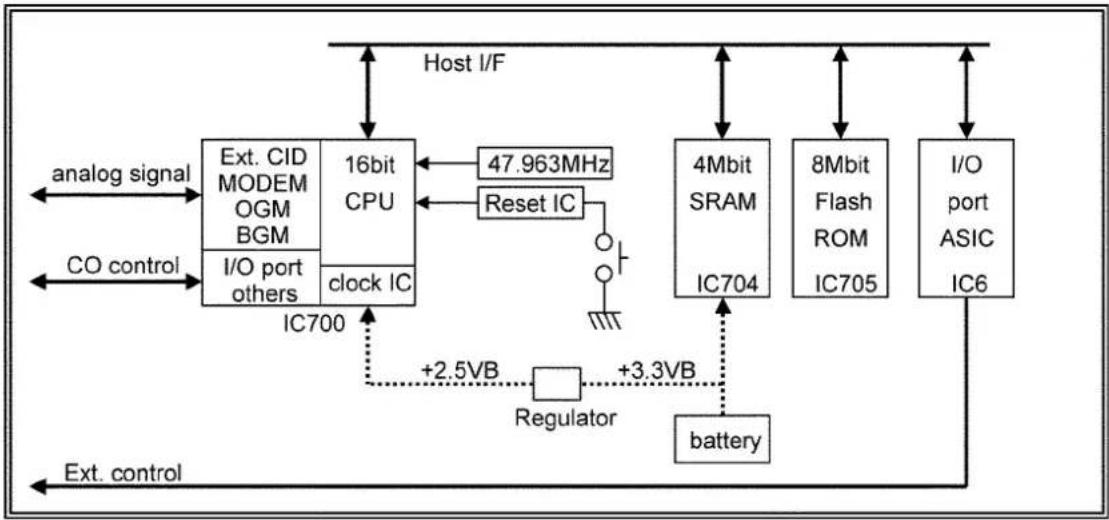

11.7.1. Composition

The control block is composed of the 16bit CPU(IC700: operating on 23.966MHz system clock from the 47.936MHz external crystal oscillator), the 8Mbit Flash ROM, the 4Mbit SRAM, and the ASIC for the I/O Port to control the outside line.

The port to control the extension, the clock IC, the address decoder, and other CPU Peripheral circuit are included in the IC700. Also, the IC700 includes functions such as Extension CID(FSK, DTMF), MODEM sending/receiving, BGM, OGM recording/playing, DTMF tone, CNG tone, CPT tone, and VOX detection.

The SRAM has a lithium battery to back up information such as speed dial, date, dial data, and system data etc. The battery also backs up the clock IC in the IC700.

I/O Port to control extension circuit, clock IC, address decoder, and other CPU Peripheral function are included in IC700. And IC700 include the functions as transmission of Extension Caller ID, transmission & receive of MODEM, transmission BGM, recording & playing of OGM, detect of DTMF tone, CNG tone, CPT tone & VOX.

the SRAM has a lithium battery as back up for protection of the memory of information of such as the speed dial, date, dial data, and system data, etc. This battery is back up clock IC in IC700 too.

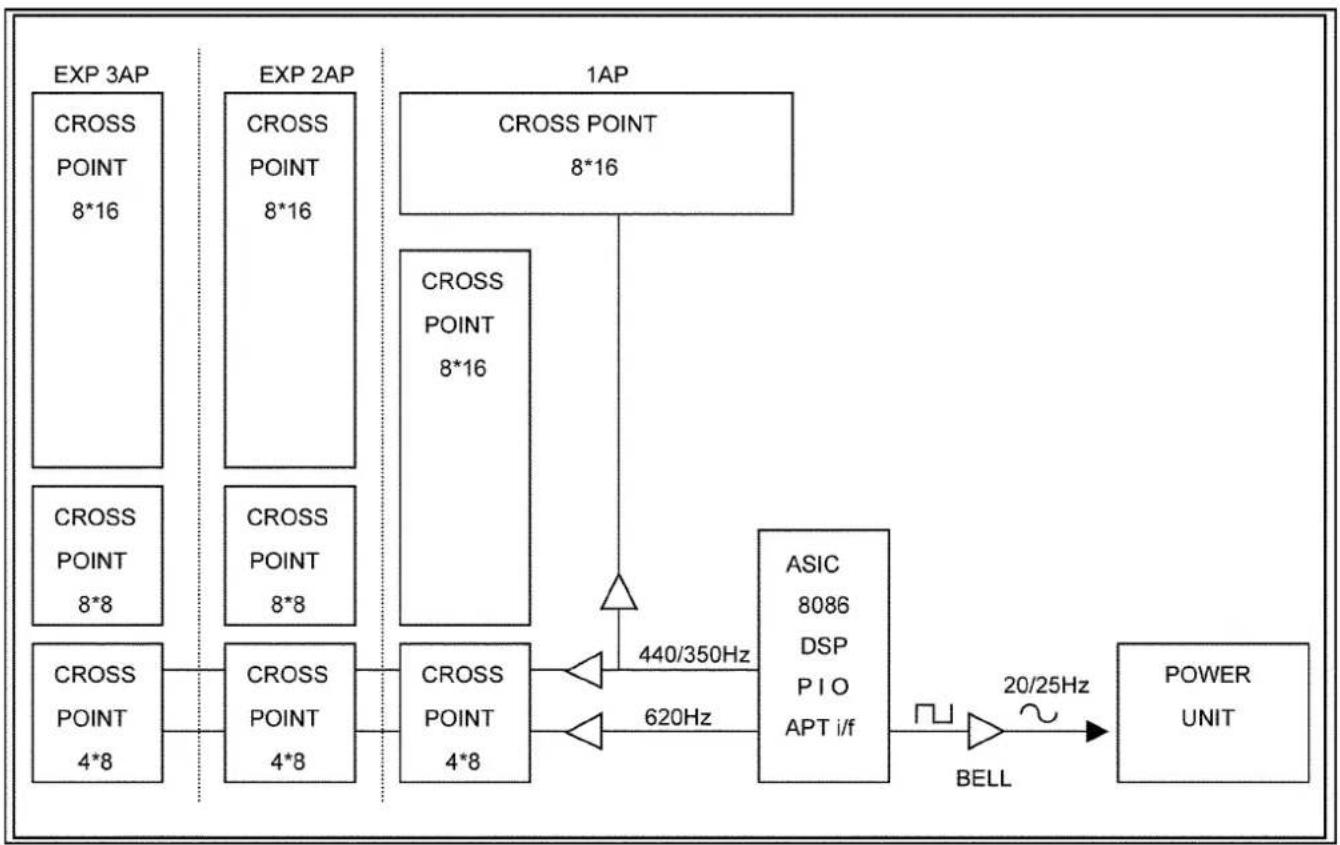

11.8. TONE GENERATOR CIRCUIT

11.8.1. Composition

This system has three different tones, 620Hz, 440Hz, 350Hz.

ASIC make the 350Hz, 620Hz and 440Hz square wave signals.

The 350Hz and 440Hz square wave signals are shaped by the low pass filter to sin wave and become tone 1.

On the other hand, 620Hz, square wave signal is shaped by the low pass filter to sin wave and becomes tone 2.

Tone signals 1 and 2 turn ON and OFF at the cross point, thus dial tone, busy tone, and other tones, are produced.

11.9. DTMF GENERATOR CIRCUIT

11.9.1. Composition

DTMF generator is controlled by the 8 bit I/O data of CO G/A. DTMF tone is sent to CO line.

DTMF GENERATOR

R1 R2 R3 R4 C1 C2 C3 C4 TRANSM T SIGNAL
LLL LLLL L DISABLE
HLLL HLL L1
HLLL LHL L2
HLLL LLL H L3
LHLLL HLL L4
LHLLL HLL L5
LHLLL HLL L6
LLL HLLL L7
LLL HLLL L8
LLL HLLL H L9
LLL HLHL L0
LLL H		HLLL			*
LLL HLLL H L#

11.10. DTMF RECEIVER CIRCUIT

11.10.1. Composition

The DTMF receiver circuit is composed of four DTMF receivers.

IC613 and IC614 are used for the DTMF receivers from SLT connected to the extension.

The DTMF signal is the 4bit parallel data and read by ASIC.

*In case of KX-TEM824, the system have two more DTMF receiver which are in KX-TE82483.

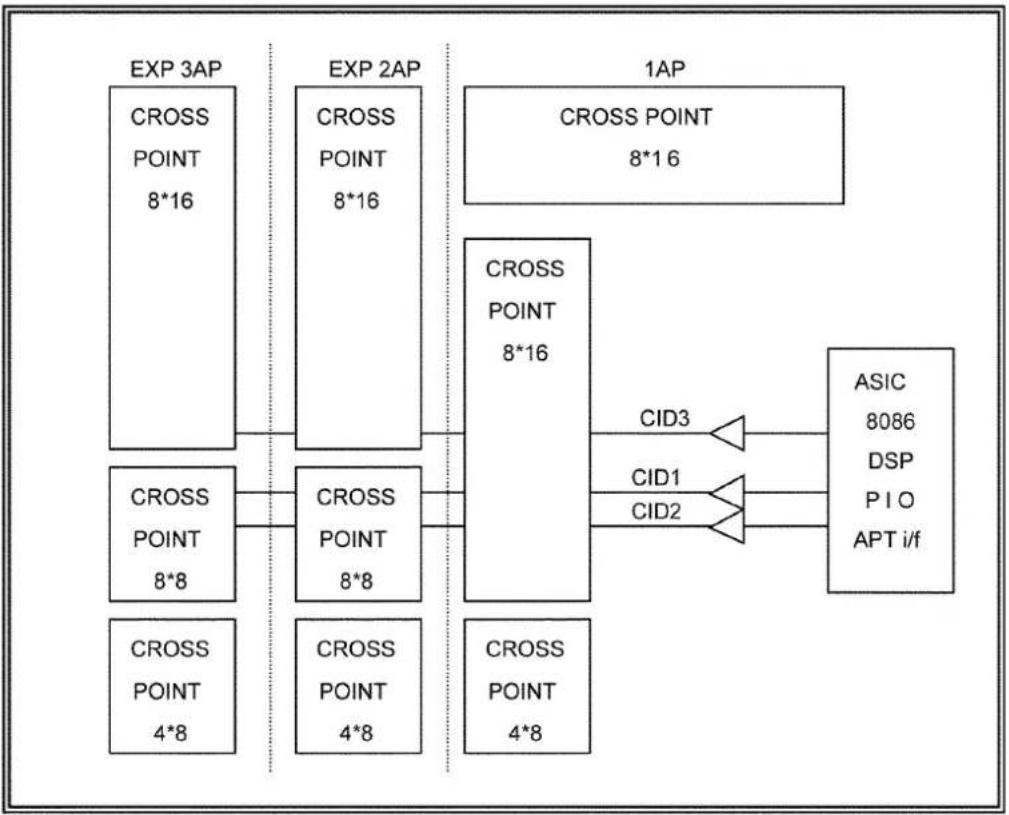

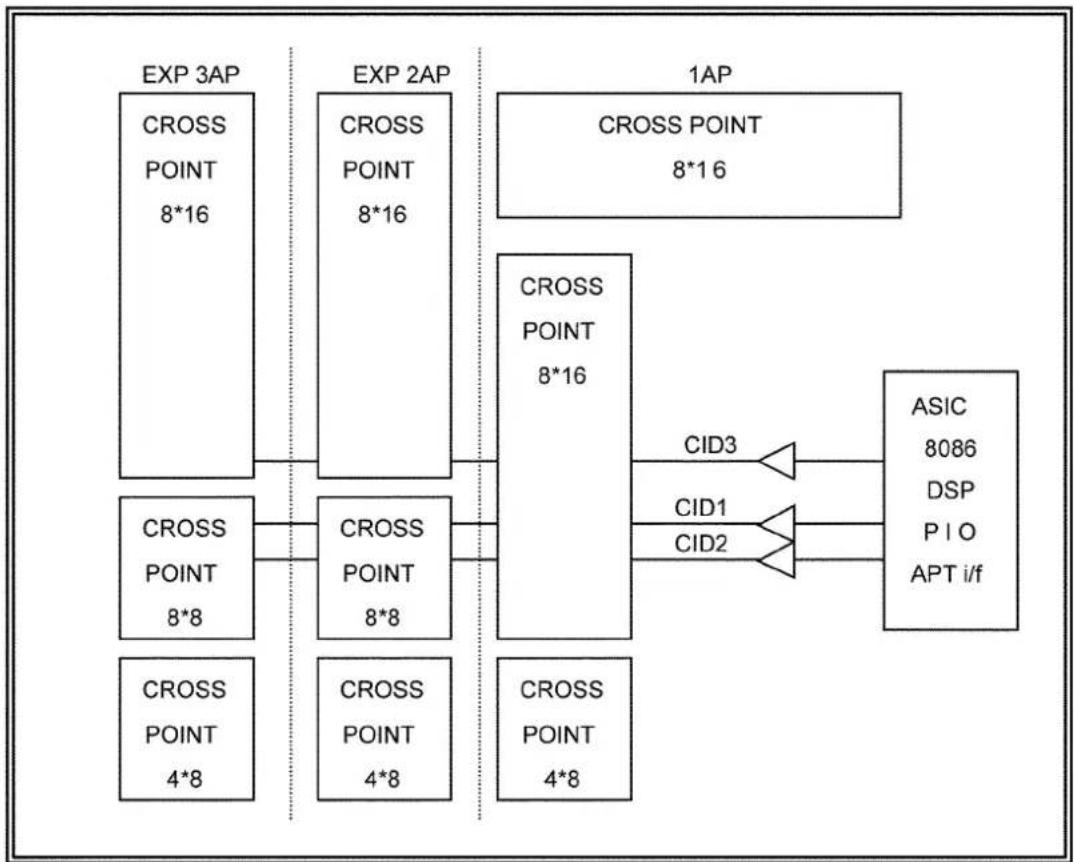

11.11. INT CALLID INTERFACE CIRCUIT

By using the DSP built into the ASIC, it is possible to produce CALLID signal and send it through the cross point to each extension. The CALLID signal can be switched between FSK and DTMF. There are three sources of the extension CALL ID in the system.

11.12. MODEM INTERFACE CIRCUIT

The ASIC incorporates a modem function. There is no specified line and modem communication from any line is possible. The modem communication speed is 2400bps and the system programming rewrite can be operated at the equivalent of 9600bps at maximum by using software compression technology.

11.13. USB INTERFACE CIRCUIT

This unit have one USB port for using PC programming. ASIC have USB 1.1 controller inside, so this unit make up USB interface only ASIC and USB connector.

11.14. OGM INTERFACE CIRCUIT

The TES/TEM824 model incorporates the functions of OGM, CNG and DTMF detection. At the OGM recording, it changes the analog sound in the DSP of the ASIC into a digital signal of 16bits by A/D conversion. Then, the data is compressed (encoded) and stored in a 4M serial flash. Conversely, when being recovered the data stored in the 4M serial flash are decompressed to 16-bit digital data, and then reproduced as an analog sound after the D/A conversion. The recording/reproducing is achieved by connecting the path from external line through the cross point to the ASIC. The waveform coding method used at the recording/reproducing stage is the LD-ADPCM method. The DSP compresses the sound and stores the 4M serial flash using the memory management software in the DSP. The unit has the recording/reproducing function of 1CH as an initial mounting. The recording time of the OGM is three minutes at maximum.

Also, the CNG and DTMF detection are the functions operated in conjunction with the OGM and realized by the DSP in the ASIC.

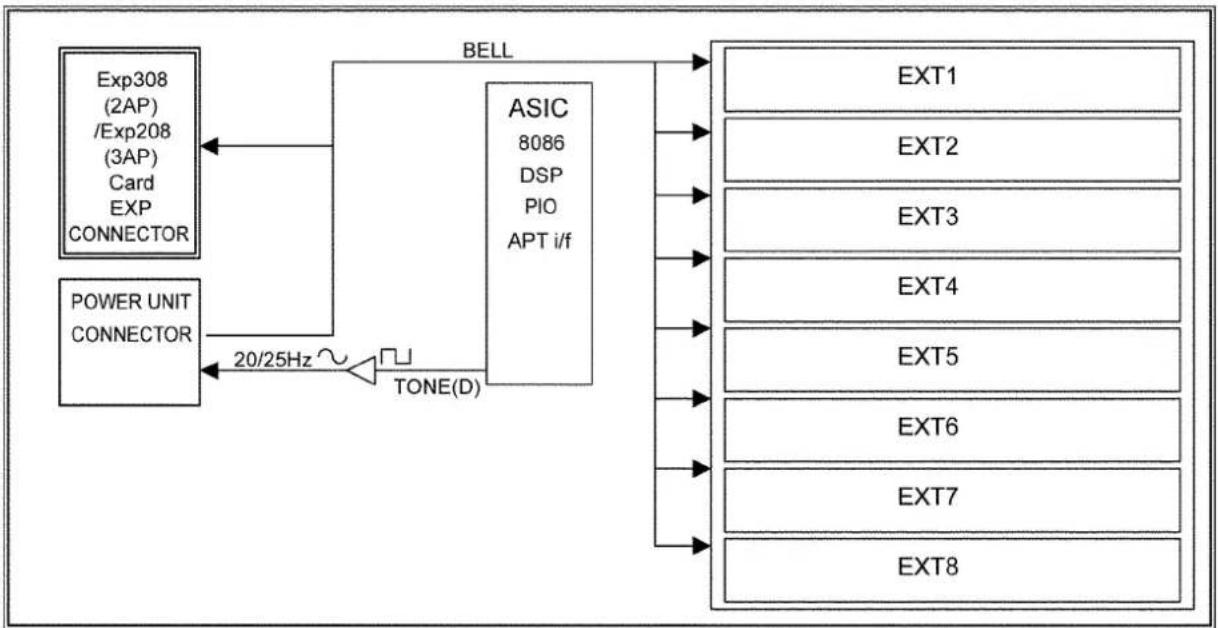

11.15. RINGING SIGNAL GENERATOR CIRCUIT

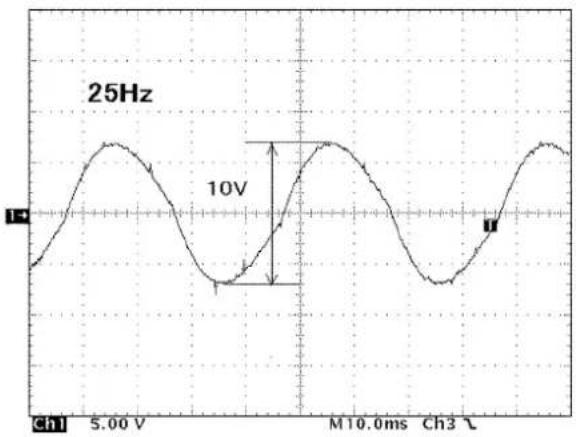

This section generates this ringing signal for the single line telephone. A 25Hz square wave is generated by the ASIC and sent to low pass filter and ringing signal amplifier circuit and stepped by BELL transformer, and then passed through the ringing signal switching relay to the single line telephone.

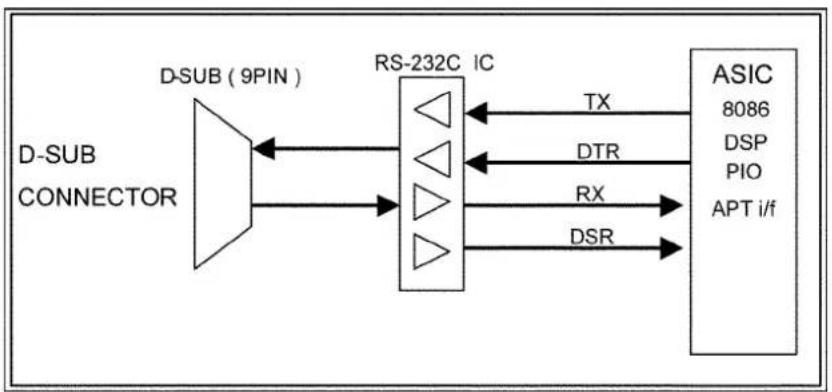

11.16. SMDR INTERFACE CIRCUIT

This is the RS-232C interface port. When the port is connected to a printer, the port can be used to output the SMDR feature recording messages and the contents of the system program.

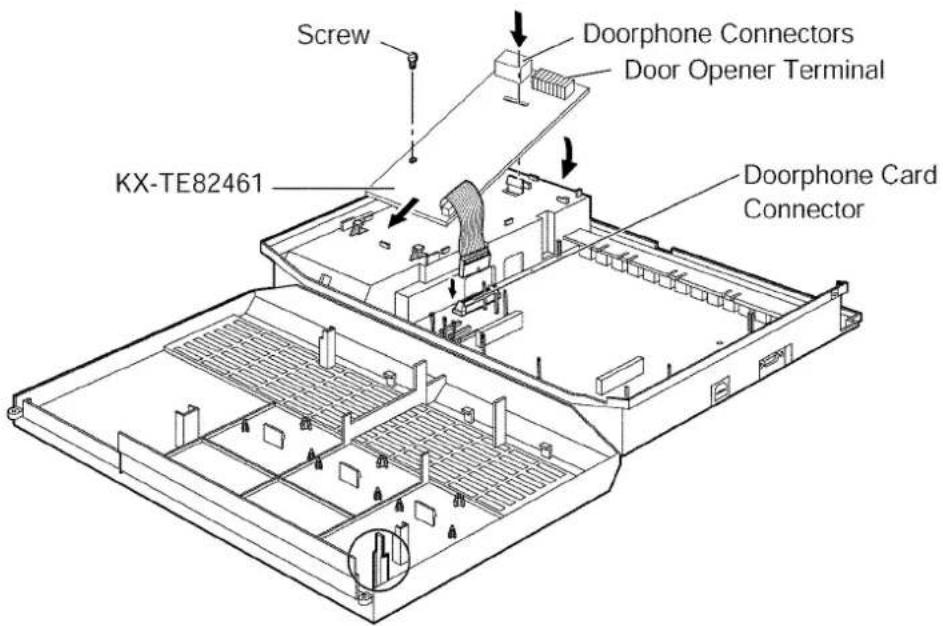

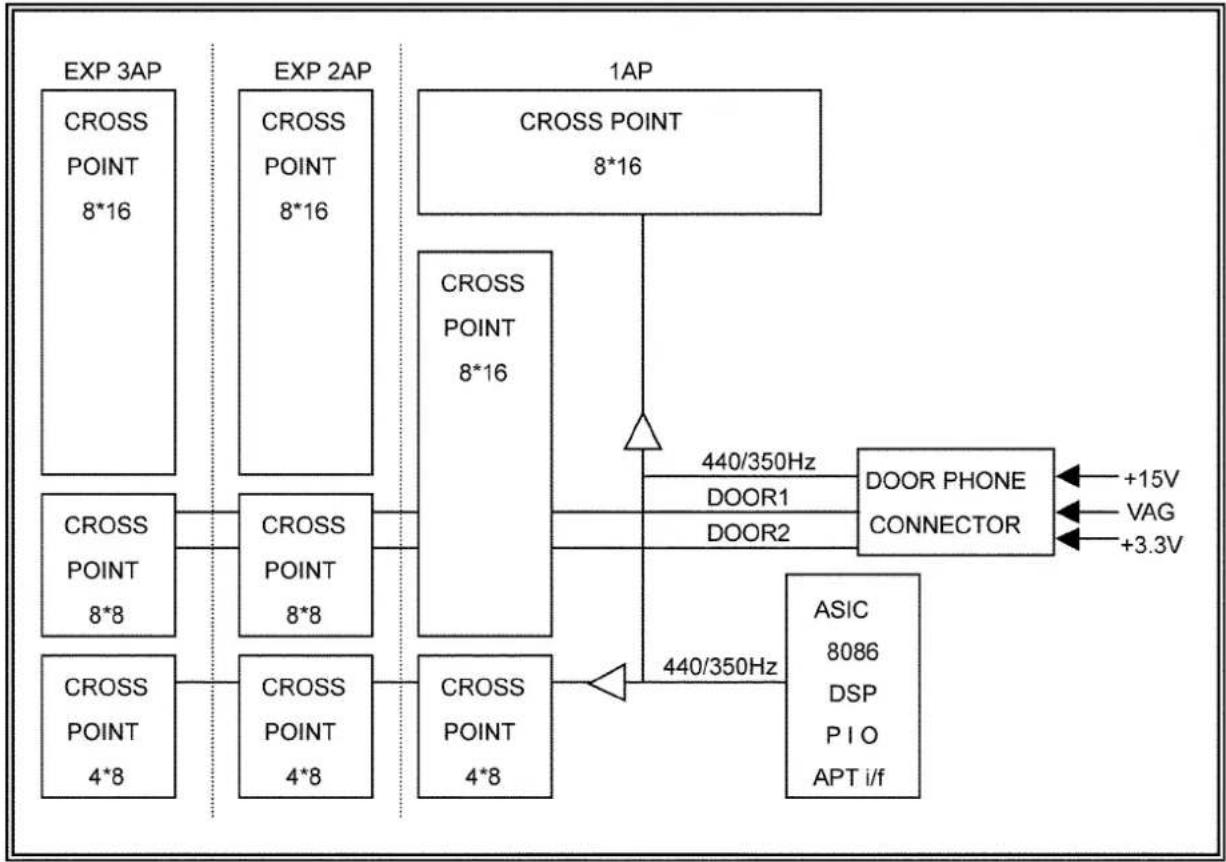

11.17. DOORPHONE CARD INTERFACE (KX-TE82461X)

This mounts a connector to connect the door phone card. Power at +15V, 3.3V and VAG are supplied to the door phone. Also, two busses are supplied from the cross point to the door phone card.

The tone for calling the door phone is directly supplied to the door phone and the ON/OFF control is performed in the door phone.

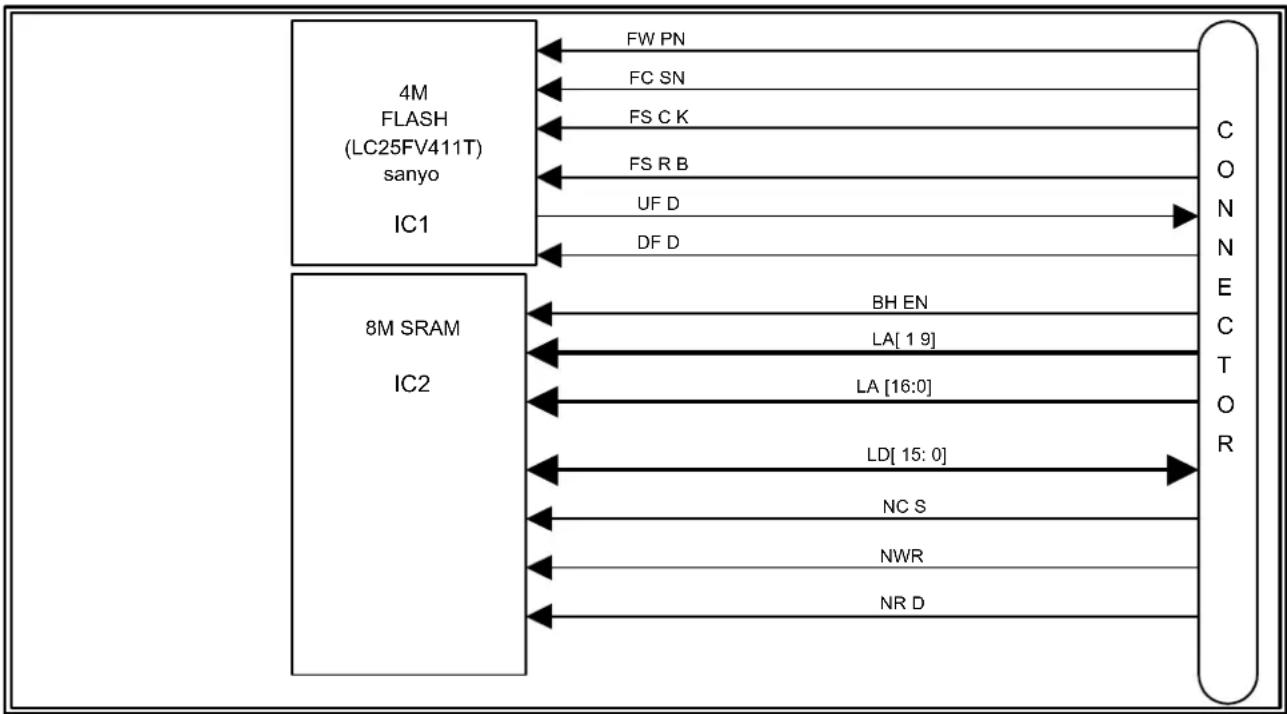

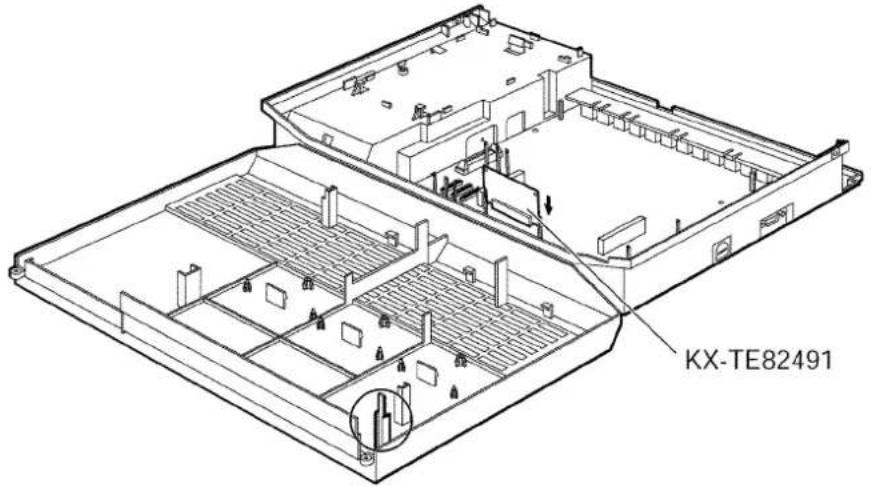

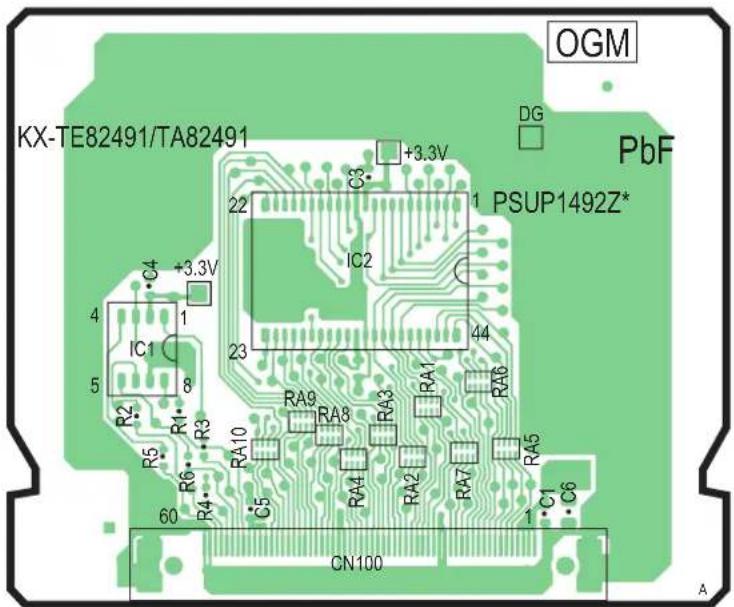

11.18. OGM CARD INTERFACE (KX-TE82491X)

The CN710 is the interface connector for the expansion card to convert the OGM to 2CH. The unit can have the OGM of 2ch by mounting the option card KX-TE82491.

Also, the recording time of the OGM can be extended to eight minutes at maximum.

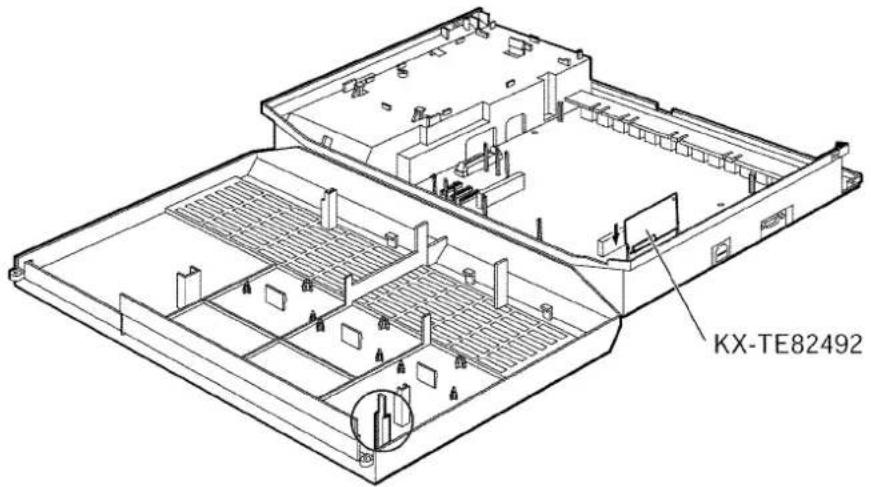

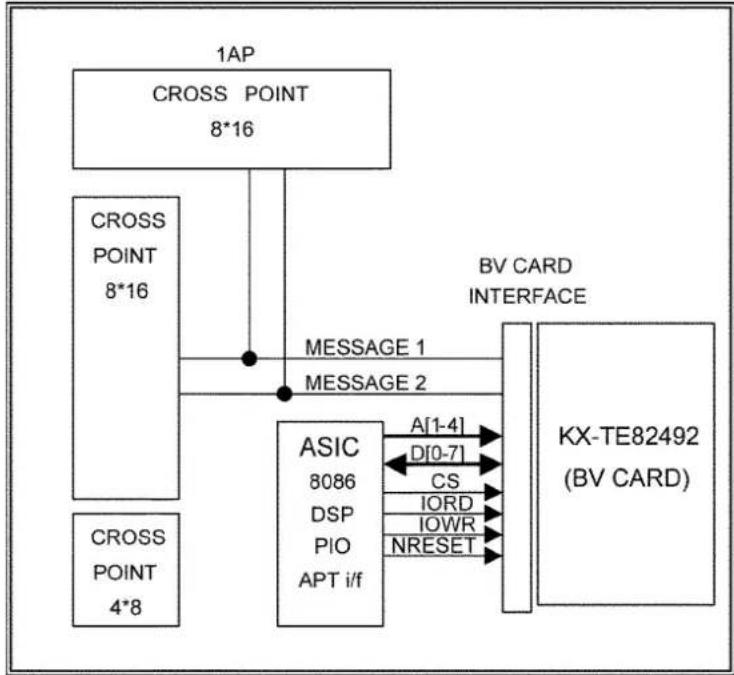

11.19. BUILT in VOICE MESSAGE CARD INTERFACE (KX-TE82492X)

The CN707 is the interface connector for the option card KX-TE82492 that has the MESSAGE of 2ch.

The MESSAGE can be recorded from the external line or the extension. The recording time is 60 minutes for 1CH at maximum.

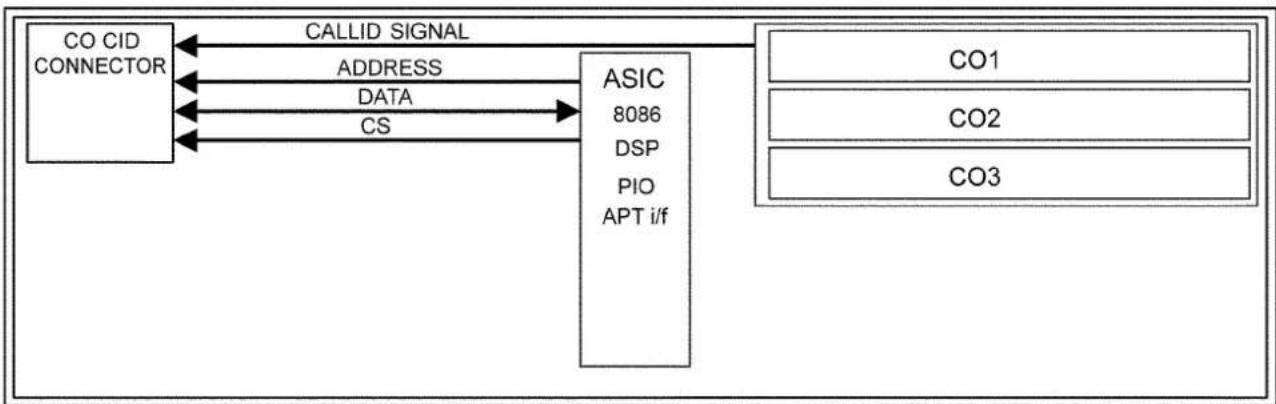

11.20. CALL ID CARD INTERFACE (KX-TE82493X)

The TES/TEM824 system has three connectors to connect the Caller ID card to the external line in the main unit. One is for three external lines mounted on the main card and the others are for 2AP and 3AP.

The interface for the CALL ID of the external line is composed of an interface for receiving the CALLID signal from a station and a controller of the main card. The CALLID signal from the external line is transmitted through a transformer in the external line circuit to the CALLID connector. The control signals of CS, Address and Data are connected to the connector.

12 TROUBLESHOOTING GUIDE

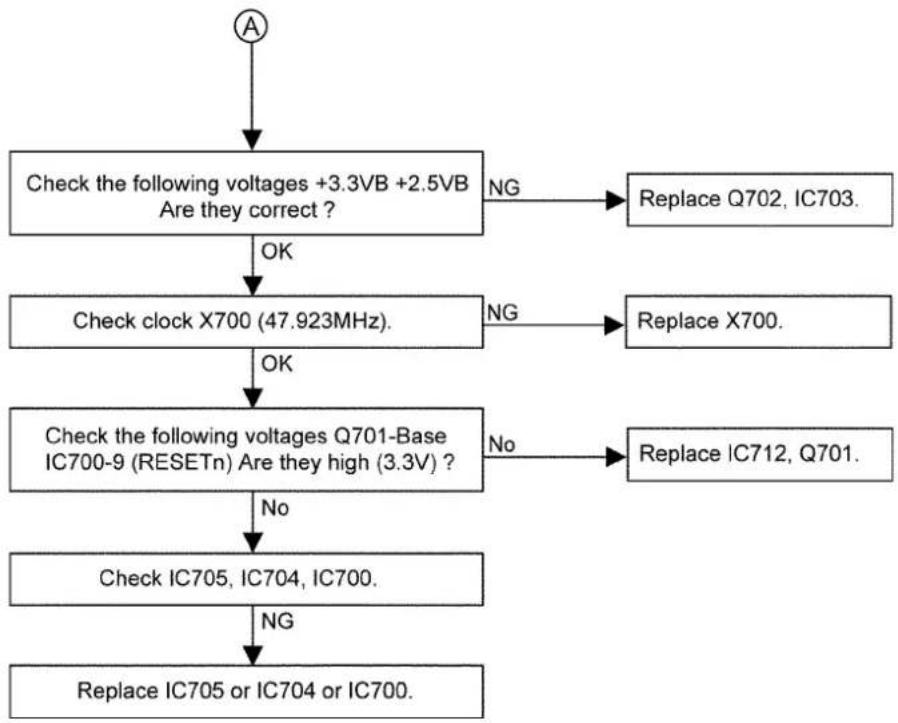

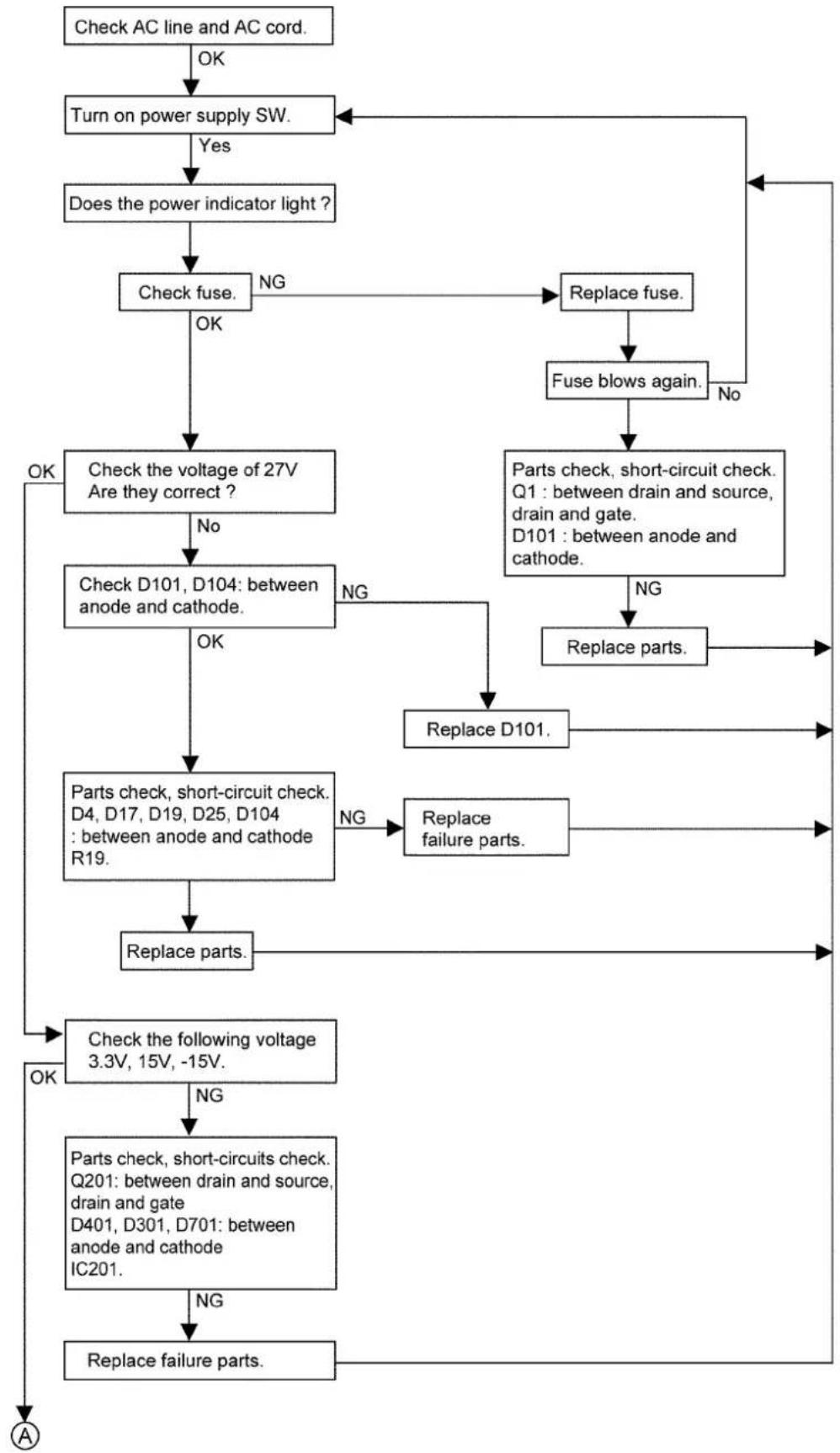

12.1. NO OPERATION (Check POWER SUPPLY BOARD, MAIN BOARD)

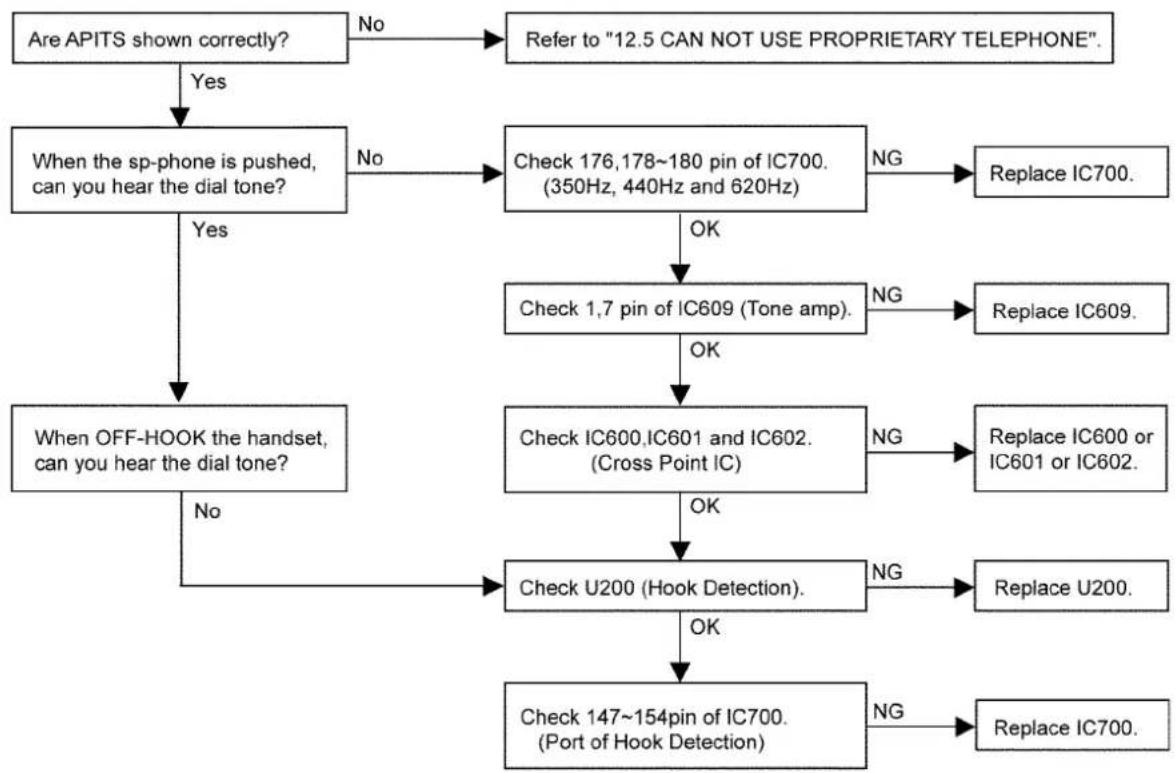

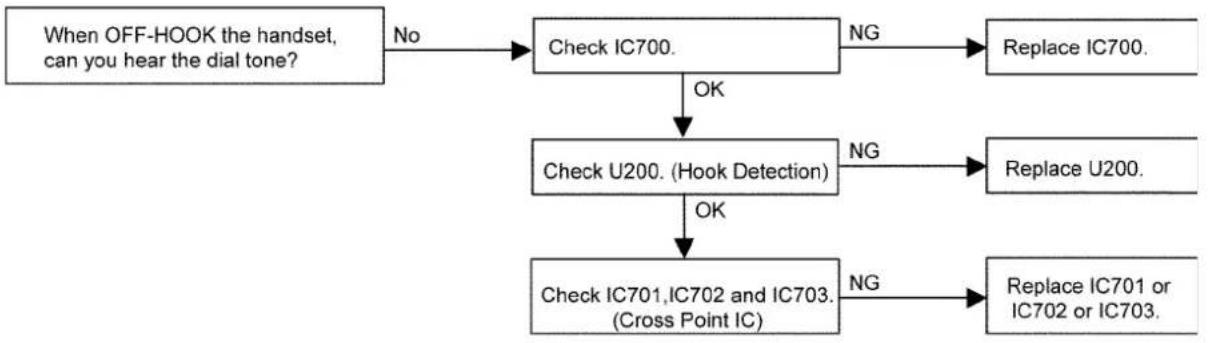

12.2. NO DIAL TONE (KX-TES824BX, MAIN BOARD OF KX-TEM824BX)

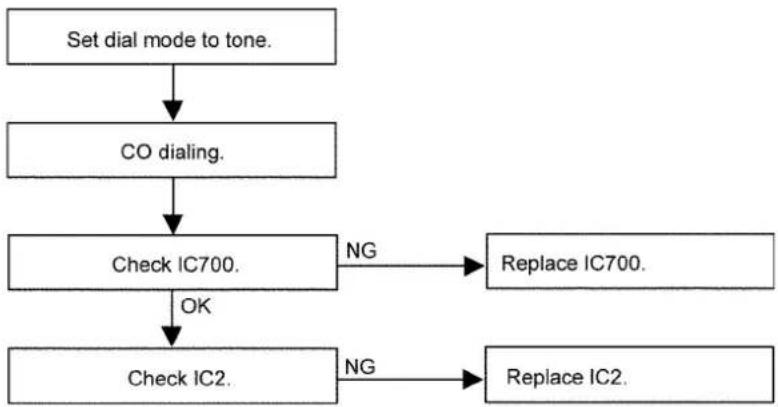

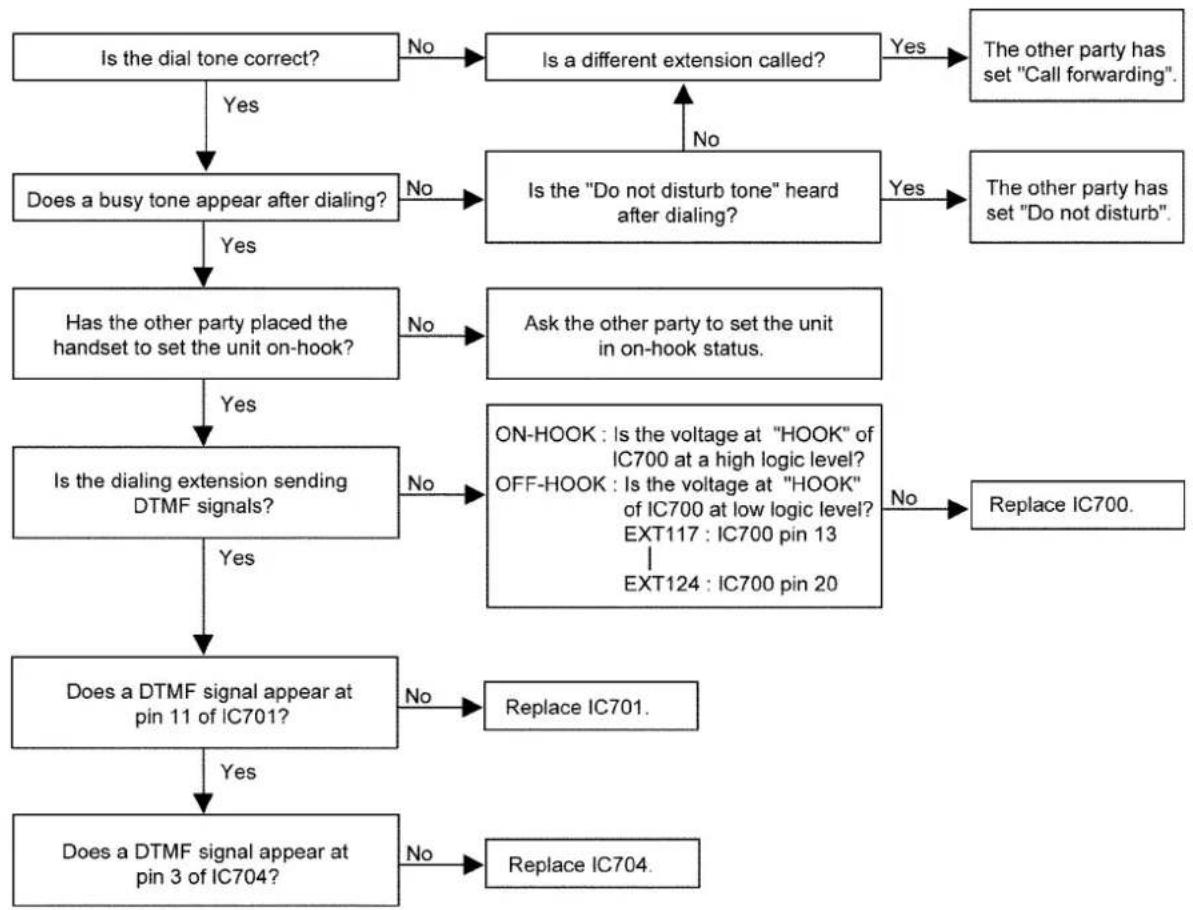

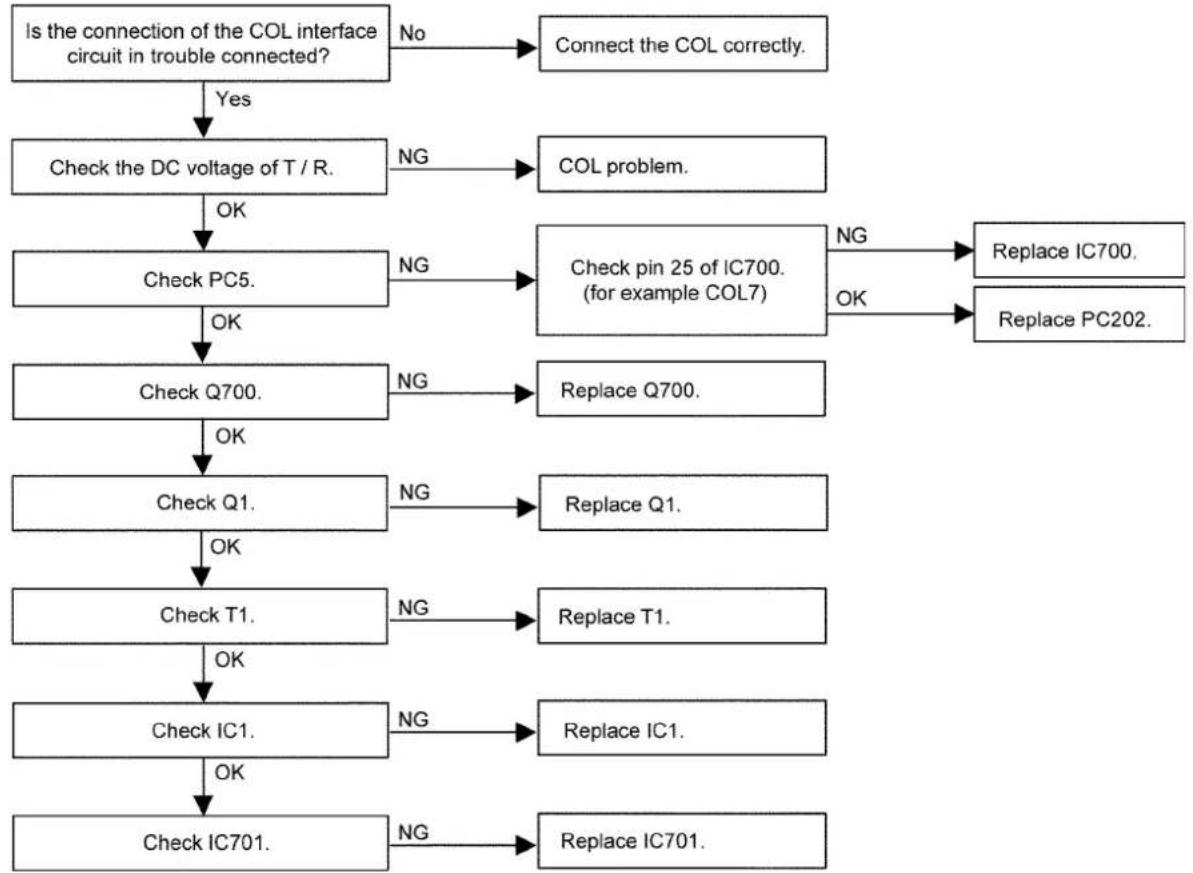

12.3. CANNOT DIAL (KX-TES824BX, MAIN BOARD OF KX-TEM824BX)

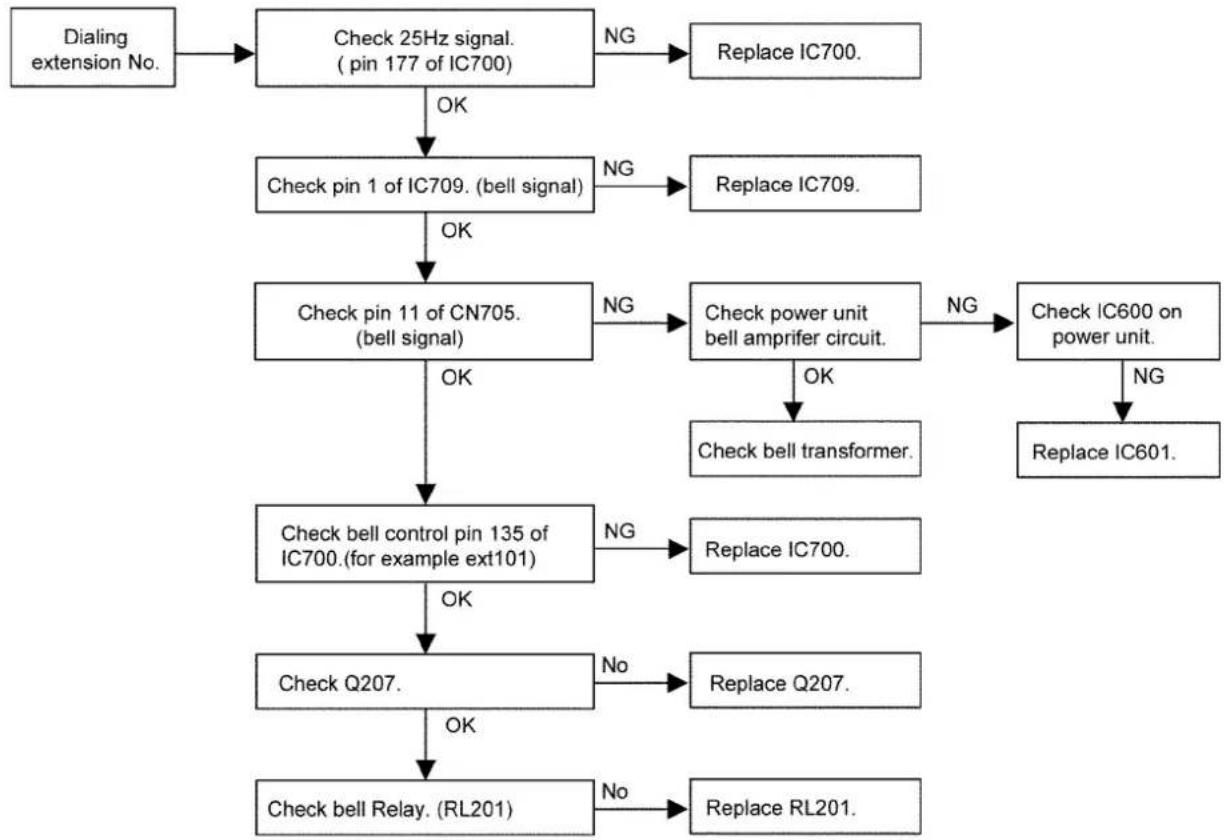

12.4. CANNOT CALL EXTENSION (KX-TES824BX, MAIN BOARD OF KX-TEM824BX)

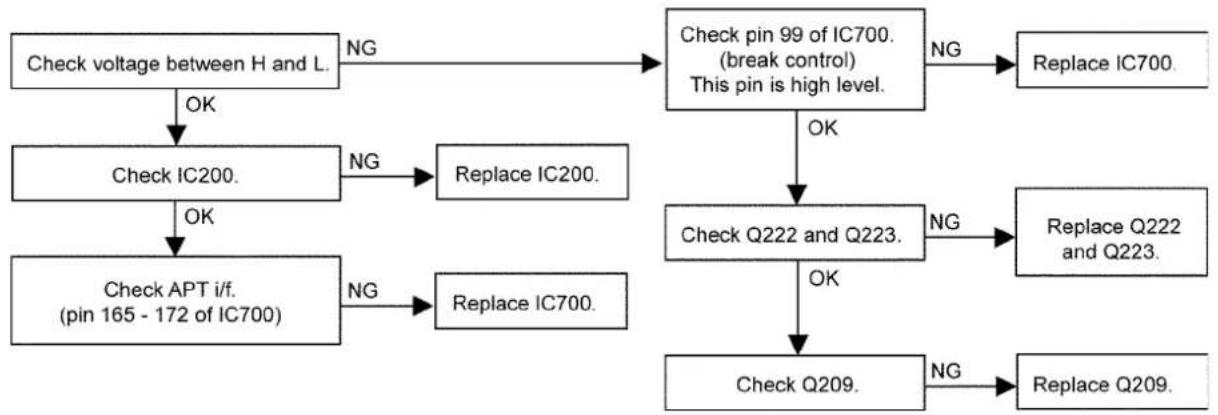

12.5. CANNOT USE PROPRIETARY TELEPHONE (KX-TES824BX, MAIN BOARD OF KX-TEM824BX)

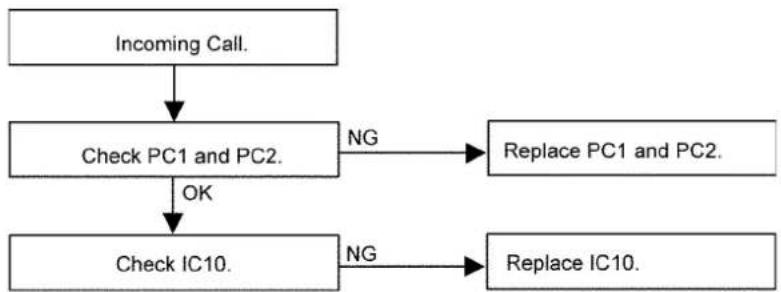

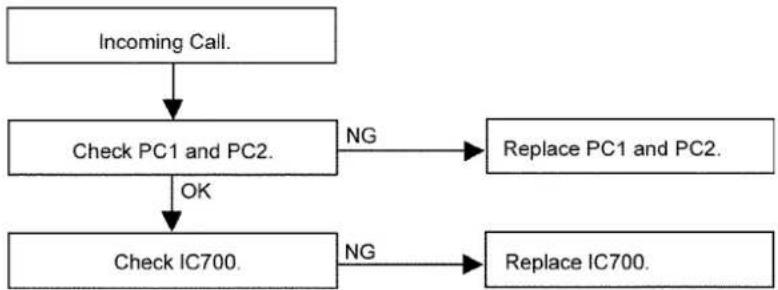

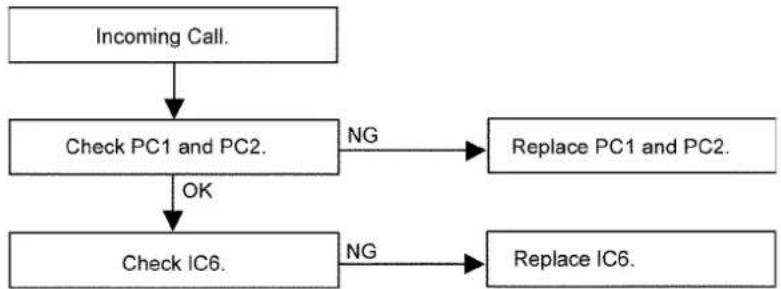

12.6. CANNOT RECEIVE INCOMING CALL (KX-TES824BX, MAIN BOARD C KX-TEM824BX)

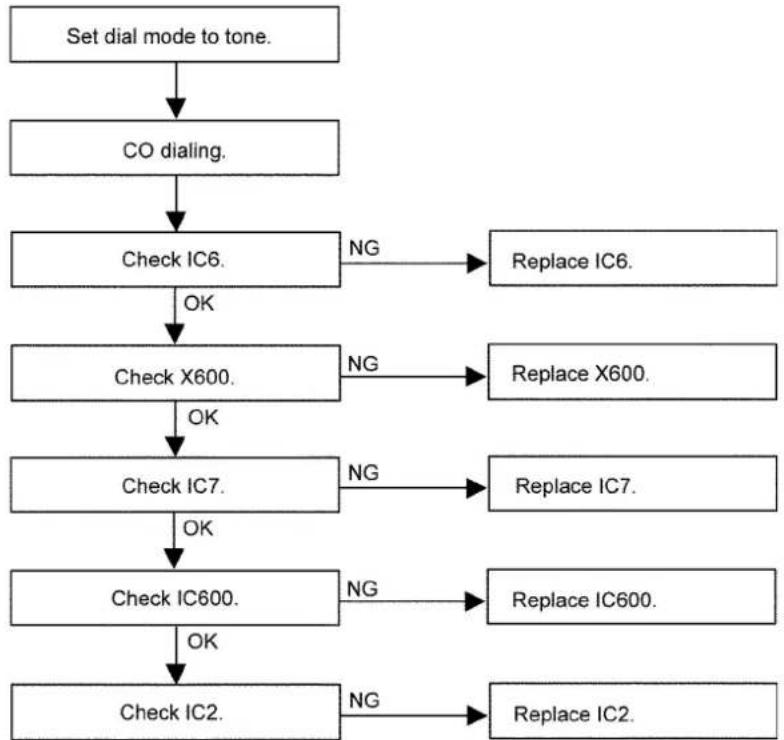

12.7. CANNOT SEND DTMF DIALING (KX-TES824BX, MAIN BOARD OF KX-TEM824BX)

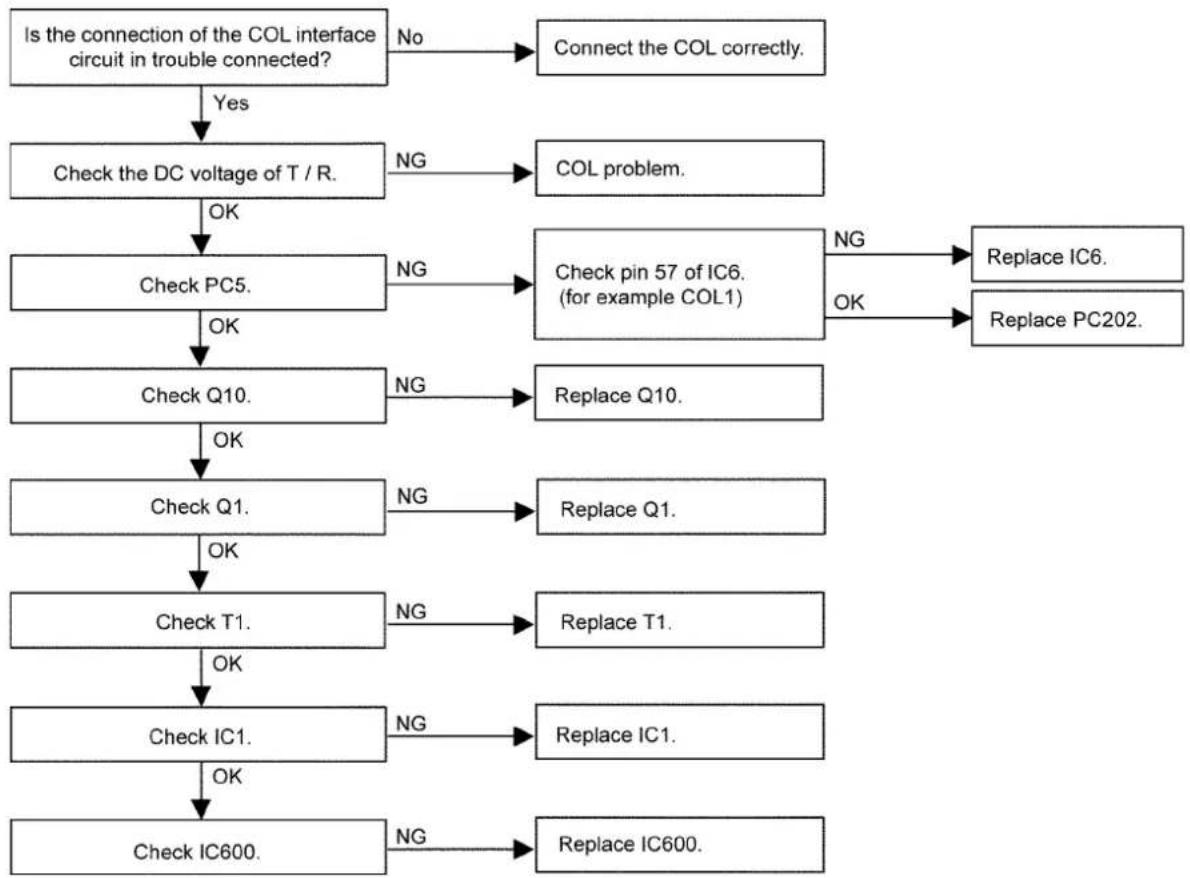

12.8. CANNOT RECEIVE CALL DIAL TONE (KX-TES824BX, MAIN BOARD OF KX-TEM824BX)

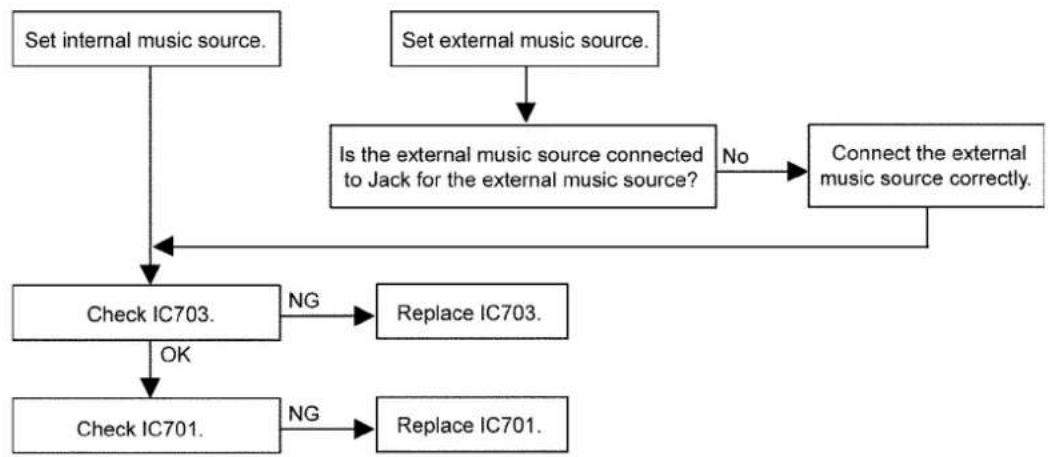

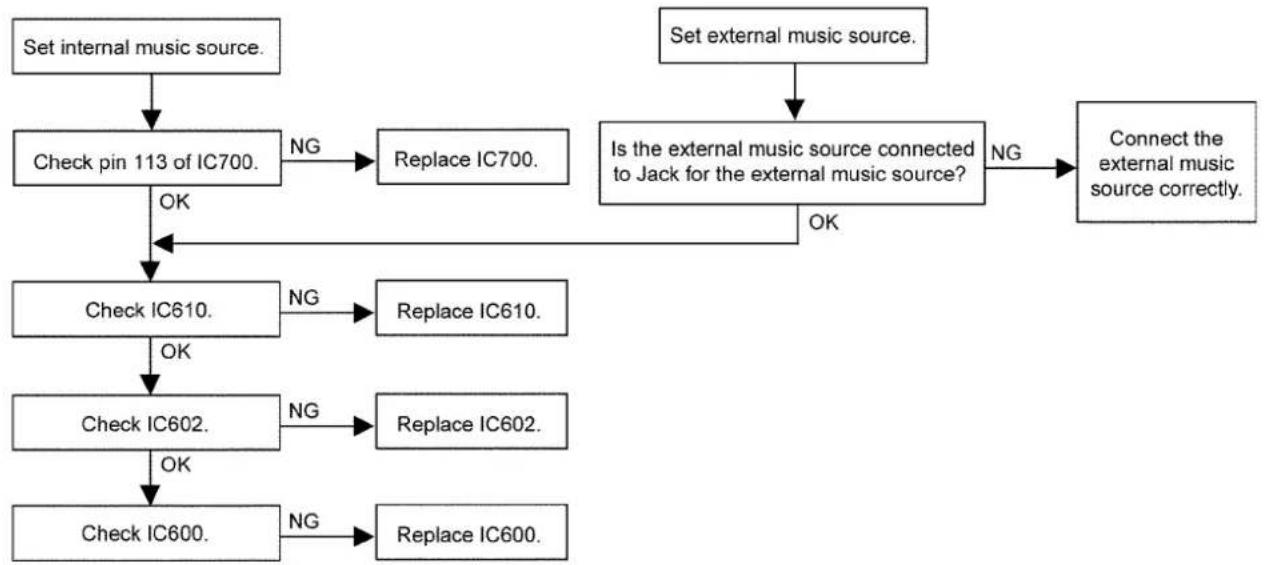

12.9. CANNOT SEND A HOLD ON MUSIC (KX-TES824BX, MAIN BOARD KX-TEM824BX)

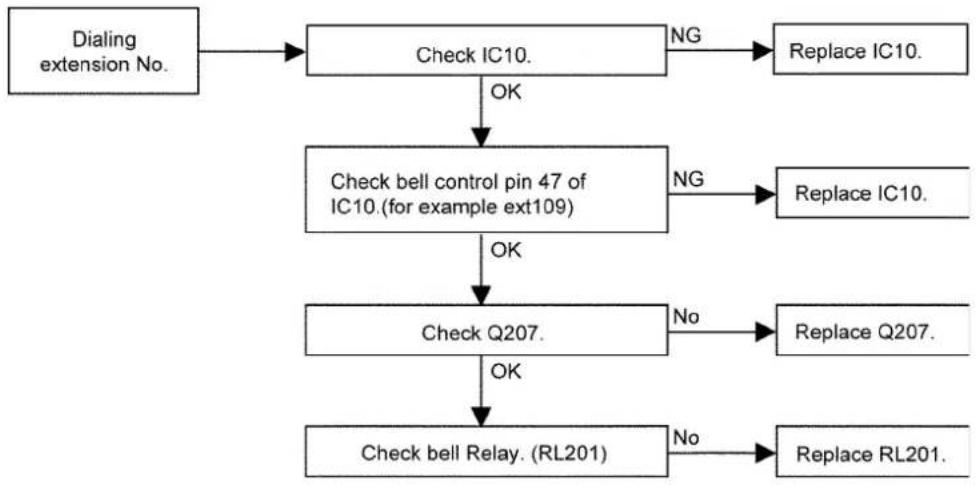

12.10. NO DIAL TONE (SUB BOARD OF KX-TEM824BX)

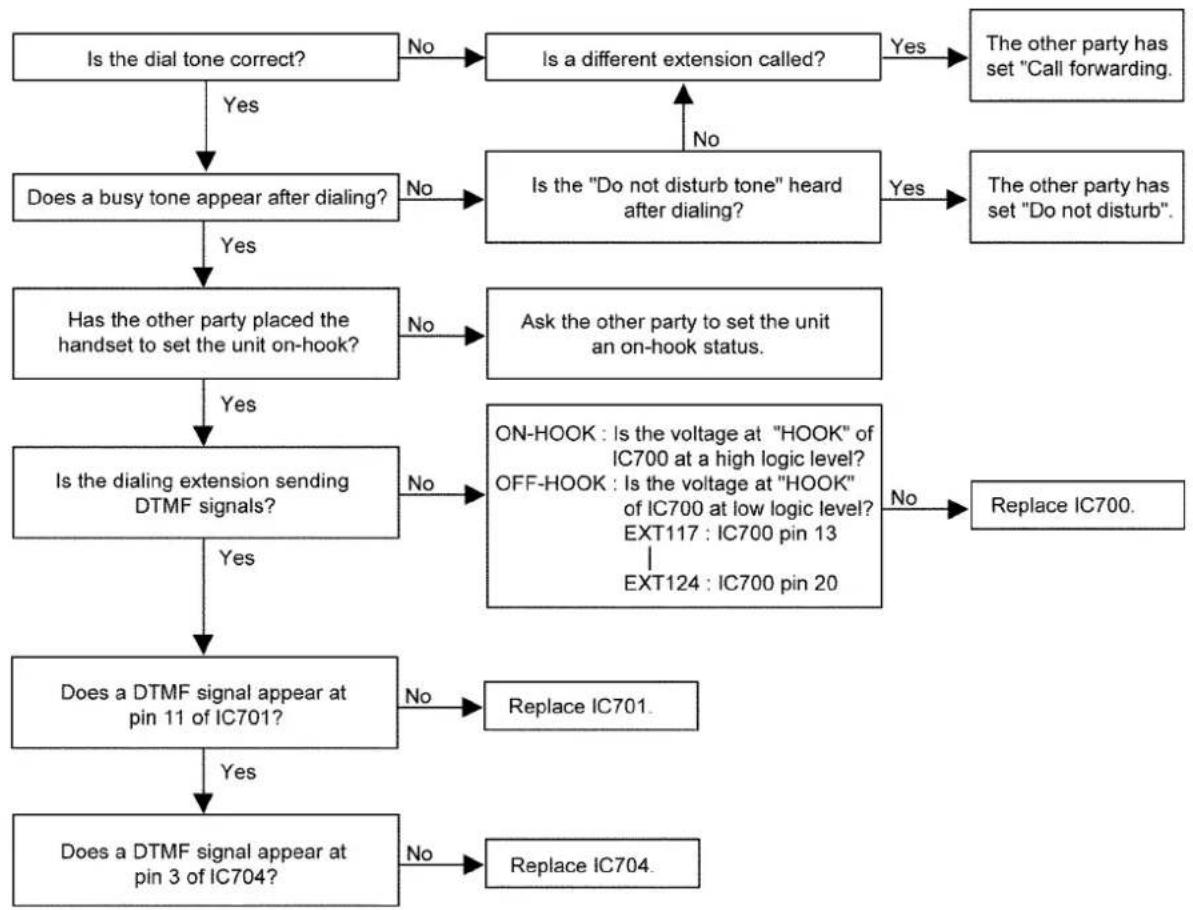

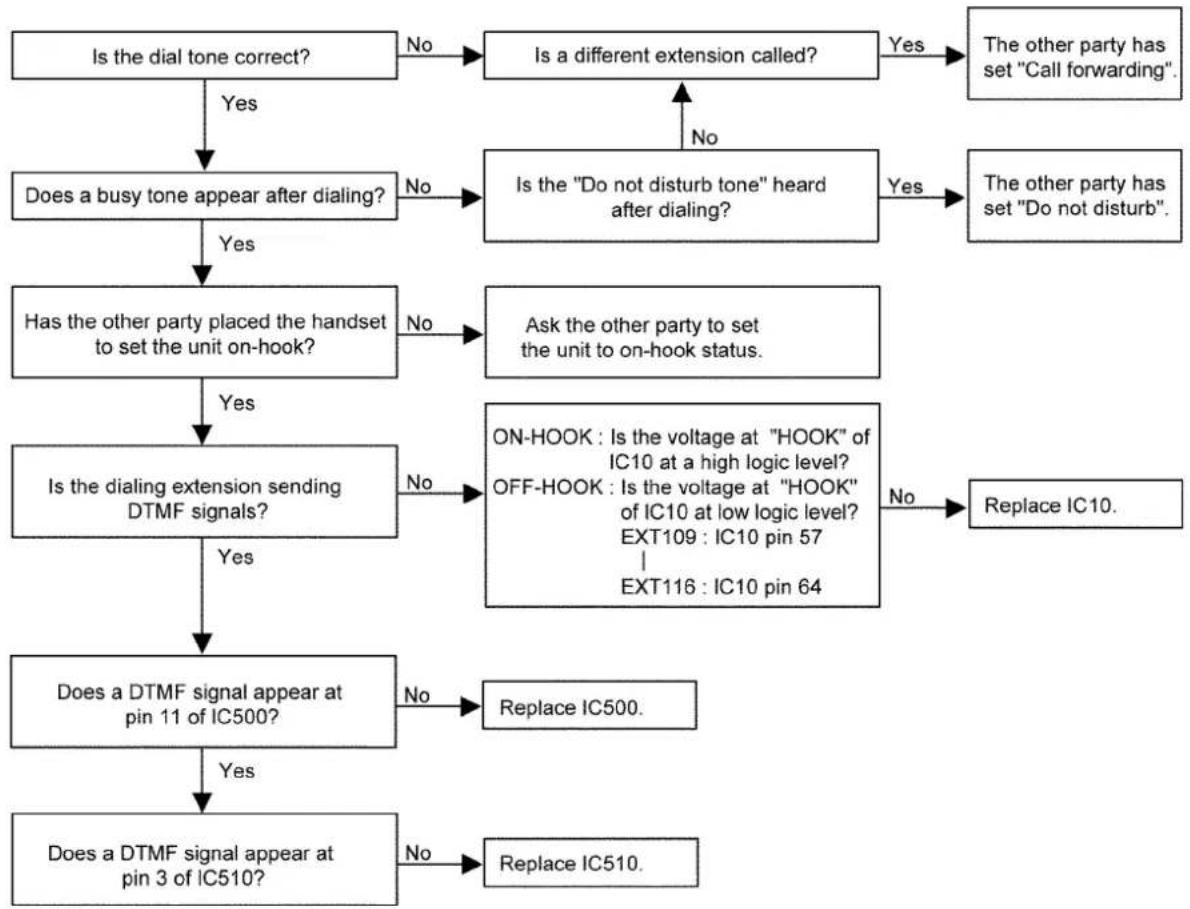

12.11. CANNOT DIAL (SUB BOARD OF KX-TEM824BX)

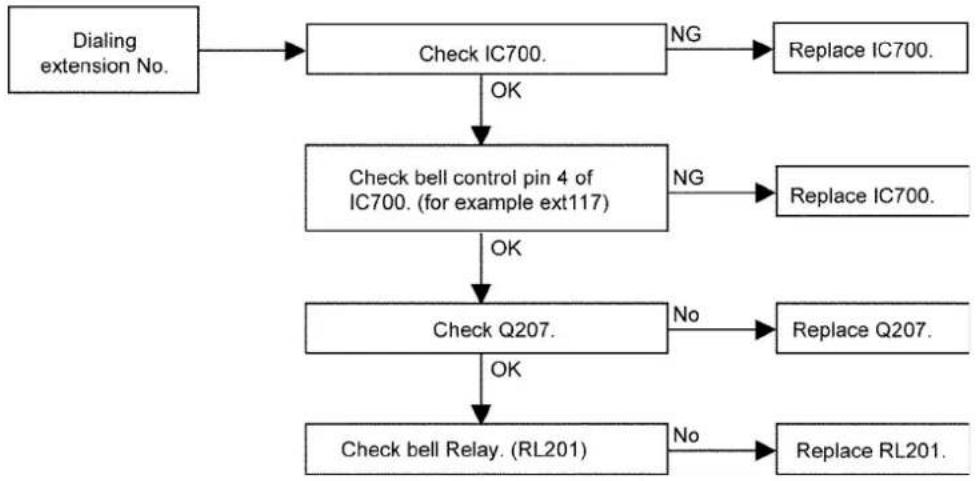

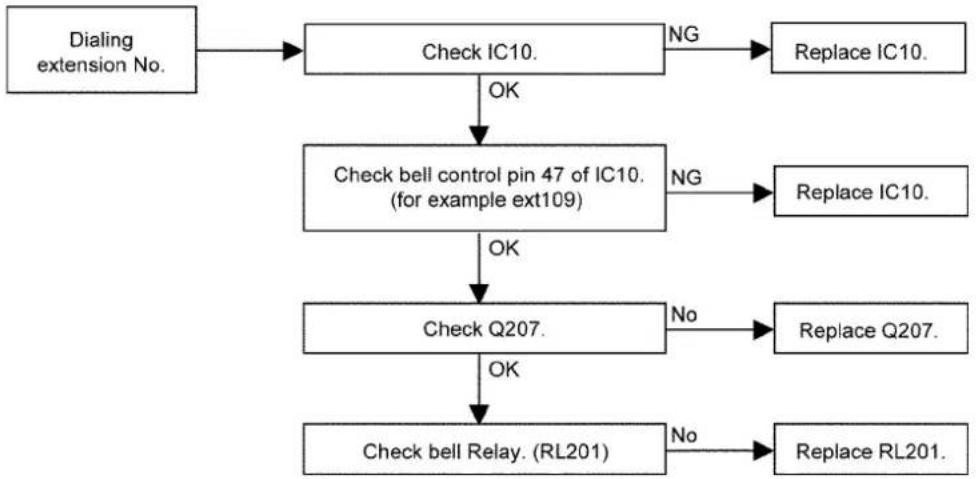

12.12. CANNOT CALL EXTENSION (SUB BOARD OF KX-TEM824BX)

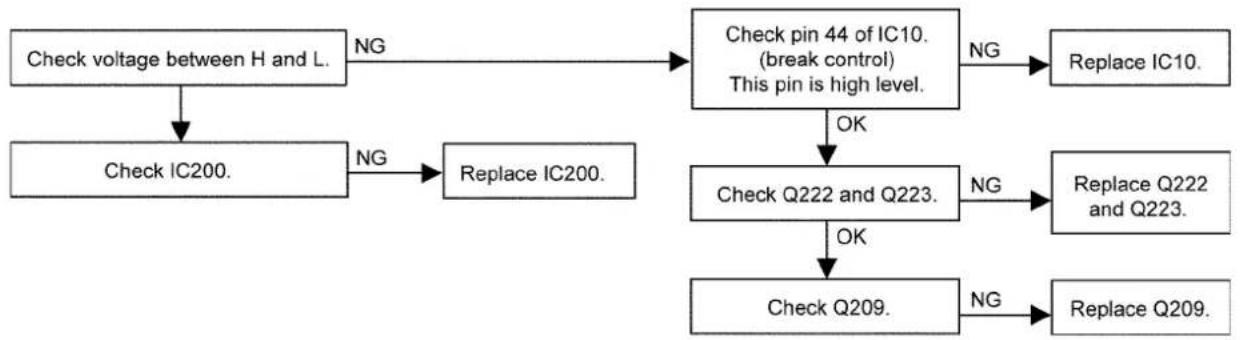

12.13. CANNOT USE PROPRIETARY TELEPHONE (SUB BOARD OF KX-TEM824BX)

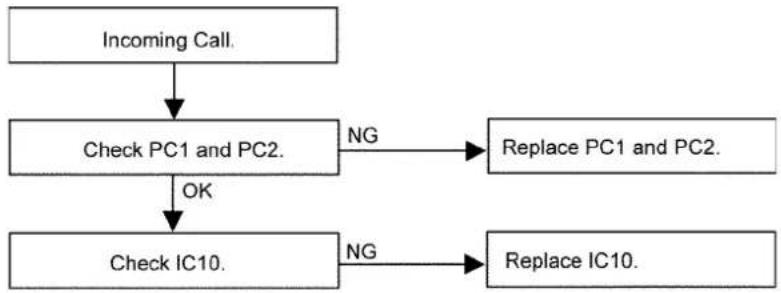

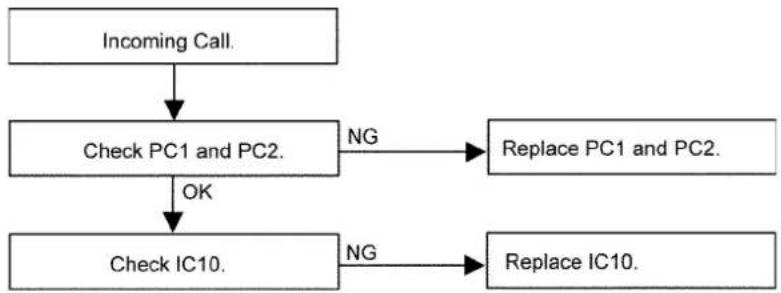

12.14. CANNOT RECEIVE INCOMING CALL (SUB BOARD OF KX-TEM824BX)

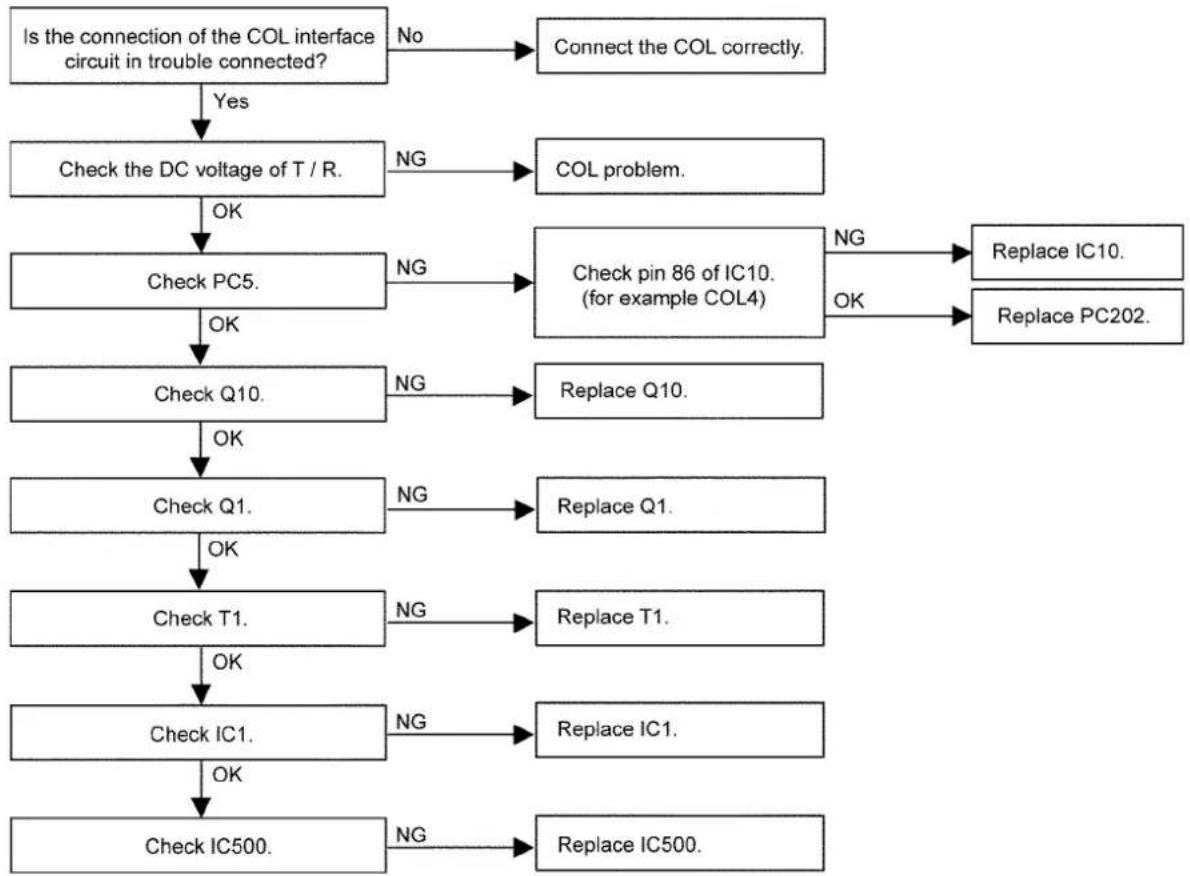

12.15. CANNOT SEND DTMF DIALING (SUB BOARD OF KX-TEM824BX)

12.16. CANNOT RECEIVE CALL DIAL TONE (SUB BOARD OF KX-TEM824BX)

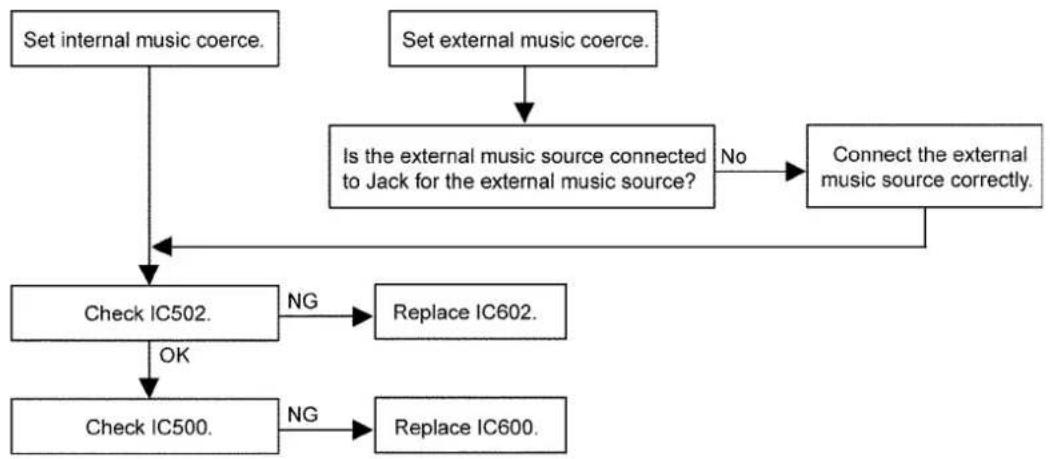

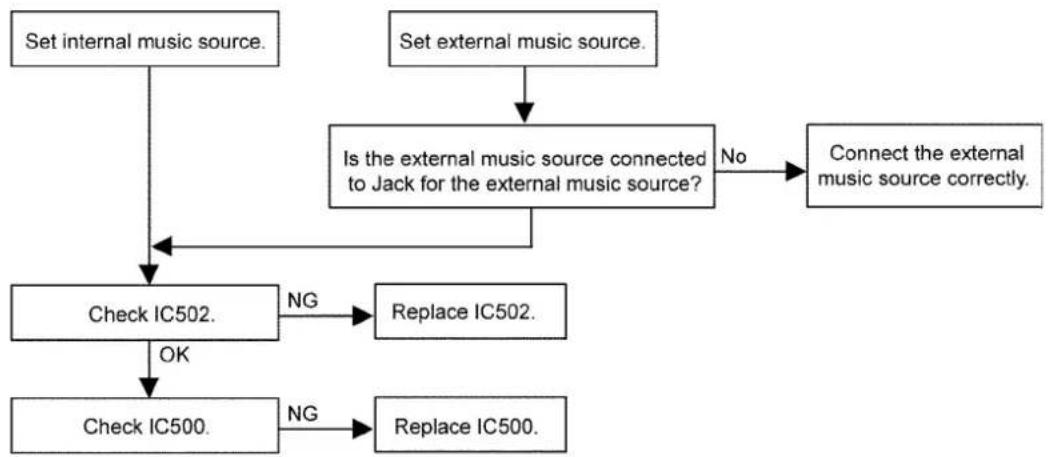

12.17. CANNOT SEND A HOLD ON MUSIC (SUB BOARD OF KX-TEM824BX)

13 IC DATA

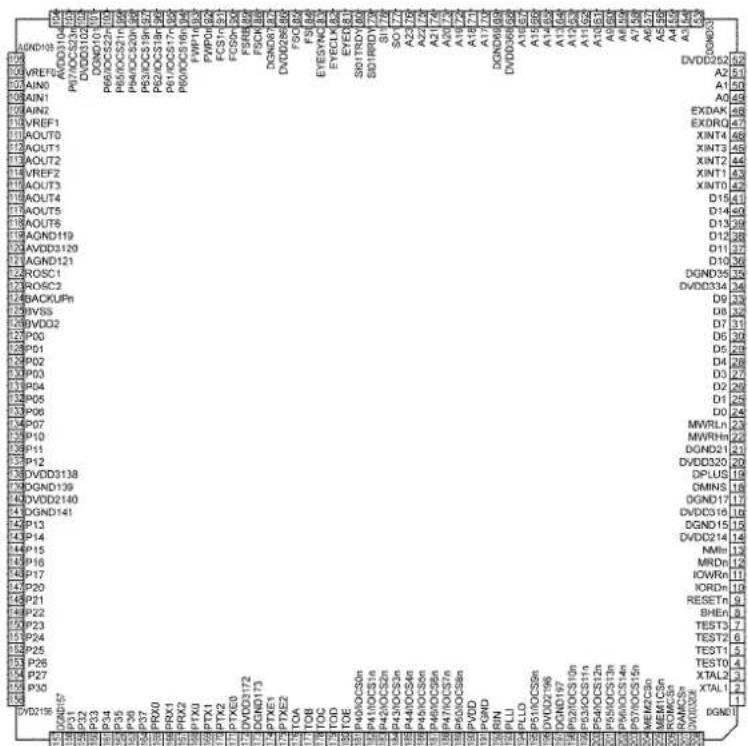

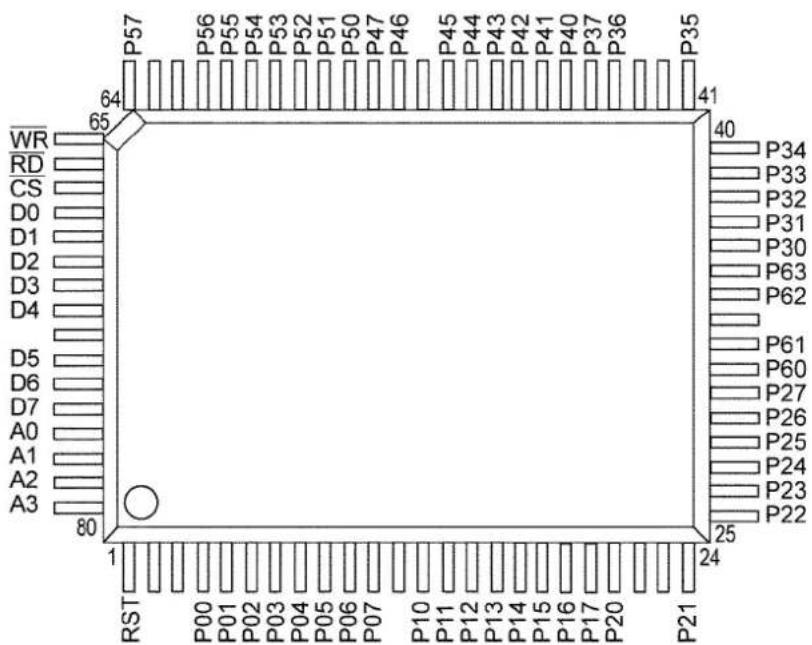

13.1. IC700

PIN No Pin Name I/O Function
4 CDT1 I Current Detect1
5 CDT2 I Current Detect2
6 CDT3 I Current Detect3
7 DET_DOOR | Door Phone Card Detect
8 NINT_AC | AC Power-off Detection Signal
9 NINT_DC | DC Power-off Detection Signal
10 OGM_SW O Connected to the extension
11 BLRLY O BELL Disconnection; 0: Disconnected, 1: Connected
13 CO1_VAG	O Connected to VAG
14 CO2_VAG	O Connected to VAG
15 CO3_VAG	O Connected to VAG
16 CO4_VAG	O Connected to VAG
17 CO5_VAG	O Connected to VAG
18 CO6_VAG	O Connected to VAG
19 CO7_VAG	O Connected to VAG
20 CO8_VAG	O Connected to VAG
21 CLM1	O Column Input 1
24 CLM2	O Column Input 2
25 CLM3	O Column Input 3
26 CLM4	O Column Input 4
27 ROW1	O Row Input 1
28 ROW2	O Row Input 2
29 ROW3	O Row Input 3
30 ROW4	O Row Input 4
36 CONF3	O Conference
37 MUTE3	O Send MUTE
38 DL3	O Pulse Dial
39 DS3	O Dial Shunt
40 SHUNT3 O Receive Mute
41 PAD3	O 3dB PAD
44 BELLA3	I Bell Detect A
45 BELLB3	I Bell Detect B
46 CONF2	O Conference
47 MUTE2	O Send MUTE
48 DL2	O Pulse Dial
49 DS2	O Dial Shunt
50 SHUNT2 O Receive Mute
51 PAD2	O 3dB PAD
53 BELLA2	I Bell Detect A
54 BELLB2	I Bell Detect B
55 CONF1	O Conference
56 MUTE1	O Send MUTE
PIN No Fin Name I/O Function
57 DL O Pulse Dial
58 DS O Dial Shunt
59 SHUNT1 O Receive Mute
60 PAD1 O 3dB PAD
61 BELLA1 I Bell Detect A
64 BELLB1 I Bell Detect B
31 DET_CID1 I CID Card Detect(1AP)
32 DET_CID2 I CID Card Detect(2AP)
34 DET_CID3 I CID Card Detect(3AP)
35 DET_TAM I Voice Message Card(10min)

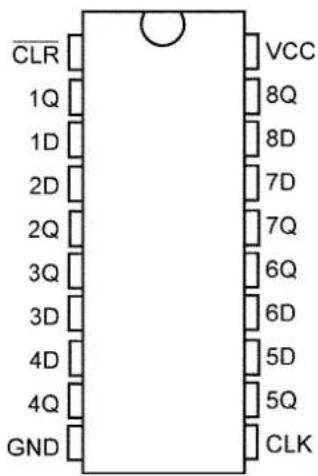

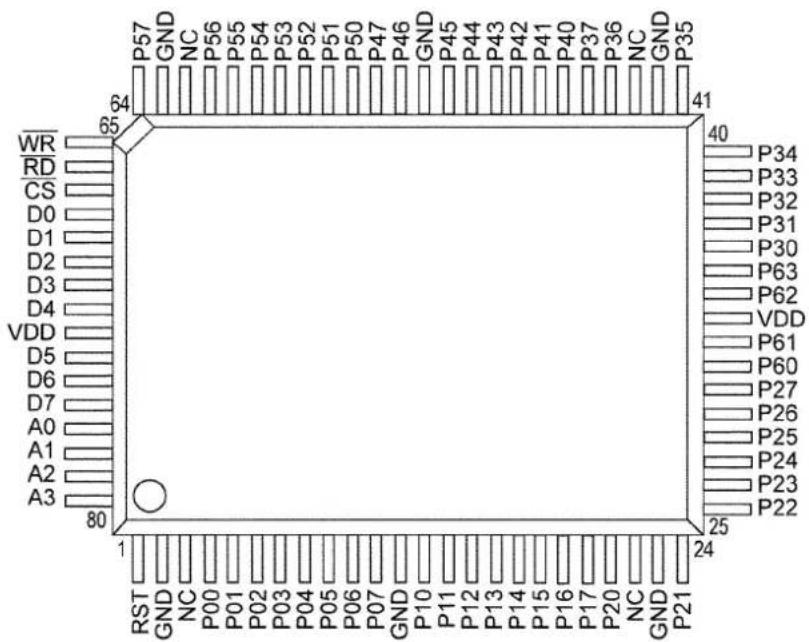

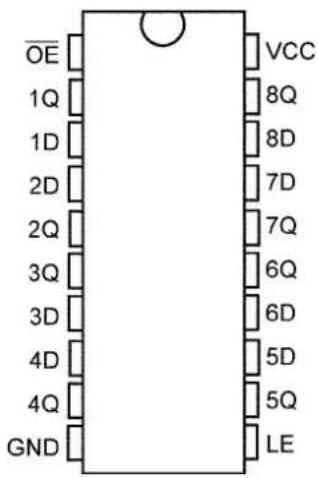

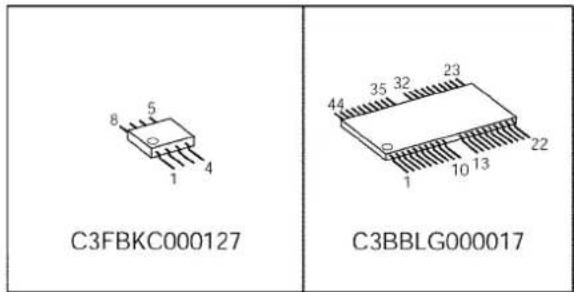

14 TERMINAL GUIDE OF ICS, TRANSISTORS AND DIODES

PQVINJM4558V	PSVICD4066BSC0JBAB000407	C1CB00001851	C1CB00001866	PQVIMC4051BFC1CB00001825
PSVIMT8816AP	PSVIMT8806AP	C1CB00001876	C1CB00001853	C0CBAKE00010
C0CBAAC00083, PQVITC7SU04FC0EBE0000176, C0CBAAC00154C0JBAC000382, C0JBAB000733		C3BBKG000086	PSWITES824BX	C3FBKC000127
PSVIFA5511N	PSVITA76432S	PSVILA6500L	C1CB00001852	C1CB00001875C1CB00001876
2SD874A2SC4731S2SB766ARTX	2SA1576RUN5213, 2SC2412K, 2SB1218A, 2SC4097PQVTDTA114EU, B1GDCFNA0001, 2SC4081R2SD1819A, PQVTDTC144E, PQVTDTC143E		2SA1627	2SB1417P
B1GFAFNN0001PSVTUMX1NTN	2SK3525, 2SK2382	2SA1972	2SC1740S	2SD2012
[SXCC] CathodeAnodePSVDHZK2BTR	B0EDKT000001	MA111, MA728, MA8036H, MA8200MA8039, B0BC2R400008, MA8091, MA8140MAZ80620LL, MAZ82000ML, MA8056		MA143MA142WKTX
[CathodeAnode1SS355PSVDEC21QS06	PSVDHZS12A2, PSVDHZS11PSVDHZS6, PSVDHZS33PSVDHZS22, PSVDHZS20		PSVDERA1506PFVDERA9102	PSVDYG862C15
CathodePSVDYG811S6R	PSVDHZ30PPSVDHZ24P	AnocB3ABB0000146

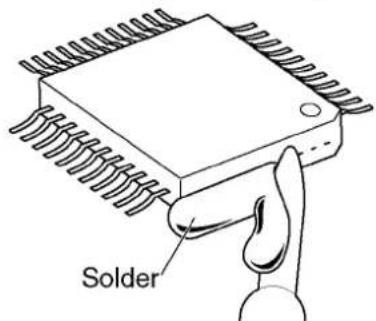

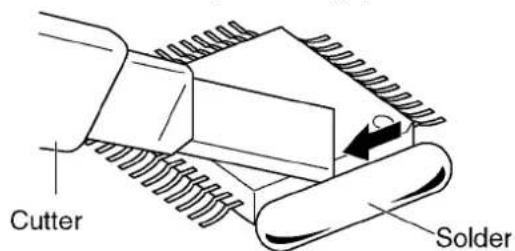

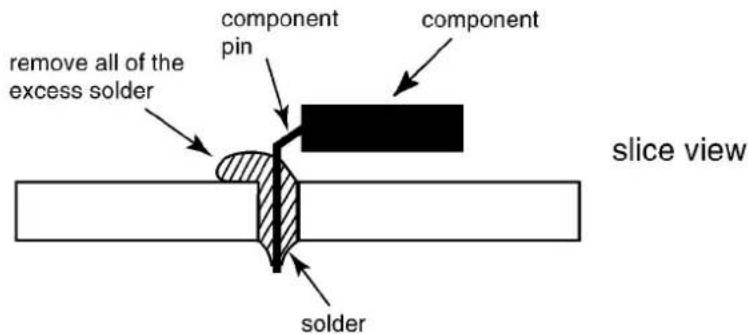

15 HOW TO REPLACE A FLAT PACKAGE IC

Even if you do not have the special tools (for example, a spot heater) to remove the Flat IC, with some solder (large amount), a soldering iron and a cutter knife, you can easily remove the ICs that have more than 100 pins.

15.1. PREPARATION

• PbF (: Pb free) Solder
• Soldering Iron

Tip Temperature of 700^ F ± 20^ F ( 370^ C ± 10^ C)

Note: We recommend a 30 to 40 Watt soldering iron. An expert may be able to use a 60 to 80 Watt iron where someone with less experience could overheat and damage the PCB foil.

• Flux

Recommended Flux: Specific Gravity → 0.82.

Type → RMA (lower residue, non-cleaning type)

Note: See ABOUT LEAD FREE SOLDER (PbF: Pb free) (P.5).

15.2. REMOVAL PROCEDURE

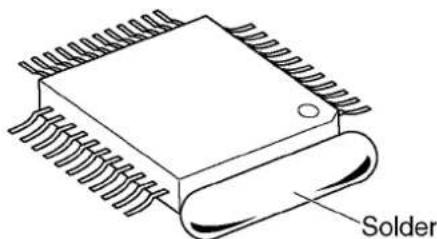

1. Put plenty of solder on the IC pins so that the pins can be completely covered.

Note:

If the IC pins are not soldered enough, you may give pressure to the P.C. board when cutting the pins with a cutter.

1. Make a few cuts into the joint (between the IC and its pins) they are heated, first and then cut off the pins thoroughly.

1. While the solder melts, remove it together with the IC pins.

When you attach a new IC to the board, remove all solder left on the land with some tools like a soldering wire. If some

solder is left at the joint on the board, the new IC will not be attached properly.

15.3. INSTALLATION PROCEDURE

1. Tack the flat pack IC to the PCB by temporarily soldering two diagonally opposite pins in the correct positions on the PCB.

Pure electrical circuit lines without any symbols

● - - - - - - Temporary soldering point.

Be certain each pin is located over the correct pad on the PCB.

1. Apply flux to all of the pins on the IC.

Pure electrical circuit lines without any symbols

Flux

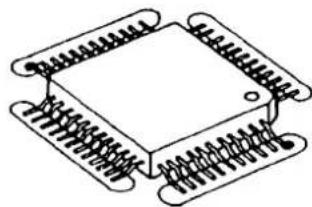

1. Being careful to not unsolder the tack points, slide the soldering iron along the tips of the pins while feeding enough solder to the tip so that it flows under the pins as

15.4. REMOVING SOLDER FROM BETWEEN PINS

1. Add a small amount of solder to the bridged pins.
2. With a hot iron, use a sweeping motion along the flat part of the pin to draw the solder from between the adjacent pads.

Pure mechanical diagram showing a tool interacting with a spring-like component (no text or symbols)

16 FIXTURES AND TOOLS

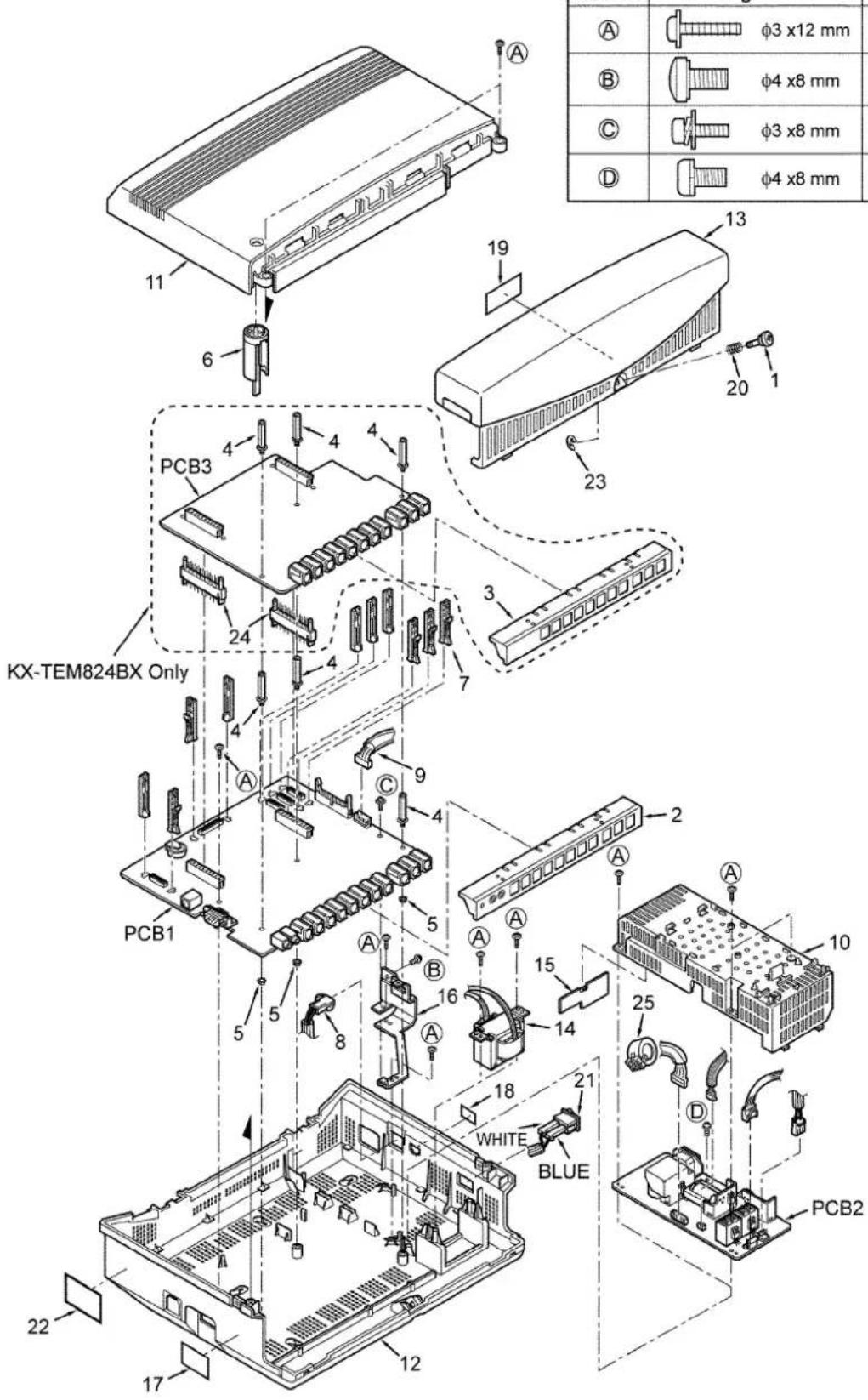

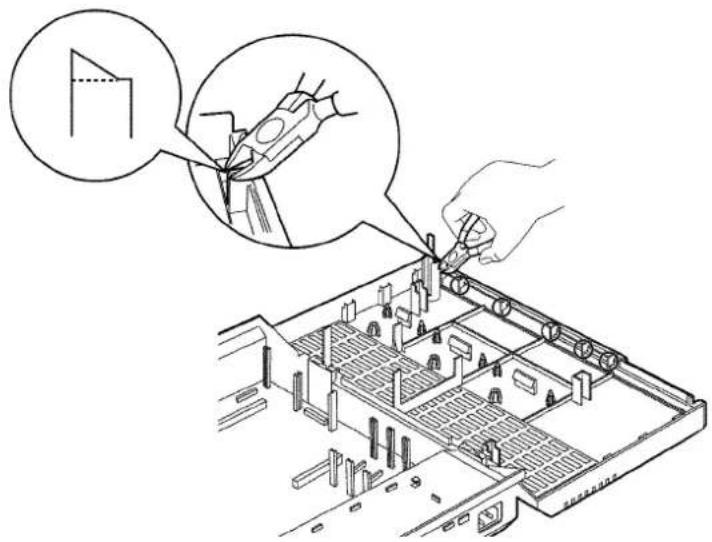

17 CABINET AND ELECTRICAL PARTS LOCATION

SCREWS

Ref No.	Figure	Parts No.
A		XTW3+S12P
B		XYM4+EP8BN
C		XYN3+F8
D		XYN4+C8

18 ACCESSORIES AND PACKING MATERIALS

19 REPLACEMENT PARTS LIST (KX-TES824BX/KX-TEM824BX)

Note:

1. RTL (Retention Time Limited)

The marking (RTL) indicates that the Retention Time is limited for this item.

After the discontinuation of this assembly in production, the item will continue to be available for a specific period of time. The retention period of availability depends on the type of assembly and the laws governing parts and product retention. At the end of this period, the assembly will no longer be available.

2. Important safety notice

Components identified by the △ mark indicates special characteristics important for safety. When replacing any of these components, only use specified manufacture's parts.

1. The S mark means the part is one of some identical. For that reason, it may be different from the installed part.

2. ISO code (Example: ABS-94HB) of the remarks column shows quality of the material and a flame resisting grade about plastics.

5. RESISTORS & CAPACITORS

Unless otherwise specified;

All resistors are in ohms (Ω), k=1000Ω, M=1000kΩ

All capacitors are in MICRO FARADS (μF), p=μ(μF)

*Type & Wattage of Resistor

Type

ERC:SolidERD:CarbonPQRD:Carbon

ERX,ERG,ERO,ERJ:Metal Film Oxide

PQ4R:CarbonERS:Fusible ResistorERF:Cement Resistor

Wattege

10,16:1/8W

14,25:1/4W

12:1/2W

1:1W

2:2W

3:3W

*Type & Voltage of Capacitor

Type

ECFD:Semi-Conductor	ECCD,ECKD,ECBT,PQCBC:Ceramic
ECQS:Styrol	ECQE,ECQV,ECQG:Polyester
PQCUV,ECUV:Chip	ECEA,ECSZ,F2G,PSCSZ:Electlytic
ECQMS:Mica	ECQP:Polypropylene

Voltage

ECQ Type	ECQG ECQV Type	ECSZ Type	Others
1H:50V	05:50V	0F:3.15V	0J :6.3V	1V :35V
2A:100V	1:100V	1A:10V	1A :10V	50,1H:50V
2E:250V	2:200V	1V:35V	1C :16V	1J :63V
2H:500V		0J:6.3V	1E,25:25V	2A :100V

19.1. CABINET AND ELECTRICAL PARTS

Ref.No.	Part No.	Part Name & Description	Remarks
1 PQHD10	011V SMALL SCF	EW
2 PSGG10	09Z1 GRILL (KX	-TES824BX/KX-TEM824BX)	PS
3 PSGG10	09Y1 GRILLE (KX	-X-TEM824BX) PS
4 PSHE10	51Z SPACER

Ref.No.	Part No.	Part Name & Description	Remarks
5 PSHE10	68Z NUT
6	PSHR1146Z	SPACER, LED	PS
7	PSHR1336ZA	SPACER, PCB HOLDER	PA66
8 PSJS02	Q11Z CONNECTOR, 2P
9 PSJS11	P24Z CONNECTOR, 11P
10	PSKE1020X1	COVER , POWER BOARD	PS
11	PSKF1030S1	CABINET COVER (KX-TES824BX)	PS
11	PSKF1030R1	CABINET COVER (KX-TEM824BX)	PS
12	PSKM1056U1 CAB	INET BODY PS
13	PSKV1010Z1 COV	ER, CABLE PS
14	PSLT1K9M2A TR	NSFORMER
15	PSMH1135Y	ANGLE
16	PSMH1151Y	ANGLE
17	PSQT1397Z	LABEL, CAUTION
18	PSQT1398Z	LABEL, BATTERY
19	PSQT1431Z	LABEL, WARNING
20	PSUS1022Z	COIL SPRING
21	PSWSTES824BX	SWITCH ASS'Y
22	PSYETES824BX	NAME PLATE (KX-TES824BX)
22	PSYETEM824BX	NAME PLATE (KX-TEM824BX)
23	XUC3VW	RETAINING RING
24	K1KA40A00234	CONNECTOR (KX-TEM824BX)
25	PQLB5F1	INSULATOR

parts 19.2. ACCESSORIES AND PACKING MATERIALS

Ref.No.	Part No.	Part Name & Description	Remarks
A1	PSJA1007Z	POWER CORD
A2	PQJP1E1Z	PLUG
A3	PQHE5004Z	WOOD SCREW
A4	XWG35FY	WASHER
A5	PSHE1071Z	BAND
A6	PSQX3609ZCD	INSTRUCTION BOOK, CD-ROM
A7	PSQX3412Y	INSTRUCTION BOOK
A8	PSHR1177Z	RIVET
P1	PSZKTES824BX	PACKING CASE, CARTON BOX ASS'Y (KX-TES824BX)
P1	PSZKTEM824BX	PACKING CASE, CARTON BOX ASS'Y (KX-TEM824BX)
P2	PSPN1089Z	ACCESSORY BOX, PAPER
P3	PSPD1143Z	CUSHION
P4	XZB06X13A03	PROTECTION COVER
P5	XZB30X40A04	PROTECTION COVER, MANUAL PACK
P6	XZB05X08A03	PROTECTION COVER
P7	PSPP1050Z	PROTECTION COVER

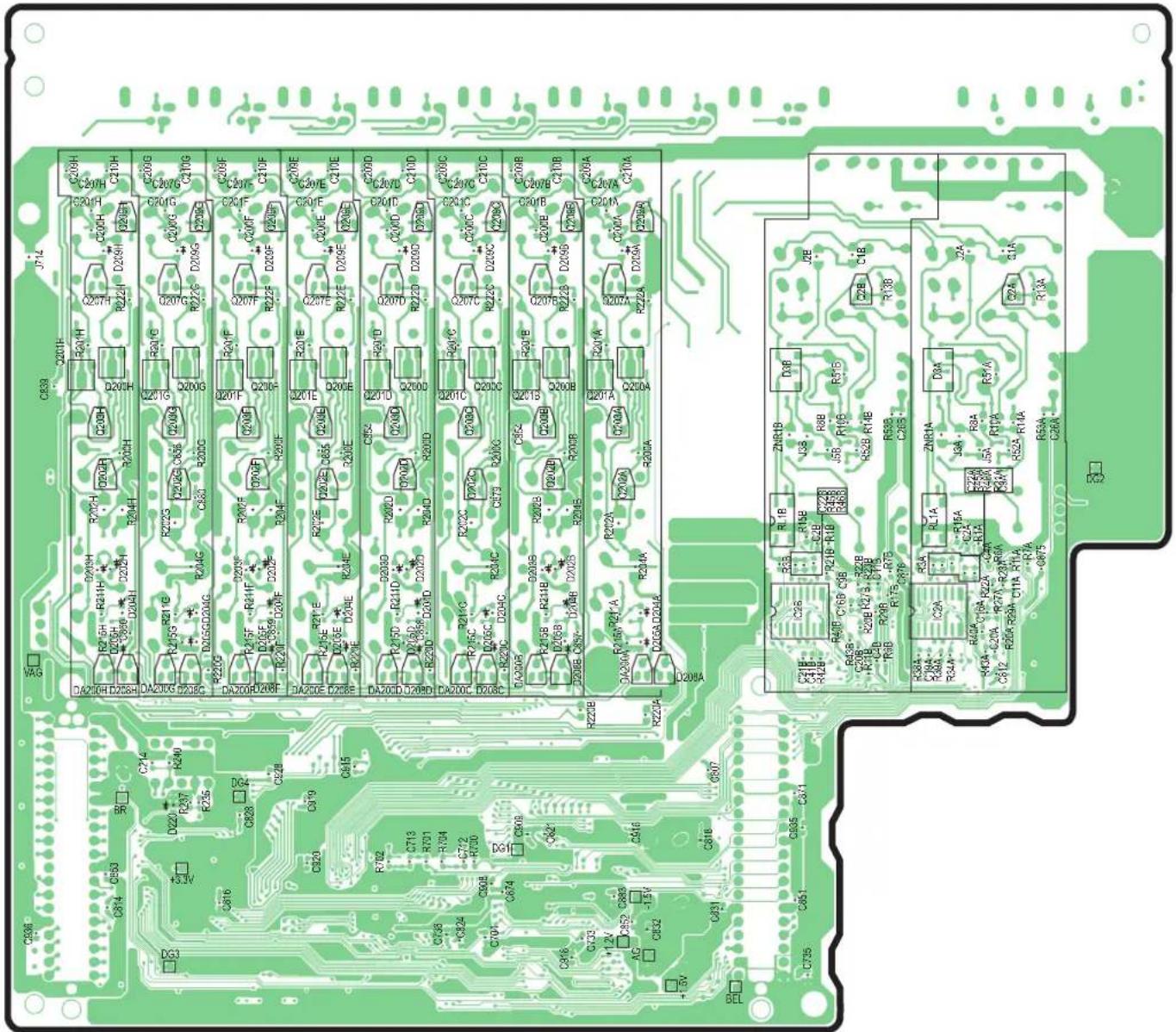

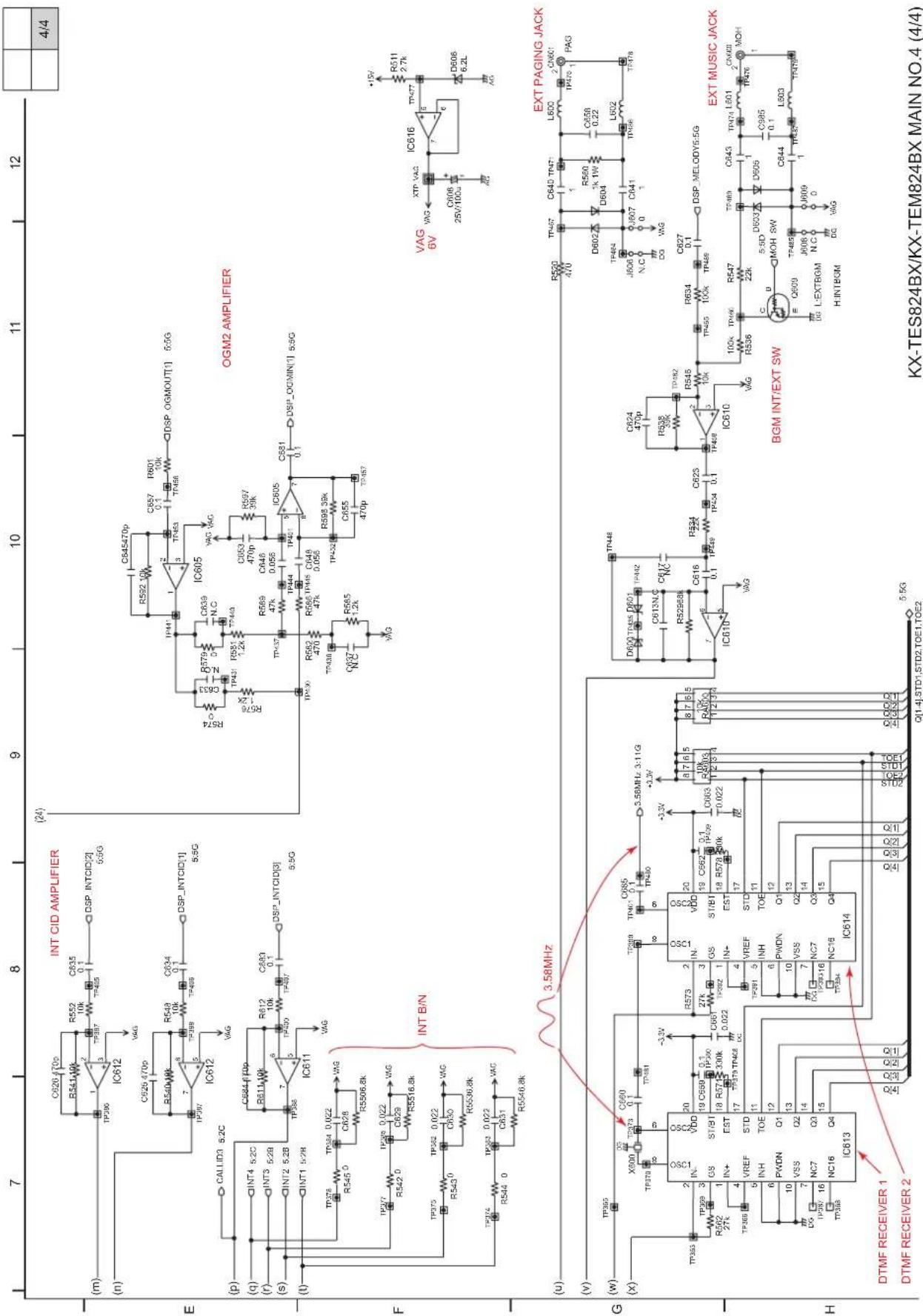

19.3. MAIN BOARD PARTS

Ref.No.	Part No.	Part Name & Description	Remarks
PCB1	PSWPTES824BX	MAIN BOARD ASS'Y (RTL)
		(ICS)
IC1A	PQVINJM4558V	IC	S
IC1B	PQVINJM4558V	IC	S
IC1C	PQVINJM4558V	IC	S
IC2A	PSVICD4066BS	IC	S
IC2B	PSVICD4066BS	IC	S
IC2C	PSVICD4066BS	IC	S
IC6	C1CB00001851	IC
IC7	C1CB00001866	IC
IC200	PQVIMC4051BF	IC	S
IC600	PSVIMT8816AP	IC	S
IC601	PSVIMT8816AP	IC	S
IC602	PSVIMT8806AP	IC	S
IC604	PQVINJM4558V	IC	S
IC605	PQVINJM4558V	IC	S
IC606	PQVINJM4558V	IC	S
IC607	PSVICD4066BS	IC	S
IC608	PSVICD4066BS	IC	S
IC609	PQVINJM4558V	IC	S
IC610	POVINJM4558V IC	S
IC611	POVINJM4558V IC	S
IC612	POVINJM4558V IC	S
IC613	C1CB00001876 IC
IC614	C1CB00001876 IC
IC616	POVINJM4558V IC	S
IC617	PSVICD4066BS IC	S
IC700	C1CB00001853 IC
IC701	C0CBAKE00010 IC
IC702	C0CBAAC00083 IC
IC703	C0CBAAC00154 IC
IC704	C1BBKG000086 IC
IC705	PSWITES824BX IC
IC706	C1FBKC000127 IC
IC707	C1CB00001825 IC
IC708	POVITC7SU04F IC	S
IC709	POVINJM4558V IC	S
IC710	COJBAB000407 IC
IC712	COEBE0000176 IC
IC713	COJBAC000382 IC
IC714	COJBAB000733 IC
IC715	COJBAC000382 IC
IC716	COJBAB000733 IC
		(TRANSISTORS)
Q1A 2SC4731S TRANSISTOR(SI) S
Q1B 2SC4731S TRANSISTOR(SI) S
Q1C 2SC4731S TRANSISTOR(SI) S
Q5A UN5213 TRANSISTOR(SI) S
Q5B UN5213 TRANSISTOR(SI) S
Q5C UN5213 TRANSISTOR(SI) S
Q10A 2SA1627 TRANSISTOR(SI) S
Q10B 2SA1627 TRANSISTOR(SI) S
Q10C 2SA1627 TRANSISTOR(SI) S
Q200A 2SB766ARTX TRANSISTOR(SI) S
Q200B 2SB766ARTX TRANSISTOR(SI) S
Q200C 2SB766ARTX TRANSISTOR(SI) S
Q200D 2SB766ARTX TRANSISTOR(SI) S
Q200E 2SB766ARTX TRANSISTOR(SI) S
Q200F 2SB766ARTX TRANSISTOR(SI) S
Q200G 2SB766ARTX TRANSISTOR(SI) S
Q200H 2SB766ARTX TRANSISTOR(SI) S
Q201A 2SD874A TRANSISTOR(SI) S
Q201B 2SD874A TRANSISTOR(SI) S
Q201C 2SD874A TRANSISTOR(SI) S
Q201D 2SD874A TRANSISTOR(SI) S
Q201E 2SD874A TRANSISTOR(SI) S
Q201F 2SD874A TRANSISTOR(SI) S
Q201G 2SD874A TRANSISTOR(SI) S
Q201H 2SD874A TRANSISTOR(SI) S
Q202A 2SB1218A TRANSISTOR(SI)
Q202B 2SB1218A TRANSISTOR(SI)
Q202C 2SB1218A TRANSISTOR(SI)
Q202D 2SB1218A TRANSISTOR(SI)
Q202E 2SB1218A TRANSISTOR(SI)
Q202F 2SB1218A TRANSISTOR(SI)
Q202G 2SB1218A TRANSISTOR(SI)
Q202H 2SB1218A TRANSISTOR(SI)
Q203A 2SD1819A TRANSISTOR(SI)
Q203B 2SD1819A TRANSISTOR(SI)
Q203C 2SD1819A TRANSISTOR(SI)
Q203D 2SD1819A TRANSISTOR(SI)
Q203E 2SD1819A TRANSISTOR(SI)
Q203F 2SD1819A TRANSISTOR(SI)
Q203G 2SD1819A TRANSISTOR(SI)
Q203H 2SD1819A TRANSISTOR(SI)
Q207A 2SD1819A TRANSISTOR(SI)
Q207B 2SD1819A TRANSISTOR(SI)
Q207C 2SD1819A TRANSISTOR(SI)
Q207D 2SD1819A TRANSISTOR(SI)
Q207E 2SD1819A TRANSISTOR(SI)
Q207F 2SD1819A TRANSISTOR(SI)
Q207G 2SD1819A TRANSISTOR(SI)
Q207H 2SD1819A TRANSISTOR(SI)

Ref.No.	Part No.	Part Name & Description	Remarks
Q209 PQVTDTC143E TRANS	ISTOR(SI) S
Q209A 2SD1819A TRANSIS	TOR(SI)
Q209B 2SD1819A TRANSIS	TOR(SI)
Q209C 2SD1819A TRANSIS	TOR(SI)
Q209D 2SD1819A TRANSIS	TOR(SI)
Q209E 2SD1819A TRANSIS	TOR(SI)
Q209F 2SD1819A TRANSIS	TOR(SI)
Q209G 2SD1819A TRANSIS	TOR(SI)
Q209H 2SD1819A TRANSIS	TOR(SI)
Q210 2SD1819A TRANSIST	OR(SI)
Q212 PQVTDTC143E TRANS	ISTOR(SI) S
Q213 PQVTDTC143E TRANS	ISTOR(SI) S
Q214 PQVTDTC143E TRANS	ISTOR(SI) S
Q215 PQVTDTA114EU TRANS	SISTOR(SI) S
Q216 2SD1819A TRANSIST	OR(SI)
Q217 2SD1819A TRANSIST	OR(SI)
Q222 2SB1417P TRANSIST	OR(SI) S
Q223 PQVTDTC143E TRANS	ISTOR(SI) S
Q608 UN5213 TRANSISTOR	(SI) S
Q609 UN5213 TRANSISTOR	(SI) S
Q620 UN5213 TRANSISTOR	(SI) S
Q700 2SD1819A TRANSIST	OR(SI)
Q701 UN5213 TRANSISTOR	(SI) S
Q702 B1GDCFNA0001 TRANS	SISTOR(SI)
Q703 PQVTDTC144E TRANS	ISTOR(SI) S
Q704 2SC2412K TRANSIST	OR(SI) S
Q705 PQVTDTC143E TRANS	ISTOR(SI) S
U2A B1GFAPNN0001 TRANS	ISTOR(SI)
U2B B1GFAPNN0001 TRANS	ISTOR(SI)
U2C B1GFAPNN0001 TRANS	ISTOR(SI)
U200A PSVTUMX1NTN TRANS	SISTOR(SI)
U200B PSVTUMX1NTN TRANS	SISTOR(SI)
U200C PSVTUMX1NTN TRANS	SISTOR(SI)
U200D PSVTUMX1NTN TRANS	SISTOR(SI)
U200E PSVTUMX1NTN TRANS	SISTOR(SI)
U200F PSVTUMX1NTN TRANS	SISTOR(SI)
U200G PSVTUMX1NTN TRANS	SISTOR(SI)
U200H PSVTUMX1NTN TRANS	SISTOR(SI)
U600 B1GFAPNN0001 TRANS	SISTOR(SI)
U601 B1GFAPNN0001 TRANS	SISTOR(SI)
U602 B1GFAPNN0001 TRANS	SISTOR(SI)
U603 B1GFAPNN0001 TRANS	SISTOR(SI)
		(DIODES)
D1A PSVDHZK2BTR DIODE(SI)
D1B PSVDHZK2BTR DIODE(SI)
D1C PSVDHZK2BTR DIODE(SI)
D2A PSVDHZK2BTR DIODE(SI)
D2B PSVDHZK2BTR DIODE(SI)
D2C PSVDHZK2BTR DIODE(SI)
D3A BOEDKT000001 DIODE(SI)
D3B BOEDKT000001 DIODE(SI)
D3C BOEDKT000001 DIODE(SI)
D202A MA8036H DIODE(SI) S
D202B MA8036H DIODE(SI) S
D202C MA8036H DIODE(SI) S
D202D MA8036H DIODE(SI) S
D202E MA8036H DIODE(SI) S
D202F MA8036H DIODE(SI) S
D202G MA8036H DIODE(SI) S
D202H MA8036H DIODE(SI) S
D203A MA8036H DIODE(SI) S
D203B MA8036H DIODE(SI) S
D203C MA8036H DIODE(SI) S
D203D MA8036H DIODE(SI) S
D203E MA8036H DIODE(SI) S
D203F MA8036H DIODE(SI) S
D203G MA8036H DIODE(SI) S
D203H MA8036H DIODE(SI) S
D204A MA8039 DIODE(SI) S
D204B MA8039 DIODE(SI) S
D204C MA8039 DIODE(SI) S
D204D MA8039 DIODE(SI) S
D204E MA8039 DIODE(SI) S
D204F MA8039 DIODE(SI)		S
D204G MA8039 DIODE(SI)		S
D204H MA8039 DIODE(SI)		S
D205A MA111 DIODE(SI)		S
D205B MA111 DIODE(SI)		S
D205C MA111 DIODE(SI)		S
D205D MA111 DIODE(SI)		S
D205E MA111 DIODE(SI)		S
D205F MA111 DIODE(SI)		S
D205G MA111 DIODE(SI)		S
D205H MA111 DIODE(SI)		S
D208A MA143 DIODE(SI)		S
D208B MA143 DIODE(SI)		S
D208C MA143 DIODE(SI)		S
D208D MA143 DIODE(SI)		S
D208E MA143 DIODE(SI)		S
D208F MA143 DIODE(SI)		S
D208G MA143 DIODE(SI)		S
D208H MA143 DIODE(SI)		S
D209A MA111 DIODE(SI)		S
D209B MA111 DIODE(SI)		S
D209C MA111 DIODE(SI)		S
D209D MA111 DIODE(SI)		S
D209E MA111 DIODE(SI)		S
D209F MA111 DIODE(SI)		S
D209G MA111 DIODE(SI)		S
D209H MA111 DIODE(SI)		S
D220 MA111 DIODE(SI)		S
D221 MA111 DIODE(SI)		S
D222 MA143 DIODE(SI)		S
D600 B0BC2R400008 DIODE(SI)
D601 B0BC2R400008 DIODE(SI)
D602 MA111 DIODE(SI)		S
D603 MA111 DIODE(SI)		S
D604 MA111 DIODE(SI)		S
D605 MA111 DIODE(SI)		S
D606 MAZ80620LL DIODE(SI)
D701 MAZ82000ML DIODE(SI)
D702 MA111 DIODE(SI)		S
D703 MA728 DIODE(SI)		S
D704 MA111 DIODE(SI)		S
D705 MA728 DIODE(SI)		S
DA200A MA142WKTX DIODE(SI)		S
DA200B MA142WKTX DIODE(SI)		S
DA200C MA142WKTX DIODE(SI)		S
DA200D MA142WKTX DIODE(SI)		S
DA200E MA142WKTX DIODE(SI)		S
DA200F MA142WKTX DIODE(SI)		S
DA200G MA142WKTX DIODE(SI)		S
DA200H MA142WKTX DIODE(SI)		S
LED700 B3ABB0000146 LED
		(BATTERY)
BAT700 CR23541GUF LITHIUM BATTERY
		(CONNECTORS)
CN701 K1KB40C00002 CONNECTOR, 40P
CN702 K1KB40C00002 CONNECTOR, 40P
CN703 PSJP09A64Z CONNECTOR, 9P S
CN704 K1KB04B00036 CONNECTOR, 4P
CN705 PQJP11G30Z CONNECTOR, 11P S
CN706 K1KA30A00196 CONNECTOR, 30P
CN707 K1KA30A00196 CONNECTOR, 30P
CN708 PQJP30A09Z CONNECTOR, 30P
CN710 K1KA60A00144 CONNECTOR, 60P
CN711 K1KA30A00196 CONNECTOR, 30P
CN712 K1KA30A00196 CONNECTOR, 30P
		COMPONENTS PARTS)
RA100 D1H81034A010 RESISTOR ARRAY, 10K
RA101 D1H81034A010 RESISTOR ARRAY, 10K
RA102 D1H81034A010 RESISTOR ARRAY, 10K
RA200 D1H81034A010 RESISTOR ARRAY, 10K
RA600 D1H81034A010 RESISTOR ARRAY, 10K
RA601 D1H81034A010 RESISTOR ARRAY, 10K
RA602 D1H81034A010 RESISTOR ARRAY, 10K

Ref.No.	Part No.	Part Name & Description	Remarks
RA603 D1	H81034A010 RES	ISTOR ARRAY, 10K
RA700 D1	H81034A010 RES	ISTOR ARRAY, 68
RA701 D1	H86804A024 RES	ISTOR ARRAY, 68
RA702 D1	H86804A024 RES	ISTOR ARRAY, 68
RA703 D1	H86804A024 RES	ISTOR ARRAY, 68
RA704 D1	H86804A024 RES	ISTOR ARRAY, 68
RA705 D1	H86804A024 RES	ISTOR ARRAY, 68
RA706 D1	H86804A024 RES	ISTOR ARRAY, 68
RA708 D1	H81034A010 RES	ISTOR ARRAY, 10K
RA709 D1	H81034A010 RES	ISTOR ARRAY, 10K
RA710 D1	H81034A010 RES	ISTOR ARRAY, 10K
RA711 D1	H81034A010 RES	ISTOR ARRAY, 10K
RA712 D1	H81034A010 RES	ISTOR ARRAY, 10K
RA713 D1	H81034A010 RES	ISTOR ARRAY, 10K
RA714 D1	H81034A024 RES	ISTOR ARRAY, 10K
RA715 D1	H81034A024 RES	ISTOR ARRAY, 10K
RA716 D1	H81034A010 RES	ISTOR ARRAY, 10K
RA717 D1	H81034A010 RES	ISTOR ARRAY, 10K
RA718 D1	H81034A010 RES	ISTOR ARRAY, 10K
RA719 D1	H81034A010 RES	ISTOR ARRAY, 10K
RA720 D1	H81034A010 RES	ISTOR ARRAY, 10K
RA721 D1	H81034A024 RES	ISTOR ARRAY, 10K
RA722 D1	H81034A024 RES	ISTOR ARRAY, 10K
RA723 D1	H81034A010 RES	ISTOR ARRAY, 10K
RA724 D1	H86804A024 RES	ISTOR ARRAY, 68
RA725 D1	H86804A024 RES	ISTOR ARRAY, 68
RA726 D1	H86804A024 RES	ISTOR ARRAY, 68
RA727 D1	H86804A024 RES	ISTOR ARRAY, 68
RA728 D1	H81034A010 RES	ISTOR ARRAY, 10K
RA729 D1	H81034A010 RES	ISTOR ARRAY, 10K
		(COILS)
L1A PFLB	003 COIL S
L1B PFLB	003 COIL S
L1C PFLB	003 COIL S
L204A PQ	LQXH152J COIL S
L204B PQ	LQXH152J COIL S
L204C PQ	LQXH152J COIL S
L204D PQ	LQXH152J COIL S
L204E PQ	LQXH152J COIL S
L204F PQ	LQXH152J COIL S
L204G PQ	LQXH152J COIL S
L204H PQ	LQXH152J COIL S
L703 G1C	1R0ZA0021 COIL
TH1A PQ	E106 COIL S
TH1B PQ	E106 COIL S
TH1C PQ	E106 COIL S
		(CRYSTAL OSCILLATORS)
X600 PSV	CYY0358M3 CRYSTAL OSCILLATOR S
X700 H0C	479500001 CRYSTAL OSCILLATOR
X701 PSV	CC0019CT CRYSTAL OSCILLATOR S(FILTERS)
FIL701 J	0HAAH000003 IC FILTER
FIL702 J	0HAAH000003 IC FILTER
FIL703 J	0HAAH000003 IC FILTER
FIL704 J	0HAAH000003 IC FILTER
FIL705 J	0HAAH000003 IC FILTER
FIL706 J	0HAAH000003 IC FILTER
L600 PFV	F1A471SG CERAMIC FILTER
L601 PFV	F1A471SG CERAMIC FILTER
L602 PFV	F1A471SG CERAMIC FILTER
L603 PFV	F1A471SG CERAMIC FILTER
L704 PFV	F1B221SB CERAMIC FILTER
L705 PFV	F1B221SB CERAMIC FILTER
L706 PFV	F1B221SB CERAMIC FILTER
L707 PFV	F1B221SB CERAMIC FILTER
L708 PFV	F1B221SB CERAMIC FILTER
L709 PFV	F1B221SB CERAMIC FILTER
L710 PFV	F1B221SB CERAMIC FILTER
L711 PFV	F1B221SB CERAMIC FILTER
L712 PFV	F1B221SB CERAMIC FILTER
L713 PFV	F1B221SB CERAMIC FILTER
L714 PFV	F1B221SB CERAMIC FILTER
L715 PFV	F1B221SB CERAMIC FILTER
L716 PFVF1B221SB CERAMIC FILTER
L717 PFVF1B221SB CERAMIC FILTER
L718 PFVF1B221SB CERAMIC FILTER
L719 PFVF1B221SB CERAMIC FILTER
L720 PFVF1B221SB CERAMIC FILTER
L721 PFVF1B221SB CERAMIC FILTER
L722 PFVF1B221SB CERAMIC FILTER
L723 PFVF1B221SB CERAMIC FILTER
L724 PFVF1B221SB CERAMIC FILTER
L725 PFVF1B221SB CERAMIC FILTER
L727 PFVF1B221SB CERAMIC FILTER
L728 PFVF1B221SB CERAMIC FILTER
L729 PFVF1B221SB CERAMIC FILTER
L730 PFVF1B221SB CERAMIC FILTER
L731 PFVF1B221SB CERAMIC FILTER
L732 PFVF1B221SB CERAMIC FILTER
L733 PFVF1B221SB CERAMIC FILTER
L734 PFVF1B221SB CERAMIC FILTER
L735 PFVF1B221SB CERAMIC FILTER
L736 PFVF1B221SB CERAMIC FILTER
L737 PFVF1B221SB CERAMIC FILTER
L738 PFVF1B221SB CERAMIC FILTER
L739 PFVF1B221SB CERAMIC FILTER
L740 PFVF1B221SB CERAMIC FILTER
L741 PFVF1B221SB CERAMIC FILTER
L742 PFVF1B221SB CERAMIC FILTER
L745 PFVF1B221SB CERAMIC FILTER
		(FUSES)
TH2A D4PAR1700002 FUSE
TH2B D4PAR1700002 FUSE
TH2C D4PAR1700002 FUSE
TH2D D4PAR1700002 FUSE
TH2E D4PAR1700002 FUSE
TH2F D4PAR1700002 FUSE
TH2G D4PAR1700002 FUSE
TH2H D4PAR1700002 FUSE
		(JACKS)
CN1A PQJJ1T004Z JACK S
CN1B PQJJ1T004Z JACK S
CN1C PQJJ1T004Z JACK S
CN200A PQJJ1T011Y JACK S
CN200B PQJJ1T011Y JACK S
CN200C PQJJ1T011Y JACK S
CN200D PQJJ1T011Y JACK S
CN200E PQJJ1T011Y JACK S
CN200F PQJJ1T011Y JACK S
CN200G PQJJ1T011Y JACK S
CN200H PQJJ1T011Y JACK S
CN600 PSJJ1D001Z JACK S
CN601 PSJJ1D001Z JACK S
		(TRANSFORMERS)
T1A G4A1A0000173 TRANSFORMER
T1B G4A1A0000173 TRANSFORMER
T1C G4A1A0000173 TRANSFORMER
T2A G4A1A0000177 TRANSFORMER
T2B G4A1A0000177 TRANSFORMER
T2C G4A1A0000177 TRANSFORMER
T200A ETA14Y85AY TRANSFORMER
T200B ETA14Y85AY TRANSFORMER
T200C ETA14Y85AY TRANSFORMER
T200D ETA14Y85AY TRANSFORMER
T200E ETA14Y85AY TRANSFORMER
T200F ETA14Y85AY TRANSFORMER
T200G ETA14Y85AY TRANSFORMER
T200H ETA14Y85AY TRANSFORMER
T201 ETE13K24AY TRANSFORMER
		(PHOTO ELECTRIC TRANSDUCERS)
PC1A PQVIP27011M3 PHOTO COUPER S
PC1B PQVIP27011M3 PHOTO COUPER S
PC1C PQVIP27011M3 PHOTO COUPER S
PC2A PQVIP27011M3 PHOTO COUPER S
PC2B PQVIP27011M3 PHOTO COUPER S
PC2C PQVIP27011M3 PHOTO COUPER S

Ref.No.	Part No.	Part Name & Description	Remarks
PC4A PQVIP27011M3 PHOTO COUPER S
PC4B PQVIP27011M3 PHOTO COUPER S
PC4C PQVIP27011M3 PHOTO COUPER S
PC5A CNC2S5020LL1 PHOTO COUPER
PC5B CNC2S5020LL1 PHOTO COUPER
PC5C CNC2S5020LL1 PHOTO COUPER
		(RELAYS)
RL200A K6B2CGA00121 RELAY
RL201A PQSL41Z RELAY S
RL201B PQSL41Z RELAY S
RL201C PQSL41Z RELAY S
RL201D PQSL41Z RELAY S
RL201E PQSL41Z RELAY S
RL201F PQSL41Z RELAY S
RL201G PQSL41Z RELAY S
RL201H PQSL41Z RELAY S
RL202A K6B2CGA00095 RELAY S
		(SWITCHES)
SW1 EVQ2 1409K SPECIAL SWITCH
SW2 PQSS2A04W SLIDE SWITCH
		(VARISTORS)
SA1A J0LE00000043 VARI STOR (SURGE ABSORBER)
SA1B J0LE00000043 VARI STOR (SURGE ABSORBER)
SA1C J0LE00000043 VARI STOR (SURGE ABSORBER)
SA100 PFRZRA102P6T VARI ESTOR (SURGE ABSORBER)			S
ZNR2A D4EAB820A005 VARI ESTOR
ZNR2B D4EAB820A005 VARI ESTOR
ZNR2C D4EAB820A005 VARI ESTOR
ZNR200 D4EAB220A005 VARI RISTOR
ZNR201 D4EAB220A005 VARI RISTOR
ZNR202 D4EAB220A005 VARI RISTOR
ZNR203 D4EAB220A005 VARI RISTOR
		(CAPACITORS)
C1A PSCU2JW221KR 220P
C1B PSCU2JW221KR 220P
C1C PSCU2JW221KR 220P
C2A ECUV1C474ZFV 0.47
C2B ECUV1C474ZFV 0.47
C2C ECUV1C474ZFV 0.47
C3A ECQE2E105KZ 1		S
C3B ECQE2E105KZ 1		S
C3C ECQE2E105KZ 1		S
C4A ECUV1C474ZFV 0.47
C4B ECUV1C474ZFV 0.47
C4C ECUV1C474ZFV 0.47
C5A F2G1H1000010 10
C5B F2G1H1000010 10
C5C F2G1H1000010 10
C6A F2G1H1000010 10
C6B F2G1H1000010 10
C6C F2G1H1000010 10
C8A ECUV1H102KBV 0.001
C8B ECUV1H102KBV 0.001
C8C ECUV1H102KBV 0.001
C10A ECUV1H101JCV 100P
C10B ECUV1H101JCV 100P
C10C ECUV1H101JCV 100P
C11A ECUV1C683KBV 0.068
C11B ECUV1C683KBV 0.068
C11C ECUV1C683KBV 0.068
C12A ECUV1C563KBV 0.056
C12B ECUV1C563KBV 0.056
C12C ECUV1C563KBV 0.056
C13A ECUV1C563KBV 0.056
C13B ECUV1C563KBV 0.056
C13C ECUV1C563KBV 0.056
C14A ECUV1C563KBV 0.056
C14B ECUV1C563KBV 0.056
C14C ECUV1C563KBV 0.056
C15A ECUV1C563KBV 0.056
C15B ECUV1C563KBV 0.056
C15C ECUV1C563KBV 0.056
C16A ECUV1H101JCV 100P
C16B ECUV1H101JCV 100P
C16C ECUV1H101JCV 100P
C17A ECUV1H101JCV 100P
C17B ECUV1H101JCV 100P
C17C ECUV1H101JCV 100P
C18A ECUV1H101JCV 100P
C18B ECUV1H101JCV 100P
C18C ECUV1H101JCV 100P
C23A ECUV1H223KBV 0.02	2 S
C23B ECUV1H223KBV 0.02	2 S
C23C ECUV1H223KBV 0.02	2 S
C24A ECUV1H223KBV 0.02	2 S
C24B ECUV1H223KBV 0.02	2 S
C24C ECUV1H223KBV 0.02	2 S
C25A ECUV1H223KBV 0.02	2 S
C25B ECUV1H223KBV 0.02	2 S
C25C ECUV1H223KBV 0.02	2 S
C26A ECUV1H103KBV 0.01
C26B ECUV1H103KBV 0.01
C26C ECUV1H103KBV 0.01
C100 ECUV1H223KBV 0.02	2 S
C101 ECUV1C333KBV 0.03	3
C102 ECUV1H223KBV 0.02	2 S
C103 ECUV1H223KBV 0.02	2 S
C200A ECUV1H103KBV 0.01
C200B ECUV1H103KBV 0.01
C200C ECUV1H103KBV 0.01
C200D ECUV1H103KBV 0.01
C200E ECUV1H103KBV 0.01
C200F ECUV1H103KBV 0.01
C200G ECUV1H103KBV 0.01
C200H ECUV1H103KBV 0.01
C201A ECUV1H103KBV 0.01
C201B ECUV1H103KBV 0.01
C201C ECUV1H103KBV 0.01
C201D ECUV1H103KBV 0.01
C201E ECUV1H103KBV 0.01
C201F ECUV1H103KBV 0.01
C201G ECUV1H103KBV 0.01
C201H ECUV1H103KBV 0.01
C202A F2G1C1000015 10
C202B F2G1C1000015 10
C202C F2G1C1000015 10
C202D F2G1C1000015 10
C202E F2G1C1000015 10
C202F F2G1C1000015 10
C202G F2G1C1000015 10
C202H F2G1C1000015 10
C203A F2G1C1000015 10
C203B F2G1C1000015 10
C203C F2G1C1000015 10
C203D F2G1C1000015 10
C203E F2G1C1000015 10
C203F F2G1C1000015 10
C203G F2G1C1000015 10
C203H F2G1C1000015 10
C204A F2G1H2R20005 2.2
C204B F2G1H2R20005 2.2
C204C F2G1H2R20005 2.2
C204D F2G1H2R20005 2.2
C204E F2G1H2R20005 2.2
C204F F2G1H2R20005 2.2
C204G F2G1H2R20005 2.2
C204H F2G1H2R20005 2.2
C205A PSCEA1HN4R7 4.7
C205B PSCEA1HN4R7 4.7
C205C PSCEA1HN4R7 4.7
C205D PSCEA1HN4R7 4.7
C205E PSCEA1HN4R7 4.7
C205F PSCEA1HN4R7 4.7
C205G PSCEA1HN4R7 4.7
C205H PSCEA1HN4R7 4.7
C206A ECUV1C393KBV 0.039 S

Ref.No.	Part No.	Part Name & Description	Remarks
C206B ECUV1C393KBV 0.0	39 S
C206C ECUV1C393KBV 0.0	39 S
C206D ECUV1C393KBV 0.0	39 S
C206E ECUV1C393KBV 0.0	39 S
C206F ECUV1C393KBV 0.0	39 S
C206G ECUV1C393KBV 0.0	39 S
C206H ECUV1C393KBV 0.0	39 S
C207A ECUV1H103KBV 0.0	1
C207B ECUV1H103KBV 0.0	1
C207C ECUV1H103KBV 0.0	1
C207D ECUV1H103KBV 0.0	1
C207E ECUV1H103KBV 0.0	1
C207F ECUV1H103KBV 0.0	1
C207G ECUV1H103KBV 0.0	1
C207H ECUV1H103KBV 0.0	1
C208A F2 G1H1R00013 1
C208B F2 G1H1R00013 1
C208C F2 G1H1R00013 1
C208D F2 G1H1R00013 1
C208E F2 G1H1R00013 1
C208F F2 G1H1R00013 1
C208G F2 G1H1R00013 1
C208H F2 G1H1R00013 1
C209 ECUV1H223KBV 0.0	2 S
C209A ECUV1H103KBV 0.0	1
C209B ECUV1H103KBV 0.0	1
C209C ECUV1H103KBV 0.0	1
C209D ECUV1H103KBV 0.0	1
C209E ECUV1H103KBV 0.0	1
C209F ECUV1H103KBV 0.0	1
C209G ECUV1H103KBV 0.0	1
C209H ECUV1H103KBV 0.0	1
C210A ECUV1H103KBV 0.0	1
C210B ECUV1H103KBV 0.0	1
C210C ECUV1H103KBV 0.0	1
C210D ECUV1H103KBV 0.0	1
C210E ECUV1H103KBV 0.0	1
C210F ECUV1H103KBV 0.0	1
C210G ECUV1H103KBV 0.0	1
C210H ECUV1H103KBV 0.0	1
C211 F1L1E105A008 1
C214 ECU1VB0J225 2.2
C600 ECUV1C473KBV 0.0	47
C601 ECUV1C683KBV 0.0	68
C602 ECUV1C104KBV 0.1
C603 ECUV1C104KBV 0.1
C604 ECUV1H223KBV 0.0	2 S
C605 ECUV1H223KBV 0.0	2 S
C606 ECUV1H332KBV 0.0	33
C607 ECUV1H682KBV 0.0	68 S
C608 EEUFC1E101S 100
C609 ECUV1H223KBV 0.0	2 S
C610 ECUV1H102KBV 0.0	1
C612 ECUV1C104KBV 0.1
C615 ECUV1H471JCV 470P S
C616 ECUV1C104KBV 0.1
C618 ECUV1C563KBV 0.0	56
C619 ECUV1C563KBV 0.0	56
C620 ECUV1H471JCV 470P S
C621 ECUV1C104KBV 0.1
C622 ECUV1H471JCV 470P S
C623 ECUV1C104KBV 0.1
C624 ECUV1H471JCV 470P S
C625 ECUV1H471JCV 470P S
C626 ECUV1H471JCV 470P S
C627 ECUV1C104KBV 0.1
C628 ECUV1C223KBV 0.0	2
C629 ECUV1C223KBV 0.0	2
C630 ECUV1C223KBV 0.0	2
C631 ECUV1C223KBV 0.0	2
C634 ECUV1C104KBV 0.1
C635 ECUV1C104KBV 0.1
C636 ECUV1C104KBV 0.1
C637	ECUV1C104KBV 0.1
C640	ECUV1C105KB 1 S
C641	ECUV1C105KB 1 S
C642	ECUV1H471JCV 470P S
C643	ECUV1C105KB 1 S
C644	ECUV1C105KB 1 S
C645	ECUV1H471JCV 470P S
C646	ECUV1C563KBV 0.056
C647	ECUV1C563KBV 0.056
C648	ECUV1C563KBV 0.056
C649	ECUV1C563KBV 0.056
C650	ECUV1H562KBV 0.0056
C651	ECUV1H562KBV 0.0056
C652	ECUV1H471JCV 470P S
C653	ECUV1H471JCV 470P S
C654	ECUV1H471JCV 470P S
C655	ECUV1H471JCV 470P S
C656	ECUV1C104KBV 0.1
C657	ECUV1C104KBV 0.1
C658	PSCUV2EW223K 0.022 S
C659	ECUV1C104KBV 0.1
C660	ECUV1C104KBV 0.1
C661	ECUV1H223KBV 0.022 S
C662	ECUV1C104KBV 0.1
C663	ECUV1H223KBV 0.022 S
C664	ECUV1H223KBV 0.022 S
C665	ECUV1H223KBV 0.022 S
C666	ECUV1H223KBV 0.022 S
C667	ECUV1H223KBV 0.022 S
C668	ECUV1H223KBV 0.022 S
C669	ECUV1H223KBV 0.022 S
C670	ECUV1H223KBV 0.022 S
C672	ECUV1H223KBV 0.022 S
C673	ECUV1H223KBV 0.022 S
C674	ECUV1H223KBV 0.022 S
C675	ECUV1H152KBV 0.0015
C676	ECUV1H822KBV 0.0082 S
C677	ECUV1C104KBV 0.1
C679	ECUV1C104KBV 0.1
C680	ECUV1C104KBV 0.1
C681	ECUV1C104KBV 0.1
C682	ECUV1H223KBV 0.022 S
C683	ECUV1C104KBV 0.1
C684	ECUV1H471JCV 470P S
C685	ECUV1C104KBV 0.1
C700	EEUFC1E101S 100
C701	EEUFC1E101S 100
C702	EEUFC1E101S 100
C703	F1J1E105A008 1
C704	ECUV1C474ZFV 0.47
C705	EC1A1HN2R2S 2.2
C707	ECUV1A105ZFV 1
C708	ECUV1C823KBV 0.082
C709	ECUV1C823KBV 0.082
C710	ECUV1C104ZFV 0.1
C711	ECUV1H223KBV 0.022 S
C712	ECUV1H223KBV 0.022 S
C713	ECUV1H180JCV 18P
C714	ECUV1H220JCV 22P
C715	ECUV1H223KBV 0.022 S
C716	ECJ1VB0J225 2.2
C717	F1J1E105A008 1
C718	ECUV1C224ZFV 0.22
C719	ECUV1H103KBV 0.01
C720	ECUV1H330JCV 33P
C721	ECUV1H050CCV 5P S
C722	ECUV1C104KBV 0.1
C723	ECUV1C104KBV 0.1
C724	ECUV1C104ZFV 0.1
C725	PQCUV1A225ZF 2.2 S
C726	ECUV1A105ZFV 1
C727	ECUV1C104KBV 0.1
C728	ECUV1C104KBV 0.1

Ref.No.	Part No.	Part Name & Description	Remarks
C729	ECUV1C104ZFV 0.1
C730	PQCUV1A225ZF 2.2	S
C731	ECUV1A105ZFV 1
C732	ECUV1C104ZFV 0.1
C733	ECUV1VB1H221K 220F
C734	ECUV1C104ZFV 0.1
C735	ECUV1C104ZFV 0.1
C736	ECUV1C104ZFV 0.1
C737	ECUV1C104ZFV 0.1
C738	ECUV1C104ZFV 0.1
C739	ECUV1C104ZFV 0.1
C740	PQCUV1A225ZF 2.2	S
C741	ECUV1A105ZFV 1
C742	ECUV1C104ZFV 0.1
C743	ECUV1C104ZFV 0.1
C744	ECUV1C104ZFV 0.1
C745	ECUV1C104ZFV 0.1
C746	ECUV1C104ZFV 0.1
C747	ECUV1C104ZFV 0.1
C748	ECUV1C104ZFV 0.1
C749	ECUV1C104ZFV 0.1
C750	ECUV1C104ZFV 0.1
C751	PQCUV1A225ZF 2.2	S
C752	ECUV1A105ZFV 1
C753	ECUV1C104ZFV 0.1
C754	ECUV1C104ZFV 0.1
C755	ECUV1C104ZFV 0.1
C756	ECUV1C104ZFV 0.1
C758	PQCUV1A225ZF 2.2	S
C759	ECUV1A105ZFV 1
C760	ECUV1C104ZFV 0.1
C761	ECUV1C104ZFV 0.1
C762	ECUV1C104ZFV 0.1
C763	ECUV1C104ZFV 0.1
C764	F2G1H3R30006 3.3
C765	ECUV1C104ZFV 0.1
C766	F2G1H3R30006 3.3
C767	ECUV1C104ZFV 0.1
C768	F2G1H3R30006 3.3
C769	ECUV1A105ZFV 1
C770	ECUV1A105ZFV 1
C771	ECUV1C333KBV 0.033
C772	PQCUV1A225ZF 2.2	S
C773	ECUV1A105ZFV 1
C776	F4D257040001 0.7
C777	F4D257040001 0.7
C778	F2G0J2200006 22
C779	F2G0J2200006 22
C801	ECUV1H103KBV 0.01
C802	ECUV1H103KBV 0.01
C803	ECUV1H103KBV 0.01
C804	ECUV1H103KBV 0.01
C805	ECUV1H103KBV 0.01
C806	ECUV1H103KBV 0.01
C807	ECUV1H103KBV 0.01
C808	ECUV1H103KBV 0.01
C809	ECUV1H103KBV 0.01
C810	ECUV1H103KBV 0.01
C811	ECUV1H103KBV 0.01
C812	ECUV1H103KBV 0.01
C813	ECUV1H103KBV 0.01
C814	ECUV1H103KBV 0.01
C815	ECUV1H103KBV 0.01
C816	ECUV1H103KBV 0.01
C817	ECUV1H103KBV 0.01
C818	ECUV1H103KBV 0.01
C819	ECUV1H103KBV 0.01
C820	ECUV1H103KBV 0.01
C821	ECUV1H103KBV 0.01
C822	ECUV1H103KBV 0.01
C823	ECUV1H103KBV 0.01
C824	ECUV1H103KBV 0.01
C825	ECUV1H103KBV 0.01
C826	ECUV1H103KBV 0.01
C827	ECUV1H103KBV 0.01
C828	ECUV1H103KBV 0.01
C829	ECUV1H103KBV 0.01
C830	ECUV1H103KBV 0.01
C831	ECUV1H103KBV 0.01
C832	ECUV1H103KBV 0.01
C833	ECUV1H103KBV 0.01
C834	ECUV1H103KBV 0.01
C835	ECUV1H103KBV 0.01
C836	ECUV1H103KBV 0.01
C837	ECUV1H103KBV 0.01
C838	ECUV1H103KBV 0.01
C839	ECUV1H103KBV 0.01
C840	ECUV1H103KBV 0.01
C841	ECUV1H103KBV 0.01
C842	ECUV1H103KBV 0.01
C843	ECUV1H103KBV 0.01
C844	ECUV1H103KBV 0.01
C845	ECUV1H103KBV 0.01
C846	ECUV1H103KBV 0.01
C847	ECUV1H103KBV 0.01
C848	ECUV1H103KBV 0.01
C849	ECUV1H103KBV 0.01
C850	ECUV1H103KBV 0.01
C851	ECUV1H103KBV 0.01
C852	ECUV1H103KBV 0.01
C853	ECUV1H103KBV 0.01
C854	ECUV1H103KBV 0.01
C855	ECUV1H103KBV 0.01
C856	ECUV1H103KBV 0.01
C857	ECUV1H103KBV 0.01
C858	ECUV1H103KBV 0.01
C859	ECUV1H103KBV 0.01
C860	ECUV1H103KBV 0.01
C861	ECUV1H103KBV 0.01
C862	ECUV1H103KBV 0.01
C863	ECUV1H103KBV 0.01
C864	ECUV1H103KBV 0.01
C865	ECUV1H103KBV 0.01
C866	ECUV1H103KBV 0.01
C868	ECUV1H103KBV 0.01
C869	ECUV1H103KBV 0.01
C870	ECUV1H103KBV 0.01
C871	ECUV1H103KBV 0.01
C872	ECUV1H103KBV 0.01
C873	ECUV1H103KBV 0.01
C874	ECUV1H103KBV 0.01
C875	ECUV1H103KBV 0.01
C876	ECUV1H103KBV 0.01
C877	ECUV1H103KBV 0.01
C878	ECUV1H103KBV 0.01
C879	ECUV1H103KBV 0.01
C880	ECUV1H103KBV 0.01
C881	ECUV1H103KBV 0.01
C882	ECUV1H103KBV 0.01
C883	ECUV1H103KBV 0.01
C884	ECUV1H103KBV 0.01
C885	ECUV1H103KBV 0.01
C886	ECUV1H103KBV 0.01
C887	ECUV1H103KBV 0.01
C888	ECUV1H103KBV 0.01
C889	ECUV1H103KBV 0.01
C890	ECUV1H103KBV 0.01
C893	ECUV1H103KBV 0.01
C894	ECUV1H103KBV 0.01
C895	ECUV1H103KBV 0.01
C896	ECUV1H103KBV 0.01
C897	ECUV1H103KBV 0.01
C898	ECUV1H103KBV 0.01
C899	ECUV1H103KBV 0.01
C900	ECUV1H103KBV 0.01
C901	ECUV1H103KBV 0.01

Ref.No.	Part No.	Part Name & Description	Remarks
C902 ECU	V1H103KBV 0.01
C903 ECU	V1H103KBV 0.01
C904 ECU	V1H103KBV 0.01
C905 ECU	V1H103KBV 0.01
C906 ECU	V1H103KBV 0.01
C907 ECU	V1H103KBV 0.01
C908 ECU	V1H103KBV 0.01
C909 ECU	V1H103KBV 0.01
C910 ECU	V1H103KBV 0.01
C911 ECU	V1H103KBV 0.01
C912 ECU	V1H103KBV 0.01
C913 ECU	V1H103KBV 0.01
C914 ECU	V1H103KBV 0.01
C915 ECU	V1H103KBV 0.01
C951 ECU	V1H103KBV 0.01
C952 ECU	V1H103KBV 0.01
C953 ECU	V1H103KBV 0.01
C954 ECU	V1H103KBV 0.01
C955 ECU	V1H103KBV 0.01
C956 ECU	V1H103KBV 0.01
C957 ECU	V1H103KBV 0.01
C958 ECU	V1H103KBV 0.01
C960 ECU	V1H103KBV 0.01
C961 ECU	V1H103KBV 0.01
C962 ECU	V1H103KBV 0.01
C963 ECU	V1H103KBV 0.01
C964 ECU	V1H103KBV 0.01
C965 ECU	V1H103KBV 0.01
C966 ECU	V1H103KBV 0.01
C977 ECU	V1H103KBV 0.01
C978 ECU	V1H103KBV 0.01
C979 ECU	V1H103KBV 0.01
C980 ECU	V1H103KBV 0.01
C985 ECU	V1C104KBV 0.1
C989 ECU	V1H223KBV 0.022 S
C991 ECU	V1H103KBV 0.01
C992 ECU	V1H103KBV 0.01
C993 ECU	V1H103KBV 0.01
C994 ECU	V1H103KBV 0.01
C995 PQ	UV1H104ZF 0.1
		(RESISTORS)
J2A PQ4R	18XJ000 0 S
J2B PQ4R	18XJ000 0 S
J2C PQ4R	18XJ000 0 S
J5A PQ4R	10XJ000 0 S
J5B PQ4R	10XJ000 0 S
J5C PQ4R	10XJ000 0 S
J108 PQ4R	18XJ000 0 S
J603 ERJ	3GEY0R00 0
J607 ERJ	3GEY0R00 0
J609 ERJ	3GEY0R00 0
J700 PQ4R	18XJ000 0 S
J701 PQ4R	10XJ000 0 S
J709 PQ4R	18XJ000 0 S
J710 PQ4R	18XJ000 0 S
J711 PQ4R	18XJ000 0 S
J712 ERJ	3GEY0R00 0
J714 ERJ	3GEY0R00 0
J715 ERJ	3GEY0R00 0
J717 PQ4R	18XJ000 0 S
L746 PQ4R	10XJ000 0 S
L747 PQ4R	10XJ000 0 S
L748 PQ4R	10XJ000 0 S
R1A ERJ3	GEYJ683 68K
R1B ERJ3	GEYJ683 68K
R1C ERJ3	GEYJ683 68K
R2A PQ4R	18XJ220 22 S
R2B PQ4R	18XJ220 22 S
R2C PQ4R	18XJ220 22 S
R4A PQ4R	10XJ681 680 S
R4B PQ4R	10XJ681 680 S
R4C PQ4R	10XJ681 680 S
R5A ERJ1	WYJ223 22K
R5B ERJ1	WYJ223 22K
R5C ERJ1	WYJ223 22K
R6A ERJ3	GEYJ683 68K
R6B ERJ3	GEYJ683 68K
R6C ERJ3	GEYJ683 68K
R7A ERJ1	GEYJ392 3.9K
R7B ERJ3	GEYJ392 3.9K
R7C ERJ3	GEYJ392 3.9K
R8A PQ4	R10XJ000 0 S
R8B PQ4	R10XJ000 0 S
R8C PQ4	R10XJ000 0 S
R9A ERJ8	GEYJ390 39
R9B ERJ8	GEYJ390 39
R9C ERJ8	GEYJ390 39
R10A PQ4	R10XJ682 6.8K S
R10B PQ4	R10XJ682 6.8K S
R10C PQ4	R10XJ682 6.8K S
R11A ERJ3	GEYJ103 10K
R11B ERJ3	GEYJ103 10K
R11C ERJ3	GEYJ103 10K
R12A PQ4	R10XJ000 0 S
R12B PQ4	R10XJ000 0 S
R12C PQ4	R10XJ000 0 S
R14A PQ4	R10XJ822 8.2K S
R14B PQ4	R10XJ822 8.2K S
R14C PQ4	R10XJ822 8.2K S
R15A ERJ3	GEYJ101 100
R15B ERJ3	GEYJ101 100
R15C ERJ3	GEYJ101 100
R16A ERJ3	GEYOR00 0
R16B ERJ3	GEYOR00 0
R16C ERJ3	GEYOR00 0
R17A ERJ3	GEYF122 1.2K S
R17B ERJ3	GEYF122 1.2K S
R17C ERJ3	GEYF122 1.2K S
R18A ERJ3	GEYOR00 0
R18B ERJ3	GEYOR00 0
R18C ERJ3	GEYOR00 0
R20A ERJ3	GEYF122 1.2K S
R20B ERJ3	GEYF122 1.2K S
R20C ERJ3	GEYF122 1.2K S
R21A ERJ3	GEYOR00 0
R21B ERJ3	GEYOR00 0
R21C ERJ3	GEYOR00 0
R22A ERJ3	EKF3900 390
R22B ERJ3	EKF3900 390
R22C ERJ3	EKF3900 390
R23A ERJ3	EKF1001 1K
R23B ERJ3	EKF1001 1K
R23C ERJ3	EKF1001 1K
R24A ERJ3	EKF1003 100K
R24B ERJ3	EKF1003 100K
R24C ERJ3	EKF1003 100K
R25A ERJ3	EKF1003 100K
R25B ERJ3	EKF1003 100K
R25C ERJ3	EKF1003 100K
R26A ERJ3	GEYJ334 330K
R26B ERJ3	GEYJ334 330K
R26C ERJ3	GEYJ334 330K
R27A ERJ3	GEYJ334 330K
R27B ERJ3	GEYJ334 330K
R27C ERJ3	GEYJ334 330K
R28A ERJ3	GEYJ304 300K
R28B ERJ3	GEYJ304 300K
R28C ERJ3	GEYJ304 300K
R29A ERJ3	GEYOR00 0
R29B ERJ3	GEYOR00 0
R29C ERJ3	GEYOR00 0
R30A ERJ3	GEYOR00 0
R30B ERJ3	GEYOR00 0
R30C ERJ3	GEYOR00 0
R31A ERJ3	GEYJ304 300K
R31B ERJ3	GEYJ304 300K

Ref.No.	Part No.	Part Name & Description	Remarks
R31C ERJ	3GEYJ304 300K
R34A ERJ	3EKF1003 100K
R34B ERJ	3EKF1003 100K
R34C ERJ	3EKF1003 100K
R35A ERJ	3EKF1003 100K
R35B ERJ	3EKF1003 100K
R35C ERJ	3EKF1003 100K
R37A ERJ	3GEY0R00 0
R37B ERJ	3GEY0R00 0
R37C ERJ	3GEY0R00 0
R38A ERJ	3GEY0R00 0
R38B ERJ	3GEY0R00 0
R38C ERJ	3GEY0R00 0
R39A ERJ	3GEYF122 1.2K S
R39B ERJ	3GEYF122 1.2K S
R39C ERJ	3GEYF122 1.2K S
R40A ERJ	3GEYF122 1.2K S
R40B ERJ	3GEYF122 1.2K S
R40C ERJ	3GEYF122 1.2K S
R41A ERJ	3GEYJ471 470
R41B ERJ	3GEYJ471 470
R41C ERJ	3GEYJ471 470
R42A ERJ	3GEYF122 1.2K S
R42B ERJ	3GEYF122 1.2K S
R42C ERJ	3GEYF122 1.2K S
R43A ERJ	3GEY0R00 0
R43B ERJ	3GEY0R00 0
R43C ERJ	3GEY0R00 0
R45A ERJ	3GEY0R00 0
R45B ERJ	3GEY0R00 0
R45C ERJ	3GEY0R00 0
R46A ERJ	3GEYF122 1.2K S
R46B ERJ	3GEYF122 1.2K S
R46C ERJ	3GEYF122 1.2K S
R47A ERJ	3GEYJ473 47K
R47B ERJ	3GEYJ473 47K
R47C ERJ	3GEYJ473 47K
R49A ERJ	3GEYJ473 47K
R49B ERJ	3GEYJ473 47K
R49C ERJ	3GEYJ473 47K
R50A ERJ	3GEYJ473 47K
R50B ERJ	3GEYJ473 47K
R50C ERJ	3GEYJ473 47K
R51A ERJ	3GEYJ104 100K
R51B ERJ	3GEYJ104 100K
R51C ERJ	3GEYJ104 100K
R52A ERJ	3GEYJ272 2.7K
R52B ERJ	3GEYJ272 2.7K
R52C ERJ	3GEYJ272 2.7K
R53A ERJ	3GEYJ103 10K
R53B ERJ	3GEYJ103 10K
R53C ERJ	3GEYJ103 10K
R103 ERJ	3GEYJ103 10K
R104 ERJ	3GEYJ331 330
R105 ERJ	3GEYJ331 330
R106 ERJ	3GEYJ331 330
R107 ERJ	3GEYJ331 330
R108 ERJ	3GEYJ331 330
R109 ERJ	3GEYJ331 330
R110 ERJ	3GEYJ103 10K
R200A ERJ	3GEYJ682 6.8K
R200B ERJ	3GEYJ682 6.8K
R200C ERJ	3GEYJ682 6.8K
R200D ERJ	3GEYJ682 6.8K
R200E ERJ	3GEYJ682 6.8K
R200F ERJ	3GEYJ682 6.8K
R200G ERJ	3GEYJ682 6.8K
R200H ERJ	3GEYJ682 6.8K
R201A ERJ	3GEYJ682 6.8K
R201B ERJ	3GEYJ682 6.8K
R201C ERJ	3GEYJ682 6.8K
R201D ERJ	3GEYJ682 6.8K
R201E ERJ	3GEYJ682 6.8K
R201F	ERJ3GEYJ682 6.8K
R201G	ERJ3GEYJ682 6.8K
R201H	ERJ3GEYJ682 6.8K
R202A	ERJ14YJ220 22
R202B	ERJ14YJ220 22
R202C	ERJ14YJ220 22
R202D	ERJ14YJ220 22
R202E	ERJ14YJ220 22
R202F	ERJ14YJ220 22
R202G	ERJ14YJ220 22
R202H	ERJ14YJ220 22
R203A	ERJ14YJ220 22
R203B	ERJ14YJ220 22
R203C	ERJ14YJ220 22
R203D	ERJ14YJ220 22
R203E	ERJ14YJ220 22
R203F	ERJ14YJ220 22
R203G	ERJ14YJ220 22
R203H	ERJ14YJ220 22
R204A	ERJ14YJ680 68
R204B	ERJ14YJ680 68
R204C	ERJ14YJ680 68
R204D	ERJ14YJ680 68
R204E	ERJ14YJ680 68
R204F	ERJ14YJ680 68
R204G	ERJ14YJ680 68
R204H	ERJ14YJ680 68
R205A	ERJ14YJ680 68
R205B	ERJ14YJ680 68
R205C	ERJ14YJ680 68
R205D	ERJ14YJ680 68
R205E	ERJ14YJ680 68
R205F	ERJ14YJ680 68
R205G	ERJ14YJ680 68
R205H	ERJ14YJ680 68
R206A	ERJ1WYJ102 1K S
R206B	ERJ1WYJ102 1K S
R206C	ERJ1WYJ102 1K S
R206D	ERJ1WYJ102 1K S
R206E	ERJ1WYJ102 1K S
R206F	ERJ1WYJ102 1K S
R206G	ERJ1WYJ102 1K S
R206H	ERJ1WYJ102 1K S
R207A	ERJ3GEYJ333 33K
R207B	ERJ3GEYJ333 33K
R207C	ERJ3GEYJ333 33K
R207D	ERJ3GEYJ333 33K
R207E	ERJ3GEYJ333 33K
R207F	ERJ3GEYJ333 33K
R207G	ERJ3GEYJ333 33K
R207H	ERJ3GEYJ333 33K
R208A	ERJ3GEYJ563 56K
R208B	ERJ3GEYJ563 56K
R208C	ERJ3GEYJ563 56K
R208D	ERJ3GEYJ563 56K
R208E	ERJ3GEYJ563 56K
R208F	ERJ3GEYJ563 56K
R208G	ERJ3GEYJ563 56K
R208H	ERJ3GEYJ563 56K
R209A	ERJ3GEYJ153 15K
R209B	ERJ3GEYJ153 15K
R209C	ERJ3GEYJ153 15K
R209D	ERJ3GEYJ153 15K
R209E	ERJ3GEYJ153 15K
R209F	ERJ3GEYJ153 15K
R209G	ERJ3GEYJ153 15K
R209H	ERJ3GEYJ153 15K
R210A	ERJ3GEYJ333 33K
R210B	ERJ3GEYJ333 33K
R210C	ERJ3GEYJ333 33K
R210D	ERJ3GEYJ333 33K
R210E	ERJ3GEYJ333 33K
R210F	ERJ3GEYJ333 33K

Ref.No.	Part No.	Part Name & Description	Remarks
R210G ER	J3GEYJ333 33K
R210H ER	J3GEYJ333 33K
R211A ER	J3GEYJ123 12K
R211B ER	J3GEYJ123 12K
R211C ER	J3GEYJ123 12K
R211D ER	J3GEYJ123 12K
R211E ER	J3GEYJ123 12K
R211F ER	J3GEYJ123 12K
R211G ER	J3GEYJ123 12K
R211H ER	J3GEYJ123 12K
R215A ER	J3GEYJ473 47K
R215B ER	J3GEYJ473 47K
R215C ER	J3GEYJ473 47K
R215D ER	J3GEYJ473 47K
R215E ER	J3GEYJ473 47K
R215F ER	J3GEYJ473 47K
R215G ER	J3GEYJ473 47K
R215H ER	J3GEYJ473 47K
R216A ER	J3GEYJ103 10K
R216B ER	J3GEYJ103 10K
R216C ER	J3GEYJ103 10K
R216D ER	J3GEYJ103 10K
R216E ER	J3GEYJ103 10K
R216F ER	J3GEYJ103 10K
R216G ER	J3GEYJ103 10K
R216H ER	J3GEYJ103 10K
R218A ER	J3GEYJ103 10K
R218B ER	J3GEYJ103 10K
R218C ER	J3GEYJ103 10K
R218D ER	J3GEYJ103 10K
R218E ER	J3GEYJ103 10K
R218F ER	J3GEYJ103 10K
R218G ER	J3GEYJ103 10K
R218H ER	J3GEYJ103 10K
R219A ER	J3GEYJ102 1K
R219B ER	J3GEYJ102 1K
R219C ER	J3GEYJ102 1K
R219D ER	J3GEYJ102 1K
R219E ER	J3GEYJ102 1K
R219F ER	J3GEYJ102 1K
R219G ER	J3GEYJ102 1K
R219H ER	J3GEYJ102 1K
R220A PQ	4R10XJ271 270 S
R220B PQ	4R10XJ271 270 S
R220C PQ	4R10XJ271 270 S
R220D PQ	4R10XJ271 270 S
R220E PQ	4R10XJ271 270 S
R220F PQ	4R10XJ271 270 S
R220G PQ	4R10XJ271 270 S
R220H PQ	4R10XJ271 270 S
R221A ER	J3GEYJ103 10K
R221B ER	J3GEYJ103 10K
R221C ER	J3GEYJ103 10K
R221D ER	J3GEYJ103 10K
R221E ER	J3GEYJ103 10K
R221F ER	J3GEYJ103 10K
R221G ER	J3GEYJ103 10K
R221H ER	J3GEYJ103 10K
R225 ER	3GEYJ103 10K
R225A ER	J3GEYJ103 10K
R225B ER	J3GEYJ103 10K
R225C ER	J3GEYJ103 10K
R225D ER	J3GEYJ103 10K
R225E ER	J3GEYJ103 10K
R225F ER	J3GEYJ103 10K
R225G ER	J3GEYJ103 10K
R225H ER	J3GEYJ103 10K
R226 ER	3GEYJ103 10K
R227 ER	3GEYJ682 6.8K
R228 ER	3GEYJ682 6.8K
R229 ER	3GEYOR00 0
R231 ER	3GEYJ273 27K
R232 ER	3GEYJ273 27K
R235 ERJ3GEYJ222 2.2K
R237 ERJ3GEYJ472 4.7K
R238 ERJ3GEYJ102 1K
R239 ERJ3GEYJ473 47K
R240 ERJ3GEYJ101 100
R241 ERJ3GEYJ472 4.7K
R511 ERJ3GEYJ272 2.7K
R512 ERJ3GEYJ104 100K
R516 ERJ3GEYJ104 100K
R517 ERJ3GEYJ104 100K
R518 ERJ3GEYJ273 27K
R520 ERJ3GEYJ471 470
R521 ERJ3GEYJ393 39K
R525 ERJ3GEYJ224 220K
R526 ERJ3GEYJ124 120K
R527 ERJ3GEYJ333 33K
R528 ERJ3GEYJ223 22K
R529 ERJ3GEYJ683 68K
R530 ERJ3GEYJ102 1K
R531 ERJ3GEYJ473 47K
R532 ERJ3GEYOR00 0
R534 ERJ3GEYJ223 22K
R535 ERJ3GEYJ393 39K
R536 ERJ3GEYJ104 100K
R537 ERJ3GEYOR00 0
R538 ERJ3GEYJ393 39K
R539 ERJ3GEYJ123 12K
R540 ERJ3GEYJ223 22K
R541 ERJ3GEYJ223 22K
R542 ERJ3GEYOR00 0
R543 ERJ3GEYOR00 0
R544 ERJ3GEYOR00 0
R545 ERJ3GEYOR00 0
R546 ERJ3GEYJ103 10K
R547 ERJ3GEYJ223 22K
R548 ERJ3GEYJ123 12K
R549 ERJ3GEYJ472 4.7K
R550 ERJ3GEYJ682 6.8K
R551 ERJ3GEYJ682 6.8K
R552 ERJ3GEYJ123 12K
R553 ERJ3GEYJ682 6.8K
R554 ERJ3GEYJ682 6.8K
R556 ERJ3GEYJ104 100K
R557 ERJ3GEYJ104 100K
R558 ERJ3GEYOR00 0
R559 ERJ3GEYJ122 1.2K
R560 ERJ1WYJ102 1K S
R561 ERJ3GEYOR00 0
R562 ERJ3GEYJ273 27K
R563 ERJ3GEYJ122 1.2K
R564 ERJ3GEYJ471 470
R565 ERJ3GEYJ122 1.2K
R566 ERJ3GEYJ473 47K
R567 ERJ3GEYJ473 47K
R568 ERJ3GEYJ103 10K
R569 ERJ3GEYJ273 27K
R570 ERJ3GEYJ273 27K
R571 ERJ3GEYJ334 330K
R572 ERJ3GEYJ103 10K
R573 ERJ3GEYJ273 27K
R574 ERJ3GEYOR00 0
R575 ERJ3GEYOR00 0
R576 ERJ3GEYJ222 2.2K
R577 ERJ3GEYJ222 2.2K
R578 ERJ3GEYJ334 330K
R579 ERJ3GEYOR00 0
R580 ERJ3GEYOR00 0
R581 ERJ3GEYJ222 2.2K
R582 ERJ3GEYJ221 220
R583 ERJ3GEYJ222 2.2K
R584 ERJ3GEYJ221 220
R585 ERJ3GEYJ152 1.5K
R586 ERJ3GEYJ473 47K

Ref.No.	Part No.	Part Name & Description	Remarks
R587 ERJ	3GEYJ152 1.5K
R588 ERJ	3GEYJ473 47K
R589 ERJ	3GEYJ473 47K
R590 ERJ	3GEYJ473 47K
R591 ERJ	3GEYJ103 10K
R592 ERJ	3GEYJ103 10K
R593 ERJ	3GEYOR00 0
R597 ERJ	3GEYJ393 39K
R598 ERJ	3GEYJ393 39K
R599 ERJ	3GEYJ393 39K
R600 ERJ	3GEYJ393 39K
R601 ERJ	3GEYJ103 10K
R602 ERJ	3GEYJ103 10K
R603 ERJ	3GEYJ122 1.2K
R604 ERJ	3GEYJ122 1.2K
R605 ERJ	3GEYJ122 1.2K
R606 ERJ	3GEYJ122 1.2K
R607 ERJ	3GEYJ122 1.2K
R608 ERJ	3GEYJ122 1.2K
R609 ERJ	3GEYJ122 1.2K
R610 ERJ	3GEYJ122 1.2K
R611 ERJ	3GEYJ223 22K
R612 ERJ	3GEYJ123 12K
R620 ERJ	3GEYJ473 47K
R622 ERJ	3GEYOR00 0
R623 ERJ	3GEYOR00 0
R624 ERJ	3GEYJ122 1.2K
R625 ERJ	3GEYJ122 1.2K
R626 ERJ	3GEYJ122 1.2K
R627 ERJ	3GEYJ122 1.2K
R628 ERJ	3GEYJ122 1.2K
R629 ERJ	3GEYJ122 1.2K
R630 ERJ	3GEYJ122 1.2K
R631 ERJ	3GEYJ122 1.2K
R634 ERJ	3GEYJ104 100K
R635 ERJ	3GEYJ220 22
R701 ERJ	3GEYJ223 22K
R702 ERJ	3GEYJ683 68K
R703 ERJ	3GEYJ473 47K
R704 ERJ	3GEYJ123 12K
R705 ERJ	3GEYJ103 10K
R706 ERJ	3GEYJ472 4.7K
R707 ERJ	3GEYJ102 1K
R708 ERJ	3GEYJ394 390K
R709 ERJ	3GEYJ184 180K
R710 ERJ	3GEYJ184 180K
R711 ERJ	3GEYJ203 20K
R712 ERJ	3GEYJ103 10K
R713 ERJ	3GEYJ122 1.2K
R714 ERJ	3GEYJ472 4.7K
R715 ERJ	3GEYJ134 130K
R716 ERJ	3GEYJ103 10K
R717 ERJ	3GEYJ102 1K
R718 ERJ	3GEYJ390 39
R719 ERJ	3GEYJ271 270
R720 ERJ	3GEYJ103 10K
R721 ERJ	3GEYJ151 150
R722 ERJ	3GEYJ562 5.6K
R723 ERJ	3GEYJ105 1M
R724 ERJ	3GEYJ100 10
R725 ERJ	3GEYJ390 39
R726 ERJ	3GEYJ390 39
R727 ERJ	3GEYJ390 39
R728 ERJ	3GEYJ390 39
R729 ERJ	3GEYJ103 10K
R730 ERJ	3GEYJ102 1K
R731 ERJ	3GEYJ103 10K
R732 ERJ	3GEYJ473 47K
R733 ERJ	3GEYJ473 47K
R734 ERJ	3GEYJ390 39
R735 ERJ	3GEYJ390 39
R736 ERJ	3GEYJ390 39
R737 ERJ	3GEYJ390 39
R738 ERJ6GEYJ515 5.1M
R739 ERJ3GEYJ683 68K
R740 ERJ3GEYJ683 68K
R741 ERJ3GEYJ683 68K
R743 ERJ3GEYJ103 10K
R744 ERJ3GEYJ103 10K
R745 ERJ3GEYJ103 10K
R746 ERJ3GEYJ103 10K
R747 ERJ3GEYJ103 10K
R748 ERJ3GEYJ102 1K
R749 ERJ3GEYJ220 22
R750 ERJ3GEYJ220 22
R751 ERJ3GEYJ152 1.5K
R752 ERJ3GEYJ154 150K
R753 ERJ3GEYJ154 150K
R754 ERJ3GEYJ680 68
R755 ERJ3GEYJ221 220
R757 ERJ3GEYJ680 68
R758 ERJ3GEYJ221 220
R803 ERJ3GEYJ390 39
R804 ERJ3GEYJ390 39
R805 ERJ3GEYJ390 39
R806 ERJ3GEYJ390 39
R807 ERJ3GEYJ390 39
R808 ERJ3GEY0R00 0

19.4. POWER SUPPLY BOARD PARTS

Ref.No.	Part No.	Part Name & Description	Remarks
PCB2 PSL	P1278Z POWER	SUPPLY BOARD ASS'Y (RTL)
		(ICS)
IC201 PSVIFA5511N IC S
IC211 PSVITA76432S IC S
IC601 PSVILA6500L IC S
		(TRANSISTORS)
Q1 2SK3525 TRANSISTOR(SI)
Q2 2SC4097 TRANSISTOR(SI) S
Q3 2SA1972 TRANSISTOR(SI) S
Q21 2SC1740S TRANSISTOR(SI) S
Q22 2SC4081R TRANSISTOR(SI) S
Q23 2SC4081R TRANSISTOR(SI) S
Q101 2SC4081R TRANSISTOR(SI) S
Q150 2SC4081R TRANSISTOR(SI) S
Q201 2SK2382 TRANSISTOR(SI)
Q202 2SC4081R TRANSISTOR(SI) S
Q211 2SA1576R TRANSISTOR(SI)
Q501 2SC4097 TRANSISTOR(SI) S
Q502 2SA1576R TRANSISTOR(SI)
Q503 2SD2012 TRANSISTOR(SI)
Q504 2SA1576R TRANSISTOR(SI)
		(DIODES)
D2 PSVDHZS12A2 DIODE(SI) S
D4 1SS355 DIODE(SI) S
D5 PSVDHZS11 DIODE(SI) S
D7 1SS355 DIODE(SI) S
D9 1SS355 DIODE(SI) S
D10 PSVDERA1506 DIODE(SI)
D11 PSVDERA1506 DIODE(SI)
D12 PSVDERA1506 DIODE(SI)
D13 PSVDERA1506 DIODE(SI)
D17 1SS355 DIODE(SI) S
D19 MA8200 DIODE(SI)
D20 PFVDERA9102 DIODE(SI) S
D25 1SS355 DIODE(SI) S
D26 1SS355 DIODE(SI) S
D31 PSVDERA1506 DIODE(SI)
D32 PSVDERA1506 DIODE(SI)
D46 MA8091 DIODE(SI)
D101 PSVDYG862C15 DIODE(SI) S

Ref.No.	Part No.	Part Name & Description	Remarks
D104 PSV	DHZ30P DIODE(SI)	S
D111 PSV	DHZS6 DIODE(SI)	S
D201 PSV	DHZS33 DIODE(SI)	S
D202 PFV	DERA9102 DIODE(SI)	S
D203 MA8	056 DIODE(SI)
D210 MA8	140 DIODE(SI)
D301 PSV	DYG811S6R DIODE(SI)	S
D401 PSV	DYG811S6R DIODE(SI)	S
D402 PSV	DHZ24P DIODE(SI)	S
D501 PSV	DERA1506 DIODE(SI)
D502 PSV	DYG811S6R DIODE(SI)	S
D504 PSV	DHZS22 DIODE(SI)	S
D505 PSV	DHZS20 DIODE(SI)	S
D506 PSV	DERA1506 DIODE(SI)
D507 1SS	133 DIODE(SI)
D508 1SS	133 DIODE(SI)
D509 1SS	133 DIODE(SI)
D510 PSV	DHZS20 DIODE(SI)	S
D701 PSV	DEC21QS06 DIODE(SI)	S
		(CONNECTORS)
CN1 PSJS	0714 CONNECTOR	S
CN2 TP00	527-21 CONNECTOR
CN101 B2	B-EH-A CONNECTOR
CN301 B1	1B-PH CONNECTOR
CN501 PQ	JP2D98Z CONNECTOR	S
CN601 B4	P-VH CONNECTOR
		(COILS)
BEA101	PSLEBL02RN1 COIL	S
BEA102	PSLEBL02RN2 COIL	S
BEA2 PSI	EBL02RN1 COIL	S
BEA202	BLM41PG471	COIL
BEA301	BLM31PG330	COIL
BEA302	PSLEBL02RN1 COIL	S
BEA701	BLM41PG471	COIL
L1 PSLE8	52F20A COIL	S
L2 PSLE8	52F20A COIL	S
		(FUSES)
F1 PSBA3	82250A FUSE	S
F2 PSBA3	82250A FUSE	S
F501 PSB	A382400A FUSE	S
		(TRANSFORMERS)
T1 PSLT5	3D1 TRANSFORMER	S
T2 PSLT5	3D1 TRANSFORMER	S
		(THERMISTOR)
NTC1 PSR	TNTPAA5R1 THERMISTOR	S
		(PHOTO ELECTRIC TRANSDUCERS)
PC1 PFV1	PC123Y PHOTO COUPER	S
PC31 PFV	IPC123Y PHOTO COUPER	S
		(RELAY)
RL501 PS	SLG5PA1 RELAY	S
		(VARIABLE RESISTORS)
VR101 EV	NCYAA03B23 VARIABLE RESISTOR, 2K
VR211 EV	NCYAA03B13 VARIABLE RESISTOR, 1K
		(VARISTOR)
Z1 PSRZQ	471D10A VARISTOR	S
		(CAPACITORS)
C1 PSCQE	LE224 0.22	S
C2 PSCQE	LE224 0.22	S
C5 PSCEA	450V150 15P	S
C9 GRM39	B472J50 4700P
C10 GRM3	9B103J50 0.01
C13 GRM3	9B102J50 1000P
C14 GRM4	26B105K5 1	S
C17 DE1E	3KX472 4700P
C19 DE1E	3KX102 1000P
C20 DEHR	33A471 470P
C22 GRM3	9CH101 100P
C31 PSCEA	A450VB1 1	S
C41 PFKI	2E3K102 1000P	S
C42 PFKI	2E3K102 1000P	S
C61 PSCQ	ELE224 0.22	S
C62 PSCQ	ELE224 0.22	S
C81 DEA1	X3D101 100P
C101 PSCEA35ZL470 47P	S
C108 GRM426B224K5 0.22	S
C109 DEHR33A331 330P
C110 GRM39B104K50 0.1
C151 GRM39B104K25 0.1
C201 GRM39B104K50 0.1
C202 GRM39B104K50 0.1
C204 GRM39CH471J5 470P
C205 GRM39B222J50 2200P
C206 GRM40B104K50 0.1
C209 DEHR33A152 1500P
C213 GRM426B105K2 1 S
C230 GRM40B472J50 4700P
C231 GRM39B104K16 0.1
C301 PSCE10ZL1000 1000	S
C401 PSCEA25ZL680 68P	S
C501 GRM39B332J50 3300P
C601 PSCEA50VB10 10 S
C602 GRM39B104K50 0.1
C603 GRM39B104K50 0.1
C702 PSCEA50ZL100 10P	S
		(RESISTORS)
D22 PQ4R10XJ000 0 S
J1 PQ4R10XJ000 0 S
R2 ERJ6GEYF243 24K
R3 ERJ6GEYF154 150K
R4 ERJ6GEYF154 150K
R5 ERJ6GEYF203 20K
R6 PQ4R18XJ681 680 S
R7 PQ4R10XJ561 560 S
R8 ERJ3GEYJ333 33K
R10 PQ4R10XJ333 33K S
R11 ERJ3GEYF472 4.7K
R12 ERJ3GEYJ153 15K
R13 ERJ3GEYJ102 1K
R14 PQ4R10XJ105 1M S
R15 PQ4R10XJ105 1M S
R16 PQ4R10XJ105 1M S
R17 ERJ3GEYJ472 4.7K
R19 PQ4R18XJ220 22 S
R21 PQ4R18XJ681 680 S
R22 ERJ3GEYJ104 100K
R23 ERJ3GEYJ243 24K
R24 ERJ3GEYJ104 100K
R25 PQ4R18XJ330 33 S
R26 ERJ3GEYOR00 0
R27 PQ4R10XJ103 10K S
R28 ERJ3GEYJ333 33K
R33 PQ4R18XJ223 22K S
R34 PQ4R18XJ223 22K S
R35 PQ4R18XJ223 22K S
R36 PQ4R18XJ223 22K S
R37 PQ4R18XJ223 22K S
R38 PQ4R18XJ223 22K S
R39 PQ4R18XJ223 22K S
R40 PQ4R18XJ223 22K S
R41 PQ4R18XJ223 22K S
R71 ERJ3GEYF274 270K
R72 ERJ3GEYF274 270K
R73 ERJ3GEYF274 270K
R110 ERJ3GEYJ102 1K S
R111 ERJ3GEYJ102 1K S
R112 ERJ3GEYJ392 3.9K	S
R113 ERJ3GEYJ472 4.7K	S
R114 ERJ3GEYJ133 13K S
R150 ERJ3GEYJ751 750 S
R151 ERJ3GEYJ154 150K
R152 ERJ3GEYJ751 750
R153 ERJ3GEYJ124 120K
R154 ERJ3GEYJ124 120K
R201 PQ4R18XJ101 100 S
R202 PQ4R18XJ100 10 S
R203 PQ4R18XJ102 1K S

Ref.No.	Part No.	Part Name & Description	Remarks
R204 ERJ	3GEYJ222 2.2K
R205 PQ4	R10XJ153 15K S
R206 ERX	2SJR10 0.1 S
R207 ERX	2SJR10 0.1 S
R208 ERJ	3RBD823 82K
R209 PQ4	R10XJ472 4.7K S
R210 ERD	S2TJ222 2.2K
R211 ERJ	6GEYF101 100
R212 ERJ	3GEYJ391 390
R213 ERJ	3GEYJ332 3.3K
R214 ERJ	3GEYJ102 1K
R215 ERJ	3GEYJ821 820
R216 ERJ	3GEYJ102 1K
R220 PQ4	R10XJ821 820 S
R221 ERJ	3GEYJ225 2.2M
R222 ERX	2LJ68ME 68M
R230 ERJ	3GEYJ563 56K
R301 PQ4	R18XJ221 220 S
R401 PQ4	R18XJ222 2.2K S
R402 PQ4	R18XJ222 2.2K S
R501 RF1	6CT26A101 100
R502 ERJ	3GEYJ471 470
R503 ERJ	3GEYJ222 2.2K
R504 ERJ	3GEYJ103 10K
R505 PQ4	R10XJ472 4.7K S
R506 ERJ	3GEYJ472 4.7K
R507 PQ4	R18XJ152 1.5K S
R508 PQ4	R18XJ220 22 S
R509 PQ4	R18XJ220 22 S
R510 PQ4	R18XJ220 22 S
R511 PQ4	R18XJ220 22 S
R512 PQ4	R18XJ220 22 S
R513 PQ4	R18XJ220 22 S
R514 ERJ	3GEYJ471 470
R515 PQ4	R10XJ102 1K S
R516 PQ4	R18XJ152 1.5K S
R517 PQ4	R18XJ152 1.5K S
R518 PQ4	R18XJ152 1.5K S
R519 ERJ	3GEYJ561 560
R520 ERJ	3GEYJ471 470
R601 PQ4	R18XJ331 330 S
R602 PQ4	R18XJ331 330 S
R603 PQ4	R18XJ331 330 S
R604 ERJ	6GEYF562 5.6K
R605 ERJ	6GEYF822 8.2K
R606 PQ4	R10XJ2R2 2.2 S
R607 ERJ	6GEYF562 5.6K
R701 PQ4	R18XJ222 2.2K S
R702 PQ4	R18XJ222 2.2K S
R703 PQ4	R18XJ222 2.2K S

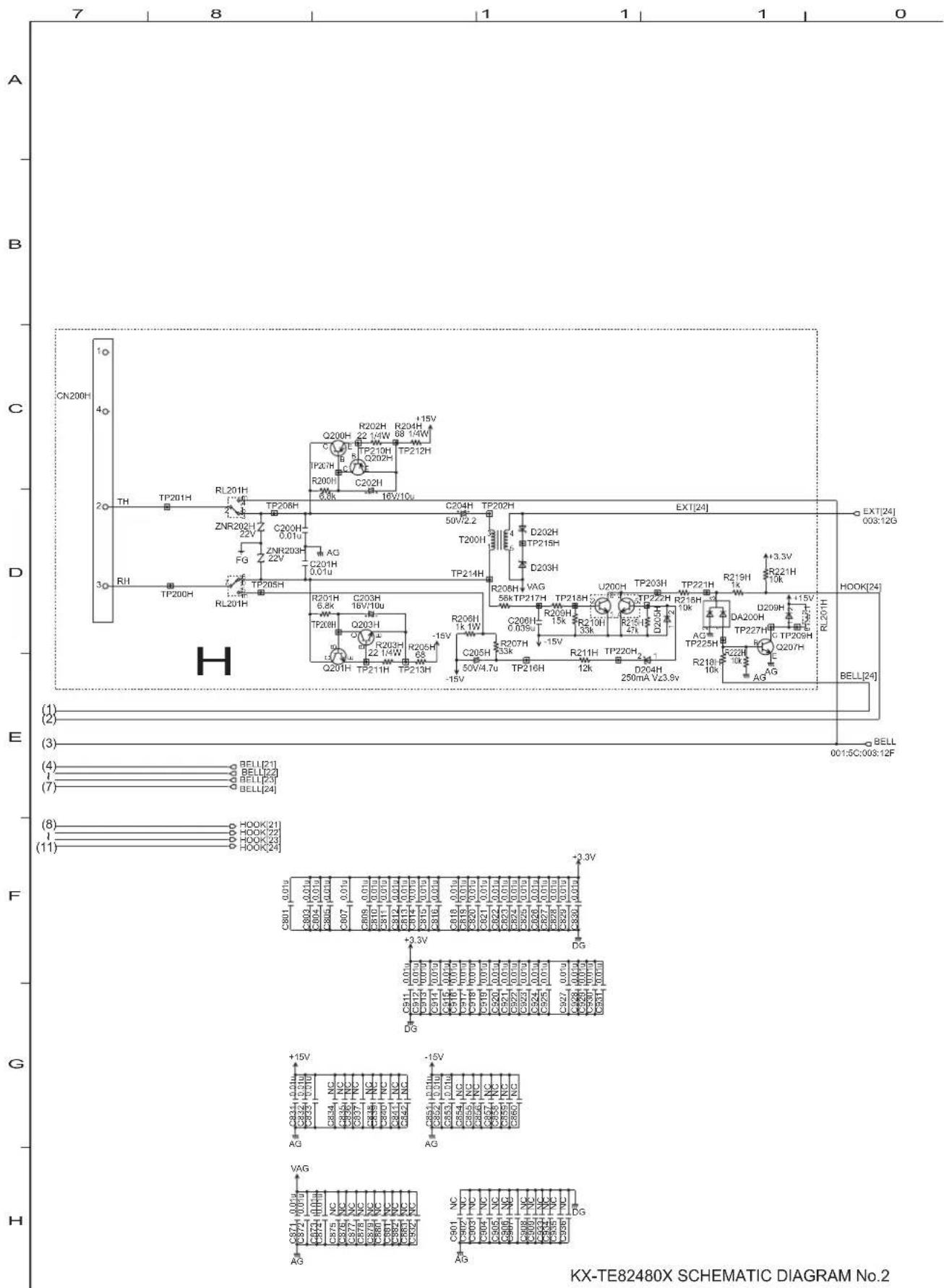

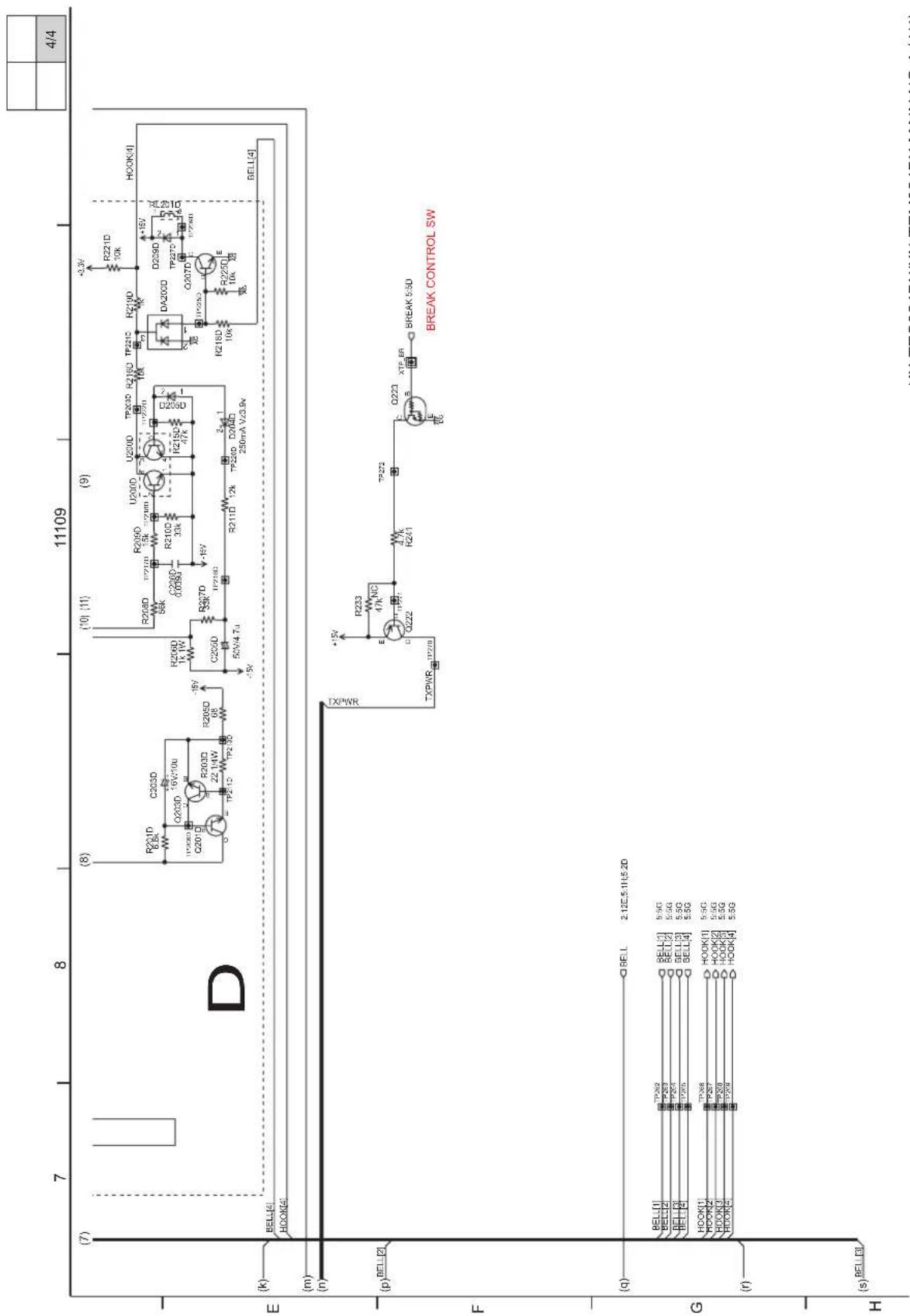

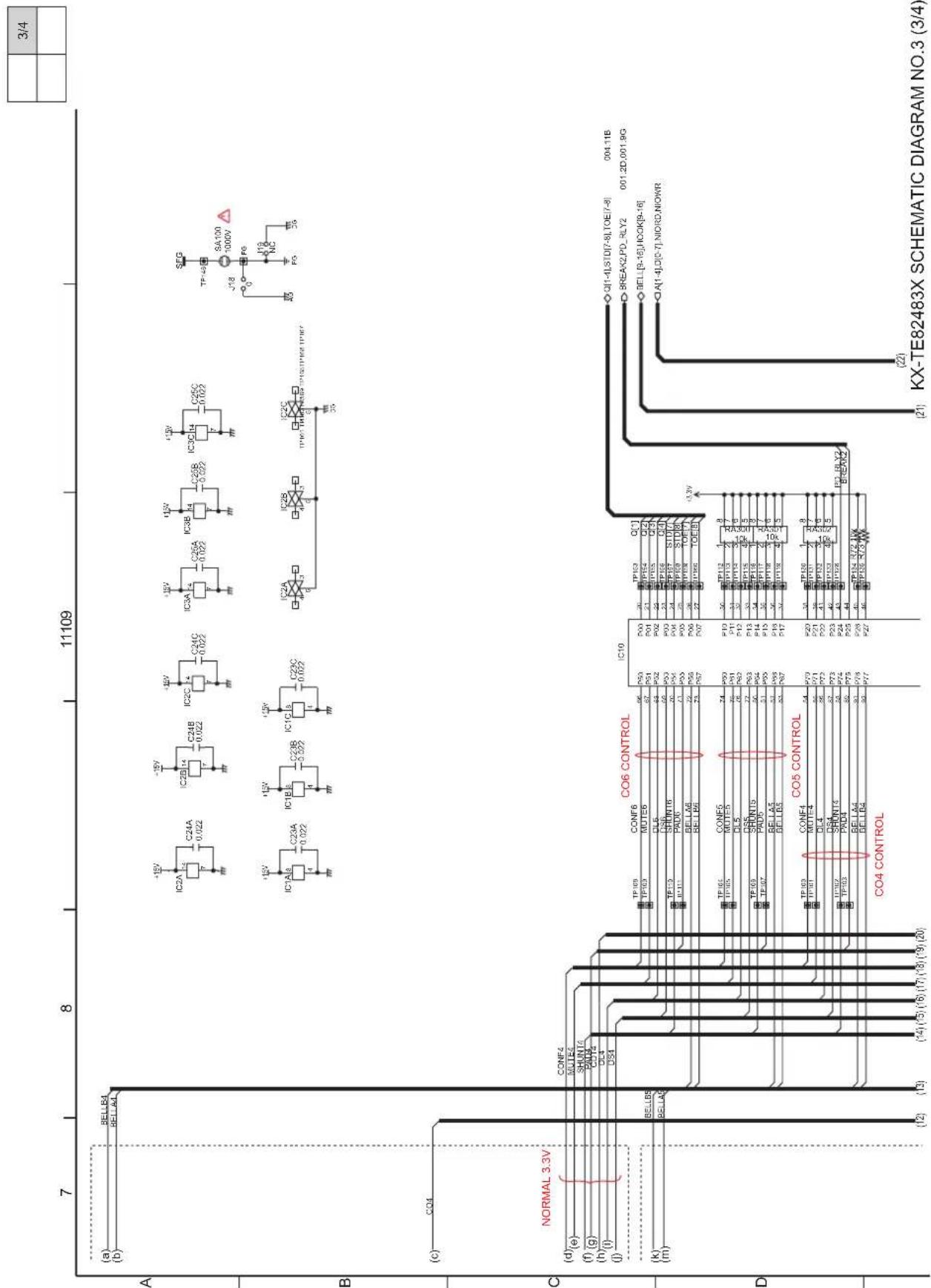

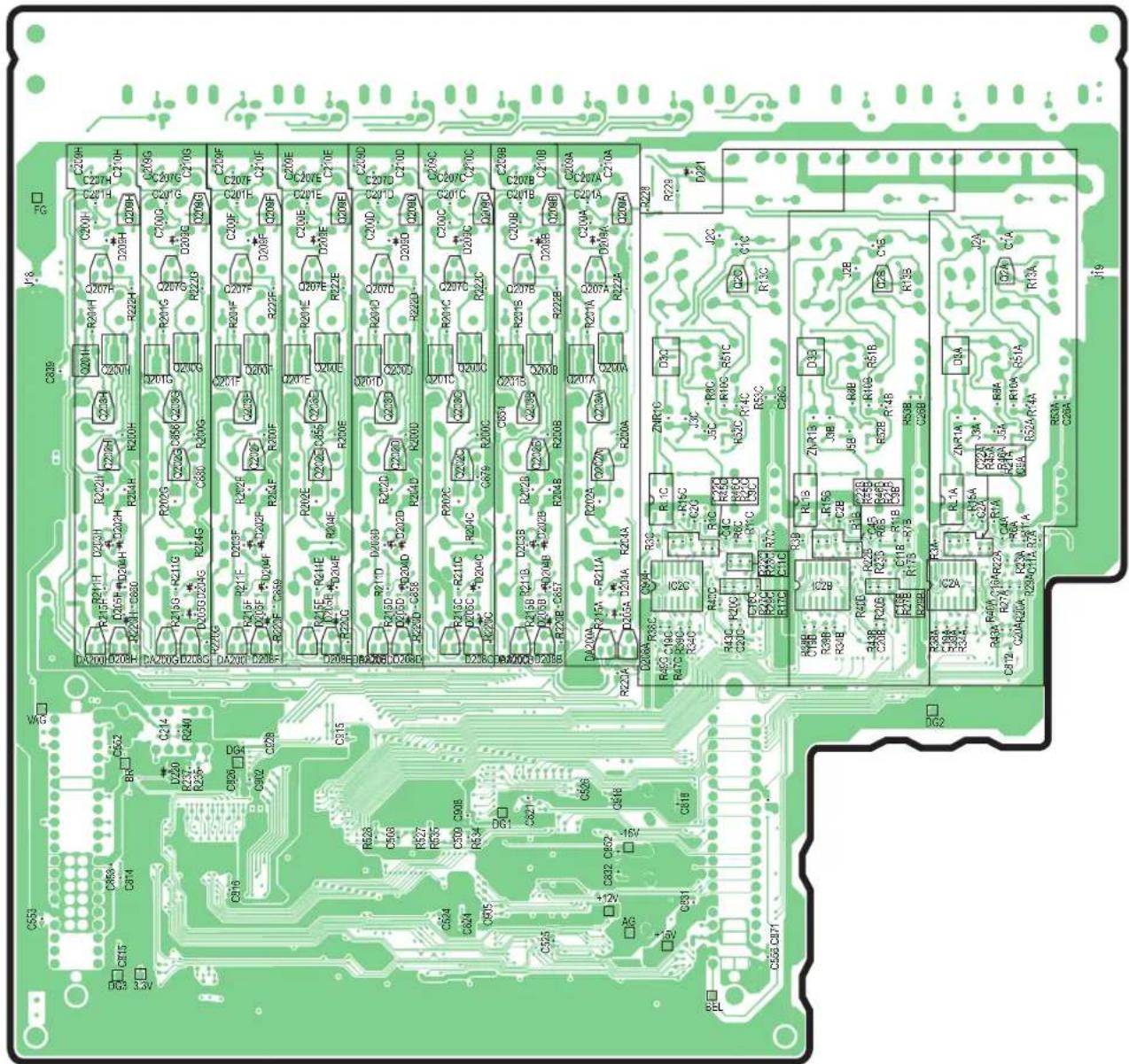

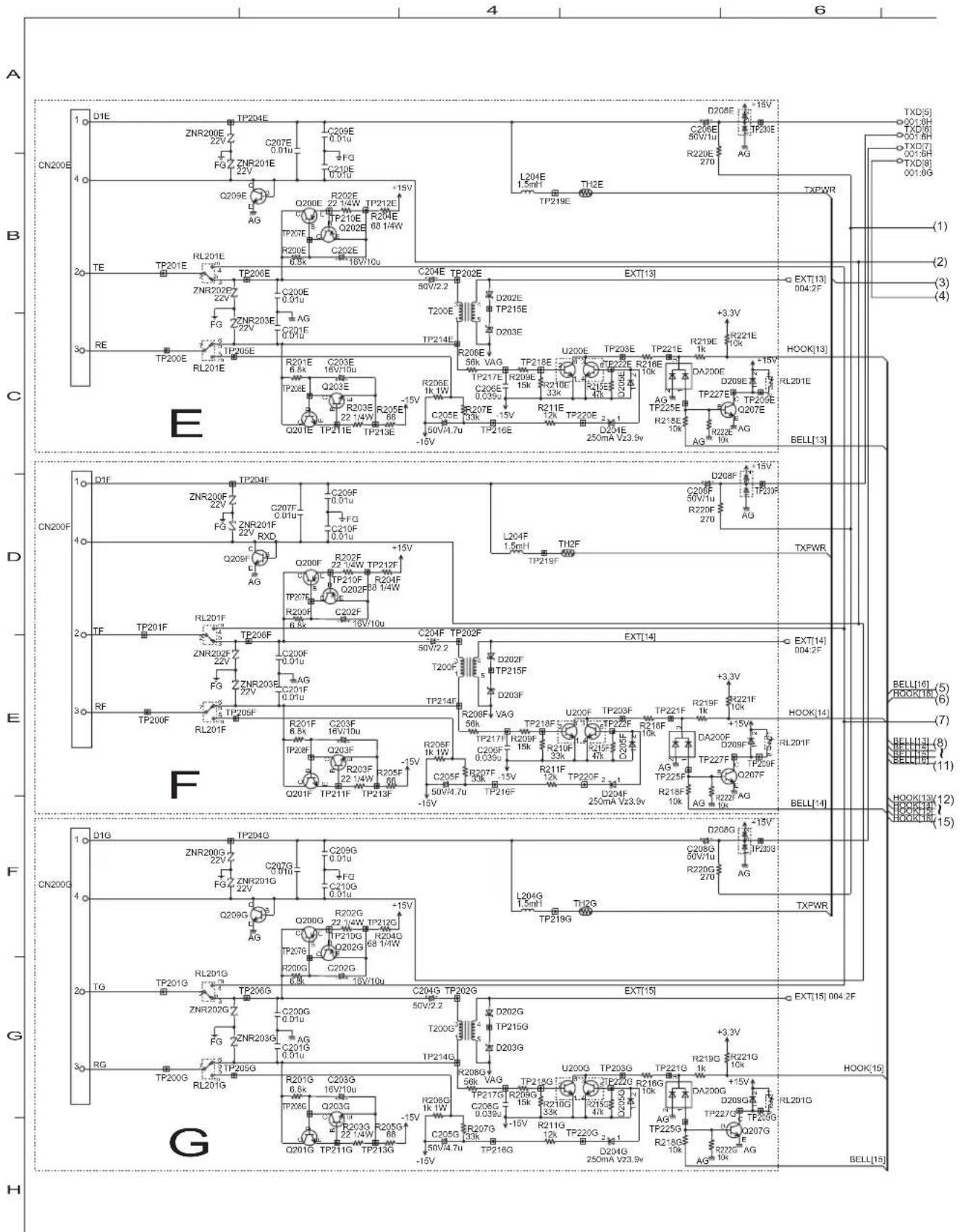

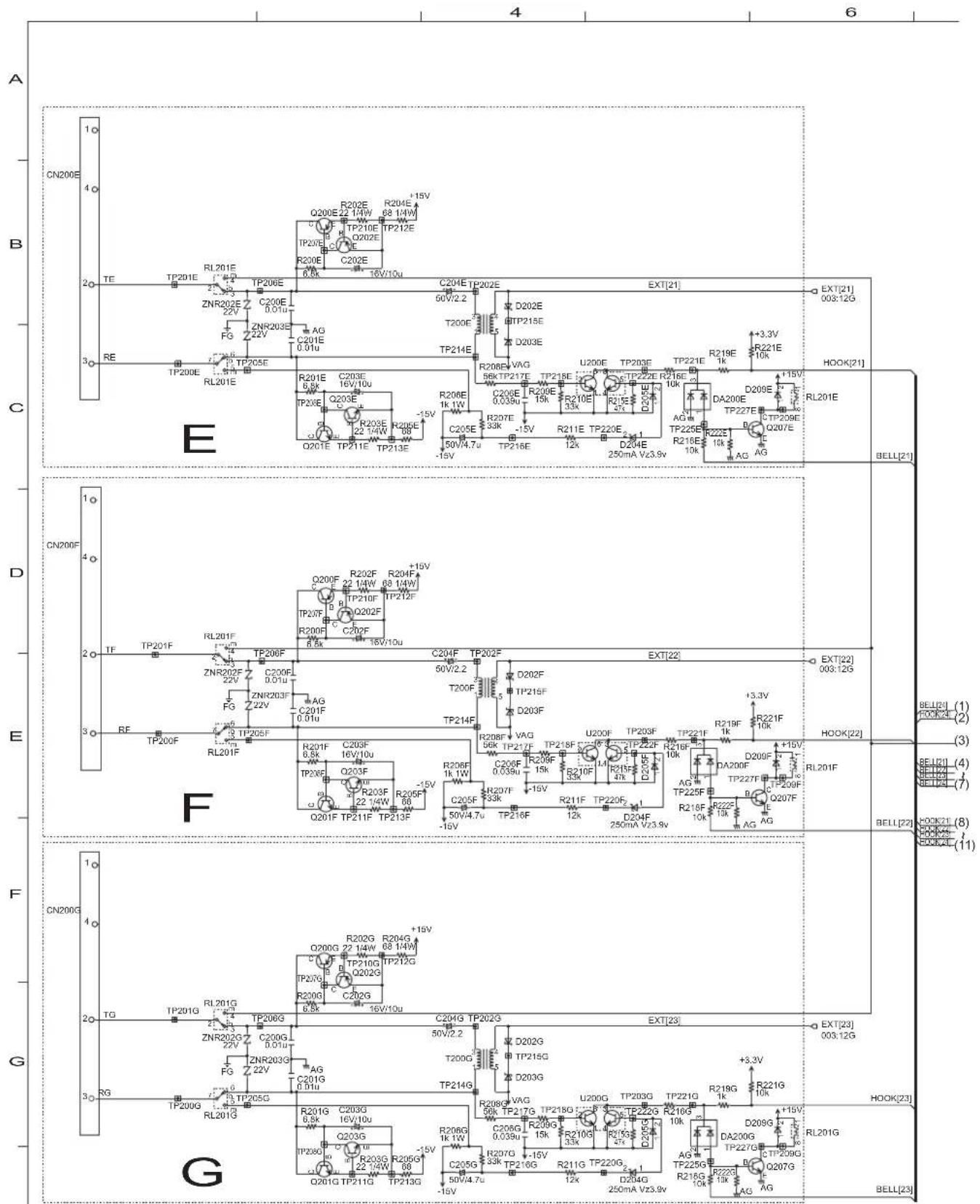

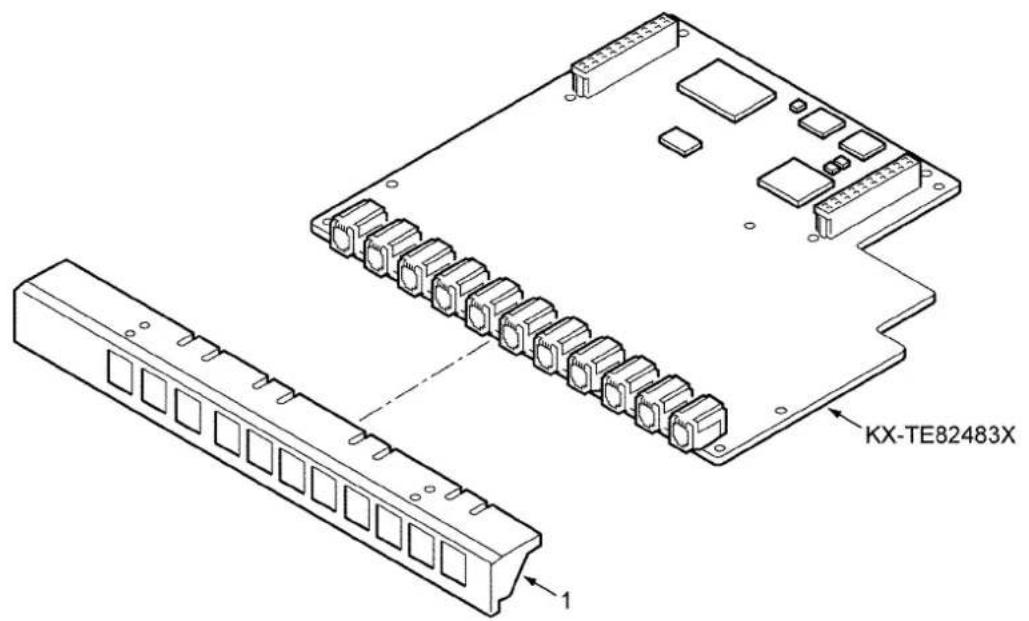

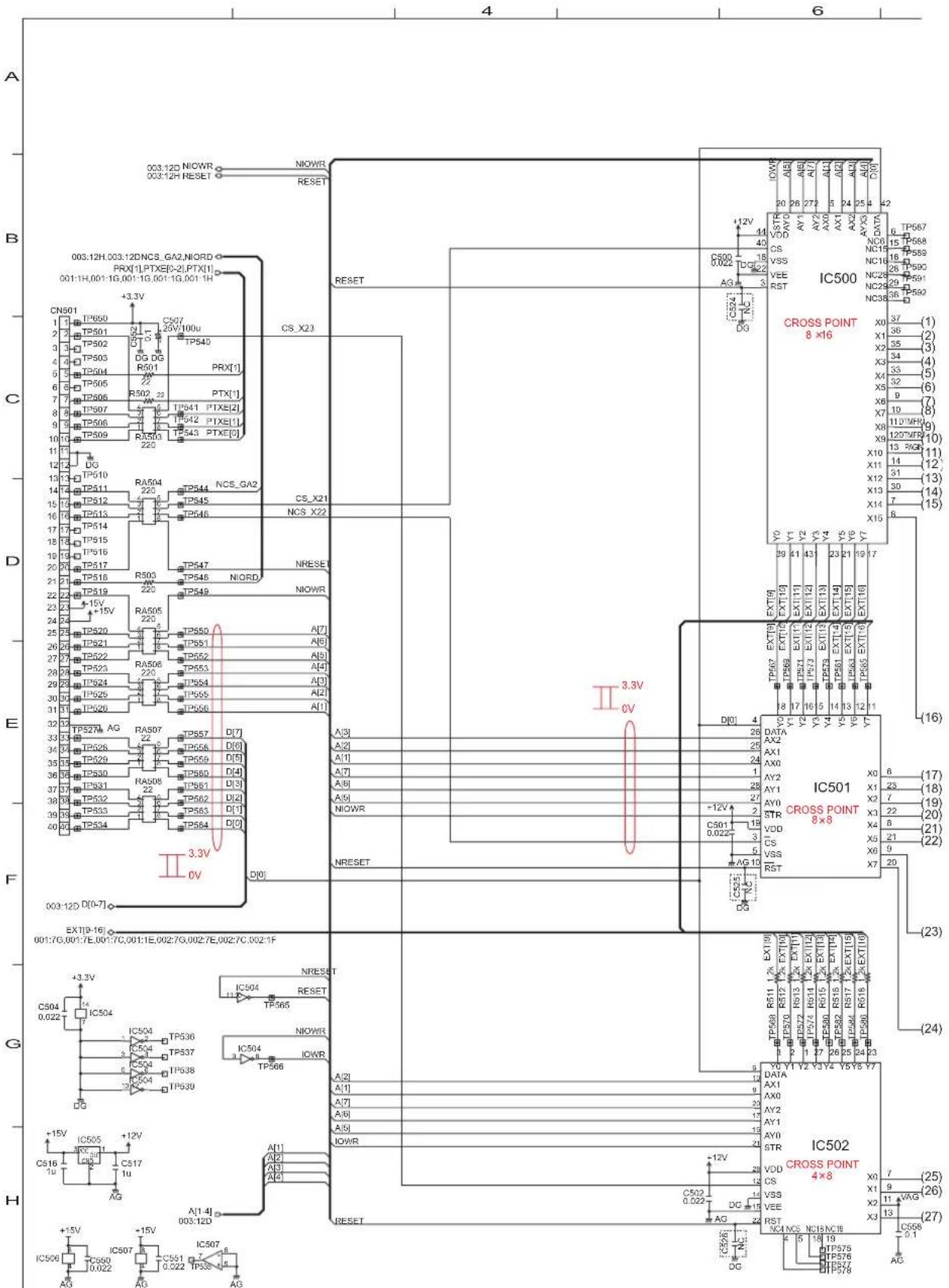

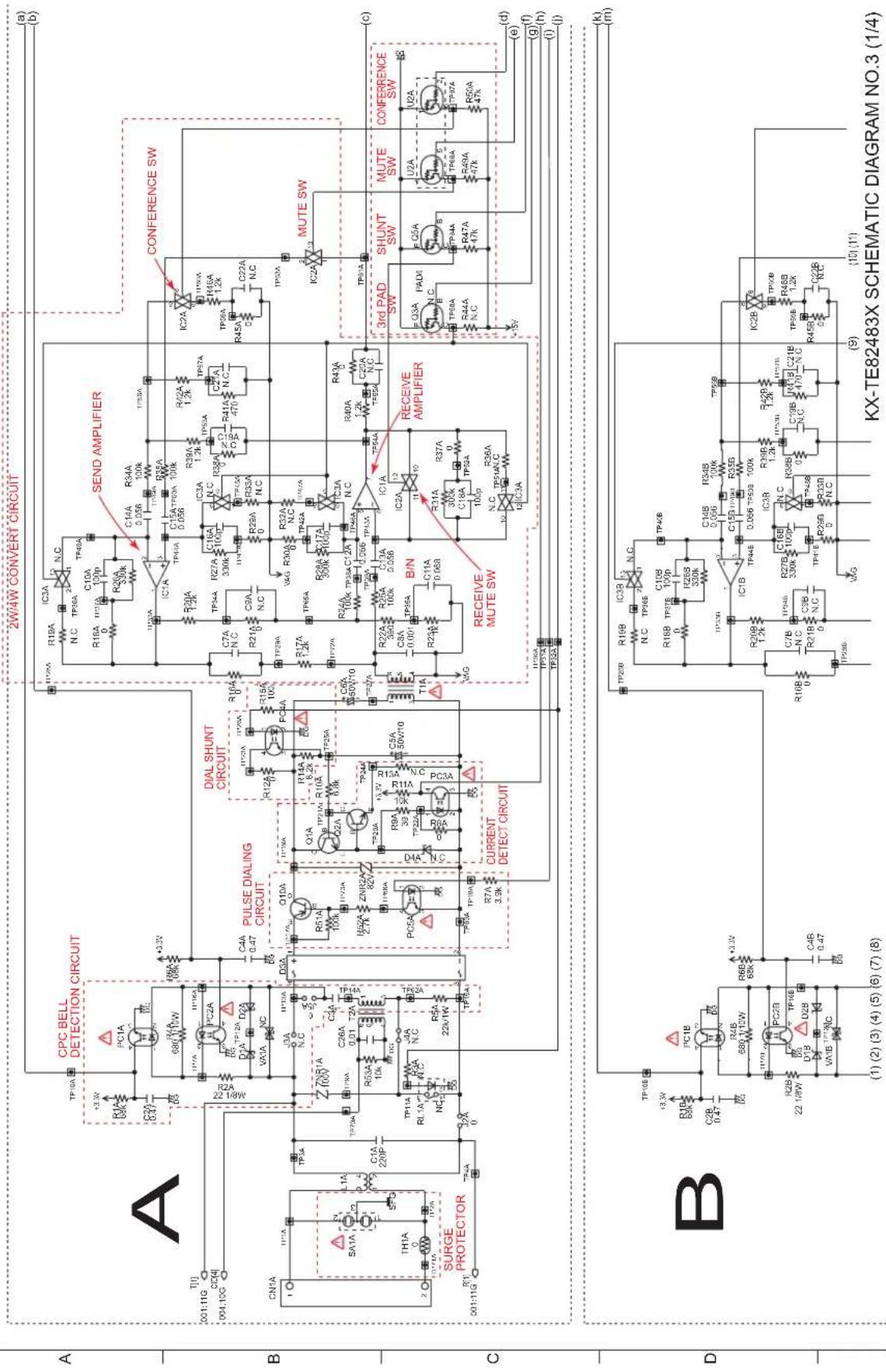

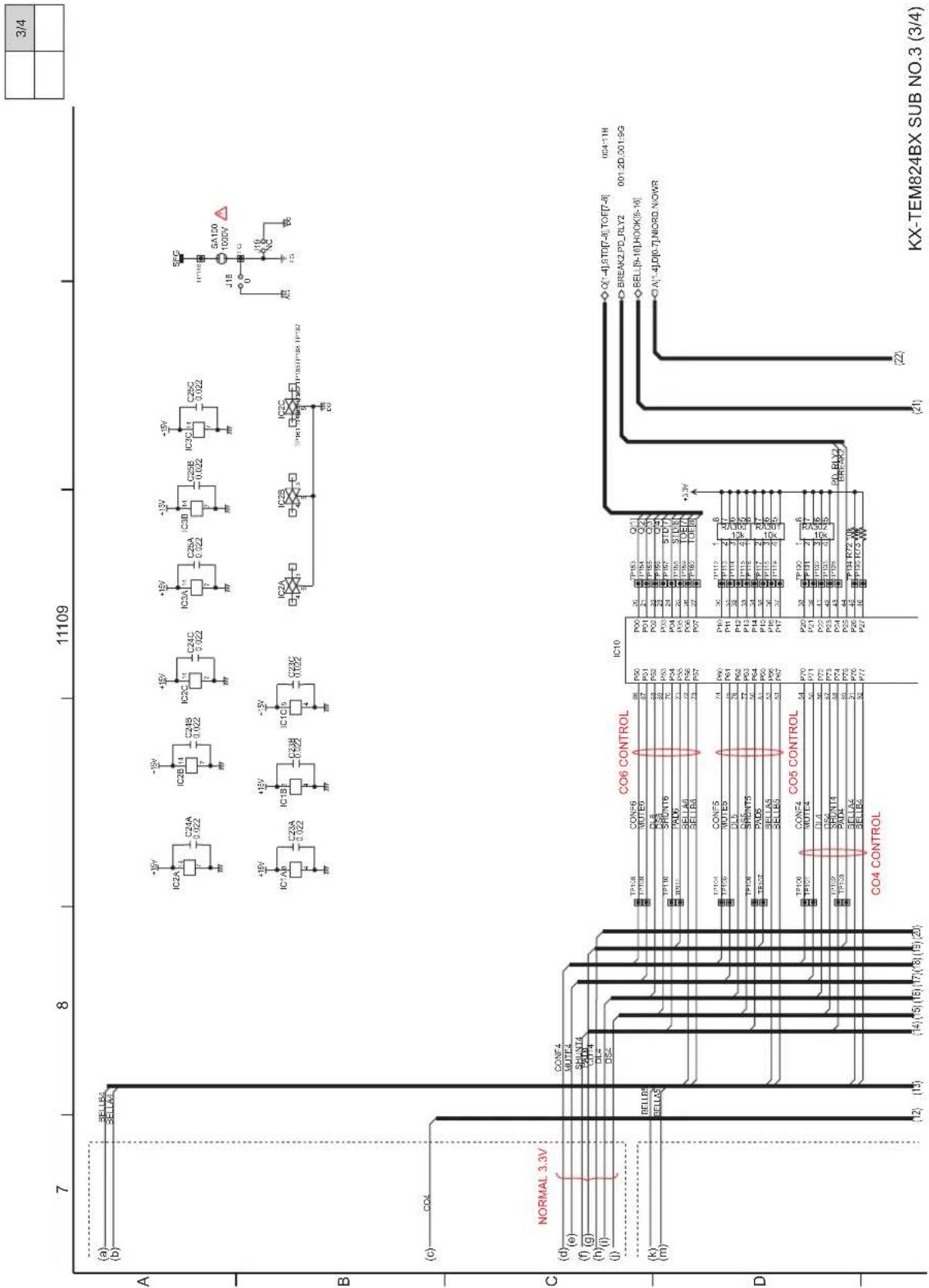

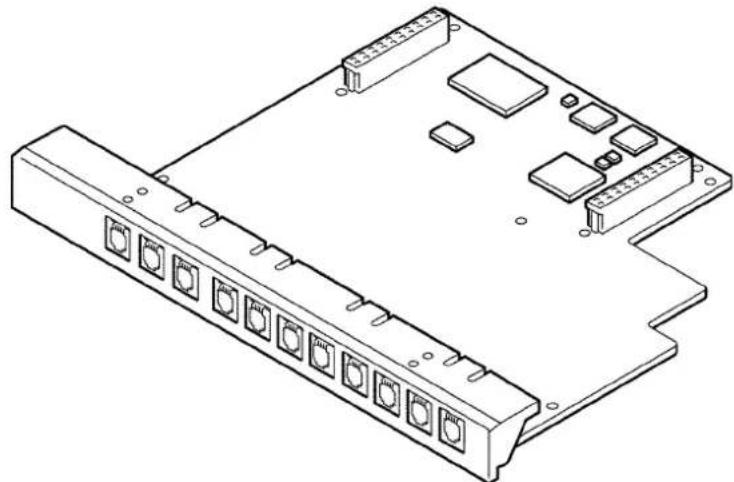

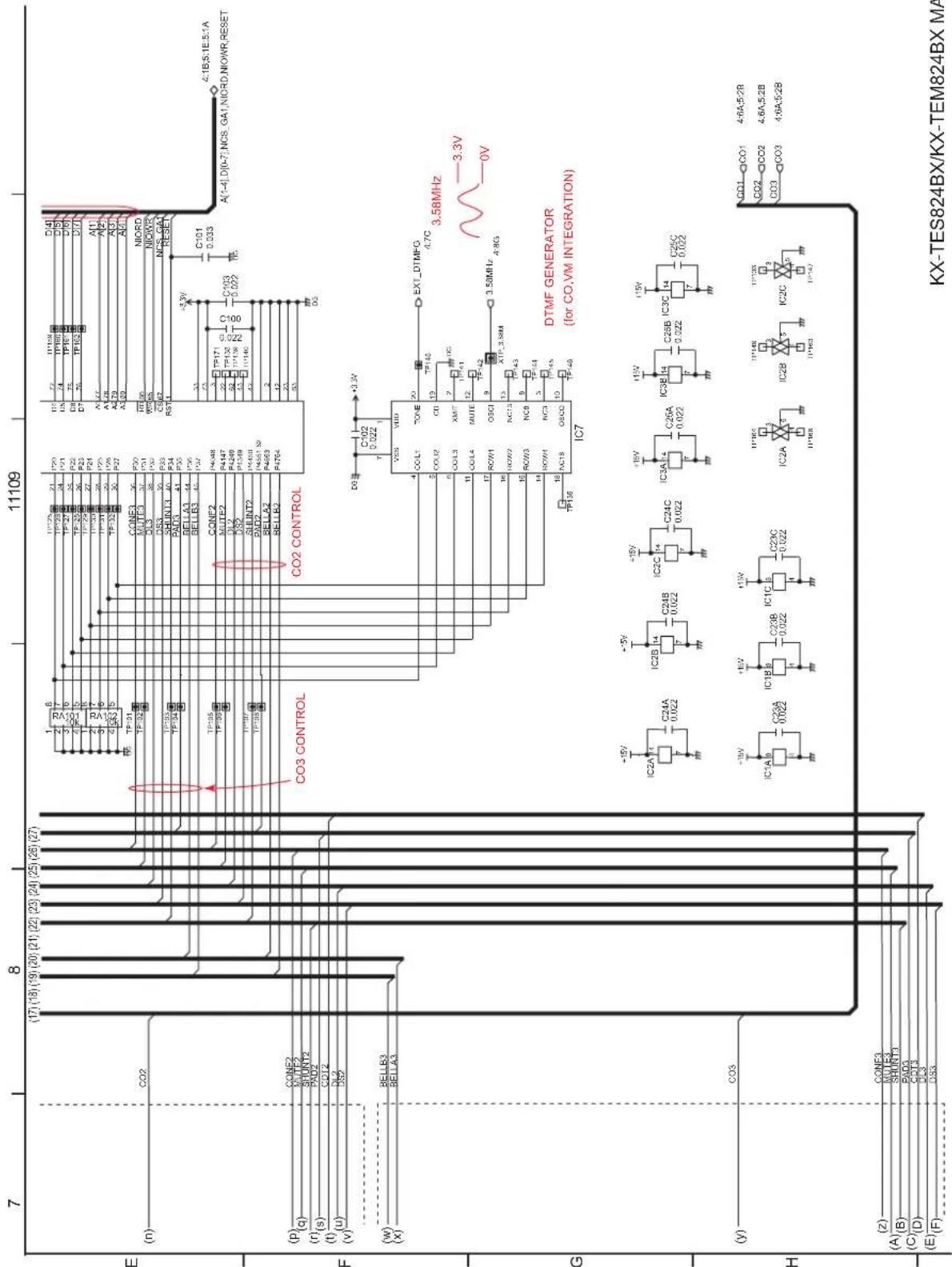

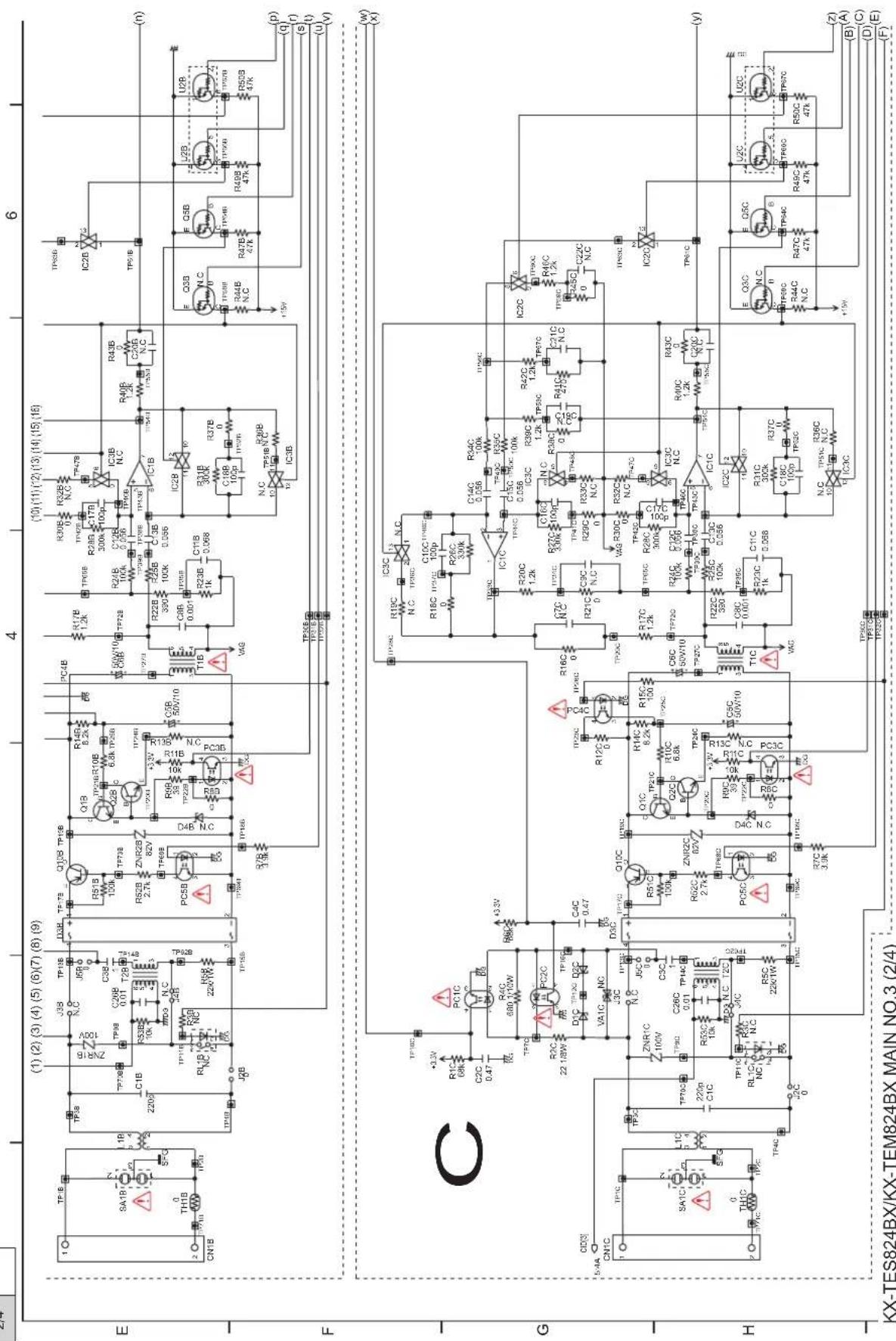

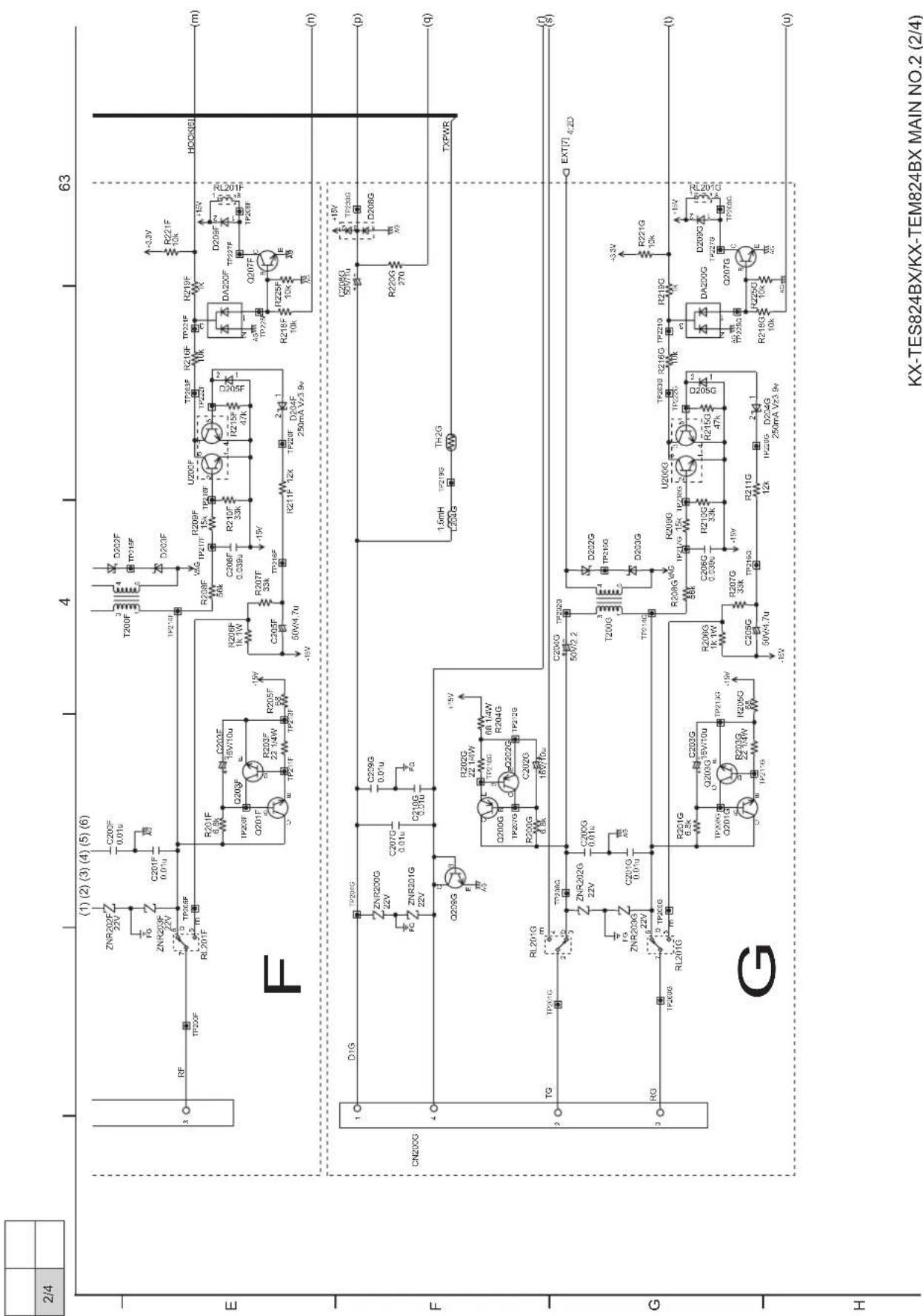

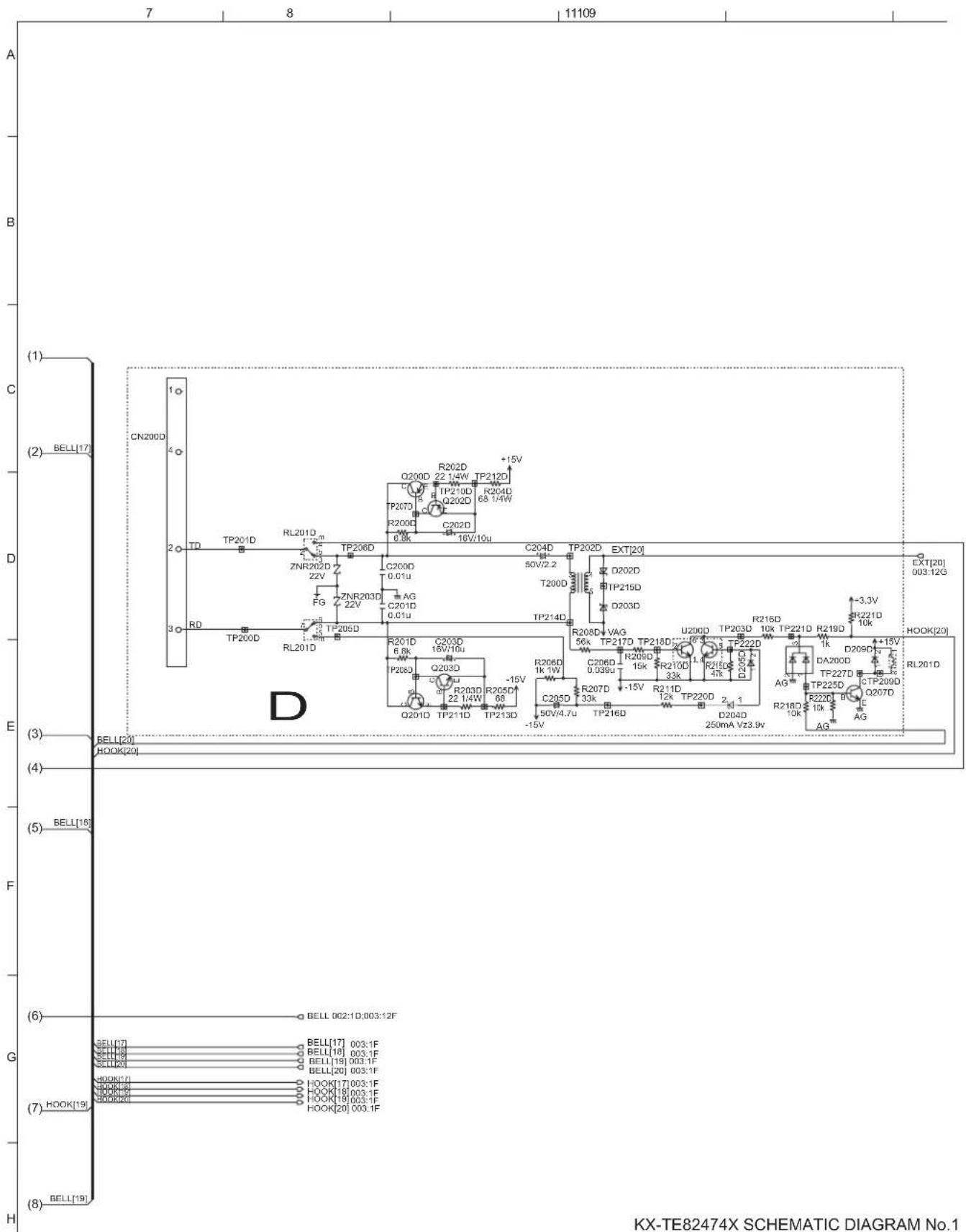

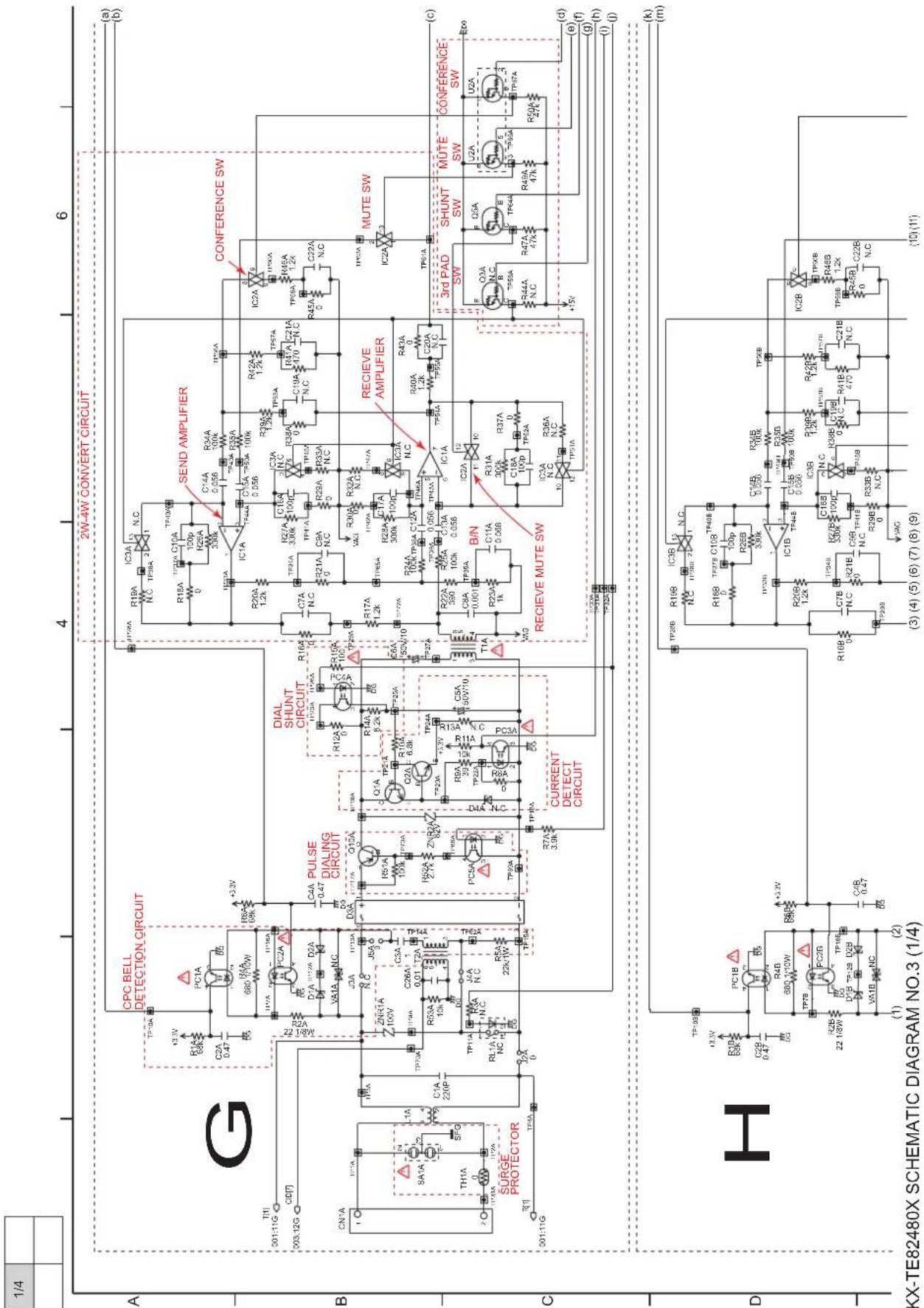

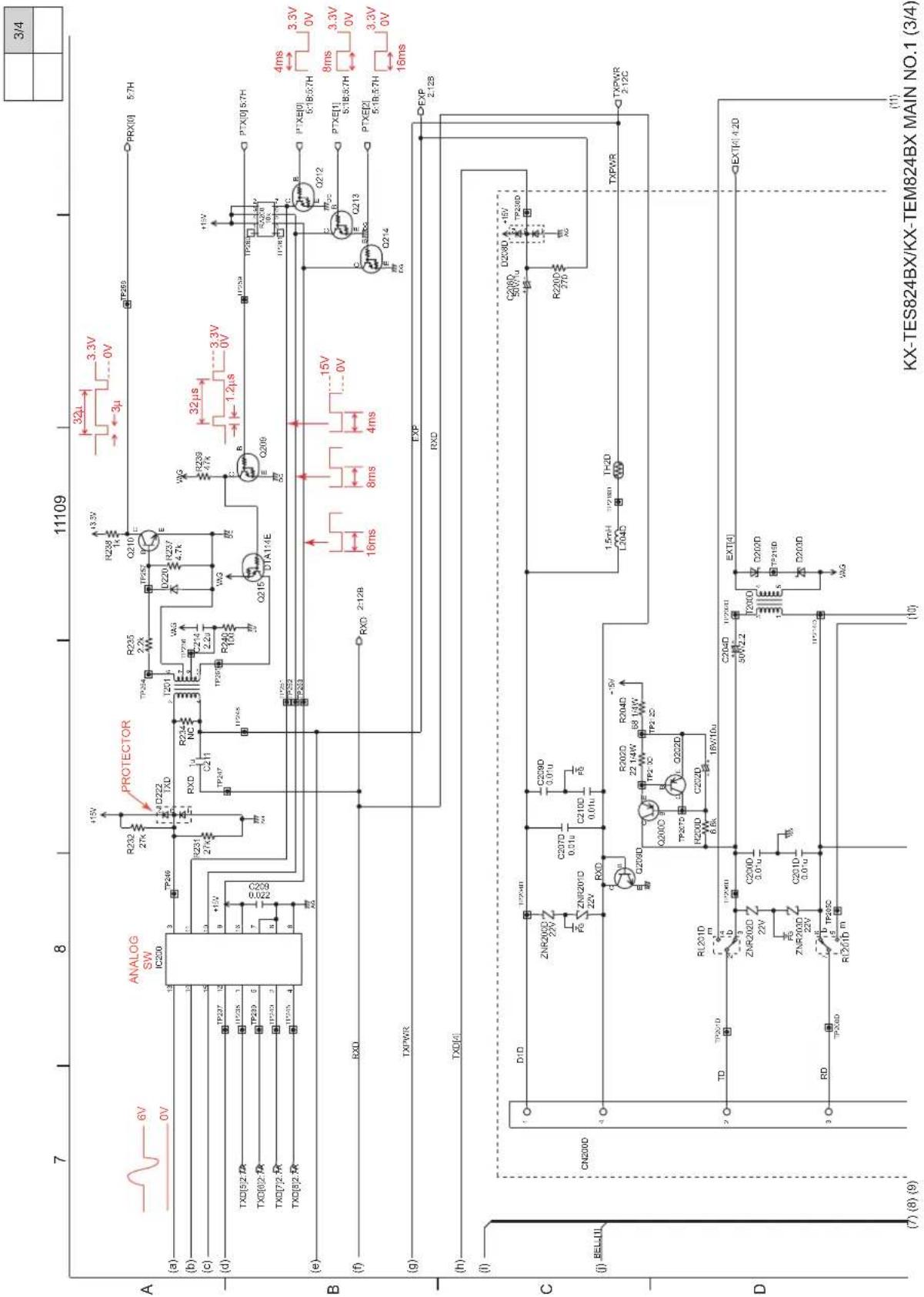

19.5. SUB BOARD PARTS

Ref. No.	Part No.	Part Name & Description	Remarks
PCB3 PSI	P1283Z SUB BOA	RD ASS'Y (RTL)
		(ICS)
IC1A PQVINJM4558V IC S
IC1B PQVINJM4558V IC S
IC1C PQVINJM4558V IC S
IC2A PSVICD4066BS IC S
IC2B PSVICD4066BS IC S
IC2C PSVICD4066BS IC S
IC10 C1CB00001852 IC
IC200 PQVIMC4051BF IC		S
IC500 PSVIMT8816AP IC		S
IC501 C1CB00001875 IC
IC502 PSVIMT8806AP IC		S
IC504 COJBAB000407 IC
IC505 CO CBAKE00010 IC
IC506 PQVINJM4558V IC		S
IC507 PQVINJM4558V IC		S
IC510 C1CB00001876 IC
IC511 C1CB00001876 IC
		(TRANSISTORS)
Q1A 2SC4731S TRANSISTOR(SI) S
Q1B 2SC4731S TRANSISTOR(SI) S
Q1C 2SC4731S TRANSISTOR(SI) S
Q5A UN5213 TRANSISTOR(SI) S
Q5B UN5213 TRANSISTOR(SI) S
Q5C UN5213 TRANSISTOR(SI) S
Q10A 2SA1627 TRANSISTOR(SI) S
Q10B 2SA1627 TRANSISTOR(SI) S
Q10C 2SA1627 TRANSISTOR(SI) S
Q200A 2SB766ARTX TRANSISTOR(SI) S
Q200B 2SB766ARTX TRANSISTOR(SI) S
Q200C 2SB766ARTX TRANSISTOR(SI) S
Q200D 2SB766ARTX TRANSISTOR(SI) S
Q200E 2SB766ARTX TRANSISTOR(SI) S
Q200F 2SB766ARTX TRANSISTOR(SI) S
Q200G 2SB766ARTX TRANSISTOR(SI) S
Q200H 2SB766ARTX TRANSISTOR(SI) S
Q201A 2SD874A TRANSISTOR(SI) S
Q201B 2SD874A TRANSISTOR(SI) S
Q201C 2SD874A TRANSISTOR(SI) S
Q201D 2SD874A TRANSISTOR(SI) S
Q201E 2SD874A TRANSISTOR(SI) S
Q201F 2SD874A TRANSISTOR(SI) S
Q201G 2SD874A TRANSISTOR(SI) S
Q201H 2SD874A TRANSISTOR(SI) S
Q202A 2SB1218A TRANSISTOR(SI)
Q202B 2SB1218A TRANSISTOR(SI)
Q202C 2SB1218A TRANSISTOR(SI)
Q202D 2SB1218A TRANSISTOR(SI)
Q202E 2SB1218A TRANSISTOR(SI)
Q202F 2SB1218A TRANSISTOR(SI)
Q202G 2SB1218A TRANSISTOR(SI)
Q202H 2SB1218A TRANSISTOR(SI)
Q203A 2SD1819A TRANSISTOR(SI)
Q203B 2SD1819A TRANSISTOR(SI)
Q203C 2SD1819A TRANSISTOR(SI)
Q203D 2SD1819A TRANSISTOR(SI)
Q203E 2SD1819A TRANSISTOR(SI)
Q203F 2SD1819A TRANSISTOR(SI)
Q203G 2SD1819A TRANSISTOR(SI)
Q203H 2SD1819A TRANSISTOR(SI)
Q207A 2SD1819A TRANSISTOR(SI)
Q207B 2SD1819A TRANSISTOR(SI)
Q207C 2SD1819A TRANSISTOR(SI)
Q207D 2SD1819A TRANSISTOR(SI)
Q207E 2SD1819A TRANSISTOR(SI)
Q207F 2SD1819A TRANSISTOR(SI)
Q207G 2SD1819A TRANSISTOR(SI)
Q207H 2SD1819A TRANSISTOR(SI)
Q209A 2SD1819A TRANSISTOR(SI)
Q209B 2SD1819A TRANSISTOR(SI)
Q209C 2SD1819A TRANSISTOR(SI)
Q209D 2SD1819A TRANSISTOR(SI)
Q209E 2SD1819A TRANSISTOR(SI)
Q209F 2SD1819A TRANSISTOR(SI)
Q209G 2SD1819A TRANSISTOR(SI)
Q209H 2SD1819A TRANSISTOR(SI)
Q209 PQVTDTC143E TRANSISTOR(SI) S
Q210 2SD1819A TRANSISTOR(SI)
Q212 PQVTDTC143E TRANSISTOR(SI) S
Q213 PQVTDTC143E TRANSISTOR(SI) S
Q214 PQVTDTC143E TRANSISTOR(SI) S
Q215 PQVTDTA114EU TRANSISTOR(SI) S
Q216 2SD1819A TRANSISTOR(SI)
Q217 2SD1819A TRANSISTOR(SI)
Q222 2SB1417P TRANSISTOR(SI) S
Q223 PQVTDTC143E TRANSISTOR(SI) S
U2A B1GFAFNN0001 TRANSISTOR(SI)
U2B B1GFAFNN0001 TRANSISTOR(SI)
U2C B1GFAFNN0001 TRANSISTOR(SI)
U200A PSVTUMX1NTN TRANSISTOR(SI)

Ref.No.	Part No.	Part Name & Description	Remarks
U200B PS	VTUMX1NTN TRAN	SISTOR(SI)
U200C PS	VTUMX1NTN TRAN	SISTOR(SI)
U200D PS	VTUMX1NTN TRAN	SISTOR(SI)
U200E PS	VTUMX1NTN TRAN	SISTOR(SI)
U200F PS	VTUMX1NTN TRAN	SISTOR(SI)
U200G PS	VTUMX1NTN TRAN	SISTOR(SI)
U200H PS	VTUMX1NTN TRAN	SISTOR(SI)
		(DIODES)
D1A PSVD	HZK2BTR DIODE(SI)
D1B PSVD	HZK2BTR DIODE(SI)
D1C PSVD	HZK2BTR DIODE(SI)
D2A PSVD	HZK2BTR DIODE(SI)
D2B PSVD	HZK2BTR DIODE(SI)
D2C PSVD	HZK2BTR DIODE(SI)
D3A BOED	KT000001 DIODE(SI)
D3B BOED	KT000001 DIODE(SI)
D3C BOED	KT000001 DIODE(SI)
D202A MA	8036H DIODE(SI) S
D202B MA	8036H DIODE(SI) S
D202C MA	8036H DIODE(SI) S
D202D MA	8036H DIODE(SI) S
D202E MA	8036H DIODE(SI) S
D202F MA	8036H DIODE(SI) S
D202G MA	8036H DIODE(SI) S
D202H MA	8036H DIODE(SI) S
D203A MA	8036H DIODE(SI) S
D203B MA	8036H DIODE(SI) S
D203C MA	8036H DIODE(SI) S
D203D MA	8036H DIODE(SI) S
D203E MA	8036H DIODE(SI) S
D203F MA	8036H DIODE(SI) S
D203G MA	8036H DIODE(SI) S
D203H MA	8036H DIODE(SI) S
D204A MA	8039 DIODE(SI) S
D204B MA	8039 DIODE(SI) S
D204C MA	8039 DIODE(SI) S
D204D MA	8039 DIODE(SI) S
D204E MA	8039 DIODE(SI) S
D204F MA	8039 DIODE(SI) S
D204G MA	8039 DIODE(SI) S
D204H MA	8039 DIODE(SI) S
D205A MA	111 DIODE(SI) S
D205B MA	111 DIODE(SI) S
D205C MA	111 DIODE(SI) S
D205D MA	111 DIODE(SI) S
D205E MA	111 DIODE(SI) S
D205F MA	111 DIODE(SI) S
D205G MA	111 DIODE(SI) S
D205H MA	111 DIODE(SI) S
D208A MA	143 DIODE(SI) S
D208B MA	143 DIODE(SI) S
D208C MA	143 DIODE(SI) S
D208D MA	143 DIODE(SI) S
D208E MA	143 DIODE(SI) S
D208F MA	143 DIODE(SI) S
D208G MA	143 DIODE(SI) S
D208H MA	143 DIODE(SI) S
D209A MA	111 DIODE(SI) S
D209B MA	111 DIODE(SI) S
D209C MA	111 DIODE(SI) S
D209D MA	111 DIODE(SI) S
D209E MA	111 DIODE(SI) S
D209F MA	111 DIODE(SI) S
D209G MA	111 DIODE(SI) S
D209H MA	111 DIODE(SI) S
D220 MA	111 DIODE(SI) S
D221 MA	111 DIODE(SI) S
D222 MA	43 DIODE(SI) S
DA200A MA	142WKTX DIODE(SI) S
DA200B MA	142WKTX DIODE(SI) S
DA200C MA	142WKTX DIODE(SI) S
DA200D MA	142WKTX DIODE(SI) S
DA200E MA	142WKTX DIODE(SI) S
DA200F	MA142WKTX DIODE(SI) S
DA200G	MA142WKTX DIODE(SI) S
DA200H	MA142WKTX DIODE(SI) S
		(CONNECTORS)
CN501 K1KB40C00002 CONNECTOR, 40P
CN502 K1KB40C00002 CONNECTOR, 40P
		COMPONENTS PARTS)
RA200 D1H81034A010 RESISTOR ARRAY, 10K
RA300 D1H81034A010 RESISTOR ARRAY, 10K
RA301 D1H81034A010 RESISTOR ARRAY, 10K
RA302 D1H81034A010 RESISTOR ARRAY, 10K
RA303 D1H81034A010 RESISTOR ARRAY, 10K
RA501 D1H81034A010 RESISTOR ARRAY, 10K
RA502 D1H81034A010 RESISTOR ARRAY, 10K
RA503 D1H82214A010 RESISTOR ARRAY, 220K
RA504 D1H82214A010 RESISTOR ARRAY, 220K
RA505 D1H82214A010 RESISTOR ARRAY, 220K
RA506 D1H82214A010 RESISTOR ARRAY, 220K
RA507 D1H82204A010 RESISTOR ARRAY, 22K
RA508 D1H82204A010 RESISTOR ARRAY, 22K
		(COILS)
L1A PFLE003 COIL S
L1B PFLE003 COIL S
L1C PFLE003 COIL S
TH1A PQLE106 COIL S
TH1B PQLE106 COIL S
TH1C PQLE106 COIL S
L204A POLQXH152J COIL S
L204B POLQXH152J COIL S
L204C POLQXH152J COIL S
L204D POLQXH152J COIL S
L204E POLQXH152J COIL S
L204F POLQXH152J COIL S
L204G POLQXH152J COIL S
L204H POLQXH152J COIL S
		(CRYSTAL OSCILLATOR)
X500 PSVCYY0358M3 CRYSTAL OSCILLATOR S
		(JACKS)
CN1A PQJJ1T004Z JACK, TEL S
CN1B PQJJ1T004Z JACK, TEL S
CN1C PQJJ1T004Z JACK, TEL S
CN200A PQJJ1T011Y JACK, TEL S
CN200B PQJJ1T011Y JACK, TEL S
CN200C PQJJ1T011Y JACK, TEL S
CN200D PQJJ1T011Y JACK, TEL S
CN200E PQJJ1T011Y JACK, TEL S
CN200F PQJJ1T011Y JACK, TEL S
CN200G PQJJ1T011Y JACK, TEL S
CN200H PQJJ1T011Y JACK, TEL S
		(FUSES)
TH2A D4PAR1700002 FUSE
TH2B D4PAR1700002 FUSE
TH2C D4PAR1700002 FUSE
TH2D D4PAR1700002 FUSE
TH2E D4PAR1700002 FUSE
TH2F D4PAR1700002 FUSE
TH2G D4PAR1700002 FUSE
TH2H D4PAR1700002 FUSE
		(RELAYS)
RL200A K6B2CGA00121 RELAY
RL202A K6B2CGA00095 RELAY S			△
RL201A PQSL41Z RELAY S
RL201B PQSL41Z RELAY S
RL201C PQSL41Z RELAY S
RL201D PQSL41Z RELAY S
RL201E PQSL41Z RELAY S
RL201F PQSL41Z RELAY S
RL201G PQSL41Z RELAY S
RL201H PQSL41Z RELAY S
		(PHOTO ELECTRIC TRANSDUCERS)
PC1A PQVIP27011M3 PHOTO COUPLER S			△
PC1B PQVIP27011M3 PHOTO COUPLER S			△
PC1C PQVIP27011M3 PHOTO COUPLER S			△

Ref.No.	Part No.	Part Name & Description	Remarks
PC2A PQVIP27011M3 PHOTO COUPLER S
PC2B PQVIP27011M3 PHOTO COUPLER S
PC2C PQVIP27011M3 PHOTO COUPLER S
PC4A PQVIP27011M3 PHOTO COUPLER S
PC4B PQVIP27011M3 PHOTO COUPLER S
PC4C PQVIP27011M3 PHOTO COUPLER S
PC5A CNC2S5020LL1 PHOTO COUPLER
PC5B CNC2S5020LL1 PHOTO COUPLER
PC5C CNC2S5020LL1 PHOTO COUPLER
		(TRANSFORMERS)
T1A G4A1A0000173 TRANSFORMER
T1B G4A1A0000173 TRANSFORMER
T1C G4A1A0000173 TRANSFORMER
T200A ETA14Y85AY TRANSFORMER
T200B ETA14Y85AY TRANSFORMER
T200C ETA14Y85AY TRANSFORMER
T200D ETA14Y85AY TRANSFORMER
T200E ETA14Y85AY TRANSFORMER
T200F ETA14Y85AY TRANSFORMER
T200G ETA14Y85AY TRANSFORMER
T200H ETA14Y85AY TRANSFORMER
T201 ETE13K24AY TRANSFORMER
T2A G4A1A0000177 TRANSFORMER
T2B G4A1A0000177 TRANSFORMER
T2C G4A1A0000177 TRANSFORMER
		(VARISTORS)
SA1A J0LE00000043 VARI	STOR (SURGE ABSORBER)
SA1B J0LE00000043 VARI	STOR (SURGE ABSORBER)
SA1C J0LE00000043 VARI	STOR (SURGE ABSORBER)
SA100 PFRZRA102P6T VAR	ISTOR (SURGE ABSORBER) S
ZNR2A D4EAB820A005 VAR	ISTOR
ZNR2B D4EAB820A005 VAR	ISTOR
ZNR2C D4EAB820A005 VAR	ISTOR
ZNR200 D4EAB220A005 VAR	RISTOR
ZNR201 D4EAB220A005 VAR	RISTOR
ZNR202 D4EAB220A005 VAR	RISTOR
ZNR203 D4EAB220A005 VAR	RISTOR
		(CAPACITORS)
C1A PSCU2JW221KR 220P
C1B PSCU2JW221KR 220P
C1C PSCU2JW221KR 220P
C2A ECUV1C474ZFV 0.47
C2B ECUV1C474ZFV 0.47
C2C ECUV1C474ZFV 0.47
C3A ECQE2E105KZ 1	S
C3B ECQE2E105KZ 1	S
C3C ECQE2E105KZ 1	S
C4A ECUV1C474ZFV 0.47
C4B ECUV1C474ZFV 0.47
C4C ECUV1C474ZFV 0.47
C5A F2G1H1000010 10
C5B F2G1H1000010 10
C5C F2G1H1000010 10
C6A F2G1H1000010 10
C6B F2G1H1000010 10
C6C F2G1H1000010 10
C8A ECUV1H102KBV 0.001
C8B ECUV1H102KBV 0.001
C8C ECUV1H102KBV 0.001
C10A ECUV1H101JCV 100F
C10B ECUV1H101JCV 100F
C10C ECUV1H101JCV 100F
C11A ECUV1C683KBV 0.068
C11B ECUV1C683KBV 0.068
C11C ECUV1C683KBV 0.068
C12A ECUV1C563KBV 0.056
C12B ECUV1C563KBV 0.056
C12C ECUV1C563KBV 0.056
C13A ECUV1C563KBV 0.056
C13B ECUV1C563KBV 0.056
C13C ECUV1C563KBV 0.056
C14A ECUV1C563KBV 0.056
C14B ECUV1C563KBV 0.056
C14C ECUV1C563KBV 0.05	6
C15A ECUV1C563KBV 0.05	6
C15B ECUV1C563KBV 0.05	6
C15C ECUV1C563KBV 0.05	6
C16A ECUV1H101JCV 100P
C16B ECUV1H101JCV 100P
C16C ECUV1H101JCV 100P
C17A ECUV1H101JCV 100P
C17B ECUV1H101JCV 100P
C17C ECUV1H101JCV 100P
C18A ECUV1H101JCV 100P
C18B ECUV1H101JCV 100P
C18C ECUV1H101JCV 100P
C23A ECUV1H223KBV 0.02	2 S
C23B ECUV1H223KBV 0.02	2 S
C23C ECUV1H223KBV 0.02	2 S
C24A ECUV1H223KBV 0.02	2 S
C24B ECUV1H223KBV 0.02	2 S
C24C ECUV1H223KBV 0.02	2 S
C25A ECUV1H223KBV 0.02	2 S
C25B ECUV1H223KBV 0.02	2 S
C25C ECUV1H223KBV 0.02	2 S
C26A ECUV1H103KBV 0.01
C26B ECUV1H103KBV 0.01
C26C ECUV1H103KBV 0.01
C200A ECUV1H103KBV 0.01
C200B ECUV1H103KBV 0.01
C200C ECUV1H103KBV 0.01
C200D ECUV1H103KBV 0.01
C200E ECUV1H103KBV 0.01
C200F ECUV1H103KBV 0.01
C200G ECUV1H103KBV 0.01
C200H ECUV1H103KBV 0.01
C201A ECUV1H103KBV 0.01
C201B ECUV1H103KBV 0.01
C201C ECUV1H103KBV 0.01
C201D ECUV1H103KBV 0.01
C201E ECUV1H103KBV 0.01
C201F ECUV1H103KBV 0.01
C201G ECUV1H103KBV 0.01
C201H ECUV1H103KBV 0.01
C202A F2G1C1000015 10
C202B F2G1C1000015 10
C202C F2G1C1000015 10
C202D F2G1C1000015 10
C202E F2G1C1000015 10
C202F F2G1C1000015 10
C202G F2G1C1000015 10
C202H F2G1C1000015 10
C203A F2G1C1000015 10
C203B F2G1C1000015 10
C203C F2G1C1000015 10
C203D F2G1C1000015 10
C203E F2G1C1000015 10
C203F F2G1C1000015 10
C203G F2G1C1000015 10
C203H F2G1C1000015 10
C204A F2G1H2R20005 2.2
C204B F2G1H2R20005 2.2
C204C F2G1H2R20005 2.2
C204D F2G1H2R20005 2.2
C204E F2G1H2R20005 2.2
C204F F2G1H2R20005 2.2
C204G F2G1H2R20005 2.2
C204H F2G1H2R20005 2.2
C205A PSCEA1HN4R7 4.7
C205B PSCEA1HN4R7 4.7
C205C PSCEA1HN4R7 4.7
C205D PSCEA1HN4R7 4.7
C205E PSCEA1HN4R7 4.7
C205F PSCEA1HN4R7 4.7
C205G PSCEA1HN4R7 4.7
C205H PSCEA1HN4R7 4.7

Ref.No.	Part No.	Part Name & Description	Remarks
C206A	ECUV1C393KBV 0.0	39 S
C206B	ECUV1C393KBV 0.0	39 S
C206C	ECUV1C393KBV 0.0	39 S
C206D	ECUV1C393KBV 0.0	39 S
C206E	ECUV1C393KBV 0.0	39 S
C206F	ECUV1C393KBV 0.0	39 S
C206G	ECUV1C393KBV 0.0	39 S
C206H	ECUV1C393KBV 0.0	39 S
C207A	ECUV1H103KBV 0.0	1
C207B	ECUV1H103KBV 0.0	1
C207C	ECUV1H103KBV 0.0	1
C207D	ECUV1H103KBV 0.0	1
C207E	ECUV1H103KBV 0.0	1
C207F	ECUV1H103KBV 0.0	1
C207G	ECUV1H103KBV 0.0	1
C207H	ECUV1H103KBV 0.0	1
C208A	F2G1H1R00013 1
C208B	F2G1H1R00013 1
C208C	F2G1H1R00013 1
C208D	F2G1H1R00013 1
C208E	F2G1H1R00013 1
C208F	F2G1H1R00013 1
C208G	F2G1H1R00013 1
C208H	F2G1H1R00013 1
C209A	ECUV1H103KBV 0.0	1
C209B	ECUV1H103KBV 0.0	1
C209C	ECUV1H103KBV 0.0	1
C209D	ECUV1H103KBV 0.0	1
C209E	ECUV1H103KBV 0.0	1
C209F	ECUV1H103KBV 0.0	1
C209G	ECUV1H103KBV 0.0	1
C209H	ECUV1H103KBV 0.0	1
C209	ECUV1H223KBV 0.0	2 S
C210A	ECUV1H103KBV 0.0	1
C210B	ECUV1H103KBV 0.0	1
C210C	ECUV1H103KBV 0.0	1
C210D	ECUV1H103KBV 0.0	1
C210E	ECUV1H103KBV 0.0	1
C210F	ECUV1H103KBV 0.0	1
C210G	ECUV1H103KBV 0.0	1
C210H	ECUV1H103KBV 0.0	1
C211	F11E105A008 1
C214	ECUV1VB0J225 2.2
C301	ECUV1C223KBV 0.0	2
C302	ECUV1C223KBV 0.0	2
C303	ECUV1C223KBV 0.0	2
C304	ECUV1C223KBV 0.0	2
C305	ECUV1H104ZFV 0.1	S
C500	ECUV1H223KBV 0.0	2 S
C501	ECUV1H223KBV 0.0	2 S
C502	ECUV1H223KBV 0.0	2 S
C504	ECUV1H223KBV 0.0	2 S
C505	EEUFC1E101S 100
C506	EEUFC1E101S 100
C507	EEUFC1E101S 100
C508	ECUV1H562KBV 0.0	56
C509	ECUV1H562KBV 0.0	56
C510	ECUV1H104ZFV 0.1	S
C511	ECUV1H104ZFV 0.1	S
C512	ECUV1C224ZFV 0.2	2
C513	ECUV1C224ZFV 0.2	2
C514	ECUV1H104ZFV 0.1	S
C515	EEUFC1E101S 100
C516	F11E105A008 1
C517	F11E105A008 1
C518	ECUV1C104KBV 0.1
C519	ECUV1H471JCV 470P	S
C520	ECUV1C104KBV 0.1
C521	ECUV1H471JCV 470P	S
C522	ECUV1C104KBV 0.1
C523	ECUV1H471JCV 470P	S
C550	ECUV1H223KBV 0.0	2 S
C551	ECUV1H223KBV 0.0	2 S
C552	ECUV1H104ZFV 0.1	S
C555	ECUV1H104ZFV 0.1	S
C556	ECUV1A105ZFV 1
C558	ECUV1H104ZFV 0.1	S
C801	ECUV1H103KBV 0.01
C802	ECUV1H103KBV 0.01
C803	ECUV1H103KBV 0.01
C804	ECUV1H103KBV 0.01
C805	ECUV1H103KBV 0.01
C806	ECUV1H103KBV 0.01
C807	ECUV1H103KBV 0.01
C808	ECUV1H103KBV 0.01
C809	ECUV1H103KBV 0.01
C810	ECUV1H103KBV 0.01
C811	ECUV1H103KBV 0.01
C812	ECUV1H103KBV 0.01
C813	ECUV1H103KBV 0.01
C814	ECUV1H103KBV 0.01
C815	ECUV1H103KBV 0.01
C816	ECUV1H103KBV 0.01
C817	ECUV1H103KBV 0.01
C818	ECUV1H103KBV 0.01
C819	ECUV1H103KBV 0.01
C820	ECUV1H103KBV 0.01
C821	ECUV1H103KBV 0.01
C822	ECUV1H103KBV 0.01
C823	ECUV1H103KBV 0.01
C824	ECUV1H103KBV 0.01
C825	ECUV1H103KBV 0.01
C826	ECUV1H103KBV 0.01
C827	ECUV1H103KBV 0.01
C828	ECUV1H103KBV 0.01
C829	ECUV1H103KBV 0.01
C830	ECUV1H103KBV 0.01
C831	ECUV1H103KBV 0.01
C832	ECUV1H103KBV 0.01
C833	ECUV1H103KBV 0.01
C851	ECUV1H103KBV 0.01
C852	ECUV1H103KBV 0.01
C853	ECUV1H103KBV 0.01
C871	ECUV1H103KBV 0.01
C872	ECUV1H103KBV 0.01
C873	ECUV1H103KBV 0.01
C874	ECUV1H103KBV 0.01
C911	ECUV1H103KBV 0.01
C912	ECUV1H103KBV 0.01
C913	ECUV1H103KBV 0.01
C914	ECUV1H103KBV 0.01
C915	ECUV1H103KBV 0.01
C916	ECUV1H103KBV 0.01
C917	ECUV1H103KBV 0.01
C918	ECUV1H103KBV 0.01
C919	ECUV1H103KBV 0.01
C920	ECUV1H103KBV 0.01
C921	ECUV1H103KBV 0.01
C922	ECUV1H103KBV 0.01
C923	ECUV1H103KBV 0.01
C924	ECUV1H103KBV 0.01
C925	ECUV1H103KBV 0.01
C926	ECUV1H103KBV 0.01
C927	ECUV1H103KBV 0.01
C928	ECUV1H103KBV 0.01
		(RESISTORS)
J2A	PQ4R18XJ000 0 S
J2B	PQ4R18XJ000 0 S
J2C	PQ4R18XJ000 0 S
J5A	PQ4R10XJ000 0 S
J5B	PQ4R10XJ000 0 S
J5C	PQ4R10XJ000 0 S
J10	ERJGEY0R00 0
J18	PQ4R18XJ000 0 S
R1A	ERJGEYJ683 68K
R1B	ERJGEYJ683 68K

Ref.No.	Part No.	Part Name & Description	Remarks
R1C ERJ3	GEYJ683 68K
R2A PQ4R	18XJ220 22 S
R2B PQ4R	18XJ220 22 S
R2C PQ4R	18XJ220 22 S
R4A PQ4R	10XJ681 680 S
R4B PQ4R	10XJ681 680 S
R4C PQ4R	10XJ681 680 S
R5A ERJ1	WYJ223 22K
R5B ERJ1	WYJ223 22K
R5C ERJ1	WYJ223 22K
R6A ERJ3	GEYJ683 68K
R6B ERJ3	GEYJ683 68K
R6C ERJ3	GEYJ683 68K
R7A ERJ3	GEYJ392 3.9K
R7B ERJ3	GEYJ392 3.9K
R7C ERJ3	GEYJ392 3.9K
R8A PQ4R	10XJ000 0 S
R8B PQ4R	10XJ000 0 S
R8C PQ4R	10XJ000 0 S
R9A ERJ8	GEYJ390 39
R9B ERJ8	GEYJ390 39
R9C ERJ8	GEYJ390 39
R10A PQ4	R10XJ682 6.8K S
R10B PQ4	R10XJ682 6.8K S
R10C PQ4	R10XJ682 6.8K S
R11A ERJ	3GEYJ103 10K
R11B ERJ	3GEYJ103 10K
R11C ERJ	3GEYJ103 10K
R12A PQ4	R10XJ000 0 S
R12B PQ4	R10XJ000 0 S
R12C PQ4	R10XJ000 0 S
R14A PQ4	R10XJ822 8.2K S
R14B PQ4	R10XJ822 8.2K S
R14C PQ4	R10XJ822 8.2K S
R15A ERJ	3GEYJ101 100
R15B ERJ	3GEYJ101 100
R15C ERJ	3GEYJ101 100
R16A ERJ	3GEYOR00 0
R16B ERJ	3GEYOR00 0
R16C ERJ	3GEYOR00 0
R17A ERJ	3GEYF122 1.2K S
R17B ERJ	3GEYF122 1.2K S
R17C ERJ	3GEYF122 1.2K S
R18A ERJ	3GEYOR00 0
R18B ERJ	3GEYOR00 0
R18C ERJ	3GEYOR00 0
R20A ERJ	3GEYF122 1.2K S
R20B ERJ	3GEYF122 1.2K S
R20C ERJ	3GEYF122 1.2K S
R21A ERJ	3GEYOR00 0
R21B ERJ	3GEYOR00 0
R21C ERJ	3GEYOR00 0
R22A ERJ	3EKF3900 390
R22B ERJ	3EKF3900 390
R22C ERJ	3EKF3900 390
R23A ERJ	3EKF1001 1K
R23B ERJ	3EKF1001 1K
R23C ERJ	3EKF1001 1K
R24A ERJ	3EKF1003 100K
R24B ERJ	3EKF1003 100K
R24C ERJ	3EKF1003 100K
R25A ERJ	3EKF1003 100K
R25B ERJ	3EKF1003 100K
R25C ERJ	3EKF1003 100K
R27A ERJ	3GEYJ334 330K
R27B ERJ	3GEYJ334 330K
R27C ERJ	3GEYJ334 330K
R26A ERJ	3GEYJ334 330K
R26B ERJ	3GEYJ334 330K
R26C ERJ	3GEYJ334 330K
R28A ERJ	3GEYJ304 300K
R28B ERJ	3GEYJ304 300K
R28C ERJ	3GEYJ304 300K
R29A ERJ3GEY0R00 0
R29B ERJ3GEY0R00 0
R29C ERJ3GEY0R00 0
R30A ERJ3GEY0R00 0
R30B ERJ3GEY0R00 0
R30C ERJ3GEY0R00 0
R31A ERJ3GEYJ304 300K
R31B ERJ3GEYJ304 300K
R31C ERJ3GEYJ304 300K
R34A ERJ3EKF1003 100K
R34B ERJ3EKF1003 100K
R34C ERJ3EKF1003 100K
R35A ERJ3EKF1003 100K
R35B ERJ3EKF1003 100K
R35C ERJ3EKF1003 100K
R37A ERJ3GEY0R00 0
R37B ERJ3GEY0R00 0
R37C ERJ3GEY0R00 0
R38A ERJ3GEY0R00 0
R38B ERJ3GEY0R00 0
R38C ERJ3GEY0R00 0
R39A ERJ3GEYF122 1.2K S
R39B ERJ3GEYF122 1.2K S
R39C ERJ3GEYF122 1.2K S
R40A ERJ3GEYF122 1.2K S
R40B ERJ3GEYF122 1.2K S
R40C ERJ3GEYF122 1.2K S
R41A ERJ3GEYJ471 470
R41B ERJ3GEYJ471 470
R41C ERJ3GEYJ471 470
R42A ERJ3GEYF122 1.2K S
R42B ERJ3GEYF122 1.2K S
R42C ERJ3GEYF122 1.2K S
R43A ERJ3GEY0R00 0
R43B ERJ3GEY0R00 0
R43C ERJ3GEY0R00 0
R45A ERJ3GEY0R00 0
R45B ERJ3GEY0R00 0
R45C ERJ3GEY0R00 0
R46A ERJ3GEYF122 1.2K S
R46B ERJ3GEYF122 1.2K S
R46C ERJ3GEYF122 1.2K S
R47A ERJ3GEYJ473 47K
R47B ERJ3GEYJ473 47K
R47C ERJ3GEYJ473 47K
R49A ERJ3GEYJ473 47K
R49B ERJ3GEYJ473 47K
R49C ERJ3GEYJ473 47K
R50A ERJ3GEYJ473 47K
R50B ERJ3GEYJ473 47K
R50C ERJ3GEYJ473 47K
R51A ERJ3GEYJ104 100K
R51B ERJ3GEYJ104 100K
R51C ERJ3GEYJ104 100K
R527 ERJ3GEYJ104 100K
R528 ERJ3GEYJ273 27K
R52A ERJ3GEYJ272 2.7K
R52B ERJ3GEYJ272 2.7K
R52C ERJ3GEYJ272 2.7K
R534 ERJ3GEYJ104 100K
R535 ERJ3GEYJ273 27K
R53A ERJ3GEYJ103 10K
R53B ERJ3GEYJ103 10K
R53C ERJ3GEYJ103 10K
R72 ERJ3GEYJ103 10K
R73 ERJ3GEYJ103 10K
R200A ERJ3GEYJ682 6.8K
R200B ERJ3GEYJ682 6.8K
R200C ERJ3GEYJ682 6.8K
R200D ERJ3GEYJ682 6.8K
R200E ERJ3GEYJ682 6.8K
R200F ERJ3GEYJ682 6.8K
R200G ERJ3GEYJ682 6.8K

Ref.No.	Part No.	Part Name & Description	Remarks
R200H ER	J3GEYJ682 6.8K
R201A ER	J3GEYJ682 6.8K
R201B ER	J3GEYJ682 6.8K
R201C ER	J3GEYJ682 6.8K
R201D ER	J3GEYJ682 6.8K
R201E ER	J3GEYJ682 6.8K
R201F ER	J3GEYJ682 6.8K
R201G ER	J3GEYJ682 6.8K
R201H ER	J3GEYJ682 6.8K
R202A ER	J14YJ220 22
R202B ER	J14YJ220 22
R202C ER	J14YJ220 22
R202D ER	J14YJ220 22
R202E ER	J14YJ220 22
R202F ER	J14YJ220 22
R202G ER	J14YJ220 22
R202H ER	J14YJ220 22
R203A ER	J14YJ220 22
R203B ER	J14YJ220 22
R203C ER	J14YJ220 22
R203D ER	J14YJ220 22
R203E ER	J14YJ220 22
R203F ER	J14YJ220 22
R203G ER	J14YJ220 22
R203H ER	J14YJ220 22
R204A ER	J14YJ680 68
R204B ER	J14YJ680 68
R204C ER	J14YJ680 68
R204D ER	J14YJ680 68
R204E ER	J14YJ680 68
R204F ER	J14YJ680 68
R204G ER	J14YJ680 68
R204H ER	J14YJ680 68
R205A ER	J14YJ680 68
R205B ER	J14YJ680 68
R205C ER	J14YJ680 68
R205D ER	J14YJ680 68
R205E ER	J14YJ680 68
R205F ER	J14YJ680 68
R205G ER	J14YJ680 68
R205H ER	J14YJ680 68
R206A ER	J1WYJ102 1K S
R206B ER	J1WYJ102 1K S
R206C ER	J1WYJ102 1K S
R206D ER	J1WYJ102 1K S
R206E ER	J1WYJ102 1K S
R206F ER	J1WYJ102 1K S
R206G ER	J1WYJ102 1K S
R206H ER	J1WYJ102 1K S
R207A ER	J3GEYJ333 33K
R207B ER	J3GEYJ333 33K
R207C ER	J3GEYJ333 33K
R207D ER	J3GEYJ333 33K
R207E ER	J3GEYJ333 33K
R207F ER	J3GEYJ333 33K
R207G ER	J3GEYJ333 33K
R207H ER	J3GEYJ333 33K
R208A ER	J3GEYJ563 56K
R208B ER	J3GEYJ563 56K
R208C ER	J3GEYJ563 56K
R208D ER	J3GEYJ563 56K
R208E ER	J3GEYJ563 56K
R208F ER	J3GEYJ563 56K
R208G ER	J3GEYJ563 56K
R208H ER	J3GEYJ563 56K
R209A ER	J3GEYJ153 15K
R209B ER	J3GEYJ153 15K
R209C ER	J3GEYJ153 15K
R209D ER	J3GEYJ153 15K
R209E ER	J3GEYJ153 15K
R209F ER	J3GEYJ153 15K
R209G ER	J3GEYJ153 15K
R209H ER	J3GEYJ153 15K
R210A	ERJ3GEYJ333 33K
R210B	ERJ3GEYJ333 33K
R210C	ERJ3GEYJ333 33K
R210D	ERJ3GEYJ333 33K
R210E	ERJ3GEYJ333 33K
R210F	ERJ3GEYJ333 33K
R210G	ERJ3GEYJ333 33K
R210H	ERJ3GEYJ333 33K
R211A	ERJ3GEYJ123 12K
R211B	ERJ3GEYJ123 12K
R211C	ERJ3GEYJ123 12K
R211D	ERJ3GEYJ123 12K
R211E	ERJ3GEYJ123 12K
R211F	ERJ3GEYJ123 12K
R211G	ERJ3GEYJ123 12K
R211H	ERJ3GEYJ123 12K
R215A	ERJ3GEYJ473 47K
R215B	ERJ3GEYJ473 47K
R215C	ERJ3GEYJ473 47K
R215D	ERJ3GEYJ473 47K
R215E	ERJ3GEYJ473 47K
R215F	ERJ3GEYJ473 47K
R215G	ERJ3GEYJ473 47K
R215H	ERJ3GEYJ473 47K
R216A	ERJ3GEYJ103 10K
R216B	ERJ3GEYJ103 10K
R216C	ERJ3GEYJ103 10K
R216D	ERJ3GEYJ103 10K
R216E	ERJ3GEYJ103 10K
R216F	ERJ3GEYJ103 10K
R216G	ERJ3GEYJ103 10K
R216H	ERJ3GEYJ103 10K
R218A	ERJ3GEYJ103 10K
R218B	ERJ3GEYJ103 10K
R218C	ERJ3GEYJ103 10K
R218D	ERJ3GEYJ103 10K
R218E	ERJ3GEYJ103 10K
R218F	ERJ3GEYJ103 10K
R218G	ERJ3GEYJ103 10K
R218H	ERJ3GEYJ103 10K
R219A	ERJ3GEYJ102 1K
R219B	ERJ3GEYJ102 1K
R219C	ERJ3GEYJ102 1K
R219D	ERJ3GEYJ102 1K
R219E	ERJ3GEYJ102 1K
R219F	ERJ3GEYJ102 1K
R219G	ERJ3GEYJ102 1K
R219H	ERJ3GEYJ102 1K
R220A	PQ4R10XJ271 270 S
R220B	PQ4R10XJ271 270 S
R220C	PQ4R10XJ271 270 S
R220D	PQ4R10XJ271 270 S
R220E	PQ4R10XJ271 270 S
R220F	PQ4R10XJ271 270 S
R220G	PQ4R10XJ271 270 S
R220H	PQ4R10XJ271 270 S
R221A	ERJ3GEYJ103 10K
R221B	ERJ3GEYJ103 10K
R221C	ERJ3GEYJ103 10K
R221D	ERJ3GEYJ103 10K
R221E	ERJ3GEYJ103 10K
R221F	ERJ3GEYJ103 10K
R221G	ERJ3GEYJ103 10K
R221H	ERJ3GEYJ103 10K
R222A	ERJ3GEYJ103 10K
R222B	ERJ3GEYJ103 10K
R222C	ERJ3GEYJ103 10K
R222D	ERJ3GEYJ103 10K
R222E	ERJ3GEYJ103 10K
R222F	ERJ3GEYJ103 10K
R222G	ERJ3GEYJ103 10K
R222H	ERJ3GEYJ103 10K
R225	ERJ3GEYJ103 10K

Ref.No.	Part No.	Part Name & Description	Remarks
R226 ERJ	3GEYJ103 10K
R227 ERJ	3GEYJ682 6.8K
R228 ERJ	3GEYJ682 6.8K
R229 ERJ	3GEYJ221 220
R231 ERJ	3GEYJ273 27K
R232 ERJ	3GEYJ273 27K
R235 ERJ	3GEYJ222 2.2K
R237 ERJ	3GEYJ472 4.7K
R238 ERJ	3GEYJ102 1K
R239 ERJ	3GEYJ473 47K
R240 ERJ	3GEYJ101 100
R241 ERJ	3GEYJ472 4.7K
R501 ERJ	3GEYJ220 22
R502 ERJ	3GEYJ220 22
R503 ERJ	3GEYJ221 220
R511 ERJ	3GEYJ122 1.2K
R512 ERJ	3GEYJ122 1.2K
R513 ERJ	3GEYJ122 1.2K
R514 ERJ	3GEYJ122 1.2K
R515 ERJ	3GEYJ122 1.2K
R516 ERJ	3GEYJ122 1.2K
R517 ERJ	3GEYJ122 1.2K
R518 ERJ	3GEYJ122 1.2K
R533 ERJ	3GEYJ334 330K
R536 ERJ	3GEYJ334 330K
R538 ERJ	3GEYJ103 10K
R539 ERJ	3GEYJ103 10K
R540 ERJ	3GEYJ103 10K
R541 ERJ	3GEYJ103 10K
R542 ERJ	3GEYJ103 10K
R543 ERJ	3GEYJ103 10K

19.6. FIXTURES AND TOOLS

Ref.No.	Part No.	Part Name & Description	Remarks
EC1 PSZZ	TES824BX EXTENSION CORD

Note: The Extension Cords are useful for servicing. (They make servicing easy.)

20 FOR THE SCHEMATIC DIAGRAM

Note:

1. DC voltage measurements are taken with an oscilloscope or a tester with a ground.
2. The schematic diagrams and circuit board may be modified at any time with the development of new technology.

Important safety notice

Components identified by ⚠ mark have special characteristics important for safety. When replacing any of there components, use only manufacturer's specified parts.

    subgraph Power Unit
        DPH["DPH (KX-TE82461) CN1"] --> AG["Ag +15V"]
        DPH["DPH (KX-TE82461) CN1"] --> AG["Ag +15V"]
        DPH["DPH (KX-TE82461) CN1"] --> AG["Ag +15V"]
        DPH["DPH (KX-TE82461) CN1"] --> AG["Ag +15V"]
        DPH["DPH (KX-TE82461)) CN1"] --> AG["Ag +15V"]
        DPH["DPH (KX-TE82461)) CN1"] --> AG["Ag +15V"]
        DPH["DPH (KX-TE82461)) CN1"] --> AG["Ag +15V"]

    subgraph Power Unit
        ToPowerUnit["To Power Unit"]
    end

21 SCHEMATIC DIAGRAM (KX-TES824BX/KX-TEM824BX)

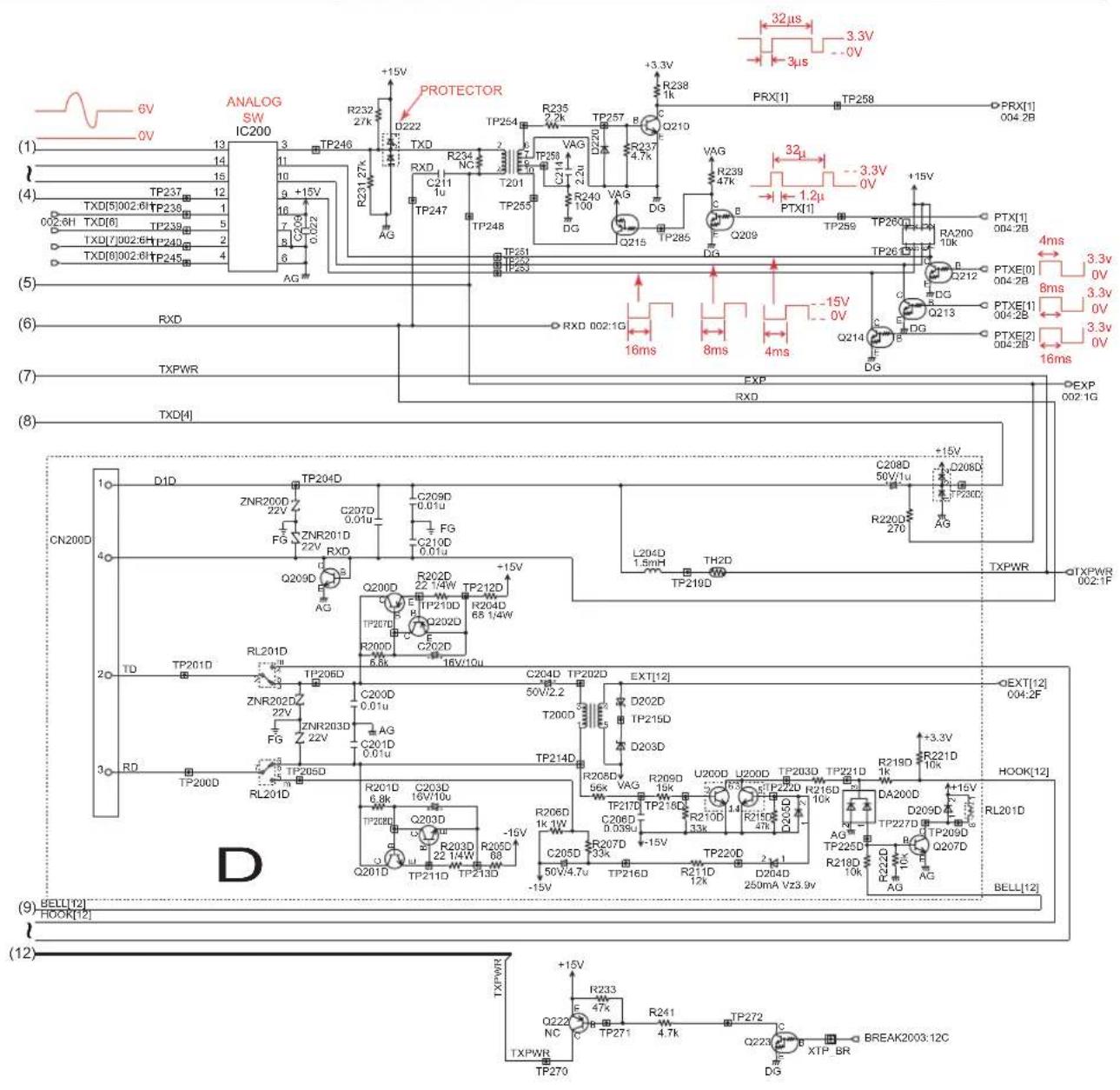

21.1. MAIN No.1 (Extension A-D Block)

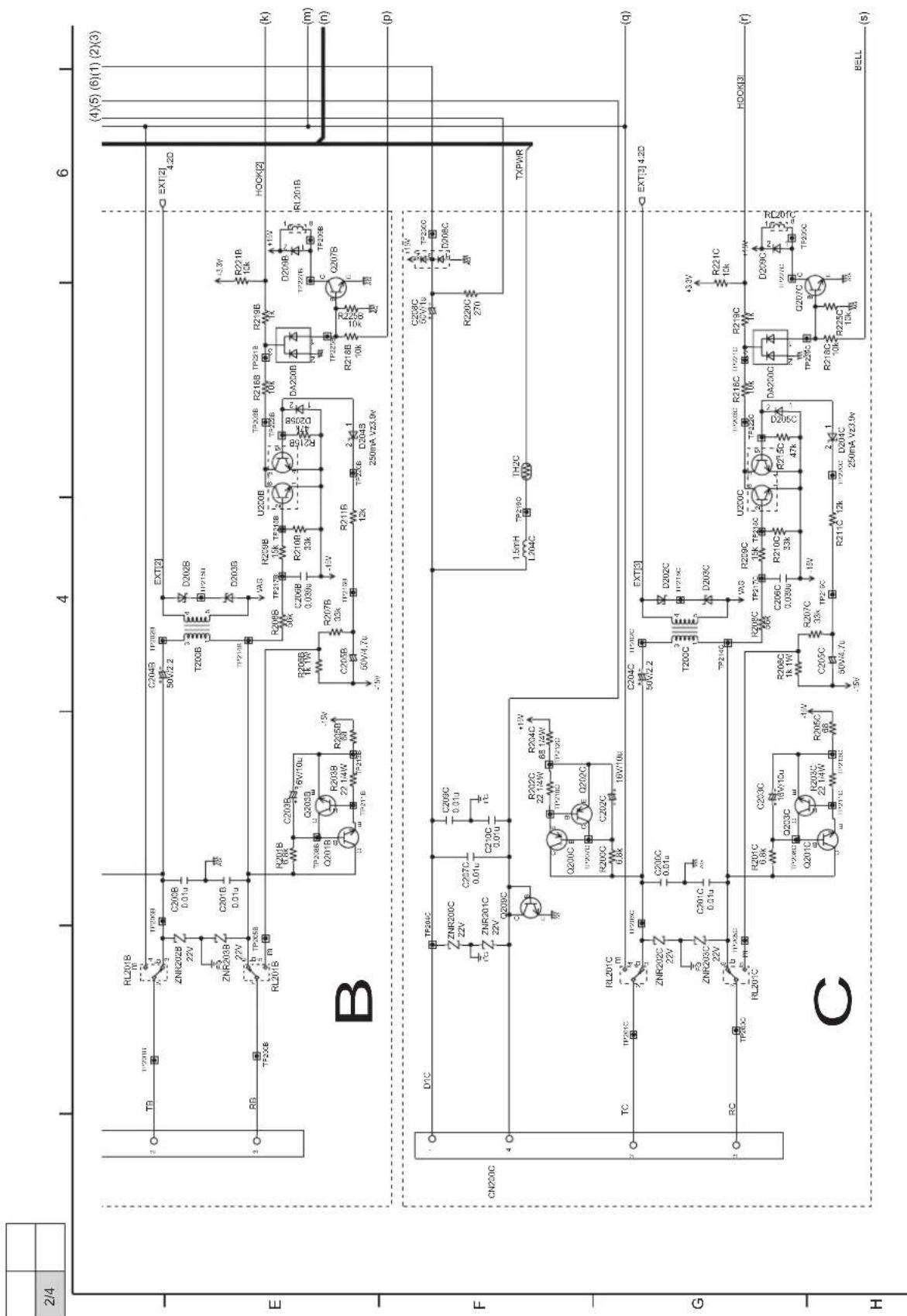

2/4

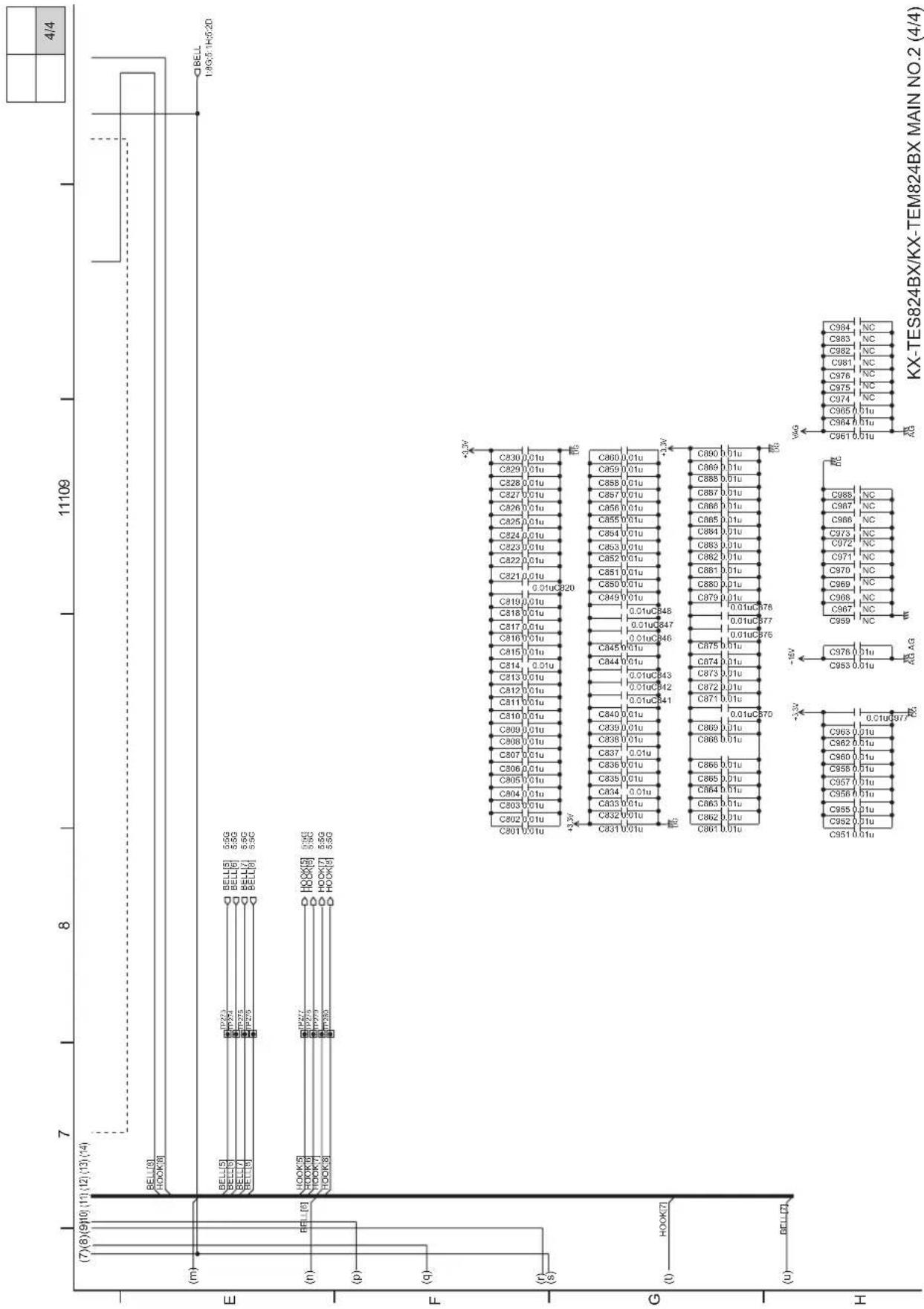

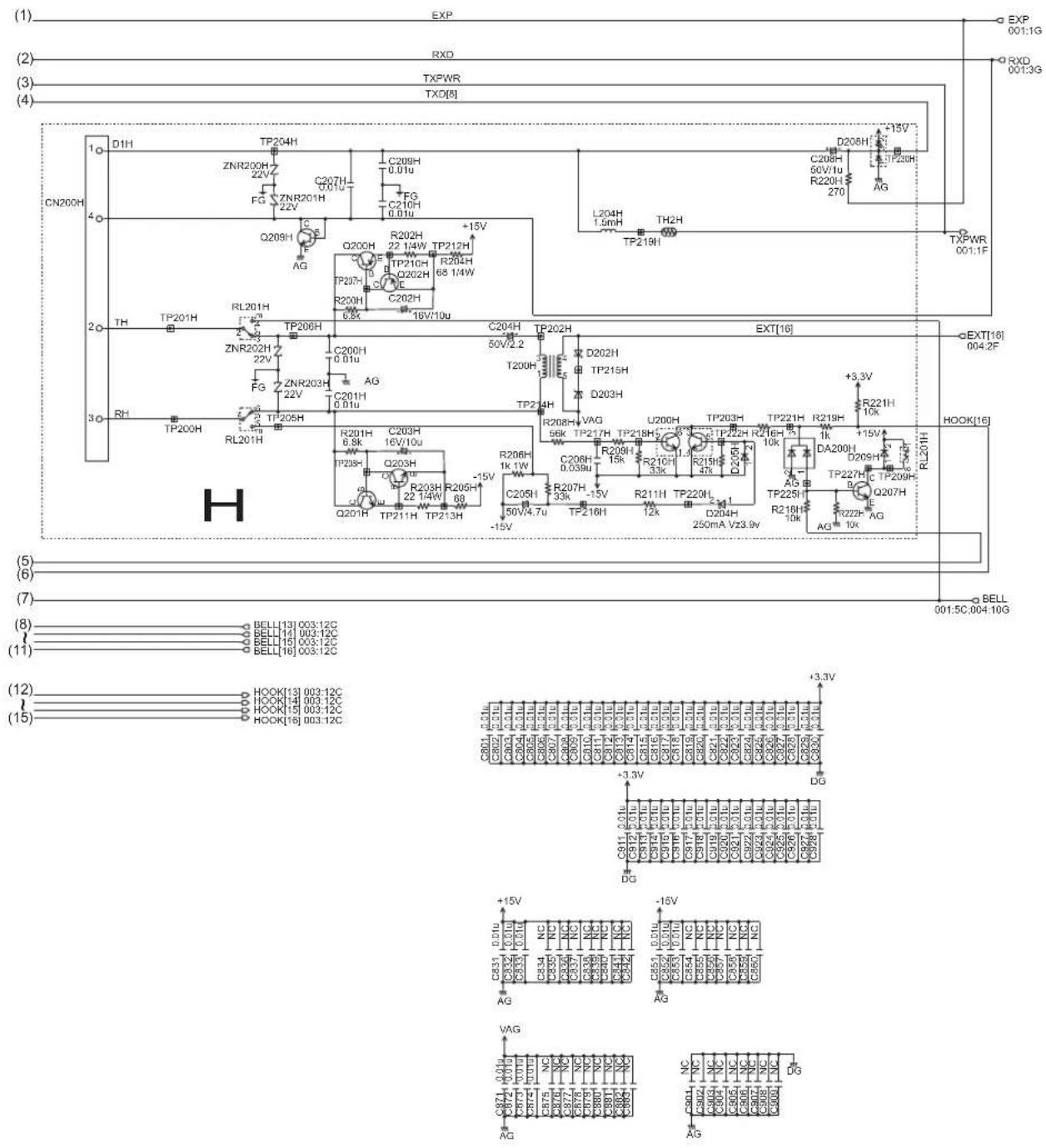

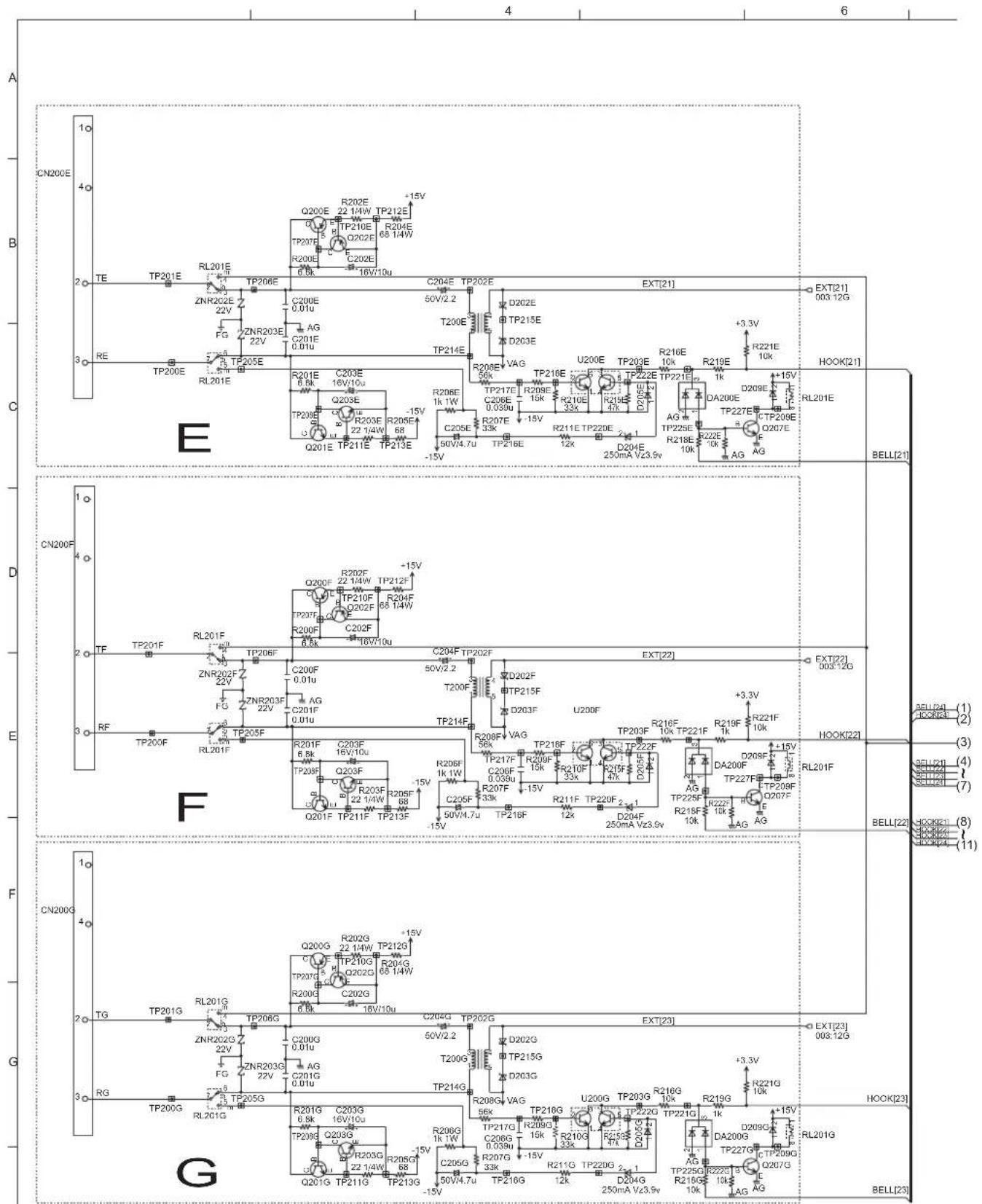

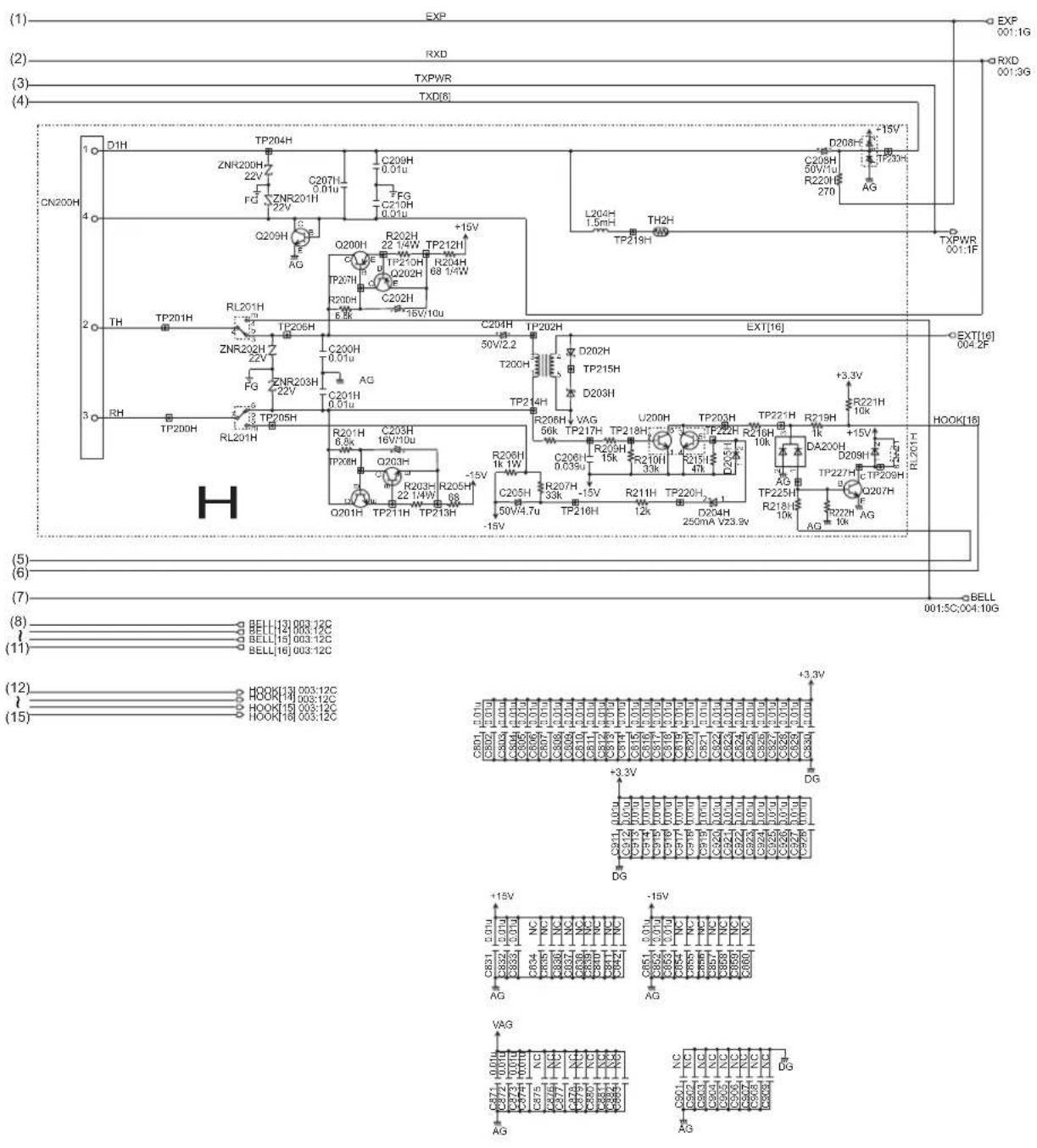

21.2. MAIN No.2 (Extension E-H Block)

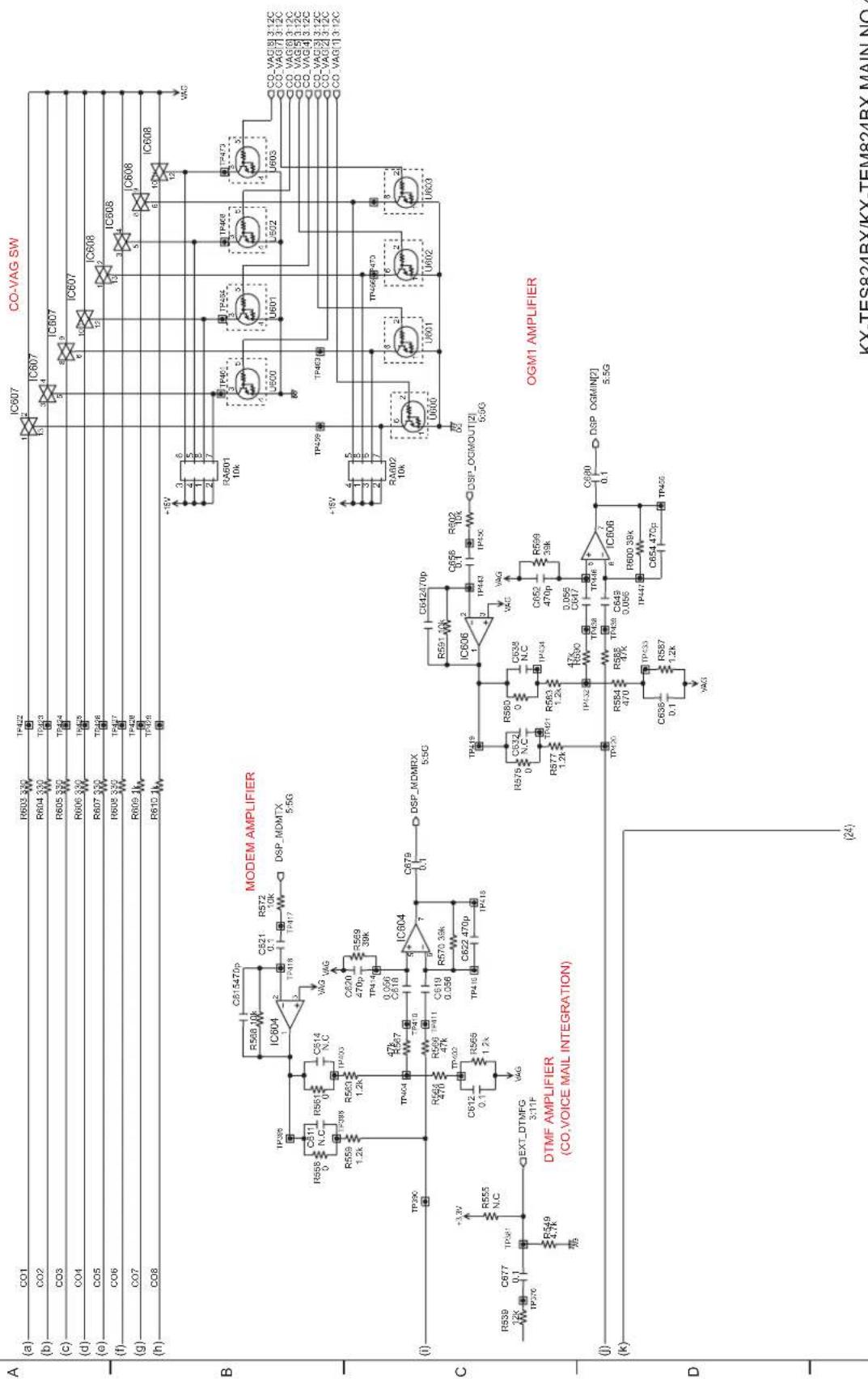

21.3. MAIN No.3 (CO Block)

2/4

	3/4

	4/4

21.4. MAIN No.4 (Cross-Point Block)

1/4

2/4
	3/4

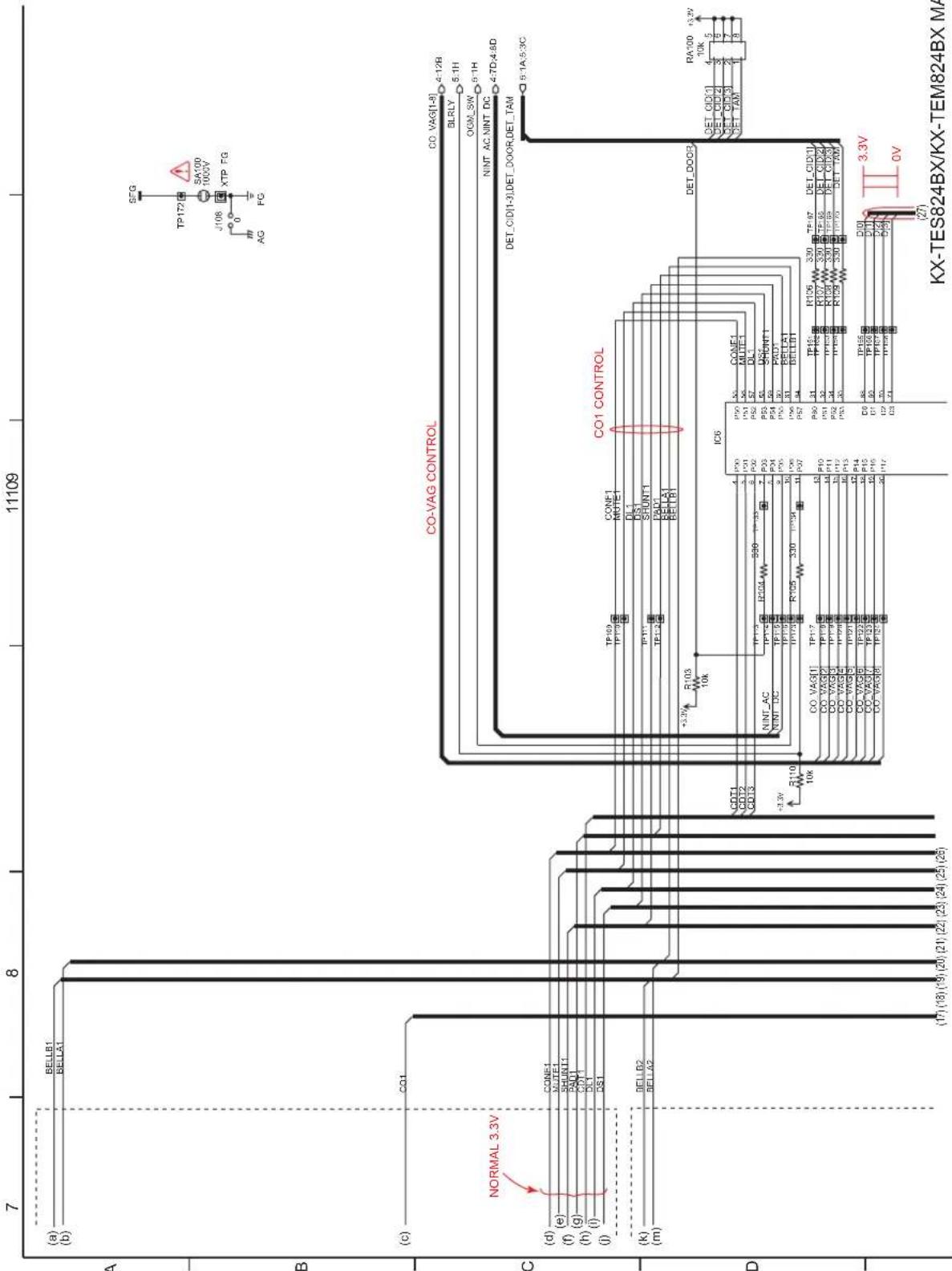

11 12109
7

KX-TES824BX/KX-TEM824BX MAIN NO.4 (3/4)

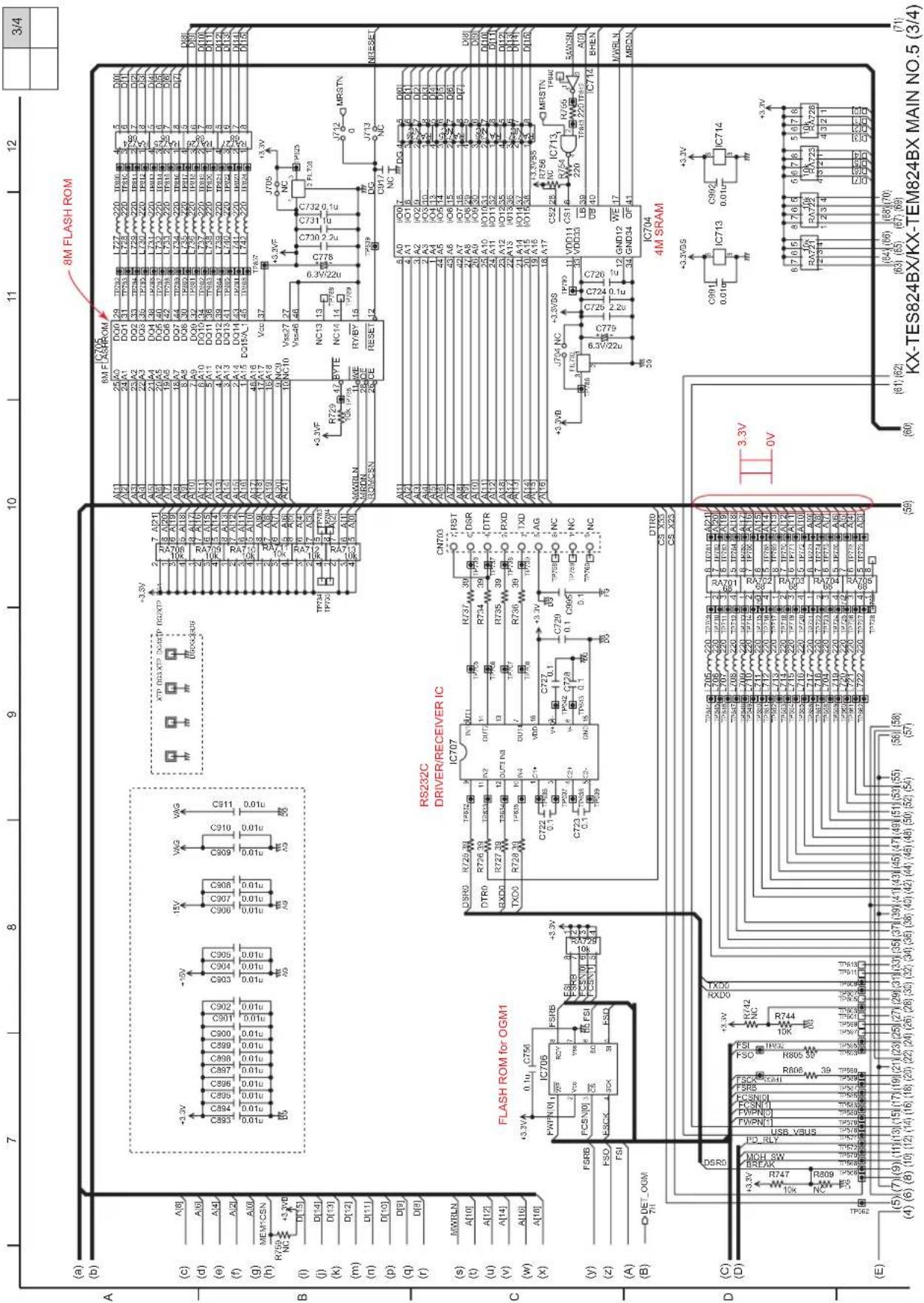

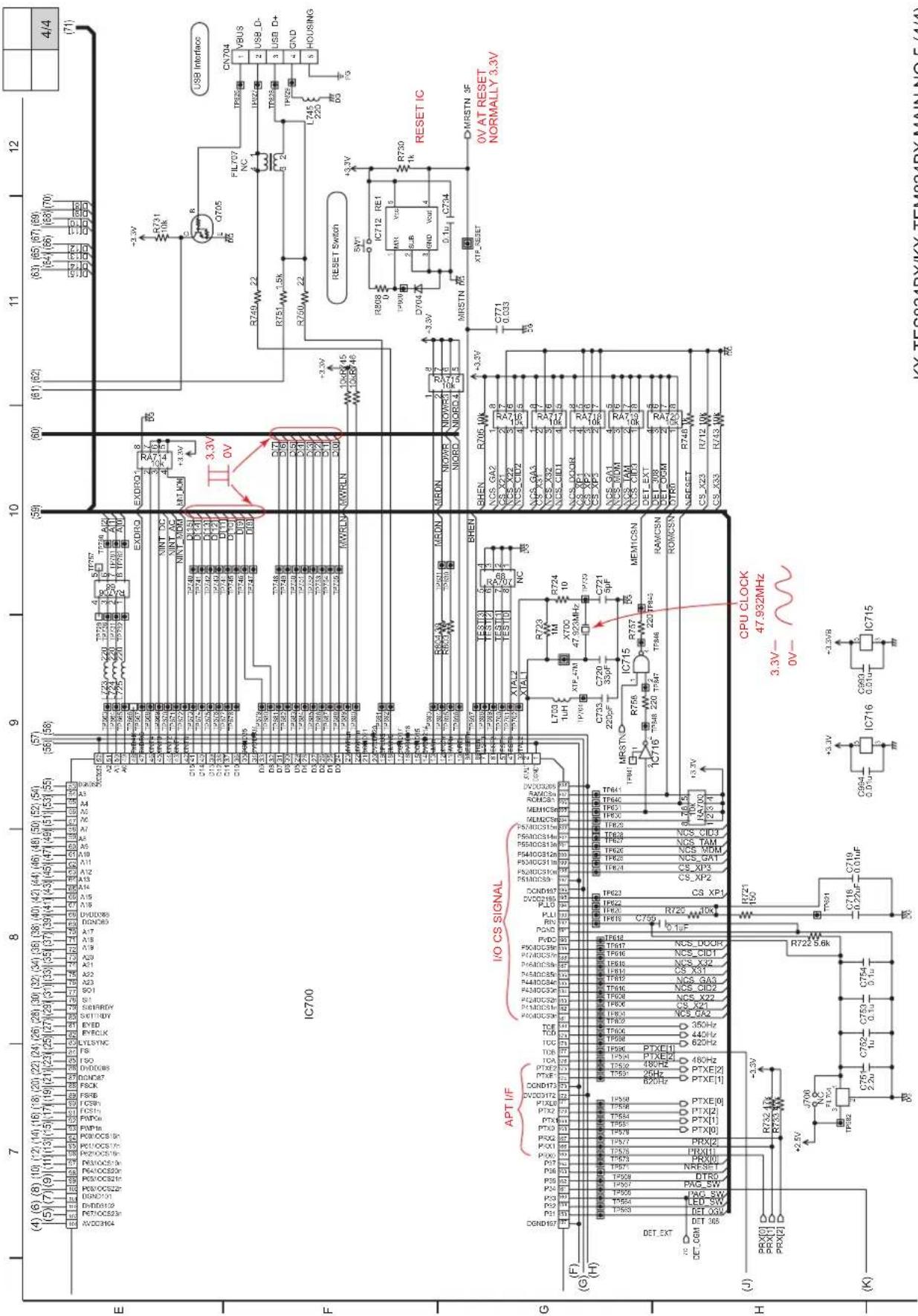

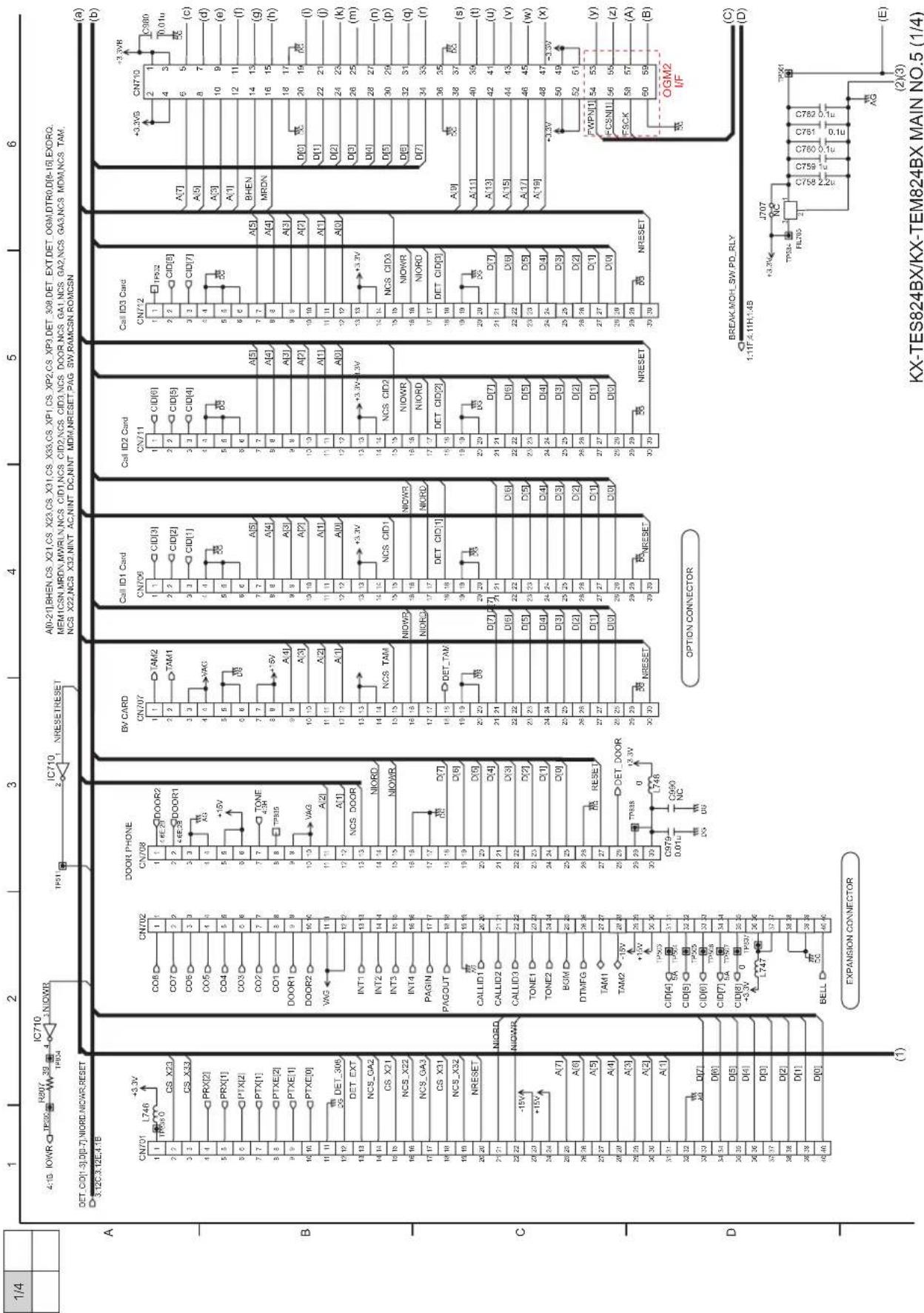

21.5. MAIN No.5 (ASIC, Memory Block)

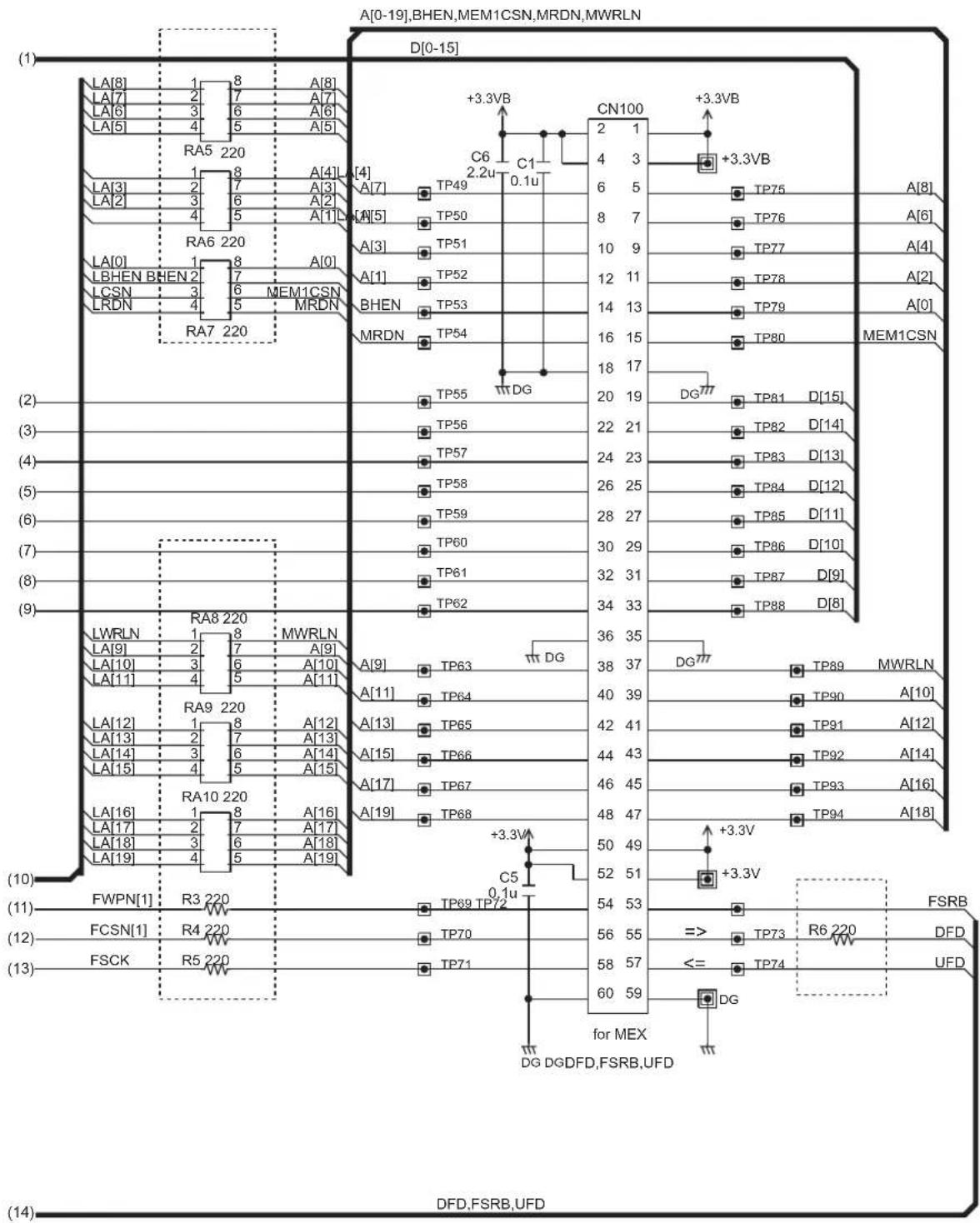

2/4

21.6. SUB

21.6.1. No.1

KX-TEM824BX SUB No.1

21.6.2. No.2

KX-TEM824BX SUB No.2

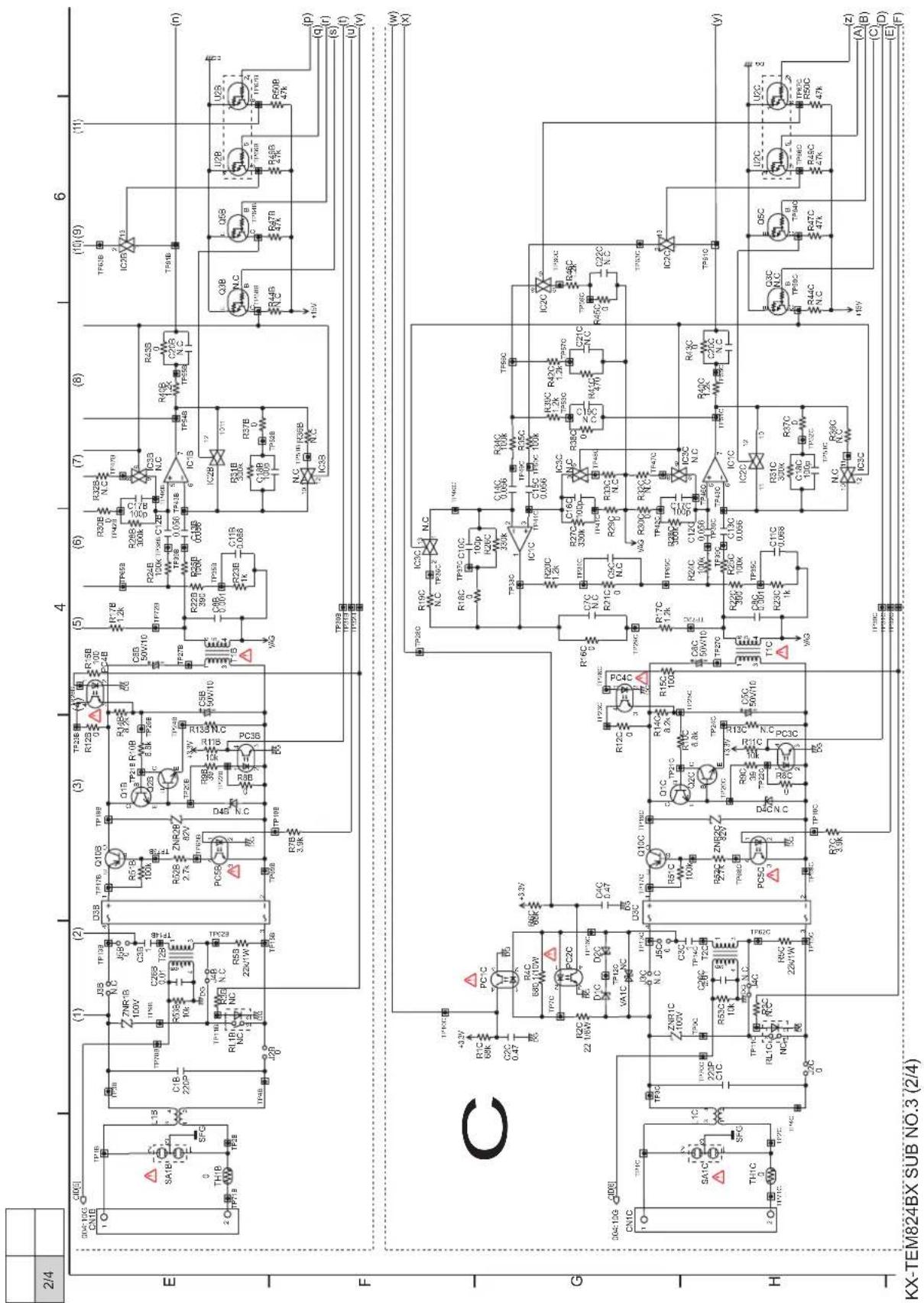

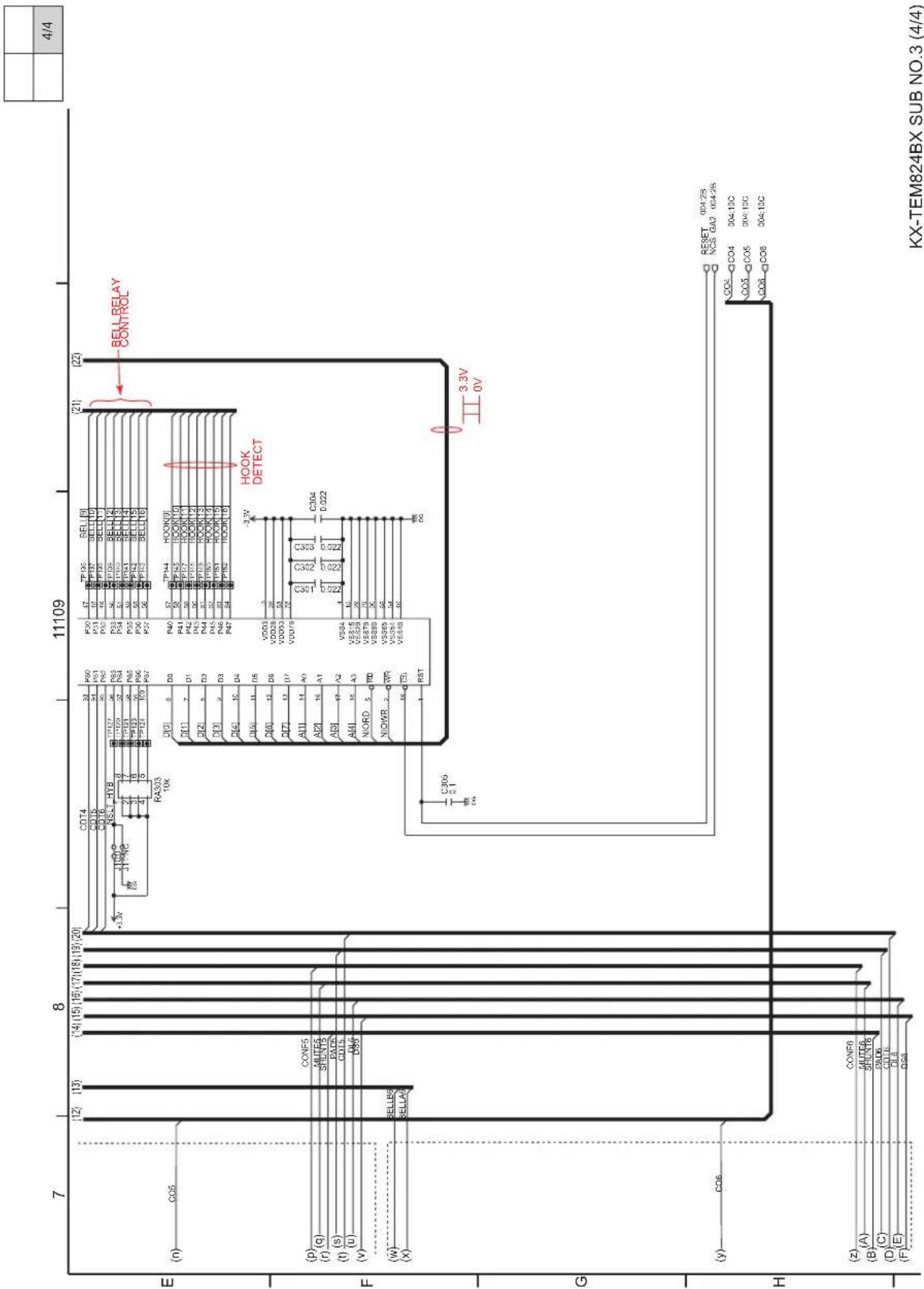

21.6.3. No.3

21.6.4. No.4

KX-TEM824BX SUB No.4

21.7. POWER SUPPLY

KX-TES824BX/KX-TEM824BX POWER SUPPLY

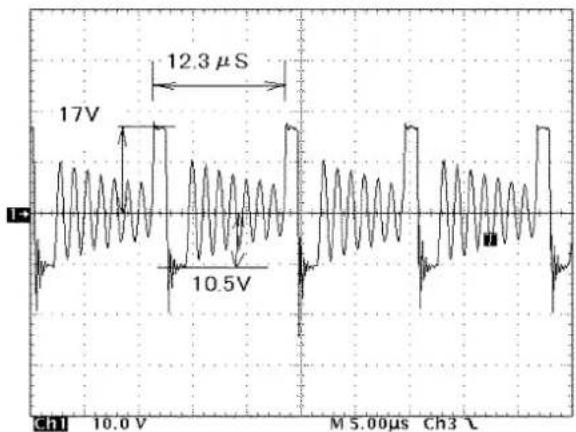

21.7.1. WAVEFORM

① AC input 240V

① AC input 120V

② AC input 240V

② AC input 120V

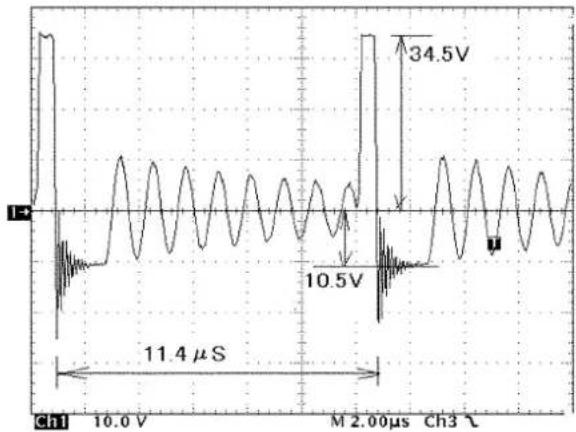

③

④

⑤

⑥

⑦

21.7.2. Memo

22 PRINTED CIRCUIT BOARD (KX-TES824BX/KX-TEM824BX)

22.1. MAIN BOARD

22.1.1. COMPONENT VIEW

KX-TES824BX/KX-TEM824BX MAIN BOARD (COMPONENT VIEW)

22.1.2. BOTTOM VIEW

KX-TES824BX/KX-TEM824BX MAIN BOARD (BOTTOM VIEW)

22.2. SUB BOARD

22.2.1. COMPONENT VIEW

KX-TEM824BX SUB BOARD (COMPONENT VIEW)

22.2.2. BOTTOM VIEW

KX-TEM824BX SUB BOARD (BOTTOM VIEW)

22.3. POWER SUPPLY

22.3.1. COMPONENT VIEW

KX-TES824BX/KX-TEM824BX POWER SUPPLY BOARD (COMPONENT VIEW)

22.3.2. BOTTOM VIEW

KX-TES824BX/KX-TEM824BX POWER SUPPLY BOARD (BOTTOM VIEW)

23 KX-TE82461X (4-PORT DOORPHONE CARD)

Isometric technical drawing of a rectangular electronic component with internal connectors and mounting holes (no text or symbols)

23.1. HOW TO RECOGNIZE THAT Pb FREE SOLDER IS USED

Marked PbF
KX-TE82461X COMPONENT VIEW

23.2. LOCATION OF OPTIONAL CARDS

23.2.1. 4-Port Doorphone Card (KX-TE82461X)

Function

Supports the connection of 4 doorphones and 4 dooropeners.

1. Loosen the screws and open the top and bottom front covers.
2. Attach the 4-Port Doorphone Card to the main unit, connect the cord to the Doorphone Card Connector and secure the screw.

Note

Use extra care to make sure you do not damage the part of the case marked with a circle.

1. Close the covers and secure the screws.

23.3. DOORPHONE/DOOROPENER CARD BLOCK DIAGRAM

KX-TE82461X DOORPHONE/DOOROPENER CARD BLOCK DIAGRAM

23.4. EXPLANATION OF BLOCK DIAGRAM/CIRCUIT OPERATIONS

23.4.1. OPTION CARD (KX-TE82461X)

23.4.1.1.

This doorphone/door opener card is composed of the control interface with KX-TES824/KX-TEM824 and four doorphone interfaces and four dooropener interfaces section.

1) Doorphone section

This card has four doorphone interfaces, but this system has only two door phone intercom paths.

Therefore, this card has a programmable SW to connect either DOORPHONE1 or DOORPHONE2.

For example: When the DOORPHONE1 is used, the DOORPHONE2 hears a busy tone. This is repeated for Doorphone 3 and 4.

This doorphone intercom path is composed of the send amplifier and receive amplifier circuits.

The interfaces have the doorphone connect detection circuit and the doorphone hook detection circuit.

2)

This doorphone/dooropener card has four dooropener interfaces. These interfaces are used for the dooropener SW (DC 30/AC 250 5A).

23.5. TROUBLESHOOTING GUIDE

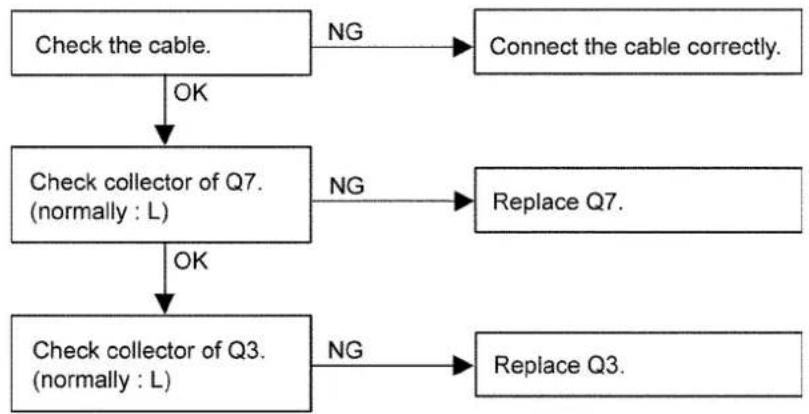

23.5.1. Can Not Call From Doorphone

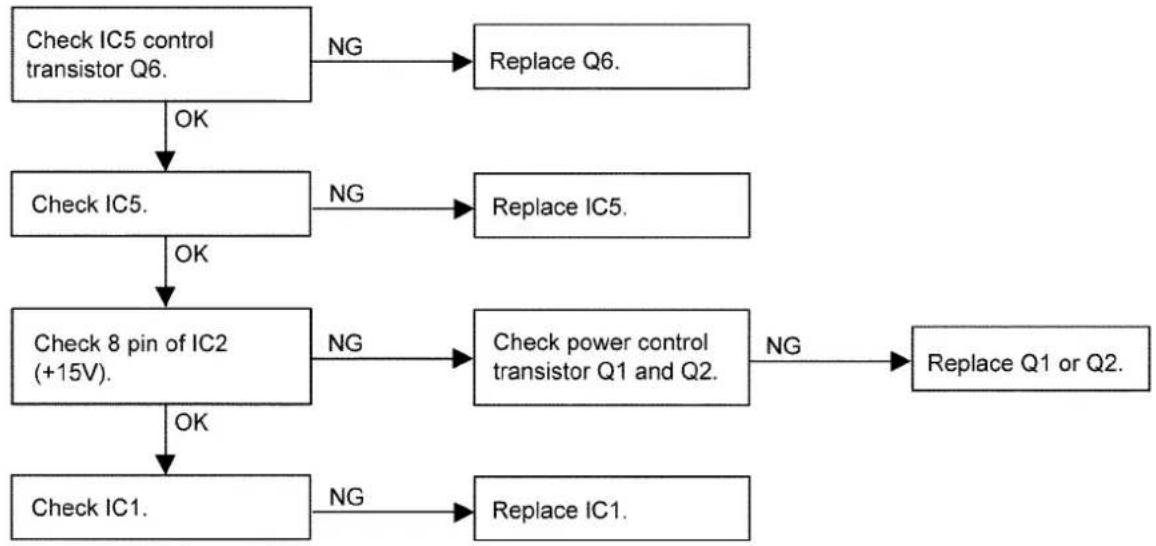

23.5.2. Can Not Talk

23.5.3. Can Not Use Dooropener

23.6. IC DATA

23.6.1. IC6, IC7, IC8

Pin No.	Fin Name I/O Description
3 DHK1	I DOOR Hook detection
4 DHK2	I DOOR Hook detection
7 DHK3	I DOOR Hook detection
8 DHK4	I DOOR Hook detection
13 DCN1	I DOOR Phone Connection Detection
14 DCN2	I DOOR Phone Connection Detection
17 DCN3	I DOOR Phone Connection Detection
18 DCN4	I DOOR Phone Connection Detection
2 DOOR_SW1	O Connect DOOR 1 to Port 1
5 TONE_SW1		O Connect Tone to Port 1
6 DOOR_SW2	O Connect DOOR 1 to Port 2
9 TONE_SW2		O Connect Tone to Port 2
12 DOOR_SW3	O Connect DOOR 2 to Port 3
15 TONE_SW3		O Connec Tone to Port 3
16 DOOR_SW4	O Connect DOOR 2 to Port 4
19 TONE_SW4		O Connec Tone to Port 4
2 BUSY1		O Power Supply Function
5 BUSY2		O Power Supply Function
6 BUSY3		O Power Supply Function
9 BUSY4		O Power Supply Function
12 DOPN1		O Door Opener Control
15 DOPN2		O Door Opener Control
16 DOPN3		O Door Opener Control
19 DOPN4		O Door Opener Control

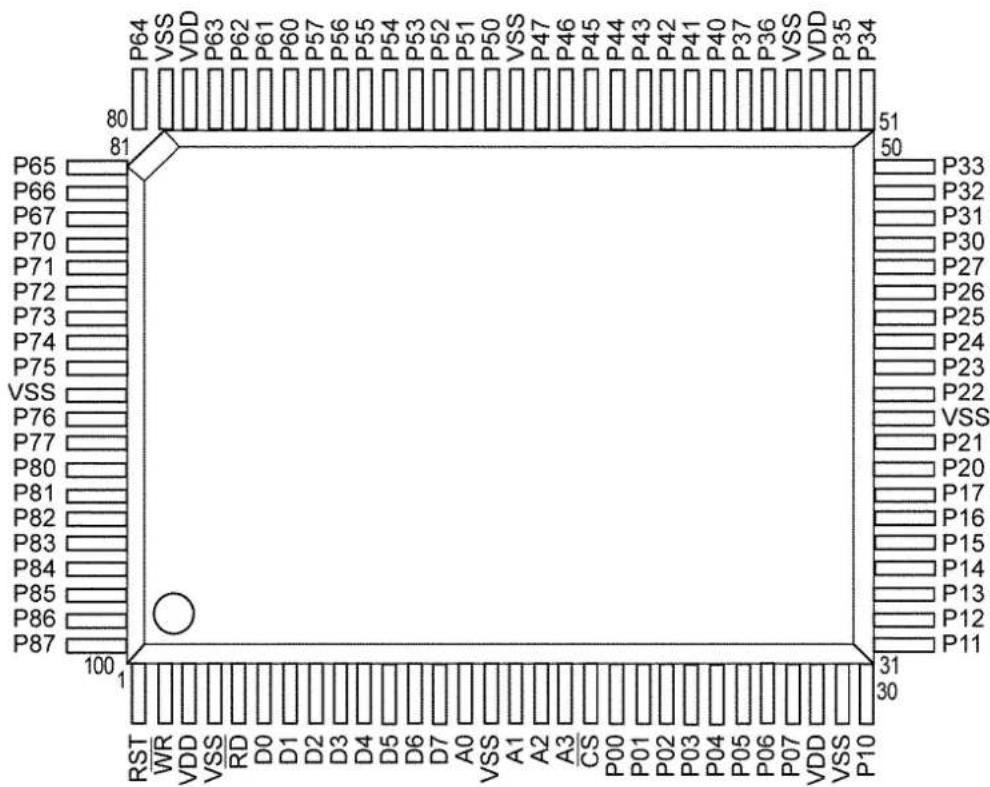

23.7. TERMINAL GUIDE OF ICS, TRANSISTORS AND DIODES

PQVINJM2904V	PQVITC4066BFC0JBAE000253	C0JBAZ001852PSVISNLV273A	PSVITCVT138T
PQVITC7SU04F	UN521DTXUN5113, UN5213PQVTDTC124EUPQVTDTC123E	B1GFAFNN0001	MA8068M
MA110

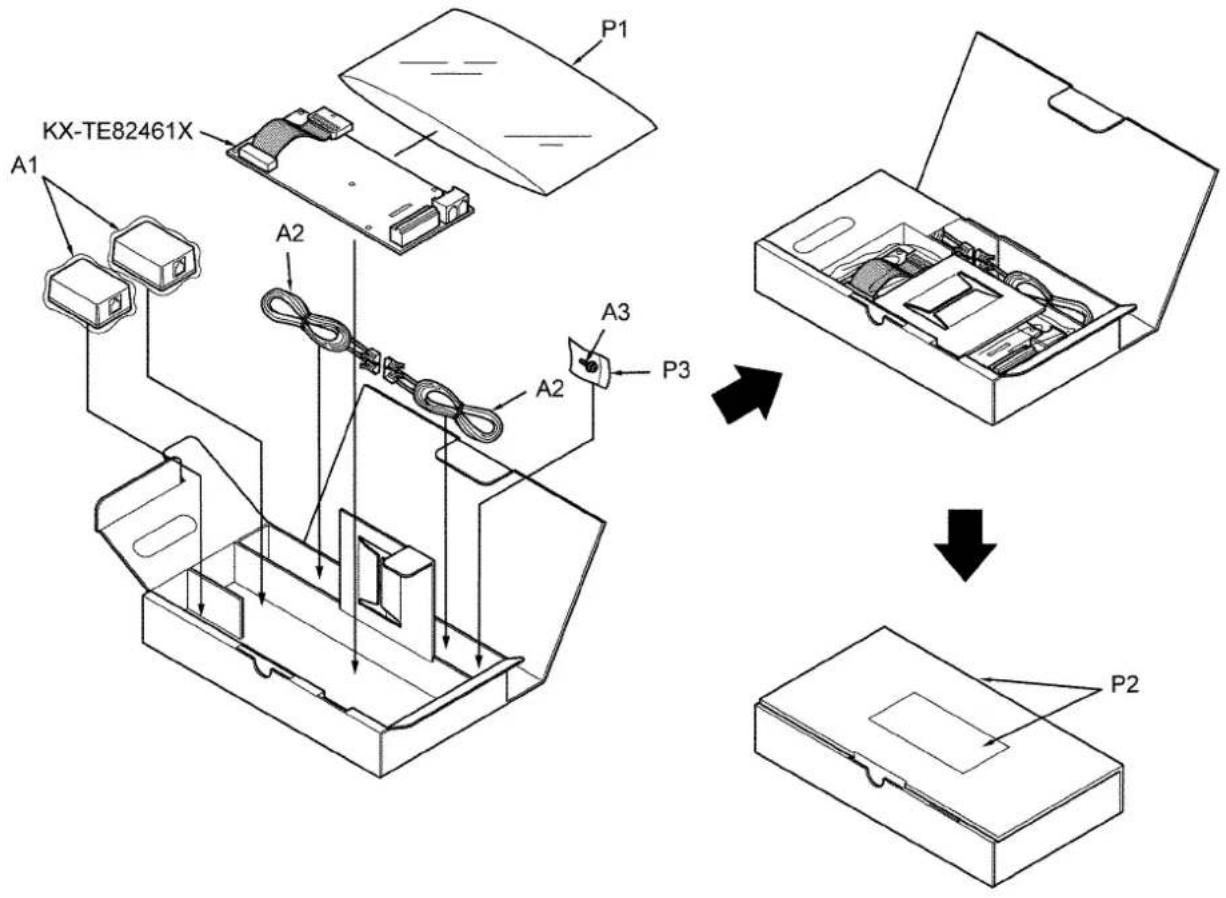

23.8. ACCESSORIES AND PACKING MATERIALS

23.9. REPLACEMENT PARTS LIST (KX-TE82461X)

Note:

1. RTL (Retention Time Limited)

The marking (RTL) indicates that the Retention Time is limited for this item.

After the discontinuation of this assembly in production, the item will continue to be available for a specific period of time. The retention period of availability depends on the type of assembly and the laws governing parts and product retention. At the end of this period, the assembly will no longer be available.

1. Important safety notice

Components identified by the ▲ mark indicates special characteristics important for safety. When replacing any of these components, only use specified manufacture's parts.

1. The S mark means the part is one of some identical. For that reason, it may be different from the installed part.

2. ISO code (Example: ABS-94HB) of the remarks column shows quality of the material and a flame resisting grade about plastics.

3. RESISTORS & CAPACITORS

Unless otherwise specified;

All resistors are in ohms (Ω), k=1000Ω, M=1000kΩ

All capacitors are in MICRO FARADS ( F ), p=( F)

*Type & Wattage of Resistor

Type

ERC:Solid	ERX,ERG,ER0,ERJ	PQ4R:Carbon
ERD:Carbon	:Metal Film Oxide	ERS:Fusible Resistor
PQRD:Carbon		ERF:Cement Resistor

Wattege

10,16:1/8W

14,25:1/4W

12:1/2W

1:1W

2:2W

3:3W

*Type & Voltage of Capacitor

Type

ECFD:Semi-ConductorECQS:StyrolPQCUV,ECUV:ChipECQMS:Mica

ECCD,ECKD,ECBT,PQCBC:CeramicECQE,ECQV,ECQG:PolyesterECEA,ECSZ,F2G,PSCSZ:ElectlyticECQP:Polypropylene

Voltage

ECQ Type	ECQG ECQV Type	ECSZ Type	Others
1H:50V	05:50V	0F:3.15V	0J :6.3V	1V :35V
2A:100V	1:100V	1A:10V	1A :10V	50,1H:50V
2E:250V	2:200V	1V:35V	1C :16V	1J :63V
2H:500V		0J:6.3V	1E,25:25V	2A :100V

23.9.1. ACCESSORIES AND PACKING MATERIALS

Ref.No.	Part No.	Part Name & Description	Remarks
A1 PQJS	T30Z CONNECTOR
A2 PSJA	068Z CORD
A3 XYN3	P12FN SCREW
P1 PSPP	068Z PROTECTION COVER
P2 PSZK	E82461X GIFT BOX
P3 XZB05	X08A03 PROTECTION COVER

23.9.2. MAIN BOARD PARTS

Ref.No.	Part No.	Part Name & Description	Remarks
		(ICS)
IC1A PQVINJM2904V IC		S
IC1B PQVINJM2904V IC		S
IC1C PQVINJM2904V IC		S
IC1D PQVINJM2904V IC		S
IC2A PQVINJM2904V IC		S
IC2B PQVINJM2904V IC		S
IC2C PQVINJM2904V IC		S
IC2D PQVINJM2904V IC		S
IC5A PQVITC4066BF IC		S
IC5C PQVITC4066BF IC		S
IC6	COJBAZ001852 IC
IC7	PSVISNLV273A IC	S
IC8	PSVISNLV273A IC	S
IC9	PSVITCVT138T IC	S
IC10 COJBAE000253 IC
IC11 PQVITC7SU04F IC		S
		(TRANSISTORS)
Q1A	UN5113	TRANSISTOR(SI)	S
Q1B	UN5113	TRANSISTOR(SI)	S
Q1C	UN5113	TRANSISTOR(SI)	S
Q1D	UN5113	TRANSISTOR(SI)	S
Q2A	UN5213	TRANSISTOR(SI)	S
Q2B	UN5213	TRANSISTOR(SI)	S
Q2C	UN5213	TRANSISTOR(SI)	S
Q2D	UN5213	TRANSISTOR(SI)	S
Q3A	PQVTDTC124EU TRANSISTOR(SI)	S
Q3B	PQVTDTC124EU TRANSISTOR(SI)	S
Q3C	PQVTDTC124EU TRANSISTOR(SI)	S
Q3D	PQVTDTC124EU TRANSISTOR(SI)	S
Q7A	UN521DTX	TRANSISTOR(SI)	S
Q7B	UN521DTX	TRANSISTOR(SI)	S
Q7C	UN521DTX	TRANSISTOR(SI)	S
Q7D	UN521DTX	TRANSISTOR(SI)	S
Q8A	PQVTDTC143E	TRANSISTOR(SI)	S
Q8B	PQVTDTC143E	TRANSISTOR(SI)	S
Q8C	PQVTDTC143E	TRANSISTOR(SI)	S
Q8D	PQVTDTC143E	TRANSISTOR(SI)	S
U6A	B1GFAFNN0001 TRANSISTOR(SI)
U6B	B1GFAFNN0001 TRANSISTOR(SI)
U6C	B1GFAFNN0001 TRANSISTOR(SI)
U6D	B1GFAFNN0001 TRANSISTOR(SI)
		(DIODES)
D2A	MA8068M	DIODE(SI)	S
D2B	MA8068M	DIODE(SI)	S
D2C	MA8068M	DIODE(SI)	S
D2D	MA8068M	DIODE(SI)	S
D3A	MA110	DIODE(SI)	S
D3B	MA110	DIODE(SI)	S
D3C	MA110	DIODE(SI)	S
D3D	MA110	DIODE(SI)	S
D4A	MA110	DIODE(SI)	S
D4B	MA110	DIODE(SI)	S
D4C	MA110	DIODE(SI)	S
D4D	MA110	DIODE(SI)	S
D5A	MA110	DIODE(SI)	S
D5B	MA110	DIODE(SI)	S
D5C	MA110	DIODE(SI)	S
D5D	MA110	DIODE(SI)	S
		(CONNECTORS)
CN1	PSJS30P31Z CONNECTOR, 30P
CN2	K4AC08B00003 CONNECTOR, 8P
		COMPONENTS PARTS)
RA1	D1H82204A024 RESISTOR ARRAY, 22
RA2	D1H82204A024 RESISTOR ARRAY, 22
RA3	D1H82214A024 RESISTOR ARRAY, 220
		(COILS)
L1A	PQLE106	COIL	S
L1B	PQLE106	COIL	S
L1C	PQLE106	COIL	S
L1D	PQLE106	COIL	S
L2A PQLE106 COIL S
L2B PQLE106 COIL S
L2C PQLE106 COIL S
L2D PQLE106 COIL S
		(JACK)
CN3 PSJJ2T004Z JACK, TEL S
		(TRANSFORMERS)
T1A PSLT8D7A TRANSFORMER S
T1B PSLT8D7A TRANSFORMER S
T1C PSLT8D7A TRANSFORMER S
T1D PSLT8D7A TRANSFORMER S
		(RELAYS)
RL2A K6B1AGA00198 RELAY
RL2B K6B1AGA00198 RELAY
RL2C K6B1AGA00198 RELAY
RL2D K6B1AGA00198 RELAY
		(VARISTORS)
ZNR1A D4EAB390A005 VARISTOR
ZNR1B D4EAB390A005 VARISTOR
ZNR1C D4EAB390A005 VARISTOR
ZNR1D D4EAB390A005 VARISTOR
		(CAPACITORS)
C4A ECUV1C333KBV 0.033
C4B ECUV1C333KBV 0.033
C4C ECUV1C333KBV 0.033
C4D ECUV1C333KBV 0.033
C5A F2G1C4700017 47
C5B F2G1C4700017 47
C5C F2G1C4700017 47
C5D F2G1C4700017 47
C6A ECUV1E104KBV 0.1
C6B ECUV1E104KBV 0.1
C6C ECUV1E104KBV 0.1
C6D ECUV1E104KBV 0.1
C7A ECUV1H331JCV 330P S
C7B ECUV1H331JCV 330P S
C7C ECUV1H331JCV 330P S
C7D ECUV1H331JCV 330P S
C8A F2G1H1R00013 1
C8B F2G1H1R00013 1
C8C F2G1H1R00013 1
C8D F2G1H1R00013 1
C9A F2G1C4R70002 4.7
C9B F2G1C4R70002 4.7
C9C F2G1C4R70002 4.7
C9D F2G1C4R70002 4.7
C10A ECUV1H152KBV 0.0015
C10B ECUV1H152KBV 0.0015
C10C ECUV1H152KBV 0.0015
C10D ECUV1H152KBV 0.0015
C11A ECUV1H104ZFV 0.1 S
C11B ECUV1H104ZFV 0.1 S
C11C ECUV1H104ZFV 0.1 S
C11D ECUV1H104ZFV 0.1 S
C12A ECUV1H104ZFV 0.1 S
C12B ECUV1H104ZFV 0.1 S
C12C ECUV1H104ZFV 0.1 S
C12D ECUV1H104ZFV 0.1 S
C13A PSCUV2EY104K 0.1 S
C13B PSCUV2EY104K 0.1 S
C13C PSCUV2EY104K 0.1 S
C13D PSCUV2EY104K 0.1 S
C14A F2G1H1R00013 1
C14B F2G1H1R00013 1
C14C F2G1H1R00013 1
C14D F2G1H1R00013 1
C15A ECUV1C104ZFV 0.1
C15C ECUV1C104ZFV 0.1
C20 ECUV1C104ZFV 0.1
C21 ECUV1C104ZFV 0.1
C22 ECUV1C104ZFV 0.1
C23 ECUV1C104ZFV 0.1
C27 ECUV1H223KBV 0.022 S

Ref.No.	Part No.	Part Name & Description	Remarks
C31 ECUV	1C104ZFV 0.1
C50 ECUV	1A106ZF 10 S
C51 ECUV	1H104ZFV 0.1 S
C52 F2G1	E1010011 100
C53 ECUV	1H104ZFV 0.1 S
C101 ECUV	V1H220JCV 22P
C221 ECUV	V1H103KBV 0.01
C222 ECUV	V1H103KBV 0.01
C223 ECUV	V1H103KBV 0.01
C224 ECUV	V1H103KBV 0.01
C225 ECUV	V1H103KBV 0.01
		(RESISTORS)
ZNR2A ER	DS1TJ000 0	S
ZNR2B ER	DS1TJ000 0	S
ZNR2C ER	DS1TJ000 0	S
ZNR2D ER	DS1TJ000 0	S
R1A ERJ3	GEYJ103 10K
R1B ERJ3	GEYJ103 10K
R1C ERJ3	GEYJ103 10K
R1D ERJ3	GEYJ103 10K
R2A ERJ3	GEYJ222 2.2K
R2B ERJ3	GEYJ222 2.2K
R2C ERJ3	GEYJ222 2.2K
R2D ERJ3	GEYJ222 2.2K
R3A ERJ3	GEYJ222 2.2K
R3B ERJ3	GEYJ222 2.2K
R3C ERJ3	GEYJ222 2.2K
R3D ERJ3	GEYJ222 2.2K
R4A ERJ3	GEYJ224 220K
R4B ERJ3	GEYJ224 220K
R4C ERJ3	GEYJ224 220K
R4D ERJ3	GEYJ224 220K
R52 ERJ3	GEYJ221 220
R5A ERJ3	GEYJ103 10K
R5B ERJ3	GEYJ103 10K
R5C ERJ3	GEYJ103 10K
R5D ERJ3	GEYJ103 10K
R6A ERJ3	GEYJ182 1.8K
R6B ERJ3	GEYJ182 1.8K
R6C ERJ3	GEYJ182 1.8K
R6D ERJ3	GEYJ182 1.8K
R7A ERJ3	GEYJ101 100
R7B ERJ3	GEYJ101 100
R7C ERJ3	GEYJ101 100
R7D ERJ3	GEYJ101 100
R8A ERJ3	EKF1151 1150
R8B ERJ3	EKF1151 1150
R8C ERJ3	EKF1151 1150
R8D ERJ3	EKF1151 1150
R9A ERJ3	GEYJ103 10K
R9B ERJ3	GEYJ103 10K
R9C ERJ3	GEYJ103 10K
R9D ERJ3	GEYJ103 10K
R10A ERJ3	3GEYJ334 330K
R10B ERJ3	3GEYJ334 330K
R10C ERJ3	3GEYJ334 330K
R10D ERJ3	3GEYJ334 330K
R12A ERJ3	3GEYJ223 22K
R12B ERJ3	3GEYJ223 22K
R12C ERJ3	3GEYJ223 22K
R12D ERJ3	3GEYJ223 22K
R13A ERJ3	3GEYJ102 1K
R13B ERJ3	3GEYJ102 1K
R13C ERJ3	3GEYJ102 1K
R13D ERJ3	3GEYJ102 1K
R14A ERJ3	3GEYJ103 10K
R14B ERJ3	3GEYJ103 10K
R14C ERJ3	3GEYJ103 10K
R14D ERJ3	3GEYJ103 10K
R15A ERJ3	3GEYJ392 3.9K
R15B ERJ3	3GEYJ392 3.9K
R15C ERJ3	3GEYJ392 3.9K
R15D ERJ3	3GEYJ392 3.9K
R17A ERJ	14YJ151 150 S
R17B ERJ	14YJ151 150 S
R17C ERJ	14YJ151 150 S
R17D ERJ	14YJ151 150 S
R19A ERJ	3GEYJ103 10K
R19B ERJ	3GEYJ103 10K
R19C ERJ	3GEYJ103 10K
R19D ERJ	3GEYJ103 10K
R20A ERJ	3GEY0R00 0
R20B ERJ	3GEY0R00 0
R20C ERJ	3GEY0R00 0
R20D ERJ	3GEY0R00 0
R21A ERJ	3GEYJ103 10K
R21B ERJ	3GEYJ103 10K
R21C ERJ	3GEYJ103 10K
R21D ERJ	3GEYJ103 10K

Ref.No.	Part No.	Part Name & Description	Remarks
R22A ERJ	3GEYJ181 180
R22B ERJ	3GEYJ181 180
R22C ERJ	3GEYJ181 180
R22D ERJ	3GEYJ181 180
R23A ERJ	3GEYJ103 10K
R23B ERJ	3GEYJ103 10K
R23C ERJ	3GEYJ103 10K
R23D ERJ	3GEYJ103 10K
R24A ERJ	3GEYJ103 10K
R24B ERJ	3GEYJ103 10K
R24C ERJ	3GEYJ103 10K
R24D ERJ	3GEYJ103 10K
R25A ERJ	3GEYJ103 10K
R25B ERJ	3GEYJ103 10K
R25C ERJ	3GEYJ103 10K
R25D ERJ	3GEYJ103 10K

23.10. FOR THE SCHEMATIC DIAGRAM

Note:

1. DC voltage measurements are taken with an oscilloscope or a tester with a ground.
2. The schematic diagrams and circuit board may be modified at any time with the development of new technology.

Important safety notice Components identified by ⚠ mark have special characteristics important for safety. When replacing any of there components, use only manufacturer's specified parts.

23.11. SCHEMATIC DIAGRAM (KX-TE82461X)

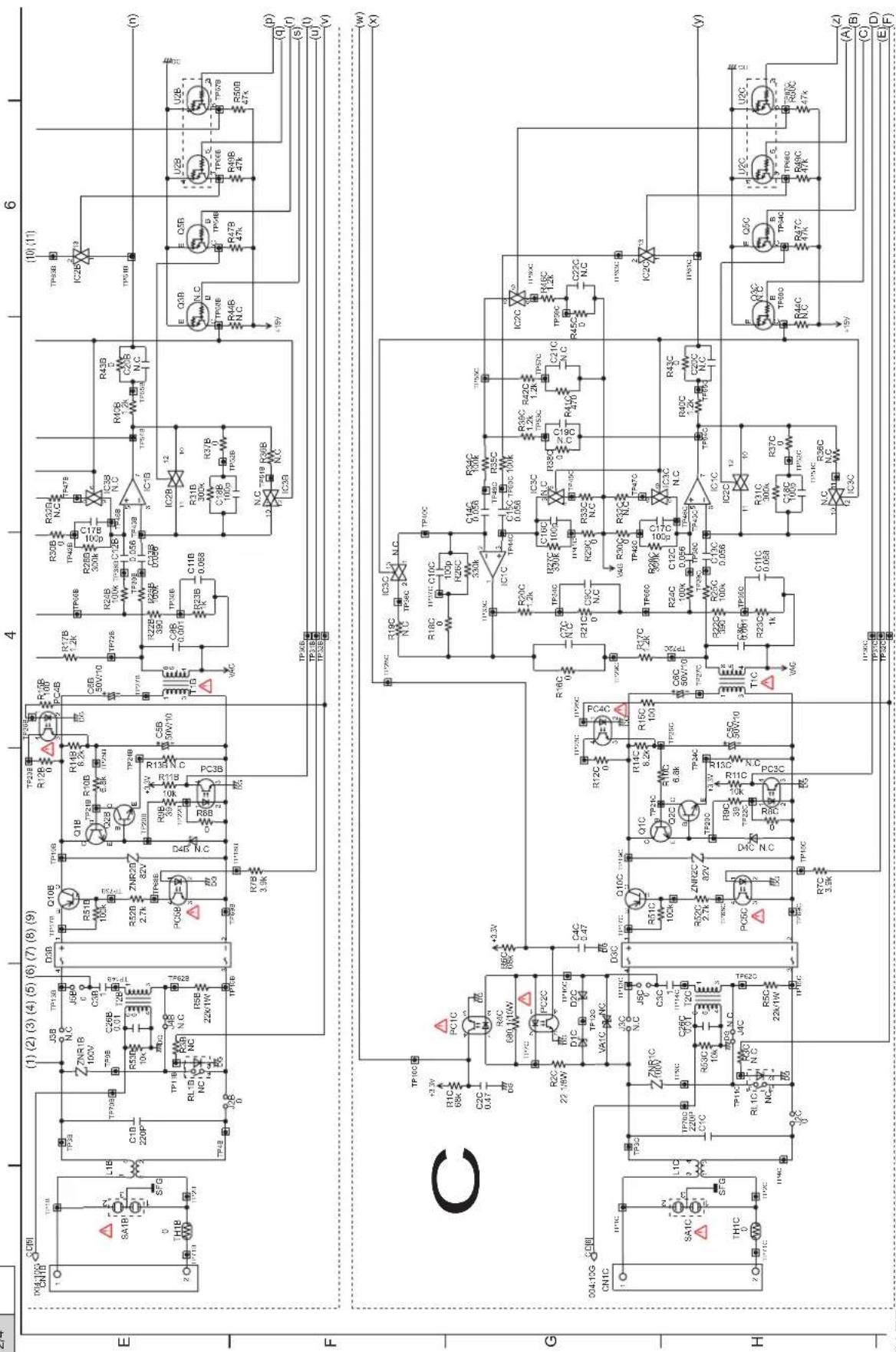

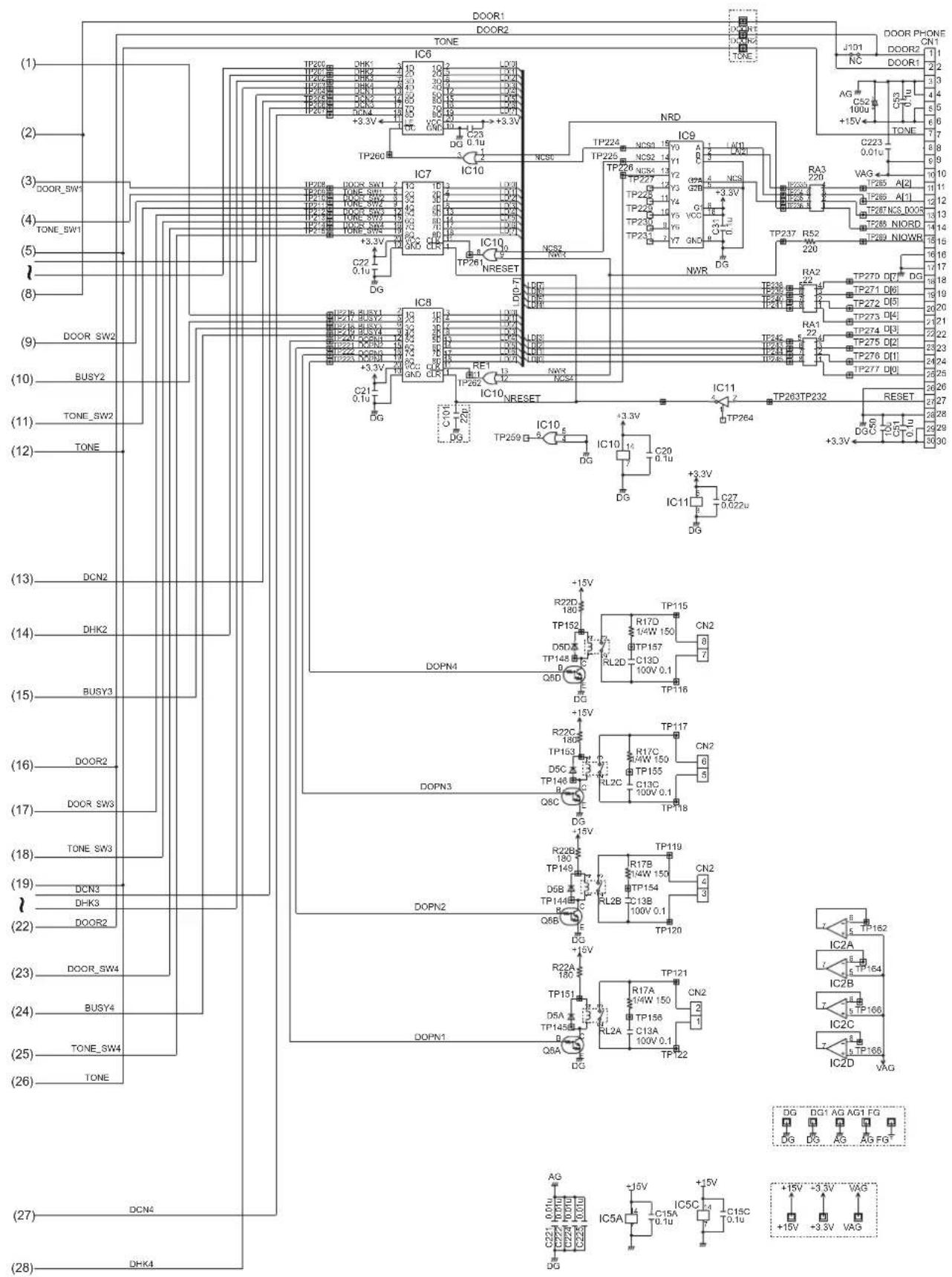

IX-TE82461X SCHEMATIC DIAGRAM

23.12. PRINTED CIRCUIT BOARD (KX-TE82461X)

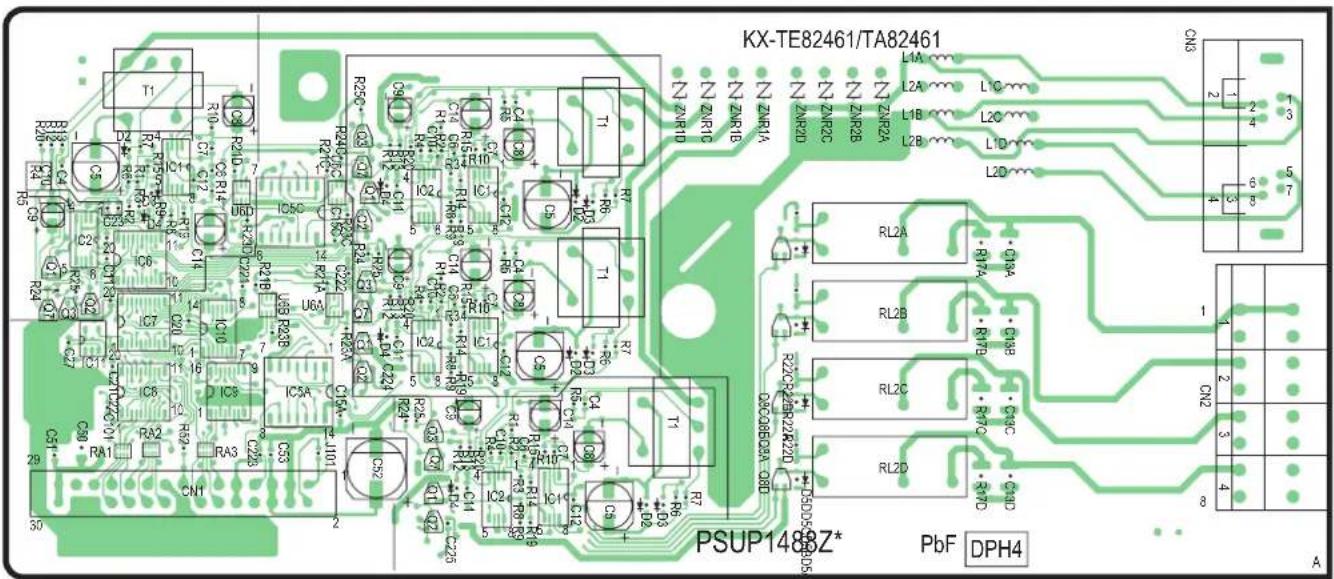

KX-TE82461X COMPONENT VIEW

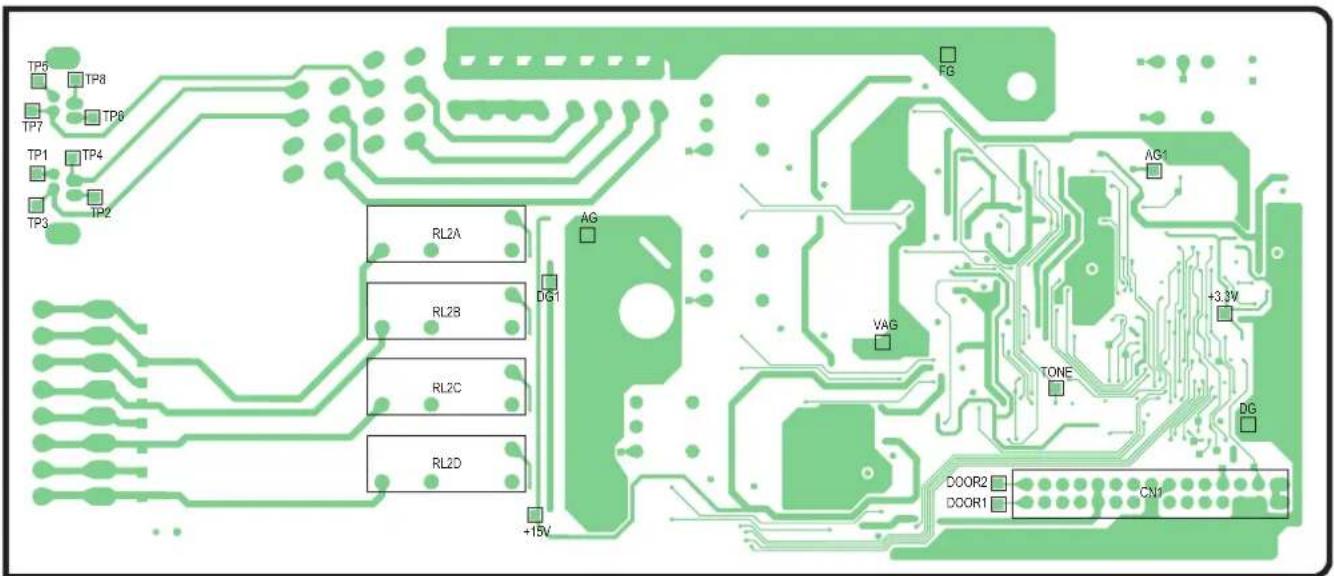

KX-TE82461X BOTTOM VIEW

24 KX-TE82474X (8-PORT SLT EXTENSION CARD)

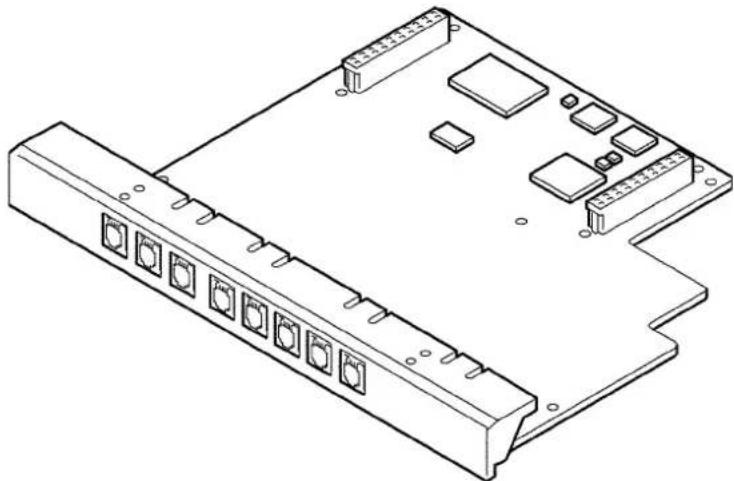

Isometric line drawing of a device rear panel with multiple ports and connectors (no text or symbols)

24.1. HOW TO RECOGNIZE THAT Pb FREE SOLDER IS USED

Marked PbF
KX-TE82474X COMPONENT VIEW

24.2. LOCATION OF OPTIONAL CARDS

24.2.1. 8-Port SLT Extension Card (KX-TE82474X)

Function

Adds 8 single line telephone (SLT) extensions on the basic systems of KX-TES824/KX-TEM824.

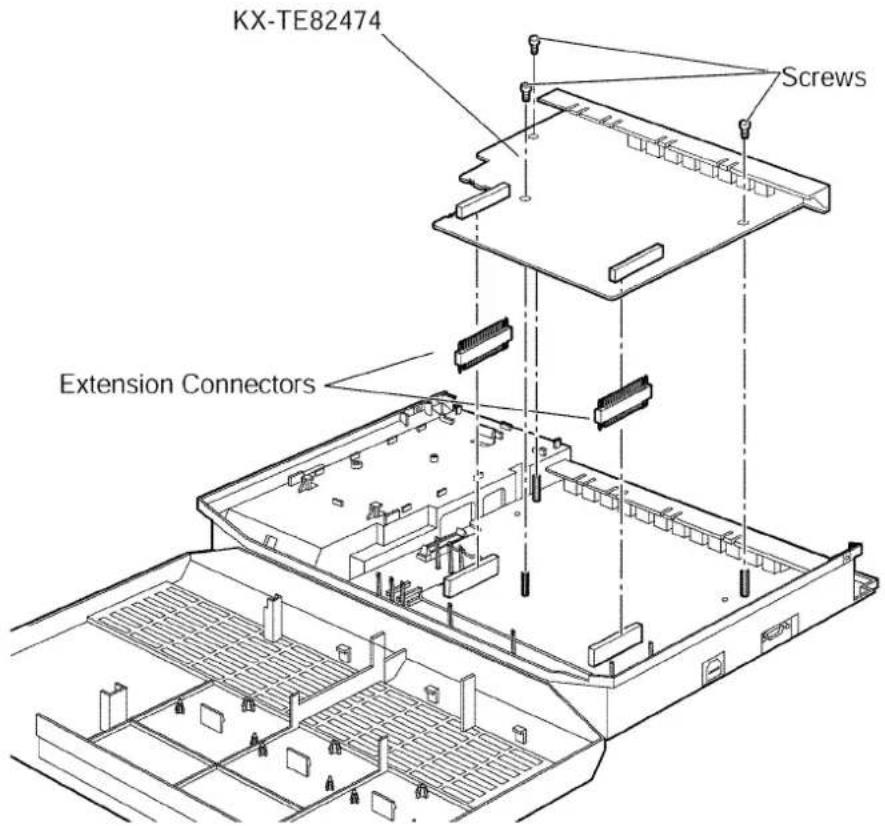

Installing KX-TE82474 to KX-TES824

1. Loosen the screws and open the top and bottom front covers.

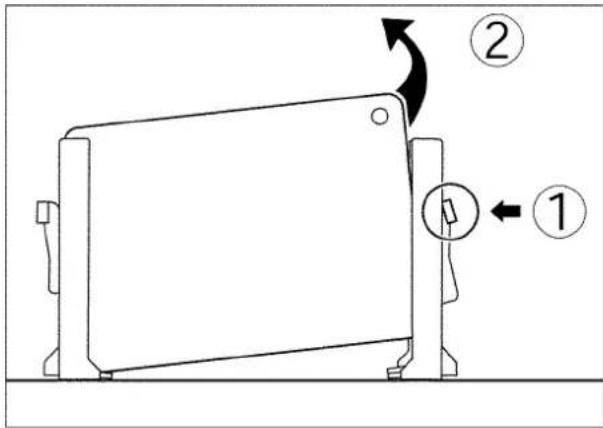

2. Remove the upper front panel.

3. Attach the 2 extension connectors to the main unit, install the card as shown below, and secure the 3 screws.

1. Insert the modular plugs of the telephone line cords (2-conductor wiring) into the card's modular extension jacks.
2. Wrap the strap around all of the cords.
3. Close the covers and secure the screws.

24.2.2. Installing KX-TE82474X on 3-Port Analogue CO Line and 8-Port Hybrid Extens Card (KX-TE82483X) installed to KX-TES824BX

Note

Install the KX-TE82474 on top of the KX-TE82483.

1. Loosen the screws and open the top and bottom front covers.
2. Remove the lower front panel or both upper and lower front panels.
3. Attach the extension connectors, install the cards as shown, and secure the 3 screws.

1. Insert the modular plugs of the telephone line cords (2-conductor wiring) into the card's modular extension jacks.
2. Wrap the strap around all of the cords.
3. Close the covers and secure the screws.

24.2.3. Installing KX-TE82474X to KX-TEM824BX

1. Loosen the screws and open the top and bottom front covers.
2. Remove the front panel.
3. Attach the 2 extension connectors to the main unit, install the card as shown below, and secure the 3 screws.

1. Insert the modular plugs of the telephone line cords (2-conductor wiring) into the card's modular extension jacks.
2. Wrap the strap around all of the cords.
3. Close the covers and secure the screws.

24.3. BLOCK DIAGRAM

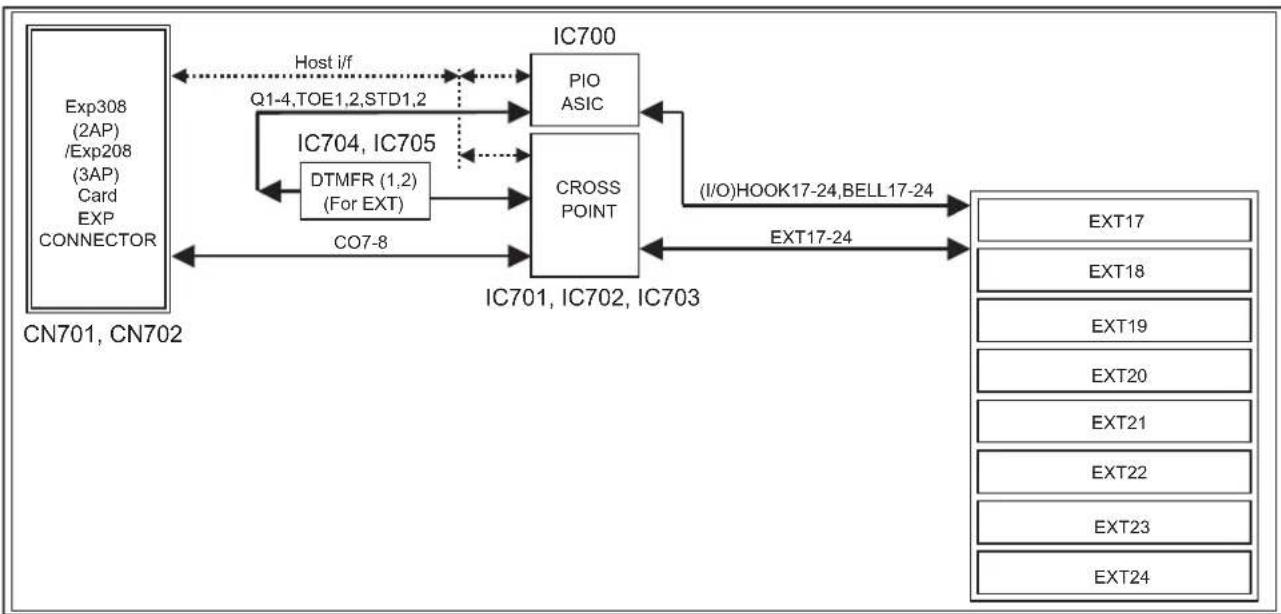

KX-TE82474X BLOCK DIAGRAM

24.4. EXPLANATION OF BLOCK DIAGRAM

24.4.1. Option Card (KX-TE82474X)

24.4.1.1. Cross Point Circuit

This is a space division switching system for connecting the following:

The eight extension circuits with the eight CO,DTMF generator, DTMF receiver, INT-CALL ID,MODEM,OGM, VB, paging, music on hold, tone etc.

It is composed of 3 C-MOS IC's. (8 x 16 matrix: 1pce 4 x 8 matrix:1pce, 8 x 8 matrix:1pce)

24.4.1.2. Intercom Circuit

This is the interface circuit of the single line telephone, and it is composed of 8 intercom circuit. (ICM17-24)

24.4.1.3. DTMF Receiver Circuit

The circuit which receives the Dial Tone Multi Frequency by which extension dispatch is carried out with the DTMF receiver connected to the crossing point.

24.4.1.4. INT CALLID Circuit

FSK/Dial Tone Multi Frequency generated by DSP in ASIC are connected even to a crossing point through AMP.

The circuit which sends out a CALLID signal to the telephone connected to an extension by connecting the line of INT-CALL-ID with arbitrary extensions.

24.4.2. Circuit Operation

24.4.2.1. Cross Point Switch Circuit

The cross point circuit composed of three cross point switch IC's. (IC701:8X16, IC702:8X8, IC703:4X8)

1) Cross Point Switch IC Operation

The cross point SW (IC701) contains a 8X16 array of cross point switches along with a 7 to 128 line decoder and latch circuits. Any one of the 128 switches can be addressed by selecting appropriate seven address bits. The selected switch can be turned on or off by applying either logical one or zero to the DATA input. Chip select allows the cross point array to be cascaded for matrix expansion.

The cross point SW (IC702) contains a 8X8 array of cross point switches along with a 6 to 64 line decoder and latch circuits. Any one of the 64 switches can be addressed by selecting appropriate seven address bits. The selected switch can be turned on or off by applying either logical one or zero to the DATA input. Chip select allows the cross point array to be cascaded for matrix expansion.

The cross point SW's (IC703) contain 4X8 array of cross point switches along with a 5 to 32 line decoder and latch circuits. Any one of the 32 switches can be addressed by selecting appropriate five address bits. The selected switch can be turned on or off by applying either logical one or zero to the DATA input. Chip select allows the cross point array to be cascaded for matrix expansion.

Cross point 8816 Function block diagram

Cross point 8809 Function block diagram

Cross point 8806 Function block diagram
        AS["DSP MODEM in/out"]
        AT["DSP OGM2 in/out"]
    end

    subgraph DSP OGM1 (in/out)
        AU["DSP OGM1 in/out"]
        AV["DSP CALLID3 out"]
    end

    subgraph DSP CALLID1 (out)
        AW["DSP CALLID1 out"]
        AX["DSP CALLID2 out"]
    end

    subgraph DSP MELODY (out)
        AY["TONE1"]
        AZ["TONE2"]
        BA["BGM/DTMFG2"]

    B --> C
    D --> E
    F --> G
    H --> I
    J --> K
    L --> M
    N --> N
    N --> N
    N --> N
    N --> N
    N --> N
    N --> N
    N --> N
    N --> N
    N --> N
    N --> N
    N --> N
    N --> N
    N --> N
    N --> N
    N --> N
    N --> N
    N --> N
    N --> N
    N --> N
    N --> N
    N --> O
    N --> P
    N --> Q
    N --> R
    N --> S
    N --> T
    N --> U
    N --> V
    N --> W
    N --> X
    N --> Y
    N --> Z
    N --> AA
    N --> AB
    N --> AC
    N --> AD
    N --> AE
    N --> AF
    N --> AG
    N --> AH
    N --> AI
    N --> AJ
    N --> AK
    N --> AL
    N --> AM
    N --> AN
    N --> AO
    N --> AP
    N --> AQ
    N --> AR
    N --> AS
    N --> AT
    N --> AU
    N --> AV
    N --> AW

24.4.3. Intercom Circuit

1) Composition

This is composed of the following circuits:

a) +15V power source for the extension telephones
b) Hook detect for SLT and pulse dialing detect
c) Bell ring trip section

2) Circuit operation

a) Power supply to the telephone

With the telephone off hook, a DC loop is formed, and current is supplied to the telephone. This circuit is limited to about 30mA by Q200, Q202, R202, R204 and Q201, Q203, R203, R205.

b) Hook detect for SLT and pulse dialing detect

When the telephone handset is taken off, DC loop is formed and the collector of U200 3,6 pin change to L from H.

the ASIC detects the off hook condition.

When the handset is replaced back on hook, the DC loop is interrupted and collector of U200 3,6 pin change to H from L and EXT Pulse dialing is input either in the on hook or off hook condition, and the break number (on hook condition) is counted and read as the dial number.

c) Bell ringing trip section

When the telephone is a signal line telephone, extension calling is executed by means of a ringing signal. When the ringing signal is supplied, RL201 turns ON and the current flows are as follows:

Bell transformer → ringing signal line → RL201 → telephone → R206 → -15V → Bell transformer

24.4.4. DTMF Receiver Circuit

24.4.4.1. Composition

The DTMF receiver circuit is composed of two DTMF receivers.

IC704 and IC705 are used for the DTMF receivers from SLT connected to the extension.

The DTMF signal is the 4bit parallel data and read by ASIC.

*In case of KX-TEM824, the system have two more DTMF receiver which are in KX-TE82483.

24.4.5. INT CALLID Interface Circuit

By using the DSP built into the ASIC, it is possible to produce CALLID signal and send it through the cross point to each extension. The CALLID signal can be switched between FSK and DTMF. There are three sources of the extension CALL ID in the system.

24.5. TROUBLESHOOTING GUIDE

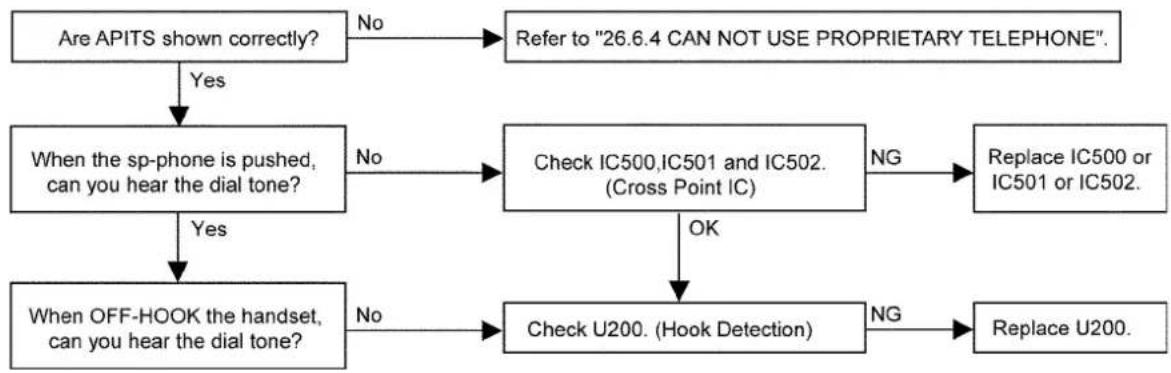

24.5.1. No Dial Tone

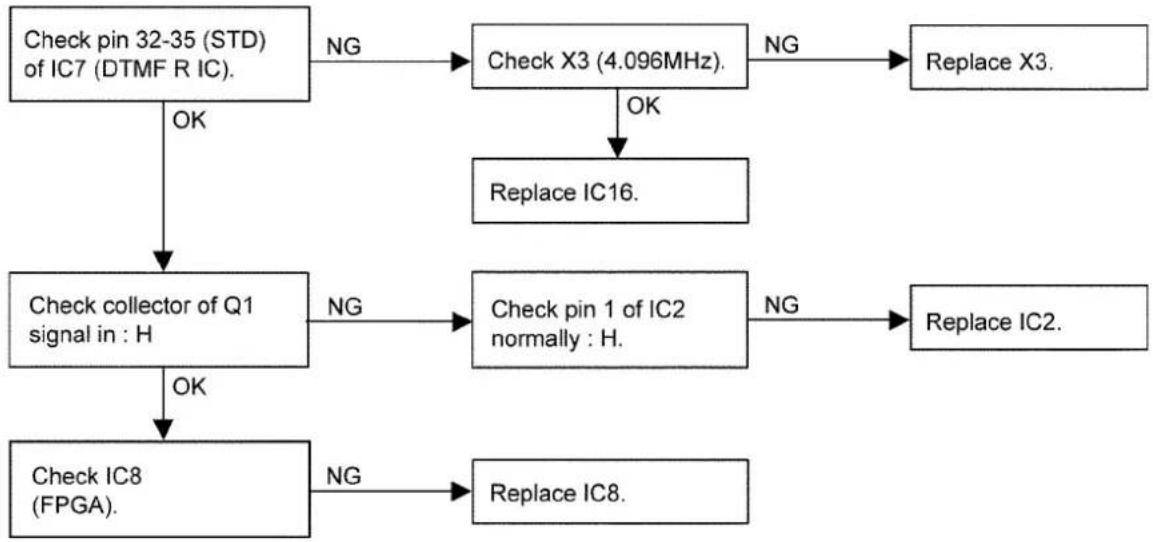

24.5.2. Cannot Dial

24.5.3. Cannot Call Extension

24.6. IC DATA

24.6.1. IC700

PIN No Pin Name I/O Function
4 BELL17 O Ext BELL Control	17
5 BELL18 O Ext BELL Control	18
6 BELL19 O Ext BELL Control	19
7 BELL20 O Ext BELL Control	20
8 BELL21 O Ext BELL Control	21
9 BELL22 O Ext BELL Control	22
10 BELL23 O Ext BELL Control	23
11 BELL24 O Ext BELL Control	24
13 HOOK17 I Ext Hook Detect	17
14 HOOK18 I Ext Hook Detect	18
15 HOOK19 I Ext Hook Detect	19
16 HOOK20 I Ext Hook Detect	20
17 HOOK21 I Ext Hook Detect	21
18 HOOK22 I Ext Hook Detect	22
19 HOOK23 I Ext Hook Detect	23
20 HOOK24 I Ext Hook Detect	24
21 Reserve I not used
24 Reserve I not used
25 Reserve I not used
26 Reserve I not used
27 Reserve I not used
28 Reserve I not used
29 Reserve I not used
30 Reserve I not used
36 Reserve I not used
37 Reserve I not used
38 Reserve I not used
39 Reserve I not used
40 Reserve I not used
41 Reserve I not used
44 Reserve I not used
45 Reserve I not used
46 Reserve I not used
47 Reserve I not used
48 N08_208 I 208
49 HYB_NSLT I HYB
50 Reserve O not used
51 Reserve O not used
53 Reserve In not used
54 Reserve In not used
PIN No F in Name I/O Function
55 Q1 in DTMF Rx Data[0]
56 Q2 in DTMF Rx Data[1]
57 Q3 in DTMF Rx Data[2]
58 Q4 in DTMF Rx Data[3]
59 STD7 in DTMF-R1 Status
60 STD8 in DTMF-R2 Status
61 TOE7 out DTMF-R1 Data output Enable
64 TOE8 out DTMF-R2 Data output Enable
31 Reserve In not used
32 Reserve In not used
34 Reserve In not used
35 Reserve In not used

24.7. TERMINAL GUIDE OF ICS, TRANSISTORS AND DIODES

C1CB00001851	PSVIMT8816AP	C1CB00001875C1CB00001876	PSVIMT8806AP	C0CBAKE00010
PQVINJM4558V	C0JBAB000407	2SB766ARTX2SD874A	2SB1218A2SD1819A	PSVTUMX1NTN
MA111MA8036H, MA8039	MA142WKTX

24.8. CABINET AND ELECTRICAL PARTS

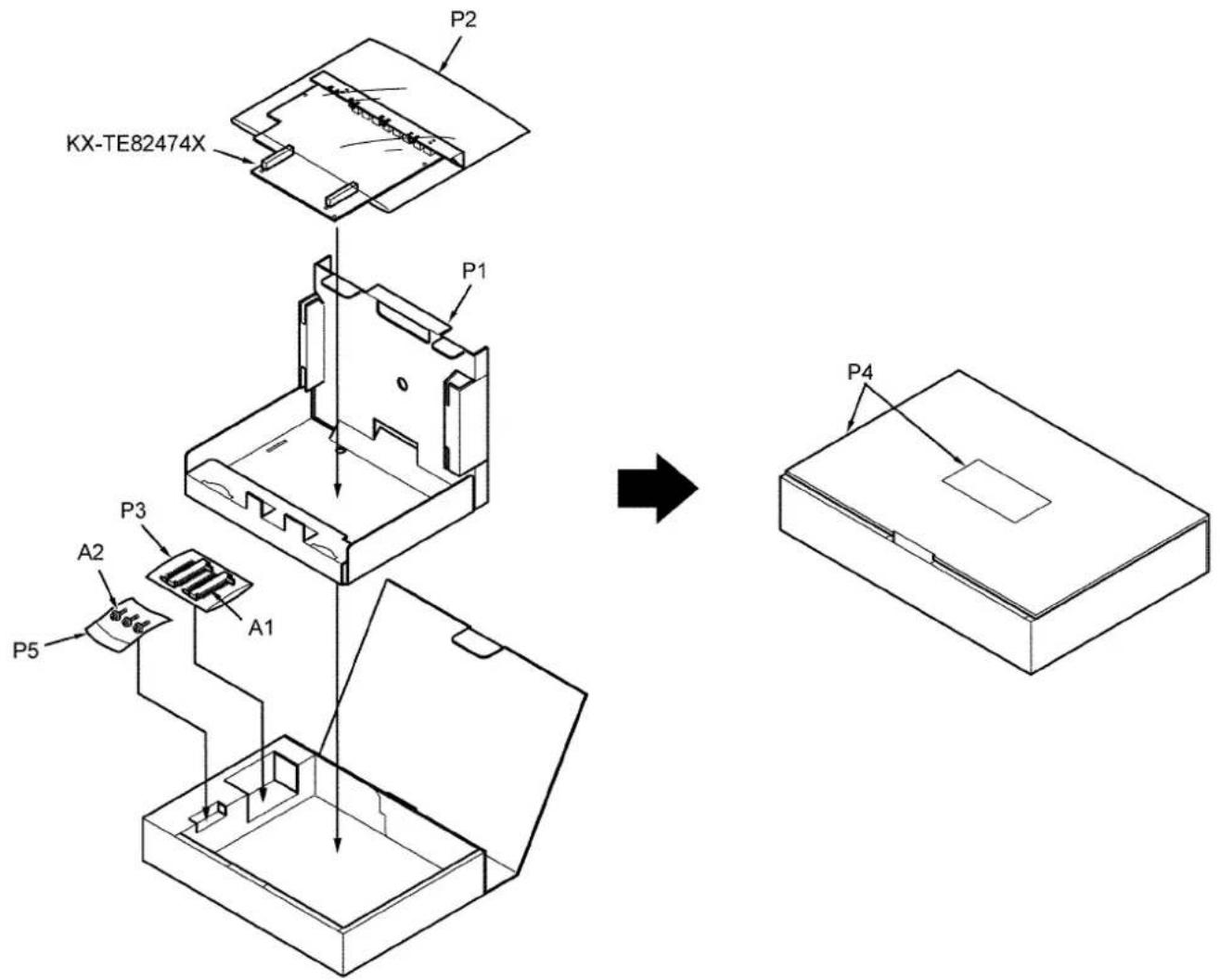

24.9. ACCESSORIES AND PACKING MATERIALS

24.10. REPLACEMENT PARTS LIST (KX-TE82474X)

Note:

1. RTL (Retention Time Limited)

The marking (RTL) indicates that the Retention Time is limited for this item.

After the discontinuation of this assembly in production, the item will continue to be available for a specific period of time. The retention period of availability depends on the type of assembly and the laws governing parts and product retention. At the end of this period, the assembly will no longer be available.

2. Important safety notice

Components identified by the △ mark indicates special characteristics important for safety. When replacing any of these components, only use specified manufacture's parts.

1. The S mark means the part is one of some identical par For that reason, it may be different from the installed part.

2. ISO code (Example: ABS-94HB) of the remarks column shows quality of the material and a flame resisting grade about plastics.

5. RESISTORS & CAPACITORS

Unless otherwise specified;

All resistors are in ohms (Ω), k=1000Ω, M=1000kΩ

All capacitors are in MICRO FARADS (μF), p=μ(μF)

*Type & Wattage of Resistor

Type

ERC:SolidERD:CarbonPQRD:Carbon

ERX,ERG,ER0,ERJ:Metal Film Oxide

PQ4R:CarbonERS:Fusible ResistorERF:Cement Resistor

Wattege

10,16:1/8W

14,25:1/4W

12:1/2W

1:1W

2:2W

3:3W

*Type & Voltage of Capacitor

Type

ECFD:Semi-ConductorECQS:StyrolPQCUV,ECUV:ChipECQMS:Mica

ECCD,ECKD,ECBT,PQCBC:CeramicECQE,ECQV,ECQG:PolyesterECEA,ECSZ,F2G,PSCSZ:ElectlyticECQP:Polypropylene

Voltage

ECQ Type	ECQG ECQV Type	ECSZ Type	Others
1H:50V	05:50V	0F:3.15V	0J :6.3V	1V :35V
2A:100V	1:100V	1A:10V	1A :10V	50,1H:50V
2E:250V	2:200V	1V:35V	1C :16V	1J :63V
2H:500V		0J:6.3V	1E,25:25V	2A :100V

24.10.1. CABINET AND ELECTRICAL PARTS

Ref.No.	Part No.	Part Name & Description	Remarks
1 PSGG10	09X1 GRILL

24.10.2. ACCESSORIES AND PACKING MATERIALS

Ref.No.	Part No.	Part Name & Description	Remarks
A1 K1KA40A00234 CONNECTOR

Ref.No.	Part No.	Part Name & Description	Remarks
A2 XYN3+	F8 SCREW
P1 PSPN1	070Z CUSHION
P2 PSPP1	045Z PROTECTION COVER
P3 PSPP1	052Z PROTECTION COVER
P4 PSZKTE	E82474X GIFT BOX
P5 XZB05	X10A03 PROTECTION COVER

24.10.3. MAIN BOARD PARTS

Ref.No.	Part No.	Part Name & Description	Remarks
		(ICS)
IC700	C1CB00001851 IC
IC701	PSVIMT8816AP IC	S
IC702	C1CB00001875 IC
IC703	PSVIMT8806AP IC	S
IC704	C1CB00001876 IC
IC705	C1CB00001876 IC
IC706	C0CBAKE00010 IC
IC707	PQVINJM4558V IC	S
IC708	PQVINJM4558V IC	S
IC710	C0JBAB000407 IC
		(TRANSISTORS)
Q200A	2SB766ARTX TRANSISTOR(SI)	S
Q200B	2SB766ARTX TRANSISTOR(SI)	S
Q200C	2SB766ARTX TRANSISTOR(SI)	S
Q200D	2SB766ARTX TRANSISTOR(SI)	S
Q200E	2SB766ARTX TRANSISTOR(SI)	S
Q200F	2SB766ARTX TRANSISTOR(SI)	S
Q200G	2SB766ARTX TRANSISTOR(SI)	S
Q200H	2SB766ARTX TRANSISTOR(SI)	S
Q201A	2SD874A	TRANSISTOR(SI)	S
Q201B	2SD874A	TRANSISTOR(SI)	S
Q201C	2SD874A	TRANSISTOR(SI)	S
Q201D	2SD874A	TRANSISTOR(SI)	S
Q201E	2SD874A	TRANSISTOR(SI)	S
Q201F	2SD874A	TRANSISTOR(SI)	S
Q201G	2SD874A	TRANSISTOR(SI)	S
Q201H	2SD874A	TRANSISTOR(SI)	S
Q202A	2SB1218A	TRANSISTOR(SI)
Q202B	2SB1218A	TRANSISTOR(SI)
Q202C	2SB1218A	TRANSISTOR(SI)
Q202D	2SB1218A	TRANSISTOR(SI)
Q202E	2SB1218A	TRANSISTOR(SI)
Q202F	2SB1218A	TRANSISTOR(SI)
Q202G	2SB1218A	TRANSISTOR(SI)
Q202H	2SB1218A	TRANSISTOR(SI)
Q203A	2SD1819A	TRANSISTOR(SI)
Q203B	2SD1819A	TRANSISTOR(SI)
Q203C	2SD1819A	TRANSISTOR(SI)
Q203D	2SD1819A	TRANSISTOR(SI)
Q203E	2SD1819A	TRANSISTOR(SI)
Q203F	2SD1819A	TRANSISTOR(SI)
Q203G	2SD1819A	TRANSISTOR(SI)
Q203H	2SD1819A	TRANSISTOR(SI)
Q207A	2SD1819A	TRANSISTOR(SI)
Q207B	2SD1819A	TRANSISTOR(SI)
Q207C	2SD1819A	TRANSISTOR(SI)
Q207D	2SD1819A	TRANSISTOR(SI)
Q207E	2SD1819A	TRANSISTOR(SI)
Q207F	2SD1819A	TRANSISTOR(SI)
Q207G	2SD1819A	TRANSISTOR(SI)
Q207H	2SD1819A	TRANSISTOR(SI)
U200A	PSVTUMX1NTN	TRANSISTOR(SI)
U200B	PSVTUMX1NTN	TRANSISTOR(SI)
U200C	PSVTUMX1NTN	TRANSISTOR(SI)
U200D	PSVTUMX1NTN	TRANSISTOR(SI)
U200E	PSVTUMX1NTN	TRANSISTOR(SI)
U200F	PSVTUMX1NTN	TRANSISTOR(SI)
U200G	PSVTUMX1NTN	TRANSISTOR(SI)
U200H	PSVTUMX1NTN	TRANSISTOR(SI)
		(DIODES)
D202A	MA8036H	DIODE(SI)	S
D202B MA8036H DIODE(SI) S
D202C MA8036H DIODE(SI) S
D202D MA8036H DIODE(SI) S
D202E MA8036H DIODE(SI) S
D202F MA8036H DIODE(SI) S
D202G MA8036H DIODE(SI) S
D202H MA8036H DIODE(SI) S
D203A MA8036H DIODE(SI) S
D203B MA8036H DIODE(SI) S
D203C MA8036H DIODE(SI) S
D203D MA8036H DIODE(SI) S
D203E MA8036H DIODE(SI) S
D203F MA8036H DIODE(SI) S
D203G MA8036H DIODE(SI) S
D203H MA8036H DIODE(SI) S
D204A MA8039 DIODE(SI) S
D204B MA8039 DIODE(SI) S
D204C MA8039 DIODE(SI) S
D204D MA8039 DIODE(SI) S
D204E MA8039 DIODE(SI) S
D204F MA8039 DIODE(SI) S
D204G MA8039 DIODE(SI) S
D204H MA8039 DIODE(SI) S
D205A MA111 DIODE(SI) S
D205B MA111 DIODE(SI) S
D205C MA111 DIODE(SI) S
D205D MA111 DIODE(SI) S
D205E MA111 DIODE(SI) S
D205F MA111 DIODE(SI) S
D205G MA111 DIODE(SI) S
D205H MA111 DIODE(SI) S
D209A MA111 DIODE(SI) S
D209B MA111 DIODE(SI) S
D209C MA111 DIODE(SI) S
D209D MA111 DIODE(SI) S
D209E MA111 DIODE(SI) S
D209F MA111 DIODE(SI) S
D209G MA111 DIODE(SI) S
D209H MA111 DIODE(SI) S
DA200A MA142WKTX DIODE(SI) S
DA200B MA142WKTX DIODE(SI) S
DA200C MA142WKTX DIODE(SI) S
DA200D MA142WKTX DIODE(SI) S
DA200E MA142WKTX DIODE(SI) S
DA200F MA142WKTX DIODE(SI) S
DA200G MA142WKTX DIODE(SI) S
DA200H MA142WKTX DIODE(SI) S
		(CONNECTORS)
CN701 K1KB40C00002 CONNECTOR, 40P
CN702 K1KB40C00002 CONNECTOR, 40P
		COMPONENTS PARTS)
RA700 D1H81034A010 RESISTOR ARRAY, 10K
RA701 D1H81034A010 RESISTOR ARRAY, 10K
RA702 D1H82214A024 RESISTOR ARRAY, 220K
RA703 D1H82214A024 RESISTOR ARRAY, 220K
RA704 D1H82214A024 RESISTOR ARRAY, 220K
RA705 D1H82214A024 RESISTOR ARRAY, 220K
RA706 D1H82204A024 RESISTOR ARRAY, 220K
RA707 D1H82204A024 RESISTOR ARRAY, 220K
RA708 D1H81034A010 RESISTOR ARRAY, 10K
RA711 D1H81034A010 RESISTOR ARRAY, 10K
		(CRYSTAL OSCILLATOR)
X700 PSVCYY0358M3 CRYSTAL OSCILLATOR S
		(JACKS)
CN200A PQJJ1T011Y JACK, TEL S
CN200B PQJJ1T011Y JACK, TEL S
CN200C PQJJ1T011Y JACK, TEL S
CN200D PQJJ1T011Y JACK, TEL S
CN200E PQJJ1T011Y JACK, TEL S
CN200F PQJJ1T011Y JACK, TEL S
CN200G PQJJ1T011Y JACK, TEL S
CN200H PQJJ1T011Y JACK, TEL S
		(RELAYS)

Ref.No.	Part No.	Part Name & Description	Remarks
RL201A	PQSL41Z RELAY S
RL201B	PQSL41Z RELAY S
RL201C	PQSL41Z RELAY S
RL201D	PQSL41Z RELAY S
RL201E	PQSL41Z RELAY S
RL201F	PQSL41Z RELAY S
RL201G	PQSL41Z RELAY S
RL201H	PQSL41Z RELAY S
		(TRANSFORMERS)
T200A	ETA14Y85AY TRANS	FORMER
T200B	ETA14Y85AY TRANS	FORMER
T200C	ETA14Y85AY TRANS	FORMER
T200D	ETA14Y85AY TRANS	FORMER
T200E	ETA14Y85AY TRANS	FORMER
T200F	ETA14Y85AY TRANS	FORMER
T200G	ETA14Y85AY TRANS	FORMER
T200H	ETA14Y85AY TRANS	FORMER
		(VARISTORS)
ZNR202	D4EAB220A005 VA	RISTOR
ZNR203	D4EAB220A005 VA	RISTOR
		(CAPACITORS)
C200A	ECUV1H103KBV 0.01
C200B	ECUV1H103KBV 0.01
C200C	ECUV1H103KBV 0.01
C200D	ECUV1H103KBV 0.01
C200E	ECUV1H103KBV 0.01
C200F	ECUV1H103KBV 0.01
C200G	ECUV1H103KBV 0.01
C200H	ECUV1H103KBV 0.01
C201A	ECUV1H103KBV 0.01
C201B	ECUV1H103KBV 0.01
C201C	ECUV1H103KBV 0.01
C201D	ECUV1H103KBV 0.01
C201E	ECUV1H103KBV 0.01
C201F	ECUV1H103KBV 0.01
C201G	ECUV1H103KBV 0.01
C201H	ECUV1H103KBV 0.01
C202A	F2G1C1000015 10
C202B	F2G1C1000015 10
C202C	F2G1C1000015 10
C202D	F2G1C1000015 10
C202E	F2G1C1000015 10
C202F	F2G1C1000015 10
C202G	F2G1C1000015 10
C202H	F2G1C1000015 10
C203A	F2G1C1000015 10
C203B	F2G1C1000015 10
C203C	F2G1C1000015 10
C203D	F2G1C1000015 10
C203E	F2G1C1000015 10
C203F	F2G1C1000015 10
C203G	F2G1C1000015 10
C203H	F2G1C1000015 10
C204A	F2G1H2R20005 2.2
C204B	F2G1H2R20005 2.2
C204C	F2G1H2R20005 2.2
C204D	F2G1H2R20005 2.2
C204E	F2G1H2R20005 2.2
C204F	F2G1H2R20005 2.2
C204G	F2G1H2R20005 2.2
C204H	F2G1H2R20005 2.2
C205A	PSCEA1HN4R7 4.7
C205B	PSCEA1HN4R7 4.7
C205C	PSCEA1HN4R7 4.7
C205D	PSCEA1HN4R7 4.7
C205E	PSCEA1HN4R7 4.7
C205F	PSCEA1HN4R7 4.7
C205G	PSCEA1HN4R7 4.7
C205H	PSCEA1HN4R7 4.7
C206A	ECUV1C393KBV 0.0	39 S
C206B	ECUV1C393KBV 0.0	39 S
C206C	ECUV1C393KBV 0.0	39 S
C206D	ECUV1C393KBV 0.0	39 S
C206E	ECUV1C393KBV 0.0	39 S
C206F	ECUV1C393KBV 0.0	39 S
C206G	ECUV1C393KBV 0.0	39 S
C206H	ECUV1C393KBV 0.0	39 S
C700	ECUV1C333KBV 0.0	3
C701	ECUV1H223KBV 0.0	2 S
C702	ECUV1H223KBV 0.0	2 S
C703	ECUV1H223KBV 0.0	2 S
C704	ECUV1H223KBV 0.0	2 S
C705	ECUV1H223KBV 0.0	2 S
C706	EEUFC1E101S 100
C707	EEUFC1E101S 100
C708	EEUFC1E101S 100
C709	EEUFC1E101S 100
C710	F1J1E105A008 1
C711	F1J1E105A008 1
C712	ECUV1H562KBV 0.0	56
C713	ECUV1H562KBV 0.0	56
C714	ECUV1C104KBV 0.1
C715	ECUV1C104KBV 0.1
C716	ECUV1C224ZFV 0.2
C718	ECUV1C104KBV 0.1
C719	ECUV1C224ZFV 0.2
C720	ECUV1H223KBV 0.0	2 S
C721	ECUV1H223KBV 0.0	2 S
C722	ECUV1H223KBV 0.0	2 S
C723	ECUV1C104KBV 0.1
C724	ECUV1H471JCV 470P	S
C725	ECUV1C104KBV 0.1
C726	ECUV1H471JCV 470P	S
C727	ECUV1C104KBV 0.1
C728	ECUV1H471JCV 470P	S
C730	ECUV1H104ZFV 0.1	S
C731	ECUV1H104ZFV 0.1	S
C734	ECUV1H104ZFV 0.1	S
C735	ECUV1A105ZFV 1
C801	ECUV1H103KBV 0.0
C803	ECUV1H103KBV 0.0
C804	ECUV1H103KBV 0.0
C805	ECUV1H103KBV 0.0
C807	ECUV1H103KBV 0.0
C809	ECUV1H103KBV 0.0
C810	ECUV1H103KBV 0.0
C811	ECUV1H103KBV 0.0
C812	ECUV1H103KBV 0.0
C813	ECUV1H103KBV 0.0
C814	ECUV1H103KBV 0.0
C815	ECUV1H103KBV 0.0
C816	ECUV1H103KBV 0.0
C818	ECUV1H103KBV 0.0
C819	ECUV1H103KBV 0.0
C820	ECUV1H103KBV 0.0
C821	ECUV1H103KBV 0.0
C822	ECUV1H103KBV 0.0
C823	ECUV1H103KBV 0.0
C824	ECUV1H103KBV 0.0
C825	ECUV1H103KBV 0.0
C826	ECUV1H103KBV 0.0
C827	ECUV1H103KBV 0.0
C828	ECUV1H103KBV 0.0
C829	ECUV1H103KBV 0.0
C830	ECUV1H103KBV 0.0
C831	ECUV1H103KBV 0.0
C832	ECUV1H103KBV 0.0
C833	ECUV1H103KBV 0.0
C851	ECUV1H103KBV 0.0
C852	ECUV1H103KBV 0.0
C853	ECUV1H103KBV 0.0
C871	ECUV1H103KBV 0.0
C872	ECUV1H103KBV 0.0
C873	ECUV1H103KBV 0.0
C874	ECUV1H103KBV 0.0
C911	ECUV1H103KBV 0.0

Ref.No.	Part No.	Part Name & Description	Remarks
C912 ECU	V1H103KBV 0.01
C913 ECU	V1H103KBV 0.01
C914 ECU	V1H103KBV 0.01
C915 ECU	V1H103KBV 0.01
C916 ECU	V1H103KBV 0.01
C917 ECU	V1H103KBV 0.01
C918 ECU	V1H103KBV 0.01
C919 ECU	V1H103KBV 0.01
C920 ECU	V1H103KBV 0.01
C921 ECU	V1H103KBV 0.01
C922 ECU	V1H103KBV 0.01
C923 ECU	V1H103KBV 0.01
C924 ECU	V1H103KBV 0.01
C925 ECU	V1H103KBV 0.01
C927 ECU	V1H103KBV 0.01
C928 ECU	V1H103KBV 0.01
C929 ECU	V1H103KBV 0.01
C930 ECU	V1H103KBV 0.01
C931 ECU	V1H103KBV 0.01
		(RESISTORS)
J705 ERJ	3GEY0R00 0
J714 PQ4	R18XJ000 0 S
J716 ERJ	3GEY0R00 0
J717 PQ4	R18XJ000 0 S
J718 PQ4	R18XJ000 0 S
R200A ERJ	J3GEYJ682 6.8K
R200B ERJ	J3GEYJ682 6.8K
R200C ERJ	J3GEYJ682 6.8K
R200D ERJ	J3GEYJ682 6.8K
R200E ERJ	J3GEYJ682 6.8K
R200F ERJ	J3GEYJ682 6.8K
R200G ERJ	J3GEYJ682 6.8K
R200H ERJ	J3GEYJ682 6.8K
R201A ERJ	J3GEYJ682 6.8K
R201B ERJ	J3GEYJ682 6.8K
R201C ERJ	J3GEYJ682 6.8K
R201D ERJ	J3GEYJ682 6.8K
R201E ERJ	J3GEYJ682 6.8K
R201F ERJ	J3GEYJ682 6.8K
R201G ERJ	J3GEYJ682 6.8K
R201H ERJ	J3GEYJ682 6.8K
R202A ERJ	J14YJ220 22
R202B ERJ	J14YJ220 22
R202C ERJ	J14YJ220 22
R202D ERJ	J14YJ220 22
R202E ERJ	J14YJ220 22
R202F ERJ	J14YJ220 22
R202G ERJ	J14YJ220 22
R202H ERJ	J14YJ220 22
R203A ERJ	J14YJ220 22
R203B ERJ	J14YJ220 22
R203C ERJ	J14YJ220 22
R203D ERJ	J14YJ220 22
R203E ERJ	J14YJ220 22
R203F ERJ	J14YJ220 22
R203G ERJ	J14YJ220 22
R203H ERJ	J14YJ220 22
R204A ERJ	J14YJ680 68
R204B ERJ	J14YJ680 68
R204C ERJ	J14YJ680 68
R204D ERJ	J14YJ680 68
R204E ERJ	J14YJ680 68
R204F ERJ	J14YJ680 68
R204G ERJ	J14YJ680 68
R204H ERJ	J14YJ680 68
R205A ERJ	J14YJ680 68
R205B ERJ	J14YJ680 68
R205C ERJ	J14YJ680 68
R205D ERJ	J14YJ680 68
R205E ERJ	J14YJ680 68
R205F ERJ	J14YJ680 68
R205G ERJ	J14YJ680 68
R205H ERJ	J14YJ680 68
R206A	ERJ1WYJ102 1K S
R206B	ERJ1WYJ102 1K S
R206C	ERJ1WYJ102 1K S
R206D	ERJ1WYJ102 1K S
R206E	ERJ1WYJ102 1K S
R206F	ERJ1WYJ102 1K S
R206G	ERJ1WYJ102 1K S
R206H	ERJ1WYJ102 1K S
R207A	ERJ3GEYJ333 33K
R207B	ERJ3GEYJ333 33K
R207C	ERJ3GEYJ333 33K
R207D	ERJ3GEYJ333 33K
R207E	ERJ3GEYJ333 33K
R207F	ERJ3GEYJ333 33K
R207G	ERJ3GEYJ333 33K
R207H	ERJ3GEYJ333 33K
R208A	ERJ3GEYJ563 56K
R208B	ERJ3GEYJ563 56K
R208C	ERJ3GEYJ563 56K
R208D	ERJ3GEYJ563 56K
R208E	ERJ3GEYJ563 56K
R208F	ERJ3GEYJ563 56K
R208G	ERJ3GEYJ563 56K
R208H	ERJ3GEYJ563 56K
R209A	ERJ3GEYJ153 15K
R209B	ERJ3GEYJ153 15K
R209C	ERJ3GEYJ153 15K
R209D	ERJ3GEYJ153 15K
R209E	ERJ3GEYJ153 15K
R209F	ERJ3GEYJ153 15K
R209G	ERJ3GEYJ153 15K
R209H	ERJ3GEYJ153 15K
R210A	ERJ3GEYJ333 33K
R210B	ERJ3GEYJ333 33K
R210C	ERJ3GEYJ333 33K
R210D	ERJ3GEYJ333 33K
R210E	ERJ3GEYJ333 33K
R210F	ERJ3GEYJ333 33K
R210G	ERJ3GEYJ333 33K
R210H	ERJ3GEYJ333 33K
R211A	ERJ3GEYJ123 12K
R211B	ERJ3GEYJ123 12K
R211C	ERJ3GEYJ123 12K
R211D	ERJ3GEYJ123 12K
R211E	ERJ3GEYJ123 12K
R211F	ERJ3GEYJ123 12K
R211G	ERJ3GEYJ123 12K
R211H	ERJ3GEYJ123 12K
R215A	ERJ3GEYJ473 47K
R215B	ERJ3GEYJ473 47K
R215C	ERJ3GEYJ473 47K
R215D	ERJ3GEYJ473 47K
R215E	ERJ3GEYJ473 47K
R215F	ERJ3GEYJ473 47K
R215G	ERJ3GEYJ473 47K
R215H	ERJ3GEYJ473 47K
R216A	ERJ3GEYJ103 10K
R216B	ERJ3GEYJ103 10K
R216C	ERJ3GEYJ103 10K
R216D	ERJ3GEYJ103 10K
R216E	ERJ3GEYJ103 10K
R216F	ERJ3GEYJ103 10K
R216G	ERJ3GEYJ103 10K
R216H	ERJ3GEYJ103 10K
R218A	ERJ3GEYJ103 10K
R218B	ERJ3GEYJ103 10K
R218C	ERJ3GEYJ103 10K
R218D	ERJ3GEYJ103 10K
R218E	ERJ3GEYJ103 10K
R218F	ERJ3GEYJ103 10K
R218G	ERJ3GEYJ103 10K
R218H	ERJ3GEYJ103 10K
R219A	ERJ3GEYJ102 1K

Ref.No.	Part No.	Part Name & Description	Remarks
R219B ERJ3GEYJ102 1K
R219C ERJ3GEYJ102 1K
R219D ERJ3GEYJ102 1K
R219E ERJ3GEYJ102 1K
R219F ERJ3GEYJ102 1K
R219G ERJ3GEYJ102 1K
R219H ERJ3GEYJ102 1K
R221A ERJ3GEYJ103 10K
R221B ERJ3GEYJ103 10K
R221C ERJ3GEYJ103 10K
R221D ERJ3GEYJ103 10K
R221E ERJ3GEYJ103 10K
R221F ERJ3GEYJ103 10K
R221G ERJ3GEYJ103 10K
R221H ERJ3GEYJ103 10K
R222A ERJ3GEYJ103 10K
R222B ERJ3GEYJ103 10K
R222C ERJ3GEYJ103 10K
R222D ERJ3GEYJ103 10K
R222E ERJ3GEYJ103 10K
R222F ERJ3GEYJ103 10K
R222G ERJ3GEYJ103 10K
R222H ERJ3GEYJ103 10K
R700 ERJ3GEYJ104 100K
R701 ERJ3GEYJ104 100K
R702 ERJ3GEYJ273 27K
R703 ERJ3GEYJ334 330K
R704 ERJ3GEYJ273 27K
R705 ERJ3GEYJ334 330K
R706 ERJ3GEYJ220 22
R707 ERJ3GEYJ220 22
R708 ERJ3GEYJ221 220
R716 ERJ3GEYJ122 1.2K
R717 ERJ3GEYJ122 1.2K
R718 ERJ3GEYJ122 1.2K
R719 ERJ3GEYJ122 1.2K
R720 ERJ3GEYJ122 1.2K
R721 ERJ3GEYJ122 1.2K
R723 ERJ3GEYJ122 1.2K
R724 ERJ3GEYJ122 1.2K
R727 ERJ3GEYJ103 10K
R728 ERJ3GEYJ103 10K
R731 ERJ3GEYJ103 10K
R732 ERJ3GEYJ103 10K
R733 ERJ3GEYJ103 10K
R734 ERJ3GEYJ103 10K
R735 ERJ3GEYJ103 10K
R736 ERJ3GEYJ103 10K
R738 ERJ3GEYJ103 10K
R739 ERJ3GEYJ103 10K

24.11. FOR THE SCHEMATIC DIAGRAM

Note:

1. DC voltage measurements are taken with an oscilloscope or a tester with a ground.
2. The schematic diagrams and circuit board may be modified at any time with the development of new technology.

Important safety notice

Components identified by ⚠ mark have special characteristics important for safety. When replacing any of there components, use only manufacturer's specified parts.

24.12. MEMO

24.13. SCHEMATIC DIAGRAM (KX-TE82474X)

24.13.1. No.1

24.13.2. No.2

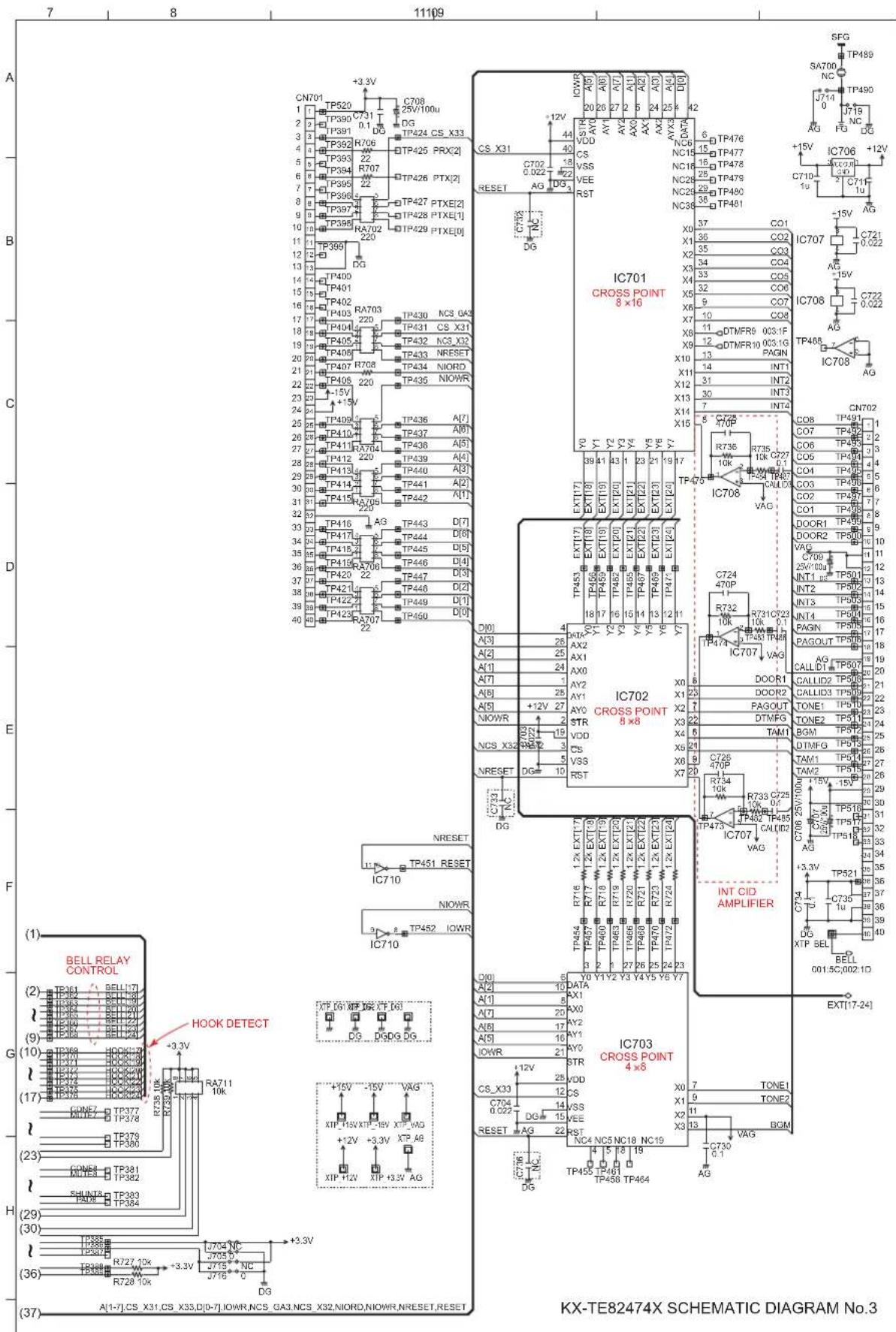

24.13.3. No.3

24.14. PRINTED CIRCUIT BOARD (KX-TE82474X)

24.14.1. Component View

KX-TE82474X COMPONENT VIEW

24.14.2. Bottom View

KX-TE82474X BOTTOM VIEW

25 KX-TE82480X (2-PORT ANALOGUE CO LINE AND 8-PORT SLT EXTENSION CARD)

Isometric line drawing of a device rear panel with multiple ports and connectors (no text or symbols)

25.1. HOW TO RECOGNIZE THAT Pb FREE SOLDER IS USED

25.2. LOCATION OF OPTIONAL CARDS

25.2.1. 2-Port Analogue CO Line and 8-Port SLT Extension Card (KX-TE82480X)

Function

Adds 2 outside (CO) lines and 8 single line telephone (SLT) extensions on the basic system KX-TES824/KX-TEM824.

Installing KX-TE82480 to KX-TES824

1. Loosen the screws and open the top and bottom front covers.
2. Remove the upper front panel.
3. Attach the 2 extension connectors to the main unit, install the card as shown below, and secure the 3 screws.

1. Insert the modular plugs of the telephone line cords (2-conductor wiring) into the card's modular CO ports.
2. Connect the line cords to the terminal board or the modular jacks from the telephone company.
3. Insert the modular plugs of the telephone line cords (2-conductor wiring) into the card's modular extension jacks.
4. Wrap the strap around all of the cords.
5. Close the covers and secure the screws.

25.2.2. Installing KX-TE82480X on 3-Port Analogue CO Line and 8-Port Hybrid Ext Card (KX-TE82483X) installed to KX-TES824BX

Note

Install the KX-TE82480 on top of the KX-TE82483.

1. Loosen the screws and open the top and bottom front covers.
2. Using cutting pliers, cut the 6 parts marked with circles, and remove the lower front panel or both upper and lower front panels as shown below.

1. Cut off any excess plastic in order to make the surface smooth.

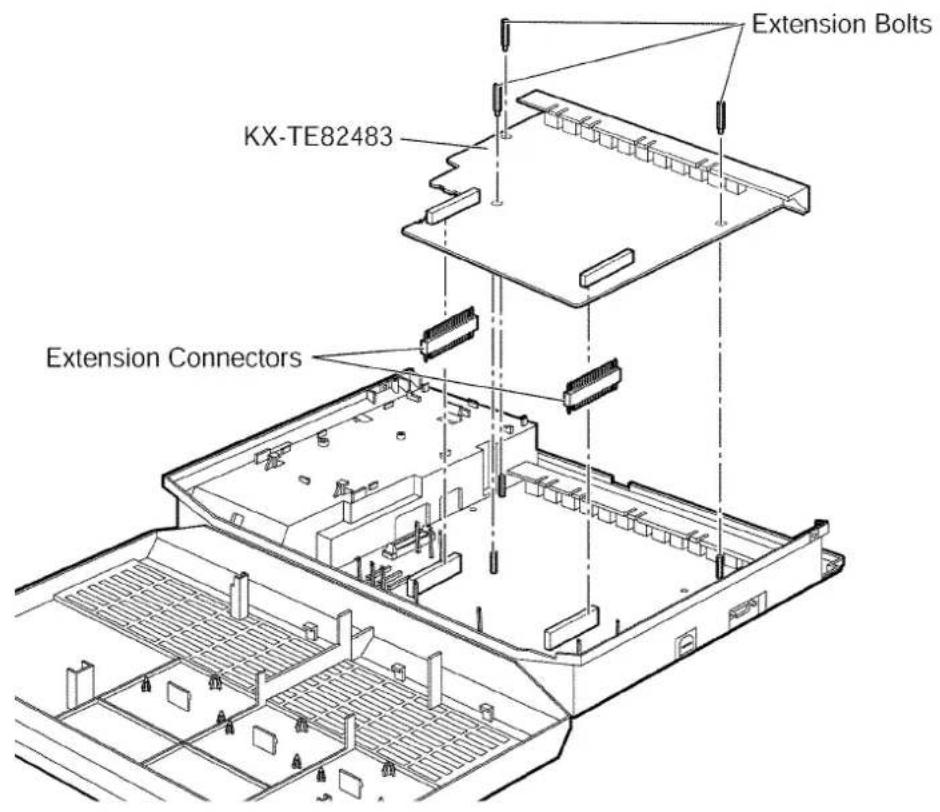

1. Attach the extension connectors and extension bolts, install the cards as shown below, and secure the 3 screws.

1. Insert the modular plugs of the telephone line cords (2-conductor wiring) into the card's modular CO ports.
2. Connect the line cords to the terminal board or the modular jacks from the telephone company.
3. Insert the modular plugs of the telephone line cords (2-conductor wiring) into the card's modular extension jacks.
4. Wrap the strap around all of the cords.
5. Close the covers and secure the screws.

25.2.3. Installing KX-TE82480X to KX-TEM824BX

1. Loosen the screws and open the top and bottom front covers.
2. Using cutting pliers, cut the 6 parts marked with circles, and remove the front panel as shown below.
3. Cut off any excess plastic in order to make the surface smooth.
4. Attach the 2 extension connectors to the main unit, install the card as shown below, and secure the 3 screws.

1. Insert the modular plugs of the telephone line cords (2-conductor wiring) into the card's modular CO ports.
2. Connect the line cords to the terminal board or the modular jacks from the telephone company.
3. Insert the modular plugs of the telephone line cords (2-conductor wiring) into the card's modular extension jacks.
4. Wrap the strap around all of the cords.
5. Close the covers and secure the screws.

25.3. BLOCK DIAGRAM

KX-TE82480X BLOCK DIAGRAM

25.4. EXPLANATION OF BLOCK DIAGRAM

25.4.1. Option Card (KX-TE82480X)

25.4.1.1. CO Interface Circuit

There are the interface circuits linking the CO line (CO7-CO8) and the cross point circuit section.

25.4.1.2. Cross Point Circuit

This is a space division switching system for connecting the following:

The eight extension circuits with the eight CO,DTMF generator, DTMF receiver, INT-CALL ID,MODEM,OGM, VB, paging, music on hold, tone etc.

It is composed of 3 C-MOS IC's. (8 x 16 matrix: 1pce 4 x 8 matrix:1pce, 8 x 8 matrix:1pce)

25.4.1.3. Intercom Circuit

This is the interface circuit of the single line telephone, and it is composed of 8 intercom circuit. (ICM17-24)

25.4.1.4. Power Failure Through Call Switching Circuit

This card has one power failure transfer circuit. (CO7-EXT117)

25.4.1.5. DTMF Receiver Circuit

The circuit which receives the Dial Tone Multi Frequency by which extension dispatch is carried out with the DTMF receiver connected to the crossing point.

25.4.1.6. INT CALLID Circuit

FSK/Dial Tone Multi Frequency generated by DSP in ASIC are connected even to a crossing point through AMP.

The circuit which sends out a CALLID signal to the telephone connected to an extension by connecting the line of INT-CALL-ID with arbitrary extensions.

This is composed of the following circuit:

1) Bell signal detection
2) DC loop formation circuit
3) Pulse dial transmission circuit
4) CALL ID interface circuit
5) COL bidirectional amplifier circuit

1) Bell signal detection

When CO line is idle, photo coupler PC1, PC2 are OFF.

When there is an incoming signal from CO line, the current flows PC1 as in the following way.

Tip → L1 → R2 → PC1(1-2) → C3 → T2 → R5 → L1 → Ring: This cause pin4 of PC1 to change the level from High to low.

Ring → L1 → R5 → T2 → C3 → PC2(1-2) → R2 → L1 → Tip: This cause pin4 of PC2 to change the level from High to low.

2) DC loop formation circuit

In the off hook status, PC5 is ON.

DC loop path:

Tip→L1→D1→D2→D3→Q10(E-C)→Q1(C-E)→R9→R8→D3→L1→Ring

At this time, the output of the photo coupler PC1 changes level from High to low.

Ring→L1→D3→R8→R9→Q1(E-C)→Q10(C-E)→D3→D2→D1→L1→Tip

At this time, the output of the photo coupler PC2 changes level from High to low.

Afterwards, G/A monitor this change (low level to high level). If the high level continues for a specified time set by system data programming. G/A assumes that CO line has become On hook status. And the CO line circuits is restored to the idle status.

3) Pulse dial transmission circuit

When the Off hook status, pulse dial transmission is executed by alternating On hook and Off hook. The status of On hook or Off hook is controlled by the switching transistor Q10.

4) CALL ID interface circuit

It is insulated by the transformer in a COL circuit, and the call ID signal inputted from outside line is transmitted to a CALLID option card.

The flow of a CALLID signal

$$ \text { Tip } \rightarrow \text { L1 } \rightarrow \text { R2 } \rightarrow \text { PC1(1 - 2) } \rightarrow \text { C3 } \rightarrow \text { T2 } \rightarrow \text { R5 } \rightarrow \text { L1 } \rightarrow \text { Ring } $$

$$ \text { Ring } \rightarrow \text { L1 } \rightarrow \text { R5 } \rightarrow \text { T2 } \rightarrow \text { C3 } \rightarrow \text { PC2(1 - 2) } \rightarrow \text { R2 } \rightarrow \text { L1 } \rightarrow \text { Tip } $$

5) COL Bidirectional Amplifier circuit

This circuit consists of bidirectional amplifier function for communication between the extensions and COL, returns loss compensation for conference, shunt function and mute function.

(Composition)

For transmitting signals from the extensions to COL, this circuit consists of R34, R35, R26, R27, R18, R29, C14, C15, C10, C16 and the operational amplifier (IC1).

For transmitting signals from the COL to extensions, this circuit consists of R24, R25, R31, R28, R37, R30, C12, C13, C17, C18, and the operational amplifier (IC1).

COL side-tone suppression circuit which includes a balanced network BN1 consists of R22 R23, C11 and R16, R17, R20, R21.

EXT side-tone suppression circuit which includes a balanced network BN2 consists of R41, R42 and R40, R43, R38, R39.

Also extension side-tone suppression circuit which includes a balanced network BN3 consists of R45, R46 for supplementing side-tone suppression during the conference communication.

The analog switch (IC2) is used for the following:

(1) Conference (Pin 6, 8 and 9)

(2) Shunt (Pin 12, 10 and 11)

(3) Mute (Pin 13, 1 and 2)

1) Conference switch

Normally, pin 6 of the analog switch IC2 is low level, but during conferences, this pin becomes high level. Because, during conferences, it should compensate the return loss by connecting the balance network BN2 and the balance network BN3 in parallel.

2) Mute switch

The mute switch consists of pin 13, 1 and 2 of the analog switch(IC2). This switch has the following functions.

a) When a dial signal (DP) is sent to the COL, signals from the extensions are blocked.
b) When the hold on music is sent to the COL, signals from the extensions are blocked.
c) When the COL interface circuit is in the idle state, oscillation of COL bidirectional amplifier is inhibited. When pin 13 of IC2 changes to low level, the interval between pins 1 and 2 of the analog switch turns off, and signals are blocked.

3) Shunt switch

The shunt switch consists of pin 12, 10 and 11 of analog switch IC2. It is used to prevent the pulse dialing signal which is transmitted to the extensions. When pin 12 of IC2 changes to high from low, the analog switch becomes ON (the interval between pin 10 and 11), and GAIN of the COL cross point operational amplifier becomes zero.

	Shunt SW Mute SW Conference SW
pin no. of analog switch 12 13 6
No connection (idle) H (on) L (off)	L (off)
Two party call	L (off) H (on) L (off)
Conference	L (off) H (on)	H (on)
Hold on music transmission	L (off) H (on) L (off)

Condition of COL interface amplifier circuit and analog switches.

25.5.2. Cross Point Switch Circuit

25.5.2.1. Composition

The cross point circuit composed of three cross point switch IC's. (IC701:8X16, IC702:8X8, IC703:4X8)

1) Cross Point Switch IC Operation

The cross point SW (IC701) contains a 8X16 array of cross point switches along with a 7 to 128 line decoder and latch circuits. Any one of the 128 switches can be addressed by selecting appropriate seven address bits. The selected switch can be turned on or off by applying either logical one or zero to the DATA input. Chip select allows the cross point array to be cascaded for matrix expansion.

The cross point SW (IC702) contains a 8X8 array of cross point switches along with a 6 to 64 line decoder and latch circuits. Any one of the 64 switches can be addressed by selecting appropriate seven address bits. The selected switch can be turned on or off by applying either logical one or zero to the DATA input. Chip select allows the cross point array to be cascaded for matrix expansion.

The cross point SW's (IC703) contain 4X8 array of cross point switches along with a 5 to 32 line decoder and latch circuits. Any one of the 32 switches can be addressed by selecting appropriate five address bits. The selected switch can be turned on or off by applying either logical one or zero to the DATA input. Chip select allows the cross point array to be cascaded for matrix expansion.

Cross point 8806 Function block diagram

    subgraph DSP MODEM (in/out)
        AS["DSP MODEM in/out"]
        AT["DSP OGM2 in/out"]
    end

    subgraph DSP OGM1 (in/out)
        AU["DSP OGM1 in/out"]
        AV["DSP CALLID3 out"]
    end

    subgraph DSP CALLID1 (out)
        AW["DSP CALLID1 out"]
        AX["DSP CALLID2 out"]
    end

    subgraph DSP MELODY (out)
        AY["TONE1"]
        AZ["TONE2"]
        BA["BGM/DTMFG2"]

    B --> C
    D --> E
    F --> G
    H --> I
    J --> K
    L --> M
    N --> N
    N --> N
    N --> N
    N --> N
    N --> N
    N --> N
    N --> N
    N --> N
    N --> N
    N --> N
    N --> N
    N --> N
    N --> N
    N --> N
    N --> N
    N --> N
    N --> N
    N --> N
    N --> N
    N --> N
    N --> O
    N --> P
    N --> Q
    N --> R
    N --> S
    N --> T
    N --> U
    N --> V
    N --> W
    N --> X
    N --> Y
    N --> Z
    N --> AA
    N --> AB
    N --> AC
    N --> AD
    N --> AE
    N --> AF
    N --> AG
    N --> AH
    N --> AI
    N --> AJ
    N --> AK
    N --> AL
    N --> AM
    N --> AN
    N --> AO
    N --> AP
    N --> AQ
    N --> AR
    N --> AS
    N --> AT
    N --> AU
    N --> AV
    N --> AW
    N --> AX
    N --> AY
    N --> AZ
    N --> BA
    N --> BB
    style EXP208 fill:#f9f,stroke:#333
    style EXP308 fill:#f9f,stroke:#333
    style 308 fill:#ccf,stroke:#333

25.5.3. Intercom Circuit

1) Composition

This is composed of the following circuits:

a) +15V power source for the extension telephones
b) Hook detect for SLT and pulse dialing detect
c) Bell ring trip section

2) Circuit operation

a) Power supply to the telephone

With the telephone off hook, a DC loop is formed, and current is supplied to the telephone. This circuit is limited to about 30mA by Q200, Q202, R202, R204 and Q201, Q203, R203, R205.

b) Hook detect for SLT and pulse dialing detect

When the telephone handset is taken off, DC loop is formed and collector of U200 3,6 pin change to L from H.

The ASIC detects the off hook condition.

When the handset is replaced back on hook, the DC loop is interrupted and collector of U200 3,6 pin change to H from L and EXT Pulse dialing is input either in the on hook or off hook condition, and the break number (on hook condition) is counted and read as the dial number.

c) Bell ringing trip section

When the telephone is a signal line telephone, extension calling is executed by means of a ringing signal. When the ringing signal is supplied, RL201 turns ON and the current flows are as follows:

Bell transformer → ringing signal line → RL201 → telephone → R206 → -15V → Bell transformer

25.5.4. Power Failure Through Call Switching Circuit

25.5.4.1. Circuit Operation

If an AC power failure lasts longer than one second (momentary power failure), the COL is directly connected to the extension. The COL7 will be connected with EXT117.

25.5.5. DTMF Receiver Circuit

25.5.5.1. Composition

The DTMF receiver circuit is composed of two DTMF receivers.

IC704 and IC705 are used for the DTMF receivers from SLT connected to the extension.

The DTMF signal is the 4bit parallel data and read by ASIC.

25.5.6. INT CALLID Interface Circuit

By using the DSP built into the ASIC, it is possible to produce CALLID signal and send it through the cross point to each extension. The CALLID signal can be switched between FSK and DTMF. There are three sources of the extension CALL ID in the system.

25.6. TROUBLESHOOTING GUIDE

25.6.1. No Dial Tone

25.6.2. Cannot Dial

25.6.3. Cannot Call Extension

25.6.4. Cannot Receive Incoming Call

25.6.5. Cannot Send DTMF Dialing

25.6.6. Cannot Receive Call Dial Tone

25.6.7. Cannot Send A Hold On Music

25.7. IC DATA

25.7.1. IC700

1. RTL (Retention Time Limited)

The marking (RTL) indicates that the Retention Time is limited for this item.

After the discontinuation of this assembly in production, the item will continue to be available for a specific period of time. The retention period of availability depends on the type of assembly and the laws governing parts and product retention. At the end of this period, the assembly will no longer be available.

1. Important safety notice

Components identified by the △ mark indicates special characteristics important for safety. When replacing any of these components, only use specified manufacture's parts.

1. The S mark means the part is one of some identical part. For that reason, it may be different from the installed part.

2. ISO code (Example: ABS-94HB) of the remarks column shows quality of the material and a flame resisting grade about plastics.

3. RESISTORS & CAPACITORS

Unless otherwise specified;

All resistors are in ohms (Ω), k=1000Ω, M=1000kΩ

All capacitors are in MICRO FARADS (μF), p=μ(μF)

*Type & Wattage of Resistor

Type

ERC:SolidERD:CarbonPQRD:Carbon

ERX,ERG,ER0,ERJ:Metal Film Oxide

PQ4R:CarbonERS:Fusible ResistorERF:Cement Resistor

Wattege

10,16:1/8W

14,25:1/4W

12:1/2W

1:1W

2:2W

3:3W

*Type & Voltage of Capacitor

Type

ECFD:Semi-ConductorECQS:StyrolPQCUV,ECUV:ChipECQMS:Mica

ECCD,ECKD,ECBT,PQCBC:CeramicECQE,ECQV,ECQG:PolyesterECEA,ECSZ,F2G,PSCSZ:ElectlyticECQP:Polypropylene

Voltage

ECQ Type	ECQG ECQV Type	ECSZ Type	Others
1H:50V	05:50V	0F:3.15V	0J :6.3V	1V :35V
2A:100V	1:100V	1A:10V	1A :10V	50,1H:50V
2E:250V	2:200V	1V:35V	1C :16V	1J :63V
2H:500V		0J:6.3V	1E,25:25V	2A :100V

25.11.1. CABINET AND ELECTRICAL PARTS

Ref.No.	Part No.	Part Name & Description	Remarks
1 PSGG1009V1 GRILL

25.11.2. ACCESSORIES AND PACKING MATERIALS

Ref.No.	Part No.	Part Name & Description	Remarks
A1 K1KA40A00234 CONNECTOR

Ref.No.	Part No.	Part Name & Description	Remarks
A2 XYN3+	F8 SCREW
P1 PSPN1	070Z CUSHION
P2 PSPP1	045Z PROTECTION COVER
P3 PSPP1	052Z PROTECTION COVER
P4 PSZKTE	82480X GIFT BOX
P5 XZB05	X10A03 PROTECTION COVER

25.11.3. MAIN BOARD PARTS

Ref.No.	Part No.	Part Name & Description	Remarks
		(ICS)
IC1A PQVINJM4558V IC		S
IC1B PQVINJM4558V IC		S
IC2A PSVICD4066BS IC		S
IC2B PSVICD4066BS IC		S
IC700	C1CB00001851 IC
IC701	PSVIMT8816AP IC	S
IC702	C1CB00001875 IC
IC703	PSVIMT8806AP IC	S
IC704	C1CB00001876 IC
IC705	C1CB00001876 IC
IC706	C0CBAKE00010 IC
IC707	PQVINJM4558V IC	S
IC708	PQVINJM4558V IC	S
IC710	COJBAB000407 IC
		(TRANSISTORS)
Q1A	2SC4731S	TRANSISTOR(SI)	S
Q1B	2SC4731S	TRANSISTOR(SI)	S
Q5A	UN5213	TRANSISTOR(SI)	S
Q5B	UN5213	TRANSISTOR(SI)	S
Q10A 2SA1627 TRANSISTOR(SI) S
Q10B 2SA1627 TRANSISTOR(SI) S
Q200A	2SB766ARTX TRANSISTOR(SI) S
Q200B	2SB766ARTX TRANSISTOR(SI) S
Q200C	2SB766ARTX TRANSISTOR(SI) S
Q200D	2SB766ARTX TRANSISTOR(SI) S
Q200E	2SB766ARTX TRANSISTOR(SI) S
Q200F	2SB766ARTX TRANSISTOR(SI) S
Q200G	2SB766ARTX TRANSISTOR(SI) S
Q200H	2SB766ARTX TRANSISTOR(SI) S
Q201A	2SD874A	TRANSISTOR(SI)	S
Q201B	2SD874A	TRANSISTOR(SI)	S
Q201C	2SD874A	TRANSISTOR(SI)	S
Q201D	2SD874A	TRANSISTOR(SI)	S
Q201E	2SD874A	TRANSISTOR(SI)	S
Q201F	2SD874A	TRANSISTOR(SI)	S
Q201G	2SD874A	TRANSISTOR(SI)	S
Q201H	2SD874A	TRANSISTOR(SI)	S
Q202A	2SB1218A	TRANSISTOR(SI)
Q202B	2SB1218A	TRANSISTOR(SI)
Q202C	2SB1218A	TRANSISTOR(SI)
Q202D	2SB1218A	TRANSISTOR(SI)
Q202E	2SB1218A	TRANSISTOR(SI)
Q202F	2SB1218A	TRANSISTOR(SI)
Q202G	2SB1218A	TRANSISTOR(SI)
Q202H	2SB1218A	TRANSISTOR(SI)
Q203A	2SD1819A	TRANSISTOR(SI)
Q203B	2SD1819A	TRANSISTOR(SI)
Q203C	2SD1819A	TRANSISTOR(SI)
Q203D	2SD1819A	TRANSISTOR(SI)
Q203E	2SD1819A	TRANSISTOR(SI)
Q203F	2SD1819A	TRANSISTOR(SI)
Q203G	2SD1819A	TRANSISTOR(SI)
Q203H	2SD1819A	TRANSISTOR(SI)
Q207A	2SD1819A	TRANSISTOR(SI)
Q207B	2SD1819A	TRANSISTOR(SI)
Q207C	2SD1819A	TRANSISTOR(SI)
Q207D	2SD1819A	TRANSISTOR(SI)
Q207E	2SD1819A	TRANSISTOR(SI)
Q207F	2SD1819A	TRANSISTOR(SI)
Q207G	2SD1819A	TRANSISTOR(SI)
Q207H	2SD1819A	TRANSISTOR(SI)
Q216 2SD1819A TRANSISTOR(SI)
Q217 2SD1819A TRANSISTOR(SI)
U2A B1GF AFNN0001 TRANSISTOR(SI)
U2B B1GF AFNN0001 TRANSISTOR(SI)
U200A PSVTUMX1NTN TRANSISTOR(SI)
U200B PSVTUMX1NTN TRANSISTOR(SI)
U200C PSVTUMX1NTN TRANSISTOR(SI)
U200D PSVTUMX1NTN TRANSISTOR(SI)
U200E PSVTUMX1NTN TRANSISTOR(SI)
U200F PSVTUMX1NTN TRANSISTOR(SI)
U200G PSVTUMX1NTN TRANSISTOR(SI)
U200H PSVTUMX1NTN TRANSISTOR(SI)
		(DIODES)
D1A PSVDHZK2BTR DIODE(SI)
D1B PSVDHZK2BTR DIODE(SI)
D2A PSVDHZK2BTR DIODE(SI)
D2B PSVDHZK2BTR DIODE(SI)
D3A BOEDKT000001 DIODE(SI)
D3B BOEDKT000001 DIODE(SI)
D202A MA8036H DIODE(SI) S
D202B MA8036H DIODE(SI) S
D202C MA8036H DIODE(SI) S
D202D MA8036H DIODE(SI) S
D202E MA8036H DIODE(SI) S
D202F MA8036H DIODE(SI) S
D202G MA8036H DIODE(SI) S
D202H MA8036H DIODE(SI) S
D203A MA8036H DIODE(SI) S
D203B MA8036H DIODE(SI) S
D203C MA8036H DIODE(SI) S
D203D MA8036H DIODE(SI) S
D203E MA8036H DIODE(SI) S
D203F MA8036H DIODE(SI) S
D203G MA8036H DIODE(SI) S
D203H MA8036H DIODE(SI) S
D204A MA8039 DIODE(SI) S
D204B MA8039 DIODE(SI) S
D204C MA8039 DIODE(SI) S
D204D MA8039 DIODE(SI) S
D204E MA8039 DIODE(SI) S
D204F MA8039 DIODE(SI) S
D204G MA8039 DIODE(SI) S
D204H MA8039 DIODE(SI) S
D205A MA111 DIODE(SI) S
D205B MA111 DIODE(SI) S
D205C MA111 DIODE(SI) S
D205D MA111 DIODE(SI) S
D205E MA111 DIODE(SI) S
D205F MA111 DIODE(SI) S
D205G MA111 DIODE(SI) S
D205H MA111 DIODE(SI) S
D209A MA111 DIODE(SI) S
D209B MA111 DIODE(SI) S
D209C MA111 DIODE(SI) S
D209D MA111 DIODE(SI) S
D209E MA111 DIODE(SI) S
D209F MA111 DIODE(SI) S
D209G MA111 DIODE(SI) S
D209H MA111 DIODE(SI) S
D221 MA111 DIODE(SI) S
DA200A MA142WKTX DIODE(SI) S
DA200B MA142WKTX DIODE(SI) S
DA200C MA142WKTX DIODE(SI) S
DA200D MA142WKTX DIODE(SI) S
DA200E MA142WKTX DIODE(SI) S
DA200F MA142WKTX DIODE(SI) S
DA200G MA142WKTX DIODE(SI) S
DA200H MA142WKTX DIODE(SI) S
		(CONNECTORS)
CN701 K1KB40C00002 CONNECTOR, 40P
CN702 K1KB40C00002 CONNECTOR, 40P
		COMPONENTS PARTS)
RA700 D1H81034A010 RESISTOR ARRAY, 10K

Ref.No.	Part No.	Part Name & Description	Remarks
RA701 D1	H81034A010 RES	ISTOR ARRAY, 10K
RA702 D1	H82214A024 RES	ISTOR ARRAY, 220K
RA703 D1	H82214A024 RES	ISTOR ARRAY, 220K
RA704 D1	H82214A024 RES	ISTOR ARRAY, 220K
RA705 D1	H82214A024 RES	ISTOR ARRAY, 220K
RA706 D1	H82204A024 RES	ISTOR ARRAY, 22K
RA707 D1	H82204A024 RES	ISTOR ARRAY, 22K
RA708 D1	H81034A010 RES	ISTOR ARRAY, 10K
		(COILS)
L1A PFLB	003 COIL S
L1B PFLB	003 COIL S
		(CRYSTAL OSCILLATOR)
X700 PSV	CYY0358M3 CRYSTAL OSCILLATOR S
		(JACKS)
CN1A PQJ	J1T004Z JACK, TEL S
CN1B PQJ	J1T004Z JACK, TEL S
CN200A PQJ	J1T011Y JACK, TEL S
CN200B PQJ	J1T011Y JACK, TEL S
CN200C PQJ	J1T011Y JACK, TEL S
CN200D PQJ	J1T011Y JACK, TEL S
CN200E PQJ	J1T011Y JACK, TEL S
CN200F PQJ	J1T011Y JACK, TEL S
CN200G PQJ	J1T011Y JACK, TEL S
CN200H PQJ	J1T011Y JACK, TEL S
		(RELAYS)
RL200A R	6B2CGA00121 RELAY
RL201A PQSL41Z RELAY		S
RL201B PQSL41Z RELAY		S
RL201C PQSL41Z RELAY		S
RL201D PQSL41Z RELAY		S
RL201E PQSL41Z RELAY		S
RL201F PQSL41Z RELAY		S
RL201G PQSL41Z RELAY		S
RL201H PQSL41Z RELAY		S
		(PHOTO ELECTRIC TRANSDUCERS)
PC1A PQV	IP27011M3 PHOTO COUPLER	S
PC1B PQV	IP27011M3 PHOTO COUPLER	S
PC2A PQV	IP27011M3 PHOTO COUPLER	S
PC2B PQV	IP27011M3 PHOTO COUPLER	S
PC4A PQV	IP27011M3 PHOTO COUPLER	S
PC4B PQV	IP27011M3 PHOTO COUPLER	S
PC5A CNC	2S5020LL1 PHOTO COUPLER	S
PC5B CNC	2S5020LL1 PHOTO COUPLER	S
		(TRANSFORMERS)
T1A G4A1	A0000173 TRANSFORMER	S
T1B G4A1	A0000173 TRANSFORMER	S
T2A G4A1	A0000177 TRANSFORMER
T2B G4A1	A0000177 TRANSFORMER
T200A ETA	A14Y85AY TRANSFORMER
T200B ETA	A14Y85AY TRANSFORMER
T200C ETA	A14Y85AY TRANSFORMER
T200D ETA	A14Y85AY TRANSFORMER
T200E ETA	A14Y85AY TRANSFORMER
T200F ETA	A14Y85AY TRANSFORMER
T200G ETA	A14Y85AY TRANSFORMER
T200H ETA	A14Y85AY TRANSFORMER
		(VARISTORS)
SA1A J01	E00000043 VARI STOR (SURGE ABSORBER)	S
SA1B J01	E00000043 VARI STOR (SURGE ABSORBER)	S
SA700 PR	RZRA102P6T VARI STOR (SURGE ABSORBER)	S
ZNR2A D4	EAB820A005 VARI STOR
ZNR2B D4	EAB820A005 VARI STOR
ZNR202 D4	EAB220A005 VARI STOR
ZNR203 D4	EAB220A005 VARI STOR
		(CAPACITORS)
C1A PSCU	2JW221KR 220P
C1B PSCU	2JW221KR 220P
C2A ECUV	1C474ZFV 0.47
C2B ECUV	1C474ZFV 0.47
C3A ECQE	2E105KZ 1	S
C3B ECQE	2E105KZ 1	S
C4A ECUV	1C474ZFV 0.47
C4B ECUV	1C474ZFV 0.47
C5A F2G1H1000010 0
C5B F2G1H1000010 0
C6A F2G1H1000010 0
C6B F2G1H1000010 0
C8A ECUV1H102KBV 0.001
C8B ECUV1H102KBV 0.001
C10A ECUV1H101JCV 100P
C10B ECUV1H101JCV 100P
C11A ECUV1C683KBV 0.068
C11B ECUV1C683KBV 0.068
C12A ECUV1C563KBV 0.056
C12B ECUV1C563KBV 0.056
C13A ECUV1C563KBV 0.056
C13B ECUV1C563KBV 0.056
C14A ECUV1C563KBV 0.056
C14B ECUV1C563KBV 0.056
C15A ECUV1C563KBV 0.056
C15B ECUV1C563KBV 0.056
C16A ECUV1H101JCV 100P
C16B ECUV1H101JCV 100P
C17A ECUV1H101JCV 100P
C17B ECUV1H101JCV 100P
C18A ECUV1H101JCV 100P
C18B ECUV1H101JCV 100P
C23A ECUV1H223KBV 0.022 S
C23B ECUV1H223KBV 0.022 S
C24A ECUV1H223KBV 0.022 S
C24B ECUV1H223KBV 0.022 S
C25A ECUV1H223KBV 0.022 S
C25B ECUV1H223KBV 0.022 S
C26A ECUV1H103KBV 0.01
C26B ECUV1H103KBV 0.01
C200A ECUV1H103KBV 0.01
C200B ECUV1H103KBV 0.01
C200C ECUV1H103KBV 0.01
C200D ECUV1H103KBV 0.01
C200E ECUV1H103KBV 0.01
C200F ECUV1H103KBV 0.01
C200G ECUV1H103KBV 0.01
C200H ECUV1H103KBV 0.01
C201A ECUV1H103KBV 0.01
C201B ECUV1H103KBV 0.01
C201C ECUV1H103KBV 0.01
C201D ECUV1H103KBV 0.01
C201E ECUV1H103KBV 0.01
C201F ECUV1H103KBV 0.01
C201G ECUV1H103KBV 0.01
C201H ECUV1H103KBV 0.01
C202A F2G1C1000015 10
C202B F2G1C1000015 10
C202C F2G1C1000015 10
C202D F2G1C1000015 10
C202E F2G1C1000015 10
C202F F2G1C1000015 10
C202G F2G1C1000015 10
C202H F2G1C1000015 10
C203A F2G1C1000015 10
C203B F2G1C1000015 10
C203C F2G1C1000015 10
C203D F2G1C1000015 10
C203E F2G1C1000015 10
C203F F2G1C1000015 10
C203G F2G1C1000015 10
C203H F2G1C1000015 10
C204A F2G1H2R20005 2.2
C204B F2G1H2R20005 2.2
C204C F2G1H2R20005 2.2
C204D F2G1H2R20005 2.2
C204E F2G1H2R20005 2.2
C204F F2G1H2R20005 2.2
C204G F2G1H2R20005 2.2
C204H F2G1H2R20005 2.2
C205A PSCEA1HN4R7 4.7

Ref.No.	Part No.	Part Name & Description	Remarks
C205B	PSCEA1HN4R7 4.7
C205C	PSCEA1HN4R7 4.7
C205D	PSCEA1HN4R7 4.7
C205E	PSCEA1HN4R7 4.7
C205F	PSCEA1HN4R7 4.7
C205G	PSCEA1HN4R7 4.7
C205H	PSCEA1HN4R7 4.7
C206A	ECUV1C393KBV 0.0	39 S
C206B	ECUV1C393KBV 0.0	39 S
C206C	ECUV1C393KBV 0.0	39 S
C206D	ECUV1C393KBV 0.0	39 S
C206E	ECUV1C393KBV 0.0	39 S
C206F	ECUV1C393KBV 0.0	39 S
C206G	ECUV1C393KBV 0.0	39 S
C206H	ECUV1C393KBV 0.0	39 S
C700	ECUV1C333KBV 0.0	3
C701	ECUV1H223KBV 0.0	2 S
C702	ECUV1H223KBV 0.0	2 S
C703	ECUV1H223KBV 0.0	2 S
C704	ECUV1H223KBV 0.0	2 S
C705	ECUV1H223KBV 0.0	2 S
C706	EEUFC1E101S 100
C707	EEUFC1E101S 100
C708	EEUFC1E101S 100
C709	EEUFC1E101S 100
C710	F1J1E105A008 1
C711	F1J1E105A008 1
C712	ECUV1H562KBV 0.0	56
C713	ECUV1H562KBV 0.0	56
C714	ECUV1C104KBV 0.1
C715	ECUV1C104KBV 0.1
C716	ECUV1C224ZFV 0.2	2
C718	ECUV1C104KBV 0.1
C719	ECUV1C224ZFV 0.2	2
C720	ECUV1H223KBV 0.0	2 S
C721	ECUV1H223KBV 0.0	2 S
C722	ECUV1H223KBV 0.0	2 S
C723	ECUV1C104KBV 0.1
C724	ECUV1H471JCV 470F	S
C725	ECUV1C104KBV 0.1
C726	ECUV1H471JCV 470F	S
C727	ECUV1C104KBV 0.1
C728	ECUV1H471JCV 470F	S
C730	ECUV1H104ZFV 0.1	S
C731	ECUV1H104ZFV 0.1	S
C734	ECUV1H104ZFV 0.1	S
C735	ECUV1A105ZFV 1
C801	ECUV1H103KBV 0.0	1
C803	ECUV1H103KBV 0.0	1
C804	ECUV1H103KBV 0.0	1
C805	ECUV1H103KBV 0.0	1
C807	ECUV1H103KBV 0.0	1
C809	ECUV1H103KBV 0.0	1
C810	ECUV1H103KBV 0.0	1
C811	ECUV1H103KBV 0.0	1
C812	ECUV1H103KBV 0.0	1
C813	ECUV1H103KBV 0.0	1
C814	ECUV1H103KBV 0.0	1
C815	ECUV1H103KBV 0.0	1
C816	ECUV1H103KBV 0.0	1
C818	ECUV1H103KBV 0.0	1
C819	ECUV1H103KBV 0.0	1
C820	ECUV1H103KBV 0.0	1
C821	ECUV1H103KBV 0.0	1
C822	ECUV1H103KBV 0.0	1
C823	ECUV1H103KBV 0.0	1
C824	ECUV1H103KBV 0.0	1
C825	ECUV1H103KBV 0.0	1
C826	ECUV1H103KBV 0.0	1
C827	ECUV1H103KBV 0.0	1
C828	ECUV1H103KBV 0.0	1
C829	ECUV1H103KBV 0.0	1
C830	ECUV1H103KBV 0.0	1
C831	ECUV1H103KBV 0.01
C832	ECUV1H103KBV 0.01
C833	ECUV1H103KBV 0.01
C851	ECUV1H103KBV 0.01
C852	ECUV1H103KBV 0.01
C853	ECUV1H103KBV 0.01
C871	ECUV1H103KBV 0.01
C872	ECUV1H103KBV 0.01
C873	ECUV1H103KBV 0.01
C874	ECUV1H103KBV 0.01
C915	ECUV1H103KBV 0.01
C916	ECUV1H103KBV 0.01
C918	ECUV1H103KBV 0.01
C919	ECUV1H103KBV 0.01
C920	ECUV1H103KBV 0.01
C928	ECUV1H103KBV 0.01
C911	ECUV1H103KBV 0.01
C912	ECUV1H103KBV 0.01
C913	ECUV1H103KBV 0.01
C914	ECUV1H103KBV 0.01
C917	ECUV1H103KBV 0.01
C921	ECUV1H103KBV 0.01
C922	ECUV1H103KBV 0.01
C923	ECUV1H103KBV 0.01
C924	ECUV1H103KBV 0.01
C925	ECUV1H103KBV 0.01
C927	ECUV1H103KBV 0.01
C929	ECUV1H103KBV 0.01
C930	ECUV1H103KBV 0.01
C931	ECUV1H103KBV 0.01
		(RESISTORS)
J2A	PQ4R18XJ000 0 S
J2B	PQ4R18XJ000 0 S
J5A	PQ4R10XJ000 0 S
J5B	PQ4R10XJ000 0 S
J704	ERJ3GEYJ683 68K
J714	ERJ3GEYJ683 68K
J716	ERJ3GEYJ683 68K
TH1A	ERDS1TJ000 0 S
TH1B	ERDS1TJ000 0 S
R1A	ERJ3GEYJ683 68K
R1B	ERJ3GEYJ683 68K
R2A	PQ4R18XJ220 22 S
R2B	PQ4R18XJ220 22 S
R4A	PQ4R10XJ681 680 S
R4B	PQ4R10XJ681 680 S
R5A	ERJ1WYJ223 22K
R5B	ERJ1WYJ223 22K
R6A	ERJ3GEYJ683 68K
R6B	ERJ3GEYJ683 68K
R7A	ERJ3GEYJ392 3.9K
R7B	ERJ3GEYJ392 3.9K
R8A	PQ4R10XJ000 0 S
R8B	PQ4R10XJ000 0 S
R9A	ERJ8GEYJ390 39
R9B	ERJ8GEYJ390 39
R10A	PQ4R10XJ682 6.8K S
R10B	PQ4R10XJ682 6.8K S
R11A	ERJ3GEYJ103 10K
R11B	ERJ3GEYJ103 10K
R12A	PQ4R10XJ000 0 S
R12B	PQ4R10XJ000 0 S
R14A	PQ4R10XJ822 8.2K S
R14B	PQ4R10XJ822 8.2K S
R15A	ERJ3GEYJ101 100
R15B	ERJ3GEYJ101 100
R16A	ERJ3GEYJ000 0
R16B	ERJ3GEYJ000 0
R17A	ERJ3GEYF122 1.2K S
R17B	ERJ3GEYF122 1.2K S
R18A	ERJ3GEYJ000 0
R18B	ERJ3GEYJ000 0
R20A	ERJ3GEYF122 1.2K S

Ref.No.	Part No.	Part Name & Description	Remarks
R20B ERJ	3GEYF122 1.2K S
R21A ERJ	3GEYOR00 0
R21B ERJ	3GEYOR00 0
R22A ERJ	3EKF3900 390
R22B ERJ	3EKF3900 390
R23A ERJ	3EKF1001 1K
R23B ERJ	3EKF1001 1K
R24A ERJ	3EKF1003 100K
R24B ERJ	3EKF1003 100K
R25A ERJ	3EKF1003 100K
R25B ERJ	3EKF1003 100K
R26A ERJ	3GEYJ334 330K
R26B ERJ	3GEYJ334 330K
R27A ERJ	3GEYJ334 330K
R27B ERJ	3GEYJ334 330K
R28A ERJ	3GEYJ304 300K
R28B ERJ	3GEYJ304 300K
R29A ERJ	3GEYOR00 0
R29B ERJ	3GEYOR00 0
R30A ERJ	3GEYOR00 0
R30B ERJ	3GEYOR00 0
R31A ERJ	3GEYJ304 300K
R31B ERJ	3GEYJ304 300K
R34A ERJ	3EKF1003 100K
R34B ERJ	3EKF1003 100K
R35A ERJ	3EKF1003 100K
R35B ERJ	3EKF1003 100K
R37A ERJ	3GEYOR00 0
R37B ERJ	3GEYOR00 0
R38A ERJ	3GEYOR00 0
R38B ERJ	3GEYOR00 0
R39A ERJ	3GEYF122 1.2K S
R39B ERJ	3GEYF122 1.2K S
R40A ERJ	3GEYF122 1.2K S
R40B ERJ	3GEYF122 1.2K S
R41A ERJ	3GEYJ471 470
R41B ERJ	3GEYJ471 470
R42A ERJ	3GEYF122 1.2K S
R42B ERJ	3GEYF122 1.2K S
R43A ERJ	3GEYOR00 0
R43B ERJ	3GEYOR00 0
R45A ERJ	3GEYOR00 0
R45B ERJ	3GEYOR00 0
R46A ERJ	3GEYF122 1.2K S
R46B ERJ	3GEYF122 1.2K S
R47A ERJ	3GEYJ473 47K
R47B ERJ	3GEYJ473 47K
R49A ERJ	3GEYJ473 47K
R49B ERJ	3GEYJ473 47K
R50A ERJ	3GEYJ473 47K
R50B ERJ	3GEYJ473 47K
R51A ERJ	3GEYJ104 100K
R51B ERJ	3GEYJ104 100K
R52A ERJ	3GEYJ272 2.7K
R52B ERJ	3GEYJ272 2.7K
R53A ERJ	3GEYJ103 10K
R53B ERJ	3GEYJ103 10K
R200A ERJ	J3GEYJ682 6.8K
R200B ERJ	J3GEYJ682 6.8K
R200C ERJ	J3GEYJ682 6.8K
R200D ERJ	J3GEYJ682 6.8K
R200E ERJ	J3GEYJ682 6.8K
R200F ERJ	J3GEYJ682 6.8K
R200G ERJ	J3GEYJ682 6.8K
R200H ERJ	J3GEYJ682 6.8K
R201A ERJ	J3GEYJ682 6.8K
R201B ERJ	J3GEYJ682 6.8K
R201C ERJ	J3GEYJ682 6.8K
R201D ERJ	J3GEYJ682 6.8K
R201E ERJ	J3GEYJ682 6.8K
R201F ERJ	J3GEYJ682 6.8K
R201G ERJ	J3GEYJ682 6.8K
R201H ERJ	J3GEYJ682 6.8K
R202A	ERJ14YJ220 22
R202B	ERJ14YJ220 22
R202C	ERJ14YJ220 22
R202D	ERJ14YJ220 22
R202E	ERJ14YJ220 22
R202F	ERJ14YJ220 22
R202G	ERJ14YJ220 22
R202H	ERJ14YJ220 22
R203A	ERJ14YJ220 22
R203B	ERJ14YJ220 22
R203C	ERJ14YJ220 22
R203D	ERJ14YJ220 22
R203E	ERJ14YJ220 22
R203F	ERJ14YJ220 22
R203G	ERJ14YJ220 22
R203H	ERJ14YJ220 22
R204A	ERJ14YJ680 68
R204B	ERJ14YJ680 68
R204C	ERJ14YJ680 68
R204D	ERJ14YJ680 68
R204E	ERJ14YJ680 68
R204F	ERJ14YJ680 68
R204G	ERJ14YJ680 68
R204H	ERJ14YJ680 68
R205A	ERJ14YJ680 68
R205B	ERJ14YJ680 68
R205C	ERJ14YJ680 68
R205D	ERJ14YJ680 68
R205E	ERJ14YJ680 68
R205F	ERJ14YJ680 68
R205G	ERJ14YJ680 68
R205H	ERJ14YJ680 68
R206A	ERJ1WYJ102 1K S
R206B	ERJ1WYJ102 1K S
R206C	ERJ1WYJ102 1K S
R206D	ERJ1WYJ102 1K S
R206E	ERJ1WYJ102 1K S
R206F	ERJ1WYJ102 1K S
R206G	ERJ1WYJ102 1K S
R206H	ERJ1WYJ102 1K S
R207A	ERJ3GEYJ333 33K
R207B	ERJ3GEYJ333 33K
R207C	ERJ3GEYJ333 33K
R207D	ERJ3GEYJ333 33K
R207E	ERJ3GEYJ333 33K
R207F	ERJ3GEYJ333 33K
R207G	ERJ3GEYJ333 33K
R207H	ERJ3GEYJ333 33K
R208A	ERJ3GEYJ563 56K
R208B	ERJ3GEYJ563 56K
R208C	ERJ3GEYJ563 56K
R208D	ERJ3GEYJ563 56K
R208E	ERJ3GEYJ563 56K
R208F	ERJ3GEYJ563 56K
R208G	ERJ3GEYJ563 56K
R208H	ERJ3GEYJ563 56K
R209A	ERJ3GEYJ153 15K
R209B	ERJ3GEYJ153 15K
R209C	ERJ3GEYJ153 15K
R209D	ERJ3GEYJ153 15K
R209E	ERJ3GEYJ153 15K
R209F	ERJ3GEYJ153 15K
R209G	ERJ3GEYJ153 15K
R209H	ERJ3GEYJ153 15K
R210A	ERJ3GEYJ333 33K
R210B	ERJ3GEYJ333 33K
R210C	ERJ3GEYJ333 33K
R210D	ERJ3GEYJ333 33K
R210E	ERJ3GEYJ333 33K
R210F	ERJ3GEYJ333 33K
R210G	ERJ3GEYJ333 33K
R210H	ERJ3GEYJ333 33K
R211A	ERJ3GEYJ123 12K

Ref.No.	Part No.	Part Name & Description	Remarks
R211B	ERJ3GEYJ123 12K
R211C	ERJ3GEYJ123 12K
R211D	ERJ3GEYJ123 12K
R211E	ERJ3GEYJ123 12K
R211F	ERJ3GEYJ123 12K
R211G	ERJ3GEYJ123 12K
R211H	ERJ3GEYJ123 12K
R215A	ERJ3GEYJ473 47K
R215B	ERJ3GEYJ473 47K
R215C	ERJ3GEYJ473 47K
R215D	ERJ3GEYJ473 47K
R215E	ERJ3GEYJ473 47K
R215F	ERJ3GEYJ473 47K
R215G	ERJ3GEYJ473 47K
R215H	ERJ3GEYJ473 47K
R216A	ERJ3GEYJ103 10K
R216B	ERJ3GEYJ103 10K
R216C	ERJ3GEYJ103 10K
R216D	ERJ3GEYJ103 10K
R216E	ERJ3GEYJ103 10K
R216F	ERJ3GEYJ103 10K
R216G	ERJ3GEYJ103 10K
R216H	ERJ3GEYJ103 10K
R218A	ERJ3GEYJ103 10K
R218B	ERJ3GEYJ103 10K
R218C	ERJ3GEYJ103 10K
R218D	ERJ3GEYJ103 10K
R218E	ERJ3GEYJ103 10K
R218F	ERJ3GEYJ103 10K
R218G	ERJ3GEYJ103 10K
R218H	ERJ3GEYJ103 10K
R219A	ERJ3GEYJ102 1K
R219B	ERJ3GEYJ102 1K
R219C	ERJ3GEYJ102 1K
R219D	ERJ3GEYJ102 1K
R219E	ERJ3GEYJ102 1K
R219F	ERJ3GEYJ102 1K
R219G	ERJ3GEYJ102 1K
R219H	ERJ3GEYJ102 1K
R221A	ERJ3GEYJ103 10K
R221B	ERJ3GEYJ103 10K
R221C	ERJ3GEYJ103 10K
R221D	ERJ3GEYJ103 10K
R221E	ERJ3GEYJ103 10K
R221F	ERJ3GEYJ103 10K
R221G	ERJ3GEYJ103 10K
R221H	ERJ3GEYJ103 10K
R222A	ERJ3GEYJ103 10K
R222B	ERJ3GEYJ103 10K
R222C	ERJ3GEYJ103 10K
R222D	ERJ3GEYJ103 10K
R222E	ERJ3GEYJ103 10K
R222F	ERJ3GEYJ103 10K
R222G	ERJ3GEYJ103 10K
R222H	ERJ3GEYJ103 10K
R225	ERJ3GEYJ103 10K
R226	ERJ3GEYJ103 10K
R227	ERJ3GEYJ682 6.8K
R228	ERJ3GEYJ682 6.8K
R229	ERJ3GEYJ221 220
R701	ERJ3GEYJ104 100K
R702	ERJ3GEYJ273 27K
R703	ERJ3GEYJ334 330K
R704	ERJ3GEYJ273 27K
R705	ERJ3GEYJ334 330K
R706	ERJ3GEYJ220 22
R707	ERJ3GEYJ220 22
R708	ERJ3GEYJ221 220
R716	ERJ3GEYJ122 1.2K
R717	ERJ3GEYJ122 1.2K
R718	ERJ3GEYJ122 1.2K
R719	ERJ3GEYJ122 1.2K
R720	ERJ3GEYJ122 1.2K
R721 ERJ3GEYJ122 1.2K
R723 ERJ3GEYJ122 1.2K
R724 ERJ3GEYJ122 1.2K
R727 ERJ3GEYJ103 10K
R728 ERJ3GEYJ103 10K
R731 ERJ3GEYJ103 10K
R732 ERJ3GEYJ103 10K
R733 ERJ3GEYJ103 10K
R734 ERJ3GEYJ103 10K
R735 ERJ3GEYJ103 10K
R736 ERJ3GEYJ103 10K

25.12. FOR THE SCHEMATIC DIAGRAM

Note:

1. DC voltage measurements are taken with an oscilloscope or a tester with a ground.
2. The schematic diagrams and circuit board may be modified at any time with the development of new technology.

Important safety notice Components identified by ⚠ mark have special characteristics important for safety. When replacing any of there components, use only manufacturer's specified parts.

25.13. SCHEMATIC DIAGRAM (KX-TE82480X)

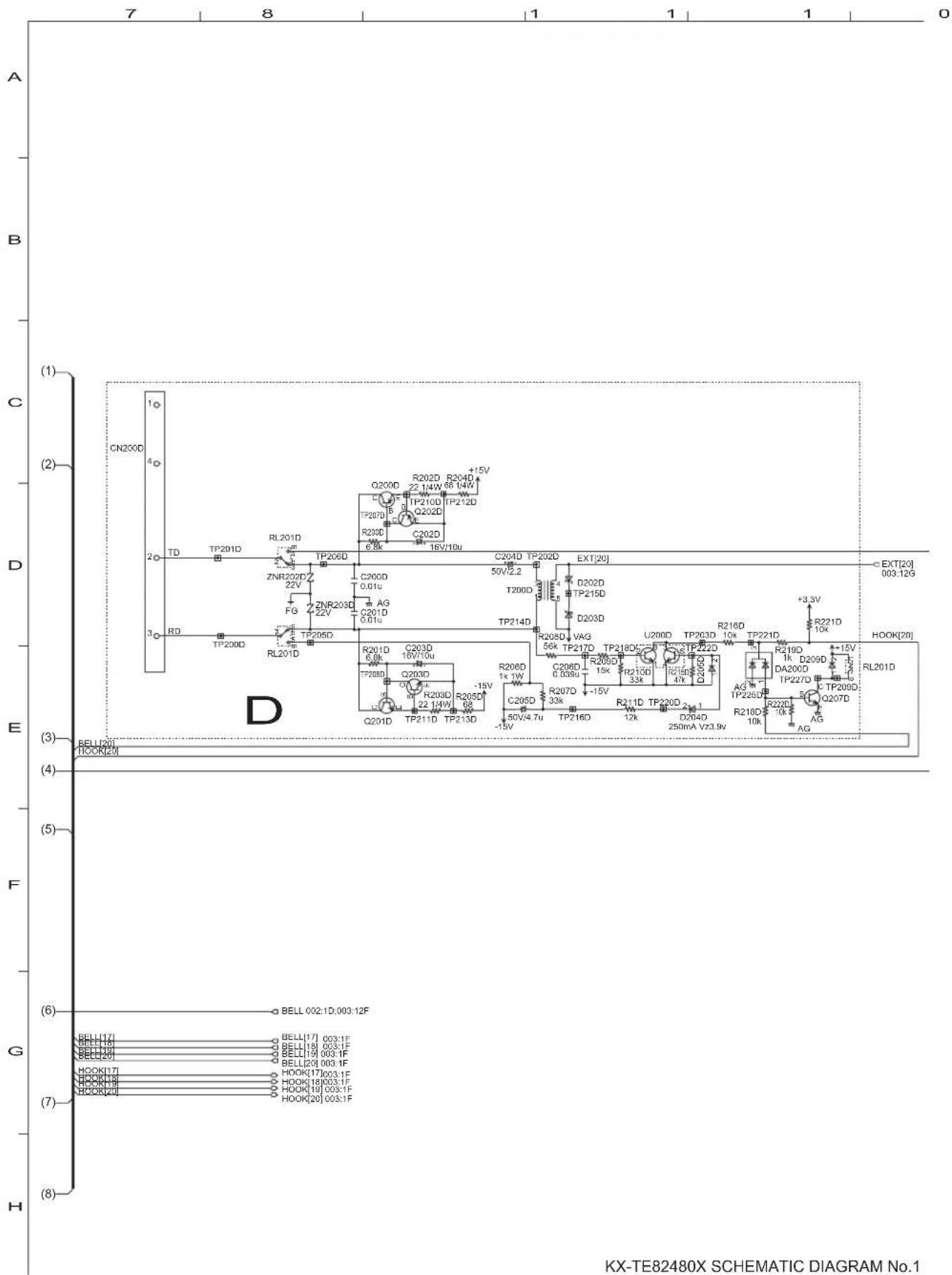

25.13.1. No.1

25.13.2. No.2

25.13.3. No.3

2/4

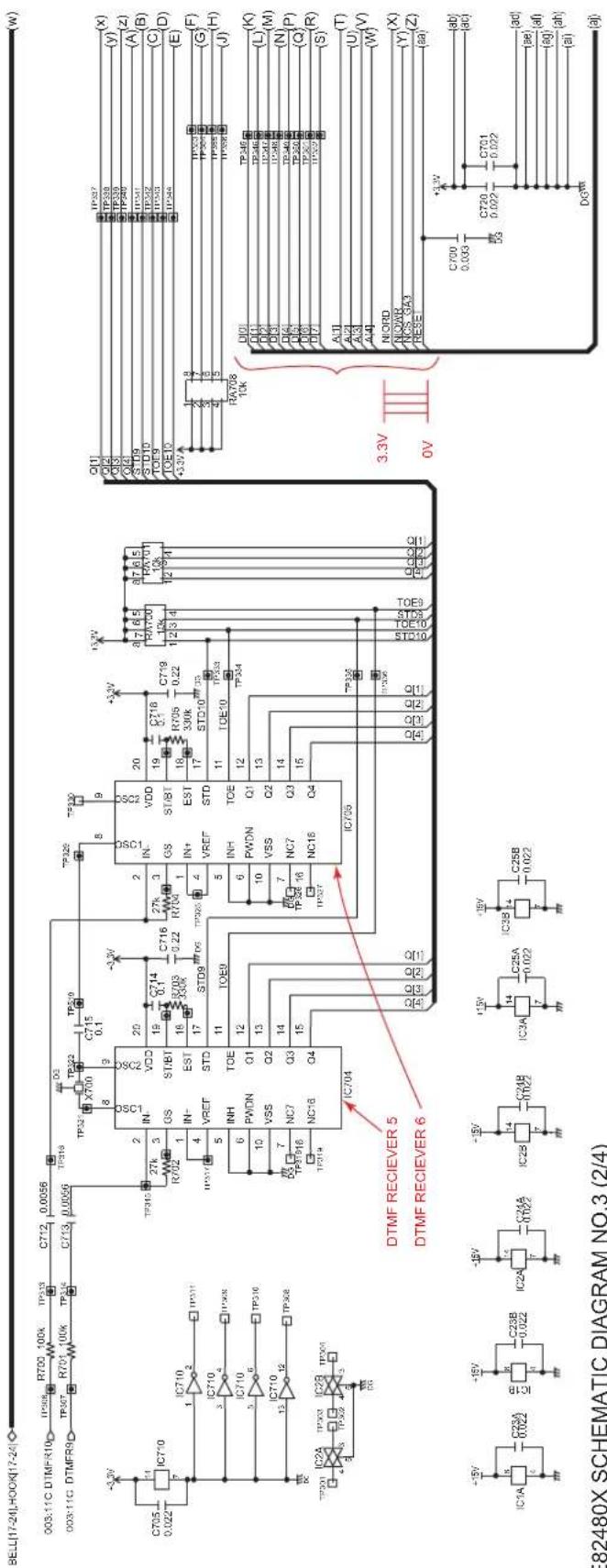

KX-TE82480X SCHEMATIC DIAGRAM NO.3 (2/4)

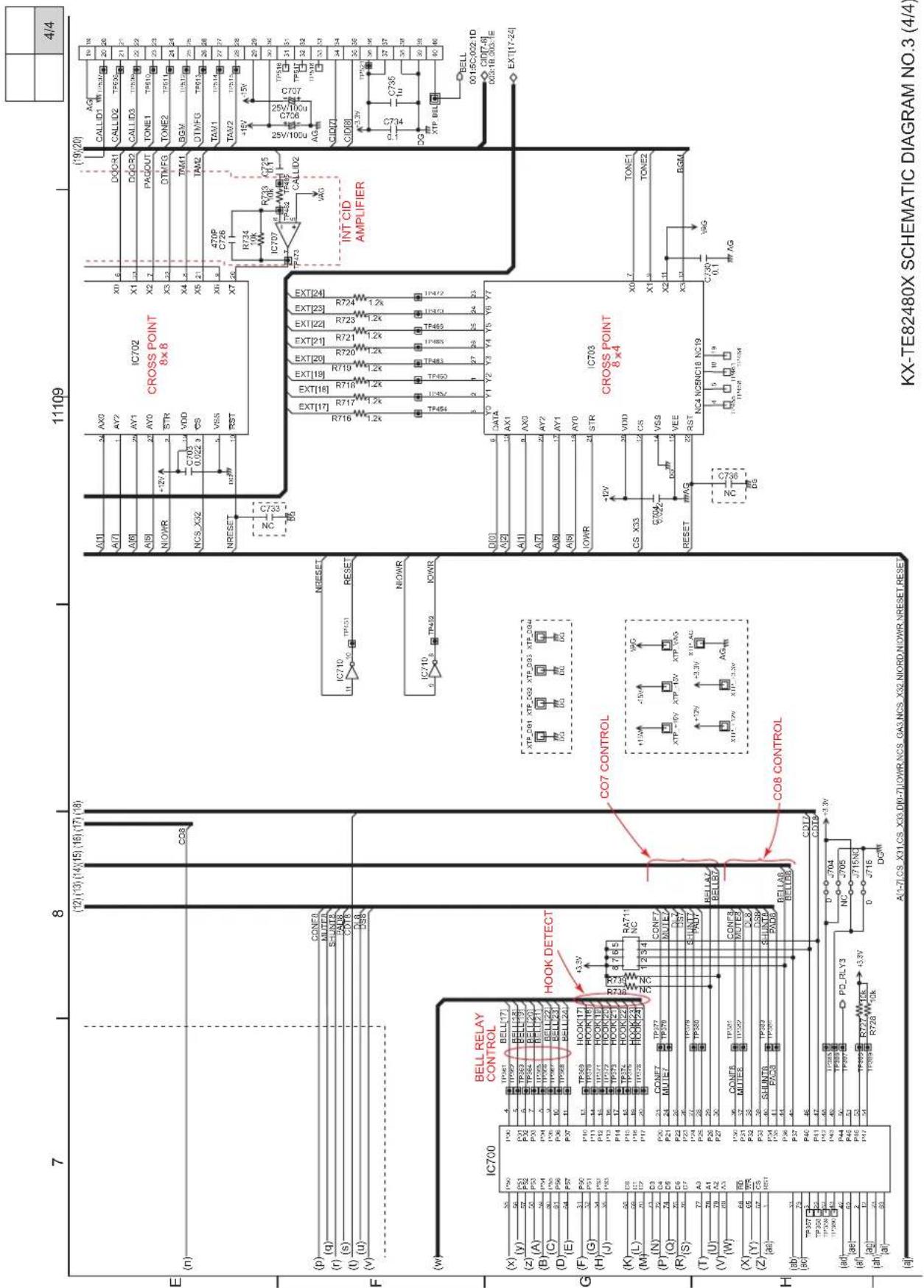

25.14. PRINTED CIRCUIT BOARD (KX-TE82480X)

25.14.1. Component View

KX-TE82480X COMPONENT VIEW

25.14.2. Bottom View

KX-TE82480X BOTTOM VIEW

26 KX-TE82483X (3-PORT ANALOGUE CO LINE AND 8-PORT HYBRID EXTENSION)

Isometric line drawing of a device rear panel with multiple ports and connectors (no text or symbols)

26.1. HOW TO RECOGNIZE THAT Pb FREE SOLDER IS USED

26.2. LOCATION OF OPTIONAL CARDS

26.2.1. 3-Port Analogue CO Line and 8-Port Hybrid Extension (KX-TE82483X)

Function

Adds 3 outside (CO) lines and 8 hybrid extensions on the KX-TES824 basic system.

Installing KX-TE82483 to KX-TES824

1. Loosen the screws and open the top and bottom front covers.
2. Using cutting pliers, cut the 6 parts marked with circles, and remove the upper front panel as shown below.

1. Cut off any excess plastic in order to make the surface smooth.

1. Attach the 2 extension connectors to the main unit, install the card as shown below, and secure the 3 extension bolts.

1. Insert the modular plugs of the telephone line cords (2-conductor wiring) into the card's modular CO ports.
2. Connect the line cords to the terminal board or the modular jacks from the telephone company.
3. Insert the modular plugs of the telephone line cords (2-conductor wiring) into the card's modular extension jacks.
4. Wrap the strap around all of the cords.
5. Close the covers and secure the screws.

26.3. BLOCK DIAGRAM

KX-TE82483X BLOCK DIAGRAM

26.4. EXPLANATION OF BLOCK DIAGRAM

26.4.1. Option Card (KX-TE82483X)

26.4.1.1. CO Interface Circuit

There are the interface circuits linking the CO line (CO4 -CO6) and the cross point circuit section.

26.4.1.2. Cross Point Circuit

This is a space division switching system for connecting the following:

The eight extension circuits with the eight CO,DTMF generator, DTMF receiver, INT-CALL ID,MODEM,OGM, BV, paging, music on hold, tone etc.

It is composed of 3 C-MOS IC's. (8 X 16 matrix: 1pce 4 X 8 matrix: 1pce, 8 X 8 matrix: 1pce)

26.4.1.3. Intercom Circuit

This is the interface circuit of the single line telephone, and it is composed of 8 intercom circuit. (ICM9-16)

26.4.1.4. Power Failure Through Call Switching Circuit

This card has one power failure transfer circuit. (CO4-EXT109)

26.4.1.5. DATA Communication Circuit

The APT i/f module which performs communication with a private telephone machine is built in ASIC located main unit.

26.4.1.6. DTMF Receiver Circuit

The circuit which receives the Dial Tone Multi Frequency by which extension dispatch is carried out with the DTMF receiver connected to the crossing point.

FSK/Dial Tone Multi Frequency generated by DSP in ASIC are connected even to a crossing point through AMP.

The circuit which sends out a CALLID signal to the telephone connected to an extension by connecting the line of INT-CALL-ID with arbitrary extensions.

This is composed of the following circuit:

1) Bell signal detection
2) DC loop formation circuit
3) Pulse dial transmission circuit
4) CALL ID interface circuit
5) COL bidirectional amplifier circuit

1) Bell signal detection

When CO line is idle, photo coupler PC1, PC2 are OFF.

When there is an incoming signal from CO line, the current flows PC1 as in the following way.

Tip → L1 → R2 → PC1(1-2) → C3 → T2 → R5 → L1 → Ring: This cause pin4 of PC1 to change the level from High to low.

Ring → L1 → R5 → T2 → C3 → PC2(1-2) → R2 → L1 → Tip: This cause pin4 of PC2 to change the level from High to low.

2) DC loop formation circuit

In the off hook status, PC5 is ON.

DC loop path:

Tip→L1→D1→D2→D3→Q10(E-C)→Q1(C-E)→R9→R8→D3→L1→Ring

At this time, the output of the photo coupler PC1 changes level from High to low.

Ring→L1→D3→R8→R9→Q1(E-C)→Q10(C-E)→D3→D2→D1→L1→Tip

At this time, the output of the photo coupler PC2 changes level from High to low.

Afterwards, G/A monitor this change (low level to high level). If the high level continues for a specified time set by system data programming. G/A assumes that CO line has become On hook status. And the CO line circuits is restored to the idle status.

3) Pulse dial transmission circuit

When the Off hook status, pulse dial transmission is executed by alternating On hook and Off hook. The status of On hook or Off hook is controlled by the switching transistor Q10.

4) CALL ID interface circuit

It is insulated by the transformer in a COL circuit, and the call ID signal inputted from outside line is transmitted to a CALLID option card.

The flow of a CALLID signal

$$ \text { Tip } \rightarrow \text { L1 } \rightarrow \text { R2 } \rightarrow \text { PC1(1 - 2) } \rightarrow \text { C3 } \rightarrow \text { T2 } \rightarrow \text { R5 } \rightarrow \text { L1 } \rightarrow \text { Ring } $$

$$ \text { Ring } \rightarrow \text { L1 } \rightarrow \text { R5 } \rightarrow \text { T2 } \rightarrow \text { C3 } \rightarrow \text { PC2(1 - 2) } \rightarrow \text { R2 } \rightarrow \text { L1 } \rightarrow \text { Tip } $$

5) COL Bidirectional Amplifier circuit

This circuit consists of bidirectional amplifier function for communication between the extensions and COL, returns loss compensation for conference, shunt function and mute function.

(Composition)

For transmitting signals from the extensions to COL, this circuit consists of R34, R35, R26, R27, R18, R29, C14, C15, C10, C16 and the operational amplifier (IC1).

For transmitting signals from the COL to extensions, this circuit consists of R24, R25, R31, R28, R37, R30, C12, C13, C17, C18, and the operational amplifier (IC1).

COL side-tone suppression circuit which includes a balanced network BN1 consists of R22 R23, C11 and R16, R17, R20, R21.

EXT side-tone suppression circuit which includes a balanced network BN2 consists of R41, R42 and R40, R43, R38, R39.

Also extension side-tone suppression circuit which includes a balanced network BN3 consists of R45, R46 for supplementing side-tone suppression during the conference communication.

The analog switch (IC2) is used for the following:

(1) Conference (Pin 6, 8 and 9)

(2) Shunt (Pin 12, 10 and 11)

(3) Mute (Pin 13, 1 and 2)

1) Conference switch

Normally, pin 6 of the analog switch IC2 is low level, but during conferences, this pin becomes high level. Because, during conferences, it should compensate the return loss by connecting the balance network BN2 and the balance network BN3 in parallel.

2) Mute switch

The mute switch consists of pin 13, 1 and 2 of the analog switch(IC2). This switch has the following functions.

a) When a dial signal (DP) is sent to the COL, signals from the extensions are blocked.
b) When the hold on music is sent to the COL, signals from the extensions are blocked.
c) When the COL interface circuit is in the idle state, oscillation of COL bidirectional amplifier is inhibited. When pin 13 of IC2 changes to low level, the interval between pins 1 and 2 of the analog switch turns off, and signals are blocked.

3) Shunt switch

The shunt switch consists of pin 12, 10 and 11 of analog switch IC2. It is used to prevent the pulse dialing signal which is transmitted to the extensions. When pin 12 of IC2 changes to high from low, the analog switch becomes ON (the interval between pin 10 and 11), and GAIN of the COL cross point operational amplifier becomes zero.

	Shunt SW Mute SW Conference SW
pin no. of analog switch 12 13 6
No connection (idle) H (on) L (off)	L (off)
Two party call	L (off) H (on) L (off)
Conference	L (off) H (on)	H (on)
Hold on music transmission	L (off) H (on) L (off)

Condition of COL interface amplifier circuit and analog switches.

26.5.2. Cross Point Switch Circuit

26.5.2.1. Composition

The cross point circuit composed of three cross point switch IC's. (IC500:8X16, IC501:8X8, IC502:4X8)

1) Cross Point Switch IC Operation

The cross point SW (IC500) contains a 8X16 array of cross point switches along with a 7 to 128 line decoder and latch circuits. Any one of the 128 switches can be addressed by selecting appropriate seven address bits. The selected switch can be turned on or off by applying either logical one or zero to the DATA input. Chip select allows the cross point array to be cascaded for matrix expansion.

The cross point SW (IC501) contains a 8X8 array of cross point switches along with a 6 to 64 line decoder and latch circuits. Any one of the 64 switches can be addressed by selecting appropriate seven address bits. The selected switch can be turned on or off by applying either logical one or zero to the DATA input. Chip select allows the cross point array to be cascaded for matrix expansion.

The cross point SW's (IC502) contain 4X8 array of cross point switches along with a 5 to 32 line decoder and latch circuits. Any one of the 32 switches can be addressed by selecting appropriate five address bits. The selected switch can be turned on or off by applying either logical one or zero to the DATA input. Chip select allows the cross point array to be cascaded for matrix expansion.

Cross point 8816 Function block diagram

Cross point 8809 Function block diagram

Cross point 8806 Function block diagram

    subgraph DSP MODEM (in/out)
        AS["DSP MODEM in/out"]
        AT["DSP OGM2 in/out"]
    end

    subgraph DSP OGM1 (in/out)
        AU["DSP OGM1 in/out"]
        AV["DSP CALLID3 out"]
    end

    subgraph DSP CALLID1 (out)
        AW["DSP CALLID1 out"]
        AX["DSP CALLID2 out"]
    end

    subgraph DSP MELODY (out)
        AY["TONE1"]
        AZ["TONE2"]
        BA["BGM/DTMFG2"]
    end

    B --> C
    D --> E
    F --> G
    H --> I
    J --> K
    L --> M
    N --> N
    P --> N
    Q --> N
    R --> N
    S --> N
    T --> N
    U --> N
    V --> N
    W --> N
    X --> N
    Y --> N
    Z --> N
    AA --> AA
    AC --> AC
    AD --> AD
    AE --> AE
    AF --> AF
    AH --> AH
    AI --> AI
    AJ --> AJ
    AK --> AK
    AL --> AL
    AM --> AM
    AN --> AN
    AO --> AO
    AP --> AP
    AQ --> AQ
    AR --> AR
    S --> S
    T --> T
    U --> U
    V --> V
    W --> W
    X --> X
    Y --> Y
    Z --> Z
    AA --> AA
    AB --> AB
    AC --> AC
    AD --> AC
    AE --> AE
    AF --> AF
    AH --> AH
    AI --> AI
    AJ --> AJ
    AK --> AK
    AL --> AL
    AM --> AM
    AN --> AN
    AO --> AO
    AP --> AP
    AQ --> AQ
    AR --> AR
    S --> S
    T --> T
    U --> U
    V --> V
    W --> W
    X --> X
    Y --> X
    Z --> Z

26.5.3. Intercom Circuit

1) Composition

This is composed of the following circuits:

a) +15V power source for the extension telephones
b) Hook detect for SLT and pulse dialing detect
c) Bell ring trip section

2) Circuit operation

a) Power supply to the telephone

With the telephone off hook, a DC loop is formed, and current is supplied to the telephone. This circuit is limited to about 30mA by Q200, Q202, R202, R204 and Q201, Q203, R203, R205.

b) Hook detect for SLT and pulse dialing detect

When the telephone handset is taken off, DC loop is formed and collector of U200 3,6 pin change to L from H.

The ASIC detects the off hook condition.

When the handset is replaced back on hook, the DC loop is interrupted and collector of U200 3,6 pin change to H from L and EXT Pulse dialing is input either in the on hook or off hook condition, and the break number (on hook condition) is counted and read as the dial number.

c) Bell ringing trip section

When the telephone is a signal line telephone, extension calling is executed by means of a ringing signal. When the ringing signal is supplied, RL201 turns ON and the current flows are as follows:

Bell transformer → ringing signal line → RL201 → telephone → R206 → -15V → Bell transformer

26.5.4. Power Failure Through Call Switching Circuit

26.5.4.1. Circuit Operation

If an AC power failure lasts longer than one second (momentary power failure), the COL is directly connected to the extension. The COL4 will be connected with EXT109.

26.5.5. DATA Communication Circuit

26.5.5.1. Composition

This circuit is composed of the ASIC and the data communication interface circuits for the ICM circuit.

26.5.5.2. Circuit Operation

1) Data Communication of ASIC

The APT I/f module is built into the CPU. It is for the APT communication of one block (8ch) and has the module of three blocks (24ch) at maximum.

selection signal of 3 bits to select 1ch out of 8chs is common to each block.

The APT I/f module switches the communication point every 4ms in the ports 1-8/9-16/17-24 of the extension as follows:

$$ # 1 0 1 \rightarrow # 1 0 2 \rightarrow # 1 0 3 \rightarrow # 1 0 4 \dots \rightarrow # 1 0 8 \rightarrow # 1 0 1 \dots , $$

$$ # 1 0 9 \rightarrow # 1 1 0 \rightarrow # 1 1 1 \rightarrow # 1 1 2 \dots \rightarrow # 1 1 6 \rightarrow # 1 0 9 \dots , $$

$$ # 1 1 7 \rightarrow # 1 1 8 \rightarrow # 1 1 9 \rightarrow # 1 2 0 \dots \rightarrow # 1 2 4 \rightarrow # 1 1 7 \dots , $$

In the case where the extension is not connected with the APT, it is recognized as an SLT connection and a dummy communication is performed.

Interface block diagram of ASIC and ICM

2) Data Communication of ASIC and PITS

When ASIC send the request signal to the proprietary telephone and after receiving the key input information (19 pulses) from the proprietary telephone and sending data (47 pulses) for LED control. ASIC will receive acknowledge signal from the proprietary telephone.

a) Reception

The data from the proprietary telephone is received via H and L lines along the path shown below.

$$ \mathrm{H.L} \text { line } \rightarrow \mathrm{C208} \rightarrow \mathrm{IC200} \rightarrow \mathrm{T201} \rightarrow \mathrm{R235} \rightarrow \mathrm{Q210} \rightarrow \mathrm{ASIC} $$

b) Transmission

The data to the proprietary telephone is transmitted along the following Path.

$$ \mathrm{ASIC} \rightarrow \mathrm{Q209} \rightarrow \mathrm{Q215} \rightarrow \mathrm{T201} \rightarrow \mathrm{IC200} \rightarrow \mathrm{C208} \rightarrow \mathrm{H.L} \text { line } $$

26.5.6. DTMF Receiver Circuit

26.5.6.1. Composition

The DTMF receiver circuit is composed of two DTMF receivers.

IC510 and IC511 are used for the DTMF receivers from SLT connected to the extension.

The DTMF signal is the 4bit parallel data and read by ASIC.

26.5.7. INT CALLID Interface Circuit

By using the DSP built into the ASIC, it is possible to produce CALLID signal and send it through the cross point to each extension. The CALLID signal can be switched between FSK and DTMF. There are three sources of the extension CALL ID in the system.

26.6. TROUBLESHOOTING GUIDE

26.6.1. No Dial Tone

26.6.2. Cannot Dial

26.6.3. Cannot Call Extension

26.6.4. Cannot Use Proprietary Telephone

26.6.5. Cannot Receive Incoming Call

26.6.6. Cannot Send DTMF Dialing

26.6.7. Cannot Receive Call Dial Tone

26.6.8. Cannot Send a Hold On Music

26.7. IC DATA

26.7.1. IC10

PIN No Pin Name I/O Function
20 Q1 I DTMF Rx Data[0]
21 Q2 I DTMF Rx Data[1]
22 Q3 I DTMF Rx Data[2]
23 Q4 I DTMF Rx Data[3]
24 STD7 I DTMF-R1 Status
25 STD8 I DTMF-R2 Status
26 TOE7 O DTMF-R1 Data output Enable
27 TOE8 O DTMF-R2 Data output Enable
30 - I Reserve
31 - I Reserve
32 - I Reserve
33 - I Reserve
34 - I Reserve
35 - I Reserve
36 - I Reserve
37 - I Reserve
38 - I Reserve
39 - I Reserve
41 - I Reserve
42 - I Reserve
43 PDRLY2 O Power Down Relay Switch
44 BREAK2	O 1.5V Disconnection for the Extension
45 - I Reserve
46 - I Reserve
47 BELL9	O Ext BELL Control 9
48 BELL10	O Ext BELL Control 10
49 BELL11	O Ext BELL Control 11
50 BELL12	O Ext BELL Control 12
51 BELL13	O Ext BELL Control 13
52 BELL14	O Ext BELL Control 14
55 BELL15	O Ext BELL Control 15
56 BELL16	O Ext BELL Control 16
57 HOOK9	I Ext Hook Detect 9
58 HOOK10	I Ext Hook Detect 10
PIN No Fin Name I/O Function
59 HOOK11 I Ext Hook Detect	11
60 HOOK12 I Ext Hook Detect	12
61 HOOK13 I Ext Hook Detect	13
62 HOOK14 I Ext Hook Detect	14
63 HOOK15 I Ext Hook Detect	15
64 HOOK16 I Ext Hook Detect	16
66 CONF6 O Conference
67 MUTE6 O Send MUTE
68 DL6 O Pulse Dial
69 DS6 O Dial Shunt
70 SHUNT6 O Receive Mute
71 PAD6 O 3dB PAD
72 BELLA6 I Bell Detect A
73 BELLB6 I Bell Detect B
74 CONF5 O Conference
75 MUTE5 O Send MUTE
76 DL5 O Pulse Dial
77 DS5 O Dial Shunt
80 SHUNT5 O Receive Mute
81 PAD5 O 3dB PAD
82 BELLA5 I Bell Detect A
83 BELLB5 I Bell Detect B
84 CONF4 O Conference
85 MUTE4 O Send MUTE
86 DL4 O Pulse Dial
87 DS4 O Dial Shunt
88 SHUNT4 O Receive Mute
89 PAD4 O 3dB PAD
91 BELLA4 I Bell Detect A
92 BELLB4 I Bell Detect B
93 CDT4 I Current Detect1
94 CDT5 I Current Detect2
95 CDT6 I Current Detect3
96 HYB_NSLT I 0AFSLT Only	AA1AFHybrid
97 -		I Reserve
98 -		I Reserve
99 -		I Reserve
100 -		I Reserve

26.8. TERMINAL GUIDE OF ICS, TRANSISTORS AND DIODES

PQVINJM4558V	PSVICD4066BSC0JBAB000407	C1CB00001852	PQVIMC4051BF	PSVIMT8816AP
C1CB00001875C1CB00001876	PSVIMT8806AP	C0CBAKE00010	2SD874A2SC4731S2SB766ARTX	2SB1218APQVTDTC143EPQVTDTA114EU2SD1819A, UN5213
2SA1627	2SB1417P	B1GFAFNN0001PSVTUMX1NTN	[Cathode]AnodePSVDHZK2BTR	B0EDKT000001
MA111MA8036H, MA8039	MA143MA142WKTX

26.9. CABINET AND ELECTRICAL PATRS

26.10. ACCESSORIES AND PACKING MATERIALS

26.11. REPLACEMENT PARTS LIST (KX-TE82483X)

Note:

1. RTL (Retention Time Limited)

The marking (RTL) indicates that the Retention Time is limited for this item.

After the discontinuation of this assembly in production, the item will continue to be available for a specific period of time. The retention period of availability depends on the type of assembly and the laws governing parts and product retention. At the end of this period, the assembly will no longer be available.

1. Important safety notice

Components identified by the △ mark indicates special characteristics important for safety. When replacing any of these components, only use specified manufacture's parts.

1. The S mark means the part is one of some identical part. For that reason, it may be different from the installed part.

2. ISO code (Example: ABS-94HB) of the remarks column shows quality of the material and a flame resisting grade about plastics.

3. RESISTORS & CAPACITORS

Unless otherwise specified;

All resistors are in ohms (Ω), k=1000Ω, M=1000kΩ

All capacitors are in MICRO FARADS (μF), p=μ(μF)

*Type & Wattage of Resistor

Type

ERC:SolidERD:CarbonPQRD:Carbon

ERX,ERG,ER0,ERJ:Metal Film Oxide

PQ4R:CarbonERS:Fusible ResistorERF:Cement Resistor

Wattege

10,16:1/8W

14,25:1/4W

12:1/2W

1:1W

2:2W

3:3W

*Type & Voltage of Capacitor

Type

ECFD:Semi-ConductorECQS:StyrolPQCUV,ECUV:ChipECQMS:Mica

ECCD,ECKD,ECBT,PQCBC:CeramicECQE,ECQV,ECQG:PolyesterECEA,ECSZ,F2G,PSCSZ:ElectlyticECQP:Polypropylene

Voltage

ECQ Type	ECQG ECQV Type	ECSZ Type	Others
1H:50V	05:50V	0F:3.15V	0J :6.3V	1V :35V
2A:100V	1:100V	1A:10V	1A :10V	50,1H:50V
2E:250V	2:200V	1V:35V	1C :16V	1J :63V
2H:500V		0J:6.3V	1E,25:25V	2A :100V

26.11.1. CABINET AND ELECTRICAL PARTS

Ref.No.	Part No.	Part Name & Description	Remarks
1 PSGG1009Y1 GRILL

26.11.2. ACCESSORIES AND PACKING MATERIALS

Ref.No.	Part No.	Part Name & Description	Remarks
A1 K1KA40A00234 CONNECTOR

Ref.No.	Part No.	Part Name & Description	Remarks
A2 PSHE1051Z	SPACER
P1 PSPN1070Z	CUSHION
P2 PSPP1045Z	PROTECTION COVER
P3 PSPP1052Z	PROTECTION COVER
P4 PSZKTE82483X	GIFT BOX
P5 XZB05X10A03	PROTECTION COVER

26.11.3. MAIN BOARD PARTS

Ref.No.	Part No.	Part Name & Description	Remarks
		(ICS)
IC1A PQVINJM4558V IC		S
IC1B PQVINJM4558V IC		S
IC1C PQVINJM4558V IC		S
IC2A PSVICD4066BS IC		S
IC2B PSVICD4066BS IC		S
IC2C PSVICD4066BS IC		S
IC10 C1CB00001852 IC
IC200	PQVIMC4051BF IC	S
IC500	PSVIMT8816AP IC	S
IC501	C1CB00001875 IC
IC502	PSVIMT8806AP IC	S
IC504	COJBAB000407 IC
IC505	COCBAKE00010 IC
IC506	PQVINJM4558V IC	S
IC507	PQVINJM4558V IC	S
IC510	C1CB00001876 IC
IC511	C1CB00001876 IC
		(TRANSISTORS)
Q1A	2SC4731S	TRANSISTOR(SI)	S
Q1B	2SC4731S	TRANSISTOR(SI)	S
Q1C	2SC4731S	TRANSISTOR(SI)	S
Q5A	UN5213	TRANSISTOR(SI)	S
Q5B	UN5213	TRANSISTOR(SI)	S
Q5C	UN5213	TRANSISTOR(SI)	S
Q10A 2SA1627 TRANSISTOR(SI)		S
Q10B 2SA1627 TRANSISTOR(SI)		S
Q10C 2SA1627 TRANSISTOR(SI)		S
Q200A	2SB766ARTX TRANSISTOR(SI)	S
Q200B	2SB766ARTX TRANSISTOR(SI)	S
Q200C	2SB766ARTX TRANSISTOR(SI)	S
Q200D	2SB766ARTX TRANSISTOR(SI)	S
Q200E	2SB766ARTX TRANSISTOR(SI)	S
Q200F	2SB766ARTX TRANSISTOR(SI)	S
Q200G	2SB766ARTX TRANSISTOR(SI)	S
Q200H	2SB766ARTX TRANSISTOR(SI)	S
Q201A	2SD874A	TRANSISTOR(SI)	S
Q201B	2SD874A	TRANSISTOR(SI)	S
Q201C	2SD874A	TRANSISTOR(SI)	S
Q201D	2SD874A	TRANSISTOR(SI)	S
Q201E	2SD874A	TRANSISTOR(SI)	S
Q201F	2SD874A	TRANSISTOR(SI)	S
Q201G	2SD874A	TRANSISTOR(SI)	S
Q201H	2SD874A	TRANSISTOR(SI)	S
Q202A	2SB1218A	TRANSISTOR(SI)
Q202B	2SB1218A	TRANSISTOR(SI)
Q202C	2SB1218A	TRANSISTOR(SI)
Q202D	2SB1218A	TRANSISTOR(SI)
Q202E	2SB1218A	TRANSISTOR(SI)
Q202F	2SB1218A	TRANSISTOR(SI)
Q202G	2SB1218A	TRANSISTOR(SI)
Q202H	2SB1218A	TRANSISTOR(SI)
Q203A	2SD1819A	TRANSISTOR(SI)
Q203B	2SD1819A	TRANSISTOR(SI)
Q203C	2SD1819A	TRANSISTOR(SI)
Q203D	2SD1819A	TRANSISTOR(SI)
Q203E	2SD1819A	TRANSISTOR(SI)
Q203F	2SD1819A	TRANSISTOR(SI)
Q203G	2SD1819A	TRANSISTOR(SI)
Q203H	2SD1819A	TRANSISTOR(SI)
Q207A	2SD1819A	TRANSISTOR(SI)
Q207B	2SD1819A	TRANSISTOR(SI)
Q207C 2SD1819A TRANSISTOR(SI)
Q207D 2SD1819A TRANSISTOR(SI)
Q207E 2SD1819A TRANSISTOR(SI)
Q207F 2SD1819A TRANSISTOR(SI)
Q207G 2SD1819A TRANSISTOR(SI)
Q207H 2SD1819A TRANSISTOR(SI)
Q209A 2SD1819A TRANSISTOR(SI)
Q209B 2SD1819A TRANSISTOR(SI)
Q209C 2SD1819A TRANSISTOR(SI)
Q209D 2SD1819A TRANSISTOR(SI)
Q209E 2SD1819A TRANSISTOR(SI)
Q209F 2SD1819A TRANSISTOR(SI)
Q209G 2SD1819A TRANSISTOR(SI)
Q209H 2SD1819A TRANSISTOR(SI)
Q209 PQVTDTC143E TRANSISTOR(SI) S
Q210 2SD1819A TRANSISTOR(SI)
Q212 PQVTDTC143E TRANSISTOR(SI) S
Q213 PQVTDTC143E TRANSISTOR(SI) S
Q214 PQVTDTC143E TRANSISTOR(SI) S
Q215 PQVTDTA114EU TRANSISTOR(SI) S
Q216 2SD1819A TRANSISTOR(SI)
Q217 2SD1819A TRANSISTOR(SI)
Q222 2SB1417P TRANSISTOR(SI) S
Q223 PQVTDTC143E TRANSISTOR(SI) S
U2A BIGFAFNN0001 TRANSISTOR(SI)
U2B BIGFAFNN0001 TRANSISTOR(SI)
U2C BIGFAFNN0001 TRANSISTOR(SI)
U200A PSVTUMX1NTN TRANSISTOR(SI)
U200B PSVTUMX1NTN TRANSISTOR(SI)
U200C PSVTUMX1NTN TRANSISTOR(SI)
U200D PSVTUMX1NTN TRANSISTOR(SI)
U200E PSVTUMX1NTN TRANSISTOR(SI)
U200F PSVTUMX1NTN TRANSISTOR(SI)
U200G PSVTUMX1NTN TRANSISTOR(SI)
U200H PSVTUMX1NTN TRANSISTOR(SI)
		(DIODES)
D1A PSVDHZK2BTR DIODE(SI)
D1B PSVDHZK2BTR DIODE(SI)
D1C PSVDHZK2BTR DIODE(SI)
D2A PSVDHZK2BTR DIODE(SI)
D2B PSVDHZK2BTR DIODE(SI)
D2C PSVDHZK2BTR DIODE(SI)
D3A BOEDKT000001 DIODE(SI)
D3B BOEDKT000001 DIODE(SI)
D3C BOEDKT000001 DIODE(SI)
D202A MA8036H DIODE(SI) S
D202B MA8036H DIODE(SI) S
D202C MA8036H DIODE(SI) S
D202D MA8036H DIODE(SI) S
D202E MA8036H DIODE(SI) S
D202F MA8036H DIODE(SI) S
D202G MA8036H DIODE(SI) S
D202H MA8036H DIODE(SI) S
D203A MA8036H DIODE(SI) S
D203B MA8036H DIODE(SI) S
D203C MA8036H DIODE(SI) S
D203D MA8036H DIODE(SI) S
D203E MA8036H DIODE(SI) S
D203F MA8036H DIODE(SI) S
D203G MA8036H DIODE(SI) S
D203H MA8036H DIODE(SI) S
D204A MA8039 DIODE(SI) S
D204B MA8039 DIODE(SI) S
D204C MA8039 DIODE(SI) S
D204D MA8039 DIODE(SI) S
D204E MA8039 DIODE(SI) S
D204F MA8039 DIODE(SI) S
D204G MA8039 DIODE(SI) S
D204H MA8039 DIODE(SI) S
D205A MA111 DIODE(SI) S
D205B MA111 DIODE(SI) S
D205C MA111 DIODE(SI) S
D205D MA111 DIODE(SI) S

Ref.No.	Part No.	Part Name & Description	Remarks
D205E MA	111 DIODE(SI)	S
D205F MA	111 DIODE(SI)	S
D205G MA	111 DIODE(SI)	S
D205H MA	111 DIODE(SI)	S
D208A MA	143 DIODE(SI)	S
D208B MA	143 DIODE(SI)	S
D208C MA	143 DIODE(SI)	S
D208D MA	143 DIODE(SI)	S
D208E MA	143 DIODE(SI)	S
D208F MA	143 DIODE(SI)	S
D208G MA	143 DIODE(SI)	S
D208H MA	143 DIODE(SI)	S
D209A MA	111 DIODE(SI)	S
D209B MA	111 DIODE(SI)	S
D209C MA	111 DIODE(SI)	S
D209D MA	111 DIODE(SI)	S
D209E MA	111 DIODE(SI)	S
D209F MA	111 DIODE(SI)	S
D209G MA	111 DIODE(SI)	S
D209H MA	111 DIODE(SI)	S
D220 MA	111 DIODE(SI) S
D221 MA	111 DIODE(SI) S
D222 MA	43 DIODE(SI) S
DA200A MA	142WKTX DIODE (SI) S
DA200B MA	142WKTX DIODE (SI) S
DA200C MA	142WKTX DIODE (SI) S
DA200D MA	142WKTX DIODE (SI) S
DA200E MA	142WKTX DIODE (SI) S
DA200F MA	142WKTX DIODE (SI) S
DA200G MA	142WKTX DIODE (SI) S
DA200H MA	142WKTX DIODE (SI) S
		(CONNECTORS)
CN501 K1	KB40C00002 CONNECTOR, 40P
CN502 K1	KB40C00002 CONNECTOR, 40P
		COMPONENTS PARTS)
RA200 D1	H81034A010 RESISTOR ARRAY, 10K
RA300 D1	H81034A010 RESISTOR ARRAY, 10K
RA301 D1	H81034A010 RESISTOR ARRAY, 10K
RA302 D1	H81034A010 RESISTOR ARRAY, 10K
RA303 D1	H81034A010 RESISTOR ARRAY, 10K
RA501 D1	H81034A010 RESISTOR ARRAY, 10K
RA502 D1	H81034A010 RESISTOR ARRAY, 10K
RA503 D1	H82214A010 RESISTOR ARRAY, 220K
RA504 D1	H82214A010 RESISTOR ARRAY, 220K
RA505 D1	H82214A010 RESISTOR ARRAY, 220K
RA506 D1	H82214A010 RESISTOR ARRAY, 220K
RA507 D1	H82204A010 RESISTOR ARRAY, 22K
RA508 D1	H82204A010 RESISTOR ARRAY, 22K
		(COILS)
L1A PFLB	003 COIL S
L1B PFLB	003 COIL S
L1C PFLB	003 COIL S
TH1A PQLE	106 COIL S
TH1B PQLE	106 COIL S
TH1C PQLE	106 COIL S
L204A POLQXH152J COIL S
L204B POLQXH152J COIL S
L204C POLQXH152J COIL S
L204D POLQXH152J COIL S
L204E POLQXH152J COIL S
L204F POLQXH152J COIL S
L204G POLQXH152J COIL S
L204H POLQXH152J COIL S
		(CRYSTAL OSCILLATOR)
X500 PSVCYY0358M3 CRYSTAL OSCILLATOR S
		(JACKS)
CN1A PQJJ1T004Z JACK, TEL S
CN1B PQJJ1T004Z JACK, TEL S
CN1C PQJJ1T004Z JACK, TEL S
CN200A PQJJ1T011Y JACK, TEL S
CN200B PQJJ1T011Y JACK, TEL S
CN200C PQJJ1T011Y JACK, TEL S
CN200D PQJJ1T011Y JACK, TEL S
CN200E	PQJJ1T011Y JACK, TEL S
CN200F	PQJJ1T011Y JACK, TEL S
CN200G	PQJJ1T011Y JACK, TEL S
CN200H	PQJJ1T011Y JACK, TEL S
		(FUSES)
TH2A D4	PAR1700002 FUSE
TH2B D4	PAR1700002 FUSE
TH2C D4	PAR1700002 FUSE
TH2D D4	PAR1700002 FUSE
TH2E D4	PAR1700002 FUSE
TH2F D4	PAR1700002 FUSE
TH2G D4	PAR1700002 FUSE
TH2H D4	PAR1700002 FUSE
		(RELAYS)
RL200A	K6B2CGA00121 RELAY
RL202A	K6B2CGA00095 RELAY S
RL201A	PQSL41Z RELAY S
RL201B	PQSL41Z RELAY S
RL201C	PQSL41Z RELAY S
RL201D	PQSL41Z RELAY S
RL201E	PQSL41Z RELAY S
RL201F	PQSL41Z RELAY S
RL201G	PQSL41Z RELAY S
RL201H	PQSL41Z RELAY S
		(PHOTO ELECTRIC TRANSDUCERS)
PC1A PQVIP27011M3 PHOTO COUPLER S
PC1B PQVIP27011M3 PHOTO COUPLER S
PC1C PQVIP27011M3 PHOTO COUPLER S
PC2A PQVIP27011M3 PHOTO COUPLER S
PC2B PQVIP27011M3 PHOTO COUPLER S
PC2C PQVIP27011M3 PHOTO COUPLER S
PC4A PQVIP27011M3 PHOTO COUPLER S
PC4B PQVIP27011M3 PHOTO COUPLER S
PC4C PQVIP27011M3 PHOTO COUPLER S
PC5A CNC2S5020LL1 PHOTO COUPLER
PC5B CNC2S5020LL1 PHOTO COUPLER
PC5C CNC2S5020LL1 PHOTO COUPLER
		(TRANSFORMERS)
T1A G4A1A0000173 TRANSFORMER
T1B G4A1A0000173 TRANSFORMER
T1C G4A1A0000173 TRANSFORMER
T200A ETA14Y85AY TRANSFORMER
T200B ETA14Y85AY TRANSFORMER
T200C ETA14Y85AY TRANSFORMER
T200D ETA14Y85AY TRANSFORMER
T200E ETA14Y85AY TRANSFORMER
T200F ETA14Y85AY TRANSFORMER
T200G ETA14Y85AY TRANSFORMER
T200H ETA14Y85AY TRANSFORMER
T201 ETE13K24AY TRANSFORMER
T2A G4A1A0000177 TRANSFORMER
T2B G4A1A0000177 TRANSFORMER
T2C G4A1A0000177 TRANSFORMER
		(VARISTORS)
SA1A J0LE00000043 VARIESTOR (SURGE ABSORBER)
SA1B J0LE00000043 VARIESTOR (SURGE ABSORBER)
SA1C J0LE00000043 VARIESTOR (SURGE ABSORBER)
SA100 PFRZRA102P6T VARIESTOR (SURGE ABSORBER) S
ZNR2A D4EAB820A005 VARIESTOR
ZNR2B D4EAB820A005 VARIESTOR
ZNR2C D4EAB820A005 VARIESTOR
ZNR200 D4EAB220A005 VARIESTOR
ZNR201 D4EAB220A005 VARIESTOR
ZNR202 D4EAB220A005 VARIESTOR
ZNR203 D4EAB220A005 VARIESTOR
		(CAPACITORS)
C1A PSCU2JW221KR 220P
C1B PSCU2JW221KR 220P
C1C PSCU2JW221KR 220P
C2A ECUV1C474ZFV 0.47
C2B ECUV1C474ZFV 0.47
C2C ECUV1C474ZFV 0.47
C3A ECQE2E105KZ 1 S

Ref.No.	Part No.	Part Name & Description	Remarks
C3B ECQE2E105KZ 1 S
C3C ECQE2E105KZ 1 S
C4A ECUV1C474ZFV 0.47
C4B ECUV1C474ZFV 0.47
C4C ECUV1C474ZFV 0.47
C5A F2G1H1000010 10
C5B F2G1H1000010 10
C5C F2G1H1000010 10
C6A F2G1H1000010 10
C6B F2G1H1000010 10
C6C F2G1H1000010 10
C8A ECUV1H102KBV 0.001
C8B ECUV1H102KBV 0.001
C8C ECUV1H102KBV 0.001
C10A ECUV1H101JCV 100F
C10B ECUV1H101JCV 100F
C10C ECUV1H101JCV 100F
C11A ECUV1C683KBV 0.068
C11B ECUV1C683KBV 0.068
C11C ECUV1C683KBV 0.068
C12A ECUV1C563KBV 0.056
C12B ECUV1C563KBV 0.056
C12C ECUV1C563KBV 0.056
C13A ECUV1C563KBV 0.056
C13B ECUV1C563KBV 0.056
C13C ECUV1C563KBV 0.056
C14A ECUV1C563KBV 0.056
C14B ECUV1C563KBV 0.056
C14C ECUV1C563KBV 0.056
C15A ECUV1C563KBV 0.056
C15B ECUV1C563KBV 0.056
C15C ECUV1C563KBV 0.056
C16A ECUV1H101JCV 100F
C16B ECUV1H101JCV 100F
C16C ECUV1H101JCV 100F
C17A ECUV1H101JCV 100F
C17B ECUV1H101JCV 100F
C17C ECUV1H101JCV 100F
C18A ECUV1H101JCV 100F
C18B ECUV1H101JCV 100F
C18C ECUV1H101JCV 100F
C23A ECUV1H223KBV 0.022 S
C23B ECUV1H223KBV 0.022 S
C23C ECUV1H223KBV 0.022 S
C24A ECUV1H223KBV 0.022 S
C24B ECUV1H223KBV 0.022 S
C24C ECUV1H223KBV 0.022 S
C25A ECUV1H223KBV 0.022 S
C25B ECUV1H223KBV 0.022 S
C25C ECUV1H223KBV 0.022 S
C26A ECUV1H103KBV 0.01
C26B ECUV1H103KBV 0.01
C26C ECUV1H103KBV 0.01
C200A ECUV1H103KBV 0.01
C200B ECUV1H103KBV 0.01
C200C ECUV1H103KBV 0.01
C200D ECUV1H103KBV 0.01
C200E ECUV1H103KBV 0.01
C200F ECUV1H103KBV 0.01
C200G ECUV1H103KBV 0.01
C200H ECUV1H103KBV 0.01
C201A ECUV1H103KBV 0.01
C201B ECUV1H103KBV 0.01
C201C ECUV1H103KBV 0.01
C201D ECUV1H103KBV 0.01
C201E ECUV1H103KBV 0.01
C201F ECUV1H103KBV 0.01
C201G ECUV1H103KBV 0.01
C201H ECUV1H103KBV 0.01
C202A F2G1C1000015 10
C202B F2G1C1000015 10
C202C F2G1C1000015 10
C202D F2G1C1000015 10
C202E F2	G1C1000015 10
C202F F2	G1C1000015 10
C202G F2	G1C1000015 10
C202H F2	G1C1000015 10
C203A F2	G1C1000015 10
C203B F2	G1C1000015 10
C203C F2	G1C1000015 10
C203D F2	G1C1000015 10
C203E F2	G1C1000015 10
C203F F2	G1C1000015 10
C203G F2	G1C1000015 10
C203H F2	G1C1000015 10
C204A F2	G1H2R20005 2.2
C204B F2	G1H2R20005 2.2
C204C F2	G1H2R20005 2.2
C204D F2	G1H2R20005 2.2
C204E F2	G1H2R20005 2.2
C204F F2	G1H2R20005 2.2
C204G F2	G1H2R20005 2.2
C204H F2	G1H2R20005 2.2
C205A PSCEA1HN4R7 4.7
C205B PSCEA1HN4R7 4.7
C205C PSCEA1HN4R7 4.7
C205D PSCEA1HN4R7 4.7
C205E PSCEA1HN4R7 4.7
C205F PSCEA1HN4R7 4.7
C205G PSCEA1HN4R7 4.7
C205H PSCEA1HN4R7 4.7
C206A ECUV1C393KBV 0.039 S
C206B ECUV1C393KBV 0.039 S
C206C ECUV1C393KBV 0.039 S
C206D ECUV1C393KBV 0.039 S
C206E ECUV1C393KBV 0.039 S
C206F ECUV1C393KBV 0.039 S
C206G ECUV1C393KBV 0.039 S
C206H ECUV1C393KBV 0.039 S
C207A ECUV1H103KBV 0.01
C207B ECUV1H103KBV 0.01
C207C ECUV1H103KBV 0.01
C207D ECUV1H103KBV 0.01
C207E ECUV1H103KBV 0.01
C207F ECUV1H103KBV 0.01
C207G ECUV1H103KBV 0.01
C207H ECUV1H103KBV 0.01
C208A F2	G1H1R00013 1
C208B F2	G1H1R00013 1
C208C F2	G1H1R00013 1
C208D F2	G1H1R00013 1
C208E F2	G1H1R00013 1
C208F F2	G1H1R00013 1
C208G F2	G1H1R00013 1
C208H F2	G1H1R00013 1
C209A ECUV1H103KBV 0.01
C209B ECUV1H103KBV 0.01
C209C ECUV1H103KBV 0.01
C209D ECUV1H103KBV 0.01
C209E ECUV1H103KBV 0.01
C209F ECUV1H103KBV 0.01
C209G ECUV1H103KBV 0.01
C209H ECUV1H103KBV 0.01
C209 ECUV1H223KBV 0.02 S
C210A ECUV1H103KBV 0.01
C210B ECUV1H103KBV 0.01
C210C ECUV1H103KBV 0.01
C210D ECUV1H103KBV 0.01
C210E ECUV1H103KBV 0.01
C210F ECUV1H103KBV 0.01
C210G ECUV1H103KBV 0.01
C210H ECUV1H103KBV 0.01
C211 F1J1E105A008 1
C214 ECJ1VB0J225 2.2
C301 ECUV1C223KBV 0.02
C302 ECUV1C223KBV 0.02

Ref.No.	Part No.	Part Name & Description	Remarks
C303 ECUV1C223KBV 0.02	2
C304 ECUV1C223KBV 0.02	2
C305 ECUV1H104ZFV 0.1	S
C500 ECUV1H223KBV 0.02	2 S
C501 ECUV1H223KBV 0.02	2 S
C502 ECUV1H223KBV 0.02	2 S
C504 ECUV1H223KBV 0.02	2 S
C505 EEUFC1E101S 100
C506 EEUFC1E101S 100
C507 EEUFC1E101S 100
C508 ECUV1H562KBV 0.00	56
C509 ECUV1H562KBV 0.00	56
C510 ECUV1H104ZFV 0.1	S
C511 ECUV1H104ZFV 0.1	S
C512 ECUV1C224ZFV 0.22
C513 ECUV1C224ZFV 0.22
C514 ECUV1H104ZFV 0.1	S
C515 EEUFC1E101S 100
C516 F1J1E105A008 1
C517 F1J1E105A008 1
C518 ECUV1C104KBV 0.1
C519 ECUV1H471JCV 470F	S
C520 ECUV1C104KBV 0.1
C521 ECUV1H471JCV 470F	S
C522 ECUV1C104KBV 0.1
C523 ECUV1H471JCV 470F	S
C550 ECUV1H223KBV 0.02	2 S
C551 ECUV1H223KBV 0.02	2 S
C552 ECUV1H104ZFV 0.1	S
C555 ECUV1H104ZFV 0.1	S
C556 ECUV1A105ZFV 1
C558 ECUV1H104ZFV 0.1	S
C801 ECUV1H103KBV 0.01
C802 ECUV1H103KBV 0.01
C803 ECUV1H103KBV 0.01
C804 ECUV1H103KBV 0.01
C805 ECUV1H103KBV 0.01
C806 ECUV1H103KBV 0.01
C807 ECUV1H103KBV 0.01
C808 ECUV1H103KBV 0.01
C809 ECUV1H103KBV 0.01
C810 ECUV1H103KBV 0.01
C811 ECUV1H103KBV 0.01
C812 ECUV1H103KBV 0.01
C813 ECUV1H103KBV 0.01
C814 ECUV1H103KBV 0.01
C815 ECUV1H103KBV 0.01
C816 ECUV1H103KBV 0.01
C817 ECUV1H103KBV 0.01
C818 ECUV1H103KBV 0.01
C819 ECUV1H103KBV 0.01
C820 ECUV1H103KBV 0.01
C821 ECUV1H103KBV 0.01
C822 ECUV1H103KBV 0.01
C823 ECUV1H103KBV 0.01
C824 ECUV1H103KBV 0.01
C825 ECUV1H103KBV 0.01
C826 ECUV1H103KBV 0.01
C827 ECUV1H103KBV 0.01
C828 ECUV1H103KBV 0.01
C829 ECUV1H103KBV 0.01
C830 ECUV1H103KBV 0.01
C831 ECUV1H103KBV 0.01
C832 ECUV1H103KBV 0.01
C833 ECUV1H103KBV 0.01
C851 ECUV1H103KBV 0.01
C852 ECUV1H103KBV 0.01
C853 ECUV1H103KBV 0.01
C871 ECUV1H103KBV 0.01
C872 ECUV1H103KBV 0.01
C873 ECUV1H103KBV 0.01
C874 ECUV1H103KBV 0.01
C911 ECUV1H103KBV 0.01
C912	ECUV1H103KBV 0.01
C913	ECUV1H103KBV 0.01
C914	ECUV1H103KBV 0.01
C915	ECUV1H103KBV 0.01
C916	ECUV1H103KBV 0.01
C917	ECUV1H103KBV 0.01
C918	ECUV1H103KBV 0.01
C919	ECUV1H103KBV 0.01
C920	ECUV1H103KBV 0.01
C921	ECUV1H103KBV 0.01
C922	ECUV1H103KBV 0.01
C923	ECUV1H103KBV 0.01
C924	ECUV1H103KBV 0.01
C925	ECUV1H103KBV 0.01
C926	ECUV1H103KBV 0.01
C927	ECUV1H103KBV 0.01
C928	ECUV1H103KBV 0.01
		(RESISTORS)
J2A	PQ4R18XJ000 0 S
J2B	PQ4R18XJ000 0 S
J2C	PQ4R18XJ000 0 S
J5A	PQ4R10XJ000 0 S
J5B	PQ4R10XJ000 0 S
J5C	PQ4R10XJ000 0 S
J10	ERJ3GEY0R00 0
J18	PQ4R18XJ000 0 S
R1A	ERJ3GEYJ683 68K
R1B	ERJ3GEYJ683 68K
R1C	ERJ3GEYJ683 68K
R2A	PQ4R18XJ220 22 S
R2B	PQ4R18XJ220 22 S
R2C	PQ4R18XJ220 22 S
R4A	PQ4R10XJ681 680 S
R4B	PQ4R10XJ681 680 S
R4C	PQ4R10XJ681 680 S
R5A	ERJ1WYJ223 22K
R5B	ERJ1WYJ223 22K
R5C	ERJ1WYJ223 22K
R6A	ERJ3GEYJ683 68K
R6B	ERJ3GEYJ683 68K
R6C	ERJ3GEYJ683 68K
R7A	ERJ3GEYJ392 3.9K
R7B	ERJ3GEYJ392 3.9K
R7C	ERJ3GEYJ392 3.9K
R8A	PQ4R10XJ000 0 S
R8B	PQ4R10XJ000 0 S
R8C	PQ4R10XJ000 0 S
R9A	ERJ3GEYJ390 39
R9B	ERJ3GEYJ390 39
R9C	ERJ3GEYJ390 39
R10A	PQ4R10XJ682 6.8K S
R10B	PQ4R10XJ682 6.8K S
R10C	PQ4R10XJ682 6.8K S
R11A	ERJ3GEYJ103 10K
R11B	ERJ3GEYJ103 10K
R11C	ERJ3GEYJ103 10K
R12A	PQ4R10XJ000 0 S
R12B	PQ4R10XJ000 0 S
R12C	PQ4R10XJ000 0 S
R14A	PQ4R10XJ822 8.2K S
R14B	PQ4R10XJ822 8.2K S
R14C	PQ4R10XJ822 8.2K S
R15A	ERJ3GEYJ101 100
R15B	ERJ3GEYJ101 100
R15C	ERJ3GEYJ101 100
R16A	ERJ3GEY0R00 0
R16B	ERJ3GEY0R00 0
R16C	ERJ3GEY0R00 0
R17A	ERJ3GEYF122 1.2K S
R17B	ERJ3GEYF122 1.2K S
R17C	ERJ3GEYF122 1.2K S
R18A	ERJ3GEY0R00 0
R18B	ERJ3GEY0R00 0

Ref.No.	Part No.	Part Name & Description	Remarks
R18C ERJ	3GEY0R00 0
R20A ERJ	3GEYF122 1.2K S
R20B ERJ	3GEYF122 1.2K S
R20C ERJ	3GEYF122 1.2K S
R21A ERJ	3GEY0R00 0
R21B ERJ	3GEY0R00 0
R21C ERJ	3GEY0R00 0
R22A ERJ	3EKF3900 390
R22B ERJ	3EKF3900 390
R22C ERJ	3EKF3900 390
R23A ERJ	3EKF1001 1K
R23B ERJ	3EKF1001 1K
R23C ERJ	3EKF1001 1K
R24A ERJ	3EKF1003 100K
R24B ERJ	3EKF1003 100K
R24C ERJ	3EKF1003 100K
R25A ERJ	3EKF1003 100K
R25B ERJ	3EKF1003 100K
R25C ERJ	3EKF1003 100K
R27A ERJ	3GEYJ334 330K
R27B ERJ	3GEYJ334 330K
R27C ERJ	3GEYJ334 330K
R26A ERJ	3GEYJ334 330K
R26B ERJ	3GEYJ334 330K
R26C ERJ	3GEYJ334 330K
R28A ERJ	3GEYJ304 300K
R28B ERJ	3GEYJ304 300K
R28C ERJ	3GEYJ304 300K
R29A ERJ	3GEY0R00 0
R29B ERJ	3GEY0R00 0
R29C ERJ	3GEY0R00 0
R30A ERJ	3GEY0R00 0
R30B ERJ	3GEY0R00 0
R30C ERJ	3GEY0R00 0
R31A ERJ	3GEYJ304 300K
R31B ERJ	3GEYJ304 300K
R31C ERJ	3GEYJ304 300K
R34A ERJ	3EKF1003 100K
R34B ERJ	3EKF1003 100K
R34C ERJ	3EKF1003 100K
R35A ERJ	3EKF1003 100K
R35B ERJ	3EKF1003 100K
R35C ERJ	3EKF1003 100K
R37A ERJ	3GEY0R00 0
R37B ERJ	3GEY0R00 0
R37C ERJ	3GEY0R00 0
R38A ERJ	3GEY0R00 0
R38B ERJ	3GEY0R00 0
R38C ERJ	3GEY0R00 0
R39A ERJ	3GEYF122 1.2K S
R39B ERJ	3GEYF122 1.2K S
R39C ERJ	3GEYF122 1.2K S
R40A ERJ	3GEYF122 1.2K S
R40B ERJ	3GEYF122 1.2K S
R40C ERJ	3GEYF122 1.2K S
R41A ERJ	3GEYJ471 470
R41B ERJ	3GEYJ471 470
R41C ERJ	3GEYJ471 470
R42A ERJ	3GEYF122 1.2K S
R42B ERJ	3GEYF122 1.2K S
R42C ERJ	3GEYF122 1.2K S
R43A ERJ	3GEY0R00 0
R43B ERJ	3GEY0R00 0
R43C ERJ	3GEY0R00 0
R45A ERJ	3GEY0R00 0
R45B ERJ	3GEY0R00 0
R45C ERJ	3GEY0R00 0
R46A ERJ	3GEYF122 1.2K S
R46B ERJ	3GEYF122 1.2K S
R46C ERJ	3GEYF122 1.2K S
R47A ERJ	3GEYJ473 47K
R47B ERJ	3GEYJ473 47K
R47C ERJ	3GEYJ473 47K
R49A ERJ3GEYJ473 47K
R49B ERJ3GEYJ473 47K
R49C ERJ3GEYJ473 47K
R50A ERJ3GEYJ473 47K
R50B ERJ3GEYJ473 47K
R50C ERJ3GEYJ473 47K
R51A ERJ3GEYJ104 100K
R51B ERJ3GEYJ104 100K
R51C ERJ3GEYJ104 100K
R527 ERJ3GEYJ104 100K
R528 ERJ3GEYJ273 27K
R52A ERJ3GEYJ272 2.7K
R52B ERJ3GEYJ272 2.7K
R52C ERJ3GEYJ272 2.7K
R534 ERJ3GEYJ104 100K
R535 ERJ3GEYJ273 27K
R53A ERJ3GEYJ103 10K
R53B ERJ3GEYJ103 10K
R53C ERJ3GEYJ103 10K
R72 ERJ3GEYJ103 10K
R73 ERJ3GEYJ103 10K
R200A ERJ3GEYJ682 6.8K
R200B ERJ3GEYJ682 6.8K
R200C ERJ3GEYJ682 6.8K
R200D ERJ3GEYJ682 6.8K
R200E ERJ3GEYJ682 6.8K
R200F ERJ3GEYJ682 6.8K
R200G ERJ3GEYJ682 6.8K
R200H ERJ3GEYJ682 6.8K
R201A ERJ3GEYJ682 6.8K
R201B ERJ3GEYJ682 6.8K
R201C ERJ3GEYJ682 6.8K
R201D ERJ3GEYJ682 6.8K
R201E ERJ3GEYJ682 6.8K
R201F ERJ3GEYJ682 6.8K
R201G ERJ3GEYJ682 6.8K
R201H ERJ3GEYJ682 6.8K
R202A ERJ14YJ220 22
R202B ERJ14YJ220 22
R202C ERJ14YJ220 22
R202D ERJ14YJ220 22
R202E ERJ14YJ220 22
R202F ERJ14YJ220 22
R202G ERJ14YJ220 22
R202H ERJ14YJ220 22
R203A ERJ14YJ220 22
R203B ERJ14YJ220 22
R203C ERJ14YJ220 22
R203D ERJ14YJ220 22
R203E ERJ14YJ220 22
R203F ERJ14YJ220 22
R203G ERJ14YJ220 22
R203H ERJ14YJ220 22
R204A ERJ14YJ680 68
R204B ERJ14YJ680 68
R204C ERJ14YJ680 68
R204D ERJ14YJ680 68
R204E ERJ14YJ680 68
R204F ERJ14YJ680 68
R204G ERJ14YJ680 68
R204H ERJ14YJ680 68
R205A ERJ14YJ680 68
R205B ERJ14YJ680 68
R205C ERJ14YJ680 68
R205D ERJ14YJ680 68
R205E ERJ14YJ680 68
R205F ERJ14YJ680 68
R205G ERJ14YJ680 68
R205H ERJ14YJ680 68
R206A ERJ1WYJ102 1K S
R206B ERJ1WYJ102 1K S
R206C ERJ1WYJ102 1K S
R206D ERJ1WYJ102 1K S

Ref.No.	Part No.	Part Name & Description	Remarks
R206E ER	J1WYJ102 1K S
R206F ER	J1WYJ102 1K S
R206G ER	J1WYJ102 1K S
R206H ER	J1WYJ102 1K S
R207A ER	J3GEYJ333 33K
R207B ER	J3GEYJ333 33K
R207C ER	J3GEYJ333 33K
R207D ER	J3GEYJ333 33K
R207E ER	J3GEYJ333 33K
R207F ER	J3GEYJ333 33K
R207G ER	J3GEYJ333 33K
R207H ER	J3GEYJ333 33K
R208A ER	J3GEYJ563 56K
R208B ER	J3GEYJ563 56K
R208C ER	J3GEYJ563 56K
R208D ER	J3GEYJ563 56K
R208E ER	J3GEYJ563 56K
R208F ER	J3GEYJ563 56K
R208G ER	J3GEYJ563 56K
R208H ER	J3GEYJ563 56K
R209A ER	J3GEYJ153 15K
R209B ER	J3GEYJ153 15K
R209C ER	J3GEYJ153 15K
R209D ER	J3GEYJ153 15K
R209E ER	J3GEYJ153 15K
R209F ER	J3GEYJ153 15K
R209G ER	J3GEYJ153 15K
R209H ER	J3GEYJ153 15K
R210A ER	J3GEYJ333 33K
R210B ER	J3GEYJ333 33K
R210C ER	J3GEYJ333 33K
R210D ER	J3GEYJ333 33K
R210E ER	J3GEYJ333 33K
R210F ER	J3GEYJ333 33K
R210G ER	J3GEYJ333 33K
R210H ER	J3GEYJ333 33K
R211A ER	J3GEYJ123 12K
R211B ER	J3GEYJ123 12K
R211C ER	J3GEYJ123 12K
R211D ER	J3GEYJ123 12K
R211E ER	J3GEYJ123 12K
R211F ER	J3GEYJ123 12K
R211G ER	J3GEYJ123 12K
R211H ER	J3GEYJ123 12K
R215A ER	J3GEYJ473 47K
R215B ER	J3GEYJ473 47K
R215C ER	J3GEYJ473 47K
R215D ER	J3GEYJ473 47K
R215E ER	J3GEYJ473 47K
R215F ER	J3GEYJ473 47K
R215G ER	J3GEYJ473 47K
R215H ER	J3GEYJ473 47K
R216A ER	J3GEYJ103 10K
R216B ER	J3GEYJ103 10K
R216C ER	J3GEYJ103 10K
R216D ER	J3GEYJ103 10K
R216E ER	J3GEYJ103 10K
R216F ER	J3GEYJ103 10K
R216G ER	J3GEYJ103 10K
R216H ER	J3GEYJ103 10K
R218A ER	J3GEYJ103 10K
R218B ER	J3GEYJ103 10K
R218C ER	J3GEYJ103 10K
R218D ER	J3GEYJ103 10K
R218E ER	J3GEYJ103 10K
R218F ER	J3GEYJ103 10K
R218G ER	J3GEYJ103 10K
R218H ER	J3GEYJ103 10K
R219A ER	J3GEYJ102 1K
R219B ER	J3GEYJ102 1K
R219C ER	J3GEYJ102 1K
R219D ER	J3GEYJ102 1K
R219E ER	J3GEYJ102 1K
R219F ERJ3GEYJ102 1K
R219G ERJ3GEYJ102 1K
R219H ERJ3GEYJ102 1K
R220A P04R10XJ271 270	S
R220B P04R10XJ271 270	S
R220C P04R10XJ271 270	S
R220D P04R10XJ271 270	S
R220E P04R10XJ271 270	S
R220F P04R10XJ271 270	S
R220G P04R10XJ271 270	S
R220H P04R10XJ271 270	S
R221A ERJ3GEYJ103 10K
R221B ERJ3GEYJ103 10K
R221C ERJ3GEYJ103 10K
R221D ERJ3GEYJ103 10K
R221E ERJ3GEYJ103 10K
R221F ERJ3GEYJ103 10K
R221G ERJ3GEYJ103 10K
R221H ERJ3GEYJ103 10K
R222A ERJ3GEYJ103 10K
R222B ERJ3GEYJ103 10K
R222C ERJ3GEYJ103 10K
R222D ERJ3GEYJ103 10K
R222E ERJ3GEYJ103 10K
R222F ERJ3GEYJ103 10K
R222G ERJ3GEYJ103 10K
R222H ERJ3GEYJ103 10K
R225 ERJ3GEYJ103 10K
R226 ERJ3GEYJ103 10K
R227 ERJ3GEYJ682 6.8K

26.12. FOR THE SCHEMATIC DIAGRAM

Note:

1. DC voltage measurements are taken with an oscilloscope or a tester with a ground.

Ref.No.	Part No.	Part Name & Description	Remarks
R228 ERJ	3GEYJ682 6.8K
R229 ERJ	3GEYJ221 220
R231 ERJ	3GEYJ273 27K
R232 ERJ	3GEYJ273 27K
R235 ERJ	3GEYJ222 2.2K
R237 ERJ	3GEYJ472 4.7K
R238 ERJ	3GEYJ102 1K
R239 ERJ	3GEYJ473 47K
R240 ERJ	3GEYJ101 100
R241 ERJ	3GEYJ472 4.7K
R501 ERJ	3GEYJ220 22
R502 ERJ	3GEYJ220 22
R503 ERJ	3GEYJ221 220
R511 ERJ	3GEYJ122 1.2K
R512 ERJ	3GEYJ122 1.2K
R513 ERJ	3GEYJ122 1.2K
R514 ERJ	3GEYJ122 1.2K
R515 ERJ	3GEYJ122 1.2K
R516 ERJ	3GEYJ122 1.2K
R517 ERJ	3GEYJ122 1.2K
R518 ERJ	3GEYJ122 1.2K
R533 ERJ	3GEYJ334 330K
R536 ERJ	3GEYJ334 330K
R538 ERJ	3GEYJ103 10K
R539 ERJ	3GEYJ103 10K
R540 ERJ	3GEYJ103 10K
R541 ERJ	3GEYJ103 10K
R542 ERJ	3GEYJ103 10K
R543 ERJ	3GEYJ103 10K

1. The schematic diagrams and circuit board may be modified at any time with the development of new technology.

Important safety notice

Components identified by ⚠ mark have special characteristics important for safety. When replacing any of there components, use only manufacturer's specified parts.

26.13. SCHEMATIC DIAGRAM (KX-TE82483X)

26.13.1. No.1

KX-TE82483X SCHEMATIC DIAGRAM No.2

26.13.3. No.3

1/4

2/4

KX-TE82483X SCHEMATIC DIAGRAM NO.3 (2/4)

26.13.4. No.4

26.14. PRINTED CIRCUIT BOARD (KX-TE82483X)

26.14.1. Component View

KX-TE82483X COMPONENT VIEW

26.14.2. Bottom View

KX-TE82483X BOTTOM VIEW

27 KX-TE82491X (MESSAGE EXTENSION CARD FOR DISA/UCD OGMs)

Isometric line drawing of a hard disk drive housing with mounting holes and internal components (no text or symbols)

27.1. HOW TO RECOGNIZE THAT Pb FREE SOLDER IS USED

KX-TE82491X COMPONENT VIEW

27.2. LOCATION OF OPTIONAL CARDS

27.2.1. Message Extension Card for DISA/UCD OGMs (KX-TE82491X)

Function

When an optional message expansion card for DISA/UCD OGMs is added, up to 2 messages can be played simultaneously for callers and the total recording time of the PBX is increased from 3 to 6 minutes.

1. Loosen the screws and open the top and bottom front covers.
2. Slid the card between the guiderails until it clicks, and attach the connector to it.

Note

Use extra care to make sure you do not damage the part of the case marked with a circle.
3. Close the covers and secure the screws.

Note

To uninstall the card, follow the instructions illustrated below.

1. Push the catch on the side of one guardrail in the direction of the arrow to release it.
2. Lift the edge of the card while holding the catch open. (Do not touch the circuit board of the card during the operation.)

27.3. BLOCK DIAGRAM

KX-TE82491X OGM BLOCK DIAGRAM

27.4. TROUBLESHOOTING GUIDE

27.4.1. PBX cannot work

27.4.2. Cannot record messages 3 minutes more

27.5. TERMINAL GUIDE OF ICS, TRANSISTORS AND DIODES

27.6. ACCESSORIES AND PACKING MATERIALS

27.7. REPLACEMENT PARTS LIST (KX-TE82491X)

Note:

1. RTL (Retention Time Limited)

The marking (RTL) indicates that the Retention Time is limited for this item.

After the discontinuation of this assembly in production, the item will continue to be available for a specific period of time. The retention period of availability depends on the type of assembly and the laws governing parts and product retention. At the end of this period, the assembly will no longer be available.

2. Important safety notice

Components identified by the △ mark indicates special characteristics important for safety. When replacing any of these components, only use specified manufacture's parts.

1. The S mark means the part is one of some identical par For that reason, it may be different from the installed part.

2. ISO code (Example: ABS-94HB) of the remarks column shows quality of the material and a flame resisting grade about plastics.

5. RESISTORS & CAPACITORS

Unless otherwise specified;

All resistors are in ohms (Ω), k=1000Ω, M=1000kΩ

All capacitors are in MICRO FARADS (μF), p=μ(μF)

*Type & Wattage of Resistor

Type

ERC:SolidERD:CarbonPQRD:Carbon

ERX,ERG,ER0,ERJ:Metal Film Oxide

PQ4R:CarbonERS:Fusible ResistorERF:Cement Resistor

Wattege

10,16:1/8W

14,25:1/4W

12:1/2W

1:1W

2:2W

3:3W

*Type & Voltage of Capacitor

Type

ECFD:Semi-ConductorECQS:StyrolPQCUV,ECUV:ChipECQMS:Mica

ECCD,ECKD,ECBT,PQCBC:CeramicECQE,ECQV,ECQG:PolyesterECEA,ECSZ,F2G,PSCSZ:ElectlyticECQP:Polypropylene

Voltage

ECQ Type	ECQG ECQV Type	ECSZ Type	Others
1H:50V	05:50V	0F:3.15V	0J :6.3V	1V :35V
2A:100V	1:100V	1A:10V	1A :10V	50,1H:50V
2E:250V	2:200V	1V:35V	1C :16V	1J :63V
2H:500V		0J:6.3V	1E,25:25V	2A :100V

27.7.1. ACCESSORIES AND PACKING MATERIALS

Ref.No.	Part No.	Part Name & Description	Remarks
P1 PSPP1078Z PROTECTION COVER
P2 PSZKTE82491X GIFT BOX

27.7.2. MAIN BOARD PARTS

Ref.No.	Part No.	Part Name & Description	Remarks
		(ICS)

Ref.No.	Part No.	Part Name & Description	Remarks
IC1 C3FE	KC000127 IC
IC2 C3BE	LG000017 IC
		(CONNECTORS)
CN100	K1KB60B00019	CONNECTOR, 60P
		COMPONENTS PARTS)
RA1 D1H8	2204A024 RESISTOR ARRAY, 22
RA2 D1H8	2204A024 RESISTOR ARRAY, 22
RA3 D1H8	2204A024 RESISTOR ARRAY, 22
RA4 D1H8	2204A024 RESISTOR ARRAY, 22
RA5 D1H8	2214A024 RESISTOR ARRAY, 220
RA6 D1H8	2214A024 RESISTOR ARRAY, 220
RA7 D1H8	2214A024 RESISTOR ARRAY, 220
RA8 D1H8	2214A024 RESISTOR ARRAY, 220
RA9 D1H8	2214A024 RESISTOR ARRAY, 220
RA10	D1H82214A024 RESISTOR ARRAY, 220
		(CAPACITORS)
C1 ECUV1	E104ZFV 0.1
C2 ECUV1	E104ZFV 0.1
C3 ECUV1	E104ZFV 0.1
C4 ECUV1	E104ZFV 0.1
C5 ECUV1	E104ZFV 0.1
S PQCUV1	A225ZF 2.2	S
		(RESISTORS)
R1 ERJ3GEYJ220	22
R2 ERJ3GEYJ220	22
R3 ERJ3GEYJ221	220
R4 ERJ3GEYJ221	220
R5 ERJ3GEYJ221	220
R6 ERJ3GEYJ221	220

par

27.8. FOR THE SCHEMATIC DIAGRAM

Note:

1. DC voltage measurements are taken with an oscilloscope or a tester with a ground.
2. The schematic diagrams and circuit board may be modified at any time with the development of new technology.

Important safety notice Components identified by ⚠ mark have special characteristics important for safety. When replacing any of there components, use only manufacturer's specified parts.

27.9. SCHEMATIC DIAGRAM (KX-TE82491X)

27.10. PRINTED CIRCUIT BOARD (KX-TE82491X)

27.10.1. Component View

KX-TE82491X COMPONENT VIEW

28 KX-TE82492X (2-CHANNEL VOICE MESSAGE CARD)

Isometric line drawing of a computer motherboard with multiple slots and connectors (no text or symbols)

28.1. HOW TO RECOGNIZE THAT Pb FREE SOLDER IS USED

Provides 60 minutes of recording time (2 channels) for messages using the Built-in Voice Message Feature.

1. Loosen the screws and open the top and bottom front covers.
2. Slid the card between the guiderails until it clicks, and attach the connector to it.

Note

Use extra care to make sure you do not damage the part of the case marked with a circle.

1. Close the covers and secure the screws.

Note

To uninstall the card, follow the instructions illustrated below.

1. Push the catch on the side of one guardrail in the direction of the arrow to release it.
2. Lift the edge of the card while holding the catch open. (Do not touch the circuit board of the card during the operation.)

28.3. BLOCK DIAGRAM

KX-TE82492X VOICE MESSAGE BLOCK DIAGRAM

28.4. CIRCUIT OPERATIONS

28.4.1. Option Card (KX-TE82492X)

28.4.1.1. Voice Record/Play Circuit

Circuit Operation

This card has two BV record and play circuits. DSP IC is controlled by Main Cpu.

In case of recording, the voice (from CO/EXT) is through the crosspoint SW and DSP, and recorded to Memory IC. In case of playing, the BV is through the cross point SW and sent to EXT or CO.

28.5. TROUBLESHOOTING GUIDE

28.5.1. PBX cannot work

28.5.2. Cannot Erase

28.5.3. Cannot Record/Playback

28.6. IC DATA

28.6.1. IC7, IC8

IC No. P	n No. Pin	Name I/O Description
IC8 2 R	STN O DSP Reset
	5 - O Reserve
	6 PDN O DSP Power Down
	9 - O Reserve
	12 - O Reserve
	15 - O Reserve
	16 - O Reserve
	19 - O Reserve
	3 LD[0] I
	4 LD[1] I Write data
	7 LD[2] I Write data
	8 LD[3] I Write data
	13 LD[4] I
	14 LD[5] I
	17 LD[6] I
	18 LD[7] I
IC7 2 LD[0]		O
		5 LD[1]	O
		6 LD[2]	O
		9 LD[3]	O Read data
		12 LD[4]	O Read data
		15 LD[5]	O
		16 LD[6]	O
		19 LD[7]	O
		3 DSF ACK[1]	I DSF1 Acknowledge
		4 DSF ACK[2]	I DSF2 Acknowledge
		7 RSTN	I DSF Reset
		8 PDN	I DSF Power Down
		13 CARDID[0]	I Card ID
		14 CARDID[1]	I Card ID
		17 CARDID[2]	I Card ID
		18 CARDID[3]	I Card ID

28.7. TERMINAL GUIDE OF ICS, TRANSISTORS AND DIODES

C3FBMZ000002	C2HBBK000018	C0JBAZ001852PSVISNLV273A	PSVITCVT138T	C0JBAE000149
PQVITC7SZU04C0JBAA000288PSVIPST596IN	PQVINJM4558V	MA143

28.8. ACCESSORIES AND PACKING MATERIALS

28.9. REPLACEMENT PARTS LIST (KX-TE82492X)

Note:

1. RTL (Retention Time Limited)

The marking (RTL) indicates that the Retention Time is limited for this item.

After the discontinuation of this assembly in production, the item will continue to be available for a specific period of time. The retention period of availability depends on the type of assembly and the laws governing parts and product retention. At the end of this period, the assembly will no longer be available.

2. Important safety notice

Components identified by the △ mark indicates special characteristics important for safety. When replacing any of these components, only use specified manufacture's parts.

1. The S mark means the part is one of some identical par For that reason, it may be different from the installed part.

2. ISO code (Example: ABS-94HB) of the remarks column shows quality of the material and a flame resisting grade about plastics.

5. RESISTORS & CAPACITORS

Unless otherwise specified;

All resistors are in ohms (Ω), k=1000Ω, M=1000kΩ

All capacitors are in MICRO FARADS (μF), p=μ(μF)

*Type & Wattage of Resistor

Type

ERC:SolidERD:CarbonPQRD:Carbon

ERX,ERG,ER0,ERJ:Metal Film Oxide

PQ4R:CarbonERS:Fusible ResistorERF:Cement Resistor

Wattege

10,16:1/8W

14,25:1/4W

12:1/2W

1:1W

2:2W

3:3W

*Type & Voltage of Capacitor

Type

ECFD:Semi-ConductorECQS:StyrolPQCUV,ECUV:ChipECQMS:Mica

ECCD,ECKD,ECBT,PQCBC:CeramicECQE,ECQV,ECQG:PolyesterECEA,ECSZ,F2G,PSCSZ:ElectlyticECQP:Polypropylene

Voltage

ECQ Type	ECQG ECQV Type	ECSZ Type	Others
1H:50V	05:50V	0F:3.15V	0J :6.3V	1V :35V
2A:100V	1:100V	1A:10V	1A :10V	50,1H:50V
2E:250V	2:200V	1V:35V	1C :16V	1J :63V
2H:500V		0J:6.3V	1E,25:25V	2A :100V

28.9.1. ACCESSORIES AND PACKING MATERIALS

Ref.No.	Part No.	Part Name & Description	Remarks
P1 PSPP1078Z PROTECTION COVER
P2 PSZKTE82492X GIFT BOX

28.9.2. MAIN BOARD PARTS

Ref.No.	Part No.	Part Name & Description	Remarks
		(ICS)

Ref.No.	Part No.	Part Name & Description	Remarks
IC1 C3FE	MZ000002 IC
IC2 C3FE	MZ000002 IC
IC3 C2HB	BK000018 IC
IC4 C2HB	BK000018 IC
IC7 C0JE	AZ001852 IC
IC8 PSVI	SNLV273A IC	S
IC9 PSVI	TCVT138T IC	S
IC10	C0JBAE000149 IC
IC11	PQVITC7SZU04 IC	S
IC12	PQVINJM4558V IC	S
IC13	PQVINJM4558V IC	S
IC14	C0JBAA000288 IC
IC15	PSVIPST596IN IC
		(DIODES)
D1 MA143	DIODE(SI)	S
D2 MA143	DIODE(SI)	S
		(CONNECTORS)
CN1 K1KE	30B00031 CONNECTOR, 30P
		(CRYSTAL OSCILLATOR)
X1 HOJ13	8500003 CRYSTAL OSCILLATOR
		COMPONENTS PARTS)
RA1 D1HE	2214A024 RESISTOR ARRAY, 220
RA2 D1HE	2204A024 RESISTOR ARRAY, 22
RA3 D1HE	2204A024 RESISTOR ARRAY, 22
RA4 D1HE	4724A024 RESISTOR ARRAY, 4.7K
RA5 D1HE	4724A024 RESISTOR ARRAY, 4.7K
RA6 D1HE	4724A024 RESISTOR ARRAY, 4.7K
		(FILTERS)
FIL1	J0HAAH000003 IC FILTER
FIL4	J0HAAB000020 IC FILTER
FIL5	J0HAAH000003 IC FILTER
FIL6	J0HAAH000003 IC FILTER
		(CAPACITORS)
C1 ECUVI	H102KBV 0.001
C2 PQCUVI	1A225ZF 2.2	S
C3 ECUVI	A105ZFV 1
C4 ECUVI	C104KBV 0.1
C6 ECUVI	E103KBV 0.01
C7 ECUVI	H150JCV 15P
C8 ECUVI	E103KBV 0.01
C9 ECUVI	C104KBV 0.1
C14 ECUVI	H102KBV 0.001
C15 ECUVI	H180JCV 18P
C16 ECUVI	C104KBV 0.1
C17 ECUVI	C104KBV 0.1
C18 ECUVI	A105ZFV 1
C19 ECUVI	C104KBV 0.1
C20 ECUVI	A105ZFV 1
C21 ECUVI	C104KBV 0.1
C22 PQCUVI	A225ZF 2.2	S
C23 PQCUVI	A225ZF 2.2	S
C26 ECUVI	C104KBV 0.1
C27 ECUVI	C104KBV 0.1
C28 ECUVI	C104KBV 0.1
C29 ECUVI	H562KBV 0.0056
C30 ECUVI	H562KBV 0.0056
C35 ECUVI	C104KBV 0.1
C36 ECUVI	C104KBV 0.1
C37 ECUVI	C104KBV 0.1
C38 ECUVI	C104KBV 0.1
C39 ECUVI	C104KBV 0.1
C40 ECUVI	H391JCV 390P
C41 ECUVI	H391JCV 390P
C42 ECUVI	H391JCV 390P
C43 ECUVI	H391JCV 390P
C44 ECUVI	C563KBV 0.056
C45 ECUVI	C563KBV 0.056
C46 ECUVI	C563KBV 0.056
C47 ECUVI	C563KBV 0.056
C48 ECUVI	H332KBV 0.0033
C49 ECUVI	H332KBV 0.0033
C50 ECUVI	H104KBV 0.1
C51 ECUVI	H104KBV 0.1
C53 ECUV1C104KBV 0.1
C55 ECUV1C104KBV 0.1
C58 ECUV1C104KBV 0.1
C59 ECUV1C104KBV 0.1
C60 ECUV1C104KBV 0.1
C61 ECUV1C104KBV 0.1
C62 ECUV1C104KBV 0.1
C63 ECUV1C104KBV 0.1
C64 ECUV1C104KBV 0.1
C65 ECUV1C104KBV 0.1
C66 ECUV1C104KBV 0.1
C67 ECUV1C104KBV 0.1
C68 ECUV1C104KBV 0.1
C69 ECUV1E103KBV 0.01
C70 ECUV1E103KBV 0.01
C71 ECUV1E103KBV 0.01
C72 ECUV1C104KBV 0.1
C73 ECUV1C104KBV 0.1
C74 ECUV1C104KBV 0.1
C75 ECUV1A106ZF 10 S
C76 ECUV1A106ZF 10 S
C77 ECUV1A106ZF 10 S
C78 ECUV1C104KBV 0.1
C79 ECUV1C104KBV 0.1
C80 ECUV1C104KBV 0.1
C81 ECUV1E103KBV 0.01
C82 ECUV1E103KBV 0.01
C83 ECUV1E103KBV 0.01
C84 ECUV1E103KBV 0.01
C85 ECUV1A106ZF 10 S
C86 ECUV1A106ZF 10 S
C87 ECUV1A106ZF 10 S
C88 ECUV1C104KBV 0.1
C89 ECUV1A106ZF 10 S
C90 ECUV1H153KBV 0.015
C91 ECUV1H562KBV 0.0056
C92 ECUV1C104KBV 0.1
C93 ECUV1A106ZF 10 S
C94 ECUV1H153KBV 0.015
C95 ECUV1H562KBV 0.0056
		(RESISTORS)
R2 ERJ3GEYJ102 1K
R3 ERJ3GEYJ100 10
R4 ERJ3GEYJ105 1M
R5 ERJ3GEYJ105 1M

Ref.No.	Part No.	Part Name & Description	Remarks
R6 ERJ3	GEY0R00 0
R17 ERJ3	GEY0R00 0
R18 ERJ3	GEY0R00 0
R19 ERJ3	GEY0R00 0
R20 ERJ3	GEY0R00 0
R23 ERJ3	GEYJ222 2.2K
R26 ERJ3	GEYJ222 2.2K
R28 ERJ3	GEYJ102 1K
R29 ERJ3	GEYJ102 1K
R30 ERJ3	GEYJ103 10K
R31 ERJ3	GEYJ103 10K
R32 ERJ3	GEYJ823 82K
R33 ERJ3	GEYJ823 82K
R34 ERJ3	GEYJ823 82K
R35 ERJ3	GEYJ823 82K
R36 ERJ3	GEYJ103 10K
R37 ERJ3	GEYJ103 10K
R38 ERJ3	GEYJ104 100K
R39 ERJ3	GEYJ104 100K
R40 ERJ3	GEYJ104 100K
R41 ERJ3	GEYJ104 100K
R42 ERJ3	GEYJ122 1.2K
R43 ERJ3	GEYJ471 470
R44 ERJ3	GEYJ122 1.2K
R45 ERJ3	GEYJ471 470
R46 ERJ3	GEY0R00 0
R47 ERJ3	GEYJ122 1.2K
R48 ERJ3	GEY0R00 0
R49 ERJ3	GEYJ122 1.2K
R50 ERJ3	GEY0R00 0
R51 ERJ3	GEY0R00 0
R52 ERJ3	GEYJ122 1.2K
R53 ERJ3	GEYJ122 1.2K
R55 ERJ3	GEYJ221 220
R56 ERJ3	GEYJ221 220
R57 ERJ3	GEYJ221 220
R58 ERJ3	GEYJ221 220
R59 ERJ3	GEYJ473 47K
R60 ERJ3	GEYJ473 47K
R61 ERJ3	GEYJ473 47K
R62 ERJ3	GEYJ473 47K
R69 ERJ3	GEYJ680 68
R70 ERJ3	GEYJ680 68
R71 ERJ3	GEYJ102 1K

28.10. FOR THE SCHEMATIC DIAGRAM

Note:

1. DC voltage measurements are taken with an oscilloscope or a tester with a ground.
2. The schematic diagrams and circuit board may be modified at any time with the development of new technology.

Important safety notice Components identified by ⚠ mark have special characteristics important for safety. When replacing any of there components, use only manufacturer's specified parts.

28.11. SCHEMATIC DIAGRAM (KX-TE82492X)

28.12. PRINTED CIRCUIT BOARD (KX-TE82492X)

28.12.1. Component View

Isometric line drawing of a computer hard drive base with multiple slots and mounting holes (no text or symbols)

29.1. HOW TO RECOGNIZE THAT Pb FREE SOLDER IS USED

KX-TE82493X COMPONENT VIEW

29.2. LOCATION OF OPTIONAL CARDS

29.2.1. 3-Port Caller ID Card (KX-TE82493X)

Function

Adds Caller ID support for 3 outside (CO) lines. 1 card can be installed for outside (CO) lines 1-3. A second card can be installed for outside (CO) lines 4-6, and a third card can be installed for outside (CO) lines 7 and 8.

FSK and DTMF Caller ID types are supported. For information on the type of Caller ID used in your area, contact your telephone company.

1. Loosen the screws and open the top and bottom front covers.
2. Slid the card between the guiderails until it clicks, and attach the connector to it.

Note

Use extra care to make sure you do not damage the part of the case marked with a circle.

1. Close the covers and secure the screws.

Note

To uninstall the card, follow the instructions illustrated below.

1. Push the catch on the side of one guardrail in the direction of the arrow to release it.
2. Lift the edge of the card while holding the catch open. (Do not touch the circuit board of the card during the operation.)

29.3. BLOCK DIAGRAM

KX-TE82493X CALL ID BLOCK DIAGRAM

29.4. CIRCUIT OPERATIONS

29.4.1. Option Card (KX-TE82493X)

29.4.1.1. Call ID Detect Circuit

Circuit Operation

This card has three CALL ID detect circuits for support of three COL parts. If necessary to detect CALL ID on eight COLS then three KX-TE82493 cards are required to be installed in the system. If only required to detect CALL ID on three COLS, then only one KX-TE82493 card is required.

Incoming signal from COL is detected by CALL ID IC. The CALL ID data changed to serial data from parallel data (8 bit data) by FPGA. After, the 16 bit CPU detect this 8 bit data and sending the CALL ID data for PITS.

29.5. TROUBLESHOOTING GUIDE

29.5.1. Cannot Receive CALL ID Data (FSK)

29.5.2. Cannot Receive CALL ID Data (DTMF)

29.6. IC DATA

29.6.1. IC8

Pin No. F	In Name I/O Description
13 NCD[0]	In ESK Carrier Detection Flag
22 NCD[1]	In ESK Carrier Detection Flag
29 NCD[2]	In ESK Carrier Detection Flag
40 - In Reserve
14 NSTD[0]	In Alert Signal of CID Device
23 NSTD[1]	In Alert Signal of CID Device
30 NSTD[2]	In Alert Signal of CID Device
41 - In Reserve
17 TD[0]	In Stutter Tone Detection Signal
25 TD[1]	In Stutter Tone Detection Signal
32 TD[2]	In Stutter Tone Detection Signal
43 - In Reserve
---
---
---
---
55 Q[0]	In DTMF Receiving Data
56 Q[1]	In
59 Q[2]	In
60 Q[3]	In
61 STD[0]	In DTMF Status
62 STD[1]	In
63 STD[2]	In
64 NPT_CID	In Type of Card; 0	Pay Tone Card, 1: CTD Card
65 TOE[0]	Out	DTMF Output Enable
66 TOE[1]	Out
70 TOE[2]	Out
71 - Out	Reserve

Pin No.	Fin Name I/O Description
72 - Out Reserve
73 - Out Reserve
74 - Out Reserve
75 - Out Reserve

29.7. TERMINAL GUIDE OF ICS, TRANSISTORS AND DIODES

C1CB00001176	PQVINJM2904V	C1CB00001561	C1CB00001469	C0JBAB000539
C0CBAAC00083	UN5213	MA111

29.8. ACCESSORIES AND PACKING MATERIALS

29.9. REPLACEMENT PARTS LIST (KX-TE82493X)

Note:

1. RTL (Retention Time Limited)

The marking (RTL) indicates that the Retention Time is limited for this item.

After the discontinuation of this assembly in production, the item will continue to be available for a specific period of time. The retention period of availability depends on the type of assembly and the laws governing parts and product retention. At the end of this period, the assembly will no longer be available.

1. Important safety notice

Components identified by the ⚠ mark indicates special characteristics important for safety. When replacing any of these components, only use specified manufacture's parts.

1. The S mark means the part is one of some identical. For that reason, it may be different from the installed part.

2. ISO code (Example: ABS-94HB) of the remarks column shows quality of the material and a flame resisting grade about plastics.

3. RESISTORS & CAPACITORS

Unless otherwise specified;

All resistors are in ohms (Ω), k=1000Ω, M=1000kΩ

All capacitors are in MICRO FARADS (μF), p=μ(μF)

*Type & Wattage of Resistor

Type

ERC:SolidERD:CarbonPQRD:Carbon

ERX,ERG,ER0,ERJ:Metal Film Oxide

PQ4R:CarbonERS:Fusible ResistorERF:Cement Resistor

Wattege

10,16:1/8W

14,25:1/4W

12:1/2W

1:1W

2:2W

3:3W

*Type & Voltage of Capacitor

Type

ECFD:Semi-ConductorECQS:StyrolPQCUV,ECUV:ChipECQMS:Mica

ECCD,ECKD,ECBT,PQCBC:CeramicECQE,ECQV,ECQG:PolyesterECEA,ECSZ,F2G,PSCSZ:ElectlyticECQP:Polypropylene

Voltage

ECQ Type	ECQG ECQV Type	ECSZ Type	Others
1H:50V	05:50V	0F:3.15V	0J :6.3V	1V :35V
2A:100V	1:100V	1A:10V	1A :10V	50,1H:50V
2E:250V	2:200V	1V:35V	1C :16V	1J :63V
2H:500V		0J:6.3V	1E,25:25V	2A :100V

29.9.1. ACCESSORIES AND PACKING MATERIALS

Ref.No.	Part No.	Part Name & Description	Remarks
P1 PSPP1078Z PROTECTION COVER
P2 PSZKTE82493X GIFT BOX

29.9.2. MAIN BOARD PARTS

Ref.No.	Part No.	Part Name & Description	Remarks
		(ICS)

Ref.No.	Part No.	Part Name & Description	Remarks
IC1A C1CB00001176 IC
IC1B C1CB00001176 IC
IC1C C1CB00001176 IC
IC2A PQVINJM2904V IC S
IC2B PQVINJM2904V IC S
IC2C PQVINJM2904V IC S
IC7	C1CB00001561 IC
IC8	C1CB00001469 IC
IC16 C0JBAB000539 IC
IC17 C0JBAB000539 IC
IC19 C0CBAAAC00083 IC
		(TRANSISTORS)
Q1A	UN5213	TRANSISTOR(SI)	S
Q1B	UN5213	TRANSISTOR(SI)	S
Q1C	UN5213	TRANSISTOR(SI)	S
		(DIODES)
D1A	MA111	DIODE(SI)	S
D1B	MA111	DIODE(SI)	S
D1C	MA111	DIODE(SI)	S
D2A	MA111	DIODE(SI)	S
D2B	MA111	DIODE(SI)	S
D2C	MA111	DIODE(SI)	S
D3A	MA111	DIODE(SI)	S
D3B	MA111	DIODE(SI)	S
D3C	MA111	DIODE(SI)	S
		(CONNECTORS)
CN1	K1KB30B00031	CONNECTOR, 30P
		(CRYSTAL OSCILLATOR)
X1 PSVCY	Y0358M3 CRYSTAL	OSCILLATOR S
X2 HOJ20	0500030 CRYSTAL	OSCILLATOR
X3 HOJ40	9400006 CRYSTAL	OSCILLATOR
		COMPONENTS PARTS)
RA2	D1H81034A010	RESISTOR ARRAY, 10K
RA3	D1H82214A010	RESISTOR ARRAY, 220
RA4	D1H81034A010	RESISTOR ARRAY, 10K
RA5	D1H81034A010	RESISTOR ARRAY, 10K
RA6	D1H82214A010	RESISTOR ARRAY, 220
RA7	D1H82204A010	RESISTOR ARRAY, 22
RA8	D1H82204A010	RESISTOR ARRAY, 22
		(FILTERS)
FIL1 JOHAAH000003 IC	FILTER
FIL2 JOHAAH000003 IC	FILTER
FIL3 JOHAAH000003 IC	FILTER
FIL4 JOHAAH0000020 IC	FILTER
FIL5 JOHAAH000003 IC	FILTER
FIL7 JOHAAH0000020 IC	FILTER
FIL8 JOHAAH000003 IC	FILTER
		(CAPACITORS)
C3 ECUV1H120JCV 12P
C4 ECUV1H120JCV 12P
C5 PQCUV1A225ZF 2.2		S
C6 ECUV1A105ZFV 1
C6A	ECUV1C104ZFV 0.1
C6B	ECUV1C104ZFV 0.1
C6C	ECUV1C104ZFV 0.1
C7 ECUV1C104ZFV 0.1
C7A	ECUV1C224ZFV 0.22
C7B	ECUV1C224ZFV 0.22
C7C	ECUV1C224ZFV 0.22
C10A ECUV1C473KBV 0.047
C10B ECUV1C473KBV 0.047
C10C ECUV1C473KBV 0.047
C13A ECUV1C104ZFV 0.1
C13B ECUV1C104ZFV 0.1
C13C ECUV1C104ZFV 0.1
C14A ECUV1C563KBV 0.056
C14B ECUV1C563KBV 0.056
C14C ECUV1C563KBV 0.056
C15A ECUV1C563KBV 0.056
C15B ECUV1C563KBV 0.056
C15C ECUV1C563KBV 0.056
C16A ECUV1H223KBV 0.022		S
C16B ECUV1H223KBV 0.022		S
C16C ECUV1H223KBV 0.02		2 S
C17A ECUV1H332KBV 0.00		33
C17B ECUV1H332KBV 0.00		33
C17C ECUV1H332KBV 0.00		33
C18A ECUV1C224KBV 0.22
C18B ECUV1C224KBV 0.22
C18C ECUV1C224KBV 0.22
C19A ECUV1H102KBV 0.00		1
C19B ECUV1H102KBV 0.00		1
C19C ECUV1H102KBV 0.00		1
C20A ECUV1C104ZFV 0.1
C20B ECUV1C104ZFV 0.1
C20C ECUV1C104ZFV 0.1
C21A ECUV1C104ZFV 0.1
C21B ECUV1C104ZFV 0.1
C21C ECUV1C104ZFV 0.1
C24 ECUV1C104ZFV 0.1
C30 PQCUV1A225ZF 2.2 S
C31 ECUV1A105ZFV 1
C32 ECUV1C104ZFV 0.1
C33 ECUV1C104ZFV 0.1
C34 ECUV1C104ZFV 0.1
C35 ECUV1C104ZFV 0.1
C40 PQCUV1A225ZF 2.2 S
C41 ECUV1A105ZFV 1
C42 ECUV1C104ZFV 0.1
C43 ECUV1C104ZFV 0.1
C44 ECUV1C104ZFV 0.1
C45 ECUV1C104ZFV 0.1
C46 ECUV1C104ZFV 0.1
C55 PQCUV1A225ZF 2.2 S
C56 ECUV1A105ZFV 1
C57 ECUV1C104ZFV 0.1
C58 ECUV1H100DCV 10P S
C59 ECUV1H120JCV 12P
C60 ECUV1A105ZFV 1
C61 ECUV1C104ZFV 0.1
C62 PQCUV1A225ZF 2.2 S
C63 PQCUV1H105JC 1 S
C64 ECUV1H103KBV 0.01
C71 ECUV1H103KBV 0.01
C72 ECUV1H103KBV 0.01
C73 ECUV1H103KBV 0.01
C74 ECUV1H103KBV 0.01
C75 ECUV1H103KBV 0.01
C76 ECUV1H103KBV 0.01
C77 ECUV1H103KBV 0.01
C78 ECUV1H103KBV 0.01
C79 ECUV1H103KBV 0.01
C80 ECUV1H103KBV 0.01
		(RESISTORS)
J10 ERJ3GEY0R00 0
J11 ERJ3GEY0R00 0
J13 ERJ3GEY0R00 0
J14 ERJ3GEY0R00 0
J15 ERJ3GEY0R00 0
R5A ERJ3EKF2202 22K
R5B ERJ3EKF2202 22K
R5C ERJ3EKF2202 22K
R7A ERJ3GEYJ334 330K
R7B ERJ3GEYJ334 330K
R7C ERJ3GEYJ334 330K
R8A ERJ3GEYJ103 10K
R8B ERJ3GEYJ103 10K
R8C ERJ3GEYJ103 10K
R10 ERJ3GEYJ221 220
R10A ERJ3GEYJ474 470K
R10B ERJ3GEYJ474 470K
R10C ERJ3GEYJ474 470K
R11 ERJ3GEYJ221 220
R11A ERJ3EKF4703 470K
R11B ERJ3EKF4703 470K
R11C ERJ3EKF4703 470K

Ref.No.	Part No.	Part Name & Description	Remarks
R12 ERJ3	GEYJ221 220
R13 ERJ3	GEYJ221 220
R14A ERJ3	3GEYJ104 100K
R14B ERJ3	3GEYJ104 100K
R14C ERJ3	3GEYJ104 100K
R15 ERJ3	GEYJ103 10K
R16 ERJ3	GEYJ103 10K
R17 ERJ3	GEYJ103 10K
R17A ERJ3	3GEYJ394 390K
R17B ERJ3	3GEYJ394 390K
R17C ERJ3	3GEYJ394 390K
R18 ERJ3	GEYJ103 10K
R19 ERJ3	GEYJ103 10K
R19A ERJ3	3GEYJ103 10K
R19B ERJ3	3GEYJ103 10K
R19C ERJ3	3GEYJ103 10K
R20A ERJ3	3GEYJ472 4.7K
R20B ERJ3	3GEYJ472 4.7K
R20C ERJ3	3GEYJ472 4.7K
R21A ERJ3	3EKF2203 220K
R21B ERJ3	3EKF2203 220K
R21C ERJ3	3EKF2203 220K
R22A ERJ3	3EKF3903 390K
R22B ERJ3	3EKF3903 390K
R22C ERJ3	3EKF3903 390K
R23A ERJ3	3EKF2201 2.2K
R23B ERJ3	3EKF2201 2.2K
R23C ERJ3	3EKF2201 2.2K
R24A ERJ3	3GEYF562 5.6K S
R24B ERJ3	3GEYF562 5.6K S
R24C ERJ3	3GEYF562 5.6K S
R25A ERJ3	3EKF1002 10K
R25B ERJ3	3EKF1002 10K
R25C ERJ3	3EKF1002 10K
R26A ERJ3	3EKF3302 33K
R26B ERJ3	3EKF3302 33K
R26C ERJ3	3EKF3302 33K
R27A ERJ3	3EKF2202 22K
R27B ERJ3	3EKF2202 22K
R27C ERJ3	3EKF2202 22K
R29A ERJ3	3EKF2703 270K
R29B ERJ3	3EKF2703 270K
R29C ERJ3	3EKF2703 270K
R30 ERJ3	GEYJ105 1M
R31 ERJ3	GEYJ332 3.3K
R32 ERJ3	GEYJ220 22
R33A ERJ3	3GEYJ104 100K
R33B ERJ3	3GEYJ104 100K
R33C ERJ3	3GEYJ104 100K
R34A ERJ3	3EKF1002 10K
R34B ERJ3	3EKF1002 10K
R34C ERJ3	3EKF1002 10K
R35A ERJ3	3EKF2203 220K
R35B ERJ3	3EKF2203 220K
R35C ERJ3	3EKF2203 220K
R36A ERJ3	3GEYOR00 0
R36B ERJ3	3GEYOR00 0
R36C ERJ3	3GEYOR00 0
R43 ERJ3	GEYJ103 10K
R50 ERJ3	GEYJ103 10K
R54 ERJ3	GEYOR00 0
R57 ERJ3	GEYJ103 10K
R64 ERJ3	GEYJ221 220
R65 ERJ3	GEYOR00 0
R66 ERJ3	GEYOR00 0
R82 ERJ3	GEYJ105 1M
R83 ERJ3	GEYJ681 680
R84 ERJ3	GEYJ103 10K
R86 ERJ3	GEYJ220 22

29.10. FOR THE SCHEMATIC DIAGRAM

Note:

1. DC voltage measurements are taken with an oscilloscope or a tester with a ground.
2. The schematic diagrams and circuit board may be modified at any time with the development of new technology.

Important safety notice Components identified by ⚠ mark have special characteristics important for safety. When replacing any of there components, use only manufacturer's specified parts.

KX-TE82493X BOTTOM VIEW

30 KX-A227X (BACK-UP BATTERY CABLE)

Line drawing of a bundle of bundled wires or cables, no text or symbols present

30.1. ACCESSORIES AND PACKING MATERIALS

30.2. REPLACEMENT PARTS LIST (KX-A227X)

Note:

1. RTL (Retention Time Limited)

The marking (RTL) indicates that the Retention Time is limited for this item.

After the discontinuation of this assembly in production, the item will continue to be available for a specific period of time. The retention period of availability depends on the type of assembly and the laws governing parts and product retention. At the end of this period, the assembly will no longer be available.

2. Important safety notice

Components identified by the △ mark indicates special characteristics important for safety. When replacing any of these components, only use specified manufacture's parts.

1. The S mark means the part is one of some identical parts. For that reason, it may be different from the installed part.

2. ISO code (Example: ABS-94HB) of the remarks column shows quality of the material and a flame resisting grade about plastics.

5. RESISTORS & CAPACITORS

Unless otherwise specified;

All resistors are in ohms (Ω), k=1000Ω, M=1000kΩ

All capacitors are in MICRO FARADS (μF), p=μ(μF)

*Type & Wattage of Resistor

Type

ERC:SolidERD:CarbonPQRD:Carbon

ERX,ERG,ER0,ERJ:Metal Film Oxide

PQ4R:CarbonERS:Fusible ResistorERF:Cement Resistor

Wattege

10,16:1/8W

14,25:1/4W

12:1/2W

1:1W

2:2W

3:3W

*Type & Voltage of Capacitor

Type

ECFD:Semi-ConductorECQS:StyrolPQCUV,ECUV:ChipECQMS:Mica

ECCD,ECKD,ECBT,PQCBC:CeramicECQE,ECQV,ECQG:PolyesterECEA,ECSZ,F2G,PSCSZ:ElectlyticECQP:Polypropylene

Voltage

ECQ Type	ECQG ECQV Type	ECSZ Type	Others
1H:50V	05:50V	0F:3.15V	0J :6.3V	1V :35V
2A:100V	1:100V	1A:10V	1A :10V	50,1H:50V
2E:250V	2:200V	1V:35V	1C :16V	1J :63V
2H:500V		0J:6.3V	1E,25:25V	2A :100V

30.2.1. ACCESSORIES AND PACKING MATERIALS

Ref.No.	Part No.	Part Name & Description	Remarks
A1 PSJS02Q48Y CABLE
A2 XB40M10M10 LEAD WIRE
A3 PSBA2F31NM10 FUSE
A4 XZB06X10A05 PROTECTION COVER
A5 PSQW1387Z LEAFLET
P1 PSZKA227X GIFT BOX

H

KXTES824BX

KXTEM824BX

KXTE82461X

KXTE82474X

KXTE82480X

KXTE82483X

KXTE82491X

KXTE82492X

KXTE82493X

KXA227X
