BG-ADAMO-4K - Security Camera BZBGear - Free user manual and instructions

Product Type	Security Camera
Brand	BZBGear
Model	BG-ADAMO-4K
Resolution	4K (3840x2160)
Lens	3.6mm fixed lens
Night Vision	IR LEDs up to 30m
Field of View	90° diagonal
Audio	Two-way audio with built-in microphone and speaker
Power Supply	DC 12V, 1A (adapter included)
Power Consumption	≤ 8W
Connectivity	Wi-Fi (2.4GHz, 802.11 b/g/n), Ethernet (RJ45)
Storage	MicroSD slot (max 128GB), cloud storage support
Weather Rating	IP65 (outdoor use)
Motion Detection	Yes, with customizable zones
Dimensions (LxWxH)	70 x 70 x 120 mm
Weight	500 g
Operating Temperature	-20°C to 50°C
Mounting	Wall or ceiling mount (bracket included)
App Compatibility	iOS and Android (BZBGear app)
Cleaning	Wipe with a soft, dry cloth. Do not use harsh chemicals.
Safety	Do not expose to extreme temperatures or moisture. Use only the supplied adapter.
Spare Parts	Power adapter, mounting bracket, screws available from BZBGear support.
Repairability	Contact authorized service center for repairs. No user-serviceable parts inside.

Frequently Asked Questions - BG-ADAMO-4K BZBGear

How do I reset the BG-ADAMO-4K camera to factory settings?

Press and hold the reset button on the camera for about 10 seconds until you hear a beep. The camera will restart with factory defaults.

What app do I need to use with this camera?

Download the BZBGear app from the App Store or Google Play. Create an account and follow the in-app instructions to add your camera.

Can I use the camera without Wi-Fi?

Yes, you can connect via Ethernet cable for a wired connection. The camera supports both Wi-Fi and wired networking.

How do I insert a MicroSD card?

Open the waterproof cover on the camera's bottom, insert a MicroSD card (up to 128GB) into the slot, and close the cover tightly to maintain weather resistance.

What is the maximum night vision range?

The IR LEDs provide clear night vision up to 30 meters in complete darkness.

How do I enable motion detection alerts?

Open the BZBGear app, go to camera settings, and enable motion detection. You can also set custom detection zones and sensitivity.

Is the camera weatherproof?

Yes, it has an IP65 rating, meaning it is dust-tight and protected against low-pressure water jets. It is suitable for outdoor use.

Can I view the camera remotely?

Yes, after connecting to your home network, you can view the live feed from anywhere using the BZBGear app on your smartphone.

What should I do if the camera is not connecting to Wi-Fi?

Ensure your phone is on the same 2.4GHz network, restart the camera and router, and try again. If the issue persists, reset the camera and re-add it in the app.

How do I clean the camera lens?

Use a soft, dry microfiber cloth to gently wipe the lens. Avoid using any liquids or abrasive materials that could damage the lens coating.

USER MANUAL BG-ADAMO-4K BZBGear

BZBGEAR is proud to announce the next generation of PTZ cameras: the BG-ADAMO. Brilliantly designed with exclusive features and a unique form factor, the BG-ADAMO is unrivaled in its class on the live stream broadcasting market.

4K@60Hz: Just the Beginning

The BG-ADAMO-4K is loaded with features including a full interface of video connections, and immaculate 4K@60Hz resolution. The 12G-SDI connection enables long distance cable runs without compromising image quality. Compose shots ahead of time utilizing the up to 255 programable presets, with 10 conveniently accessible using the IR remote. Capable of storing 1 TB of video footage with the Micro SD Card writer, start recording on the fly when other connections are inaccessible.

The lens is designed with an advanced auto-focusing algorithm that promptly snaps into focus with dependable accuracy and stability. The 3D noise reduction technology combined with the low-noise CMOS sensor ensures impeccable image clarity. Choose between the 12x optical zoom lens with an 80.4° wide-angle, the 25x optical zoom lens with a 59.2° wide-angle, or the 31x optical zoom lens with a 59° wide-angle.

Packed with an array of video connections including USB 2.0, USB 3.0, LAN, HDMI, and 12G-SDI, the BG-ADAMO-4K boasts unparalleled functionality with sophistication and style. The dual stream USB facilitates concurrent main-stream and sub-stream outputs. While the HDMI, SDI, and USB 2.0 connections are capable of transmitting 4K video and audio signals simultaneously.

Innovative Design

Available in either classic white or black finishes, the chassis of the BG-ADAMO is designed to be as functional and attractive as its formidable feature set. The high-stability substructure provides a solid foundation for the precision lens delivering 4K resolution video at 60fps. Eliminating the need for bulky external accessories, the control arms feature distinctive built-in tally lights that illuminate either green or red with 360-degree visibility.

Package Contents

1 x BG-UPTZ-ND 1 x RS232 Control Cable

1 x 12V/1.5A Power Supply 1 x IR Remote Control

1 x User Manual

1. 12G-SDI output
2. HDMI 2.0 output
3. USB 3.0 Type-B output
4. USB 2.0 Type-A output
5. MicroSD reader
6. 3.5mm audio input
7. RS422/RS485 control interface
8. RS232 control input

9. RS232 cascade output

10. LAN connection

11. 12V DC power connection
12. Power ON/OFF switch

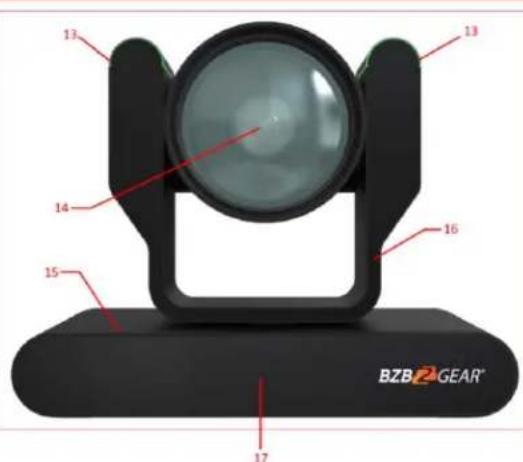

13. Tally lights
14. Camera lens
15. Camera body
16. Camera head
17. IR indicator

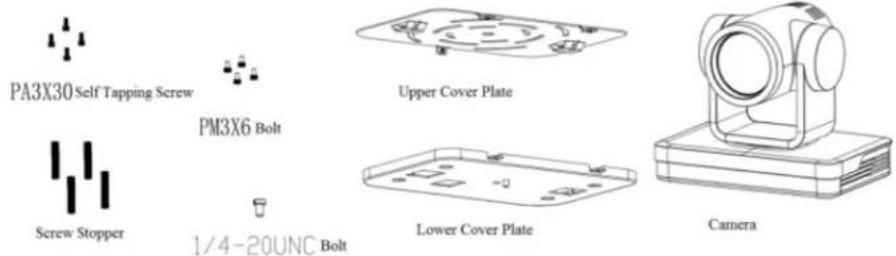

Mounting Instructions

1) Wall Mounting:

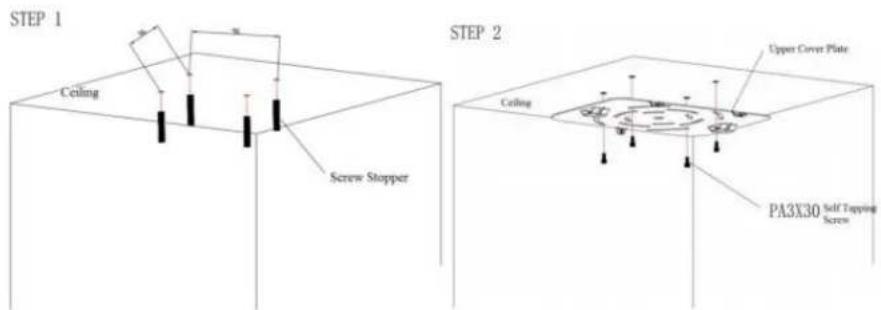

2) Ceiling Mounting

RS-232 Interface

1) RS-232 Interface Definition

Connection to PC or Camera Controller

2) RS232 Mini-DIN 8-pin: Port Definition

NO.	Port	Definition
1	DTR	Data Terminal Ready
2	DSR	Data Set Ready
3	TXD	Transmit Data
4	GND	Signal Ground
5	RXD	Receive Data
6	GND	Signal Ground
7	IR OUT	IR Commander Signal
8	NC	No Connection

WebGUI

The BG-ADAMO camera includes a built-in WebGUI allowing for control and management of advanced features. Use the following instructions to access the WebGUI.

1. Launch a web browser and enter the IP address of the unit (default 192.168.5.163).
2. The BZBGEAR login page will appear.
3. Enter your login information (by default Username = admin Password = admin).
4. Select the Login button.

Problems connecting to your camera?

Check out our Knowledge Base at https://bzbgear.com/knowledge-base/ for more information and step-by-step guide.

My camera has no picture	Power switch is off, bad connection, incompatible resolution, camera lens is obstructed	·Check the power switch on the back of the camera·Check connections/replace cables with new ones·Use IR remote or WebGUI to change to a resolution that is compatible with your display·Check computer and program settings to ensure USB is discovered
My IR remote control doesn’t work	The camera’s IR sensor is blocked, batteries are dead, sunlight is interfering with the IR signal	·Ensure you have a clear line of sight from the remote to the front of the camera base·Replace the batteries·Ensure the camera is out of direct sunlight
I cannot access the camera’s WebGUI	The camera is not connected to the network	·Check connections·Verify your camera’s IP address using an IP scanning tool·Ensure your computer is connected to the same network as the camera
I have no image from my USB connection	Your USB device is not being discovered	·Make sure you’re using a USB 3.0 cable·Replace the cable with a shorter one (6 feet or less)·Try a different USB port on your computer
