Product Type	LED TV
Screen Size	32 inches (81 cm)
Resolution	1366 x 768 (HD)
Refresh Rate	60 Hz
Aspect Ratio	16:9
Brightness	250 cd/m²
Contrast Ratio	3000:1 (typical)
Viewing Angle	178° horizontal / 178° vertical
Sound Output	2 x 8W
Connectivity	HDMI (2), USB (1), AV Composite, VGA, RF Antenna, Headphone out
Power Supply	AC 100-240V, 50/60Hz
Power Consumption (Typical)	40W
Standby Power	<0.5W
Dimensions (with stand)	73.5 x 47.0 x 18.5 cm
Weight (with stand)	4.2 kg
VESA Wall Mount	100 x 100 mm
Operating Temperature	5°C to 35°C
Cleaning Instructions	Wipe with a soft, dry cloth. Do not use liquid cleaners or abrasives.
Safety Precautions	Keep away from heat sources, ensure proper ventilation, do not cover vents, unplug during thunderstorms.
Spare Parts	Remote Control, Stand, Power Cord, User Manual
Repair Information	Contact authorized service center. Do not attempt to open or repair yourself.
Brand	MAG
Model	MA-32EF1ASP

Frequently Asked Questions - MA-32EF1ASP MAG

How do I connect external devices like a DVD player or gaming console to the TV?

Use the HDMI ports for the best quality. Connect the device to any HDMI input on the TV, then select the corresponding HDMI source using the 'Source' button on the remote or TV.

How can I perform a factory reset on my MAG MA-32EF1ASP TV?

Go to the Settings menu, select 'System' or 'Setup', then choose 'Factory Reset' or 'Reset All'. Confirm when prompted. This will erase all custom settings and restore default values.

What should I do if the remote control stops working?

First, check if the batteries need replacement. Ensure there are no obstructions between the remote and the TV's IR sensor. Try resetting the remote by removing batteries, pressing any button for 10 seconds, and reinserting batteries.

How do I clean the TV screen safely?

Turn off the TV and let it cool. Use a soft, dry microfiber cloth to gently wipe the screen in a circular motion. Do not apply pressure or use any liquid cleaners, as they may damage the screen.

Can I mount the TV on the wall?

Yes, it supports VESA 100x100 mm wall mount. Use a compatible mount and follow the instructions. Ensure the wall can support the TV's weight (about 4.2 kg without stand). Recommend professional installation.

Why is there no sound from the TV speakers?

Check if the volume is muted or set too low. Verify the audio output settings are set to 'TV Speaker' (not external audio). If using external devices, ensure their audio cables are properly connected. Try a power cycle.

How do I scan for digital TV channels?

Press the 'Menu' button, go to 'Channel' or 'Tuning' settings, select 'Auto Search' or 'Auto Tuning'. The TV will scan for available digital channels. This may take several minutes.

What should I do if the TV does not power on?

Check the power cord connection and outlet. Try a different outlet. Press the power button on the TV (not just remote). If still no power, unplug for 1 minute and try again. If persists, contact support.

How can I update the TV's firmware?

Firmware updates are typically not available for this model via USB or network. Check the MAG website for any updates. If available, follow the provided instructions to load via USB.

Is the TV compatible with a universal remote?

Yes, most universal remotes can be programmed to work with MAG TVs. You will need the remote code for MAG, which can be found in the universal remote manual or online. Common codes: 10178, 10056.

USER MANUAL MA-32EF1ASP MAG

Computer monitor displaying a scenic landscape with karst mountains and a lake under a blue sky (no text or symbols visible)

Federal Communications Commission Statement

This equipment has been tested and found to comply with the limits of a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient/Relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit which is different from what the receiver is connected to.
4. Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user authority to operate the equipment.

HDMI ^TM

This TV incorporates High-Definition Multimedia Interface(HDMI ^™ ) technology. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Warnings and Precautions

To prevent any injuries, the following safety precautions should be observed in the installation, use, servicing and maintenance of this equipment.

Before operating this equipment, please read this manual completely, and keep it nearby for future reference.

WARNING

This symbol is intended to alert the user to avoid the risk of electric shock.

This equipment must not be disassembled by anyone except qualified service personnel.

CAUTION

This symbol is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance.

To reduce the risk of fire or electric shock, do not expose this equipment to rain or moisture.

• TO REDUCE THE RISK OF ELECTRIC SHOCK,
• DO NOT REMOVE COVER (OR BACK).
• NO USER-SERVICEABLE PARTS INSIDE.

- REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

Important Safety Instructions

This symbol indicates caution points.

This symbol indicates actions that should not be done.

This symbol indicates actions that must be performed.

• Do not place the equipment on any uneven or unstable carts, stands, tables, shelves etc. The equipment may fall, causing serious injury to children or adults and serious damage to the equipment itself.
• Use only a cart or stand recommended by the manufacturer. This equipment and recommended cart or stand should be handled with care. Quick stops, excessive force, and uneven surfaces may cause the equipment and cart/stand to overturn.

- Do not disable the 3-wire grounding type plug. The grounding pin on the 3-prong plug is an important feature. Removing the grounding pin will increase the risk of damaging the equipment.

- If you can not fit the plug into the electrical outlet, contact an electrician to install a grounding outlet.

- Always operate this equipment from the type of power source indicated on the rear of the serial/model plate.

- Never overload wall outlets and extensions.

- Use and handle the power cord with care. Do not place any heavy objects on the AC power cord.

- Do not pull the AC power cord. Do not handle the AC power cord with a wet hand.

- Do not touch the power cord and antenna cable during lightning.

- Remove the plug from the wall outlet, if the equipment will not be used for a long period of time.

- Do not place, use or handle this equipment near water.

- Never expose the equipment to liquid, rain, or moisture. Seek for service if any of the above is spilled into the equipment.

- Do not expose the equipment to extreme temperature or to direct sunlight, as the equipment may heat up and suffer damage.

- Do not install the equipment near any heat sources such as radiators, heat registers, stoves, or any other apparatus that might produce heat.

- Do not attempt to service the equipment yourself.

- Opening and removing the covers may expose you to dangerous voltage or other hazards and may void your warranty. Refer service to qualified personnel.

- Do not place or drop any other objects on top.

- Do not insert anything into the ventilation holes of your equipment. Inserting any metal or flammable objects may result to fire or electric shock.

- Protect the power cord from being walked on or pinchrd particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

- Do not place the equipment on uneven or unstable carts, stands, tables, shelves etc. The equipment may fall, causing serious injury to children or adults and serious damage to the equipment itself.

Always place the equipment on the floor or on a surface that is sturdy, level, stable and strong enough to support the weight of the equipment.

- Do not block any ventilating openings. Leave an open space around the equipment. Never place the equipment: on a bed, sofa, rug, or any other similar surfaces; too close to drapes/curtains/walls, in a bookcase, built-in cabinet, or any other similar places that may cause poor ventilation.

- Unplug this apparatus during lightning storms or when unused for long periods of time.

- Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been admaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

- Always remove the power cord from the outlet before cleaning the equipment.

- Never use liquid or aerosol cleaners on the equipment. Clean only with a soft dry cloth.

- Only use attachments/accessories specified by the manufacturer.

Antenna Safety Instructions

If an outdoor antenna is connected, follow the precautions below:

• An outdoor antenna should not be located in any area where it could come in contact with overhead power lines, or any other electric light or power circuits.
• When installing an outdoor antenna system, extreme caution should be taken to prevent contact with power lines. Direct contact with power lines may be fatal and should be avoided at all costs.

Section 810 of National Electrical Code (NEC) provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

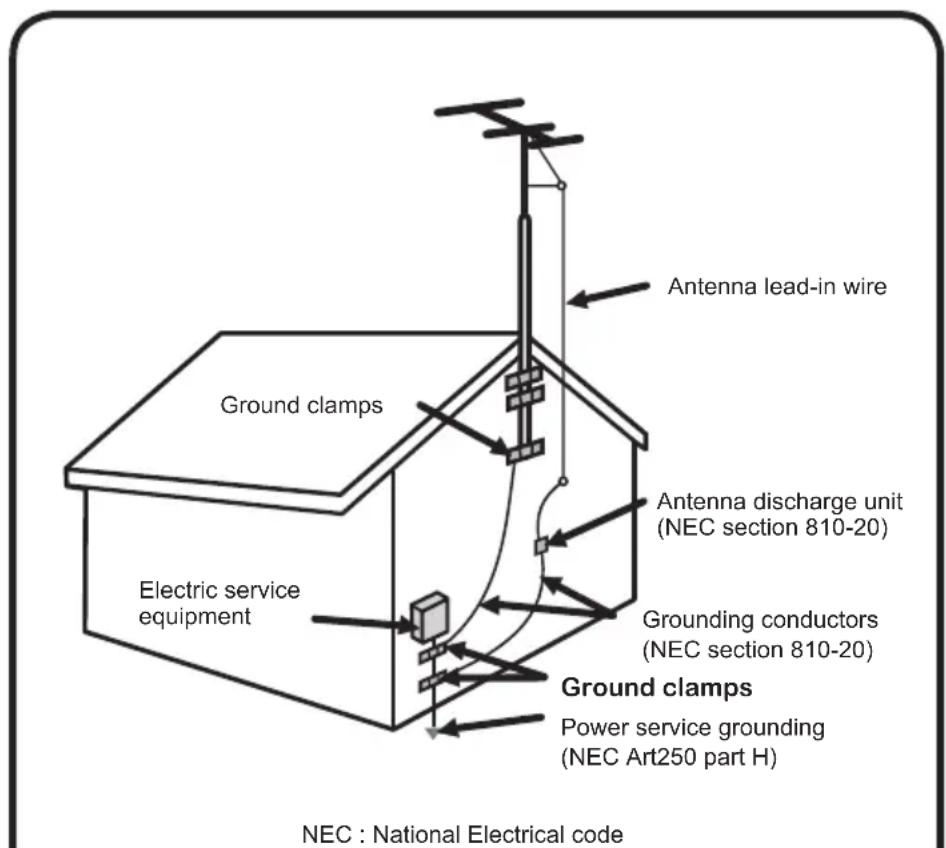

Antenna lead-in wire Ground clamps Antenna discharge unit (NEC section 810-20) Electric service equipment Grounding conductors (NEC section 810-20) Ground clamps Power service grounding (NEC Art250 part H) NEC : National Electrical code

EXAMPLE OF OUTDOOR ANTENNA GROUNDING

TABLE OF CONTENTS

■ Federal Communications Commission Statement .... 1
■ Warnings and Precautions

Important Safety Instructions....2

Antenna Safety Instructions....4

■ Chapter 1 Introducing the LCD TV

Key Features 6

Package Contents 7

Setting Your LCD TV 8

Your LCD TV....10

Your Remote Control 12

■ Chapter 2 Installing the LCD TV

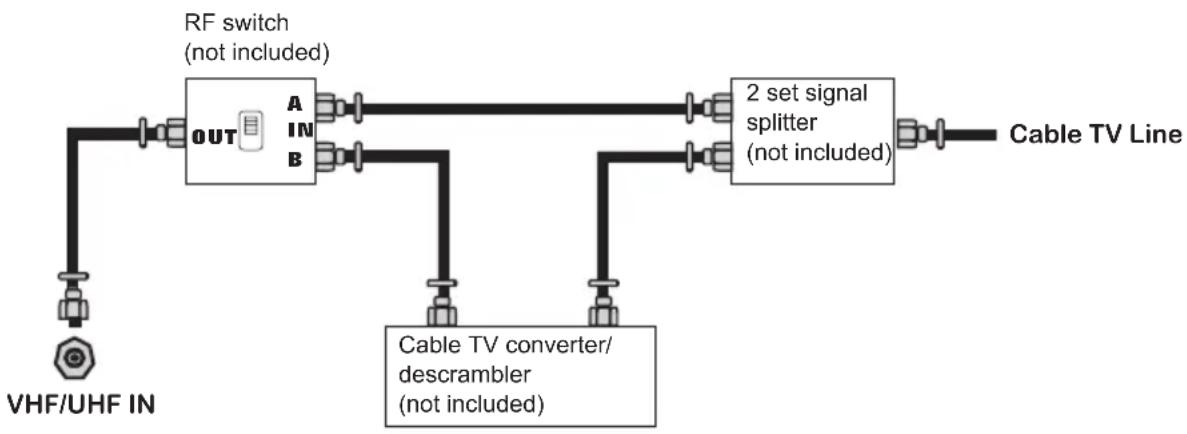

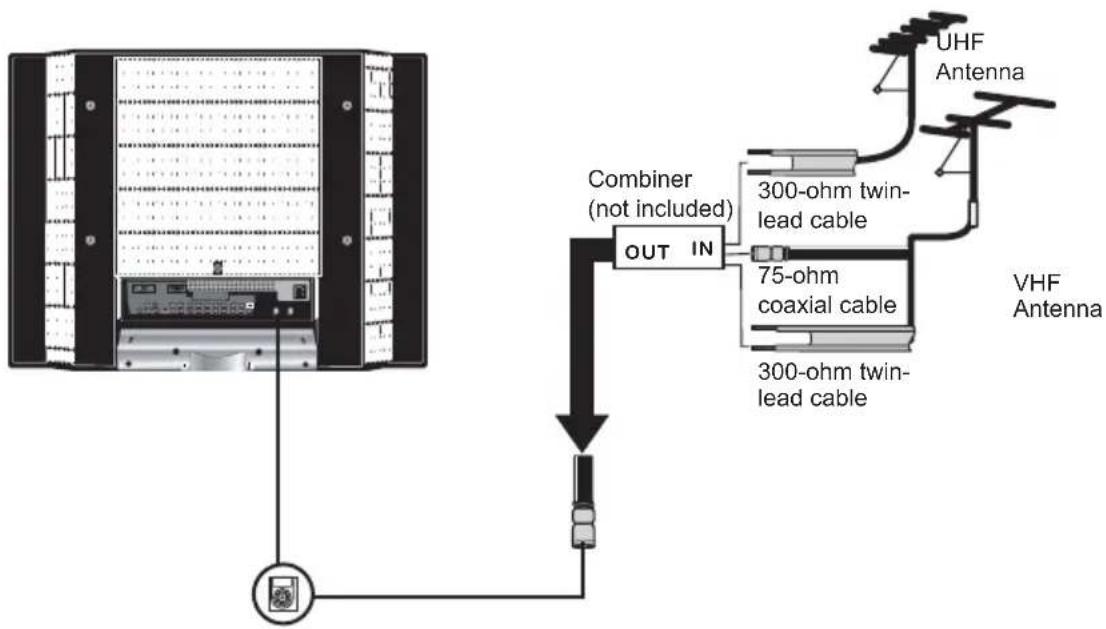

Connecting a TV Cable or an Antenna 14

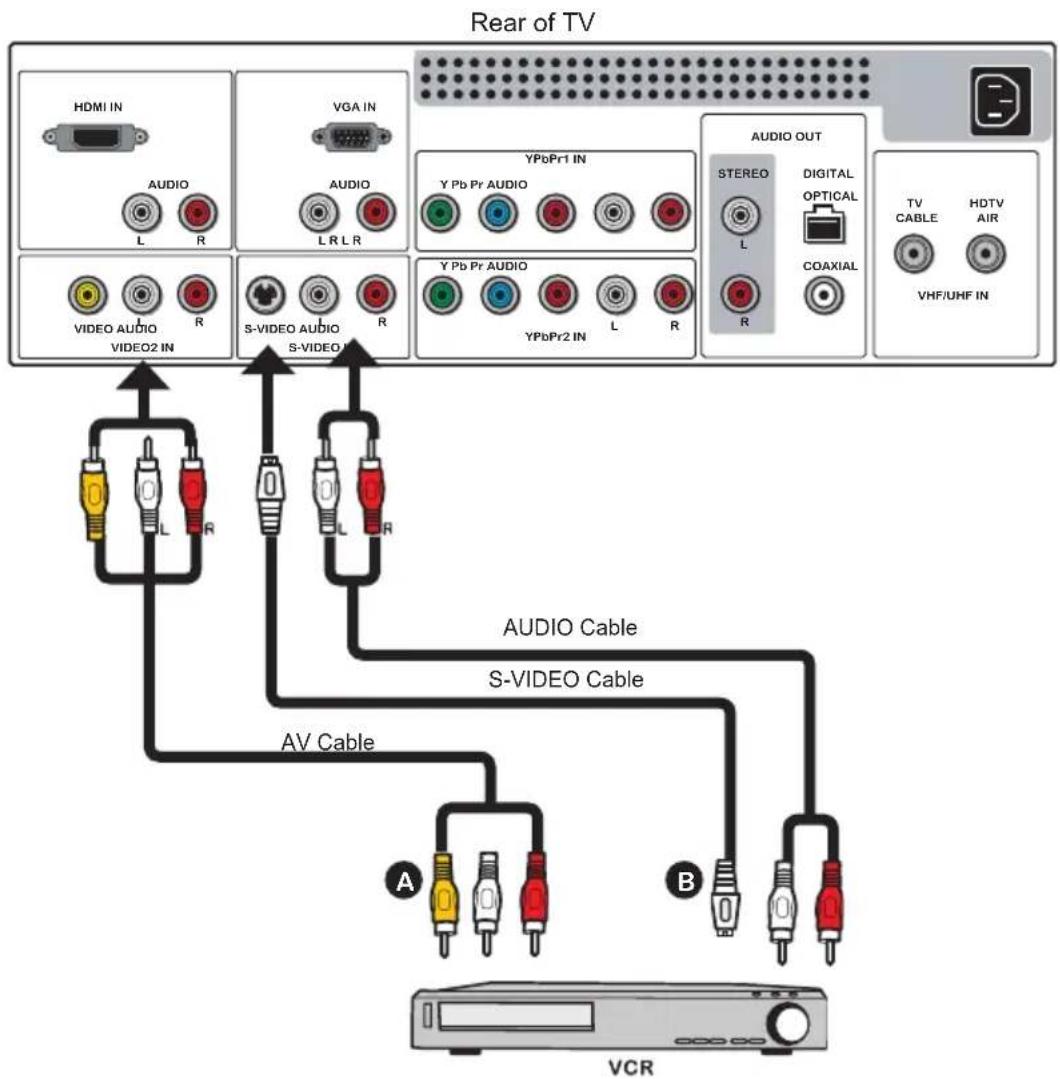

Connecting a VCR....18

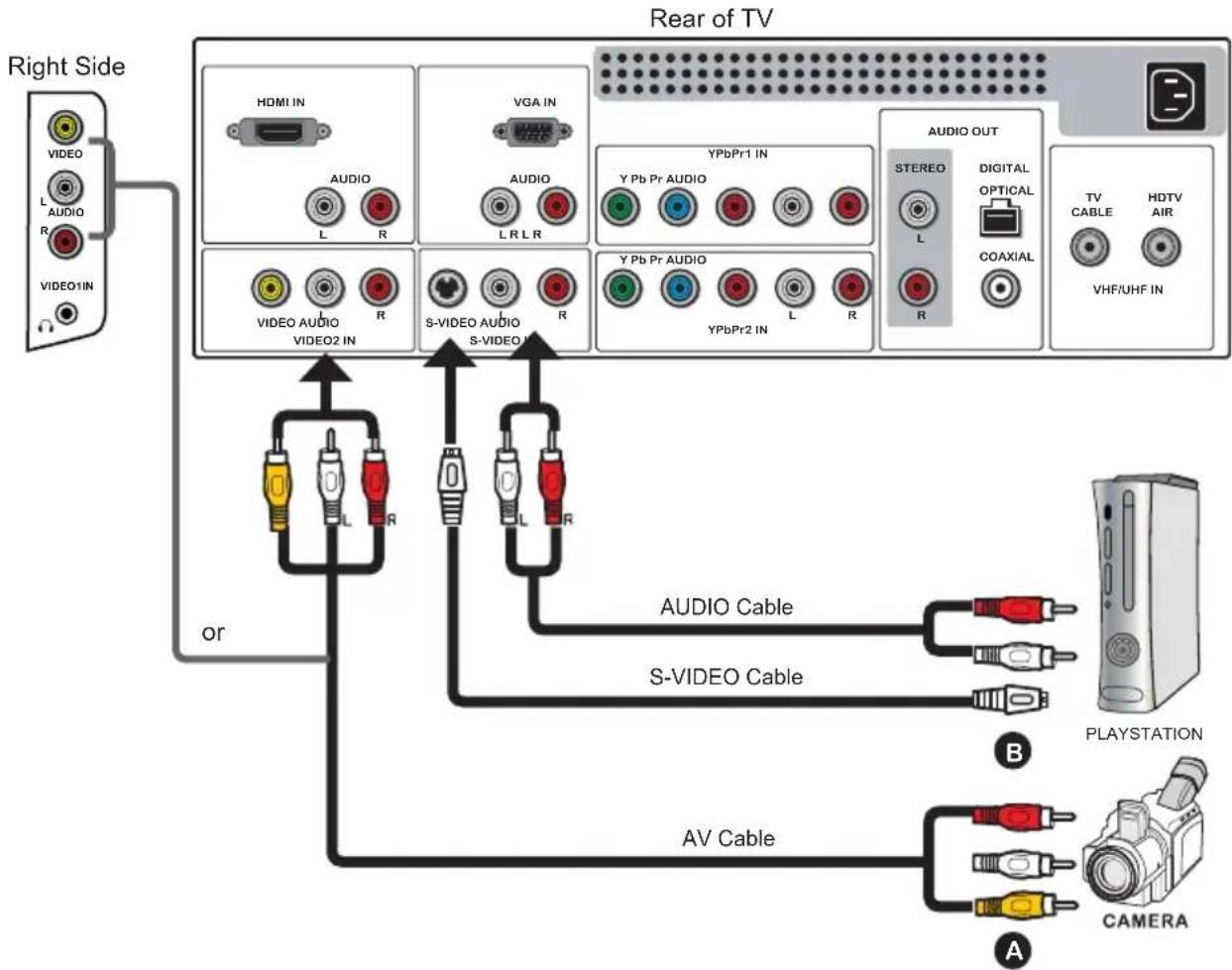

Connecting a Video Camera or Play Station 19

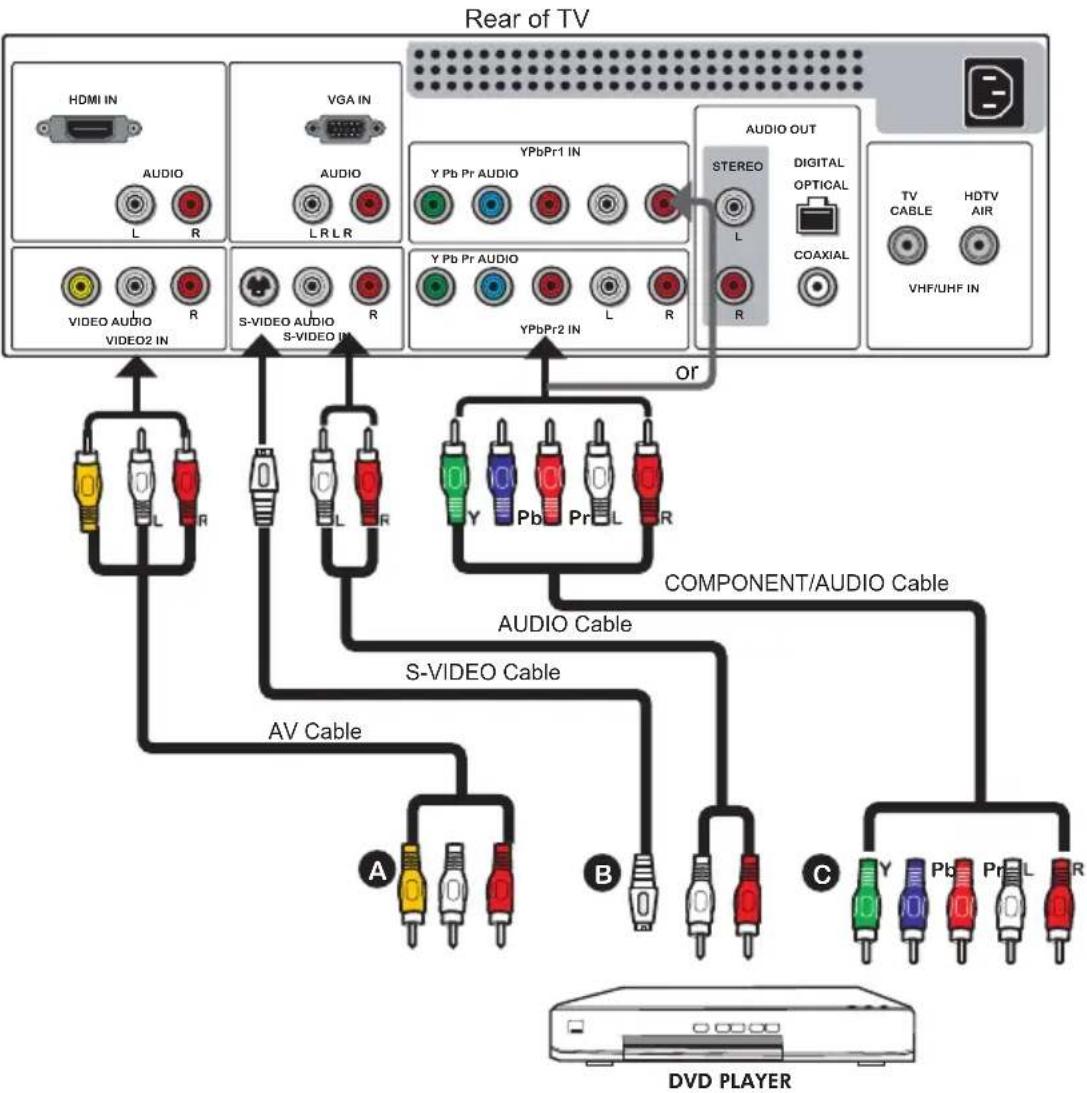

Connecting a DVD Player....20

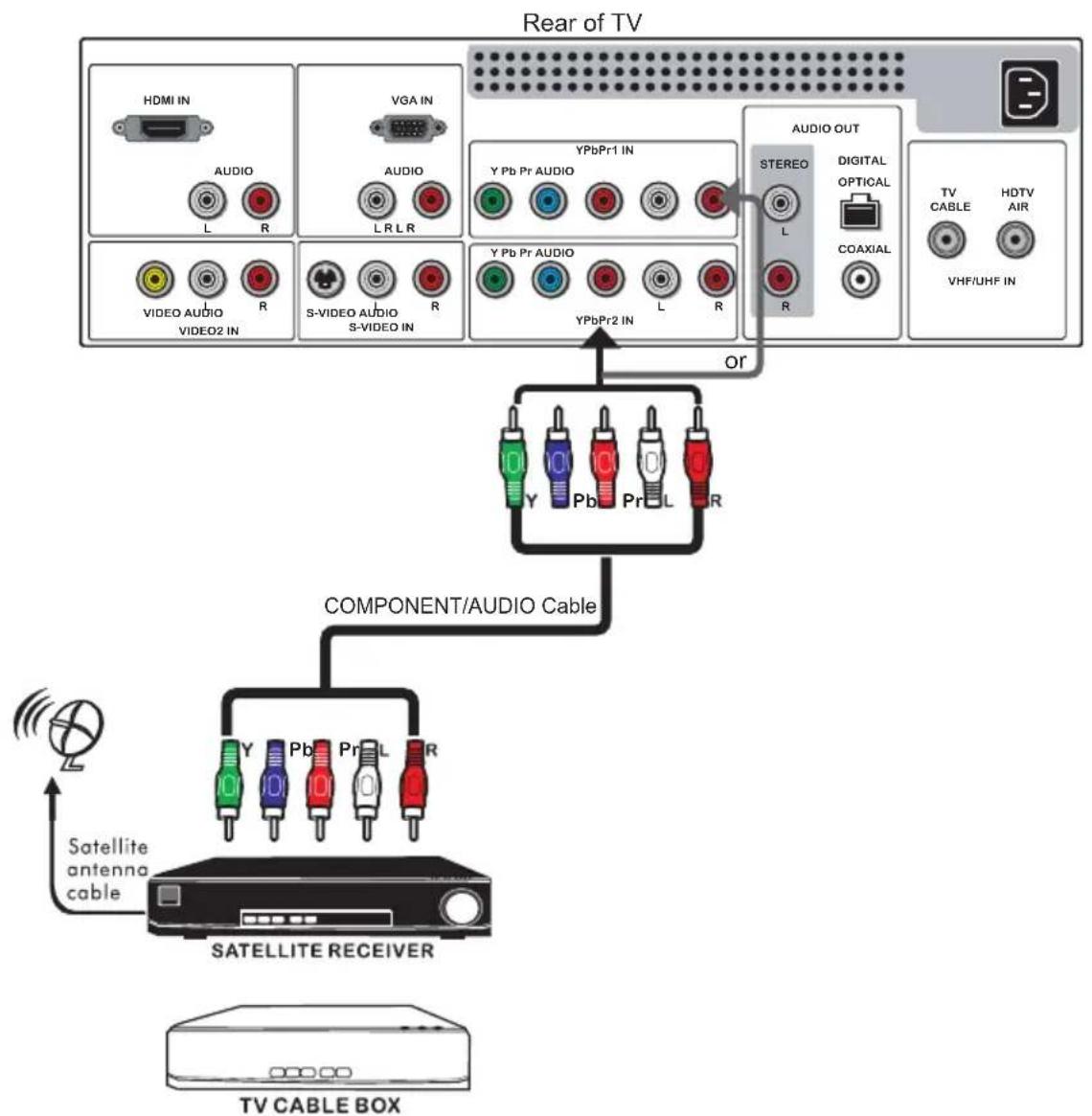

Connecting a Digital TV Cable Box or Digital Satellite Receiver 22

Connecting an AV Equipment with HDMI Connector.... 23

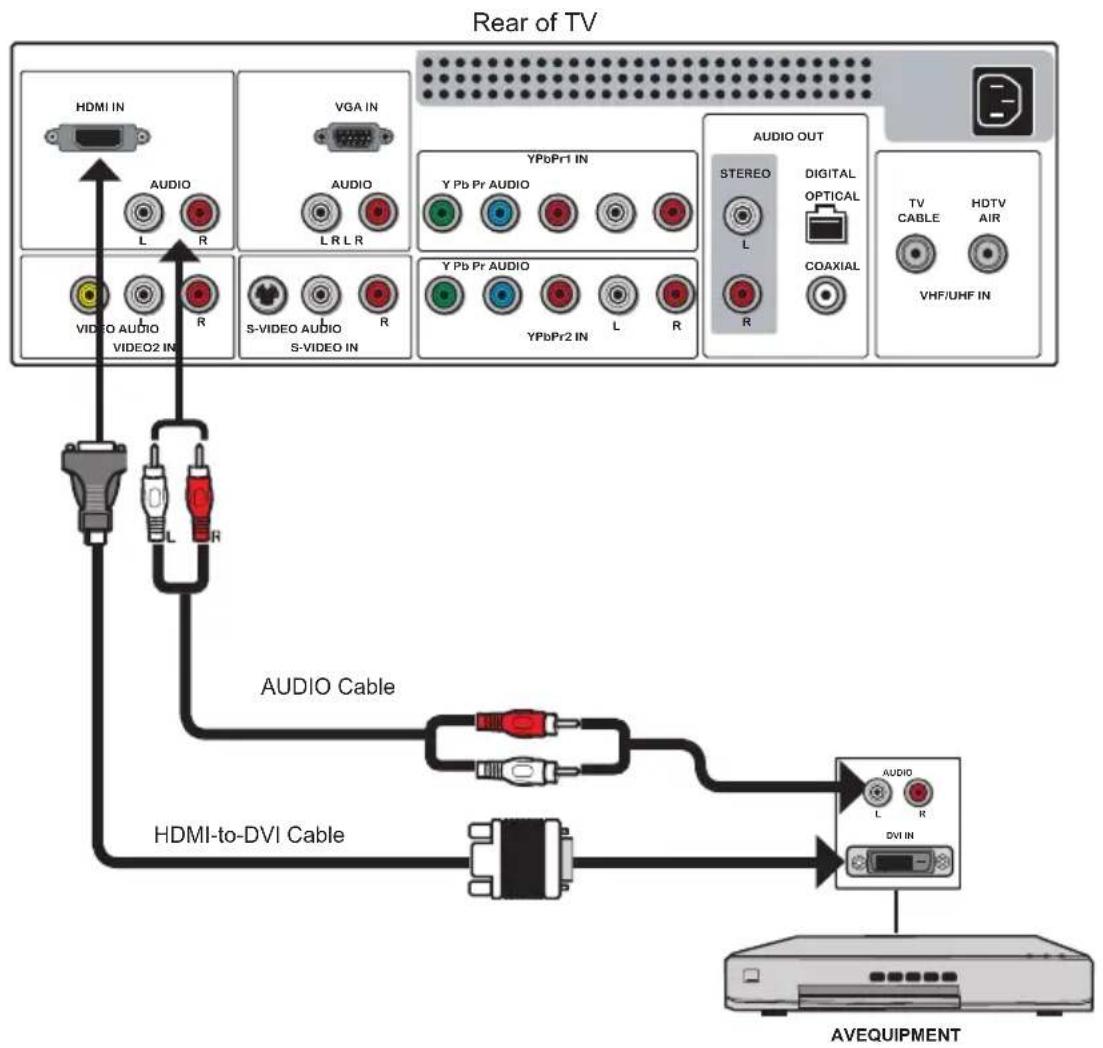

Connecting an AV Equipment with DVI Connector 24

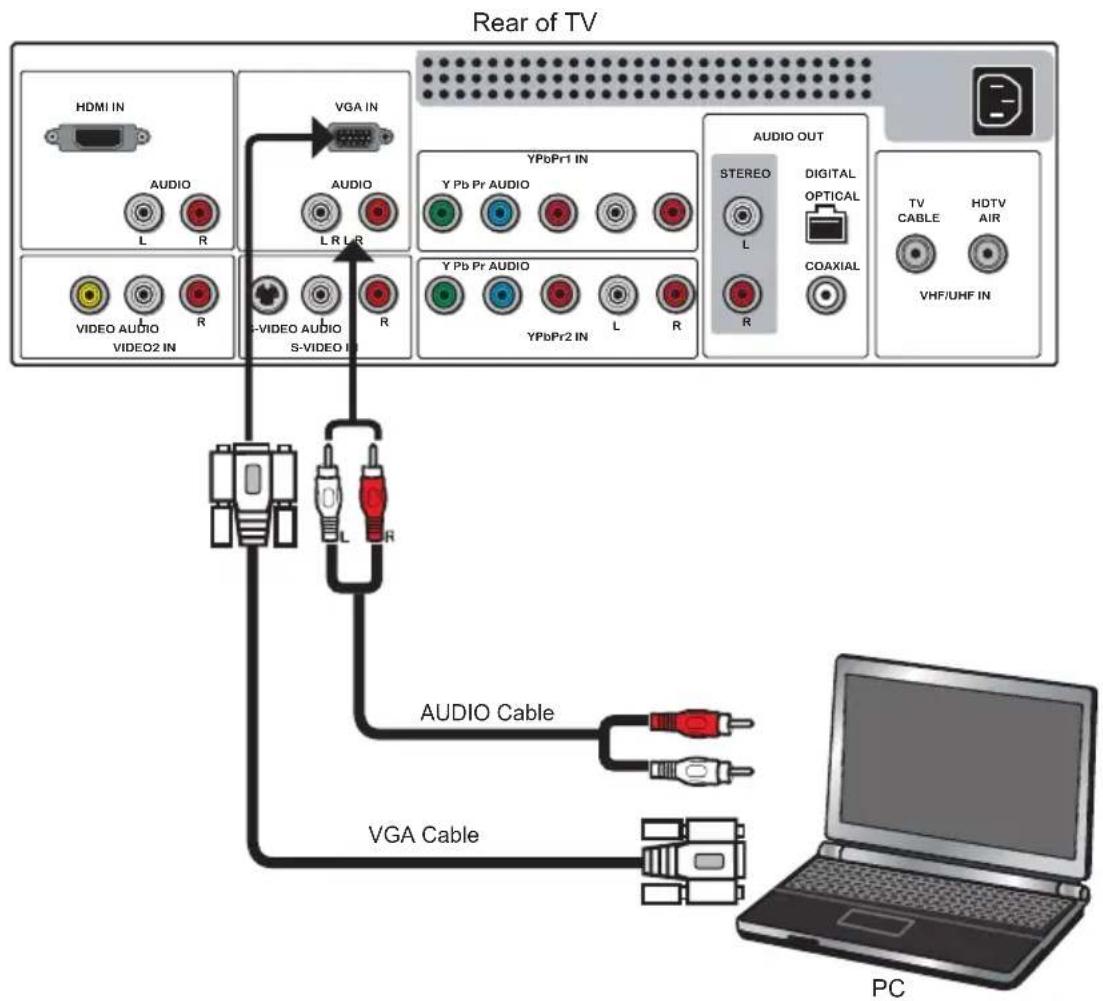

Connecting a PC....25

Connecting an Audio Receiver or a Dolby Digital 5.1 Sound System.... 26

■ Chapter 3 USING THE FEATURES

Wide Screen Viewing 27

Operating the Menu....28

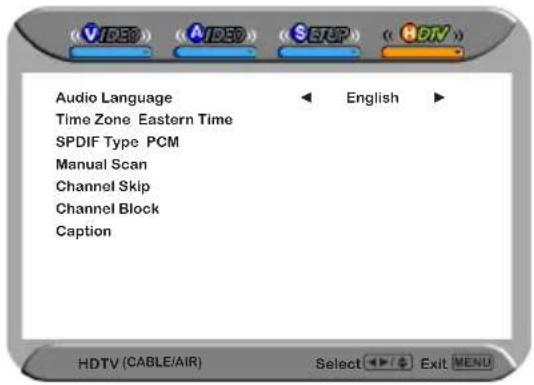

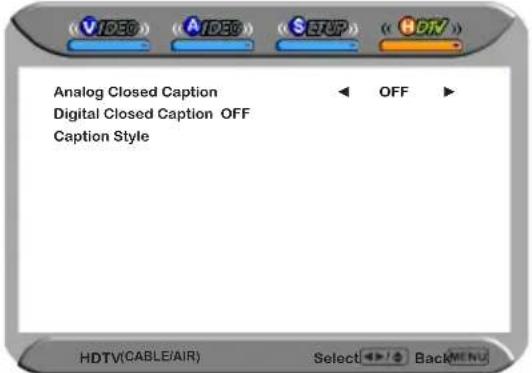

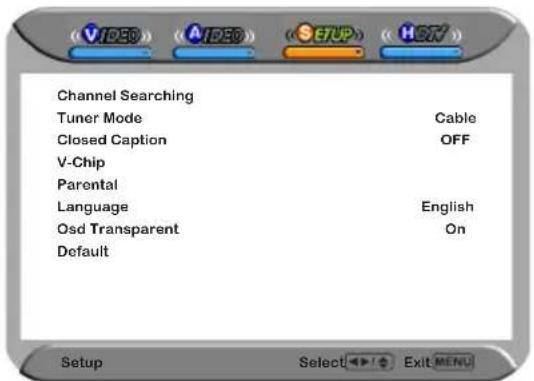

Setting up the HDTV Function 30

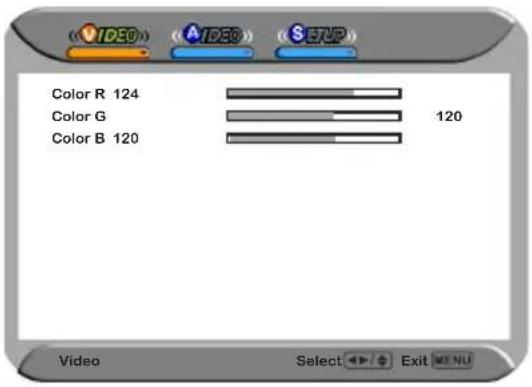

Customizing the VIDEO Settings 34

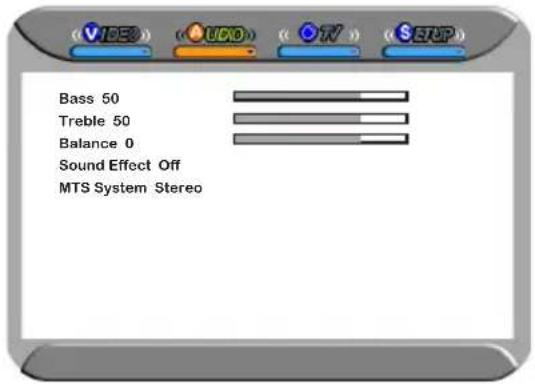

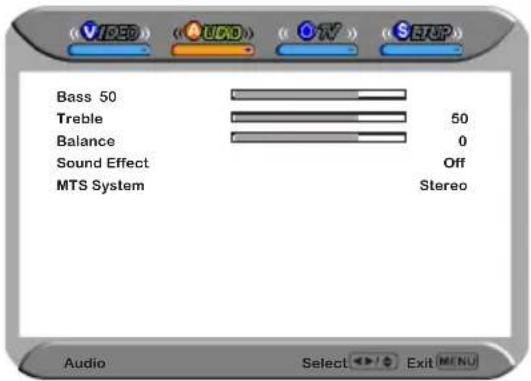

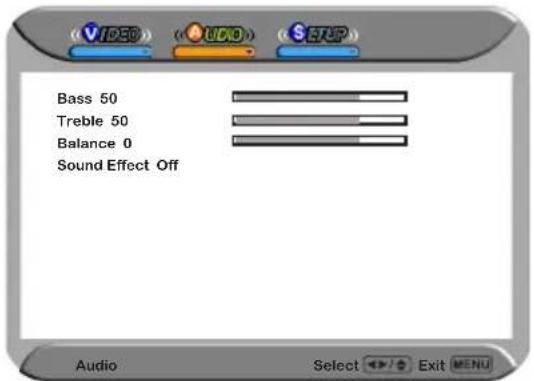

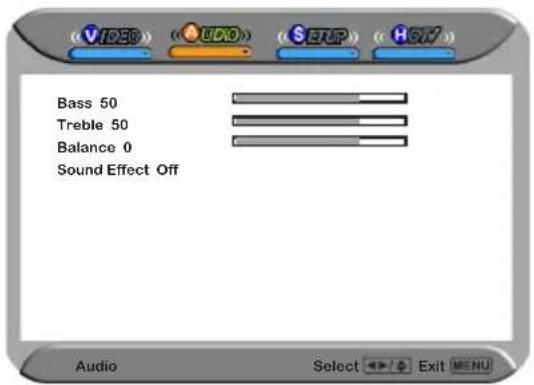

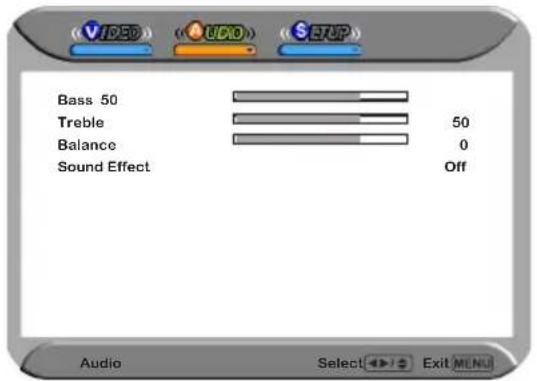

Customizing the AUDIO Settings 36

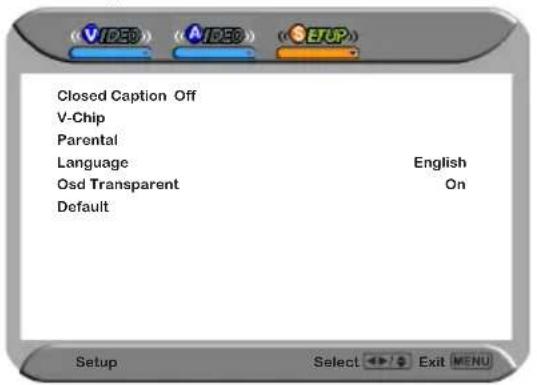

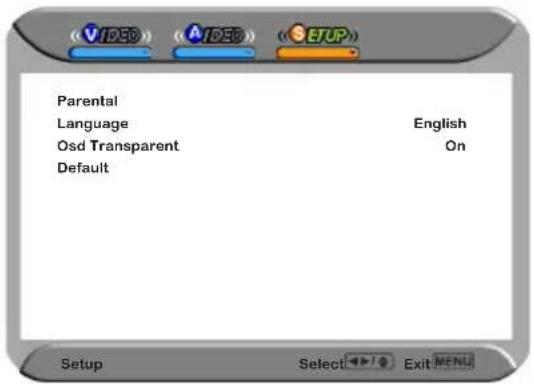

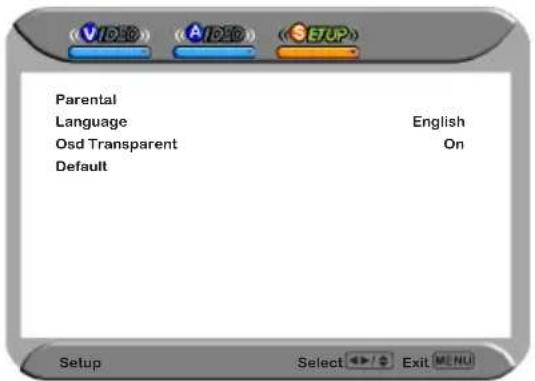

Customizing the SETUP Settings.... 37

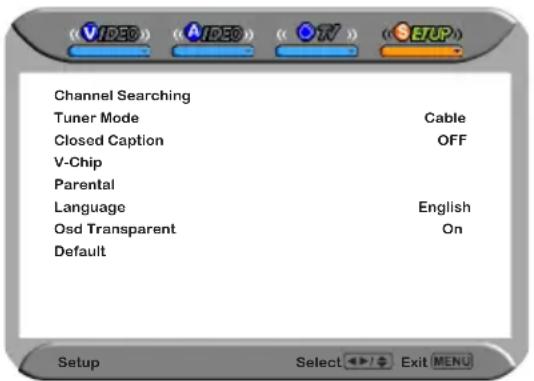

Using the V-CHIP Settings....39

Using the Parental Settings....41

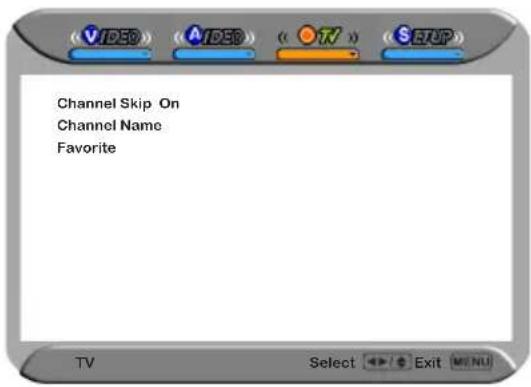

Customizing the TV Settings....42

■ Troubleshooting....43

■ Specification 44

Chapter 1 Introducing the LCD TV

Key Features

Various Audio/Video terminals for external equipment connection

• 2 set of composite A/V input terminals
• 1 set of S-VIDEO terminals
• 2 set of component Video input terminals
• 1 VGA/ Audio input terminal
• 1 HDMI/Auido input terminal
• 1 sets of Audio(L/R) output terminals
• 2 SPDIF output terminal (Optical x 1 /Coaxial x 1)
  ■ 1 Headphone terminal

The built-in TV tuner to receive HD ATSC

- This function allows the reception of HD broadcasting without the addition of a set top box.

High Definition Multimedia Interface (HDMI)

- High Definition Multimedia Interface (HDMI) is a small, user-friendly interconnect that can carry up to 5 Gbps of combined video and audio in a single cable. This system eliminates the cost, complexity and confusion of multiple cables used to connect current A/V systems.

HDTV Component Video Inputs

- Offers the best video quality for DVD(480p) and digital set-top-box (HD1080i, 720p) connections.

3D Digital Noise Reduction

- This function can digitally reduce image noise to provide better picture quality.

Film-Mode Detection (3:2 Reverse Pull Down)

- This function can automatically detect content derived from film and adjust the interlacer's frame matching to provide a more natural-looking, clearer image of the moving picture.

PIP Function

- Provides viewing of two programs simultaneously, in either picture-in-picture mode or picture-on-picture (side by side) mode.

Package Contents

Make sure all of the following contents are included.

LCD TV

Blank rectangular image with no visible text, symbols, or markings

☑ Bottom Stand / Screw Driver and 6 Screws

Illustration of a mechanical device with a flat top and a knife, showing internal components (no text or symbols)

☑ VIDEO Cable☑ Remote Control/

AAA Batteries x 2

Illustration of a remote control with two cylindrical batteries (no text or symbols)

Power Cord

Coiled black cable with two connectors, no visible text or symbols

☑ AUDIO Cable ☑ Warranty Card

Illustration of a coiled cable with three red and white cables (no text or symbols)

User's Manual

Quick Start Guide

Quick Set Up Guide

☑ Attention Card

These items are all you need to set up and operate the LCD TV in its basic configuration.

Most devices (VCRs, DVD player, etc.) come with the necessary cable for connection. If you want to set up a complex system, you may need to buy extra cable, connector, etc.

Setting Up Your LCD TV

How to install the TV Stand

If you prefer to mount your new TV on a wall instead of attaching it to the stand, please reference the instructions included in the wall mounting kit(not included).

Attach the Stand the TV with the bottom foam packaging material still attached.

Read all instructions before continuing with the stand installation.

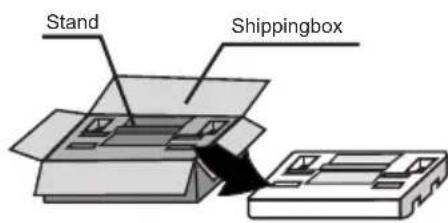

a. Lift foam packaging material from the top of the LCD out of the box.
b. Lift LCD out of the box, with the bottom foam packaging material still attached, and place onto a stable surface.

a

Stand Shippingbox

Two people sitting at a table with two upward arrows indicating motion or pressure (no text or symbols)

b

Protectivebag Table

c. Remove protective bag from LCD unit, but DO NOT remove the bottom foam packaging material from the TV.
d. Locate the place on the back of the TV to attach the stand. Secure the stand to the LCD with all six screws.

C

Unit Table

Stand Packaging material

d

Screw x 6 Stand Unit Table Packaging material

1

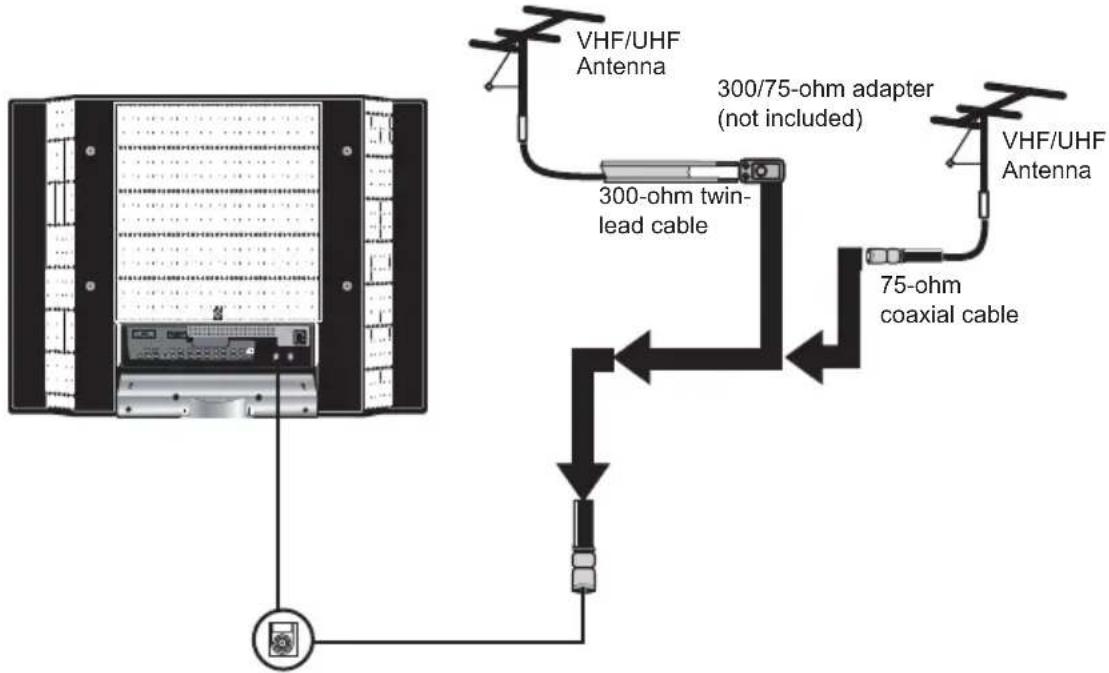

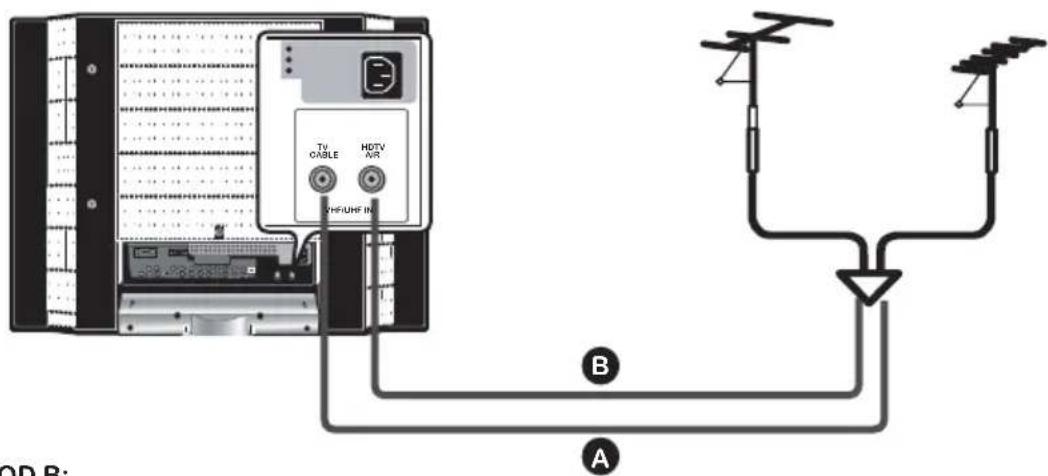

Use a supplied antenna cable to connect the VHF/UHF signal to the LCD TV's ANT. terminal (refer to page17).

2

Connect the AC power cord at the back of the TV and connect the power cord to wall outlet.

3

Insert the 2 batteries supplied in remote control.

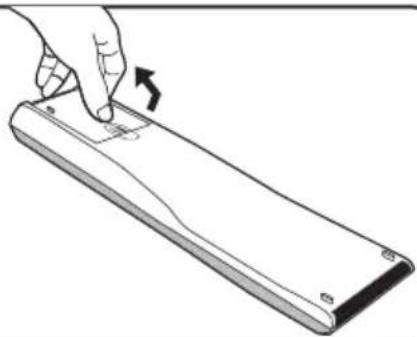

Step1 Slide the back cover up to open the battery compartment of the remote control.

Illustration of a hand pressing down on a flat electronic device with a scroll wheel (no text or symbols)

Step2 Insert two AAA size batteries. Make sure to match the (+) and (-) ends of the batteries with the (+) and (-) ends indicated in the battery compartment. Slide the cover back into place.

Illustration of a remote control casing with a black arrow pointing to the top panel (no text or symbols)

Do not use caustic cleaners (porcelain, stainless steel, toilet, or oven cleaner etc.) on the remote, as it may suffer damage.

4

Connect other an external A/V device (refer to page14-25).

Effective range

Your remote control can be activated from up to the LCD TV 5m away, if pointed directly in front of the device.

Illustration of a flat-screen monitor with an angle measurement annotation (30° and 50°) shown below it, no text or symbols on the device itself.

5m

Your LCD TV

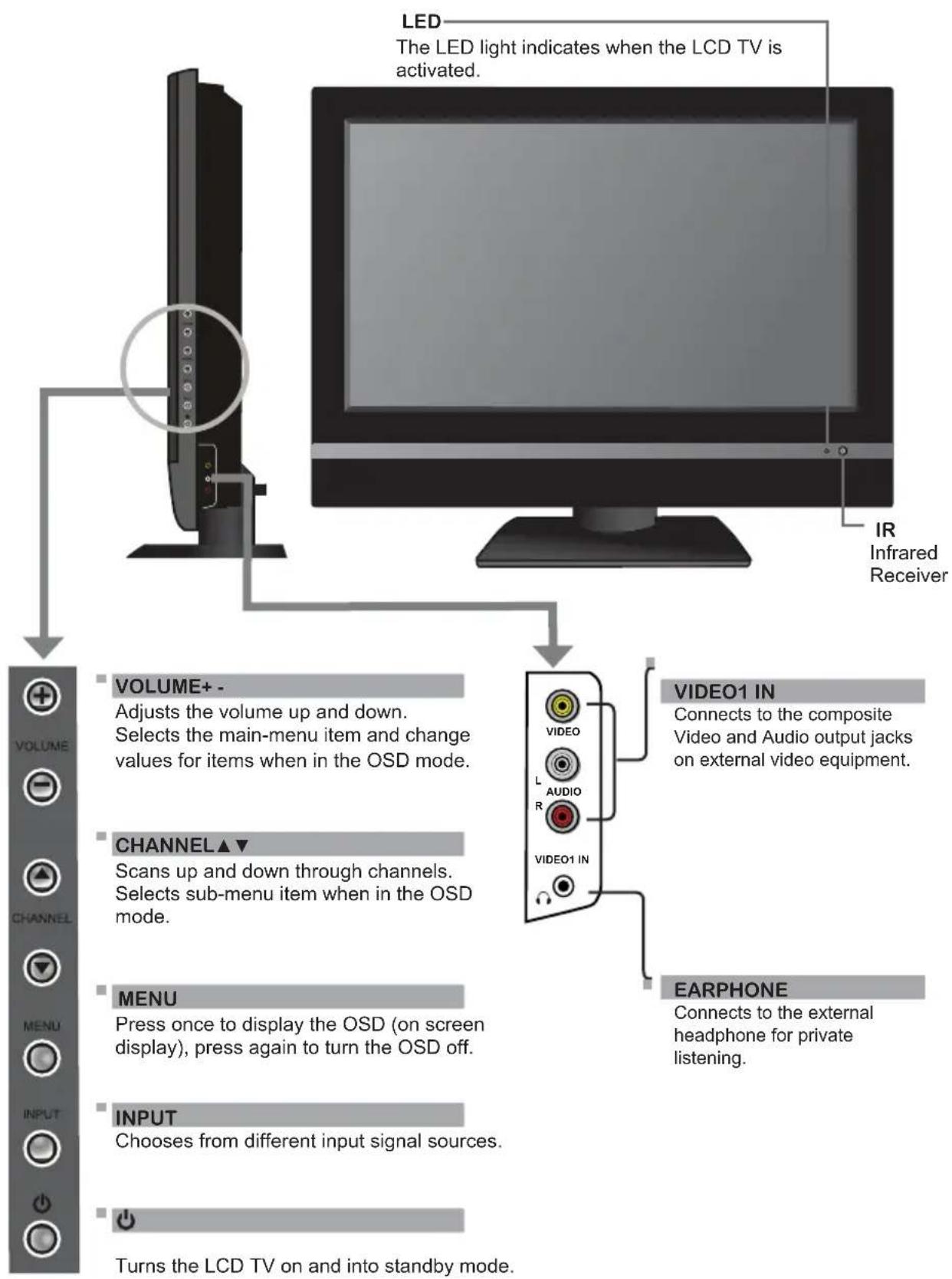

Front/Right Side View and Controls


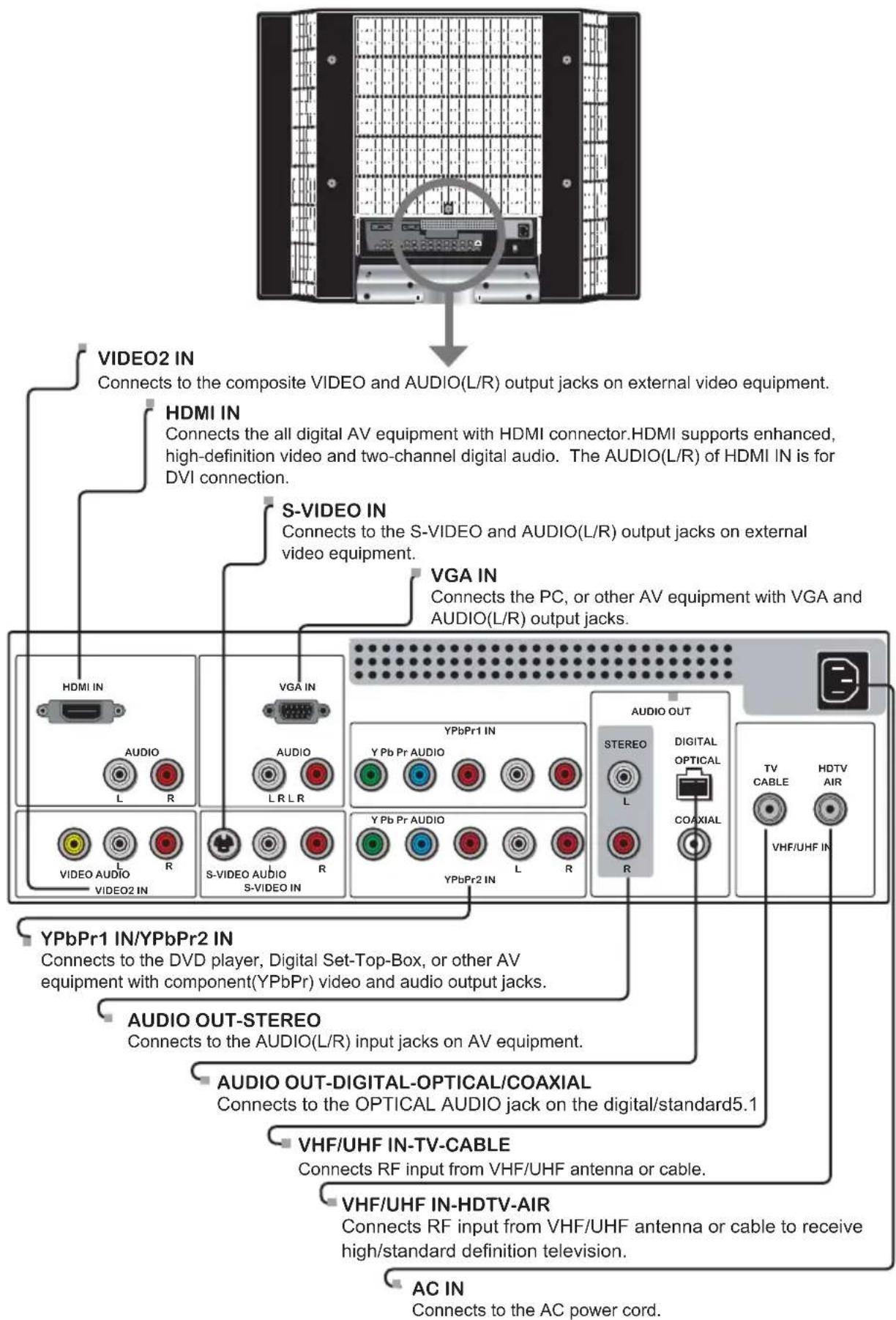

Rear View and Jacks

Your Remote Control

POWER SWAPPIPP.MODE S.MODE MTSMUTE CAPTIONP SIZE SLEEP 1 2 3 4 5 6 7 8 9 JUMP 0 . AIR/CABLE VOL. INPUT CH. GUIDE EXIT OK INFO MENU LISTFAV.CHTIMERFREEZE

1 POWER Turns the LCD TV on and off

2 SWAP This function is not available for this model

3 P.MODE Selects picture mode: Vivid/Standard/Cinema/Sport/User

4 PIP This function is not available for this model

5 MTS Cycles through the multi-channels TV sound(MTS) options: SAP/MONO/STEREO

6 S.MODE Selects sound effect options: Surround/Live/Dance/Techno/Classic/Soft/Rock/POP/Off

7 MUTE Mutes and restores audio

8 CAPTION Cycles through the Closed Caption: OFF/CC1/CC2/CC3/CC4/T1/T2/T3/T4

9 SLEEP Cycles through the LCD TV sleep time: OFF/30/60/90/120 mins

10 P.SIZE Cycles through Wide mode settings : NORMAL /FULL/WIDE/ZOOM

11 0-9 Select and switch to a channel by using 0-9 buttons

• In HDTV mode, use with 0-9 and • buttons to select a digital channels

12 JUMP Returns to previously selected channel

13 AIR/CABLE Cycles through the TV receiving signal: AIR:antennaCable:STD

14 VOL.+- Increases and decreases volume

15 CH.▲▼ Scans up and down the channels

16 INPUT Pressing INPUT to display a source list, use ▲▼ to select the video equipment connected to the video inputs of your LCD TV : TV/HDTV/VIDEO1/VIDEO2/VIDEO3/VIDEO4/VIDEO5/VIDEO6/COMPUTER

POWER SWAPPIPP.MODE S.MODE MTSMUTE CAPTIONP.SIZE SLEEP 1 2 3 4 5 6 7 8 9 JUMP 0 . AIR/CABLE + VOL. INPUT CH. GUIDE EXIT 17 18 19 20 INFO MENU 21 22 LISTFAV.CHT/MERFREEZE 23 24 25 26

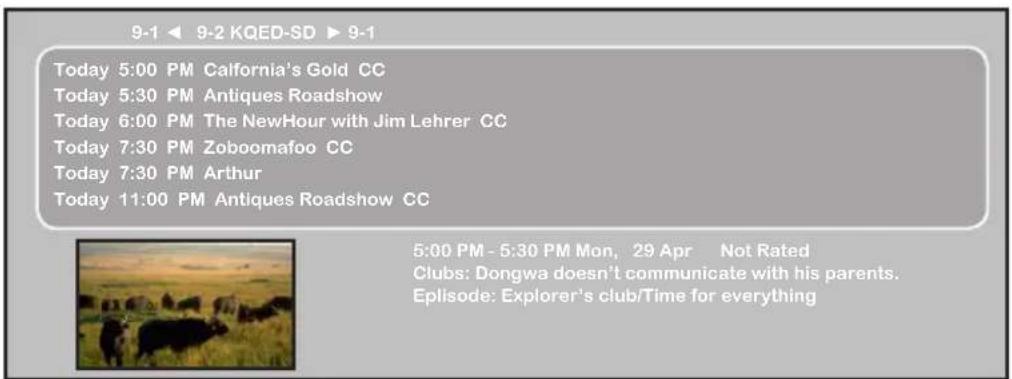

17	GUIDE	In HDTV mode, pressing GUIDE displays the Program Guide on the screen
18	EXIT Exits the OSD menu
19	▲▼▶◀OK	Cycles through OSD options and selects individual menu items. OK confirms option settings
20	INFO	Pressing once displays a variety of information such as the current channel and the input source
21	MENU	Displays the OSD menu on the screen
22		For European TV system only
23	LIST	In HDTV mode, pressing LIST button to display the received channel list
24	TIMER	Allows you to set up the time, program the TV to turn on and off, and to tune to a specific channel

Time 07:23:32 Start Time 00:00:00 Stop Time 00:00:00 Channel 001 Activate On/Off/Once Confirm On/Off

• Time: Select to set the current time by hour, minute, second
• Start Time: Select to set the time that you want the TV to turn on
• Stop Time: Select to set the time that you want the TV to turn off
• Channel: Select to set the specific channel that you want the TV to tune to when tuned on.
• Activate: Select to turn on/off/once the timer
• Confirm: Select to confirm

25	FREEZE	Pressing FREEZE to freeze the current picture, press again to restore the picture.
26	FAV.CH	Pressing FAV.CH display favorite channels

Effective range:

The remote can control the LCD TV from up to 5m away, if pointed directly at the receiver.

Chapter 2 Installing the LCD TV

Refer to the owner's manual of any external equipment to be connected.

When connecting any external equipment, do not connect any AC power cords to wall outlets until all other connections are completed.

Connecting a TV Cable or an Antenna

Antenna Connection

The antenna requirements for good color TV reception are more important than those for a black & white TV reception. For this reason, a good quality outdoor antenna is strongly recommended. The following is a brief explanation of the type of connection that is provided with the various antenna systems.

■ A 75-ohm system is generally a round cable (not included) with F-type connector that can easily be attached to a terminal without tools. F-type connector 75-ohm coaxial cable (round) ■ A 300-ohm system is a flat twin-lead cable (not included) that can be attached to a 75-ohm terminal through a 300-75-ohm adapter (not included). 300-ohm twin-lead cable (flat)

Use one of the following two diagrams when connecting an outdoor antenna.

A: Shows how to use a VHF/UHF combination outdoor antenna.
B: Shows how to use a separate VHF and/or UHF outdoor antenna.

A. Combination VHF/UHF antenna

VHF/UHF Antenna 300/75-ohm adapter (not included) 300-ohm twin- lead cable VHF/UHF Antenna 75-ohm coaxial cable

B. Separate VHF and/or UHF antennas

Cable TV (CATV) Connection

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the National Electrical Code (NEC) that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building accurately, or as close to the point of cable entry as possible. Use of this TV for other than private viewing of programs broadcasted on UHF, VHF or transmitted by cable companies for the use of the general public may require authorization from the broadcast/cable company, and/or program owner.

■ A 75-ohm coaxial cable connector is built into the set for easy hookup. When connecting the 75-ohm coaxial cable to the set, connect the 75-ohm cable into the ANT. terminal.
■ Some cable TV companies offer premium pay channels. Since the signals of these premium pay channels are scrambled, a cable TV converter/descrambler is generally provided to the subscriber by the cable TV company.

This converter/descrambler is necessary for normal viewing of scrambled channels.

(Set your TV to channel 3 or 4, typically one of these channels is used. If this is unknown, consult your cable TV company.)

For more specific instructions on installing cable TV, consult your cable TV company.

One possible method of connecting the coverter/descrambler provided by your cable TV company is shown in the diagram below.

The RF switch (not included) is required to provide two inputs (A and B). Setting the RF switch to position A allows viewing of all unscrambled channels by using the TV channel keys.
■ Setting the RF switch to position B allows viewing of all scrambled channels via the converter/descrambler by using the converter channel keys.

METHOD A:

Use a supplied antenna cable to connect the NTSC signal to the LCD TV's TV CABLE terminal.

TV CABLE HDTV AVR THFUHF IN B A 2DB:

METHOD B:

Use a supplied antenna cable to connect the ATSC signal to the LCD TV's HDTV AIR terminal.

Connect the AC power cord at the back of the TV and connect the power cord to wall outlet.

outlet. TV CABLE HDTV AIR VIF/REF IN

Press the button on the remote to turn on the LCD TV.

Always disconnect the LCD TV from the main voltage when the LCD TV will not be used for a long period of time. The POWER button on the front panel is only used for switching the LCD TV into standby, it does not disconnect the device from the main voltage. To completely disconnect the main voltage, please remove the power plug from the socket.

Press the INPUT button on the remote to display the Input List. Use the ▲▶ buttons to select TV(METHOD A), or HDTV (METHOD B), and press the OK button.

Main

TV(CABLE/AIR)

HDTV (CABLE/AIR)

VIDEO1 (SIDE)

VIDEO2 (REAR)

VIDEO3 (S-VIDEO)

VIDEO4 (YPbPr1)

VIDEO5 (YPbPr2)

VIDEO6 (HDMI)

COMPUTER (VGA)

1 METHOD A:

Use a composite cable to connect the VCR's composite video/audio jacks to the LCD TV's VIDEO2 IN jacks.

METHOD B:

Use an audio cable to connect the VCR's audio output jacks to the LCD TV's audio inputs. Use a S-Video cable to connect the VCR's s-video output jack to the LCD TV's S-VIDEO IN input jack.

2 Connect all AC power sources, before turning on the power switch of the LCD TV or other connected equipment.
3 Press the ⬆ button on the remote to turn on the LCD TV.
4 To watch a videotape, press the INPUT button on the remote to select VIDEO2(METHOD A), or VIDEO3 (METHOD B).

Connecting a Video Camera or Play Station

1 METHOD A:

Use a composite cable to connect the video camera's or play station's composite video/audio jacks to the LCD TV's VIDEO2 IN jacks or VIDEO1 IN jacks.

METHOD B:

Use an audio cable to connect the video camera's or play station's audio output jacks to the LCD TV's audio inputs. Use a S-Video cable to connect the video camera's or play station's s-video output jack to the LCD TV's S-VIDEO IN input jack.

2 Connect all AC power sources, before turning on the power switch of the LCD TV or other connected equipment.

3 Press the button on the remote to turn on the LCD TV.

4 To watch a video vis camera or play station, press the INPUT button on the remote to select VIDEO2/VIDEO1(METHOD A), or VIDEO3 (METHOD B).

Not all cameras have the ability to connect to a TV. Please check your video camera user guide for compatibility.

Connecting a DVD Player

METHOD A:

Use a composite cable to connect the DVD player's composite video/audio jacks to the LCD TV's VIDEO2 IN jacks.

METHOD B:

Use an audio cable to connect the DVD player's audio output jacks to the LCD TV's audio inputs. Use a S-Video cable to connect the DVD player's s-video output jack to the LCD TV's S-VIDEO IN input jack.

METHOD C:

Use a component cable to connect the DVD player's component output jacks to the LCD TV's YPbPr1 IN or YPbPr2 IN input jacks.

Use an audio cable to connect the DVD player's component audio jacks to the LCD TV's audio input jacks.

The component video jacks on your DVD player are sometimes labeled YPbPr, or YCbCr. For an explanation of component video, see your DVD player's user guide.

Connect all AC power sources, before turning on the power switch of the LCD TV or other connected equipment.

Press the ⏻button on the remote to turn on the LCD TV.

To watch a DVD, press the INPUT button on the remote to select VIDEO2(METHOD A), or VIDEO3 (METHOD B), or VIDEO4/VIDEO5 (METHOD C).

For best picture quality, if your equipment has component video output, use a component cable instead of a composite video or S-video cable.

Connecting a Digital TV Cable Box or Digital Satellite Receiver

    subgraph Video
        F["HDMI IN"]
        G["AUDIO"]
        H["VGA IN"]
        I["VIDEO AUDIO VIDEO2 IN"]
        J["S-VIDEO AUDIO S-VIDEO IN"]
    end

    subgraph Audio
        K["Y Pb Pr AUDIO"]
        L["Y Pb Pr AUDIO"]
        M["Y PbPr2 IN"]
    end

    subgraph Audio Out
        N["STEREO"]
        O["DIGITAL OPTICAL"]
        P["COAXIAL"]
        Q["TV CABLE"]
        R["HDTV AIR"]
        S["VHF/UHF IN"]
    end

    B --> T["Satellite antenna cable"]
    T --> U["SATELLITE RECEIVER"]

Use a component cable to connect the satellite receiver's/TV Cable Box's component (YPbPr1) output jacks to the LCD TV's component input jacks.
Use an audio cable to connect the satellite receiver's/TV Cable Box's component audio jacks to the LCD TV's audio input jacks.

2 Connect all AC power sources, before turning on the power switch of the LCD TV or other connected equipment.

3 Press the ⏻ button on the remote to turn on the LCD TV.

4 To watch programs via satellite receiver or TV Cable Box, press the INPUT button on the remote to select VIDEO4/VIDEO5.

Connecting an AV Equipment with HDMI Connector

Rear of TV

Use a HDMI cable to connect the AV equipment's HDMI output jack to the LCD TV's HDMI IN jacks.
2 Connect all AC power sources, before turning on the power switch of the LCD TV or other connected equipment.
3 Press the ⏻ button on the remote to turn on the LCD TV.
4 Press the INPUT button on the remote to select VIDEO6.

The HDMI connector provides both video and audio signals, it's not necessary to connect the audio cable.

Connecting an AV Equipment with DVI Connector

Use a HDMI-to-DVI cable to connect the AV equipment's DVI output jack to the LCD TV's HDMI IN jacks.

Use an audio cable to connect the AV equipment's audio output jacks to LCD TV's HDMI AUDIO jacks.

Connect all AC power sources, before turning on the power switch of the LCD TV or other connected equipment.

Press the ⏻ button on the remote to turn on the LCD TV.

Press the INPUT button on the remote to select VIDEO6.

If the LCD TV is connected to AV equipment's DVI connector, you will need an HDMI-to-DVI cable or an HDMI adapter(not supplied).

Connecting a PC

Use a D-SUB cable to connect the PC's D-SUB output jack to the LCD TV's VGA input jack. Use an audio cable to connect the PC's audio output jacks to LCD TV's.
2 Connect all AC power sources, before turning on the power switch of the LCD TV or other connected equipment.
3 Press the button on the remote to turn on the LCD TV.
4 Press the INPUT button on the remote to select COMPUTER.

Connecting an Audio Receiver or a Dolby Digital 5.1 Sound System

For better sound quality, you may want to play the LCD TV audio through your stereo system.

Connecting to Audio Receiver:

Use an audio cable to connect the audio receiver's audio LINE IN jacks to LCD TV's AUDIO OUT jacks.

Connecting to Digital 5.1 Sound System:

METHOD A:

Use an optical cable to connect the audio amplifier's OPTICAL IN jacks to LCD TV's OPTICAL OUT jacks.

METHOD B:

Use a coaxial cable to connect the audio amplifier's COAXIAL IN jacks to LCD TV's COAXIAL OUT jacks.

Note: Above mentioned function is only available under HDTV (cable/air) mode.

Connect all AC power sources, before turning on the power switch of the LCD TV or other connected equipment.

Press the ⬤button on the remote to turn on the LCD TV.

Chapter 3 USING THE FEATURES

Wide Screen Viewing

Wide Screen function allows viewing of 4:3/16:9 images in wide screen mode, cycling through the following wide screen settings. Press the P.SIZE button repeatedly to select the screen format you want.

NORMAL

Displays at 4:3 aspect ratio

Three red tomatoes on a tiled surface, no text or symbols visible

FULL

Stretches the image vertically and horizontally to keeps the image size consistent in the center of the screen and stretches the sides

Three red tomatoes on a white tiled surface, no text or symbols visible

WIDE

Stretches the image vertically and horizontally to fill the screen at 1:1.85 aspect ratio.

Three red tomatoes on a white tiled surface (no text or symbols)

ZOOM

Stretches the image vertically and horizontally to fill the screen at 1:2.35 aspect ratio.

Three red tomatoes on a white surface, no text or symbols visible

Operating the Menu

Press

button to turn the LCD TV on.

Press the MENU button on the remote control, the on-screen menu will appear on the screen. Use the ◀▶ buttons to select your main menu option.

VIDEO MENU:

Allows you to make adjustments to your picture settings.

- If the signal source is TV/HDTV/VIDOE/SVIDEO/YPbPr/HDMI, the VIDEO MENU appears as:

- If the signal source is VGA, the VIDEO MENU appears as:

Picture Mode Vivid Contrast 75 Brightness 55 Saturation 62 Hue +22 Sharpness 4 Color Temperature Noise Reduction Nature Low Video Select Exit MENU

VIDEO VIDEO STEP Picture Mode Contrast Brightness 65 Auto Setting Phase Manual Clock Display Adjustment Color Temperature Noise Reduction Vivid 75 20 128 Nature Low Video Select Exit MENU

AUDIO MENU:

Allows you to customize the audio options and effects.

- If the signal source is VIDOE/SVIDEO/YPbPr/HDMI/VGA, the AUDIO MENU appears as:

- If the signal source is TV, the AUDIO MENU appears as:

Bass 50 Treble 50 Balance 0 Sound Effect Off Audio Select Exit MENU

Bass 50 Treble 50 Balance 0 Sound Effect Off MTS System Stereo

- If the signal source is HDTV, the AUDIO MENU appears as:

Bass 50 Treble 50 Balance 0 Sound Effect Off Audio Select Exit MENU

SETUP MENU:

Allows you to set up a variety of features: Language, Closed Caption, factory reset, V-Chip, Parental Control, sleep timer.

- If the signal source is VIDEO/S-VIDEO, the Setup menu appears as:

Closed Caption Off V-Chip Parental Language English Osd Transparent On Default Setup Select Exit MENU

- If the signal source is TV/HDTV, the Setup menu appears as:

Channel Searching Tuner Mode Cable Closed Caption OFF V-Chip Parental Language English Osd Transparent On Default Setup Select Exit [MENU]

- If the signal source is YPbPr/HDMI/VGA, the Setup menu appears as:

Parental Language English Osd Transparent On Default Setup Select Exit MENU

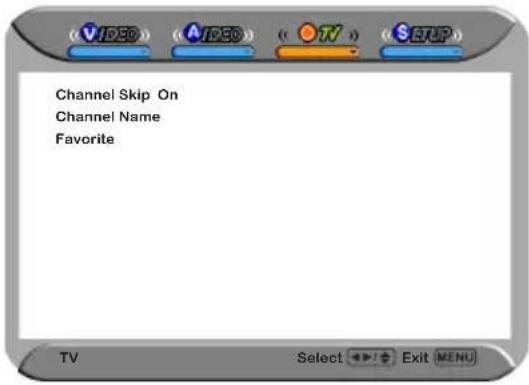

TV MENU:

Allows you to edit and label channels.

Channel Skip On Channel Name Favorite

HDTV MENU:

Allows you to set up the HDTV program function.

Audio Language Time Zone Eastern Time SPDIF Type PCM Manual Scan Channel Skip Channel Block Caption English ▶ HDTV (CABLE/AIR) Select Exit MENU

Use the ▲▼ buttons to select an option of the sub-menu, and press the OK button. While in adjustment mode, and use the ◀▶ buttons to change the value of the item.

Press the EXIT button to exit the menu.

Setting up the HDTV Function

Automatically scans and stores all the TV channels

With the LCD TV connected to a television programming source, press the INPUT button on the remote to display the Source List. Use the ▲▼ buttons to select HDTV, and press the OK button.

Press the MENU button on the remote control to display the Main menu, and use the ◀▶ buttons to select the SETUP.

Channel Searching Tuner Mode Cable Closed Caption OFF V-Chip Parental Language English Osd Transparent On Default Setup Select Exit MENU

Press the ▼ button to select Channel Searching, and press the OK button. The Channel Searching automatically creates a list of receivable channels from VHF/UHF antenna or Cable TV if the source is connected. Select the Cancel button at any time to interrupt the memorization process. (the list cannot be created if interrupted)

Auto Program Cable Please wait a few minutes for completion. Press Enter or Setup key to cancel. Analog Channel Searching Found Digital 0 Cancel

The Channel Searching will create a list of receivable channels for the current input (antenna or cable). You will be required to run Channel Searching for each RF input to create a list of available channels from both inputs.

Press the OK button or LIST button to display the received channel list, then press ▲▼ the buttons to select a channel. Or, use the • button with 0-9 buttons to select digital channel (for example 9.1)

Channel List 9-1 KQED-HD 9-2 KOED-SD

The digital main channel might include many sub channels (for example 9-1, 9-2..) that are showing program at the same time.

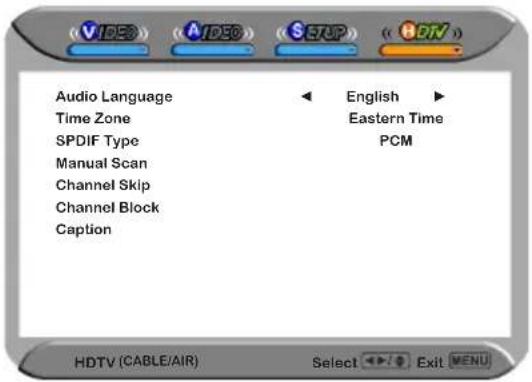

The HDTV menu includes the following options:

AUDIO Time Zone SPDIF Type Manual Scan Channel Skip Channel Block Caption English ▶ Eastern Time PCM HDTV (CABLE/AIR) Select Exit MENU

Audio Language Allows selection of the audio languages:

English/Spanish/French

Time Zone

Allows selection of time zones in the USA: Eastern Time/Indiana/Central time/Mountain Time/Arizona/Pacific Time/Alaska/Hawaii

SPDIF Type

Allows to selection of the external audio system: PCM/OFF/Dolby Digital

• PCM: The external audio system is connected to the AUDIO
  OUT (L/R) of the LCD TV.
• Dolby Digital: The external audio system is connected to the AUDIO
  OUT DIGITAL (OPTICAL or COAXIAL)) of the LCD TV
• OFF: Select OFF to turn off the external audio system

Manual Scan Allows to set up TV channel manually.

Scan with a range of channels. Scan Mode From Channel To Channel Range Mode 1 8 HDTV(CABLE/AIR) Select: Exit MENU

Channel Skip

Allows addition/removal of digital channels

Channel Block

Allows to block digital channels

Use the Channel Block function, must enter a four-digit password. The factory password is 0000

Caption Allows to set closed caption

Analog Closed Caption Digital Closed Caption OFF Caption Style HDTV(CABLE/AIR) Select Back

- Analog Closed Caption:

Press the ◀▶ buttons to select the basic analog closed caption options: OFF/CC1/CC2/CC3 CC4

Note: The setting here will be applied to each DTV channel

- Digital Closed Caption:

Press the ◀▶ buttons to select the digital closed caption options: Service1/Service2/Service3/Service4/Service5/Service6/OFF

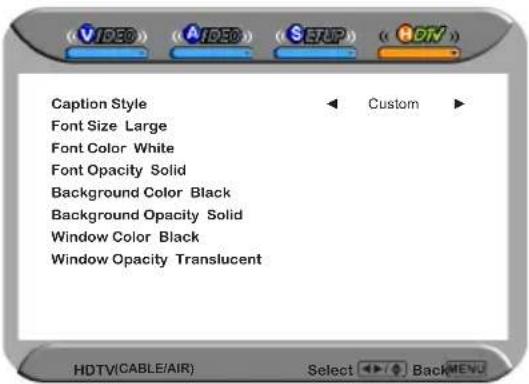

- Caption Style:

Press OK button to customize the settings for digital closed caption option:

Caption Style Font Size Large Font Color White Font Opacity Solid Background Color Black Background Opacity Solid Window Color Black Window Opacity Translucent Custom HDTV(CABLE/AIR) Select BackMENU

Using the Program Guide

The Program Guide feature brings all sorts of information to your screen, such as program title, program duration, time remaining, rating information, closed caption, availability, etc.

With the LCD TV connected to a television programming source, press the TV button on the remote control.

Press the GUIDE button on the remote control, the Program Guide will appear on the screen:

Monday 29 April 2005 2:36:26 PM

9-1 ← 9-2 KQED-SD ▶ 9-1 Today 5:00 PM California's Gold CC Today 5:30 PM Antiques Roadshow Today 6:00 PM The NewHour with Jim Lehrer CC Today 7:30 PM Zoboomafoo CC Today 7:30 PM Arthur Today 11:00 PM Antiques Roadshow CC 5:00 PM - 5:30 PM Mon, 29 Apr Not Rated Clubs: Dongwa doesn't communicate with his parents. Episode: Explorer's club/Time for everything

9 - 2 KOED-SD

Press the ▲▼ button to select the program from a list, the Program Guide provides introduction about the current program being shown on each channel.

Monday 29 April 2005 2:36:26 PM

9-1 9-2 KQED-SD 9-1 Today 5:00 PM California's Gold CC Today 5:30 PM Antiques Roadshow Today 6:00 PM The NewHour with Jim Lehrer CC Today 7:30 PM Zoboomafoo CC Today 7:30 PM Arthur Today 11:00 PM Antiques Roadshow CC 5:00 PM - 5:30 PM Mon, 29 Apr Not Rated Clubs: Dongwa doesn't communicate with his parents. Episode: Explorer's club/Time for everything

9 - 2 KOED-SD

Press the GUIDE button again on the remote control to exit the Program Guide

Customizing the VIDEO Settings

Press the button to turn the LCD TV on.

Press the MENU button on the remote control to display the Main menu, and use the ◀▶ buttons to select the VIDEO.

Use the ▲▼ buttons to highlight an individual VIDEO option, use the ◀▶ buttons to change the setting, and press the MENU to exit the menu

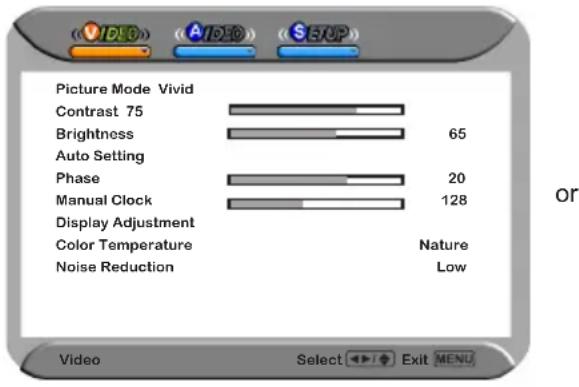

Picture Mode Vivid Contrast 75 Brightness 65 Auto Setting Phase 20 Manual Clock 128 Display Adjustment Color Temperature Nature Noise Reduction Low Video Select Exit MENU

Picture Mode Vivid Contrast 75 Brightness 55 Saturation 62 Hue +22 Sharpness 4 Color Temperature Nature Noise Reduction Low Video Select Exit MENU

The VIDEO menu includes the following options:

Picture Mode Cycles among display types: Vivid/Standard/Cinema/Sport/User

Contrast Controls the difference between the brightest and darkest regions of the picture

Brightness Controls the overall brightness of the picture

Saturation Controls the color intensity

Hue Controls the difference between the green and red regions of the picture

Sharpness Increase this setting to see crisp edges in the picture; decrease it for soft edges

Auto Setting Press the OK button to automatically adjust the display settings to optimize performance based on the VGA mode

Phase Controls the signal phase, which can improve focus clarity and image stability based on the VGA mode

Manual Clock Controls the width of the picture based on the VGA mode

Display adjustment

Press the OK button to enter the Display adjustment setting:

H Position 128 V Position 22 Video Select Exit MEN

- H Position Adjusts the position of the picture left and right in the window

- V Position Adjusts the position of the picture up and down in the window

Color temperature

Adjusts color components independently to achieve a warm or cool effect: Cool/Middle/Warm/User

• Warm: Increases red tint
• Nature: Increases natural tint
• Cool: Increases blue tint
• User: Allows the user to adjust red, green and blue color component levels independently

Video R 124 Color G Color B 120 120 Video Select Exit MENU

Noise Reduction:

Select to reduce the noise level of connected equipment: Off/Low/Strong/Middle

Customizing the AUDIO Settings

Press the 🎨 button to turn the LCD TV on.

Press the MENU button on the remote control to display the Main menu, and use the ◀▶ buttons to select the AUDIO.

Use the ▲▼ buttons to highlight an individual AUDIO option, use the ◀▶ buttons to change the setting, and press the MENU to exit the menu

V/OSD AUDIO SETUP Bass 50 Treble Balance Sound Effect 50 0 Off Audio Select Exit MENU

or

V123D AUDIO ON SETP Bass 50 Treble Balance Sound Effect MTS System 50 0 Off Stereo Audio Select Exit MENU

The AUDIO menu includes the following options:

Bass Controls the relative intensity of lower-pitched sounds

Treble Controls the relative intensity of higher pitched sounds

Balance	Adjusts the relative volume of the speakers in a multiple speaker system
Sound Effect	Allows selection of an audio-enhancement technique from among the following options: Surround/Live/Dance/Techno/Classic/Soft/Rock/POP/Off
MTS System	Allows you to listen to high-fidelity stereo sound while watching TV

- Stereo:

Use separate audio tracks for left and right speakers, if available

· SAP:

You can enjoy a second audio program from the speakers while watching a scene in the original program

- Mono:

Allows mono output (useful when stereo is noisy or inconsistent)

Customizing the SETUP Settings

Press the 📄 button to turn the LCD TV on.

Press the MENU button on the remote control to display the Main menu, and use the ◀▶ buttons to select the SETUP.

Use the ▲▼ buttons to highlight an individual SETUP option, use the ◀▶ buttons to change the setting, and press the MENU to exit the menu.

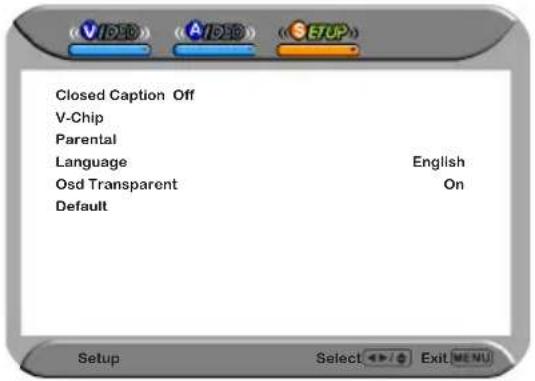

Closed Caption Off V-Chip Parental Language English Osd Transparent On Default Setup Select Exit(MENU)

or

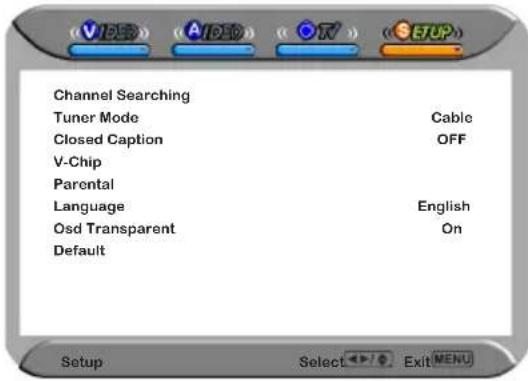

Channel Searching Tuner Mode Cable Closed Caption OFF V-Chip Parental Language English Osd Transparent On Default Setup Select Exit MENU

Parental Language English Osd Transparent On Default Setup Select Exit MENU

The SETUP menu includes the following options:

Channel Searching	Press the OK button, will automatically create a list of receivable channels
Tuner Mode	Allows selection between CATV cable and antenna signal sources:· AIRChoose this setting if you are receiving TV channels with an antenna (over the air)· Cable(IRC/HRC)Choose this setting if you are receiving TV channels with a CATV (cable TV)

Closed Caption Allows to select from 4 closed caption modes:

- CC1 /CC2 /CC3 /CC4:

Display a printed version of the dialog and sound effects of the program being viewed

- T1/T2:

Disgame console information presented using either half or the whole screen

T3/T4:

Extended Data Services. For example: Network name, program name, program length, etc.

V-Chip	Allows to setup the TV and MPAA Rating Lock options(refer to “Using the V-CHIP Setting”)
Parental Allows to setup the Parental Lock options
Language	Select to display all on-screen menus in your language of choice :English/French/Spanish
Osd Transparent	Controls the translucence of the OSD'S( on-screen display) background

Default Restores factory settings

Using the V-CHIP (For US market only) Settings

The US has 2 rating system for viewing content: Movie blocking(MPAA) and TV Blocking.

The TV Blocking conjuncts with the V-CHIP to help parents block inappropriate programs from their children.

The Movie blocking(MPAA) is used for original movies rated by the Motion Picture Association of America(MPAA) as broadcasted on cable TV and not edited for television.

The V-CHIP can also be set to block MPAA-rated movies.

Use the ▼ button to select the V-Chip, and press the OK to display the V-Chip menu.

Channel Searching Tuner Mode Cable Closed Caption OFF V-Chip Parental Language English Osd Transparent On Default Setup Select Exit MENU

Use the V-CHIP function, must enter a four-digit password. The factory password is 0000.

Input Your Password Please **** OK Cancel

The MPAA includes the following options:

RATING DESCRIPTION
G General Audiences. Movie is appropriate for all ages.

PG	Parental Guidance Suggested. May contain material not suited for younger viewers
PG-13	Contains content that may not be appropriate for viewers under the age of 13.
R	Restricted. Contains adult content, no one under 17 admitted without parent.

NC-17 No one 17 and under admitted.

X No one 17 and under admitted.

Use the ▲▼ buttons to select the rating you want and press the OK button repeatedly to select BLOCK(√) or UNBLOCK(✗).

The TV GUIDELINE has 2 rating methods: Content-Based Rating and Age-Based Rating.

The TV GUIDELINE includes the following options:

AGE-BASED

RATING DESCRIPTION		RATING	DESCRIPTION
TV-Y	All children	FV	Fantasy violence
TV-Y7	Directed to children age 7 and older	D	Suggestive dialogue
TV-G	General Audience	L	Strong language
TV-PG	Parental Guidance suggested	S	Sexual situations
TV-14	Parents strongly cautioned	V	Violence
TV-MA	Mature Audience only

		CONTENT-BASED
		FV D L S V
AGE-BASED	TV-Y
	TV-Y7	√
	TV-G
	TV-PG		√ √	√ √
	TV-14		√ √	√ √
	TV-MA			√ √	√

√ : To block programs by both content and age.

Use the ▲▼ buttons to select the rating you want and press the OK button repeatedly to select BLOCK(√) or UNBLOCK(✗).

The V-CHIP menu includes the following options:

Block MPAA Rating Select to activate the MPAA Rating programs

Block TV Rating Select to activate the TV Rating programs.

Block MPAA Unrated · YES:

Blocks all movies that are broadcast without a MPAA rating.

- NO:

Allows all movies that are broadcast without a MPAA rating

Block TV None Rating · YES:

Blocks all movies that are broadcast without a TV rating.

- NO:

Allows all movies that are broadcast without a TV rating.

Using the Parental Settings

The Parental blocking can be set up to the TV to block a Channel or a Video Source.

Use the V-CHIP function, must enter a four-digit password. The factory password is 0000.

Input Your Password Please **** OK Cancel

Use the ▼ button to select the Parental, and press the OK to display the Parental menu.

Closed Caption Off V-Chip Parental Language English Osd Transparent On Default SETUP Select Exit MENU

You need your password for any future access into the V-Chip and Parental Setting.

The Parental menu includes the following options:

Channel Lock Select to block a TV channel

Video Lock Select to block a input source signal

Change Password Select to change your password

Customizing the TV Settings

Press the POWER button to turn the LCD TV on.

Press the MENU button on the remote control to display the Main menu, and use the ◀▶ buttons to select the TV.

Use the ▲▼ buttons to highlight an individual TV option, use the ◀▶ buttons changes the setting, and press the MENU exits the menu.

Video Audio ON SETUP Channel Skip On Channel Name Favorite TV Select Exit MENU

The TV menu includes the following options:

Channel Skip Allows addition/removal of channels on the channel list

Channel Name Allows channel labels to be edited

Favorite

Select Favorite from the TV option and press the OK button.

The Favorite Channel list appears:

Add Favorite Channel 01 002 02 016 03 025 04 Edit Delete Empty View

• Edit To add the current channel to the list of Favorite Channels. Press 0-9 buttons to enter the desired channels
• Delete To remove a channel from the list of Favorite Channels
• Empty To clear all Favorite Channels
• View To watch the selected channel of Favorite Channels

TROUBLESHOOTING

Before consulting service personnel, check the following chart for a possible cause of the trouble and for a possible solution.

TV will not turn on

Make sure the power cord is plugged in, then press the POWER button on the remote.
② The batteries in the remote control may be exhausted.
③ Replace the batteries.

No picture, no sound

① Check the interface cable between TV and antenna/cable TV.
2 Press the POWER button on the remote.
3 Press the INPUT button on the remote, then press ▲▼ button to select the connected video sources.

Poor picture, sound OK

① Check the interface cable between TV and antenna/cable TV.
② Try another channel, the station may have broadcast difficulties.
3 Adjust the Brightness/Contrast options in the VIDEO ADJUST Menu.

Picture OK, poor sound

1 Sound may be muted. Press the MUTE button on the remote.
2 Press the TV button on the remote, then press the VOL+ button to increase the volume.

Audio noise

1 Move any infrared equipment away from the TV.

DISPLAY MODE

The screen image has been optimized during manufacture for the display modes listed below.

If the signal from the system equals the standard signal mode, the screen is adjusted automatically. If the signal from the system does not equal the standard signal mode, adjusting screen resolution by referring to your videocard user guide otherwise there may be no display.

Video signal: (VGA/DVI VESA Standard)

Resolution (Dot X Line)	Vertical Frequency(Hz)	Horizontal Frequency(kHz)
640 x 350 85 37.9
640 x 400 85 37.9
720 x 400 85 37.9
640 x 480 60 31.5
	72 37.9
	75 37.5
	85 43.3
800 x 600 56 35.1
	60 37.9
	72 48.1
	75 46.9
	85 53.7
1024 x 768 60 48.4
	70 56.5
	75 60.0
	85 68.7
1152 x 864 75 67.5
1280 x 960 60 60.0
1280 x 768	60	47.7
1366 x 768 60 48.5

SPECIFICATIONS

LCD Panel Panel	Size	32" TFT LCD
	Brightness	550
	Contrast Ratio	1000:1
Max. Resolution		1366x768
Input Connector V	IDEO/AUDIO(L/R)	2
	S-VIDEO/AUDIO(L/R)	1
	YPbPr/AUDIO(L/R)	2
	VGA/AUDIO(L/R)	1
	HDMI/AUDIO(L/R)	1
	AUDIO OUT(L/R)	1
	OPTICAL/COAXIAL	1
	HEADPHONE	1
Power Source		AC100~240V, 50/60HZ, 2.2A
Power Consumption		180 W, standby < 3 W
Dimension		31.7 w x 25.0 h x 9.3 d inch
WEIGHT		39.7LB
