Product Type	Heat Pump Tumble Dryer
Brand	AEG
Model	T6DHE842B
Energy Source	Electric, Heat Pump
Maximum Load	8.0 kg
Drum Volume	118 L
Dimensions (H x W x D)	850 x 596 x 638 mm (max 663 mm depth)
Depth with Door Open	1108 mm
Width with Door Open	958 mm
Adjustable Height	850 mm + 15 mm feet adjustment
Voltage	230-240 V
Frequency	50 Hz
Total Power	900 W
Refrigerant	R290 (Propane), 0.140 kg, GWP 3
Permitted Ambient Temperature	+5°C to +35°C
Programs	Cottons Eco, Cottons, Synthetics, Mixed XL, Silk, Wool, Bedlinen XL, Hygiene, Easy Iron, Duvet
Options	Dryness Level, Quiet Mode, ECO, Anti-crease, Refresh, Time Drying, Delay Start, Buzzer, Child Lock
Filter Cleaning	After each cycle; hand or vacuum cleaner
Condenser Cleaning	Every 6 months or when indicator flashes

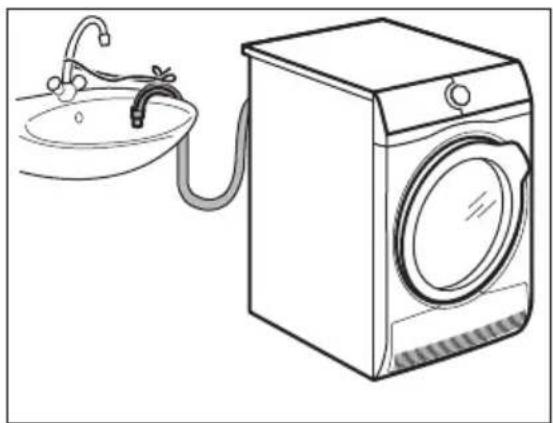

Water Container	Empty after each cycle; automatic drain with optional kit

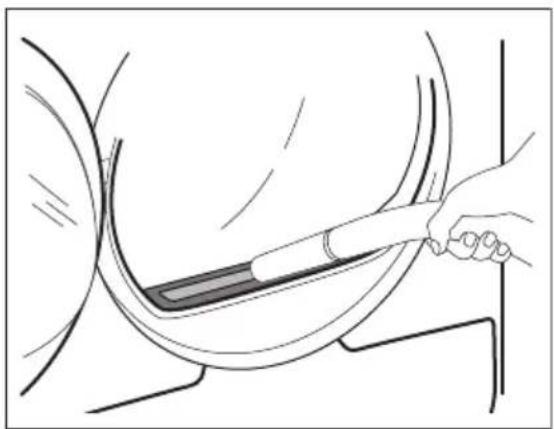

Humidity Sensor Cleaning	Every 3-4 cycles or when performance drops; use sponge with vinegar or dish soap
Door Reversible	Yes (see separate leaflet)
Child Lock	Yes (touch two buttons)
Accessories Included	Drain kit (optional), Dryer rack (optional), Pedestal with drawer (optional), Stacking kit (optional)
Warranty	60 months (Australia/New Zealand)

Frequently Asked Questions - T6DHE842B AEG

What type of refrigerant does the AEG T6DHE842B use?

The appliance uses R290 (propane), a flammable gas with high environmental compatibility. Keep ignition sources away and avoid damaging the refrigerant circuit.

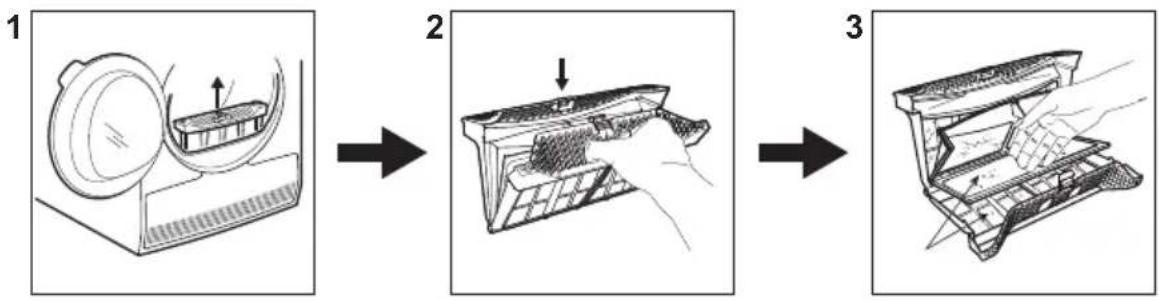

How do I clean the filter?

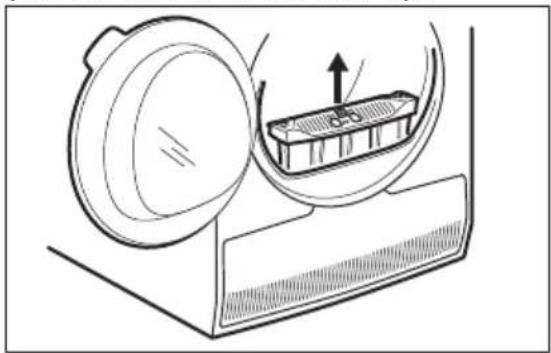

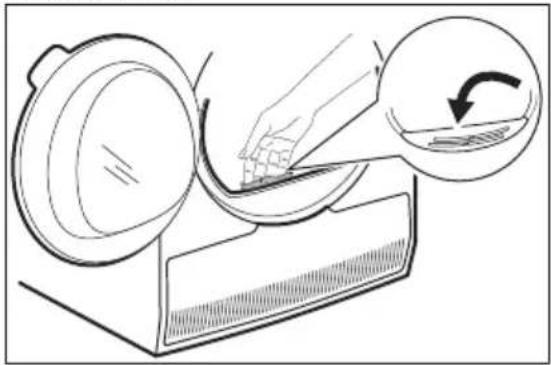

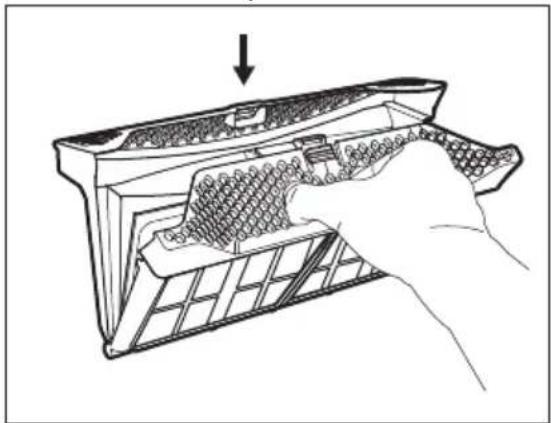

After each cycle, open the door, pull the filter up, open the hook, remove lint by hand or vacuum, then close and reinsert the filter. Do not wash with water.

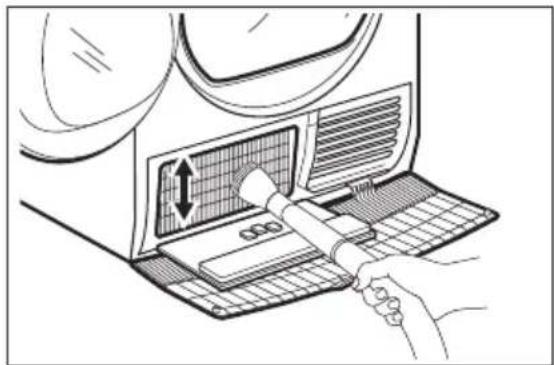

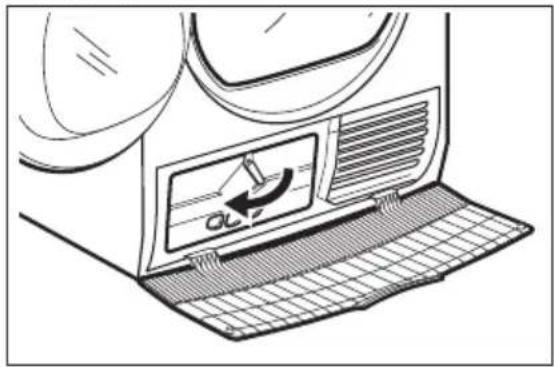

How often should I clean the condenser?

When the condenser indicator flashes (at least every 6 months), open the condenser cover, turn the lever, lower the lid, remove fluff with a wet cloth or vacuum, then close and lock.

What should I do if the water container is full?

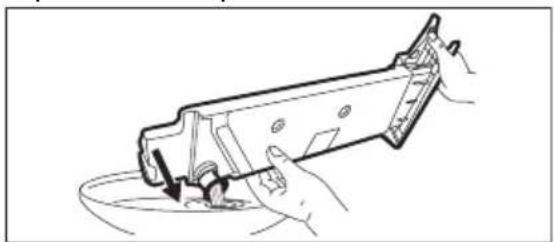

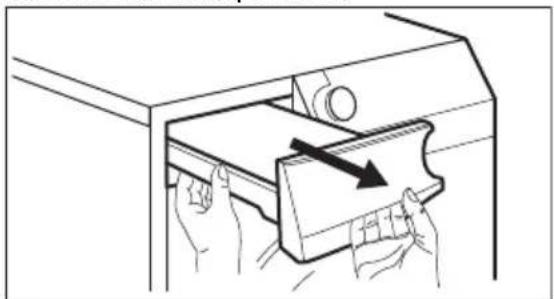

The program stops and the tank symbol appears. Pull out the water container horizontally, drain the water via the plastic connection, then reinsert and press Start/Pause to continue.

How do I activate the child lock?

Turn on the dryer, select a program, then touch and hold two buttons simultaneously until the lock symbol appears on the display. Deactivate by repeating the action.

Can I reverse the door?

Yes, the door is reversible. Refer to the separate installation leaflet for step-by-step instructions.

What are the installation requirements?

Install on a flat, stable, heat-resistant surface. Ensure ambient temperature between 5°C and 35°C. Keep ventilation openings clear. Do not install behind a lockable door. The appliance must be level.

What does error code E5A mean?

E5A indicates motor overload due to too much laundry or tangling. Remove laundry, set a new program, and restart. If persists, contact service.

How do I adjust the dryness level?

Turn on the appliance, wait 8 seconds, select a program, then press and hold Dryness Level and Anti-crease buttons simultaneously. Use Start/Pause to cycle through Maximum, Extra, or Standard dryness. Hold the same two buttons to memorize.

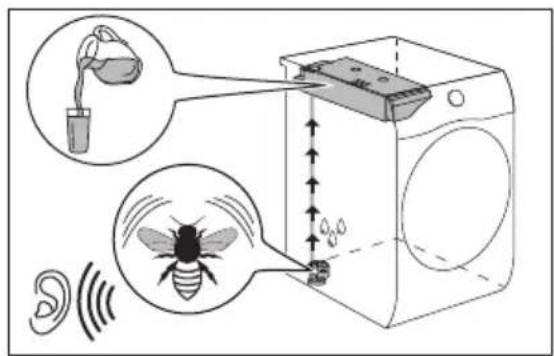

Is the water from the container usable?

Yes, you can use the condensed water for ironing after filtering it (e.g., through a coffee filter) to remove textile fibers. Do not drink or use for food preparation.

USER MANUAL T6DHE842B AEG

Simple line drawing of a washing machine with no text or symbols

CONTENTS

1. SAFETY INFORMATION......3
2. CONDITIONS OF USE....6
3. SAFETY INSTRUCTIONS....6
4. PRODUCT DESCRIPTION....9
5. CONTROL PANEL....10
6. PROGRAM....11
7. OPTIONS....13
8. BEFORE FIRST USE....14
9. DAILY USE....16
10. HINTS AND TIPS....18
11. CARE AND CLEANING.... 19
12. TROUBLESHOOTING....22
13. TECHNICAL DATA....25
14. ACCESSORIES....26

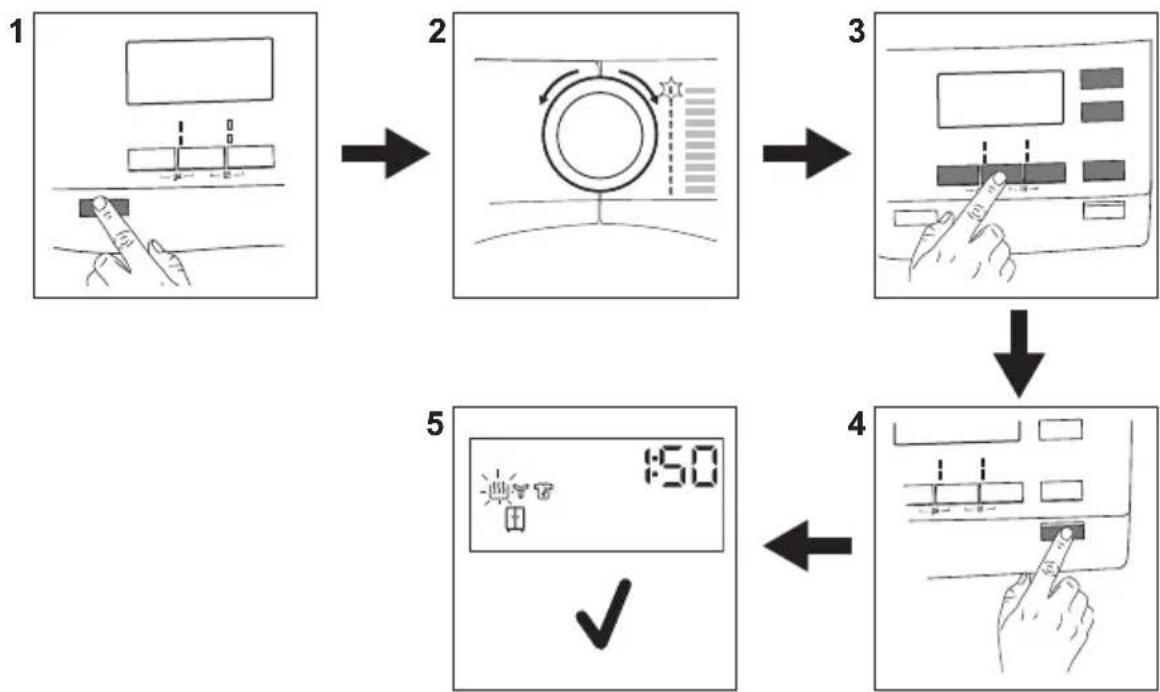

15. QUICK GUIDE......27
16. WARRANTY 29
17. ENVIRONMENTAL CONCERNS....31

IMPORTANT INFORMATION THAT MAY IMPACT YOUR MANUFACTURER'S WARRANTY

Adherence to the directions for use in this manual is extremely important for health and safety. Failure to strictly adhere to the requirements in this manual may result in personal injury, property damage and affect your ability to make a claim under the AEG manufacturer's warranty provided with your product.

Products must be used, installed and operated in accordance with this manual. You may not be able to claim on the AEG manufacturer's warranty in the event that your product fault is due to failure to adhere to this manual.

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information: www.aeg.com

Register your product for better service: www.registeraeg.com

Buy Accessories, Consumables and Original spare parts for your appliance: www.aeg.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number. The information can be found on the rating plate.

⚠ Warning / Caution-Safety information

i General information and tips

Environmental information

Subject to change without notice.

1. ⚠SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damage. Always keep the instructions with the appliance for future reference.

- Read the supplied instructions.

Warning: Risk of fire / Flammable materials.

The appliance contains flammable gas, propane (R290), a gas with a high level of environmental compatibility. Keep fire and ignition sources away from the appliance. Be careful not to cause damage to the refrigerant circuit containing propane.

1.1 Children and vulnerable people safety

WARNING!

Risk of suffocation, injury or permanent disability.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• Children between 3 and 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.

- Children of less than 3 years of age should be kept away from the appliance unless continuously supervised.

- Do not let children play with the appliance.

- Keep all packaging away from children and dispose of it appropriately.

- Keep detergents away from children.

- Keep children and pets away from the appliance when the door is open.

- If the appliance has a child safety device, it should be activated.

- Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

- Do not change the specification of this appliance.

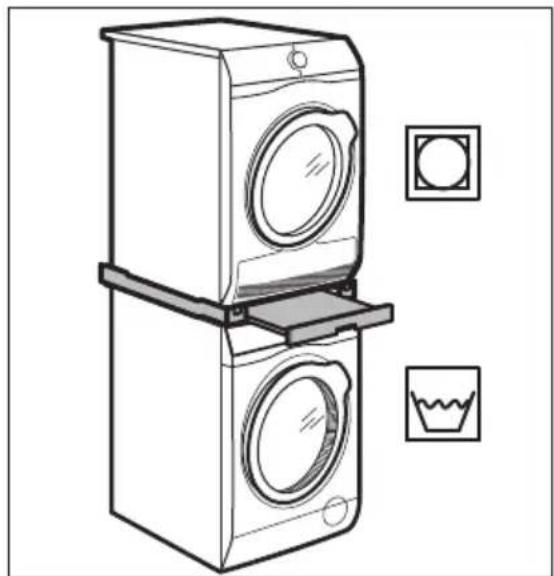

- If the tumble dryer is put on top of a washing machine, use the stacking kit. The stacking kit, available from your authorized vendor, can be used only with the appliance specified in the instructions supplied with the accessory. Read it carefully before installation (refer to the Installation leaflet).

- The appliance can be installed as freestanding or below a kitchen counter with correct space (refer to the Installation leaflet).

- Do not install the appliance behind a lockable door, a sliding door or a door with a hinge on the opposite side, that would prevent the appliance door from being fully open.

• The ventilation opening in the base must not be covered by a carpet, mat, or any floor covering.

- WARNING: The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.

- Connect the mains plug to the mains socket only at the end of the installation process. Make sure that the mains plug is accessible after installation.

• Ensure good air ventilation in the room where the appliance is installed to avoid the backflow of unwanted gases into the room from appliances burning gas or other fuels, including open fires.
• WARNING: Do not install the appliance in an environment with no air exchange.

The appliance contains flammable gas, propane (R290), a gas with a high level of environmental compatibility. Keep fire and ignition sources away from the appliance. Be careful not to cause damage to the refrigerant circuit containing propane.

- WARNING: In the appliance enclosure or in the built -in structure, keep ventilation opening clear of obstruction.

- WARNING: Do not damage the refrigerant circuit.

- If the mains power supply cable is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.

- Do not exceed the maximum load of 8,0 kg (refer to the "Program chart" chapter).

- Do not use the appliance if items have been soiled with industrial chemicals.

- Wipe away lint or packaging debris that has accumulated around the appliance.

- Do not run the appliance without a filter. Clean the lint filter before or after each use.

- Do not dry unwashed items in the tumble dryer.

- Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

- Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.

- Fabric softeners, or similar products, should only be used as specified by the product manufacturer's instructions.

- Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch fire. Piling, stacking or storing oil-affected items can prevent heat from escaping and create a fire hazard.

- If it is unavoidable that fabrics that contain vegetable or cooking oil or have been contaminated by hair care products be placed in a tumble dryer they should first be washed in hot water with extra detergent -this will reduce, but not eliminate, the hazard.

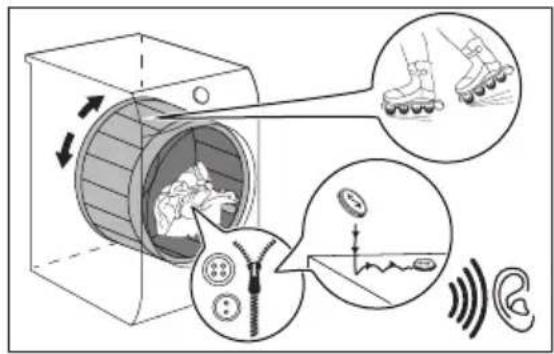

- Remove all objects from items that could be a source of fire ignition such as lighters or matches.

- WARNING: Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

- Before any maintenance operation, deactivate the appliance and disconnect the mains plug from the socket.

2. CONDITIONS OF USE

This appliance is intended to be used in household and similar applications such as:

- farm houses;

- by clients in hotels, motels, bed & breakfast and other residential type environments;

- areas for communal use in blocks of flats or in launderettes.

3. SAFETY INSTRUCTIONS

3.1 Installation

Warning: Risk of fire / Flammable materials.

- Remove all the packaging.

- Do not install or use a damaged appliance.

- Follow the installation instructions supplied with the appliance.

- Do not install the appliance in an environment with no air exchange

The appliance contains flammable gas, propane (R290), a gas with a high level of environmental compatibility. Keep fire and ignition sources away from the appliance. Be careful not to cause damage to the refrigerant circuit containing propane.

• Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
- Do not install or use the appliance where the temperature can be lower than 5°C or higher than 35°C.
- The floor area on which the appliance is to be installed must be flat, stable, heat resistant and clean.
- Make sure that there is air circulation between the appliance and the floor.
• Always keep the appliance vertical when it is being moved.
- The rear surface of the appliance must be put against a wall.
- When the appliance is in its permanent position, check if it is levelled correctly with the aid of a spirit level. If it is not, adjust the feet accordingly.

3.2 Electrical connection

WARNING!

Risk of fire and electric shock.

• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• WARNING: This appliance is designed to be installed / connected to a grounding connection in the building.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
  • Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• Do not touch the mains cable or the mains plug with wet hands.

- This appliance is fitted with a 13 A mains plug. If it is necessary to change the mains plug fuse, use only a 13 A ASTA (BS 1362) fuse (UK and Ireland only).

3.3 Use

WARNING!

Risk of injury, electric shock, fire, burns or damage to the appliance.

Warning: Risk of fire / Flammable materials. The appliance contains flammable gas, propane (R290), a gas with a high level of environmental compatibility. Keep fire and ignition sources away from the appliance. Be careful not to cause damage to the refrigerant circuit containing propane.

• This appliance is for household (indoors) use only.
• Do not dry damaged (torn, frayed) items that contain padding or fillings.
• If laundry has been washed with a stain remover, carry out an additional rinse cycle before starting a drying cycle.
• Dry only fabrics that are suitable to dry in the appliance. Follow the cleaning instruction on the item label.
• Do not drink or prepare food with the condensed water/distilled water. It can cause health problems to people and pets.
• Do not sit or stand on the open door of the appliance.
• Do not dry dripping wet clothes in the appliance.

3.4 Care and cleaning

WARNING!

Risk of injury or damage to the appliance.

Warning: Risk of fire / Flammable materials. The appliance contains flammable gas, propane (R290), a gas with a high level of environmental compatibility. Keep fire and ignition sources away from the appliance. Be

careful not to cause damage to the refrigerant circuit containing propane.

• Do not use water spray and steam to clean the appliance.
• Clean the appliance with a moist soft cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
• Be careful when you clean the appliance to prevent damage to the cooling system.

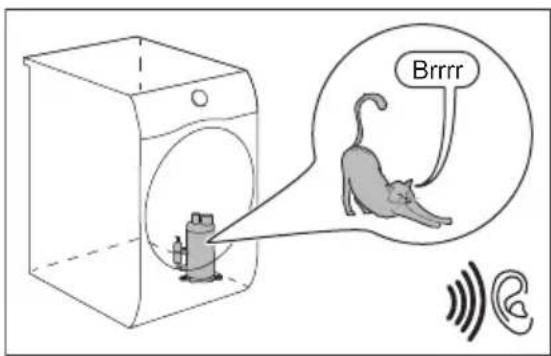

3.5 Compressor

WARNING!

Risk of damage to the appliance.

- The compressor and its system in the tumble dryer is filled with a special agent which is free from fluoro-chlorohydrocarbons. This system must stay tight. The damage of the system can cause a leakage.

3.6 Service

• To repair the appliance contact the Authorised Service Centre.

- Use original spare parts only.

3.7 Disposal

WARNING!

Risk of injury or suffocation.

Warning: Risk of fire / Risk of damage and damage to the

• Disconnect the appliance from the mains electrical and water supplies.
• Cut off the mains electrical cable close to the appliance and dispose of it.
  • The appliance contains flammable gas (R290). Contact your municipal authority for information on how to discard the appliance correctly.
• Remove the door catch to prevent children or pets from becoming trapped in the drum.
• Dispose of the appliance in accordance with local requirements for the disposal of Waste Electrical and Electronic Equipment (WEEE).

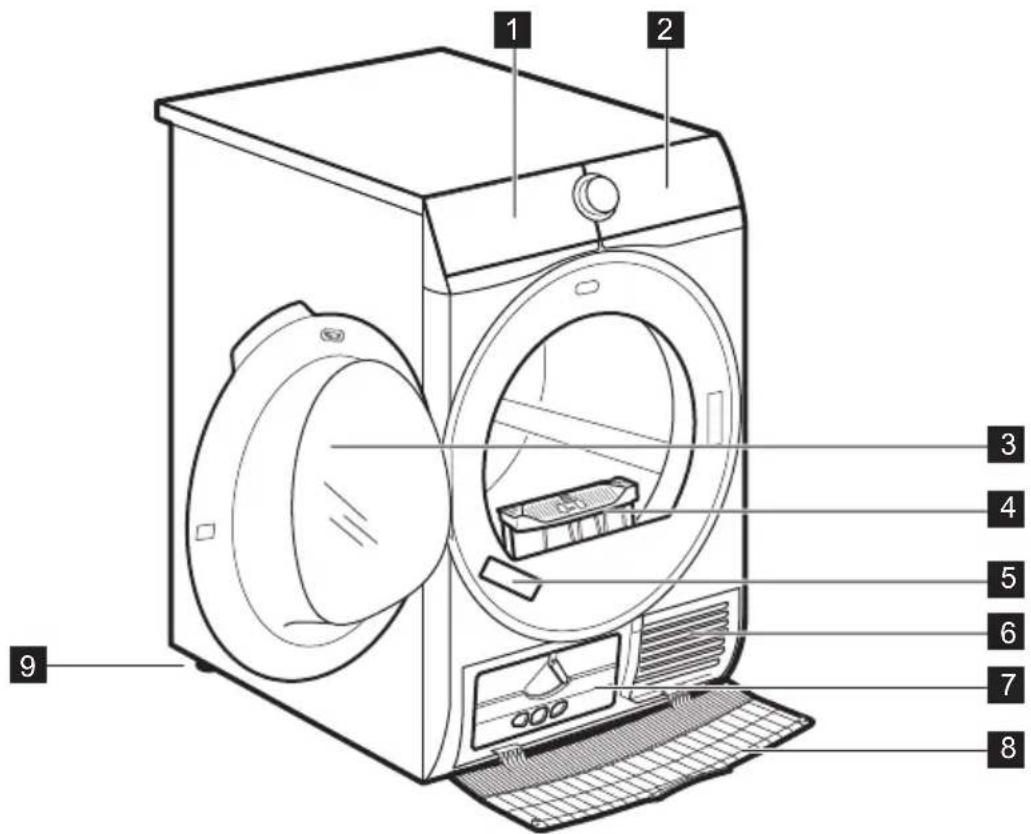

4. PRODUCT DESCRIPTION

1 Water container
2 Control panel
3 Appliance door
4 Filter
5 Rating plate

6 Airflow slots
7 Condenser lid
8 Condenser cover
9 Adjustable feet

For ease of loading laundry or ease of installation the door is reversible. (see separate leaflet).

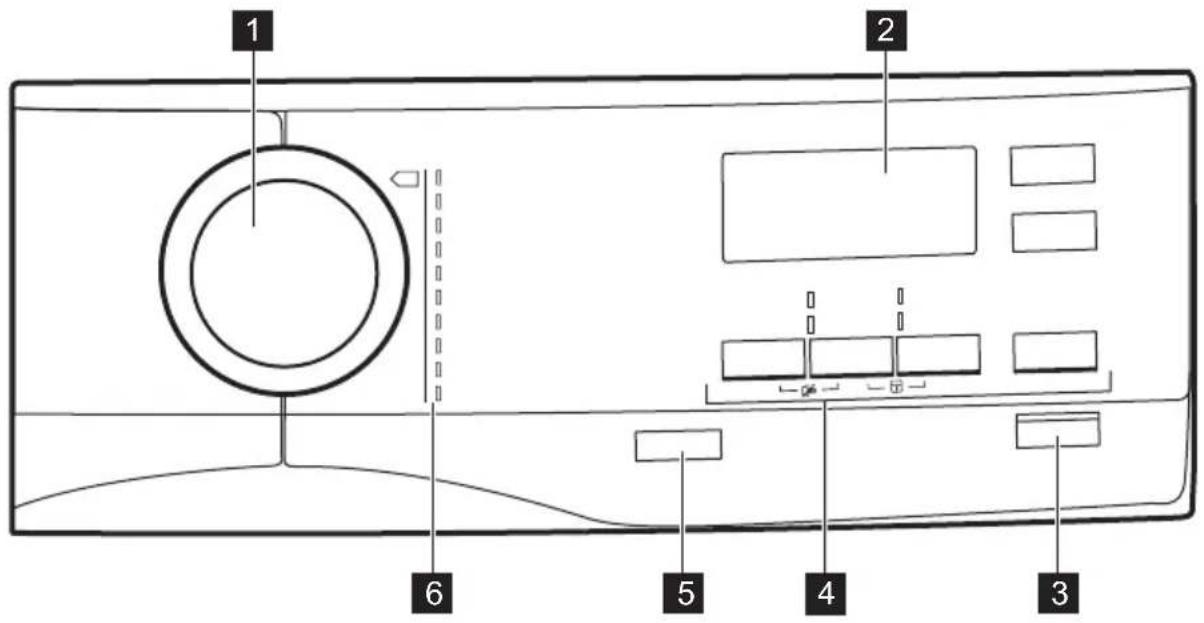

5. CONTROL PANEL

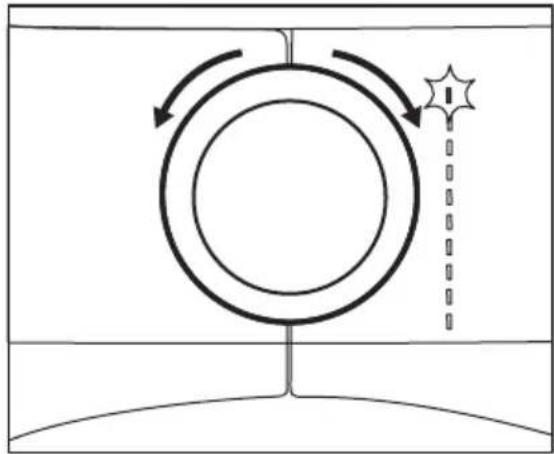

1 Program dial
2 Display
3 Start/Pause button
4 Options

5 On/Off button with Auto Off function
6 Programs

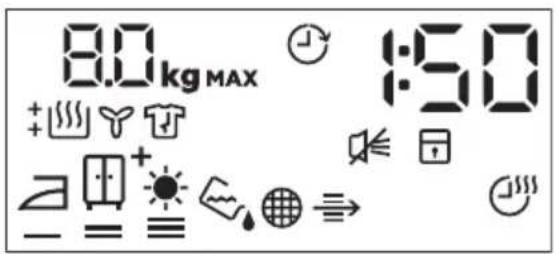

5.1 Display

Symbol on the display Symbol description
8.0_kg MAX	laundry maximum load
	delay start option on
30'-20h	delay start selection (30min-20h)
1:50	cycle time indication
q€	buzzer offchild lock on
	laundry dryness: iron dry, cupboard dry, cupboard dry+, extra dry
	indicator: drain the water container
	indicator: clean the filter
	indicator: check the condenser
	time dry option on
	time program selection (10min-2h)
[Y8ZT]	indicator: drying phase
	indicator: crease guard phase
[65C6]	indicator: cooling phase

1. PROGRAM

Program	Load^1)	Properties / Fabric mark
	8,0 kg Cotton fabrics - Extra dry
		Cycle defined to dry cottons items of different size / different weaving altogether.
		Blended garments containing mostly synthetic fibres like polyester, polyamide, etc.
		Mix of garments made of cotton, cotton-synthetic blend and synthetic fabric.
	1 kg	Preserves the shape of delicate machine and hand-washable silk clothes, minimizing creases by using gentle warm air and soft movements.

Program	Load 1)	Properties / Fabric mark
Wool [IMAGE]	1 kg	Woollen fabrics. Gentle drying for hand-washable woollens. Remove items immediately when the program is completed.The wool drying cycle of this machine has been approved by The Woolmark Company for the drying of wool garments labelled as "hand wash" provided that the garments are dried according to the instructions issued by the manufacturer of this machine. Follow the garment care label for other laundry instructions. M2101The Woolmark symbol is a Certification mark in many countries.
Bedlinen XL 4,5 kg		Dries up to three bed linen sets at once. Minimises twists and tangles of large items to ensure every bed linen reaches a uniform dryness without wet spots. / [IMAGE]
Hygiene 3 kg		Dries and adds a hygienic treatment to your garments maintaining a higher temperature phase over time that reduces the presence of micro-organisms.Program to treat wet clothes. Not suitable for delicate garments. [IMAGE]
Easy Iron	1 kg (or 5 shirts)	Limits creases on small loads of cotton, synthetic and mixed-fabric garments for easy ironing. Features two drying levels: Iron leaves garments slightly damp for ironing or hanging; Cupboard fully dries items. / [IMAGE]
Duvet 3 kg		Ensures proper drying of inner parts through single or double du-vets, pillows, and padded blankets. / [IMAGE]

1) The maximum weight refers to dry items.
2) For test institute only: the Cotton Eco program is the "Standard cotton program"

6.1 Program and options selection compatibility

Program 1)	Options
	Dryness Level	Quiet Mode	Anti-crease	Refresh	Time Dry-ing
Cottons Eco			■
Cottons			■	■	■
Synthetics			■	■	■
Mixed XL			■		■
Silk			■
Wool					■ 2)
Bedlinen XL			■
Hygiene
Easy Iron			■
Duvet

1) Aside from the program, you can set one or more options at the same time.
2) See chapter OPTIONS: Time Drying on Wool program

7. OPTIONS

7.1 Dryness Level

This option helps to achieve requested laundry dryness. You can select the level of dryness:
= ≡	ready to iron - iron dry level
= ≡	ready to store - cupboard dry level1)
^+ = ≡	ready to store - drier than cupboard dry level

1) Default selection which is related to the program

7.2 Quiet Mode

The appliance operates with low noise without effect on the drying quality. The appliance operates slowly with longer cycle time.

7.3 ECO

This option is on by default with all programs.

The power consumption is at the minimum level.

7.4 Anti-crease

Extends up to 120 minutes the anti-crease phase (30 minutes) at the end of the drying cycle. After drying phase drum rotates from time to time to prevent creases. Laundry can be removed during the anti-crease phase.

7.5 Refresh

To refresh clothes that were in storage. Maximal load cannot exceed 1 kg.

7.6 Time Drying

For cottons, synthetics and mixed. Lets the user to set drying time from minimum 10 min to maximum of 2 hours (in 10 min steps). When this option is maximum, load indicator disappears.

The cycle lasts as long as set drying time regardless of the size of a load and its dryness.

TIME DRYING RECOMMENDATION

10 - 20 min	action of cool air only (no heater).
20 - 40 min	additional drying to improve dryness after previous drying cycle.

8. BEFORE FIRST USE

Rear drum locks are removed automatically when dryer is activated for the first time. Possible to hear some noise.

To unlock the rear drum locks:

1. Switch on the appliance.
2. Set any program.
3. Press the Start/Pause button.
   Drum starts to rotate. Rear drum locks are automatically deactivated.

TIME DRYING RECOMMENDATION

>40min

full drying of the small laundry loads up to 4 kg, well spun (>1200 rpm).

7.7 Time Drying on Wool program

Option applicable to Wool program to adjust final dryness level to more dry or less dry.

7.8 Delay Start

Lets to delay the start of a drying program from minimum of 30 minutes to maximum of 20 hours.

1. Set the drying program and options.
2. Touch Delay Start button again and again.
   Time of delay is on the display (e.g.
   2h if the program has to start after 12 hours.)
3. To activate Delay Start option, touch the Start/Pause button.
   Time to start decreases on the display.

7.9 Buzzer

The sound is heard at the:

• cycle end
• start and end of crease guard phase The buzzer option is by default always on. You can use this option to activate or deactivate the sound.

Before you use the appliance to dry items:

• Clean the tumble dryer drum with a moist cloth.
• Start a 1 hour program with moist laundry.

At the beginning of the drying cycle (first 3-5 min) there could be a slightly higher sound level. This is due to the compressor starting up. This is normal for compressor powered appliances such as refrigerators and freezers.

8.1 Unusual smell

The appliance is tightly packed.

After product unpacking you can feel an unusual smell. This is normal for brand new products.

Appliance is built of several different types of material which all together can generate unusual smell.

Over usage time, after few drying cycles unusual smell gradually disappears.

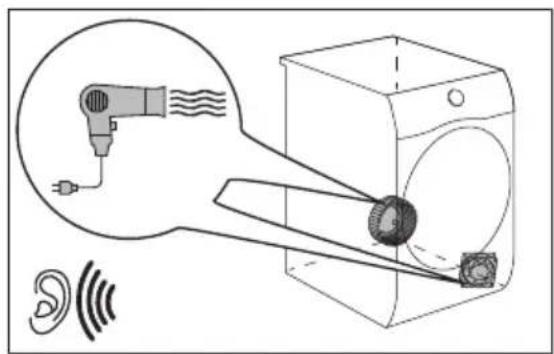

8.2 Noises

Different noises may be heard at different times during the drying cycle. They are perfectly normal operating sounds.

Working compressor.

Rotating drum.

Working fans.

Working pump and transferring condensation to the tank.

9. DAILY USE

9.1 Preparing the laundry

Very often the clothes after washing cycle are kneaded and tangled altogether. Drying kneaded and tangled clothes is inefficient. To assure proper air flow and even drying it is recommended to shake and load one by one the clothes to the tumble dryer.

To assure proper drying process:

• Close the zips.
• Close the fasteners of duvet covers.
• Do not dry ties or ribbons loose (e.g. apron ribbons). Tie them before you start a program.
• Remove all items from pockets.
• Turn items with the internal layer made of cotton inside out. Cotton layer must be faced outwards.

• Always set the program suitable for the type of laundry.
- Do not put light and dark colours together.
- Use suitable program for cottons, jersey and knitwear to reduce shrinkage.
- Do not exceed the maximum load stated in the programs chapter or shown on the display.
- Dry only the laundry that is suitable for tumble drying. Refer to the fabric label on the items.
- Do not dry large and small items together. Small items can be trapped inside the large items and remain wet.
- Shake the large clothes, fabrics before placing in the tumble dryer. It is to avoid moist places inside the fabric after the drying cycle.

Fabric label Description
	Laundry is suitable for tumble drying.
	Laundry is suitable for tumble drying at higher temperatures.
	Laundry is suitable for tumble drying at low temperatures only.
	Laundry is not suitable for tumble drying.

9.2 To achieve best drying results

• The selected program must be adequate to the type of dried clothes.
• The filter must be clean. Clogged filter makes drying inefficient.
• It is recommended to shake items before loading. Loose items are more liable for drying.
• The recommended load of dried items must be respected.
• The airflow slots must be clean.

9.3 Loading the laundry

CAUTION!

Ensure the laundry is not trapped between the appliance door and the rubber seal.

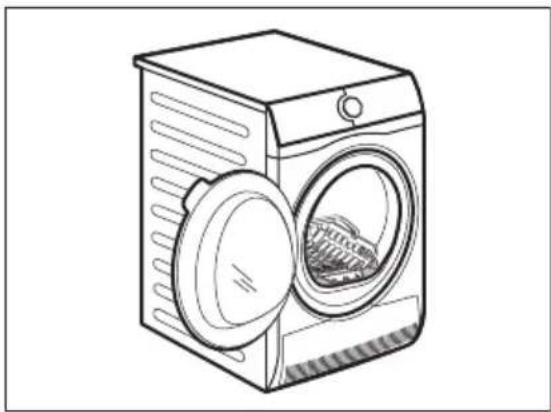

1. Pull open the appliance door.
2. Load the laundry one item at a time.
3. Close the appliance door.

9.4 Turning on the appliance

Pure electrical circuit lines without any symbols

To turn on the appliance:

Push the On/Off button.

If the appliance is on, some indicators appear on the display.

9.5 Auto Off function

To decrease the energy consumption, the Auto Off function turns the appliance off automatically:

• if the Start/Pause touch button is not touched within 5 minutes.
  • 5 minutes after a cycle ends.

Push the On/Off button to turn on the appliance.

If the appliance is on, some indications appear on the display.

9.6 Setting a program

Use the program dial to set the program. The approximate program duration appears on the display.

Real drying time will depend on type of the load (quantity and composition), the room temperature and the humidity of your laundry after spin drying phase.

9.7 Options

Together with the program you can set 1 or more special options.

Line drawing of a device front panel with buttons and display (no text or symbols)

To activate or deactivate an option touch the relevant button or a two button combination. its symbol appears on the display or the led above the corresponding button lights up.

9.8 Child lock option

The child lock can be set to prevent children from playing with the appliance. The child lock option locks all touch buttons and the program dial (this option does not lock the On/Off button).

You can activate the child lock option:

• before you touch the Start/Pause button - the appliance cannot start
  • after you touch the Start/Pause button - programs and option selection is unavailable.

Child lock option activation:

Simple line drawing of two rectangular blocks with a small icon below (no text or symbols)

1. Turn the dryer on.
2. Select 1 of the available programs.
3. Touch and hold down 2 buttons at the same time.

The symbol 🔒 appears on the display.

1. To deactivate the child lock, touch the above buttons again until the symbol disappears.

The symbol 🔒 appears on the display. 4. To deactivate the child lock, touch the above buttons again until the symbol disappears.

9.9 Starting a program

Pure electrical circuit lines without any symbols

To start the program:

Touch the Start/Pause button.

The appliance starts and the LED above the button stops flashing and stays on.

9.10 Program change

To change a program:

10. HINTS AND TIPS

10.1 Ecological hints

• Spin the laundry well before drying.

• Do not exceed the load sizes which are specified in the programs chapter.

• Push the On/Off button to turn the appliance off.

• Push the On/Off button again to turn on the appliance.
• Set a new program.

9.11 Program end

Clean the filter and drain the water container after each drying cycle. (See chapter CARE AND CLEANING.)

If the drying cycle is finished, the symbol

☐ appears on the display. If the Buzzer option is activated, the acoustic signal sounds intermittently for 1 minute.

If you do not turn off the appliance, the anti-crease phase starts (not active with all programs). Flashing

☐ symbol signals the execution of the anti-crease phase. Laundry can be removed during this phase.

To remove the laundry:

1. Push the On/Off button for 2 seconds to turn the appliance off.
2. Open the appliance door.
3. Remove the laundry.
4. Close the appliance door.

Possible causes of unsatisfactory drying results:

• Inadequate default dryness level settings. See chapter Adjustment of default dryness level

• Room temperature is too low or too high. Optimal room temperature is between 18^ - 25^ .

• Clean the filter after each drying cycle.

• Do not use fabric softener to wash and then dry. In the tumble dryer laundry becomes soft automatically.

• The water from the water container can be used to iron the clothes. You must first filter the water to eliminate remaining textile fibres (simple coffee filter is suitable).
  • Always keep the airflow slots at the bottom of the appliance clear.

• Make sure there is good airflow where the appliance is to be installed.

10.2 Adjustment of default dryness level

To change the default dryness level:

1. Turn the appliance on.
2. Wait approximately 8 seconds.
3. Select 1 of the available programs.
4. Touch and hold down the Dryness Level and Anti-crease buttons at the same time.

One of the symbols appears on the display:

CO_ - Maximum dryness
CO= - Extra dryness
COE - Standard dryness

1. Touch the Start/Pause button repeatedly until you reach the desired dryness level.

Dryness level	Display symbol
Maximum dryness	+###	[0-
Extra dryness	+###	[0=

11. CARE AND CLEANING

11.1 Cleaning the filter

At the end of each cycle the ⚙️ Filter symbol comes on the display and you must clean the filter.

The filter collects the lint during the drying cycle.

Dryness level	Display symbol
Standard dryness	[803W]

1. To memorise the setting touch and hold down the Dryness Level and Anti-crease buttons at the same time for approximately 2 seconds.

10.3 Deactivating the tank indicator

The water container indicator is activated by default. It illuminates at the end of the drying cycle or during the cycle if the water reservoir is full. If the draining kit is installed the water container is drained automatically and the indicator can be deactivated.

To deactivate the indicator:

1. Turn the appliance on.
2. Wait approximately 8 seconds.
3. Select 1 of the available programs.
4. Touch and hold down Anti-crease and Time Drying buttons at the same time.

One of 2 configurations is possible:

• the Tank indicator: is on if the symbol _ _ 1 appears - the water container indicator is permanently activated
• the Tank indicator: 📋 is off if the symbol ____ appears - the water container indicator is permanently deactivated

To achieve the best drying performances clean the filter regularly, clogged filter lead to longer cycles and energy consumption increase. Use your hand to clean the filter, and if necessary, a vacuum cleaner.

CAUTION!

Avoid the use of water to clean the filter. Instead throw away lint in the dustbin (avoid dispersion of plastic fiber in water ambient).

1. Open the door. Pull the filter up.

Diagram of a device with a lid and internal components, showing an upward arrow (no text or symbols)

1. Push the hook to open the filter.

Line drawing of a hand inserting a grid into a device casing (no text or symbols)

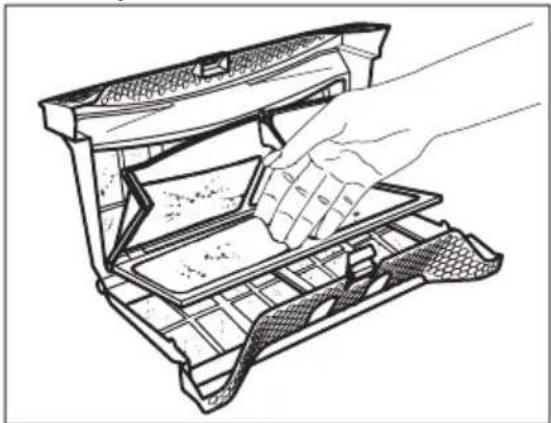

1. Gather lint with hand from both internal parts of the filter.

Line drawing of a hand inserting or removing a device into a tray (no text or symbols)

Throw the lint in the dustbin.

1. If necessary, clean the filter with a vacuum cleaner. Close the filter.

2. If necessary, remove lint from the filter socket and gasket. You can use a vacuum cleaner. Place the filter back inside the filter socket.

Line drawing of a hand holding a tool interacting with a car wheel (no text or symbols)

11.2 Emptying the water container

Empty the condensed water container after each drying cycle.

If the condensed water container is full, the program stops automatically. The

Tank symbol comes on the display and you must empty the water container.

To empty the water container:

1. Pull the water container out keeping it in a horizontal position.

Line drawing of hands inserting a component into a drawer (no text or symbols)

1. Pull the plastic connection out and drain the water into a basin or equivalent receptacle.

Line drawing of a hand using a tool to clean or brush a cylindrical object (no text or symbols present)

1. Push the plastic connection back in and place the water container back into position.

2. To continue the program press the Start/Pause button.

11.3 Cleaning the condenser

If the symbol Condenser flashes on the display, inspect the condenser and its compartment. If it is dirty, clean it. Do the check not less than once a 6 months.

WARNING!

Do not touch the metal surface with bare hands. Risk of injury. Wear protective gloves. Clean carefully to avoid damaging the metal surface.

To inspect:

1. Open the door. Pull the filter up.

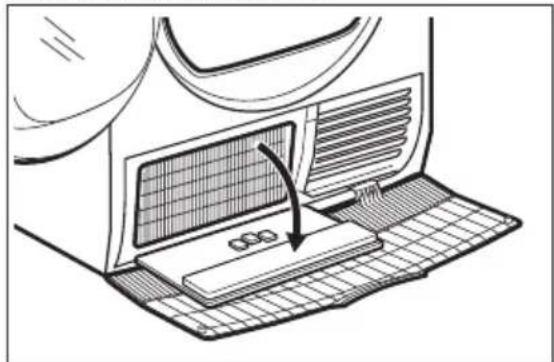

Diagram of a mechanical component with a lid and internal structure, showing an upward arrow (no text or symbols)

1. Open the condenser cover.

Line drawing of a hand pressing down on a mechanical component with a curved arrow indicating motion (no text or symbols)

1. Turn the lever to unlock the condenser lid.

Diagram of a kitchen appliance with a grater and ventilation grille (no text or symbols)

1. Lower the condenser lid.

Line drawing of a laptop with ventilation grille and a grid-patterned base, no text or symbols present

1. If necessary, remove the fluff from the condenser and its compartment. You can use a wet cloth and/or a vacuum cleaner with a brush attachment.

Line drawing of a hand inserting a device into a rack with a vent, showing airflow direction (no text or symbols)

1. Close the condenser lid.
2. Turn the lever until it clicks into position.
3. Put the filter back.

11.4 Cleaning the humidity sensor

CAUTION!

Risk of humidity sensor damage. Do not use abrasive materials or steel wool to clean the sensor.

To assure best drying results the appliance is equipped with metal humidity sensor. It is placed on the inner side of the door area.

Over usage time the surface of the sensor may get dirty which deteriorates the drying performance.

We recommend to clean the sensor at least 3 or 4 times or if you observe the drop of drying performance.

To clean you can use harder side of dish-washing sponge and bit of vinegar or dish soap.

To clean the sensor:

1. Open the loading door.
2. Clean the surfaces of the humidity sensor wiping off the metal surface several times.

Illustration of a hand pressing down on a mechanical component with a circular arrow indicating rotation (no text or symbols)

11.5 Cleaning the drum

WARNING!

Disconnect the appliance before you clean it.

Use a standard neutral soap detergent to clean the inner surface of the drum and

12. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

12.1 Error Codes

The appliance does not start or it stops during operation.

First try to find a solution to the problem (refer to the table). If the problem persists, contact the Authorised Service Centre.

WARNING!

Deactivate the appliance before carrying out any check.

In case of major problems, the acoustic signals operate, the display shows an error code and the Start/Pause button may flash continuously:

Error code Possible cause Remedy
E5A	Appliance motor overloaded. Too much laundry or entrap in the drum.	The program was not completed. Remove the laundry from the drum, set the program and restart the cycle.
E97	Internal fail. No communication between electronic elements of the appliance.	The program was not finished properly or the appliance stopped too early. Switch the appliance off and on again.If the error code appears again, contact the Authorised Service Centre.
EH0	The mains supply is unstable. When the appliance is showingEH0, please wait until main supply is stable than press start. If the appliance pause the cycle without any indication then press the cycle start. If the warning will occur check the power cord / socket integrity or main supply.

If the display shows other error codes, deactivate and activate the appliance. If the problem continues, contact the Authorised Service Centre.

In case of different problem with the tumble dryer check the table below for possible solutions.

12.2 Troubleshooting

Problem Possible cause Remedy
The tumble dry-er does not operate.	The tumble dryer is not connected to the mains supply.	Connect it to the mains socket.Check the fuse in the fuse box (domestic installation).
	The door is open. Close the door.
	The On/Off button was not pushed. Push the On/Off button.
	The Start/Pause button was not touched.	Touch the Start/Pause button.
	The appliance is in standby mode. Push the On/Off button.
Unsatisfactory drying result.	Incorrect program selection.	Select a suitable program. 1)
	The filter is clogged.	Clean the filter. 2)
	Dryness Level option was set to iron dry.3)	Change Dryness Level option to a higher level.
	The load was too large. Do not exceed the maximum load size.
	The airflow slots are clogged. Clean the airflow slots at the bot-tom of the appliance.
	There is some dirt on the humidity sensor in the drum.	Clean the front surface of the drum.
	The dryness level was not set to the desired level.	Adjust the dryness level. 4)
	The condenser is clogged.	Clean the condenser. 2)
The loading door does not close	The filter is not locked into posi-tion.	Put the filter in the correct position.
	Laundry is trapped between the door and the seal.	Remove trapped items and close the door.
It is not possible to change the program or op-tion.	After a cycle starts it is not possi-ble to change the program or op-tion.	Turn the tumble dryer off and on. Change the program or option as required.
It is not possible to select an op-tion. An acoustic signal is emi-ted.	The option you tried to select is not available for the selected program.	Turn the tumble dryer off and on. Change the program or option as required.
Unexpected du-ration time ap-pears on the display.	The drying duration is calculated according to load size and damp-ness.	This is automated - the appliance is working correctly.
A program is in-active.	The water container is full. Drain the water container, push the Start/Pause button. 2)
The drying cycle is too short.	The load size is small. Select a time program. The time value must be related to the load. To dry one item or a small amount of laundry we recommend short drying times.
	The laundry is too dry. Select an appropriate time pro-gram or a higher dryness level (e.g. extra dry)
Drying cycle too long 5)	The filter is clogged. Clean the filter.
	The load is too large. Do not exceed the maximum load size.
	The laundry was not spun sufficiently.	Spin the laundry well in the washing machine.
	Too low or too high room temperature - this is not the appliance malfunction.	Ensure a room temperature higher than +5°C and lower than +35°C. Optimal room temperature to achieve best drying results is between 18°-25°C.

1) Follow the program description — see the PROGRAMS chapter.
2) See the CARE AND CLEANING chapter.
3) Only dryers with the Dryness Level option.
4) See the HINTS AND TIPS chapter.
5) Note: After a maximum of 6 hours the drying cycle ends automatically.

12.3 Possible causes of unsatisfactory drying results:

• The filter is clogged. Clogged filter makes drying inefficient.
  • The airflow slots are clogged.
  • The humidity sensor is dirty.
  • The drum is dirty.

• Inadequate default dryness level settings. See chapter Adjustment of default dryness level

• Room temperature is too low or too high. Optimal room temperature is between 18^ - 25^ .

13. TECHNICAL DATA

Height x Width x Depth 850 x 596 x 638 mm (maximum 663 mm)

Max. depth with the appliance door open 1108 mm

Max. width with the appliance door open 958 mm

Adjustable height 850 mm (+ 15 mm - feet adjustment)

Drum volume 118 l

Maximum load 8,0 kg

Voltage 230-240 V

Frequency 50 Hz

Total power 900 W

Type of use Household

Permitted ambient temperature + 5°C to + 35°C

Level of protection against ingress of solid particles and moisture ensured by the protective cover, except where the low voltage equipment has no protection against moisture

This product contains fluorinated greenhouse gases, hermetically sealed

Gas designation R290

Weight 0,140 kg

Global-warming potential (GWP) 3

14. ACCESSORIES

14.1 Drain kit

Line drawing of a washing machine connected to a sink with a faucet (no text or symbols)

Accessory name: E2YH01.

Available from your authorised vendor (can be attached to some types of tumble dryer)

For thorough draining of the condensed water into a basin, siphon, gully, etc. After installation, the water container is drained automatically. The water container must stay in the appliance.

The installed hose must be minimum 50 cm to maximum 100 cm from floor level. The hose cannot be in a loop. Decrease the length of the hose if necessary.

Read carefully the instructions supplied with the accessory.

14.2 Dryer rack

Line drawing of a front-loading washing machine with two wheels (no text or symbols)

Accessory name: E4YH200 (A049509), A4YH200 (A049509).

Dryer rack accessory lets to dry safely in the tumble dryer:

• delicates
• lingerie
• soft toys
• sport shoes
• sweaters/blouses

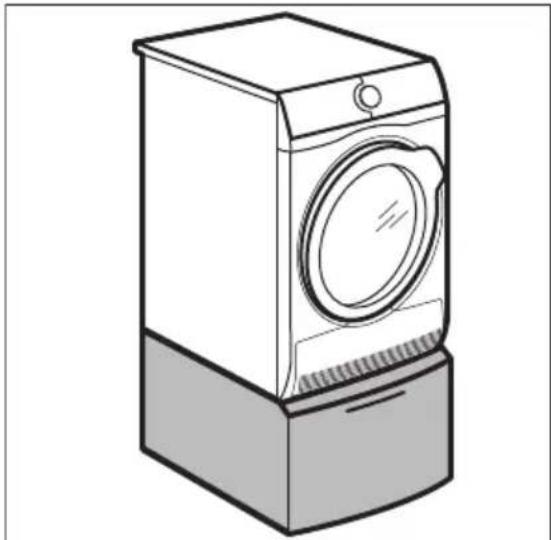

14.3 Pedestal with drawer

Line drawing of a washing machine with front panel and base (no text or symbols)

Accessory name: PDST61; E6WHPED4.

Available from your authorised vendor.

For increasing the height of the appliance in order to ease loading and unloading of laundry.

The drawer can be used for laundry storage e.g. : towels, cleaning products etc.

Read carefully the instructions supplied with the accessory.

14.4 Stacking kit

Line drawing of a two-tier washing machine with front-mounted screens and a side drawer, accompanied by decorative icons (no text or symbols)

Accessory name: SKP11GW3, STA9GW3

Available from your authorised vendor.

Stacking kit can be used only between washing machines and tumble dryers specified in the leaflet. See the leaflet attached.

Read carefully the instructions supplied with the accessory.

15. QUICK GUIDE

15.1 Daily use

1. Push the On/Off button to turn on the appliance.
2. Use the program dial to set the program.

3. To activate or deactivate an option touch the relevant button or 2 buttons combination.

4. Touch the Start/Pause button.

5. The appliance starts.

15.2 Cleaning the filter

At the end of each cycle the 📋 Filter symbol comes on the display and you must clean the filter.

1. Open the door. Pull the filter up.

2. Push the hook to open the filter.

3. Gather lint with hand from both internal parts of the filter. Throw the lint in the dustbin.

15.3 Program

Program	Load 1)	Properties / Fabric mark
Cottons Eco 8,0 kg		Cotton fabrics program designed for maximum energy saving.
Cottons 8,0 kg		Cycle defined to dry cottons items of different size / different weaving altogether.
Synthetics 4,0 kg		Blended garments containing mostly synthetic fibres like polyester, polyamide, etc.
Mixed XL 6 kg		Mix of garments made of cotton, cotton-synthetic blend and synthetic fabric.
Silk	1 kg	Preserves the shape of delicate machine and hand-washable silk clothes, minimizing creases by using gentle warm air and soft movements.
Wool	1 kg	Woollen fabrics. Gentle drying for hand-washable woollens. Remove items immediately when the program is completed.
Bedlinen XL 4,5 kg		Dries up to three bed linen sets at once. Minimises twists and tangles of large items to ensure every bed linen reaches a uniform dryness without wet spots.
Hygiene 3 kg		Dries and adds a hygienic treatment to your garments maintaining a higher temperature phase over time that reduces the presence of micro-organisms.Program to treat wet clothes. Not suitable for delicate garments.
Easy Iron	1 kg (or 5 shirts)	Limits creases on small loads of cotton, synthetic and mixed-fabric garments for easy ironing. Features two drying levels: Iron leaves garments slightly damp for ironing or hanging; Cupboard fully dries items.
Duvet 3 kg		Ensures proper drying of inner parts through single or double duvets, pillows, and padded blankets.

1) The maximum weight refers to dry items.

16. WARRANTY

FOR SALES IN AUSTRALIA AND NEW ZEALAND

ALL AEG BRANDED APPLIANCES

This document sets out the terms and conditions of the product warranties for AEG Appliances. It is an important document. Please keep it with your proof of purchase documents in a safe place for future reference should there be a manufacturing defect in your Appliance. This warranty is in addition to other rights you may have under the Australian Consumer Law.

1. In this warranty:

a) ‘ACL’ or ‘Australian Consumer Law’ means Schedule 2 to the Competition and Consumer Act 2010;
b) 'Appliance' means any Electrolux product purchased by you and accompanied by this document;
c) 'ASC' means Electrolux's authorised serviced centres;
d) 'AEG' is the brand controlled by Electrolux Home Products Pty Ltd of 163 O'Riordan Street, Mascot NSW 2020, ABN 51 004 762 341 in respect of Appliances purchased in Australia and Electrolux (NZ) Limited (collectively "Electrolux") of 3-5

Niall Burgess Road, Mount Wellington, in respect of Appliances purchased in New Zealand;

e) 'Warranty Period' means the period specified in clause 3 of this warranty;
f) ‘you’ means the purchaser of the Appliance not having purchased the Appliance for re-sale, and ‘your’ has a corresponding meaning.

1. Application: This warranty only applies to new Appliances, purchased and used in Australia or New Zealand and is in addition to (and does not exclude, restrict, or modify in any way) other rights and remedies under a law to which the Appliances or services relate, including any non-excludable statutory guarantees in Australia and New Zealand.

2. Warranty Period: Subject to these terms and conditions, this warranty continues for in Australia for a period of 60 months and in New Zealand for a period of 60 months, following the date of original purchase of the Appliance.

3. Repair or replace warranty: During the Warranty Period, Electrolux or its ASC will, at no extra charge if your

Appliance is readily accessible for service, without special equipment and subject to these terms and conditions, repair or replace any parts which it considers to be defective. Electrolux may, in its absolute discretion, choose whether the remedy offered for a valid warranty claim is repair or replacement. Electrolux or its ASC may use refurbished parts to repair your Appliance. You agree that any replaced Appliances or parts become the property of Electrolux.

5. Travel and transportation costs:

Subject to clause 7, Electrolux will bear the reasonable cost of transportation, travel and delivery of the Appliance to and from Electrolux or its ASC. Travel and transportation will be arranged by Electrolux as part of any valid warranty claim.

6. Proof of purchase is required before you can make a claim under this warranty.

7. Exclusions: You may not make a claim under this warranty unless the defect claimed is due to faulty or defective parts or workmanship. This warranty does not cover:

a) light globes, batteries, filters or similar perishable parts;
b) parts and Appliances not supplied by Electrolux;
c) cosmetic damage which does not affect the operation of the Appliance;

d) damage to the Appliance caused by:

- negligence or accident; - misuse or abuse, including failure to properly maintain or service;

– improper, negligent or faulty servicing or repair works done by anyone other than an Electrolux authorised repairer or ASC;

- normal wear and tear;

– power surges, electrical storm damage or incorrect power supply;

– incomplete or improper installation;

– incorrect, improper or inappropriate operation;

– insect or vermin infestation;
– failure to comply with any additional instructions supplied with the Appliance; In addition, Electrolux is not liable under this warranty if:

– the Appliance has been, or Electrolux reasonably believes that the Appliance has been, used for purposes other than those for which the Appliance was intended, including where the Appliance has been used for any non-domestic purpose;

– the Appliance is modified without authority from Electrolux in writing;

– the Appliance's serial number or warranty seal has been removed or defaced.

8. How to claim under this warranty:

To enquire about claiming under this warranty, please follow these steps:

a. carefully check the operating instructions, user manual and the terms of this warranty;
b. have the model and serial number of the Appliance available;
c. have the proof of purchase (e.g. an invoice) available;
d. telephone the numbers shown below.

1. Australia: For Appliances and services provided by Electrolux in Australia: Electrolux goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the Appliance repaired or replaced if the Appliance fails to be of acceptable quality and the failure does not amount to a major failure. 'Acceptable quality' and 'major failure' have the same meaning as referred to in the ACL.

2. New Zealand: For Appliances and services provided by Electrolux in New Zealand, the Appliances come with a guarantee by Electrolux pursuant to the provisions of the

Consumer Guarantees Act, the Sale of Goods Act and the Fair Trading Act. Where the Appliance was purchased in New Zealand for commercial purposes the Consumer Guarantee Act does not apply.

1. Confidentiality: You accept that if you make a warranty claim,

Electrolux and its agents including ASC may exchange information in relation to you to enable Electrolux to meet its obligations under this warranty.

Important Notice
Before calling for service, please ensure that the steps listed in clause 8 above have been followed.
SERVICE AUSTRALIAaeg.com/au
FOR SERVICEor to find the address of your nearest au-thorised service centre in AustraliaPLEASE CALL 1300 363 664OR [e-mail] the cost of a local call (Australia only)	FOR SPARE PARTSor to find the address of your nearest spare parts centre in AustraliaPLEASE CALL 13 13 50OR [e-mail] the cost of a local call (Australia only)
SERVICE NEW ZEALANDaegnewzealand.co.nz
FOR SERVICEor to find the address of your nearest au-thorised service centre in New ZealandPLEASE CALL 0800 234 234OR [e-mail](New Zealand only)	FOR SPARE PARTSor to find the address of your nearest spare parts centre in New ZealandPLEASE CALL 0800 10 66 20OR [e-mail](New Zealand only)

AEG_Warr_May_17

17. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol 🌐 Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol ✉ with the household waste. Return the product to your local recycling facility or contact your municipal office.
