Type	ATX 24-Pin Power Cable
Brand	Cooler Master
Model	ATX 24 PIN 90
Connector	24-pin female to 24-pin male
Cable Length	30 cm (estimated)
Weight	50 g (estimated)
Power Rating	Up to 600W (estimated)
Compatibility	Standard ATX power supply and motherboard
Material	PVC jacket, copper wire
Color	Black (estimated)
Primary Function	Connect power supply to motherboard
Installation	Plug into motherboard 24-pin header and PSU
Maintenance	Wipe with dry cloth
Safety	Ensure proper connection before powering on
Warranty	1 year (estimated)
Package Contents	1 cable
Spare Parts	Not available separately

Frequently Asked Questions - ATX 24 PIN 90 COOLER MASTER

What is the ATX 24 PIN 90 cable used for?

It connects a standard ATX power supply to a motherboard, providing power to the system.

Is this cable compatible with all power supplies?

It is compatible with power supplies that have a 24-pin main connector. Check your PSU specifications.

What is the length of the cable?

The cable length is approximately 30 cm, suitable for compact builds.

Does this cable support high power draw?

It supports up to 600W, sufficient for most single-GPU setups.

How do I install the ATX 24 PIN 90 cable?

Align the 24-pin connector with the motherboard header and push firmly until it clicks. Then connect the other end to the PSU.

Can I use this cable for other purposes?

No, it is specifically designed for ATX motherboard power delivery.

What should I do if the cable is damaged?

Do not use it. Replace with a new cable from Cooler Master or a compatible alternative.

Is the cable sleeved?

The cable has a standard PVC jacket; sleeving is not specified.

Does it come with warranty?

Typically, Cooler Master offers a 1-year warranty. Check with your retailer.

Can I use this cable with a modular power supply?

Yes, if the modular PSU has a 24-pin port. It replaces the original cable.

USER MANUAL ATX 24 PIN 90 COOLER MASTER

BUILD FROM A DIFFERENT ANGLE

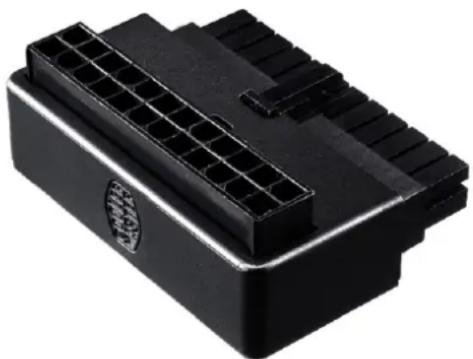

Close-up of a black plastic electrical connector with internal grid structure (no visible text or symbols)

The ATX 24 Pin 90° Adapter adds a number of possibilities to how users can install the main power connector to their motherboard from the PSU. It makes it so that the 24 Pin main power cable can be installed to the motherboard at a 90° angle, making it so that builders no longer need to wrap/fold the cable up and back over the motherboard to make the connection. This change in angle gives the main power connector more direct access from behind the motherboard, thus reducing the amount of cable needed in front of the motherboard tray.

FEATURES SPECIFICATIONS

90° 24 Pin Connection : Connect the 24 Pin main power cable to any motherboard at a 90° angle.

Plug and Play Installation: Easily install the adapter to any motherboard and power supply unit in seconds.

Universal Compatibility: This adapter will work with any standard ATX 24 Pin motherboard slot and PSU cable.

3 Year Warranty : This unit comes with a standard limited 3-year manufacturing warranty from date of purchase.

PACKAGE INFORMATION

Cable Type EAN UPC
GL 4719512074732 884	102047220

Nett Weight 0.033 kg / 0.073 lb
Gross Weight 0.054 kg / 0.119 lb
Package Dimensions 75 x 57 x 28mm (2.95 x 2.24 x 1.1")
Carton Dimensions 427 x 365 x 248mm (16.81 x 14.37 x 9.76")
Unit / Carton 120 pcs
Carton / Pallet 24 pcs

Product Name ATX 24 Pin 90° Adapter
Item Code CMA-CEMB00XXBK1
Dimensions (L x W x H) 42 x 57 x 27mm
Color Black
Material	ABS 94-v0 plastic

FEATURES

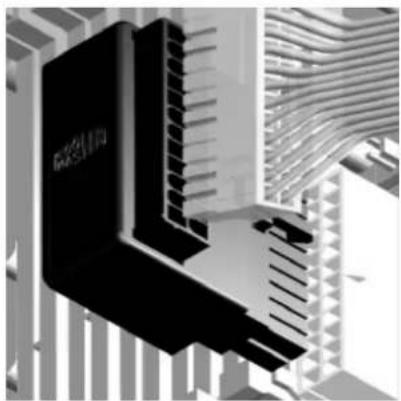

Close-up of a black L-shaped electronic component with visible traces and pins, set against a blurred background of circuit lines (no text or symbols)

Connect the main power cable to your motherboard at a 90° angle, expanding your cable management options and allowing the cable to take alternate paths from your PSU.

SPRINGHED

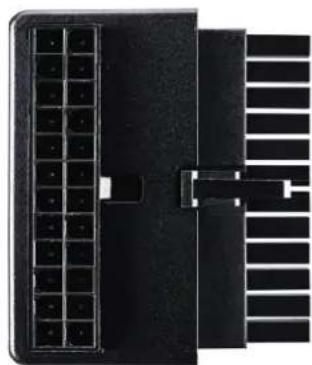

Close-up of a black electronic component with grid-like slots and a rectangular slot (no visible text or symbols)

Close-up of a black plastic electronic component with three leads (no visible text or symbols)
