Product Type	HDBaseT Receiver
Model	HBT-16
Brand	DataVideo
Dimensions (L x W x H)	157 x 85 x 46 mm
Weight	0.45 kg
Power Input	56V DC via included adapter; PoE output to transmitter
Video Input	1 x HDBaseT RJ-45
Video Output	1 x HDMI 2.0
Supported Resolutions	Up to 4K60 (2160p60) 4:4:4 8-bit; also 1080p, 1080i, 720p, 480i, 576i
HDBaseT Distance	Up to 100 m with CAT.6A cable
Control Interfaces	DVIP Ethernet (RJ-45), RS-422/RS-232 (RJ-45, selectable via DIP switch)
Supported Control Protocols	DVIP, RS-422, RS-232
Power over Ethernet (PoE)	Yes, 56V PoE from receiver to transmitter
Operating Temperature	0 to 40 °C (32 to 104 °F)
Storage Temperature	-20 to 60 °C (-4 to 140 °F)
Humidity	10% to 80% (non-condensing)
Compatible Transmitter	DataVideo HBT-15
Included Accessories	Power adapter, user manual
Certifications	FCC Part 15, CE
Warranty	1 year standard, extendable to 3 years with registration

Frequently Asked Questions - HBT-16 DataVideo

What is the maximum transmission distance for 4K video with the HBT-16?

The HBT-16 can extend 4K video up to 100 meters using a single CAT.6A Ethernet cable when paired with the HBT-15 transmitter.

Does the HBT-16 require a separate power supply?

Yes, the HBT-16 requires a 56V DC power adapter (included). It can also provide Power over Ethernet (PoE) to the HBT-15 transmitter, so no separate power is needed at the transmitter end.

What control protocols does the HBT-16 support?

The HBT-16 supports DVIP Ethernet control and RS-422/RS-232 via a selectable DIP switch on the front panel. These allow remote control of connected cameras or other devices.

Can I use a regular Ethernet cable (Cat5e) for HDBaseT?

For best performance, especially at 4K60, use a CAT.6A cable as recommended. Lower resolutions may work with CAT.6 or CAT.5e but distance may be reduced.

How do I switch between RS-232 and RS-422 modes?

Use the DIP switch on the front panel of the HBT-16: set to 00 for RS-232 and 01 for RS-422. Refer to the manual for exact pinout wiring.

What devices can I connect to the HBT-16?

The HBT-16 is designed to work with the HBT-15 transmitter connected via RJ-45. It outputs HDMI video and can interface with Datavideo camera controllers like the RMC-180 via RS-422/232.

Does the HBT-16 support audio?

Yes, audio is transmitted along with video over the HDBaseT connection. The audio is embedded in the HDMI output.

What is the purpose of the DVIP port?

The DVIP (RJ-45) port connects to an Ethernet switch or router, allowing network-based control of the HBT-16 and associated devices via the DVIP protocol.

Is the HBT-16 wall-mountable?

The manual does not specify wall-mounting hardware, but the compact size (157x85x46 mm) and standard screw holes may allow mounting with appropriate brackets (not included).

What should I do if the Power LED does not light up?

Check that the 56V DC adapter is securely plugged into the HBT-16 and the mains outlet. If the LED remains off, try a different outlet. If still no power, contact Datavideo support.

USER MANUAL HBT-16 DataVideo

HDBASET

RECEIVER BOX

HBT-16

Instruction Manual

Table of Contents

FCC COMPLIANCE STATEMENT......4

WARNINGS AND PRECAUTIONS .... 4

WARRANTY 5

STANDARD WARRANTY 5

THREE YEAR WARRANTY....6

DISPOSAL 7

1. INTRODUCTION ...... 8

FEATURES 8

1. SYSTEM DIAGRAM....9

2. CONNECTIONS......10

REAR PANEL....10

FRONT PANEL....11

1. RS-422 PINOUT....12

RS-232 12

RS-422 13

1. DIMENSIONS ...... 14

2. SPECIFICATIONS ...... 14

SERVICE AND SUPPORT .... 16

Disclaimer of Product & Services

The information offered in this instruction manual is intended as a guide only. At all times, Datavideo Technologies will try to give correct, complete and suitable information. However, Datavideo Technologies cannot exclude that some information in this manual, from time to time, may not be correct or may be incomplete. This manual may contain typing errors, omissions or incorrect information. Datavideo Technologies always recommend that you double check the information in this document for accuracy before making any purchase decision or using the product. Datavideo Technologies is not responsible for any omissions or errors, or for any subsequent loss or damage caused by using the information contained within this manual. Further advice on the content of this manual or on the product can be obtained by contacting your local Datavideo Office or dealer.

FCC Compliance Statement

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

Warnings and Precautions

1. Read all of these warnings and save them for later reference.
2. Follow all warnings and instructions marked on this unit.
3. Unplug this unit from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

4. Do not use this unit in or near water.

5. Do not place this unit on an unstable cart, stand, or table. The unit may fall, causing serious damage.

6. Slots and openings on the cabinet top, back, and bottom are provided for ventilation. To ensure safe and reliable operation of this unit, and to protect it from overheating, do not block or cover these openings. Do not place this unit on a bed, sofa, rug, or similar surface, as the ventilation openings on the bottom of the cabinet will be blocked. This unit should never be placed near or over a heat register or radiator. This unit should not be placed in a built-in installation unless proper ventilation is provided.

7. This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company.

8. Do not allow anything to rest on the power cord. Do not locate this unit where the power cord will be walked on, rolled over, or otherwise stressed.

9. If an extension cord must be used with this unit, make sure that the total of the ampere ratings on the products plugged into the extension cord do not exceed the extension cord rating.

10. Make sure that the total amperes of all the units that are plugged into a single wall outlet do not exceed 15 amperes.

11. Never push objects of any kind into this unit through the cabinet ventilation slots, as they may touch dangerous voltage points or short out parts that could result in risk of fire or electric shock. Never spill liquid of any kind onto or into this unit.
12. Except as specifically explained elsewhere in this manual, do not attempt to service this product yourself. Opening or removing covers that are marked “Do Not Remove” may expose you to dangerous voltage points or other risks, and will void your warranty. Refer all service issues to qualified service personnel.
13. Unplug this product from the wall outlet and refer to qualified service personnel under the following conditions:

a. When the power cord is damaged or frayed;

b. When liquid has spilled into the unit;

c. When the product has been exposed to rain or water;

d. When the product does not operate normally under normal operating conditions. Adjust only those controls that are covered by the operating instructions in this manual; improper adjustment of other controls may result in damage to the unit and may often require extensive work by a qualified technician to restore the unit to normal operation;

e. When the product has been dropped or the cabinet has been damaged;

f. When the product exhibits a distinct change in performance, indicating a need for service.

Warranty

Standard Warranty

• Datavideo equipment are guaranteed against any manufacturing defects for one year from the date of purchase.

• The original purchase invoice or other documentary evidence should be supplied at the time of any request for repair under warranty.

• The product warranty period begins on the purchase date. If the purchase date is unknown, the product warranty period begins on the thirtieth day after shipment from a Datavideo office.

• All non-Datavideo manufactured products (product without Datavideo logo) have only one year warranty from the date of purchase.
• Damage caused by accident, misuse, unauthorized repairs, sand, grit or water is not covered under warranty.
• Viruses and malware infections on the computer systems are not covered under warranty.
• Any errors that are caused by unauthorized third-party software installations, which are not required by our computer systems, are not covered under warranty.
• All mail or transportation costs including insurance are at the expense of the owner.
• All other claims of any nature are not covered.
• All accessories including headphones, cables, and batteries are not covered under warranty.
• Warranty only valid in the country or region of purchase.
• Your statutory rights are not affected.

Three Year Warranty

- All Datavideo products purchased after July 1st, 2017 are qualified for a free two years extension to the standard warranty, providing the product is registered with Datavideo within 30 days of purchase.

- Certain parts with limited lifetime expectancy such as LCD panels, DVD drives, Hard Drive, Solid State Drive, SD Card, USB Thumb Drive, Lighting, Camera module, PCIe Card are covered for 1 year.

- The three-year warranty must be registered on Datavideo's official website or with your local Datavideo office or one of its authorized distributors within 30 days of purchase.

Disposal

For EU Customers only - WEEE Marking

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste

equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

CE

CE Marking is the symbol as shown on the left of this page. The letters "CE" are the abbreviation of French phrase "Conformité Européenne" which literally means "European Conformity". The term initially used was

"EC Mark" and it was officially replaced by "CE Marking" in the Directive 93/68/EEC in 1993. "CE Marking" is now used in all EU official documents.

1. Introduction

The HBT-15 and HBT-16 are respectively the HDBaseT transmitter and receiver with a maximum allowable transmission distance of 100 meters. The transmitter allows transmission of up to 4K50/59.94/60 image quality video.

With the 56V power connected to one end of the HBT-16 HDBaseT receiver, the HBT-16 will thus be able to power the transmitter by Power over Ethernet (PoE). On the transmitter end (HBT-15), there is also a 12V/30W DC output serving to supply power to backend devices.

HDBaseT connection between the transmitter and the receiver can be established using a single Ethernet cable. In other words, HDMI video, DVIP control commands and power (PoE) can be transmitted between the transmitter and the receiver using just one Ethernet cable (CAT.6A).

Features

• Extends 4K50/59.94/60 video transmission up to 100m from HBT-15 Transmitter Box to HBT-16 Receiver Box.
• Transmits video, audio, DVIP Ethernet control, RS-422/232 and PoE by a single Cat.6A cable
• 56V PoE Power supply from the HBT-16 Receiver end.
  • 12V 30W DC output at the HBT-15 Transmitter Box end.
  • Supports DVIP Control Protocol
  • Supports RS-422/232 Control Protocol

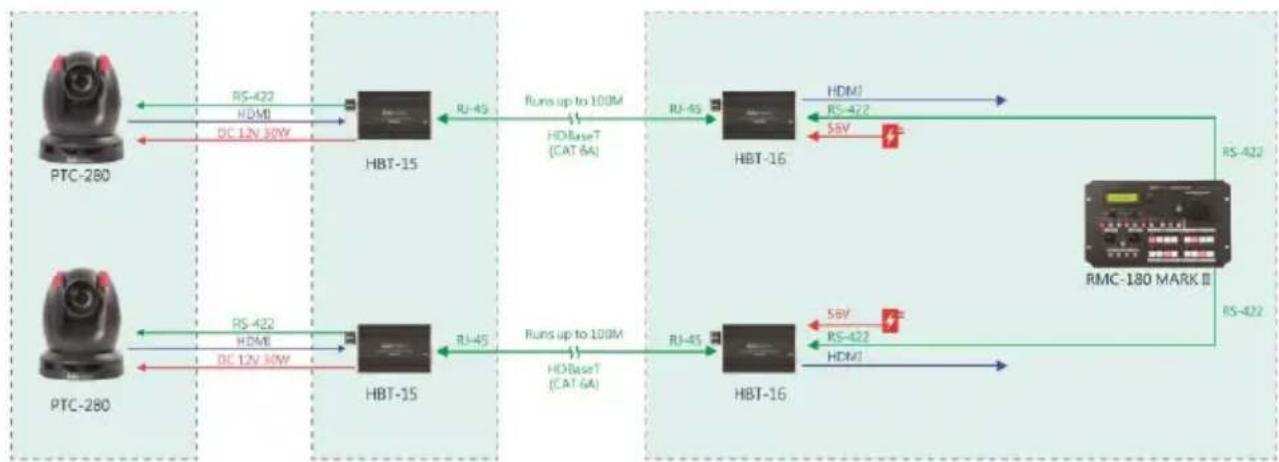

2. System Diagram

3. Connections

Rear Panel

HDMI OUT

HDMI port for video output.

DVIP Port

Connects to Ethernet switch or router, serving as a communication port between the network and the HBT-16 receiver.

56V DC IN

56V DC power input connection

Power LED Indicator

ON: Power connected

OFF: Power disconnected

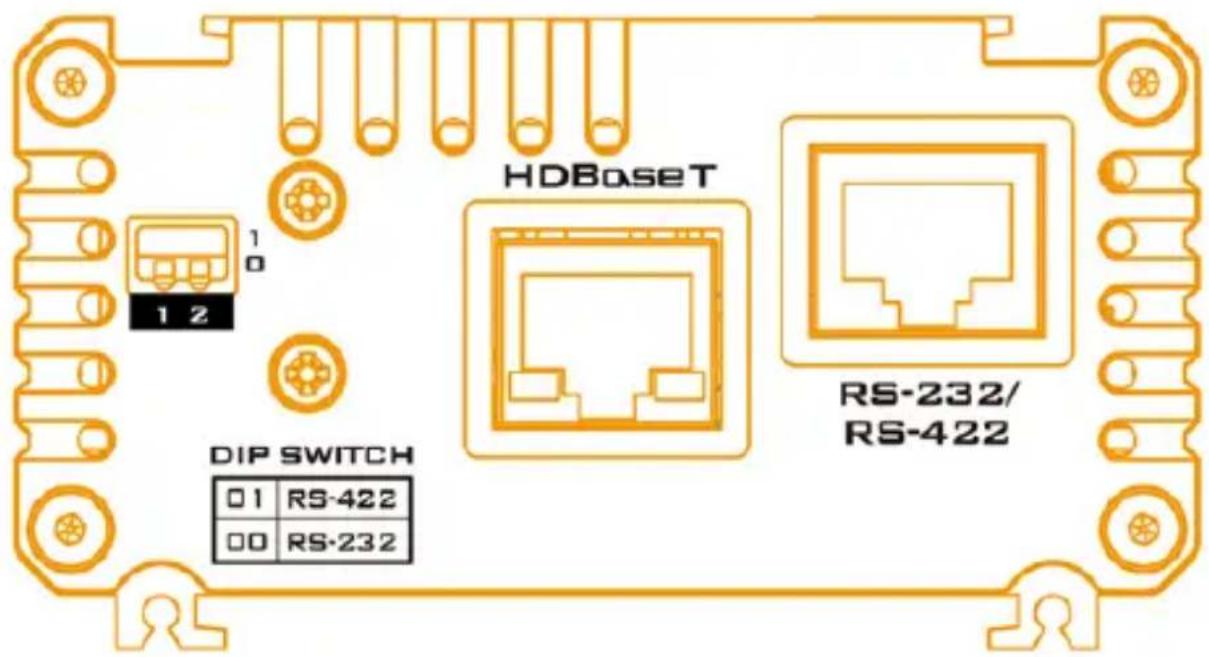

Front Panel

HDBaseT Port

Connects between HBT-15 transmitter and HBT-16 receiver using a CAT.6A Ethernet cable.

Note: Visit https://hdbaset.org/hdbaset-recommended-cables/ for cable recommendations.

RS-232/RS-422 Interface

The RS-232/RS-422 port connects HBT-16 directly to Datavideo's camera controllers such as RMC-180, RMC-300A or RMC-300C. Use the RS-232 or RS-422 custom cable to connect. See RS-232/RS-422 pinout for more information about the respective cabling.

Use the DIP switch to select between RS-232 (00) and RS-422 (01).

4. RS-232/RS-422 Pinout

The camera controller can be connected to the HBT-16 Receiver box through the RS-232 or RS-422 interface using a custom Ethernet cable. The respective connection wiring schemes are shown below.

RS-232

HBT-16 Receiver Box			GND	Camera Controller
GND	1	White/Orange		White/Orange	1	GND
NC	2	Orange		Orange	2	NC
NC	3	White/Green		White/Green	3	NC
NC	4	Blue		Blue	4	NC
TX	5	White/Blue		White/Blue	5	RX
RX	6	Green		Green	6	TX
NC	7	White/Brown		White/Brown	7	NC
NC	8	Brown		Brown	8	NC

RS-422

HBT-16 Receiver Box			GND	Camera Controller
GND	1	White/Orange		White/Orange	1	GND
NC	2	Orange		Orange	2	NC
RX-	3	White/Green		White/Green	3	TX-
TX-	4	Blue		Blue	4	RX-
TX+	5	White/Blue		White/Blue	5	RX+
RX+	6	Green		Green	6	TX+
NC	7	White/Brown		White/Brown	7	NC
NC	8	Brown		Brown	8	NC

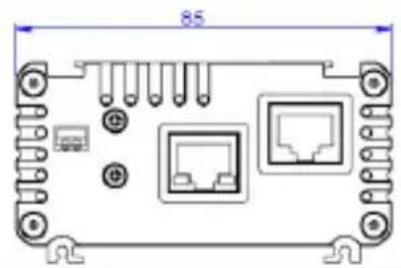

5. Dimensions

All measurements in millimeters (mm)

6. Specifications

Video / Audio
Input	HDBaseT RJ-45 x 1
Output	HDMI 2.0 x 1
Supported Resolutions	2160p60/59.94/50/30/29.97/25 (4:4:4 8bits)1080p60/59.94/50/30/29.97/251080i60/59.94/50720p60/59.94/50480i59.94576i50
Control
DVIP Ethernet	RJ-45 x 1
RS-422 / RS-232	RJ-45 x 1
Power
DC IN	DC 56 V
Dimensions
L x W x H	157 x 85 x 46 mm
Weight	0.45 kg
Physical and Operating Environments
Operating Temperature	0 – 40°C (32°F – 104°F)
Storage Temperature	-20 – 60°C (-4°F – 140°F)
Humidity	10% to 80% (non-condensing)
HDBaseT Transmission Distance	Video transmission at 2160p60/59.94/50 for Up to 100m using the CAT. 6A Cable (lower resolutions are also supported)

Service & Support

It is our goal to make your products ownership a satisfying experience. Our supporting staff is available to assist you in setting up and operating your system. Please refer to our web site www.datavideo.com for answers to common questions, support requests or contact your local office below.

Please visit our website for latest manual update. www.datavideo.com/product/HBT-16
