Product Type	HDBaseT Receiver Box
Brand	DataVideo
Model	HBT-12
Video Input	HDBaseT RJ-45 x 1
Video Output	HDMI x 1
Maximum Video Resolution	4K x 2K (2160p) at 30 Hz, 1080p at 60 Hz
Maximum Transmission Distance	120 meters for 1080p, 70 meters for 4K (Cat 7 cable)
Control Interfaces	DVIP Ethernet RJ-45, RS-232/422 RJ-45
Power Supply	56V DC input, PoE++ (IEEE 802.3bt) output
Dimensions (L x W x H)	131.8 x 85 x 45.2 mm
Weight	0.4 kg
Operating Temperature	0 – 40 °C
Storage Temperature	-10 – 60 °C
Recommended Cable	Cat 7 S/FTP for distances up to 120 meters
DIP Switch Modes	4K (RS-232), 4K (RS-422), Long Reach (RS-232), Long Reach (RS-422)
Warranty	1 year standard, extendable to 3 years with registration

Frequently Asked Questions - HBT-12 DataVideo

What video resolutions does the HBT-12 support?

The HBT-12 supports up to 4K x 2K (2160p) at 30 Hz and 1080p at 60 Hz.

What is the maximum transmission distance for the HBT-12?

Up to 120 meters for 1080p and up to 70 meters for 4K when using Cat 7 cable.

Does the HBT-12 provide power to the connected transmitter?

Yes, it delivers PoE++ (IEEE 802.3bt) power over the same Cat 7 cable when a 56V power supply is connected.

What type of Ethernet cable is required?

Cat 7 S/FTP cable is recommended for reliable operation at maximum distances and resolutions.

How can I control a PTZ camera through the HBT-12?

Use the RS-232/422 port with compatible Datavideo controllers or the DVIP Ethernet port for network control.

What is the purpose of the DIP switch on the front panel?

It selects between 4K mode (up to 70m) and Long Reach mode (up to 120m at 1080p), and chooses RS-232 or RS-422 control protocol.

What is the warranty period for the HBT-12?

One year standard warranty, extendable to three years if registered on Datavideo's website within 30 days of purchase.

Can the HBT-12 be used with non-Datavideo equipment?

Yes, it is a standard HDBaseT receiver and can be used with any HDBaseT transmitter, but optimal compatibility is with Datavideo products.

How should I clean the HBT-12?

Unplug the unit and clean with a damp cloth. Do not use liquid or aerosol cleaners.

What should I do if the HBT-12 is not functioning properly?

Check power and cable connections, verify DIP switch settings, ensure correct cable type (Cat 7), and consult the manual or contact Datavideo support.

USER MANUAL HBT-12 DataVideo

Illustration of a wireless network device with two ports and connectors (no text or symbols visible)

HDBASET

RECEIVER BOX

HBT-12

Instruction Manual

Table of Contents

FCC COMPLIANCE STATEMENT......4

WARNINGS AND PRECAUTIONS .... 4

WARRANTY 6

STANDARD WARRANTY 6

THREE YEAR WARRANTY....6

DISPOSAL....7

1. INTRODUCTION ...... 8

FEATURES 8

1. SYSTEM DIAGRAM....9

2. CONNECTIONS......10

REAR PANEL....10

FRONT PANEL....11

1. RS-232/RS-422 PINOUT ....13

RS-232 13

RS-422 14

1. DIMENSIONS ...... 15

2. SPECIFICATIONS ...... 16

CABLE SELECTION....17

SERVICE AND SUPPORT 20

Disclaimer of Product & Services

The information offered in this instruction manual is intended as a guide only. At all times, Datavideo Technologies will try to give correct, complete and suitable information. However, Datavideo Technologies cannot exclude that some information in this manual, from time to time, may not be correct or may be incomplete. This manual may contain typing errors, omissions or incorrect information. Datavideo Technologies always recommend that you double check the information in this document for accuracy before making any purchase decision or using the product. Datavideo Technologies is not responsible for any omissions or errors, or for any subsequent loss or damage caused by using the information contained within this manual. Further advice on the content of this manual or on the product can be obtained by contacting your local Datavideo Office or dealer.

FCC Compliance Statement

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

Warnings and Precautions

1. Read all of these warnings and save them for later reference.
2. Follow all warnings and instructions marked on this unit.
3. Unplug this unit from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.
4. Do not use this unit in or near water.
5. Do not place this unit on an unstable cart, stand, or table. The unit may fall, causing serious damage.
6. Slots and openings on the cabinet top, back, and bottom are provided for ventilation. To ensure safe and reliable operation of this unit, and to protect it from overheating, do not block or cover these openings. Do not place this unit on a bed, sofa, rug, or similar surface, as the ventilation openings on the bottom of the cabinet will be blocked. This unit should never be placed near or over a heat register or radiator. This unit should not be placed in a built-in installation unless proper ventilation is provided.
7. This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company.
8. Do not allow anything to rest on the power cord. Do not locate this unit where the power cord will be walked on, rolled over, or otherwise stressed.

9. If an extension cord must be used with this unit, make sure that the total of the ampere ratings on the products plugged into the extension cord do not exceed the extension cord rating.

10. Make sure that the total amperes of all the units that are plugged into a single wall outlet do not exceed 15 amperes.

11. Never push objects of any kind into this unit through the cabinet ventilation slots, as they may touch dangerous voltage points or short out parts that could result in risk of fire or electric shock. Never spill liquid of any kind onto or into this unit.
12. Except as specifically explained elsewhere in this manual, do not attempt to service this product yourself. Opening or removing covers that are marked “Do Not Remove” may expose you to dangerous voltage points or other risks, and will void your warranty. Refer all service issues to qualified service personnel.
13. Unplug this product from the wall outlet and refer to qualified service personnel under the following conditions:

a. When the power cord is damaged or frayed;
b. When liquid has spilled into the unit;
c. When the product has been exposed to rain or water;
d. When the product does not operate normally under normal operating conditions. Adjust only those controls that are covered by the operating instructions in this manual; improper adjustment of other controls may result in damage to the unit and may often require extensive work by a qualified technician to restore the unit to normal operation;
e. When the product has been dropped or the cabinet has been damaged;
f. When the product exhibits a distinct change in performance, indicating a need for service.

Warranty

Standard Warranty

• Datavideo equipment are guaranteed against any manufacturing defects for one year from the date of purchase.
• The original purchase invoice or other documentary evidence should be supplied at the time of any request for repair under warranty.
• The product warranty period begins on the purchase date. If the purchase date is unknown, the product warranty period begins on the thirtieth day after shipment from a Datavideo office.
• All non-Datavideo manufactured products (product without Datavideo logo) have only one year warranty from the date of purchase.
• Damage caused by accident, misuse, unauthorized repairs, sand, grit or water is not covered under warranty.
• Viruses and malware infections on the computer systems are not covered under warranty.
• Any errors that are caused by unauthorized third-party software installations, which are not required by our computer systems, are not covered under warranty.
• All mail or transportation costs including insurance are at the expense of the owner.
• All other claims of any nature are not covered.
• All accessories including headphones, cables, and batteries are not covered under warranty.
• Warranty only valid in the country or region of purchase.
• Your statutory rights are not affected.

Three Year Warranty

- All Datavideo products purchased after July 1st, 2017 are qualified for a free two years extension to the standard warranty, providing the product is registered with

Datavideo within 30 days of purchase.

• Certain parts with limited lifetime expectancy such as LCD panels, DVD drives, Hard Drive, Solid State Drive, SD Card, USB Thumb Drive, Lighting, Camera module, PCIe Card are covered for 1 year.
• The three-year warranty must be registered on Datavideo's official website or with your local Datavideo office or one of its authorized distributors within 30 days of purchase.

Disposal

Symbolic illustration of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

For EU Customers only - WEEE Marking

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste

equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

CE Marking is the symbol as shown on the left of this page. The letters "CE" are the abbreviation of French phrase "Conformité Européenne" which literally means "European Conformity". The term initially used was "EC Mark" and it was officially replaced by "CE Marking" in the Directive 93/68/EEC in 1993. "CE Marking" is now used in all EU official documents.

1. Introduction

The HBT-12 is an HDBaseT receiver designed to interface between transmitting and receiving devices. The receiver accepts up to 4K image quality video.

With the 56V power connected to one end of the HBT-12 HDBaseT receiver, the HBT-12 will thus be able to power the transmitting device by PoE plus technology (PoE++). Please only use Cat 7 Ethernet cables to connect PoE++ powered devices.

HDBaseT connection between the transmitter and the receiver can be established using a single Ethernet cable. In other words, HDMI video, DVIP control commands and power (PoE++) can be transmitted between the transmitter and the receiver over just one cable.

Features

• Receives up to 4Kx2K video from the transmitter.
• Extends video transmission to 120m (maximum).
• Transmits video, audio, DVIP control, RS-422/232 control and PoE+ over a single Cat 7 cable.

• 56V PoE+ Power supply.
  • DVIP Control Protocol
  • RS-422/232 Control Protocol

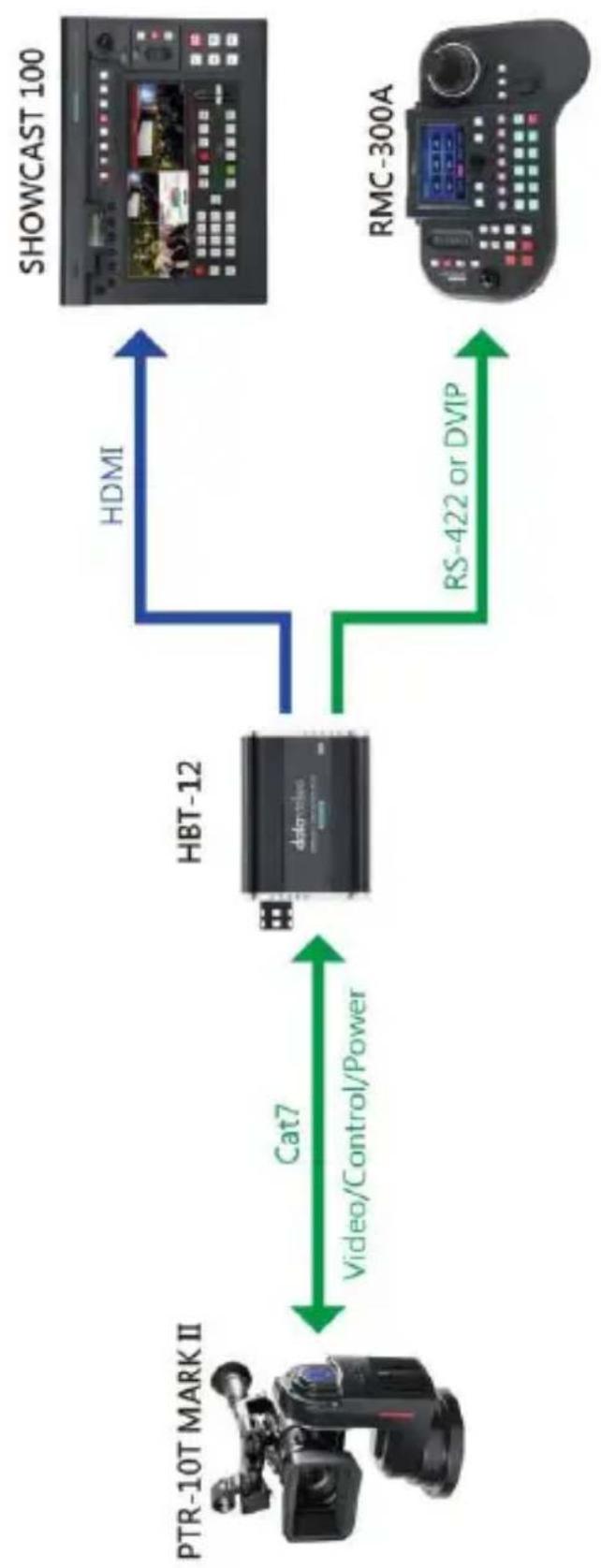

• System Diagram

3. Connections

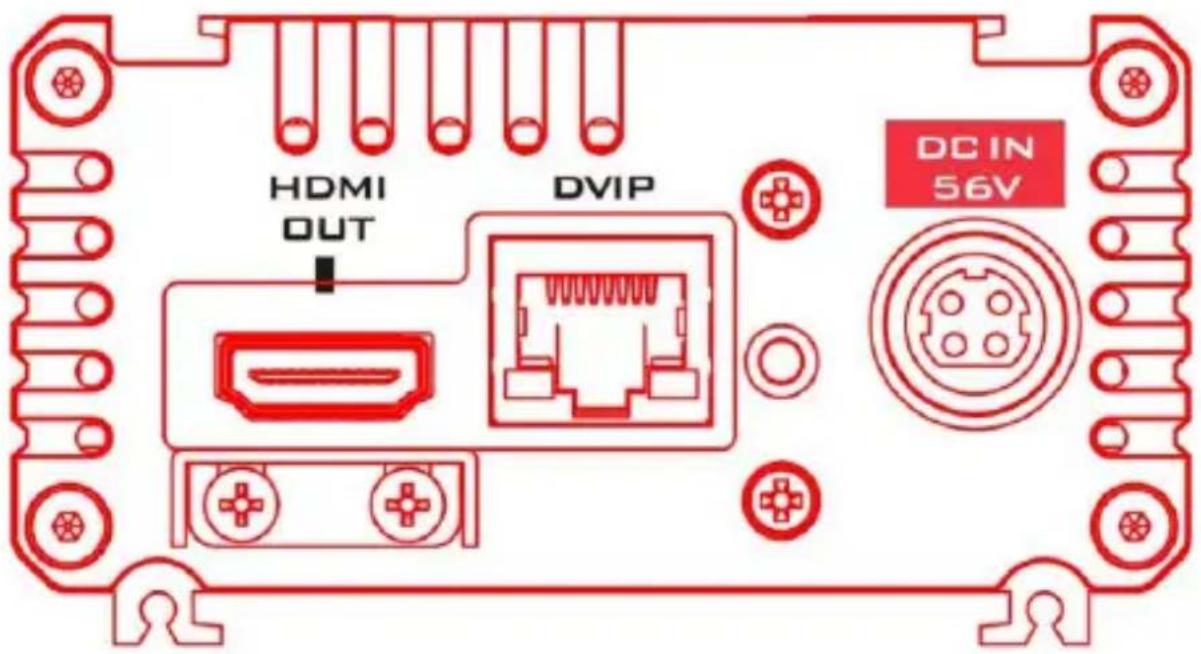

Rear Panel

HDMI OUT

HDMI port for video output to devices such as switchers, recorders or monitors.

DVIP Port

The DVIP port can be connected to an Ethernet switch or router, serving as a communication port between the network and the HBT-12 receiver.

56V DC IN

56V DC power input connection

Power LED Indicator

ON: Power connected

OFF: Power disconnected

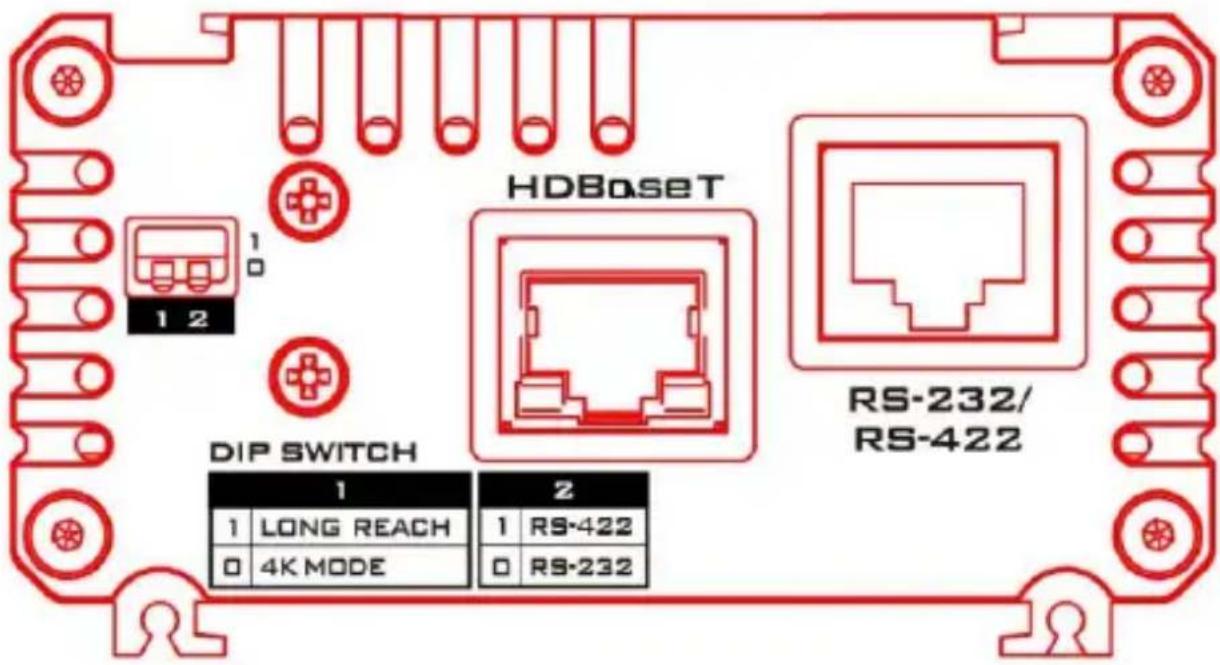

Front Panel

HDBaseT Port

Only use a Cat 7 Ethernet cable to connect between the PTR-10T MARK II robotic pan tilt head and the HBT-12 receiver.

Note: See Cable Selection for cable recommendations.

RS-232/RS-422 Port (RJ-45)

The RS-232/RS-422 port connects HBT-12 directly to Datavideo camera controllers such as RMC-180, RMC-300A or RMC-300C. Use the RS-232 or RS-422 custom cable to connect. See RS-232/RS-422 pinout for more information about the respective cabling.

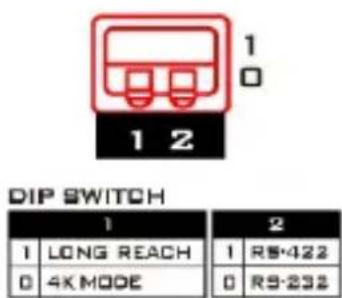

DIP Switch

The receiver box allows long distance connectivity to PTR-10T MARK II of up to 120 meters while compromising on maximum supported resolution of up to 1080p. Select 4K mode (2160p) if the connection distance is less than 70 meters. If your system is not required to support resolutions higher than 1080p, you can activate long reach mode and enjoy longer cable reach of up to 120 meters.

The DIP Switch is used to select from the available connection modes listed as follows:

00: 4K Mode RS-232
01: 4K Mode RS-422
10: Long Reach RS-232
11: Long Reach RS-422

Note: See the Cable Selection section for cable recommendations.

4. RS-232/RS-422 Pinout

You can use RS-232 or RS-422 control protocol to control the PTR-10T MARK II behind the HBT-12 HDBaseT Receiver Box with Datavideo camera controllers such as RMC-180, RMC-300A or RMC-300C. You will need to use a custom Ethernet cable to connect between the controller and HBT-12. Wire the connection cable according to the respective RS-232 and RS-422 wiring diagrams shown below.

RS-232

Remote Controller			GND	HBT-12 Receiver Box
GND	1	White/Orange		White/Orange	1	GND
NC	2	Orange		Orange	2	NC
NC	3	White/Green		White/Green	3	TX-
NC	4	Blue		Blue	4	RX-
RXD	5	White/Blue		White/Blue	5	RX+
TXD	6	Green		Green	6	TX+
NC	7	White/Brown		White/Brown	7	NC
NC	8	Brown		Brown	8	NC
Remote OUT				RS-232/RS-422 Port

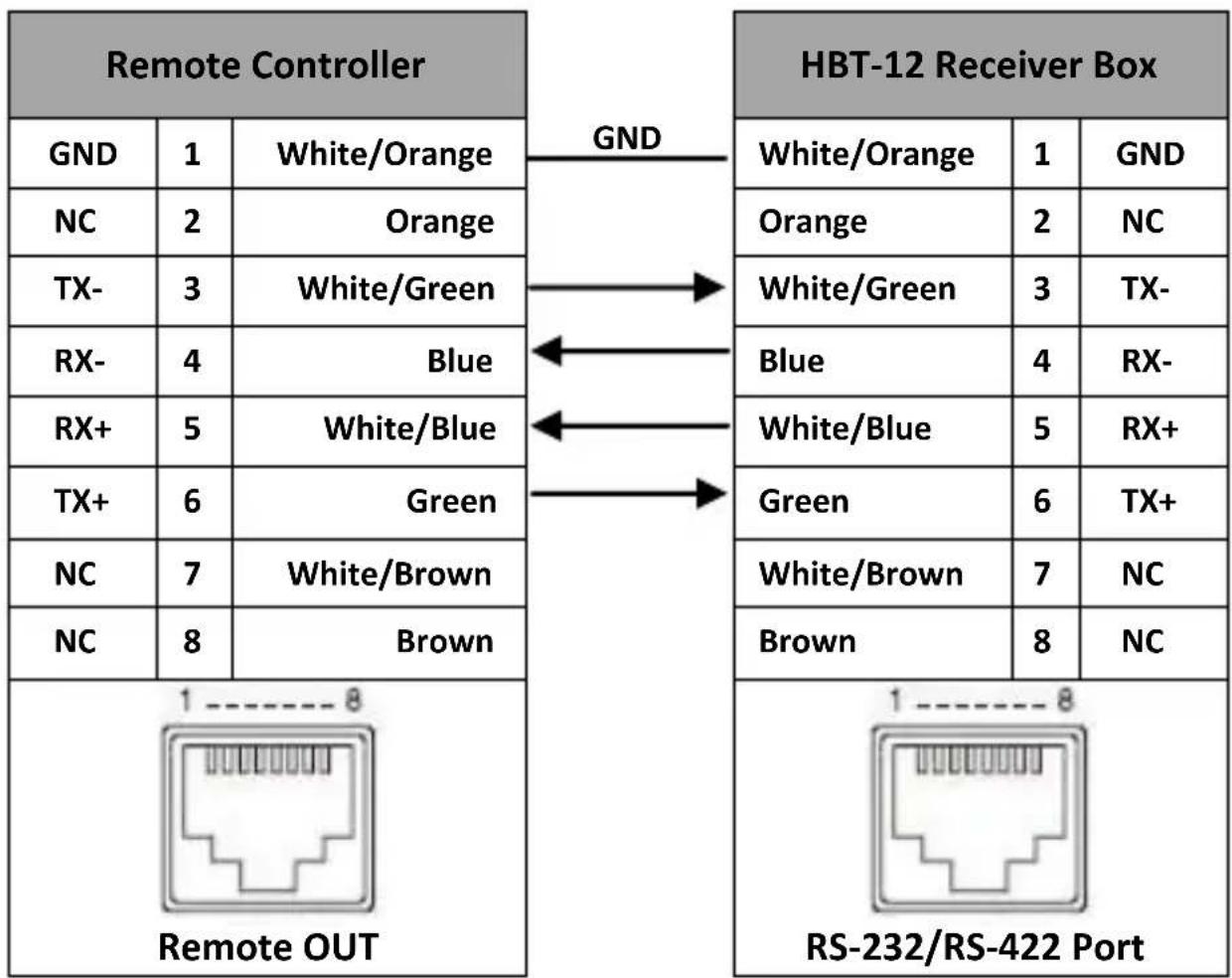

RS-422
    end

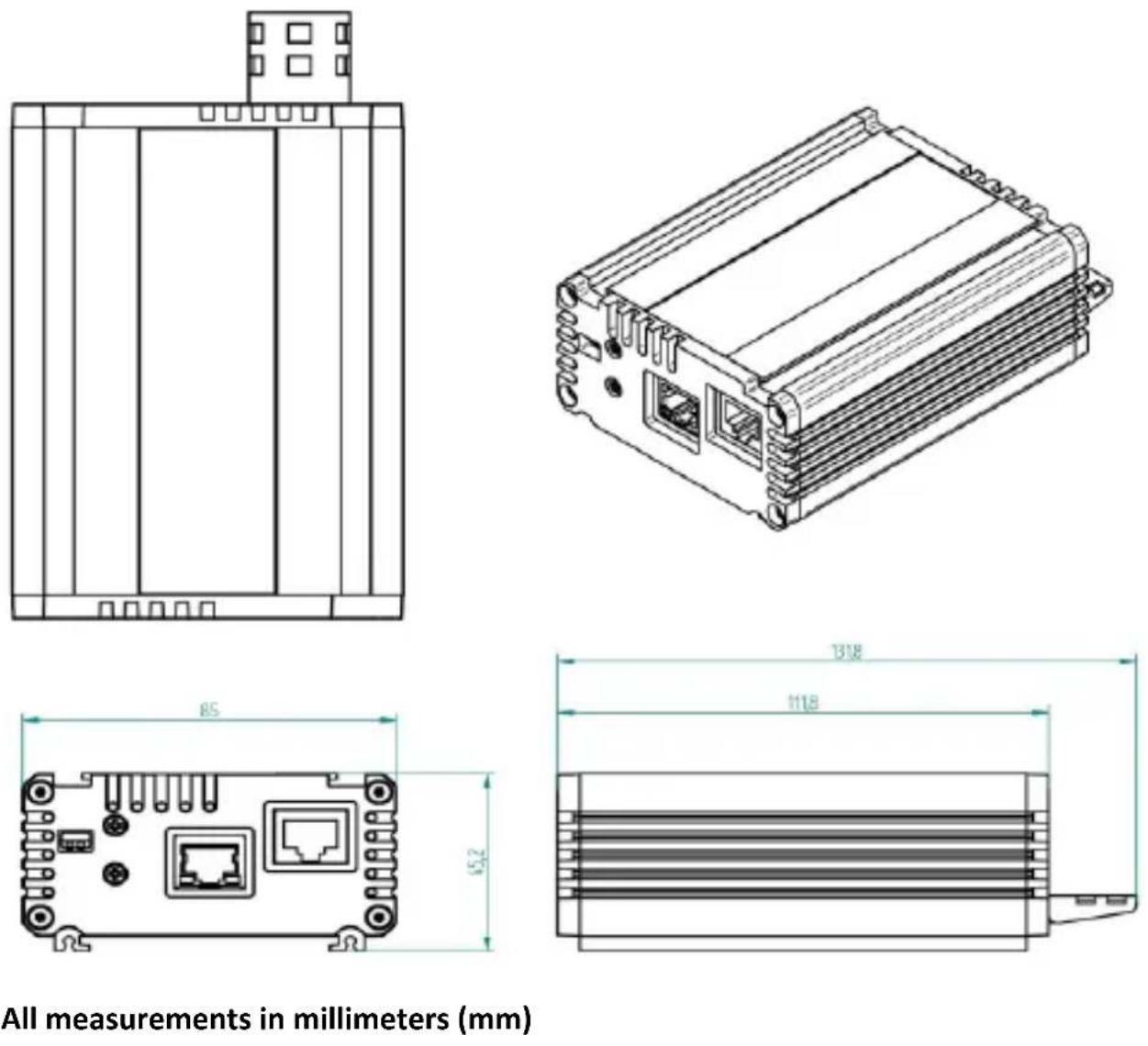

5. Dimensions

6. Specifications

HBT-12 HDBaseT Receiver Box
Video / Audio
Input	HDBaseT RJ-45 x 1
Output	HDMI x 1
Control
DVIP Ethernet	RJ-45 x 1
RS-422 / RS-232	RJ-45 x 1
Power
DC IN	DC 56 V
PoE Standard	IEEE 802.3bt
Dimensions
L x W x H	131.8 x 85 x 45.2 mm
Physical and Operating Environments
Weight	0.4 kg
Operating Temperature	0 – 40 °C
Operating Relative Humidity	10% – 80% (non condensing)
Storage Temperature	-10 – 60 °C
Storage Relative Humidity	5% – 80% (non condensing)
HDBaseT Transmission Distance	1080p@60 Up to 120M by Cat 7 Cable; 4K2K@30 Up to 70M by Cat 7 Cable

Cable Selection

The table below summarizes the recommended Cat 7 cable.

Cable	Range	Video Resolution
Cat 7	120 meters	Ultra HD video formats:• HDMI Deep color: 1080p, 60, 48 bpp.• 4K x 2K• Data rates higher than 5.3 Gbps or above 255 MHz TMDS clock.
Recommended Cables for Ultra-HD Video at 120 meter range
Type	P/N	Manufacturer	Website
CAT7S/FTP	FR-LSZH	Teldor	http://www.teldor.com/
CAT7	2170475	Earthline	http://products.lappgroup.com/online-catalogue/datacommunication-systems-for-ethernet-technology/

Notes

Notes

Service & Support

It is our goal to make your products ownership a satisfying experience. Our supporting staff is available to assist you in setting up and operating your system. Please refer to our web site www.datavideo.com for answers to common questions, support requests or contact your local office below.

Please visit our website for latest manual update. www.datavideo.com/product/HBT-12
