GN-C272SQCB - Refrigerator LG - Free user manual and instructions

Product Type	Fridge-Freezer
Model	GN-C272SQCB
Brand	LG
Dimensions (H x W x D)	1700 x 595 x 660 mm
Net Weight	62 kg
Power Supply	220-240 V, 50 Hz, 0.9 A
Energy Consumption	285 kWh/year
Climate Class	SN-T
Noise Level	40 dB(A)
Refrigerant	R600a
Compressor	Smart Inverter Compressor
Cooling System	Total No Frost
Display Type	LED (internal)
Shelves Material	Tempered glass
Door Finish	Matte finish (Silver)
Storage Volume (Refrigerator)	214 L
Storage Volume (Freezer)	89 L
Freezing Capacity	12 kg/24h
Defrosting	Automatic
Wi-Fi Connectivity	Yes (LG ThinQ)
Spare Parts Availability	Available via LG Service
Cleaning Recommendation	Mild soap and water, avoid abrasives
Safety Features	Door alarm, child lock
Warranty	2 years (parts and labor)

Frequently Asked Questions - GN-C272SQCB LG

How to set the temperature on my LG GN-C272SQCB fridge?

Press the Temp button repeatedly to cycle through settings. The recommended refrigerator temperature is 37°F (3°C) and freezer is 0°F (-18°C).

What does the 'Door Cooling' feature do?

Door Cooling vents cool air directly to the door bins, keeping items like milk and juice colder for longer.

How to reset the water filter indicator?

Press and hold the Filter Reset button for 3 seconds until the indicator light turns off.

My fridge is making noise. Is that normal?

Yes, some sounds are normal: gurgling from refrigerant flow, clicking from the compressor, and fan noise. If loud or unusual, contact LG support.

How to defrost the freezer?

This model features Total No Frost, so manual defrosting is not needed. Ice build-up indicates a problem.

Can I connect the fridge to Wi-Fi?

Yes, download the LG ThinQ app, create an account, and follow the pairing instructions. Ensure your phone is on the same 2.4 GHz network.

How to change the interior light bulb?

The light is LED and cannot be replaced separately. Contact LG service for assistance.

What is the energy consumption of this fridge?

The annual energy consumption is approximately 285 kWh under standard test conditions.

How to clean the condenser coils?

Unplug the fridge, then use a vacuum cleaner with a brush attachment to remove dust from the coils at the back. Avoid damaging them.

Why is water pooling inside the fridge?

Check the drain hole at the back; it may be clogged. Clean it with a pipe cleaner or warm water.

USER MANUAL GN-C272SQCB LG

Please read carefully the manual instruction and safety caution before operating your refrigerator and retain it for future reference

G*-*272****

G*-*222****

P/No.: MFL68683055

www.lg.com

CONTENTS

IMPORTANT SAFETY INFORMATION .. 3

INSTALLATION 10

FEATURE CHART 11

OPERATION 13

Starting

Before Setting The Temperature

Temperature Control

Hygiene Fresh (Optional)

Ice Making

Defrosting

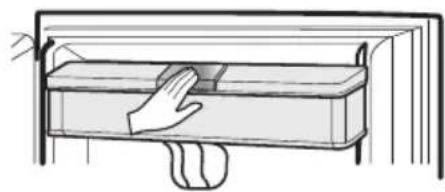

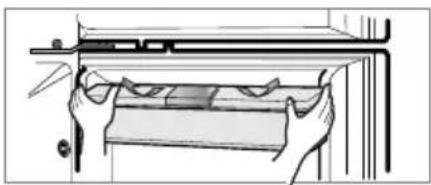

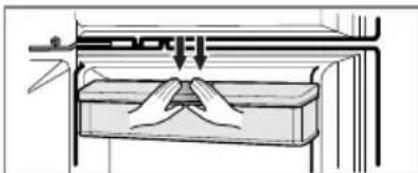

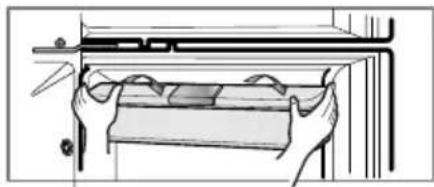

Pull Out Tray (Optional)

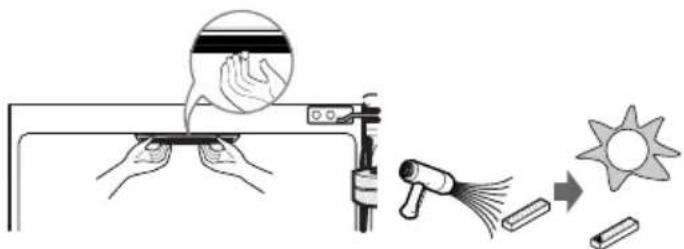

Deodorizer (Optional)

Water Dispenser (Optional)

SUGGESTIONS ON FOOD STORAGE..... 17

CLEANING 18

GENERAL INFORMATION ......19

LAMP REPLACEMENT ....20

IMPORTANT WARNINGS 20

BEFORE CALLING FOR SERVICE ...... 21

SMART DIAGNOSIS....23

IMPORTANT SAFETY INFORMATION

BASIC SAFETY PRECAUTIONS

This guide contains many important safety messages. Always read and obey all safety messages.

This is the safety alert symbol. It alerts you to safety messages that inform you of hazard can hurt you or others or cause damage to the product. All safety messages will be preceded by the safety alert symbol and the hazard signal word WARNING or CAUTION.

These words mean:

WARNING

You will be hurt or seriously injured if you don't follow instructions.

CAUTION

indicates an imminently hazardous situation which, if not avoided, may result in minor or moderate injury, or product damage only.

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

WARNING

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food storage compartment of the appliance, unless they are of the type recommended by the manufacturer.
The refrigerant and insulation blowing gas used in the appliance require special disposal procedures. When disposal, please consult with services agent or a similarly qualified person.

Risk of Fire and Flammable Materials

This symbol alerts you to flammable materials that can ignite and cause a fire if you do not take care.

This appliance contains a small amount of isobutane refrigerant (R600a), but it is also combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged.

• If a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes. In order to avoid the creation of a flammable gas air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance is used should correspond to the amount of refrigerant used. The room must be 1m² in size for every 8 g of R600a refrigerant inside the appliance.
• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

IMPORTANT SAFETY INFORMATION

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by LG Electronics Service Agent in order to avoid a hazard
• This product uses an LED Lamp which can not be replaced by the user. Please contact authorized service centre for the lamp replacement.
• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• This appliance is intended to be used in household and similar applications such as:
• Staff kitchen areas in shops, offices and other working environments.
• Farm houses and by clients in hotels, motels and other residential type environments.
• Bed and breakfast type environments.
• Catering and similar non-retail applications.

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using your product, basic safety precautions should be followed, including the following.

Read all instructions before using this appliance.

1. When connecting the power

Do not use many power outlets.

• Using several devices at one outlet may cause fire.
• The electric leakage breaker may damage food and the dispenser may be leaked.

Do not allow the power plug to face upward

or to be squeezed at the back of the refrigerator.

Water may be flown into or the plug may be damaged, which causes fire or electric shock.

Do not allow the power cord bent or pressed

by the heavy object to be damaged.

It may damage the power cord to cause fire or electric shock.

Do not extend or modify the length of the

power plug.

It causes electric shock or fire by the electric damage of the power cord or others.

IMPORTANT SAFETY INFORMATION

1. When connecting the power

Unplug the power plug when cleaning or handling the refrigerator.

- It may cause electric shock or injury.

Do not pull out the cord or touch the power plug with wet hands.

• It may cause electric shock or injury.

Remove water or dust from the power plug and insert it with the ends of the pins securely connected.

Dust, water or unstable connection may fire or electric shock.

Make sure of grounding.

The incorrect grounding may cause breakdown and electric shock.

When the power cord or the power plug is damaged or the holes of the outlet are loosed, do not use them.

It may cause electric shock or short circuit to make fire.

2. When using the refrigerator

Do not place the heavy object or the dangerous object

(container with liquid) on the refrigerator.

It may be dropped to cause injury, fire or electric shock when opening or closing the door.

Do not cling to the door or the shelves of the door or the cool chamber.

It may make the refrigerator fallen down or damage the hands. Especially, do not allow the children to do the above.

IMPORTANT SAFETY INFORMATION

2. When using the refrigerator

Do not install the refrigerator in the wet place or the place which water or rain splashes.

Deterioration of insulation of electric parts may cause electric leakage.

Do not use or store inflammable materials ether, benzene, alcohol, medicine, LP gas,

spray or cosmetics

near or in the

refrigerator.

It may cause explosion or fire.

Do not place the lit candle within the refrigerator to deodorize.

It may cause explosion or fire.

Do not store the medicine or the academic materials at the refrigerator.

When the material with the strict temperature control is stored, it may be deteriorated or it may make an unexpected reaction to cause any risk.

Do not use the combustible spray near the refrigerator.

It may cause fire.

Avoid the heating devices.

It may cause fire.

Do not place flower vase, cup, cosmetics, medicine or any container

with water on the refrigerator.

It may cause fire, electric shock or injury by dropping down.

Do not use the submerged refrigerator directly, kindly checked by the technician.

It may cause electric shock or fire.

IMPORTANT SAFETY INFORMATION

2.. When using the refrigerat

Do not spray water at the outside or the inside of the refrigerator or do not clean it with benzene or thinner.

Deterioration of insulation of electric parts may cause electric shock or fire.

Do not allow any person except the qualified engineer to disassemble, repair or alter the refrigerator.

It may cause injury, electric shock or fire.

When disposing the refrigerator, remove the packing materials from the door.

It may cause to lock out the child.

When gas is leaked, do not touch the refrigerator or the air outlet and ventilate the room immediately.

- The explosion by spark may cause fire or burn. - If there is a gas leakage (isobutane, propane, natural gas, etc.), do not touch the appliance or power plug and ventilate the area immediately. This appliance uses a refrigerant gas (isobutane,R600a). Although it uses a small amount of the gas, it is still combustible gas. Gas leakage during appliance transport, installation or operation can cause fire, explosion or injury if sparks are caused.

When any strange smell or smoke is detected from the refrigerator, disconnect the power plug immediately and contact to the service center. It may cause fire.

Do not use the refrigerator for non-domestic purpose (storing medicine or testing material, using at the ship, etc.).

It may cause an unexpected risk such as fire, electric shock, deterioration of stored material or chemical reaction.

Install the refrigerator on the solid and level floor.

Installing it on the unstable place may cause death by falling down the refrigerator when opening or closing the door.

Do not put hands or other things in the air holes, under the cover, into the holes at the back of the refrigerator. It may cause electric shock or injury.

IMPORTANT SAFETY INFORMATION

2. When using the refrigerator

Prevent children from entering the product.

It may endanger the life of a child if the child enters the refrigerator.

When you want to dispose the refrigerator, contact to the down-block office.

When you want to dispose the large living waste such as electric home appliance and furniture, you'd better contact the local down-block office.

CAUTION

Violating this direction may cause injury or damage house or furniture. Always be careful, please.

Do not touch food or containers at the freezer with wet

hands.

It may cause frostbite

Wait for 5 minutes or longer when reconnecting the plug.

It may cause the operation of the freezer to fail.

Do not put bottle in the freezer.

It may freeze the contents to break the bottle to cause injury.

Pull out the power plug not by grasping the cord but the plug of its end.

It may cause electric shock or short circuit to fire.

IMPORTANT SAFETY INFORMATION

CAUTION

Violating this direction may cause injury or damage house or furniture. Always be careful, please.

Do not install the refrigerator in the wet place or the place which water or rain

splashes.

Deterioration of insulation of electric parts may cause electric leakage.

Do not insert the hands into the bottom of the refrigerator.

The iron plate of the bottom may cause injury.

Carry the refrigerator with the handle bar at the bottom of the front and the top of the rear.

Otherwise, your hands may be slipped to cause injury.

Because opening or closing the door of the refrigerator may cause injury to the person around it, be careful, please.

Opening or closing the door may cause feet or hands to be caught in the chink in door or the child to be get hurt by the corner.

Do not put any living animal in the refrigerator.

It may cause the animal died.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance

Fill with potable water only.

Use only water. If any other liquid is used, the operation of the system may be deteriorated. If a problem occurs by using

any liquid other than water, the manufacturer will not be responsible.

Do not use the carbonated water. The gas pressure may cause leakage.

Clean the water tank according to the instruction before using the Water Dispenser

THIS REFRIGERATOR IS MANUFACTURED WITH GREAT CARE AND UTILIZES THE LATEST IN TECHNOLOGY.

WE ARE CONFIDENT THAT YOU WILL BE FULLY SATISFIED WITH ITS PERFORMANCE AND RELIABILITY.

BEFORE USING YOUR REFRIGERATOR, PLEASE READ THIS BOOKLET CAREFULLY.

IT PROVIDES EXACT INSTRUCTIONS FOR INSTALLATION, OPERATION, AND

MAINTENANCE, AND ALSO SUPPLIES SOME USEFUL HINTS.

INSTALLATION

1. Place your refrigerator where it is easy to use.
2. Avoid placing the refrigerator near heat sources, direct sunlight or moisture.
3. Air must circulate properly around your refrigerator to ensure efficient operation. If your refrigerator is placed in a recessed area in the wall, allow at least 10 inches (25 cm) or greater clearance above the refrigerator and 2 inches (5 cm) or more from the wall. The refrigerator should be elevated 1 inch (2.5 cm) from the floor, especially if the floor is carpeted.
4. To avoid vibrations, the unit must be level. If required, adjust the leveling screws to compensate for unevenness of the floor. The front should be slightly higher than the rear to aid in door closing. Leveling screws can be turned easily by tipping the cabinet slightly. Turn the leveling screws clockwise( ) to raise the unit, counterclockwise( ) to lower it.

NEXT

1. Wipe off all dust accumulated during shipping and clean your refrigerator thoroughly.
2. Install accessories such as the ice cube box, evaporating tray cover, etc., in their proper places. They are packed together to prevent possible damage during shipping.
3. Connect the power supply cord (or plug) to the outlet. Don't double up with other appliances on the same outlet.
4. Prior to use, let the refrigerator run for 2-3 hours. Check the flow of cold air in the freezer compartment to ensure proper cooling has taken place. Your refrigerator is now ready for use.

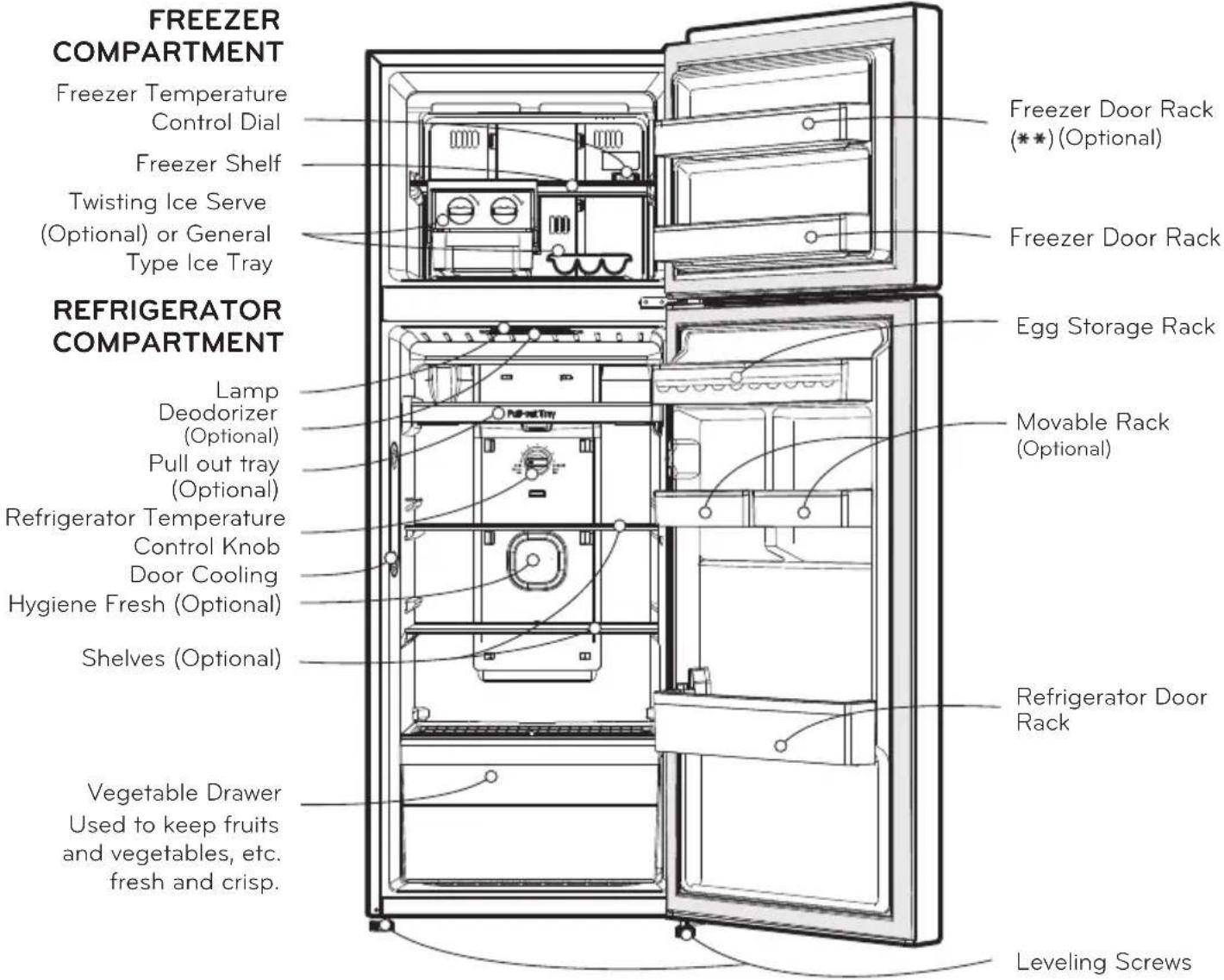

FEATURE CHART

□ DISPENSER MODEL

FREEZER COMPARTMENT

Freezer Temperature

Control Dial

Freezer Shelf

Twisting Ice Serve

(Optional) or General

Type Ice Tray

REFRIGERATOR COMPARTMENT

Lamp

Deodorizer

(Optional)

Pull out tray

(Optional)

Refrigerator Temperature

Control Knob

Door Cooling

Hygiene Fresh (Optional)

Shelves (Optional)

Vegetable Drawer Used to keep fruits and vegetables, etc. fresh and crisp.

Freezer Door Rack (**) (Optional)

Freezer Door Rack

Water Tank

Movable Rack (Optional)

Refrigerator Door Rack

Leveling Screws

NOTE

• This guide covers several different models. The refrigerator you have purchased may have some or all of the features shown above.
  • To keep a position of inner parts like as baskets, drawers and shelves supplied by manufacturer is the most efficient usage for energy saving.

SUGGESTION FOR ENERGY SAVING

• Please do not keep the door open for a long time, close door in the shortest time.
• Too much food are not advised to be put in. Enough space should be kept for cool air circulating freely.
• Do not set the temperature of refrigerator lower than needed. Do not put the food near the temperature sensor.
• Allow hot food to cool prior to storing. Placing hot food in the fridge-freezer could spoil other food, and lead to higher electric bills.
• Do not block air vents with food. Smooth circulation of cold air keeps fridge-freezer temperature even.
• Do not open the door frequently. Opening the door lets warm air enter the fridge-freezer, and cause temperature to rise.

FEATURE CHART

□ NON DISPENSER MODEL

•This guide covers several different models. The refrigerator you have purchased may have some or all of the features shown above.
• To keep a position of inner parts like as baskets, drawers and shelves supplied by manufacturer is the most efficient usage for energy saving.

SUGGESTION FOR ENERGY SAVING

• Please do not keep the door open for a long time, close door in the shortest time.
• Too much food are not advised to be put in. Enough space should be kept for cool air circulating freely.
• Do not set the temperature of refrigerator lower than needed. Do not put the food near the temperature sensor.
• Allow hot food to cool prior to storing. Placing hot food in the fridge-freezer could spoil other food, and lead to higher electric bills.
• Do not block air vents with food. Smooth circulation of cold air keeps fridge-freezer temperature even.
• Do not open the door frequently. Opening the door lets warm air enter the fridge-freezer, and cause temperature to rise.

OPERATIONS

STARTING

When your refrigerator is first installed, allow it 2-3 hours to stabilize at normal operating temperatures prior to filling it with fresh or frozen foods.

If operation is interrupted, allow 5 minutes delay before restarting.

BEFORE SETTING THE TEMPERATURE

• This refrigerator has one temperature control knob for the refrigerator compartment and one temperature control dial for the freezer compartment.
• The default setting of the temperature control knob for the refrigerator compartment is '4'.
• The default setting of the temperature control dial for the freezer compartment is '3'.

TEMPERATURE CONTROL

□CONTROLS FOR REFRIGERATOR COMPARTMENT

- For colder temperatures, adjust the control knob to Coldest, and for warmer temperatures, adjust the control knob to Cold position.

□ CONTROLS FOR FREEZER COMPARTMENT

※ Depend on your product

• The higher the number the Freezer setting is set to, the lower the temperature of the freezer compartment will become.
• Since the temperature of the refrigerator and freezer compartments is controlled with a fixed amount of cooled air, the refrigerator compartment will be warmer if the freezer compartment becomes colder.
• When the freezer compartment is not cold enough in summer, adjust the control in the freezer to High (4\~5) for type A or (3\~4) for type B.
• Setting the Freezer dial at (4\~5) for type A or (3\~4) for type B will maintain a low temperature in the freezer. But the Refrigerator's cooling speed will be reduced. When set to (4\~5) for type A or (3\~4) for type B during hotter climates, it may also be necessary to adjust the refrigerator compartment temperature to a cooler temperature (6\~7).
• Knob 5 \~ 7 is for quick freezing in the freezer compartment. The refrigerator can be operated continuously or the refrigerator compartment can be warmer. When the quick freezing is finished, please return to set the Knob at Normal.

OPERATIONS

HYGIENE FRESH (OPTIONAL)

CAUTION

Before installing or using the product, make sure to read the owner's manual carefully to use the product accurately as intended. This HYGIENE FRESH filter has the antibacterial function of removing the virus or bacteria inside the refrigerator and the deodorizer function to remove the scent

ICE MAKING

※ Determine which type ice-making system you have.

□ Twisting Ice Serve Type

• To make ice cubes, fill the ice tray with water and insert in its position.
• To remove ice cubes, hold the knob of the tray and turn gently. Then, ice cubes drop in the ice cube box.
• You can remove the Twisting Ice Serve to make the freezer compartment larger.
• You should remove the ice Trays and Ice Cube Box first, then pull the frame out toward the right side.

General Type

• To make ice cubes, fill the ice tray with water and insert the ice cube box in the freezer compartment.
• To remove ice cubes, hold the tray at its ends and twist gently.

DEFROSTING

Defrosting takes place automatically.

The defrosted water flows down to the evaporating tray which is located in the lower back side of the refrigerator and is evaporated automatically.

OPERATIONS

PULL OUT TRAY(OPTIONAL)

The pull out tray offers easy access to the rear of the food drawer by sliding the tray out.

Please do not hold the bottom of the tray when slide the tray in, as it could catch your hand.

How to remove the Pull Out Tray

Fully extend the Pull-Out-Tray and lift the front then pull it out slowly.

DEODORIZER (OPTIONAL)

- Unpleasant odor of food in fresh food compartment is deodorized with no harm to you and the food.

How to use

• As Deodorizer is located in cooling air inlet for circulating air in fresh food compartment, there is no need for any handling.
• Do not prick the cooling air inlet with a sharp tip because Deodorizer may be damaged.
• When storing food with a strong odor, wrap it or store it in a container with a lid because odor may be passed on to other foods.

Re-Using of Deodorizer

• Used some length and the odor is strong, Deodorizer can be revived and re-used.
- Separate Deodorizer in ceiling of refrigerator compartment, using hair drier to remove moisture or malodor and oxidize under sunlight to decomposing malodor by ultraviolet.

OPERATIONS

WATER DISPENSER (OPTIONAL)

• Put water after the water tank being in position. Necessarily separate the water tank to clean it or not use it.
• When the water tank is not position after filling it with water, water can leak out by the valve pushed.

- Putting water in the water tank

1. Open the cover cap and pour water into the water tank.

1. Close the cover cap.

Caution

Do not use anything other than water including. Hot water needs to be cooled before being put in the water tank.

- Drinking

1. Press the dispenser pad with cup.
2. The water is released when the dispenser pad is pressed. The pad returns to its original position when the cup is removed and the water stops its flow.

SUGGESTIONS ON FOOD STORAGE

STORING FOOD

• Store fresh food in the refrigerator compartment. How food is frozen and thawed is an important factor in maintaining its freshness and flavor.
• Do not store food which goes bad easily at low temperatures, such as bananas, pineapples, and melons.
• Allow hot food to cool prior to storing. Placing hot food in the refrigerator could spoil other food and lead to higher electric bills!
• When storing, cover food with vinyl wrap or store in a container with a lid. This prevents moisture from evaporating and helps food to keep its taste and nutrients.
• Do not block air vents with food. Smooth circulation of chilled air keeps refrigerator temperatures even.
• Do not open the door frequently. Opening the door lets warm air enter the refrigerator, causing temperatures to rise.
• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

FREEZER COMPARTMENT

• Do not store bottles in the freezer compartment - they may break when frozen.
• Do not refreeze food that has been thawed. This deteriorates taste and nutrition.
• When storing frozen food like ice cream for a long period, place it on the freezer shelf, not in the door rack.
• Avoid storing any food close to the bottom area of the freezer shelf to keep efficient air circulation.
• It is recommended to load food at least 25mm for type A or 15mm for type B against back of freezer wall, it will keep good air circulation in the freezer compartment (see page1).
• Freezer Door Basket, marked ( ^** ) is -12° C compartment, that is suitable for short term storage of frozen food (optional).
• Two star frozen food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes (optional).
• Two star compartments are not suitable for the freezing of fresh food (optional).

REFRIGERATOR COMPARTMENT

• Avoid placing moist food deep inside refrigerator shelves, it could freeze upon direct contact with chilled air.
• Always clean food prior to refrigeration. Vegetables and fruits should be washed and wiped, and packed food should be wiped clean to prevent adjacent food from spoiling.
• When storing eggs in their storage rack, ensure that they are fresh. Always store them in a upright position, which keeps them fresh longer.

CLEANING

WATER DISPENSER (OPTIONAL)

Grille -

Wipe with a wet cloth, and dry with a dry cloth.

Water Tank -

1. Putting the Water

Is not necessary to remove the water tank in order to supply it (it could be filled like shows fig. 1 pulling the tank gate).

NOTE

• Before closing door, close the cap and clamp tightly.

• Do not use liquids containing sugar or carbonated drinks like soda

• Disassembly

Lift the water tank, gripping a side and bottom of water tank.

NOTE

When disassemble Water Tank, use all waterinside dispenser first.

1. Assembly

If by some cause removes the water tank, place again the water tank on its original position. Verify that the valve assembly correctly in the hole of the door (fig. 3,4). Once assembled push down and check the tank position with line.

fig. 1

fig. 2

fig. 3

fig. 4

Water Tank -

1. Remove the tank cover.

1. Clean the inside and outside of the water tank with diswashing detergent and rinse throughly under running water. Dry the water with a cloth.

1. Clean the inside and outside of the cap with diswashing detergent and rinse throughly under running water. Dry the water with a cloth.

Caution

1. Use lukewarm water when cleaning.
2. Do not use anything other than water. If it is used with soft drinks, put water in the water tank and discharge three or four cups of water shortly.

CLEANING

It is important that your refrigerator be kept clean to prevent undesirable odors. Spilled food should be wiped up immediately, since it may acidify and stain plastic surfaces if allowed to settle.

Never use metallic scouring pads, brushes, coarse abrasive cleaners, or strong alkaline solutions on any surface.

Before you clean, remember that damp objects will stick or adhere to extremely cold surfaces. Do not touch frozen surfaces with wet or damp hands.

EXTERIOR - Use a lukewarm solution of mild soap or detergent to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry.

For products with a stainless steel exterior, use a cle sponge or soft cloth and a mild Detergent in warm Do not use abrasive or harsh cleaners. Dry thorough with a Soft cloth. Do not use appliance wax, bleach, other products containing chlorine on stainless ste

INTERIOR - Regular cleaning of the interior and interior parts is recommended. If you have the No

Frost model which defrosts automatically, leave both doors open during the entire cleaning process.

Disconnect the power supply, and remove food and all compartment shelves, storage trays etc.

Wash all compartments with a baking soda solution. Rinse and dry.

INTERIOR PARTS - Wash compartment shelves, door racks, storage trays, and magnetic door seals etc. with the baking soda solution or a mild detergent and warm water. Rinse and dry.

WARNING

Always remove power cord from the wall outlet prior to cleaning in the vicinity of electrical parts (lamps, switches, controls, etc.).

Wipe up excess moisture with a sponge or cloth to prevent water or liquid from getting into any electrical part and causing a electric shock. Do not use flammable or toxic cleaning liquids.

GENERAL INFORMATION

VACATION TIME

During average length vacations, you will probably find it best to leave the refrigerator in operation.

Place freezable items in freezer for longer life.

When you plan to be away for an extended period, remove all food, disconnect the power cord, clean the interior thoroughly, and leave each door OPEN to prevent odor formation.

POWER FAILURE

Most power failures are corrected in an hour or two and will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is off. During power failures of longer duration, place a block of dry ice on top of your frozen packages.

DRY ICE WARNING

When using dry ice, provide adequate ventilation. Dry ice is frozen carbon dioxide (CO).

When it vaporizes, it can displace oxygen, causing dizziness, light-headedness, unconsciousness, and death by suffocation.

Open a window and do not breathe the vapors.

IF YOU MOVE

If you move, empty the refrigerator (freezer) completely and wash a mild solution of baking soda and water. (2 TBS soda to 1 quart water)

Be sure the soda is completely dissolved to avoid scratching the inside of the refrigerator (freezer). Secure any loose items, such as racks, bins, ice trays, etc. Do not try to move a loaded refrigerator.

ANTI-CONDENSATION PIPE

The outside wall of the refrigerator cabinet may

sometimes get warm, especially just after installation.

Don't be alarmed.

This is due to the anti-condensation pipe, which pumps hot refrigerant to prevent sweating on the outer cabinet wall.

Anti-Condensation Pipe

This appliance is intended to be used in household and similar applications such as:

- Staff kitchen areas in shops, offices and other working environments.

- Farm houses and by clients in hotels, motels and other residential type environments.

- Bed and breakfast type environments.

- Catering and similar non-retail applications.

LAMP REPLACEMENT

●This product applies LED Lamp which can not be replaced by the user.

Please contact authorized service centre for the lamp replacement.

IMPORTANT WARNINGS

DO NOT USE AN EXTENSION CORD

Use this appliance on a dedicated circuit; that is, an outlet that is the only outlet on the circuit.

Overloading a circuit causes low voltage, malfunction, possible damage to the equipment, and poor cooling capacity.

Check your local electric code or consult a qualified electrician if you have questions.

ACCESSIBILITY SUPPLY PLUG

The refrigerator-freezer should be so positioned that the supply plug is accessible for quick disconnection if an accident happens.

SUPPLY CORD REPLACEMENT

If the supply cord is damaged, it must be replaced by the manufacturer or replacement or a similarly qualified person in order to avoid a hazard.

An empty refrigerator can be a dangerous attraction to children. Remove either gaskets, latches, lids or the entire door from your unused appliance, or take some other action to make it harmless.

ABOUT GROUNDING (EARTHING)

In the event of an electric short circuit, grounding (earthing) reduces the risk of electric shock by providing an escape wire for the electric current.

In order to prevent possible electric shock, this appliance must be grounded.

Improper use of the grounding plug can result in an electric shock. Consult a qualified electrician or service person if the grounding instructions are not completely understood, or if you have doubts on whether the appliance is properly grounded.

DO NOT MODIFY OR EXTEND THE POWER CORD LENGTH

It will cause electric shock or fire.

This appliance must be grounded (earthed).

DON'T WAIT! DO IT NOW!

Do not store inflammable materials, explosives or chemicals in the refrigerator.

WARNING

This appliance is not intended for use by person (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

DISPOSAL OF THE OLD APPLIANCE

This appliance contains fluid (refrigerant, lubricant) and is made of parts and materials which are reusable and/or recyclable.

All the important materials should be sent to the collection center of waste material and can be reused after rework (recycling). For take back, please contact with the local agency.

"The equipment complies with requirements of the Technical Regulation, in terms of restrictions for the use of certain dangerous substances in electrical and electronic equipment."

BEFORE CALLING FOR SERVICE

SERVICE CALLS CAN OFTEN BE AVOIDED!

IF YOU FEEL YOUR REFRIGERATOR IS NOT OPERATING PROPERLY, CHECK THESE POSSIBLE CAUSES FIRST :

PROBLEM	POSSIBLE	CAUSES
THERE IS NO REFRIGERATION OR FREEZING	Has the power cord plug been removed or loosened from the electrical wall outlet?A fuse in your home may be blown or the circuit breaker tripped. Or the appliance is connected to a GFCI (Ground Fault Circuit Interrupter) outlet, and the outlet's circuit breaker has tripped.- Check the main electrical box and replace the fuse or reset the circuit breaker. Do not increase fuse capacity. If the problem is a circuit overload, have it corrected by a qualified electrician.- Reset the circuit breaker on the GFCI. If the problem persists, contact an electrician.
REFRIGERATOR OR FREEZER COMPARTMENT TEMPERATURE TOO WARM	Temperature control not set on proper position.Appliance is placed close to wall or heat source.Warm weather-frequent door openings.Door left open for a long time.Large amount of foods are kept in the refrigerator.
ABNORMAL NOISE(S)	Refrigerator is installed in a weak or uneven place, or leveling screw needs adjusting.Unnecessary objects placed behind the refrigerator.
REFRIGERATOR HAS ODOR	Foods with strong odors should be tightly covered or wrapped.Interior needs cleaning.
DEW FORMS ON THE CABINET SURFACE	Not unusual during periods of high humidity.Door may have been left ajar.

EARTH/GROUNDING CONSTRUCTION (OPTIONAL)

It is recommended to install the earth wire to prevent electric shock in case of electricity leakage.

How to connect the earth wire:

- Connect the earth wire's metal ring end to the earth screw on the back of the refrigerator.

- Peel off the cable sheath/insulation at the other end of the earth wire. Attach the peeled wire to a metal screw/nail and then drive it through the wall or ground.

Do not connect the earth wire to the following locations.

- Gas pipe

It could produce sparks which lead to fire and explosion.

• Telephone earth wire and lightning rod

It is dangerous during lightning.

• Water pipe and water tap

The earth wire connection will not work when the middle of the water pipe is made of plastic. If it is connected to a metal water pipe, it could cause someone to be electrocuted.

When installing the product in a humid or wet location, you must install the earth wire.

Ex) • Unfloored or dirt floored room (Room with dirt and no floor), concrete floor

• Location where it can get wet such as near the sink
• Location where water can leak or is humid such as basement
  • Other wet or humid location

Especially, for locations where it always get wet such as near the restaurant sink, you are obligated by the law to install a circuit breaker in addition to the earth wire.

After consulting with your retailer or electric construction company, you must do the earth wire construction (Type 3 earth construction). Please note that earth construction could incur extra fees.

SMART DIAGNOSIS (Only for applied models)

This feature is only available on models with the ⚙ or ⚙ logo.

Use this feature to help you diagnose and solve problems with your appliance.

NOTE

For reasons not attributable to LGE's negligence, the service may not operate due to external factors such as, but not limited to, Wi-Fi unavailability, Wi-Fi disconnection, local app store policy, or app unavailability.
- The feature may be subject to change without prior notice and may have a different form depending on where you are located.

Installing the LG ThinQ Application

Search for the LG ThinQ application from the Google Play Store or Apple App Store on a smart phone.

• Follow instructions to download and install the application.
• Run the LG ThinQ application and follow the instructions in the application to register the appliance.

Using Audible Diagnosis to Diagnose Issues

Follow the instructions below to use the audible diagnosis method.

• Launch the LG ThinQ application and select the Smart Diagnosis feature in the menu.
  Follow the instructions for audible diagnosis provided in the LG ThinQ application.

• Open all the doors of the refrigerator.

- Smart Diagnosis can be input even Test Mode and Error status.

1. Turn knob to Middle notch.
2. Turn knob to Varm notch and keep that status for 2sec.
3. Turn knob to Cold noth within 3sec and keep that status for 2sec.
4. Turn knob to Middle notch within 3sec and keep that status for 2sec.
5. Place the phone near the speaker hole.

Do not take away the phone while data is being transmitted.

During the data transmission for smart diagnosis, hold the phone near the speaker hole and avoid any background noises.

1. When Smart Diagnosis is input, buzzer let you know by ringing 4 times.
2. After inputting Smart Diagnosis, Smart Diagnosis buzzer will ring.
3. If the data transfer is complete, the diagnosis will be displayed in the application.

LG

Life's Good

ER[

INFORMATION

You can find manufactured year and month of this product in the product label.

РАЗМОРАЖИВАНИЕ

ЭКСПЛУАТАЦИЯ

Водяной бак

Осторожно!

КАУІПСІЗДІК ТУРАЛЫ МАНЫЗДЫ АҚПАРАТ

КАУІПСІЗДІК ТУРАЛЫ МАНЫЗДЫ АҚПАРАТ

КАУІПСІЗДІК ТУРАЛЫ МАНЫЗДЫ АҚПАРАТ

М¥ЗДЫН ЕРУІ

Пайдалану

ПАЙДАЛАНЫМ

СУ ДИСПЕНСЕРІ

АЗЫК-ТУЛІКТЕРДІ САҚТАУғА АРНАЛғАН КЕНЕСТЕР

АЗЫК-ТУЛИКТЕРДІ САҚТАУ

fig. 1

fig. 2

fig. 3

fig. 4

Абай болыңыз
