Product Type	Kitchen Knife
Model	Design 41600
Brand	Gastroback
Blade Length	20 cm (8 inches)
Overall Length	33 cm (13 inches)
Blade Material	Stainless Steel
Handle Material	Polypropylene (PP) with rubberized grip
Weight	200 g (7 oz)
Care Instructions	Hand wash only; dry immediately
Dishwasher Safe	No
Sharpening	Use a honing steel regularly; professional sharpening recommended
Safety Features	Blade guard included; keep out of reach of children
Storage	Store in a knife block or magnetic strip
Warranty	2 years limited warranty
Spare Parts Availability	Contact Gastroback customer service for replacement blades or handles
Reparability	Non-repairable by user; seek professional servicing
Intended Use	Domestic kitchen use; not for commercial purposes
Country of Origin	Germany
Package Contents	1 knife, blade guard, user manual
Special Features	Ergonomic handle design, full tang construction

Frequently Asked Questions - Design 41600 Gastroback

How do I clean the Gastroback Design 41600 knife?

Hand wash the knife with mild detergent and warm water. Dry immediately with a soft cloth. Do not put it in the dishwasher as it may damage the blade and handle.

Can I sharpen the knife at home?

Yes, you can use a honing steel regularly to maintain the edge. For a full sharpening, we recommend using a whetstone or taking it to a professional sharpening service to avoid damaging the blade.

Is the knife dishwasher safe?

No, the Gastroback Design 41600 is not dishwasher safe. Dishwashers can cause corrosion, dull the blade, and damage the handle material.

What is the blade made of?

The blade is made of stainless steel, which offers good corrosion resistance and edge retention. It is suitable for everyday kitchen tasks.

How should I store the knife?

Store the knife in a knife block, magnetic strip, or with the included blade guard to protect the edge and prevent accidents. Never store it loose in a drawer.

What should I do if the handle becomes loose?

If the handle loosens, check if the rivets or screws need tightening. If not, contact Gastroback customer service. Do not use the knife if the handle is loose as it may cause injury.

Is this knife suitable for cutting bones?

No, the Gastroback Design 41600 is a kitchen knife intended for slicing, dicing, and chopping soft to medium-hard foods. Do not use it on bones, frozen foods, or hard shells as it may chip the blade.

How long does the warranty last?

The knife comes with a 2-year limited warranty covering manufacturing defects. Keep your proof of purchase for warranty claims.

Can I return the knife if I am not satisfied?

Return policies vary by retailer. Check the return policy of the store where you purchased the knife. Gastroback offers a 30-day satisfaction guarantee through their official website.

Where can I find spare parts or accessories?

Spare parts such as blade guards or replacement screws can be ordered from Gastroback customer service. Visit their website or call the support hotline for assistance.

USER MANUAL Design 41600 Gastroback

Wooden portable phone stand with a silver and black plastic device, no visible text or symbols on the device itself.

Close-up of a metallic tool blade with serrated edge and flat blade (no text or symbols visible)

Close-up of a metallic blade with visible grooves and a small dark spot (no text or symbols)

Wooden table lamp with a silver brush and black clip, no visible text or symbols on the device itself.

Art.-No. 41600 »Design Electric Knive«

Read all provided instructions before first usage!

Model and attachments are subject to change

For household use only!

We at instr run

We attach a certain importance to your safety. Thus, we ask you to read all provided instructions and information in this booklet carefully and completely, before you start running the appliance. This will help you to know all functions and properties of your new appliance. We especially ask you to adhere strictly to the safety information mentioned in these instructions.

TABLE OF CONTENTS

Important Instructions 20

Important Safeguards....20

Safeguards for Daily Operation....21

Important Safeguards for all Electrical Appliances 22

Moving Parts – Risks of Injury to Persons....23

Technical Specifications....24

Knowing Your Design Electric Knife 24

Operation 25

Before First Use 25

Tips for Best Cutting Results....27

Care and Cleaning 28

Storage 28

Notes for Disposal 29

Information and Service....29

Warranty 30

Household Use....30

IMPORTANT INSTRUCTIONS

Always release the on button, unplug the appliance and wait for the motor to stop, before assembling/dismantling or cleaning the appliance.

⚠ WARNING: Moving the on switch the motor does function even when the blades are not correctly assembled. Ensure that the blades are correctly connected before attaching them to the handle to avoid personal injury. Always use both blades when operating the Electric Knife. Do not place your fingers in the blade slot of the handle.

⚠ WARNING: The blades of the knife are extremely sharp! Do not touch the blades if the power cord is connected to the power outlet. Always grasp the knife by the safety guards. Do not let kids play with the appliance. Do not touch the moving parts of the appliance.

Do not cut extremely hard food, such as bones or similar hard food.

⚠️ ATTENTION: Do not use the appliance in continuous operation for more than 7 minutes to avoid overheating. If processing large quantities of food, regularly interrupt the operation and unplug the appliance for at least 3 minutes, allow the motor to cool down.

Do not place the appliance or any part of it in an automatic dishwasher! The appliance is for household only.

IMPORTANT SAFEGUARDS

Carefully read all instructions before operating and save the instructions for future reference. Do not attempt to use this appliance for any other than the intended use, as described in these instructions. Any other use, especially misuse, can cause severe injury or damage by electric shock, fire or moving mechanical parts. These instruction is an essential part of the appliance. When passing on the appliance to a third person, ensure to include these instructions.

Any operation, repair and technical maintenance of the appliance or any part of it other than described in these instructions may only be performed at an authorised service centre. Please contact your vendor. The appliance is for household only.

The appliance is designed for normal household quantities. Do not operate or store the appliance outdoors or in damp or wet areas. Do not operate the appliance in continuous operation for more than 7 minutes to avoid overheating. If cutting large quantities of food, regularly interrupt the operation and unplug the appliance for at least 3 minutes. Allow the motor to cool down to avoid overheating.

Do not attempt to operate the appliance using any parts or accessories not recommended by the manufacturer (i.e. blades). Do not operate the appliance, when the appliance or any part of it is likely to be damaged, to avoid risk of fire, electric shock or any other damage or injury to persons. Do not attempt to open the motor housing or to repair the power cord. Check the entire appliance regularly for proper operation. The appliance is likely to be damaged if the appliance was subject to inadmissible strain (i.e. overheating, mechanical, or electric shock) or if there are any cracks, excessively frayed parts, distortions or the motor stalls or sticks. In this case, immediately unplug the appliance and return the entire appliance (including all parts and accessories) to an authorised service centre for examination and repair.

Do not lift, pull or carry the appliance by the power cord.

Close supervision is necessary when the appliance is used near young children. Do not let young children play with any parts of the appliance or the packing. The blades are extremely sharp. The appliance is not intended for use by children or infirm persons. Take care that no one will pull the appliance by the power cord, especially when young children are near. Always place the appliance on a clean, dry and stable surface where it is protected from inadmissible strain (i.e. mechanical or electric shock, overheating, frost, moisture) and where young children cannot reach it.

Operate the appliance on a well accessible, stable, level, dry, and suitable surface. Do not place the appliance or any part of it on or near hot surfaces (heater, gas burner, grill or oven). Do not place the appliance near the edge of the surface or on inclined or wet surfaces or where it can fall. Keep the entire appliance away from direct sunlight and sharp edges.

Always IMMEDIATELY release the on button, wait for the blades to stop moving, and then unplug the appliance, if the appliance is not in use (even for a short break) and before assembling, dismantling or cleaning.

Do not immerse the motor housing or power cord in water or any other liquid. Do not pour or drip any liquids on the motor housing or power cord. When liquids are spilled on the motor housing, immediately unplug the appliance and dry the motor housing to avoid risk of electric shock or fire. Do not attempt to operate the appliance, when liquids are on or in the motor housing.

Do not place the appliance or any part of it in an automatic dishwasher!

To avoid damage, do not use any abrasive cleaners, corrosive chemicals (i.e. disinfectants, bleach) or cleaning pads for operation or cleaning. Do not use any hard or sharp utensils for operation or cleaning.

The appliance is intended for cutting food. Do not use the appliance for any other purpose. Do not cut extremely hard food, such as bones or similar hard food.

Before use, always make sure that the appliance is assembled properly and completely (see >Operation<). Do not leave any food dry on the surfaces of the appliance. Always handle the entire appliance and all parts of it with care and without violence.

IMPORTANT SAFEGUARDS FOR ALL ELECTRICAL APPLIANCES

Always operate the appliance near a suitable wall power outlet and connect the appliance directly to the power outlet. Do not use any extension cords or a multiple electrical adopters.

Ensure that the voltage rating of your mains power supply corresponds to the voltage requirements of the appliance (220/240 V, 50/60 Hz, AC). Always connect the appliance directly to a mains power supply wall socket with protective conductor (earth) connected properly. The installation of a residual current safety switch with a maximum rated residual operating current of 30 mA in the supplying electrical circuit is strongly recommended. If in doubt, contact your local electrician for further information.

Do not leave the appliance unattended while connected to the power supply. Always release the on button and IMMEDIATELY unplug the appliance after operation and if it is not in use (even for a short break) and before cleaning and/or assembling or dismantling. Always grasp the plug to disconnect the appliance from the power outlet.

Always handle the power cord with care. Do not pull or strain the power cord. The power cord may never be knotted or squeezed. Do not let the power cord hang over the edge of the table or counter. Take care not to entangle in the power cord. Do not touch the appliance with wet hands to avoid risk of electric shock. Do not touch the appliance, if it is damp or wet or is touching wet surfaces while connected to the mains power supply. In this case, immediately unplug the appliance and dry the appliance (see >Care and Cleaning).

MOVING PARTS - RISKS OF INJURY TO PERSONS

Always release the on button, unplug the appliance and wait for the motor to stop, before assembling/dismantling or cleaning the appliance. Always place the appliance on a stable, level and dry surface, where it can not fall.

The blades of the knife insert are extremely sharp. Do not touch the blades. Do not use the tools of the appliance, especially the blades, for any other purpose, than described in these instructions, to avoid severe injury and damage. Always handle the tools of the appliance with care and without violence.

TECHNICAL SPECIFICATIONS

Model:	Art. No. 41600 Design Electric Knife
Power supply:	220-240 V AC, 50/60 Hz
Maximum power consumption:	120 W
Length of power cord:	approx. 100 cm
Weight:	approx. 1.56 kg
Dimensions:	approx. 435 x 51 mm (W x D)
Dimensions wooden stand:	approx. 160 x 205 x 270 mm (W x D x H)

KNOWING YOUR DESIGN ELECTRIC KNIFE

Two sides blade release button Stainless steel blades Ergonomic ho safety with dis based-on switch with safety lock coating for comfortable grip

The Gastroback Design Electric Knife is applicable for multifunctional purposes such as cutting meat, vegetables, bread, pastry, etc.

Stainless steel blades: Serrated stainless steel blades are durable and sharp for efficient slicing and carving.

Two sides blade release button: Conveniently located on the side of the handle for thumb and first finger action release of the stainless steel blades.

Biased-on switch with safety lock: Located under handle for ease of operation. Double motion switch provide extra safety. To turn the appliance on you have to pull the complete switch towards you. Releasing the switch the motor turns off automatically.

Ergonomic handle: It provides convenient and simple to operate. The ergonomic design provides comfort, versatility and control when carving both vertically and horizontally.

Stand: The knife can stand on the table. The blades should always face down.

Safety guards: It is a handle for insert and removal of blades.

OPERATION

The Electric Knife works extremely quick and is designed only for short time operation of max. 7 minutes. If you need it for longer, switch it off after 7 minutes and allow the motor to cool for 3 minutes.

The appliance has a biased-on switch with safety lock, which prevents switching on of the appliance if the switch is not handled correctly.

If the motor slows down or can not reach its normal speed, then release the on button, and unplug the appliance from the wall power outlet. Check whether there is any obstruction between the blades, and remove it. Act upon instructions >Care and Cleaning<.

Close-up of a metallic blade with serrated edge and flat base (no text or symbols visible)

Multifunctional blade for cutting meat, bread and alike.

Close-up of a metallic blade with serrated edges and a small dark object on the side (no text or symbols visible)

Wavy blade for cutting vegetable, fruit, cakes and alike.

BEFORE FIRST USE

After unpacking, remove all promotional and packing materials as well as any foreign objects.

Before first use and after a long period of storage, clean the blades and the appliance with a damp sponge and warm soapy water (see >Care and Cleaning). Before connecting the appliance to the mains power supply, always ensure that the appliance is assembled correctly, according to the following instructions. Always release the on button, wait until the motor stops and unplug the appliance before assembling or dismantling. The appliance is not developed for cutting extremely hard food, such as bones or seeds of fruits.

1. Place the container on a suitable, stable, dry, and clean working surface. (see: >Safeguards for Daily Operation).
2. Connect the two blades before you insert them into the handle.

⚠ WARNING: Moving the on switch the motor does function even when the blades are not correctly assembled. Do not place your fingers in the blade slot of the handle. The blades of the knife insert are extremely sharp! Do not touch the blades. Always grasp the knife insert by the safety guards.

Channel

Interlock blades together before inserting into the appliance. To assemble blades, grasp shaft ends below the safety guards. Take the blade with the rivet in your left hand. The rivet should be facing upright and the safety guard downward. With the right hand you take the other blade (safety guard facing upright). This blade has a hole and a narrow channel.

Bring blades together ensuring tips remain together (see picture).

⚠ WARNING: Ensure that the blades are correctly connected to avoid personal injury. The safety guards should be facing the outside and the blades are not getting easily taken apart.

3.

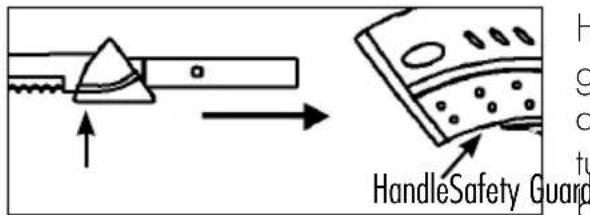

HandleSafety Guard

Hold assembled blades by the safety guards and slice shafts gently into the blade slot until clipped into position (see picture). Make sure blades inserted to main body in position. Try to pull out blades

carefully. If blades do not move, blades are fixed to main body.

⚠ WARNING: Always ensure that the power cord is unplugged before assembling or dismantling the appliance. The motor could get started accidentally switching the on button.

1. When the blades are fitted connect the power outlet. Make sure that the power cord is well away from moving blades when you start operating the appliance.

2. Holding the knife with one hand, slide and press the switch under the handle to activate the motor. Releasing the switch will automatically stop the motor.

⚠ WARNING: Avoid contact with the moving parts. Keep hands, hair, clothing and other utensils away from moving blades during operation to prevent personal injury and/or damage to the knife.

Note:

Do not use the appliance in continuous operation for more than 7 minutes to avoid overheating. If processing large quantities of food, regularly interrupt the operation and unplug the appliance for at least 3 minutes, allow the motor to cool down.

If the motor slows down or can not reach its normal speed, then release the on button, and unplug the appliance from the wall power outlet. Check whether there is any obstruction between the blades, and remove it. Act upon instructions >Care and Cleaning.

1. When slicing is completed, release the on switch, turn the power off at the power outlet and remove the plug. Press the blade release buttons with first finger and thumb of one hand and with the other hand hold the blades by the safety guards with the cutting edge facing downward and pull the blades out of the slots.

⚠ WARNING: The blades are sharp! Handle with extreme care. We recommend only touching the safety guard when moving the blades. Do not fit or remove blades whilst the knife is connected to the power outlet. Do not allow children to operate the appliance.

1. After use, act upon instructions >Care and Cleaning>. Do not let any food to dry on the appliance.

TIPS FOR BEST CUTTING RESULTS

• Always place food to be sliced on a wooden or plastic cutting board. Do not slice food on china, metal or bench tops, as scratching may occurs.
• Use the multifunctional blade for cutting meat and bread and the wavy blade for cutting vegetable, fruit, cakes and alike.
• Guide blades through food. A sawing action is not necessary. So not force blades through food.
• To maintain the sharpness of blades, do not cut through bones, fruit pips or stones or any other hard substances.
• For best results when carving meat and poultry allow cooked meat to stand for 10-15 minutes before slicing. This allows the juices to set and makes carving easier and neater.
• Before carving meat or chicken, remove skewers. If desired, string may be left around the meat whilst carving. The use of carving fork to steady the meat assists in carving straight, even slices.
• Do not attempt to sharpen blades.

CARE AND CLEANING

⚠ WARNING: To avoid injury to persons and damage, always release the on button, wait for the motor to stop completely and unplug the appliance, immediately after operation and before assembling/dismantling or cleaning the appliance.

The blades of the knife are very sharp! Do not touch the blades. To handle the blades, always hold on to the safety guide.

⚠️ CAUTION: DO NOT place the handle or power cord in an automatic dish-washer. Do not immerse the motor or power cord in any liquids or spill any liquids on it or place the motor on wet surfaces. Always wipe off spilled liquids immediately.

Do not use abrasive cleaners, cleaning pads, corrosive chemicals (disinfectants, bleach) or any sharp or hard objects (i.e. metal scouring pads) for cleaning, for this could damage the surfaces. Always handle the entire appliance with care and without violence.

1. Release the on button, wait for the motor to stop completely, and unplug the appliance from the power outlet before removing the blades and/or cleaning.
2. Press the blade release buttons with first finger and thumb of one hand. With the other hand hold the blades by the safety guards with the cutting edge facing downward and pull the blades out of the slots. Unlock the blades by sliding apart. Always hold the blades by the shaft end, behind the safety guard, when handling and cleaning.
3. Wash blades in hit soapy water with a soft cloth or sponge. Soak stubborn residues in warm dish-water for ca. 10 minutes, before cleaning. Rinse thoroughly and dry completely. Do not use abrasive scouring pads or powders on blades.
4. Wipe the motor housing and power cord with a damp soft cloth. Take care not to spill or drip water or any other liquids on the motor housing.
5. Thoroughly dry the motor housing and all parts of the appliance after each cleaning. Leave all parts dry naturally where they are out of reach of young children. For safety storage store the handle and the blades in the stand.

STORAGE

Always clean the appliance before storing (see 'Care and Cleaning').

Ensure to store the appliance where it is clean, dry and safe from frost, direct sunlight and inadmissible strain (mechanical or electric shock, heat, moisture) and where it is out of reach of young children. Place the appliance on a clean and stable surface, where it can not fall. Do not place any hard or heavy objects on the appliance.

To avoid touching the blades unintentionally, it is good advice to store the blades in the stand.

NOTES FOR DISPOSAL

Dispose of the appliance and packaging must be effected in accordance with the corresponding local regulations and requirements for electrical appliances and packaging. Please contact your local disposal company.

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills, dumps, or refuse incineration, hazardous substances can leak into the groundwater or can be emitted into air, thus getting into the food chain, and damaging your health and well-being as well as poisoning flora and fauna. When replacing old appliances with new once, the vendor is legally obligated to take back your old appliance for disposal at least for free of charge.

INFORMATION AND SERVICE

Please check www.gastroback.de for further information.

For technical support, please contact Gastroback Customer Care Center by phone: [phone] or e-mail [e-mail].

Please refer to our home page for a copy of these operating instructions in pdf format.

WARRANTY

We guarantee that all our products are free of defects at the time of purchase. Any demonstrable manufacturing or material defects will be to the exclusion of any further claim and within 2 years after purchasing the appliance free of charge repaired or substituted. There is no Warranty claim of the purchaser if the damage or defect of the appliance is caused by inappropriate treatment, over loading or installation mistakes. The Warranty claim expires if there is any technical interference of a third party without a written agreement. The purchaser has to present the sales slip in assertion-of-claim and has to bear all charges of costs and risk of the transport.

Note

Customers from Germany and Austria: For repair and service, please send Gastroback products to the following address:

Gastroback GmbH, Gewerbestr. 20, D-21279 Hollenstedt, Germany.

Customers from other countries: Please contact your dealer.

Please agree that we cannot bear the charge of receipt. Submission of appliances: Please ensure packing the appliance ready for shipment without accessories. Add the sales slip and a short fault description. The processing time after receipt of the defective appliance will be approx. 2 weeks; we will inform you automatically. After the warranty period, please send defective appliances to the given address. You will get a free quotation and, thereafter, can decide, whether we shall repair the appliance to the costs possibly accrued, send back the defective appliance for free of charge, or dispose of the appliance for free of charge.

HOUSEHOLD USE

The appliance is intended for household use only and NOT suited for commercial, industrial or trade usage. Do not attempt to use this appliance in any other way or for any other purpose than the intended use, described in these instructions. Any other use is regarded as unintended use or misuse, and can cause severe injuries or damage. There is no warranty claim of the purchaser if any injuries or damages are caused by unintended use.

GASTROBACK GmbH

Gewerbestraße 20. 21279 Hollenstedt / Germany Telefon [phone]. Telefax +49(0)4165/2225-29 [e-mail] . www.gastroback.de
