Product Type	RGB LED Light Strip
Model	LT24560-RGB
Brand	LYYT
Color Options	RGB (16 million colors)
Length	5 meters (16.4 ft)
Strip Width	10 mm
Input Voltage	12V DC
Power Consumption	24W (max)
Brightness	Up to 600 lumens
Color Temperature Range	2700K-6500K (white modes)
Control Method	Remote control (included) and mobile app
Remote Range	Up to 10 meters
Special Effects	Music sync, dimming, timer, scene modes
Material	Flexible PCB with silicone coating
Waterproof Rating	IP65 (splash-proof)
Lifespan	50,000 hours
Weight	250 g (strip only)
Package Contents	LED strip, power adapter, remote control, user manual
Installation	Self-adhesive backing, cuttable at marked points
Compatibility	Works with Alexa and Google Assistant

Frequently Asked Questions - LT24560-RGB LYYT

How do I install the LT24560-RGB LED strip?

Clean the surface, peel off the 3M adhesive backing, and press the strip firmly. You can cut the strip at the marked cutting points every 3 LEDs.

Can I use this strip outdoors?

The strip has an IP65 rating, meaning it is splash-proof and can be used outdoors, but avoid direct submersion or prolonged rain.

How do I connect the strip to power?

Connect the included power adapter to the strip's controller, then plug into a standard 120V outlet. Ensure the voltage matches the strip's requirement (12V DC).

The remote control is not working. What should I do?

Check if batteries are installed correctly (CR2025). Ensure there is no obstruction between remote and sensor. Try resetting the strip by unplugging for 10 seconds.

Can I cut the strip to a shorter length?

Yes, you can cut along the cutting marks (copper pads) every 3 LEDs. After cutting, you may need to solder or use connectors to reattach if needed.

Does the strip work with Alexa?

Yes, if you use the LYYT Home app and connect to Alexa, you can control the strip with voice commands. Follow the app instructions for setup.

How do I sync the lights to music?

Press the music button on the remote or open the app and select music mode. The strip will use a built-in microphone to sync colors to the beat.

The strip is only showing one color. How to fix?

Try cycling through modes with the remote. If still stuck, unplug the strip and re-plug. If problem persists, the controller may be defective.

What is the warranty period?

LYYT offers a 2-year limited warranty against manufacturing defects. Contact customer support with proof of purchase.

Can I connect multiple strips together?

Yes, but the total power should not exceed the adapter's capacity. Use connectors or solder to join strips. Max length for one controller is typically 10m.

USER MANUAL LT24560-RGB LYYT

Common Specifications
Beam angle	140°
LED type	EpistarTM RGB5050
Light intensity per LED (millicandelas)	6000mcd
Reel length	5m
IP rang	IP65
Cross-secon	12 x 3mm
Weight	230g

Recommended RGB Controllers
153.699UK	In-line RF RGB LED Tape Controller
153.701UK	In-line RGB LED Tape Amplifier
153.702UK	In-line RGB LED Tape Controller
153.742UK	RGB LED Controller with 17 Built-in Programs
153.750UK	LR15 RGB Repeater/Amplifier
153.771UK	In-line RGB LED Tape Amplifier with DC Socket

Caution: Please read this guide carefully before installing Lyyt LED tape

Damage caused by incorrect application is not covered by the warranty

Lyyt RGB LED tape is supplied on 5m reels in either 12Vdc or 24Vdc voltages and offers full colour mixing.

Installation should be carried out by competent electrical installers, observing the relevant electrical safety procedures.

Lyyt RGB LED tape has a self-adhesive backing to allow it to be easily attached to a clean, non-porous surface.

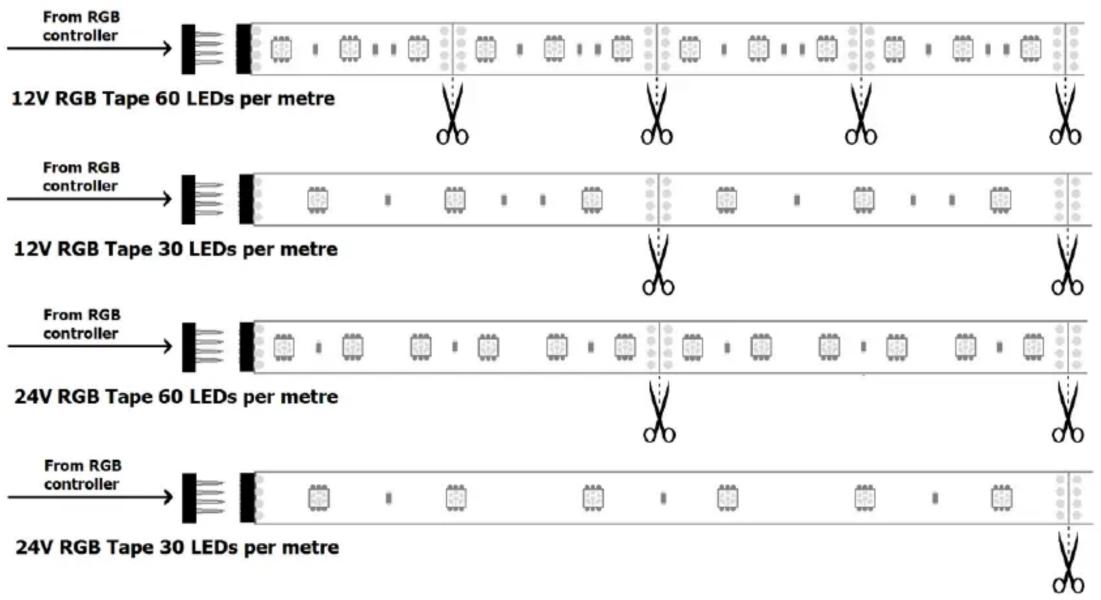

Where less than 5m of tape is needed, there are solder points as shown below, where the tape may be cut to size. These cut points are at 5cm, 10cm or 20cm intervals, depending upon the version, as shown below. In order to re-connect to another length of tape after cutting, strip away the epoxy coating at the solder points and solder a wire from V+, R, G and B to like points on the next length of tape. Some accessories are supplied with the tape reel for this purpose. In order to retain weather-proofing, it is advised to seal the cuts and joints with silicone glue.

Each 5m reel of RGB LED tape is fitted with a 4-pin connector for power input from an RGB controller.

Ensure that the V+, R, G and B pins are connected the correct way round.

Where more than 5m of tape is needed, an RGB repeater/amplifier should be used before each additional reel of 12V tape, whereas 24V tape can be installed in 10m lengths between repeater/amplifiers by using the included 4-pin couplers to connect 2 reels together in sequence. The amplifier repeater ensures that extension reels mimic the colour changes of the original reel as dictated by the controller.

It is imperative that the power supply, controller and amplifier/repeater should have higher than the rated capacity in Amps (A) for the current required to power the length(s) of LED tape installed. Please see the table below for reference.

Tape length	5m	10m	15m	20m	25m	30m	35m	40m
Current for 12V tape 60 LED/m	6A	12A	18A	24A	30A	36A	42A	48A
Current for 12V tape 30 LED/m	3A	6A	9A	12A	15A	18A	21A	24A
Current for 24V tape 60 LED/m	3A	6A	9A	12A	15A	18A	21A	24A
Current for 24V tape 30 LED/m	1.5A	3A	4.5A	6A	7.5A	9A	10.5A	12A

Please visit www.avsl.com to select from our range of 12Vdc and 24Vdc power supplies, RGB controllers and RGB amplifier/repeaters that are suitable for powering Lyyt RGB LED tapes.

Disposal: The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or

Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life.

The goods must be disposed of according to your local council guidelines.
