Product Type	Bagless Cylinder Vacuum Cleaner
Brand	Fakir
Model	Veyron Turbo Öko
Motor Power	850 W
Mains Voltage	220-240 V
Nominal Frequency	50/60 Hz
Energy Efficiency Class	B
Annual Energy Consumption	29.8 kWh/year
Carpet Cleaning Performance	D
Hard Floor Cleaning Performance	A
Dust Re-emission Class	C
Sound Power Level	71 dB
Filter System	HEPA filter, cassette filter (sponge and felt), sponge filter
Dust Container Type	Cyclonic bagless dust cup
Included Accessories	Floor nozzle, turbo brush, crevice nozzle, upholstery nozzle, hard floor nozzle, narrow space accessory, telescopic tube, hose with handle
Cord Rewind	Yes, foot button
Electronic Power Adjustment	Yes
Usage Area	Household only
Expected Service Life	10 years

Frequently Asked Questions - Veyron Turbo Öko FAKIR

How do I empty the dust container?

Press the locking button on the dust cup, remove it, open the lid, and empty the dust. You can wash the container with water, but ensure the cassette filter is removed and the container is completely dry before reinserting.

How often should I clean the HEPA filter?

Clean the HEPA filter when the filter indicator turns fully red or when suction decreases. Rinse it under lukewarm water, allow at least 24 hours to dry completely before reinstalling. Do not use a brush or hot water.

What should I do if the vacuum cleaner loses suction?

Check if the dust container is full, filters are dirty, or there is a blockage in the nozzle, tube, or hose. Empty the dust container, clean the filters, and remove any blockages. If the issue persists, contact Fakir service.

Can I use the vacuum cleaner on all floor types?

Yes, it comes with a floor nozzle adjustable for carpet and hard floors. Use the hard floor nozzle for tiles, parquet, or PVC, and the turbo brush for carpets. Adjust the carpet/hard floor switch accordingly.

How do I clean the cassette filter?

Remove the cassette filter from the unit, open the cover, take out the sponge and felt filters. Wash them gently under warm water without rubbing, let them dry completely, then reassemble: place the white filter first, then close the cover.

What accessories are included with the Fakir Veyron Turbo Öko?

The package includes: floor nozzle, turbo brush, crevice nozzle, upholstery nozzle, hard floor nozzle, narrow space accessory, telescopic tube, hose with handle, HEPA filter, cassette filter, and instruction manual.

Is the vacuum safe to use around children?

The appliance should be used with care if children are nearby. Children must be supervised to ensure they do not play with the vacuum. Keep packaging away from children to avoid suffocation risk.

How do I rewind the power cord?

Press the foot button labeled 'cable rewind' to automatically reel in the cord. Gently guide the cable with your hand until it is completely wound.

What should I avoid vacuuming?

Do not vacuum inflammable materials, glass or metal splinters, stone dust, flour, or substances constituting a health hazard. Also avoid wet surfaces or picking up water.

Where can I find replacement filters?

Only use original Fakir filters to maintain performance. Contact an authorized Fakir service center or check the official Fakir website for compatible replacements.

USER MANUAL Veyron Turbo Öko FAKIR

Exterior view of a silver vacuum cleaner with coiled hose and handle (no text or symbols visible)

Simple line drawing of an open box with an upward arrow inside (no text or symbols)

Exterior view of a modern office building (no signage)

Black-and-white photo of a white sofa with cushioned cushions and a metal armchair, no visible text or symbols

Person holding a long, dark cylindrical object with a black handle, possibly a tool or device (no visible text or symbols)

Close-up of a hand holding a device with two arrows pointing to the top panel (no visible text or symbols)

Close-up of a metallic tool or component with a circular knob and a handle, held by a hand (no visible text or symbols)

Person holding a long, dark cylindrical object with a black handle (no visible text or symbols)

Close-up of a device with two arrows pointing to the top panel (no visible text or symbols)

Close-up of a metallic mechanical component with a circular hole and a vertical slot, no visible text or symbols

ACHTUNG!

Close-up of a black mechanical component with a slot and oval end (no visible text or symbols)

Close-up of a hand holding a metallic tool or bracket (no visible text or symbols)

Close-up of a hand holding a small electronic device with two arrows pointing to the screen (no visible text or symbols)

Two black cylindrical objects, one upright and one flat, placed on a plain surface (no text or symbols visible)

Close-up of a black vacuum cleaner with coiled hose and mesh insulation (no visible text or symbols)

Close-up of a black vacuum cleaner's head with a brush applying material to the cover (no visible text or symbols)

Close-up of a metallic tool with a coiled spring and black screw head (no text or symbols visible)

Hand holding a plug inserted into a car's seat (no visible text or symbols)

Inbetriebnahme

Close-up of a mechanical component with a central circular feature and textured base (no visible text or symbols)

WARNUNG!

Close-up of a car's front grille and textured surface (no visible text or symbols)

Close-up of a black mechanical component with a circular emblem on its side, partially enclosed by a textured surface (no visible text or symbols)

Close-up of a hand placing a small object into a device component (no visible text or symbols)

Close-up of a hand holding a transparent plastic device with internal components (no visible text or symbols)

Close-up of a hand pouring liquid into a container (no visible text or symbols)

Close-up of a hand pouring liquid from a container (no visible text or symbols)

Close-up of a black vacuum cleaner with attached circuit board (no visible text or symbols)

ACHTUNG!

Close-up of a car's front hood with a grid-patterned plastic grille and hand holding a cable (no visible text or symbols)

Close-up of a metallic electronic component with three circular eyes and an arrow indicating direction (no text or symbols visible)

Close-up of hands holding a black electronic device with a handle (no visible text or symbols)

Close-up of a hand using a tool to press or inspect a dark rectangular object (no visible text or symbols)

Close-up of a hand holding a small object over a grid-patterned container (no visible text or symbols)

Close-up of hands performing a medical procedure on a patient's ear (no visible text or symbols)

Close-up of hands using a tool to apply material on a dark surface, no visible text or symbols

VORSICHT!

Close-up of a hand holding a dark rectangular object, possibly a device or panel, with no visible text or symbols.

Stacked black plastic tray with internal compartments and a handle, no visible text or symbols

Close-up of a hand pressing down on a flat surface (no text or symbols visible)

Close-up of a hand pressing down on a black plastic tray (no text or symbols visible)

Close-up of a mechanical component with a mesh grille and handle (no visible text or symbols)

Close-up of a car grille with grid pattern (no text or symbols visible)

Close-up of a U-shaped mesh filter or vent grille component (no text or symbols visible)

Simple line drawing of a solar panel installation with a sun symbol above (no text or labels)

WARNUNG!

Information about the operating instructions....15

Liability....15

Safety is important....15

CE Declaration of Conformity ....15

Usage Area....15

Unauthorized Use....15

Important Safeguards....16

Unpacking and first use....16

Inside the giftbox 17

Product Description....17

Accessories....17

Crevice nozzle 17

Upholstery nozzle....17

Attachment use chart....18

Mounting the accessories....18

Operation 18

After Use....19

Filter changing and dust container cleaning ....19

1- Spilling rubbish from the dust compartment subassembly ....19

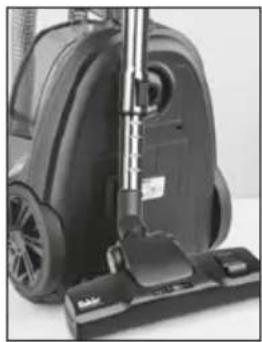

Storage 20

1. Cleaning the HEPA....20

2. Changing the sponge filter 21

Waste Disposal 22

Dispatch....23

Troubleshooting....24

Thank you for purchasing Fakir VEYRON TURBO ÖKO Cyclonic Bagless Dry Vacuum Cleaner which has been designed and manufactured to give you many years of trouble-free service.

Information about the operating instructions

These operating instructions are intended to enable the safe and proper handling and operation of the appliance. Read these operating instructions carefully before using the appliance for the first time. Keep the operating instructions in a safe place. Include these operating instructions when passing the appliance on to another user.

Liability

Fakir Elektrikli Ev Aletleri Dış Tic. A.Ş. will accept no liability for damages resulting from failure to comply with the operating instructions and cannot assume any liability in case the appliance is used for other purposes than its intended use or handled, repaired or serviced improperly.

Safety is important

For yours and others safety please read the instructions before using the appliance. Please keep this instruction in a safe place for the further use. If you pass the appliance on, pass on the instructions too. Remove all packaging, but keep it until you are satisfied that the appliance is working.

CE Declaration of Conformity

This appliance fulfills the requirements of the Appliance and Product Safety Law (GPSG) and the EU Directives. 2004/108/EC "Electromagnetic Compatibility" and 2006/95/EC "Low-Voltage Directive". The appliance bears the CE mark on the rating plate.

Usage Area

This product designed for just household use. It is not suitable for Business and industry type. Otherwise it will be accepted as “out of warranty conditions” by our Authorized Services.

Unauthorized Use

The examples of unauthorized use listed here can result in malfunctions, damage to the appliance or personal injury: This appliance is not designed to be used by persons (including children) with limited physical, sensory or mental capacities or by persons lacking in experience and/or knowledge, unless they are supervised by someone who is responsible for their safety or have received instructions on how to use the appliance. Children should be supervised to ensure that they do not play with the appliance. Children should be supervised to ensure that they do not play with the appliance. Home appliances are not toys for children! Therefore, use and store the appliance away from the reach of children. Children do not recognize the danger involved with handling an appliance. Keep packaging films away from children - danger of suffocation!

NOTICE!

Emphasizes tips and other useful information in the operating instructions.

WARNING!

Indicates notices which, if ignored, can result in risk of in jury or death.

ATTENTION!

Indicates notices of risks that can result in damage to the appliance.

Important Safeguards

When using an electric appliance, basic precautions should always be followed, including the following

To reduce the risk of fire, electric shock, or injury:

• Read this operating manual through completely before working with the appliance. Keep the operating manual safe. If you pass the appliance on to a third party, give them the operating manual as well.
• Ensure that, the apparatus and the accessories of the vacuum cleaner are complete when you first open the giftbox. If there are defective parts, apply to an authorized Fakir Service.
• Keep the packaging away from babies and children in order to avoid the risk of suffocation.

- If there is any damage on the vacuum cleaner or power cord or the plug, do not use the vacuum cleaner. Apply to an authorized Fakir Service.

- Don't use the vacuum cleaner to suck up inflammables and glass or metal splinters or the clothes. This appliance is not suitable to be used to pick up substances constituting a health hazard.

- If the appliance has breakdown, it may only be repaired by the maintenance center. Never dismantle it by yourself blindly.

- Don't suck up surface covered with plastic, cement, Stone dust or flour.

- The appliance is operated with electrical power which means there is in principle a risk of electric shock so that do not touch the plug with wet hands.

- If you want to pull the plug out of the socket then always pull directly on the plug. Never pull on the cable as this could damage it.

- Make sure that the power cable is not bent, caught or run over, and that it does not come into contact with heat sources or sharp edges.

- Do not push objects into the openings of the appliance while it is running. The appliance could overheat.

- Do not use in the open-air. There is a risk of the appliance being destroyed by rain and dirt.

- Never immerse the appliance in water or other fluids and keep it away from rain and moisture.

• Only use an extension cable that is designed for the power requirement of the appliance.
• Never leave the appliance unattended, and use it with the greatest of care if children or persons who cannot assess the risks are nearby.
• Unplug the unit, during connecting accessories, cleaning, repairing or servicing the unit.
• Only use the vacuum cleaner if all filters are correctly in place and once you have ensured that no openings are blocked The filters must be intact and dry. Non-compliance can damage the cylinder vacuum cleaner.
• If the power cord or the plug of the appliance is broken or damaged, do not use the appliance. Apply to nearest authorized Fakir Service.

KEEP THIS MANUAL FOR FUTURE REFERENCES.

Simple line drawing of an open box with an upward arrow inside (no text or symbols)

Unpacking and first use

Unpack the device and check the content of the packaging

for completeness. Should you note any damage incurred during transit, please contact your dealer immediately.

WARNING!

Never use a defective appliance.

NOTICE!

Keep the packaging for storage and future transports (e.g. for moves, service).

Inside the giftbox:

Appliance 1

Floor Nozzle 1

Hose with handle 1

Telescopic tube 1

Crevice Nozzle 1

Upholstery nozzle 1

HEPA-filter (inside the unit) 1

Cassette filter (inside the unit) 1

Instruction manual 1

Servis list 1

Hard floor nozzle 1

Narrow space accessory 1

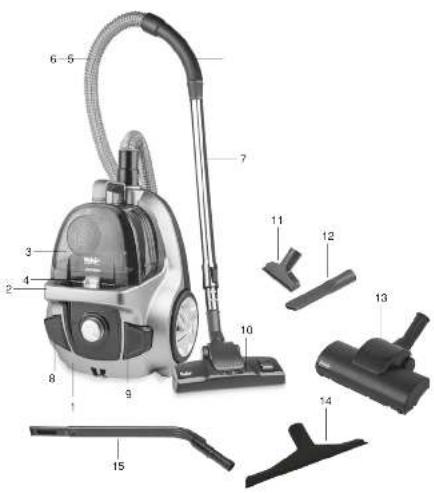

Product Description

1- Main Body

2- Carry handle

3- Dust cup

4- Dustcup lock

5- Hose handle

6- Hose

7- Teleskopic tube

8- ON/OFF Button

9- Cord rewinder button

10- Floor nozzle adjustable for carpet and hard floor use.

11- Upholstery Nozzle

12- Crevice Nozzle

13- Turbo brush

14- Hard floor nozzle

15- Narrow space accessory

Vacuum cleaner: Fakir Veyron Turbo Öko

Mains voltage: 220-240 V

Nominal frequency: 50/60 Hz

Motor power: 850 W

Energy efficienzy class: B

Annual energy consumption: 29,8 kWh/Yil*

Carpet cleaning performance: D

Hard floor cleaning performance: A

Dust re-emission class: C

Sound power level: 71 dB

Usage Life: 10 Years

*Indicative annual energy consumption (kWh per year), based on 50 cleaning tasks.

Actual annual energy consumption will depend on how the appliance is used.

New energy-saving Technology

The Fakir vacuum cleaner is equipped with new energy-saving technology.

A combination of highly efficient accessories i.e. vacuum nozzle, tube, hose, *HEmotor, filter and appliance provide optimum vacuum power at low energy usage. It offers excellent dust collection, low dust release and low noise level on both carpeted and hard floors.

*High efficiency-motor

Accessories

WARNING!

Switch off the device before changing the nozzles.

- Insert the corresponding nozzle securely with a slight turn onto the handle of the suction hose, or onto the telescopic suction tube.

Crevice nozzle

The crevice nozzle allows dirt from deep cracks in upholstered furniture, corners, skirting boards etc. to be suctioned off.

Upholstery nozzle

The can be used to vacuum clean curtains, upholstered furniture etc. It has a thread pick-up to collect fluff and threads from textiles.

Turbo nozzle

Turbo brush is mostly recommend for pet hair, it has a rotating brush and effective on carpets. Its brush provides revival of carpets.

Hard floor nozzle

The hard floor nozzle is used for cleaning hard floors such as tiles, parquet or PVC etc.

NOTICE!

Set suction capacity low to medium.

Narrow space accessory

Easy and quick vacuuming under the bed and on the wardrobes

Exterior view of a laboratory glassware cabinet with a metal clamp attached (no visible text or symbols)

Interior view of a white sofa with cushioned cushions and a curved armrest (no text or symbols visible)

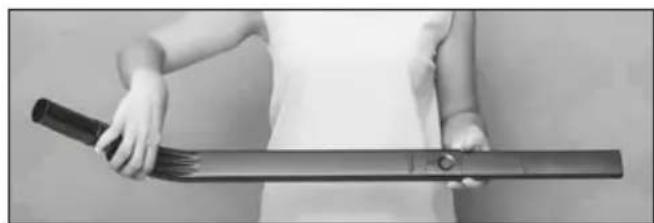

Preparing the accessory for vacuuming under the bed:

Engage the parts of your attachment that is composed of two parts and ensure that the on-off button is locked. See Figure A

Person holding a long, dark cylindrical object with a handle, possibly a tool or device (no visible text or symbols)

Close-up of a device with two arrows pointing to a screen (no visible text or symbols)

Close-up of a metallic mechanical component with a knob and lever (no visible text or symbols)

Preparing the accessory for vacuuming on the wardrobe:

Engage the parts of your attachment that is composed of two parts and ensure that the on-off button is locked.

Person holding a long, dark cylindrical object with a handle, possibly a device or tool (no visible text or symbols)

Close-up of a hand holding a tool with directional arrows pointing to a white surface (no text or symbols visible)

Close-up of a hand holding a metallic tool or device with a circular knob (no visible text or symbols)

CAUTION!

Dust collecting velvet and the bristle brush shall face the same direction with the cleaning direction.

Close-up of a black plastic electronic component with a circular button and rectangular body (no visible text or symbols)

Storage of the accessories and detachment of the parts:

Press the lock button of your accessory and remove it by pulling it out on the direction of OK; and detach the parts.

Close-up of a hand holding a metallic tool or device with a curved handle (no visible text or symbols)

Close-up of a hand holding a pen with two arrows pointing to a document or scroll (no visible text or symbols)

Important points for usage and storage:

CAUTION!

Do not exert pressure that may cause bending of the plastic components and that may affect the air flow adversely while using the accessories.

CAUTION!

Do not put heavy objects that may cause deformation of your accessory on your accessory when you do not use it.

Storage method:

Two black cylindrical objects, one upright and one flat, placed on a wooden surface (no text or symbols visible)

Attachment use chart

Attachment	Floor/Carpet Between Cushions Drapes Stairs Walls Furniture
Floor Brush	√			√
Upholstery Nozzle			√	√	√	√
Crevice Nozzle		√		√	√
Hard floor nozzle	√			√

Mounting the accessories

1. The appliance should be switched off and unplugged.
2. Remove the nozzle from the telescopic tube.
3. When required, push the desired nozzle onto the lower end of the telescopic tube or the handle.

ATTENTION!

Be sure that all filters were attached correctly to the appliance before you start cleaning. Filters must be undamaged and dry. Uncompatibility can damage your vacuum cleaner.

ATTENTION!

If you use the cylinder vacuum cleaner without attached nozzle, there is a greater risk of accidentally vacuuming up objects.

Close-up of a mechanical device with a coiled cable and handle (no visible text or symbols)

Close-up of a black vacuum cleaner's head and neck (no visible text or symbols)

Close-up of a metallic tool tip with a zigzag handle and black base (no visible text or symbols)

Hand inserting a plug into a car's air vent (no text or symbols visible)

Operation

1. Plug the suction hose adapter into the suction hose receiver and lock the adapter by turning it clockwise to the stop point.
2. Push the handle into the upper end of the telescopic tube.
3. Push the floor nozzle/turbo brush onto the lower end of the telescopic tube.
4. Adjust the length of the telescopic tube. To do this, pres the telescopic tubelock forwards. Then pull the telescopic tube by the handle to the desired length. To lock it, release the telescopic tube lock while you pull.
5. Pull the cable till you see the red mark on the cable.
6. Switch on the cylinder vacuum cleaner using the on/off switch.

7. Adjust the carpet/hard floor switch depending on the type of flooring:

8. Hard floor laminate flooring, tiles, PVC flooring, etc. (with brush)

9. Carpet long and short pile carpets, runners, etc. (without brush)
10. To vacuum, pull the cylinder vacuum cleaner behind you like a sledge.

Your divice has electronic power adjustment. You can increase or decrease the vacuum power when you would like. We advise you to keep the suction power at medium/minimum level for carpet cleaning, and at maximum level parquet and wet floor cleaning.

Close-up of a mechanical component with a central circular feature and surrounding buttons (no visible text or symbols)

ATTENTION!

If you leave your work area, switch off the appliance.

After Use

WARNING!

Follow the steps below as soon as you stop vacuum cleaning. Never leave the appliance unattended.

Close-up of a car's front wheel and dashboard (no visible text or symbols)

Close-up of a black keyboard and a glossy square button with a circular emblem (no visible text or symbols)

• Press the foot button "On/Off" to switch off the vacuum cleaner.
• Remove the plug from the mains socket.
• Press the foot button "cable rewind" to reel in the cable.

Gently guide the cable with your hand until the cable has been completely wound.

NOTICE!

Only use original Fakir filters.

This is the only way to ensure that the excellent filter properties of the vacuum cleaner are utilised.

Filter changing and dust container cleaning

When the dust container or filters are full or if the accessories are blocked (hose, pipe, nozzle) suction performance will decrease. In this case, clean the dust container or blocked filter or remedy the blockage.

(PIs see page 20 Troubleshooting)

1- Spilling rubbish from the dust compartment subassembly

Always operate the cleaner with the dust compartment subassembly whole installed.

The dust container must be emptied if the window of the filter indicator turns fully red when the cleaner is operating at maximum power and the nozzle is raised from the floor.

Close-up of a hand placing a small electronic component into a device casing (no visible text or symbols)

Close-up of a mechanical device with transparent internal components, no visible text or symbols

Close-up of a hand pouring liquid into a plastic container (no visible text or symbols)

Close-up of a hand pouring liquid from a container (no visible text or symbols)

1. After removing the flexible tube, handhold handle and press the locking button.
2. Take out the dustcup.
3. Take the dustcup lip off.
4. Carry away the dust-glass cap and Spill rubbish

5. Clean the dirt from deep inside and replace it.

6. The container can be washed under water but cassette filter must be taken off.

7. You place the dust container after dry well.
8. Close the lid and replace the dust compartment subassembly until it is locked.

Storage

• Insert the park holder of the floor nozzle into the nozzle holder on the underneath of the appliance.
• Store the vacuum cleaner in a place that is out of the reach of children.

Close-up of a black vacuum cleaner with attached circuit board (no visible text or symbols)

CAUTION!

Never place the appliance next to heat sources and avoid direct sunlight, as the heat may damage the vacuum cleaner.

2. Cassette operation instructions:

For maximum performans of your device, pls make sure cassett filter is clean.

Remove the cassette filter holding from the grip and remove slowly and gently.

Close-up of a hand holding a grid-patterned plastic container (no visible text or symbols)

To open the cassette cover strech from the middle point of cassette locking hole in the direction of arrow and pull cassette cover slowly. Cassette cover should be removed from the place it has been mounted easily.

Close-up of a mechanical component with three circular arrows indicating features, no visible text or symbols.

Close-up of hands holding a black electronic device with a handle (no visible text or symbols)

After cassette cover is removed, pull holding ring to remove black sponge filter and white filter.

Close-up of a hand holding a small object over a dark rectangular object (no visible text or symbols)

Close-up of a hand using a pipette to press or install a small electronic component into a grid-like chamber (no visible text or symbols)

Wash the filters under warm tab water -dirty side looking downwards- gently and make sure they are completely dry before placing them inside the casesste filter according to grouping instructions.

Close-up of hands performing a medical procedure on a patient's ear (no visible text or symbols)

Close-up of hands using a tool to apply material on a dark surface, no visible text or symbols

WARNING!

NEVER rub the sponge filter and felt filter when washing and make sure they are completely dry before grouping them.

Firstly place white filter side into the cassette.

Close-up of a hand holding a dark mechanical component (no visible text or symbols)

Open black plastic tray with internal compartments and a handle, no visible text or symbols

After filter group is placed, close filter group cover.

Firstly place the lower side as shown in Figure 1. Afterwards, close the upper side as shown in Figure 2 and make sure it is closed.

Close-up of a finger pressing down on a dark surface, no visible text or symbols

Close-up of a hand pressing down on a black plastic tray (no text or symbols visible)

3. Cleaning the HEPA

For maksimum performans of your device, pls make sure cassett filter is clean.

A- Take out HEPA assembly.

B- Rinse bracket and HEPA in lukewarm water and dry HEPA completely. (At least 24 hours)

How to use HEPA filter cleaning comb: Take out the HEPA filter from its housing. Use the cleaning comb after shaking off HEPA filter. The comb section is slowly placed between the gaps of the filter and moved slowly to the right and to the left. Finally, HEPA can be washed under running water, when necessary the dirt is directed to flow out by using HEPA Filter cleaning comb. The filter is dried up at room temperature after the dirt is removed completely and placed back to its housing. Do not use before making sure that HEPA filter is completely dry.

Close-up of a mechanical component with a mesh grille and handle (no visible text or symbols)

Close-up of a car's front grille with grid pattern (no text or symbols visible)

Close-up of a U-shaped mechanical component with grid pattern (no text or symbols visible)

Simple line drawing of a solar panel with a water tap and a sun symbol (no text or labels)

WARNING!

DO NOT use brush or any other object with sharp edge in case the sharp edge will damage the HEPA filter. DO NOT Wash the filter under hot water.

WARNING!

Switch off the vacuum cleaner and disconnect the plug from the mains socket before cleaning the appliance.

This ensures that the appliance is not switched on unintentionally.

WARNING!

Do not use cleaning detergents, abrasive agents or alcohol as these will damage the casing.

Only dry-wipe the appliance or clean with a damp cloth.

You can also clean the filter chamber with a damp cloth if necessary.

Suction accessories such as the hose, pipes or nozzles should be regularly checked for blockages, cleaned and, washed and dried.

Waste Disposal

If the service life of the device has ended, in particular if functional disturbances occur, make the worn-out device unusable by cutting through the power cable.

Dispose of the device according to the environmental regulations applicable in your country.

Electrical waste must not be disposed of together with household

waste. Bring the worn-out device to a collection center. The packaging of the device consists of recycling-capable materials. Place these, sorted out according to material, in the collectors provided, so that recycling can be carried out on them. For advice on recycling, refer to your local authority or your dealer.

This appliance fulfills the requirements of the 2002/96/EC WEEE regulations.

Dispatch

Carry the appliance in the original package or a similar, well-padded package to prevent damage to the appliance.

Troubleshooting

Before you contact our Fakir Customer Service, check whether you can correct the fault yourself.

WARNING!

Before you start checking the appliance, you switch off the vacuum cleaner and disconnect the plug from main socket. Never use defective appliance.

Multifunction	Possible Cause	Solutions
Appliance does not work	Plug is not plugged in or the appliance is not switched on.	Plug in the plug or switch the appliance on
	Socket does not carry any current.	Test the cylinder vacuum cleaner at another socket which you are sure carries current
	Power cable is damaged.	Have the cable replaced by authorized Fakir services
Appliance does not suck up any dirt	Dust container is full or blocked.	Empty/clean dust container.
	Selected brush/nozzle are incorrect for the type of flooring.	Adjust your brush/nozzle selection to the type of flooring.
	Filter is dirty.	Clean the corresponding filter. Make sure your Cassette filter, HEPA, felt filter and sponge filter are clean.
	Nozzle, telescopic tube or suction hose are blocked.	Remove the blockage. If necessary, use along wooden rod for this (e.g.a broom handle).
Appliance is making unusually loud noises while running	Sucked-in particles are blocking the air-way.	Remove the particles. If necessary, use a long wooden rod for this (e.g. a broom handle).

Simple line drawing of an open box with an upward arrow on top (no text or symbols)

Exterior view of a modern office building (no signage)

Interior view of a white sofa with cushioned cushions and a curved armchair (no text or symbols visible)

Person holding a long, black object with a handle, possibly a device or tool (no visible text or symbols)

Close-up of a hand holding a device with two arrows pointing to a screen (no visible text or symbols)

Close-up of a mechanical component with a circular end and a U-shaped groove (no visible text or symbols)

Person holding a long, black cylindrical device with a knob (no visible text or symbols)

Close-up of a white surface with two black arrows pointing to a control panel (no text or symbols visible)

Close-up of a metallic mechanical component with a U-shaped groove and a circular hole, held by hands (no visible text or symbols)

DİKKAT!

Close-up of a black plastic electronic device with a handle and circular button (no visible text or symbols)

Close-up of a hand holding a metallic tool or bracket (no visible text or symbols)

Close-up of a hand holding a device with bidirectional arrows indicating measurement or alignment (no text or symbols visible)

Two black cylindrical objects, one upright and one flat, on a plain surface (no text or symbols visible)

Close-up of a black vacuum cleaner with coiled hose and mesh handle (no visible text or symbols)

Close-up of a black vacuum cleaner with a brush applying material (no visible text or symbols)

Close-up of a metallic tool tip with a black and white base (no visible text or symbols)

Hand holding a plug inserted into a car air vent (no visible text or symbols)

Çalıştırma

Close-up of a mechanical component with a white cylindrical top and textured base (no visible text or symbols)

UYARI!

Close-up of a car's front grille and textured surface (no visible text or symbols)

Close-up of a computer keyboard and a black square with a logo (no readable text or symbols)

Close-up of a hand using a vacuum cleaner to press or install a circular component (no visible text or symbols)

Close-up of a hand holding a transparent cylindrical device with internal components (no visible text or symbols)

Close-up of a hand pouring liquid into a container (no visible text or symbols)

Close-up of a hand pouring liquid from a mechanical device (no visible text or symbols)

Close-up of a black vacuum cleaner with attached circuit board (no visible text or symbols)

DİKKAT!

Close-up of a hand holding a grid-patterned device with a handle, no visible text or symbols

Close-up of a mechanical component with circular annotations and an arrow indicating direction (no readable text or symbols)

Close-up of hands holding a black rectangular electronic device with a handle (no visible text or symbols)

Close-up of a hand holding a small object over a dark rectangular block (no visible text or symbols)

Close-up of a hand using a pipette to open a small black tray with a grid of compartments (no text or symbols visible)

Close-up of hands performing a medical procedure on a patient's ear (no visible text or symbols)

Close-up of hands applying a black rectangular substance to a surface, no visible text or symbols

DİKKAT!

Close-up of a hand holding a dark rectangular object, possibly a device or panel, with no visible text or symbols.

Stacked black plastic container with internal compartments and a handle, placed on a wooden surface (no text or symbols visible)

Close-up of a finger pressing down on a flat surface (no text or symbols visible)

Close-up of a hand pressing down on a black plastic tray with internal compartments (no visible text or symbols)

Close-up of a mechanical component with a mesh grille and handle (no visible text or symbols)

Close-up of a car's front grille with grid pattern (no text or symbols visible)

Close-up of a black mesh plastic component with a U-shaped groove (no text or symbols visible)

Simple line drawing of a water tap and solar panel installation (no text or symbols)

UYARI!

Simple line drawing of an open box with an upward arrow inside (no text or symbols)

Interior view of a glassware cabinet with a metal clamp attached (no visible text or symbols)

Black and white photo of a modern white sofa with cushioned cushions and a curved armrest (no text or symbols visible)

Person holding a long, dark cylindrical object with a metallic handle, possibly a tool or device (no visible text or symbols)

Close-up of a mechanical component with two arrows pointing to features, no visible text or symbols

Close-up of a metallic tool or device with a circular knob and a vertical slot, held by a hand (no visible text or symbols)

Person holding a long, dark cylindrical device with a knob (no visible text or symbols)

Close-up of a hand holding a pen with two arrows pointing to a document (no visible text or symbols)

Close-up of a metallic mechanical component with a circular end and a U-shaped groove (no visible text or symbols)

ВНИМАНИЕ!

Exterior view of a black electronic device with a circular button and rectangular body (no text or symbols visible)

Close-up of a hand holding a metallic tool or device with a circular knob (no visible text or symbols)

Close-up of a hand holding a device with two arrows pointing to the top panel (no visible text or symbols)

Two black cylindrical objects, one upright and one flat, placed on a plain surface (no text or symbols visible)

Close-up of a mechanical component with a coiled cable and handle (no visible text or symbols)

Close-up of a black vacuum cleaner's head with a handle, showing no text or symbols on the device itself.

Close-up of a metallic tool tip with a zigzag handle and black base (no visible text or symbols)

Hand holding a plug inserted into a car's hood, no visible text or symbols

Запуск

Close-up of a mechanical component with a central circular knob and textured base (no visible text or symbols)

ПРИМЕЧАНИЕ!

Close-up of a car's front grille and textured body (no visible text or symbols)

Close-up of a car's seat cover with a logo, no visible text or symbols

Close-up of a hand placing a small electronic component into a device (no visible text or symbols)

Close-up of a hand holding a transparent cylindrical device with internal components (no visible text or symbols)

Close-up of a hand pouring liquid into a plastic container (no visible text or symbols)

Close-up of a hand pouring liquid from a small container (no visible text or symbols)

Close-up of a black vacuum cleaner with attached circuit board (no visible text or symbols)

ВНИМАНИЕ!

Close-up of a car's front hood with a grid-patterned panel and hand adjusting the panel (no visible text or symbols)

Close-up of a car hood with three circular arrows pointing to the front panel (no text or symbols visible)

Close-up of hands holding a rectangular electronic device (no visible text or symbols)

Close-up of a hand using a pipette to apply liquid onto a dark rectangular object (no text or symbols visible)

Close-up of a hand holding a black open box with a grid inside, placed on a wooden surface (no text or symbols visible)

Close-up of hands performing a sewing machine on a garment (no visible text or symbols)

Close-up of hands using a tool to apply material on a dark surface, no visible text or symbols

ВНИМАНИЕ!

Close-up of a hand holding a black rectangular object, possibly a device or panel, against a plain background (no text or symbols visible)

Open black plastic container with internal compartments, no visible text or symbols

Close-up of a finger pressing down on a dark surface, no visible text or symbols

Close-up of a hand pressing down on a tray with internal compartments (no visible text or symbols)

Close-up of a mechanical component with a mesh grille and handle (no visible text or symbols)

Front view of a car's front grille with grid pattern (no text or symbols visible)

Close-up of a black mesh fan or air filter component with a U-shaped groove (no text or symbols visible)

Simple line drawing of two solar panels with a sun and a pipe, no text or symbols present

ПРЕДУПРЕЖДЕНИЕ!

Simple line drawing of an open box with an upward arrow on top (no text or symbols)

Exterior view of a cabinet with glass shelves and a coiled cable attached to the right (no visible text or symbols)

Black-and-white photo of a white sofa with a curved arm and a diagonal cord, placed on a patterned floor (no text or symbols visible)

Person holding a black cylindrical device with a handle, no visible text or symbols

Close-up of a hand holding a device with two arrows pointing to the screen (no visible text or symbols)

Close-up of a metallic mechanical component with a knob and lever (no visible text or symbols)

Person holding a long cylindrical device with a black handle (no visible text or symbols)

Close-up of a device with two arrows pointing to a screen (no visible text or symbols)

Close-up of a handheld electronic device with a metallic lever and circular button (no visible text or symbols)

Close-up of a black plastic mechanical component with a circular hole and rectangular slot (no text or symbols visible)

تنويه!

Close-up of a hand holding a metallic tool or bracket with a circular knob (no visible text or symbols)

Close-up of a mechanical component with bidirectional arrows indicating movement (no text or symbols visible)

Two black cylindrical objects, one upright and one flat, placed on a wooden surface (no text or symbols visible)

جدول استعمال القطع

Close-up of a black vacuum cleaner with mesh insulation (no visible text or symbols)

Close-up of a black vacuum cleaner with a brush applying material (no visible text or symbols)

Close-up of a metallic tool with a coiled spring and black clip (no text or symbols visible)

Hand holding a plug inserted into a car's hood (no visible text or symbols)

التشغيل

Close-up of a black mechanical device with a white circular component and a small inset image (no visible text or symbols)

تحذير!

Close-up of a car's front wheel and side grille (no visible text or symbols)

Close-up of a car's seat cover with a logo (no visible text or symbols)

Close-up of a hand placing a small electronic component into a device casing (no visible text or symbols)

Close-up of a hand holding a transparent plastic device with internal components (no visible text or symbols)

Close-up of a hand pouring liquid into a glass container (no visible text or symbols)

Close-up of a hand pouring liquid into a mechanical component (no visible text or symbols)

Close-up of a hand holding a grid-patterned device inside a vehicle (no visible text or symbols)

الhfظ

Close-up of a black vacuum cleaner with attached circuit board (no visible text or symbols)

Close-up of a mechanical component with three circular arrows indicating direction (no text or symbols)

Close-up of hands holding a black electronic device with a handle (no visible text or symbols)

Close-up of hands using a tool to apply material to a dark rectangular electronic component (no visible text or symbols)

Close-up of a hand holding a small object over a grid-patterned box (no visible text or symbols)

Close-up of hands performing a medical procedure on a patient's abdomen (no visible text or symbols)

Close-up of hands using a tool to apply material on a dark surface, no visible text or symbols

الإستعمال!

Close-up of a hand holding a black rectangular object, possibly a device or tool, with no visible text or symbols.

Stacked black plastic electronic device with grid compartments (no visible text or symbols)

Close-up of a finger pressing down on a flat surface (no text or symbols visible)

Close-up of a hand pressing down on a dark plastic tray (no visible text or symbols)

Close-up of a hand pressing down on a mechanical component with a mesh grille (no visible text or symbols)

Front view of a car's front grille with grid pattern (no text or symbols visible)

Close-up of a meshed plastic component with a U-shaped groove (no text or symbols visible)

Simple line drawing of two household appliances: a water tap and a sun, with no text or symbols present.

تحذير!
