USER MANUAL MPR419Q JENSEN

MPR419Q

MECHLESS MEDIA RECEIVER

AM-FM USB Media Player Bluetooth Music & Hands-Free Calling

Motorized Phone Mount with Wireless Charging

INSTALLATION & OWNER'S MANUAL

Bluetooth®

JENSEN®

Preparation

Please read entire manual before installation.

Before You Start

• Disconnect negative battery terminal. Consult a qualified technician for instructions.
• Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.

Mounting the Head Unit: Typical DIN mounting

Step 1:

Insert the mounting sleeve into the installation kit or dashboard.

Single DIN

Step 2:

Bend multiple mounting tabs around the mounting sleeve until the mounting sleeve is secure.

Single DIN
Dashboard or Installation Kit

Step 3:

Connect all wiring harnesses and slide the head unit into the mounting sleeve until it clicks into place.

Single DIN
Dashboard or Installation Kit

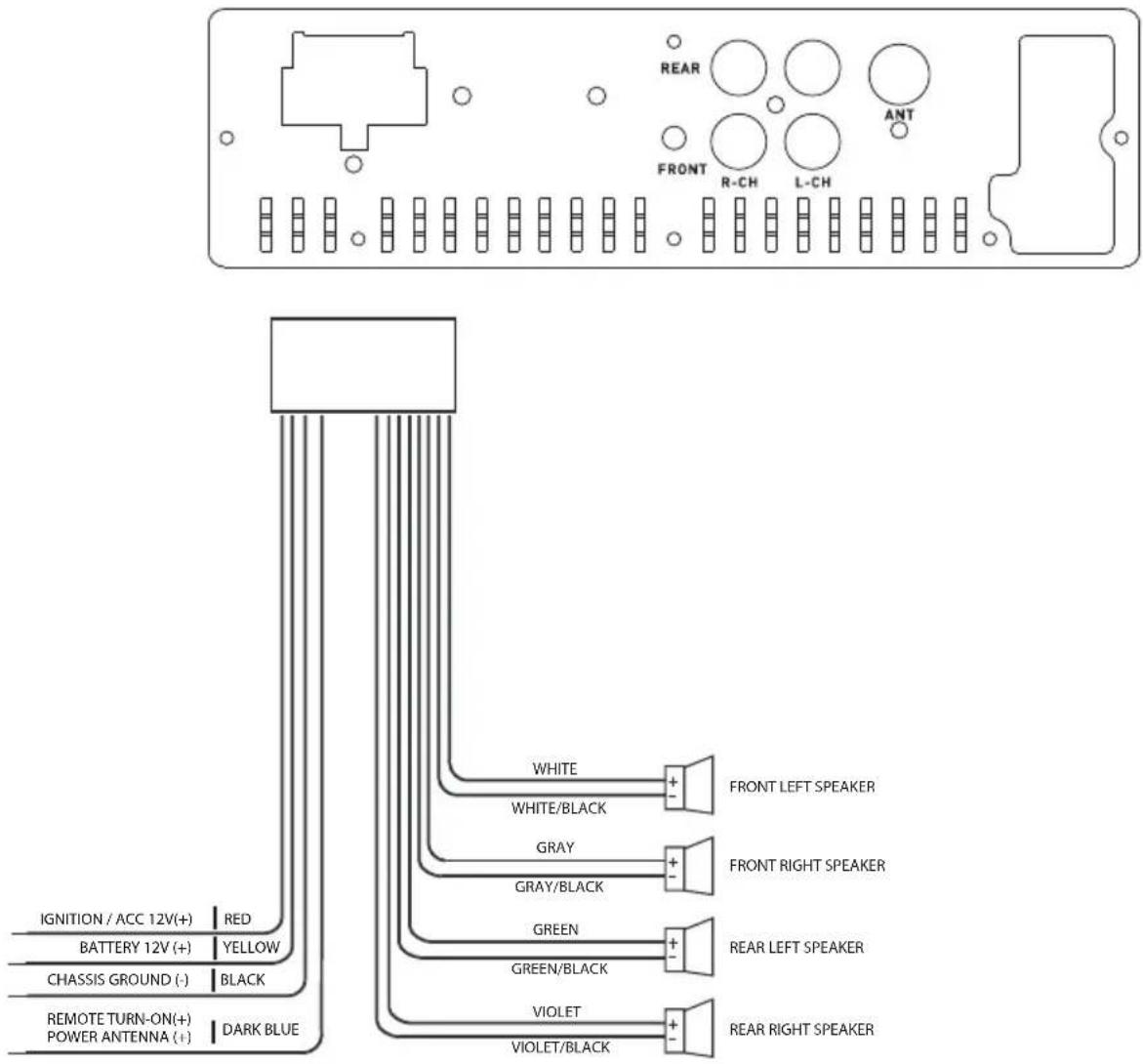

Wiring Diagram

Tips

When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could cause damage. The unit uses (1) 10 amp ATC fuse located on the wiring harness.

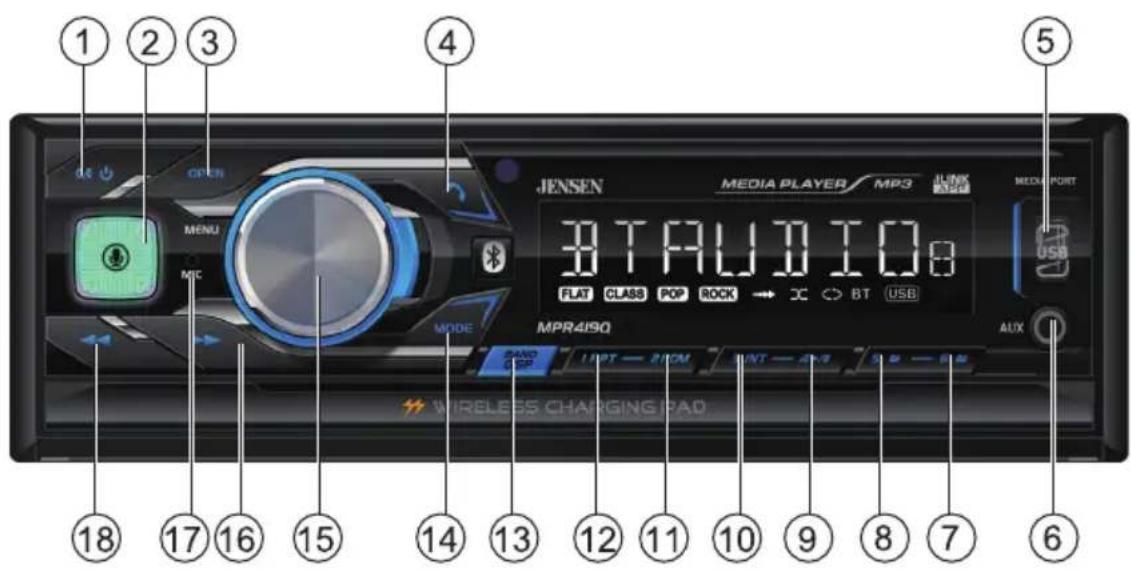

Control Locations - Front Panel

① Power / Mute
② Voice Control
③ Open
④ End Call
⑤ USB Port
⑥ Auxiliary Input
⑦ Preset 6 / Folder Up
⑧ Preset 5 / Folder Down
⑨ Preset 4 / Play / Pause
10 Preset 3 / Intro
⑪ Preset 2 / Random
12 Preset 1 / Repeat
13 Band / Display
14 Mode
15 Volume / Menu
16 Tune/Track Up
⑰ Microphone
18 Tune/Track Down

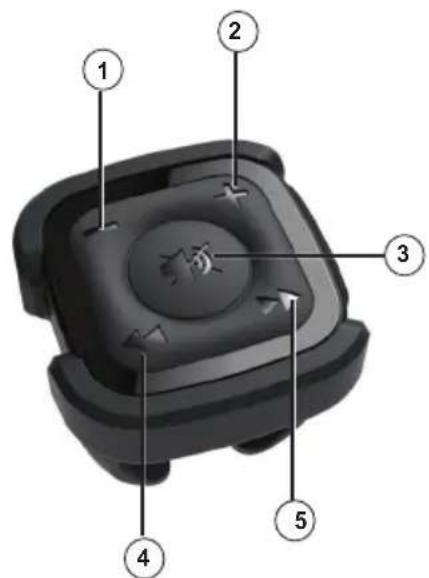

Control Locations - Remote Control

① Volume Up
② Volume Down
③ Mute
④ Tune/Track Up
⑤ Tune/Track Down

Remote Control Preparation

Remove the battery tape before first use.

To install a new battery, remove the battery cover and the old battery, then insert the new battery keeping the (+) side up.

Replace the battery cover to secure.

Notes:

• The remote control uses one 3 volt Lithium CR2025 battery.
- Remove the battery if the remote will not be used for a month or longer.
- Remove and dispose of battery properly.
- Do not store battery with metallic objects or materials.

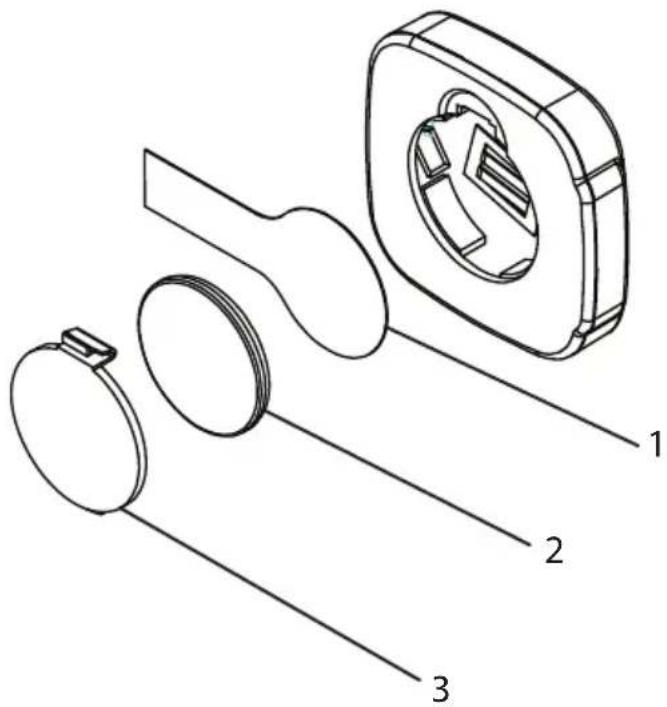

Two black plastic buttons with internal compartments, one with a circular button and arrow pointing left (no text or symbols)

Slide the remote into the steering wheel clip to mount on the steering wheel for easy access while driving.

Close-up of a black smartwatch with a circular head and control buttons, showing a white icon on the front (no text or symbols visible)

Steering Wheel Clip

Wireless Charging Operation

To use the wireless charging pad, press OPEN on the front panel.and the pad will automatically slide out from the unit. Once the pad is fully extended, open the phone holder at the bottom. Place the phone on the pad, and lift the buckle on the top of the pad to securely support the phone.

Note: Only supports phones with wireless charging feature.

After the phone enters charging mode, the LED status indicator will begin to blue at the bottom of the pad. Normal charging mode will be indicated by blue LED. If the foreign object is detected, the white LED will be blinking. When charging is completed, the LED will remain solid blue.

LED Indication Standby FOD Charging Full Charge
Blue Off Off On On
White On Blinking Off Off

When charging is complete, remove the phone and close the phone holder at the bottom of the pad. Press OPEN to retract the pad. If the phone holder on the pad is not closed, the charging pad will not retract.

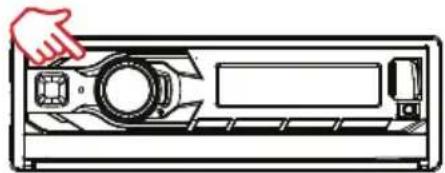

Step #1

Diagram of a computer monitor with a hand pointing to the left panel (no text or symbols present)

Press OPEN to open or close the wireless charging pad.

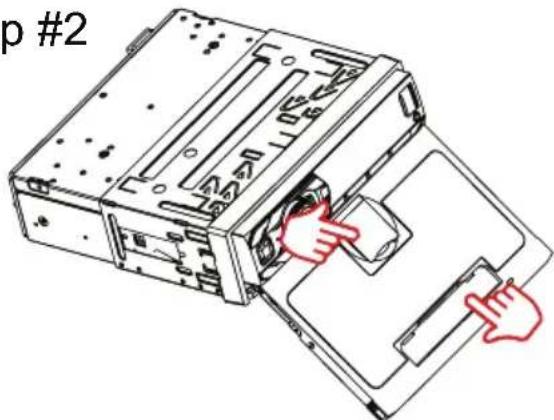

Step #2

Open phone holder on the bottom of the pad.

Note – Use the phone holder on the top of the pad in order to hold the smartphone more firmly.

Wireless Charging Operation

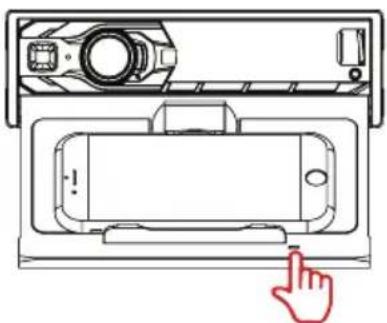

Step #3

Diagram of a device with a mouse, showing a screen and a button, with a red hand cursor pointing to it (no text or symbols present)

Place the smart phone on the wireless charging pad to begin charging.

Note: LED Indicator for Charging Status Charging: Flashing Blue Fully Charged: Solid Blue

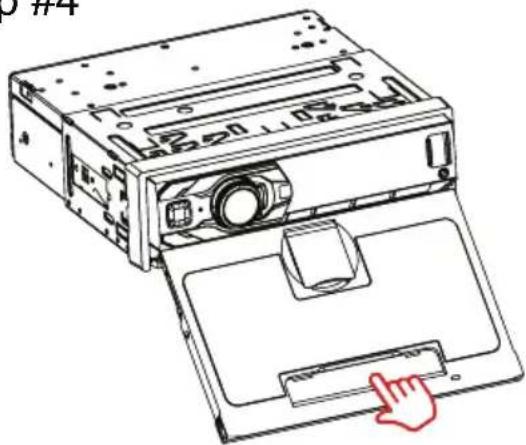

Step #4

Line drawing of a computer drive with a hand cursor pointing to the button (no text or symbols)

Press OPEN to close the wireless charging pad.

Note: Before retracting the charging pad, make sure to close the phone holder. The pad will not retract if the holder is open.

Step #5

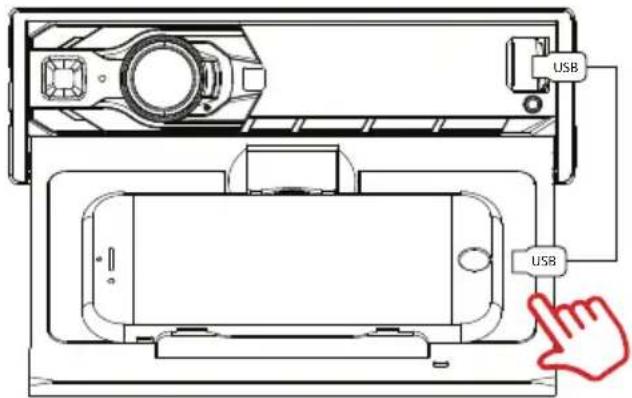

For phones that do not support wireless charging, insert the charging cable that came with your phone into the USB port and place the phone on the phone mount pad.

Safety Tip:

Please remove any pop sockets or cases the have a metal holding ring, as this will prevent the charging pad from working and may damage the device. Also, thick or metal cases will prevent the pad from charging the phone or may cause the phone to overheat. Please use caution.

General Operation

Power On/Off	Press or any other button to turn the unit on. Press and hold to turn the unit off.
Changing Modes	Press MODE to select between Radio, USB, AUX and Bluetooth. Current mode is shown in the display.
Volume	Adjust volume using the volume knob (00-40).
Mute	Press to silence the audio. Press again to resume listening at the previous volume level. Turning the volume knob also cancels mute function.
Auxiliary Input	Insert a 3.5mm cable in the unit's front AUX port.
Reset	Press the RESET button to reset the unit back to the factory settings if abnormal operation occurs. The reset button is located on the front panel.
Setting the Clock	With the unit on, press and hold DISP to display clock time. Press and hold DISP until the hours begins to flash, then release. Rotate the volume knob to adjust the hours. Press DISP, then rotate the volume knob to adjust the minutes.
Audio	Press the volume knob momentarily to step through and adjust the following audio functions, then rotate the volume knob to adjust the desired function:• Bass - Adjust -7 to 7.• Treble - Adjust -7 to 7.• Balance - Adjust L7 to R7 (L=R is equal balance).• Fader - Adjust F7 to R7 (F=R is equal fader).• Loudness - Turn the loudness feature ON or OFF.• EQ - Select from a preset equalization curve, or select User to set EQ manually.
Menu	Press and hold the volume knob to enter the setup menu, then briefly press the volume knob to step through menu options. Rotate the volume knob to adjust the desired option.• A-Store - Press DISP to automatically store preset stations.• Dimmer - Adjust the dimmer low (L) or high (H). Beep - Turn the audible beep On or Off.• Auto Answer - Select “ANSAUTO” to set the unit to automatically answer incoming calls via Bluetooth. Select “ANSMANU” to manually answer incoming calls.• Frequency Spacing - Select USA or Euro.• Stereo/Mono - Select stereo or mono tuning.• Local/Distance - Turn local tuning On or Off.• Version - Displays the version number.

Tuner Operation

Seek Tuning	Press TUNE ◀◀ or TUNE ▶▶ to seek to the previous or next strong station.
Manual Tuning	Press and hold TUNE ◀◀ or TUNE ▶▶ to enter manual tuning mode, then press TUNE ◀◀ or TUNE ▶▶ momentarily to change radio frequency up or down one step at a time. Press and hold TUNE ◀◀ or TUNE ▶▶ to return to seek tuning.
Band	Press BAND to select between FM1, FM2, FM3, AM1 and AM2 bands. Up to six presets can be programmed for each band, enabling up to 18 FM stations and 12 AM stations to be stored in memory.
Storing Presets	Up to 18 FM and 12 AM stations can be stored. To store a station, select the desired band and station. Press and hold the desired preset button (1-6) for more than two seconds. When stored, the preset number will appear in the display.
Recalling Presets	Preset stations can be recalled any time by pressing the corresponding preset button.
Automatically Store	Press and hold MENU for more than 2 seconds, When A-STORE appears, press DISP to store 18 FM stations and 12 AM stations automatically.
Preset Scan Stations	Press PS to recall each preset staion that stored in the memories in each band.
	Note: This feature is only available with the Jensen remote control app.

USB Operation

Playing MP3 Files	To play MP3 files, insert a USB device containing MP3 files.
Track Select	Press TUNE ▶▶ to skip to the beginning of the next track. Press TUNE ◀◀ to skip to the beginning of the previous track.
Fast Forward and Reverse	Press and hold TUNE ▶▶ or TUNE ◀◀ to fast forward or reverse a track.
Pause	Press ▶/■ to temporarily stop USB playback. Press ▶/■ again to resume playback.
Folder Access	Folders can be found by pressing Folder Up or Folder Down. About one second after the folder name is displayed, the first file under the selected folder will be displayed and playback will begin.
Repeat	Press RPT to toggle between RPT ALL and RPT ONE. • RPT ALL - Plays all tracks on USB device. • RPT ONE - Continuously repeats selected track.
Random	Press RDM to play tracks in random order; press again to cancel the RDM function.
Intro	Press INT to play the first 10 seconds of each track; press again to cancel the INT function.

Bluetooth Operation

Preparation	Before using a Bluetooth device, it must be paired and connected. Ensure that Bluetooth is activated on your device before beginning the pairing process.
Pairing a New Device	The head unit broadcasts the pairing signal constantly when no devices are connected. Complete the pairing sequence from your Bluetooth device. Refer to the owner's manual for your device for more details.The device name is “Jenses Media Player”.Note: The head unit can be in any mode of operation when pairing is performed.
Streaming Audio Troubleshooting	The head unit supports A2DP wireless streaming audio from a Bluetooth mobile device directly to your head unit.The following functions can be used to control the music:Press▶▶ to skip to the next available audio track.Press◀◀ to skip to the previous audio track.Press ▶/■ to toggle between play and pause during playback.

Jensen J-Link P2 App Operation

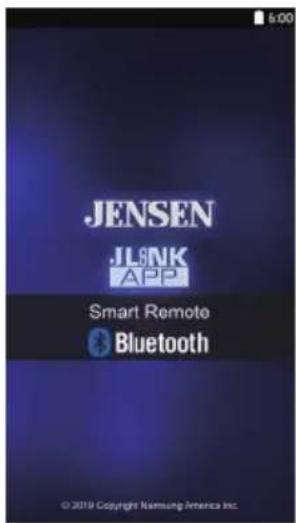

The Jensen J-Link P2 Smart App is the ultimate remote control for your receiver. Change the mode, station, song, volume, and settings directly from your smartphone without being in the receiver's line of sight.

Download the Jensen J-Link P2 Smart App from Apple App Store or Google Play Store and install it on your smartphone or tablet (QR code download link on the right).

Voice Control

Your receiver is designed with an easy access voice activation button to use Siri® or the Google Assistant™ via your car's Bluetooth. Interact with your smartphone assistant while you drive with only the push of a button!

Bluetooth should be paired between your smartphone and the receiver. Press the voice activation button, and the receiver will switch into Bluetooth mode, This will activate Siri® or Google AssistantTM on your smartphone. You will need to manually switch back to the previous or desired mode once this operation is terminated.

Front 3.5mm Auxiliary Input

Connect an optional audio source into the 3.5mm (front panel) input. Select auxiliary input from the Main Menu to listen to audio. Adjust volume on the external audio source as needed (if connected to the headphone output of the device).

FCC Compliance

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Limited One Year Warranty

This warranty gives you specific legal rights. You may also have other rights which vary from state to state.

Samsung America Inc. warrants this product to the original purchaser to be free from defects in material and workmanship for a period of one year from the date of the original purchase.

Samsung America Inc. agrees, at our option, during the warranty period, to repair any defect in material or workmanship or to furnish an equal new, renewed or comparable product (whichever is deemed necessary) in exchange without charges, subject to verification of the defect or malfunction and proof of the date of purchase. Subsequent replacement products are warranted for the balance of the original warranty period.

Who is covered?

This warranty is extended to the original retail purchaser for products purchased from an authorized Jensen dealer and used in the U.S.A.

What is covered?

This warranty covers all defects in material and workmanship in this product. The following are not covered: software, installation/removal costs, damage resulting from accident, misuse, abuse, neglect, product modification, improper installation, incorrect line voltage, unauthorized repair or failure to follow instructions supplied with the product, or damage occurring during return shipment of the product.

Specific license conditions and copyright notices for the software can be found via www.jensenmobile.com

What to do?

1. Before you call for service, check the troubleshooting guide in your owner's manual. A slight adjustment of any custom controls may save you a service call.
2. If you require service during the warranty period, you must carefully pack the product (preferably in the original package) and ship it by prepaid transportation with a copy of the original receipt from the retailer to an authorized service center.
3. Please describe your problem in writing and include your name, a return UPS shipping address (P.O. Box not acceptable), and a daytime phone number with your shipment.
4. For more information and for the location of the nearest authorized service center please contact us by one of the following methods:

• Call us toll-free at 1-888-921-4088
• E-mail us at [e-mail]

Exclusion of Certain Damages: This warranty is exclusive and in lieu of any and all other warranties, expressed or implied, including without limitation the implied warranties of merchantability and fitness for a particular purpose and any obligation, liability, right, claim or remedy in contract or tort, whether or not arising from the company's negligence, actual or imputed. No person or representative is authorized to assume for the company any other liability in connection with the sale of this product. In no event shall the company be liable for indirect, incidental or consequential damages.

FM Tuner

US Tuning Range: 87.5MHz-107.9MHz

EU Tuning Range: 87.50MHz-108.00MHz

Usable Sensitivity: 8.5dBf

50dB Quieting Sensitivity: 10dBf

Stereo Separation@ 1kHz: | 30dB

Frequency Response: 30Hz-13kHz

AM Tuner

US Tuning Range: 530KHz - 1710KHz

EU Tuning Range: 522KHz - 1620KHz

Usable Sensitivity: <42dBu

Frequency Response: 30Hz-2.2kHz

Bluetooth

Version: 4.1 + EDR

Profiles: HFP / A2DP / PBAP

Range: Up to 33ft / 10m

General Specifications

Operation Voltage Input: 11\~16VDC

USB 2 Charge Output: 1.0A

Speaker Nominal Impedance: 4\~8 ohms

Line Output Voltage: 2 Volts RMS

Dimensions: 7" x 3.8" x 2" (178 x 97 x 50mm)

CEA-2006 Power Standard Specifications

(reference: 14.4VDC +/- 0.2V, 20Hz\~20kHz)

Power Output: 16 Watts RMS x 4 channels at 4 ohms and ≤1% THD+N

Signal to Noise Ratio: 80dBA (reference: 1 watt into 4 ohms)

Troubleshooting

General
PROBLEM CAUSE ACTION
Unit will not turn on (no power)	Red and/or Yellow wire not connected or incorrect voltage	Check connections for proper voltage (11~16VDC)
	Black wire not connected Check ground connection
	Blown fuse on unit or vehicle Replace fuse(s)
Unit has power (but no sound)	Speaker wires not connected Check all connections, including speakers
	Speakers are blown Replace speakers
	One or more speaker wires touching each other or touching chassis ground	Insulate all bare speaker wires from each other and chassis ground
Unit blows fuse(s)	Yellow or red wire touching chassis ground Check for pinched or shorted wires
	Speaker wires touching chassis ground Check for pinched or shorted wires
	Incorrect fuse rating Use fuse with correct rating
Unit has audio (but no video)	Parking brake safety circuit not connected Parking brake not applied	Check connections at parking brake Apply parking brake as described in manual
	Video Playback Codec is not supported See Media Codec Support section

Customer Support

1-888-921-4088

(Monday-Friday, 9AM-5PM EST)

Visit https://www.jensenmobile.com

For Your Records

Dealer Info

Please keep your original sales receipt and be prepared to provide this receipt in the event you require service, as your original receipt is considered the best proof of purchase and indicates the date you purchased your JENSEN product.

Dealer Name: ____

Dealer Phone: ____

Purchase Date: ____

Notes

MPR419Q

INSTALLATION &

OWNER'S MANUAL

Circular emblem featuring the United States flag design (no text or symbols)

Customer Support

1-888-921-4088

(Monday-Friday, 9AM-5PM EST)

Visit https://www.jensenmobile.com

Designed and Engineered in USA

JENSEN®

All rights reserved. No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of NAMSUNG AMERICA INC.
