Product Type	Refrigerator with Freezer
Brand	Milectric
Model	RFD-215S
Total Capacity	Approx. 215 L
Energy Class	E (typical for this class)
Power Consumption	~150 kWh/year
Noise Level	~40 dB(A)
Dimensions (H x W x D)	1550 x 540 x 580 mm
Net Weight	Approx. 48 kg
Cooling System	Static (manual defrost freezer)
Number of Doors	2 (fridge + freezer)
Refrigerant	R600a (isobutane)
Climate Class	N/ST (normal to subtropical)
Adjustable Thermostat	Yes, dial control
Interior Light	Yes, LED
Shelves	Tempered glass shelves, adjustable
Door Storage	Multiple compartments for bottles and eggs
Reversible Door	Yes
Defrost Method	Manual (freezer) / Auto (fridge)
Power Source	220-240V ~ 50Hz
Cleaning	Unplug before cleaning; use mild detergent and damp cloth
Safety Features	Child lock (if applicable) / Overheat protection
Spare Parts Availability	Contact Milectric support or authorized dealers

Frequently Asked Questions - RFD-215S Milectric

How do I install the Milectric RFD-215S refrigerator?

Place the refrigerator on a level, stable surface away from heat sources and direct sunlight. Allow at least 5 cm clearance around the unit for ventilation. Leave it upright for 4 hours before connecting to power.

What is the ideal temperature setting for the fridge and freezer?

The fridge compartment should be set between 2°C and 8°C, and the freezer at -18°C or lower. Use the thermostat dial to adjust accordingly.

How do I defrost the freezer?

Unplug the appliance, remove all food, and leave the freezer door open. Place a container to catch melting water. Do not use sharp objects or heaters to speed up defrosting.

Why is my refrigerator not cooling properly?

Check if the door is fully closed, the thermostat is set correctly, and the condenser coils are clean. Also ensure there is enough ventilation space. If issue persists, contact service.

How often should I clean the condenser coils?

Clean the coils at least twice a year using a vacuum cleaner or soft brush to remove dust. This helps maintain energy efficiency.

Can I reverse the door opening direction?

Yes, the door is reversible. Follow the instructions in the manual to move hinges to the opposite side. You may need a screwdriver and a helper.

What should I do if the refrigerator makes unusual noises?

Normal sounds include compressor hum, refrigerant flow, and occasional clicks. If you hear loud rattling or banging, check that the unit is level and items are not vibrating against each other.

How do I change the interior light bulb?

Unplug the refrigerator, remove the light cover (usually located on the ceiling of the fridge), and replace with an LED bulb of the same type and rating. If unsure, consult a professional.

Is it normal to have water droplets on the back wall of the fridge?

Yes, this is normal during humid conditions. The back wall is a cooling surface, and moisture condenses there. Ensure the door is properly sealed and minimize frequent opening.

Where can I find spare parts for the RFD-215S?

Spare parts can be ordered from Milectric's official website or through authorized service centers. Provide the model number (RFD-215S) for accurate parts.

USER MANUAL RFD-215S Milectric

C/Baza n° 349, have 4

18220 Albolote (Granada)

Tlf:958087169

PROCEDIMIENTO EN CASO DE AVERÍA DE UN PRODUCTO MILECTRIC

To ensure proper use of this appliance and your safety, please read the instruction manual completely before operating this appliance.

CONTENTS

Names of the parts 1

Safety warnings 2

Installation instructions 3

Operation instructions.... 3

Packing and moving.... 4

Maintenance.... 4

Defrost.... 5

Disconnecting the appliance.... 5

User notifications.... 5

Troubleshooting tips....6

Specifications and parameters.... 7

Packing list....8

- Thanks for purchasing our products and thank you for placing your confidence in us.

- Please read this manual carefully before using. Follow instructions and keep it for future reference.

- Please follow the operating instructions and safety notices in the manual.

- If any trouble arise, do not fix it yourself or hand it to the after sales service center which has not been authorized. Please contact the local authorized service center.

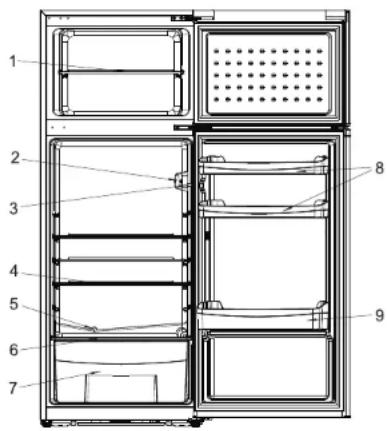

NAMES OF THE PARTS

1. Freezer shelf

2. Lamp and temperature control knob

3. Lamp switch

4. Glass shelf

5.Drain tube plug

1. Crisper glass cover

2. Vegetable crisper

8.Middle bottle guard

1. Big bottle guard

- The refrigerator you purchased may be improved, which maybe not completely consistent with the manual. However the functions and operating methods will not change. Please feel free to use!

- If you use the refrigerator for the first time, remove the adhesive tapes of the drawers, balconies, egg tray, and the drain tube plug.

- Do not pull or push the drawers and balconies fiercely during use in case of damage.

- Adjusted the temperature control as higher as you could accept, which will save the energy consumption of the refrigerator and your money;

- Don't open the refrigerator door continually if it is in the normal working situation.

- Keep the combination of drawers, baskets and shelves of the refrigerator is consistent with its original standard.

SAFETY WARNINGS

For ensure your personal safety, please follow the points below:

1. The circuitry for refrigerator must be isolated. The area of cross section of wire must be larger than 0.75mm ^2 . The power plug should have its own socket, the socket must be ground as adapter may cause the socket to overheat.
2. The voltage and frequency of this product should be 220-240V;50Hz. Contact with the local maintenance station or retailer if the wire is damaged.
3. Do stop the power only by pulling the power plug out of the socket directly but not by the wire.
4. Do not damage the refrigerant circuit.
5. This appliance is not intended for use by persons(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge,unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
6. Children should be supervised to ensure that they do not play with the appliance.
7. Keep ventilation opening, in the appliance enclosure or in the built in structure, clear of obstruction.
8. Before you throw away your old refrigerator or freezer.
9. Take off the doors;
10. Leave the shelves in place so that children may not easily climb inside.
11. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. This appliance is intended to be used in household and similar applications such as -staff kitchen areas in shops, offices and other working environments; -farm houses and by clients in hotels, motels and other residential type environments; -bed and breakfast type environments; -catering and similar non-retail applications.
12. Do not use electrical appliance inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacture.
13. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

NOTICE:

1. When gas leaks from its container, don't pull the plug, out or in, for it may arouse sparks and fire calamities.
2. Don't splash water on the rear of the appliance, for it may cause malfunction or electric shock.
3. Don't stor inflammabe materials such as ether, benzene, LP gas and glue etc in the refrighterator.

4. Don't place bottled beverage in the freezer, so as to prevent breaking.

5. It is better not place object on the top of appliance which is magnetic, heavy, or be filled with water. Electronic components may not work steadily if water gets inside. Do not store object which is costly or impressive to temperature and, e.g. serum, bacterin and so on.

6. The refrigerant of this product is R600a, which is inflammable. So, make sure not to damage the cooling system during the transportation and installation.
7. DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such wastes separately for special treatment is necessary.

INSTALLATION INSTRUCTIONS

1. The refrigerator should be located in a completely flat surface, Leave 5\~10 cm between each side of the appliance and the wall, and leave 30 cm between the top of the appliance and the ceiling.
2. Choose a location which is not exposed to sunlight, high temperature or humid, as humidity may cause stain.
3. Pulled out the bottom panel before installation.
4. The appliance can be adjusted by rolling its two legs in front the bottom when it is unstable. Rolling in clockwise can rise up the machine.
5. The location should be firm and flat. An un-securely position may cause noise and libration: (a)The noise may be increased if the floor is not firm. (b) Put a sheet under the appliance for solving the heat emission if you need to locate it onto a carpet.
6. Make sure the adjustable legs are clung to the floor, and set the appliance slope backward slightly for keeping the doors closed tightly.

OPERATION INSTRUCTIONS

PLACEMENT OF FOOD

1. There should always be some space between items inside for air circulation.
2. Food should be kept/void/batch/package dry or with odour.
3. Hot food should be cooled down before placing into the appliance. Otherwise, interior temperature and electronic consumption will increase.
4. Reduce the frequency of door opening can efficiently low down the electronic consumption.

Warning| Do not use any electronic equipment inside the appliance.

INSTRUCTION FOR USAGE

The temperature of refrigerator can be controlled manually by the knob. However, the number shown on the knob does not directly represent the temperature. Instead, the larger the number is, the lower the interior temperature will be. 0 stands for off. Turn the knob to state 4 when it is normal used, turn it to the state during 4-7 if a lower interior temperature is required; contrarily, to the state during 4-1, when a higher one is needed.

PACKING AND MOVING

1. Unpack, repack and carry Please memorize the position of each accessory of the appliance when unpack it, repack the product and check it carefully before transportation.
2. Do not lift or pull the door or the door handle during transportation.
3. When moving, the appliance can not be sloped over 45 degrees (the angle to the vertical direction). Please avoid strong vibration and hit.

MAINTENANCE

The appliance should be maintained and cleaned frequently. For your safety, do please pull the plug out of the socket before the cleaning.

1. Interior maintenance Clean the interior of the appliance with clean water or neutral abluent. Scour it with clean water and wipe it with a piece of dry cloth.
2. Maintenance of door gasket It is easy to damage if the door gaskets are polluted by the stain like oil, sauce and etc., so it is better to clean them carefully.
3. Outer maintenance Wipe the dusty with a piece of dry cloth, clean it with neutral abluentif necessary.
4. The displacement of interior light Uninstall the cover and replace the light with a screwing light (E14, 220V/10W). Consult the following pictures:

①. Pry the bolt on the thermostat away from the lamp shade about 2mm with the tool.

⑧. Take out the lamp shade along the direction of the arrow.

②. Meanwhile take another side as the center to ratote the lamp shade outwards.

④. Rotate and take out the bulb in counterclockwise direction.

DEFROST

The heavy frost will influence the refrigerating of the appliance and increase the energy consumption. Thus, defrosting is needed as the frost is as thick as 5 mm. Processes of the manual defrost are listed as following: take all the food out of the compartment; uninstall the drawers and shelves; unplug the electronic power cord; open the doors and wait for the thaw; wipe up the water with dry cloth.

Do not use any other equipment or method to push the defrost process. It may destroy the cooling system.

DISCONNECTING THE APPLIANCE

After power failure, even in summer, the refrigerator can store food normally in several hours.

1. Discontinuation during power failure After power failure, do not put additional food in the appliance and reduce the frequency of door opening. Make several ices in a container if know the power failure beforehand, and put it in the top of the fridge.
2. Discontinuation during vacation Please fetch out the easy-rot food and the food in fridge before shot vacation. After confirmation, close the door firmly. If have a long vacation, please fetch out all the food and cut off the power. After defrosting, clean up the liner of the appliance and wipeit dry, and leave the door open.
3. Stop using If the refrigerator may be stopped using for a long time, please unplug the outlet and clean up the appliance. The door should be kept open in order to prevent unpleasant smell caused by food leavings.

Attention

In a general condition, do not stop the appliance in case of affecting its life. After unplugging the power, please leave at least 5 minutes before resumption.

USER NOTIFICATIONS

1. Do not splash water on the refrigerator, as it will cause oxidation and malfunction. Electronic component such as on/off button should be wiped dryly.
2. Cleansers such as soap powder, abrasive cleaning powder, alkali cleansers, chemical cloth, thinner, alcohol, acid petroleum product and hot water should not be used to clean the refrigerator as they may damage the painted cover and plastics.

3. Smear can damage the interior plastic component, so wipe it as soon as possible.

4. Please check the points below after maintenance:

(1) Is there any damage or loss of the electronic wire?

(2) Can the plug be put in the socket reliably and smoothly?

(3) Is the plug heating unconventionally?

Warning

Please get rid of the gasket of the door before the disposal. The disposed apparatus should be handled by professional staff, as it may be harmful to the environment.

TROUBLESHOOTING TIPS

1. The refrigerator does not
   It may not be connected to the power supply(plug, power cut or fuse); Voltage is too low.
2. The refrigerator does not work efficiently as expected
   It may be caused by heavy frost, or by warm temperature setting, or by frequently door operating.
3. It makes unusual noise
   It may be caused by an imbalance or loose ground locating the appliance, or by resonation between the appliance and other ambient objects.
4. The compressor keeps working for a long period
   The environment temperature may be too high. The doors may be opened frequently or even they are left open. The temperature control knob setting in (4-7) state may increase the working time of compressor.
5. Disgusting odour happens
   Food with strong odour should be packed tightly before being put inside the appliance. Please check whether there is any deteriorated item or whether the liners are left dirty for a long time.
6. Water leaks from the bottom of the refrigerator
   The drain tube is jammed. Please use a proper tool to solve it.
7. Heavy frost occurs on the rear of the appliance
   Putting humid or hot food into the appliance may cause this problem. Or it may be caused by the heavy environment moisture.

The follow cases are not malfunction

1. Moisture may form dew on the outside of the product during the humid season, just get it wiped.
2. The flow of refrigerant through the pipeline coil can cause a bicker.

3. It is normal that the sides of product get warm as a result of the cooling pipeline working.

4. The frame of the appliance will be warm during working by the defrost pipeline inside it.

Please check the points above first. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

SPECIFICATIONS AND PARAMETERS

Model			RFD-215S
Climate class			N/ST
Electric shock protection type			I
Capacity (L)	Freezer		37
	Refrigerator		167
Voltage (V)			220-240
Frequency (Hz)			50
Current (A)			2.0
Voice [dB(A)]			≤ 41
Energy consumption (E16)			0.316KWH/24H
Energy consumption (E32)			0.862KWH/24H
Refrigerant			R600a/66g
Weight (Kg)			38
Interior temperature (°C)		Freezer	≤-18
		Refrigerator	0~8
Dimension (mm)		Width	545
		Depth	525
		Height	1430

PACKING LIST

Model NumberParts	RFD-215S
Vegetable crisper	1pc
Freezer shelf	1pc
Glass shelf	3pcs
Drain tube plug	1pc
Middle bottle guard	2pcs
Big bottle guard	1pc
Crisper glass cover	1pc
Owner's manual	1copy

Note: Products are subject to improve from time to time, any changes in parts without further notice.

• Extended temperate (SN): this refrigerating appliance is intended to be used at ambient temperatures ranging from 10oC to 32oC;
• Temperate (N): this refrigerating appliance is intended to be used at ambient temperatures ranging from 16oC to 32oC;
• Subtropical (ST):' this refrigerating appliance is intended to be used at ambient temperatures ranging from 16oC to 38oC';
• Tropical (T): this refrigerating appliance is intended to be used at ambient temperatures ranging from 16oC to 43oC; 2.
  For a freestanding appliance: 'this refrigerating appliance is not intended to be used as a built-in appliance'.

To find out more about your product, consult the online EPREL database. As defined in Commission Delegated Regulation (EU) 2019/2016, all information relating to this refrigeration appliance is available on the EPREL Base (European Product Database for energy labeling). This database enables you to consult the information and technical documentation of your refrigeration appliance. You can access the EPREL Database by scanning the QR code on the energy label of your appliance or by going directly to: www.ec.europa.eu and searching the reference of your refrigeration appliance.

MiLECTRIC

C/Baza n° 349, have 4

18220 Albolote (Granada)

Tlf:958087169

PROCEDURE IN CASE OF FAILURE OF A MILECTRIC PRODUCT

Dear customers, to request technical assistance or repair of your MILECTRIC product, you have our website, operating 24 hours a day, 7 days a week:

https://milelectric.com/asistencia-tecnica/

Alternatively, if they wish, they can request technical assistance via email:

• Gama Blanca: [e-mail]

• Gama Marrón: [e-mail]

To streamline all procedures, the following information should always be indicated:

- Name and su

- Telephone 1

- Phone 2

Full address

- Postal Code

- Population

- Brand

- Product model

- Serial number

• Product failure

You can request technical assistance through the number 902 676 518 or 958 087 169, available only for white range products (except for free-standing microwaves).
