USER MANUAL ES-LV9N PANASONIC

Operating Instructions (Household) Rechargeable Shaver Model No. ES‑LV9N Operating Instructions Rechargeable Shaver Model No. ES-LV9N PAN EUROPEAN GUARANTEE Personal Care Products

• Operating Instructions (Household) Rechargeable Shaver Model No. ES‑LV9N FAQ p. 22
• Preparation p. 12
• Troubleshooting p. 23
• How to use p. 14
• Service p. 27
• Cleaning thoroughly p. 18
• For environmental protection and recycling of materials p. 27

Specifications.....................................28 Thank you for purchasing this Panasonic product. Before operating this unit, please read these instructions completely and save them for future use. Replacing the system outer foil and the inner blades..................................19

Parts identification.............................12

When the LOW/STATUS lamp glows....21 FIN Intended use....................................... 11

Replacing the cleaning liquid............20

Safety precautions..................... 8

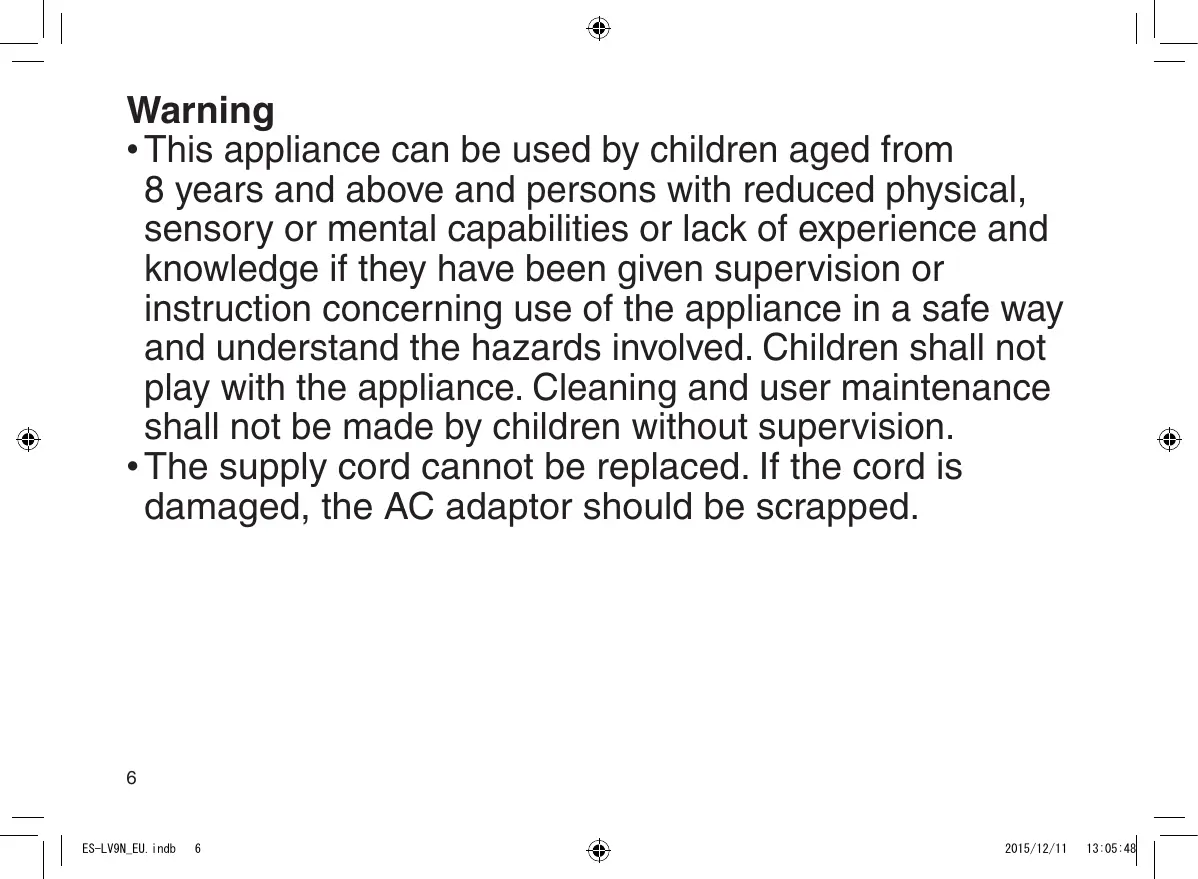

2015/12/11 13:05:48 Warning

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• The supply cord cannot be replaced. If the cord is damaged, the AC adaptor should be scrapped.

• Do not use anything other than the supplied AC adaptor and the self-cleaning recharger.

• This WET/DRY shaver can be used for wet shaving using shaving lather or for dry shaving. You can use this watertight shaver in the shower and clean with water. The following symbol means suitable for use in a bath or shower.

Safety precautions To reduce the risk of injury, loss of life, electric shock, fire, and damage to property, always observe the following safety precautions. Explanation of symbols The following symbols are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed. DANGER Denotes a potential hazard that will result in serious injury or death. WARNING Denotes a potential hazard that could result in serious injury or death. CAUTION Denotes a hazard that could result in minor injury or property damage. The following symbols are used to classify and describe the type of instructions to be observed. This symbol is used to alert users to a specific operating procedure that must not be performed. This symbol is used to alert users to a specific operating procedure that must be followed in order to operate the unit safely. WARNING ►This product This shaver has a built-in rechargeable battery. Do not throw into fire, apply heat, or charge, use, or leave in a high temperature environment. - Doing so may cause overheating, ignition, or explosion. Do not modify or repair. - Doing so may cause fire, electric shock, or injury. Contact an authorized service centre for repair (battery change etc). Never disassemble except when disposing of the product. - Doing so may cause fire, electric shock, or injury. ►In ► case of an abnormality or malfunction Immediately stop using and remove the adaptor if there is an abnormality or malfunction. - Failure to do so may cause fire, electric shock, or injury. <Abnormality or malfunction cases>

• •The main unit, self-cleaning recharger, adaptor or cord is deformed or abnormally hot.
• •The main unit, self-cleaning recharger, adaptor or cord smells of burning.
• •There is an abnormal sound during use or charging of the main unit, self-cleaning recharger, adaptor or cord. - Immediately request inspection or repair at an authorized service centre.

Always ensure the appliance is operated on an electric power source matched to the rated voltage indicated on the AC adaptor. Fully insert the adaptor. - Failure to do so may cause fire or electric shock. Disconnect the AC adaptor when cleaning the shaver with water. - Failure to do so may cause electric shock or injury.

Do not place within reach of children or infants. Do not let them use it. - Putting parts or accessories in the mouth may cause an accident or injury. FIN

If detergent or oil is consumed accidentally, do not induce vomiting, drink a large amount of water and contact a physician. If detergent or oil comes into contact with eyes, wash immediately and thoroughly with running water and contact a physician. - Failure to follow these instructions may result in physical problems.

Do not use in a way exceeding the rating of the household outlet or the wiring. - Exceeding the rating by connecting too many plugs to one household outlet may cause fire due to overheating. Persons using an implanted medical electronic device, such as a pacemaker, should not allow this unit to touch the skin where the medical electronic device is implanted. - Doing so may cause an accident or illness. If detergent contacts skin, wash immediately and thoroughly with soap. If you experience skin irritation anywhere on the body, stop using immediately and contact a physician. - Failure to follow these instructions may result in physical injury or injury to the skin.

Do not immerse the AC adaptor and the selfcleaning recharger in water or wash with water. Do not place the AC adaptor and the self-cleaning recharger over or near water filled sink or bathtub. Never use the appliance if the AC adaptor is damaged or if the power plug fits loosely in a household outlet. Do not damage, modify, or forcibly bend, pull, or twist the cord. Also, do not place anything heavy on or pinch the cord. - Doing so may cause electric shock or fire due to a short circuit. ►Preventing accidents

Do not connect or disconnect the adaptor to a household outlet with a wet hand. - Doing so may cause electric shock or injury.

►Power supply Regularly clean the power plug and the appliance plug to prevent dust from accumulating. - Failure to do so may cause fire due to insulation failure caused by humidity.

CAUTION ►Protecting the skin Do not use excessive pressure to apply the system outer foil to your lip or other part of your face. Do not apply the system outer foil directly to blemishes or injured skin. Do not touch the blade section (metallic section) of the inner blade. - Doing so may cause injury to skin or hand. Do not forcefully press the system outer foil. Also, do not touch the system outer foil with fingers or nails when in use. Do not use this product for hair on head or any other part of the body. - Doing so may cause injury to skin or reduce the life of the system outer foil. Do not remove the shaver from the self-cleaning recharger while using the “AUTO” mode or “Dry/ Charge” mode. - Doing so may cause burn due to high temperatures around the blades. Check the system outer foil for cracks or deformations before use. - Failure to do so may cause injury to the skin. Be sure to place the protective cap on the shaver when carrying around or storing. - Failure to do so may cause injury to skin or reduce the life of the system outer foil. ►Note the following precautions Do not wrap the cord around the adaptor when storing. - Doing so may cause the wire in the cord to break with the load, and may cause fire due to a short circuit. Do not allow metal objects or trash to adhere to the power plug or the appliance plug. - Doing so may cause electric shock or fire due to a short circuit. Do not disconnect the adaptor or the appliance plug by holding onto the cord. - Doing so may cause electric shock or injury. Do not share your shaver with your family or other people. - Doing so may result in infection or inflammation. Do not drop or hit against other objects. - Doing so may cause injury. Do not use detergent for any purpose other than washing the shaver blades. - Using it with other products may cause discoloration or cracking. Immediately wipe up any cleaning liquid that has been spilt. - Prolonged contact may cause discoloration of leather products or wooden floors. Disconnect the adaptor from the household outlet when not charging. - Failure to do so may cause electric shock or fire due to electrical leakage resulting from insulation deterioration. Use caution when opening detergent as spout is sharp. - Failure to do so may cause injury.

After removing the rechargeable battery, do not keep it within reach of children and infants. - The battery will harm the body if accidentally swallowed. If this happens, consult a physician immediately.

• •Treat yourself to wet lather shaves for at least three weeks and notice the difference. Your Panasonic WET/DRY shaver requires a little time to get used to because your skin and beard need about a month to adjust to any new shaving method.
• •Do not bring the system outer foil into contact with hard object. Doing so may damage the blades as they are very thin and deform easily.
• •Do not dry the main unit with a dryer or a fan heater. Doing so may cause malfunction or deformation of the parts.
• •Do not leave the shaver exposed to direct sunlight with the foil frame detached. Doing so may deteriorate the waterproof rubber and degrade waterproof function, which may cause to malfunction.
• •Store the shaver in a place with low humidity after use. Failure to do so may cause malfunction due to condensation or rust.
• •Do not leave the detergent in location of high temperatures. Doing so may cause deterioration.

WARNING Intended use

The rechargeable battery is exclusively for use with this appliance. Do not use the battery with other products.

• •Do not throw into fire or apply heat.
• •Do not hit, disassemble, modify, or puncture with a nail.
• •Do not let the positive and negative terminals of the battery get in contact with each other through metallic objects.
• •Do not keep the battery together with metallic jewelry such as hairpins.
• •Do not charge, use, or leave the battery where it will be exposed to high temperatures, such as under direct sunlight or near other sources of heat.
• •Never peel off the tube. - Doing so may cause overheating, ignition, or explosion.

DANGER If the battery fluid leaks out, take the following procedures. Do not touch the battery with your bare hands. - The battery fluid may cause blindness if it comes in contact with your eyes. Do not rub your eyes. Wash immediately with clean water and consult a physician. - The battery fluid may cause inflammation or injury if it comes in contact with the skin or clothes. Wash it off thoroughly with clean water and consult a physician.

Handling of the removed battery when disposing

• •Keep both the inner blades inserted. If only one of the inner blades is inserted, the shaver may be damaged.
• •If you clean the shaver with water, do not use salt water or hot water. Do not soak the shaver in water for a long period of time. Parts identification < Trimmer A Main body = Trimmer handle 1 Protective cap > Main body rear terminals 2 System outer foil 3 Foil frame B Self-cleaning recharger 4 Smooth rollers ? Charging terminals @ Cleaning liquid unit
• They help to glide over removal button the skin more easily. A Intake port 5 Foil frame release buttons B Self-cleaning recharger 6 Power switch socket 7 Lamp display C Lock release lever a. Used time lamp D Cleaning liquid filter b. Battery capacity lamp Cleaning liquid unit c. Shaving sensor lamp STATUS lamp LOW lamp d. Clean lamp ( ) CLEAN lamp e. Switch lock lamp ( ) DRY lamp f. Foil/blade check lamp SELECT button C AC adaptor (RE7‑87) g. Charge status lamp Adaptor Power plug 8 Appliance socket Cord 9 Outer foil section Appliance plug : System outer foil release buttons ; Inner blades Accessories D Travel case E Cleaning brush F Oil G Special detergent (Detergent) H Operating Instructions I Guarantee Card There may be water droplets inside the self-cleaning recharger at the time of purchase, but there is no problem regarding the hygiene or the performance. (It is a residue of the distilled water used for performance test.) Preparation Charging the shaver
• •Turn the shaver off.
• •Wipe off any water droplets on the main body rear terminals.

Insert the appliance plug [CN] into the self-cleaning recharger [B]. Remove the protective cap [A1] while pressing the side of the cap and insert the shaver into the self-cleaning recharger.

• •Slowly insert the shaver into the self-cleaning recharger taking care not to damage the system outer foil.

Plug the adaptor [CK] into a household outlet.

• •Check that the charge status lamp ( ) is glowing.
• •Charging is completed after approx. 1 hour.

Disconnect the adaptor after charging is completed.

Note You cannot operate the shaver while charging.

• When charging the shaver for the first time or when it has not been in use for more than 6 months, the charging time may change or the charge status lamp ( ) may not glow for a few minutes. It will eventually glow if kept connected.
• Recommended ambient temperature for charging is 10 – 35 °C. It may take longer to charge, or the charge status lamp ( ) will blink quickly and the battery may fail to charge properly in extremely high or low temperatures.
• The shaver can be used for approximately 2 weeks with a full charge. (Based on one 3‑minute dry‑shave use per day) The number of usable days varies depending on the following conditions. - Beard thickness - Pressure applied to the skin - Ambient temperature - Usage frequency of the sonic vibration cleaning mode
• If there is noise from radio or other source while using the shaver, move to a different location to use the shaver.

FIN The battery capacity lamp and will light up and then turn off after 5 seconds.

glows. The number of the battery capacity lamp will increase as charging progresses.

Plug the adaptor [C] into a household outlet.

Insert the appliance plug [C] into the shaver.

Charging without the self-cleaning recharger

• Wipe off any water droplets on the appliance socket.

After charging is completed

Disconnect the adaptor after charging is completed.

Preparing the cleaning liquid Cleaning can start right after the usage by preparing in advance. (See page 17.)

• •Remove the AC adaptor from the self-cleaning recharger.

Press the cleaning liquid unit removal button (1) and remove the cleaning liquid unit (2) on a hard, flat surface.

• •When the self-cleaning recharger is lifted, or on the soft surface such as carpets, the lock release lever will not fit in the recharger properly. In that case, the cleaning liquid unit cannot be removed. Pour tap water (1) and detergent (2) into the cleaning liquid unit.
• •Be careful not to let the water rise above the maximum water line (a).
• •Pour the entire packet of detergent.

Slowly insert the cleaning liquid unit [BE] into the selfcleaning recharger [B] until it clicks.

• •To replace the cleaning liquid, see page 20.
• •Only use self-cleaning recharger detergent for Panasonic shavers. Not doing so may cause malfunction or failure.
• •Do not tilt the self-cleaning recharger. Doing so may cause spill or the number of days that cleaning liquid can be used reduce.
• •You can use the cleaning liquid for approximately 30 days if used once per day. (This will differ depending on beard thickness and the ambient temperature.) How to use Shaving beard

• •The “shaving sensor”, which automatically adjusts the power depending on the beard thickness, will operate. It will shave with high power on areas where the beard is heavy, and reduce the power on areas where the beard is thin, to reduce burden on the skin.
• •The power cannot be turned on when the switch lock lamp ( ) blinks, as the power switch is locked. Press the power switch for more than 2 seconds to unlock. (See page 16.)

Tips for better shaving Apply the whole system outer foil perpendicularly against the skin and shave by slowly gliding the shaver over the face against the grain of the beard.

• •The beard under the chin and around the throat can be shaved better by stretching the skin so the beard will stand.
• •To prevent damaging the system outer foil, do not shave with only a part of the system outer foil.

when finished. While using Notes

• •The appliance may not operate in an ambient temperature approximately 5 °C or lower.
• •The shaving sensor may not respond depending on the type and quantity of the shaving gel. This is not abnormal.
• •Depending on the beard thickness or the amount of beard trimmings in the shaver head, the shaving sensor may not react and the driving sound may not change. This is not abnormal.
• •To prevent erroneous operation, place your fingers on the finger rest while using the shaver.
• •The sonic vibration cleaning mode is activated when the power switch is pressed for more than 2 seconds while the shaver is not operating (the switch lock is unlocked). (See page 18.) You cannot shave in this mode. FIN Press “10%” appears and “ ” blinks.
• •You can shave 1 to 2 times after “10%” appears. (This will differ depending on usage.)

When the battery capacity is low

The used time and remaining battery capacity blink alternately and then turn off after 8 seconds.

The used time and remaining battery capacity are shown and then turn off after 7 seconds.

• •The shown time returns to [0’00”] after 10 minutes.
• •The shaving sensor lamp ( ) blinks.

►Switching the shaver head Locking/unlocking the power switch You can change the pivot action. Locking the power switch

2. Press

1. Press

once for more 3. Release and then release. than 2 seconds.

• The switch lock starts operating. lamp ( ) will light up for 5 seconds and turn off.
• The shaver will stop operating.

FREE The shaver head is moved to prevent missed spots. LOCK You can lock the shaver head. FREE LOCK FREE FREE LOCK ►Using the trimmer

1. Slide the trimmer handle up to the

“ ” position so that the trimmer stands upright.

2. Press

and use. FREE LOCK Unlocking the power switch

1. Press

for more than 2 seconds.

• The switch lock lamp ( will turn off.

2. Once the shaver starts

Press and hold the top knob (a) and slide the trimmer handle down to lower the trimmer. FREE

LOCK Tips for better usage Apply the trimmer edge perpendicular to skin and move downward. Trimming sideburns Pre‑shave of long beards

*When the ambient temperature of the self-cleaning recharger is low (approx. 15 °C or lower), the drying process will take up to 170 min. Remove the adaptor after the selected mode is completed.

• •Do not press the cleaning liquid unit removal button during cleaning as the cleaning liquid may spill causing a malfunction.
• •The drying time may increase in an ambient temperature approximately 15 °C or lower. The Clean or Dry function may not operate under extreme low temperatures (approximately 0 °C or lower).
• •A lubricant constituent is included in the detergent, so smooth shave is maintained without applying oil.

Dry 80 min* Dry/Charge mode (Dry/Charge)

The CLEAN lamp and the DRY lamp glow, and the “AUTO” mode will start after approximately 6 seconds.

• •It is not possible to change the mode after the “AUTO” mode has started. AUTO mode (Clean/Dry/Charge)

Press Charge mode (Charge)

The “Charge” mode starts when attaching the shaver, and the mode can be changed by pressing the SELECT button.

Changing the mode of self-cleaning recharger

• •Check that the charge status lamp ( ) is glowing.
• •When the LOW lamp or the STATUS lamp lights up, see page

Insert the shaver into the self-cleaning recharger [B] and plug the adaptor [CK] into a household outlet. (See page 12.)

Clean the shaver with water or with the cleaning brush once per month. (See pages 18 and 19.) The main unit neck section (a), inner blade attachment part (b), trimmer, system outer foil gaps, etc. cannot be cleaned with the selfcleaning recharger.

Cleaning, drying, charging We recommend cleaning the shaver after each use.

Apply some hand soap and some water to the system outer foil [A2]. Remove the outer foil section [A9] and clean with running water.

• See page 20 for attaching and removing the outer foil section.
• Splashing is reduced by rinsing the shaver in sonic vibration cleaning mode.
• After rinsing with water, shake the shaver up and down for a few times to remove excess moisture and then wipe off any drops of water with a dry cloth.

2. Press

The DRY lamp glows, and the “Dry/Charge” mode will start after approximately 6 seconds.

• It is possible to change to the “AUTO” mode even after the “Dry/Charge” mode has started. Press for more than 2 seconds to activate the sonic vibration cleaning mode.

• Splashing of foam is suppressed.
• The battery capacity lamps blink in order.
• After about 20 seconds, it will be automatically turned off, or you can turn it off by pressing the power switch.

1. Insert the shaver into the self‑

cleaning recharger and plug the adaptor into a household outlet.

• Check that the charge status lamp ( ) is glowing.

• Turn the shaver off and disconnect the AC adaptor.

Attach the outer foil section and dry with the self-cleaning recharger [B]. Dry 180 min

3. Remove the adaptor after the selected mode is

completed. Lubricate the shaver. It will keep the movement of the blade smooth and maintain a comfort shave.

1. Apply one drop of oil to each of the

2. Raise the trimmer and apply a drop of oil.

3. Switch the shaver on, and run it for approximately five

4. Switch off the shaver, and wipe off any excess oil from

the system outer foil with a soft cloth.

Cleaning with the brush Remove the outer foil section and the inner blades. (See page 20.)

Allow the shaver to dry in the shade, avoid direct sunlight and then apply oil.

Clean the outer foil section [A9], system outer foil [A2], the shaver body [A] and the trimmer [A<] using the long brush.

►Cleaning with the short brush

• •Clean the inner blades [A;] using the short brush by moving it in direction as illustrated.
• •Do not move the short brush perpendicularly against the blades as it will damage the inner blades and affect their sharpness.

FIN Replacing the system outer foil and the inner blades system outer foil once every year inner blades once every two years

appears on the lamp display once a year. (Based on one 3-minute shave use per day) We recommend checking the system outer foil and the inner blades when it appears. Press the power switch for more than 30 seconds to turn off Even if is not turned off right after the replacement, it will automatically turn off within approximately 7 uses.

• •Be careful not to hit the main body on the sink or any other object while draining the water. Failure to do so may cause malfunction.
• •Do not wipe with thinners, benzine, alcohol etc. Doing so may cause malfunction, or cracking or discoloration of the parts. Wipe with diluted soapy water.
• •Do not use any kitchen or bathroom detergents other than hand soap. Doing so may cause malfunction.
• •Do not use the self-cleaning recharger while droplets or soap remain on the shaver. Doing so may change the concentration level or composition of the cleaning liquid in the cleaning liquid unit, which may degrade cleaning, sterilization, lubrication and drying performance. This may also cause cleaning liquid to spill from the self-cleaning recharger.

►Cleaning with the long brush

►►Drying the shaver without the self-cleaning recharger

►Removing the outer foil section Press the foil frame release buttons [A5] and lift the outer foil section [A9] upwards. ►Attaching the outer foil section After turning the foil frame mark ( ) to the front, securely attach the outer foil section [A9] to the shaver until it clicks. Replacing the cleaning liquid If the STATUS lamp glows for 5 seconds when the SELECT button is pressed, the cleaning liquid needs to be replaced.

• •Even if the STATUS lamp does not light up, replace the cleaning liquid after 6 months have passed.

Wash away the old cleaning liquid.

• •It can be drained as sewage. ►Replacing the system outer foil

1. Press the system outer foil release buttons

[A:] and pull down the system outer foil [A2].

2. Align the foil frame mark ( ) and the

system outer foil mark ( ) and securely attach together until it clicks.

• •Do not press the system outer foil release buttons with excessive force. Doing so may bend the system outer foil, preventing complete attachment to the foil frame. Remove the AC adaptor [C] and remove the cleaning liquid unit [BE]. (See page 14.)

►Replacing the inner blades

1. Remove the inner blades [A;] one at a time.

2. Insert the inner blades one at a time.

Rinse the cleaning liquid unit.

• •Pour water as illustrated while tilting the cleaning liquid unit and shaking it gently.
• •You can clean with the cleaning liquid filter removed. After washing, be sure to attach the cleaning liquid filter. Gently wipe off any beard trimmings attached to the inside of the cleaning tray (a) with a cloth or tissue paper dampened with water.
• •Clean the corners and uneven parts of the cleaning tray with a cotton swab dampened with water. Note Do not throw away the foil frame.

Prepare the new cleaning liquid. (See page 14.)

It indicates that the cleaning liquid is due for replacement when the LOW lamp or STATUS lamp glows for approximately 5 seconds when the SELECT button is pressed.

The STATUS lamp glows. If you think the replacement should not be due yet...

• •Is the cleaning liquid unit correctly attached?
• •Is the self-cleaning recharger placed in a level surface?
• •Is the self-cleaning recharger used outside the range of the recommended usage temperature? (Only “Charge” mode can be used.) FIN Replace the cleaning liquid. (Modes other than the “AUTO” mode can be used even if it is not replaced.)

Replacement of the cleaning liquid is required in approximately 7 days. Prepare the detergent.

The LOW lamp glows. Content of notification

Lamp on the self-cleaning recharger ►►When the water does not drain from the cleaning tray

• •Do not tilt the self-cleaning recharger to pour out water. Doing so may cause the cleaning liquid in the cleaning liquid unit to spill or cause the self-cleaning recharger to malfunction.
• •Beard trimmings may clog the drain at the bottom of the cleaning tray. In this case, you cannot clean or dry the shaver.

1. Be sure to remove the AC adaptor from the

self-cleaning recharger.

2. Place the self-cleaning recharger on a flat

surface, and push the beard trimmings down through the drain (b) with a toothpick etc.

When the LOW/STATUS lamp glows

• •The cleaning liquid will decrease every time it is used, but do not add detergent and water except when replacing the cleaning liquid. Doing so may deteriorate the cleaning function.
• •Do not wash the self-cleaning recharger unit with water.
• •Do not wipe with thinners, benzine, alcohol etc. Doing so may cause malfunction, or cracking or discoloration of the parts. Wipe with diluted soapy water.
• •Some cleaning liquid components and skin oil may separate and adhere to the cleaning liquid unit and cleaning liquid filter. This does not indicate a problem.

Why does “Dry/Charge” mode take longer than “AUTO” mode? Can I refill the selfcleaning recharger with water when the cleaning liquid has decreased? Can the self-cleaning recharger be used to wash other models? Will the battery deteriorate if not used for an extended period of time? Can I charge the shaver after every use? Answer This is due to the difference in the drying time. The drying time for the “Dry/ Charge” mode is set longer as there may still be excess moisture on the areas other than the system outer foil after the shaver has been rinsed and cleaned with water. Why should the adaptor be disconnected after use? What is the constituent of the dedicated oil and the detergent? Answer Charging the battery for more than 1 hour will not affect battery performance, but disconnect the adaptor for safety and to save energy. Oil: Liquid paraffin Detergent: Non-ionic surfactant agent, antimicrobial agent, lubricant and fragrance. Do not refill with water as doing so may deteriorate the cleaning function. Replace the cleaning liquid. This self-cleaning recharger can only be used for the ES-LV9N model. Doing so may cause malfunction, so do not use with other models. The battery will deteriorate if not used for over 6 months, so make sure to perform a full charge at least once every 6 months. The battery used is a lithium-ion, so charging after every use will have no effect on battery life.

The blade has not been thoroughly washed. After cleaning, oil-like droplets may remain on the outside of the foil frame. This is the lubricating component of the cleaning liquid and does not indicate a problem. You may wipe it off with a soft cloth. The cleaning liquid has foamed. Cleaning liquid has accumulated in the cleaning tray.

Remove any waste, etc. that has accumulated in the drain at the bottom of the cleaning tray. (See page 21.) If you use the self-cleaning recharger when the shaver is wet or when soap or shaving gel is on the shaver, cleaning liquid may accumulate in the cleaning tray.

Replace the cleaning liquid. (See page 20.)

Do not add detergent and water except when replacing the cleaning liquid. Doing so may deteriorate the cleaning function. (See page 21.) If you mix soapy water or hand soap with the detergent or use another detergent, the cleaning liquid will foam. Use the selfcleaning recharger after thoroughly washing and drying the shaver.

If the shaver is not cleaned for more than 2 weeks, first clean with the cleaning brush to remove beard trimmings. (See page 19.) Replace the system outer foil and/or inner blades. (See page 19.) FIN Action

Problem The blades crack or deform during cleaning. Do not insert any foreign objects into the recharger.

►Self-cleaning recharger The blades are not dry or are sticky.

Perform the following actions. If the problems still cannot be solved or all self-cleaning recharger’s lamps blink, contact the store where you purchased the unit or a service centre authorized by Panasonic for repair. Action The blades may not dry quickly due to temperature conditions. Run the “Dry/Charge” mode again or wipe with a soft cloth before shaving.

Action Do not press the cleaning liquid unit removal button during any mode. Cleaning liquid leaked from the cleaning liquid unit. The cleaning liquid unit cannot be removed. Place the self-cleaning recharger horizontally. Problem The shaver cannot be charged. Makes a loud sound. During cleaning: The self-cleaning recharger makes a loud sound due to the cleaning of the blades. After cleaning: The self-cleaning recharger makes a loud sound due to the removal of water droplets in order to speed drying. The sound after cleaning is different from the sound during cleaning. The water level has dropped and it is removing water droplets from the blades after cleaning. This does not indicate a problem. If you use the self-cleaning recharger when the shaver is wet or when soap or shaving gel is on the shaver, cleaning liquid may leak. Place the self-cleaning recharger on a hard, flat surface. (See page 14.) Check that the AC adaptor is connected to the self-cleaning recharger, and that the adaptor is plugged in to a household outlet. (See page 17.) The mode does not start. Confirm that the shaver is properly attached to the selfcleaning recharger. (See page 17.) The Clean or Dry function may not operate under extreme low temperatures (approximately 0 °C or lower). Check if the STATUS lamp is glowing. (See page 21.) Action Gently wipe the main body rear terminals and the charging terminals of the self-cleaning recharger with a cloth or tissue dampened with water. ►Shaver Problem Action The power switch does not turn ON. Unlock the switch lock. (See page 16.) The clean lamp ( ) glows. (It turns off in about 1 minute.) Please clean the blades with the self-cleaning recharger or the sonic vibration cleaning mode.

The appliance may not operate in an ambient temperature approximately 5 °C or lower. The battery has reached the end of its life.

Shaver does not operate even after charging.

When the number of operations per charge starts to decrease, the battery is nearing the end of its life. FIN Operating time is short even after charging.

Apply oil. (See page 18.) The shaving sensor may not respond when there is not enough oil on the blades.

The shaving sensor may not respond when the remaining battery capacity is low. If this happens, recharge the shaver. Replace the system outer foil and/or inner blades. Expected life of system outer foil and inner blades: System outer foil: Approximately 1 year Inner blades: Approximately 2 years

The shaving sensor responds even though the shaver is not in contact with the skin. Action Clean the beard trimmings from the shaver. When the shaver is extremely dirty, remove the foil frame and wash with water. (See page 18.) The shaver will not operate with the AC adaptor connected. Please use the shaver after it has been sufficiently charged and the AC adaptor disconnected.

The shaving sensor does not respond. The shaving sensor may not respond depending on the type and quantity of the shaving gel. This is not abnormal. Problem

Action Depending on the beard thickness or the amount of beard trimmings in the shaver head, the shaving sensor may not react and the driving sound may not change. This is not abnormal.

Problem The driving sound changes while shaving. Action Apply oil. The blades will not move smoothly when there is no oil on the blades, requiring more power. Makes a loud sound. Problem The shaving sensor is operating. The sound changes depending on the beard thickness. The shaver makes a highpitched sound due to the linear motor drive. This does not indicate a problem. Action This can be improved by cleaning every time after shaving. You do not get as close a shave as before. Replace the system outer foil and/or inner blades. Expected life of system outer foil and inner blades: System outer foil: Approximately 1 year Inner blades: Approximately 2 years Apply oil. Confirm that the blades are properly attached. Clean the system outer foil with the brush. The odor is getting stronger. This can be improved by cleaning every time after shaving. Shavings fly out in all directions. This can be improved by cleaning every time after shaving. Clean the inner blades with the brush when shavings are adhering to the inner blades. Apply oil. System outer foil gets hot. Replace the system outer foil if it is damaged or deformed. (See page 19.)

Inner blades Special Detergent for Shaver Cleaning & Charging System WES9175 WES9170 WES4L03 Battery life

Note for the battery symbol (bottom symbol) This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

The life of the battery is 3 years. The battery in this shaver is not intended to be replaced by consumers. Have the battery replaced by an authorized service centre.

System outer foil and Replacement parts for inner blades System outer foil ES‑LV9N These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste. For proper treatment, recovery and recycling of old products and batteries, please take them to applicable collection points in accordance with your national legislation. By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment. For more information about collection and recycling, please contact your local municipality. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Replacement parts are available at your dealer or Service Centre. Disposal of Old Equipment and Batteries Only for European Union and countries with recycling systems FIN Replacement parts This shaver contains a Lithium‑ion battery. Please make sure that the battery is disposed of at an officially assigned location, if there is one in your country.

Please visit Panasonic web site http://www.panasonic.com or contact an authorized service centre (you find its contact address in the pan european guarantee leaflet.) if you need information or if the shaver or the cord gets damaged.

For environmental protection and recycling of materials

Disposal of the built-in rechargeable battery Remove the built-in rechargeable battery before disposing of the shaver. Please make sure that the battery is disposed of at an officially designated location if there is one. This figure must only be used when disposing of the shaver, and must not be used to repair it. If you dismantle the shaver yourself, it will no longer be waterproof, which may cause it to malfunction.

• •Remove the shaver from the AC adaptor.
• •Press the power switch to turn on the power and then keep the power on until the battery is completely discharged.
• •Perform steps 1 to 5 and lift the battery, and then remove it.
• •Take care not to short circuit the positive and negative terminals of the removed battery, and insulate the terminals by applying tape to them. Power source See the name plate on the AC adaptor. (Automatic voltage conversion) Motor voltage

3.6 V

Charging time Approx. 1 hour Airborne Acoustical Noise In shaving mode: 62 (dB (A) re 1 pW) In trimmer mode: 64 (dB (A) re 1 pW) This product is intended for household use only.

Mode Chargement (Chargement) FIN

WAARSCHUWING ►►Dit product

WES9034 WES9175 WES9170 WES4L03

Modo Secar/Cargar (Secar/Carga)

WES9034 WES9175 WES9170 WES4L03

Statuslampen lyser. under barbering: 62 (dB (A) re 1 pW) under trimning: 64 (dB (A) re 1 pW)

Barbeie previamente as barbas compridas

Lyden endres under barbering. Under barbering: 62 (dB (A) re 1 pW) Under trimming: 64 (dB (A) re 1 pW)

F EN, GE, FR, IT, DU, SP, DA, PT, NW, SW, FI, PL, CZ, SK, HU, RO Printed in Japan ES9700LV9N1E Y0116-0 2015/12/11 13:08:44
